Recent advance of carbon dots in bio-related applications

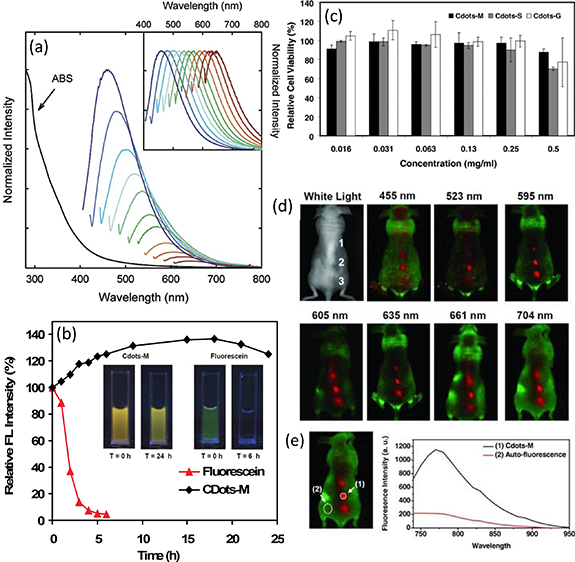

The PL QY of CDs with excitation dependent emission was greatly enhanced to ∼20% at 440 nm excitation by the surface passivation of PEG_1500N reported by Sun's group [15], which opened the door for practical applications, such as the bioimaging (figure 1(a)). This application in bioimaging was further demonstrated by the same group by the in vitro and in vivo experiment [35]. Comparing with typical quantum dots (CdSe/ZnS), CDs showed comparable optical performance, low cytotoxicity, and superior biocompatibility [36]. For example, the MCF-7 cell viability kept at ∼80% with 100 μg ml⁻¹ CDs solution treatment. No abnormity in major organs was observed on mice exposed up to 40 mg Kg⁻¹ body weight for 28 d. CDs prepared from carbon nanotubes by chemical oxidation route exhibited much better photostability than normal organic dye molecules (figure 1(b)) [37]. The in vitro cytotoxicity tests of these CDs on the human embryonic kidney (HEK) 293 T cell line showed no significant reduction in cell viability even at ultra-high concentrations up to 0.5 mg ml⁻¹ (figure 1(c)). Comparing to traditional dye, CDs have not only low cytotoxicity, but also excitation dependent emission that means the CDs can be excited by arbitrary wavelength. Although the emission intensity remains low in long-wavelength emissions, but the tissue autofluorescence background decreases as well at long-wavelength. Thus, the signal-to-noise ratio can be actually improved in the red and NIR excitation. The excitation dependent emissions allows for systematic investigation of CDs in in vivo bioimaging at different excitation wavelength ranging from 455 to 704 nm. A relatively high contrast was still clearly seen even excited at 704 nm (figure 1(d)). The in vivo biodistribution studies of CDs labeled by ¹²⁵I (¹²⁵I-CDs) indicated that preferable accumulation of CDs in the RES organs such as liver, kidney, and spleen after intravenous injection. The kidney uptake of CDs was relatively high at the early stage; suggesting CDs renal clearance. The great biocompatibility and easy excitation at long wavelength make them great candidates for bioimaging.

Zoom In Zoom Out Reset image size

In order to achieve high-resolution fluorescent bioimaging, both excitation and emission lights of CDs need to pass through the tissue. Therefore, the tissue penetration depth (TPD) is a critical factor for the fluorescent bioimaging. The NIR light (700–2500 nm) possesses higher TPD than visible light because the tissue scatters and absorbs less light at longer wavelengths [38, 39]. With deep tissue penetration goal in mind, developing methods to synthesize CDs with a longer wavelength and NIR emission has become a research focus in the field. Bhunia et al [40] reported the synthesis of blue, green, yellow and red emissive CDs from carbohydrates by thermal oxidation of concentrated H₃PO₄. A red emission at 600 nm of CDs with 7% PL QY was observed in the acidic solution when excited at 385 nm. However, the red emission was transferred to green emission in a neutral or basic solution. After functionalizing with PEG and TAT peptides or conjugated with folate targeting ligands, these functional CDs can effectively label the HeLa cells, indicated by fluorescent images. These cellular studies also demonstrated the low cytotoxicity of CDs at 200 μg ml⁻¹.

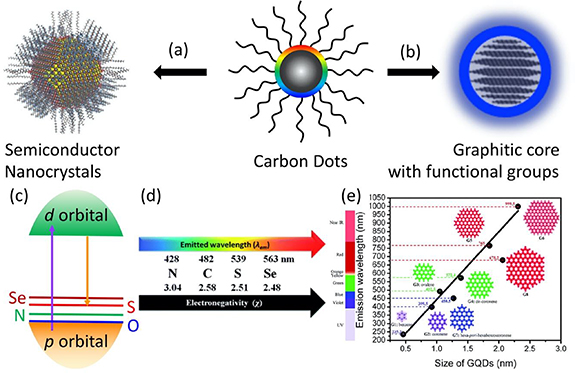

To achieve red and NIR emissive CDs, different routes have been developed according to the fluorescent mechanism. One route is treating CDs as a semiconductor nanoparticle, the bandgap of the semiconductor can be tuned by introducing heteroatom, which changes the valance band and/or conduction band position (figure 2(a)). Heteroatoms (B, N, O, P, S, Se and transition metal ions) have been employed to synthesize doped CDs with multiple color emission [41–47]. For examples, Yang et al [42] related the electronegativity of heteroatom to the emission wavelength of CDs where the lower electronegativity led to an increase in the valance band and a narrow bandgap (figures 2(b)–(c)). The narrow bandgap make the emission shift toward red. However, the concentration of dopant is another critical factor for the emission wavelength since the dopant can made the defect energy level into a deep energy level, Qu et al demonstrated that the green emission may be generated from high concentration Se doped CDs [48]. Another mechanism is treating CDs as nanoparticles with a graphite core and surface functional group shell (figure 2(b)) [49, 50], where the emissions of CDs can be regulated by changing the graphitization and functional groups. Chen's group simulated the fluorescence of CDs by treating CDs as conjugated molecules [51], where the effective conjugation length increases led to red shifts in emission peaks (figure 2(e)). On the other hand, the surface functional groups also caused red shift t in the emission of CDs. Citric acid as a common carbon source for CDs was extensively employed for the synthesis of CDs. Sun's group reported the emission of CDs prepared from citric acid and diethylenetriamine (DETA) in different solvents [52]. Furthermore, multiple color emissive CDs from blue to red were obtained by tuning the ratio of citric acid and urea in DMF and reaction temperature. The typical blue, green and red emitting CDs exhibit 52%, 35%, and 12%, respectively [53]. Rogach group also prepared the full spectrum emissive CDs from citric acid and urea in formamide by a two-step route [54]. In the above cases, the non-conjugated organic molecules were used for the carbon source. In 2015, Lin's group reported the blue, green and red emissive CDs from the phenylene diamine isomer [55]. After that, various conjugated molecules were introduced to synthesize red or NIR emissive CDs, such as e o-benzene diamine and dopamine [56–58]. The progress on the red and NIR emissive CDs greatly enhanced the bioimaging applications.

Zoom In Zoom Out Reset image size

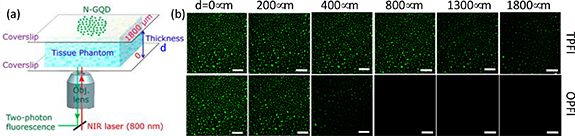

Photon up-conversion is a process in which the sequential absorption of two or more photons, leading to the light emissions at a shorter wavelength than the excitation wavelength. Up-conversion emission materials are ideal fluorescent agents for bioimaging because they can generate visible light emissions excited by TPD NIR light. CDs did not only exhibit down conversion emission but also showed up-conversion emission. Up-conversion bioimaging effective depresses the fluorescent background and provides a high contrast image. The CDs prepared from the top-down route and passivated by poly-(propionylethylenimine-co-ethylenimine) (PPEI-EI, with EI fraction ∼20%) can emit green light excited by argon ion laser (458 nm) and by femtosecond pulsed laser (800 nm) [19]. Furthermore, the human breast cancer MCF-7 cells were cultured and labeled both cell membrane and the cytoplasm with the passivated CDs. Beyond cell two-photon imaging, Kong et al [59] showed the 4'-(aminomethylphenyl) -2,2':6',2''-terpyridine (AE-TPY) modified CDs for two-photon imaging of living cells (A549) and living tissue at depth of 65–185 μm. Liu et al [60] modified the graphene oxide to generate N doped graphene quantum dots (N-GQDs) by hydrothermal treatment in the dimethylformamide (DMF). The two-photon absorption cross-section of N-GQD reaches 48 000 Göppert-Mayer units, which far surpasses that of the organic dyes and is comparable to that of the high-performance semiconductor QDs. They also demonstrated that the N-GQD can achieve a large TPD of 1800 μm (figure 3) which significantly extended the fundamental two-photon imaging depth limit. Jiang et al [55] prepared CDs from phenylene diamine isomers (o-, m- and p-), which exhibit green, blue and red emission. In addition, these CDs can generate yellow, green, and red emission excited by the laser of 800 nm. Lin's group [20] further developed NIR emissive CDs from glutathione formamide (3 wt%) solution, which can generate NIR emission (∼683 nm) by excitation of 850 nm. Lu et al [56] synthesized NIR CDs from dopamine and o-phenylenediamine by hydrothermal method. The two-photon luminescence spectra exhibit two peaks at 660 and 710 nm under 800 nm laser excitation. Those make the up-conversion emission shifted from green to red and even NIR. The above reports provided that the up-conversion emission under NIR-I windows (700–950 nm) excitation [61]. Li et al [21] demonstrated that the CDs prepared from citric acid and urea in DMF solution and modified with dimethyl sulfoxide (DMSO). Multiple-photon fluorescence is realized under the excitation of NIR-II windows (1100–1350 nm). The emission peaks at 654 and 766 nm are observed under the excitation laser of 1200 and 1400 nm. The progress in the optical properties make the CDs be a great candidate for potential fluorescent bioimaging agent and further turn into the practical application in the fluorescent imaging.

Zoom In Zoom Out Reset image size

MRI is a powerful, non-invasive imaging tool for diagnosis and post-therapy with great spatial resolution for in vivo imaging. The integration of MRI imaging and fluorescence imaging adds additional values of imaging quality by offering high sensitivity. Currently, there are three main types of MRI contrast agents, paramagnetic metal complexes, gadolinium (Gd) OR Mn complexes, nanoparticle-based T1 contrast agents, such as ultra-small iron oxide nanoparticles, Gd oxide nanoparticles, and Mn oxide nanoparticles. Integration of any type of MRI contrast agents with CDs will lead to bifunctional imaging agents.

In 2011, Srivastava and Gajbhiye [63] prepared the CDs from citric acid and L-lysine by calcination at 573–773 K. The as-prepared CDs exhibit an excitation dependent emission and maximum emission at 400 nm. To one's surprise, room-temperature magnetic studies revealed the ferromagnetic nature of CDs and the presence of an anti-ferromagnetic phase along with a ferromagnetic phase below 50 K. Although the magnetic properties are too weak to apply for MRI, it points out a new direction for the combination of optical and magnetic properties together. Furthermore, this group introduced citric acid iron oxides nanoparticles into the pyrolysis and carbonization reaction [64]. The iron oxide nanoparticles doped CDs composites (IO-CDs) were produced with both fluorescent and magnetic properties, which can be employed for magnetic resonance/fluorescence multimodal bioimaging. The cytotoxicity and cell imaging of IO-CDs demonstrated low cytotoxicity of these IO-CDs and good fluorescence imaging capability. In vivo magnetic resonance/fluorescence imaging also demonstrated that IO-CDs could be potential both T₁/T₂ contrast agents as well as an effective fluorescent biomarker. Zhou et al reported the Fe₃O₄@CD prepared from ferrocene in acetone with the presence of H₂O₂ by the solvothermal route [65, 66]. The 1D nanoparticle chain could be self-assembled under the magnetic field. In vitro experiment exhibited the Fe₃O₄@CD could be MRI (T₂ relaxation) and fluorescent dual-modal bioimaging agent.

Beyond the iron oxides, the transition metal ions doped CDs also exhibit both fluorescence and ferromagnetic properties. Ji et al [67] synthesized Mn doped CDs (Mn-CDs) from citric acid, urea, and MnCl₂ by the microwave-assisted route. The Mn-CDs displayed blue-green dual emission with changing the excitation wavelength from 340 to 460 nm. The r₁ relaxivity of Mn-CDs can reach 6.23 mM⁻¹ s⁻¹ which is comparable to the most Mn-based nanoparticles [68, 69]. That makes the Mn-CDs suitable for acting as an efficient T1 contrast agent. In vivo MR imaging discloses a clear image of brain glioma region after injection for 30 min and 2 h. Ex vivo optical images exhibit the accumulation of Mn-CDs in the brain glioma region. In the same issue, Rub Pakkath et al synthesized TM²⁺ (Mn²⁺, Fe²⁺, Co²⁺, and Ni²⁺) doped CDs from Lemon juice, EDA and TM acetate salt by similar microwave method [46]. These TM doped CDs showed the excitation-dependent emission with decent PL QY of 35%–75% and the maximum r₁ relaxivity of 0.34 mM⁻¹ s⁻¹ for Mn²⁺ doped CD. When 10 ml TM²⁺ doped CDs were injected into zebrafish, in vivo fluorescence, and magnetic resonance imaging confirmed TM doped CDs as suitable agents for T₁-weighted contrast with bright green emission at the administrable quantities.

Comparing with transition metals oxides and ions, gadolinium (III) based contrast agents are commonly used in the clinical diagnosis. In 2012, Bourlinos et al [70] firstly demonstrated the GD(III) doped CDs combined fluorescence with a strong MRI T1 contrast agent. The Gd-CDs exhibit that excitation-dependent emission with maximum emission at 440 nm under excitation of ∼360 nm. The Gd-CDs displayed comparable signal enhancement in T1-weighted images to commercial Gadovist. On the contrary, CDs showed no such enhancement. Chen et al [71, 72] directly calcined gadopentetic acid (Gd-DTPA) at 300 °C for 2 h in the air to form a layer of inert carbon-coated Gd@C, which afford not only a high r₁ relaxivity (5.88 mM⁻¹ s⁻¹) but also strong blue fluorescence with PL QY of 19.7% (figure 4(a)). Moreover, cRGD, a tumor-targeting peptide, was conjugated onto the Gd@CDs surface to obtain RGD-Gd@C. The inert carbon coating effectively prevents the leakage of Gd into the surrounding (figure 4(b)). The cytotoxicity of Gd-CDs was investigated in the presence of Ca(II) in the cell incubation media for the test of the particles' stability against transmetallation (figure 4(c)). There was no significant drop in cell viability for Gd@CDs concentration of 0–100 μg Gd ml⁻¹. On the contrary, the Gd-DTPA showed an IC50 of 33.1 μg ml⁻¹. In vivo MRI was carried out on the U87MG tumor-bearing mice. Strong contrast was observed in the bladder indicating that renal clearance of injected nanoparticles. After 4 h, signals in the normal tissues had receded to the normal level for both RGD-Gd@CDs and Gd@CDs injected animals. Meanwhile, there was a signal enhancement of 42.6 ± 0.08% in tumors of in animals injected with RGD-Gd@CDs compared to those injected with Gd@CDs (figure 4(d)). Harnessing the strong fluorescence of Gd@C-dots, we conducted immunofluorescent studies with the tumor tissues. Indeed, there was a good correlation between RGD-Gd@CDs and positive integrin β₃ staining (figure 4(e)), confirming that the tumor retention was mainly mediated by RGD-integrin interaction. Afterward, various methods are developed for the preparation of Gd-CDs. Such as, hydrothermal route [73–76]. Shi et al [77] developed a post-modification route to modified the CDs with DTPA and form the Gd complexes with surface DTPA groups. Recently, Chen et al [78] reported the Gd@CDs prepared from p-phenylenediamine and Gd(NO₃)₃ in ethanol by hydrothermal route. The as-prepared Gd-CDs show strong emission at 570 nm, good Gd encapsulation (37.6%) and high r₁ relaxivity (16 mM⁻¹ s⁻¹, 7 T). Those lead to high PTD for fluorescent imaging and high contrast for MRI.

Zoom In Zoom Out Reset image size

Beyond Gd doped CDs, Wang's group [79, 80] developed a new type of Gd based contrast agent Gd@C82, which exhibits a stronger MRI contrast than commercial Magnevist. The r₁ relaxivities of Gd@C82 in water are 47 and 27 mM⁻¹ s⁻¹ at 0.5 T and 7.1 T, respectively. The corresponding r₁ relaxivities of Magnevist are 4.5 and 3.5 mM⁻¹ s⁻¹ at 0.5 T and 7.1 T, respectively. After functionalization with the hydroxyl/amine group, Gd@C82 can emit blue light under UV excitation. Further, this group functionalized Gd@C82 with red emissive CDs and PEG and realize the bimodal imaging and photodynamic therapy. Wang et al [81] synthesized Gd₂O₃ nanoparticles and self-assembly with graphene quantum dots to obtain two-photon emission and MRI dual-modal bioimaging agents. Wang and Zhang et al [82] prepared B doped CDs as another new type of T1 contrast agent for MRI. Although the magnetization value of B-CDs is lower than that of Gd-based agents, it is a metal-free graphene-based material, which opens a new avenue to realize dual-modal bioimaging.

Besides the MRI/FI dual-modal imaging, computed tomography (CT) is another common bioimaging technique in the clinical diagnosis. Zhang et al synthesized Iodine (I) doped CDs (I-CDs) from iodixanol and glycine [83] or citric acid [84] by hydrothermal route at 180 °C for 3 h. The aqueous I-CDs solution exhibited excitation-dependent and stable emissions with a maximum at 475 nm. I-doped CDs further displayed superior X-ray attenuation properties and excellent biocompatibility in vitro. After intravenous injection, I-doped CDs were distributed throughout the body datable by X-ray CT imaging and excreted by renal clearance. Gd/Yb@CDs were synthesized from Na₂EDTA, GdCl₃, YbCl₃, and L-arginine by hydrothermal method [85]. Gd/Yb@CDs exhibited blue emission, and higher longitudinal relaxivity (r₁ = 6.65 mM⁻¹ s⁻¹) and excellent X-ray absorption performance (45.43 HU l g⁻¹). This system is a great example of achieving multimodal imaging by a simple nanoparticle system. Bao et al [86] modified S-doped CDs with Cu²⁺ and PEG-SH to obtain the PEG-CuCDs, which exhibited blue emission and high photothermal efficiency of 41.3%. The PEG-CuCDs could be an agent for FI, photothermal imaging, and photoacoustic imaging. Sun et al [87] conjugated Ce6 (Chlorin e6) onto the red emissive amino rich CDs to form Ce6-RCD, which exhibited red emission at ∼640 nm and photothermal conversion efficiency of 46% with 671 nm laser irradiation. The Ce6-RCD could be a multimodal bioimaging agent for FI, PT, and PA. Also, they (PEG-CuCDs and Ce6-RCDs) can be employed for photothermal and photodynamic therapy agents.

Compared to other types of fluorescence probes, one of the key advantage of the CDs is the ability of naturally carrying part of the functionality of original molecules for the synthesis. It is a great advantage, because it allows for direct targeting or conjugation with other functions without the needs of chemical functionalization.

Targeting function is an effective way of increasing accuracy and validity for the diagnosis of tumor cells. When CDs is used as a fluorescent bioimaging agent, it has no selectivity and marks many kinds of cells. At the point of diagnosis, it is highly expected to stain the specific cell such as tumor cells. Thus, targeting function needs to be endowed onto fluorescent CDs to selectively label the specific cells [89]. Table 1 briefly summarized the fluorescent CDs linked with targeting units. Li et al [90] synthesized transferrin modified CDs-PEGNH₂ (Tf-CDs) through bioconjugation reaction. HeLa cell line was employed for the in vitro imaging to evaluate the cellular uptake and targeting. Tf, a serum glycoprotein (80 kDa), has been known for its ability in targeting cancer cells due to the overexpression of Tf receptors on cancer cell membranes [91]. Tf conjugated CDs and CDs with the equivalent concentrations were added into the HeLa cells culture solution. After 2 h of incubation, HeLa cells were shown to internalize the Tf-CDs much more efficiency than non-Tf-conjugated CDs. When the cells were pretreated with free Tf and then cultured with Tf-CDs, the pretreatment of cells with free Tf cause a sharp decrease in the targeting efficiency for Tf-CDs, suggesting saturation of Tf receptors with free Tf. These strongly prove a Tf-receptor-mediated cellular uptake of the TF-CDs. Folate receptor (FR) is well known to be upregulated in a variety of human cancerous cells [92]. Folic acid (FA) is an ideal ligand for the specific FR detection, drug delivery, and cancer targeting because it is readily internalized into the cell through FR mediated endocytosis with non-immunogenicity. Song et al [88] prepared the amine-terminated CDs from glucose and 4,7,10-trioxa-1,13-tridecanediamine by microwave method. And then CDs-FA was obtained by modifying the CDs with FA through bioconjugation reaction (figure 5). The mixture of NIH-3T3 and HeLa cells as normal and cancerous cells were co-cultured in the dish with a CDs-FA solution. Here, NIH-3T3 cells are relatively large, fibroblastic appearance and lacking FR, whereas HeLa cells are smaller, near round morphology and overexpress FR. After incubating for 6 h, HeLa cells produced bright fluorescence, whereas NIH-3T3 cells do not, indicating that CDs-FA is suitable for the discrimination of FR-positive cancerous cells from the normal cells. (Figure 5(c)) Green emissive CDs were prepared from glucose and poly(acrylate sodium) and then modified with FA by reflux reaction [93–97]. The as-prepared CDs exhibit green emission and targeting on the cancerous cells. Aptamers are small oligonucleotides that are selected to bind tightly and specifically to a target molecule [98]. Small molecules like aptamers targeting tenascin C (Tnc), nucleolin, and Muc1 proteins have been successfully conjugated with various nanoparticles due to their advantages such as high binding affinity to targets, short residual time in the blood, low immune reaction and easy processing in production against antibodies [99]. Lee et al [100] developed a thiol-terminated C-Dots from glycerol (SH-CDs) conjugated with a maleimide-terminated TTA1 (mal-Tnc) aptamer targeting Tnc proteins. The aptamer conjugated SH-CDs showed a great specificity for targeting glioma and cervical cancer cells. Aptamer possesses biological and chemical advantages like the absence of immune risk, ease of production and high binding affinity to targets [101, 102]. That is another potential way to develop targeting fluorescent agent. Recently, Gao's group has reported a series of results on the construction of fluorescent CDs with targeting function. Blue emissive CDs were prepared from silk by the hydrothermal method and modified by PEGylation [103]. In vitro cellular uptake study demonstrated that both CNP and PEG-CNP showed higher uptake intensity by H9c2 cells (a heart cell line) than that by human umbilical vein endothelial cells. In vivo results demonstrated that CNP could target the heart, in which the fluorescent intensity was much higher than that in other organs, even liver, and spleen. Furthermore, Green emissive CDs prepared from glucose and glutamic acid by the pyrolysis route [104]. Angiopep-2 is one such ligand whose receptor is low-density lipoprotein receptor-related protein-1 (LRP1) that is overexpressed in glioma cells [105]. After PEGylation, PEG-CDs was modified by angiopep-2 to form An-PEG-CDs. The serum stability experiments indicate that An-PEG-CDs have similar stability as PEG-CDs due to PEGylation significantly improved their stability (figures 6(a)–(c)) [104]. Hemocompatibility was carried out using fresh 2% blood red cells (figures 6(d)–(f)). After 12 h incubation, the hemolysis rates of PEG-CDs and An-PEG-CDs were approximately 14%, which was almost the same compared to PBS, suggesting that PEG-CDs and An-PEG-CDs could not induce hemolysis. The endosomes colocalization assay showed relatively high colocalization of An-PEG-CDs with endosomes after 1 h incubation (figure 6(g)), while the colocalization was considerably decreased after 4 h incubation and most of An-PEG-CDs were located in cytoplasm rather than endosomes, suggesting that enhanced cellular uptake of An-PEG-CDs was mediated by endosomes (figure 6(g)). After i.v. injected into mice through tail while the intensity of mice injected with An-PEG-CDs was much higher than that of PEG-CDs group suggesting that modification of angiopep-2 could improve the glioma targeting effect of PEG-CDs (figures 6(h) and (i)) [104].

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

CDs can be easily conjugated with targeting molecules for specific localization. For example, cyclic Arginyl-Glycyl-Aspartic acid (cRGD) peptides modified CDs showed effective accumulation on membrane surface and cytoplasm of tumor cells [106, 107] . It is well known that cRGD specifically targets the integrin receptors which overexpress on the tumor cells while RGD recognize cell surface receptor integrin αvβ₃ of all cells [108]. Cholera toxin B (CTB), a non-toxic, cell binding moiety of cholera toxin, is a highly sensitive retrograde neural tracer since it can bind to the GM1 ganglioside of the nerve cell membrane and nervous tissue with abundant gangliosides. Zhou et al [109] developed a novel fluorescent neural tracer: CTB conjugated CDs (CTB-CDs), which were taken up and retrogradely transported by neurons in the peripheral nervous system of the rat companying with high photoluminescent intensity, good optical stability, and non-toxicity. Hyaluronic acid (HA) was used for the functionalization of nitrogen-doped carbon quantum dots (HA-CQDs) that provide robust fluorescent dots for use in confocal microscopy and flow cytometry. The results proved that HA-CQDs can be used as a new biocompatible cell-specific targeting probe for imaging of CD44 receptor-over expressed in cancer cells [110–112]. Besides targeting the specific cells, high selectivity on the organelle is another way to achieve the targeting function. Wang et al [113] have selected the triphenyl phosphonium (TPP) head groups as the targeting moiety to deliver the fluorophore to mitochondria, where these lipophilic cations can selectively accumulate in the organelle due to the large membrane potential gradient [114]. The TPP was chemically linked with fluorescent CDs, which results in the TPP-CDs has higher accumulation on the mitochondria than the non-conjugated CDs. Laurylamine functionalized CDs (L-CDs) are obtained via the conjugation of laurylamine with CDs prepared from citric acid and urea [115]. The as-prepared L-CDs provide clear and bright imaging results for lysosome and endoplasmic reticulum, respectively.

The targeting function can be added by modifying the CDs with the molecules with targeting function through one or multiple steps of the chemical reaction. Thus, the one-step route was developed by adding the targeting molecules into the CDs preparation reaction. Sharker et al [116] synthesized HA-CDs from HA dehydrated and carbonized by concentrated H₂SO₄ with ∼1.5 min. HA was partially carbonized to form CDs core and with HA surface groups. In vitro and in vivo results displayed higher fluorescent intensity was observed in the cancerous cells (MDAB and A549 cells) than that in the normal cells (MDCK cells), due to the overexpression of the CD44 receptor on the surface of the MDAMB and A-549 cells. HA sodium salt can be directly carbonized to form CDs with fluorescence and targeting properties by hydrothermal route [117]. Chondroitin sulfate (CS) is an anionic linear chain attached to specific scaffolds, forming a major extracellular matrix on the cell surface. Wang et al produced the excitation-dependent emission CDs from CS, which exhibit high uptaking of SAS cells [118]. FA and tris(hydroxymethyl)amino methane are heated to form FR targeting CDs (FR-CDs) with PL QY of 77% and super photo and thermal stability [119]. With the presence of free FA, PL intensity of FR-CDs inside the SKOV3 cells decreased over 85% indicating that the uptake of FR-CDs effectively depressed by free FA. FR-CDs are also internalized into cells through the FR associating cellular uptake mechanism.

It is easy to understand the targeting function originated from the known targeting molecules because the targeting molecules are partially carbonized to form fluorescent CD with targeting molecules as surface functional groups. However, it is reported that non-targeting molecules can be used for constructing the targeting CDs as well. Zheng et al [120] proposed the concept of self-targeting CDs from L-aspartic acid and D-glucose. The as-prepared CD-Asp exhibits not only excellent fluorescent properties and good biocompatibility but also exhibit free penetration through the blood-brain barrier (BBB) and targeting the brain glioma tissue. Comparing with the normal cells (L929 cell line), the CDs-Asp exhibits high up-taking for the C6 cells. After injection from the tail vein, the CDs-Asp rapidly accumulated to the glioma tissue within 15 min (figure 7). They proposed targeting function may originate from the RGD-like functional groups on the surface of CDs, which were from L-aspartic acid and glucose during the carbonization process. That provides a simple way to achieve high contrast fluorescent imaging agents. Similar works are summarized in the table 2. Qian et al synthesized the CDs from glutamic acid and glucose by the thermolysis route [122]. As-prepared CDs possess good serum stability and hemocompatibility with low cytotoxicity. In vitro results indicated that the CDs could be efficiently taken up by bEnd.3 cells in a concentration- and time-dependent manner. In vivo results showed that it could be used for noninvasive brain imaging due to its high accumulation in the brain region, which was demonstrated by in vivo imaging and ex vivo tissue imaging. They also found the CDs from the pyrolysis of glycine, which also has fluorescent emission properties and targeting the C6 glioma cells [121]. Wang et al [123] synthesized polymer-coated N doped CDs (pN-CDs) from N-methyl-2-pyrrolidone. The pN-CDs exhibited typical excitation-dependent emission with a maximum at 420 nm. In vitro and in vivo results indicated that the U251 glioma cells exhibit extra high cellular uptake implying that pN-CDs could be potential self-targeting CDs. However, the exact chemical composition and targeting receptor on the glioma remain unclear. Si modified CDs can be prepared from 3-aminopropyl)tri-methoxysilane (APTMS) and glycerol by hydrothermal route [170]. The excellent optical properties such as excitation-dependent emission, photostability and biocompatibility are observed in the Si-CDs. Beyond that, the selective stain of mitochondria was demonstrated in various cancerous cells. However, the normal cellular uptake remains relatively low level. The modification results in a positive zeta-potential for Si-CDs, mitochondria exhibit a large membrane potential of up to −180 mV, leading the accumulation of cationic species. Recently, m-phenylenediamine and L-cysteine were employed as a carbon and nitrogen source for N-CDs which exhibit unique selectivity on the nucleus of cells [171]. High contrast nucleolus fluorescent imaging can be reached by as-prepared N-CDs.

Zoom In Zoom Out Reset image size

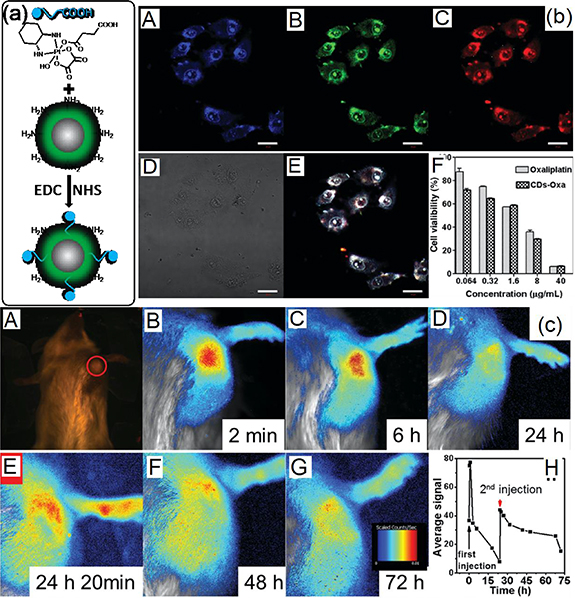

Many methods have been applied to treat tumors, such as surgical operation, chemotherapy, radiation therapy, immunotherapy, targeted therapy and so on. (www.cancer.gov/about-cancer/treatment/types). Chemotherapy can be used to treat cancer, lessen the chance of recurrence, stop or slow its growth. These types of chemotherapeutic drugs have been developed: alkylating agents, plant alkaloids, antitumor antibiotics, antimetabolites, topoisomerase inhibitors, and miscellaneous anti-neoplastic. For example, platin salts (carboplatin, oxaliplatin, and cisplatin); vinca alkaloids, anthracyclines (doxorubicin, DOX), the folic acid antagonist (Methotrexate, MX) and others. It is helpful to understand the metabolic pathway and quantity monitor of medicine by combining chemotherapeutic medicine with fluorescent bioimaging agents. That will give much more information to the physician for making the decision on how much and how long chemotherapy is given and chemotherapy resistance. Table 3 exhibits the recent progress on the fluorescent CD with therapeutic function. In 2014, Zheng et al [124] firstly modified oxaliplatin by succinic anhydride to produce Oxa-COOH according to the literature. And then Oxa-COOH was conjugated on the amine terminal CDs surface to achieve CD-Oxa nanomedicine (figure 8). In vitro MTT assay indicated that the cytotoxicity of CD-Oxa and oxaliplatin is close (half maximal inhibitory concentration, IC₅₀ = 3.4 μg ml⁻¹). After incubation with CD-Oxa for 1 h, HeLa cells can be directly imaged by confocal fluorescence microscopy. Direct injection of CD-Oxa into the tumor site of KM mice. PL emission from the injected CD-Oxa could be readily detected under the blue light excitation. The Intensity of PL emission strongly related to the concentration of the CD-Oxa. Thus, the second injection time and quantity can be estimated by the PL intensity. That is beneficial to avoid the side effects of excess medicine. At the same time, the tumor volume decreased by extending the treatment time.

Zoom In Zoom Out Reset image size

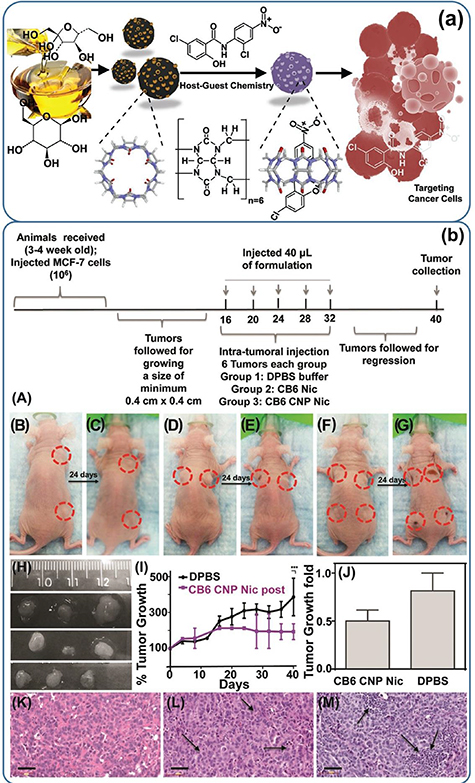

However, CDs based drug nanocarrier can easily get rid of the body to lower their therapeutic effect due to their small size and surface properties. Normally, PEGylation or negatively charged drug carriers can extend blood circulation time PEGylation serves as a stealthy layer to prevent the drug carriers from rapid clearance by the immune system [172] and negatively charged property can withstand protein adsorption originated from electrostatic repulsion [173]. However, PEGylation can also impede the uptake of drug carriers by cancer cells, and negatively charged drug carriers cannot easily enter into cancer cells due to electrostatic repulsion with the negatively charged cell membrane, resulting in decreased therapeutic efficiency [174]. To provide CDs-Pt(IV) with charge-convertible property in mildly acidic tumor extracellular microenvironment, Feng et al designed and synthesized dimethyl maleic acid (DMMA) and PEG functionalized poly(allylamine) (PEG-(PAH/DMMA)) [125]. In the weak acid tumor microenvironment, CDs-Pt(IV)@PEG-(PAH/DMMA) can change from negative charge at normal physiological condition (pH 7.4) to positive one at tumor extracellular microenvironment (pH 6.8). Thus, it exhibited higher cytotoxicity to the tumor cells than the normal cell. Besides that, CDs-Pt (IV)@PEG-(PAH/DMMA) also displays multicolor bioimaging prolonged circulation time in blood, effective accumulation at the tumor site, enhanced internalization by cancer cells, facilitated endosome escape and controlled intracellular drug release. That greatly promotes the practical application of CD-based drug nanocarrier. Wang et al [126] synthesized fluorescent CDs from glucose by the hydrothermal route and encapsulated by poly(ethylene glycol) dimethacrylate and chitosan to form PEG-Chitosan@CDs hybrid nanogel. DOX was loaded into the PEG-Chitosan@CDs through the intermolecular interactions (hydrogen bonding and/or π-π stacking). The PEG-Chitosan@CDs hybrid nanogel exhibits two-photon fluorescence and NIR photothermal/pH sensitive volume phase transition to regulate the DOX release. The hybrid nanogels enable combined chemo-photothermal treatment to provide a high therapeutic efficacy due to their highly synergistic effect. The blue, green, and red emissive CDs were prepared from sugar and ascorbic acid by hydrothermal reaction. DOX can also directly loaded on the surface of CDs for localized cancer therapy by simply mixing these CDs and DOX [127, 128]. DOX can be released in the tumor acid microenvironment [129, 130]. Chemotherapeutic DNA-modifying cisplatin and topoisomerase II-inhibiting DOX were conjugated on the full-color emissive CDs via a pH sensitive hydrazone bond [131]. Cisplatin prodrug was activated to cytotoxic cisplatin under intracellular reductive microenvironment and the hydrazine bond wad hydrolyzed to release DOX in the intracellular weakly acidic condition. This combination offer a promising fluorescent CD-based co-adminstration for combat cisplatin resistance in the cancer treatment. Amine capped CDs were modified digitonin and then conjugated with MX. In vitro results indicates that enhanced cytotoxicity is observed in the CDMX [175]. Niclosamide (Nic) is an FDA-approved anthelminthic drug that has been acknowledged to demonstrate anti-neoplastic properties via the active inhibition of multiple pathways modulated in cancer stem cells [176]. Ostadhossein et al [132] designed a host-guest system to load the hydrophobic drug into cucurbituril (CB) which is a macrocyclic cavitand compound with hydrophilic surface and hydrophobic cavity (figure 9). Hydrophobic Nic can be encapsulated inside of CB to form complexes, which chemically bonded on the CDs surface. The coculture of MCF-7 cells (human breast cancer cell) with various combinations reveals that CDs, CB6, and CB6-CDs did not induce any cytotoxic effect after 48 h of incubation. IC₅₀ of Nic, CB6-Nic, and Nic-CB6-CDs are ∼45, 28, and 21 μM, respectively. The anti-tumor capability of Nic was verified in vivo in a xenograft generated from MCF-7 cells in athymic nude mice. 40 μl of PBS, CB6-Nic and Nic-CB6-CDs solution were intratumorally injected into the different tumors. The tumor growth could be depressed using CB6-Nic and CDs-CB6-Nic cases. The nanocarriers equipped with defined functionality for tailored interaction through 'host-guest chemistry', and biodegradable properties can ferry poorly soluble agents to selectively target cancer cells with stem-like properties and controllably release their payload in response to the environment, thus resulting in an improved antitumor activity in vivo. Pei et al [133] linked the β-cyclodextrin (β-CD) on the CDs to form β-CD-CDs, which further DOX can be loaded via host-guest complexation. The DOX -loading capacity can reach 39.5% and release in the weakly acidic tumor microenvironment. To deliver the water-insoluble drug and monitor the release process, Zhai et al [177] added CDs and ketoprofen into the polyvinylpyrrolidone (PVP) and electrospun to form the nanofibers. The release amount and rate of drug and CDs will keep the dependence on the concentration encapsulated in the PVP nanofibers.

Zoom In Zoom Out Reset image size

Cancer immunotherapy can not only initiate immune cells to systematically target and kill specific tumor cells with no harm to normal tissues but can also make immune cells memorize tumor antigens to avoid recurrence, which other traditional or emerging therapies cannot achieve. Dendritic cells (DCs) play a vital role in cancer immunotherapy since they specialize in recognizing and processing antigens. After that, activated mature DCs will migrate to the lymph nodes and present a combination of the antigen peptide and the major histocompatibility complex (MHC) molecule to activate T cells which can target tumor cells expressing this antigen and then induce effective cytotoxic T cell (CTL) responses. Luo et al synthesized the nanocomposite of uniform-sized CDs and tumor model antigen protein ovalbumin (OVA), which could efficiently stimulate the maturation of DCs and corresponding T cell proliferation [178]. This method developed an original CD-based vaccine and may open the door to the exploitation of CDs in cancer immunotherapy.

5.2.1. Fluorescent CDs conjugated photodynamic therapeutic (PDT) agent

Recently, photo-therapy has been developed such as photodynamic is that the reactive oxygen species (ROS) including singlet O₂ or free radicals can be produced to kill the tumor cells by photosensitizer under the photoirradiation. Another is the photothermal therapy, which converts light energy to thermal energy to make the temperature overpass the survival limit of the cell. The biggest advantage is that the effective area of therapy is limited within the light irradiation area. It does not affect outside of light irradiation even in the presence of the medicine. Green emissive CDs was combined with chlorin e6 (Ce6) together by conjugation to form the nanomedicine [134, 135]. Ce6 as a typical photosensitizer can generate ROS under light irradiation and emit red light under green light excitation. In this combination, the emission of Ce6 is enhanced by Forster resonance energy transfer (FRET) from CDs, which is beneficial to the contrast of the NIR bioimaging. On the other hand, CDs enhanced the tumor-homing ability based on the enhanced permeability and retention (EPR) effect, which improved the therapeutic efficiency. Besides, CDs helped to improve the stability, water solubility and lower the toxicity. Porphyrin is one of the photosensitizers used for photodynamic therapy (PDT). Wang et al [136] linked the 5, 10, 15, 20-tetrakis(1-methyl 4-pyridino) porphyrins (TMPyP) to CDs to form CDs-TMPyP by electrostatic force. The emission band of CDs was overlapped with the absorption of TMPyP so that the FRET happens between CDs and TMPyP. CDs Can realize the two-photon bioimaging, the more important CDs have a high two-photon absorption cross-section, which promotes the two-photon photodynamic therapy of TMPyP. Li et al [137] used the mixture of porphyrin and chitosan to prepare the porphyrin-based CDs by a single-step hydrothermal method, which exhibits blue emission and photodynamic effect. Markovic et al [138] demonstrate the CDs produced from graphite by electrochemical oxidation not only exhibited the green emissive fluorescence but also the generated ROS to kill the U251 human glioma cells under the irradiation of 470 nm laser. This result settled the foundation on the CD used as a photodynamic agent. Furthermore, they also demonstrate CDs can be used for photodynamic anti-bacterial effect [139]. Hsu et al [179] demonstrated that the CDs prepared from green tea with high-temperature treatment exhibited excitation-wavelength and the high inhibition efficiency of the growth of cancer cells (MCF-7 and MDA-MB-231) and low toxicity to the normal cells (MCF-10A) they found the H₂O₂ can be generated with the presence of CDs in the tumor cell. It did not happen in the normal cells and catechin cases. Catechin is the main component of green tea. They did not disclose the generation mechanism of H₂O₂.

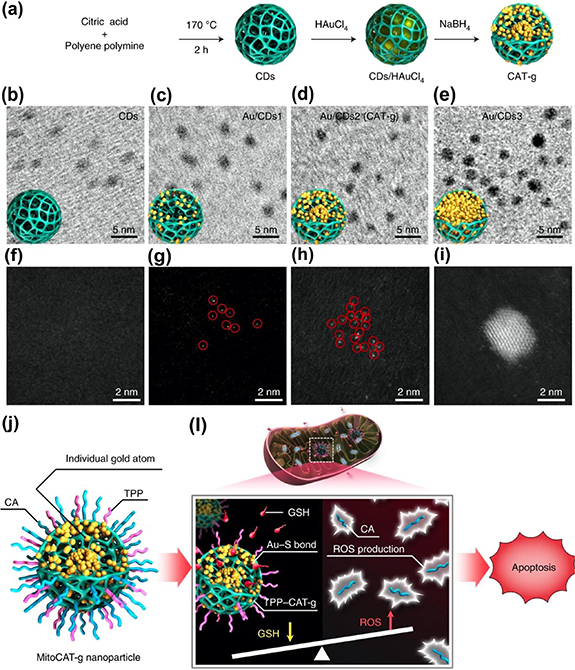

Ge et al [140] started from polythiophene to prepare the deep-red emissive CDs by hydrothermal route. The as-prepared CDs exhibit a broad absorption and emission at 680 nm. The electron spin resonance (ESR) signal identified the ROS generation by CDs under irradiation. In vitro experiments displayed the HeLa cells can be stained by CDs and showed strong red fluorescence. The photodynamic activity was demonstrated by monitoring the morphology variation of HeLa cells in the presence of CDs under laser irradiation. Figure 10 showed the in vivo imaging after injecting the CDs solution into the back of nude mice. The injection site displayed a much higher fluorescence intensity than the background signal from the mice. The PDT therapy effect is shown in figure 10. The tumor volume dramatically decreased after 10 d of treatment. However, the tumor volume kept increasing in the cases of only CDs and only light. Individual CDs nanoparticles have a small size so that they easily transport in and excrete out of the body. That results in a short EPR time in the body and lowers the therapy efficiency. Making the particles with ∼100 nm in size and tuning the surface charge will enhance the EPR time in the body. Jia et al [141] prepared the CDs nanosphere with a size of ∼100 nm through the ionic self-assembly with positive charge CD and negative charge sodium dodecyl benzene sulfonate (SDBS). Further, the CDs spheres were passivated with HOOC-PEG-NH₂ to reduce in vivo cytotoxicity and increase blood circulation time. Besides that, the CDs nanospheres make the adsorption and emission shift toward the red due to the formation of aggregates. These are beneficial to the circulation and fluorescent imaging of CDs. As known, the tumor environment is hypoxia, which limits the generation of ¹O₂ and lowers the photodynamic efficiency. On the other hand, the tumor microenvironment is acidic (pH = 6.5–6.9) and high H₂O₂ concentration (0.5 nmol/10⁴ cells h⁻¹). To solve the hypoxia problem, Wang's group [142] constructed the CDs/MnO₂, MnO₂ can not only be reduced into Mn(II) by acidic H₂O₂ as an T1 contrast agent for MRI but also generate oxygen within tumor to enhance the PDT efficiency. Magnetofluorescent Mn-CDs were prepared from Mn(II) phthalocyanine [143] and metal porphyrin [144–146]. After cooperative self-assembly with DSPE-PEG, the Mn-CDs aggregates can be used for bimodal contrast agent for MRI and fluorescence imaging agent. More interestingly, the Mn-CDs aggregates can not only effectively produce ¹O₂ (quantum yield of 0.40) but also highly catalyze H₂O₂ to generate oxygen. Nucleic acids are macromolecules that store genetic information and enable protein production, which are composed of phosphate, sugar and nitrogenous base. Thus, the nucleic acid can be used as precursor for fluorescent CDs. Zheng et al [147] developed high fluorescent CDs (PL QY of 12.4%) with excellent photostability which is 91.9% under continuous UV excitation for 30 min from deoxyadenosine monophosphate. And the same time, the CDs exhibited promising singlet oxygen generation with quantum yield of 1.20, which is higher than that of conventional photosensitizer Rose Bengal (0.75). Liu et al [148] used the chlorophyll extracted from spinach as precursor to synthesize NIR emissive CDs by thermolysis. The as-prepared CDs were further bound to the Cu²⁺ to form quenched fluorescence Cu-CDs complexes, which can be used as a fluorescence nanoprobe and highly efficient photosensitizer for in vivo NIR fluorescent imaging of biothiol and dual-enhanced PDT of tumor.

Zoom In Zoom Out Reset image size

5.2.2. Fluorescent CDs conjugated with photothermal therapeutic (PTT) agent

Photothermal therapy (PTT) is another effective strategy to disrupt tumors, therefore, integration of CDs with photothermal agents leads to excellent theragnostic agents. For example, WS₂ has been demonstrated as a potential PTT agent [181]. Nandi et al [149] attached a gemini-glucose surfactants on the amine capped WS₂ nanorods surface. After converting the surfactant into CDs, a theragnostic agent system was generated, where CDs provided the capability of fluorescent imaging and WS₂ exhibited NIR photothermal behaviors. Gold nanorods also exhibit excellent photothermal behaviors with the potential of serving as PTT and photoacoustic (PA) agent. Jia et al [150] constructed a photo theragnostic agent based on gold nanorod@SiO₂-CDs by introducing a thin layer of SiO₂ between Au nanorods and CDs (figure 11). The SiO₂ layer has two functions: improving the stability of the Au nanorods and avoiding the fluorescence quenching of CDs. This novel Au NR@SiO₂-CDs photo theragnostic agent showed high sensitivity and good spatial resolution of FL/PA imaging to guide the PDT/PTT treatment through i.v. administration. The PDT and PTT were demonstrated to kill cancer cells under relatively low dose of laser irradiation (<0.5 W cm⁻²). Ge et al [151] reported red emissive CDs from the polythiophene benzoic acid (PBA) as carbon source. Besides the fluorescent emission at 640 nm with PL QY of 3.5%, these CDs also displayed ROS (¹O₂) generation under 635 nm laser irradiation. The efficiency of ¹O₂ generation was about 0.27. In addition, these CDs exhibited tunable photothermal effects. The temperature of the aqueous solution of CDs increased from 7.2 °C (20 μg ml⁻¹) to 30.2 °C (200 μg ml⁻¹) under 2 W cm⁻¹ of 635 nm laser irradiation. The photothermal conversion efficiency reached to 36.2%. The as-prepared CDs enriched in the nuclei of the cells, making them great biomarkers for the nuclei. In vivo and in vitro results indicated that CDs worked as a red-light-trigger cancer theragnostic agent with imaging-guided PDT/PTT. Lan et al [152] raised the photothermal efficiency to 58% by synthesizing S, Se co doped CDs, which exhibited a broad absorption at 526 nm. Moreover, the CDs had a large two-photon absorption cross section (∼30 045 GM), which allowed NIR emissions and the photothermal conversion of the CDs through the two-photon excitation (TPE) mechanism. Permatasari et al [153] demonstrated CDs with the photothermal conversion efficiency of 54.2% prepared from CA and urea. They found the new NIR absorption peaks is resulted in an increasing amount of pyrrolic N. That is the reason why high photothermal efficiency can be achieved. Although the above reports reported various CDs with high photothermal conversion efficiency (>50%), the visible light are employed as the excited laser in the most cases, which limits the practical application due to low tissue penetration depth of visible light. Sun et al [154] synthesized red emissive CDs from citric acid in formamide with microwave method. The CDs exhibited the emission at 640 nm with a decent PL QY of 22.9%, low toxicity, two-photon excited fluorescent and high photothermal conversion efficiency of 43.9% under irradiation of 671 nm laser. They prepared red emissive CDs from CA and PEI in the formamide and conjugated with Ce6 as a photosensitizer [87]. The Ce6-CDs complexes showed synergetic PTT and PDT effect under a single NIR laser (671 nm) source. The photothermal conversion efficiency reach 46%. In addition, the Ce6-CDs also exhibited fluorescent, photoacoustic and photothermal imaging properties. A single complexes achieves multimodal imaging and multitherapy. Li et al [155, 156] found that the yellow CDs from CA and urea can aggregate and form blue supra-CDs in the high humidity environment (RH > 60%). This blue supra-CDs exhibited a broad absorption peak in the NIR region which is responsible to the high photothermal conversion efficiency 52%) under 732 nm laser of 0.5 W cm⁻². Li et al [157] showed the CDs from the biomass-watermelon, which showed the NIR II imaging and photothermal conversion efficiency of 30.6% triggered by laser of 808 nm. It is well known that the d orbits of Cu(II) can split under the ligand field with specific geometry, generating higher degenerate e.g. orbits and lower degenerate t_2g orbits [182]. The splitting energy, energy gap between e.g. and t_2g, may match the energy of NIR region when proper ligand field is formed. In various coordination modes of Cu(II), the N-Cu-N coordination is one kind of coordination mode that can lead to NIR absorption of Cu(II) nanomaterials. Guo et al [158] prepared Cu, N-CDs from EDTA.2Na and CuCl₂ by hydrothermal route. A broad absorption band was observed over 500–900 nm corresponding to the d_z² → d²²_x-y transition of square-planar Cu(II) complexes. Cu, N-CDs exhibit both fluorescent imaging and synergistic PTT and PDT effect under NIR laser (808 nm) irradiation. To achieve high photothermal efficiency, Bao et al [86] introduced the Cu ions into S doped CDs and obtained CuCDs nanosheets. The CuCDs nanosheets exhibit high photothermal efficiency of 41.3%. The CuCDs were further coated with PEG-SH and fluorescent molecules to achieve multimodal (photoacoustic, photothermal and fluorescent) imaging guided cancer therapy. The CuCDs nanosheets exhibited laser-triggered cytosolic delivery, lysosomal escape and nuclear-targeting nature. To enhance the cellular uptake or the EPR, Hou et al [183] conjugated the carboxylate CDs with PLGA-b-PEG-NH₂ through the bioconjugation. The CDs modified block copolymer can further self-assembly into micellar nanoparticles. The CDs aggregates were embedded inside the micellar nanoparticles. The aggregation increased the photothermal efficiency to 5.1% under irradiation of 671 nm laser. Wang et al [184] loaded CDs and DOX into chitosan nanogel and further cross-linked the nanogels by EDTA to stabilize the CDs. The nanogel permeated into the tumor tissue and slowly released the chemical drug. In addition, the nanogel also exhibited photothermal function from the NIR irradiation.

Zoom In Zoom Out Reset image size

CDs exhibit not only fluorescent imaging capability, but also phototherapy nature including photodynamic and photothermal, that is beneficial to the photothermal and photoacoustic imaging. Thus, CDs provide a strong potential for multimodal imaging and multiple therapy. This greatly promote the practical applications of CDs in the nanomedical fields.
