Coincidence of increasingly volatile winters in China with Arctic sea-ice loss during 1980–2018

It is reported that human activities have caused approximately 1.0 °C of global warming above the pre-industrial level (Masson-Delmotte et al 2018) and 2015–2018 are the warmest four years on record (World Meteorological Organization 2019). This establishes a built-in notion that climate change relates more to warming and warm-related extremes. By contrast, the Northern mid-latitude continents experienced recurrent severe or even recording-smashing wintertime cold extremes in the past warmest decade. For instance, in late January 2016, a strong cold surge swept across China, with new cold records set in extensive regions (Qian et al 2018, Ma and Zhu 2019, figure S1(b) is available online at stacks.iop.org/ERL/14/124076/mmedia). The unexpected resurgence of cold extremes since 2010 sparks an interesting yet open question, namely 'are recent extratropical winters becoming more volatile?'

There are multifaceted interpretations for winter temperature volatility. A straightforward way is to expect increasing occurrences of both warm and cold extremes during winter. Central Eurasia, East Asia and North America appear to be experiencing this kind of winter weather volatility (Cohen et al 2014, Tang et al 2013, Mori et al 2014, Johnson et al 2018, Kretschmer et al 2018). In this regard, the increase in cold extremes takes center stage in most literatures, but co-variability of warm extremes remains largely under-examined (Sung et al 2019). Some studies attributed cold extremes' increases to forced dynamic responses to rapid loss of Arctic sea-ice (Petoukhov and Semenov 2010, Tang et al 2013, Kug et al 2015, Ma et al 2018, Mori et al 2019, Ma and Zhu 2019, Luo et al 2019). While others argued the opposite that atmospheric internal variabilities dictated the recent boom of mid-latitude cold events (Screen et al 2014, Mccusker et al 2016, Sun et al 2016, Sorokina et al 2016, Blackport and Kushner 2017, Blackport et al 2019). Although this casual linkage remains inconclusive (Screen et al 2018), the era of precipitous decline in Arctic sea-ice since 1979/1980 has been brought into prominence. Mechanistic explanations, detection and attribution of unexpected changes in extremes during this unique period have become cutting-edge issues (Mccusker et al 2016, Sorokina et al 2016, Johnson et al 2018, Mori et al 2019).

Winter temperature volatility was also measured by temperature variance, e.g. standard deviation or width of probability density function (PDF) of daily temperatures (Screen et al 2014, Kunkel et al 2015, Cohen 2016). An increase in standard deviation or the widening of PDF is deemed indicative of amplified fluctuations between cold and warm conditions, implying simultaneous strengthening of warm and cold extremes (Francis and Vavrus 2012, Kunkel et al 2015). However, signs and magnitudes of changes in winter temperature variance at the Northern mid-latitudes remain highly uncertain, due to great sensitivity of quantifications to temporal-spatial scales, analysis periods, seasonality and datasets (Fischer and Knutti 2014, Screen et al 2014, Bathiany et al 2018, Ma et al 2018).

Volatile winter weathers also take the form of 'winter temperature whiplash (whiplash event hereinafter)' (Bates 2018, Casson et al 2018, Cohen et al 2019), a term already popularly used in mainstream media to describe drastic and rapid swings between extreme warm and cold. A potent case is a wild swing from bone-chilling cold to unseasonably warm within five days in the Midwest and Northeast US during late January 2019. Such out-of-alignment of temperature extremes is more impactful than their occurrence in isolation. Rapid shifts from freezing to thawing can cause severe damages to infrastructure (Laucelli et al 2013), falling of icicles, unsafe ice for outdoor activities, flash floods, and air pollution (Zou et al 2017); while an antecedent unseasonal warmth easily leaves people and the energy sector ill-prepared against closely-ensuing cold extremes, thereby substantially aggravating cold-related consequences. In particular, whiplash events from warm to cold at the end of winter may produce a 'false spring', which disrupts plant phenology and therefore threatens agricultural yields (Marino et al 2011, Chamberlain et al 2019). Although these impacts made headlines frequently, a formal scientific definition for winter temperature whiplash is still lacking. Resultant knowledge gap about changes in this type of volatile weather constrains the community from developing tailored adaptation and mitigation strategies.

Severer consequences of volatile weathers occur in populous regions like China, due to higher exposure of population and infrastructure there. In the past few years, parts of China did suffer from volatile winters. For instance, both record-warm and record-cold were observed in the same place in the same winter (figure S1). The nature of recent volatile wintertime weathers in China, i.e. individual winter phenomenon or part of a regime shift/long-term tendency, remains to be illuminated. Moreover, there is growing clues linking Arctic sea-ice loss to wintertime weather extremes in China (Wu et al 2015, Zou et al 2017, Sun et al 2019, Zhou et al 2018, Blackport et al 2019, Ma and Zhu 2019). These impacts, knowledge gaps and emerging evidences provide an impetus to quantify past changes in winter temperature volatility in China and further address the role of external forcings (e.g. anthropogenic warming and Arctic sea-ice melt) on those unexpected changes.

To this end, we examine co-variations of frequency/intensity of wintertime cold and warm extremes in China, with particular attention paid to changes in whiplash events. The period over 1980–2018 is used to cover the epoch of Arctic sea-ice melt, with sub- and longer-periods also scanned. Section 2 will introduce data and methods. Main results will be presented in section 3, followed by discussions, outlooks and a brief summary.

2.1. Data

2.2. Methods

Overall, the frequency of wintertime warm extremes showed significantly increasing trends across China over 1980–2018, with larger increases over 4 events decade⁻¹ observed in North China, Central-Eastern China, Northwest China and Southwest China (figure S2(a)). For occurrences of cold extremes, decreasing trends are prevalent in regions south of 40 °N (figure S2(b)). By contrast, Northeast China and Northwest China observed slight increases in cold extremes during 1980–2018, with some of them being significant. Accordingly, much of China has been experiencing milder winters characteristic of more warm extremes and less cold extremes (figure 1(a)), even in the era of unprecedented decline in Arctic sea-ice. Roughly 11% stations, mostly located in Northeast and Northwest China, observed a tendency toward more volatile winters with concurrent increases in warm and cold extremes, but this strengthening of volatility is not significant.

Zoom In Zoom Out Reset image size

In terms of intensity, significant warming is the dominant mode for both warm and cold extremes over 1980–2018 (figures S2(c), (d)), with magnitude and significance of trends for warm extremes markedly greater. Trends for cold extremes' intensity exhibit a more spatially-heterogeneous pattern constituted by warming ones (decreased intensity) clustered in eastern part and cooling ones (intensification) distributed in Northwest, Southwest, and South China. In this context, the pattern of 'warm getting warmer and cold getting colder' occurred in about 18% of stations mostly in Northeast, Northwest, South and Southwest China (figure 1(b)), with those particularly significant in Southwest China (figures S2(c), (d)). Northeast China and Northwest China are therefore hotspots for more volatile winters seeing simultaneous growth in the occurrence and severity of both warm and cold extremes.

Compared to insignificant co-variability in frequency/intensity of warm and cold extremes, enhanced winter temperature volatility has a much stronger expression in significant increases in whiplash events across broad swaths of China (figure 2). During 1980–2018, around one fifth of stations experienced significant increases in either type of whiplash events (W2C-figure 2(a), C2W-figure 2(b) or W2C&C2W-figure 2(c)). For W2C events, strong and significant increases occurred preferentially in the Yangtze River Valley, southeast coastal areas and eastern part of Southwest China (figure 2(a)). These regions also observed stronger and more significant increases in C2W events during the period (figure 2(b)). Apart from these spatial overlaps, the frequency of C2W events also increased significantly in Northwest China, Northeast China, and some inland areas in Southeast China. As a consequence, the total frequency (W2C&C2W) of whiplash events showed significant increases in above hotspots, with magnitudes ranging from 0.4 to 1.3 events decade⁻¹ during 1980–2018. Actually, these significant increases are mainly due to sharp growths in the number of faster-switching (1–3 d) whiplash events (figure omitted), which pose greater adaptation burden on human and natural system. Similar hotspots for whiplash event increases could also be mapped out by using the time slice method (figure S3) and different observational datasets (figure S4). Apparently, trends for frequency and intensity underestimate the spatial extent, magnitude and significance of enhanced winter volatility in China. Moreover, rapid and drastic swings between opposite extreme thermal conditions make the temperature whiplash more 'perceivably volatile' than individual cold and warm extremes (Bates 2018). Namely, the newly-developed temperature whiplash index better characterizes winter temperature volatility.

Zoom In Zoom Out Reset image size

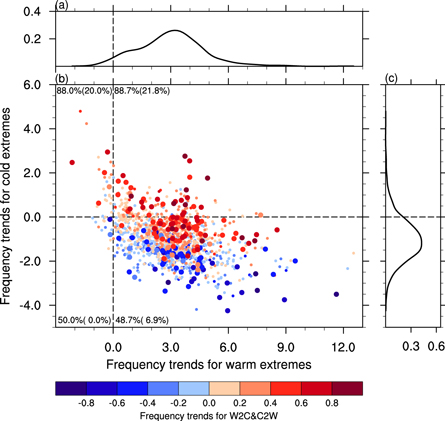

It is reasonable to expect that simultaneous growth in the number of cold extremes and warm extremes is the most conducive to significant increases in whiplash events (figure 3(b)), as manifested in Northwest and Northeast China (figure 1(a)). To the contrary, the concurrent reduction in warm and cold extremes is the least conducive configuration. However, there remains a large portion of significant increases in whiplash events falling into the quadrant configuring decreasing cold extremes and increasing warm extremes (figure 3). This may elicit a seemingly-plausible speculation that the past winter-mean warming contributed to significant increases in whiplash events through elevating the probability of warm extremes and further narrowing the temporal gap between warm and cold extremes.

Zoom In Zoom Out Reset image size

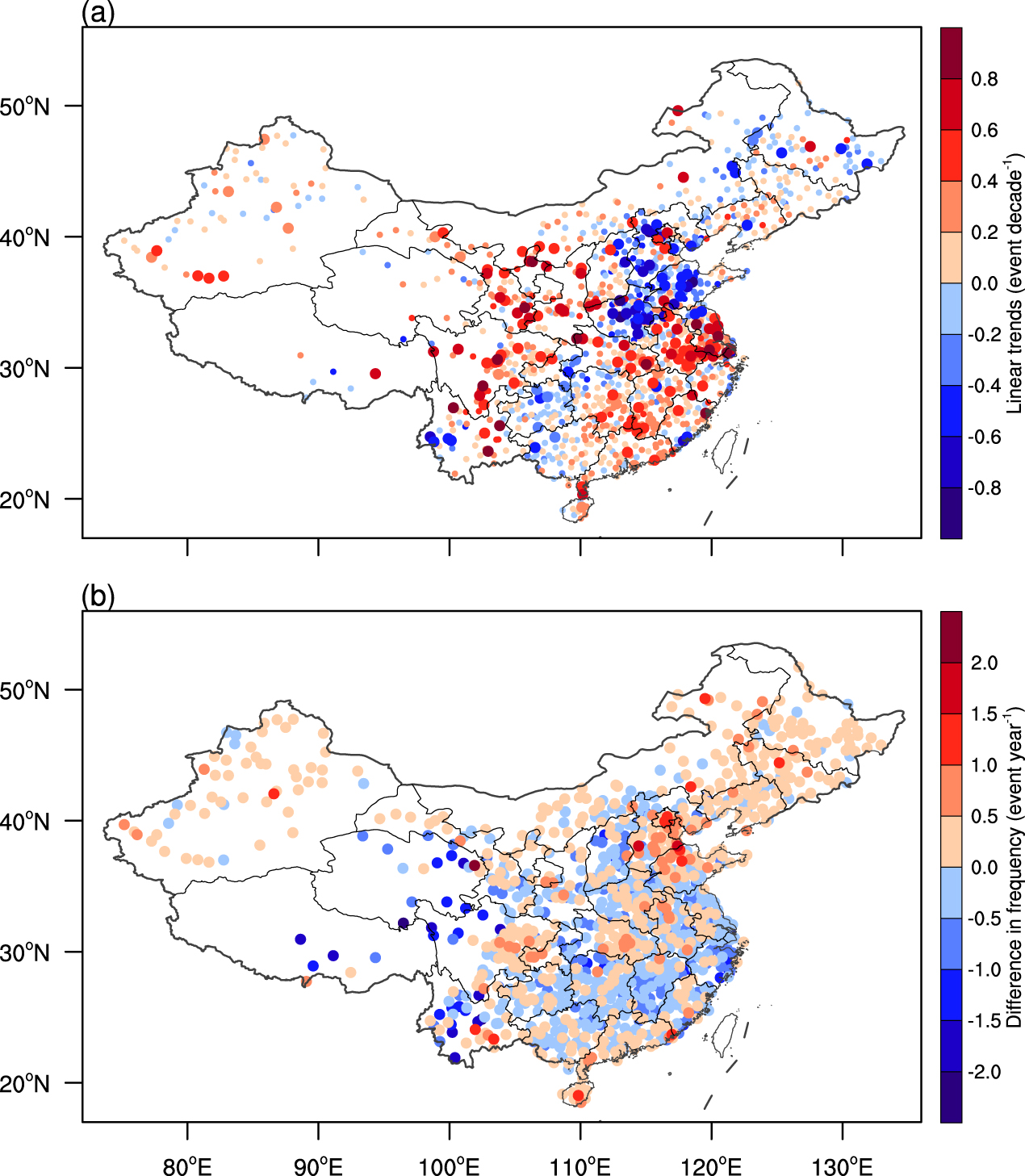

If this hypothesis makes sense, the removal of winter-mean warming should substantially weaken the magnitude and significance of increases in whiplash events. However, trends for re-identified whiplash events via linearly-detrended Tmax and Tmin (see Methods) are highly consistent with raw estimates in sign, magnitude and significance as well as the location of hotspots (compare figures 4(a) and 2(c)). The spatial correlation between trends for whiplash events' frequency in presence and absence of mean warming reaches 0.71, significant at the 0.01 level. This suggests the dominance of changing temperature variability over anthropogenically-caused mean warming in determining significant increases in whiplash events. Alternatively, using a PDF-shifting method (see Methods) produces either opposite signs or substantially weaker magnitudes of trends (compare figures 4(b) and S3(c)). The spatial correlation between trend patterns for raw observations (figure S3(c)) and the PDF-shifting reconstructions (figure 4(b)) is smaller than 0.3 and insignificant. Hence, these two methods consistently highlight the dominant role of changing temperature variability in driving significant increases in wintertime whiplash events in China, in the era of sea-ice melt.

Zoom In Zoom Out Reset image size

The Arctic amplification of global warming due to diminishing sea-ice is believed to be capable of inducing changes in winter temperature variability at mid-high latitudes (Barnes and Screen 2015). Physically, the greater warming of the Arctic could weaken the polar jet stream and shift it more equatorward, facilitating increases in temperature variability (Overland et al 2011, Francis and Vavrus 2012). It is also reported that the Arctic sea-ice melt could augment temperature variability through amplifying mid-latitude ridges and troughs via stratospheric pathways (Zhang et al 2016, Kretschmer et al 2018, Zhang et al 2018). These reported connections may raise a follow-up question that could the fingerprint of the declining sea-ice, as a steady external forcing, be robustly detected in observed increases in whiplash events? The spatially-aggregated difference between whiplash events' frequency in the latter (2004–2008) and the former period (1980–1994) are well enclosed within the range of internal variability (figure 5(b)). Given both strong anthropogenic warming and precipitous decline in sea-ice in the latter period, this preliminary detection outcome should be interpreted as that forced responses of whiplash events' frequency to these two external forcings combined have not yet emerged from influences of internal variability till 2018. Note that circulations and surface air temperatures may show opposite responses to anthropogenic radiative forcing and Arctic sea-ice loss (McCusker et al 2017, Oudar et al 2017). To overcome this potential cancellation, detection analysis is repeated with respect to re-identified whiplash events using linearly-detrended Tmax and Tmin. Still, no forcings of sea-ice loss can be robustly detected against internal variability (figure 5(c)). In brief, significant increases in wintertime whiplash events over 1980–2018 and resultant enhanced winter temperature volatility in China represent a clear articulation of atmospheric internal variability during the period, co-occurring with rapid Arctic sea-ice melt by coincidence.

Zoom In Zoom Out Reset image size

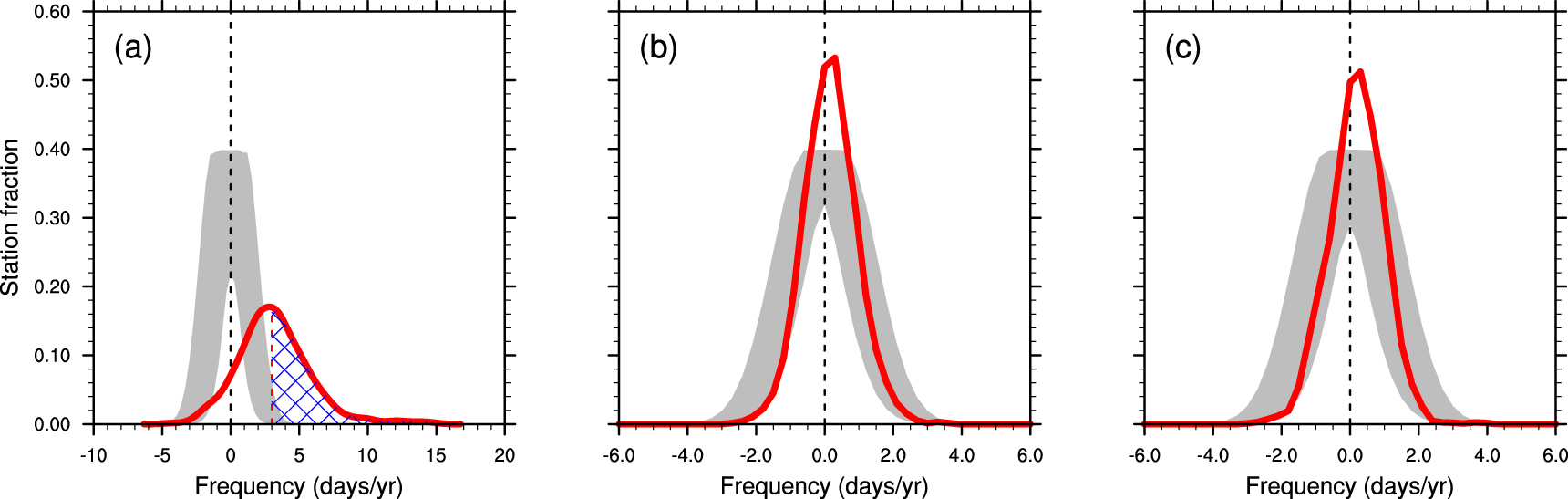

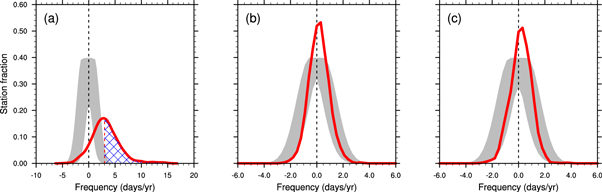

Parts of North America (Kug et al 2015), UK (Hanna et al 2017), and mid-latitude Eurasia (Mccusker et al 2016) are also hotspots for cooling in the era of Arctic sea-ice decline. As a matter of fact, the cooling only represents one side of the coin. These hotspots also experienced increasingly volatile winters punctuated by strong increases in temperature whiplash events like in China (figures S4(a), (c)). Similarly, till 2018, external forcings have not yet emerged from influences of internal variability at a hotspot-scale (figure omitted), within 30° latitudinal bands (0–30 °N, 30–60 °N, 60–90 °N, figure omitted), or across the entire Northern Hemisphere continents (figures S4(b), (d)), although a wider spatial-pooling should have yielded a greater signal-to-noise ratio and therefore higher detectability (Fischer and Knutti 2013).

Of particular note, the failure to detect external forcings does not necessarily mean zero contribution from them. Instead, there is possibility that considered 39 years of observations represent an insufficient sample size or insufficient amount of sea-ice loss to robustly distinguish forced responses from internally-generated low-frequency varability (Mori et al 2014, Chen et al 2016, Sun et al 2016, Overland et al 2016, Screen et al 2014, 2018). Contrary to this hypothesis, most of modeling studies support the view that even with larger magnitude of sea-ice melt, forced responses in mid-latitude circulations and extreme weathers are still far weak compared to internal variability-driven changes (Suo et al 2016, Blackport and Kushner 2017, Oudar et al 2017). Apparently, the detection of Arctic sea-ice melt's role in unexpected increases in mid-latitude cold extremes and more volatile winters needs to be further reconciled (Blackport et al 2019). Model-based detection and attribution efforts are worth further exerting, in order to cross-validate the observation-based conclusion and formally quantify contributions from various external forcings to the changing winter volatility. Relevant outcomes hold great promise to constrain projections of winter whiplash events to inform preparations for this overlooked type of winter hazard in the future.

Although this work mainly addressed the detectability of external forcings, understandings about thermodynamic-dynamic drivers and processes (e.g. large-scale atmospheric and oceanic modes) should not be downplayed. These information are fundamental to evaluate models' performance in simulating changes in winter temperature whiplash for the right reason, in turn better informing attribution and projection. Diagnosis of physical mechanisms for winter temperature whiplash, therefore, may be a future avenue for follow-up works.

Linear trend estimates may be fairly sensitive to the length of analysis periods, as well as to the choice of starting/ending year. Actually, any longer period starting in the 1960s and ending at 2018 commonly observed increasingly mild winters in China featuring the prevalence of significant decreases in whiplash events spatially (figure S5(a)). So the reported enhanced winter volatility over 1980–2018 should be viewed as a temporary excursion from this long-term tendency toward milder winters. Fixing the ending year at 2018 (figure S5(a)), widespread (gray shaded) strengthening of temperature volatility co-occurred with the rapid sea-ice melt commencing since 1980–1991. Given varying starting years and period lengths, all periods during which over one-quarter stations recorded significant increases in whiplash events similarly start after 1980 (figure S5(b)). Interestingly, regardless of starting years, the period recording the most widespread (i.e. largest station number) significant increases in whiplash events coincidentally ends at 2011 (inserted figure in figure S5(b)), even though Arctic sea-ice melt continues or even accelerates thereafter. This peak-structure for the number of significant stations (figures S5(a), (b)) alludes to the transient and intermittent nature of recent enhanced winter volatility. This intermittency is essentially dictated by chaotic internal variability (figure S5(c)), which may have an origin from atmosphere intrinsically or from decadal to inter-decadal modes of sea surface temperatures remotely (Sun et al 2016, Overland et al 2016, Osborne et al 2017, Screen and Francis 2016, Sung et al 2019). In view of this, the reported observational fact of increasingly volatile winters during 1980–2018 can not be used to predict any directional and persisting tendency of winter volatility in the future. Despite the non-detectability and intermittency, the coincidence of widespread enhanced volatility with the rapid sea-ice loss after 1980 implies the possibility that the sea-ice melt may contribute to recent increases in whiplash events through amplifying internal variability (Overland et al 2015, Wilhite et al 2017).

The proposed definition of temperature whiplash expands the current matrix for temperature extremes (Zhang et al 2011) not only in the number of indices but also in the complex nature of them. Essentially, whiplash events belong to the category of 'sequential extremes', which overlay and further amplify risks from temporally-aligned extremes (Bates 2018, Zscheischler et al 2018, Matthews et al 2019).

In summary, in the era of rapid Arctic sea-ice loss during 1980–2018, changes in winter temperature extremes across China have deviated from the generalized expectation of 'increases in warm extremes and decreases in cold extremes' in a warming climate. Instead, much of China, including Northeast, Northwest, Southeast, Southwest, and the Yangtze River Valley, observed a tendency toward more volatile winters as accentuated by significant increases in temperature whiplash events. It is the changing temperature variability rather than the human-caused winter-mean warming that enhances the volatility in wintertime temperatures. Although co-occurring with precipitous decline in Arctic sea-ice melt in timing, the strengthening of winter temperature volatility still lies within the range expected due to atmospheric internal variability, leaving the forcing from sea-ice loss still non-detectable.

The casual linkage between Arctic sea-ice loss and elevated odds of cold extremes in mid-latitude continents is overwhelmingly underpinned by observational studies but not by modeling studies (Cohen et al 2019). Our detection result, however, suggests that even in observational records, those proposed casual linkages may be not as clear and robust as previously assumed.

Observed significant increases in whiplash events remind people to take precautions not only against warm and cold extremes separately but also against elevated risks from wild swings between them.

We acknowledge funding support from the National Key Research and Development Program of China (Grant No. 2018YFC1507700) and from Regional Program of Natural Science Foundation of China (Grant No. 41565005). We also thank the Editor and reviewers for their thorough review and constructive suggestions.

Any data that support the findings of this study are included within the article.
