Hollow porous BiOCl microspheres assembled with single layer of nanocrystals: spray solution combustion synthesis and the enhanced photocatalytic properties

With the rapid development of worldwide industry and economics, environmental pollution has become one of the biggest global problems in new century [1–3]. Semiconductor photocatalysis technology has a great potential for the degradation of organic pollutants because of its high efficiency, energy saving, and pollution-free [4–6]. Bismuth oxychloride (BiOCl), as one of the important main group multicomponent V–VI–VII semiconductors, has been widely studied due to its outstanding physical and chemical properties in various fields [7, 8]. BiOCl is known to be a tetragonal layered structure containing [Cl–Bi–O–Bi–Cl] sheets with the Cl atoms along the c-axis by nonbonding interactions. The strong internal static electric fields perpendicular to the Cl layer and the bismuth oxide-based fluorite-like layer can reduced the recombination of photogenerated electron–hole pairs [8–10]. And the photogenerated charge carriers can transfer to the surface quickly to react with the organic pollutant molecules [11–16]. These properties indicate that it's a good candidate for photocatalyst.

Many efforts have been made to synthesize BiOCl, such as solvothermal method [13], spray drying method [14], hydrothermal method [15] and so on. However, these methods usually involve high temperature, high pressure, long reaction time and low efficiency. Solution combustion synthesis (SCS) is a method of synthesizing nanomaterials by using oxidation-reduction reaction among raw materials which is energy-efficient and time-saving [16, 17]. Nevertheless, it is difficult for SCS to control the reaction process, and the powder products are easy to agglomerate. As a modification of SCS, Spray solution combustion synthesis (SSCS) can generate uniform spherical particles with relatively narrow size distributions, which is difficult to be accomplished by traditional SCS method [18]. Furthermore, SSCS can also well control the chemical uniformity of reactants and improve the dispersion of the product [18]. However, the reaction solution needs to be atomized into droplets and then be sprayed into the tube furnace for the combustion reaction, so the process time is longer than that of SCS. Up to now, many materials have been synthesized by SSCS. For instance, Du et al successfully synthesized hollow spherical MoO₃ photocatalyst by a facile one-step SSCS method [18]. Trusov et al reported that SSCS method is effective for the synthesis of spherical hollow particles of metals (Ni, Cu) [19]. Chen et al proposed that nanocrystalline indium tin oxide (ITO) powders were prepared by a novel spray combustion method [20].

In this work, we successfully synthesized novel BiOCl microspheres via a simple one-step SSCS method. The BiOCl microspheres, which are assembled by nanocrystals (10–20 nm), present hollow and porous structure. Additionally, the SSCS BiOCl shows excellent photocatalytic performance, and the degradation performance for RhB reaches 98% in 60 min. And the differences between the two methods (SCS and SSCS) of synthesizing BiOCl were discussed in terms of structure, morphology and photocatalytic activity.

2.1. Materials

2.2. Sample preparations

2.3. Characterization

2.4. Photocatalytic performance evaluation

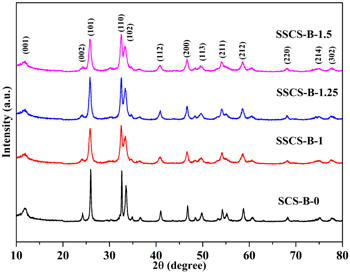

Figure 1 presents the XRD patterns of the as-obtained samples. It can be seen that all the diffraction peaks of as-synthesized products are indexed to tetragonal BiOCl (JCPDS card NO. 06-0249) with lattice constants of a = b = 3.891 Å and c =7.369 Å [15]. The major XRD diffraction peaks at 2θ = 25.86°, 32.49° and 33.45° corresponding to the (101), (110) and (102) planes, respectively. And these results show that BiOCl was successfully synthesized by SCS and SSCS. Based on the XRD patterns, the calculated grain size of the sample SCS-B-0, SSCS-B-X (X = 1, 1.25, 1.5) is 102.1 nm, 18.8 nm, 20.6 nm and 23.7 nm, respectively. These results indicate that SSCS could effectively control the grain size of the combustion products in comparison with SCS.

Zoom In Zoom Out Reset image size

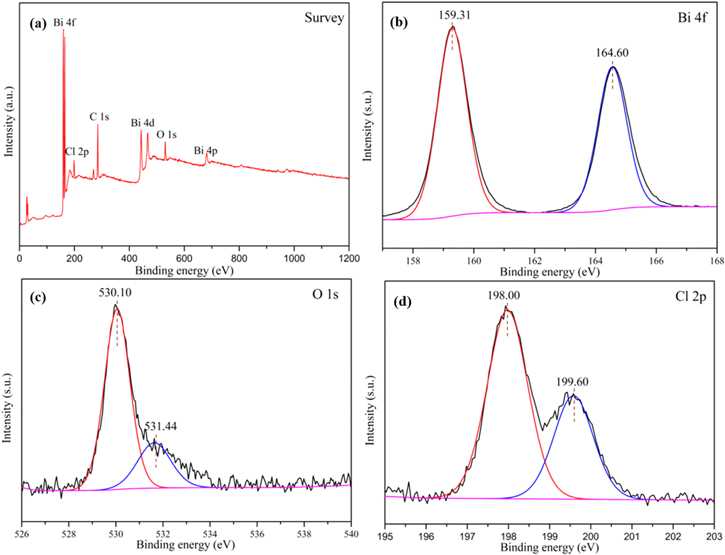

The detailed elemental composition and chemical state of the SSCS-B-1 sample, as shown in figure 2, was identified through XPS analysis. The XPS spectra were corrected for specimen charging by referencing the C 1s peak at 284.50 eV [21]. Figure 2(a) shows the survey spectrum of the SSCS-B-1 which presented the peaks of Bi, O, C and Cl elements. No peaks of other elements are found, indicating the SSCS-B-1 sample have a very high purity. The spectrum of Bi 4f (figure 2(b)) for SSCS-B-1 shows two peaks which located at 159.31 and 164.60 eV, corresponding to Bi 4f_7/2 and Bi 4f_5/2 of Bi³⁺ [21], respectively. The spectra of O 1s is shown in figure 2(c), the peak at 530.10 eV coincides with the binding energy of bismuth–oxygen of BiOCl, the peak at 531.44 eV is assigned to the oxygen adsorbed by the BiOCl [22]. Figure 2(d) indicate that the Cl 2p XPS spectra with two peaks at 198.00 and 199.60 eV, which belongs to Cl 2p_3/2 and Cl 2p_1/2, respectively [23]. The above results demonstrate BiOCl was successfully prepared by SSCS.

Zoom In Zoom Out Reset image size

The microstructure construction of as-prepared samples was illustrated by SEM, TEM and HRTEM in figures 3 and 4. As shown in figure 3(a), the SCS product is composed of yellow powders, while the SSCS products turn into faint yellow and fluffy powders (figures 3(d), (g) and (j)). Figures 3(b) and (c) reveal that SCS BiOCl shows an irregular structure from agglomeration of nanorods and nanoparticles. However, all the samples obtained via SSCS present the morphology of uniformly dispersed microspheres. As shown in figure 3(e) and inset, SSCS-B-1 exhibits a structure of microspheres with a spherical shell thickness of a single layer nanocrystals and there is no stacking of nanocrystals. Figure 3(f) indicates that hollow microspheres are assembled by nanocrystals (10–20 nm) and there are a large number of uniform nanopores around the nanocrystals, which may help narrowing the band gap of BiOCl. The hollow porous structure retains the high specific surface area of nanocrystals. When the amount of fuel increases to 1.25 times (figures 3(h) and (j)), the surface of some microspheres is surrounded by a layer of film, which may be attributed to the increase in heat release. Figures 3(k) and (l) show that when the amount of fuel increases to 1.5 times, the structures of the surface of some BiOCl microspheres change from nanoparticles to nanosheets. Figure 4 show the TEM and HRTEM images of SSCS-B-1 sample. Figure 4(a) further reveals that the BiOCl microspheres are hollow and porous. As shown in figure 4(b), the surface of BiOCl microspheres are composed of nanocrystals with the size of 10–20 nm, corresponding well to the calculated particles size. The HRTEM image of SSCS-B-1 is shown in figure 4(c), the lattice spacing of 0.276 nm, 0.345 nm can be obviously observed corresponding to the (110), (101) crystal planes of BiOCl, respectively. The result further demonstrates that high crystallinity BiOCl microspheres have been successfully prepared via SSCS route.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

As shown in table 1 and figure 5, the BET surface areas of SCS-B-0 and SSCS-B-1 were calculated to be 5.11 and 15.33 m² g⁻¹, respectively, and the corresponding average pore diameters were 13.74 and 8.55 nm, respectively. And the average pore diameters of SSCS-B-1 are consistent with the results of TEM. Moreover, the total pore volume of SSCS-B-1 have a significant increase in compassion with SSCS-B-0. Obviously, SSCS-B-1 sample prepared in SSCS method exhibits a larger specific surface area about three times and a smaller porous structure than that of SCS. The hollow porous BiOCl microspheres are assembled with single layer of nanocrystal, which not only helps retain the high surface area of nano crystal, but also avoids the agglomeration and stacking of nano crystal.

Zoom In Zoom Out Reset image size

The UV–vis diffuse reflectance spectra of as-obtained samples were depicted in figure 6(a). In contrast to SCS BiOCl, SSCS BiOCl have a slight red-shift in the range of 350–500 nm. The band gaps of as-prepared samples are determined by the formula: Eg = 1240/λg [24], in which Eg and λg represent the band gap and wavelength, respectively. The calculated band gap of SCS-B-0, SSCS-B-1, SSCS-B-1.25 and SSCS-B-1.5 are approximately 3.29 eV, 2.71 eV, 2.68 eV and 2.66 eV, respectively. The results indicate that BiOCl prepared via SSCS method have a narrower band gap. Figure 6(b) shows photoluminescence (PL) spectra of SCS-B-0 and SSCS-B-1, in which PL spectra is related to the efficiency of the photogenerated electron–hole separation and the transfer behavior of charge carriers. As shown in figure 6(b), the PL spectra of the two samples exhibit an emission peak centered at 485 nm (∼2.56 eV) under the excitation of 350 nm laser. And the PL intensity of SSCS-B-1 is significantly weaker than that of SCS-B-0, indicating that SSCS-B-1 enable the charge carriers to rapidly transfer onto the surface BiOCl microspheres. This facilitates the separation of photogenerated electrons and holes. The hollow porous structures of BiOCl microspheres with a large number of uniform holes in the shell could allow multiple scattering of UV–vis light, suggesting that the optical path length for light transporting through those BiOCl hollow structures are longer than that of the BiOCl nanoplates. Longer optical path length could increase the quantity of photogenerated electrons and holes [25, 26]. Thus, the PL intensity of SSCS-B-1 microspheres tends to weaken and the band gap will become narrower. In addition, semiconductor nanomaterials exhibit size effect in the nano region, and the PL intensity of BiOCl weakens with the decrease of grain size [26, 27].

Zoom In Zoom Out Reset image size

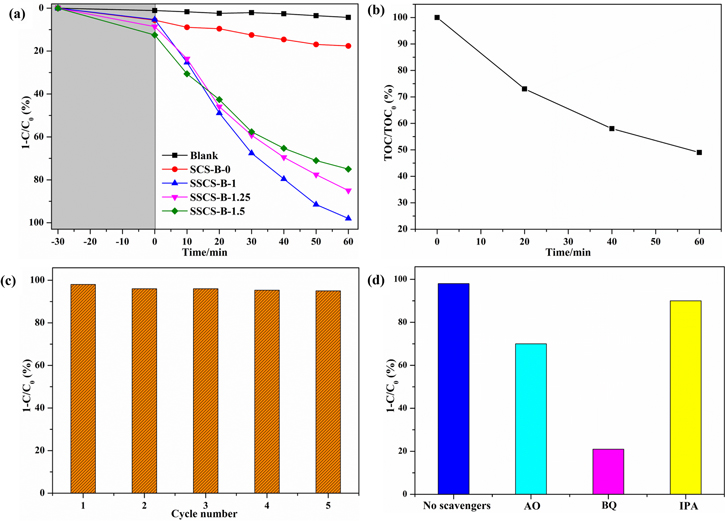

The photocatalytic performance investigations of the as-synthesized samples were probed by degrading rhodamine (RhB) under visible light illumination. As depicted in figure 7(a), RhB was almost not degraded without any photocatalyst under visible light illumination. SCS-B-0 sample exhibited a poor photocatalytic efficiency (18% in 60 min) for RhB degradation. However, SSCS-B-X (X = 1, 1.25, 1.5) samples show remarkably enhanced photocatalytic abilities in comparison with SCS-B-0 sample, which is mainly due to the following reasons: (1) hollow porous microspheres retain high specific surface area of nanocrystals and avoid the agglomeration of nanocrystal. (2) The uniformly distributed nanopores are conductive to the transport of reactants which can also provide sufficient active sites inside the microspheres. Furthermore, the photocatalytic performance of the SSCS samples gradually descends with the amount of fuel. Especially for SSCS-B-1 sample, near 98% removal rate can be achieved for RhB. To confirm the degraded substance, a TOC analytical experiment was carried out. As is shown in figure 7(b), 51% of the organic carbon is mineralized after 60 min of illumination. The result indicates some of the degradation intermediates produced in the photodegradation process still exist [10, 28, 29]. The photostability of the photocatalyst was conducted by cyclic photodegradation of RhB. As shown in figure 7(c), the photocatalytic performance after five cycles does not have significant decrease for SSCS-B-1 sample which demonstrates an excellent photostability.

Zoom In Zoom Out Reset image size

To investigate the active species generated in the photocatalytic process, hydroxyl radicals (·OH), superoxide radicals (·O²⁻), and holes (h⁺) were captured by isopropyl alcohol (IPA) [30], 1,4-benzoquinone (BQ) [31], and ammonium oxalate (AO) [32], respectively. The procedure similar to the above photocatalytic experiments in addition to adding 1 mM trapping agents. As depicted in figure 7(d), without adding scavengers, the degradation efficiency of RhB can reach 98%. When IPA served as trapping agent, the photocatalytic performance slightly declines, which demonstrates ·OH is not the main active species in the degradation process. When AO was added, the photodegradation rate of RhB decreased obviously to 70%, indicating that h⁺ specie plays the major roles in the RhB photocatalytic degradation. Nevertheless, the photodegradation rate dramatically decreased to 21% after adding BQ as trapping agent, which prove that ·O²⁻ is the most active specie for the photocatalytic degradation of RhB.

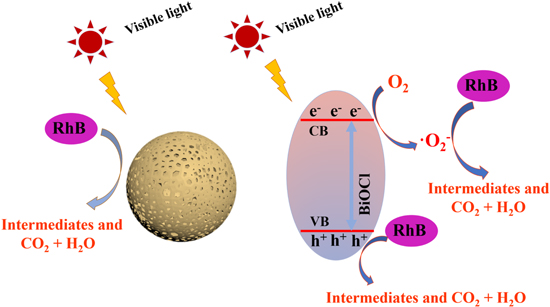

Based on the aforementioned analysis, the photocatalytic mechanism of BiOCl microspheres prepared via SSCS for the photocatalytic degradation of RhB is put forward in figure 8. Under visible light irradiation, BiOCl can be excited to produce photogenerated electron–hole due to the narrow band gap of it. The photogenerated electrons in the conduction band can react with the adsorbed O₂ form ·O²⁻ species. The reactive oxygen radical (·O²⁻) and holes (h⁺) can degrade RhB to form intermediates, CO₂ and H₂O in the photocatalytic reaction.

Zoom In Zoom Out Reset image size

In this work, hollow porous microspheres assembled by single layer of BiOCl nanocrystals were prepared successfully through a novel spray solution combustion method. The SEM and TEM results indicate that BiOCl obtained by SSCS method is self-assembled by nanoparticles to form hollow porous microspheres. Moreover, compared with BiOCl synthesized via SCS method, SSCS BiOCl microspheres have larger specific surface areas (15.33 m² g⁻¹) and narrower band gaps (2.66–2.71 eV), which can improve the absorption ability of BiOCl for visible light and further enhance the photocatalytic activity of BiOCl. A photocatalytic mechanism for hollow porous BiOCl microspheres is proposed, and ·O²⁻ and h⁺ are the main active species in degrading RhB. The present research provides a method to prepare novel BiOCl microspheres with enhanced visible photocatalytic properties.

This work was supported by the Fundamental Research Funds for the Central Universities (2019ZDPY20).

All data that support the findings of this study are included within the article (and any supplementary files).
