Cross-coupling contribution to the isothermal entropy change in multicaloric materials

Multicaloric materials have been defined as those materials that can support more than one caloric effect [1]. Thus, multicaloric effects arise in a given material when more than one type of caloric effect can be driven by simultaneous or sequential application/removal of two or more external fields. Multicaloric effects are particularly interesting in systems with strong interplay between two or more properties since the caloric response to one of the fields is expected to be affected by secondary fields. Therefore, in this class of materials multicaloric effects differ from the simple addition of the corresponding monocaloric effects, which are those resulting from the application or removal of a single external field (in the absence of any other applied field).

The study of multicaloric effects has emerged in recent years as an alternative to monocaloric effects with the aim to take advantage of the coupling between different degrees of freedom that are known to occur in many giant caloric materials [2–4]. This is, for instance, the case of many giant magnetocaloric materials where the existence of a first-order magnetic transition, that is at the origin of the large magnetic field-induced caloric response, is a consequence of the strong coupling between magnetism and structure. Therefore, the interplay of different properties suggests that a caloric response might be improved by application of the external fields thermodynamically conjugated to these quantities. Hence, the study of cross-coupling effects in this class of materials is essential to reach a deep understanding of their multicaloric behaviour, which is a crucial step for the design and development of new materials with improved caloric properties.

Many different classes of materials may, in principle, show multicaloric effects. Among them, multiferroic materials appear as one of the best candidates since they are characterised by a strong intrinsic coupling between ferroic properties, thus suggesting that these materials might support more than one caloric effect occurring in a not independent way. In general, multiferroic materials are classed into three main categories: magnetostructural, electrostructural and magnetoelectric multiferroics [5]. These three classes are characterised, respectively, by a strong coupling between lattice and magnetic, lattice and electric, and magnetic and electric degrees of freedom. At present, however, multicaloric effects have only been studied in detail in the first class of multiferroic materials [6, 7] and to a less extent in the second one. To the best of our knowledge, no multicaloric behaviour has been reported in single-phase materials with intrinsic magnetoelectric coupling.

With regards to multicaloric effects driven by two fields, two main classes of materials can be considered depending on whether the corresponding monocaloric effects are both conventional or one is conventional while the other is inverse [8]. In the first case, caloric effects are synergic in the sense that under application or removal of both fields the corresponding effects add to each other. By contrast, in the non-synergic case the two effects tend to cancel each other. While at first glance the former case appears to be more interesting for the development of materials with improved caloric properties, the possibility of controlling hysteresis by means of two applied fields in the second class of materials suggests that both synergic and non-synergic materials deserve to be studied in detail. Furthermore, it is possible to obtain a synergic response for the latter case by the combined application of one field and removal of the second field.

In the present paper, we will discuss the specific features of the coupling in multicaloric materials by particularly addressing under which circumstances it is possible to: (i) enhance the caloric response by applying multiple fields, (ii) tune and broaden the operation range using a secondary field and (iii) tune hysteresis and improve the cycling reproducibility by using two fields.

In this section we start with a brief discussion of the thermodynamics of multicaloric effects. For the sake of simplicity, we will consider a material that shows cross-response to fields y ₁ and y ₂ (for instance, magnetic field and stress), with the corresponding thermodynamically conjugated property being X ₁ and X ₂, respectively. The key point is to take advantage of the fact that entropy is an extensive state function, which imposes that simultaneous application of the two fields must lead to the same change of entropy as first applying y ₁ while keeping $\boldsymbol{y}_2 = 0$, and next applying y ₂ while keeping y ₁ constant. Following the general thermodynamic development given in [9], the multicaloric entropy change can then be computed as,

$$\begin{align} \Delta S_{\text{MuC}} [T, (0, 0) \rightarrow (y_1, y_2)] & = \Delta S_{X_1(y_2=0)}[T, (0,0) \rightarrow (y_1, 0)] + \Delta S_{X_2(y_1)}[T, (y_1, 0) \rightarrow (y_1, y_2)] \nonumber \\ & = \int_0^{y_1} \left[\frac{\partial X_1(T, y^{^{\prime}}_1, y_2)}{\partial T} \right]_{y^{^{\prime}}_1, y_2 = 0} dy^{^{\prime}}_1 + \int_0^{y_2} \left[ \frac{\partial X_2(T, y_1, y^{^{\prime}}_2)}{\partial T} \right]_{y_1, y^{^{\prime}}_2} dy^{^{\prime}}_2, \end{align} \tag{ 1 }$$

where the fields have been assumed to be applied in specific directions and X₁ and X₂ are the corresponding projections of X ₁ and X ₂ along these directions. The first integral in the right-hand side is simply the monocaloric effect associated with the property X ₁, which has been obtained using the Maxwell relation, $\left( \frac{\partial S}{\partial y_1} \right)_{T,y_2 = 0} = \left( \frac{\partial X_1}{\partial T} \right)_{y_1, y_2 = 0}$.

The second integral can be decomposed as follows,

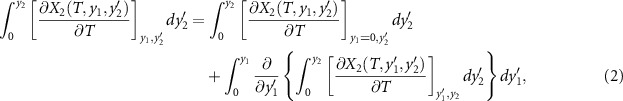

$$\begin{align} \int_0^{y_2} \left[ \frac{\partial X_2(T, y_1, y^{^{\prime}}_2)}{\partial T} \right]_{y_1, y^{^{\prime}}_2} dy^{^{\prime}}_2 & = \int_0^{y_2} \left[ \frac{\partial X_2(T, y_1, y^{^{\prime}}_2)}{\partial T} \right]_{y_1 = 0, y^{^{\prime}}_2} dy^{^{\prime}}_2 \nonumber \\ & \quad + \int_0^{y_1} \frac{\partial}{\partial y^{^{\prime}}_1} \left\{\int_0^{y_2} \left[ \frac{\partial X_2(T, y^{^{\prime}}_1, y^{^{\prime}}_2)}{\partial T} \right]_{y^{^{\prime}}_1, y_2} dy^{^{\prime}}_2 \right\} dy^{^{\prime}}_1,\end{align} \tag{ 2 }$$

The first term on the right-hand side is the monocaloric effect associated with the property X ₂, taking into account the Maxwell relation $\left( \frac{\partial S}{\partial y_2} \right)_{T,y_1 = 0} = \left( \frac{\partial X_2}{\partial T} \right)_{y_1 = 0, y_2}$. The second term can be expressed as,

$$\begin{align} \int_0^{y_1} \frac{\partial}{\partial y^{^{\prime}}_1} \left\{\int_0^{y_2} \left[ \frac{\partial X_2(T, y^{^{\prime}}_1, y_2^{^{\prime}})}{\partial T} \right]_{y^{^{\prime}}_1, y_2} dy^{^{\prime}}_2 \right\} dy^{^{\prime}}_1 = \int_0^{y_1} \int_0^{y_2} \frac{\partial \chi_{12}(T, y^{^{\prime}}_1, y^{^{\prime}}_2)}{\partial T} dy^{^{\prime}}_1 dy^{^{\prime}}_2, \end{align} \tag{ 3 }$$

where χ₁₂ is the cross-susceptibility defined as,

$$\begin{align} \chi_{12} \equiv \frac{\partial X_1}{\partial y_2} = \frac{\partial X_2}{\partial y_1}.\end{align} \tag{ 4 }$$

This last term associated with the temperature change of the cross-susceptibility is the coupling term, $\Delta S^{coupling}$, that measures the cross-response contribution to the multicaloric effect. Therefore, the multicaloric entropy change is given by the sum of the corresponding monocaloric effects and the cross-response or coupling term. It is interesting to note that,

$$\begin{align} \frac{\partial \chi_{12}}{\partial T} = \frac{\partial^2 X_1}{\partial T \partial y_2} = \frac{\partial^2 X_2}{\partial T \partial y_1} = \frac{\partial^2 S}{\partial y_1 \partial y_2}, \end{align} \tag{ 5 }$$

which shows that the coupling term is related to the curvature of the entropy surface in a T-y₁-y₂ space.

In what follows, we will consider given cases with synergic and non-synergic responses, and we will analyse the coupling term obtained as: $\Delta S^{coupling} = \Delta S_{\text{MuC}} - \Delta S_{X_1} - \Delta S_{X_2}$.

In figures 1 and 2, we present schemes that illustrate the entropy's temperature dependence in the absence of applied field and under applied (constant) external field(s). We also show how the monocaloric and multicaloric entropy changes can be derived from these curves. It is evidenced that the multicaloric effect does not correspond to the simple addition of the monocaloric effects and includes a contribution from the cross-coupling response of the material. For the sake of simplicity, we have considered an ideal first-order phase transition (occurring at a fixed temperature for each applied field) and field-independent specific heat for the high and low-temperature phases. Furthermore, we have also considered a temperature and field-independent transition entropy change, ($\Delta S_t$). Usually, in giant caloric materials the phase transition does not occur at a fixed temperature but it spreads over a certain temperature range. Hence, a more realistic case, with the phase transition spreading over a specific temperature interval, is shown in figure 3.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Figure 1 corresponds to the synergic case. For the monocaloric effect CE1, application of a field y₁ shifts the transition to a temperature $T_t (y_1)$ higher than the zero field transition temperature $T_t(0)$. The resulting entropy change in that case (indicated by the orange arrow) corresponds to a conventional caloric effect in which application of a field reduces the entropy of the material. A similar behaviour is observed for caloric effect CE2. In that case, the transition shifts to the temperature $T_t(y_2)$ and the field-induced entropy change is also negative. For the multicaloric effect (MuCE), the application of the two fields (y₁ and y₂) shifts the transition temperature to a value higher than for each monocaloric effect: $T_t(y_1, y_2)$ > $T_t(y_1)$ > $T_t(y_2)$. The corresponding isothermal entropy changes for each monocaloric and multicaloric effects are illustrated in the bottom panels. It is shown that application of two fields results in a broader temperature window where giant caloric effects can be obtained. In this simplified example, there is no gain in the $\Delta S$ value when the two fields are applied. Finally, the scheme clearly illustrates that the multicaloric entropy change (green area) is not the direct sum of the two individual caloric effects (red and blue areas), but there is also a contribution from the cross-coupling term ($\Delta S^{coupling}$, orange areas) which is positive from $T_t(0)$ to $T_t (y_2)$ and negative from $T_t (y_1)$ to $T_t(y_1, y_2)$. The positive $\Delta S^{coupling}$ values compensate the negative $\Delta S$ values arising from CE2, and the physical significance of that compensation is the fact that once the transition has already been induced (by application of field y₁), application of a secondary field (y₂) does not further modify the entropy of the sample. On the other hand, the negative $\Delta S^{coupling}$ values from $T_t (y_1)$ to $T_t(y_1, y_2)$ are responsible for the enlargement of the temperature window where giant caloric effects can be obtained.

Figure 2 illustrates the non-synergic case. Here CE1 corresponds to a conventional monocaloric effect where application of a field y₁ shifts the transition to a higher temperature $T_t(y_1)$ > $T_t(0)$. By contrast, CE2 corresponds to an inverse monocaloric effect where application of the field y₂ shifts the transition to a lower temperature $T_t(y_2)$ < $T_t(0)$. Hence, application of the two fields can shift the transition to temperatures higher or lower than $T_t(0)$, depending on the sensitivity of the transition temperature to the field ($dT_t/dy_1$ and $dT_t/dy_2$) and also on the actual strength of the fields y₁ and y₂. In the particular example shown in figure 2, combined application of the two fields shifts the transition to higher temperatures and the resulting multicaloric effect is conventional. The corresponding isothermal entropy changes for each monocaloric and multicaloric effects are illustrated in the bottom panels, which are positive for the inverse caloric effect CE2, and negative for the conventional caloric effect CE1 and for the multicaloric effect MuCE. It is shown that application of two fields results in a narrower temperature window (compared to monocaloric effect CE1). It is worth stressing that by conveniently tuning the y₁ and y₂ values it is possible to change the sign of the multicaloric $\Delta S$ values from negative to positive, and for a particular combination of these fields $\Delta S$ vanishes [it corresponds to the case where the positive shift of the transition induced by y₁ exactly matches the negative shift of the transition induced by y₂: $T_t(y_1) - T_t(0) = T_t(0) - T_t(y_2)$]. The multicaloric entropy change is not the sum of the monocaloric values, but it also has a contribution from the coupling term, which reverses its sign depending on the temperature range. The negative $\Delta S^{coupling}$ values from $T_t(y_2)$ to $T_t(0)$ compensate for the positive values that should arise from the inverse caloric effect CE2. On the other hand, the positive $\Delta S^{coupling}$ values from $T_t(y_1,y_2)$ to $T_t (y_1)$ give rise to a narrower temperature window (compared to that of the monocaloric effect CE1).

Finally, figure 3 illustrates the multicaloric effect for synergic monocaloric effects for a non-ideal first-order phase transition spreading over a specific temperature interval. While the essential features described in the ideal case (expanded temperature window and existence of a coupling contribution with alternating sign) are also found in this case, the synergic effect is more clearly visible in figure 3 since the multicaloric $\Delta S$ values are larger than those corresponding to each monocaloric effect. As shown in the figure, the values for the applied fields y₁ (for CE1) and y₂ (for CE2) are not large enough to induce the transformation of the full sample; therefore the resulting isothermal entropy changes are lower than the transition entropy change. By contrast, for the multicaloric effect, the combined action of the two fields gives rise to the full transformation of the sample, resulting in a multicaloric entropy change value matching the transition entropy change.

As detailed in the previous sections, the multicaloric response of a given material cannot be derived from the knowledge of its monocaloric behaviour, and it is therefore necessary to conduct experiments in which the sample is subjected to more than one external stimulus (stress and magnetic field for the case of materials undergoing magnetostructural transitions). Because experimental systems capable of applying both magnetic field and stress are scarce, there are few experimental studies on multicaloric effects and materials. In relation to magnetic field and hydrostatic pressure, the existence of commercial magnetometers which are equipped with a CuBe piston clamp pressure cell enables measuring the temperature dependence of the magnetization in samples subjected simultaneously to magnetic field and hydrostatic pressure. From these data it is possible to compute the multicaloric response of the sample by the indirect method, using the Maxwell relations [10]. However, to the best of our knowledge, there is no commercial device which enables the simultaneous application of magnetic field and uniaxial stress (or other stress modes), and therefore bespoke experimental devices need to be designed in order to experimentally determine the multicaloric response of samples subjected to uniaxial stress and magnetic field [11].

Recently we have designed and built a differential scanning calorimeter (DSC) which enables simultaneous application of compressive uniaxial stress and magnetic field [12]. From the thermal curves recorded at selected (constant) values of magnetic field and stress, it is possible to build the temperature dependence of the entropy (referenced to a given value) at selected values of field and stress, from which the multicaloric response of the material can be computed as described in the following subsection, via the quasi-direct method.

3.1. Building entropy curves from calorimetric data

For first-order magnetostructural transitions, the combination of DSC measurements in samples subjected to mechanical and magnetic fields, with specific heat data enables computation of the entropy (referenced to a reference value) as a function of temperature, magnetic field and stress [$S(T, H,\sigma)$] [13]. In general, for metals and alloys the specific heat is not significantly affected by stress; therefore it can be assumed to be stress-independent to a good approximation. However, for magnetic materials in the vicinity of a magnetic phase transition, the specific heat may depend on magnetic field. Therefore heat capacity measurements as a function of temperature and magnetic field are needed in order to obtain reliable $S(T, H, \sigma)$ functions.

It is to be noted that, within the temperature range where the first-order transition occurs, the measurement of specific heat is affected by the latent heat of the transition. Therefore reliable C data are only available for the pure phases above and below the first-order transition. In that temperature interval, the specific heat of the sample can be obtained as a weighted average of the specific heats of the high (C^H ) and low (C^L ) temperature phases: $C = x C^{H} + (1-x) C^{L}$, where x is the fraction of the sample in the high-temperature phase.

The temperature dependence of the entropy at selected values of stress and magnetic field can then be computed referenced to the value of the entropy (S₀) at a reference state $(T_0, H = 0, \sigma = 0)$:

$$\begin{align} S(T, H, \sigma)-S_0 = \left\lbrace \begin{array}{l} \displaystyle\int_{T_0}^{T} \frac{C^{L} (T, H, \sigma)}{T} dT, \; \; \text{for} \; T \leqslant T_1 \\[3pt] S(T_1,\sigma, H) + \displaystyle\int_{T_1}^{T} \frac{1}{T} \left(C (T, H, \sigma) + \frac{dQ(T, H, \sigma)}{dT} \right) dT, \; \text{for} \; T_1 \lt T \leqslant T_2 \\[10pt] S(T_2, H, \sigma) + \displaystyle\int_{T_2}^{T} \frac{C^{H} (T, H, \sigma)}{T} dT , \; \; \text{for} \; T_2 \lt T \\ \end{array} \right. \end{align} \tag{ 6 }$$

T₁ and T₂ denote the start and finish transition temperatures, respectively, and $\frac{dQ}{dT}$ is the baseline corrected DSC calorimetric signal. The reference state S₀ is chosen at a temperature T₀ well above (or below) the transition region, where the specific heat is independent of stress and magnetic field. This requirement is fulfilled for the paramagnetic phase, which corresponds to the high-temperature phase for samples with a conventional magnetocaloric effect and to the low-temperature phase for samples with an inverse magnetocaloric effect.

The above procedure provides entropy curves only for the specific stress and magnetic field values used in the experiments. In order to obtain $S(T, H, \sigma)$ over the entire coordinate phase-space, it is necessary to fit an appropriate function that reproduces the experimental data at the specific σ and H values. Examples are shown in supplementary material, and typically they encompass one or two sigmoid functions which capture the large entropy variation at the first-order phase transition [6, 7]. As an example, figure 4 shows selected isothermal entropy surfaces for non-synergic Ni-Mn-In. Data correspond to the application of magnetic field and removal of uniaxial stress, as indicated by the arrows along the axis. A detailed analysis of the multicaloric response of this alloy can be found in [6]. It is to be noted that the curvature of the isothermal $S(T, H, \sigma)$ is indicative of a non-vanishing contribution from the cross-coupling term in this material.

Zoom In Zoom Out Reset image size

The knowledge of $S(T, H, \sigma)$ over the whole phase-space enables a straightforward computation of the isothermal entropy change arising from an arbitrary increase of stress and magnetic field, as follows:

$$\begin{align} \Delta S(T, 0 \rightarrow H, 0 \rightarrow \sigma) = S(T, H, \sigma) - S(T,0, 0), \end{align} \tag{ 7 }$$

and by inversion of the $S(T, H, \sigma)$ curves, the adiabatic temperature change is obtained as:

$$\begin{align} \Delta T(S, 0 \rightarrow H, 0 \rightarrow \sigma) = T(S, H, \sigma) - T(S,0, 0), \end{align} \tag{ 8 }$$

where results are commonly plotted as a function of the initial temperature prior to application of the fields. Equivalent expressions hold for the removal of stress and magnetic field.

For the sake of clarity, in the previous sections we have implicitly assumed that the phase transitions occurred in thermodynamic equilibrium. However, for most giant caloric materials, the magnetostructural transition is first-order and accompanied by hysteresis in temperature and field(s). A detailed study of the effect of hysteresis on the thermal response of monocaloric materials has already been reported [14] and will not be further discussed in this paper.

Here, we address how hysteresis affects the multicaloric response of a material, as schematised in figures 1–3. For simplicity, we have assumed thermal hysteresis to be field(s) independent. For synergic (conventional) effects [figure 5 upper panels (a)–(d)], application of each field stabilises the low-temperature phase, promoting the transition from the high-temperature to the low-temperatures phase, which corresponds to the cooling branch in the thermal hysteresis loops for a thermally induced transition. In that case, the resulting isothermal entropy changes resulting from the application of one or two fields are not affected by hysteresis (see figure 5(d)), provided that the field(s) are applied either in the high-temperature phase or at a temperature on the cooling branch of the loop. In other words, the schematics illustrated in figures 1 and 3 are still valid, with the only peculiarity that the indicated transition temperatures do not correspond to the equilibrium transition but rather to values located in the cooling branch of the thermal hysteresis loop.

Zoom In Zoom Out Reset image size

The situation is more complex for non-synergic multicaloric materials [figure 5 lower panels (e)–(h)]. For the conventional monocaloric effect (CE1, figure 5(f)), application of the field stabilises the low-temperature phase, thus promoting the transition from the high to the low-temperature phase, which corresponds to the cooling branch in the thermal hysteresis loop. By contrast, for the inverse monocaloric effect (CE2, figure 5(g)), the field stabilises the high-temperature phase, promoting the transition from the low-temperature to the high temperature phase, which corresponds to the heating branch of the thermal hysteresis loop. Therefore, application of the two fields can bring the material to a state within the hysteresis loop. In that circumstance, the state of the material depends on the minor hysteresis loops [15], which are usually not known, and the caloric response is significantly reduced (or even suppressed). However, a significant multicaloric effect for the non-synergic case can still be obtained, provided that the applied fields are strong enough so that the thermal hysteresis loop under applied field(s) does not overlap the loop in the absence of fields.

In non-synergic multicaloric materials, independently modifying two (or more) external fields enables an advantageous manipulation of hysteresis. On the one hand, it has been shown [3, 10] that it is possible to reduce (or even suppress) the hysteresis in magnetic field by a convenient cycle in which magnetic field is applied at ambient pressure, while it is removed under an applied hydrostatic pressure. It is worth recalling that hysteresis is not suppressed for such a multi-stimuli cycle, but rather the hysteresis in one field (magnetic field) is transferred to the second field (pressure) [1]. The energy losses in the multicaloric cycle are similar to those corresponding to the single magnetic field cycle. However, in practical applications for refrigerating purposes, the multicaloric cycle can be advantageous because it enhances the reversibility of the process by transferring the hysteresis from the primary to the secondary fields.

A second feature multicaloric cycles offer is the possibility of taking advantage of hysteresis in the so-called positive-hysteresis cycles [16]. In that cycle, hysteresis locks the material in the magnetised state when magnetic field is removed. Applying mechanical stress unlocks the phase transition and brings the material back to its original state. This method of operation provides several advantages compared to monocaloric cycles because application/removal of the field(s) is decoupled from the heat transfer step (for monocaloric cooling, the external fields need to be maintained during heat exchange). Such a decoupling enables the utilisation of more focused magnetic fields, with the consequent reduction of the permanent magnet volume and increased field strength.

To illustrate the ideas described in the previous sections, we have selected two prototype multicaloric materials (Fe-Rh and Ni-Mn-Ga) undergoing magnetostructural phase transitions. For compositions close to the stoichiometry, Fe-Rh is ferromagnetic above room temperature, with a cubic CsCl structure ($Pm3m$ space group). Upon cooling, it undergoes a magnetostructural transition from a ferromagnetic to an antiferromagnetic phase which does not break the crystal symmetry but involves a ∼1% unit cell volume increase. Associated with this phase transition, Fe-Rh exhibits giant inverse magnetocaloric and conventional barocaloric effects [17], and hence this material is a good example for the non-synergic multicaloric case.

Ni₂MnGa is a prototype magnetic shape memory alloy. At room temperature, it exhibits a Heusler structure ($Fm3m$) and is ferromagnetic with a Curie temperature slightly above ambient. Upon cooling it undergoes a martensitic transition towards a lower crystal symmetry phase which is also ferromagnetic [18]. It has been shown that by appropriate doping with Cu it is possible to shift both the martensitic transition and Curie temperatures in such a way that the two phase transitions (magnetic and martensitic) merge, thus giving rise to a single magnetostructural transition [19]. Associated with this transition, giant conventional magnetocaloric and elastocaloric effects have been reported for Ni₅₀Mn_18.5Ga₂₅Cu_6.5 [7], and this alloy is a good candidate to illustrate the synergic multicaloric case.

Figure 6 shows the entropy curves ((a)–(c), top panels) and the corresponding isothermal entropy changes ((d)–(f), lower panels) along with the contribution from the cross-coupling term (g) for the non-synergic Fe₄₉Rh₅₁ (raw data are from [10]). The entropy change of the magnetostructural transition ($\Delta S_t$) in this material has been found to be independent of both magnetic field and pressure, within experimental errors. The entropy curves derived from calorimetric data can be well fitted by a simple function such as:

Zoom In Zoom Out Reset image size

$$\begin{align} S(T, H, p) - S(T_0, 0, p_{atm}) = \frac{\Delta S_t}{2} \left[ 1 + \tanh \left(\frac{T-T_t}{\omega} \right) \right] +\int_{T_0}^{T} \frac{C (T)}{T} dT, \end{align} \tag{ 9 }$$

where T_t represents the transition temperature, ω is a parameter which accounts for the spread in temperature of the phase transition, and C is the specific heat [20]. Examples for this fit are given in the supplementary material.

Because the magnetostructural transition in Fe₄₉Rh₅₁ is very sharp and is strongly sensitive to the external fields, the transition shift with the applied fields (5 T and 5 kbar) considered here is large enough to overcome the effect of thermal hysteresis. Therefore the experimental data reproduce very well the ideal non-synergic case illustrated in figure 2. As shown in figure 6, application of a magnetic field shifts the transition to lower temperatures, resulting in a positive magnetocaloric $\Delta S$ associated with an inverse magnetocaloric effect. On the other hand, applying hydrostatic pressure shifts the transition towards higher temperatures giving rise to a negative $\Delta S$ associated with a conventional barocaloric effect. In both cases, the saturation $\Delta S$ values match the transition entropy change ($\Delta S_t$). For the particular combination of magnetic field ($\mu_0 H$ = 5 T) and pressure (p = 5 kbar) values, the phase transition shifts to lower temperatures giving rise to an inverse multicaloric effect spreading over a temperature window narrower than that corresponding to the monocaloric effects. The contribution from the cross-coupling term is shown in figure 6(g). In the high-temperature region, the increase in entropy associated with the cross-coupling term compensates for the decrease in entropy from the barocaloric effect. In contrast, in the low-temperature region, it partially compensates for the inverse magnetocaloric effect, resulting in a narrower temperature window. It is worth noting, however, that a non-synergic multicaloric effect can be turned into synergic by applying one field and removing the second field [6, 10, 21].

The multicaloric synergic effect in Ni₅₀Mn_18.5Ga₂₅Cu_6.5 is presented in figure 7.Top panels (a–c) show the entropy curves computed from calorimetric cooling runs (raw data are from [7]). The resulting entropy changes are shown in bottom panels (d–f). The contribution from the cross-coupling term is shown in panel (g). For Ni₅₀Mn_18.5Ga₂₅Cu_6.5, the transition entropy change $\Delta S_t$ has been found to decrease with increasing magnetic field and increasing stress [7], and such dependence is responsible for the crossover observed in the entropy curves at low temperatures in figures 7(a)–(c). In addition, such a $\Delta S_t$ dependence in H and σ imposes the use of fitting functions with more free parameters than the one given by equation (9). Examples are given in the Supplementary Material. As shown in figure 7, application of magnetic field and/or uniaxial stress shifts the transition to higher temperatures, resulting in conventional magnetocaloric and elastocaloric effects. Applying both fields shifts the transition to temperatures higher than for the application of a single field, which gives rise to a broader temperature window where giant caloric effects occur. For the particular magnetic field shown ($\mu_0 H$ = 5 T), the shift in the transition temperature is large enough to promote the transformation of the full sample, and the maximum magnetocaloric entropy change matches the transition entropy change [$\Delta S_t(\text{5T}, 0)$]. On the other hand, the shift in the transition due to a 20 MPa uniaxial stress is not large enough and the sample is only partially transformed, resulting in an elastocaloric $\Delta S$ lower than the transition entropy change [$\Delta S_t(0, 20 \text{MPa})$]. The combined action of 5 T and 20 MPa induces the transformation of the full sample, with a corresponding isothermal entropy change that matches the transition entropy change [$\Delta S_t( \text{5T, 20 MPa})$]. However, multicaloric $\Delta S$ values are lower than magnetocaloric ones due to the decrease in transition entropy with increasing magnetic field and stress, which imposes $\Delta S_t(\text{5T,20 MPa})$ < $\Delta S_t(\text{5T},0)$. The cross-coupling contribution is responsible for the enlargement of the temperature window to higher temperatures. Furthermore, at high temperatures it compensates for the $\Delta S$ values associated with the elastocaloric effect. Interestingly, the cross-coupling contribution enhances the multicaloric response of the material at low or moderate applied fields.

Zoom In Zoom Out Reset image size

We have studied the multicaloric response of materials with synergic and non-synergic monocaloric effects, subjected to the combined action of two external fields. It is shown that the multicaloric entropy change is the sum of the corresponding monocaloric values plus a contribution arising from the interplay between the physical properties thermodynamically conjugated to the applied fields (cross-response contribution). We have also proposed a methodology to systematically quantify the contribution from the cross-response to the total multicaloric entropy change, which has been applied to prototype synergic (Ni-Mn-Ga-Cu) and non-synergic (Fe-Rh) multicaloric materials.

For the synergic case, the cross-coupling contribution is responsible for enlarging the temperature window where giant caloric effects are observed, while for the non-synergic case, the cross-coupling contribution reduces the temperature window.

The first-order magnetostructural transition occurring in most giant caloric materials spreads over a specific range of temperature and field(s), and typically large values of the applied fields are required to induce the transformation of the whole sample. In this case, the cross-coupling contribution becomes particularly relevant for synergic materials since it enhances the caloric response at lower values of the applied fields. Avoiding large fields is very advantageous in the design of practical refrigeration and heat pumping devices.

Although at first glance non-synergic materials appear less appealing, it is worth noting that synergic effects can be obtained by applying one field and removing the second. Furthermore, on the one hand, these materials enable fine-tuning of hysteresis with two applied fields. On the other hand, they are best suited for hysteresis-positive refrigerating cycles.

Financial support from MCIN/AEI/10.13039/501100011033 (Spain) under Grant Nos. PID2020-113549RB-I00/AEI and IJC2020-043957-I, and from AGAUR (Catalonia) under Project SGR00328 is acknowledged. A.G acknowledges financial support from Universitat de Barcelona under a Margarita Salas fellowship, supported by the Spanish Ministry of Universities with funding from the European Union under the NextGenerationEU program.

The data that support the findings of this study are available upon reasonable request from the authors.
