Hydrogen from wastewater by photocatalytic and photoelectrochemical treatment

In photocatalysis, a semiconductor is irradiated with photons with energy equal to or greater than the band gap energy, resulting in the excitation of electrons from the valence band (VB) to the conduction band (CB). The photo-excited electron leaves a positively charged hole in the VB. These charge carriers are referred to as an electron–hole pairs. The charge carriers can recombine in the semiconductor bulk dissipating energy as heat or light or they can migrate to the surface of the semiconductor. At the surface, they can undergo charge transfer processes driving redox reactions with chemical species which are adsorbed at the surface of the photocatalyst.

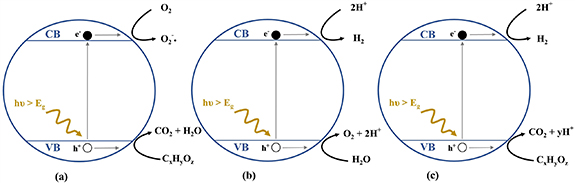

Photocatalysis has been widely studied for the degradation of organic pollutants and extensive information can be found in previous reviews [8–11]. The organic pollutants can either undergo direct oxidation by holes, indirect oxidation by reactive oxygen species including hydroxyl radicals, or they may be transformed by a reductive route involving CB electrons. The most common electron acceptor in photocatalytic oxidation reactions is molecular oxygen since it is abundant in the air and is reasonably soluble in aqueous solutions. The oxygen is reduced by the CB electrons to form the superoxide radical anion (O₂•^-). Subsequent reduction reactions lead to H₂O₂, ^•OH, and eventually H₂O. A representation of this process is shown in figure 1(a).

Zoom In Zoom Out Reset image size

Photocatalysis has also been investigated for hydrogen production through water splitting, as detailed described in several reviews [12–15]. The photogenerated holes are used to oxidize water molecules to evolve oxygen, while the photo-generated electrons in the CB reduce protons and evolve hydrogen, as shown in figure 1(b). However, photocatalytic hydrogen production from water splitting is a challenging reaction because it is thermodynamically unfavourable (ΔG° = + 237 kJ mol⁻¹) requiring a high energy input and the transfer of four electrons. It should be recognized that technically, uphill thermodynamic processes are photosynthetic, however, to avoid confusion, in this review both uphill and downhill reactions will be referred as photocatalytic. Hydrogen production from the oxidation of other compounds with reactions requiring less energy or being thermodynamically favourable (ΔG° < 0) have also been investigated. This is schematically represented in figure 2. These compounds can donate electrons and scavenge the VB holes while also acting as a source of protons. There are many compounds present in wastewater that could act as a hydrogen source.

Zoom In Zoom Out Reset image size

Most studied compounds have been organic, but this is also possible with inorganic compounds as, e.g. ammonia. In this application, the photo-generated holes are used to oxidize the unwanted compounds, which can take place through direct oxidation or indirect oxidation via hydroxyl radicals (^•OH). The photo-generated electrons reduce the protons to form hydrogen. A schematic representation of this process is shown in figure 1(c), with the oxidation of a generic organic compound. The photocatalytic oxidation of organic substances to form hydrogen is also referred as photoreforming and it follows the general equation given in (1).

$$\begin{equation}{{\text{C}}_{{x}}}{{\text{H}}_{{y}}}{{\text{O}}_{{z}}}\, + \,\left( {2{{x}} - {{z}}} \right)\,{{\text{H}}_{{2}}}{\text{O}} \to \,{{x}}\,{\text{C}}{{\text{O}}_{{2}}}\, + \,({{2x}}\, + \,\frac{1}{2}{{ y}}\, - \,{{z}})\,{{\text{H}}_{{2}}}.\end{equation} \tag{ 1 }$$

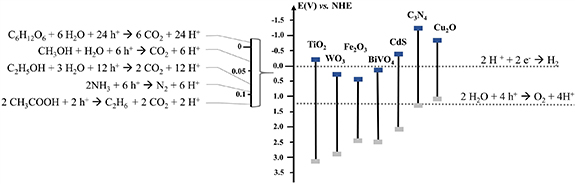

The ability of a semiconductor to perform the desired redox reactions depends on the band gap energy and the band edge potentials for the VB and the CB. For the reactions to be thermodynamically possible, the CB edge potential should be more negative than the desired reaction reduction potential and the VB edge potential should be more positive than the desired reaction oxidation potential. In the water splitting reaction, the CB should be more negative than the hydrogen evolution reaction (HER) potential (0 V vs NHE at pH 0), and the VB should be more positive than the oxygen evolution potential (+1.23 V vs NHE at pH 0). For the oxidation of wastewater pollutants, the CB needs to be more positive than the oxidation potential of the pollutants. These potentials are more negative than the potential for water oxidation, requiring less energy for the overall reaction. The CB and VB of several semiconductor materials, together with the oxidation and reduction potential of these reactions are given in figure 3.

Zoom In Zoom Out Reset image size

The ideal semiconductor material for photocatalytic hydrogen production from wastewater compounds would have the following general requirements: suitable band edges position, good light absorption, efficient charge transport, chemical and photochemical stability, low overpotentials for the desired reduction and oxidation reactions, low cost and abundant. It is important to consider that almost half of the incident solar energy on the earth's surface is in the visible region (400 nm < λ < 800 nm), and therefore, for solar applications the photocatalyst should be able to utilize both the UV and visible photons.

While a wide range of materials have been investigated for photocatalytic hydrogen production [12–15], the present review will focus on the materials reported for H₂ production coupled to the oxidation of pollutants found in wastewater. Titanium dioxide is the most reported photocatalyst to investigate the coupling of H₂ production to the degradation of compounds found in wastewater [23–30]. Other materials as cadmium sulphide (CdS) [31, 32] and graphitic carbon nitride [33, 34] have also been reported for H₂ production from wastewater compounds.

Titanium dioxide (TiO₂) is employed in a wide variety of fields, ranging from energy applications such as hydrogen production and CO₂ reduction, to environmental applications as water treatment, air purification and water disinfection [35]. TiO₂ exists as three different polymorphs: anatase, rutile and brookite. Its properties include high photo-activity, low cost, low toxicity and good chemical and thermal stability. Nevertheless, it suffers from fast electron–hole recombination and a large band gap. TiO₂ band gap is 3.2 eV for anatase, 3.0 eV for rutile, and ∼3.2 eV for brookite [35]. This wide band gap limits the light absorption to the ultraviolet range, which just accounts for 4%–5% of the solar spectrum, consequently, limiting its practical application.

Developments to achieve visible light absorption by TiO₂ include doping, metal deposition, dye sensitization and coupled semiconductors [16]. Non-metal doping has been extensively researched, being nitrogen one of the most promising non-metal dopants that has achieved visible light absorption [36]. Nitrogen is easily inserted in the TiO₂ structure since it has a high stability, small ionization and its atomic size is similar to oxygen [37]. Other promising non-metal dopants are carbon and sulphur [38, 39]. Alternatively, the generation of oxygen rich TiO₂ has been reported to produce an increase in the Ti–O–Ti bond strength and a upward shift in the VB, achieving visible light absorption [40]. Doping with metals as chromium, cobalt, vanadium and iron has also been reported to improve the light absorption [16]. Dye sensitization has been considered as one of the most effective strategies to extend the spectral response into the visible region, benefiting from the knowledge of dye sensitized solar cells. Moreover, coupling TiO₂ with other semiconductors has also resulted in an improvement of the light absorption and a reduction of the recombination losses [41].

A commercially available TiO₂ product, Degussa (Evonik) P25, has been often used as a benchmark in research. It contains a combination of the polymorphs anatase and rutile with proportions of around 80% anatase and 20% rutile. This configuration enhances the photoactivity since the rutile phase, which has a more positive CB potential, can act as electron sink for the photogenerated electrons of the anatase phase [16].

When TiO₂ is used for HER, usually metal co-catalysts are added. Since the work function of noble metals is typically larger than TiO₂, the photogenerated electrons transfer from the semiconductor CB to the metal [35]. Pt has been one of the most used co-catalysts for HER since it has the largest work function among the noble metals, creating a stronger electron trapping ability and has a low activation energy for proton reduction [16, 35]. Pt co-catalyst ability strongly depends in its particle size and loading [35].

CdS is a widely researched visible light photocatalyst. It has been investigated in diverse applications, such as hydrogen production, carbon dioxide reduction to hydrocarbons or pollutants degradation [20]. CdS is characterized by a narrow bandgap of 2.4 eV, which enables the absorption of light until 516 nm [20]. It exhibits good photochemical properties and quantum efficiency [42, 43]. However, it suffers from photo-corrosion, since the photogenerated holes react with the sulphur ions oxidizing them to sulphur [44]. CdS low stability makes difficult its application in industry. Some of the strategies to improve CdS stability and inhibit photo-oxidation include the addition of surface protective layers, constructing heterojunctions and combining them with microporous and mesoporous materials [31, 45].

Graphitic carbon nitride (g-C₃N₄) has received lot of attention as visible light photocatalyst, and it has been reported to be a promising photocatalyst for a diverse number of applications including H₂ production [46]. g-C₃N₄ is usually produced by thermal condensation of nitrogen-rich precursors. Its polymeric nature allows the modification of properties such as morphology, conductivity and electronic structure which modifies the bandgap energy and bandgap edges potential position [21]. g-C₃N₄ photocatalytic activity and efficiency have been improved using several strategies. Heteroatom doping and copolymerization have been employed to modify the electronic band structure to enhance light absorption [47]. Moreover, the heterojunction with other semiconductors as CdS [48] or TiO₂ [49] have been reported to achieve an improved separation of the photogenerated charges [21].

The photocatalytic performance can be evaluated using quantum efficiency. The quantum efficiency or yield is defined as the useful photo-conversion events per absorbed photons at a determined wavelength. The useful events are usually calculated by the reaction rate. This is given in (2) where $r$ is the reaction rate given in number of molecules converted per second, and ${\Phi _{\text{pa}}}$ is the flux of absorbed photons expressed as number of photons per second. However, it is challenging to determine the absorbed photons in the semiconductor. Therefore, the external or apparent quantum efficiency, which is also referred as photonic yield, is usually used instead [50]. It can be defined as the useful events per incident photons in the system at a determined wavelength. This expression is given in (3), where $r$ is the reaction rate given in number of molecules converted per second and ${\Phi _{\text{pi}}}$ is the flux of incident photons expressed as number of photons per second. The incident photons can be measured using radiometric or actinometric procedures. Moreover, the external quantum efficiency takes into account the efficiency of the overall process including the efficiency of the material absorbing photons as well as catalyzing the reaction and the efficiency of the reactor design [50].

$$\begin{equation}\text{QE}\left( \lambda \right) = \frac{r}{{{\Phi _{\text{pa}}}}}\end{equation} \tag{ 2 }$$

$$\begin{equation}\text{EQE}\left( \lambda \right) = \frac{{{\text{ }}r}}{{{\Phi _{\text{pi}}}}}\end{equation} \tag{ 3 }$$

If one is using a polychromatic radiation source then the formal quantum efficiency (FQE) should be reported, normally integrating the number of photons which can be utilized by the semiconductor in question. Of course, for many semiconductors the true solar efficiency will be very low due to only a small proportion of the solar spectrum being utilized.

Additionally, the performance of a photocatalytic hydrogen production process can also be evaluated using the solar-to-hydrogen (STH) conversion efficiency (η_STH), which relates chemical hydrogen energy produced to the solar energy. This expression is shown in (4), where ${\Phi _{{\text{H}_2}}}$ is the hydrogen rate in mol s⁻¹ m⁻², $G{\text{ }}{^\circ _{{\text{H}_2}}}$ the Gibbs free energy of hydrogen formation and P is the photon flux in mW cm⁻² measured for a light source with a spectra equal to air mass global (AM) 1.5 [51].

$$\begin{equation}{\eta _{\text{STH}}} = \left[ \frac{\Phi _{{\text{H}_2}}\cdot G^\circ_{{\text{H}}_2}}{P} \right]_{{\text{AM}}\,\, 1.5 G}\end{equation} \tag{ 4 }$$

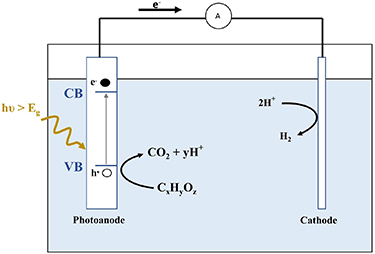

An approach to enhance the efficiency of photocatalysis is the use of electrochemically assisted photocatalysts in a PEC. In this configuration, the oxidation and reduction reactions are performed by two different electrode materials that are connected through an external circuit. The oxidation is driven by the holes in the (photo)anode, while the electrons travel from the photoanode through the external circuit to the (photo)cathode, where the reduction reaction takes place. This process is schematically represented in figure 4. When a PEC is utilized to produce a fuel (e.g. hydrogen) from solar energy it can be referred as photosynthetic cell. Similarly, when the PEC is employed to produce electricity from the photodegradation of substances, it can be defined as photo fuel cell [52]. In systems where wastewater compounds are being oxidized in a PEC to generate H₂, depending on the thermodynamics of reaction, the system can also produce electricity and therefore being a combination of both cells; not clearly defined as one or the other. Moreover, a system without applied bias, where hydrogen is produced by a flow of current, could also be considered a photo fuel cell.

Zoom In Zoom Out Reset image size

PECs can be used with different configurations, i.e. semiconductor photoanode with metallic cathode, semiconductor photocathode with metallic anode, or photoanode with photocathode. These cells are driven by the potential difference between the Fermi levels of the two electrodes. For a typical n-type semiconductor photoanode, the Fermi level is close to the CB while for a typical p-type semiconductor photocathode the Fermi level is close to the VB [53]. If the PEC uses a dark anode or cathode, these potentials are ideally dependent on the oxidation and reduction reaction potentials, respectively. If the reaction oxidation and reduction potentials have the right positions with respect to the CB and VB, the cell produces electric power in open circuit voltage. When this is not the case, an external voltage can be applied to drive the reactions.

With electrochemically assisted photocatalysis, an external electrical bias can be applied to assist the reactions. This may allow the use of semiconductor photoanodes with more positive CB potentials than the H⁺/H₂ reaction and which would not drive HER purely photocatalytically.

Titanium dioxide is the most used photoanode material for H₂ production from wastewater compounds [54–57]. Other photoanode materials that have also been used for H₂ production are tungsten trioxide, bismuth vanadate and hematite [58–60]. Concerning the cathode material, platinum is widely used [54, 55, 61, 62], while cuprous oxide is a common choice for photocathode [57].

3.2.1. Photoanodes

3.2.2. Photocathodes

3.2.3. Dark cathode electrocatalysts

When evaluating the performance of PECs, the external quantum efficiency is also referred as incident photon to current efficiency (IPCE), and the number of successful events can be evaluated by the photo-electrical current generated. This expression is given in (5), where λ is the wavelength of irradiation in nm, J is the photocurrent density given in mA cm⁻², P is the photon flux in mW cm⁻² at a particular λ, h is Plank's constant and c is the speed of light in vacuum [53].

$$\begin{equation}\text{EQE}\left( \lambda \right) = \text{IPCE}\left( \lambda \right) = \frac{\Phi _{\text{e}}}{\Phi _{\text{pi}}} = {\text{ }}\frac{{J\cdot hc{\text{ }}}}{{\lambda \cdot{P_\lambda }}}.\end{equation} \tag{ 5 }$$

Moreover, when evaluating the performance of PECs, η_STH can also be determined from the photocurrent density generated. This expression is shown in (6) where J is the photocurrent density given in mA cm⁻², V is the required potential in V derived from Gibbs free energy, η_f is the HER faradaic efficiency and P is the light power in mW cm⁻² measured with a light source with a spectra equal to AM global 1.5 [51]. It is important to note that J needs to be measured between the working and counter electrode in a two electrode PEC configuration. No bias potential should be applied in the evaluation of η_STH. Whenever a bias potential is applied between working and counter electrode to drive the reaction, the applied bias photon to current conversion efficiency (ABPE) can be derived, as shown in (7) [51]. In this expression V_bias is the applied voltage in V, which is subtracted from the required potential derived from Gibbs energy.

$$\begin{equation}{\eta _{\text{STH}}} = {\left[ {\frac{{J\cdot V\cdot{\eta _{\text{f}}}{\text{ }}}}{P}} \right]_{\text{AM}{\text{ }}1.5G}}\end{equation} \tag{ 6 }$$

$$\begin{equation}\text{ABPE} = {\left[ {\frac{{J\cdot\left( {V - {V_{\text{bias}}}} \right)\cdot{\eta _{\text{f}}}{\text{ }}}}{P}} \right]_{\text{AM}{\text{ }}1.5G}}\end{equation} \tag{ 7 }$$

For wastewater treatment applications, an UV source is commonly used as oppose to solar irradiation; therefore the power coming from the sun should be replaced by the power of the UV source.

Ammonia and urea, along with nitrates and nitrites, contribute to nitrogen pollution. Nitrogen pollution of water has deleterious effects including eutrophication and toxicity to the organisms living in the water body. The hazardous concentration of nitrogen in wastewater originate from diverse sources, as intensive farming and excessive fertilizer use [98]. Additionally, high nitrogen concentrations can also be found in either domestic and municipal sewage sludge and in wastewater from some industries [99].

In water, un-ionized ammonia (NH₃) exists in pH dependent equilibrium with ionized ammonium (NH₄ ⁺), having a pKa of 9.25, when the pH is lower than the pKa, NH₄ ⁺ is the major form and when the pH is higher than the pKa is NH₃ the major form. Therefore, one of the research focuses has been to determine which of the forms would have a higher photocatalytic oxidation rate. Several studies have revealed that ammonia in neutral form presents better oxidation rates compared to ionized ammonium [23, 100, 101]. Nemoto et al investigated the pH effect in the photocatalytic ammonia oxidation, testing a pH range from 0.68 to 13.7 [23]. The study reports that the evolution of gaseous products (N₂ and H₂) increased between the pH 9 and 10 and peaked at pH around 11, due to higher oxidation rates with neutral ammonia. Zhu et al reported how the oxidation rates obtained were proportional to the initial concentration of NH₃ and not the total content of NH₃ and NH₄ ⁺ [100]. From this study, it was concluded that high oxidation rates are obtained when ammonia is in neutral form, even if better photocatalytic activity could be expected with positively ionized NH₄ ⁺ and a negative photocatalyst surface charge, which occurs when the pH is higher than the photocatalyst point of zero charge and lower than the ammonium pKa. Wang et al compared the photocatalytic activity in acidic, basic and neutral environment using g-C₃N₄ as photocatalyst and reported higher rate of photocatalytic ammonia oxidation in basic solutions [101].

The most studied photocatalyst for ammonia oxidation has been TiO₂ [23, 102–104], covering how the co-catalyst material affects the activity and product selectivity [23, 102–104] and determining the possible reaction mechanism on H₂ production from ammonia decomposition [103]. Nemoto et al compared the activity of TiO₂ loaded with RuO₂, Pt and both RuO₂ and Pt as co-catalysts for photocatalytic ammonia oxidation and hydrogen production [23]. The results showed that the N₂ gas produced was similar for all the co-catalysts; however, the H₂ production varied significantly. The photocatalyst loaded with Pt achieved the highest H₂ production and an external quantum yield of 5.1% at 340 nm, while the system with both co-catalysts produced a small amount of H₂. The system loaded with RuO₂ did not produce any H₂, showing that RuO₂ cannot reduce protons to form hydrogen. Altomare and Selli studied how the conversion and selectivity of ammonia oxidation to N₂ would be affected by the deposition of noble metals (Pt, Pd, Au and Ag) on the TiO₂ photocatalyst [102]. The experiments showed that all the metal-modified photocatalysts had better catalytic performance that the bare TiO₂, with the exception of Au/TiO₂. The loaded photocatalyst that showed higher ammonia removal was Ag/TiO₂ and the one that showed better selectivity towards N₂ was Pd/TiO₂. This latter study did not link the oxidation of ammonia to H₂ production. Yuzawa et al studied the mechanism of decomposition of ammonia to produce dinitrogen and hydrogen using TiO₂ photocatalyst loaded with Pt, Rh, Pd, Au, Ni and Cu [103]. Pt presented the best activity with high production rate of H₂ and N₂ and Cu the worse. The study concluded that the metal with larger work function would easily accept the photo-excited electrons to produce hydrogen. The mechanism proposed consisted in the predominant adsorption of ammonia to the Lewis acid site and some to the hydroxyl groups in TiO₂. The TiO₂ is irradiated generating holes and electrons, where the holes migrate to the surface and the electrons to the Pt site. The photogenerated holes oxidize the adsorbed NH₃ to form amide radicals and protons, while the amide radicals can produce hydrazine. The hydrazine could produce diazene that would be decomposed to form N₂ and H₂. The photogenerated electrons reduce the protons to form hydrogen in Pt [103]. This mechanism is represented in figure 5. Shiraishi et al investigated the photocatalytic hydrogen production from ammonia using TiO₂ loaded with Au and Pt [104]. Pt–Au/TiO₂ showed a growth in hydrogen production rate compared to Pt/TiO_2, suggesting that alloying Au to Pt resulted in a decrease of the Schottky barrier height at the interface between metal and TiO₂. The catalyst with the highest H₂ production rates consisted in a homogeneous mixture of 10% mol of Au and 90% mol of Pt loaded on TiO₂.

Zoom In Zoom Out Reset image size

Photocatalytic ammonia oxidation has also been reported using metal free photocatalyst. Wang et al used an atomic single layer g-C₃N₄ as photocatalyst, achieving an ammonia removal of 80% of the initial concentration [101]. Both hydroxyl radicals and photogenerated holes were suggested to be responsible for the ammonia oxidation; in this study ammonia oxidation was not coupled to H₂ production.

The number of research papers reported on ammonia oxidation using PECs is much less than compared to photocatalysis [54, 105]. Wang et al used highly ordered TiO₂ nanotube arrays as a photoanode and Pt foil as cathode [105], reporting an ammonia removal of 99.9% under an applied bias of 1.0 V (not coupled to H₂ production). Kaneko et al used nanoporous TiO₂ film as photoanode, formed by P25 deposited on FTO glass and a Pt foil as a cathode [54]. The experiments showed a 150 A cm⁻² photocurrent and a production of 194 ml of H₂ and 63 ml of N₂ after 2 h with no bias applied under a pH of 14.1.

The reported studies of H₂ production driven by photocatalytic or photoelectrochemical oxidation of urea are scarce and their main focus is proving the feasibility of the process [24, 55, 106]. They include the study of surface modification and co-catalyst loading. Moreover, a comparison of the H₂ production rate from oxidation of urea, ammonia and formamide has also been studied [56].

Kim et al investigated the effect of dual surface photocatalyst modification in the production of hydrogen and oxidation of urea [24]. TiO₂ modified with both a noble metal, Pt, and an anion adsorbate [24]. The results showed that F-TiO₂/Pt achieved higher H₂ production rates than Pt/TiO₂, besides, F-TiO₂ did now show any H₂ production, highlighting the combined effect of surface anions and metal deposits to reduce charge recombination and improve electron transfer. Moreover, the effect of other anions as Cl⁻, ClO⁻ and Br⁻ was studied, resulting in only F^- to have an enhancement effect, Cl⁻ and ClO⁻ had no effect and Br⁻ inhibited the hydrogen production. These results were explained by the surface complexation among acidic Ti(IV) sites and basic anions, which is dependent on the hardness of the anions, being only F^- the one that has higher hardness than OH⁻. Furthermore, experiments with deuterated urea were performed, showing than H₂ production comes mainly from water molecules while urea acts as an electron donor.

Wang et al studied the feasibility of hydrogen production driven by urea or urine oxidation in a PEC [55]. In this work, the suitability of two photoanodes was studied, TiO₂ nanowires and α-Fe₂O₃ nanowires, both loaded with Ni(OH)₂ as urea oxidation co-catalyst. Pt was used as counter electrode. The viability of solar driven urea oxidation with Ni/TiO₂ as photoanode was reported using an unbiased cell, producing a current density of 0.35 mA cm⁻². Moreover, the feasibility of using directly urine was also studied, resulting in comparable results to urea, highlighting the possibility of driving the production of hydrogen with the oxidation of urine. The effect of loading α-Fe₂O₃ with Ni(OH)₂ was studied, showing a negative shift in the onset potential of 400 mV, suggesting that Ni(OH)₂ is an efficient catalyst for urea oxidation. However, the use of α-Fe₂O₃ as photoanode required an external bias due to the low position of its CB. Xu et al investigated as well the role of Ni(OH)₂ as a co-catalyst in the photoelectrochemical oxidation of urea, not coupled to the production of hydrogen [106], by using a photoanode formed of Ti-doped, α-Fe₂O₃ and loaded with Ni(OH)₂. The addition of Ni(OH)₂ reduced the onset potential by 100 mV and increased the photocurrent density by four times, showing the enhanced effect of the use of Ni(OH)₂ as urea oxidation co-catalyst.

Pop et al focused their study in the comparison of the hydrogen production rates driven by oxidation of three nitrogen compounds found in wastewater: ammonia, urea and formamide [56]. The cell configuration combined a nanoparticulate TiO₂ photoanode and a mixture of carbon paste dispersing platinum nanoparticles (NPs) as cathode in the same electrode. This configuration was unbiased and used under UV illumination. The detected hydrogen production after 4 h was about 30, 140 and 240 mol in presence of ammonia, formamide and urea, respectively. From these results, urea proved to be the best choice for photoelectrochemical hydrogen production. Additionally, a cell configuration with a separated photoanode and cathode, applying 0.5 V bias was also tested. The results from the two configurations were compared after 50 min, in which the biased configuration reported a H₂ production rate of 2.7 mol min⁻¹ while the unbiased configuration reported a rate of 1.4 mol min⁻¹, highlighting the improved charge separation induced by the use of a bias.

Different saccharides compounds can be found wastewater; among them, cellulose is commonly found in domestic wastewater and effluents from industries as the paper industry [107].

Kawai and Sakata demonstrated the feasibility of producing hydrogen from Saccharides (C₆H₁₂O₆)_n , as saccharose (n = 2), starch (n ≈ 100) and cellulose (n ≈ 1000–5000), using a photocatalyst formed by RuO₂/TiO₂/Pt. A quantum yield of 1% at 380 nm was reported for cellulose in 6 M NaOH [108]. Moreover, Kondarides et al studied the hydrogen production from the photocatalytic reforming of several compounds including cellulose using a Pt/TiO₂ photocatalyst, proving the potential of cellulose for H₂ production [25]. Speltini et al investigated the photocatalytic hydrogen production from cellulose using a Pt/TiO₂ photocatalyst [109]. The study showed higher H₂ production rates with neutral pH and reported a H₂ production of 54 µmol under UV-A irradiation. A degradation mechanism was also reported suggesting that cellulose depolymerizes and converts into glucose and other water-soluble products. Caravaca et al researched the photocatalytic H₂ production from cellulose using different metals as co-catalysts loaded in TiO₂. The highest H₂ production was reported with Pd and the lowest with Ni and Au, following the trend Pd > Pt > Ni ∼ Au [110]. Even the H₂ production using Ni as co-catalyst was lower compared to the noble metals Pd and Pt; it was in the same magnitude, highlighting the possibility of using a no noble metal as co-catalyst. Moreover, the study suggested the possibility of the hydrolysis of cellulose taking place during irradiation to produce glucose, which could follow different pathways to produce hydrogen.

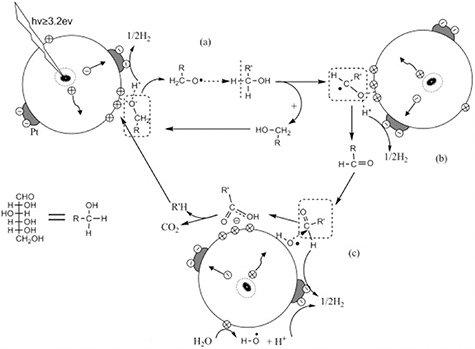

The photoreforming of glucose, which is proposed to be an intermediate in the cellulose photoreforming process, has been reported in several studies [25, 26, 111–113]. Kondarides et al studied the hydrogen production from the photocatalytic reforming glucose using a Pt/TiO₂ photocatalyst, reporting an external quantum efficiency of 63% at 365 nm [25]. Fu et al studied the effect of different parameters as pH and co-catalyst material and proposed a mechanism for the hydrogen production from photocatalytic reforming of glucose using a metal loaded photocatalyst [26]. The study reported the effect of different co-catalysts loaded in TiO₂, showing all of them a better activity than the bare TiO₂; the best activity was obtained using Pd and Pt and the worse with Ru and Ag, following the trend Pd > Pt > Au ≈ Rh > Ag ≈ Ru. Moreover, the variation of pH over a wide range resulted in an increasing H₂ production rate with increasing pH, with a plateau region from pH 5–9 and maximum peak at pH 11. The pKa of glucose is around 12.3; therefore, higher rates of glucose oxidation are produced with glucose in its molecular form. In the proposed mechanism, the glucose is adsorbed preferentially in the uncoordinated Ti atoms through its hydroxyl group; it dissociates and then it is oxidized by a photogenerated hole. The radicals generated attack other glucose molecules, forming R–CHOH, which are deprotonated and further oxidized to [R–COOH]⁻ by the radical ^•OH. Lastly, [R–COOH]⁻ species are photo-oxidized by a hole to generate CO₂ via a photo-Kolbe reaction [26]. This mechanism is presented in figure 6. Chong et al investigated the glucose photoreforming mechanism using Rh/TiO₂ photocatalyst, reporting the production of arabinose, erythrose, glyceraldehyde, gluconic acid and formic acid (together with CO and CO₂ gas) [111]. In the suggested mechanism, glucose is oxidized into arabinose, then further oxidized into erythrose and ultimately into glyceraldehyde. These oxidation reactions take place through ^•OH radicals, which leads to the generation of formic acid and hydrogen. Subsequently, formic acid is converted into CO or CO₂. Imizcoz and Puga studied photocatalytic hydrogen production from glucose using TiO₂ loaded with different metals as Au, Ag, Pt and Cu [112]. The study reported a catalyst efficiency following the trend Pt > Au > Cu > Ag, without significative differences between Cu and Au, proposing Cu as an inexpensive co-catalyst for hydrogen production. Bahadori et al researched the hydrogen production from glucose photoreforming using CuO or NiO loaded TiO₂ as photocatalyst [113]. The highest hydrogen production yield reported was 9.7 mol g_cat ⁻¹ h⁻¹ using 1 wt% CuO on P25.

Zoom In Zoom Out Reset image size

Other semiconductor materials as WO₃ and α-Fe₂O₃ have also been studied using a PEC for hydrogen production from photoreforming of glucose. Esposito et al reported how a thin film WO₃ photoanode presented a good photocatalytic activity for H₂ production from glucose photoreforming using a tandem cell device [114]. Wang et al investigated the possibility of using Ni(OH)₂ as co-catalyst for glucose oxidation (not coupled to H₂ production) in a PEC, reporting an increased activity for Ni(OH)₂ loaded in α-Fe₂O₃[62].

Phenolic compounds are found in significant quantities in wastewater from effluents of several industries as oil refining, petrochemicals, resin manufacturing and pulp, but also in agricultural and domestic wastewaters [97, 115]. Phenolic compounds are considered toxic and its discharge without treatment produces harmful effects in the aquatic systems [116]. The photocatalytic degradation of phenolic compounds has been widely studied [117]. However, only few cases coupled the photocatalytic oxidation of phenolic compound to H₂ production [24, 27, 33, 57, 118–120], demonstrating the feasibility of this process.

Hashimoto et al investigated the photocatalytic H₂ production in presence of different aliphatic and aromatic compounds with suspended Pt/TiO₂ [27], demonstrating the production of hydrogen in presence of phenol. Moreover, the study showed an increased rate of H₂ production in presence of phenol in alkaline conditions over acidic conditions. Languer et al reported that the photocatalytic phenol degradation over TiO₂ nanotubes produced hydrogen at a rate of about 0.06 µmol h⁻¹ cm⁻² [119]. Kim et al demonstrated the feasibility of hydrogen production coupled to photocatalytic degradation of 4-chlorophenol [24]. The study involved the activity comparison of the following photocatalysts: TiO₂/Pt, F-TiO₂/Pt and P-TiO₂/Pt. The highest H₂ production rate was obtained with F-TiO₂/Pt and the lowest with TiO₂/Pt. However, the good activity of F-TiO₂/Pt was limited to acidic region since the fluorides desorb at the alkaline region. P-TiO₂/Pt had higher H₂ production range than TiO₂ for all the pH range. Lv et al used S doped two-dimensional g-C₃N₄ for the photocatalytic hydrogen production from phenol, achieving a H₂ production rate of 127.4 μmol h⁻¹ and an external quantum efficiency of 8.35% at 400 nm [33].

In PECs, several photoanodes materials have been tested. Wu et al studied the effect of the photoanode and photocathode materials on the voltage and current generated in the phenol degradation and hydrogen production [57]. Different photoanode and photocathode nanostructures, as nanorods (NRs), NPs and nanowires (NWAs) were tested from TiO₂, CdS, CdSe and Cu₂O. It was demonstrated that the open circuit voltage depends not only on the Fermi level between the photoelectrodes, but also on crystal facet for the same semiconductor materials with different microstructures. The best phenol removal efficiency was achieved with the combination of the photoanode TiO₂ NRs/FTO and the photocathode C/Cu₂O NWAs/Cu. This combination reached a phenol removal rate of 84.2% and an overall hydrogen production rate of 86.8 mol cm⁻² in 8 h. Park et al demonstrated the feasibility of hydrogen production driven by the photoelectrochemical degradation of phenol using improved multi-layered BiO–TiO₂/Ti electrodes [118]. The electrodes were formed by an under layer of TaO–IrO, a middle layer of BiO_χ –SnO₂, and an upper layer of BiO–TiO₂ which covered both sides of Ti foil. The study showed that bismuth doping, even at high concentration, increased TiO₂ conductivity, while preserving the original photoelectrochemical properties. Li et al studied the photoelectrocatalytic hydrogen production in presence of phenol using Bi/BiVO₄ as photoanode [120]. The study reported a hydrogen production rate of 27.8 mol cm⁻² h⁻¹.

Although alcohols are not expected to be abundant and common substances in municipal wastewater, they may be present in some industrial wastewater [121]. The production of H₂ from photocatalytic oxidation of alcohols has been extensively studied, mainly methanol, ethanol, and glycerol oxidation.

Kawai and Sakata demonstrated the feasibility of producing hydrogen by photoreforming of methanol [122]. The study reports the highest H₂ production rate Pt and an apparent quantum yield of 44% at 380 nm with a photocatalyst formed by RuO₂/TiO₂/Pt. In the proposed reaction mechanism, methanol forms an intermediate, formaldehyde, which further oxidizes to formic acid and finally decomposes to CO₂ and H₂. Chiarello et al studied the effect of loading different noble metal co-catalysts to a TiO₂ photocatalyst in the photoreforming of methanol [123]. Among the investigated co-catalysts (Ag, Au and Pt), Pt showed the highest hydrogen production rate. Moreover, Naldoni et al studied the difference between loading TiO₂ photocatalyst with Au or Pt, concluding that photogenerated electrons are more easily transferred to the Pt NPs to reduce protons, than to Au [124]. Chen et al studied the mechanism of the photocatalytic reaction of methanol for hydrogen production on Pt/TiO₂ [125]. The proposed mechanism (figure 7) involves the formation of H₂ on Pt sites, in which the proton transfer to the Pt sites is mediated by the adsorbed water and methanol molecules. Most of the protons that form H₂ in the Pt sites come from water and not from methanol. The study demonstrates that the surface species of CH₂O, CH₂OO and HCOO were formed. Moreover, an increase in Pt loading generated a decrease on methanol adsorption, which suggest that Pt atoms occupy sites for methanol adsorption [125]. Ismael studied the use of a Ru doped TiO₂ photocatalyst for the hydrogen production from methanol, reporting an enhancement on the activity due to the decrease in the band gap and a larger surface area [126]. The highest activity was reported doping with of 0.1% mol of Ru. In another study, Chen et al reported the possibility of using a low cost photocatalyst formed by carbon coated Cu/TiO₂ (C/Cu/TiO₂) for hydrogen production from methanol [127]. This photocatalyst produced a H₂ yield of 269.1 mol h⁻¹ which is comparable to 290.8 mol h⁻¹, the yield produced with Pt/TiO₂.

Zoom In Zoom Out Reset image size

Liu et al investigated the interaction between CuO_x –TiO₂ and its effect on the photocatalytic production of hydrogen from methanol [128]. The highest H₂ production was reported with CuO_x/TiO₂-{0 0 1} which has the highest Cu₂O dispersion and strongest interaction. Jiménez-Rangel et al study the performance of g-C₃N₄/NiOOH/Ag as photocatalyst for the photoreforming of methanol, obtaining a maximum H₂ yield of 350.6 mol h⁻¹. The hydrogen yield of the combined g-C₃N₄/NiOOH/Ag photocatalyst resulted significantly higher compared to the yield of g-C₃N_4, g-C₃N₄/NiOOH or g-C₃N₄/Ag alone [34]. Hojamberdiev et al studied the use of a photocatalyst composed of g-C₃N₄ Ni(OH)₂ and halloysite nanotubes for the production of hydrogen from methanol [129]. This photocatalyst presented a higher H₂ production rate (18.42 mol h⁻¹) than g-C₃N₄/Ni(OH)₂ (9.12 mol h⁻¹) or g-C₃N₄ (0.43 mol h⁻¹). This enhancement was attributed to charge separation being the holes trapped by the halloysite nanotubes and the electrons transferred to Ni(OH)₂.

Ethanol has been extensively studied as a sacrificial agent for H₂ production [25, 31, 32, 130–136]. Sakata and Kawai studied the photocatalytic production of hydrogen from ethanol [130]. The study reports the production of hydrogen, methane, and acetaldehyde. Moreover, different co-catalyst loaded in TiO₂ were studied as Ni, Pd, Pt and Rh, being Pt the one with the highest H₂ production rate and with a reported external quantum yield of 38% at 380 nm. Kondarides et al studied the hydrogen production from the photocatalytic reforming of ethanol with a Pt/TiO₂ photocatalyst, reporting an external quantum efficiency of 50% at 365 nm [25]. Yang et al researched the photocatalytic production of hydrogen from ethanol using metal loaded TiO₂ as photocatalyst and compared it to the H₂ production from other alcohols [131]. Pt and Pd presented higher H₂ production rates than Rh. Moreover, it was suggested that the hydrogen production over Pt/TiO₂ is governed by the solvation of the alcohol, following the H₂ production the following trend: methanol ≈ ethanol > propanol ≈ Isopropanol > n-butanol. Sola et al investigated the effect of the morphology and structure of Pt/TiO₂ photocatalysts on the hydrogen production from ethanol [132]. The study showed an improved performance for the Pt/TiO₂ photocatalysts with higher surface area and lower pore size. The best performing photocatalyst was found to be Pt/TiO₂ with an average pore size of 29.1 nm and a surface area of 51 m² g⁻¹, reporting an apparent quantum yield of 5.14%. Acetic acid, 2,3-butanediol and acetaldehyde were the main products in the liquid phase, finding a higher concentration of 2,3-butanediol with lower pore size. Puga et al studied the hydrogen production from photocatalytic ethanol oxidation over Au/TiO_2, obtaining as main products acetaldehyde in the liquid phase and H₂ in the gas phase with a volumetric proportion of 99%, while the other gaseous product detected were CH₄, C₂H₄, C₂H₆, CO and CO₂ [133].

Deas et al used Au loaded on TiO₂ nanoflowers as photocatalyst for hydrogen production from ethanol, reporting a hydrogen production rate of 24.3 mmol g⁻¹ h⁻¹, compared to only 12.1 mmol g⁻¹ h⁻¹ obtained with Au/P25 [134]. This enhancement was ascribed to the thin and crystalline anatase sheets of the nanoflower petals which reduce the bulk recombination. Pajares et al investigated the use of WC as TiO₂ co-catalyst for the photocatalytic hydrogen production from ethanol, reporting an enhancement of 40% on the H₂ yield compared to P25 [135]. Zhang et al investigated the effect of Ti³⁺ defects of Au/TiO₂ on the hydrogen production from ethanol [136]. The study reported an increased activity with higher defects, concluding that oxygen vacancies on TiO₂ rich in defects, facilitates the adsorption of ethanol and hole transfer. Ryu et al studied the photoreforming of ethanol using CdS attached on microporous and mesoporous silicas as photocatalyst. The study suggests that the photoactivity was dependent on the silica cavity size, which partially controls the CdS particle size [31]. Cebada et al studied the use of Ni/CdS as photocatalyst for the hydrogen production from ethanol, proving that higher Ni content resulted in increased hydrogen production [32].

Antoniadou et al studied the hydrogen production from ethanol using a PEC chemically biased [137]. The cell had two compartments, with a TiO₂ photoanode in an acidic electrolyte compartment and a Pt cathode in alkaline electrolyte compartment. The study reported an IPCE of 96% at 360 nm and proved that the photoreforming of ethanol is more efficient than photocatalytic water splitting. Adamopoulos et al investigated the effect of adding a top layer of TiO₂ to a WO₃ photoanode in the hydrogen production from ethanol using a biased PEC [138]. Carbon black loaded on carbon paper was used as cathode. Increased current density and hydrogen production were reported when using the TiO₂/WO₃ bilayer photoanode; this improvement was ascribed to the lower number of recombination sites.

H₂ production from photoreforming of glycerol has also been widely studied [25, 139–144]. Kondarides et al studied the hydrogen production from the photocatalytic reforming of glycerol, reporting an external quantum efficiency higher than 70% at 365 nm with a Pt/TiO₂ photocatalyst and 1 M of glycerol [25]. Fu et al studied the mechanism of photoreforming polyols as glycerol using a Pt/TiO₂ photocatalyst, proposing that just the H atoms connected to hydroxyl C atoms can form H₂ while the C atoms are oxidized to CO₂ [139]. For non-OH bonded C atoms, the bond H and C atoms form products in the form of alkanes as CH₄ or C₂H₆. Bowker et al investigated the photocatalytic reforming of glycerol using Pd and Au modified TiO₂ and proposed a possible mechanism [140]. Hydrogen production rate from Pd was four times larger than the one of Au. The mechanism suggests that H₂ is produced through the dissociation of adsorbed glycerol molecules with the associated production of CO, when using Pd/TiO₂. Subsequently, the CO reacts with oxygen radical at the metal surface to produce CO₂ freeing sites. Montini et al studied the hydrogen production from glycerol using Cu/TiO₂ photocatalyst [141]. Hydrogen and carbon dioxide were the main products in gas phase, and 1,3-dihydroxypropanone and hydroxyacetaldehyde in liquid phase. Moreover, Chen et al reported a quantum efficiency of 24.9% at 365 nm and hydrogen production rate of 17.6 mmol g⁻¹ h⁻¹ from glycerol using Cu/TiO₂ as photocatalyst [142]. Daskalaki and Kondarides studied the hydrogen production from photoreforming of glycerol over Pt/TiO₂, reporting H₂ and CO₂ as the only products in gas phase and methanol and acetic acid as intermediates in liquid phase [143]. Naffati et al reported a hydrogen production rate of 2091 mol g⁻¹ from glycerol using a photocatalyst consisting of TiO₂ loaded with Pt and carbon nanotubes (CNT) [144].

Hydrogen production from glycerol has been also demonstrated using PECs using a TiO₂ photoanode [145], or a TiO₂ photoanode functionalized with CdS [146].

Other compounds that can be part of the organic waste contained in wastewater are organic acids and aldehydes [147, 148]. Patsoura et al studied the hydrogen production and simultaneous degradation of formic acid, acetic acid and acetaldehyde over a Pt/TiO₂ photocatalyst [149]. The study reported a hydrogen production after 20 h of 183.2 mol from acetic acid and 72.5 mol from acetaldehyde.

et al researched the photocatalytic hydrogen production in presence of oxalic acid, formic acid and formaldehyde using a Pt/TiO₂ photocatalyst [28]. The study reported that the photocatalytic activity of these electron donors follows the trend of oxalic acid > formic acid > formaldehyde which agrees with the order of adsorption affinity of these electron donors on TiO₂.

Imizcoz and Puga investigated the photoreforming of acetic acid using Cu/TiO₂ as photocatalyst [150]. Hydrogen production from acetic acid was enhanced by including a photoreduction step to control the oxidation stage of Cu. On the contrary, when Cu was used directly, its passivation resulted in a high decarboxylation, producing mainly CH₄ instead of H₂.

The feasibility of photocatalytic H₂ production from wastewater mixtures such as olive mill wastewater (OMW), juice production wastewater and waste activated sludge has been demonstrated [29, 30, 112, 151].

OMW contains a high load of organics varying from 40 to 220 g l⁻¹ [152]. The main components found on this wastewater are oil, grease, polyphenols and sugars [151]. Badawy et al studied the photocatalytic degradation of OMW with simultaneous hydrogen production using nanostructured mesoporous TiO₂ as photocatalyst [29]. TiO₂ loading and pH were the main factors affecting the photocatalytic degradation and H₂ production in this study. The maximum hydrogen production was 38 mmol after 2 h at a pH of 3 and a photocatalyst concentration of 2 g l⁻¹. The organic pollutants contained in OMW enhanced the H₂ production, by scavenging holes and decreasing the electron hole recombination. Speltini et al investigated the effects of factors as photocatalyst concentration, pH and OMW concentration in H₂ production, using Pt/TiO₂ as photocatalyst and UV-A irradiation [151]. The study reports an apparent quantum yield of 5.5 × 10⁻³ at 366 nm and the production of 44 mol of H₂ after 4 h of UV-A irradiation, using a photocatalyst concentration of 2 g l⁻¹, OMW concentration of 3.35 v/v, and a pH of 3. Moreover, the H₂ yield produced by OMW was compared to glucose, which have been considered a good sacrificial donor for H₂ production, and similar production rates were obtained.

Imizcoz and Puga demonstrated the feasibility of photocatalytic hydrogen production using wastewater from a juice production industry, which contains high amounts of saccharides [112]. The study reported a H₂ yield of 115 mol g_cat ⁻¹ h⁻¹ using Au/TiO₂ as photocatalyst.

The simultaneous H₂ production and degradation of waste activated sludge from wastewater treatment processes was investigated by Liu et al, using Ag/TiO₂ as photocatalyst, proving the possibility of this process [30].

All the materials used in the reviewed works for H₂ production by photocatalytic and photoelectrochemical oxidation of each wastewater component are summarize in tables 1 and 2.
