Ferromagnetic metal conversion directly from two-dimensional nickel hydroxide

Two-dimensional (2D) materials have attracted great interest due to characteristic physical/chemical properties compared to bulk materials. Furthermore, hetero-structures by stacking different 2D materials show new functions and can be applied to future nano-devices [1, 2]. A large number of 2D materials obtained from layered bulk crystals by various exfoliation methods have been reported in the last two decades. However, pure metals and their alloys including ferromagnetic metals such as Fe and Ni, do not have layered structures and cannot be exfoliated into atomic layers by the general exfoliation methods [3]. Chemically synthesized metallic 2D materials have also attracted much attention as novel catalytic materials [4, 5]. Various types of 2D transition metal dichalcogenides (TMDCs) including metallic materials are exfoliated from layered TMDCs and are also created by chemical vapor deposition (CVD) methods. Although most of the metallic 2D materials are unstable in ambient air, they are demanded as potential electronic materials for future flexible devices [6].

Another root to obtaining 2D metal structures is reduction from 2D oxide materials. It is well known that transition metal oxides and hydroxides nanosheets are exfoliated from the layered metal oxides and hydroxides in chemical solutions [7]. Ruthenium (Ru) and Platinum (Pt) metal nanosheets are obtained from oxide nanosheets by hydrogen/chemical reduction methods [8, 9]. Chemically obtained nickel hydroxide Ni(OH)₂ nanosheets with lateral size of a several hundred nanometers [10] are converted to nickel oxide nanosheets by thermal decomposition [11]. Subsequently, the nickel oxide nanosheets are also converted to metallic states by a hydrogen reduction [12]. In the metallic conversions from monolayer oxides, evaluations of metallization are rather difficult due to the ease of re-oxidations. In this paper, we report a direct conversion from Ni(OH)₂ monolayer nanosheets into ferromagnetic nickel metal 2D-like structures by thermal annealing under vacuum. The metal transitions are evaluated by in-situ element-specific x-ray absorption spectroscopy at ultra-high vacuum (UHV) to avoid surface oxidation. To our best knowledge, this study is the first report of a metallic conversion directly from a monolayer hydroxide. The simple conversion method is also applicable for other types of monolayer hydroxide nanosheet [13, 14]. Furthermore, the converted 2D-like nickel metal exhibits a ferromagnetic behavior, which can be applied to future spintronics devices composed of 2D materials.

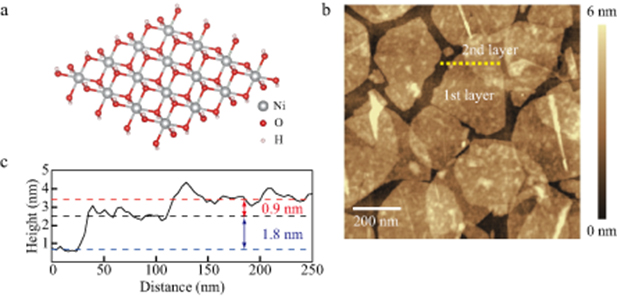

Ni(OH)₂ nanosheets were exfoliated from layered nickel hydroxides intercalated with dodecyl sulfate ions [10]. Figure 1(a) is a structural model of Ni(OH)₂ nanosheet. Electronic and magnetic properties in the nickel hydroxide nanosheets have been studied by simulations based on first-principles calculations [15–19]. Figure 1(b) shows an atomic force microscopy image of the nanosheets deposited on a highly doped conductive Si substrate by the Langmuir-Blodgett method. Ripples observed in figure 1(b) are due to water molecules or dodecyl sulfate ions trapped between the nanosheets and the Si substrate. Figure 1(c) shows the cross section of the AFM image at the dashed line in figure 1(b). The height between the Si substrate and the 1st layer generally increases due to surface condition such as the surface roughness. The height between the 1st layer and 2nd layer is about 0.9 nm, which is comparable to the value reported in the previous study [10]. Interlayer distance of nickel hydroxide α-Ni(OH)₂ and β-Ni(OH)₂ are 0.81 nm and 0.46 nm, respectively [20, 21]. The observed height is comparable to the value of water intercalated α-Ni(OH)_{2 .} This indicates presence of water molecules between the stacked nickel hydroxide nanosheets in ambient air.

Zoom In Zoom Out Reset image size

In order to investigate electronic states in the nickel hydroxide nanosheets, x-ray absorption near edge structure (XANES) were measured at the BL-14 beam line of HiSOR. The measurement setup is schematically drawn in figure 2(b). The measured x-ray absorption corresponds to excitations from 2p core levels to 3d unoccupied levels. The spectra Ni L₂ and L₃ edges of Ni were taken in total electron yield mode by measuring the current due to x-ray absorption thorough the conductive Si substrate. The directions of the incident x-ray beam and the external magnetic field of 1.1 T supplied by a permanent magnet array were perpendicular to the substrate. The degree of x-ray circular polarization was estimated to be about 70 %. Thermal annealing for 30 min at different temperatures and subsequent XANES measurements at room temperature were carried out in the UHV chamber of the beam line. The pressure of the chamber was about 1 × 10⁻⁷ Pa under XANES measurements and increased up to 2 × 10⁻⁵ Pa during thermal annealing. XANES spectra and x-ray magnetic circular dichroism (XMCD) spectra were obtained from the average and the deviation between the x-ray absorption spectra under the oppositely directed magnetic fields.

Zoom In Zoom Out Reset image size

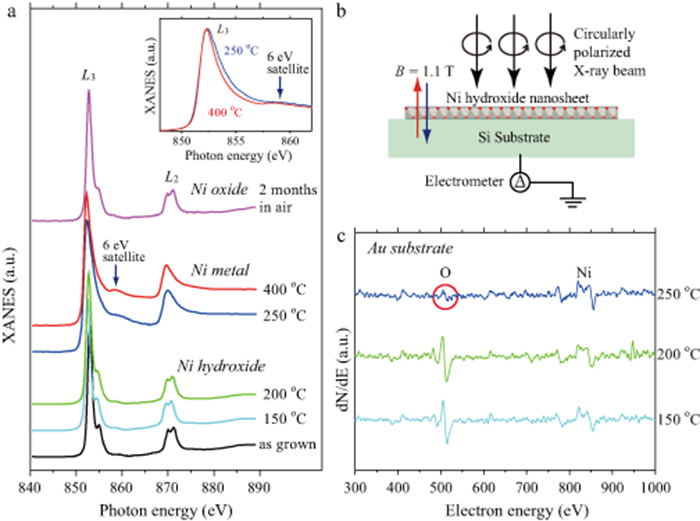

Figure 2(a) shows the x-ray absorption spectra for different settings of the annealing temperature. The as grown sample exhibited multiple structures corresponding to the transition 2p⁶3d⁸ → 2p⁵3d⁹, which indicates that the nickel hydroxide has valence state of Ni²⁺ [22, 23]. The sample annealed below 200 °C also exhibited similar structures which indicate that the hydroxide nanosheets kept the initial structure under the low temperature annealing. Above 250 °C, the multiple structure drastically changed into two broad metallic peaks with a step-like background similar to spectra observed in a nickel single crystal [24] and deposited nickel metal films on different substrates [25–27]. Specific satellite peaks at ∼6 eV above the L₃ main peaks are also visible as same as the earlier studies. The result indicates that the nickel hydroxide nanosheets are converted to nickel metal structures by thermal annealing under vacuum. Comparing between the two metallic spectra, the sample annealed at 250 °C has a broader main peak and a smaller 6 eV satellite peak as shown in the inset of figure 2(a). A similar trend was observed in deposited nickel films by reducing the thickness down to monolayer [27]. We can imagine that monolayer nickel islands are produced at the low temperature annealing, however, further investigations are needed for precise control of the nickel metal structure.

The converted metallic sample annealed at 400 °C was exposed to air and was measured x-ray adsorption spectra again after 2 months. The metallic broad spectra changed into a multiple structure similar to the initial hydroxides. However, additional thermal annealing in vacuum failed to convert the air-exposed sample to a metallic state. It is noteworthy to mention that layered nickel hydroxides are decomposed to nickel oxides by a calcination in air. The transition temperature from the hydroxides to the oxides is between 250 °C and 350 °C [28–32], which coincides with the transition temperature in this experiment. Recently, nickel hydroxides nanowalls have been successfully converted to nickel metal nanosheets with 10 atomic layers by a solution-based chemical reduction [33]. In our experiment, we demonstrate that the monolayer nickel hydroxides nanosheets are successfully converted to not oxides but metallic states by a thermal annealing in vacuum, although the converted metal structures are easily oxidized by an exposure to air.

We measured Auger spectra in the annealing process to confirm the metallic transition. For avoiding signals from native oxide-layer in the Si substrates, we prepared samples in which Au films were deposited between the Si substrates and the nickel hydroxide nanosheets for the Auger measurements. Figure 2(c) shows the Auger spectra for different annealing temperatures in vacuum. Comparing the results for different annealing temperatures, the signal from oxygen (O) around 500 eV was apparently suppressed at 250 °C. Although the small oxygen signal seems to be remained at 250 °C, it is difficult to perfectly remove signals originated from surface contaminants even in UHV chamber. The element specific XANES measurement reveals that the 250 °C sample does not contain the multiple oxide/hydroxide signal. Hence, we can conclude that the remained oxygen atoms observed in the Auger measurement at 250 °C do not have chemical bonds to nickel atoms. The result implies that water molecule dissociations from the hydroxide nanosheets accompany with oxygen molecule dissociations, which lead to crystallizations of nickel metal.

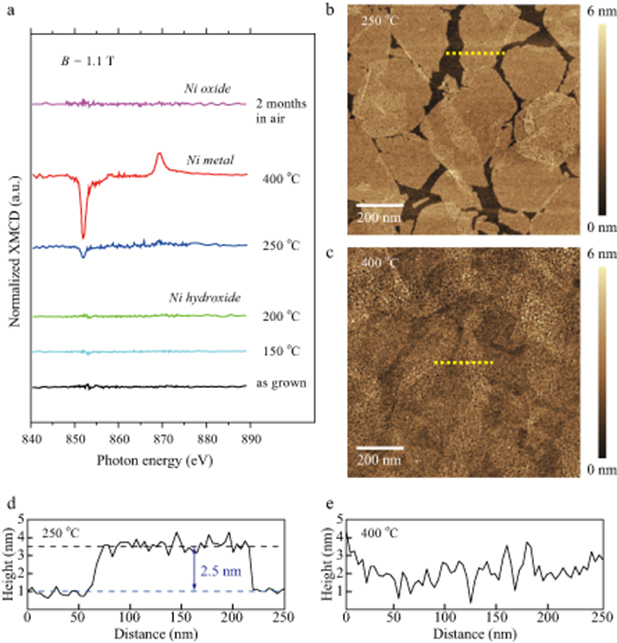

XMCD measurements also support the transition from the nickel hydroxide to the nickel metal. Figure 3(a) shows XMCD spectra normalized by the amplitude of L₃ peak in each x-ray absorption spectra. A weak XMCD signal appeared in the sample annealed at 250 °C and was enhanced in the sample annealed at 400 °C, which means a ferromagnetic order induced by the metallization.

Zoom In Zoom Out Reset image size

To evaluate the amplitude difference in the XMCD signal, we compared surface morphologies between the samples annealed at different temperatures by an atomic force microscopy. Since the measurements were carried out at ambient air, surface oxidations may have occurred. Nevertheless, the morphologies shown in figures 3(b) and (c) were significantly different. For the case of the sample annealed at 250 °C, the initial sheet structures were still remained even after the metallization as shown in figure 3(d). The height between the substrate surface and the top of the 1st layer increased from 1.8 nm to 2.5 nm by the annealing at 250 °C. It should be pointed out that the increase in the measurement height may originate from surface oxidations. In contrast, nickel atoms widely diffused on the substrate at 400 °C, leading to formations of nickel nanoparticles. The surface roughness increases about twice as that of the sample annealed at 250 °C as shown in figure 3(e).

From the XMCD spectra, we can estimate magnetic moments per Ni atom by calculation based on the sum rules [34]. Assuming the number of unoccupied d states n_h = 1 and neglecting the contribution of the spin magnetic dipole operator, the total magnetic moments for the samples annealed at 250 °C and at 400 °C are estimated to be 0.03 μ_B and 0.24 μ_B, respectively. These are smaller than the reported value of bulk nickel ∼0.6 μ_B. Reductions of total magnetic moments due to interactions with substrates have been observed in thin nickel films [25–27]. In our XMCD measurements, the direction of the external magnetic field of 1.1 T was perpendicular to the sample, so that the magnetic moments were not fully aligned along the magnetic field especially in thinner 250 °C sample. Another possibility is a reduction of the Curie temperature, which is strongly dependent on the thickness [35]. These are the reasons why the XMCD signal measured at room temperature was relatively weak for the sample annealed at 250 °C even though the x-ray absorption spectra revealed the metal transition.

Chemically exfoliated Ni(OH)₂ nanosheets are converted into metallic nickel 2D structure by annealing above 250 °C in vacuum. XANES signal significantly changes from a multiple structure to a broad metallic structure. Auger measurement also supports the metallic transition accompanied with dissociation of oxygen. XMCD measurement reveals that the converted metal structures exhibit ferromagnetic behavior. The perpendicular magnetization increases with the annealing temperature due to the structural change from 2D-like sheet to nanoparticle.
