Abstract
Unclean combustion of solid fuel for cooking and other household energy needs leads to severe household air pollution and adverse health impacts in adults and children. Replacing traditional solid fuel stoves with high efficiency, low-polluting semi-gasifier stoves can potentially contribute to addressing this global problem. The success of semi-gasifier cookstove implementation initiatives depends not only on the technical performance and safety of the stove, but also the compatibility of the stove design with local cooking practices, the needs and preferences of stove users, and community economic structures. Many past stove design initiatives have failed to address one or more of these dimensions during the design process, resulting in failure of stoves to achieve long-term, exclusive use and market penetration. This study presents a user-centered, iterative engineering design approach to developing a semi-gasifier biomass cookstove for rural Chinese homes. Our approach places equal emphasis on stove performance and meeting the preferences of individuals most likely to adopt the clean stove technology. Five stove prototypes were iteratively developed following energy market and policy evaluation, laboratory and field evaluations of stove performance and user experience, and direct interactions with stove users. The most current stove prototype achieved high performance in the field on thermal efficiency (ISO Tier 3) and pollutant emissions (ISO Tier 4), and was received favorably by rural households in the Sichuan province of Southwest China. Among household cooks receiving the final prototype of the intervention stove, 88% reported lighting and using it at least once. At five months post-intervention, the semi-gasifier stoves were used at least once on an average of 68% [95% CI: 43, 93] of days. Our proposed design strategy can be applied to other stove development initiatives in China and other countries.
Export citation and abstract BibTeX RIS
Original content from this work may be used under the terms of the Creative Commons Attribution 3.0 licence.
Any further distribution of this work must maintain attribution to the author(s) and the title of the work, journal citation and DOI.
1. Introduction
Nearly 3 billion people worldwide use solid fuel (e.g. biomass, coal) for cooking and heating, and over one-fifth of solid fuel users live in China (Bonjour et al 2013). The household air pollution generated from incomplete combustion of solid fuels is estimated to cause 2.9 million yearly premature deaths worldwide (Forouzanfar et al 2015) and thought to be an important contributor to regional air quality (Liu et al 2016, Chafe et al 2014) and global climate change (Bond et al 2013).
The harmful health and environmental impacts of air pollution from traditional solid fuel stoves have motivated the design and dissemination of more efficient, cleaner-burning stoves such as gas, electric, and biomass-fuelled technologies. Early stove designs, mostly biomass-burning stoves, were primarily motivated by fuel saving and forest conservation goals and did little to reduce air pollution exposures (Arnold et al 2003). Most recent stove designs aim for high combustion efficiency and low pollution emissions to reduce air pollution exposures and improve health (Jetter et al 2012). Since 2010, hundreds of different stove designs, the majority of which are designed to burn biomass more efficiently, have been distributed to an estimated 53 million homes throughout the world (Ruiz-Mercado et al 2011, GACC 2016). Yet, findings from observational studies and randomized trials suggest that most programs failed to introduce stove designs that were scalable in a community setting and substantially reduced air pollution exposures while functionally replacing the traditional stoves (Agarwal 1983, Manibog 1984, Ruiz-Mercado et al 2011, Rehfuess et al 2014, Kshirsagar and Kalamkar 2014).
Ambitious targets for scaling up household energy interventions have been set by a number of national governments, including China, India, Ghana, Bangladesh, Guatemala, Nigeria, and Kenya, often in partnership with international agencies (GACC 2016, Urmee and Gyamfi 2014). To meet the World Health Organization's (WHO) interim household air pollution guideline and to maximize population health benefits, near exclusive, community-wide use of the cleanest stoves is required (Johnson and Chiang 2015). Decades of disappointing stove intervention programs highlight the need for new approaches and development efforts (Manibog 1984, Gill 1987, Ezzati and Kammen 2002, Ezzati and Baumgartner 2016).
The majority of household stove design efforts have emphasized technological advances and laboratory performance (Kumar et al 2013). Some stove design efforts have addressed other design criteria, including fuel cost and access (Febriansyah et al 2014, Ahiduzzaman and Islam 2013), multi-functional stoves (Raman et al 2014), and user experiences, preferences, and input (Thacker et al 2017). However, integration of these design criteria throughout the stove design and development process, while maintaining high-level performance in the field, has been lacking.
In this paper, we document a comprehensive, user-centered engineering approach to the design and development of low-polluting biomass stove interventions for large-scale implementation in rural China. We present this iterative stove engineering process for a semi-gasifier cooking and water-heating stove that was concurrently informed by user feedback on stove acceptability and functionality and ongoing laboratory and field-based performance testing of efficiency and emissions. Specifically, we demonstrate performance of an innovative stove design that achieves high efficiency and clean combustion, according to existing international guidelines. This design also integrates desirable features that meet users' cooking needs, preferences, and aspirations. Overall, this study provides a useful guide for anticipating the opportunities and barriers to the development, adoption, and use of stoves that meet national and international goals for household cooking and heating interventions.
2. Methods
2.1. Assessing the household energy market and policy environment
Prior to starting stove design, we gathered information on commercially available biomass cookstoves in China through field visits to local stove markets and to villages near Beijing where stoves, particularly semi-gasifier stoves, had been implemented. In addition, we assessed the existing national policy environment for rural energy, including regional and local capacity to produce processed biomass fuel. A complete timeline of the stove design process is provided in figure S1 available at stacks.iop.org/ERL/12/095009/mmedia.
2.2. Stove design concept and prototyping
Briefly, semi-gasifier stoves operate through a two-step process: (1) solid fuel is burned near the base of the combustion chamber with introduction of primary air, which produces a gas that (2) is further combusted with introduction of secondary air near the chamber opening. This two-stage combustion process has excellent oxygen supply and yields high thermal power, near-complete fuel combustion, and reduced pollution emissions (Anderson et al 2007).
We initiated the semi-gasifier stove design process by defining the overall design objectives and developing criteria and evaluation metrics by which achievement of the design objectives would be evaluated. We produced and tested stove prototypes, iteratively modifying the stove design to meet the design criteria.
2.3. Stove performance testing in the laboratory
For each stove prototype, we rigorously evaluated the performance, namely energy efficiency and air pollution emissions, according to the ISO standardized Water Boiling Test (ISO 2014) and under stove operating conditions that simulated rural Chinese cooking behavior (Carter et al 2014). Laboratory performance testing also included the following: speed of ignition, speed of fuel loading, range of firepower adjustment (i.e. cooking power), total power requirements, safety (table S1), and robustness to non-optimal fuel loading conditions (figure S2). Results from laboratory testing were used to inform stove design modifications and engineering decisions.
2.4. Field evaluation of user experience and stove use patterns
Targeted and repeated field evaluation of users' experiences provided an opportunity to examine the stove's functionality and to further improve the design with respect to user acceptability and reproducibility of traditional cooking methods. Later-stage prototype stoves were introduced to rural, village homes in the Sichuan province, where a government-led intervention project was based. These prototype stoves were introduced on a trial basis to obtain feedback on user experiences and evaluate whether the stove was robust to 'real life' usage conditions. Pelletized biomass fuel produced from a nearby village-scale factory was supplied to homes at no cost to remove barriers to stove use. Selected homes were already enrolled in a household energy study. A detailed description of the study site and homes' energy practices are provided elsewhere (Ni et al 2016).
We conducted structured and semi-structured interviews with primary cooks at 2 d and 6 weeks post-installation of the prototype stoves. Questions captured information on cooking behaviors (e.g. 'What are the tasks for which you use the prototype stove?'), preferences (e.g. 'What aspects of the prototype do you like compared with your traditional stove?'), and recommendations for design and functionality (e.g. 'If you could modify one aspect of the prototype stove, what would you choose?'). Interviews were conducted in Mandarin-Chinese and took approximately 30 min. This information influenced technical design parameters (e.g. pot sizes; pellet tank and combustion chamber dimensions; flame adjustment range) and improved the stove for commercial production (table S2).
In ten homes with the Prototype V stove (referred to hereafter as the Tsinghua University stove, or 'THU' stove), we monitored stove use for six months after the installation using real-time temperature data loggers (Model DS1922L, Berkeley Air, USA) that were placed on the new and traditional stoves, as well as on a kitchen wall to control for kitchen temperature fluctuations. The methods used to identify combustion events using the temperature sensors are described elsewhere (Clark et al 2017)
2.5. Stove performance testing in homes
Air pollution emissions and energy efficiency of the THU and traditional stoves were evaluated in rural Sichuan homes under conditions of real-world and uncontrolled use, approximately six months after installation. Details on the field emissions testing methods and measurements are provided in the SI (section S1). Briefly, we selected 16 homes with the THU stoves and 15 homes with traditional cookstoves and accessible chimneys for field performance testing in June and July, 2016. We measured gaseous (e.g. CO, CO2, NOx) and PM2.5 emissions during complete cooking events, and determined the emission factors using the carbon balance method (Zhang et al 2000). All measurements were conducted by sampling from chimneys.
3. Results
3.1. Summarizing the household energy market and policy environment
Pre-stove design field visits and information gathering: We identified over 1500 household stove manufactures, representing over 3000 commercially available stove brands with annual sales estimated at nearly 20 million units in China. Most stoves were designed to burn coal, a practice that is increasingly regulated and even banned in some regions in China (Tollefson 2008, Cai et al 2016).The majority of commercially available biomass stoves were designed for space heating. The existing available semi-gasifier biomass cookstoves all lacked user-desired functions such as auto-ignition and flame adjustment. Field visits to homes near Beijing revealed that most homes with semi-gasifier stoves had suspended use due to breakage or difficulty using them for cooking. We identified several design features that led to frequent breakage, namely cracking of the inner combustion chamber wall and stove grate blockage from slag that formed due to high temperature combustion and inefficient ash removal. In addition, most semi-gasifer cookstoves required fuel loading from the top, a feature that made it impossible to add fuel during cooking and, according to stove users, greatly limited its functionality to meet daily cooking needs.
National rural energy policy: Coal replacement and reduction programs in China are expected to increase in number and scale over the next decade (Feng and Liao 2016). In its place, production and use of processed biomass fuel were identified as a priority area for rural energy development (NDRC 2007). China's National Energy Administration announced a goal to increase biomass energy development by the year 2020 to 5.8×1010 kg annually, of which 3.0×1010 kg should be processed biomass (NEA 2016). Although access to and use of gaseous cooking fuels, including liquefied petroleum gas (LPG), is increasing throughout China (Chen et al 2016), many rural households continue to use biomass fuels as their dominant cooking fuel, potentially for reasons related to affordability and cooking preferences (Shan et al 2015, Wang et al 2017). The policies supporting development of cleaner-burning biomass resources may increase interest among current stove manufacturers to diversify their technologies to include biomass-fired stoves that burn pelletized biomass fuel (Reed and Larson 1997, Anderson et al 2007). The feasibility of producing processed biomass fuel at the village scale, rather than traditional large-scale centralized production, is discussed elsewhere (Shan et al 2016).
3.2. Stove prototyping
The primary design goal was to create an efficient, low-emitting semi-gasifier cookstove that would be accepted and used near exclusively by households receiving the planned stove and fuel intervention. To meet this goal, we defined seven design criteria and associated evaluation metrics (table 1).
Table 1. Design criteria and evaluation metrics considered throughout design and development of the semi-gasifier cookstove and pelletized biomass fuel combustion.
| Design criteria | Evaluation metrics | Target performance indexes | Achievement relative to target |
|---|---|---|---|
| High energy utilization | Stove thermal efficiency (expressed as %) | >35% | >40% |
| Low pollutant emissions | Mass emitted of fine particulate matter (PM2.5) and carbon monoxide (CO) per mass of fuel burned and per energy unit delivered, and per task, under conditions of controlled and uncontrolled stove use | CO emission ≤9 g MJ−1 d, and PM2.5 emission ≤168 mg MJ−1 d, matching the highest performance targets (Tier 4) set by the ISO International Working Agreement Tiered Cookstove Guidelines (ISO 2012). | Achieved Tier 3 when including all data; excluding 2 high-emitting households, Tier 4 stove pollutant emission performance metrics met. |
| Ease and convenience during use | Duration and effort required for stove operation, including fuel loading and ignition before cooking; flame and firepower adjustment during cooking; ash removal | Cooking can begin within 3 min following ignition; firepower can be easily adjusted between the conditions of low power (30% of the maximum achievable power) and high power (100% of the maximum). | Met and exceeded goals for ignition speed and power variability. |
| Safety | Smooth surface and stable stove body; electrical safety; burn prevention in compliance with Biomass Stove Safety Protocol Guidelines (Gallagher et al 2016) | Achieve the safest level (tier = 4), based on performance with respect to ten standardized protocols. | Achieved Tier 4 |
| Adaptability | Capacity of stove to perform multiple tasks, including diverse cooking activities and water boiling | Perform more than 80% of daily cooking activities and water boiling. | Intervention stoves used for many, but not all, daily cooking activities. |
| User acceptability | Users' attitudes toward the new stove; initial and long-term choice to use (or to not use) the stove; use of the gasifier stove in replacement of, or in addition to, the traditional cookstove | More than 50% replacement of the traditional cookstove over the long-term (six months) deployment. | In homes using the intervention stove, traditional and intervention stoves were used separately and for a similar number of meals per day. |
| Material cost and durability | Anticipated years of operation, under conditions of normal use; Initial cost and annual cost of repairs | Anticipated years of operation for more than 10 years under conditions of normal use; similar initial cost level to traditional cookstoves (RMB 1500 (US$215)); annual cost of repairs will be zero in the first 3 years, and less than RMB 70 (US$ 10) annually in the following years. | Durability yet to be determined. Initial capital cost < RMB 1600. Repairs cost < RMB 50 |
The stove development process yielded 5 distinct stove prototypes, which are summarized in figure 1 along with a list of key advances for each prototype. We adopted the method of Technology Readiness Assessment (TRA) to enable consistent, uniform discussions of technical maturity across different prototypes. The TRA examines program concepts, technology requirements, and demonstrated technology capabilities, based on a scale from 1 to 9, with 9 being the most mature technology (United States DoD 2011). The Technology Readiness Levels (TRLs) for each prototype are evaluated and indicated below.

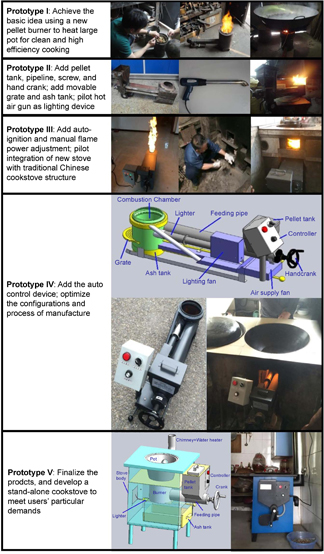

Figure 1. The stove development process: five stove prototypes developed as part of the study, ranging from the proof-of-concept (Prototype I) to commercial scale production readiness (Prototype V).
Download figure:
Standard image High-resolution imagePrototype I (TRL: 3): The initial prototype consisted of a single chamber for fuel loading and combustion. Primary and secondary air flow to the chamber was powered by a small electric blower (input power = 12 W).
Prototype II (TRL: 5): Prototype II design was adapted to load biomass pellet fuel from a separate chamber, allowing the user to continuously transfer, rather than batch-feed, fuel to the combustion chamber by turning a hand crank. A combustion chamber grate was added to facilitate ash removal by the user and prevent breakage due to slag build-up.
Prototype III (TRL: 6): To automate fuel ignition for ease, Prototype III incorporated a lighter and electric resistance heating element that heated air at the surface of the biomass pellets in the combustion chamber. Two manual valves were added to the primary and secondary air supply lines to improve the user's ability to adjust the flame and firepower and thus cook a wider range of foods.
Prototype IV (TRL: 8): Stove geometry and electric wiring were modified to provide a traditional stove retrofit option for homes and for safety. The placement and functionality of electrical controls were changed to improve stove ergonomics and the user experience. In addition, the manufacturing process was optimized for scaling up production by adopting standard components and simplifying steps in stove assembly.
Prototype V (TRL: 9): The stove chamber and components were re-configured into a stand-alone stove frame that retained the functionality of Prototype IV. The stand-alone version accommodated user preference for home installation. A modifiable chimney and water tank were added at the flue gas outlet to vent smoke outside of the home and also capture vented heat for hot water provision.
3.3. Stove performance testing in the laboratory
In the laboratory, stove Prototypes IV and V performed the best of the five stove prototypes with respect to thermal efficiency and pollutant emissions. Notably, emissions of PM2.5 were lowest (0.038 ± 0.013 g MJ−1 d) for Prototype V, meeting the ISO standard for a Tier 4 stove (ISO 2012). CO emissions for Prototype V (2.2 ± 1.1 g MJ−1 d) performed at a Tier 4 level. The laboratory-measured PM2.5 emissions from the Prototype V (THU semi-gasifier) stove were lower by 39% to 94%than several commercially available semi-gasifier stoves whose performance is reported in the literature (Jetter et al 2012). The thermal efficiency and CO emissions of the THU semi-gasifier stove were similar to, or performed better than, most other comparable stoves (table S3).
The thermal efficiencies of Prototype II and III were lower than the other 3 stove prototypes (table 2). This is largely attributable to a smaller size ratio of the pot (diameter = 32 cm) to combustion chamber, which limited the heat absorbed by the pot during high power cooking. We subsequently reduced the combustion chamber diameter. Doing so, we discovered that the primary air face velocity increased with reduced combustion chamber diameters, likely because the diameter of holes in the ash removal grate, which is also the primary air supply inlet, was unchanged. Meanwhile, it was difficult for the stove user to precisely control the flame by manually adjusting the two valves that controlled primary and secondary air flow. We therefore changed the structure and inlets of the ash removal grate and the combustion chamber and re-designed the flame power adjustment by automating control of the air supply fan flowrate to avoid manual valve adjustment, which resulted in the improved performance of Prototypes IV and V. Adding an insulation layer to the combustion chamber further improved the thermal efficiency of the final prototype (Prototype V) over that of Prototype IV, reaching 41%±2% and exceeding the standard for a Tier 3 stove according to the ISO IWA performance standards.
Table 2. Thermal efficiency and emissions performance during laboratory testing of five semi-gasifier cookstove prototypes.
| Prototype | Thermal Efficiency (%) Mean ± St Dev | Emission Factors (g MJ−1 d a ) Mean ± St Dev | ISO Tier b , c | ||
|---|---|---|---|---|---|
| n d | PM2.5 | CO | |||
| I | 6 | 27 ± 3 | 0.230 ± 0.069 | 4.1 ± 0.7 | 2, 2, 4 |
| II | 4 | 16 ± 1 | 0.164 ± 0.044 | 2.9 ± 0.1 | 1, 3, 4 |
| III | 3 | 18 ± 1 | 0.351 ± 0.019 | 21.2 ± 2.2 | 1, 2, 0 |
| IV | 5 | 25 ± 1 | 0.121± 0.056 | 1.6 ± 0.4 | 2, 3, 4 |
| V | 10 | 41 ± 2 | 0.038 ± 0.013 | 2.2 ± 1.1 | 3, 4, 4 |
CO, carbon monoxide; PM, particulate matter. aMegajoules of energy delivered to the cooking pot; conversion from per-mass emissions multiplied by the caloric heating value of the fuel (=17.1 MJ kg−1) and the thermal efficiency of the stove. bInternational Standards Organization (ISO) International Working Agreement tiered cookstove rating system, values from 0 (worst performance) to 4 (best performance) (ISO 2012). cFirst value refers to thermal efficiency tier, second value refers to PM2.5 emissions tier, and third value refers to CO emissions tier. dn refers to the number of complete laboratory performance tests.
3.4. Field evaluation of stove use and user experience
Users of Prototypes III and IV (three test homes) expressed a preference for the prototype stove over the traditional stove for flash-frying food due to its powerful flame. Other advantages noted included cleaner handling of the pelletized fuel compared with wood and a visible reduction in kitchen smoke. Limitations mentioned by users included having to retrofit their traditional stove, inconsistent automated ignition, and frequent breakage of the stove's igniter (i.e. once every 2 to 5 weeks). Additional information on stove user preferences and dislikes, and proposed design or implementation changes, are provided in table S1.
Among 25 homes that received a Prototype V (i.e. THU) stove and fuel supply in September 2015, 22 homes (88%) reported lighting and using the stove at least once. Among the extended questionnaire respondents (n = 14), the stove features identified as most favorable were cleanliness (n = 11, 79%) and ease of operation (n = 9, 64%). Most reported using the THU semi-gasifier stoves for frying vegetables and meat (n = 12, 86%) and making soups (n = 9, 64%), which are common cooking methods in rural China.
In the ten homes with stove use monitoring, we observed large between-household and within-household variability in usage patterns for both the traditional and semi-gasifer stove over five months, though average stove use across households remained relatively consistent over time (figure 2). On average, the THU stoves were used on more days per month than the traditional stoves (68% [95% CI: 43, 93] versus 42% [95% CI: 16, 68]). However, exclusive or near exclusive use of the THU stove was less common: of the 34 total post-intervention household-months contributed by nine homes, 12 months (35%) contributed by six homes were characterized by consistent use of the THU stove and <15% of days of traditional stove use. Use of the THU stove did not fall below 20% of days per month for any single household-month evaluated. Frequent use (>60% of days per month) of both the traditional and THU stoves was observed in six household-months (18%) contributed by three homes.
Figure 2. Average monthly proportion of days the traditional (a) and intervention (b) stoves were in use, pre- and up to five months post-intervention, in ten homes. Circles represent the proportion of daily stove use per month for each household. The solid black lines represent the mean proportion of daily stove use across households in the months since intervention and the dashed black lines indicate the upper and lower limits of the 95% confidence intervals around the mean. Different colored circles correspond to different study homes. Homes contributed a different numbers of months to the analysis due to random temperature sensor breakage.
Download figure:
Standard image High-resolution image
We also observed a small but consistent decrease in THU stove use over time (75%, 69%, and 62% of days in months 1, 3, and 5, respectively).While traditional stove use decreased slightly from pre-intervention (61% of days, n = 5 homes) to the first month post-intervention (43% d in use), the monthly days of use remained very consistent over the next five months (43%, 43%, and 45% of days in months 1, 3, and 5, respectively).
On days of use, the THU and traditional stoves were used an average of 1.7 [95% CI: 1.6, 1.8] and 1.6 [95% CI: 1.6, 1.7] times per day, respectively, indicating that after the choice had been made to use the THU stoves, they contributed to daily cooking to a similar extent. On days when both the traditional and THU stoves were used, they were used for separate meals on 68% of those days.
Stove use monitoring and stove user experiences in the ten homes using the THU stoves gave us valuable insight under conditions of typical use by rural residents in their own homes. These insights guided stove design modifications. For instance, we learned that the initial inlet nozzle for the hot water tank was too small, potentially leading to water spills, which would be hazardous, given the electric components of the stove located below the water tank. To improve user safety, ease of use, and acceptance of the new stoves, we changed the size of water tank inlet and re-designed the relative positions of the hot water tank, the wiring port, and the electric devices. These changes were incorporated into the subsequent stove design and realized through manufacturing of later stove batches.
3.5. Stove performance testing in homes
On an as-received basis, the THU cookstove reduced PM2.5 and CO emissions (per-energy-delivered basis) by 80% and 50%, respectively, relative to traditional stoves (table 3). However, the average PM2.5 and CO emissions, on a per-energy-delivered basis, were approximately three times higher than the laboratory-based emissions for the Prototype V stove (table 2). Emissions of CO2 and NOx, on a per-energy-delivered basis, were higher for the THU stove compared with the traditional stove (SI section S2), which is consistent with more efficient and higher heat combustion of semi-gasifier stoves, including the THU stove, relative to traditional stoves.
Table 3. Emission factors on a per-fuel, per-task, and per-energy-delivered basis for PM2.5 and CO from traditional chimney stoves burning wood (n = 15) and the THU semi-gasifier stoves burning pelletized biomass (n = 16), six months post-stove installation.
| Pollutant | Traditional Stove Mean ± St Dev (ISO Tier) | THU Stove Mean ± St Dev (ISO Tier) |
|---|---|---|
| PM2.5 (g/kg-fuel) | 2.3 ± 1.6 | 0.9 ± 0.9 |
| PM2.5 (g/task) | 3.7 ± 3.3 | 0.5 ± 0.4 |
| PM2.5 (g MJ−1 d a ) | 0.612 ± 0.457 (1) | 0.123 ± 0.125 (3) |
| CO (g/kg-fuel) | 53 ± 17 | 49 ± 25 |
| CO (g/task) | 88 ± 49 | 31 ± 21 |
| CO (g MJ−1 d ) | 14 ± 5 (1) | 7 ± 4 (4) |
CO, carbon monoxide; ISO, International Standards Organization; PM, particulate matter. aMegajoule delivered on a dry basis.
Notably, two households using the THU stoves had particularly high emissions (average emissions factors for PM2.5 = 3.0 g kg−1-dry-fuel and CO = 80.4 g kg−1-dry-fuel; compared with PM2.5 = 0.6 g kg−1-dry-fuel and CO = 44.0 g kg−1-dry-fuel in the other 14 homes). PM2.5 and CO emissions from these two high-emitting homes are strong drivers of the observed difference between field and laboratory emissions tests. When the data from these two homes are removed, the average PM2.5 and CO emission factors for the remaining 14 homes are 1.3 and 1.4 times, respectively, greater than those for the laboratory emission factors. The higher emissions in these two homes were attributable to both a longer lighting phase and user delay when switching from the lighting to burning phase. The auto-ignition controller was adjusted in a later batch of THU stoves (Prototype V) to facilitate more consistent emissions performance regardless of the user (see SI section S3).
3.6. Stove and fuel cost
The production cost of the Prototype V stove was RMB 1600 (US$230), excluding packaging and transportation (RMB 400, US$58). Material and labor costs associated with small-batch production accounted for up to two-thirds of the cost of the final semi-gasifier stove prototype. Production costs could likely be reduced with increased scale of manufacturing. In our study villages, the estimated cost of a new traditional cookstove is approximately RMB 1500 (US$215), with the majority of the cost going towards labor. If produced at a larger scale (i.e. >1000 units), the cost of the THU stoves (Prototype V) should decrease.
In the 16 homes where THU stove emissions and fuel use were measured, daily consumption of biomass pellet fuel by the semi-gasifier stove did not exceed 1 kg, and household gross annual cooking fuel consumption for the semi-gasifier stove would be estimated to not exceed 0.5 t (calculated under the assumption that the same amount of fuel is used all 365 d of the year), representing a ∼80% reduction in fuel consumption relative to the daily average fuel use observed with traditional wood-burning cookstoves alone (Shan et al 2016, Carter et al 2016). Rural homes may save time and effort that was previously spent collecting firewood, a benefit mentioned by many stove users and their family members during interviews (table S1). If the processed biomass fuel were produced at a village-level factory, we estimate that a household's annual expenditure on pelletized fuel for cooking would be ∼US$25 or less, roughly equivalent with daily cooking with LPG for one month (Shan et al 2016).
4. Discussion
Field observations and interactions with stove users frequently inform stove selection (Loo et al 2016) and intervention study design (Mukhopadhyay et al 2012). User-centered design has also led to diversification of stove installation options in the field (Thacker et al 2017) and influenced design and implementation of policies to promote cookstoves (Lambe and Atteridge 2012). However, early integration of user needs and preferences to constrain core technical design, as we did here, has not been presented at a similar level of detail for past stove development.
Recent systematic reviews indicate that a key limitation of past and more recent stove programs was that the stove design was insufficiently engineered to meet the needs of households most likely to adopt the technology (Barnes et al 1994, Lewis and Pattanayak 2012, Rehfuess et al 2014). An early stove program in Kenya, for example, failed because cooks lacked the time and tools to chop the small wood pieces required for the stove's combustion chamber (Openshaw 1982). Three decades later, the stove intervention in a large randomized trial in Malawi was limited by poor field emissions performance (Wathore et al 2017) and infrequent use (Mortimer et al 2016). Conversely, stove designs that meet household preferences may not sufficiently improve efficiency and reduce air pollution emissions. For example, China's National Improved Stove Program disseminated biomass chimney stoves to over a billion Chinese residents in the 1980s and 1990s (Smith et al 1993). The stoves were well liked and replaced traditional stoves and open fires used at the time, but lacked the engineering design to sufficiently reduce air pollution emissions and kitchen concentrations (Zhou et al 2006, Edwards et al 2007).
The ultimate stove design presented here achieved higher thermal efficiency and lower emissions than many biomass cookstoves available in China (Tryner et al 2014, Shen et al 2015). At the same time, we obtained information from village homes on relevant functional considerations including household size (to inform pot size), cooking frequency and duration (to inform combustion chamber capacity and fuel feeding method), cooking methods and foods (to inform the range of flame power), and characteristics of local available fuels (to inform the method of ash removal). Input from household cooks early in the design process made it possible to re-engineering the stove multiple times to meet our design criteria and improve users' experience with a new technology (e.g. automated ignition and single knob flame power adjustment). With each substantial design modification, we re-evaluated stove thermal efficiency and pollutant emissions to determine whether an improvement in usability compromised performance. Conversely, we consulted users to learn whether technological changes to increase thermal efficiency and lower pollutant emissions made stove operation more difficult.
Repeated field-based evaluations led to incorporation of numerous desirable features into the stove design, including the fuel loading apparatus, auto-ignition, flame adjustment, the stand-alone frame, and the heat-recovery water tank, which all arose as a direct result of observation of or extended interaction with household cooks. Regular field-based data collection efforts also brought to light implications of the stove design and barriers to sustained use and displacement of traditional stoves and fuels. For example, the forced draft semi-gasifier design and automated features of the stove rely on electricity. Although >98% of households in China have access to electricity, the potential for brief electrical outages or a desire to limit electricity consumption and expense might result in continued collection of firewood and use of traditional cookstoves that do not require electricity. Several of the advanced features of the final stove (Prototype V) were desirable—e.g. automated ignition, flame/power adjustment—but increased design complexity. With each stove prototype tested, there was a need for consistent, though manageable, stove repairs, and part replacement. While it is unrealistic to eliminate the need for regular stove maintenance, our experience suggests that the development of more advanced cookstoves, such as semi-gasifiers, should be coupled with development and implementation of robust operation and maintenance plans.
The household energy intervention package included a semi-gasifier cookstove and a pelletized biomass fuel. It is beyond the scope of this specific study to address the production of a reliable supply of pelletized biomass, and the feasibility of developing this energy supply at scale in rural China has been discussed in greater detail elsewhere (Shan et al 2016). However, the importance of a reliable fuel supply should not be overlooked. Future studies that evaluate the technical, environmental, economic, and political factors that influence the production of pelletized biomass would be very useful. Given the regional and geographic variability throughout China, studies designed to evaluate biomass utilization at local and regional scales might provide the most impactful information.
An implication of the iterative stove design approach we presented is the small number of observations that may be obtained at any given stage in the design process. Despite high rates of stove uptake and evidence of adoption, the results presented here suggest THU semi-gasifier stoves were not fully displacing traditional stoves and that intervention stove use may decline with longer term follow-up. Of note, we observed that on days when both traditional and THU semi-gasifier stoves were used, they were often used separately. This observation suggests that the capabilities of the THU stove were preferred for some types of cooking practices but not for others. Future studies designed to monitor long-term use of the intervention stoves and to identify patterns and predictors of complete, or near-complete, traditional stove displacement are warranted.
Conclusions
The unique features of the particular semi-gasifier, biomass cookstove discussed here need not be directly transferable to other regions in China. Rather, the user-centered, iterative engineering design process presented could be replicated in other provinces and regions to identify optimal stove design that is responsive to the local context. Stove designs (Tryner et al 2014 and 2016) that over-emphasize technical performance early in the stove development process limit the extent to which user input obtained later in the process—if sought—can lead to stove design modification. The user-centered and iterative engineering design approach we present prioritized local users' preferences and aspirations, and sought to combine user input with high technical performance. Our results suggest that valuable engineering insights are gained in the early stages of stove design through targeted field-based data collection that yield information unattainable in the laboratory. These field-based data collection efforts are not intended to replace larger scale studies designed to evaluate stove performance, stove adoption and uptake, and long-term health and environmental impacts of stove programs at a population level. Instead, we transparently present the design criteria and lab- and field-based data collection that inform critical decisions in the stove engineering design process. The framework for stove engineering design we present may be used as a model for stove engineers and practitioners and provide more comprehensive information to policy-makers making decisions about household energy technologies and initiatives.
Acknowledgments
We thank our study participants and field staff. Supports for this study were provided by the Innovative Research Groups of the National Natural Science Foundation of China through Grant (#51521005), the US Environmental Protection Agency Science to Achieve Results Program (#83542201), the Wellcome Trust grant (Grant No. 103906/Z/14/Z), the National Natural Science Foundation of China (#51521005), and the UN Foundation Global Alliance for Clean Cookstoves.
