HST UV Observations of Asteroid (16) Psyche

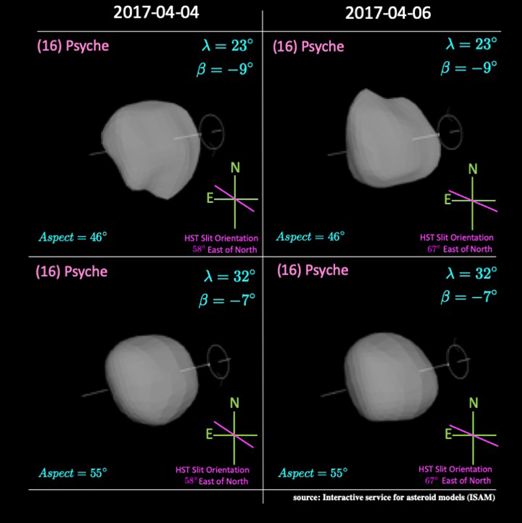

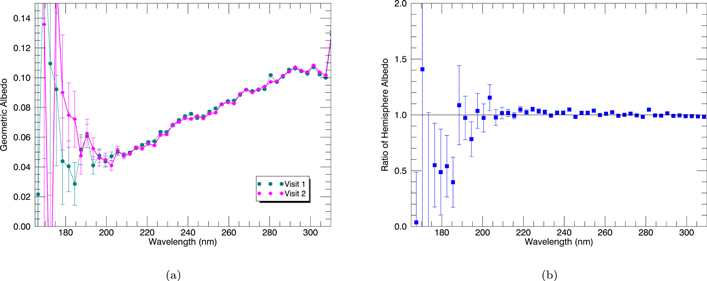

As discussed in Section 2, we designed the two HST observations so that we could observe nearly opposite hemispheres of Psyche in order to look for variations in brightness or spectral features. In Figure 3 we show the spectra from each visit, binned to 3 nm spectral resolution, as well as the ratio between the data sets. Longward of 200 nm, the slopes and locations of spectral features (Section 4.2) are very similar. This is consistent with the lack of statistically significant rotational variation in the metal abundance in the visible—near-IR study of Psyche completed by Sanchez et al. (2017), though that study observed the opposite hemisphere than these observations. We note, however, that Takir et al. (2017) did find rotational variability in the 3 μm feature. Both UV spectra appear to display an upturn into the FUV, where the reflectance increases with decreasing wavelengths. However, for Visit 2, the upturn occurs near 200 nm, while for Visit 1 the upturn occurs closer to 180 nm, where the data is noisier. The position of this upturn may be related to space weathering or differences in the composition or roughness of the surface (see Section 4.4).

Zoom In Zoom Out Reset image size

We note that our observations do not cover the southern hemisphere of Psyche, where a mass-deficit region was detected by radar observations (Shepard et al. 2017) and where rotational variations in the pyroxene chemistry were observed by Sanchez et al. (2017). Further, these variations were detected using subtle differences in the band depth and location of the 0.9 micron feature at eight different rotation phases. With only two rotation phases, we do not detect significant changes but also do not rule out the possibility of small longitudinal variations.

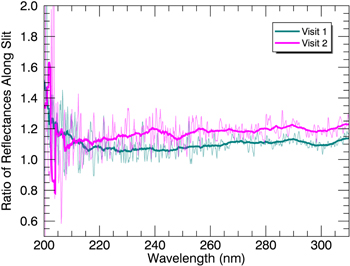

We were able to spatially resolve Psyche across ∼5 spectral pixels. To further assess spatial variability of the asteroid, we use the calibrated, background-subtracted 2D spectral images produced by calstis ("x2d" files). We assume the brightest 4 pixels contain the majority of the signal from Psyche and compare the two sides of the asteroid captured within the field of view by summing the top 2 and bottom 2 pixels along the slit containing that signal. The line spread function for the STIS MAMA grating at a wavelength of 240 nm for both an extended source and a point source is ∼2 pixels; thereby we encompass the entire line spread function in the summed signal. In Figure 4, we show the ratio of the two sides during each visit. Here we focus on wavelengths longer than 200 nm because of the lower S/N in the FUV. Visit 2 may have a somewhat sharp difference in spectra near 250 nm, which may be attributed to the strength of the Fe–O charge transfer band (see Section 4.2). Both visits show some small spectral difference between the sides near 300 nm, perhaps suggesting a feature in the northern hemisphere, since that side of the asteroid was captured during both visits due to the asteroid orientation (Figure 1). There is a difference, however, in the position of the FUV upturn along the slit during Visit 1 (see Section 4.4). These differences may suggest variability of the composition of the uppermost surface layer of Psyche.

Zoom In Zoom Out Reset image size

As discussed in Section 3, we identified two clear spectral features centered near 250 and 275 nm. To measure the strength of these features, we determine the background continuum slope by fitting a line to the spectrum on either side of the feature and then dividing by that baseline to remove the local continuum. For the 250 nm feature, we use the average albedo between 233.5 and 239.5 nm and between 257.5 and 263.5 nm to establish the baseline (Figure 5(a)). For the 270 nm feature, we find the average albedo between 263.5 and 269.6 nm and between 284.5 and 290.5 nm to find the baseline (Figure 5(c)).

Zoom In Zoom Out Reset image size

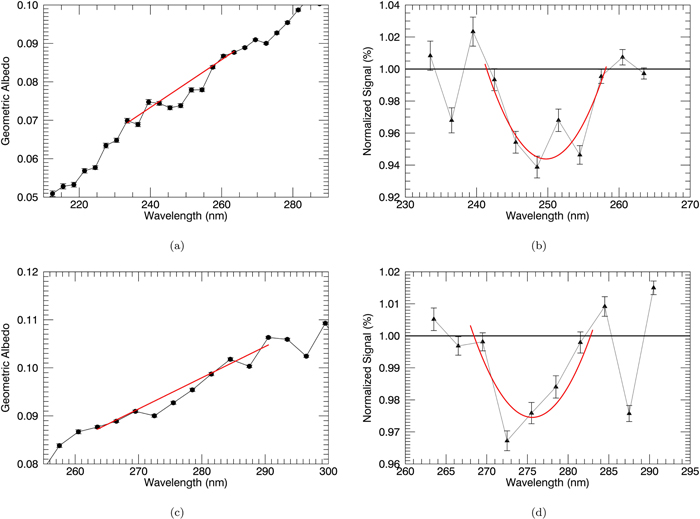

After dividing by the established baseline for the local spectral slope, we then fit a parabola to the data points that fall below the average continuum (Figures 5(b) and (d)). Using the minima of those parabolas, we determine estimates for the band depth and position of the feature.

We find that the first absorption feature is centered at 249.8 nm with a band depth of ∼5.6% and an approximate bandwidth of 18 nm. We measure a sharper, shallower second absorption feature near 275 nm. Assuming the fitted parabola minimum as the band center and depth, we find that it is centered at 275.6 nm with a band depth of 2.5%. However, a parabola does not produce a good fit to this feature, which presents itself more like the check mark-shaped absorption features sometimes detected at 3 μm on asteroids (Landsman et al. 2015). If we instead assume the lowest data point represents the band center and depth, the absorption feature is centered at 272.5 nm with a band depth of 3.3% and a bandwidth of approximately 13 nm.

Laboratory observations of a variety of minerals show a number of spectral features in the UV (e.g., Wagner et al. 1987; Cloutis et al. 2008). While many of the materials measured by Cloutis et al. (2008) displayed bands at 250 nm or 275 nm, no single material they investigated displayed bands at both of those wavelengths. An absorption feature near 250 nm is consistent with Fe²⁺–O or Ti⁴⁺–O charge transfer bands (Cloutis et al. 2008). Most of the materials (some pyroxenes, olivines, and plagioclase feldspars) with a 275 nm minimum in the Cloutis et al. (2008) study had another reflectance minima between 220 and 225 nm. It is possible that a very weak 220 nm absorption feature can be seen in the Psyche spectrum, but it is not distinguishable from the slope of the spectrum.

Previous observations of Psyche from the IUE showed a featureless UV spectrum from ∼220 to 320 nm, with some possible narrow dips between 275 and 315 nm (Butterworth & Meadows 1985). The improved spectral resolution, high S/N of our HST observations, and the extension to ∼170 nm enable us to better characterize potential spectral features, as discussed below.

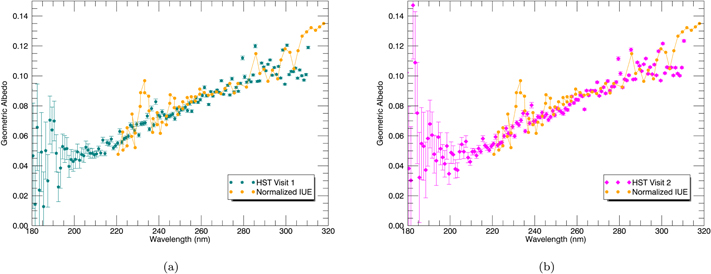

In Figure 6, we compare the HST data (binned to 1 nm) with the IUE data (created by digitizing Figure 5 from Butterworth & Meadows 1985), normalized at 255 nm, and find similar spectral slopes. The narrow features near >275 nm noted by Butterworth & Meadows (1985) may be those that are also observed in the HST data that we attribute to solar features. Another potential explanation for the high signal observed at 280 and 285 nm, though less likely, would be emission lines from Mg II and Mg I (Pickering et al. 1998) at Psyche. However, this would require a significant amount of sputtering of magnesium as well as the presence of a magnetic field to maintain an active aurora.

Zoom In Zoom Out Reset image size

The IUE data exhibit a peak near 235–240 nm. The HST data similarly show an increase in albedo for several data points when binned to 1 nm, but we interpret that possible peak to be the edge of the 250 nm absorption feature when binned to 3 nm resolution, as shown in Figure 5.

At the FUV wavelengths, the spectra of the two hemispheres of Psyche reverse from a red (positive) slope to a blue (negative) slope. Due to the uncertainties in the data at wavelengths <180 nm, we cannot determine much about the FUV upturn, other than that the upturn begins near 200 nm during Visit 2 and closer to 180 nm for Visit 1 (Figure 3). This difference may be related to composition or processing of the surface, as discussed below.

UV spectral imaging is a demonstrated way to characterize space weathering of the Moon (Lucke et al. 1974) and asteroids (Hendrix & Vilas 2006; Vilas & Hendrix 2015). Spectral bluing in the UV has been attributed to space weathering of surfaces that cause changes to the properties of the surface material (Wagner et al. 1987). At wavelengths <180 nm, the observed albedo is due to surface scattering rather than volume scattering, and so the reflectance is related directly to the index of refraction, which increases with decreasing wavelengths for many materials (Henry et al. 1976; Hendrix & Vilas 2006). As a result, spectral inversions, where features that are relatively darker in the visible become UV-bright, have been noted on the Moon (Lucke et al. 1974; Seifert et al. 2014), Europa, (Roth et al. 2014; Becker et al. 2018), and Ganymede (Alday et al. 2017).

A similar FUV upturn was detected in UV data of the asteroid (1) Ceres (Hendrix et al. 2016), though the expected composition for the two asteroids are very different. Figure 7 shows the Ceres data normalized to Psyche's albedo. The NUV spectral slope of Psyche is redder than that of Ceres, and the 200 nm FUV upturn feature appears to be much broader or more gradual for Ceres. The Ceres data set included FUV observations from STIS (115–173 nm), enabling the characterization of the entire feature as an FUV "bump" that the authors attribute to highly processed (graphitized) carbons. Without the FUV data for Psyche and considering the level of noise <170 nm, it is difficult to assess whether the FUV upturn becomes a bump or if the spectrum continues to blue shortward of 170 nm.

Zoom In Zoom Out Reset image size

We compare the observed spectrum of Psyche with laboratory measurements of various materials and meteorites that serve as potential analogs for the asteroid's composition. We note, however, that the very sparse catalog of planetary body analogs measured at UV wavelengths limits the ability to definitively match any material or mixes of materials to the spectrum of Psyche.

Here we also include the visible spectrum of Psyche, using the data that were acquired from the Telescopio Nazionale Galileo, the European Southern Observatory New Technology Telescope, and IRTF as reported by Fornasier et al. (2010) and from the Michigan–Dartmouth–MIT Observatory, reported by Binzel et al. (1995). We normalize the reported visible reflectances at 550 nm to the optical albedo of 0.15 determined by Shepard et al. (2017).

We compare the UV–visible (UV–Vis) spectrum of Psyche with the visible reflectance measurements of various materials obtained at the Reflectance Experiment Laboratory (RELAB) facility (RELAB 2006) at 30° phase, and the UV–Vis reflectance measurements from the Planetary Spectrophotometer Facility/HOSERLab described by Cloutis et al. (2008) and the atlas produced by Wagner et al. (1987), both using measurements near 0° phase. We also use optical constants with assumptions on particle sizes to derive reflectance spectra for some materials, as described in more detail in Section 5.2.

5.1.1. Iron

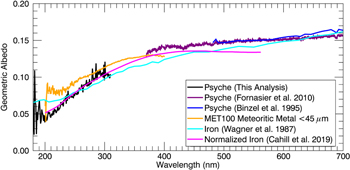

In Figure 8 we directly compare the UV–Vis reflectance of Psyche with the iron reflectance spectrum from Wagner et al. (1987), the ground metallic meteorite MET100 from the RELAB database (visible data) and the HOSERLab (UV–Vis data), and a reflectance spectrum of iron modeled using optical constants provided by Cahill et al. (2019) that is normalized at 220 nm and assuming the iron particles are 1 μm in size (see Section 5.2.2. The UV–Vis spectrum of Psyche is red, with a significantly steeper slope from 300 to 200 nm than at longer wavelengths (Figure 8). The downturn into the lower-albedo UV appears to begin around 400 nm. Additional reddening of Psyche's spectrum could be due to processes such as space weathering, which has been shown to alter surface spectra on some asteroid spectral types, especially at UV wavelengths.

Zoom In Zoom Out Reset image size

We note the fairly good spectral fit across the UV and into the visible wavelengths for the iron spectrum derived from optical constants. We suggest the differences between this spectrum and the iron spectrum measured by Wagner et al. (1987) can be attributed to the laboratory technique used by Cahill et al. (2019) to prevent oxidation of the iron during the measurements. The overall shape of Psyche's spectrum is redder than the iron slab measured by Wagner et al. (1987). Similarly, the spectral slope of the crushed metallic meteorite is shallower than that of Psyche. However, the reflectance of the crushed meteorite and the iron slab are fairly close to the geometric albedo of Psyche.

5.1.2. Meteorites

We compare the spectrum of Psyche with all of the meteorite samples from the database described by Wagner et al. (1987) but do not find any strong matches. We note that there were no iron or stony iron meteorites in the catalog. In Figure 9, we show L, LL, H, and carbonaceous chondrites and find that the carbonaceous chondrites are significantly darker across the spectrum, with a much shallower slope in the UV than Psyche. This is not surprising, considering Psyche is not expected to be a carbonaceous asteroid. The L, LL, and H ordinary chondrites appear to be much more reflective in the visible than Psyche and display a very different spectral shape in the UV, with the exception of the H5 and H6 meteorites which match the overall shape of Psyche in the UV fairly well, but are again much brighter in the visible. Since the observed spectrum matches the highly metallic H chondrites better than the metal-poor L and LL chondrites, Psyche's composition may be consistent with mostly iron–nickel by mass.

Zoom In Zoom Out Reset image size

Recent work (e.g., Landsman et al. 2017) found evidence that the uppermost regolith on Psyche is made of fine-grained silicates. This could suggest an enstatite chondrite analog for Psyche rather than an iron analog. In Figure 10 we compare Psyche with two enstatite chondrites and one aubrite (an E-type asteroid analog) but do not find that any of these highly reduced, iron-oxide-deficient meteorites represent good analogs for Psyche. However, we note that there are large differences between the spectra of these objects, and thus additional samples should be measured in the UV–Vis to determine if any enstatites or aubrites may serve as analogs to the UV spectrum of Psyche.

Zoom In Zoom Out Reset image size

5.1.3. Planetary Surface Analogs

We look for signs of iron-oxide charge transfer bands and compare the spectra of Psyche with three possible surface materials from the HOSERLab database in Figure 11: olivine, orthopyroxene, and crushed meteoritic metal. Here we show the spectra for the smallest and largest particle sizes measured of olivine and orthopyroxene, specifically showing how the spectrum and absorption bands are affected by changes in the grain size.

Zoom In Zoom Out Reset image size

The fine-grained olivine powder displays strong Fe²⁺–O absorption features centered at 217 and 250 nm, which could correspond with the much weaker absorption features observed in the Psyche spectrum. The meteoritic metal powder, which was observed in a way to minimize exposure to oxygen and therefore does not display metal-oxide absorption bands, is featureless and less red compared with the Psyche spectrum (as previously discussed). While the spectra of some of the high-calcium pyroxenes reported by Cloutis et al. (2008) also show absorption bands near 220 and 270 nm due to metal-oxide charge transfer absorptions, these features are much broader than features observed on Psyche. This does not rule out some orthopyroxene on the surface, as observed at longer wavelengths.

We note that Fornasier et al. (2010) also used the RELAB spectra and found the best-fit meteorite to be the iron meteorite MET101A, but this meteorite does not have UV lab observations available to compare with the new data presented in this paper.

Like the albedo of Psyche, the spectrum of iron from the Wagner et al. (1987) database and the spectrum of iron derived from the optical constants given by Cahill et al. (2019) are fairly flat and featureless. The overall reflectance of the iron from Wagner et al. (1987) is also similar to the asteroid's albedo. Since Psyche is expected to be primarily comprised of metals, it may be unsurprising that iron is a reasonable match. However, the spectra are not an exact match the the UV–Vis spectrum of Psyche and observations of the asteroid at longer wavelengths have shown that other materials such as orthopyroxenes are present as well.

5.2.1. Linear Mixture Reflectance Models

We attempt to match the spectrum of Psyche by creating linear mixture models of the materials discussed in Section 5.1 with the iron spectrum from Wagner et al. (1987). These are simple models created by adding the two weighted spectra together.

In Figure 12, we show how a mixture of iron with two particle sizes regimes of olivine (left) and pyroxenes (right) compare with the UV spectrum of Psyche. The flat iron spectrum reduces any broad features observed in these materials and modifies the slope to be close to that of Psyche, though it is still not as steep.

Zoom In Zoom Out Reset image size

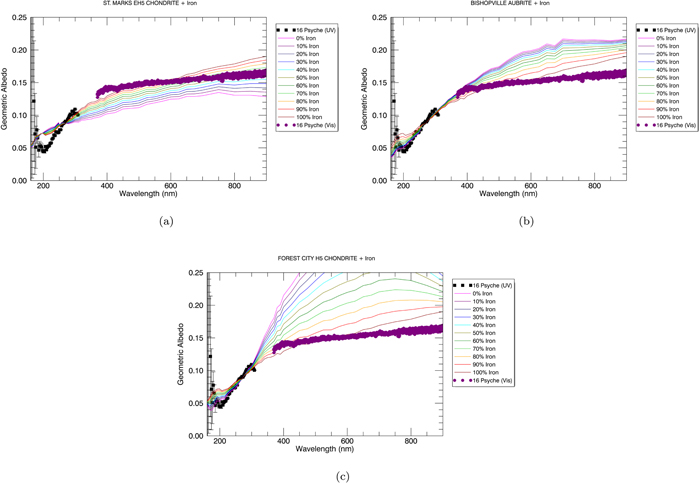

In Figure 13 we show linear mixture models of iron mixed with the EH5 enstatite chondrite, the aubrite, and the H5 ordinary chondrite, normalized to the albedo of Psyche at 265 nm, which was similar to the UV on its own in Figure 9. The modification of the spectra with the addition of iron often creates better, though still not good, matches to the spectrum of Psyche.

Zoom In Zoom Out Reset image size

The mixture models show that the addition of iron to the meteorite spectra can improve how well they match the UV–Vis data of Psyche, though we do not find a satisfactory analog for the asteroid using any single material or mixture of materials. This is likely a result of several issues, including the extremely limited spectral database at UV wavelengths for the relevant materials and the sensitivity of the UV spectrum to the materials' grain sizes.

5.2.2. Intimate Mixture Reflectance Models

In the UV, the reflectance of materials is highly dependent on the particle grain sizes on the surface, in addition to how the materials are mixed. We assess the effect of grain sizes by comparing the reflectance spectra of intimate mixtures of iron and crystalline olivine. These intimate mixture models reflect localized mixing of the grains from the two different materials, rather than being spatially segregated, as is done for the linear mixture models. Work by Cloutis et al. (2015) show that the spectral characteristics of laboratory samples of olivine mixed with meteoritic metal are more strongly influenced by the metal if the materials are mixed intimately rather than linearly. We therefore expect these models to require less iron to approach Psyche's spectral shape than the linear mixtures shown above. The models described here use iron optical constants from Cahill et al. (2019) and optical constants for Stubachtal olivine from the Jena Database of Optical Constants for Cosmic Dust (https://www.astro.uni-jena.de/Laboratory/OCDB/newsilicates.html).

We produce the intimate mixture models using the disk-averaged form of Hapke's bidirectional reflectance model (Hapke 1981, 1984, 1986):

$$\begin{eqnarray}\begin{array}{rcl}\left(\displaystyle \frac{I}{F}\right) & = & \left[\displaystyle \frac{\omega }{8}\{[1+B(\alpha )]P(\alpha ,g)-1\}+\displaystyle \frac{{r}_{0}}{2}(1-{r}_{0})\right]\\ & & \times \,\left(1-\sin \left(\displaystyle \frac{\alpha }{2}\right)\tan \left(\displaystyle \frac{\alpha }{2}\right)\mathrm{ln}\left[\cot \left(\displaystyle \frac{\alpha }{4}\right)\right]\right)\\ & & +\,\left(\displaystyle \frac{2}{3}\right){r}_{0}^{2}\left(\displaystyle \frac{\sin (\alpha )+(\pi -\alpha )\cos (\alpha )}{\pi }\right)K(\alpha ,\bar{\theta }).\end{array}\end{eqnarray} \tag{ 2 }$$

Here, α is the phase angle, ω is the single scattering albedo, and ${r}_{0}=\tfrac{(1-1\sqrt{1-\omega })}{(1+\sqrt{1-\omega })}$. For an intimate mixture, the single scattering albedo is a weighted average of the individual single scattering albedos of the constituent materials. The individual single scattering albedos are calculated from the optical constants of the materials, as described in detail by previous authors (e.g., Hendrix & Hansen 2008; Hapke 2012). We use a single-lobed Henyey–Greenstein phase function for P(α, g). Additional terms included in Equation (2) are: B(α), a correction for the shadow hiding opposition effect, and $K(\alpha ,\bar{\theta })$, which corrects for large-scale surface roughness. The terms P(α, g), B(α), and $K(\alpha ,\bar{\theta })$ require the additional Hapke parameters, g, B0, h, and $\bar{\theta }$. These would ideally be determined by a best fit to Psyche's full phase curve, but for these initial models we use values determined for asteroid (21) Lutetia (Masoumzadeh et al. 2015). Since we show only normalized reflectance spectra here we do not expect the use of the Lutetia Hapke constants to influence our interpretation of the models.

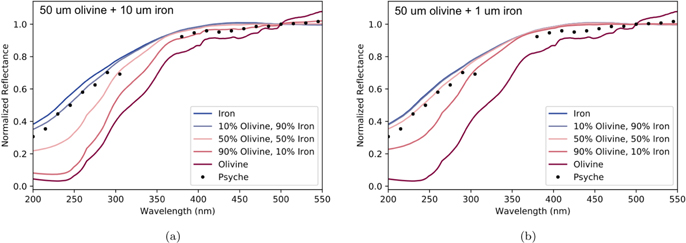

Figure 14 shows that as the grain size of iron decreases, the more dominant it becomes in the reflectance spectrum. At the 1 μm grain size, only ∼10% of the surface would need to be comprised of iron to still replicate the overall spectral shape of Psyche. If the grains are 10 μm in size, then a mixture closer to 50% iron and 50% olivine would be needed to still maintain the spectral shape.

Zoom In Zoom Out Reset image size

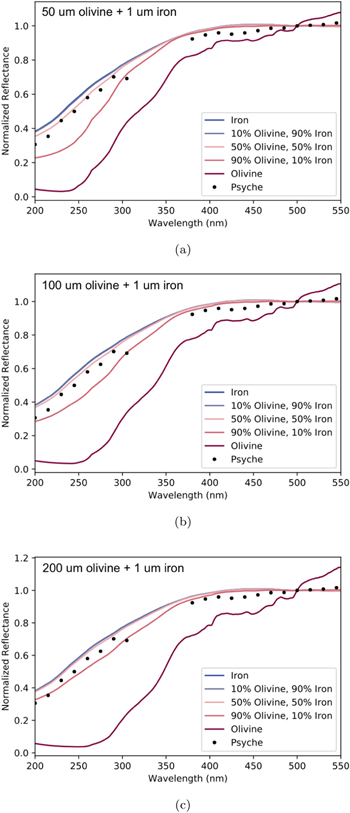

This is especially true if the olivine grains are large. Figure 15 shows how changing the grain size of olivine effects the overall spectrum. If the olivine grains are large (>100 μm), the effect of the olivine on the overall reflectance spectrum is small. This means that olivine could make up anywhere between 10% and 90% of the mixture, but the spectrum would still be dominated by the small iron grains.

Zoom In Zoom Out Reset image size

We use olivine rather than pyroxene in these models primarily because olivine optical constants in the UV–Vis spectral region are available in the Jena database of optical constants. We expect that the reflectance of an intimate mixture of pyroxene and iron would similarly be dominated by the iron spectrum. The strong influence of small iron grains, and the limited number of available optical constants for representative silicates, makes it difficult to quantify how much iron may be on the surface of Psyche if the regolith is intimately mixed.

5.2.3. Intraparticle Mixture Reflectance Models

We also consider the case of intraparticle mixtures on the surface of Psyche. In this case, a small amount of one material is embedded in a matrix of the other material, resulting in spectral reflectance properties that differ from the intimate mixture models. Here we assume the surface is primarily composed of 50 μm grains of olivine, with a percentage of iron contaminant trapped within those grains. This type of mixture has been previously used to model the effects of space weathering (e.g., Hapke 2001; Molyneux et al. 2020), which may lead to small inclusions of iron trapped within host regolith grains.

To produce these intraparticle mixture reflectance models, we use the Maxwell Garnett effective medium theory (Garnett 1904) to estimate combined optical constants for a small fraction of iron in an olivine matrix. We then use the combined optical constants to calculate the single scattering albedo, which is used with Equation (2) to produce a reflectance spectrum. The Maxwell Garnett theory is an approximation, and more exact models of space weathering effects based on the Mie theory have been developed (Lucey & Riner 2011; Penttilä et al. 2020). However, Penttilä et al. (2020) find that Maxwell Garnett models produce almost identical results to the more exact Mie simulations for small fractions of iron (0.01% or less) in olivine. We expect the models shown in Figure 16 to be valid approximations since they include only very small fractions of iron.

Zoom In Zoom Out Reset image size

Figure 16 shows how the inclusion of different amounts of iron within the olivine matrix affects the reflectance spectrum. These mixtures do not reproduce the overall shape of Psyche's reflectance spectrum. This suggests that the iron that influences Psyche's UV reflectance is present as separate grains intimately or linearly mixed with silicates, rather than as inclusions in space-weathered grains. Adding more iron to the intraparticle models darkens the spectrum at λ > 300 nm and does not improve the fit to Psyche, although as noted above, these models are expected to be most accurate for the smallest fractions of iron.

Our spectral analysis shows that the northern hemisphere of Psyche may have a slightly lower albedo than the more equatorial region Figure 4. If this difference is real (i.e., not related to the geometry of the observation or topography of the asteroid), then this could have implications for additional variability on the surface of Psyche. As discussed above, the grain sizes and/or small changes in the percentage of iron could impact the overall spectral shape and apparent brightness of the asteroid. The mid-UV is also sensitive to space weathering, which has been shown to become bluer with the asteroid's exposure time, depending on its spectral class, and therefore composition (Hendrix & Vilas 2006, 2019). A large spectroscopic survey of M-type asteroids that extends into the FUV would provide a more robust understanding of what happens to their surfaces in response to space weathering. If the differences on Psyche result from space weathering, then this may suggest a collisional history uncovering old or adding new material onto the asteroid's surface. Data collected by the Psyche mission may be able to distinguish whether these differences are caused by space weathering or are due to variations in the composition or grain size when it arrives at the asteroid in 2026.

In addition to the 0.9 μm feature attributed to pyroxene by Ockert-Bell et al. (2010), Fornasier et al. (2010) noted a weak absorption feature at 0.43 μm on Psyche (Figure 8) as well as five other M-types in their survey: (22) Kalliope, (69) Hesperia, (216) Kleopatra, (338) Budrosa, and (498) Tokio. They acknowledge the difficulty in attributing this feature and suggest it could be associated with chlorites and Mg-rich serpentines as suggested for enstatite chondrites (King & Clark 1989), pyroxene minerals such as pigeonite or augite (Busarev 1998), or an Fe³⁺ spin-forbidden transition in the iron sulfate jarosite suggested for low-albedo asteroids (Vilas et al. 1993). We note that jarosite (as well as other sulfates such as gypsum and hexahydrite) were explicitly measured in the UV by Cloutis et al. (2008). The jarosite spectrum was noted to be unlike other minerals in the study, with minima near 225, 262, and 240 nm, which are attributable to Fe³⁺–O charge transfers. The jarosite also produces a very dark spectrum (<5% reflectance) out to 400 nm, which is inconsistent with the observed spectrum of Psyche.

Cloutis et al. (2008) notes that the strongest Fe³⁺–O and Fe²⁺–O charge transfer bands occur near 217 and 250 nm, respectively, with Fe³⁺–O absorption roughly two orders of magnitude more intense than the other. However, we detect only a weak absorption feature at 250 nm. If the 217 nm feature is present, it is obscured by the spectral slope and the FUV upturn at slightly shorter wavelengths. This may suggest that only Fe²⁺ is present, that the FUV upturn is in fact a deep Fe³⁺ absorption feature, or that there are no charge transfer bands present and that the observed features may be caused by other mineral properties.

When comparing the slopes of some materials, Cloutis et al. (2008) found that for low-iron olivine, the ratio of 400 nm:250 nm is 4.57 versus 1.47 for meteoritic metal for grain sizes <45 microns. The 400 nm : 250 nm ratio for Psyche, including data from Fornasier et al. (2010), is close to 2.0, making it significantly less red-sloped than the low-iron olivine, potentially ruling out significant amounts of low-iron olivine on the surface of Psyche.

In this work we show that the reflectance of the pure laboratory-measured irons (Wagner et al. 1987; RELAB 2006; Cloutis et al. 2008) are consistent with the albedo of Psyche, and although the linear and intimate mixture models can closely replicate the shape of the spectrum, some normalization is needed to match the albedo. This is in part due to the spectrum's dependence on grain sizes. For example, if the iron grains are small, they may dominate the spectral signal for a variety of mixes of surface materials even if the iron is present in small amounts. Matching the absolute albedo rather than the spectral shape would further constrain the composition but it requires additional knowledge about the Hapke parameters, but to refine those, we need more UV observations at a range of phase angles.

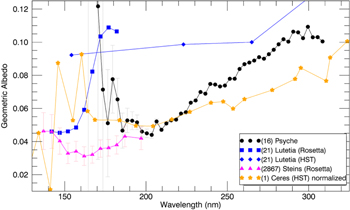

Only four asteroids have been studied at wavelengths <220 nm. In Figure 17, we compare the geometric albedo of the asteroids Psyche (this study), the M-type asteroid (21) Lutetia observed by the Alice instrument on the Rosetta spacecraft (A'Hearn et al. 2010) and photometrically by HST (Weaver et al. 2010), the E-type asteroid (2867) Šteins observed by Rosetta Alice (Stern et al. 2011), and the C-type asteroid (1) Ceres from HST STIS observations (Hendrix et al. 2016). None of their spectra at these wavelengths appear to be similar; it is possible that observations at these wavelengths could be highly diagnostic of either surface compositions or differences in the space weather processing of minor planets.

Zoom In Zoom Out Reset image size

Unlike Psyche, (21) Lutetia has a relatively high albedo between 200 and 260 nm, with a strong absorption feature shortward of 180 nm. This feature is consistent with laboratory data and computer models of water ice (Hendrix & Hansen 2008), which may support the classification by Rivkin et al. (2000) of (21) Lutetia as a W-class asteroid, a subset of M-types that exhibit a strong 3 μm absorption feature attributed to hydration. However, H₂O absorption features at IR wavelengths were not detected by Rosetta Visible and Infrared Thermal Imaging Spectrometer (VIRTIS; Coradini et al. 2011) during its flyby of the asteroid. Stern et al. (2011) attribute the strong spectral feature to SO₂, though they note it is unlikely for it to exist on the asteroid. Again, expanding the laboratory database in the UV may reveal other materials with this distinctive reflectance property that could be used to constrain the composition of planetary bodies.

The UV spectra of Psyche (though noisy shortward of 180 nm) do not appear to exhibit the sharp edge near 165 nm that would be attributed to water ice. This may support the interpretation by Takir et al. (2017) that the 3 μm feature on Psyche could suggest the presence of hydroxyl rather than water near the surface. Instead, the spectra of Psyche become blue at wavelengths <200 nm, similar to the spectra of (1) Ceres (Hendrix et al. 2016), though the NUV spectra of Psyche are redder than those of (1) Ceres. Observations at FUV wavelengths would show whether Psyche's spectrum displays a similar FUV "bump" as well and would have significant implications for the composition of the asteroid since that feature was attributed to graphite for (1) Ceres.

Though it is difficult to directly compare Psyche with the E-type asteroid (2867) Šteins due to a lack of good overlapping spectral data, the geometric albedos of the two asteroids appear to be very similar near 200 nm. This may have interesting implications for the composition of Psyche, which has been compared to E-type asteroids as well. However, there appears to be a bluing of Psyche's spectrum below 200 nm that is not present on Šteins. More data of Psyche at shorter wavelengths would enable a direct comparison with the E-type asteroid and establish spectral similarities or differences not only between these specific asteroids but also the M and E classes of asteroids.

After multiple bandpass high-resolution spectral observations, the asteroids designated to the umbrella X-class by the Eight Color Asteroid Survey (Tholen 1984) were further classified into E-, P-, and M-types, which have also since been further split due to intrinsic differences in the spectra, suggesting distinct origins, compositions, or both. UV observations of these classes of asteroids offer new and critical insight into the composition of these objects that can reduce the degeneracy of spectra at longer wavelengths. This may be especially true for distinguishing the source of the 3 μm absorption feature between hydroxyl and water.
