Galaxy Zoo: Morphologies Based on UKIDSS NIR Imaging for 71,052 Galaxies

Historically, most morphological classification of galaxies has been conducted using optical images. In the photographic era, B-band images were the primary source (e.g., E. P. Hubble 1926; A. Sandage 1961; G. de Vaucouleurs 1963). More recent morphological catalogs also derive their classifications from rest-frame optical images, e.g., B-band (G. de Vaucouleurs et al. 1991), ACS I-F814W (C. Scarlata et al. 2007), Sloan Digital Sky Survey (SDSS) g-band (M. Fukugita et al. 2007; P. B. Nair & R. G. Abraham 2010) or SDSS gri color-composite (C. J. Lintott et al. 2008; K. W. Willett et al. 2013).

Optical galaxy flux is dominated by young, hot stars, highlighting structures where star formation is ongoing. Optical light is also impacted by extinction due to dust, which can obscure features. Longer wavelengths are less impacted by these effects. Near infra-red (NIR) galaxy flux is dominated by lower mass, redder stars, thus should reveal the underlying "stellar backbone" of galaxies. Indeed, studies of individual or small numbers of galaxies have have found significant differences between optical and NIR morphology (J. A. Hackwell & F. Schweizer 1983; H. A. Thronson et al. 1989; D. L. Block et al. 1994; D. L. Block & I. Puerari 1999; I. F. Mirabel et al. 1999); although, in larger samples IR morphology has been found to be well-correlated with optical morphology (P. B. Eskridge et al. 2002; R. J. Buta et al. 2010).

With this Research Note, we publish Galaxy Zoo classifications for a sample of 71,052 galaxies with imaging from the United Kingdom Infrared Telescope (UKIRT) Infrared Deep Sky Survey (UKIDSS; A. Lawrence et al. 2007). These data have been used to investigate the difference between optical (Galaxy Zoo 2 or GZ2; K. W. Willett et al. 2013) and NIR morphology (M. Galloway 2018; E. Warrick 2021).

UKIDSS (A. Lawrence et al. 2007; S. J. Warren et al. 2007) was a large imaging program on UKIRT from 2005 to 2012. The Large Area Survey (LAS) of UKIDSS, obtained ZYJHK imaging across almost 4000 sq degs at high Galactic latitude. The UKIDSS Galaxy Zoo sample is comprised of 71,052 galaxies with LAS imaging selected out of GZ2 (previously classified based on SDSS gri images, K. W. Willett et al. 2013). GZ2 selected the brightest 25% of galaxies (magnitude m_r  < 17 and angular size petroR90_r >3'') from the SDSS Main Galaxy Sample (M. A. Strauss et al. 2002).

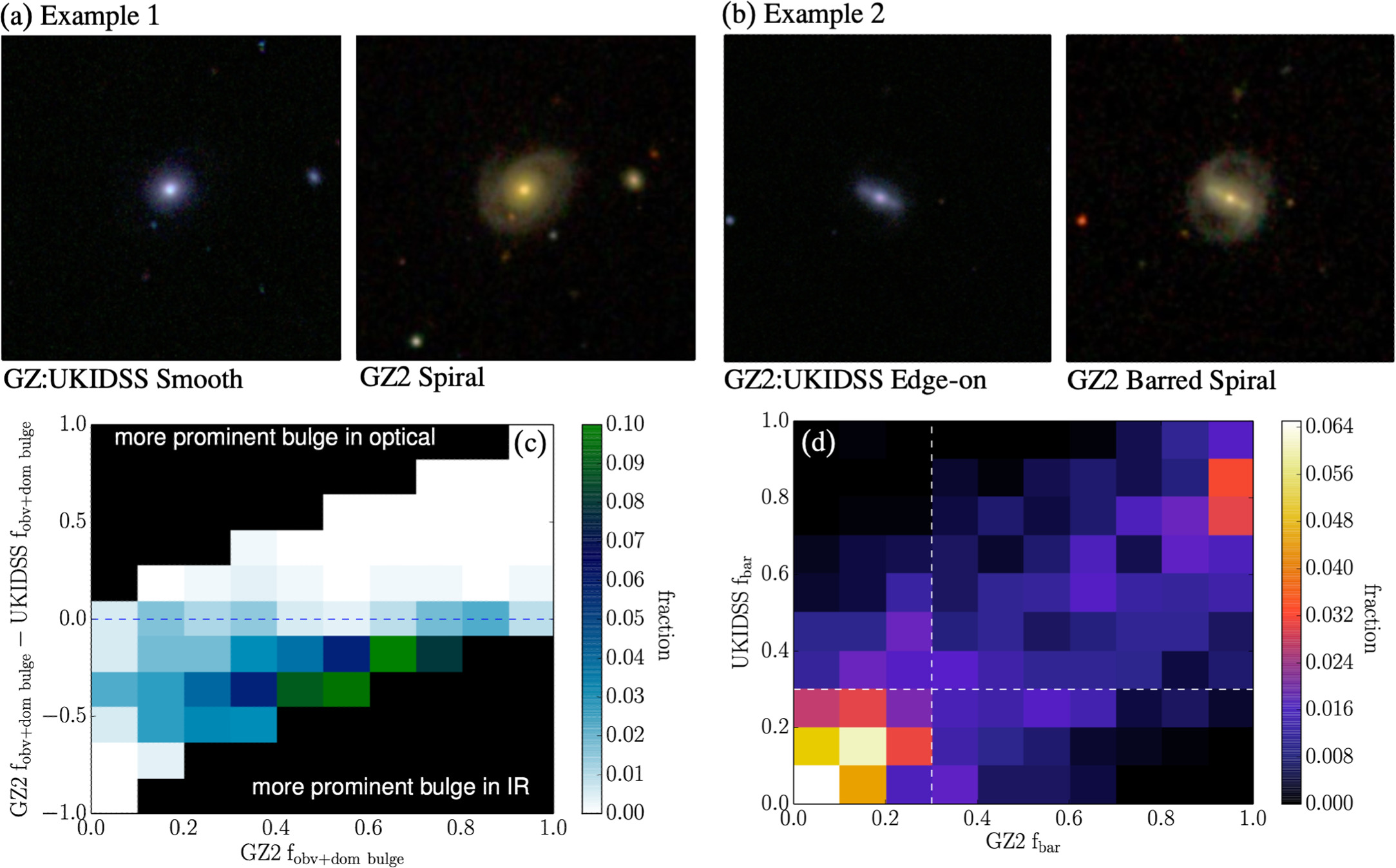

UKIDSS image cutouts were generated using YJK data (1–2.4 μm) implementing the R. Lupton et al. (2004) algorithm to create color images with a comparable color balance to SDSS gri (0.48–0.76 μm). ⁹ The resolution of both sets of images are comparable (12–14 with a pixel scale around 04), however SDSS imaging is typically 1 mag deeper than UKIDSS (SDSS has typical magnitude limits of 22.2–21.3 across gri compared to 20.3–21.1 across YJK in UKIDSS; with bluest bands being deepest in both surveys). Example images from each survey are shown in Figures 1(a), (b).

Zoom In Zoom Out Reset image size

Morphological classifications for this UKIDSS sample were collected via Galaxy Zoo ¹⁰ from 2013 October to 2014 May. More than 80,000 individual volunteers contributed classifications. The classification tree and methods to count and weight raw votes by user consistency were both identical to that in GZ2 (K. W. Willett et al. 2013), to allow for a direct comparison. The reader is referred to K. W. Willett et al. (2013) for more details.

The UKIDSS Galaxy Zoo classification catalog is available at data.galaxyzoo.org and both images and catalog are available at HuggingFace, ¹¹ as part of a large Galaxy Zoo multi-campaign data set used to train Zoobot (M. Walmsley et al. 2023).

M. Galloway (2018) made a comparison of morphologies of 6484 bright nearby galaxies clearly visible in both GZ2 (SDSS) and GZ:UKIDSS. This selection was an attempt to mitigate the impact of shallower UKIDSS imaging. M. Galloway (2018) found that galaxies as seen in UKIDSS tended to have lower vote fractions for visible features (${f}_{\mathrm{features}}$) and larger vote fractions for obvious or dominant bulges (f_obv+dom, see Figure 1(c)). Thus galaxies in UKIDSS had slightly earlier-appearing morphologies, consistent with the NIR imaging revealing more of the older stellar populations than optical. Where spirals were identified in both sets of images, they tended to appear smoother and looser in UKIDSS, but often, spirals visible in SDSS were invisible in the UKIDSS imaging. Bars (f_bar > 0.3) were not significantly more obvious in the UKIDSS imaging than SDSS (see Figure 1(d)).

M. Galloway (2018) concluded that the majority of the differences in morphology between UKIDSS and SDSS imaging were driven by the difference in depth of the images compared to the typical brightness of galaxies at those wavelengths (as illustrated in Figures 1(a), (b)). For a more useful comparison of NIR to optical morphologies in a large sample, analysis will be needed on a large sample with much deeper NIR imaging. This should be possible in the near future with the Galaxy Zoo: Euclid project (Euclid Collaboration et al. 2024), which has both optical and YJH imaging.

This publication uses data generated via the Zooniverse.org platform, development of which is funded by generous support, including a Global Impact Award from Google, and by a grant from the Alfred P. Sloan Foundation. This publication has been made possible by the participation of more than 80,000 volunteers in the Galaxy Zoo project.

We thank Steve Warren (Imperial) for support and assistance with accessing UKIDSS imaging and explanations of common artifacts.

Facilities: UKIDSS - , SDSS - .
