No Evidence that the Majority of Black Holes in Binaries Have Zero Spin

The spins of black holes in merging binaries detected with gravitational waves promise to illuminate open questions in massive stellar evolution and compact binary formation. The orientations of component black hole spins may differentiate between binaries formed via isolated stellar evolution and those formed dynamically in clusters or the disks of active galactic nuclei, and additionally offer a means of measuring natal kicks that black holes receive upon their formation (Rodriguez et al. 2016; Vitale et al. 2017; Farr et al. 2017; Gerosa & Berti 2017; O'Shaughnessy et al. 2017; Gerosa et al. 2018; Liu & Lai 2018; Wysocki et al. 2018; Fragione & Kocsis 2020; McKernan et al. 2020; Callister et al. 2021a; Abbott et al. 2021a; Steinle & Kesden 2021). Spin magnitudes, meanwhile, are determined by poorly understood angular momentum processes operating in stellar cores and may be further affected by binary processes such as tidal torques or mass transfer (Qin et al. 2018; Bavera et al. 2020, 2021; Steinle & Kesden 2021; Zevin & Bavera 2022). Black holes with large spin magnitudes might also point to hierarchical assembly in dense environments, involving component black holes that are themselves the products of previous mergers (Gerosa & Berti 2017; Rodriguez et al. 2019; Kimball et al. 2020, 2021; Doctor et al. 2020; Gerosa & Fishbach 2021).

Despite the large astrophysical interest, spin measurements are hampered by the fact that spin dynamics have a relatively weak imprint on the gravitational-wave signal. The main effect of spins (anti)parallel to the Newtonian orbital angular momentum is to (speed up) slow down the binary inspiral and merger. Spins in the plane of the orbit, on the other hand, give rise to precession that modulates the amplitude and phase of emitted gravitational waves. Even with informative measurements of these effects, however, it is not straightforward to constrain all six spin degrees of freedom independently.

Recent work (Abbott et al. 2021a; Galaudage et al. 2021; Roulet et al. 2021) has yielded conflicting conclusions regarding the distribution of spins among the binary black hole population witnessed by Advanced LIGO (Aasi et al. 2015) and Virgo (Acernese et al. 2015). Specifically:

• 1.
  Do binary black holes have small but nonzero spins that may be misaligned significantly with the Newtonian orbital angular momentum, i.e., with spin–orbit misalignments >90°?
• 2.
  Or, do a majority of binaries have spins that are identically zero or, if nonzero, preferentially aligned with the Newtonian orbital angular momentum, i.e., with misalignments <90°?

These questions highlight the subtleties and difficulties inherent in statistical analysis of weakly informative measurements. This debate also hinges on a variety of technical difficulties related to hierarchical inference of narrow population features using discretely sampled data.

The two possibilities listed above carry considerably different astrophysical implications for the assembly and evolution of binary black hole mergers. Systems arising from isolated binary evolution are traditionally expected to have spins preferentially parallel to their orbital angular momenta (Belczynski et al. 2008; Qin et al. 2018; Zaldarriaga et al. 2018; Bavera et al. 2020). Significant spin–orbit misalignment, in contrast, is considered difficult to achieve under canonical isolated binary evolution and so would indicate either the presence of alternative formation channels or a change in the paradigm of isolated binary evolution (Rodriguez et al. 2016; Farr et al. 2017; Callister et al. 2021a; Steinle & Kesden 2021; Tauris 2022). The degree to which black holes are observed to be primarily spinning or nonspinning, meanwhile, would support or refute theories positing highly efficient angular momentum transport in stellar interiors (Spruit 1999; Fuller et al. 2015; Fuller & Ma 2019).

Our goal in this paper is to revisit these incompatible conclusions. In Section 2 we review recent literature and describe in more detail what is known, unknown, and still debated about binary black hole spins. We then employ a string of increasingly sophisticated analyses to study the population of binary black hole spins and determine what we can and cannot robustly conclude about the magnitudes and orientations of black hole spins. We begin in Section 3 with a simple counting argument, which demonstrates that the fraction of black holes that are nonspinning is consistent with zero. We then turn to full hierarchical analyses of the binary black hole population, studying the distributions of effective inspiral spins (Section 4) and component spin magnitudes and orientations (Section 5). In all cases, we find that the fraction of nonspinning black holes can comprise up to 60%–70% of the total population, but that this fraction cannot be confidently bounded away from zero. Overall, the inferred spin-magnitude distribution is consistent with a single population extending smoothly from zero up to magnitudes of approximately 0.4. Additionally, we find a preference for considerable spin–orbit misalignments among the binary black hole population, with some spins inclined by more than 90° relative to their orbits.

Each component black hole in a binary has dimensionless spin vectors χ ₁ and χ ₂. Six parameters are needed to fully specify these two spins, with each spin vector characterized by a magnitude 0 ≤ χ_i ≤ 1, tilt angle θ_i , and azimuthal angle ϕ_i , where i ∈ {1, 2}.

Not all spin degrees of freedom are as dynamically important in a gravitational-wave signal, however. While the two spin magnitudes are conserved throughout the binary evolution (modulo horizon absorption effects; Poisson 2004; Chatziioannou et al. 2013), the four spin angles vary due to spin precession. A combination known as the effective inspiral spin is conserved under spin precession to at least the 2PN order ⁵ (Racine 2008):

$$\begin{eqnarray}&&{\chi }_{\mathrm{eff}}=\displaystyle \frac{{\chi }_{1}\cos {\theta }_{1}+q{\chi }_{2}\cos {\theta }_{2}}{1+q}\in [-1,1],\end{eqnarray} \tag{ 1 }$$

where q = m₂/m₁ < 1 is the mass ratio. Though not conserved under spin precession, the effective precessing spin,

$$\begin{eqnarray}&&{\chi }_{{\rm{p}}}=\max \left[{\chi }_{1}\sin {\theta }_{1},\left(\displaystyle \frac{3+4q}{4+3q}\right)q\,{\chi }_{2}\sin {\theta }_{2}\right]\in [0,1],\end{eqnarray} \tag{ 2 }$$

reflects the degree of in-plane spin and characterizes spin-precession dynamics (Schmidt et al. 2015). ⁶ Although modern waveform models make use of the full six-dimensional spin parameter space (Khan et al. 2019; Varma et al. 2019; Ossokine et al. 2020; Pratten et al. 2021), earlier versions were constructed in terms of χ_eff and χ_p, leveraging their relevance in binary dynamics.

At current signal strengths, it is not possible to meaningfully constrain all six spin parameters. When exploring the population of compact binary spins, we therefore generally work in one of two lower-dimensional spaces.

• 1.
  The most straightforward approach is to constrain the distribution of "effective" spin parameters. Though the χ_eff and χ_p distributions do not unambiguously reveal information about individual component spins, they do enable categorical conclusions to be made regarding compact binary spins. A nonvanishing χ_p distribution, for example, indicates that spins are not perfectly aligned with binary orbits, while the identification of negative χ_eff requires at least some component spins to be inclined by more that θ_i = 90°. A common approach, and the baseline model that we will extend below, is to treat the marginal distribution of χ_eff as a truncated Gaussian (Roulet & Zaldarriaga 2019; Miller et al. 2020). We refer to this as the Gaussian model; see Appendix A.1.
• 2.
  Going one step beyond the effective spin parameters, we can directly model the distribution of component spin magnitudes and tilt angles. A popular choice is to treat the component spin magnitude distribution as a Beta distribution, while spin tilts are drawn from a mixture between two components, an isotropic component and a preferentially aligned component (Talbot & Thrane 2017; Wysocki et al. 2019). The azimuthal spin angles are ignored and presumed to be uniformly distributed as ϕ₁, ϕ₂ ∼ U[0, 2π] (this assumption was relaxed in Varma et al. 2022). We assume that component spin magnitudes and tilts are independently and identically distributed within this model and refer to it as the Beta+Mixture model, ⁷ discussed further in Appendix A.2.

2.1. What We Know about Black Hole Spins

2.2. What Is under Debate about Black Hole Spins?

(i.) Do most black holes have zero spin? Although it is agreed that not all black holes can possess zero spin, a debated question is whether most do. Using both the Default and Gaussian models, Abbott et al. (2021a) found no indication of an excess of zero-spin systems; predictive checks designed to test the goodness-of-fit of these models found these continuous unimodal distributions to be good descriptors of the observed population. In the context of hierarchical black hole formation, Kimball et al. (2020, 2021) directly measured the fraction of "first-generation" black holes with zero spin, finding this fraction to be consistent with zero. A different conclusion was drawn in Roulet et al. (2021), who modeled the χ_eff distribution not as a single Gaussian but via a mixture of three components,

$$\begin{eqnarray}&&\,\begin{array}{l}p({\chi }_{\mathrm{eff}}| {\zeta }_{\mathrm{pos}},{\zeta }_{0},\sigma )={\zeta }_{\mathrm{pos}}\,{{ \mathcal N }}_{[\mathrm{0,1}]}({\chi }_{\mathrm{eff}}| 0,\sigma )\\ \,\,\,+\,{\zeta }_{0}\,{{ \mathcal N }}_{[-\mathrm{1,1}]}({\chi }_{\mathrm{eff}}| 0,0.04)\\ \,\,\,+\,(1-{\zeta }_{\mathrm{pos}}-{\zeta }_{0}){{ \mathcal N }}_{[-\mathrm{1,0}]}({\chi }_{\mathrm{eff}}| 0,\sigma ),\end{array}\end{eqnarray} \tag{ 3 }$$

corresponding to a half-Gaussian encompassing χ_eff > 0, a half-Gaussian encompassing χ_eff < 0, and a Gaussian centered at zero. This third component was intended to capture systems with χ_eff = 0; its finite standard deviation (fixed to 0.04) was chosen to mitigate sampling effects, a technical issue we discuss further below. Roulet et al. (2021) argued that a significant fraction of observed binaries are possibly associated with this zero-spin subpopulation. They reported a maximum-likelihood value of ζ₀ ≈ 0.5, although ζ₀ remained consistent with zero. A similar but stronger conclusion was forwarded by Galaudage et al. (2021). Working in the component spin domain, they extended the Default model to include an additional subpopulation whose spin magnitudes are identically zero for both binary components. Galaudage et al. (2021) concluded that ${54}_{-25}^{+21} \%$ of binaries are members of the zero-spin subpopulation at 90% credibility. ⁸

(ii.) Do some black holes have large spin magnitudes? Abbott et al. (2021a) performed a series of predictive checks, testing the goodness of fit of their models against observation. They concluded that black hole spins are well described by a single unimodal distribution concentrated at small but nonzero values. In contrast, Galaudage et al. (2021) argued that, although they infer most binary black holes to be nonspinning, the remaining binaries are members of a distinct rapidly spinning subpopulation. This secondary population is claimed to exhibit a broad range of spin magnitudes, centered at χ ≈ 0.45 but extending to maximal spins. Hoy et al. (2022a) noted that some individual events exhibit more confidently positive spin than others, speculating that they comprise a secondary population of more rapidly spinning events. However, their results are based on the inspection of individual posteriors and not hierarchical inference of the underlying population, and so it is unclear how their conclusions compare to those of Galaudage et al. (2021).

(iii.) Do extreme spin–orbit misalignments exist? Although all analyses agree that at least a moderate degree of spin–orbit misalignment exists, the question of extreme misalignments, i.e., θ > 90°, remains. Using the Gaussian model, Abbott et al. (2021a) inferred that at least 12% of binaries have negative χ_eff, possible only if one or both component spins have θ > 90°. To determine whether this conclusion was a proper measurement or simply an extrapolation of their model, Abbott et al. (2021a) introduced a variable lower bound ${\chi }_{\mathrm{eff},\min }$ on the Gaussian χ_eff distribution, finding the data to require ${\chi }_{\mathrm{eff},\min }\lt 0$ at 99% credibility. Roulet et al. (2021), however, found that this support for negative effective spins is diminished when allowing for the possibility of a zero-spin population as in Equation (3). Galaudage et al. (2021), meanwhile, explored another variant of the Default component spin model, now introducing a variable truncation bound on the spin tilt distribution. They found this minimum $\cos \theta$ to be consistent with zero. Motivated by these analyses, Abbott et al. (2021b) further extended the Gaussian model to include both a variable truncation bound and a possible zero-spin subpopulation. They recovered diminished evidence for negative effective spins but still recovered a preference for ${\chi }_{\mathrm{eff},\min }\lt 0$, now at 90% credibility. To date, no individual events discovered by the LIGO–Virgo–KAGRA Collaboration have confidently negative χ_eff or component spins unambiguously inclined by more than 90° (Abbott et al. 2021d). Independent reanalyses of LIGO/Virgo data have identified several candidates with confidently negative χ_eff (Venumadhav et al. 2020; Olsen et al. 2022), although most of these candidates do not pass the significance threshold adopted in Roulet et al. (2021).

The central question of whether the majority of detected black hole binaries have vanishing spins admits a quick back-of-the-envelope estimate. Fully marginalized likelihoods ⁹ have been obtained for every event in GWTC-2 (Abbott et al. 2021c; Kimball et al. 2021) under two different prior hypotheses: (i) Both binary components are nonspinning (NS), with spin magnitudes fixed to χ_1,2 = 0, and (ii) the black holes are spinning (S), with spin magnitudes and cosine tilts distributed uniformly across the intervals 0 ≤ χ_1,2 ≤ 1 and $-1\,\leqslant \cos {\theta }_{\mathrm{1,2}}\leqslant 1$. The ratio of the fully marginalized likelihoods gives the Bayes factor ${{ \mathcal B }}_{{\rm{S}}}^{\mathrm{NS}}$ between the nonspinning and spinning hypotheses. Such Bayes factors serve as a primary input in the analysis of Galaudage et al. (2021), which makes use of parameter estimation samples obtained under both nonspinning and spinning priors; the Bayes factors between hypotheses is critical in determining how to properly combine these samples.

We start by considering a simple one-parameter model for the fraction of nonspinning binaries, ζ. Given a catalog of N_obs observations and data {d}, the likelihood of {d} is

$$\begin{eqnarray}\begin{array}{rcl}p(\{d\}| \zeta ) & = & \displaystyle \prod _{i=1}^{{N}_{\mathrm{obs}}}p({d}_{i}| \zeta )\\ & = & \displaystyle \prod _{i=1}^{{N}_{\mathrm{obs}}}\left[p({d}_{i}| \mathrm{NS})p(\mathrm{NS}| \zeta )+p({d}_{i}| {\rm{S}})p({\rm{S}}| \zeta )\right],\end{array}\end{eqnarray} \tag{ 4 }$$

where in the second line we have written the likelihood for each individual event as the sum of two terms corresponding to the nonspinning (NS) and the spinning (S) hypothesis. By definition, p(NS∣ζ) = ζ and p(S∣ζ) = 1 − ζ. Substituting these expressions into Equation (4) gives

$$\begin{eqnarray}\begin{array}{rcl}p(\{d\}| \zeta ) & = & \displaystyle \prod _{i=1}^{{N}_{\mathrm{obs}}}\left[p({d}_{i}| \mathrm{NS})\zeta +p({d}_{i}| {\rm{S}})(1-\zeta )\right]\\ & = & \displaystyle \prod _{i=1}^{{N}_{\mathrm{obs}}}p({d}_{i}| {\rm{S}})\left[\displaystyle \frac{p({d}_{i}| \mathrm{NS})}{p({d}_{i}| {\rm{S}})}\,\zeta +(1-\zeta )\right]\\ & \propto & \displaystyle \prod _{i=1}^{{N}_{\mathrm{obs}}}\left[{{ \mathcal B }}_{{\rm{S}},i}^{\mathrm{NS}}\,\zeta +(1-\zeta )\right],\end{array}\end{eqnarray} \tag{ 5 }$$

where the likelihood ratio p(d_i ∣NS)/p(d_i ∣S) is the nonspinning versus spinning Bayes factor ${{ \mathcal B }}_{{\rm{S}},i}^{\mathrm{NS}}$.

The Bayes factors computed in Abbott et al. (2021c) and used by Galaudage et al. (2021) were obtained via nested sampling (Skilling 2004, 2006; Speagle 2020). To evaluate Equation (5), we instead use posterior samples under the spinning hypothesis to calculate ${{ \mathcal B }}_{{\rm{S}}}^{\mathrm{NS}}$ via a Savage–Dickey density ratio. The Bayes factors we compute generally agree with those used as inputs in Galaudage et al. (2021), although with some notable exceptions that may contribute to the discrepancies between their results and our own; see Appendix G.

The solid curve in Figure 1 shows our resulting posterior on ζ using only GWTC-2 events for which such Bayes factors are available. We find that zero-spin fractions ζ ≳ 0.8 are excluded at high credibility. It also appears that ζ = 0 is disfavored, which would imply the presence of at least a few zero-spin systems. However, note that the spinning hypothesis (S) requires that spin magnitudes be distributed uniformly up to ${\chi }_{\max }=1$, a possibility that is heavily disfavored as discussed in Section 2. What happens if we adopt a more plausible prior distribution for the spinning hypothesis? To answer this question, the dashed and dotted curves in Figure 1 show the ζ posterior given by Equation (5) if we recompute ${{ \mathcal B }}_{{\rm{S}}}^{\mathrm{NS}}$ but now assume maximum spin magnitudes of ${\chi }_{\max }=0.9$ and 0.8, respectively, among the "spinning" population. We see that even these small adjustments to ${\chi }_{\max }$ further rule out large ζ and increasingly support ζ = 0.

Zoom In Zoom Out Reset image size

If, rather than our Savage–Dickey estimates, we instead use the same nested sampling Bayes factors adopted by Galaudage et al. (2021), we now much more strongly rule out ζ = 0. In Appendix G we track the origin of this behavior to one event, GW190408_181802, whose nested sampling Bayes factor appears significantly overestimated. This system is reported to have a large Bayes factor ${{ \mathcal B }}_{{\rm{S}}}^{\mathrm{NS}}\sim 130$ in favor of the nonspinning hypothesis, but this conclusion is not supported by the posterior on this system's spins (and thus the Savage–Dickey density ratio); see Figure 14. When we exclude GW190408_181892 from our sample, we obtain consistent p(ζ) posteriors from both sets of Bayes factors. When including this event, however, the nested sampling Bayes factors cause p(ζ = 0) to be underestimated by a factor of ∼10² relative to the result obtained with Savage–Dickey ratios (again see Figure 14). This could account for the nonzero fraction of nonspinning events found in Galaudage et al. (2021).

The initial check presented in Figure 1 suggests that the conclusion that most binary black holes comprise a distinct nonspinning subpopulation is inconsistent with the parameter estimates for individual binary black systems. At the same time, however, we saw that exact quantitative conclusions depend sensitively on assumptions regarding other aspects of the binary black hole population. We therefore need to undertake a more complete hierarchical analysis, measuring the zero-spin fraction ζ while simultaneously fitting the distribution of black hole spin magnitudes and orientations.

Going beyond our simple counting experiment, we next consider hierarchical inference of the effective spin distribution. An excess of events with vanishing spins would have stark implications for the distribution of effective spin parameters. In Figure 2 we compare the χ_eff distribution implied by the results of Galaudage et al. (2021) and Abbott et al. (2021b). If most black holes are indeed nonspinning, we should correspondingly see a prominent spike at χ_eff = 0, and if such a spike exists it should be robustly measurable using an appropriate model.

Zoom In Zoom Out Reset image size

There are two benefits to searching for this excess of zero-spin systems in the χ_eff domain before proceeding to more carefully explore the distribution of component spins. First, inference of the χ_eff distribution offers an independent and complementary check on the existence of a prominent zero-spin population: such a feature should be detectable either in the space of component spins or effective spins. Second, by analyzing χ_eff and not the higher-dimensional space of spin magnitudes and tilts, we can more easily avoid systematic uncertainties due to finite sampling effects. As detailed in Appendix B, the core ingredients in any hierarchical analysis are the posteriors p(λ_i ∣d_i ) on the properties λ_i of our individual binaries (labeled by i ∈ [1, N_obs]). In general, however, we do not have direct access to these posteriors, but instead have discrete samples {λ_i,j } drawn from the posteriors, where j ∈ [1, N_i ] enumerates the samples from posterior i and N_i is the total number of samples for this event. We therefore ordinarily replace integrals over p(λ_i ∣d_i ) with Monte Carlo averages over these discrete samples. The fundamental assumption underlying this approach is that the posterior samples are sufficiently dense relative to the population features of interest. In this paper, however, we are concerned with very narrow features in the binary black hole spin distribution; see Figure 2. In this case, we cannot automatically assume that Monte Carlo averages over posterior samples will yield accurate results.

Analysis of the χ_eff distribution allows us to circumvent these sampling issues by alternatively representing each event's posterior as a Gaussian kernel density estimate (KDE) over its posterior samples. This approach effectively imparts a finite "resolution" to each posterior sample, and allows us to assess the likelihood of arbitrarily narrow population features that would otherwise cause the typical Monte Carlo procedure to break down. Further details about the KDE representation of posteriors are provided in Appendix E.

Motivated by Figure 2, we attempt to measure the presence of any zero-spin subpopulation by modeling the χ_eff distribution as a mixture between a broad "bulk" population, centered at μ_eff with width σ_eff, and a narrow "spike" centered at zero,

$$\begin{eqnarray}&&\begin{array}{l}p({\chi }_{\mathrm{eff}}| {\zeta }_{\mathrm{spike}},\epsilon ,{\mu }_{\mathrm{eff}},{\sigma }_{\mathrm{eff}})={\zeta }_{\mathrm{spike}}{{ \mathcal N }}_{[-\mathrm{1,1}]}({\chi }_{\mathrm{eff}}| 0,\epsilon )\\ \,\,\,\,+(1-{\zeta }_{\mathrm{spike}}){{ \mathcal N }}_{[-\mathrm{1,1}]}({\chi }_{\mathrm{eff}}| {\mu }_{\mathrm{eff}},{\sigma }_{\mathrm{eff}}).\end{array}\end{eqnarray} \tag{ 6 }$$

We call this the GaussianSpike model; see Appendix A.1 for further details. Leveraging the KDE posterior representation introduced above, we take = 0, such that the spike is infinitely narrow at χ_eff = 0. We hierarchically infer the parameters of this model using every binary black hole detection in GWTC-3 (Abbott et al. 2021d) with a false-alarm rate below 1 yr⁻¹; see Appendix B for further details on the data we use.

The blue curve in Figure 3 shows our resulting marginal posterior on the fraction ζ_spike of binary black holes comprising a zero-spin spike. We find that ζ_spike remains consistent with zero, indicating no evidence for an over-density of events at χ_eff = 0. For reference, the "zero-spin" fraction measured by Roulet et al. (2021) (ζ₀ in Equation (3)) is shown as a dashed black curve. The results from Roulet et al. (2021) are qualitatively consistent with our own; exact agreement is not expected due to the different models and different data employed in each analysis.

Zoom In Zoom Out Reset image size

Although ζ_spike is not bounded away from zero, a nonzero value is nevertheless preferred, with a maximum posterior value of ζ_spike ≈ 0.5. We demonstrate that this behavior is not unexpected from intrinsically spike-less populations. We perform a series of null tests, repeatedly simulating and analyzing catalogs of events drawn from a spikeless population and with uncertainties typical of current detections; see Appendix F for further details on the simulations. The gray curves in Figure 3 show the posteriors on ζ_spike given by these synthetic catalogs. Despite being drawn from a spikeless population, the simulated catalogs generically yield posteriors morphologically similar to the those obtained using actual observations, with some posteriors that even more extremely (and incorrectly) disfavor ζ_spike = 0.

The cause of this behavior is a degeneracy between μ_eff and ζ_spike. The mock catalogs that strongly disfavor ζ = 0 are typically those that have events with moderately high, well-measured effective spins. The presence of such events increases the inferred mean μ_eff of the "bulk" population, pulling the bulk away from those events near χ_eff ≈ 0 and leaving them to be absorbed into a zero-spin subpopulation. We have verified that removing the most rapidly spinning events from these mock catalogs indeed acts to resolve the apparent tension in Figure 3; see Appendix F. This demonstration further emphasizes the need for additional caution when drawing strong astrophysical conclusions based on narrow population features, particularly in the regime when uncertainties on individual events are much larger than the features of interest.

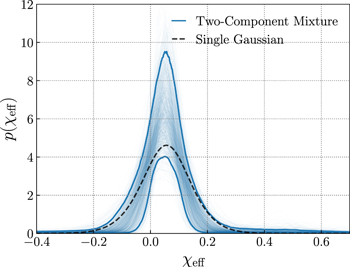

Going beyond the question of a narrow spike at zero, we now more generally ask if there is evidence for any bimodality in the χ_eff distribution of binary black holes. We explore this question using the BimodalGaussian model (see Appendix A.1) in which the "spike" in Equation (6) is replaced with a second, independent Gaussian with a variable mean and width. The χ_eff distribution inferred under this model is shown in Figure 4, where light traces show individual draws from our population posterior and the slide lines mark 90% credible bounds. We find no evidence that the effective spin distribution deviates from a simple unimodal shape. For reference, the dashed black line marks the mean distribution inferred using a simple Gaussian model. Inference using the more complex BimodalGaussian remains extremely consistent with this simple result, with both models yielding consistent means (${0.05}_{-0.03}^{+0.03}$ and ${0.06}_{-0.03}^{+0.04}$ under the Gaussian and BimodalGaussian models, respectively) and standard deviations (${0.09}_{-0.04}^{+0.03}$ and ${0.12}_{-0.08}^{+0.04}$).

Zoom In Zoom Out Reset image size

An alternative way to test for the presence of additional structure in the χ_eff distribution is to ask about the predictive power of our models: Are there systematic residuals between the χ_eff values we observe and those predicted by each model? In Appendix C we subject the Gaussian, GaussianSpike, and BimodalGaussian models to predictive tests, finding that all three models, once fitted, successfully predict the observed χ_eff values among GWTC-3. The fact that the simple Gaussian model passes this check once more points to the lack of observational evidence for additional structure in the binary black hole χ_eff distribution, whether a spike, a secondary mode, or still other feature.

Preliminary results so far, based on the Bayes factor counting experiment in Section 3 and hierarchical χ_eff analyses in Section 4, do not point to an excess of zero-spin events. Here we confirm these conclusions via a more complete inference of the component spin magnitude and tilt distributions under a series of increasingly complex models.

As a baseline model (Talbot & Thrane 2017; Wysocki et al. 2019; Abbott et al. 2021a, 2021b), we take each component spin magnitude to be distributed following a Beta distribution,

$$\begin{eqnarray}&&p({\chi }_{i}| \alpha ,\beta )=\displaystyle \frac{{\chi }_{i}^{1-\alpha }\,{\left(1-{\chi }_{i}\right)}^{1-\beta }}{c(\alpha ,\beta )},\end{eqnarray} \tag{ 7 }$$

where c(α, β) is a normalization constant. Every spin tilt, meanwhile, is distributed as a mixture between an isotropic component and a preferentially aligned component, modeled as a half-Gaussian centered at $\cos \theta =1$:

$$\begin{eqnarray}&&p(\cos {\theta }_{i}| {f}_{\mathrm{iso}},{\sigma }_{t})=\displaystyle \frac{{f}_{\mathrm{iso}}}{2}+(1-{f}_{\mathrm{iso}}){{ \mathcal N }}_{[-\mathrm{1,1}]}\,(\cos {\theta }_{i}| 1,{\sigma }_{t}).\end{eqnarray} \tag{ 8 }$$

We refer to Equations (7) and (8) as the Beta+Mixture model. A related version of this model in which both component spin tilts are together drawn from either the isotropic or the aligned component is also called the Default spin model in Abbott et al. (2021a, 2021b).

Galaudage et al. (2021) explored an extension to the Default model that allowed for an excess of systems with zero spin and a variable bound on the spin tilt distribution; it was termed the Extended model in that study. Motivated by these extensions, we introduce the possibility of a zero-spin "spike" in the spin magnitude distribution, modeled as a half-Gaussian with finite width _spike centered at zero:

$$\begin{eqnarray}\begin{array}{rcl}p({\chi }_{i}| \alpha ,\beta ,{f}_{\mathrm{spike}},{\epsilon }_{\mathrm{spike}}) & = & {f}_{\mathrm{spike}}\,{{ \mathcal N }}_{[\mathrm{0,1}]}({\chi }_{i}| 0,{\epsilon }_{\mathrm{spike}})\\ & & +(1-{f}_{\mathrm{spike}})\displaystyle \frac{{\chi }_{i}^{1-\alpha }\,{\left(1-{\chi }_{i}\right)}^{1-\beta }}{c(\alpha ,\beta )}.\end{array}\end{eqnarray} \tag{ 9 }$$

Following Galaudage et al. (2021) we also introduce a variable truncation bound z_min on the spin-tilt distribution:

$$\begin{eqnarray}\begin{array}{rcl}p(\cos {\theta }_{i}| {f}_{\mathrm{iso}},{\sigma }_{t},{z}_{\min }) & = & \displaystyle \frac{{f}_{\mathrm{iso}}}{1-{z}_{\min }}\\ & & +(1-{f}_{\mathrm{iso}}){{ \mathcal N }}_{[{z}_{\min },1]}(\cos {\theta }_{i}| 1,{\sigma }_{t}),\end{array}\end{eqnarray} \tag{ 10 }$$

for ${z}_{\min }\leqslant \cos {\theta }_{i}\leqslant 1$. We refer to Equations (9) and (10) together as the BetaSpike+TruncatedMixture model. To better understand how conclusions regarding a zero-spin excess and the prevalence of spin–orbit misalignment are related, we also consider variants of this model in which only one extended feature is present: a zero-spin spike but no $\cos \theta$ truncation (BetaSpike+Mixture) or a $\cos \theta$ truncation but no spike (Beta+TruncatedMixture). See Appendix A.2 for further details.

Our full BetaSpike+TruncatedMixture model differs from the Extended model of Galaudage et al. (2021) in two ways. First, we do not fix the width _spike of the vanishing spin subpopulation, but instead treat it as a free parameter to be inferred from the data. This allows us to test whether a narrow subpopulation is actually preferred by the data, similar to our investigation with the BimodalGaussian model in Section 4 above. We adopt a prior requiring _spike ≥ 0.03. This lower limit is motivated by tracking our number of effective posterior samples per event (see further discussion below), and by the effective population resolution of our catalog, which we estimate as

$$\begin{eqnarray}&&\displaystyle \frac{1}{{\sigma }_{\mathrm{obs}}^{2}}=\sum _{i=1}^{{N}_{\mathrm{obs}}}\left(\displaystyle \frac{1}{{\sigma }_{{\chi }_{1},i}^{2}}+\displaystyle \frac{1}{{\sigma }_{{\chi }_{2},i}^{2}}\right),\end{eqnarray} \tag{ 11 }$$

where ${\sigma }_{{\chi }_{1},i}^{2}$ and ${\sigma }_{{\chi }_{2},i}^{2}$ are the variances of the spin magnitude posteriors for each event i. We find σ_obs = 0.02, approximately equal to our lower bound on _spike.

Second, the Extended model does not allow for independently and identically distributed spin magnitudes and orientations. Instead, component spin magnitudes are either both vanishing or both nonvanishing in a given binary. This choice precludes astrophysical scenarios such as tidal spin-up, which is expected to affect only one component spin in a given binary. Similarly, within the Extended model, the spin tilts are both either members of the isotropic component or the preferentially aligned component in Equation (10). Here, we instead assume that all component spin magnitudes and tilts are independently drawn from Equations (9) and (10).

When hierarchically analyzing the χ_eff distribution above, we relied on a KDE representation of individual-event likelihoods p(d_i ∣λ_i ) to mitigate sampling uncertainties and evaluate population models with narrow features. This trick cannot be straightforwardly applied to inference of the component spin distribution, due to both the increased dimensionality and the fact that the sharp feature of interest (a spike at χ₁ = χ₂ = 0) lies on the boundary of parameter space, rather than the center. We will therefore return to standard Monte Carlo averaging over posterior samples when hierarchically inferring the component spin distribution. To diagnose possible breakdowns in our inference due to finite sampling effects, we monitor the effective number of posterior samples, N_eff, informing our Monte Carlo estimates for each event's likelihood. As discussed in Appendix D, we explicitly track $\min \left[{N}_{\mathrm{eff},i}({\rm{\Lambda }})\right]$, the minimum effective sample count across all events for a proposed population Λ, and use this quantity to define which regions of parameter space we can and cannot make claims about. In particular, we find that we expect reliable population inference when _spike > 0.03.

Figure 5 shows the measured spin magnitude and tilt distributions under our four component spin models, and we show the posteriors obtained on the hyperparameters of each model in Figure 6. To hierarchically measure the component spin distribution, we again use all binary black holes in GWTC-3 with false-alarm rates below 1 yr⁻¹; see Appendix B for details.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

For those models allowing a distinct zero-spin spike, the left panels of Figure 5 indicate that such a feature is not required to exist. We instead see inferred spin magnitude distributions consistent with a single, smooth function that remains finite at χ = 0, with most events having spin magnitudes in the χ ∈ (0, 0.3) range. Correspondingly, the posteriors on f_spike in Figure 6 are consistent with zero. Compared to the fraction ζ_spike with χ_eff = 0 (see Figure 3), we find that f_spike is more consistent with zero. We interpret this variation as reflective of the systematic uncertainty in exactly how the question "does there exist an excess of zero-spin systems?" is posed: whether in the component spin or effective spin domains, with a delta function at zero or a finite-width spike, etc. Despite these differences, all results indicate that the presence of a zero-spin population is not required by the current data. A zero-spin population is not precluded, though: both sets of results bound any zero-spin fraction to ≲60%, suggesting that a distinct zero-spin population could yet emerge in future data.

The fraction f_spike is primarily correlated with μ_χ , the mean of the "bulk" spin magnitude population. Larger μ_χ values reduce the capability of this "bulk" Beta distribution to accommodate events with small spin; these events will therefore necessarily be assigned to the "spike" and thus increase the value of f_spike. This is similar to the phenomenon identified in Section 4 above. Additionally, all four component spin models yield similar spin magnitude distributions above χ ≳ 0.4, suggesting that the data are robustly consistent with the absence of large spin magnitudes. Table 1 lists the 1st and 99th spin magnitude percentiles (χ_1% and χ_99%, respectively) under each model; our most conservative estimate gives${\chi }_{99 \% }={0.67}_{-0.21}^{+0.20}$.

Table 1. Median and 90% Credible Intervals on Various Physical Quantities of Interest under Various Component Spin Models

Model	fspike	${z}_{\min }$	z1%	χ1%	χ99%	χeff,1%	χeff,99%
Beta+Mixture	⋯	⋯	$-{0.96}_{-0.02}^{+0.07}$	${0.02}_{-0.02}^{+0.05}$	${0.58}_{-0.16}^{+0.18}$	$-{0.20}_{-0.13}^{+0.10}$	${0.27}_{-0.09}^{+0.12}$
BetaSpike+Mixture	${0.22}_{-0.22}^{+0.31}$	⋯	$-{0.96}_{-0.02}^{+0.08}$	${0.004}_{-0.003}^{+0.010}$	${0.64}_{-0.19}^{+0.20}$	$-{0.21}_{-0.13}^{+0.10}$	${0.30}_{-0.10}^{+0.13}$
Beta+TruncatedMixture	⋯	$-{0.55}_{-0.22}^{+0.19}$	$-{0.53}_{-0.21}^{+0.18}$	${0.03}_{-0.03}^{+0.05}$	${0.57}_{-0.14}^{+0.19}$	$-{0.10}_{-0.10}^{+0.06}$	${0.27}_{-0.09}^{+0.12}$
BetaSpike+TruncatedMixture	${0.33}_{-0.33}^{+0.27}$	$-{0.49}_{-0.26}^{+0.26}$	$-{0.47}_{-0.25}^{+0.27}$	${0.003}_{-0.002}^{+0.008}$	${0.67}_{-0.21}^{+0.20}$	$-{0.10}_{-0.11}^{+0.08}$	${0.30}_{-0.10}^{+0.15}$

Note. From left to right, we present the fraction of black holes that belong in the (finite-width) zero-spin spike (f_spike; see Figure 6 for the posterior), the minimum value of the spin tilt (${z}_{\min };$ Figure 6 for the posterior), 1% lower value of the spin-tilt posterior distribution (z_1%), the 1%/99% lower/upper values of the spin-magnitude posterior distribution (χ_1%/χ_99%), and the 1%/99% lower/upper values of the effective-spin distribution (χ_eff,1%/χ_eff,99%). We choose to report 1% and 99% values because 1/N_obs = 0.014 ≃ 1% for our N_obs = 69 events.

Download table as:  ASCIITypeset image

In contrast to Galaudage et al. (2021), we left the width _spike of our "spike" population as a free parameter in order to test whether the data indeed require a narrow feature at χ = 0. Although we recover largely uninformative constraints on _spike, Figure 6 in fact shows a slight preference for large _spike, further indicating that no narrow features are confidently present in the spin magnitude distribution. Our conclusions regarding small _spike, however, are limited by the finite sampling effects discussed above. In Appendix D we study the number N_eff of effective posterior samples as a function of _spike. We find that N_eff depends sensitively on _spike, and we caution that values of _spike ≲ 0.04 are possibly subject to significant Monte Carlo uncertainty. Even with this restriction, however, we find no preference for a small _spike in the posterior. This conclusion is further bolstered by the analysis of the effective spin distribution in Section 4 above, which was not subject to finite sampling effects and which similarly found no evidence for an excess of zero-spin systems.

Irrespective of modeling assumptions regarding a zero-spin subpopulation, all four component spin models exhibit significant support at negative $\cos \theta$ in Figure 5. Models that allow for a truncation in the spin tilt distribution consistently infer this truncation to be at negative values; in Figure 6 we correspondingly see that ${z}_{\min }\leqslant 0$ at high significance. This result signals the presence of events with spins misaligned by more than 90° from their Newtonian orbital angular momentum. Table 1 gives the first percentile (z_1%) on $\cos \theta$ inferred by each model, with ${z}_{1 \% }=-{0.47}_{-0.25}^{+0.27}$ in the most conservative case. Notably, the addition of truncation in the spin tilt distribution significantly "flattens" the recovered $\cos \theta$ distribution, no longer requiring any peak at $\cos \theta =1$. This behavior is due to the fact that the data disfavor an equal density of events at $\cos \theta =+1$ and $\cos \theta =-1$. Because an isotropic distribution is necessarily symmetric at $\cos \theta =\pm 1$, models that allow for a mixture of isotropic and aligned spin tilts must compensate by adding more weight to the "primarily aligned" Gaussian component in Equation (8). No such compensation is necessary if the spin tilt distribution is allowed to truncate. In models including a z_min truncation, all events are either assigned to the "isotropic" (but now truncated) component, or the Gaussian component itself is stretched to near-isotropy; in Figure 6 we see that f_iso becomes consistent with unity and σ_t shifts to prefer large values when a truncation is included in the model.

This result indicates the presence of events with tilt angles greater than 90°, and hence the possibility of binaries with effective spins χ_eff < 0. The third column in Figure 5 shows the χ_eff distributions implied by each component model. Despite the wide range of possible features possessed by each model, they all yield similar χ_eff distributions that exhibit asymmetry about zero but that extend to negative values. As a consistency check, we also compare these implied χ_eff distributions to our result obtained through direct inference on χ_eff. The dashed curve in each panel shows the mean obtained under the BimodalGaussian effective spin model. Each of the four component spin models yields consistent χ_eff distributions, although they are suggestive of possible additional skewness (Abbott et al. 2021a, 2021b). As an additional consistency check and safeguard against erroneous conclusions due to poorly-fitting models, we subject each of the component spin models to predictive checks, as introduced in Section 4 above. The results, shown in Appendix C, indicate that all four models provide a good fit to observation.

As a proxy for the minimum χ_eff values implied by our component spin results, Figure 7 shows posteriors on the first percentile (χ_eff,1%) of the effective spin distribution corresponding to each model. Under the BetaSpike+TruncatedMixture model, for example, we find ${\chi }_{\mathrm{eff},1 \% }=-{0.10}_{-0.11}^{+0.08}$ and bound χ_eff,1% < 0 at 98.8% credibility. This finding is consistent with the conclusions drawn by Abbott et al. (2021a, 2021b), who added a lower truncation in the χ_eff distribution and inferred ${\chi }_{\mathrm{eff},\min }\lt 0$ at ∼90% credibility. Our conclusions are also consistent with Roulet et al. (2021), who modeled the χ_eff distribution as the sum of a positive component, a negative, and a "near-zero" component whose 2σ width spanned −0.08 < χ_eff < 0.08; see Equation (3). This near-zero component is broad enough to likely encompass the negative, but near-zero, χ_eff,1% values we report here.

Zoom In Zoom Out Reset image size

Finally, Figures 5 and 6 reveal how questions regarding zero-spin subpopulations and spin–orbit misalignment are potentially related. The inclusion or exclusion of a zero-spin subpopulation (Beta+TruncatedMixture versus BetaSpike+TruncatedMixture) has a negligible effect on our conclusions regarding the location of z_min. On the other hand, the introduction of a spin tilt truncation (BetaSpike+Mixture versus BetaSpike+TruncatedMixture) more noticeably impacts the inferred f_spike posterior, resulting in less support for zero. As discussed above, though, the spin tilt truncation has a much larger effect on f_iso, which becomes consistent with 1 (i.e., no excess of spin-aligned events) when a spin tilt truncation is included in the model. This same effect can be seen in Figure 4 of Galaudage et al. (2021).

In this paper we have sought to explore the three open questions posed in Section 2.2 via three complementary routes: a counting experiment using only the fully marginalized likelihoods for each event, hierarchical analysis of the binary black hole effective spin distribution, and hierarchical analysis of the binaries' component spin distribution. Each of these three routes yielded consistent conclusions, which we summarize below.

(i.) We find no evidence for an excess of zero-spin events . Using each of our three methods we find that the fraction of black holes in a distinct zero-spin subpopulation is consistent with zero. We furthermore verified that this behavior is common among analyses of synthetic populations lacking a zero-spin excess. We therefore conclude that the observational data do not presently support the notion that the majority of black holes in merging binaries are nonspinning. Given current observations, a nonspinning population can comprise at most ≲60%–70% of merging binary black holes.

(ii.) The inferred population is consistent with less than 1% of spin magnitudes above χ ∼ 0.6. In each of the component spin models explored in Section 5, the inferred population is nearly identical for spin magnitudes χ ≳ 0.4, falling rapidly, with negligible support for χ ≳ 0.6. This conclusion is robust against modeling systematics, including a possible truncation in the spin tilt distribution or a zero-spin subpopulation.

(iii.) Binary black holes exhibit a broad range of spin–orbit misalignment angles, with some angles greater than 90°. In all models, we find a preference for a flat and broad distribution of spin–orbit misalignment angles. When we introduce a lower truncation bound on the $\cos \theta$ distribution, we confidently infer that this truncation bound must be negative, thus requiring the presence of systems with antialigned spins among the binary black hole population. Additionally, the minimum χ_eff among the binary black hole population is inferred to be confidently negative under each component spin model.

Our conclusions are consistent with the findings of Abbott et al. (2021a, 2021b), who reported evidence for spins misaligned by more than 90° and no modeling tension that would indicate the existence of a large zero-spin subpopulation. Our conclusions are moreover in broad agreement with Roulet et al. (2021). Figure 3 shows the inferred fraction of events with χ_eff = 0 from this work and the inferred fraction of events in the "zero-spin" subpopulation (ζ₀ in Equation (3)) from Roulet et al. (2021). Both results are in qualitative agreement, consistent with a zero-spin fraction of zero but peaking at ∼0.5. As demonstrated in Section 4, posteriors of this form arise generically when analyzing mock catalogs of events drawn from a population lacking a zero-spin subpopulation.

Roulet et al. (2021) find that the fraction of events in their "negative-spin" subpopulation is consistent with zero; this too is consistent with our result. As discussed in Section 5, we infer χ_eff,1% to be negative but small in magnitude. Because Roulet et al.'s (2021) "zero-spin" subpopulation has a broad standard deviation of 0.04, events with negative but small-in-magnitude χ_eff are counted as members of this zero-spin subpopulation, rather than associated with the "negative-spin" subpopulation. Indeed, Roulet et al. (2021) conclude that the sum of their "zero-spin" and "negative-spin" subpopulations is nonzero. This is evident from Figure 3 of Roulet et al. 2021, in which ζ_pos is inconsistent with 1.

Shortly after the initial circulation of our study, an independent and complementary study of binary black hole spins was presented by Mould et al. (2022). They sought to explore evidence for mass ratio reversal in compact binary formation, employing models in which component spins are not independently and identically distributed. As in our study, though, they additionally considered the possibility of zero-spin spikes appearing in the spin-magnitude distribution. Their findings corroborate our own, indicating that <46% of black hole primaries and <36% of secondaries have vanishing spins.

At the same time, our conclusions are generally inconsistent with those reported by Galaudage et al. (2021). Although our posterior distributions do overlap with those of Galaudage et al. (2021) to within statistical uncertainty, differences between them result in qualitatively different conclusions regarding the nature of binary black hole spins. Below, we detail several differences between our analyses and those of Galaudage et al. (2021) and comment on whether each could be contributing to the discrepancy.

First, an important categorical difference between our analyses and those conducted in Galaudage et al. (2021) is the sample of gravitational-wave events analyzed. While our counting experiment in Section 3 uses only GWTC-2 (Abbott et al. 2021c) events, the hierarchical analyses in Section 4 and Section 5 make use of the full GWTC-3 catalog (see Appendix B for the exact event selection criteria). Galaudage et al. (2021), meanwhile, analyzed only GWTC-2 events, as GWTC-3 had not yet been released at the time of their study. To gauge whether our differing data sets contribute to the disagreement between our own conclusions and those of Galaudage et al. (2021), in Appendix H we show results obtained using only GWTC-2 events. Our results are qualitatively unchanged, with GWTC-2 yielding no evidence for a distinct subpopulation of nonspinning black holes. Additionally, GWTC-2 contains spin–orbit misalignment greater than 90°, though at a slightly reduced credibility compared to GWTC-3 (97.1% versus 99.7% quantiles).

Unlike our analyses, which use a single set of posterior samples for each event, Galaudage et al. (2021) make use of two distinct sets of samples for each binary, obtained under spinning and nonspinning parameter estimation priors. In order to perform inference with both sets of samples, it is necessary to quantify the Bayes factors between these priors for each event. As we mentioned in Section 3 and illustrate further in Appendix G, there is at least one event whose fully marginalized likelihood under the nonspinning hypothesis is significantly overestimated in the data set used by Galaudage et al. (2021). This could cause Galaudage et al. (2021) to spuriously confirm the existence of a distinct nonspinning subpopulation.

Another factor may be the demand by Galaudage et al. (2021) that the zero-spin subpopulation have a vanishing width. In Section 5, we did not fix the width _spike of our approximate zero-spin spike, but let it vary as another free parameter to be inferred from the data. In addition to concluding that the fraction f_spike of events occupying this spike is consistent with zero, we also found no preference for the spike to be narrow, even if it were to exist. If we nevertheless require _spike to be small, however, we do see an increased preference for larger f_spike. It is therefore possible that the strict delta-function model adopted by Galaudage et al. (2021) is systematically affecting their results. We note, however, that our posteriors in the region _spike ≤ 0.04 may be subject to elevated Monte Carlo variance (see Appendix D) and so we cannot confidently conclude that the demand of _spike = 0 is responsible for the discrepant conclusions.

Although we may be able to reproduce Galaudage et al.'s (2021) measurement of f_spike by artificially demanding small _spike, we are unable to reproduce their conclusions regarding z_min, the lower truncation bound on the component spin $\cos \theta$ distribution. While we infer z_min to be confidently negative, indicating spins misaligned by more than 90°, Galaudage et al. (2021) infer this parameter to be consistent with zero or positive values. Qualitatively, binaries with large in-plane spins are difficult to distinguish from binaries with very small or vanishing aligned spins—both give the same χ_eff values. Therefore, if Galaudage et al. (2021) are overestimating the fraction f_spike of nonspinning systems, they may correspondingly be underestimating the prevalence of systems with significant spin–orbit misalignments. This said, neither Galaudage et al.'s (2021) results nor our own exhibit any significant correlation between z_min and f_spike.

Finally, although our spin models were heavily inspired by those of Galaudage et al. (2021), ours do not reduce to theirs in the limit _spike = 0. Our component spin models assume that individual spins are independently and identically distributed between spike and bulk subpopulations, whereas Galaudage et al. (2021) assume that both spins in a given binary together lie in the spike or the bulk of the component spin distribution. Similarly, Galaudage et al. (2021) require that both spins are together members of the isotropic or preferentially aligned components of the spin tilt distribution. We have verified that this modeling choice is not responsible for the different conclusions regarding f_spike, as can be seen in Figure 17 in Appendix H. In fact, we find that f_spike is constrained to even smaller values if we alternatively adopt Galaudage et al.'s (2021) modeling convention. This is expected: under the convention of Galaudage et al. (2021), a component spin can only contribute to f_spike if its companion is also consistent with zero spin. Under our assumption of independent and identically distributed spins, in contrast, a component spin can be identified as a member of the zero-spin spike regardless of its companion's spin measurement. Such differing conventions and how they impact population measurements are further elaborated upon in Appendix H.

Overall, we find a component spin distribution that is consistent with a single, smooth function. Our results suggest that the spin distribution is possibly nonzero at χ = 0, but without a requirement for a distinct and discontinuous subpopulation of nonspinning black holes (see Figure 5). Such a behavior cannot be easily captured by the common modeling choice of a nonsingular Beta distribution, which is constrained to vanish at χ = 0. This tension is illustrated in the joint μ_χ –σ_χ posterior of Figure 6, which shows the inferred mean and variance of the spin magnitude distribution railing against the prior cut that ensures nonsingular behavior. When the spin magnitudes are modeled with a single Beta distribution (green posteriors in Figure 5), μ_χ must be small in order to accommodate events with small but finite spins. Events with larger spins, meanwhile, can nominally be captured with a large σ_χ . However, σ_χ cannot be large when μ_χ is small, as seen by the prior cut in Figure 6. The introduction of a zero-spin "spike" relieves this tension (even if no such spike is actually present in the data). Small-spin events can now be captured by the spike, allowing the Beta distribution to shift to higher μ_χ and σ_χ to accommodate higher-spin events. This phenomenon can also be seen in the correlation, noted above, between f_spike and μ_χ : the spin magnitude distribution is best described either as a single Beta distribution that peaks at low values (small f_spike and μ_χ ), or a "spike" combined with a Beta distribution that peaks at higher values (large f_spike and μ_χ ). The combination of these two effects yields a smooth spin magnitude distribution that does not exhibit distinct subpopulations. This discussion suggests that a Beta distribution might be a suboptimal model for spin magnitudes going forward.

The observed presence or absence of a distinct zero-spin subpopulation, rapidly spinning black holes, and/or significantly misaligned black hole spins would all carry considerable theoretical implications for the formation channels and astrophysical processes driving compact binary evolution. At the same time, hierarchical inference of the compact binary spin distribution is technically difficult, relying on a large number of highly uncertain measurements that are themselves finitely sampled. When drawing observational conclusions about the nature of compact binary spins, ensuring that results are reproducible under different complementary approaches can help mitigate these concerns and determine which conclusions are driven by priors, which by modeling systematics, and which by the data itself.

It certainly remains possible that the binary black hole mergers witnessed by Advanced LIGO and Virgo contain subpopulations of nonspinning and/or nearly aligned binaries, but this scenario is not presently required by gravitational-wave observations. If such subpopulations were to appear in an analysis of future data, they could be taken as evidence toward the hypothesis that merging black holes are born in the stellar field, with spins acquired primarily through tidal spin-up (Belczynski et al. 2021; Galaudage et al. 2021; Olejak & Belczynski 2021; Mandel & Farmer 2022; Shao & Li 2022; Stevenson 2022). Such astrophysical conclusions are currently unsupported by the data, however. Further detections made in the upcoming O4 observation run and beyond will shine further light on the nature of compact binary spins and, consequently, the evolutionary origin of the black hole mergers we see today.

We thank our anonymous referee, the AAS Data Editors, and Ilya Mandel for their valuable comments on our manuscript, as well as Eric Thrane, Colm Talbot, and Shanika Galaudage for numerous discussions about these results. We also thank Javier Roulet for sharing data from Roulet et al. (2021) with us and for insightful feedback on this study, and Christopher Berry, Charlie Hoy, Vaibhav Tiwari, and Mike Zevin for their thoughtful comments. This research has made use of data, software, and/or web tools obtained from the Gravitational Wave Open Science Center (https://www.gw-openscience.org), a service of LIGO Laboratory, the LIGO Scientific Collaboration and the Virgo Collaboration. Virgo is funded by the French Centre National de Recherche Scientifique (CNRS), the Italian Istituto Nazionale della Fisica Nucleare (INFN) and the Dutch Nikhef, with contributions by Polish and Hungarian institutes. This material is based upon work supported by NSF's LIGO Laboratory, which is a major facility fully funded by the National Science Foundation. The authors are grateful for computational resources provided by the LIGO Laboratory and supported by NSF grants PHY-0757058 and PHY-0823459.

Software: astropy (Astropy Collaboration 2013, 2018), emcee (Foreman-Mackey et al. 2013), h5py (Collette et al. 2021), jax (Bradbury et al. 2018), matplotlib (Hunter 2007), numpy (Harris et al. 2020), numpyro (Phan et al. 2019; Bingham et al. 2019), scipy (Virtanen et al. 2020).

The code used to produce the results of this study is available via Github (https://github.com/tcallister/gwtc3-spin-studies) and a copy is available on Zenodo (Callister & Miller 2022). Our data, meanwhile, can be obtained on Zenodo: https://doi.org/10.5281/zenodo.6555145.

We employ two broad categories of parameterized models for the black hole spins: models on the effective spin parameters and models on the spin components. A summary of all models, their corresponding parameters, and their priors is presented in Tables 2 and 3. All component spin models ignore the azimuthal spin angles, assuming they are distributed according to the uniform prior used during the original parameter estimation (Abbott et al. 2021c). As measurements of compact binary spins and mass ratios are generally correlated, we hierarchically measure the distribution of binary mass ratios alongside spins, assuming that the secondary mass distribution follows

$$\begin{eqnarray}&&p({m}_{2}| {m}_{1})\propto {m}_{2}^{{\beta }_{q}}\quad \left({m}_{\min }\leqslant {m}_{2}\leqslant {m}_{1}\right),\end{eqnarray} \tag{ A1 }$$

and inferring the power-law index β_q . We adopt a Gaussian prior N(0, 3) on β_q . The distributions of primary masses and redshifts, in contrast, have a negligible impact on conclusions regarding spin. We assume that primary masses follow the PowerLaw+Peak model (Talbot & Thrane 2018), with parameters fixed to their (one-dimensional) median values as inferred in Abbott et al. (2021b). Following the notation of Abbott et al. (2021b), we take α = 3.5, ${m}_{\min }=5.0$, ${m}_{\max }=88.2$, λ_peak = 0.03, μ_m = 33.6, σ_m = 4.7, and δ_m = 4.9. Meanwhile, we assume that the source-frame binary black hole merger density rate evolves as

$$\begin{eqnarray}&&R(z)\propto \displaystyle \frac{{{dV}}_{c}}{{dz}}{\left(1+z\right)}^{2.7},\end{eqnarray} \tag{ A2 }$$

where $\tfrac{{{dV}}_{c}}{{dz}}$ is the differential comoving volume per unit redshift.

Table 2. Summary of Effective Spin Models We Employ, Including Their Names, an Example p(χ_eff) Plot, Parameters, Priors, and Comments

Model Name	p(χeff)	Parameter	Prior	Comments
Gaussian		μeff	U(−1,1)	Simplest Gaussian model
		σeff	LU(0.01,1)
GaussianSpike		μeff	U(−1,1)	Mixture of a Gaussian "bulk" with a distinct "spike" subpopulation of nonspinning systems
		σeff	LU(0.01,1)
		ζspike	U(0,1)
			δ(0)
BimodalGaussian		μeff,a	U(−1,1)	Mixture of two Gaussians with variable means and widths
		μeff,b	U( − 1, 1)
		σeff,a	LU(0.01,1)
		σeff,b	LU(0.01,1)
		ζa	U(0.5,1)

Note. ${\rm{U}}({x}_{\min },{x}_{\max })$ denotes a uniform prior between x_min and x_max, $\mathrm{LU}({x}_{\min },{x}_{\max })$ signifies a log-uniform prior across the same bounds, and δ(0) a delta function prior at zero.

Download table as:  ASCIITypeset image

Table 3. Summary of Component Spin Models We Employ, Including Their Names, an Example χ and $\cos \theta$ Plot, Parameters, Priors, and Comments

Model Name	p(χ)	$p(\cos \theta )$	Parameter	Prior	Comments
Beta+Mixture			μχ	U(0,1)	Simplest component spin model; additional prior requirement that α, β > 1, see Equation (A7)
			σχ	U(0.07,0.5)
			σt	U(0.1,4)
			fiso	U(0,1)
Beta+TruncatedMixture			μχ	U(0,1)	Introduces a truncation in the $\cos \theta$ distribution at some minimum value (maximum misalignment angle)
			σχ	U(0.07,0.5)
			σt	U(0.1, 4)
			fiso	U(0,1)
			zmin	U(−1,1)
BetaSpike+Mixture			μχ	U(0,1)	Spin-magnitude distribution modified to include Beta distribution "bulk" and a finite-width "spike" at approximately zero spin
			σχ	U(0.07,0.5)
			fspike	U(0,1)
			spike	U(0.03, 0.1)
			σt	U(0.1,4)
			fiso	U(0,1)
BetaSpike+TruncatedMixture			μχ	U(0,1)	Most complex component spin model; includes both the multiple two-spin-magnitude subpopulations and the truncation in the spin-tilt distribution
			σχ	U(0.07,0.5)
			fspike	U(0,1)
			spike	U(0.03, 0.1)
			σt	U(0.1, 4)
			fiso	U(0,1)
			zmin	U(−1,1)

Note. ${\rm{U}}({x}_{\min },{x}_{\max })$ denotes a uniform prior between x_min and x_max, while $\mathrm{LU}({x}_{\min },{x}_{\max })$ signifies a log-uniform prior.

Download table as:  ASCIITypeset image

A.1. Effective Spin Models

In this subsection, we list the various models considered when exploring the distribution of effective inspiral spins among binary black hole mergers. See Table 2 for illustrations of each model, as well as the priors adopted for each parameter.

Gaussian. Our simplest model assumes effective inspiral spins to be Gaussian-distributed with mean μ_eff and variance ${\sigma }_{\mathrm{eff}}^{2}$,

$$\begin{eqnarray}&&p({\chi }_{\mathrm{eff}}| {\mu }_{\mathrm{eff}},{\sigma }_{\mathrm{eff}})={{ \mathcal N }}_{[-\mathrm{1,1}]}({\chi }_{\mathrm{eff}}| {\mu }_{\mathrm{eff}},{\sigma }_{\mathrm{eff}}),\end{eqnarray} \tag{ A3 }$$

where ${{ \mathcal N }}_{[a,b]}$ denotes a Gaussian distribution truncated within [a, b]. Our priors on μ_eff and σ_eff are listed in Table 2. This model was proposed in Roulet & Zaldarriaga (2019) and Miller et al. (2020) and has been employed and extended in Abbott et al. (2021a, 2021b), Callister et al. (2021b), Biscoveanu et al. (2022), and Bavera et al. (2022).

GaussianSpike. To initially assess the prevalence of identically nonspinning black holes, we extend the Gaussian model to include a narrow "spike" centered at χ_eff = 0 with width ≪ 1,

$$\begin{eqnarray}&&\begin{array}{l}p({\chi }_{\mathrm{eff}}| {\zeta }_{\mathrm{spike}},\epsilon ,{\mu }_{\mathrm{eff}},{\sigma }_{\mathrm{eff}})={\zeta }_{\mathrm{spike}}\,{{ \mathcal N }}_{[-\mathrm{1,1}]}({\chi }_{\mathrm{eff}}| 0,\epsilon )\\ \,\,\,\,+(1-{\zeta }_{\mathrm{spike}}){{ \mathcal N }}_{[-\mathrm{1,1}]}({\chi }_{\mathrm{eff}}| {\mu }_{\mathrm{eff}},{\sigma }_{\mathrm{eff}}).\end{array}\end{eqnarray} \tag{ A4 }$$

The fraction of binary black holes comprising the zero-spin spike is given by ζ_spike. A similar model was studied by Abbott et al. (2021b), who imparted a finite width to the zero-spin spike population. In this work, we fix = 0 following the modeling choice of Galaudage et al. (2021), leveraging the kernel density estimation trick discussed in Appendix E to accurately and stably evaluate the likelihood for this delta-function spike.

BimodalGaussian. Given the inferred absence of a zero-width spike with GaussianSpike, we introduce this model to more generally assess any potential multimodality. We model the distribution of χ_eff as a mixture of two Gaussians with arbitrary means and standard deviations:

$$\begin{eqnarray}&&\begin{array}{l}p({\chi }_{\mathrm{eff}}| {\zeta }_{a},{\mu }_{\mathrm{eff},a},{\sigma }_{\mathrm{eff},a},{\mu }_{\mathrm{eff},b},{\sigma }_{\mathrm{eff},b})=\,{\zeta }_{a}\,{{ \mathcal N }}_{[-\mathrm{1,1}]}({\chi }_{\mathrm{eff}}| {\mu }_{\mathrm{eff},a},{\sigma }_{\mathrm{eff},a})\\ \,\,\,\,\,\,+\,(1-{\zeta }_{a}){{ \mathcal N }}_{[-\mathrm{1,1}]}({\chi }_{\mathrm{eff}}| {\mu }_{\mathrm{eff},b},{\sigma }_{\mathrm{eff},b}).\end{array}\end{eqnarray} \tag{ A5 }$$

The mixing fraction ζ_a is constrained to be ≥0.5, solving the "label-switching" problem by demanding that μ_eff,a and σ_eff,a are the mean and standard deviation of the dominant subcomponent. No further prior constraints are placed on μ_eff,a and σ_eff,a or μ_eff,b and σ_eff,b .

A.2. Component Spin Models

We next list the various models used to study the distribution of component spin magnitudes and orientations among binary black holes. See Table 3 for illustrations and priors.

Beta+Mixture: In our simplest component spin model, we assume that spin magnitudes are independently drawn from identical Beta distributions,

$$\begin{eqnarray}&&p({\chi }_{i}| \alpha ,\beta )=\displaystyle \frac{{\chi }_{i}^{\alpha -1}{\left(1-{\chi }_{i}\right)}^{\beta -1}}{c(\alpha ,\beta )},\end{eqnarray} \tag{ A6 }$$

where c(α, β) normalizes the distribution to unity. The two shape parameters α and β are constrained such that α, β > 1 to ensure that the distribution is bounded. This choice of parameters requires that p(χ_i = 0) = p(χ_i = 1) = 0, thus a priori assuming that there are no systems with exactly vanishing spin. We sample not in α and β directly but rather in the mean μ_χ and standard deviation σ_χ of the Beta distribution. The shape parameters α and β are calculated from μ_χ and σ_χ through

$$\begin{eqnarray}&&\begin{array}{l}\quad \alpha ={\mu }_{\chi }\nu \,,\\ \quad \beta =(1-{\mu }_{\chi })\nu ,\\ \quad \nu =\displaystyle \frac{{\mu }_{\chi }(1-{\mu }_{\chi })}{{\sigma }_{\chi }^{2}}-1.\end{array}\end{eqnarray} \tag{ A7 }$$

The region of the μ_χ and σ_χ parameter space excluded by restriction α, β > 1 can be seen in Figure 6. The spin-tilt distribution is a mixture between two components: a uniform isotropic component and a preferentially aligned component,

$$\begin{eqnarray}&&p(\cos {\theta }_{i}| {f}_{\mathrm{iso}},{\sigma }_{t})=\displaystyle \frac{{f}_{\mathrm{iso}}}{2}+(1-{f}_{\mathrm{iso}}){{ \mathcal N }}_{[-\mathrm{1,1}]}(\cos {\theta }_{i}| 1,{\sigma }_{t}).\end{eqnarray} \tag{ A8 }$$

Here, f_iso is the fraction of events comprising the isotropic subpopulation, while the second term is a half-Gaussian peaking at $\cos \theta =1$. Each component spin tilt is independently drawn from Equation (A8). A model of this form was introduced in Talbot & Thrane (2017) and Wysocki et al. (2019), with the restriction that both spin tilts together lie in either the isotropic or the preferentially-aligned component, and is referred to as the Default model in Abbott et al. (2021a, 2021b), and Galaudage et al. (2021).

BetaSpike+Mixture. In order to assess the presence of nonspinning black hole binaries, we emulate Galaudage et al. (2021) and extend the Beta+Mixture model include a half-Gaussian "spike" that peaks at χ_i = 0 but has a finite width _spike:

$$\begin{eqnarray}\begin{array}{rcl}p({\chi }_{i}| \alpha ,\beta ,{f}_{\mathrm{spike}},{\epsilon }_{\mathrm{spike}}) & = & {f}_{\mathrm{spike}}{{ \mathcal N }}_{[\mathrm{0,1}]}({\chi }_{i}| 0,{\epsilon }_{\mathrm{spike}})\\ & + & (1-{f}_{\mathrm{spike}})\displaystyle \frac{{\chi }_{i}^{1-\alpha }\,{\left(1-{\chi }_{i}\right)}^{1-\beta }}{c(\alpha ,\beta )}.\end{array}\end{eqnarray} \tag{ A9 }$$

A fraction f_spike of the population falls in this (approximately) zero-spin spike while 1 − f_spike lives in the bulk, parameterized again by a Beta distribution. Unlike Galaudage et al. (2021), we do not require both black holes in a given binary to occupy the same subpopulation, but instead assume that component spins are independently and identically drawn from Equation (A9). The spin tilt distribution is the same as that in the Beta+Mixture model, given by Equation (A8).

Beta+TruncatedMixture. Further motivated by Galaudage et al. (2021), we alternately extend the Beta+Mixture model by instead modifying the $\cos \theta$ distribution, augmenting it with a tunable lower truncation bound z_min:

$$\begin{eqnarray}\begin{array}{rcl}p(\cos {\theta }_{i}| {f}_{\mathrm{iso}},{\sigma }_{t}) & = & \displaystyle \frac{{f}_{\mathrm{iso}}}{1-{z}_{\min }}+(1-{f}_{\mathrm{iso}})\\ & \,+ & {{ \mathcal N }}_{[{z}_{\min },1]}(\cos {\theta }_{i}| 1,{\sigma }_{t}),\end{array}\end{eqnarray} \tag{ A10 }$$

with $p(\cos {\theta }_{i})=0$ for $\cos {\theta }_{i}\leqslant {z}_{\min }$. The spin magnitude distribution is the same as that in the Beta+Mixture model, given in Equation (A6).

BetaSpike+TruncatedMixture. Finally, we consider both extensions together, incorporating both the (finite-width) zero-spin subpopulation in Equation (A9) and the truncated spin tilt distribution in Equation (A10).

In this appendix, we briefly describe our hierarchical inference framework as well as the exact data we use in this study. Given a catalog of gravitational-wave events with data ${\{{d}_{i}\}}_{i=1}^{{N}_{\mathrm{obs}}}$, the likelihood that such events arise from a population with parameters Λ is (Loredo 2004; Fishbach et al. 2018; Mandel et al. 2019; Vitale et al. 2020)

$$\begin{eqnarray}&&p(\{d\}| {\rm{\Lambda }})\propto \xi {\left({\rm{\Lambda }}\right)}^{-{N}_{\mathrm{obs}}}\prod _{i}\int d{\lambda }_{i}\,p({d}_{i}| {\lambda }_{i})p({\lambda }_{i}| {\rm{\Lambda }}),\end{eqnarray} \tag{ B1 }$$

where λ_i denotes the parameters (masses, spins, etc.) of each individual binary, and we have marginalized over the overall rate of binary mergers assuming a logarithmically-uniform prior. The detection efficiency ξ(Λ) is the fraction of events that we expect to successfully detect given the proposed population Λ. If P_detection(λ) is the probability that an event with parameters λ is successfully recovered by detection pipelines, then

$$\begin{eqnarray}&&\xi ({\rm{\Lambda }})=\int d\lambda \,p(\lambda | {\rm{\Lambda }}){P}_{\mathrm{detection}}(\lambda ).\end{eqnarray} \tag{ B2 }$$

In order to evaluate Equation (B1), we require the likelihood p(d_i ∣λ_i ) for each detection. In most cases, however, we do not have access to these likelihoods, but rather the posterior p(λ_i ∣d_i ) obtained using some default prior p_pe(λ). In this case, we rewrite Equation (B1) as

$$\begin{eqnarray}&&p(\{d\}| {\rm{\Lambda }})\propto \xi {\left({\rm{\Lambda }}\right)}^{-{N}_{\mathrm{obs}}}\prod _{i}\int d{\lambda }_{i}\,\displaystyle \frac{p({\lambda }_{i}| {d}_{i})}{{p}_{\mathrm{pe}}({\lambda }_{i})}p({\lambda }_{i}| {\rm{\Lambda }}).\end{eqnarray} \tag{ B3 }$$

Furthermore, we generally do not know p(λ_i ∣d_i ) itself, but instead have a discrete set of independent samples ${\{{\lambda }_{i,j}\}}_{j=1}^{{N}_{i}}$ drawn from p(λ_i ∣d_i ), where N_i is the number of posterior samples used for event i. The standard course of action is to approximate the integral within Equation (B3) via a Monte Carlo average over these posterior samples,

$$\begin{eqnarray}&&p(\{d\}| {\rm{\Lambda }})\propto \xi {\left({\rm{\Lambda }}\right)}^{-{N}_{\mathrm{obs}}}\prod _{i}\displaystyle \frac{1}{{N}_{i}}\sum _{j=1}^{{N}_{i}}\displaystyle \frac{p({\lambda }_{i,j}| {\rm{\Lambda }})}{{p}_{\mathrm{pe}}({\lambda }_{i,j})}.\end{eqnarray} \tag{ B4 }$$

We can similarly recast the detection efficiency (Equation (B2)) as a Monte Carlo average. Given a number N_inj of injected signals drawn from some reference distribution p_inj(λ), the detection efficiency may be approximated via

$$\begin{eqnarray}&&\xi ({\rm{\Lambda }})=\displaystyle \frac{1}{{N}_{\mathrm{inj}}}\sum _{i=1}^{{N}_{\mathrm{found}}}\displaystyle \frac{p({\lambda }_{i}| {\rm{\Lambda }})}{{p}_{\mathrm{inj}}({\lambda }_{i})},\end{eqnarray} \tag{ B5 }$$

summing over the N_found injections that pass our detection criteria.

The fundamental assumption made in Equations (B4) and (B5) is that posterior samples (and recovered injections) are sufficiently dense relative to the population features of interest. In this paper, however, we are concerned with very narrow features in the binary black hole spin distribution: Gaussians of width ≪ 1 or even true delta functions. We cannot therefore be automatically assured that Equations (B4) and (B5) will accurately represent our likelihood and detection efficiency. In Appendix D we will further assess the accuracy of these Monte Carlo averages, and in Appendix E describe how to bypass them completely.

For this study, we consider the subset of black holes among GWTC-3 with false-alarm rates below 1 yr⁻¹ (Abbott et al. 2021d). We do not include GW190814 (Abbott et al. 2020b) or GW190917 (Abbott et al. 2021e), both of which have secondary masses m₂ < 3 M_⊙ and are outliers with respect to the binary black hole population (Abbott et al. 2021a, 2021b). This leaves us with a total of 69 binary black holes in our sample. We use parameter estimation samples made publicly available through the Gravitational-Wave Open Science Center ¹⁰ (Vallisneri et al. 2015; Abbott et al. 2021f). For events first published in GWTC-1 ¹¹ (Abbott et al. 2019b), we use the "Overall_posterior" parameter estimation samples. We adopt the "PrecessingSpinIMRHM" samples for events first published in GWTC-2 ¹² (Abbott et al. 2021c) and GWTC-2.1 ¹³ (Abbott et al. 2021e), and for new events in GWTC-3 (Abbott et al. 2021d) use the "C01:Mixed" samples. ¹⁴ These choices correspond to a union of samples obtained with different waveform families. All samples include spin precession effects, while the PrecessingSpinIMRHM and C01:Mixed samples from GWTC-2, GWTC-2.1, and GWTC-3 additionally include the effects of higher-order modes (parameter estimation accounting for higher-order modes was not available in GWTC-1). We evaluate the detection efficiency using the set of successfully recovered binary black hole injections, provided by the LIGO–Virgo–KAGRA collaborations, spanning their first three observing runs. ¹⁵

In order to trust physical conclusions drawn from phenomenological models, we must be sure that the models themselves provide a reasonable fit to observation. A particularly powerful means of model checking is to perform predictive tests: comparing the predictions made by a fitted model to our actual observed data. In this section, we subject each of the effective and component spin models used in this paper to such predictive tests.

Figure 8 compares predicted and observed χ_eff values under the Gaussian, GaussianSpike, and BimodalGaussian models explored in Section 4. The ensemble of traces in each panel reflects the uncertainties in the hyperparameters of each model, as well as our uncertainties in the observed properties of each event. Specifically, these figures are generated via the following algorithm:

• 1.
  Perform hierarchical inference using the model in question, as described in Appendix B, to obtain posteriors on the hyperparameters Λ of the model.
• 2.
  From the posterior on Λ, draw a single hyperparameter sample Λ_i .
• 3.
  Use this Λ_i to define a new prior p(λ∣Λ_i ) on the properties of individual events. Reweight the posterior of each observed binary to this new prior, as in e.g., Miller et al. (2020), and randomly select a single sample λ_j from each event. The resulting set {λ}_obs constitutes one realization of "observed" values. ¹⁶
• 4.
  Similarly, reweight the set of successfully found injections described above to the proposed prior p(λ∣Λ_i ). Randomly select N_obs values from these injections; the resulting set {λ}_inj is one realization of "predicted" values. Drawing predicted values from found injections, rather than directly from the proposed population Λ_i , serves to accurately capture relevant selection effects.
• 5.
  Independently sort {λ}_obs and {λ}_inj and plot them against one another, yielding a single "Observed versus Predicted" trace as in Figure 8.
• 6.
  Repeat Steps 1–4.

Zoom In Zoom Out Reset image size

A model that accurately captures features in our observed data will yield an ensemble of traces centered on the Predicted χ_eff = Observed χ_eff diagonal, shown as a dashed black line. Systematic departures away from the diagonal, on the other hand, would indicate a failure of the fitted model to reflect true features in the data. All three effective spin models show good predictive power in Figure 8, yielding traces distributed symmetrically about the diagonal. Note that the large variance in the BimodalGaussian results reflects our correspondingly large uncertainty about the χ_eff distribution at very negative and very positive values. The elevated variance is symmetric about the diagonal, though, and so is not a sign of model failure.

Figure 9 shows analogous predictive checks using the four component spin models explored in Section 5. We investigate each model's ability to predict observed spin magnitudes (first and second columns), spin tilts (third and fourth columns), and effective spins (final column). Each model shows good predictive power, with no significant departures from the diagonal that would indicate model failure. The Beta+Mixture and BetaSpike+Mixture models, though, may show slight signs of tension in their ability to predict $\cos {\theta }_{1}$ and χ_eff. For each model, 70% of traces lie above the diagonal at $\mathrm{Predicted}\,\cos {\theta }_{1}\,=\,$−0.5, possibly indicating a tendency to overpredict the occurrence of large and negative $\cos \theta$ values. Accordingly, both models slightly overpredict the prevalence of large negative χ_eff, with ∼75% of traces rising above the diagonal at Predicted χ_eff = −0.2. This behavior is consistent with the preference for a truncation at ${z}_{\min }\,\approx \,$−0.5 found using the Beta+TruncatedMixture and BetaSpike+TruncatedMixture models. These tendencies are slight, however, and so cannot yet be taken as an indicator of model failure; more data will be required to better resolve the underlying spin distributions and determine which (if any) models can no longer provide a good descriptor of observation.

Zoom In Zoom Out Reset image size

In order to identify and mitigate possible issues due to such finite sampling effects when estimating Equation (B4), we track the number of "effective samples" informing the Monte Carlo estimates of the likelihood for every event. Given a set of N_i posterior samples ${\{{\lambda }_{i,j}\}}_{j=1}^{{N}_{i}}$ for each event i, the number of "effective samples" under a proposed population Λ is

$$\begin{eqnarray}&&{N}_{\mathrm{eff},i}({\rm{\Lambda }})\equiv \displaystyle \frac{{\left[\sum _{j=1}^{{N}_{i}}{w}_{i,j}({\rm{\Lambda }})\right]}^{2}}{\sum _{j=1}^{{N}_{i}}{\left[{w}_{i,j}({\rm{\Lambda }})\right]}^{2}},\end{eqnarray} \tag{ D1 }$$

where w_i,j (Λ) = p(λ_i,j ∣Λ)/p_pe(λ_i,j ). Small N_eff,i (Λ) indicates that the given event is sparsely sampled in the region where the population p(λ∣Λ) is concentrated, and hence the likelihood may be dominated by sampling variance. In these regions, we should not necessarily trust the results of Monte-Carlo-based hierarchical inference. To avoid such regions, Abbott et al. (2021b) impose a data-dependent prior cut, rejecting those Λ for which $\min \left[{N}_{\mathrm{eff},i}({\rm{\Lambda }})\right]$ falls below some threshold value. We avoid imposing such a cut, which amounts to an implicit (and often stringent) prior on Λ. Instead, we compute and track $\min \left[{N}_{\mathrm{eff},i}({\rm{\Lambda }})\right]$ for each component spin population model we consider. Additionally, for models with distinct "spike" and "bulk" spin subpopulations (i.e., the half-Gaussian at zero and the Beta distribution, respectively), we track the minimum effective sample count within each of these subpopulations.

Our primary concern in tracking N_eff is to calibrate the allowed width _spike of a possible zero-spin spike in the component spin distribution. Due to finite sampling effects, we cannot let this spike width be arbitrarily small, but must bound _spike to sufficiently large values to ensure reasonable N_eff. Essick & Farr (2022) argue that N_eff ∼ 10 per event is sufficiently high to ensure accurate marginalization over each event's parameters. Figure 10 illustrates how $\min \left[{N}_{\mathrm{eff},i}\right]$ varies as a function of _spike; each point represents a posterior sample drawn from the BetaSpike+TruncatedMixture results in Figure 6. The left panel shows N_eff as computed across the full spin distribution, while the center panel shows the effective sample count taken just over the "bulk" Beta distribution (via fixing f_spike = 0 when computing Equation (D1)). The effective sample counts across the total population and in the bulk are largely uncorrelated with _spike > 0.03 and are everywhere large, with $\min \,{N}_{\mathrm{eff}}\gtrsim 10$.

Zoom In Zoom Out Reset image size

The right panel of Figure 10, meanwhile, shows the number of effective samples contained in the zero-spin spike (obtained by fixing f_spike = 1 in Equation (D1)). The number of effective samples in the spike is extremely correlated with _spike. This is expected, as a wider spike will encompass more posterior samples and thus have a larger $\min \left[{N}_{\mathrm{eff},i}\right]$. The blue points show $\min \left[{N}_{\mathrm{eff},i}\right]$ taken across all events. This minimum sample count is unacceptably low (Essick & Farr 2022), with every population sample yielding at least one binary with only ∼1 effective sample. However, we argue that this is not in fact concerning. ¹⁷ The events with a very low number of effective samples in the spike are the same events that are unambiguously spinning and hence confidently belong in the bulk and not the spike. Their extremely low number of effective samples in the spike, therefore, does not affect inference. The left-hand panel in Figure 11 illustrates the component spin magnitude posterior for one such "confidently spinning" event that unambiguously rules out χ₁ = χ₂ = 0. The red dots in Figure 10 show the minimum effective sample count if we now exclude these confidently spinning events (GW190517, GW190412, GW151226, and GW191204, specifically). This minimum count still contains events that are likely (but not necessarily unambiguously) nonspinning, such as the event shown in the center panel of Figure 11. The most critical measure of stability is whether N_eff is large for events such as GW150914 (right panel of Figure 11) whose posteriors are finite up to and including χ₁ = χ₂ = 0. The green points in Figure 10, therefore, show the minimum sample count when we further exclude "likely nonspinning" events, defined as any event with less than 1/200 of its samples in the region χ₁, χ₂ < 0.1. The minimum number of effective samples across remaining events now rises to ∼5 at _spike = 0.03 and ≳10 at _spike = 0.04. Given this, we choose to limit _spike ≥ 0.03, and caution that the region _spike < 0.04 may be subject to increased Monte Carlo averaging error.

Zoom In Zoom Out Reset image size

Our ordinary population likelihood, Equation (B4), relies on Monte Carlo averages over posterior samples, an approach that can behave poorly when evaluating narrow population features as described above. Within the GaussianSpike effective spin model, for example, in the limit that → 0 there will be precisely no posterior samples falling in the zero-spin spike, and hence we will be unable to precisely evaluate the model's likelihood. This limitation is not physical, but purely due to our representation of each event's posterior as a set of discrete samples. As an alternative approach, we can abandon samples altogether and instead represent the likelihoods of individual events as Gaussian KDEs. This alternative representation remains well behaved even when the population features of interest are narrow, provided that there are enough samples in the neighborhood of the narrow feature to estimate the KDE.

For convenience, let $\tilde{\lambda }$ represent all individual-event parameters except χ_eff. Under the discrete sample representation, the ordinary Monte Carlo average in Equation (B4) is obtained by identifying individual events' likelihoods $p({d}_{i}| {\tilde{\lambda }}_{i},{\chi }_{\mathrm{eff},i})$ as a sum of delta functions located at each posterior sample j:

$$\begin{eqnarray}&&p({d}_{i}| {\tilde{\lambda }}_{i},{\chi }_{\mathrm{eff},i})\propto \displaystyle \frac{1}{{N}_{i}}\sum _{j=1}^{{N}_{i}}\displaystyle \frac{\delta ({\tilde{\lambda }}_{i}-{\tilde{\lambda }}_{i,j})\delta ({\chi }_{\mathrm{eff},i}-{\chi }_{\mathrm{eff},i,j})}{{p}_{\mathrm{pe}}({\tilde{\lambda }}_{i,j},{\chi }_{\mathrm{eff},i,j})}.\end{eqnarray} \tag{ E1 }$$

In the KDE approach, we impart a finite "resolution" to each posterior sample, replacing the delta functions with Gaussians of width σ_kde:

$$\begin{eqnarray}&&p({d}_{i}| {\tilde{\lambda }}_{i},{\chi }_{\mathrm{eff},i})\propto \displaystyle \frac{1}{{N}_{i}}\sum _{j=1}^{{N}_{i}}\displaystyle \frac{\delta ({\tilde{\lambda }}_{i}-{\tilde{\lambda }}_{i,j})N({\chi }_{\mathrm{eff},i}| {\chi }_{\mathrm{eff},i,j},{\sigma }_{\mathrm{kde}})}{{p}_{\mathrm{pe}}({\tilde{\lambda }}_{i,j},{\chi }_{\mathrm{eff},i,j})}.\end{eqnarray} \tag{ E2 }$$

Equation (E2) is now a continuous function of χ_eff,i and hence allows us to evaluate the likelihood of a population with arbitrarily narrow features. This comes at a cost. As shown in Equation (B1), evaluation of a population likelihood requires evaluation of the integral $\int d\tilde{\lambda }\,d{\chi }_{\mathrm{eff}}p({d}_{i}| \tilde{\lambda },{\chi }_{\mathrm{eff}})p(\tilde{\lambda },{\chi }_{\mathrm{eff}}| {\rm{\Lambda }})$. This integration is trivial when the likelihoods are composed purely of delta functions, as in Equation (E1), but not necessarily straightforward using Equation (E2).

Fortunately, both the individual-event likelihoods $p({d}_{i}| {\tilde{\lambda }}_{i},{\chi }_{\mathrm{eff},i})$ and our population models $p(\tilde{\lambda },{\chi }_{\mathrm{eff}}| {\rm{\Lambda }})$ are mixtures of Gaussians in χ_eff, and so we can analytically carry out the required integration over χ_eff. For the GaussianSpike model, for example, the result is

$$\begin{eqnarray}\begin{array}{rcl}p(\{d\}| {\rm{\Lambda }}) & \propto & \xi {\left({\rm{\Lambda }}\right)}^{-{N}_{\mathrm{obs}}}\displaystyle \prod _{i}\displaystyle \frac{1}{{N}_{i}}\displaystyle \sum _{j=1}^{{N}_{i}}\displaystyle \frac{p({\tilde{\lambda }}_{i,j}| {\rm{\Lambda }})}{{p}_{\mathrm{pe}}({\tilde{\lambda }}_{i,j},{\chi }_{\mathrm{eff},i,j})}\,\displaystyle \int d{\chi }_{\mathrm{eff},i}\,N({\chi }_{\mathrm{eff},i}| {\chi }_{\mathrm{eff},i,j},{\sigma }_{\mathrm{kde}})\,\left[{\zeta }_{\mathrm{spike}}{N}_{[-\mathrm{1,1}]}({\chi }_{\mathrm{eff},i}| 0,\epsilon )+(1-{\zeta }_{\mathrm{spike}}){N}_{[-\mathrm{1,1}]}({\chi }_{\mathrm{eff},i}| {\mu }_{\mathrm{eff}},{\sigma }_{\mathrm{eff}})\right]\\ & \propto & \xi {\left({\rm{\Lambda }}\right)}^{-{N}_{\mathrm{obs}}}\prod _{i}\displaystyle \frac{1}{{N}_{i}}\displaystyle \sum _{j=1}^{{N}_{i}}\displaystyle \frac{p({\tilde{\lambda }}_{i,j}| {\rm{\Lambda }})}{{p}_{\mathrm{pe}}({\tilde{\lambda }}_{i,j},{\chi }_{\mathrm{eff},i,j})}\left[{{ \mathcal A }}_{i,j}\,{\zeta }_{\mathrm{spike}}\,\exp \left(-\displaystyle \frac{{\left({\chi }_{\mathrm{eff},i,j}\right)}^{2}}{2({\epsilon }^{2}+{\sigma }_{\mathrm{kde}}^{2})}\right)\right.\left.+{{ \mathcal B }}_{i,j}(1-{\zeta }_{\mathrm{spike}})\exp \left(-\displaystyle \frac{{\left({\chi }_{\mathrm{eff},i,j}-{\mu }_{\mathrm{eff}}\right)}^{2}}{2({\sigma }_{\mathrm{eff}}^{2}+{\sigma }_{\mathrm{kde}}^{2})}\right)\right],\end{array}\end{eqnarray} \tag{ E3 }$$

with

$$\begin{eqnarray}&&{{ \mathcal A }}_{i,j}=\displaystyle \frac{\mathrm{Erf}\left(\tfrac{(1-{\chi }_{\mathrm{eff},i,j}){\epsilon }^{2}+{\sigma }_{\mathrm{kde}}^{2}}{\sqrt{2{\epsilon }^{2}{\sigma }_{\mathrm{kde}}^{2}({\epsilon }^{2}+{\sigma }_{\mathrm{kde}}^{2})}}\right)+\mathrm{Erf}\left(\tfrac{(1+{\chi }_{\mathrm{eff},i,j}){\epsilon }^{2}+{\sigma }_{\mathrm{kde}}^{2}}{\sqrt{2{\epsilon }^{2}{\sigma }_{\mathrm{kde}}^{2}({\epsilon }^{2}+{\sigma }_{\mathrm{kde}}^{2})}}\right)}{2\sqrt{2\pi ({\epsilon }^{2}+{\sigma }_{\mathrm{kde}}^{2})}\mathrm{Erf}\left(\tfrac{1}{\sqrt{2{\epsilon }^{2}}}\right)}\end{eqnarray} \tag{ E4 }$$

and

$$\begin{eqnarray}&&{{ \mathcal B }}_{i,j}=\displaystyle \frac{\mathrm{Erf}\left(\tfrac{(1-{\chi }_{\mathrm{eff},i,j}){\sigma }_{\mathrm{eff}}^{2}+(1-{\mu }_{\mathrm{eff}}){\sigma }_{\mathrm{kde}}^{2}}{\sqrt{2{\sigma }_{\mathrm{eff}}^{2}{\sigma }_{\mathrm{kde}}^{2}({\sigma }_{\mathrm{eff}}^{2}+{\sigma }_{\mathrm{kde}}^{2})}}\right)+\mathrm{Erf}\left(\tfrac{(1+{\chi }_{\mathrm{eff},i,j}){\sigma }_{\mathrm{eff}}^{2}+(1+{\mu }_{\mathrm{eff}}){\sigma }_{\mathrm{kde}}^{2}}{\sqrt{2{\sigma }_{\mathrm{eff}}^{2}{\sigma }_{\mathrm{kde}}^{2}({\sigma }_{\mathrm{eff}}^{2}+{\sigma }_{\mathrm{kde}}^{2})}}\right)}{\sqrt{2\pi ({\sigma }_{\mathrm{eff}}^{2}+{\sigma }_{\mathrm{kde}}^{2})}\left[\mathrm{Erf}\left(\tfrac{1-{\mu }_{\mathrm{eff}}}{\sqrt{2{\sigma }_{\mathrm{eff}}^{2}}}\right)+\mathrm{Erf}\left(\tfrac{1+{\mu }_{\mathrm{eff}}}{\sqrt{2{\sigma }_{\mathrm{eff}}^{2}}}\right)\right]}.\end{eqnarray} \tag{ E5 }$$

In an exactly analogous fashion, when computing the detection efficiency ξ (Λ) we can replace a Monte Carlo average over successfully found injections [as in Equation (B5)] with a KDE over injections:

$$\begin{eqnarray}&&\begin{array}{l}\xi ({\rm{\Lambda }})\propto \displaystyle \sum _{i=1}^{{N}_{\mathrm{found}}}\displaystyle \frac{p({\tilde{\lambda }}_{i}| {\rm{\Lambda }})}{{p}_{\mathrm{inj}}({\tilde{\lambda }}_{i},{\chi }_{\mathrm{eff},i})}\int d{\chi }_{\mathrm{eff}}\,N({\chi }_{\mathrm{eff}}| {\chi }_{\mathrm{eff},i},{\sigma }_{\mathrm{kde}})p({\chi }_{\mathrm{eff}}| {\rm{\Lambda }}).\end{array}\end{eqnarray} \tag{ E6 }$$

As above, the integration can be carried out analytically when (as in our case) the population model p(χ_eff∣Λ) is a mixture of Gaussians.

As a demonstration and validation of this approach, we revisit inference of the GWTC-3 effective spin distribution via the GaussianSpike model, but now fix the "spike" at χ_eff = 0 to have a finite width > 0. We repeat the analysis in two ways: (i) using the ordinary Monte Carlo representation of Equations (B4) and (B5), and (ii) using the KDE representation of Equations (E3) and (E6). Figure 12 shows the marginal posterior for ζ_spike for different choices of . When is large (i.e., the "spike" is broad compared to the typical intersample spacing), the two methods give identical results. As we let approach zero, however, the Monte Carlo average produces divergent results, while the KDE likelihood representation yields stable and converging posteriors.

Zoom In Zoom Out Reset image size

In Figure 3 in the main text, we showed posteriors on ζ_spike obtained by analyzing mock catalogs of binary black holes drawn from an intrinsically spikeless population. In this appendix, we describe our procedure for generating and analyzing these mock catalogs.

To generate mock χ_eff measurements, we assume an underlying astrophysical distribution following the Gaussian effective spin model, with mean μ_eff = 0.06 and standard deviation σ_eff = 0.09. These values are chosen to match the median measurements of μ_eff and σ_eff obtained when hierarchically analyzing GWTC-3 with the Gaussian effective spin model. For each mock catalog, we draw 69 "true" spin values from this Gaussian population:

$$\begin{eqnarray}&&{\chi }_{\mathrm{eff},\mathrm{true}}\sim N(0.06,0.09).\end{eqnarray} \tag{ F1 }$$

We then add a random measurement uncertainty to each mock event. Assuming Gaussian likelihoods for each χ_eff measurement, "observed" maximum-likelihood values are generated via

$$\begin{eqnarray}&&{\chi }_{\mathrm{eff},\mathrm{obs}}\sim N({\chi }_{\mathrm{eff},\mathrm{true}},{\sigma }_{\mathrm{obs}}),\end{eqnarray} \tag{ F2 }$$

where σ_obs is the standard deviation of each event's likelihood. These uncertainties are themselves randomly distributed to match the range of uncertainties exhibited by real measurements. The χ_eff likelihoods among binary black holes in GWTC-3 have log standard deviations that are approximately normally distributed, with a mean ${\mathrm{log}}_{10}{\sigma }_{\mathrm{obs}}$ of −0.9 and a standard deviation of 0.3. When drawing mock observed values in Equation (F2), we therefore assign each event a random measurement uncertainty according to

$$\begin{eqnarray}&&{\mathrm{log}}_{10}{\sigma }_{\mathrm{obs}}\sim N(-0.9,0.3).\end{eqnarray} \tag{ F3 }$$

Because both our population model and our mock likelihoods are Gaussian, the hierarchical likelihood for μ_eff and σ_eff can be calculated analytically, exactly as was done in Appendix E above. Specifically, the likelihood p({d}∣μ_eff, σ_eff) of our mock catalog is of the same form as Equation (E3), with the observed χ_eff,obs values in place of χ_eff,i,j , the measurement uncertainties σ_obs in place of , and ignoring the summation over j.

As highlighted in Section 4, many of our mock catalogs exhibit ζ_spike posteriors qualitatively similar to the posterior obtained using real data, encompassing zero but peaking at ζ_spike ≈ 0.5. Some mock catalogs even more confidently (and incorrectly) appear to rule out the injected value of ζ_spike = 0. We find that this elevated "false-alarm probability" can be explained by a degeneracy between ζ_spike and μ_eff that occurs when analyzing relatively small number of individually uncertain measurements. To illustrate this behavior, we choose the mock catalog whose ζ_spike posterior most strongly rules out zero in Figure 3. The left-hand panel in Figure 13 shows the joint posterior on ζ_spike and μ_eff given by this catalog. These parameters are correlated: if the Gaussian "bulk" is shifted to a larger mean, events located at negative or near-zero χ_eff values are left behind and must be absorbed into the zero-spin spike. To test this intuition, we show in the middle panel of Figure 13 the individual likelihoods that comprise this mock catalog. The event with the largest χ_eff (and hence the event pulling μ_eff to large values) is highlighted. If we remove this high-spin event and redo the hierarchical inference on this catalog, we obtain the blue ζ_spike posterior shown in the right-hand panel of Figure 13. After removing the high-spin event, we now find ζ_spike to be considerably more consistent with zero.

Zoom In Zoom Out Reset image size

Our initial counting experiment in Section 3 uses only the Bayes factors for each event in GWTC-2 between the nonspinning (χ₁ = χ₂ = 0) and spinning (χ₁, χ₂ ≥ 0) hypotheses. Such Bayes factors also act as inputs in the analysis of Galaudage et al. (2021). Galaudage et al. (2021) form Bayes factors via the ratios of fully marginalized likelihoods computed for each event via nested sampling under nonspinning and spinning priors (Abbott et al. 2021c; Kimball et al. 2021). Instead, we compute Bayes factors directly from the posterior samples for each event. For nested models where the simpler model (e.g., the nonspinning model) is contained within a more complex model (the spinning model with χ₁ = χ₂ = 0), the Bayes factor between models is given through the Savage–Dickey density ratio (Verdinelli & Wasserman 1995),

$$\begin{eqnarray}&&{{ \mathcal B }}_{{\rm{S}}}^{\mathrm{NS}}=\displaystyle \frac{p({\chi }_{1}=0,{\chi }_{2}=0| d)}{p({\chi }_{1}=0,{\chi }_{2}=0)},\end{eqnarray} \tag{ G1 }$$

where p(χ₁ = 0, χ₂ = 0∣d) and p(χ₁ = 0, χ₂ = 0) are the posterior and prior densities at χ₁ = χ₂ = 0, respectively. See Appendix B of Chatziioannou et al. (2014) for a proof of this equation when the more complex model has additional parameters (here, the spin angles) that are absent from the simpler model. For every binary black hole in GWTC-2, the left panel of Figure 14 shows the probability that the event is nonspinning,

$$\begin{eqnarray}\begin{array}{rcl}{p}_{\mathrm{NS}} & = & \displaystyle \frac{{p}_{\mathrm{NS}}}{{p}_{{\rm{S}}}+{p}_{\mathrm{NS}}}\\ & = & \displaystyle \frac{{{ \mathcal B }}_{{\rm{S}}}^{\mathrm{NS}}}{1+{{ \mathcal B }}_{{\rm{S}}}^{\mathrm{NS}}},\end{array}\end{eqnarray} \tag{ G2 }$$

as implied by both sets of Bayes factors. We find general agreement, within numerical uncertainties, between our Bayes factors computed via Savage–Dickey density ratios and those computed via nested sampling (Abbott et al. 2021c). We note that Savage–Dickey density ratios, which rely on KDEs over posterior samples, may be less reliable for events with very little support at (χ₁ = 0, χ₂ = 0). In these cases, however, a Savage–Dickey density ratio would still conclude that p_NS → 0 consistently.

Zoom In Zoom Out Reset image size

There are two significant outliers, however. Nested sampling returns ${{ \mathcal B }}_{{\rm{S}}}^{\mathrm{NS}}\sim 130$ in favor of the nonspinning hypothesis for the event GW190408_181802. If this Bayes factor were correct, then GW190408_181802 is almost certainly nonspinning, guaranteeing that a nonzero number of events will be placed in a nonspinning subpopulation. This is indeed the conclusion drawn by Galaudage et al. (2021) with the nested sampling Bayes factors. Such a large preference for vanishing spins is not supported by this event's spin magnitude posteriors (right panel); it would require that the posterior is ∼130 times larger than the prior at (χ₁ = χ₂ = 0). A Savage–Dickey density ratio instead gives an agnostic ${{ \mathcal B }}_{{\rm{S}}}^{\mathrm{NS}}\approx 1.6$ for GW190408_181802. The opposite situation is encountered for GW190828_063405, which is reported to have ${{ \mathcal B }}_{{\rm{S}}}^{\mathrm{NS}}\sim 1.7\times {10}^{-5}$ from nested sampling. Inspection of the posterior again shows that the posterior and the Bayes factor are inconsistent, as the former remains finite at χ₁ = χ₂ = 0. Although these two outliers were identified by comparison of nested sampling and Savage–Dickey density ratio results, the conclusion that the nested sampling Bayes factors are misestimated can be drawn through visual inspection of the posterior samples alone.

All results in Sections 4 and 5 of the main text rely on the latest GWTC-3 catalog of gravitational-wave detections(Abbott et al. 2021d), as detailed in Appendix B. However, the results of Galaudage et al. (2021) (to which we frequently compare) instead made use of GWTC-2 (Abbott et al. 2021c), because GWTC-3 results were published only after their study. Moreover, our model differs slightly from ours in how component spin magnitudes and tilt angle are paired. We assume that spin magnitudes χ₁ and χ₂ are independently and identically distributed (IID), as are tilt angles $\cos {\theta }_{1}$ and $\cos {\theta }_{2}$. In our BetaSpike+TruncatedMixture model, for example, one component spin could lie in the zero-spin spike while its companion spin could lie in the Beta distribution "bulk." Galaudage et al. (2021), on the other hand, adopt preferential pairing and require that both component spins in a given binary occupy the same mixture component (bulk or spike; aligned or isotropic). In order to enable a more direct comparison between our results, in this appendix we show results obtained using only binary black holes among GWTC-2, as well as results generated with an alternative pairing model that directly matches that of Galaudage et al. (2021).

Figure 15 illustrates the fraction of binary black holes inferred to be nonspinning using the GaussianSpike effective spin model (see Sections 4 and A.1) and analyzing data from GWTC-2. Like our results with GWTC-3, results using only GWTC-2 are consistent with ζ_spike = 0, indicating no evidence for a distinct subpopulation of nonspinning events. Similarly, Figure 16 shows results when analyzing GWTC-2 binary black holes with the BetaSpike+TruncatedMixture component spin model. We again find consistent results between GWTC-2 and GWTC-3 events. When analyzing only events in GWTC-2, we infer the fraction f_spike of approximately nonspinning systems to be consistent with zero and find no requirement for the width of this possible subpopulation to be narrow (small _spike). Using GWTC-2, we also conclude that the distribution of spin–orbit misalignment angles extends beyond 90°, with the truncation z_min on the $\cos \theta$ distribution inferred to be negative (97.1% credibility), although with slightly decreased certainty compared to GWTC-3 (99.7% credibility).

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Finally, Figure 17 shows results obtained under an alternative version of our BetaSpike+TruncatedMixture model that directly matches the pairing function used by Galaudage et al. (2021) in their Extended model. Explicitly, spin magnitudes are jointly distributed as

$$\begin{eqnarray}&&\begin{array}{l}p({\chi }_{1},{\chi }_{2}| \alpha ,\beta ,{f}_{\mathrm{spike}},{\epsilon }_{\mathrm{spike}})\\ \,=\,{f}_{\mathrm{spike}}\,{{ \mathcal N }}_{[\mathrm{0,1}]}({\chi }_{1}| 0,{\epsilon }_{\mathrm{spike}}){{ \mathcal N }}_{[\mathrm{0,1}]}({\chi }_{2}| 0,{\epsilon }_{\mathrm{spike}})+\,(1-{f}_{\mathrm{spike}})\displaystyle \frac{{\chi }_{1}^{1-\alpha }\,{\left(1-{\chi }_{1}\right)}^{1-\beta }}{c(\alpha ,\beta )}\displaystyle \frac{{\chi }_{2}^{1-\alpha }\,{\left(1-{\chi }_{2}\right)}^{1-\beta }}{c(\alpha ,\beta )},\end{array}\end{eqnarray} \tag{ H1 }$$

and the joint tilt angle distribution is

$$\begin{eqnarray}&&\begin{array}{l}p(\cos {\theta }_{1},\cos {\theta }_{2}| {f}_{{\rm{iso}}},{\sigma }_{t})\\ \,=\,\displaystyle \frac{{f}_{{\rm{iso}}}}{{\left(1-{z}_{min}\right)}^{2}}+\,(1-{f}_{{\rm{iso}}})\,{{ \mathcal N }}_{[{z}_{min},1]}(\cos {\theta }_{1}| 1,{\sigma }_{t}){{ \mathcal N }}_{[{z}_{min},1]}(\cos {\theta }_{2}| 1,{\sigma }_{t}).\end{array}\end{eqnarray} \tag{ H2 }$$

Figure 17 shows results from this alternative model using both GWTC-2 and GWTC-3. For reference, the dashed black distributions show results from our usual BetaSpike+TruncatedMixture model. Compared to BetaSpike+TruncatedMixture, the Extended model has more support at f_spike = 0, strengthening the conclusion that the fraction of black holes with negligible spin is consistent with zero. For the tilt angle distribution, we find that data still has a strong preference for negative z_min under the Extended model, but with decreased confidence (84.6% credibility for GWTC-2 and 90.4%credibility for GWTC-3) compared with BetaSpike+TruncatedMixture. Perhaps the starkest difference between results generated with the Extended and sBetaSpike+TruncatedMixture models is that under Extended, the data even more strongly prefer isotropically distributed tilt angles over aligned, as seen by the f_iso peaking strongly at unity. This again indicates no strong preference, given current data, that black hole spins are collectively nearly aligned with their orbital angular momenta.

Zoom In Zoom Out Reset image size
