Probing the Intergalactic Turbulence with Fast Radio Bursts

Turbulence is ubiquitous in astrophysical plasmas in both local and high-redshift universe (Brandenburg & Lazarian 2014). It accompanies the large-scale structure formation and amplifies cosmic magnetic fields (Ryu et al. 2008). It influences multiscale diverse astrophysical processes, such as star formation (McKee & Ostriker 2007), cosmic ray propagation (Xu & Yan 2013), magnetic reconnection, and particle acceleration (Zhang & Yan 2011; Lazarian et al. 2020).

The fundamental problem of turbulence is turbulent statistics (Chandrasekhar 1949). The statistical studies of astrophysical turbulence greatly benefit from the recent development of turbulence measurement techniques, including, e.g., the principal component analysis (Heyer & Peter Schloerb 1997), Velocity Channel Analysis (Lazarian & Pogosyan 2000), Velocity Coordinate Spectrum (Lazarian & Pogosyan 2006), core velocity dispersion (Qian et al. 2012), polarization variance analysis and polarization spatial analysis (Lazarian & Pogosyan 2016), and velocity gradient technique (Yuen & Lazarian 2017). Statistical measurements of velocity field (Chepurnov et al. 2010; Li et al. 2020; Xu 2020), density field (Armstrong et al. 1995; Burkhart et al. 2009; Chepurnov & Lazarian 2010), magnetic field (Han et al. 2004; Gaensler et al. 2011), and other observables associated with turbulence (Xu & Zhang 2016b, 2017) reveal both the properties and important roles of turbulence in the interstellar medium (ISM) and intracluster medium (ICM).

Turbulence in the intergalactic medium (IGM) is closely related to the formation of large-scale structure in the universe. For the turbulence of non-primordial origin, the possible driving mechanisms include cosmological shocks in filaments (Ryu et al. 2008) and supernovae-driven galactic outflows (Evoli & Ferrara 2011). The intergalactic turbulence significantly affects the dynamics of baryon fluid, galaxy–IGM interplay, amplification of magnetic fields, and enrichment of metals in the IGM through cosmic time (Evoli 2010). Despite the observational and numerical evidence indicating the presence of intergalactic turbulence (e.g., Rauch et al. 2001; Iapichino et al. 2011), unlike the turbulence in the ISM and ICM, the statistical properties of intergalactic turbulence are poorly constrained by observations, as the detection and measurements of the tenuous IGM are very challenging. Moreover, the statistical analysis of the large-scale intergalactic turbulence is infeasible with current computational resources (Iapichino et al. 2011).

Transient extragalactic radio bursts, such as fast radio bursts (FRBs), have their dispersion measures (DMs) dominated by the contribution of the IGM (Lorimer et al. 2007; Thornton et al. 2013; Petroff et al. 2016) and are powerful probes of the intergalactic turbulence (Macquart & Koay 2013; Ravi et al. 2016; Xu & Zhang 2016b). Besides the scattering effect that causes the temporal broadening for individual FRBs (Macquart & Koay 2013; Zhu et al. 2018), density fluctuations induced by intergalactic turbulence can also give rise to fluctuations in DMs of different FRBs. Similar to using Galactic pulsars to sample the interstellar turbulence (Armstrong et al. 1995; Xu & Zhang 2017), we can also use a substantial population of FRBs to sample the intergalactic turbulence. With a range of separations between sight lines through the IGM, FRBs can provide the measurement on the scale-dependent DM fluctuations induced by the multiscale intergalactic turbulence. For the first time, we perform a statistical measurement of the intergalactic turbulence by using a population of FRBs. In this Letter, we apply the statistical method developed by Lazarian & Pogosyan (2016, hereafter LP16) for extended sources to point sources. The same statistical approach can also be used for, e.g., other extragalactic point sources (Xu & Zhang 2016a), molecular cloud cores (Xu 2020), Galactic pulsars, to study the fluctuations of observables in various media and the associated astrophysical processes. The basic formalism of the statistical method is presented in Section 2. In Section 3, we compare the measured structure function (SF) of DMs of FRBs with our theoretical expectation. Discussion and conclusions are given in Section 4.

In a turbulent medium, we consider that the correlation function (CF) of electron density fluctuations $\delta {n}_{e}$ follows the power-law scaling

$$\begin{eqnarray}\begin{array}{rcl}\xi (R,{\rm{\Delta }}l) & = & \langle \delta {n}_{e}({{\boldsymbol{X}}}_{{\bf{1}}},{l}_{1})\delta {n}_{e}({{\boldsymbol{X}}}_{{\bf{2}}},{l}_{2})\rangle \\ & = & \langle \delta {n}_{e}^{2}\rangle \displaystyle \frac{{L}_{i}^{m}}{{L}_{i}^{m}+{\left({R}^{2}+{\rm{\Delta }}{l}^{2}\right)}^{\tfrac{m}{2}}},\end{array}\end{eqnarray} \tag{ 1 }$$

where ${\boldsymbol{X}}$ is the 2D position of the source on the sky plane, l is the distance along the line of sight (LOS), $R=| {{\boldsymbol{X}}}_{{\bf{1}}}-{{\boldsymbol{X}}}_{{\bf{2}}}|$ is the projected separation between sources, ${\rm{\Delta }}l={l}_{1}-{l}_{2}$, and the angle brackets denote an ensemble average. R can be converted to the angular separation θ by $\theta =R/L$. Here L is the size of the turbulent medium that extends from the observer to a distance L. The above power-law form of CF is commonly used for describing fluctuations in observables induced by turbulence (LP16; Xu & Zhang 2016a; Xu 2020). The correlation length L_i and the power-law index m characterize the statistical properties of turbulence. m is related to the 3D power-law index of a turbulent spectrum α by

$$\begin{eqnarray}&&\alpha =-m-3.\end{eqnarray} \tag{ 2 }$$

We note that for Kolmogorov turbulence, m = 2/3 and α = −11/3.

To calculate the SF of dispersion measures $\mathrm{DM}=\int {n}_{e}{dl}$, where n_e is the electron density, we consider two cases with (1) a single thin turbulent screen between the sources and the observer with the screen thickness much smaller than the distances of the sources from the observer (Figure 1(a)), and (2) a turbulent volume along the entire LOS containing both the sources and the observer (Figure 1(b)). In the former case, only the components of DMs from the turbulent screen are correlated.

Zoom In Zoom Out Reset image size

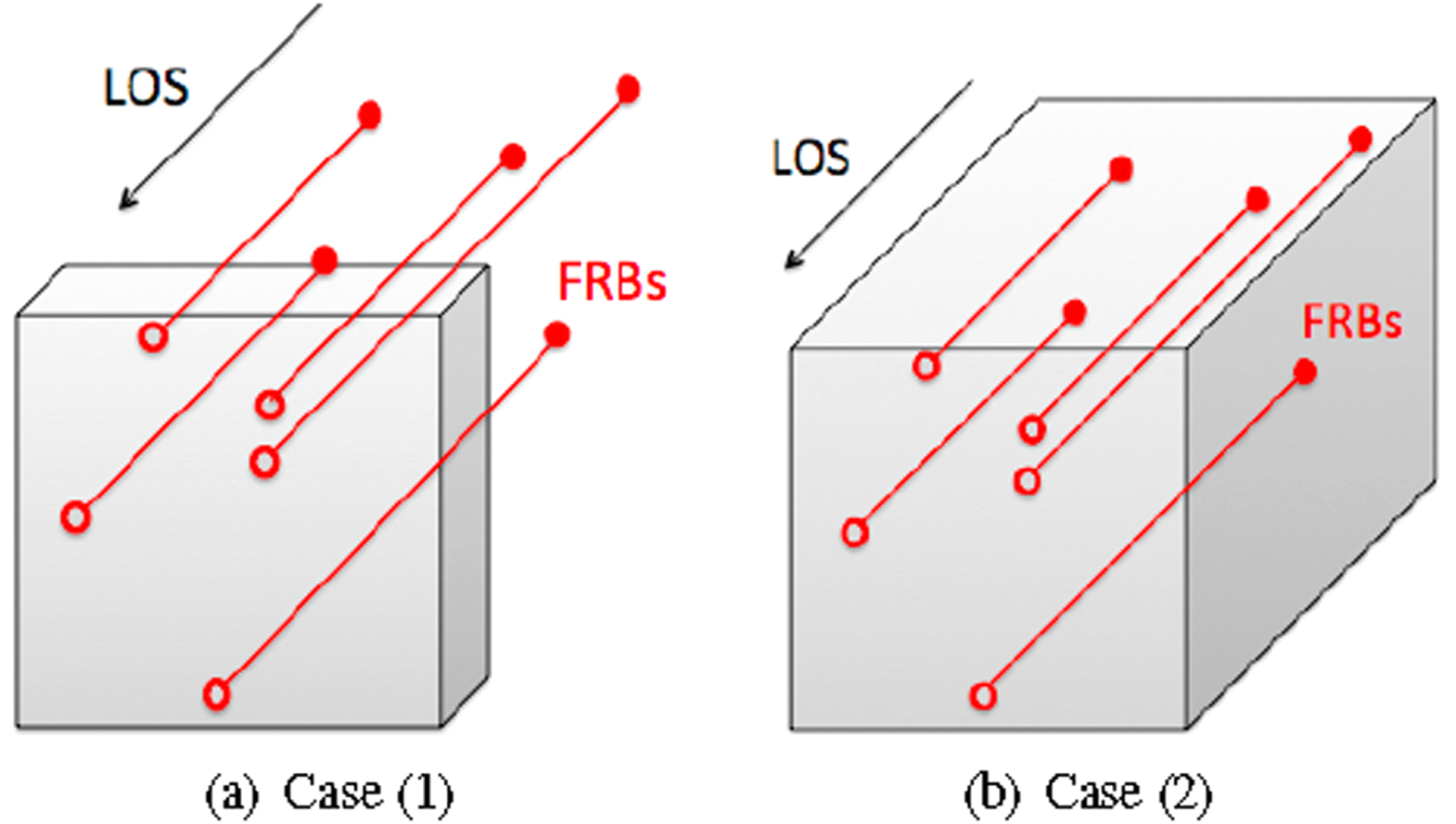

Case (1): a thin turbulent screen. In this case, the SF of DMs is

$$\begin{eqnarray}\begin{array}{rcl}D(R) & = & \langle {\left[\mathrm{DM}({{\boldsymbol{X}}}_{{\bf{1}}})-\mathrm{DM}({{\boldsymbol{X}}}_{{\bf{2}}})\right]}^{2}\rangle \\ & = & \left\langle {\left[{\displaystyle \int }_{0}^{L}{{dln}}_{e}({{\boldsymbol{X}}}_{{\bf{1}}},l)-{\displaystyle \int }_{0}^{L}{{dln}}_{e}({{\boldsymbol{X}}}_{{\bf{2}}},l)\right]}^{2}\right\rangle \\ & = & 4\langle \delta {n}_{e}^{2}\rangle {\displaystyle \int }_{0}^{L}d{\rm{\Delta }}l(L-{\rm{\Delta }}l)\\ & & \,\,\,\,\,\,\left[\displaystyle \frac{{L}_{i}^{m}}{{L}_{i}^{m}+{\rm{\Delta }}{l}^{m}}-\displaystyle \frac{{L}_{i}^{m}}{{L}_{i}^{m}+{\left({R}^{2}+{\rm{\Delta }}{l}^{2}\right)}^{\tfrac{m}{2}}}\right],\end{array}\end{eqnarray} \tag{ 3 }$$

where the expression in Equation (1) is used. When the thickness of the turbulent screen L is larger than L_i, it has asymptotic scalings in different regimes (LP16),

$$\begin{eqnarray}&&D(R)\approx 4 \langle \delta {n}_{e}^{2} \rangle {L}_{i}^{-m}{{LR}}^{m+1},\,R\lt {L}_{i},\end{eqnarray} \tag{ 4a }$$

$$\begin{eqnarray}&&D(R)\approx 4 \langle \delta {n}_{e}^{2} \rangle {L}_{i}^{m}{{LR}}^{-m+1},\,{L}_{i}\lt R\lt L,\end{eqnarray} \tag{ 4b }$$

$$\begin{eqnarray}&&D(R)\approx 4 \langle \delta {n}_{e}^{2} \rangle {L}_{i}^{m}{L}^{-m+2},\,R\gt L.\end{eqnarray} \tag{ 4c }$$

For a steep turbulent spectrum dominated by large-scale turbulent fluctuations (Lazarian & Pogosyan 2004) with α < −3, e.g., Kolmogorov turbulence, L_i is the outer scale of density fluctuations, and only Equation 4(a) is applicable. We then have

$$\begin{eqnarray}&&D(R)\approx 4 \langle \delta {n}_{e}^{2} \rangle {L}_{i}^{-m}{{LR}}^{m+1},\,R\lt {L}_{i},\end{eqnarray} \tag{ 5a }$$

$$\begin{eqnarray}&&D(R)\approx 4 \langle \delta {n}_{e}^{2} \rangle {L}_{i}L,\,\,\,\,\,\,\,\,\,\,\,\,R\gt {L}_{i}.\end{eqnarray} \tag{ 5b }$$

The dependence on R is seen when R is in the inertial range of turbulence ($\lt {L}_{i}$). At $R\gt {L}_{i}$, DMs become uncorrelated, and D(R) remains constant.

Case (2): a turbulent volume along the entire LOS. In a different case with both the sources and the observer within the same turbulent volume, the SF of DMs is

$$\begin{eqnarray}\begin{array}{rcl}D(R,{l}_{1},{l}_{2}) & = & \langle {\left[\mathrm{DM}({{\boldsymbol{X}}}_{{\bf{1}}},{l}_{1})-\mathrm{DM}({{\boldsymbol{X}}}_{{\bf{2}}},{l}_{2})\right]}^{2}\rangle \\ & = & \left\langle {\left[{\displaystyle \int }_{0}^{{l}_{1}}{{dln}}_{e}({{\boldsymbol{X}}}_{{\bf{1}}},l)-{\displaystyle \int }_{0}^{{l}_{2}}{{dln}}_{e}({{\boldsymbol{X}}}_{{\bf{2}}},l)\right]}^{2}\right\rangle \\ & \approx & 2{D}^{+}(R,{l}_{+})+\displaystyle \frac{1}{2}{\rm{\Lambda }}{\left({\rm{\Delta }}l\right)}^{2}.\end{array}\end{eqnarray} \tag{ 6 }$$

Compared with Case (1) with a localized thin turbulent screen, the LOS integral here is not limited by the screen thickness, but is taken over the entire path from the observer to the source. The difference between the distances of sources Δl only enters the second term. The dependence on R appears in the first term (LP16),

$$\begin{eqnarray}\begin{array}{rcl}{D}^{+}(R,{l}_{+}) & = & 2\langle \delta {n}_{e}^{2}\rangle {\displaystyle \int }_{0}^{{l}_{+}}d{\rm{\Delta }}l({l}_{+}-{\rm{\Delta }}l)\\ & & \,\times \left[\displaystyle \frac{{L}_{i}^{m}}{{L}_{i}^{m}+{\rm{\Delta }}{l}^{m}}-\displaystyle \frac{{L}_{i}^{m}}{{L}_{i}^{m}+{\left({R}^{2}+{\rm{\Delta }}{l}^{2}\right)}^{\tfrac{m}{2}}}\right],\end{array}\end{eqnarray} \tag{ 7 }$$

where ${l}_{+}=({l}_{1}+{l}_{2})/2$. If we consider distant sources from the observer with ${l}_{+}\gt {L}_{i}$, then we can reach

$$\begin{eqnarray}&&{D}^{+}(R,{l}_{+})\approx 2 \langle \delta {n}_{e}^{2} \rangle {L}_{i}^{-m}{l}_{+}{R}^{m+1},\,R\lt {L}_{i},\end{eqnarray} \tag{ 8a }$$

$$\begin{eqnarray}&&{D}^{+}(R,{l}_{+})\approx 2 \langle \delta {n}_{e}^{2} \rangle {L}_{i}^{m}{l}_{+}{R}^{-m+1},\,{L}_{i}\lt R\lt {l}_{+},\end{eqnarray} \tag{ 8b }$$

$$\begin{eqnarray}&&{D}^{+}(R,{l}_{+})\approx 2 \langle \delta {n}_{e}^{2} \rangle {L}_{i}^{m}{l}_{+}^{-m+2},\,R\gt {l}_{+},\end{eqnarray} \tag{ 8c }$$

which is similar to Equation (4) but L is replaced by l₊.

For the second term of $D(R,{l}_{1},{l}_{2})$ in Equation (6), the coefficient Λ (LP16) can be simplified to

$$\begin{eqnarray}\begin{array}{rcl}{\rm{\Lambda }} & = & \xi (0,{l}_{+})-\xi (R,{l}_{+})+2\xi (R,0)\\ & = & \langle \delta {n}_{e}^{2}\rangle \left[\displaystyle \frac{{L}_{i}^{m}}{{L}_{i}^{m}+{l}_{+}^{m}}-\displaystyle \frac{{L}_{i}^{m}}{{L}_{i}^{m}+{\left({R}^{2}+{l}_{+}^{2}\right)}^{\tfrac{m}{2}}}\right.\\ & & \left.\,\,\,\,+2\displaystyle \frac{{L}_{i}^{m}}{{L}_{i}^{m}+{R}^{m}}\right],\\ & \approx & \left\{\begin{array}{ll}2\langle \delta {n}_{e}^{2}\rangle , & R\lt {L}_{i}\\ 0, & R\gt {L}_{i},\end{array}\right.\end{array}\end{eqnarray} \tag{ 9 }$$

where the expression in Equation (1) is used. We again consider a steep turbulent spectrum with α < −3. Based on the above expressions, we now approximately have

$$\begin{eqnarray}&&D(R,{l}_{1},{l}_{2})\approx 4\langle \delta {n}_{e}^{2}\rangle {L}_{i}^{-m}{R}^{m+1}{l}_{+}+\langle \delta {n}_{e}^{2}\rangle {\left({\rm{\Delta }}l\right)}^{2},\,R\lt {L}_{i},\end{eqnarray} \tag{ 10a }$$

$$\begin{eqnarray}&&D(R,{l}_{1},{l}_{2})\approx 4\langle \delta {n}_{e}^{2}\rangle {L}_{i}{l}_{+}+\langle \delta {n}_{e}^{2}\rangle {\left({\rm{\Delta }}l\right)}^{2},\,\,\,\,\,\,R\gt {L}_{i}.\end{eqnarray} \tag{ 10b }$$

The quantities related to the distances of sources, i.e., l₊, Δl, do not distort the power-law scaling of $D(R,{l}_{1},{l}_{2})$ with R.

Next by averaging over l₊ and Δl, we can obtain

$$\begin{eqnarray}&&D(R)=\displaystyle \frac{1}{2L}{\int }_{-L}^{L}\displaystyle \frac{d{\rm{\Delta }}l}{L-{\rm{\Delta }}l}{\int }_{| {\rm{\Delta }}l| /2}^{L-| {\rm{\Delta }}l| /2}{{dl}}_{+}D(R,{l}_{1},{l}_{2})\end{eqnarray} \tag{ 11 }$$

$$\begin{eqnarray}\approx \left\{\begin{array}{ll}2\langle \delta {n}_{e}^{2}\rangle {L}_{i}^{-m}{{LR}}^{m+1}+\tfrac{1}{3}\langle \delta {n}_{e}^{2}\rangle {L}^{2}, & R\lt {L}_{i}\\ 2\langle \delta {n}_{e}^{2}\rangle {L}_{i}L+\tfrac{1}{3}\langle \delta {n}_{e}^{2}\rangle {L}^{2}, & R\gt {L}_{i}.\end{array}\right.\end{eqnarray} \tag{ 12 }$$

It has a similar form as Equation (5), but here L is the length of the entire turbulent volume along the LOS containing both the sources and the observer. Besides, the extra second term at $R\lt {L}_{i}$ arises from the different distances of sources, which adds "noise" to the scaling of D(R) with R revealed by the first term. In Equation (11), we assume that the distance differences can range from 0 to L, but in fact for distant sources from the observer under consideration, they mainly occupy a subvolume within the range of distances $[{L}_{0},L]$, where ${L}_{0}\gt {L}_{i}$. Therefore D(R) should be adjusted as

$$\begin{eqnarray}&&D(R)=\displaystyle \frac{1}{2(L-{L}_{0})}{\int }_{-L+{L}_{0}}^{L-{L}_{0}}d{\rm{\Delta }}l\end{eqnarray} \tag{ 13 }$$

$$\begin{eqnarray}&&\displaystyle \frac{1}{L-{L}_{0}-{\rm{\Delta }}l}{\int }_{{L}_{0}+| {\rm{\Delta }}l| /2}^{L-| {\rm{\Delta }}l| /2}{{dl}}_{+}D(R,{l}_{1},{l}_{2})\end{eqnarray} \tag{ 14 }$$

$$\begin{eqnarray}&&\approx \left\{\begin{array}{l}2\langle \delta {n}_{e}^{2}\rangle {L}_{i}^{-m}(L+{L}_{0}){R}^{m+1}+\tfrac{1}{3}\langle \delta {n}_{e}^{2}\rangle {\left(L-{L}_{0}\right)}^{2},\\ \,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,R\lt {L}_{i}\\ 2\langle \delta {n}_{e}^{2}\rangle {L}_{i}(L+{L}_{0})+\tfrac{1}{3}\langle \delta {n}_{e}^{2}\rangle {\left(L-{L}_{0}\right)}^{2},\\ \,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,R\gt {L}_{i}.\end{array}\right.\end{eqnarray} \tag{ 15 }$$

As a result, compared with Equation (12), we see an increase of the first term by a factor of $(1+{L}_{0}/L)$ and a decrease of the second term by a factor of ${(L-{L}_{0})}^{2}/{L}^{2}$, leading to a significantly reduced level of "noise."

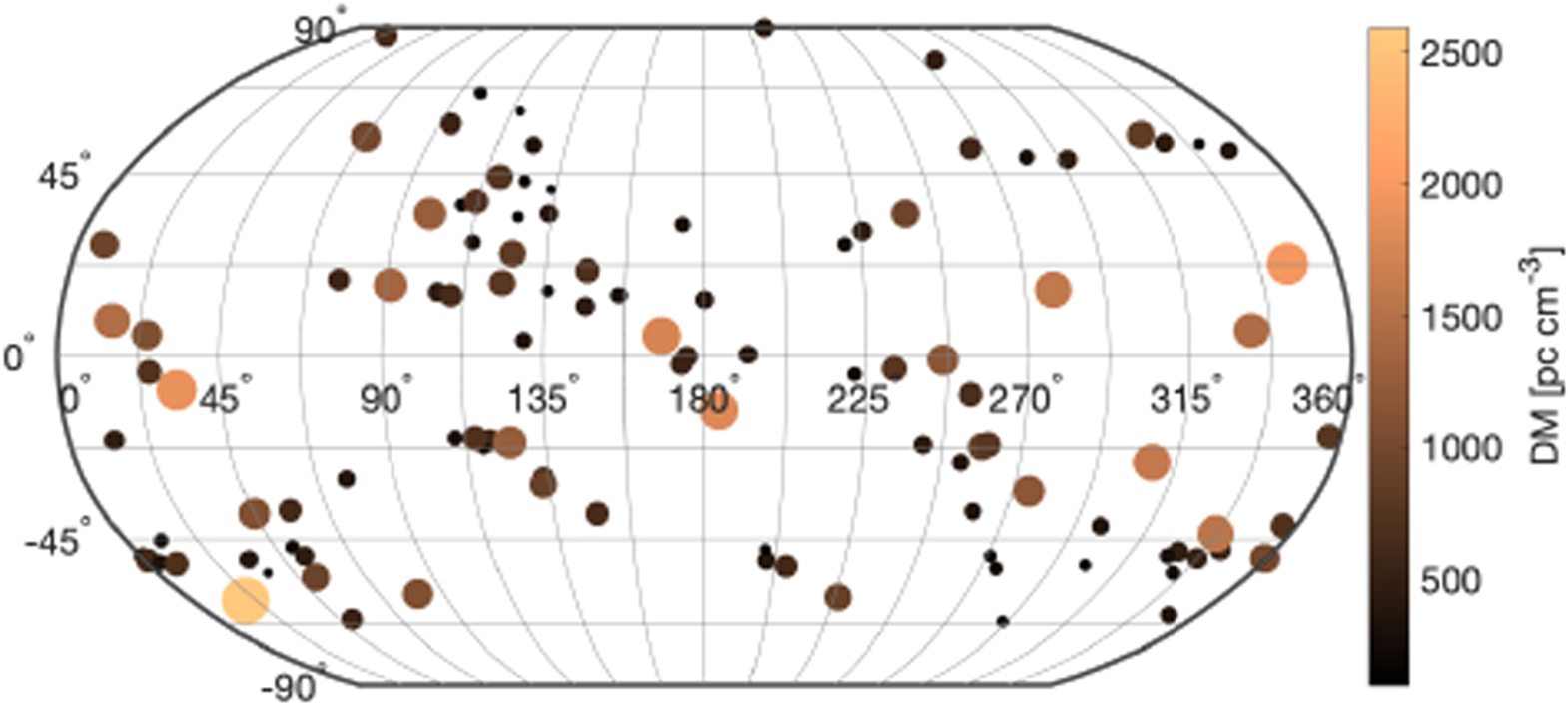

Using the most updated published population of FRBs (Petroff et al. 2016),⁴ we calculate the SF of their measured total DMs as

$$\begin{eqnarray}&&D(\theta )=\langle {\left(\mathrm{DM}\left({{\boldsymbol{X}}}_{{\bf{1}}}\right)-\mathrm{DM}\left({{\boldsymbol{X}}}_{{\bf{2}}}\right)\right)}^{2}\rangle ,\end{eqnarray} \tag{ 16 }$$

which is the average value of the squared DM differences of all pairs of FRBs at a given angular separation. Here ${\boldsymbol{X}}$ is the projected position of an FRB on the sky plane, θ is the angular separation between projected positions, and the angle brackets denote the spatial average at a fixed θ. From the sky distribution of FRBs with measured DMs shown in Figure 2, we see that they sample the turbulent fluctuations along the LOS in different directions. So we are unlikely biased to detect the turbulent structure toward a particular direction. The result for the SF is displayed in Figure 3(a), where the error bars show 95% confidence intervals. The error bars are larger toward a small θ due to the fewer number of pairs of FRBs available at a small θ. Based on the above analysis, we use a function

$$\begin{eqnarray}&&D(\theta \lesssim 13\buildrel{\circ}\over{.} 8)[{\mathrm{pc}}^{2}\,{\mathrm{cm}}^{-6}]=\alpha {\left(\theta \left[^\circ \right]\right)}^{\beta }+\gamma \end{eqnarray} \tag{ 17 }$$

to fit the data points at small θ. We find that for the best least-squares fit, there are

$$\begin{eqnarray}\begin{array}{rcl}\alpha & = & 8595\pm 1.03\times {10}^{4},\\ \beta & = & 1.68\pm 0.44,\\ \gamma & = & 5.13\times {10}^{4}\pm 5.87\times {10}^{4},\end{array}\end{eqnarray} \tag{ 18 }$$

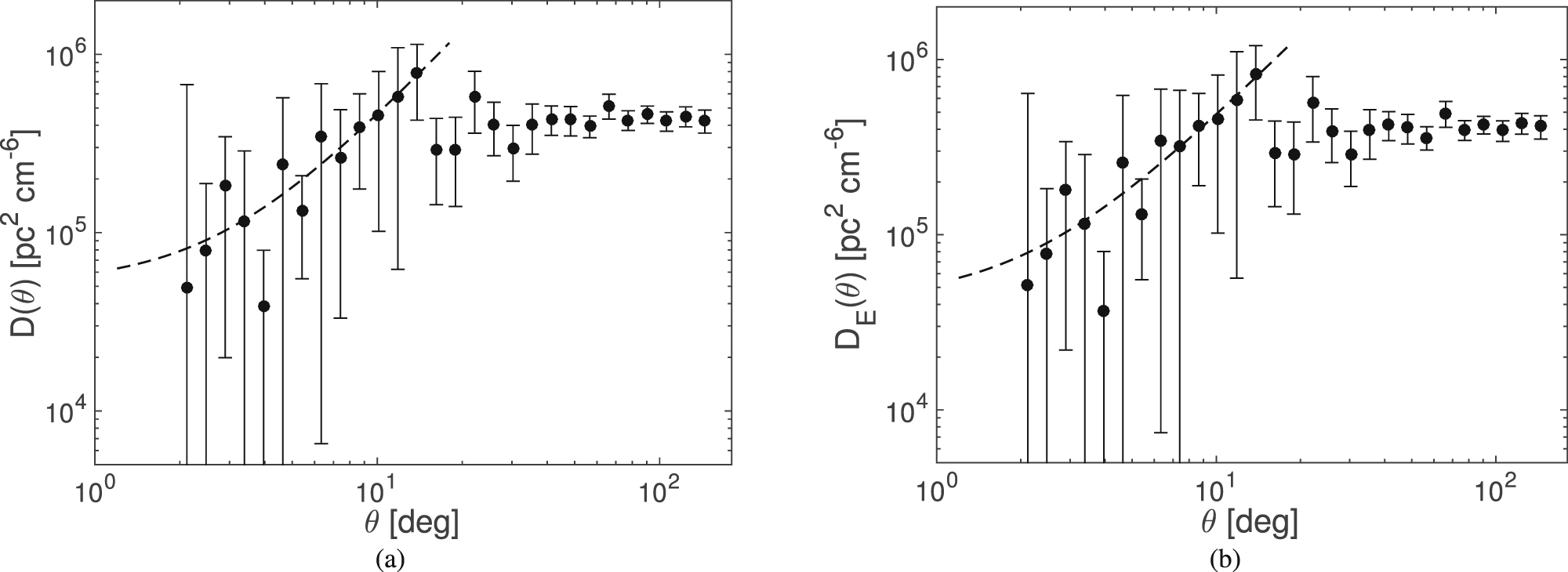

where the uncertainties are given at 68% confidence. D(θ) saturates and basically remains constant at $\theta \gt 13\buildrel{\circ}\over{.} 8$.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The SF of DMs of FRBs at cosmological distances can be decomposed into its Galactic component D_G and extragalactic component D_E,

$$\begin{eqnarray}\begin{array}{rcl} & & \,\,\,\,\,\,D(R)\\ & = & \langle {\left[{\mathrm{DM}}_{G}({{\boldsymbol{X}}}_{{\bf{1}}})+{\mathrm{DM}}_{E}({{\boldsymbol{X}}}_{{\bf{1}}})-{\mathrm{DM}}_{G}({{\boldsymbol{X}}}_{{\bf{2}}})-{\mathrm{DM}}_{E}({{\boldsymbol{X}}}_{{\bf{2}}})\right]}^{2}\rangle \\ & = & \mathop{\underbrace{\langle {\left[{\mathrm{DM}}_{G}({{\boldsymbol{X}}}_{{\bf{1}}})-{\mathrm{DM}}_{G}({{\boldsymbol{X}}}_{{\bf{2}}})\right]}^{2}\rangle }}\limits_{{D}_{G}}\\ & & \,\,\,\,+\mathop{\underbrace{\langle {\left[{\mathrm{DM}}_{E}({{\boldsymbol{X}}}_{{\bf{1}}})-{\mathrm{DM}}_{E}({{\boldsymbol{X}}}_{{\bf{2}}})\right]}^{2}\rangle }}\limits_{{D}_{E}},\end{array}\end{eqnarray} \tag{ 19 }$$

where ${\mathrm{DM}}_{G}$ and DM_E are the Galactic and extragalactic components of the total DM, respectively. We next consider two different cases with the power-law behavior of D(θ) dominated by (1) the Galactic ISM, or (2) the IGM.

(1) The Galactic ISM. If the DMs_E toward different FRBs are uncorrelated, then D_E is independent of R. We can write Equation (19) as

$$\begin{eqnarray}&&D(R)={D}_{G}(R)+C,\end{eqnarray} \tag{ 20 }$$

where C is a constant representing D_E. In this situation, Case (1) in Section 2 applies, and our Galaxy acts as a thin turbulent screen with the thickness L given by the average path length through the Galactic ISM. We consider that the Galactic interstellar turbulence has a steep power-law spectrum and its driving scale is much smaller than L (Armstrong et al. 1995; Chepurnov & Lazarian 2010; Chepurnov et al. 2010). Accordingly, D_G can be described by Equation (5), and thus there is

$$\begin{eqnarray}&&D(\theta )\approx 4\langle \delta {n}_{e}^{2}\rangle {L}_{i}^{-m}{L}^{m+2}{\theta }^{m+1}+C,\theta \lt {L}_{i}/L,\end{eqnarray} \tag{ 21a }$$

$$\begin{eqnarray}&&D(\theta )\approx 4\langle \delta {n}_{e}^{2}\rangle {L}_{i}L+C,\,\theta \gt {L}_{i}/L,\end{eqnarray} \tag{ 21b }$$

where we use θ = R/L as the angular separation corresponding to R. We compare Equation 21(a) with the fit to the measured D(θ) in Equation (17). To explain the observations, there should be

$$\begin{eqnarray}&&\begin{array}{l}m+1=1.68,\\ 4\langle \delta {n}_{e}^{2}\rangle {L}_{i}^{-m}{L}^{m+2}{\left(\displaystyle \frac{\pi }{180}\right)}^{m+1}=8595,\\ C=5.13\times {10}^{4},\\ \displaystyle \frac{{L}_{i}}{L}\approx 0.24.\end{array}\end{eqnarray} \tag{ 22 }$$

From the above constraints one can easily get

$$\begin{eqnarray}&&\langle \delta {n}_{e}^{2}\rangle {L}^{2}[{\mathrm{pc}}^{2}\,{\mathrm{cm}}^{-6}]=7.35\times {10}^{5}.\end{eqnarray} \tag{ 23 }$$

It requires that the typical DM_G of an FRB is

$$\begin{eqnarray}&&{\mathrm{DM}}_{G}[\mathrm{pc}\,{\mathrm{cm}}^{-3}]\approx {n}_{e}L\sim \sqrt{\langle \delta {n}_{e}^{2}\rangle }L=857.\end{eqnarray} \tag{ 24 }$$

Obviously, this value is much larger than those of pulsars in the high Galactic latitude region where most FRBs were detected (Cordes & Chatterjee 2019). In fact, the IGM is believed to be the dominant source of dispersion for most FRBs (Ioka 2003; Inoue 2004; Lorimer et al. 2007; Thornton et al. 2013). In Figure 3(b), we present the SF of DMs_E, where ${\mathrm{DM}}_{E}=\mathrm{DM}-{\mathrm{DM}}_{G}$, and DM_G is estimated based on the NE2001 Galactic electron density model (Cordes & Lazio 2002; Petroff et al. 2016).⁵ The difference between Figures 3(a) and (b) is marginal, which confirms the negligible Galactic contribution to D(θ).

(2) The IGM.  If the DMs_E are correlated so that D_E is a function of R, then D(R) mainly reflects the statistical properties of the intergalactic turbulence given ${D}_{E}\gg {D}_{G}$. By probing the intergalactic turbulence along the entire LOS, we are dealing with Case (2) in Section 2. Hence, we approximately have

$$\begin{eqnarray}&&D(\theta )\approx {D}_{E}(\theta )\end{eqnarray} \tag{ 25 }$$

$$\begin{eqnarray}&&\approx \left\{\begin{array}{l}2\langle \delta {n}_{e}^{2}\rangle {L}_{i}^{-m}(L+{L}_{0}){L}^{m+1}{\theta }^{m+1}\\ \,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,+\tfrac{1}{3}\langle \delta {n}_{e}^{2}\rangle {\left(L-{L}_{0}\right)}^{2},\,\,\,\,\,\,\theta \lt {L}_{i}/L\\ 2\langle \delta {n}_{e}^{2}\rangle {L}_{i}(L+{L}_{0})+\tfrac{1}{3}\langle \delta {n}_{e}^{2}\rangle {\left(L-{L}_{0}\right)}^{2},\\ \,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\theta \gt {L}_{i}/L,\end{array}\right.\end{eqnarray} \tag{ 26 }$$

where θ = R/L and L is the depth of the intergalactic turbulent volume that FRBs sample. Here we use Equation (15) under the consideration that FRBs are distant sources from the observer and the distances of most FRBs are larger than L₀, which can be constrained by the observational result (see below).

Similar to the earlier analysis, the comparison between Equation (26) and the fit to data (Equations (17) and (18)) leads to

$$\begin{eqnarray}&&\begin{array}{l}m+1=1.68,\\ 2\langle \delta {n}_{e}^{2}\rangle {L}_{i}^{-m}(L+{L}_{0}){L}^{m+1}{\left(\displaystyle \frac{\pi }{180}\right)}^{m+1}=8595,\\ \displaystyle \frac{1}{3}\langle \delta {n}_{e}^{2}\rangle {\left(L-{L}_{0}\right)}^{2}=5.13\times {10}^{4},\\ \displaystyle \frac{{L}_{i}}{L}\approx 0.24.\end{array}\end{eqnarray} \tag{ 27 }$$

From these relations we obtain

$$\begin{eqnarray}&&m=0.68,\end{eqnarray} \tag{ 28 }$$

$$\begin{eqnarray}&&\displaystyle \frac{{L}_{0}}{L}\approx 0.59,\end{eqnarray} \tag{ 29 }$$

$$\begin{eqnarray}&&\displaystyle \frac{{L}_{i}}{L}\approx 0.24.\end{eqnarray} \tag{ 30 }$$

Equation (28) indicates that the intergalactic turbulence follows the Kolmogorov scaling (m = 2/3). We note that the Kolmogorov scaling also applies to magnetized turbulence (Goldreich & Sridhar 1995; Lazarian & Vishniac 1999; Cho et al. 2002), which would not be distorted by the presence of intergalactic magnetic fields (Ryu et al. 2008).

By using Equation (30), we can also evaluate the driving scale of intergalactic turbulence, which is about one order of magnitude smaller than L. From DM_E distribution (see Figure 4(a)), where we subtract DM_G based on the NE2001 model (see above), we find the peak at ${\mathrm{DM}}_{{Ep}}\approx 306.3$ pc cm⁻³. The relation between the intergalactic component of DM, DM_IGM, and redshift z was derived by Deng & Zhang (2014). Its numerical value (Zhang 2018)

$$\begin{eqnarray}&&{\mathrm{DM}}_{\mathrm{IGM}}\approx 807\,\mathrm{pc}\,{\mathrm{cm}}^{-3}{\int }_{0}^{z}\displaystyle \frac{(1+z){dz}}{{\left[{{\rm{\Omega }}}_{m}{\left(1+z\right)}^{3}+{{\rm{\Omega }}}_{{\rm{\Lambda }}}\right]}^{\tfrac{1}{2}}}\end{eqnarray} \tag{ 31 }$$

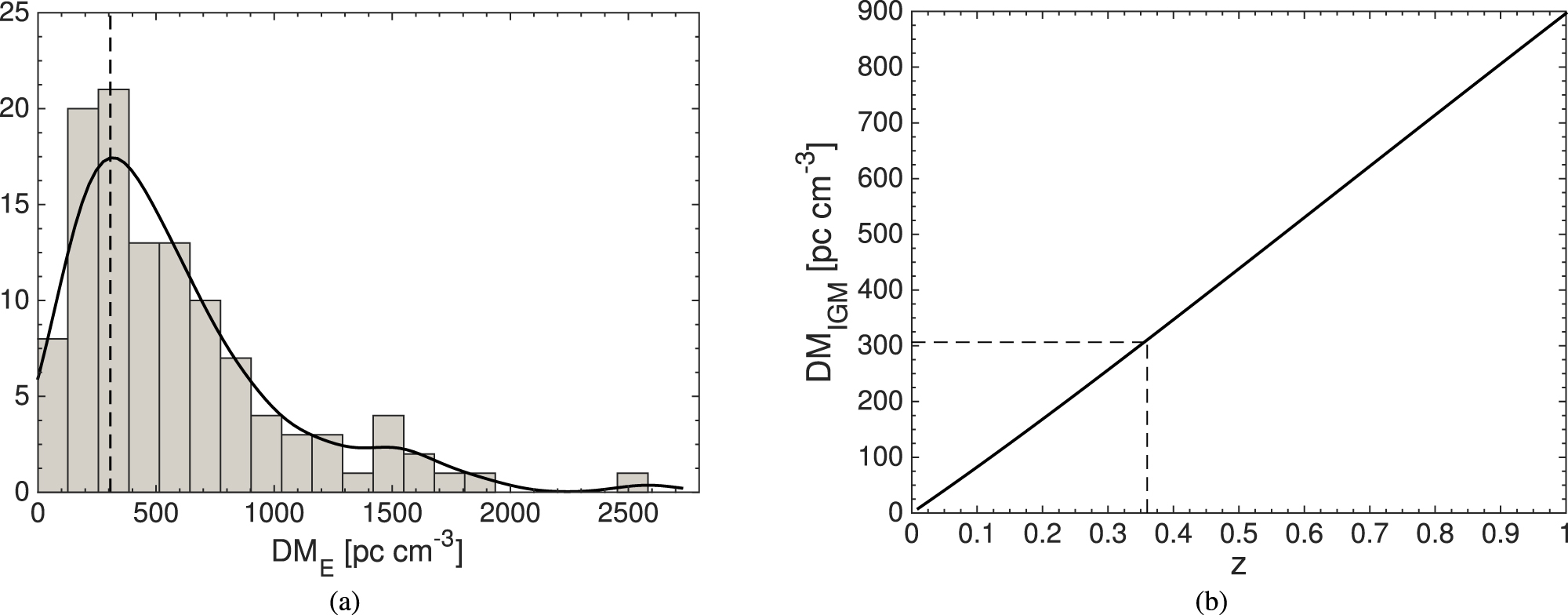

is shown in Figure 4(b), where ${{\rm{\Omega }}}_{m}=0.3089\pm 0.0062$ and ${{\rm{\Omega }}}_{{\rm{\Lambda }}}=0.6911\pm 0.0062$ are the matter density parameter and dark energy density parameter (Planck Collaboration et al. 2016). By assuming ${\mathrm{DM}}_{E}\approx {\mathrm{DM}}_{\mathrm{IGM}}$, we see that the redshift corresponding to DM_Ep is approximately 0.36. The LOS comoving distance for z = 0.36 is 1455 Mpc. We adopt L = 1455 Mpc as the size of the intergalactic turbulent volume sampled by most FRBs and obtain ${L}_{i}\approx 350$ Mpc (Equation (30)) as the estimated driving scale of intergalactic turbulence. This is of the same order of magnitude as the scale of galaxy superclusters (Oort 1983), indicative of a possible connection between the formation of superclusters and intergalactic turbulence.

Zoom In Zoom Out Reset image size

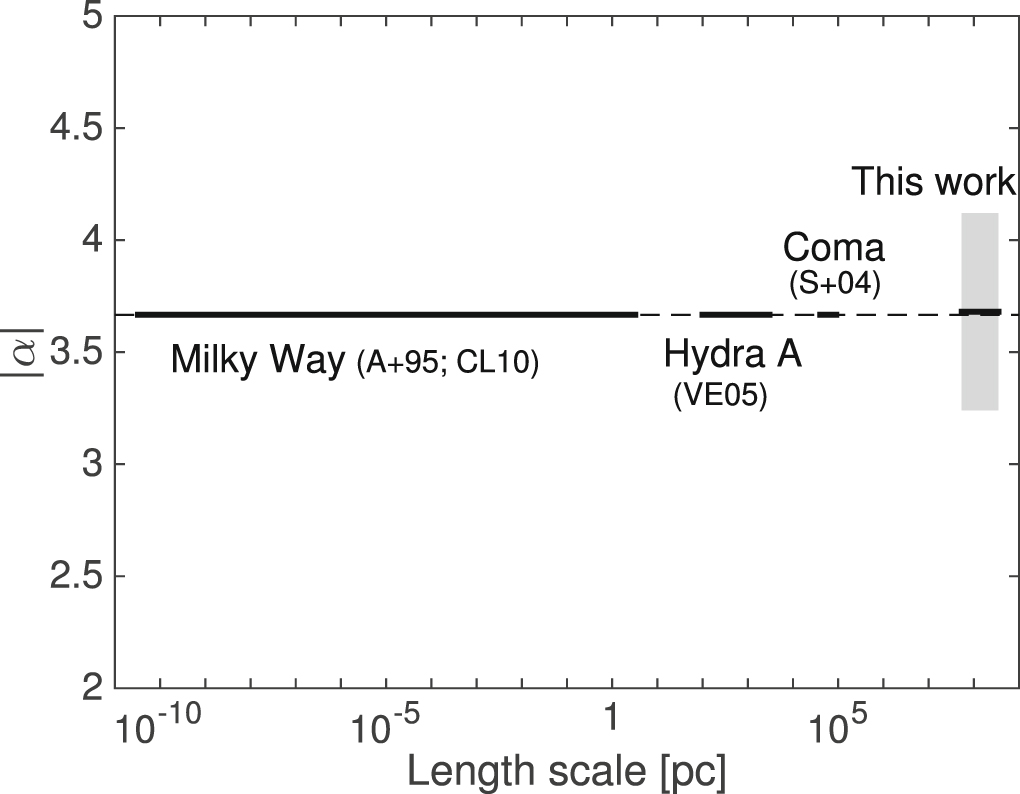

Our result can be treated as a tentative evidence for the Kolmogorov intergalactic turbulence up to the scale of the order of 100 Mpc. Upcoming observations of a larger population of FRBs will be used for further testing the result.

Despite its astrophysical and cosmological significance, the large-scale intergalactic turbulence and its statistical properties are poorly constrained by both observations and simulations. FRBs, with their cosmological distances and isotropic sky distribution, can serve as unique probes of the intergalactic turbulence. This work further demonstrates the universality of turbulence in the universe and provides information on the turbulence properties in the range of length scales beyond that of earlier measurements (see Figure 5).

Zoom In Zoom Out Reset image size

The SF of DMs of FRBs provides a direct measurement of the multiscale turbulent fluctuations in electron density in the turbulent volume that FRB signals travel through. As the FRB signal passes through its host galaxy, the IGM, and the Milky Way, its DM includes multiple components. The resulting SF of DMs also contains the Galactic and extragalactic components. The latter is mainly contributed by the IGM under the assumption of generally small host contributions to DMs (Shannon et al. 2018). The power-law behavior of SF at small angular separations is expected from the energy cascade of turbulence in the inertial range. As the turbulent fluctuations in different host galaxies are uncorrelated, this power-law feature of SF can only come from either the Galactic interstellar turbulence or the intergalactic turbulence. The SF saturates at large angular separations as the electron density fluctuations are uncorrelated on scales beyond the inertial range of turbulence.

It is well established and tested that the Galactic ISM is turbulent and the turbulence has a characteristic Kolmogorov power spectrum in the warm ionized medium (Armstrong et al. 1995; Han et al. 2004; Chepurnov & Lazarian 2010). By comparing the observationally measured SF with the theoretically modeled SF dominated by the Galactic ISM, although the Kolmogorov power-law scaling can be explained, the Galactic DMs are too small to account for the measured SF value. This is also confirmed by the minor difference between the SF of total DMs and that of extragalactic DMs with the Galactic contributions subtracted based on the NE2001 model.

The large amplitude and power-law behavior of SF lead to the conclusion that the large and correlated DM fluctuations originate from the IGM. The comparison with the measured SF suggests that the intergalactic turbulence has a Kolmogorov scaling and a large driving scale on the order of 100 Mpc corresponding to the transition angular separation where the SF saturates. The Kolmogorov velocity spectrum of cosmological turbulence up to the scale of superclusters (∼100 Mpc), which is the largest scale of inhomogeneities in the universe, is suggested by some cosmological models (e.g., Ozernoi 1978). However, it is known that the structure formation models involving primordial cosmic turbulence face some observational difficulties (Goldman & Canuto 1993), and the role of hydrodynamics beyond the scales of galaxy clusters remains an unsolved problem.

The current measured SF especially at small angular separations suffers from small source statistics and thus has a large uncertainty. Future observational tests with a larger population of FRBs are necessary for further studying the intergalactic turbulence and its cosmological implications on structure formation scenarios.

S.X. acknowledges the support for program number HST-HF2-51400.001-A provided by NASA through a grant from the Space Telescope Science Institute, which is operated by the Association of Universities for Research in Astronomy, Incorporated, under NASA contract NAS5-26555.
