Kinetic Scale Slow Solar Wind Turbulence in the Inner Heliosphere: Coexistence of Kinetic Alfvén Waves and Alfvén Ion Cyclotron Waves

Turbulence is thought to contribute significantly to particle heating in various space astrophysical plasmas (e.g., Tu & Marsch 1995; Bruno & Carbone 2013; Goldstein et al. 2015; Huang et al. 2017b; Andrés et al. 2019; Sahraoui et al. 2020). Because of the collisionless nature of the near-Earth space plasmas (e.g., the solar wind and the magnetosheath), energy dissipation into particle heating is thought to occur via a variety of processes that include resonant wave–particle interactions, e.g., Landau damping (e.g., Sahraoui et al. 2009; Chen et al. 2019), cyclotron damping (e.g., He et al. 2015; Woodham et al. 2018), stochastic heating (Chandran 2010; Bourouaine & Chandran 2013; Bowen et al. 2020a), and intermittent heating within coherent structures (e.g., Retinò et al. 2007; Sundkvist et al. 2007; Wang et al. 2013; Chasapis et al. 2015; Zhang et al. 2015; Huang et al. 2017a, 2017c, 2018). Identifying the dissipation processes at work requires unraveling the plasma wave modes dominating the cascade, in particular at the sub-ion scales.

At 1 au, the solar wind is generally categorized according to its velocity: fast solar wind (V_f ≥ 500 km s⁻¹) and slow solar wind (V_f < 500 km s⁻¹). Intensive research work has been dedicated to identifying the nature of the wave modes in the solar wind at 1 au. Kinetic Alfvén waves (KAWs) are characterized by a quasi-perpendicular wavevector (k_∥ ≪ k_⊥) and a right-handed polarization (e.g., Howes 2010; Sahraoui et al. 2012; Zhao et al. 2013, 2016). They have been identified at kinetic scales in the fast solar wind turbulence in several studies that used in situ data. For instance, Leamon et al. (1998) have analyzed solar wind magnetic fluctuations in the sub-ion (dissipation) range and found that the 2D component is consistent with KAWs propagating at large angles with respect to the background magnetic field. Bale et al. (2005) and Sahraoui et al. (2009) have established the wave dispersion based on the electric and magnetic field spectra, and found the wave dispersion around ion scales are consistent with KAWs. A subsequent work by Sahraoui et al. (2010) provided direct evidence of the dominance of the of KAW mode at the sub-ion scales using the multipoint measurement technique, namely, the k-filtering technique, on the Cluster data, which allowed them to obtain the 3D dispersion relation that agreed well with the theoretical predictions for KAWs. Chen et al. (2012) used the spectral indices of the magnetic field and electron density at the kinetic scales to identify the nature of solar wind turbulence, and were found to be consistent with the numerical simulation results of KAW turbulence (e.g., Howes et al. 2011). He et al. (2011, 2012a, 2012b, 2015) used the reduced (fluctuating) magnetic helicity (Matthaeus & Goldstein 1982), estimated as a function of the angle θ_BV (or θ_RB) between the direction of the local mean magnetic field and the solar wind velocity (or the radial direction), and showed that a major population of magnetic fluctuations in the dissipation range has quasi-perpendicular angles (relative to the local mean magnetic field) and right-handed polarization, consistent with quasi-perpendicular KAWs. Subsequent studies by Podesta & Gary (2011), Podesta & TenBarge (2012), Podesta (2013), and Bruno & Telloni (2015) confirmed those findings.

On the other hand, a minor component of the fast and slow solar wind turbulence was found to be left-handed polarization and has parallel propagation. This mode is known as the Alfvén ion cyclotron waves (ACWs), electromagnetic ion cyclotron waves, or ion cyclotron waves (ICWs). Jian et al. (2009, 2010) have shown sporadic observations of ACWs with short time intervals and found that the ACWs have a preference for radial field alignment. He et al. (2011, 2012a, 2015) showed the existence of ACWs in the fast solar wind when the velocity and magnetic field were quasi-aligned (θ_BV < 30°; see also Telloni et al. 2019). Recently, Bowen et al. (2020b) have used the observations from the Parker Solar Probe (PSP) mission to investigate ion-scale electromagnetic waves in the inner heliosphere, and revealed that 30%–50% of radial field intervals have parallel/antiparallel propagation and circularly polarized waves.

The slow solar wind has low-amplitude magnetic fluctuations compared to the fast solar wind at 1 au (e.g., Dasso et al. 2005; Bruno et al. 2014). D'Amicis & Bruno (2015) have shown two different kinds of slow solar wind: one coming from coronal streams or active regions with low Alfvénicity, and the other one from the boundary of coronal holes with high Alfvénicity. Further, D'Amicis et al. (2019) observed Alfvénic slow wind at 1 au during a maximum of the solar activity, and found it be more similar to fast solar wind than to typical non-Alfvénic slow wind. Thus, they suggested that the Alfvénic slow wind and fast solar wind probably have a similar solar origin. On the other hand, it is found that, at solar maximum, 34% of the slow solar wind streams (V_f < 450 km s⁻¹) with quiet Sun as their source region are featured with high Alfvénicity (∣σ_c∣ > 0.7; Wang et al. 2019). Accordingly, Wang et al. (2019) suggested that the slow solar wind streams from the quiet-Sun region, like their counterparts from the coronal hole region, can directly flow outward along the open field lines. A similar scenario for the origin of solar wind as emerging from the quiet-Sun region had already been proposed by He et al. (2007). Recently, Alfvénic slow wind has also been observed in the inner heliosphere at 0.3 au during a minimum of solar activity using Helios data (e.g., Stansby et al. 2019, 2020; Perrone et al. 2020). Moreover, Bale et al. (2019) have demonstrated that the slow Alfvénic solar wind from 0.17 to 0.25 au measured during PSP Encounter 1 emerges from a small equatorial coronal hole. Moreover, Bale et al. (2019) have shown the coexistence of electron and ion microinstabilities in this slow solar wind.

Despite a lot of progress in understanding the slow solar wind physics, the nature of the wave modes dominating the turbulence cascade is still an unsettled problem, especially in the inner heliosphere. In the present study, using NASA's PSP observations at 0.18 au, we bring new insight to this problem. Our main finding is the coexistence of KAWs and ACWs for highly Alfvénic slow solar winds.

In the present study, the solar wind proton moments were measured by the Solar Wind Electron, Alpha, Proton (SWEAP) experiment on PSP with sampling frequencies between 1 Sa/cycle and 4 Sa/cycle, where 1 cycle is approximately equal to 0.873 s (Kasper et al. 2016; Case et al. 2020). The magnetic field data were measured at the sampling frequency of 256 Sa/cycle (∼293 samples s⁻¹) by the FIELDS flux-gate magnetometer (Bale et al. 2016) for the Encounter mode. All vector data are presented in the radial tangential normal coordinate system.

The normalized (fluctuating) reduced magnetic helicity (σ_m) is useful to diagnose polarization characteristics of solar wind turbulence (Matthaeus & Goldstein 1982), which can be linked to the classical wave polarization of the fluctuations (see, e.g., Howes & Quataert 2010; Meyrand & Galtier 2012; Klein et al. 2014). Here we used the method developed in He et al. (2011, 2015), where the σ_m spectra are estimated as function of angle θ_RB to account for the local (in time) variations of the mean magnetic field.

Due to fast computation speed of Fourier transform, a windowed Fourier transform is performed for the magnetic field to obtain a time–frequency decomposition of the power spectral densities (PSDs; (t, τ)) of the magnetic field and the normalized reduced magnetic helicity σ_m (t, τ) ranging from −1 to +1, where t and τ are the measurement time and temporal scale, respectively. Fitting the spectral densities at different times and temporal scales, the time–frequency spectral indices (or slope; (t, τ)) can be obtained. The local mean magnetic field B₀(t, τ) is calculated by Equation (22) from Podesta (2009), so one can gain the angle θ_RB (t, τ) between the radial direction and the local mean magnetic field (ranging from 0° to 180°).

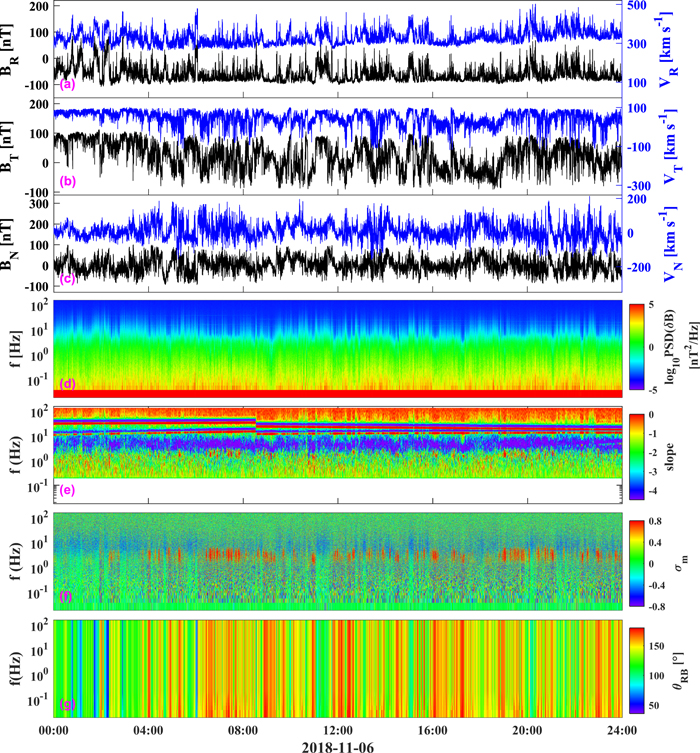

Figure 1 shows the PSP spacecraft observations on 2018 November 6 in the perihelion at 0.18 au. The average plasma parameters are ∣B∣ ∼ 89 nT, the proton density n_p ∼ 315 cm⁻³, and the proton temperature T_p ∼ 36 eV, yielding the Alfvén speed V_A ∼ 109 km s⁻¹, the proton inertial length d_i ∼ 13 km, and the proton gyroradius ρ_i ∼ 9.7 km. One can see that the magnetic field is well correlated with the proton velocity (correlation coefficient >0.82, in Figures 1(a)–(c)), indicating highly Alfvénic fluctuations in this time interval (Kasper et al. 2019). The mean V_R is about 360 km s⁻¹, which is smaller than 500 km s⁻¹, indicating that PSP encountered the slow solar wind. B_R is mostly negative (Figure 1(a)), implying that PSP was in an inward magnetic sector. The magnetic field has large-amplitude fluctuations compared to typical slow solar wind (e.g., Bruno et al. 2014). The PSD of the magnetic field shows a scaling close to the Kolmogorov spectrum in the lowest frequency range (with some fluctuations due the limited small size window used to fit the local slopes), before steepening to ∼−4 above the spectral break, then flattening for frequencies >20 Hz due to reaching the noise floor of the instrument (Figure 1(d)). The red and blue bars at higher frequencies are due to interference from the spacecraft (reaction wheels signal). The magnetic helicity σ_m (t, τ) is illustrated in Figure 1(f). It varies randomly at low frequency, but shows a coherent pattern at high frequencies: often positive around 3 Hz and permanently negative around 7 Hz, corresponding to the steep spectra in Figures 1(d)–(e). The angles between the radial direction and the local mean magnetic field direction θ_RB are shown in Figure 1(g). It is found that the angle θ_RB varies in time over the range from 40° to 180°, while it does not change much in frequency, which indicates that the large-scale magnetic field dictates the behavior of the radial angle at all scales. This does not contradict the observations that the fluctuations, and thus the vector orientation, are random (i.e., noise) at f > 20 Hz so long as the amplitudes of the high-frequency fluctuations are much smaller compared to the static (large-scale) field.

Zoom In Zoom Out Reset image size

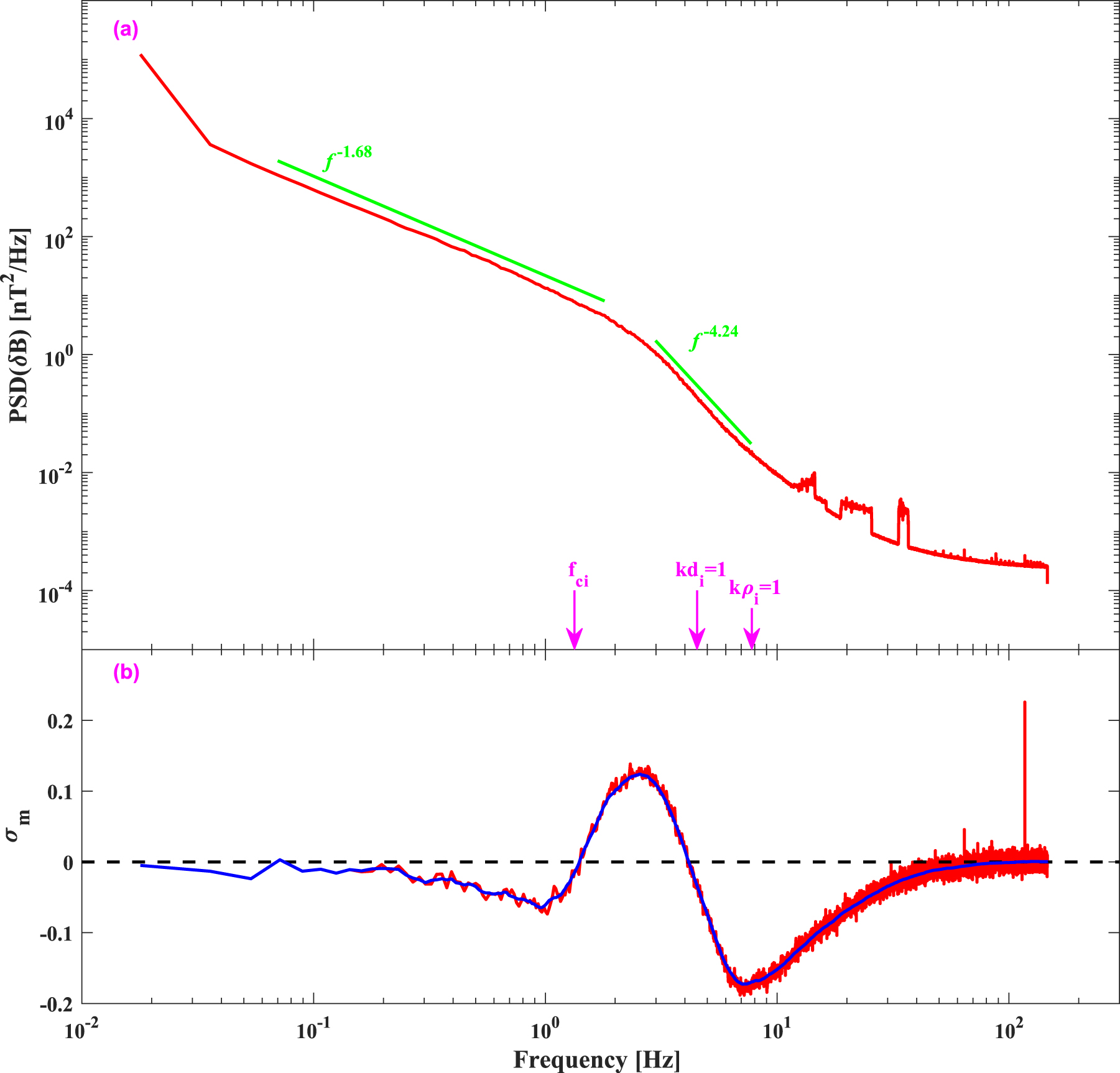

Figure 2 displays the time-averaged (a) PSD of the magnetic field and (b) the magnetic helicity σ_m as a function of the frequency. One can identify two distinct ranges from the PSD: (i) a Kolmogorov-like inertial range from 0.04 Hz to ∼1 Hz, i.e., at the MHD scales; (ii) a transition range around ion scales with a steep slope (up to −4.24). The time-averaged σ_m has very small negative values (close to zero) at MHD scales, consistent with previous observations (e.g., Goldstein et al. 1994; He et al. 2011; Podesta 2013). It is interesting that σ_m changes its polarity at 1.4 Hz, and then becomes negative above 4.2 Hz. The sign change of σ_m contrasts with previous observations of net (nonzero) right-handed polarity, which has been explained by the damping of left-handed fluctuations by cyclotron resonance at ion scales, while whistler or KAW waves survive and carry the turbulent cascade at smaller scales (e.g., Goldstein et al. 1994; Howes & Quataert 2010; He et al. 2011; Podesta 2013; Klein et al. 2014; Woodham et al. 2019).

Zoom In Zoom Out Reset image size

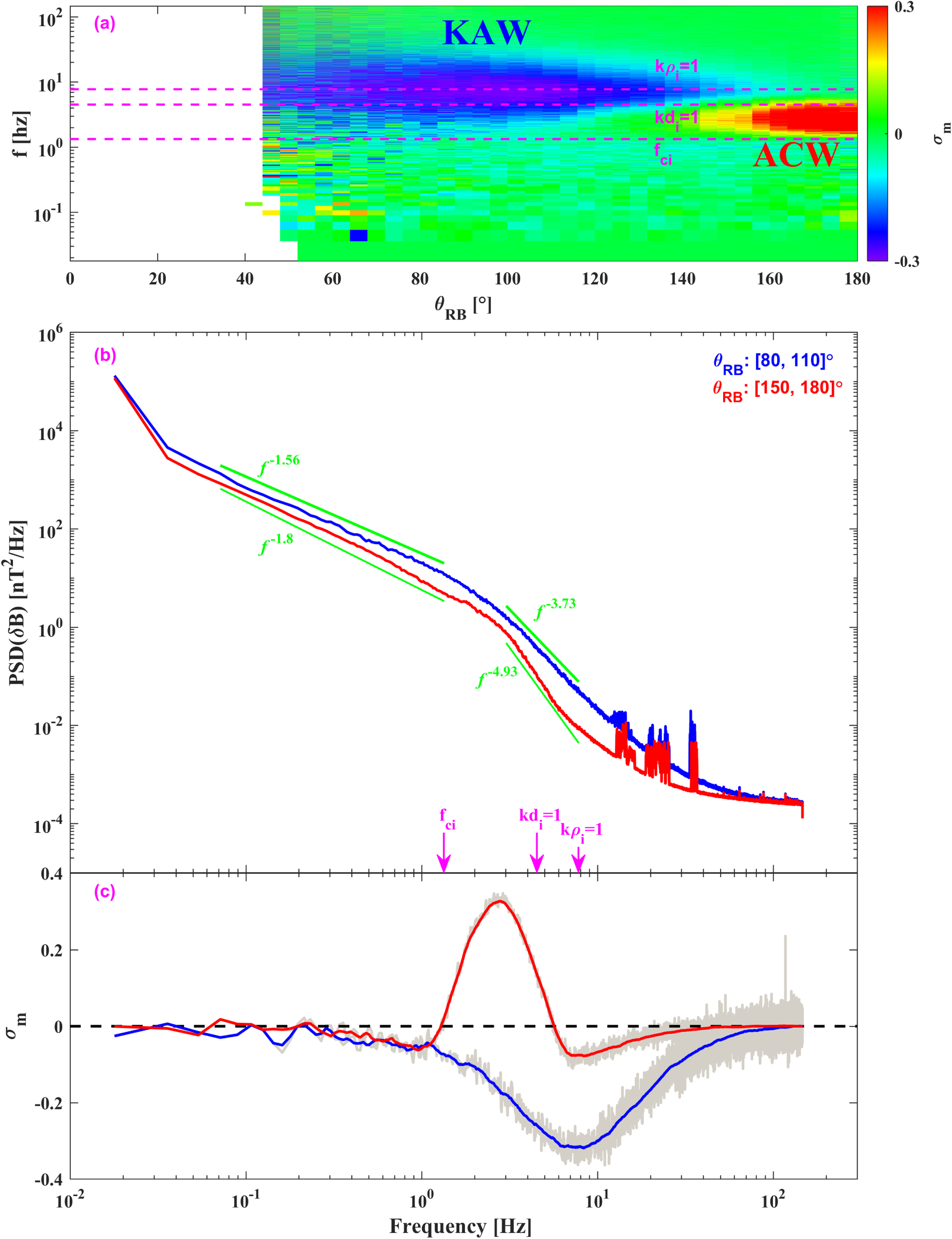

Based on the angle θ_RB (t, τ) and the magnetic helicity σ_m (t, τ), we constructed the joint distribution σ_m (θ_RB,τ) in Figure 3(a). It can be clearly seen that there are two populations in σ_m(θ_RB,τ): the first population has negative magnetic helicity corresponding to θ_RB ∈ [60° 130°] and frequencies ∈ [2.1, 26] Hz; the second population has positive magnetic helicity corresponding θ_RB ∈ [150°, 180°] and frequencies ∈ [1.4, 4.9] Hz. For an inward-oriented background magnetic field (namely, inward magnetic sector with B_R < 0), a left-handed polarized wave mode has positive magnetic helicity, while a right-handed polarized wave mode has negative magnetic helicity (e.g., He et al. 2011; Bruno & Telloni 2015). The magnetic fluctuations with very small or large θ_RB (i.e., close to 0° or 180°) correspond to waves propagating quasi-parallel or quasi-antiparallel to the mean magnetic field, while the magnetic fluctuations with the intermediate θ_RB (i.e., close to 90°) correspond to waves propagating quasi-perpendicular to the mean magnetic field (e.g., He et al. 2011, 2015). Therefore, the magnetic fluctuations with positive helicity at low frequency and around 180° can be identified as quasi-parallel left-handed ACWs, while the magnetic fluctuations with negative helicity at high frequency and around 90° are likely to be quasi-perpendicular right-handed KAWs.

Zoom In Zoom Out Reset image size

Finally, the magnetic trace power spectra and magnetic helicity σ_m for two angular ranges, i.e., 80° < θ_RB < 100° and 150° < θ_RB < 180°, are shown in Figures 3(b) and (c). The PSD for quasi-perpendicular angles (blue line) is slightly higher than the one for quasi-parallel angles (red line). The PSD in the perpendicular direction at low frequency (MHD scales) has a scaling close to the Kolmogorov spectrum, while the PSD in the (anti)parallel direction is steeper (f^−1.8). Both show a spectral break around 1.7 Hz. At higher frequencies, the PSD in the (anti)parallel direction shows a steeper transition range with a slope close to −5, in comparison to −3.73 of in the perpendicular direction. We note a slight pump between 1.7 and 4.6 Hz in the PSD for the quasi-(anti)parallel direction, corresponding to the frequency range where positive σ_m is observed, which might indicate that the bump is caused by the ACWs (Figure 3(c)).

We investigated the nature of the kinetic wave modes in the slow solar wind using data from NASA's PSP spacecraft at 0.18 au. To the best of our knowledge, this is the first time that the coexistence of KAWs and ACWs in the slow wind in the inner heliosphere is revealed.

The coexistence of KAWs and ACWs in the slow solar wind is quite similar to previous observations in the fast solar wind at 1 au (e.g., He et al. 2011, 2015; Podesta & TenBarge 2012; Podesta 2013), but is inconsistent with other observations in the slow solar wind at 1 au (Bruno & Telloni 2015), which showed the disappearance of the ion cyclotron signature of the magnetic helicity followed by a more gradual disappearance (or weakness) of KAWs with the decrease of solar wind speed. Those results were later confirmed by Woodham et al. (2018). If one assumes that the ACWs appear in the slow solar wind at 0.18 au but disappear at 1 au, then that would imply that the ACWs heat the plasma protons via cyclotron resonance during the outbound traveling from the inner heliosphere to the outer heliosphere, until they vanish at 1 au. However, the difference between the observation of ACWs at 0.18 and 1 au can be due to difference in the Alfvénicity of fluctuations: the slow solar wind in Bruno & Telloni (2015) has low Alfvénic fluctuations, but in our case the slow solar wind is highly Alfvénic. Another possible explanation may come from the possible generation mechanism of the ACWs: because of the existence of a drift of alpha particles with respect to the protons, the proton temperature anisotropy instability that operates when T_p⊥/T_p∥ > 1 preferentially generates outward propagating ion cyclotron waves (Podesta & Gary 2011; Woodham et al. 2019). This condition might be met more preferentially in the inner heliosphere than at 1 au. A future study based on the radial the evolution of both the proton parallel and perpendicular temperatures should help in deciding between the different possible explanations.

Another open question is how important are the ACWs in the overall dynamics of the turbulence cascade at the sub-ion scale. We estimated that about 50% of time the ACWs were observed in our (1 day) data. However, this should be balanced by the level of power that is carried by the parallel component of the fluctuations (see Figure 3(b)). The integral power densities of the frequency range corresponding to the positive magnetic helicity for both KAWs and ACWs are estimated. It is found that the integral power of KAWs (dB²(KAW) ∼ 10.98 nT²) is higher than the power of ACWs (dB²(ACW) ∼ 4.52 nT², i.e., ∼41% dB²(KAW)), implying that the ACWs play a nonnegligible role in the slow solar wind.

One of the important first results from PSP is the ubiquity of the so-called "switchbacks," which are probably large Alfvén waves (Kasper et al. 2019). Although the switchback does not directly affect the calculation of the magnetic helicity (i.e., it has no dependence on the sign of B_R—see, e.g., Equation (1) in He et al. 2011), it may however affect the determination of the wave polarization from the magnetic helicity, where the sign of B_R enters into play (Howes 2010; He et al. 2011). Therefore, if B_R changes sign (or, equivalently, θ_RB changes from <90° to >90° or vice versa) on short timescales corresponding to those where the change of polarity occurs then this may affect the results of the study. However, as can be seen in Figure 1(g) and discussed above, the angle θ_RB does not change significantly in the frequency range ∼0.1–20 Hz in which we reported the change of polarity, but it may change on larger timescales. This observation is in agreement with those of Dudok de Wit et al. (2020), who analyzed a larger data set (that included our time interval) and found that switchback affect larger scales that belong to the inertial range (or even to the 1/f range). A similar finding is reported concerning the cross helicity (McManus et al. 2020). The fact that we observe two wave modes with distinct polarities at high frequency, which extend over relatively broad frequency bands, is an argument that would exclude a possible role of the switchbacks.

A final key point that is worth discussing here is a possible ambiguity in the interpretation of the spectral slopes observed in Figure 3(b) for the (anti)parallel and perpendicular spectra that might stem from the sampling direction of the fluctuation due to the flow motion (w.r.t. the spacecraft). Indeed, the critical balance (CB) conjecture predicts an anisotropic scaling of the for Alfvénic turbulence: l_∥ ∝ ${l}_{\perp }^{2/3}$ at MHD scales and l_∥ ∝ ${l}_{\perp }^{1/3}$ at the sub-ion scales (Goldreich & Sridhar 1995; Schekochihin et al. 2009). These scaling results in reduced spectra for the magnetic fluctuations are given by δB² ∝ ${k}_{\parallel }^{-2}$ at MHD scales and δB² ∝ ${k}_{\parallel }^{-5}$ at sub-ion scales. Using the Taylor hypothesis and considering that θ_RB ∼ θ_VB, the parallel spectrum of Figure 3(b) translates into δB² ∝ ${k}_{\parallel }^{-1.8}$ and δB² ∝ ${k}_{\parallel }^{-4.93}$ for MHD and sub-ion scales, respectively. This estimation is a good accordance with the CB prediction (see Horbury et al. 2008 and Podesta 2009 for a similar conclusion regarding MHD scale turbulence in the fast solar wind). This would mean that the spectral features of Figure 3(b) can be fully explained by a simple sampling effect of Alfvénic and KAW turbulence and no need for evoking the ACWs. However, the sole presence of KAW cannot explain the change of polarity observed in σ_m around the ion scales. Further insight can be gained by examining the range of parallel scales involved in Figures 3(b)–(c). The ACWs seem to be observed within the frequency range [1.4, 4.9] Hz. Using the Taylor hypothesis this translates into the scale range k_∥d_i ∈ [0.4, 1.2], given V_f ∼ V_R ∼ 360 km s⁻¹ and d_i ∼ 13 km. This range of scales corresponds to those where the cyclotron damping is expected to be effective (Gary & Borovsky 2004). At these scales, the KAW turbulence is expected to have k_∥ρ_i ≪ 1 at k_⊥ρ_i ∼ 1 (Sahraoui et al. 2010, 2013). This argument supports the scenario of ACW to explain the polarity near k_∥d_i ∼ 1.

On the other hand, the scaling of PSD in the perpendicular direction δB² ∝ ${k}_{\perp }^{-1.56}$ at MHD scales and δB² ∝ ${k}_{\perp }^{-3.73}$ at sub-ion scales agree with the CB prediction at MHD scales (${k}_{\perp }^{-5/3}$) but is steeper than that in sub-ion scales (${k}_{\perp }^{-7/3}$). This steeping might be caused by a dissipation of part of the KAWs into ion heating via Landau damping as suggested in Sahraoui et al. (2010) and shown in numerical simulations of Howes et al. (2011) and Kobayashi et al. (2017). Note that theories and numerical simulations of incompressible Hall-MHD turbulence predicts a scaling k^−11/3 for the left-handed component (ACW) and k^−7/3 for right-handed component (KAW) of the turbulence (Meyrand & Galtier 2012), although that model does not capture all aspects of the ACW and KAW modes, which are inherently kinetic in nature.
