Clumpy AGN Outflows due to Thermal Instability

, , , and

Published 2020 April 21 © 2020. The American Astronomical Society. All rights reserved.
, , Citation Randall C. Dannen et al 2020 ApJL 893 L34 DOI 10.3847/2041-8213/ab87a5

Download Article PDF
DownloadArticle ePub

You need an eReader or compatible software to experience the benefits of the ePub3 file format.

2041-8205/893/2/L34

Abstract

One of the main mechanisms that could drive mass outflows on parsec scales in active galactic nuclei (AGN) is thermal driving. The same X-rays that ionize and heat the plasma are also expected to make it thermally unstable. Indeed, it has been proposed that the observed clumpiness in AGN winds is caused by thermal instability (TI). While many studies employing time-dependent numerical simulations of AGN outflows have included the necessary physics for TI, none have so far managed to produce clumpiness. Here we present the first such clumpy wind simulations in 1D and 2D, obtained by simulating parsec-scale outflows irradiated by an AGN. By combining an analysis of our extensive parameter survey with physical arguments, we show that the lack of clumps in previous numerical models can be attributed to the following three effects: (i) insufficient radiative heating or other physical processes that prevent the outflowing gas from entering the TI zone; (ii) the stabilizing effect of stretching (due to rapid radial acceleration) in cases where the gas enters the TI zone; and (iii) a flow speed effect: in circumstances where stretching is inefficient, the flow can still be so fast that it passes through the TI zone too quickly for perturbations to grow. In addition to these considerations, we also find that a necessary condition to trigger TI in an outflow is for the pressure ionization parameter to decrease along a streamline once gas enters a TI zone.

Export citation and abstract BibTeX RIS

1. Introduction

Thermal instability (TI; Field 1965) was long ago recognized as a viable mechanism for producing multiple phases in active galactic nuclei (AGN) winds (e.g., Davidson & Netzer 1979; Krolik & Vrtilek 1984; Shlosman et al. 1985). Such winds are observed, for example, in some Seyfert galaxies, where the ultraviolet (UV) and X-ray absorbers have similar velocities, strongly suggesting that very different ions are nearly cospatial and therefore that different temperature regions coexist (e.g., Shields & Hamann 1997; Crenshaw et al. 1999; Gabel et al. 2003; Longinotti et al. 2013; Ebrero et al. 2016; Fu et al. 2017; Mehdipour et al. 2017, and references therein).

While TI is well understood in a local approximation (e.g., Balbus 1995; Waters & Proga 2019), it has proven challenging to quantitatively model clump formation in a dynamic flow. Only in recent years has it become clear how the in situ production of multiphase gas can be triggered using global time-dependent hydrodynamical simulations—and only in the context of accretion flows (Barai et al. 2012; Gaspari et al. 2013; Mościbrodzka & Proga 2013, hereafter MP13; Takeuchi et al. 2013) or stratified atmospheres (e.g., McCourt et al. 2012; Sharma et al. 2012). In an outflow regime, previous work has focused on highlighting the importance of considering the effects of clumpiness, but only on a qualitative basis (e.g., Nayakshin 2014; Elvis 2017).

Here, we present the first global simulations of an outflow that is multiphase due to TI. Specifically, we show that there exists a range of the so-called hydrodynamic escape parameter (HEP), small yet relevant, for which the outflow can develop regions with significant over- and under-densities and that the over-densities can survive their acceleration over a relatively large distance. We identify the physical effects that contribute to making the HEP range small, and thus explain why a clumpy outflow has not been identified in any previously published results from the simulations of thermally driven outflows, neither in 1D nor 2D simulations (e.g., Woods et al. 1996; Proga & Kallman 2002; Luketic et al. 2010; Higginbottom & Proga 2015; Dyda & Dannen 2017; Waters & Proga 2018). We detail our numerical methods in Section 2. We present the results from our calculations in Section 3 and a discussion in Section 4.

2. Numerical Methods

We employ the magnetohydrodynamics code Athena++ J. M. Stone et al. (2020, in preparation) to solve the equations of non-adiabatic gas dynamics

Equation (1)

Equation (2)

Equation (3)

where ρ is the fluid density, ${\boldsymbol{v}}$ is the fluid velocity, ${\boldsymbol{P}}\,=\,p\,{\boldsymbol{I}}$ with p the gas pressure and ${\boldsymbol{I}}$ the unit tensor, Φ = −GMBH/r is the gravitational potential due to a black hole with mass MBH, $E=\rho { \mathcal E }+1/2\rho | {\boldsymbol{v}}{| }^{2}$ is the total energy with ${ \mathcal E }={\left(\gamma -1\right)}^{-1}p/\rho $ the gas internal energy, ${{\boldsymbol{F}}}^{\mathrm{rad}}={F}^{\mathrm{rad}}\,\hat{{\boldsymbol{r}}}$ is the radiation force, and ${ \mathcal L }$ is the net cooling rate. All of our calculations assume γ = 5/3. Although we have computed models with the radiation force due to both electron scattering and line driving, in this Letter we present only models with the force due to electron scattering, i.e., Frad = GMBHρ Γ/r2, where Γ = L/LEdd is the Eddington fraction. Irradiation is thus assumed to be due to a point source, as is appropriate when considering parsec scales in relation to the X-ray coronae and the UV-emitting regions of AGN disks.

For the unobscured AGN spectral energy distribution (SED) of NGC 5548 from Mehdipour et al. (2015), shown in the top panel of Figure 1, D17 have tabulated the net cooling rate ${ \mathcal L }={ \mathcal L }(T,\xi )$, which is function of the gas temperature, T, and the ionization parameter, defined as ξ = LX /nr2 where LX is the luminosity integrated between 1–1000 Ry, and $n={\left(\mu {m}_{p}\right)}^{-1}\rho $ is the gas number density (with mp the proton mass; we set μ = 0.6 in this work). The ξ dependence on distance plays an important role in determining the thermal stability of the flow, as discussed in detail in Section 4. Also, the ratio between the hard and soft X-ray energy bands is an important characteristic affecting properties of TI (e.g., Kallman & McCray 1982; Krolik 1999; Mehdipour et al. 2015; Dyda & Dannen 2017).

Figure 1.

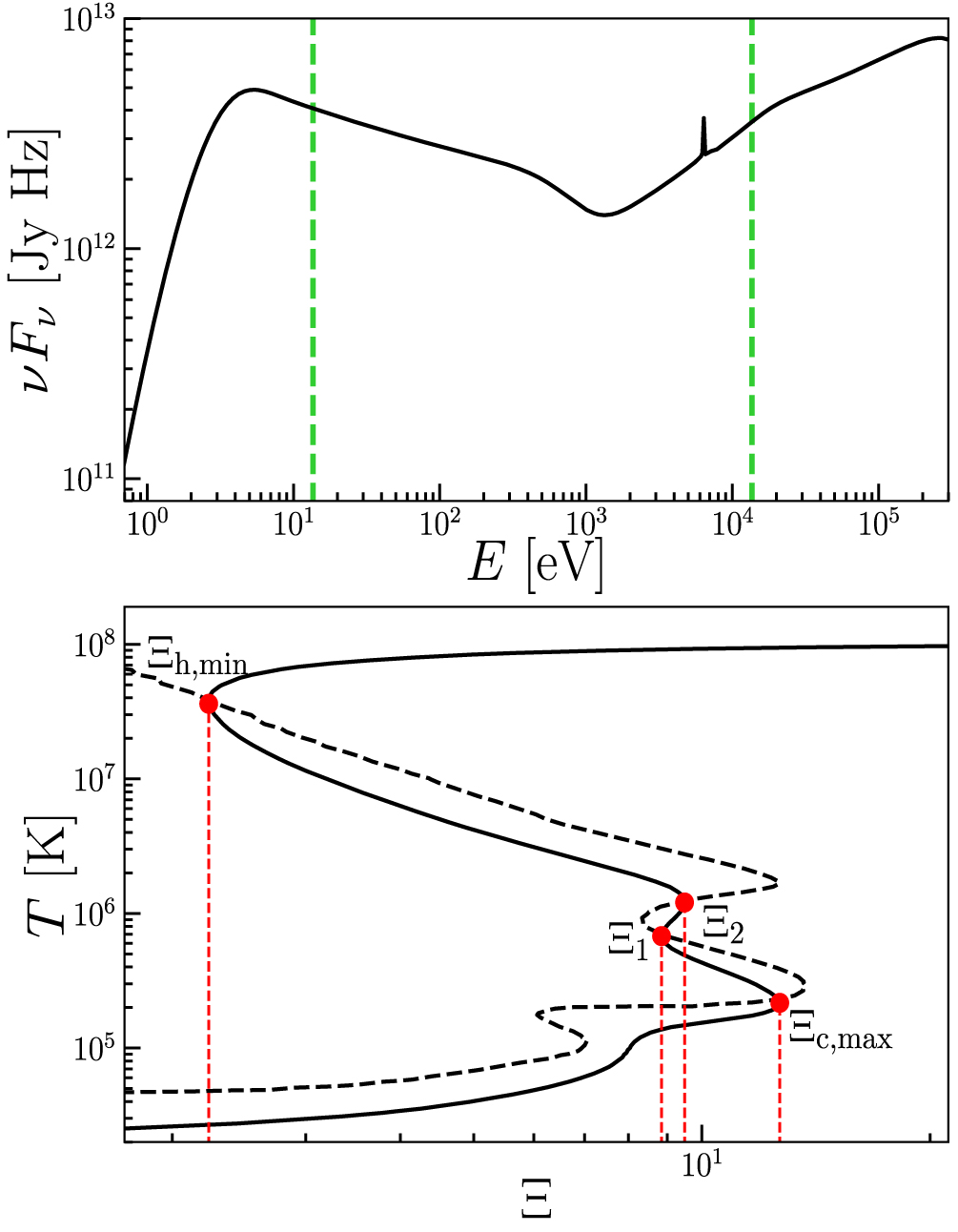

Figure 1. Top panel: SED intrinsic to NGC 5548, as determined by Mehdipour et al. (2015). The energy range used to define ξ is marked by the two vertical lines. This SED is relatively flat and has LX/L ≈ 0.36 and mean photon energy $\langle h\nu \rangle ={k}_{{\rm{B}}}{T}_{{\rm{X}}}=34.8\,\mathrm{keV}$ (corresponding to Compton temperature ${T}_{{\rm{C}}}={T}_{{\rm{X}}}/4=1.01\times {10}^{8}$ K). Bottom panel: associated S-curve and Balbus contour (the solid and dashed lines, respectively). Red dots mark the points ${{\rm{\Xi }}}_{{\rm{c}},\max }$, Ξ1, Ξ2, and ${{\rm{\Xi }}}_{{\rm{h}},\min }$. Note that ${{\rm{\Xi }}}_{{\rm{c}},\max }$ (${{\rm{\Xi }}}_{{\rm{h}},\min }$) denotes the last (first) stable point on the "cold phase branch" ("Compton branch") of the S-curve. The SED-dependent conversion to the other common ionization parameter $U=({{\rm{\Phi }}}_{{\rm{H}}}/c)/n$ (with ΦH the number density of H i ionizing photons) is U ≈ ξ/42, so $\mathrm{log}({{\rm{\Xi }}}_{{\rm{c}},\max })=1.10$, $\mathrm{log}({\xi }_{{\rm{c}},\max })=2.15$, and $\mathrm{log}({U}_{{\rm{c}},\max })=0.53$.

Standard image High-resolution image

The solid line in the bottom panel of Figure 1 is the S-curve corresponding to this SED, i.e., the contour where ${ \mathcal L }(T,{\rm{\Xi }})=0$, where ${\rm{\Xi }}\equiv {p}_{\mathrm{rad}}/p=\xi /(4\pi {{ck}}_{{\rm{B}}}T)$ is the pressure ionization parameter, with prad the radiation pressure (equal to FX/c in our models). For the adopted SED, gas is unstable by the isobaric criterion for local TI in the two zones where the slope of the S-curve is negative (these are the locations where Field's criterion for TI, ${[\partial { \mathcal L }/\partial T]}_{p}\lt 0$, is satisfied). Gas is actually thermally unstable everywhere left of the dashed line (hereafter referred to as the Balbus contour), as this region of parameter space satisfies Balbus' generalized criterion for TI, ${[\partial ({ \mathcal L }/T)/\partial T]}_{p}\lt 0$ (Balbus 1986). Points corresponding to the maximum value of Ξ on the cold stable branch of the S-curve (i.e., for $\mathrm{log}\,{{\rm{\Xi }}}_{{\rm{c}},\max }=1.10$) are dynamically the most significant, as they mark the entry into a cloud formation zone and dramatic changes in the flow profiles can occur there.

We present the results of 1D models run at both medium and high resolution, all using a uniform grid spacing $[{\rm{\Delta }}r\approx ({r}_{\mathrm{out}}-{r}_{0})/{N}_{r}$]. The standard resolution runs (Models A-1x, B-1x, C-1x, and D-1x) have Nr = 552, chosen such that gradient scale heights ${\lambda }_{q}\equiv q/| {dq}/{dr}| $ (where q is any hydrodynamic variable) are adequately resolved with λqr ≈ 3 for r ≲ 1.1 r0 and λqr > 10 at all other points in the wind except in the vicinity of the location where ${\rm{\Xi }}={{\rm{\Xi }}}_{c,\max }$, where this ratio dips to about 1. The high-resolution runs (Models A-8x, B-8x, C-8x, and D-8x) have Nr = 8 × 552, nearly an order of magnitude higher resolution everywhere. The other relevant length scale to resolve is that of the clumps, which have a size on the order of the local cooling length scale ${\lambda }_{\mathrm{cool}}\equiv {c}_{s}\,{t}_{\mathrm{cool}}$, where ${t}_{\mathrm{cool}}={ \mathcal E }{\left(n{ \mathcal C }/{m}_{p}\right)}^{-1}$ is the cooling time while ${ \mathcal C }$ is the cooling rate in units of $\mathrm{erg}\,{\mathrm{cm}}^{3}\,{{\rm{s}}}^{-1}$. For γ = 5/3,

Equation (4)

where ${T}_{5}=T/{10}^{5}\,{\rm{K}}$, ${n}_{3}=n/{10}^{3}\,{\mathrm{cm}}^{-3}$, ${{ \mathcal C }}_{23}={ \mathcal C }/{10}^{-23}\,\mathrm{erg}\,{\mathrm{cm}}^{3}\,{{\rm{s}}}^{-1}$, and ${T}_{5}={n}_{3}={C}_{23}=1$ are characteristic values of the clumps. With Δr ≈ 2 × 1015 cm for our "-1x" runs, this length scale is adequately resolved.

We apply outflowing boundary conditions at the inner and outer radii with the density fixed at the innermost active grid point to the value of ${\rho }_{0}$ in Table 1. The initial conditions are a simple expanding atmosphere with $\rho ={\rho }_{0}\,{\left(r/{r}_{0}\right)}^{-2}$ and a β-law velocity profile, $v={v}_{\mathrm{esc}}\sqrt{1-{r}_{0}/r}$, where the "0" subscript is used to denote values at the inner radius of the computational domain, r0. The pressure profile is set according to the temperature, chosen so that the gas lies along the S-curve, having a value Ξ0 at r0 (see Section 3).

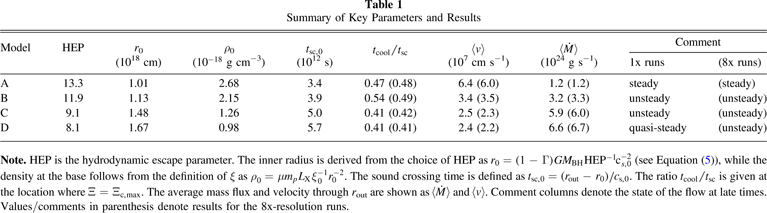

Table 1.  Summary of Key Parameters and Results

Model HEP r0 ρ0 ${t}_{\mathrm{sc},0}$ ${t}_{\mathrm{cool}}/{t}_{\mathrm{sc}}$ $\langle v\rangle $ $\langle \dot{M}\rangle $ Comment
    (1018 cm) $({10}^{-18}$ g cm−3) (1012 s)   (107 cm s−1) (1024 g s−1) 1x runs (8x runs)
A 13.3 1.01 2.68 3.4 0.47 (0.48) 6.4 (6.0) 1.2 (1.2) steady (steady)
B 11.9 1.13 2.15 3.9 0.54 (0.49) 3.4 (3.5) 3.2 (3.3) unsteady (unsteady)
C 9.1 1.48 1.26 5.0 0.41 (0.42) 2.5 (2.3) 5.9 (6.0) unsteady (unsteady)
D 8.1 1.67 0.98 5.7 0.41 (0.41) 2.4 (2.2) 6.6 (6.7) quasi-steady (unsteady)

Note. HEP is the hydrodynamic escape parameter. The inner radius is derived from the choice of HEP as ${r}_{0}=\left(1-{\rm{\Gamma }}\right){{GM}}_{\mathrm{BH}}{\mathrm{HEP}}^{-1}{{\rm{c}}}_{s,0}^{-2}$ (see Equation (5)), while the density at the base follows from the definition of ξ as ${\rho }_{0}=\mu {m}_{p}{L}_{{\rm{X}}}{\xi }_{0}^{-1}{r}_{0}^{-2}$. The sound crossing time is defined as ${t}_{\mathrm{sc},0}=({r}_{\mathrm{out}}-{r}_{0})/{c}_{{\rm{s}},0}$. The ratio ${t}_{\mathrm{cool}}/{t}_{\mathrm{sc}}$ is given at the location where ${\rm{\Xi }}={{\rm{\Xi }}}_{{\rm{c}},\max }$. The average mass flux and velocity through rout are shown as $\langle \dot{M}\rangle $ and $\langle v\rangle $. Comment columns denote the state of the flow at late times. Values/comments in parenthesis denote results for the 8x-resolution runs.

Download table as:  ASCIITypeset image

The 2D model uses a 256 × 256 grid in r and θ, with logarithmic spacing in r such that ${{dr}}_{i+1}=1.01\,{{dr}}_{i}$ and uniform spacing in θ from 0 to π. At the inner boundary we assumed a density profile $\rho ={\rho }_{0}[1+0.001\sin (2\theta )]$ to break spherical symmetry. We apply reflecting boundary conditions at 0 and π.

3. Results

For a given MBH, just three parameters govern our solutions: Γ, Ξ0, and the HEP, which sets the strength of thermal driving. We define HEP as the ratio of effective gravitational potential and thermal energy at r0,

Equation (5)

We only present models with Ξ0 = 3, Γ = 0.3, and ${M}_{\mathrm{BH}}={10}^{6}\,{M}_{\odot }$, as HEP is the main governing parameter. We note, however, that the choice of Ξ0 is not unimportant, e.g., selecting one too large can cause the flow to miss relevant regions. The dependence of stable wind solutions on Γ for various SEDs was explored in 1D by D17. In Table 1, we list model parameters and summarize gross outflow properties.

After examining over 100 1D simulations, with the standard resolution that span this parameter space, we arrived at four qualitatively different 1D wind solutions that capture the general behavior seen across all runs. These four cases illustrate how the stability of the outflow depends on the HEP. We chose the values of HEP for our models A and D such that they closely bracket the parameter space leading to transonic, clumpy winds (here represented by models B and C). For each model, Figure 2 shows the models tracks on the phase diagram, while Figure 3 shows radial profiles of ρ, v, T, and Ξ. The phase diagrams reveal that all solutions pass through the lower TI zone, but only models B and C with the standard resolution actually trigger TI to become unsteady. Additionally, two general trends are evident: (i) the range of Ξ decreases with HEP and (ii) for large Ξ, the wind is not in thermal equilibrium; the wind temperature is nowhere near that of the stable Compton branch on the S-curve (the maximum temperature shown in these plots is more than an order of magnitude lower than TC). The first trend is due to the fact that for thermal winds, the velocity is a decreasing function of HEP, and by mass conservation for radial flows, ξ ∝ v in a steady state (i.e., v ∝ 1/n r2, as is ξ). Trend (ii) is due to adiabatic cooling (see D17), but note that the highest temperatures reached in all four cases occupy thermally stable regions of the (T–Ξ)-plane (namely, regions to the right of the Balbus contour). We now examine the dynamics of these solutions in detail to understand why Models B, C, and D-x8 are clumpy, while A and D-x1 are not.

Figure 2.

Figure 2. Phase diagram comparison of our four 1D models showing T as function of Ξ in relation to the thermal equilibrium curve (black solid line) and the Balbus contour (black dashed line). The colored solid lines display time-averaged solutions and the less opaque lines a single snapshot at the end of the simulation (at $t\gt 3\,{t}_{\mathrm{sc},0}$). The top row presents our standard resolution ("-1x") runs and the bottom row our high-resolution ("-8x") runs. See Sections 3 and 4 for details about the dynamics of each model.

Standard image High-resolution image
Figure 3.

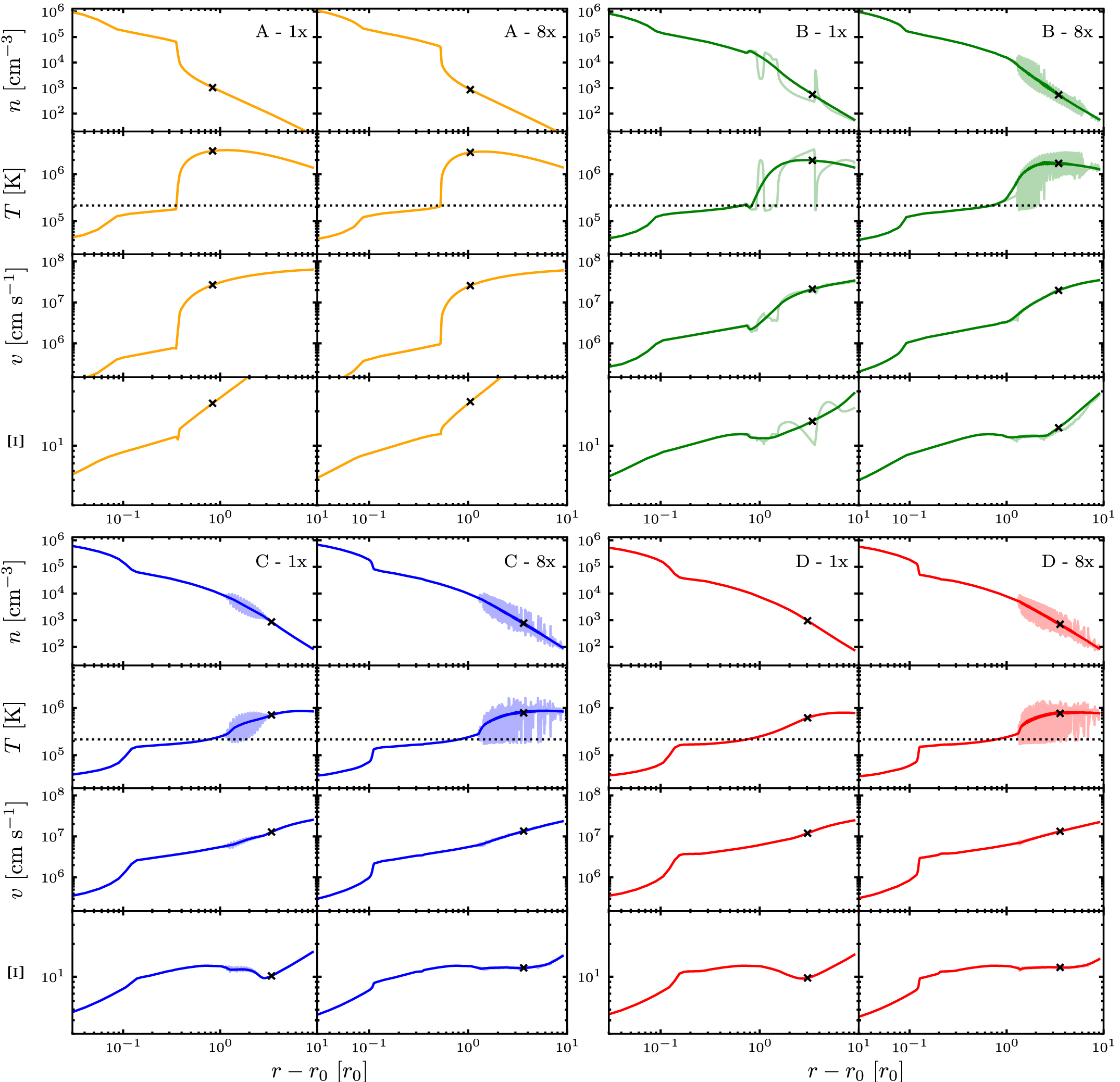

Figure 3. Spatial flow profiles of our four 1D models run at both medium ("-1x" runs, the first and third columns of panels) and high ("-8x" runs, the second and fourth column of panels) resolution. As in Figure 2, fully opaque curves show time-averaged profiles, while less opaque ones are snapshots from the end of the simulation. The X's mark sonic points of the time-averaged solutions. In the temperature panels, the dotted black line shows where $T=T({{\rm{\Xi }}}_{{\rm{c}},\max })$. Animations of these runs are downloadable at doi:10.5281/zenodo.3739603 or watchable at http://www.physics.unlv.edu/astro/clumpywindsims.html.

Standard image High-resolution image

3.1. Unsteady, Clumpy Wind Solutions

A basic requirement for TI to operate once gas enters the TI zone is for it to stay there long enough for initially small perturbations to grow. In terms of timescales, the flow must satisfy tcool < tsc on global scales, which it does (see Table 1). However, Figure 2 shows that for the flow to remain in the TI zone, it must also be the case that Ξ not increase downstream, the normal tendency in disk winds, at least in the absence of magnetic field pressure (Higginbottom & Proga 2015). This normal Ξ-scaling is especially obvious in the 1D radial winds studied by D17 that had constant radiation flux. In such winds, Ξ ∝ 1/p, and p tends to decrease radially outward in outflows, the necessary condition for the pressure gradient to overcome gravity. The increase in Ξ will therefore cause the gas to quickly leave the TI zone (i.e., to cross to the right of the dashed lines in Figure 2 once reaching ${{\rm{\Xi }}}_{{\rm{c}},\max }$). What we see in models B, C, and D, however, is that Ξ can decrease outward through the TI zone (see the bottom panels in Figure 3). Viewed in terms of the phase diagrams, gas not only enters and stays in the TI zone, but even crosses through a large portion of this zone. That a necessary condition for a clumpy wind solution is for the gas pressure profile to be such that it leads to a decrease of Ξ within a TI zone is the critical insight of this work. The criterion that Ξ decrease outward is hard to satisfy (see Section 4), explaining why TI is absent in the thermally driven wind models studied in the past.

In model B, the inner gas is just slightly less gravitationally bound than in model A (HEP of 11.9 compared to 13.3), yet this is enough for the flow to be twice as fast at small radii and to follow the S-curve all the way to the TI zone. As the flow enters this zone, we see formation of an initially thin layer where the temperature increases rapidly (see the locations marked by dotted lines in Figure 3). This heating is radiative and is related to the gas being thermally unstable. We note that the heating is localized, namely, the gas immediately interior and exterior of this hot layer is relatively cool and dense, as it is gas located on or just above the upper branch of the cold phase. The separation of this cooler downstream flow that has entered the TI zone from the cold phase upstream flow by the hot layer is the origin of a dense clump that, in the animations of these runs (see Figure 3 for a link), appears as an ejection of a layer of cold gas.

We reiterate that this is not clump formation from a condensation as in classical TI, as the role of TI here is primarily to form a hot layer. This layer is initially cool, lying above a stable cold region and below an unstable and condensing cool region, but there is very little "room" in the (T–Ξ)-plane for gas to condense, while there is a lot of room for it to heat. With time, the hot layer expands and pushes the colder, dense material outward. The ram pressure increases somewhat the density of the cold gas, but it is not the cause of the over-densities. It would be more appropriate to view this process as the separation of layers of the atmosphere rather than the condensation of cool clumps.

We note that TI operates here under nearly isobaric conditions (the cold and hot phases in Figure 2 are connected by nearly vertical lines at a given radius). In particular, the size of the perturbation that grows, as well as the resulting clumps, are both smaller than the pressure scale height, and therefore they have nearly constant pressure. Despite having tcool < tsc globally (i.e., on the scale of λp) as mentioned above, the requirement for isobaricity (tsc < tcool) is satisfied locally.

Finally, while it is not obvious from Figures 2 and 3, we found that generally as the flow accelerates, ξ increases, even for the cold phase gas. This leads to heating and expansion of the colder clumps, eventually causing them to enter the hot phase. In model C-1x, this expansion process operates over a relatively small radial range and is well displayed in the figures as a decrease in the density and temperature variations with distance.

3.2. Smooth Wind Solutions Passing through a TI Zone

Models with HEP higher than that for model B evolve toward a steady, transonic and stable solution of a Compton-heated wind, while all other models are unstable (and hence unsteady) transonic solutions of a thermally driven wind heated mainly by photo-absorption (the temperature at the sonic point and even of the hottest gas is less than 106 K). Model A resembles the cases that we saw in the past (e.g., D17). At small radii, the gas is subsonic with a density profile close to that of a hydrostatic equilibrium solution for a temperature profile tracing the cold branch of the S-curve. At $r\approx 1.4\,{r}_{0}$, where $\mathrm{log}\,{\rm{\Xi }}\simeq 1.1$, the flow undergoes runaway heating (see the temperature panels in Figure 3 for Model B). The heat input is relatively large and it results in a rapid flow acceleration, the wind becoming supersonic at r ≈ 2 r0. Similarly to the cases described in D17, the increase in v is so significant that the adiabatic cooling becomes faster than the radiative heating and the flow does not evolve along the S-curve at large radii.

Two dynamical effects suppress TI in solutions with relatively high HEP: (1) stretching (i.e., rapid radial acceleration that causes rapid expansion of fluid elements) operating on the timescale ${\tau }_{{\rm{s}}}=1/| \partial v/\partial r| $ and (2) high velocity. The latter causes a gas parcel to "fly through" the TI zone on the dynamical timescale ${\tau }_{{\rm{d}}}=| r/v| $, which is shorter than the maximum growth rate of TI, ${\tau }_{\mathrm{TI}}$. These two effects are the main reason for an accelerating flow to be thermally stable despite satisfying Balbus' generalized instability criterion (see the discussions of this point in MP13 and Higginbottom & Proga 2015 in the context of accretion flows and of thermal disk winds, respectively).

Model D-x1 seems similar to model A-x1, insomuch as it appears to reach a steady state, but model D-x1 hosts fluctuations at the level of ≲10%. This model is also a clear example of a solution that follows the S-curve backward in the (T–Ξ)-plane (see the upper-right panel of Figure 2); it occupies the same region of the phase diagram as models B and C without becoming noticeably unsteady. Our analysis of the timescales shows that, although τTI is small compared to τs, the perturbations that are triggered by grid scale noise do not stay in the TI zone long enough to grow beyond the 10% level in model D-x1. However, model D type solutions are unstable at both higher resolution and to linear perturbations inserted by hand, in contrast to model A type solutions. Indeed, we checked that adding random perturbations with 10−3 ≲ δρ/ρ0 ≲ 10−1 at r0 cause model D-x1 to behave similarly to model C-x1.

3.3. Clumpy Winds in 2D

We conclude the presentation of our results with one example of a 2D simulation, the counterpart to model B. The bottom panels in Figure 4 shows the temperature and density in cgs units, whereas the top panels show the relative difference between these quantities and their time-averaged values ($\langle T\rangle $ and $\langle \rho \rangle $) at a given location for a snapshot near the end of the simulation. Notice that the flow is very clumpy at $r\simeq 2\,{r}_{0}$ but appears quite smooth at larger radii where the density is overall smaller and clumps have begun to expand. This is apparent from the density profiles in our 1D simulations, although not altogether obvious. The maximum density/temperature contrast is never more than 10.

Figure 4.

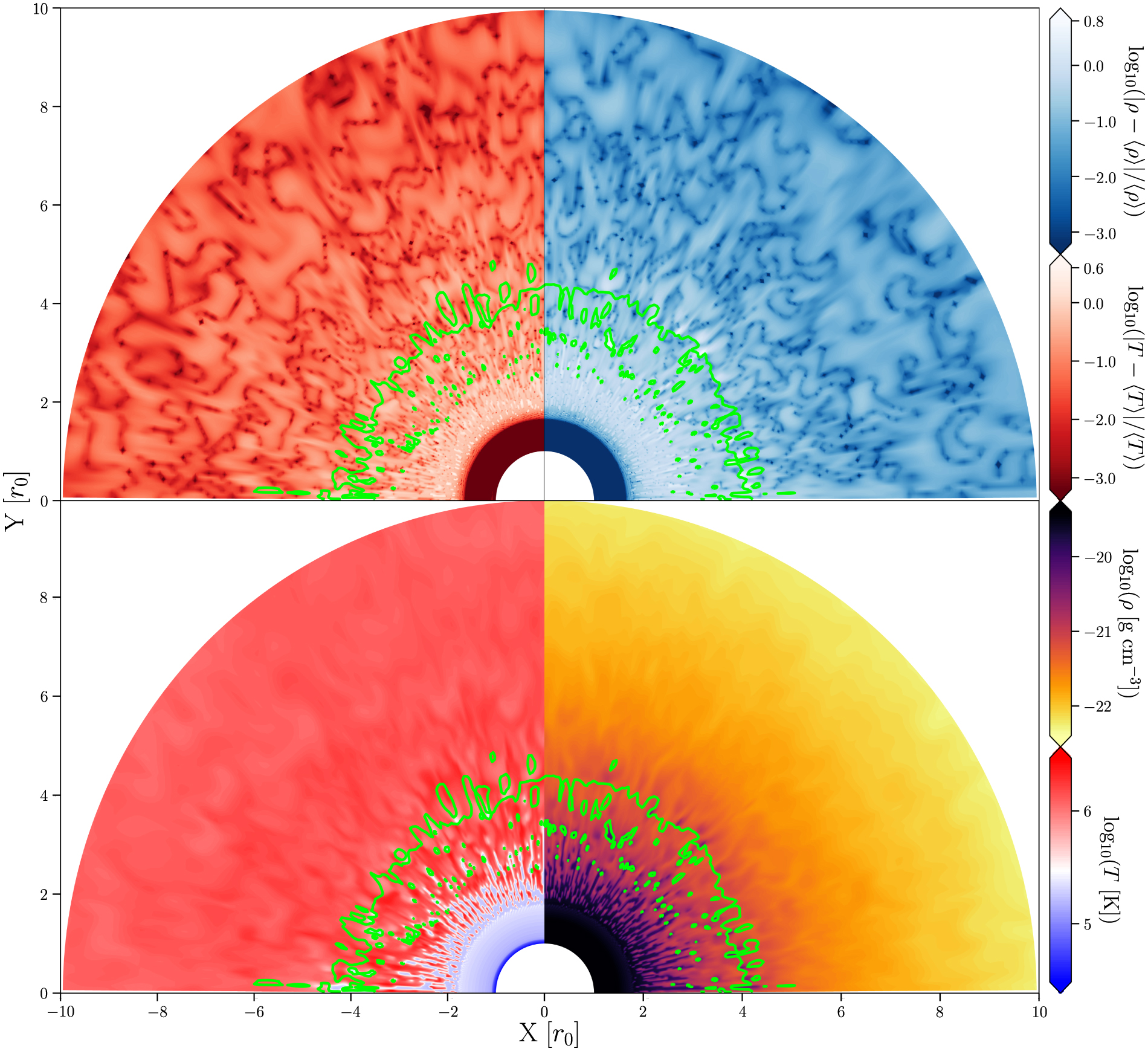

Figure 4. 2D version of model B. Bottom panels: log-scale maps of T (left) and ρ (right) in cgs units. Top panels: the relative difference of T (left) and ρ (right) computed using time-averaged values. Bright green contours display sonic surfaces.

Standard image High-resolution image

Compared to model B in 1D, we found a significant scatter of the 2D wind profiles at a given radius, which reflects the loss of spherical symmetry. The amplitude of the scatter (i.e., the variability in the θ direction) is of the same order as the variation in the radial direction. This in turn shows that the perturbations grow to a similar level in both directions.

4. Discussion

In this study, we identified a finite parameter space for which a thermally driven wind is clumpy. The origin of the clumps in our X-ray irradiated outflows is very similar to that of clumpy accretion flows studied by Barai et al. (2012) and MP13: quite simply, small perturbations are allowed to grow due to TI. However, we found that because the flow enters the TI zone near the cold phase, TI mainly serves to raise the temperature of perturbations. Therefore, the clumpiness is a result of the separation of heated layers of gas from the cold, dense layers near the base of the flow rather than the formation of dense clumps within a more tenuous background plasma. Importantly, this formation of heated layers from TI requires that a perturbation can stay in the TI zone long enough for it to become nonlinear and that stretching due to rapid radial acceleration does not stabilize the growth of such layers.

These two requirements represent necessary conditions for TI to operate in dynamical flows and are due to velocity gradients in the wind that are not accounted for in the classical theory of TI. We similarly identified another necessary condition that distinguishes dynamical TI from local TI, this one arising from pressure gradients: Ξ must decrease once gas enters a TI zone (see Section 3.1). Because Ξ is the ratio of two pressures, both of which are decreasing functions of radius, Ξ could be a non-monotonic function of radius. Specifically, the models here have ${\rm{\Xi }}\propto 1/({r}^{2}p)$, and even though p decreases with radius, this decrease could be slower than 1/r2 and Ξ can decrease downstream.

To build intuition for when to expect a clumpy versus smooth outflow, we could just consider the geometric effects involved in the problem. For example, let us assume that the radiation flux scales as rq, where q is a constant. We then find the following trend: the more q is less than 2, the more solutions resemble those from D17, where the wind is steady and monotonic and Ξ shows no "back tracking." For 2.0 ≲ q ≲ 2.5, the wind is unsteady and the range of Ξ and T is reduced compared to the cases presented here. For q ≳ 2.5, the flux drops so fast that the heating is very weak. Consequently, Ξ and T are never large enough for the solution to even approach the TI region and as a result the flow is smooth.

We have explored many other test runs, e.g., with line driving turned on or using a different SED. We found that clumpy outflows develop as in the examples shown here but for somewhat different HEP. We will report on the results from these simulations in a follow-up paper.
