Fast Radio Bursts as Strong Waves Interacting with the Ambient Medium

In this section, we briefly discuss the electron motion properties in strong waves. The strong-wave problem has been solved in the classical theory with exact allowance for relativistic mechanics and Lorentz forces (Sarachik & Schappert 1970). We assume that an electron is initially at rest at the origin in the laboratory, and the incident wave is transverse, plane, and elliptically polarized. As the electromagnetic waves pass across an electron, the electron would move due to the electromagnetic interaction, and its motion contains three components:

• 1.
  the classical harmonic motion transverse to the wave direction due to the electric field;
• 2.
  the longitudinal harmonic motion due to the Lorentz force;
• 3.
  the drift motion along the propagation direction of the waves.³

After a wave pulse passes by, the harmonic motion and the drift velocity die out due to the ponderomotive force. The electron again becomes at rest in the laboratory. For strong waves with a frequency ω and a duration T ≫ 1/ω, the drift velocity along the direction of the waves is (Sarachik & Schappert 1970)

$$\begin{eqnarray}&&{v}_{D}\simeq \displaystyle \frac{{a}^{2}}{{a}^{2}\,+\,4}c,\end{eqnarray} \tag{ 6 }$$

which corresponds to a Lorentz factor of ${{\rm{\Gamma }}}_{D}\simeq a/2\sqrt{2}$ for a ≫ 1. In the oscillation-center rest frame (where the cycle-averaged position is at rest, i.e., v_D = 0), the motion of the electron is relativistic with a mean Lorentz factor of $\bar{\gamma }^{\prime} \sim a$ for a ≫ 1.

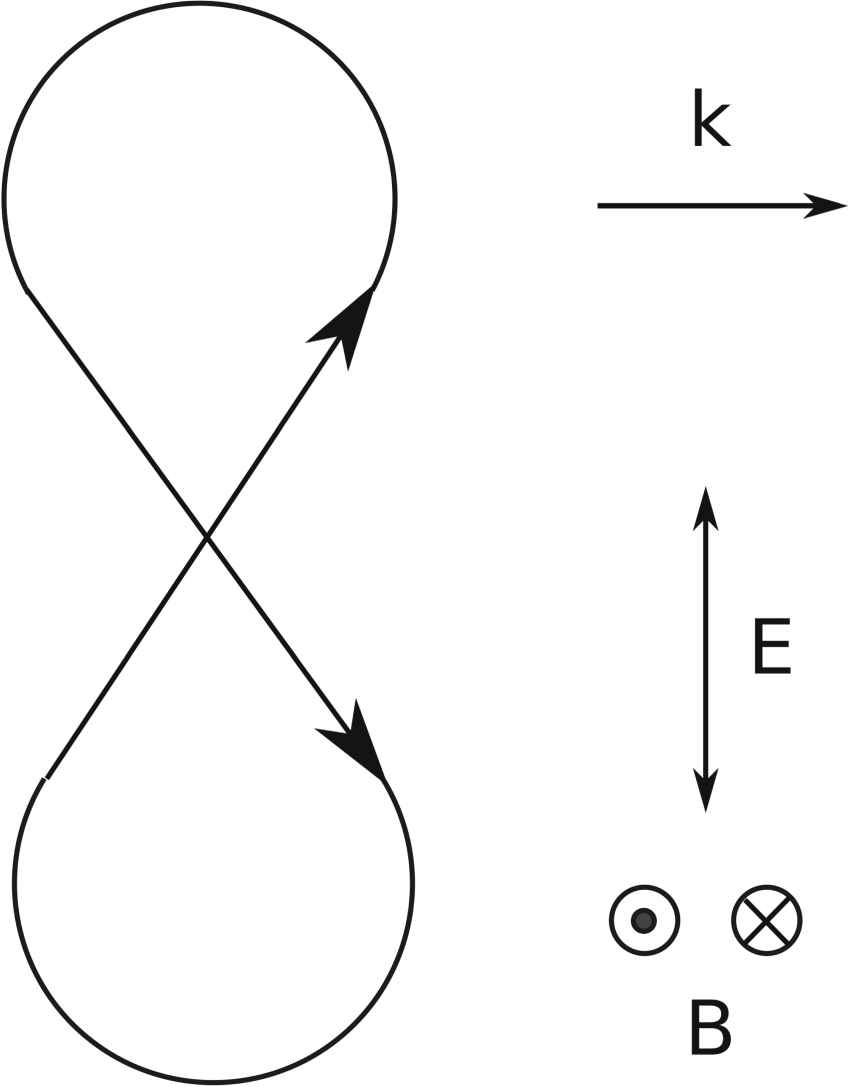

Let us define that the incident wave travels along the +z direction, that the classical harmonic oscillation by the electric field force is in the xy plane, that the second harmonic oscillations by Lorentz force are in the z direction, and that the drift velocity v_D is along the +z direction. In particular, for circular polarization, the oscillating z motion vanishes so that the resulting orbit is helical. In the oscillation-center rest frame, the electron orbit is circular in the xy plane with a constant local Lorentz factor $\gamma ^{\prime} =a/\sqrt{2}$ (Sarachik & Schappert 1970). For linear polarization, the orbit is a "figure-of-eight trajectory" in the xz plane in the oscillation-center rest frame, and the electron moves slowest on the round part of the orbit and fastest on the straight part (Sarachik & Schappert 1970), as shown in Figure 1. Such a figure-of-eight trajectory has been confirmed in the experiments of the nonlinear Thomson scattering (Chen et al. 1998). As the parameter a gets smaller, the orbit approaches the one-dimensional harmonic oscillator in the low-intensity treatment of Thomson scattering.

Zoom In Zoom Out Reset image size

We should note that the above discussion assumes that the electron motion is in an external electromagnetic field that is independent of the electron motion. However, the electromagnetic field radiated by the electron itself would react on the electron dynamics, which is known as "radiation friction." Due to the radiation friction force, in the oscillation-center rest frame the electron trajectory would open up (e.g., Zel'dovich 1975; Macchi 2013).

The electron motion determines its radiation. In the oscillation-center rest frame, the electron motion is relativistic with the mean Lorentz factor of $\bar{\gamma }^{\prime} \sim a$ for a ≫ 1. The radiation is confined to a narrow cone of $1/\gamma ^{\prime}$ along the electron velocity, and the corresponding spectrum therefore contains higher harmonics of the fundamental frequency with which the electron rotates. Similar to synchrotron radiation, the maximum harmonic number would be $m\sim \gamma {{\prime} }^{3}\sim {a}^{3}$, which corresponds to a critical frequency of ${\omega }_{c}^{{\prime} }\sim {a}^{3}{\omega }_{0}^{{\prime} }$, where ${\omega }_{0}^{{\prime} }$ is the fundamental frequency in the rest frame. In the observer frame, due to the relativistic drift motion with a Lorentz factor of Γ_D ∼ a, according to the Doppler effect, the observed frequency would become $\omega \sim a\omega ^{\prime}$ for a ≫ 1 along the line of sight. Meanwhile, the relativistic drift motion would make radiation predominantly forward and confined to an angle of θ ∼ 1/Γ_D ∼ 1/a. At last for a ≫ 1, the mean total received power by an observer is larger than that given by the Thomson formulas by approximately a factor a² (Sarachik & Schappert 1970), i.e.,

$$\begin{eqnarray}&&P\sim {a}^{2}{P}_{T},\end{eqnarray} \tag{ 7 }$$

where ${P}_{T}={e}^{4}{E}^{2}/3{m}_{e}^{2}{c}^{3}$ is the mean received power given by the Thomson formula. Notice that in Equation (7) P is the received power that has been corrected by the retardation effect (e.g., Rybicki & Lightman 1979). If one focuses on the emitted power P_e, one has P_e ∼ P_T as pointed out by Gunn & Ostriker (1971). Considering that the energy flux in the waves is $S={{cE}}^{2}/8\pi$, the cross section for scattering photons is approximately given by

$$\begin{eqnarray}&&\sigma =\displaystyle \frac{P}{S}\sim {a}^{2}{\sigma }_{T}\simeq \displaystyle \frac{8\pi {e}^{6}{E}^{2}}{3{m}_{e}^{4}{c}^{6}{\omega }^{2}}.\end{eqnarray} \tag{ 8 }$$

Therefore, for a ≫ 1, the cross section for scattering photons would be much larger than the Thomson cross section by a factor of ∼a². After scattering, the forward radiation of the electron in the propagation direction of the strong waves would weaken the injection waves because of the energies scattered to other directions.

At last, we discuss the ponderomotive force contributed by a pulse of electromagnetic waves. For an infinite monochromatic plane wave, the oscillation center of an electron is always at rest. The "realistic" electromagnetic fields are not perfectly monochromatic plane waves, but have finite widths and durations. For a wave with a finite width and duration, besides the fast harmonic motion, the oscillation center would be accelerated by the ponderomotive force. In the nonrelativistic regime, the ponderomotive force is

$$\begin{eqnarray}&&{{\boldsymbol{F}}}_{p}=-{\rm{\nabla }}{\rm{\Phi }}=-\displaystyle \frac{1}{2}{m}_{e}{c}^{2}{\rm{\nabla }}\left\langle {{\boldsymbol{a}}}^{2}\right\rangle ,\end{eqnarray} \tag{ 9 }$$

where ${\rm{\Phi }}={e}^{2}\left\langle {\boldsymbol{E}}\right\rangle /2{m}_{e}{\omega }^{2}$ is the ponderomotive potential, ${\boldsymbol{a}}=e{\boldsymbol{A}}/{m}_{e}{c}^{2}$, and ${\boldsymbol{A}}={\rm{\nabla }}\times {\boldsymbol{B}}$ is the vector potential. The result of ponderomotive force is that electrons will be expelled from the regions where the electric field is higher, which can be viewed as the radiation pressure. In the relativistic regime, the ponderomotive force is (Bauer et al. 1995; Mulser & Bauer 2010)

$$\begin{eqnarray}&&{{\boldsymbol{F}}}_{p}=-{m}_{e}{c}^{2}{\rm{\nabla }}{\left(1+\left\langle {{\boldsymbol{a}}}^{2}\right\rangle \right)}^{1/2}.\end{eqnarray} \tag{ 10 }$$

Similar to the nonrelativistic regime, for the relativistic regime (a ≳ 1) electrons would be scattered off from regions where the electric field is higher. Due to the ponderomotive force, a wakefield in plasma would form and electrons in plasma would be accelerated by the wakefield wave, as discussed in Section 3.2.2.

In this section, we consider the plasma properties under the propagation of strong waves. In strong waves, the motion of electrons in the plasma becomes relativistic. However, different from free electrons that have a relativistic drift velocity in the direction of the incident electromagnetic wave (see Section 3.1), in plasma the space-charge potential is important in preventing the drift of electrons (Waltz & Manley 1978). For nonrelativistic electrons in plasma, if the wave duration τ is much larger than c/ω_p, where ${\omega }_{p}=\sqrt{4\pi {e}^{2}{n}_{e}/{m}_{e}}$ is the plasma frequency, the drift velocity would be close to zero (Waltz & Manley 1978; Sprangle et al. 1990b). In this case, electrons in plasma under a strong wave would have a typical Lorentz factor ($\gamma ^{\prime}$) similar to that (γ) in the laboratory frame, so that $\gamma \sim \gamma ^{\prime} \sim a$ is satisfied. Due to the relativistic and magnetic force effects, the propagation and dispersion properties of an electromagnetic wave depend on its amplitude. For a circular polarized wave, the dispersion relation in the laboratory frame is given by (e.g., Gibbon 2005; Macchi 2013; Macchi et al. 2013; see the Appendix)

$$\begin{eqnarray}&&{\omega }^{2}\,=\,{k}^{2}{c}^{2}+\displaystyle \frac{{\omega }_{p}^{2}}{\gamma },\quad \gamma ={\left(1+{a}^{2}/2\right)}^{1/2}.\end{eqnarray} \tag{ 11 }$$

The dispersion relation of strong electromagnetic waves is altered due to the effective electron mass increased by the relativistic effect (e.g., Sarachik & Schappert 1970; Gibbon 2005; Macchi 2013). One can define the effective plasma frequency as

$$\begin{eqnarray}&&{\omega }_{p,\mathrm{eff}}=\displaystyle \frac{{\omega }_{p}}{\sqrt{\gamma }},\end{eqnarray} \tag{ 12 }$$

so that the wave can propagate in the region where $\omega \gt {\omega }_{p,\mathrm{eff}}={\gamma }^{-1/2}{\omega }_{p}$. With respect to the nonrelativistic linear case, this is known as relativistically self-induced transparency. We note that since the dispersion depends on the electromagnetic field amplitude in the nonlinear case, the dispersion relation must be taken with care. The propagation of a pulse will be affected by the complicated effects of nonlinear propagation and dispersion, and finally the spatial and temporal shape of the pulse itself would also be modified. In particular, for linear polarization, the relativistic factor γ is not a constant (see Section 3.1). The propagation of the linearly polarized wave with a relativistic amplitude would lead to generation of the higher-order harmonics. Sprangle et al. (1990b) proved that the propagation of the first harmonic component, i.e., of the "main" wave, is still reasonably described by Equation (11) with $\gamma \to \left\langle \gamma \right\rangle$. Thus, we will directly adopt Equation (11) in the following discussion.

According to Equation (11), the effective cutoff electron density is

$$\begin{eqnarray}&&{n}_{c}=\displaystyle \frac{\gamma {m}_{e}{\omega }^{2}}{4\pi {e}^{2}}\simeq \displaystyle \frac{{m}_{e}{\omega }^{2}a}{{2}^{5/2}\pi {e}^{2}},\quad \mathrm{for}\,\,a\,\gg \,1.\end{eqnarray} \tag{ 13 }$$

The plasma with electron number density n_e < n_c(ω) would be transparent for the electromagnetic waves with a frequency ω. According to the dispersion relation given by Equation (11), the group velocity of the electromagnetic waves is

$$\begin{eqnarray}\begin{array}{rcl}{v}_{g} & = & \displaystyle \frac{\partial \omega }{\partial k}=c{\left[1-\displaystyle \frac{{\omega }_{p}^{2}}{{\omega }^{2}{\left(1+{a}^{2}/2\right)}^{1/2}}\right]}^{1/2}\\ & \simeq & c\left[1-\displaystyle \frac{1}{\sqrt{2}a}\displaystyle \frac{{\omega }_{p}^{2}}{{\omega }^{2}}\right],\end{array}\end{eqnarray} \tag{ 14 }$$

where ω ≫ ω_p and a ≫ 1 are assumed. Replacing ω_p with ${\omega }_{p,\mathrm{eff}}$, for an ambient medium with a free electron number density n_e(r), the effective DM with r < r_c is

$$\begin{eqnarray}&&{\mathrm{DM}}_{\mathrm{eff}}={\int }_{{r}_{e}}^{{r}_{c}}\displaystyle \frac{{n}_{e}(r)}{\gamma }{dr}\simeq \displaystyle \frac{\sqrt{2}}{{a}_{0}}{\int }_{{r}_{e}}^{{r}_{c}}{n}_{e}(r)\displaystyle \frac{r}{{r}_{e}}{dr},\end{eqnarray} \tag{ 15 }$$

where r_e is the radius of the emission region, r_c is the critical radius given by Equation (4), and the strength parameter is assumed to be a = a₀(r_e/r) due to the inverse-square law of the flux. For the uniform ambient medium, the effective DM is ${{\rm{DM}}}_{{\rm{eff}}}={n}_{e}{r}_{c}^{2}/\sqrt{2}{a}_{0}{r}_{e}\sim {n}_{e}{r}_{c}/\sqrt{2}\sim {\rm{DM}}$ due to ${a}_{0}{r}_{e}/{r}_{c}\sim 1$. Thus, the effective DM with r_c is of the order of magnitude of the classical DM, because most DM is contributed by the plasma at the scale of ∼r_c (corresponding to a ∼ 1). However, for the wind medium with ${n}_{e}{(r)={n}_{e,0}({r}_{e}/r)}^{2}$, the effective DM, i.e., ${{\rm{DM}}}_{{\rm{eff}}}=(\sqrt{2}/{a}_{0}){n}_{e,0}{r}_{e}{\rm{ln}}({r}_{c}/{r}_{e})$, would be much smaller than the classical DM with $\mathrm{DM}=\int {n}_{e}(r){dr}\simeq {n}_{e,0}{r}_{e}$ for a₀ ≫ 1. The DM contribution near the FRB source would be significantly suppressed due to the strong-wave effect. This is relevant to, for example, synchrotron maser models invoking relativistic magnetized shocks in a steady magnetar wind with n_e ∝ r⁻² (e.g., Beloborodov 2017, 2019; Margalit et al. 2019; Metzger et al. 2019). In this case, the dispersion relation would involve the strong-wave effect, leading to the near-source plasma more transparent and therefore a smaller effective DM. Some FRBs, e.g., FRB 180924 (Bannister et al. 2019), have a small observed DM that might be mostly accounted for by the contribution from the intergalactic medium, implying a negligibly small DM from the FRB near-source plasma. Our results show that it is still possible that the near-source plasma column density is not too small as long as it is confined within 1 au from the source with a stratified wind density profile. At last, as discussed above, for a repeating FRB source, considering the strong-wave effect, the brighter bursts would have somewhat smaller DMs contributed by the near-source plasma.⁴ In particular, the DMs contributed by the near-source plasma with a few times of r_e satisfies $\mathrm{DM}\,\propto {a}_{0}^{-1}\,\propto {\nu }^{1/2}{S}_{\nu }^{-1/2}$, where ν is the burst frequency, and S_ν is the observed burst flux density.

3.2.1. Relativistic Self-focusing

The dispersion relation, Equation (11), predicts that a strong wave would undergo self-focusing for a structured beam. According to Equation (11), the phase velocity is given by

$$\begin{eqnarray}\begin{array}{rcl}{v}_{p} & = & \displaystyle \frac{\omega }{k}=c{\left[1-\displaystyle \frac{{\omega }_{p}^{2}}{{\omega }^{2}{\left(1+{a}^{2}/2\right)}^{1/2}}\right]}^{-1/2}\\ & \simeq & c\left[1+\displaystyle \frac{1}{\sqrt{2}a}\displaystyle \frac{{\omega }_{p}^{2}}{{\omega }^{2}}\right],\end{array}\end{eqnarray} \tag{ 16 }$$

where $\omega \gg {\omega }_{p}$ and a ≫ 1 are assumed. We consider that the FRB radiation is beamed with a typical angle of θ₀: the flux is maximum at the center of the beam and decreases toward the edge, i.e., a(θ₀) < a(0). The nonlinear refractive index is $n=c/{v}_{p}=\sqrt{1-{\omega }_{p}^{2}/\gamma (a){\omega }^{2}}$, which is intensity-dependent. This suggests that the refractive index is maximum at θ = 0 and decreases with θ. The phase velocity difference Δv_p between wave A at θ = 0 and wave B at θ = θ₀ is

$$\begin{eqnarray}&&\displaystyle \frac{{\rm{\Delta }}{v}_{p}}{c}=\left(\displaystyle \frac{1}{a({\theta }_{0})}-\displaystyle \frac{1}{a(0)}\right)\displaystyle \frac{{\omega }_{p}^{2}}{\sqrt{2}{\omega }^{2}}\simeq \displaystyle \frac{{\omega }_{p}^{2}}{\sqrt{2}{\omega }^{2}}\displaystyle \frac{1}{a({\theta }_{0})}.\end{eqnarray} \tag{ 17 }$$

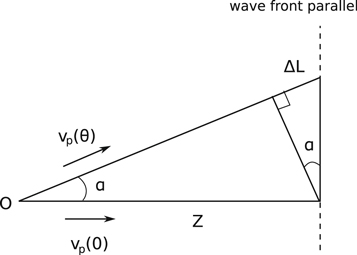

Here a(θ₀) ≪ a(0) is assumed. As shown in Figure 2, the maximum light path difference between θ = 0 and θ = θ₀ is

$$\begin{eqnarray}&&{\rm{\Delta }}L\simeq {\left|{\rm{\Delta }}{v}_{p}/c\right|}_{\max }Z\simeq {\alpha }^{2}Z.\end{eqnarray} \tag{ 18 }$$

As shown in Figure 2, the phase velocity at the angle α is greater than that in the zero angle direction, so that at distance Z the global wave becomes planar, with the wavefront denoted as the dashed line. Therefore, the focusing angle of the beam is given by

$$\begin{eqnarray}&&\alpha \simeq {\left|\displaystyle \frac{{\rm{\Delta }}{v}_{p}}{c}\right|}_{\max }^{1/2}\simeq \displaystyle \frac{1}{{2}^{1/4}{a}^{1/2}({\theta }_{0})}\displaystyle \frac{{\omega }_{p}}{\omega }\end{eqnarray} \tag{ 19 }$$

for r ≲ r_c. The maximum focusing angle corresponds to⁵ a(θ₀) ∼ 1, thus one has

$$\begin{eqnarray}&&{\alpha }_{\max }\simeq \displaystyle \frac{1}{{2}^{1/4}}\displaystyle \frac{{\omega }_{p}}{\omega }\simeq 0.8{\left(\displaystyle \frac{\nu }{1\mathrm{GHz}}\right)}^{-1}{\left(\displaystyle \frac{{n}_{e}}{{10}^{10}{\mathrm{cm}}^{-3}}\right)}^{1/2}.\end{eqnarray} \tag{ 20 }$$

Zoom In Zoom Out Reset image size

We consider that a radiation beam has an original beaming angle of θ_j. Because of the relativistic self-focusing effect, the beaming angle would squeeze and become $\sim ({\theta }_{j}-\alpha )$. In some FRB models invoking synchrotron maser emission from relativistic blast waves (e.g., Beloborodov 2019; Margalit et al. 2019; Metzger et al. 2019), the electron number density near the maser emission region could be high for the wind external medium. We assume that the intrinsic beaming angle is θ_j. For θ_j ∼ α, i.e., ${n}_{e}\sim 2\times {10}^{8}\,{\mathrm{cm}}^{-3}{({\theta }_{j}/0.1)}^{2}{(\nu /1\mathrm{GHz})}^{2}$, the FRB beam would be squeezed by the relativistic self-focusing effect significantly, leading to a smaller observation probability than the classical picture. If most FRBs are affected by the squeezing effect, the true event rate density would become ρ ∝ (θ_j − α)⁻², in which case the true event rate density would be much larger than that constrained by the current observations (e.g., Cao et al. 2018). Furthermore, if θ_j < α, the FRB propagation would be similar to what happens in an optical fiber. Such an FRB is almost impossible to detect due to the extremely narrow beam.

3.2.2. Electron Acceleration in Wakefield Waves

In general, the dispersion relation of electrostatic waves in a cold plasma is ω = ω_p for any wavevector k. Thus, the wavelength of the electrostatic waves in plasma is determined by the way the wave is excited. We consider that a charged particle is accelerated by the ponderomotive force traveling in the plasma at a velocity v_f. As discussed in Section 3.1, the ponderomotive force would cause the charged particle to be expelled from the regions where the electric field is higher, similar to the effect of radiation pressure, i.e., ${{\boldsymbol{F}}}_{p}\propto -m{\rm{\nabla }}\left\langle {{\boldsymbol{a}}}^{2}\right\rangle$ for a ≪ 1 and ${{\boldsymbol{F}}}_{p}\propto -m{\rm{\nabla }}\left\langle {\boldsymbol{a}}\right\rangle$ for a ≳ 1, where m is the particle mass. Since the electron mass is much smaller than the proton mass, electrons are easier to accelerate than protons. When the electrons are away from the equilibrium positions, an electrostatic field is generated in the plasma, leading to the generation of an electrostatic wave due to plasma oscillation. This is the so-called wakefield wave. Such an effect was first proposed by Tajima & Dawson (1979) and has been expensively applied to the field of laser-driven plasma acceleration (reviewed by Esarey et al. 2009). Since the oscillation is produced at the ponderomotive force front, the phase velocity of the wakefield wave is equal by construction to the velocity of the force perturbation, i.e., v_p = ω_p/k = v_f.

We first consider electron acceleration in the wakefield wave of the incident electromagnetic wave with a ≪ 1. In the plasma, the total electron number density is positive, i.e., ${n}_{e}={n}_{e,0}+\delta {n}_{e}\geqslant 0$, leading to $| \delta {n}_{e}| \leqslant {n}_{e,0}$. Assuming that the wakefield wave propagates along the x-axis, according to the Gauss's law, e.g., ${\partial }_{x}{E}_{x}=-4\pi e\delta {n}_{e}$, using ${\partial }_{x}\sim k={\omega }_{p}/{v}_{p}$ where ${\omega }_{p}={(4\pi {e}^{2}{n}_{e,0}/{m}_{e})}^{1/2}$ is the plasma frequency and v_p is the phase velocity of the wakefield wave, one has the electric field strength of the wakefield wave satisfying $| {E}_{x}| \leqslant {E}_{0}\,={m}_{e}{v}_{p}{\omega }_{p}/e$. In an underdense plasma, the group velocity of the electromagnetic wave is ${v}_{g}^{\mathrm{EM}}\simeq c$. Meanwhile, the wakefield wave is excited by the ponderomotive force created by the electromagnetic wave. Thus, the wakefield wave has a phase velocity of ${v}_{p}={v}_{g}^{\mathrm{EM}}\simeq c$ for $\omega \gg {\omega }_{p}$. The upper limit of the wakefield wave is determined by

$$\begin{eqnarray}&&{E}_{0}\simeq \displaystyle \frac{{m}_{e}c{\omega }_{p}}{e}.\end{eqnarray} \tag{ 21 }$$

According to the properties of the ponderomotive force, i.e., ${{\boldsymbol{F}}}_{p}\propto -m{\rm{\nabla }}\left\langle {{\boldsymbol{a}}}^{2}\right\rangle$ for $a\ll 1$, an electron is accelerated at the wavefront, and decelerated at the waveback; see Figure 3. When the acceleration timescale of the ponderomotive force is approximately equal to the plasma oscillation timescale, the resonance condition would be satisfied. Thus, the wakefield wave is most effectively generated when the electromagnetic wave pulse length $\sim c\tau$ is roughly matched to the wavelength λ_p of the wakefield wave (Tajima & Dawson 1979), i.e.,

$$\begin{eqnarray}&&c\tau \sim {\lambda }_{p}=\displaystyle \frac{2\pi c}{{\omega }_{p}}.\end{eqnarray} \tag{ 22 }$$

In particular, for an FRB with a duration of $\tau \simeq 1\,\mathrm{ms}$, the typical electron number density for the enhanced wakefield wave is approximately

$$\begin{eqnarray}&&{n}_{e}\simeq \displaystyle \frac{\pi {m}_{e}}{{e}^{2}{\tau }^{2}}\simeq 0.01\,{\mathrm{cm}}^{-3}{\left(\displaystyle \frac{\tau }{1\mathrm{ms}}\right)}^{-2}.\end{eqnarray} \tag{ 23 }$$

It is interesting that such an electron number density is close to the typical number density of the ISM. Therefore, when an FRB propagates in the ISM, a wakefield wave would be effectively generated, especially in the region with a density ${n}_{e}\sim 0.01\,{\mathrm{cm}}^{-3}$. We notice that Equation (21) gives the maximal electric field in the wakefield wave, which implies a complete charge separation. As the electromagnetic wave propagates, the ponderomotive force becomes weak, leading to an incomplete charge separation and a weaker maximum electric field in the wakefield wave satisfying ${{eE}}_{\max }\sim {F}_{p}$. According to Equation (9), the ponderomotive force is ${F}_{p}\sim {m}_{e}{{ca}}^{2}/{\tau }_{p}\sim {m}_{e}c{\omega }_{p}{a}^{2}$ for a ≪ 1, where τ_p ∼ 1/ω_p is the typical timescale of the ponderomotive force acting on the plasma. According to E_max ∼ F_p/e and Equation (21), for a ≪ 1, the maximum electric field in the wakefield wave is

$$\begin{eqnarray}&&{E}_{\max }\sim {a}^{2}{E}_{0}.\end{eqnarray} \tag{ 24 }$$

Zoom In Zoom Out Reset image size

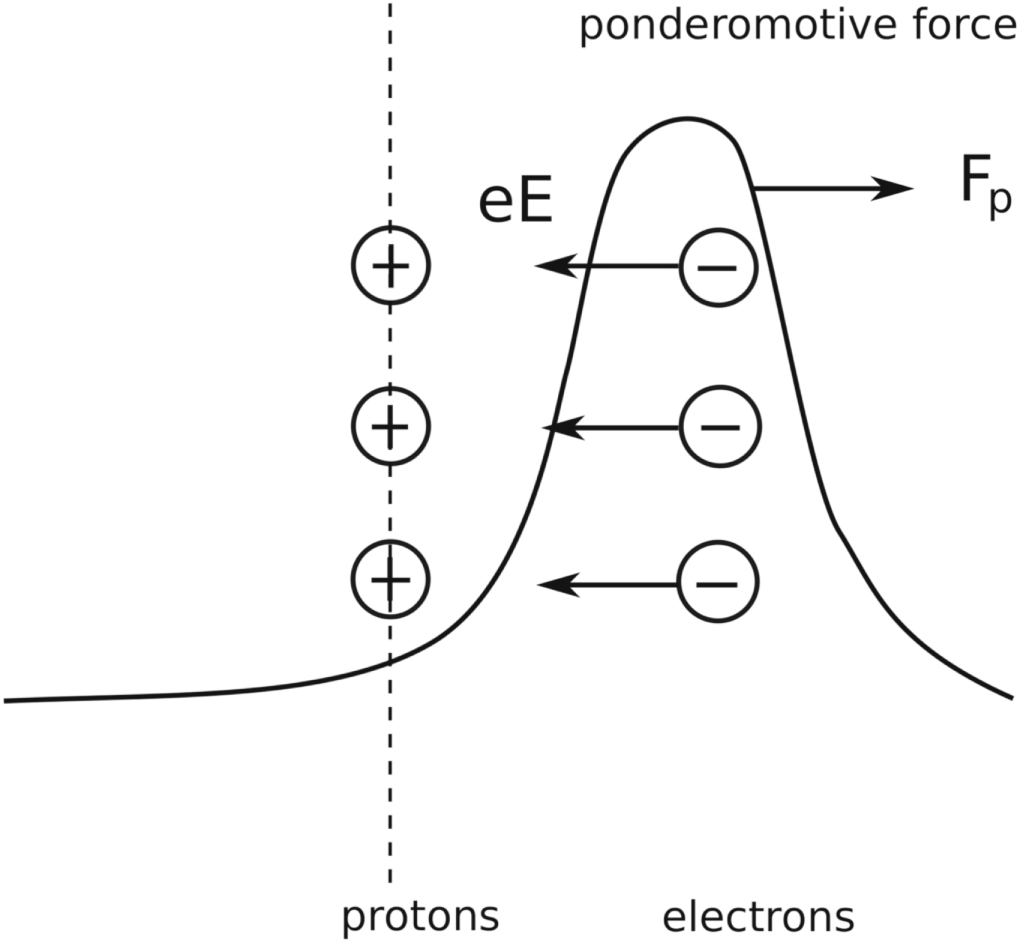

The electric field in the wakefield wave would accelerate electrons in the plasma to relativistic velocities, leading to electron trapping in the electrostatic waves when v ≃ v_p ∼ c. In the wave frame, the relativistic electrons would be accelerated over at most half a wavelength in the wave frame, after which it starts to be decelerated. Thus, the acceleration length is

$$\begin{eqnarray}&&{l}_{\mathrm{acc}}\simeq \displaystyle \frac{{\lambda }_{p}c}{2| c-{v}_{p}| }\simeq {\gamma }_{p}^{2}{\lambda }_{p}=\lambda {\left(\displaystyle \frac{\omega }{{\omega }_{p}}\right)}^{3},\end{eqnarray} \tag{ 25 }$$

where ${\gamma }_{p}=1/\sqrt{1-{v}_{p}^{2}/{c}^{2}}=\omega /{\omega }_{p}$ is the Lorentz factor of the wakefield wave related to the observer frame, and ${v}_{p}\simeq {v}_{g}^{\mathrm{EM}}=c\sqrt{1-{\omega }_{p}^{2}/{\omega }^{2}}$. The above equation gives the maximum acceleration length in the uniform plasma.

For $a\ll 1$, the wakefield wave is a simple sinusoidal oscillation with a wavelength λ_p. However, in the ultrarelativistic limit in which the amplitude of the electromagnetic wave pulse satisfies a ≫ 1, the wakefield wave would be nonlinear, allowing E_max > E₀ and an a-dependent wavelength λ_p (Sprangle et al. 1990a, 1990b). For a square electromagnetic pulse profile with a ≫ 1, the maximum electric filed of the wakefield wave is

$$\begin{eqnarray}&&{E}_{\max }\sim \displaystyle \frac{{a}^{2}}{\sqrt{1\,+\,{a}^{2}}}{E}_{0}\sim {{aE}}_{0},\end{eqnarray} \tag{ 26 }$$

and the wavelength of the wakefield wave is

$$\begin{eqnarray}&&{\lambda }_{{Np}}\sim {\lambda }_{p}\left(\displaystyle \frac{{E}_{\max }}{{E}_{0}}\right)\sim a{\lambda }_{p}\end{eqnarray} \tag{ 27 }$$

for ${E}_{\max }\gg {E}_{0}$, where ${\lambda }_{p}=2\pi c/{\omega }_{p}$ (Sprangle et al. 1990a, 1990b; Esarey et al. 2009). The amplitude of the longitudinal oscillation would be enhanced if the pulse length is roughly matched to the wavelength of the wakefield wave, i.e.,

$$\begin{eqnarray}&&c\tau \sim {\lambda }_{{Np}}\sim \displaystyle \frac{2\pi {ca}}{{\omega }_{p}}.\end{eqnarray} \tag{ 28 }$$

For an FRB with a duration τ ≃ 1 ms, the typical electron number density for an enhanced wakefield wave is

$$\begin{eqnarray}&&{n}_{e}\simeq \displaystyle \frac{\pi {m}_{e}{a}^{2}}{{e}^{2}{\tau }^{2}}\simeq 0.01\,{\mathrm{cm}}^{-3}{a}^{2}{\left(\displaystyle \frac{\tau }{1\mathrm{ms}}\right)}^{-2}.\end{eqnarray} \tag{ 29 }$$

In order to make relativistic electrons accelerated over at most half a wavelength in the wave frame, the acceleration length is required to be

$$\begin{eqnarray}&&{l}_{\mathrm{acc}}\simeq {\gamma }_{p}^{2}{\lambda }_{{Np}}={a}^{2}\lambda {\left(\displaystyle \frac{\omega }{{\omega }_{p}}\right)}^{3},\end{eqnarray} \tag{ 30 }$$

where ${\gamma }_{p}=1/\sqrt{1-{v}_{p}^{2}/{c}^{2}}\simeq {a}^{1/2}\omega /{\omega }_{p}$ is the Lorentz factor of the wakefield wave in the observer frame, and ${v}_{p}\simeq {v}_{g}^{\mathrm{EM}}=c\sqrt{1-{\omega }_{p}^{2}/\gamma {\omega }^{2}}$ according to Equation (14).

In the above discussion, a uniform and large-scale plasma without a magnetic field is assumed. However, in the real ISM with inhomogeneous gas density and magnetic field, the above maximum acceleration length is likely significantly suppressed. The reason is as follows: (i) In the ISM, the coherent length l_coh corresponding to the critical electron number density with n_e given by Equation (23) or (29) is finite. For l_coh ≪ l_acc, the maximum acceleration length becomes ∼l_coh. (ii) Due to the magnetic field in the ISM, the electrons would be accelerated by the electric field along the magnetic field line, if the Larmor radius of electrons satisfies r_L ≪ l_acc. The former is ${r}_{L}=\gamma {m}_{e}{c}^{2}/{eB}=1.7\times {10}^{9}\ \mathrm{cm}\ \gamma {(B/1\mu G)}^{-1}$. One can see the condition r_L ≪ l_acc is readily satisfied. Assume that the angle between the electric field and the magnetic field is θ. For the ISM with a random magnetic field, the electrons will be accelerated along the magnetic field line, and the acceleration length becomes

$$\begin{eqnarray}&&{l}_{\mathrm{acc},{\rm{B}}}\simeq \displaystyle \frac{{\lambda }_{p,a}c}{2| c\left\langle \cos \theta \right\rangle -{v}_{p}| },\end{eqnarray} \tag{ 31 }$$

where ${\lambda }_{p,a}\equiv {\lambda }_{p}$ for a ≪ 1 and ${\lambda }_{p,a}\equiv {\lambda }_{{Np}}$ for a ≫ 1. Since $\left\langle \cos \theta \right\rangle \simeq 1/2$ for a random field and v_p≃c, one has ${l}_{\mathrm{acc},{\rm{B}}}\sim {\lambda }_{p}$ for a ≪ 1 and ${l}_{\mathrm{acc},{\rm{B}}}\sim {\lambda }_{{Np}}\sim a{\lambda }_{p}$ for a ≫ 1. Thus l_acc,B is much less than l_acc given by Equations (25) and (30). For both a ≪ 1 and a ≫ 1, the electrons could be accelerated to $\gamma \sim {{eE}}_{\max }{l}_{\mathrm{acc},{\rm{B}}}/{m}_{e}{c}^{2}\sim 2\pi {a}^{2}$ by the wakefield wave, but the corresponding synchrotron radiation from accelerated electrons is extremely low. Therefore, the acceleration from the wakefield wave would become inefficient due to the external magnetic field. Such an effect is too weak to be observationally interesting.
