Bright Merger-nova Emission Powered by Magnetic Wind from a Newborn Black Hole

The detection of gravitational waves (GWs) from mergers of binary black holes (BHs) by Advanced LIGO has started the era of GW astronomy (Abbott et al. 2016a, 2016b). Searching for electromagnetic (EM) counterparts to GW events is of great interest since it could play a crucial role in locating the host galaxy and studying detailed physics of compact star mergers (Fan et al. 2017). Systematic searches for EM signals have been performed for each GW event. However, a general consensus regarding the production mechanism of EM counterparts to BH–BH mergers is still lacking. Very recently, Advanced LIGO and VIRGO detected GW170817, which is consistent with a neutron star–neutron star (NS–NS) merger. Subsequently, the multi-wavelength EM counterparts (GRB 170817A, AT 2017gfo) were identified. This marked the beginning of the era of multi-messenger astronomy (Abbott et al. 2017a, 2017b).

Short-duration gamma-ray bursts (sGRBs) are probably the brightest EM emission during the NS–NS or NS–BH mergers (Fox et al. 2005; Gehrels et al. 2005; Virgili et al. 2011; Fong et al. 2013). The discovery of the association of GW170817 with GRB 170817A directly confirmed this scenario (Abbott et al. 2017b). However, due to the collimation of GRB jets, not all NS–NS GW sources will be associated with sGRBs (e.g., Burrows et al. 2006). The "kilonova" powered by radioactive decay of the r-process is then of great importance (Li & Paczyński 1998; Metzger et al. 2010), which has been broadly adopted to interpret AT 2017agfo, the optical counterpart of GW170817 (e.g., Kasen et al. 2017).

If the merger product is a millisecond magnetar, the near-isotropic magnetar wind would produce rich EM signals in association with a GW event. Zhang (2013) proposed that such a magnetar wind would undergo magnetic dissipation (Zhang & Yan 2011) and power a bright X-ray afterglow emission. In addition, a significant fraction of the magnetar wind energy would be used to heat up and push the neutron-rich ejecta, which powers a bright merger-nova (which could be much brighter than "kilonova"; Yu et al. 2013; Metzger & Piro 2014; Gao et al. 2015, 2017) and broadband afterglow (in radio, optical, and X-ray; see Gao et al. 2013).

However, the merger product of BH–NS mergers and at least a fraction of NS–NS mergers is a stellar mass BH (Jin et al. 2015, 2016; Gao et al. 2016). Radioactive decay has long been thought to be the main source of energy for "kilonova" in the BH scenario. In this work, we propose that the magnetic wind from the accretion disk would heat up the neutron-rich merger ejecta and produce a bright merger-nova. We study the emission properties of such a magnetic-wind-powered merger-nova for a newborn BH with and without a fall-back accretion disk at late times. The predicted EM signals can serve as interesting targets in the search for EM counterparts of GW burst triggers in the Advanced LIGO/Virgo era.

The mergers of NS–BH binaries and at least a fraction of NS–NS binaries would lead to the formation of a hyper-accreting stellar mass BH with ejecta of mass M_ej ∼ 10⁻³–10⁻¹ M_☉. The GRB prompt emission can be powered by the Blandford & Znajek (1977, hereafter BZ) mechanism, in which the spin energy of the BH is extracted via the open field lines penetrating the event horizon. For a BH with mass M_•, spin a_•, and accretion rate $\dot{M}$, the BZ power can be estimated as (Lei et al. 2013, 2017; Liu et al. 2017)

$$\begin{eqnarray}&&{L}_{\mathrm{BZ}}=1.7\times {10}^{50}{a}_{\bullet }^{2}{m}_{\bullet }^{2}{B}_{\bullet ,15}^{2}F({a}_{\bullet })\,\mathrm{erg}\,{{\rm{s}}}^{-1},\end{eqnarray} \tag{ 1 }$$

where m_• = M_•/M_☉, F(a_•) = [(1 + q²)/q²] [(q + 1/q) arctan q − 1], and $q={a}_{\bullet }/(1+\sqrt{1-{a}_{\bullet }^{2}})$.

As the magnetic field on the BH is supported by the surrounding disk, there are some relations between B_• and $\dot{M}$. As a matter of fact, these relations might be rather complicated, and would be very different in different situations. It is reasonable to assume that the magnetic pressure on the horizon may reach a fraction α_m of the ram pressure of the innermost parts of an accretion flow, i.e.,

$$\begin{eqnarray}&&{B}_{\bullet }^{2}/8\pi ={\alpha }_{{\rm{m}}}{P}_{\mathrm{ram}}\sim {\alpha }_{{\rm{m}}}\dot{M}c/(4\pi {r}_{\bullet }^{2}).\end{eqnarray} \tag{ 2 }$$

The observed γ-ray/X-ray luminosity is connected to the BZ power via the X-ray radiation efficiency η and the jet beaming factor f_b, i.e.,

$$\begin{eqnarray}&&\eta {L}_{\mathrm{BZ}}={f}_{{\rm{b}}}{L}_{\gamma ,\mathrm{iso}}.\end{eqnarray} \tag{ 3 }$$

Energy and angular momentum could also be extracted magnetically from the accretion disk by field lines that leave the disk surface and extend to large distances, centrifugally launching a baryon-rich wide wind/outflow through the Blandford–Payne (Blandford & Payne 1982, hereafter BP) mechanism. The magnetic wind power can be estimated by (Livio et al. 1999; Meier 2001)

$$\begin{eqnarray}&&{L}_{\mathrm{BP}}={({B}_{\mathrm{ms}}^{{\rm{p}}})}^{2}{r}_{\mathrm{ms}}^{4}{{\rm{\Omega }}}_{\mathrm{ms}}^{2}/32c,\end{eqnarray} \tag{ 4 }$$

where Ω_ms is the Keplerian angular velocity at the radius of the marginally stable orbit r_ms. The expression for r_ms is from (Bardeen et al. 1972)

$$\begin{eqnarray}&&{r}_{\mathrm{ms}}/{r}_{{\rm{g}}}=3+{Z}_{2}-{[(3-{Z}_{1})(3+{Z}_{1}+2{Z}_{2})]}^{1/2},\end{eqnarray} \tag{ 5 }$$

for 0 ≤ a_• ≤ 1, where ${Z}_{1}\equiv 1+{(1-{a}_{\bullet }^{2})}^{1/3}[{(1+{a}_{\bullet })}^{1/3}\,+{(1-{a}_{\bullet })}^{1/3}]$, ${Z}_{2}\equiv {(3{a}_{\bullet }^{2}+{Z}_{1}^{2})}^{1/2}$. The Keplerian angular velocity is given by

$$\begin{eqnarray}&&{{\rm{\Omega }}}_{\mathrm{ms}}={\left(\displaystyle \frac{{{GM}}_{\bullet }}{{c}^{3}}\right)}^{-1}\displaystyle \frac{1}{{\chi }_{\mathrm{ms}}^{3}+{a}_{\bullet }},\end{eqnarray} \tag{ 6 }$$

where ${\chi }_{\mathrm{ms}}\equiv \sqrt{{r}_{\mathrm{ms}}/{r}_{{\rm{g}}}}$, and r_g ≡ GM_•/c². Following Blandford & Payne (1982), the disk poloidal magnetic field ${B}_{\mathrm{ms}}^{{\rm{p}}}$ at r_ms can be expressed as

$$\begin{eqnarray}&&{B}_{\mathrm{ms}}^{{\rm{p}}}={B}_{\bullet }{({r}_{\mathrm{ms}}/{r}_{\bullet })}^{-5/4},\end{eqnarray} \tag{ 7 }$$

where r is the disk radius and ${r}_{\bullet }={r}_{{\rm{g}}}(1+\sqrt{1-{a}_{\bullet }^{2}})$ is the BH horizon radius. B_• is the magnetic field strength threading the BH horizon.

Since the BH would be spun up by accretion and spun down by the BZ mechanism during a GRB, the evolution equations of a Kerr BH can be written as

$$\begin{eqnarray}&&\displaystyle \frac{{{dM}}_{\bullet }}{{dt}}=\dot{M}{E}_{\mathrm{ms}}^{\dagger }-{L}_{\mathrm{BZ}},\end{eqnarray} \tag{ 8 }$$

$$\begin{eqnarray}&&\displaystyle \frac{{{dJ}}_{\bullet }}{{dt}}=\dot{M}{J}_{\mathrm{ms}}^{\dagger }-{L}_{\mathrm{BZ}}/(0.5{{\rm{\Omega }}}_{\bullet }),\end{eqnarray} \tag{ 9 }$$

where ${J}_{\bullet }={a}_{\bullet }{{GM}}_{\bullet }^{2}/c$ is the angular momentum of BH, and ${{\rm{\Omega }}}_{\bullet }={a}_{\bullet }c/(2{r}_{\bullet })$ is the angular velocity of the BH horizon. ${E}_{\mathrm{ms}}^{\dagger }=(4{\chi }_{\mathrm{ms}}-3{a}_{\bullet })/\sqrt{3}{\chi }_{\mathrm{ms}}^{2}$ and ${J}_{\mathrm{ms}}^{\dagger }=2{{GM}}_{\bullet }(3{\chi }_{\mathrm{ms}}-2{a}_{\bullet })/\sqrt{3}c{\chi }_{\mathrm{ms}}$ are the specific energy and specific angular momentum of a particle at r_ms, respectively (Novikov & Thorne 1973).

We use a simple model to describe the evolution of the accretion rate during the prompt emission phase (see also Kumar et al. 2008), in which the disk with mass M_d and angular momentum J_d is treated as a single annulus ring with effective disk radius ${r}_{{\rm{d}}}={J}_{{\rm{d}}}^{2}/({{GM}}_{\bullet }{M}_{{\rm{d}}}^{2})$. The typical accretion timescale is ${t}_{\mathrm{acc}}={r}_{{\rm{d}}}^{2}/\nu \sim 2/(\alpha {{\rm{\Omega }}}_{K})$, where α is the dimensionless viscosity parameter. We thus define the accretion rate as

$$\begin{eqnarray}&&\dot{M}={M}_{{\rm{d}}}/{t}_{\mathrm{acc}}.\end{eqnarray} \tag{ 10 }$$

The BP-driven wind will take away significant angular momentum from the disk, while its associated mass-loss rate can be neglected (Li et al. 2008). The disk therefore evolves with time t as

$$\begin{eqnarray}&&\displaystyle \frac{{{dM}}_{{\rm{d}}}}{{dt}}=-\dot{M},\end{eqnarray} \tag{ 11 }$$

$$\begin{eqnarray}&&\displaystyle \frac{{{dJ}}_{{\rm{d}}}}{{dt}}=-\dot{M}{J}_{\mathrm{ms}}^{\dagger }-{L}_{\mathrm{BP}}/{{\rm{\Omega }}}_{\mathrm{ms}}.\end{eqnarray} \tag{ 12 }$$

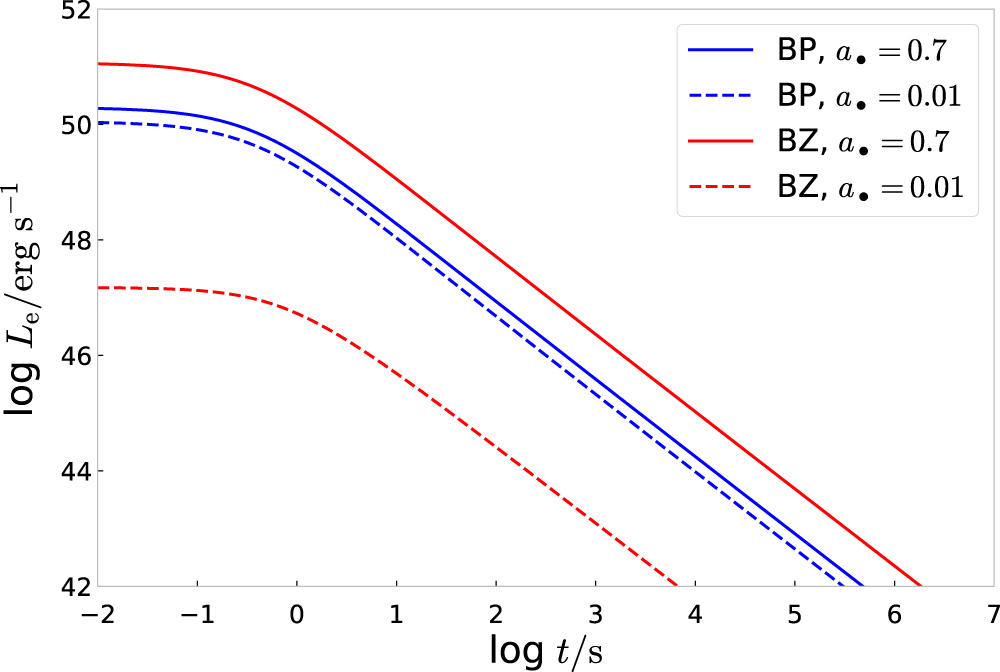

In Figure 1, we plot the time dependent BP wind (blue lines) power during the prompt emission phase for high (a_• = 0.7, solid lines) and low initial BH spin (a_• = 0.01, dashed lines) cases, and compare it with the BZ jet power (red lines). As we can see, the BP wind power is insensitive to the BH spin and dominates over the BZ jet power for BHs with a very small spin. This may account for the relative bright merger-nova but weak γ-ray power for GRB 170817A.

Zoom In Zoom Out Reset image size

The observations of flares, plateaus, and giant bumps suggest that some GRB central engines are long-lived (Burrows et al. 2005; Wu et al. 2013; Lü et al. 2015; Chen et al. 2017). In the context of the BH central engine, fall-back accretion of the surrounding unbounded matter can be a natural interpretation for these activities in sGRBs.

We also study the case with fall-back accretion. We assume that the disk accretion at late time tracks the fall-back accretion rate (MacFadyen et al. 2001; Dai & Liu 2012),

$$\begin{eqnarray}&&\dot{M}={\dot{M}}_{{\rm{p}}}{\left[\displaystyle \frac{1}{2}{\left(\displaystyle \frac{t-{t}_{0}}{{t}_{{\rm{p}}}-{t}_{0}}\right)}^{-1/2}+\displaystyle \frac{1}{2}{\left(\displaystyle \frac{t-{t}_{0}}{{t}_{{\rm{p}}}-{t}_{0}}\right)}^{5/3}\right]}^{-1},\end{eqnarray} \tag{ 13 }$$

where t₀ is the beginning time of the fall-back accretion and t_p is the time corresponding to the peak fall-back rate ${\dot{M}}_{{\rm{p}}}$. As an example, we take t₀ = 1000 s, t_p = 1500 s (moderate values for X-ray flares in sGRBs, e.g., GRB 050724 and GRB 110731A; see Lü et al. 2015 and Chen et al. 2017), and ${\dot{M}}_{{\rm{p}}}=6\times {10}^{-6}{M}_{\odot }\,{{\rm{s}}}^{-1}$ in the following calculations.

The near-isotropic magnetic wind dissipates a fraction of the energy into the merger ejecta (Bucciantini et al. 2012). The deposited energy would increase the internal energy and accelerate the ejecta (Yu et al. 2013). The total energy of the ejecta is thus written as

$$\begin{eqnarray}&&{E}_{\mathrm{ej}}=({\rm{\Gamma }}-1){M}_{\mathrm{ej}}{c}^{2}+{\rm{\Gamma }}{E}_{\mathrm{int}}^{{\prime} },\end{eqnarray} \tag{ 14 }$$

where Γ is the Lorentz factor and ${E}_{\mathrm{int}}^{{\prime} }$ is the internal energy measured in the comoving rest frame. The conservation of energy conservation reads

$$\begin{eqnarray}&&{{dE}}_{\mathrm{ej}}=({L}_{\mathrm{inj}}-{L}_{e}^{{\prime} }){dt},\end{eqnarray} \tag{ 15 }$$

L_e is bolometric radiation luminosity from the heated electrons. ${L}_{\mathrm{inj}}=\xi {L}_{\mathrm{BP}}^{{\prime} }+{L}_{\mathrm{ra}}^{{\prime} }$ denotes the injected power from a BP wind $\xi {L}_{\mathrm{BP}}^{{\prime} }$ and from an radioactive decay rate ${L}_{\mathrm{ra}}^{{\prime} }$. Here we introduce a parameter ξ to describe the fraction of magnetic wind energy that is used to heat the ejecta. The case with ξ = 0 or α_m = 0 will return to the result of kilonova. Following Yu et al. (2013), we take a normal value ξ = 0.3.

Combining Equations (14) and (15), we obtain the dynamic evolution of the ejecta,

$$\begin{eqnarray}&&\displaystyle \frac{d{\rm{\Gamma }}}{{dt}}=\displaystyle \frac{{L}_{\mathrm{inj}}-{L}_{e}-{\rm{\Gamma }}{ \mathcal D }({{dE}}_{\mathrm{int}}^{{\prime} }/{dt}^{\prime} )}{{M}_{\mathrm{ej}}{c}^{2}+{E}_{\mathrm{int}}^{{\prime} }},\end{eqnarray} \tag{ 16 }$$

where ${ \mathcal D }=1/[{\rm{\Gamma }}(1-\beta )]$ is the Doppler factor, and $\beta =\sqrt{1-{{\rm{\Gamma }}}^{-2}}$. The change of the internal energy can be written as (Kasen & Bildsten 2010)

$$\begin{eqnarray}&&\displaystyle \frac{{{dE}}_{\mathrm{int}}^{{\prime} }}{{dt}^{\prime} }={L}_{\mathrm{inj}}^{{\prime} }-{L}_{e}^{{\prime} }-P^{\prime} \displaystyle \frac{{dV}^{\prime} }{{dt}^{\prime} }.\end{eqnarray} \tag{ 17 }$$

The comoving luminosities are defined as ${L}_{\mathrm{inj}}^{{\prime} }={L}_{\mathrm{inj}}/{{ \mathcal D }}^{2}$, and

$$\begin{eqnarray}{L}_{\mathrm{ra}}^{{\prime} } & = & 4\times {10}^{49}{M}_{\mathrm{ej},-2}\\ & & \times {\left[\displaystyle \frac{1}{2}-\displaystyle \frac{1}{\pi }\arctan \left(\displaystyle \frac{t^{\prime} -{t}_{0}^{{\prime} }}{{t}_{\sigma }^{{\prime} }}\right)\right]}^{1.3}\mathrm{erg}\,{{\rm{s}}}^{-1},\end{eqnarray} \tag{ 18 }$$

with ${t}_{0}^{{\prime} }\sim 1.3\,{\rm{s}}$ and ${t}_{\sigma }^{{\prime} }\sim 0.11$ (Korobkin et al. 2012). For a relativistic gas, the pressure is (1/3) of the internal energy density, i.e., $P^{\prime} ={E}_{\mathrm{int}}^{{\prime} }/(3V^{\prime} )$.

The comoving volume is determined by dV'/dt' = 4πR²βc and dR/dt = βc/(1 − β). The comoving frame bolometric emission luminosity of the heated electrons can be estimated as

$$\begin{eqnarray}{L}_{e}^{{\prime} }=\left\{\begin{array}{ll}{E}_{\mathrm{int}}^{{\prime} }c/(\tau R/{\rm{\Gamma }}), & t\,\lt \,{t}_{\tau },\\ {E}_{\mathrm{int}}^{{\prime} }c/(R/{\rm{\Gamma }}), & t\,\geqslant \,{t}_{\tau },\end{array}\right.\end{eqnarray} \tag{ 19 }$$

where τ = κ (M_ej/V')(R/Γ) is optical depth and κ is opacity of the ejecta. t_τ is the time when τ = 1.

The peak energy of the emission spectrum νL_ν is

$$\begin{eqnarray}{\varepsilon }_{\gamma ,p}\approx 4{ \mathcal D }{kT}^{\prime} =\left\{\begin{array}{ll}4{ \mathcal D }k{\left(\displaystyle \frac{{E}_{\mathrm{int}}^{{\prime} }}{{aV}^{\prime} \tau }\right)}^{1/4} & \mathrm{for}\,\tau \,\gt \,1\\ 4{ \mathcal D }k{\left(\displaystyle \frac{{E}_{\mathrm{int}}^{{\prime} }}{{aV}^{\prime} }\right)}^{1/4} & \mathrm{for}\,\tau \,\leqslant \,1\end{array}\right.,\end{eqnarray} \tag{ 20 }$$

where k is the Boltzmann constant and a is the blackbody radiation constant. The luminosity at a particular frequency ν is given as

$$\begin{eqnarray}&&\nu {L}_{\nu }=\displaystyle \frac{8{\pi }^{2}{{ \mathcal D }}^{2}{R}^{2}}{{h}^{3}{c}^{2}}\displaystyle \frac{{(h\nu /{ \mathcal D })}^{4}}{\exp (h\nu /{ \mathcal D }{kT}^{\prime} )-1}.\end{eqnarray} \tag{ 21 }$$

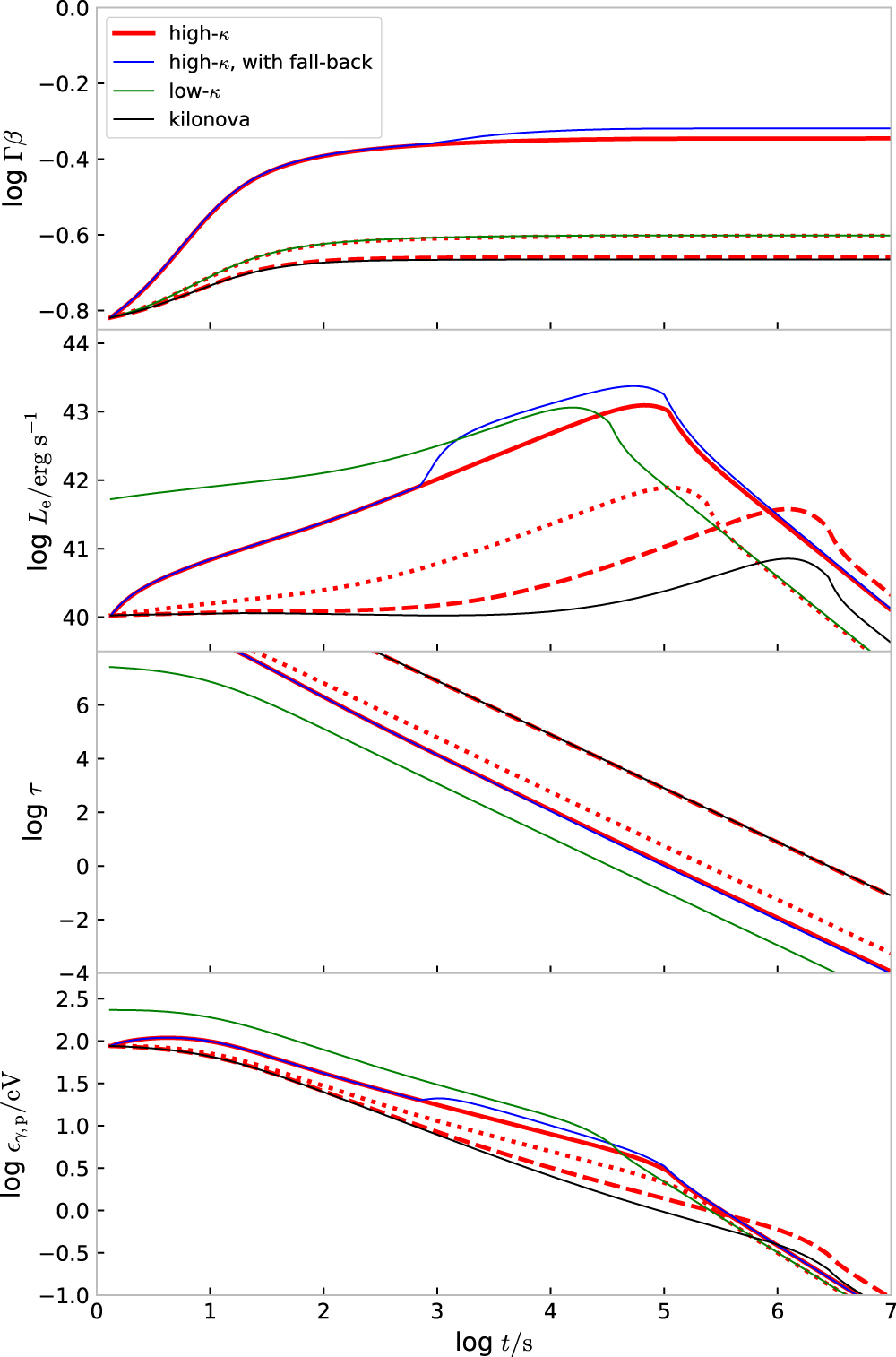

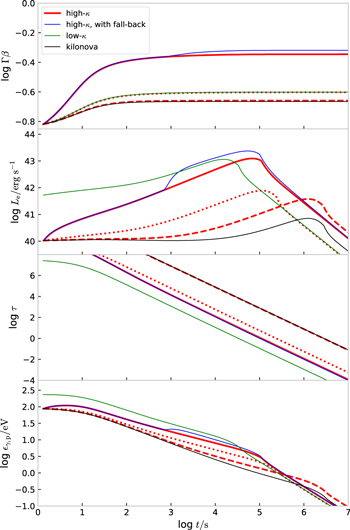

The properties of such a BP-powered merger-nova are exhibited in Figure 2. For comparison, we present a result with α_m = 0 or kilonova. One can find that the newborn BH can also produce a bright merger-nova once a strong BP wind is developed from the disk.

Zoom In Zoom Out Reset image size

A constant opacity $\kappa =0.2\,{\mathrm{cm}}^{2}\,{{\rm{g}}}^{-1}$ is adopted by Yu et al. (2013). Kasen et al. (2013), on the other hand, pointed out that heavier elements (particularly the lanthanides) might increase the opacity by several orders of magnitude κ ∼ 10–100 cm² g⁻¹. As a result, the merger-nova emission could be weakened and shifted toward softer bands. However, significant energy injection from the BP wind may suppress the production of lanthanides. In the following, we exhibit the results for both κ = 0.2 cm² g⁻¹ (green solid lines) and κ = 10 cm² g⁻¹ (red lines).

In the calculations, we fix the typical duration of the central engine during the prompt emission phase as ${t}_{90}=1\,{\rm{s}}$. Therefore, the case with a larger initial disk mass denotes a higher initial accretion rate. For high M_d (red solid lines), the ejecta can be accelerated to a higher speed since more BP wind energy is available to drive the ejecta (see Figure 2). It thus becomes transparent and then peaks in luminosity at an earlier time compared to the low M_d case (red dotted lines). As a result, the merger-nova with disk mass M_d = 0.1 M_☉ is brighter than that with M_d = 0.01 M_☉. Compared to the high-mass ejecta (red dashed lines), a low-mass ejecta (red solid lines) is easier to be accelerated, which leads to a smaller peak time, a larger peak energy ${\epsilon }_{\gamma ,{\rm{p}}}$, and a brighter merger-nova.

In Figure 2, we also show the case with fall-back accretion (blue solid lines). We adopt t₀ = 1000 s, t_p = 1500 s, and ${\dot{M}}_{{\rm{p}}}=6\times {10}^{-5}{M}_{\odot }\,{{\rm{s}}}^{-1}$ in the calculations. The BP energy due to fall-back accretion would further heat up and accelerate the ejecta at late times, which lead to an even brighter and broader merger-nova.

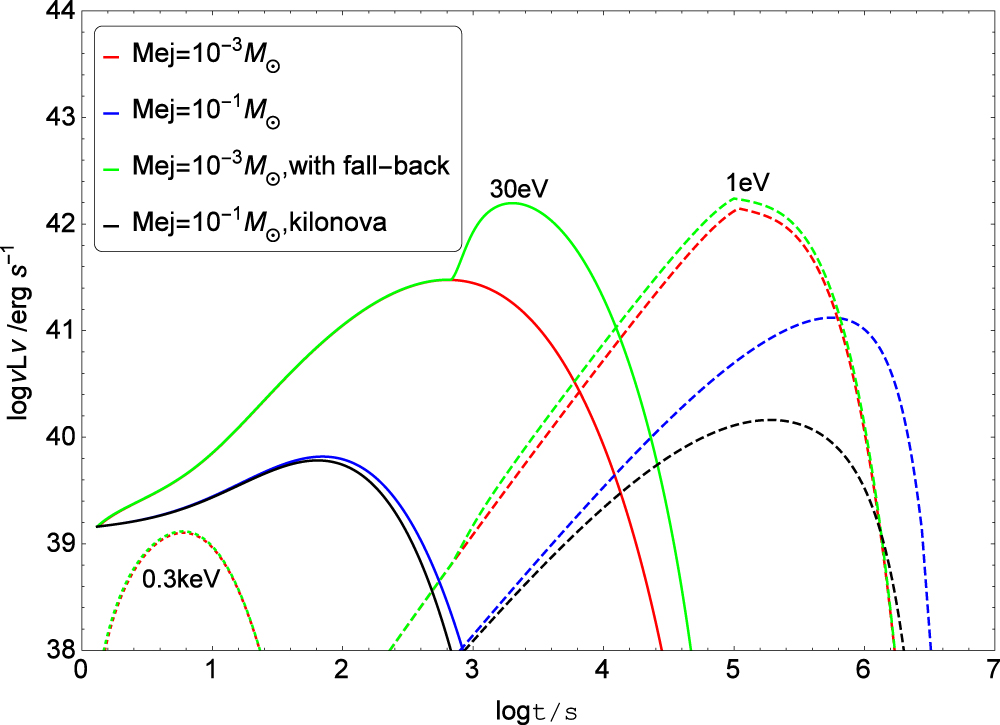

Figure 3 presents the lightcurves of the BP-powered merger-nova at different frequencies (dotted lines: 0.3 keV, solid lines: 30 eV, dashed lines: 1 eV). The peak luminosity in the optical band (∼1 eV) can reach $\sim {10}^{42}\,\mathrm{erg}\,{{\rm{s}}}^{-1}$. One may expect a brightening at t > 10³ s for the ultraviolet (∼30 eV) lightcurve of a low-mass ejecta if there is fall-back accretion. However, the X-ray (∼0.3 eV) emission is generally too weak for the current detectors.

Zoom In Zoom Out Reset image size

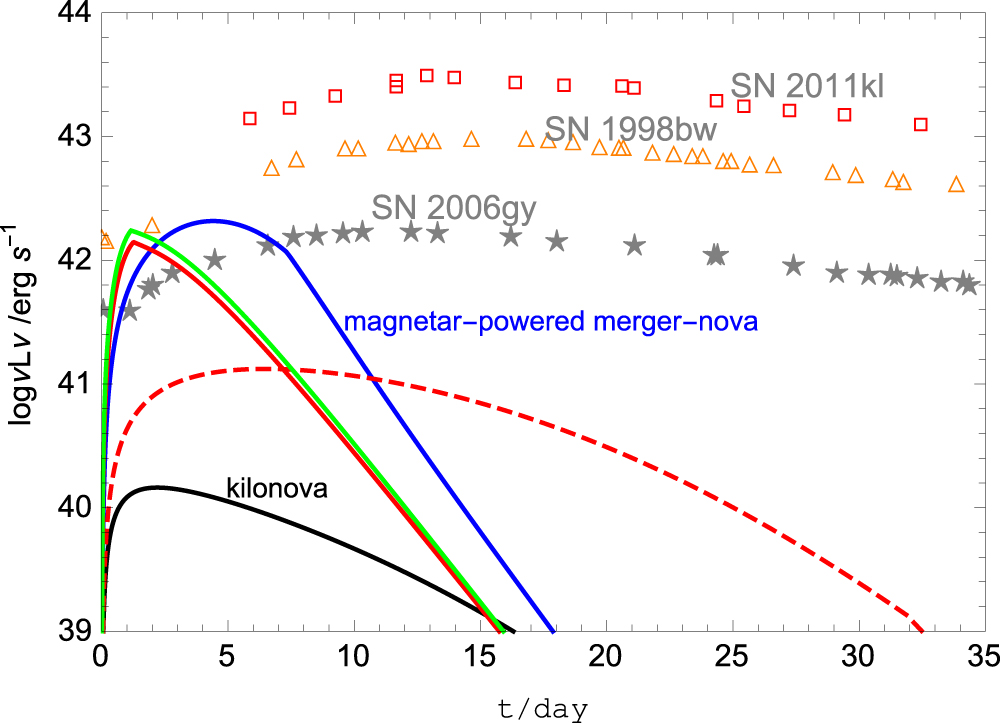

Finally, in Figure 4, we compare the optical lightcurve of the BP-powered merger-nova (red lines: without fall-back accretion, green line: with fall-back accretion) with those of supernovae (SN 1998bw and SN 2006gy), superluminous supernova (SN 2011kl), kilonova (α_m = 0, black line), and magnetar-powered merger-nova (blue line). The injection energy of the magnetar model is dipole radiation (Zhang & Mészáros 2001):

$$\begin{eqnarray}&&{L}_{\mathrm{sd}}={L}_{\mathrm{sd},0}{\left(1+\displaystyle \frac{t}{{t}_{\mathrm{sd}}}\right)}^{-2},\end{eqnarray} \tag{ 22 }$$

with ${L}_{\mathrm{sd},0}={10}^{49}\,{R}_{s,6}^{6}{B}_{15}^{2}{P}_{i,-3}^{-4}\,\mathrm{erg}\,{{\rm{s}}}^{-1}$ and ${t}_{\mathrm{sd}}={10}^{3}\,{R}_{s,6}^{-6}{B}_{15}^{-2}{P}_{i,-3}^{2}\,{\rm{s}}$. The parameters adopted here are B₁₅ = 5 and ${P}_{i,-3}=5$, ${R}_{s,6}=1.2$, which gives ${L}_{\mathrm{sd},0}=1.2\times {10}^{48}\,\mathrm{erg}\,{{\rm{s}}}^{-1}$ and t_sd = 1.1 × 10³ s.

Zoom In Zoom Out Reset image size

Inspecting Figure 4, we find that the injected energy from both BH and magnetar would enhance the luminosity of the merger-nova. For a newborn BH with strong BP wind (high ${\alpha }_{{\rm{m}}}$), the merger-nova can be two orders of magnitude brighter than a kilonova. Therefore, the detection of a GW event, in which the post-merger product is a BH, while the merger-nova is bright, would suggest that the BP mechanism is indeed at play. Another feature of this model is that it may produce a bright merger-nova for an on-axis weak sGRB (corresponding to the low spin case).

The mergers of NS–NS and NS–BH binaries are candidate sources of GWs. Much attention has been paid on the near-isotropic EM emissions from such events. A fraction of the merger products could be stellar mass BHs. In this Letter, we found that the BP-driven wind from this newborn BH-disk can produce a bright merger-nova peaking in the optical band. The peak luminosity can reach ∼10⁴² erg s⁻¹ in the hour–day timescale.

The ultraviolet-optical-infrared transient (AT 2017gfo) of GW170817 can be successfully interpreted with the theory of r-process "kilonova." The comprehensive observations on AT 2017gfo reveals the details of lightcurves and spectral evolution (Kasen et al. 2017). A single component kilonova is found difficult to account for the early and late data as well as the evolution of the spectra. Villar et al. (2017) collected the available and homogenized optical data and found that the data can be well modeled with a three-component kilonova model. Yu & Dai (2017), on the other hand, proposed hybrid energy sources, including radioactivity and NS spin-down, to explain the complex optical emission of AT 2017gfo. However, if the merger product is a BH or a short-lived NS followed by a prompt collapse to a BH, a hybrid model with an r-process and energy injection from BP wind might be relevant.

The BP-powered merger-nova can be as bright as the magnetar-powered merger-nova. The late-time fall-back accretion might further enhance the luminosity of the merger-nova. The BZ power has strong dependence on the BH spin a_•, while the BP power is insensitive to a_•. One would expect an on-axis low-luminosity sGRB with a bright merger-nova if a_• is quite small. Combining the observations of GWs, sGRBs and merger-nova emissions, we can have a better understanding of the origin and merger product of the GW events. In particular, if the GW data show that the post-merger product is a BH, while the merger-nova is bright, one would suggest that the BP mechanism is indeed at play. Such an event would server as a robust test of our model.

Besides the merger-nova emissions, the BP-driven wind can also produce multi-band afterglow radiation in the "free zone" (the direction where the sGRB is missed, but X-rays may escape; see Sun et al. 2017). Such emission is potentially detectable by future wide-field X-ray detectors, such as the Einstein Probe (Yuan et al. 2016). The coexistence of a BZ jet and a BP wind may develop a structured jet, which may give rise to a low-luminosity sGRB for a slightly off-axis observer, which may be the case of GRB 170817A (Xiao et al. 2017; Zhang et al. 2017).

Significant energy injection due to mass loss in a merger system was studied by Song & Liu (2017), who pointed out that the resulting kilonova event may be as bright as a supernova. Due to the uncertainties of the mass loading in the outflow, we ignored energy injection from wind itself in this work.

Another consideration is that the merger-nova photons would be scattered into higher frequency via inverse compton (IC) in the cocoon shocked region (Ai & Gao 2017). In the context of the BH central engine, it is worth studying the IC scattered emission from BP-powered merger-nova photons.

We thank Yunwei Yu for helpful discussions. The Numerical calculations were performed by using a high performance computing cluster (Hyperion) of HUST. This work is supported by the National Basic Research Program ("973" Program) of China (grants 2014CB845800), the National Natural Science Foundation of China under grants U1431124 and 11773010. H.G. acknowledges support by the National Natural Science Foundation of China under grants 11722324, 11603003, 11690024, and 11633001.
