VENUS CLOUD MORPHOLOGY AND MOTIONS FROM GROUND-BASED IMAGES AT THE TIME OF THE AKATSUKI ORBIT INSERTION^∗

Venus clouds show spatial and temporal variability at different levels as well as numerous wave systems. The motions of the clouds and waves can be tracked in detailed images obtained by the different missions and flybys of the planet since 1974 Mariner 10 (Murray et al. 1974; Belton et al. 1976), Pioneer-Venus (Limaye 2007), Galileo (Belton et al. 1991; Peralta et al. 2007), MESSENGER (Solomon et al. 2007), and Venus Express (Sánchez-Lavega et al. 2008; Khatuntsev et al. 2013; Hueso et al. 2015). Since 2015 December, the Akatsuki orbiter (also named Venus Climate Orbiter) from the Japan Aerospace Exploration Agency (JAXA) continues the exploration of Venus atmosphere (Nakamura et al. 2007, 2011, 2014). Following a malfunction on the propulsion system in a first orbit insertion attempt, Akatsuki was successfully inserted in an orbit different to that initially planned after maneuvering with the reaction control system (Nakamura et al. 2016). The spacecraft entered Venus orbit (VOI-R1) on 2015 December 7 (VOI-R1 VOI from 23:51:29 on December 6 through 00:11:57 on December 7, UTC on board time, add 8 minutes 19 s for UTC on Earth), and following a trim maneuver at first periapsis, Akatsuki entered on December 21 in an orbit with an apoapsis of 360,000–380,000 km, periapsis altitude of 1000–8000 km, and orbital period of 10.5 days (Nakamura et al. 2016). Since the Venus Express mission (VEx) ended in 2014 November, there are only ground-based observations of the planet during the gap of about a year between the two missions (2014 October to 2015 December).

Ground-based images of Venus clouds are in general scarce in time, and they are concentrated in short periods of time due to the intrinsic difficulties of observing the planet from the ground given its angular proximity to the Sun. This restricts the visibility of the illuminated (Venus dayside) or dark (Venus night side) parts of the disk to dates close to its maximum elongation, when the angular distance to the Sun reaches ∼48° and Venus is half illuminated. The "lucky imaging" technique based on the alignment and stacking of hundreds or thousands of short exposures (Lelievre et al. 1988; Law et al. 2005), has been successfully employed for high resolution at visible wavelengths in a number of astronomical contexts. It permits high-resolution planetary imaging with small telescopes in the range ∼0.3–0.5 m, thus allowing us to monitor Venus's clouds in the optical range during practically its whole orbit without the restrictions for Sun distance (Mousis et al. 2014). For this reason, the European Space Agency strongly encouraged the acquisition of Venus images from amateur observers to support early observations by the VEx spacecraft (Barentsen & Koschny 2008). The evolution of the cloud morphology and their motions in Venus daytime side are typically studied using images taken in the ultraviolet (UV)–violet (0.38–0.42 μm) and near-infrared (NIR; 0.9–0.97 μm) spectral ranges where clouds at two altitude levels can be observed (Belton et al. 1991; Sánchez-Lavega et al. 2008).

In this Letter, we report the analysis of ground-based observations of the cloud morphology and motions in Venus daytime atmosphere prior to and during the VOI-R1 phase of Akatsuki in 2015 (eastern elongation of 454 on June 7 and western elongation of 464 on October 26, respectively). We used images in the UV from different public databases taken by amateur astronomers. We also present images of the planet taken with the instrument PlanetCam-UPV/EHU (Mendikoa et al. 2016) mounted on the 2.2 m telescope at Calar Alto Observatory (CAHA) that observed simultaneously in the visible (0.38–1 μm) and the SWIR (1–1.7 μm) spectral ranges.

We selected Venus images according to their quality (appropriate contrast and spatial resolution) and temporal coverage during the two greatest elongation periods. (1st) Pre-Akatsuki VOI (2015 April–June): this was an eastern elongation with an angular distance between the Sun and Venus (e), phase angle (α), and Venus diameter (D) ranging from e = 37°, α = 558, and D = 138 to e = 454, α = 1078, and D = 42''. (2nd) Akatsuki VOI-R1 (2015 October–December): this was a western elongation with e and D ranging from e = 464, α = 1078, and D = 330 to e =  38°, α = 575, and D = 14''. The images were downloaded and are available in the following databases:

• 1.
  Association of Lunar and Planetary Observers (ALPO)—Japan: http://alpo-j.asahikawa-med.ac.jp/Latest/Venus.htm.
• 2.
  Société Astronomique de France (SAF): Commission Observations Planétaires de la SAF—section Venus (Astrosurf): http://www.astrosurf.com/planetessaf/Venus/index.htm.
• 3.
  Unione Astrofili Italiani (UAI): Vetrina di osservazioni planetarie: http://pianeti.uai.it/archiviopianeti/.

In total, we selected and examined about 525 images (340 during the eastern elongation and 185 during the western elongation) obtained in the UV–violet band (380–410 nm). The PlanetCam imaging series were obtained in a single observing run on 2015 December 30. Additional support was gained with images obtained with a Celestron 11'' telescope from the Aula EspaZio Gela (Sánchez-Lavega et al. 2014). Observers and times of observations are specified in the captions of the corresponding figures.

Figure 1(a) shows the Venus dayside reflected spectrum with the following main features: UV aerosol absorption (300–450 nm) and CO₂ absorption bands at 1.05, 1.2–1.35, and 1.435 μm. Figures 1(b)–(e) show the aspect of Venus at different wavelengths and Figures 1(f)–(g) are examples of the spatial and temporal resolution of the images used in this study. For a telescope with a diameter of 40 cm the resolution limit imposed by diffraction is σ (380 nm) = 025. During the greatest elongations, for a Venus diameter ∼40'', the spatial resolution at Venus equatorial latitudes is ∼200 km/pix (380 nm). For the 2.2 m telescope at CAHA these numbers are σ (380 nm) = 005 and σ (1,430 nm) = 017, so at maximum elongations the maximum spatial resolution attainable at equatorial latitudes is ∼40 km/pix (380 nm), 100 km/pix (980 nm), and 850 km/pix (1.43 μm).

Zoom In Zoom Out Reset image size

We used the WinJUPOS software (Hahn 2016) to navigate the images transforming the original pixel coordinates to longitude and latitude positions over the planet. This was done by orienting the images and fitting the limb and phase of the planet to a synthetic limb and phase based on ephemeris and calculated by the software. The PlanetCam images processed with our pipeline PLAYLIST that evaluates the quality of individual frames, coregisters individual frames, and stacks the best frames into the final scientific image (Mendikoa et al. 2016). For the determination of the longitudes on the planet disk two rotation periods are implemented in WinJUPOS: System 1 (S1) is for the planetary surface rotation with a period of 243.018 days (Archinal et al. 2010) and System 2 (S2) is arbitrarily chosen close to the superrotation period of 4.2 days at the upper cloud layer (equivalent to an angular velocity of −857142857/day; from D. Crussaire; Pellier et al. 2015). Cloud features captured in UV images remain quasi-stationary in System 2 and full hemispheric cylindrical maps can be composed in a four-day period. See, e.g., Venus cloud maps from the Mariner 10 flyby based on a 4.0 day rotation period at the equator (Murray et al. 1974; Belton et al. 1976) and maps from the Galileo flyby based on a rotation period of 4.4 days (Kouyama et al. 2012). In this case, we used the WinJUPOS software to generate mosaics maps in System 2 representative of the global cloud morphology over the whole planet.

3.1. Eastern Elongation (2015 April–June)

We show in Figure 2(a) representative group of images corresponding to the east elongation of Venus during 2015 April–June (see also Figure 1(f)). During this period the cloud morphology was dominated by the presence of a marked dark equatorial band (Figures 2(b)–(c)) similar to those observed during the Mariner 10 flyby (Belton et al. 1976; Schubert 1983), Pioneer-Venus (Rossow et al. 1980), and VEx (Titov et al. 2012) and by arc-shaped features (Figures 2(d)–(f)) resembling the bow-shape features reported by Belton et al. (1976) and Rossow et al. (1980). The equatorial latitudes showed a mottled aspect that suggests the presence of cells similar to those seen by previous space missions (Rossow et al. 1980; Belton et al. 1991). They typically have sizes of 200–300 km, i.e., at the resolution limit of the best available images (Figures 2(b)–(c), (e)–(f)). During 2015 June there were patterns of patchy dark albedo bands crossing north–south the equatorial area accompanied by quasi-parallel segments (Figures 2(d)–(f)). These dark features have horizontal lengths between ∼1500 and 3000 km and could represent wave formation, whereas the patchy brighter spots (Figure 2(f)) suggest local instability occurring equatorward of mid-latitudes. A local time dependence of this activity can be involved since during eastern elongations we observed the afternoon side of Venus (LT = 12–24 hr) with a similar behavior in the clouds as has been previously reported by Titov et al. (2012).

Zoom In Zoom Out Reset image size

3.2. Western Elongation (2015 October–December)

Figure 3 shows the cloud morphology from October to mid-November during the western Venus elongation. The UV cloud morphology this time (Figure 4) was different from that in April–June showing the characteristic UV-patterns as observed, for example, during the Pioneer-Venus period described by Rossow et al. (1980). Among these features is the V-vertex of the Y-horizontal wave that extends in a dark equatorial band. This structure showed prominently in images taken on October 24 (Figure 3(a)) and October 27–28 (Figure 3(b)) with the equatorial band between latitudes 18°N and 8°S extending along the equator more than 14,000 km in longitude. Figure 3(b) shows the V-vertex of the two arms of the Y-horizontal structure spanning from 40°N to 43°S. A comparison of the V-vertex on October 24 and 28 (Figures 3(a) and (b)) shows important changes in its morphology after one full rotation (4 days). Only some of the major albedo markings survive and can be used (in addition to the vertex itself) to measure their velocity.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Figure 3(c) shows a full hemispheric map compiled from images obtained from November 13 to 16 where the Y-horizontal wave (System 2 longitudes ∼180°–360°) and its accompanying C-reversed wave (System 2 longitudes ∼0°–180°) stand prominently, spanning the full range of longitude in the planet. This is a manifestation of the planetary-scale wave pattern with a zonal wavenumber 2 and was particularly conspicuous during that period. The Y-horizontal wave and similar features (nicknamed C-reversed and Psi-horizontal) have been observed regularly with ground-based telescopes (e.g., Dollfus 1975) and from orbit by different space missions (Murray et al. 1974; Belton et al. 1976; Rossow et al. 1980; Schubert 1983; Peralta et al. 2007; Titov et al. 2012). Particularly interesting is the morphology of the C-reversed wave that was meridionally stretched along the longitude sector ∼70°–150° (Figure 3(c)). This mode showed a shorter vertex in longitude than that of the Y-horizontal wave, and in the northern side the arm reached high latitudes of ∼55°N–60°N. This meridional stretching is consistent with the evolution of the wave as it interacts with the zonal flow as predicted by the cyclostrophic Kelvin wave model of Peralta et al. (2015). The northern arm exhibited a triple band (longitude sector 70°–150°) called spiral dark streaks and polar rings in Murray et al. (1974) with a north–south separation between them of 900 km. This multiple banding is suggestive of the manifestation of an additional wave, possibly coupled to the Kelvin wave, that requires further analysis.

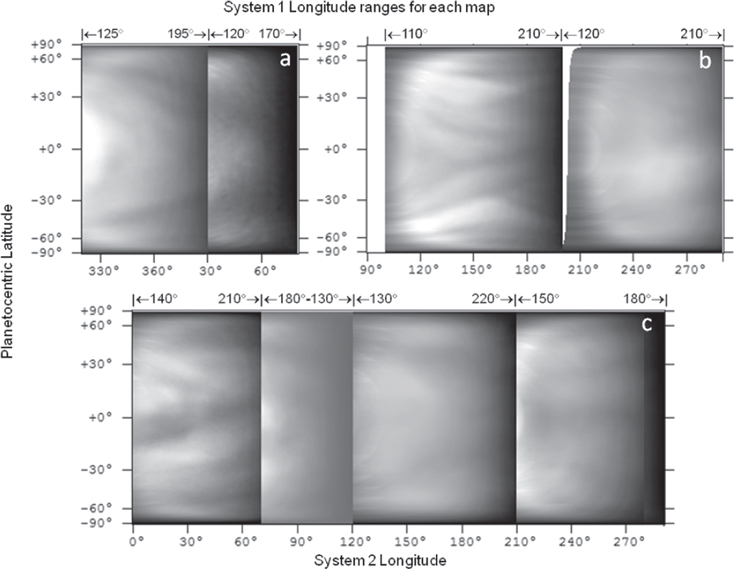

Figure 4 shows the cloud morphology during the Akatsuki's VOI-R1 epoch from the end of 2015 November to mid-December. For reference, Akatsuki first images with different instruments were taken on 2015 December 7, from 4:51:56 to 5:26:02 (UT) (Nakamura et al. 2016). The quality of the available images was not as good as before because of the smaller elongation and size of the planet. However, some interesting features where observed. To facilitate comparison with Akatsuki images we include the System 1 longitude ranges covered by each map forming the map mosaic. First, the Y-horizontal wave was again present during this period with the V-arms well developed (System 2 longitude range 320°–80° in Figure 4(a); S2 longitude range 120°–290° in Figure 4(c)). Second, the C-reversed or perhaps a ψ-horizontal wave (in fact, a Y-mode with a central equatorial belt) was present in December 9–12 in the S2 longitude range 0°–120° (Figure 4(c)) accompanying the Y-horizontal wave. In addition, a peculiar wavy structure was captured on December 4 (three days before Akatsuki orbit insertion) as shown in Figure 4(b). It consisted of a four-tilted-streak pattern converging toward the equator at a longitude of 150° between latitudes 30°N and 30°S, then diverging from it apparently as a consequence of the displacement of the bright polar areas toward the equator. This feature can also be partially seen in the UV image obtained by the UVI camera on board Akatsuki on December 7 (Figure 6(b) in Nakamura et al. 2016) and is suggestive of the interaction between the polar vortices edges and the planetary-scale waves but seems difficult to assign it to the Y-, ψ-, or C- modes.

On 2015 December 30, following the Akatsuki orbital insertion, we obtained a multi-wavelength set of Venus dayside images with PlanetCam-UPV/EHU (Mendikoa et al. 2016) at the 2.2 m telescope in Calar Alto Observatory (Figures 1(b)–(e)). The spatial resolution was low due to the low maximum elevation of the planet at sunrise (26°), but they clearly show the different cloud morphologies depending on the wavelengths (as a consequence of the scattering and absorption properties of the upper cloud). At 380 nm we sense the morphology at altitudes of 65–70 km as traced by the mixture of the unknown UV aerosol absorber and the clouds (Figure 1(b)). In the narrowband at 890 nm and in the broadband 725–950 nm filters (Figures 1(d)–(e)), we sense the cloud morphology at the base of the upper cloud (altitude ∼60 km; Belton et al. 1991; Sánchez-Lavega et al. 2008). In the 1.435 μm CO₂ absorption band (Figure 1(c)), the cloud morphology differs from that of the previous cases. The vertically integrated extinction within this band indicates that we also sense at this wavelength the upper cloud at 65–70 km, but the difference with the UV is that there is very little aerosol absorption and the brightness contrast in the clouds originates from small differences in altitude and in the scattering behavior of the cloud particles. We measured a relative brightness contrast between features ∼10% in the UV (380–410 nm) decreasing to about 5% in the NIR (750–950 nm) and SWIR (1.435 μm CO₂ band ranges).

The UV–violet images obtained along the two elongation periods in 2015 were used for cloud tracking and zonal velocity measurements. A standard method was used to retrieve the velocity of individual features as described in Sánchez-Lavega et al. (2008). When high-resolution images and adequate sampling are available, we use image pairs or triplets separated by a temporal interval Δt = 2–6 hr. This allows us to measure wind speeds with errors in the range ∼20–40 m s⁻¹ for tracers with sizes ∼200–400 km (see Section 2). The sampling involves images obtained from more than one observer, sufficiently separated in Earth longitude, to extend the typical observing window of ∼2 hr for a single observer. The major source of uncertainty of the method comes from the correct identification of the target and cursor pointing due to the size and brightness differences between them.

A second method we used was the cloud tracking of the major features (sizes ∼1000 km) based on image pairs separated by Δt ∼ 4 days. In this particular case, the wind speeds can be measured with smaller errors of ∼10–15 m s⁻¹. However, only major features maintain coherence long enough to guarantee identification after 4 days. This is the case for features pertaining to the planetary-scale waves described above. In total, we were able to track 94 cloud features between latitudes ∼50°N and 50°S, as shown in Figure 5. For control and checking, we include some measurements (33 wind data points) obtained from additional measurements we performed on ground-based images taken between 2007 and 2012 and retrieved from the same database.

Zoom In Zoom Out Reset image size

Our data provide the first wind measurements in the UV (upper cloud) from cloud tracking in the northern hemisphere of Venus since the Galileo flyby in 1990 (Belton et al. 1991; Peralta et al. 2007) because Venus Express wind coverage of the northern hemisphere was poor. Other long-term ground-based wind measurements encompassing this period for the lower clouds (48–55 km), observed in Venus nighttime (wavelengths 1.7 and 2.3 μm) in both hemispheres, have also been reported (see, e.g., Young et al. 2010a, 2010b). Our velocity measurements agree at lower latitudes with results from older missions (Schubert 1983), Doppler wind measurements (Machado et al. 2012, 2014), and the mean profiles from data obtained over a decade by the VMC and VIRTIS instruments on board VEx (Sánchez-Lavega et al. 2008; Khatuntsev et al. 2013; Hueso et al. 2015), as shown in Figure 5. The higher discrepancies found for higher latitudes might be attributable to the sporadic changes in the poleward decay of the winds also found in some orbits of VEx mission (see Figure 4 in Hueso et al. 2015 and Figure 15 in Khatuntsev et al. 2013) and in the difficulty in target identification at these latitudes.

A large observing effort by the amateur astronomer community contributing images to different observational databases has allowed a survey of the cloud morphology, motions, and dynamical state of the upper clouds of Venus as detected in the UV–violet spectral range along 2015. Our main conclusion is that the observed dynamical state of Venus upper cloud differed in April–June from October–December when the Akatsuki VOI took place. During the VOI, the dynamical regime was dominated by the development of planetary-scale waves typical of the Venus atmosphere at the cloud top level (Y-horizontal, C-reversed, and ψ-horizontal waves) formed by long tilted streaks and banding with complex interactions between them. Part of this difference between both observing periods can be attributed to Local Time observing conditions: afternoon hemisphere and more unstable upper cloud layer (eastern elongation) and morning with more stable conditions (western elongation). The zonal wind velocity retrieved from cloud tracking in the latitude range from 50°N to 50°S agrees in general with previous wind retrievals, although deviations are found. These deviations might be attributable to motions of global-scale waves apparent on the cloud tops and the solar tide (Hueso et al. 2015).

Ongoing ground-based support to Akatsuki spacecraft includes an international observing campaign around the next eastern elongation in 2017 January with further coordinated observations along the mission development (see the Akatsuki project coordination with ground-based observations: https://akatsuki.matsue-ct.jp/).

We acknowledge Christophe Pellier and Marc Delcroix (Société Astronomique de France, SAF), and Dr. Paolo Tanga and Raffaello Braga (Unione Astrofili Italiani), and Dr. Dima Titov for their support in the localization of amateur images and observers. This work was supported by the Spanish MICIIN projects AYA2015-65041 with FEDER support, Grupos Gobierno Vasco IT-765-13, and UFI11/55 from UPV/EHU. J.P. acknowledges JAXA's International Top Young Fellowship.
