Variations of the Galactic Cosmic Rays in the Recent Solar Cycles

Due to the supersonic expansion of the solar wind (SW), the heliosphere is like a giant asymmetric bubble filled with various energetic particles. These particles are the dominant source of the space radiation environment, posing a significant threat to the regular operation of spacecraft and high-altitude aircraft, and the health of astronauts and flight personnel (e.g., Mertens & Slaba 2019). Solar energetic particles (SEPs), Galactic cosmic rays (GCRs), and anomalous cosmic rays (ACRs) are the three commonly seen energetic particles in interplanetary space.

SEPs, also known as solar cosmic rays, are the particles originating from the Sun with energies ranging from a few tens of keV to several GeV. They are frequently associated with coronal mass ejections (CMEs) and solar flares. It is widely accepted that a CME-driven shock is an essential site for accelerating SEPs (e.g., Hu et al. 2017, 2018; Fu et al. 2019; Ding et al. 2020). GCRs are often regarded as a stable background; they are believed to originate from supernova remnants (SNRs) and to be accelerated by supernova blast shocks driven by expanding SNRs. This is confirmed by observations and numerical simulations (Aharonian et al. 2007, 2011; Ptuskin et al. 2010). During quiet periods, the fluxes of some cosmic-ray species with high first ionization potentials, including H, He, C, N, O, Ne and Ar, are significantly higher than that of the background GCRs, i.e., ACRs (Hovestadt et al. 1973; McDonald et al. 1974; Hasebe et al. 1997). A classical explanation of ACRs is that they originate from the interstellar medium; the neutral atoms drift into the heliosphere and become singly ionized by the solar wind or ultraviolet radiation and are subsequently accelerated to energies above 10 MeV nuc⁻¹, mostly at or near the heliospheric termination shock (Mewaldt et al. 1993; Cummings & Stone 2007; Gloeckler et al. 2009). New mechanisms for ACR acceleration have been put forward (e.g., Giacalone et al. 2012, and references therein); for example, Zhao et al. (2019) suggested that ACR protons are accelerated in the heliosheath via reconnection processes. Studying the nature of energetic particles provides insight into the acceleration mechanisms and the transport processes between the sources and the observers.

When GCR particles from outer space (the so-called primary cosmic rays) encounter the Earth and penetrate the Earth's atmosphere, they interact with atmospheric atoms and generate cascades of secondary particles (e.g., Mishev et al. 2014). The secondary particles (predominantly neutrons and muons at the ground level) can be measured by ground-based neutron monitors (NMs) and muon detectors once they arrive at the surface of the Earth. The history of NMs can be traced back to the 1950s (Bieber 2013). The combination of GCR intensities from in situ spacecraft and GCR count rates from NM stations is helpful to sketch a relatively complete picture of cosmic rays (CRs). In addition, the cosmogenic isotope recorded in tree rings and ice cores can extend our understanding of GCRs over a longer timescale (e.g., Owens & Forsyth 2013).

The transport of cosmic rays throughout the heliosphere is significantly influenced by the large-scale solar wind flow and the turbulent interplanetary magnetic field embedded in it, collectively referred to as "solar modulation." Four major modulation processes have been well described by the Parker transport equation (Parker 1965), including gradient and curvature drifts, diffusion through the irregular interplanetary magnetic field (IMF), convection in the radial expanding solar wind, and adiabatic deceleration (or adiabatic energy loss) (e.g., Sabbah 2000; Zhao & Zhang 2015; Ihongo & Wang 2016; Zhao et al. 2018). Secular measurements provide direct evidence for the evaluation of their relative role in affecting cosmic-ray propagation over the last few decades (Kóta 2013), but the numerical simulation of cosmic-ray transport is still a highly challenging task. The solar magnetic polarity (conventionally described as [qA], where [q] denotes a positively charged particle) is an indispensable factor in modulating cosmic-ray intensities. Commonly, the positively charged particles drift inward along the heliospheric current sheet (HCS) when the heliospheric magnetic field at the north pole points inward (negative polarity, qA < 0) and the charged particles drift outward along the HCS when the heliospheric magnetic field points outward at the north pole (positive polarity, qA > 0; e.g., Jokipii & Thomas 1981; Belov 2000; Thomas et al. 2014). The 22 yr heliomagnetic cycle (also called the Hale cycle) results in an alternating sharp (negative polarity, qA < 0) and flat-topped (positive polarity, qA > 0) shape of the cosmic-ray intensity (McDonald et al. 2010).

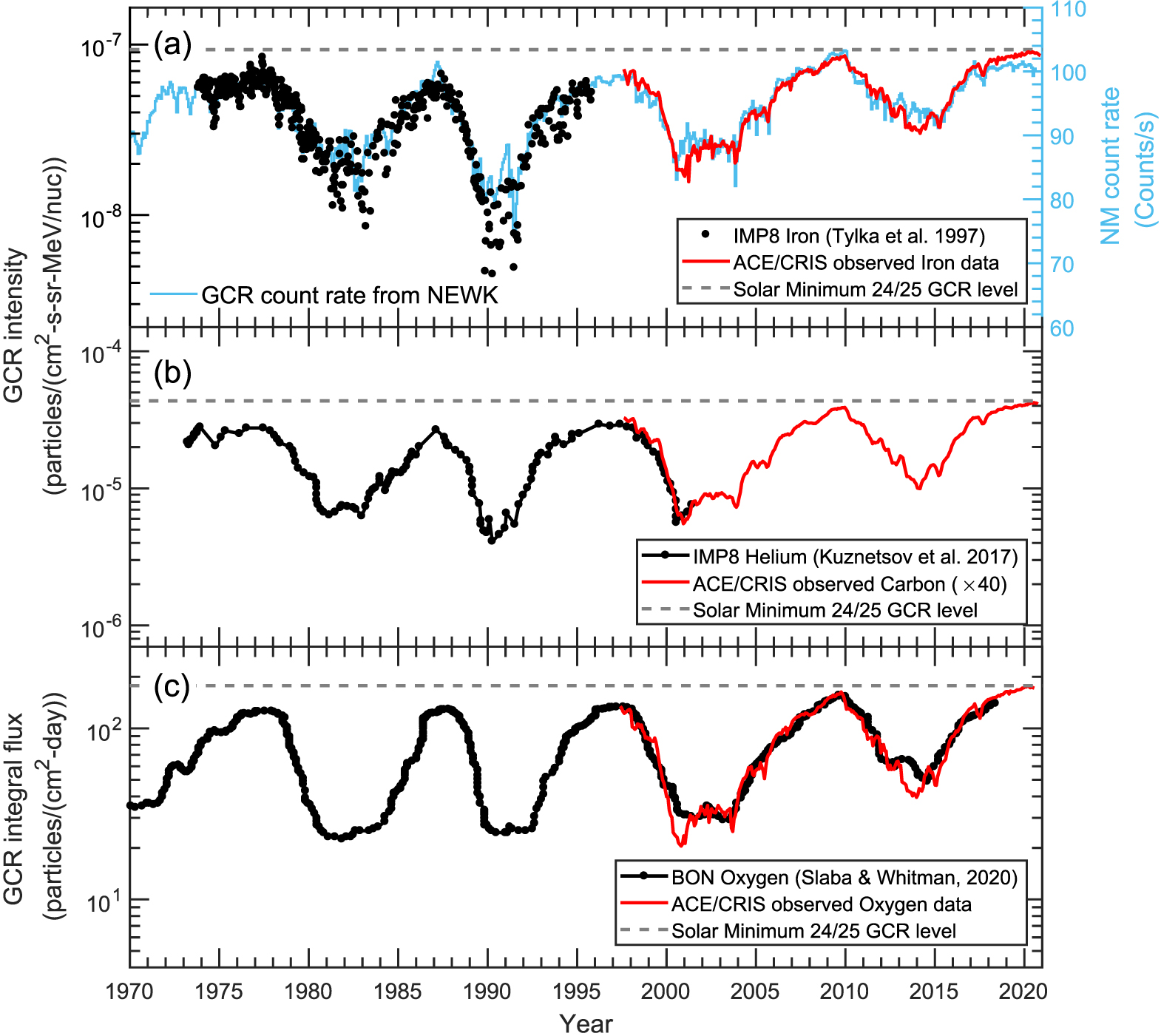

In late 2009, both the GCR intensities measured from near-Earth spacecraft and the GCR count rates measured from ground-based NM stations reached their then all-time maximum levels (e.g., McDonald et al. 2010; Leske et al. 2013). At that time, the heliospheric environment was unusual in several aspects, including a weakened interplanetary magnetic field and turbulence level, reduced solar wind dynamic pressure, and a prolonged solar minimum (Mewaldt et al. 2010). The small magnitude of the IMF causes higher particle drift velocities, and the weakened IMF turbulence leads to larger particle mean free paths (MFPs) in the solar minimum 2009 than those in the previous solar minima. These anomalous interplanetary behaviors would reduce the level of GCR modulation and contribute to the unexpected high GCR intensities in 2009. As reported, solar cycle 24 was the weakest in magnitude in the space age (Hajra 2021), and it also exhibited some abnormal signs, such as decreased sunspots (especially large spots; Chapman et al. 2014), reduced CME events (Wang & Colaninno 2014) and very flattened HCS. The solar activity seems to be going through a period of grand minimum (Jiang & Cao 2018; Upton & Hathaway 2018; Gonçalves et al. 2020). Former studies have predicted that the peak of the GCR intensities in the solar minimum 24/25 (hereafter solar minimum P_24/25) would exceed or be close to the level recorded in 2009–2010 (e.g., Strauss & Potgieter 2014; Kuznetsov et al. 2017; Fu et al. 2020).

The main motivation of this paper is to provide a close re-examination of the GCR variations during the successive solar cycles 23 and 24, with particular interest paid to the maximum GCR intensities observed at 1 au during the solar minimum P_24/25 epoch. The paper is constructed as follows. In Section 2, we describe the sources of the data set utilized in this work. In Section 3, we present the observational results of GCRs and investigate the possible reasons for the record-breaking GCR intensities in 2019–2020 observed at 1 au. We summarize this work in Section 4.

SEPs and ACRs do not contribute to the intensities measured by Advanced Composition Explorer (ACE)/Cosmic Ray Isotope Spectrometer (CRIS), and hence they do not participate in the following analysis.

GCR intensities at 1 au are observed by the in situ CRIS instrument on board NASA's ACE spacecraft, and GCR count rates at the ground level are monitored by the five NM stations listed in Table 1.

The ACE spacecraft was launched on 1997 August 25 and has been continuously monitoring solar wind plasma, interplanetary magnetic fields and energetic particles (including both SEPs and cosmic rays) at the Sun–Earth L1 Lagrange point (Stone et al. 1998) for nearly 24 yr, spanning solar cycles 23 and 24. The CRIS instrument was designed to measure GCR intensities of 24 heavy species (from boron to nickel, within the energy range 50–500 MeV nuc⁻¹). Despite the low abundance (∼1%), the high atomic number and energy nuclei carry abundant information about the origin of the cosmic rays, and are of special significance to space radiation (e.g., Zhao & Qin 2013; Fu et al. 2020). With the large geometric acceptance and high charge and mass resolution, the CRIS instrument records the most detailed and statistically significant GCR data to date (Stone et al. 1998). Historical ACE/CRIS observations are well documented and publicly accessible from the ACE Science Center (ASC) via http://www.srl.caltech.edu/ACE/ASC/index.html. Here, we apply the re-evaluated level-2 CRIS products, and these data are organized into 27 day Bartels rotation averages for the period from 1997 August 26 through 2020 October 31.

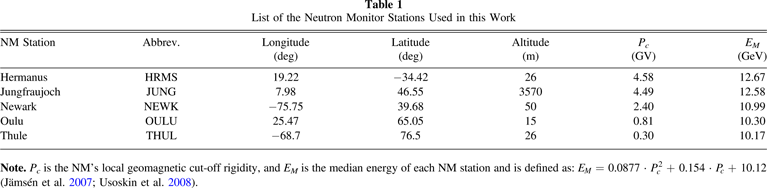

Pressure-corrected and 27 day averaged GCR count rates are derived from five NM stations (HRMS, JUNG, NEWK, OULU and THUL) over the 1968–2020 time period. Detailed information of the five NM stations is given in Table 1, where P_c is the local geomagnetic cut-off rigidity of each NM station, and the characteristic energy (i.e., the median energy) E_M is defined so that cosmic rays with energy higher (or lower) energies than E_M contribute to half of the detectors' counting rate (Usoskin et al. 2008; Zhao & Zhang 2016). All data are acquired from the Neutron Monitor Data Base (NMDB, http://www01.nmdb.eu/).

The monthly mean sunspot number (SSN) is obtained from the Solar Influences Data Analysis Center (WDC-SILSO,http://www.sidc.be/). The SW speed (V_sw), the SW dynamic pressure (P_d ), the IMF magnitude (B) and the root mean square variation in the vector IMF (δ B) are acquired from the OMNIWeb database (https://omniweb.gsfc.nasa.gov/ow.html). The HCS tilt angle and the mean solar polar magnetic field strength are obtained from the Wilcox Solar Observatory database (http://wso.stanford.edu/). The mean polar field is defined as (N − S)/2, where N is the polar field strength at the northern pole, and S is the polar field strength at the southern pole. The halo CME lists are collected from the Solar and Heliospheric Observatory (SOHO)/Large Angle and Spectrometric Coronagraph (LASCO) HALO CME catalog (https://cdaw.gsfc.nasa.gov/CME_list/halo/halo.html), and the annual CME rates are from the CACTus CME catalog (http://www.sidc.be/cactus/). In addition, the GCR radiation dose rates near the lunar surface are measured by the Cosmic Ray Telescope for the Effects of Radiation (CRaTER) instrument on board the Lunar Reconnaissance Orbiter (LRO) and are available at https://crater-web.sr.unh.edu/. Note that unless explicitly stated otherwise, all of the above-mentioned data are processed as a 27 day average.

The SSN observations reveal that the solar activity has been persistently declining since the early 1980s. As shown in Figures 1 and 2(a), the maximum smoothed SSNs of solar cycles 21 through 24 are 232.9, 212.5, 180.3, and 116.4, respectively, showing a prominent reduction in the solar cycle amplitude. GCR transport in the heliosphere is sensitive to varying solar activity. An intense solar activity (such as a CME and solar flare) can trigger a series of space weather effects and effectively prevent GCR particles from entering the solar system (strong solar modulation), while a quiet Sun is conducive to enhanced GCR fluxes as a consequence of the weakened modulation level. Next, we review the variations of the solar wind and interplanetary parameters from solar cycles 20–24 in Section 3.1; GCR observational results, including GCR intensities in interplanetary space and GCR counts at the ground level, are displayed in Section 3.2; in Section 3.3, we investigate how the inner heliospheric environment influences the GCR intensity, with an emphasis on the record-breaking fluxes during the solar minimum P_24/25; in Section 3.4, we point out a sudden dip in the GCR intensity during the descending phase of the solar cycle 24 and give a brief analysis of the possible causes; the measured Galactic cosmic radiation doses on the lunar surface are exhibited in Section 3.5.

Zoom In Zoom Out Reset image size

3.1. A Glance at Solar Cycles 20–24

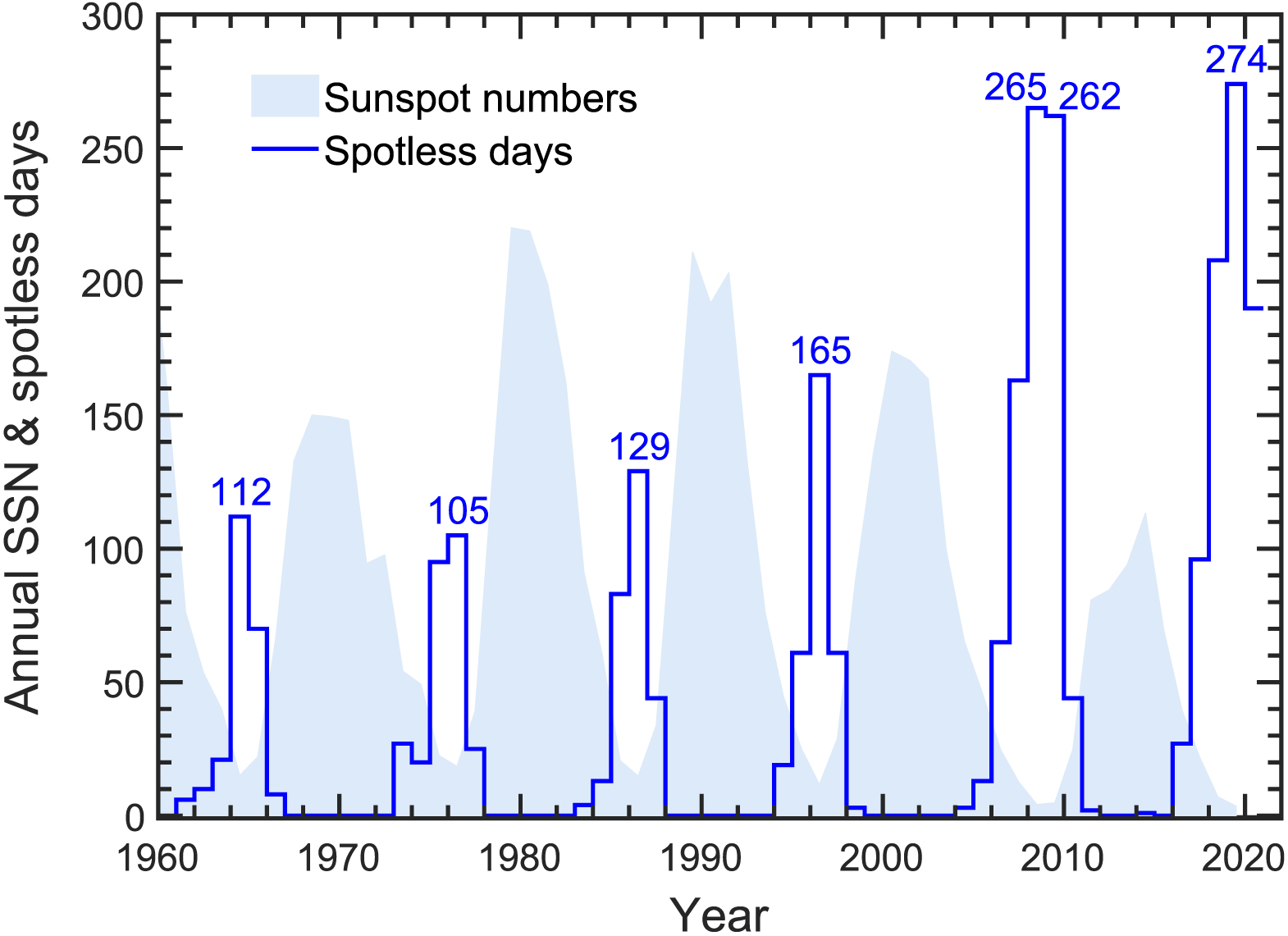

Sunspots were first observed by a telescope in the early 1600s, and continuous daily observations began at the Zurich Observatory in the year 1849. The number of sunspots varies periodically with time and exhibits a remarkable quasi 11 yr cycle, which is now widely recognized as a representative of solar activity. In Figure 1, a striking feature is that the maximum amplitude of the solar cycle has been decreasing since solar cycle 21, and the recently complete solar cycle 24 is recorded to be the weakest one in the era of human space exploration (Hajra 2021). In addition, there are in total 274 days without sunspots in the year 2019, which is the most in the past 107 years (since the year 1914). The extraordinarily quiet solar minimum offers us an opportunity to go deep into the conditions prevailing in the past grand minima periods, such as the Maunder Minimum (1645–1715) and the Dalton Minimum (1790–1830).

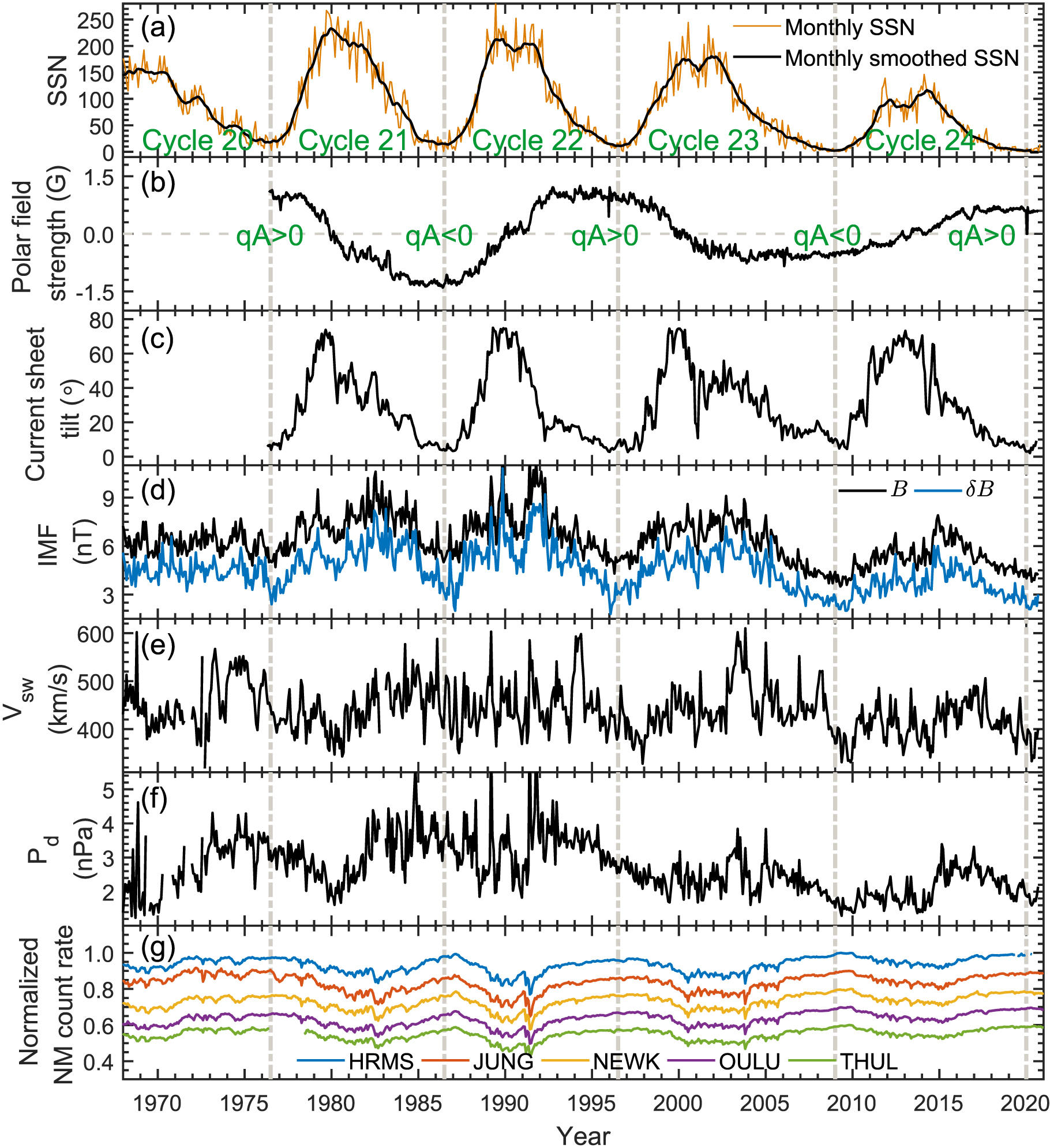

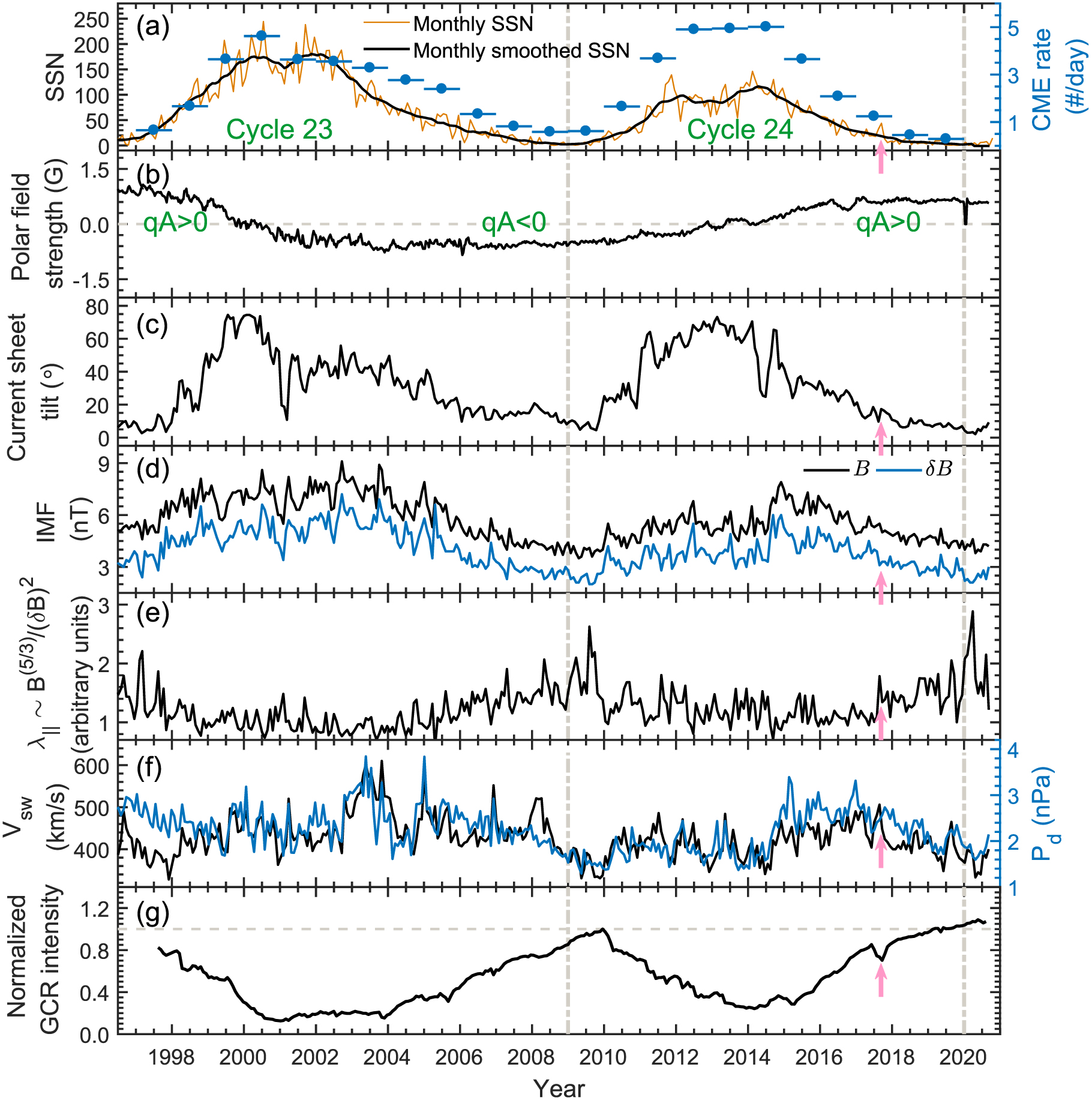

In Figure 2, we present the variations of the solar wind/interplanetary parameters in panels (b)–(f) and the measured NM count rates in panel (g). Some well-known features of the heliosphere and GCRs can be seen from these panels. (1) Both the HCS tilt angle, the IMF strength B and its turbulence δ B (i.e., the root mean square of the vector IMF) are positively correlated with SSN; (2) the GCR count rates at the ground level are inversely related to SSN; (3) the solar magnetic field reverses its polarity every 11 yr, namely, the 22 yr heliomagnetic cycle (or Hale cycle); (4) the alternative peaked (negative polarity, qA < 0) and plateau (positive polarity, qA > 0) shapes of the NM count rates during successive solar minimum periods is in essence a manifestation of the Sun's polar magnetic field reversal, and the maximum NM count rate during qA > 0 cycles (1977, 1997, 2019) is approximately 3% lower than that during qA < 0 cycles (1987, 2009).

Zoom In Zoom Out Reset image size

3.2. Galactic Cosmic Rays during Solar Cycle 24

Weak solar activity is expected to reduce the GCR modulation level and allow more GCR particles to penetrate the inner heliosphere. Secular GCR observations will be helpful to highlight the unusual heliospheric conditions during the extremely quiet solar minimum P_24/25. Different from the ground-based NM count rates, the observation of GCRs in space is short and often discontinuous, but those early cosmic-ray records (prior to the launch of the ACE spacecraft) in interplanetary space can be rebuilt from some other satellites or by modern state-of-the-art numerical models (such as the CRÈME model (Tylka et al. 1997) and the Badhwar–O'Neill model (Slaba & Whitman 2020)). Figure 3 shows the extended GCR intensity profiles from 1970 to 2020, in which we compare the iron intensities from ACE/CRIS with those from IMP-8 in panel (a), the carbon intensities from ACE/CRIS with the helium intensities from IMP-8 in panel (b), and the oxygen intensities from ACE/CRIS with the BON2020 simulations in panel (c). In Figure 3(a), the GCR count rates from NEWK station are also plotted as a baseline. The peak value of GCR intensities at 1 au in late 2009 was previously reported to be the highest in the space age (McDonald et al. 2010; Mewaldt et al. 2010; Lave et al. 2013; Leske et al. 2013), but it is obvious that the maximum GCR intensities reach new heights during the solar minimum P_24/25, as depicted by the horizontal dashed line in Figure 3. The recent anomalous high GCR intensities at 1 au are essentially a response to the unusual changes in the heliosphere, which will be further discussed in Section 3.3.

Zoom In Zoom Out Reset image size

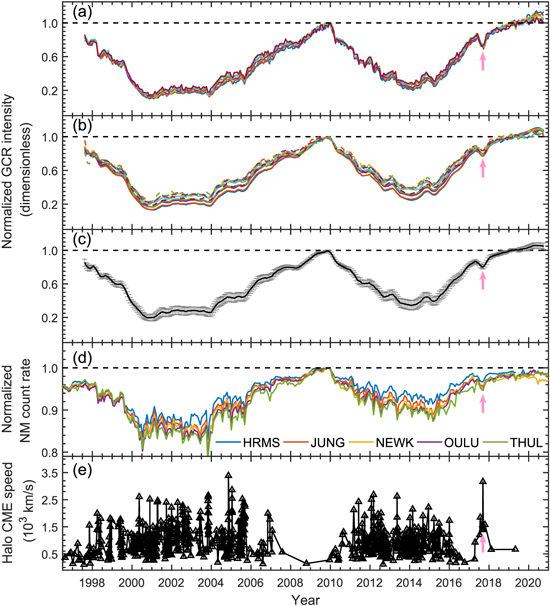

Figures 4(a)–(c) plot the 27 day averaged ACE/CRIS GCR intensities over solar cycles 23 and 24. Panel (a) shows the GCR intensities of the element oxygen at seven energy bins, panel (b) the intensities of twelve selected species (C, O, Ne, Mg, Si, S, Ar, Ca, Ti, Cr, Fe and Ni), and panel (c) the averaged intensities of these twelve species. For comparison, all profiles are normalized to the solar minimum P_23/24. It is clearly noted that the GCR intensities at 1 au in late 2009 are much higher than those in 1997–1998, but slightly lower than those during the solar minimum P_24/25. The peak value of the GCR intensities in the solar minimum P_24/25 is ∼25% higher than that in the solar minimum P_22/23 and ∼6% higher than that in the solar minimum P_23/24.

Zoom In Zoom Out Reset image size

Figure 4(d) plots the 27 day averaged NM count rates from 1997 to 2020. Similar to the GCR intensity profiles, NM count rates also reach the highest level in late 2009 (Moraal & Stoker 2010), revealing that both low- (<1 GeV) and high-energy (several GeV) GCR particles have more chances to reach the Earth during the solar minimum P_23/24 (Mewaldt et al. 2010). However, the peak value of NM count rates in 2019–2020 does not exceed its 2009 level, which is not in accord with the observed GCR intensities in interplanetary space. The ground-based NM stations only observe high-energy GCRs (several GeV) as a consequence of the shielding effects from the Earth's magnetosphere and atmosphere, yet the ACE/CRIS instrument measures relatively low-energy particles (<1 GeV). The median energy (E_M ) of the five selected NMs ranges from 10.17 to 12.67 GeV, corresponding to the geomagnetic cut-off rigidity of 0.30 to 4.58 GV. The different responses of GCRs in space and at the ground level to varying solar activity may arise from the distinct modulation processes between high- and low-energy particles as they propagate in the heliosphere. We infer that in the solar minimum P_24/25, the low-energy GCR particles are more likely to be influenced by the weakening solar modulation compared to the high-energy particles. In addition, the NM count rates are sensitive to the complex changes in the Earth's environmental fluctuations, such as the atmospheric pressure, atmospheric temperature, atmospheric water vapor, instrumental temperature, dynamic magnetospheric condition, and snow effect (see Moraal & Stoker 2010, and references therein). The accurate reason for the difference between GCR intensities in interplanetary space and at the ground level is still not known completely.

Figure 4(e) plots the historical halo CMEs identified from LASCO on the SOHO mission since 1996. We put the discussion of this figure in Section 3.4.

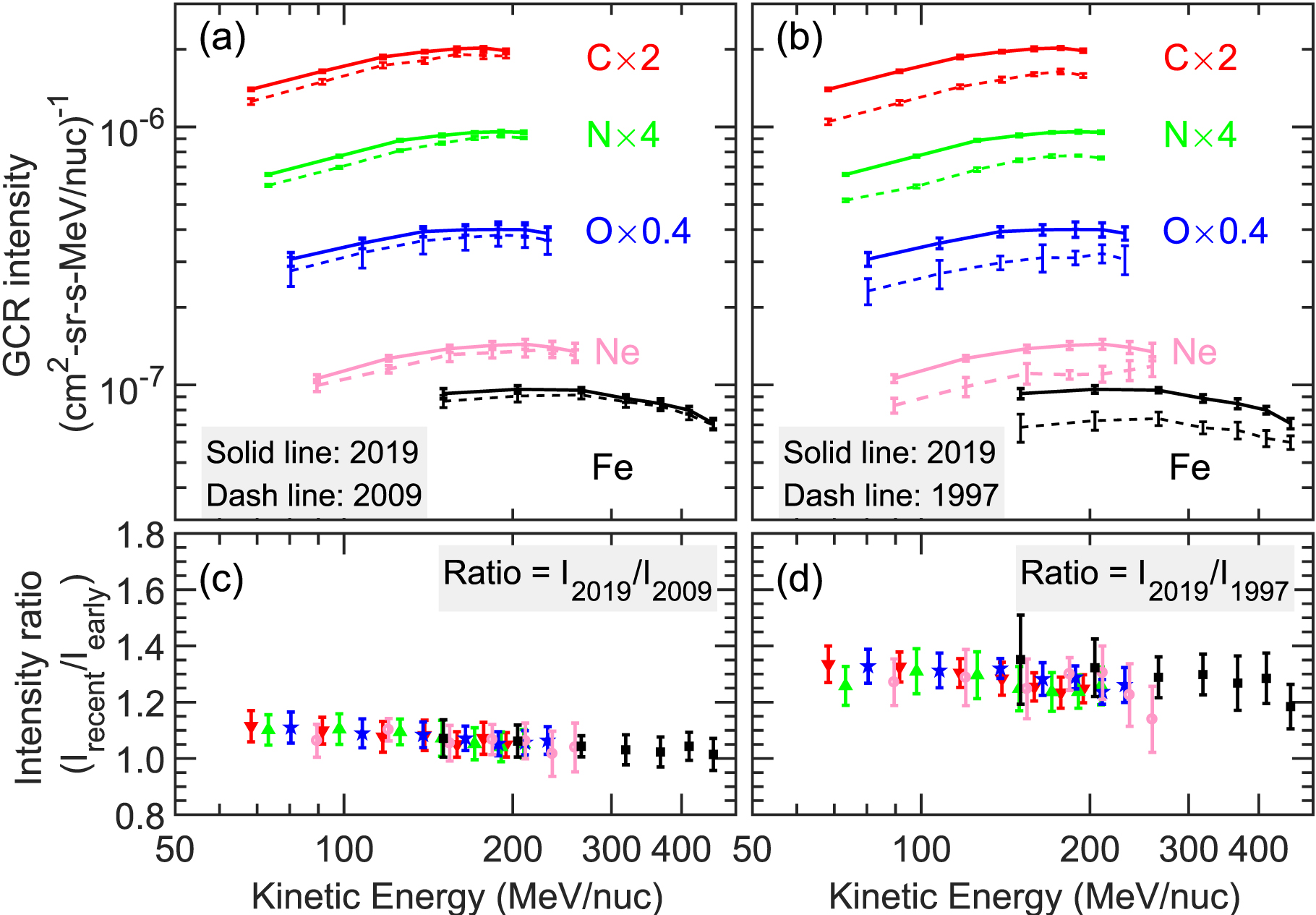

Figures 5(a) and (b) display the ACE/CRIS observed energy spectra of GCR elements C, N, O and Fe, and Figures 5(c) and (d) show the spectral ratios of 2019–2009, and 2019–1997, respectively. During the solar minimum P_24/25, the significant enhancement in GCR intensity is observed at all lower and higher energies. Although GCR nuclei differ in energy bands, their intensity ratios are relatively consistent. The ratio of 2019–2009 is in the range of 1.20 to 1.30, and the ratio of 2019–1997 is in the range of 1.05 to 1.10. This is basically coincident with the previous analysis, in which the peak GCR intensities are greater by ∼25% and ∼6% during the solar minimum P_24/25 than those in the late 1997 and 2009, respectively. Furthermore, it should be noted that the ratios at lower energies are slightly larger than those at higher energies, indicating that the low-energy GCRs are more sensitive to the variation of solar modulation than are the high-energy ones.

Zoom In Zoom Out Reset image size

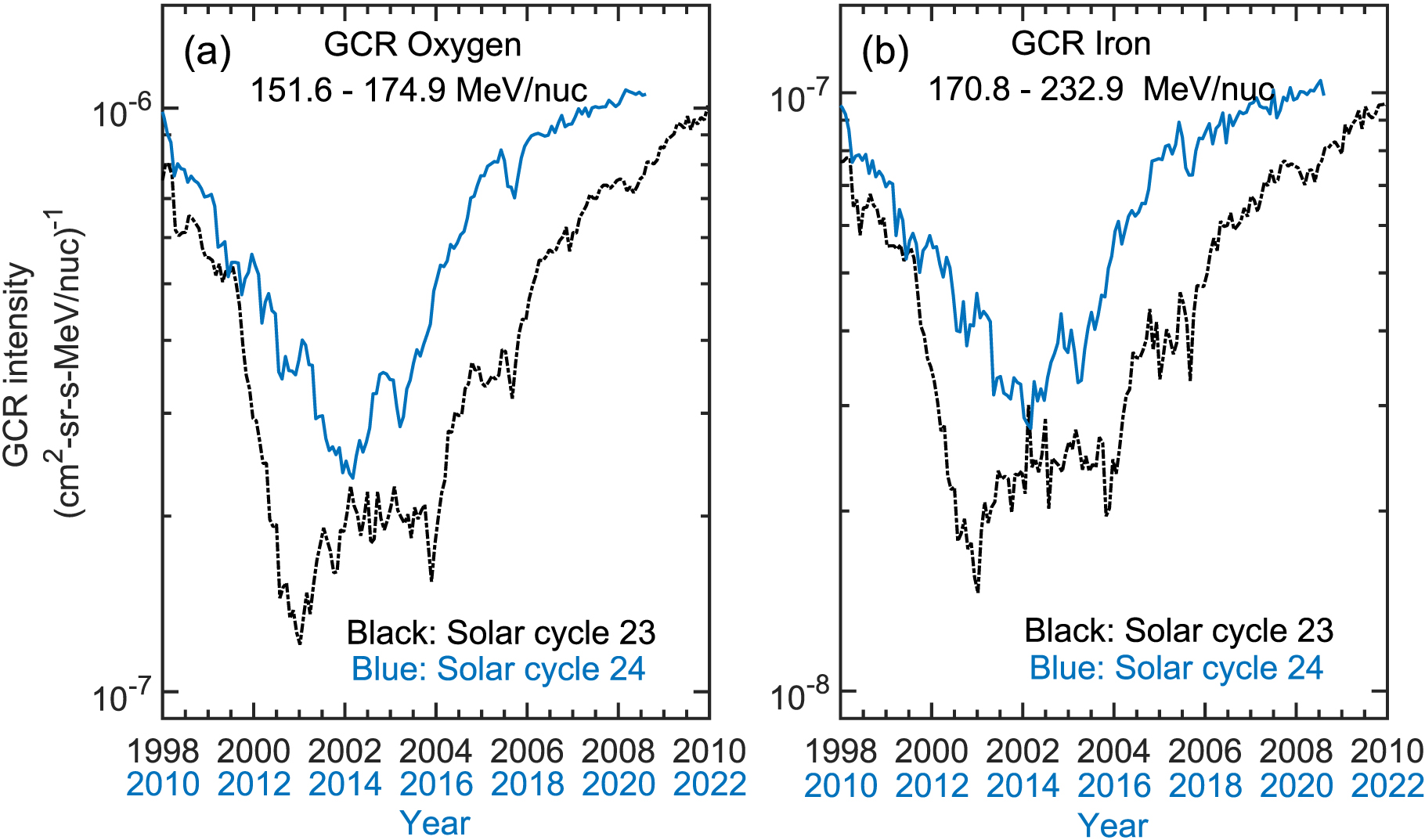

In Figure 6, we compare the ACE/CRIS 27 day averaged GCR intensities between solar cycles 23 and 24, with panel (a) for 151.6–174.9 MeV nuc⁻¹ oxygen and panel (b) for 170.8–232.9 MeV nuc⁻¹ iron. Interestingly, the GCR intensities are significant higher in solar cycle 24 than in solar cycle 23, for both ascending and descending phases, which is the expected result of a less active Sun and of weakened solar modulation in solar cycle 24. Furthermore, the bottom of the GCR profile in solar cycle 23 is deep and wide, but it is shallow and short-lasting in solar cycle 24. The former reflects a strong and continuous solar modulation, and the latter corresponds to a weakening and short duration solar modulation.

Zoom In Zoom Out Reset image size

3.3. Inner Heliospheric Environment during Solar Cycle 24

The record-breaking GCR intensities at 1 au in the solar minimum P_24/25 naturally raise the question what are the contributing factors. A general solution to this question is to investigate the inner heliospheric conditions, including the rate of CMEs, the Sun's polar magnetic field strength, the tilt angle of HCS, and the strength and turbulence of the interplanetary magnetic field, as well as the speed and dynamic pressure of the solar wind.

3.3.1. Coronal Mass Ejection Rate

CMEs commonly carry stronger magnetic fields than the surrounding solar wind, and cause violent interplanetary disturbances and magnetic shielding of charged particles when the CME-driven shocks and/or magnetic clouds pass through. Consequently, large CMEs effectively prevent cosmic-ray particles from diffusing in the inner heliosphere (Wibberenz et al. 1998; Cane 2000; Kilpua et al. 2017). Moreover, CMEs are frequently accompanied with other forms of solar activity, such as solar flares (Vršnak 2016; Syed Ibrahim et al. 2018), eruptive prominences and X-ray sigmoids (Gibson et al. 2002; Pevtsov 2002), which further enhance the shielding effectiveness of GCR particles.

In Figure 7(a), we present the annual rate of CMEs acquired from the automated CACTus catalog between 1997 and 2019. It shows that the rate of CMEs in 2019 is 0.29, which is ∼56% and ∼52% lower than that in 1997 and 2009, respectively. The lower number of CMEs leads to fewer magnetic irregularities to inhibit GCR diffusion, which in turn contributes to an increase in the GCR flux. In addition to the insufficient number, Wang & Colaninno (2014) suggested that the speed and the mass of the CMEs in solar cycle 24 are much smaller than those in solar cycle 23. These rare, slow speed and less massive CMEs to some extent weaken the solar modulation of cosmic rays (Paouris 2013).

Zoom In Zoom Out Reset image size

3.3.2. Solar Polar Field

The polarity of the Sun's polar fields reverses or flips approximately every 11 yr during the period of solar maximum (Babcock & Livingston 1958; Babcock 1959; Owens & Forsyth 2013). The last two reversals happened around 2001 and 2014, respectively, and it is currently in the positive polarity (qA > 0). The Sun's polar fields also display anomalous properties in the recent two cycles, for example, the noticeably weakened polar magnetic fields in the solar minimum P_23/24 (Wang et al. 2009), and the prolonged unusual hemispheric asymmetry of the polar field reversal pattern in solar cycle 24 (Sun et al. 2015; Mordvinov et al. 2016; Janardhan et al. 2018).

The Sun's polar fields influence the penetration of GCRs into the heliosphere by altering the stream structure of the solar wind and the magnitude of the IMF (Lee et al. 2009). It is reported that the Sun's polar field strength in solar cycle 23 is ∼50% lower than that in cycles 21–22, and the flux of the open magnetic field line at the Earth's orbit reaches the lowest since 1963 (Ahluwalia & Ygbuhay 2010). During solar cycle 24, the Sun's polar field strength begins to recover after 2014 and enters into a plateau period after the year 2017 with a stable strength of ∼0.6 G, which is very close to or slightly higher than that in solar cycle 23, as shown in Figures 2(b) and 7(b). It is possible that more GCR particles enter into the heliosphere as a consequence of the weakening solar polar field.

3.3.3. Tilt Angle of the Heliospheric Current Sheet

Previous studies have studied the influence of a wavy interplanetary current sheet on the GCR intensity, and found an inverse correlation between the HCS tilt angle and the GCR intensity (Jokipii & Thomas 1981; Potgieter et al. 2001). It is because the GCR particles mainly drift outward (qA > 0 polarity) or inward (qA < 0 polarity) along the HCS near the solar equator, and a large tilt angle means that the cosmic-ray particles have to drift a longer path length toward the Earth, leading to an increase in the time lag between the source and the observer (Ferreira & Potgieter 2004; Mewaldt et al. 2010; Zhao et al. 2014; Ross & Chaplin 2019). The variation of the HCS tilt angle may have important, even dominant, influences on the GCR modulation process during the solar minimum epoch. In addition, the drift of GCRs along the HCS plays a more significant role than the diffusion when qA > 0.

Figure 7(c) shows the temporal variation of the HCS tilt angle. The tilt angle begins to decrease after 2014 and reaches the minimum value of ∼2.1° in 2020 April, which is ∼22% lower than that in the solar minimum P_22/23 and ∼53% lower than that in the solar minimum P_23/24. This extremely low tilt angle reflects a very close alignment to the solar equatorial HCS, which results in an enhanced outward drift velocity (for qA > 0) and the greatly increased GCR intensity. As shown in Figure 7(g), the HCS tilt angle begins to increase in 2020 May and reaches a value of 14.8° by the end of 2020 November, accompanied by the gradual decrease of the GCR flux.

3.3.4. IMF Strength and Turbulence Level

The interplanetary magnetic field has important influences on both drifts and the diffusion of the cosmic rays, and the cosmic-ray intensities are found to be negatively correlated with the IMF strength (denoted by B). The drift velocity of the GCRs increases with the decrease of B (e.g., Jokipii & Levy 1977; Jokipii & Kota 1989). However, the turbulence in the IMF regulates the pitch-angle scattering of the cosmic rays, where the diffusion coefficient of the cosmic rays is proportional to 1/B or some power of 1/B (e.g., Jokipii & Davila 1981; Ferreira & Potgieter 2004). The cosmic-ray diffusion associated with the turbulent IMF includes both parallel and perpendicular components, and the relation between the diffusion coefficient (κ) and a particle's mean free path (λ) is given by:

$$\begin{eqnarray}&&{\lambda }_{\perp ,\parallel }\equiv 3{\kappa }_{\perp ,\parallel }/v,\end{eqnarray} \tag{ 1 }$$

where v is the particle velocity, λ_∥ and λ_⊥ are the parallel and perpendicular MFPs, and κ_∥ and κ_⊥ are the parallel and perpendicular diffusion coefficients, respectively (Zank et al. 1998; Pei et al. 2010). The radial MFP λ_rr governed by the parallel diffusion λ_∥ is almost constant within the inner heliosphere (Zhao et al. 2017). The perpendicular MFP λ_⊥ is nearly three orders of magnitude smaller than the parallel MFP λ_∥ (Zhao et al. 2018). The perpendicular diffusion κ_⊥ is often assumed to scale as the parallel diffusion κ_∥ (Ferreira & Potgieter 2004).

Considering the standard quasi-linear theory (QLT) and assuming magnetostatic turbulence, the parallel MFP λ_∥ is proportional to ${B}^{5/3}/{\left(\delta B\right)}^{2}$, where B is the mean IMF magnitude and δ B is the root mean square variation in the vector IMF (Zank et al. 1998; Mewaldt et al. 2010). With the simplified relation ${\lambda }_{\parallel }\sim {B}^{5/3}/{\left(\delta B\right)}^{2}$, the parallel MFP component λ_∥ at 1 au is estimated over cycles 23 and 24 (Figure 7(e)). The IMF magnitude B reaches a minimum value of 3.8 nT in the solar minimum P_24/25, which is ∼24% smaller than that in the solar minimum of cycles 20–22 (∼5 nT), but ∼5.6% larger than that in late 2009 (∼3.6 nT). The IMF turbulence δ B is ∼2.1 nT in the solar minimum P_24/25, which is ∼5% higher than that in the solar minimum P_23/24. The weak IMF strength and turbulence lead to a noticeable increase in the estimated cosmic-ray MFP (λ_∥), and the maximum value of λ_∥ in the solar minimum P_24/25 exceeds that in 1997 by ∼31% and that in 2009 by ∼10%. It is seen that the prominent peak on the λ_∥ profile (around 2020 March) is followed by the record-breaking GCR intensity.

3.3.5. Solar Wind

The solar wind condition (including speed, density and temperature) varies over time and influences the GCR transport throughout the heliosphere. The SW speed affects both the outward convective rate of GCRs and the adiabatic energy loss rate, and generally speaking, a low solar wind speed reduces the outward convection rate and the adiabatic cooling energy loss rate. The GCR intensities are found to be anticorrelated with the solar wind speed, which reveals that the lower the solar wind, the higher the GCR intensities and vice versa (e.g., Zhao et al. 2014; Ihongo & Wang 2016).

Figure 7(f) shows the temporal variation of the SW speed (V_sw, black curve) and the SW dynamic pressure (P_d , blue curve). The average speeds during the last three solar minima periods are 371 ± 19 km s⁻¹, 363 ± 26 km s⁻¹, and 374 ± 24 km s⁻¹, and the corresponding dynamic pressures are 2.4 ± 0.2 nPa, 1.5 ± 0.1 nPa, and 1.8 ± 0.1 nPa. It is clear that in the solar minimum P_23/24, the SW speed and dynamic pressure reach their lowest values over the past three solar minima, which is thought to be an important reason for the unusually high GCR intensities in late 2009 (Leske et al. 2013; Zhao et al. 2014). In contrast, the enhanced SW speed and dynamic pressure in the solar minimum P_24/25 are not conducive to the increase of GCR intensity to a certain extent.

3.4. A Sudden Dip in the GCR Intensity during the Descending Phase of Cycle 24

3.5. GCR Radiation Dose Rate on the Lunar Surface

The deep-space radiation environment, consisting of both solar particles and GCRs, poses a great threat to manned space missions. Therefore, the long-term and the short-term radiation effects must be considered before designing a deep-space mission. As a stable background of energetic particles, GCRs are the most difficult to shield against and can cause severe hazards to astronauts and precision payloads on spacecraft. Schwadron et al. (2010) previously reported that the GCR dose rates near the lunar surface during the prolonged solar minimum P_23/24 are the largest since the year 1987. Considering that the peak value of the GCR intensities in the solar minimum P_24/25 is much higher than that in the 2009 solar minimum, we naturally want to know what the space radiation environment is like now.

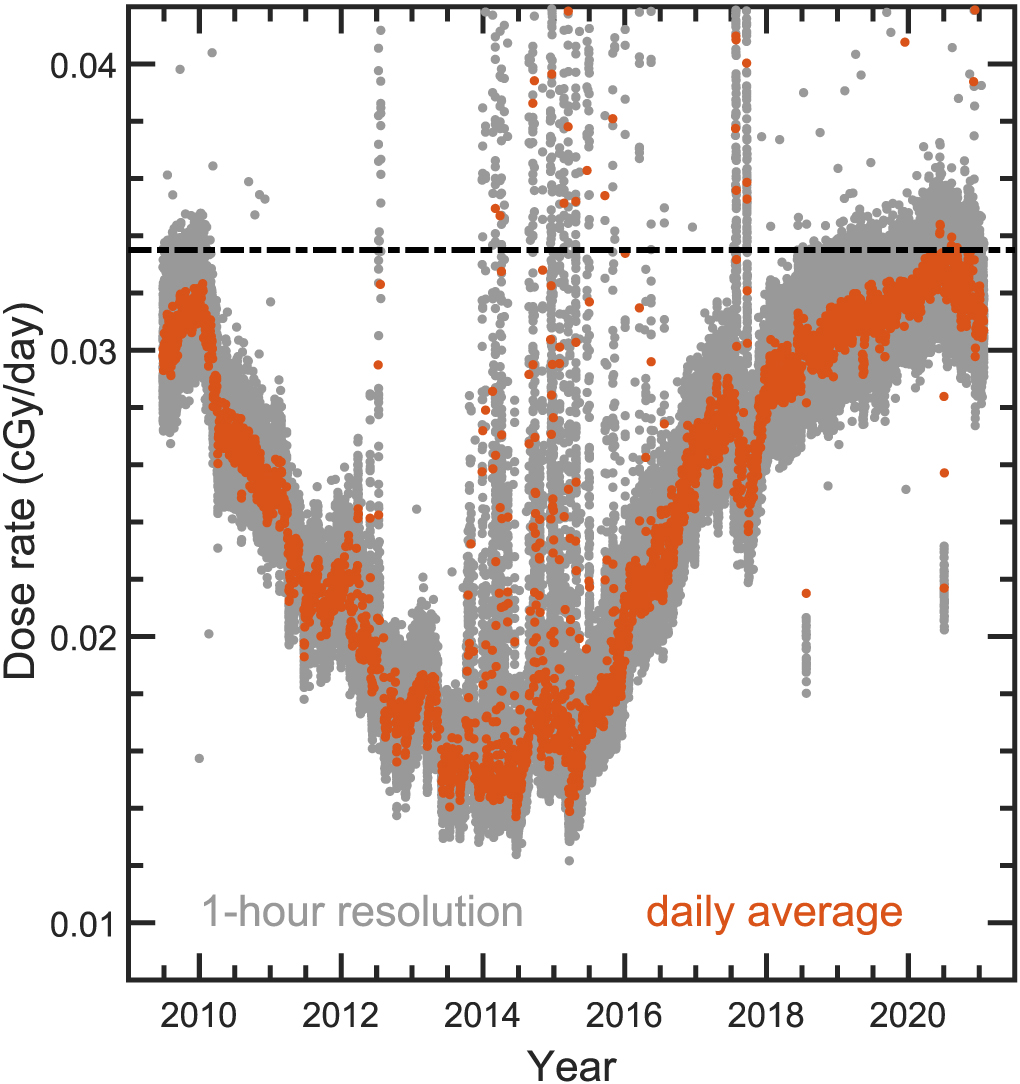

The Cosmic Ray Telescope for the Effects of Radiation (CRaTER) instrument on board the LRO was intended to investigate the lunar radiation environment, and is currently orbiting the Moon at an altitude of 50 km (Spence et al. 2010). Since its launch on 2009 June 18, LRO has been measuring the lunar radiation environment for nearly 12 yr. Figure 8 shows the hourly and daily average dose rates observed by the LRO/CRaTER, and the horizontal dashed–dotted line is the peak value of dose rates in the solar minimum P_24/25. It can be seen that the dose rates are tightly correlated with the solar activity as well as the GCR intensities. In the recent solar minimum, the GCR radiation dose rate and the GCR intensity increase substantially because of the weakening solar modulation. We find that the peak value of dose rates in the first half of 2020 is ∼5% higher than that in 2009–2010, which basically corresponds to the ∼6% increase in the GCR intensities measured at 1 au. We infer that this may be the highest dose rates on the lunar surface since the 1980s, which puts forward higher requirements for radiation shielding and protection in outer space. Our result can be used to simulate the GCR space radiation risk to human beings in near-Earth space, and provides a certain reference value in designing spacecraft materials in future deep-space exploration missions.

Zoom In Zoom Out Reset image size

The Sun was extraordinarily quiet during the recently complete solar cycle 24, with very low sunspot numbers, an extremely flat HCS, a reduced CME eruption rate, and a weak interplanetary magnetic field and turbulence level. The observed GCR intensities (both in interplanetary space and at the ground level) are sensitive to the heliospheric conditions, the so-called solar modulation. In this work, we focus on the variations of the GCR intensities for the period from 1997 through 2020 with measurements from the ACE/CRIS instrument, and investigate the influence of inner heliospheric environments on the GCR intensities. In addition, the long-term variations of the ground-based NM count rates are also studied. The conclusions are summarized as follows.

• 1.
  The GCR intensities observed at 1 au reach the highest levels in the solar minimum P_24/25 since the launch of the ACE spacecraft, which is ∼25% higher than that in the solar minimum P_22/23 and ∼6% higher than that in the solar minimum P_23/24. With the extension of IMP-8 measurements and BON2020 numerical simulation results, we find that the GCR intensities during the recent solar minimum are at the highest levels since the start of the space age, having particle energies from tens to several hundred MeV nuc⁻¹. The record-breaking GCR intensities at 1 au increase the radiation dose rates near the lunar surface by ∼5% in comparison to those of the solar minimum P_23/24, from the measurements of LRO/CRaTER instrument.
• 2.
  The peak value of NM count rates in the solar minimum P_24/25 is lower than that in late 2009. The difference between GCR intensities in interplanetary space and NM count rates seems to be relevant to the different modulation processes of the high- and low-energy particles. We think that the high-energy GCR particles are not as heavily modulated as the low-energy ones, which means the low-energy GCR particles are more likely to be influenced by varying solar modulation. An alternate or additional possibility is that the NM count rates are sensitive to the conditions of the Earth's magnetosphere and atmosphere. It remains to be further studied in a future work.
• 3.
  We find that during the solar minimum P_24/25, the mean solar polar field strength remains weak and is close to the value in the 2009 solar minimum; the HCS tilt angle reaches a minimum value of ∼2.1° in 2020 April, which is ∼22% lower than that in the solar minimum P_22/23 and ∼53% lower than that in the solar minimum P_23/24; the CME eruption rate is very small, and is less than half of the CME rate during the solar minima P_22/23 and P_23/24; the strength and turbulence of the IMF stay at relatively low levels, which causes a ∼10% increase in the estimated cosmic-ray MFP (λ_∥) compared to that in late 2009. All of these factors collectively contribute to less solar modulation and an unusual increase in the GCR intensity.

This study is a pure statistical analysis of the GCR variations in the relatively low energy band (50–500 MeV nuc⁻¹). We discuss the unusual heliospheric conditions in the inner heliosphere in order to explain our findings of the record-breaking GCR intensities at 1 au. How much the heliospheric changes influence the GCR intensities needs to be studied. Further work includes the quantitative diagnosis of the effects of drifts, diffusion and convection on the cosmic-ray modulation from the perspective of numerical simulations (e.g., Strauss & Potgieter 2014; Zhao et al. 2014; Shen & Qin 2018; Shen et al. 2019).
