Direct First Parker Solar Probe Observation of the Interaction of Two Successive Interplanetary Coronal Mass Ejections in 2020 November

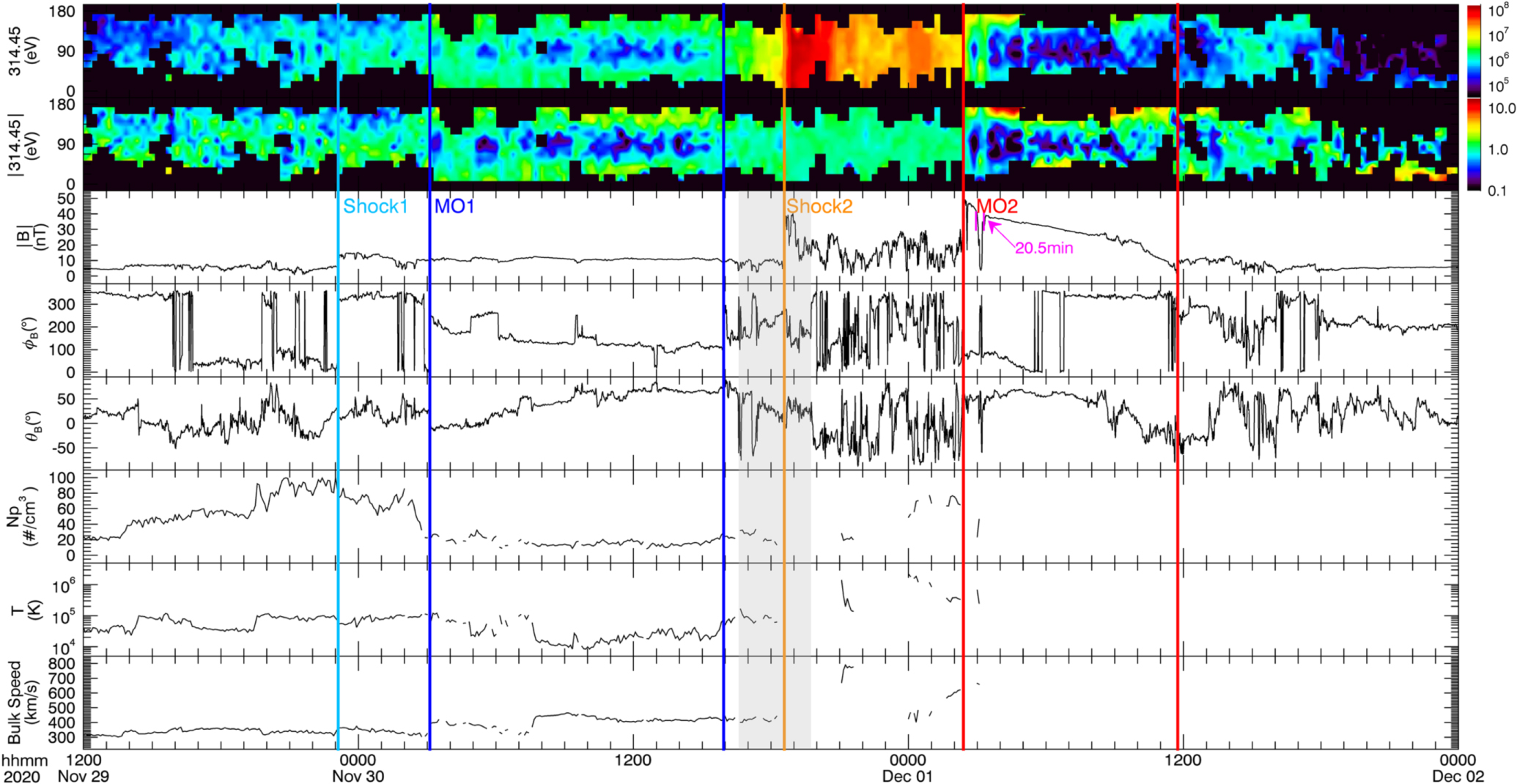

Figure 2 displays a subset of in situ (IS) measurements collected by the FIELDS and SWEAP instruments on board the PSP. The multipanel plot shows, from the top, the pitch angle distribution of the 314 eV heat flux electrons in absolute units and normalized, the magnetic field magnitude and its spherical components, the proton plasma density, the thermal speed, and the bulk speed. During this period, the PSP spacecraft performed several maneuvers that impeded the collection of full-cadence plasma data. Despite this, it was possible to characterize two successive ICMEs relying uniquely on the data from the FIELDS instrument.

Zoom In Zoom Out Reset image size

ICME1 was observed on 2020 November 29 at 23:07 UT. In general, the structure is characterized by very weak magnetic field and plasma signatures. The start of the ICME1 is marked by a very weak interplanetary shock or pressure pulse (Shock1; light blue line). The magnetic observations of the Shock1 includes a very large, ∼270° magnetic field rotation (23:07:12.25–23:08:06.10) on 2020 November 29. The first half of this field rotation is magnitude preserving, while the second half (23:07:47.75–23:08:06.10) is compressive. Magnetic coplanarity calculation gives a shock normal of (0.79, 0.20, 0.58) in radial–tangential–normal (RTN; see e.g., Hapgood 1992) coordinates resulting in θ_Bn = 91 as the angle between the normal and upstream magnetic field, making this a quasi-parallel shock. This shock appears to be in its early stages of formation as it has no identifiable foot, overshoot, or wave activity, and the shock ramp is fairly wide at 18 s. In the four-hour-long sheath region, the magnetic field fluctuates and rotates several times with angles greater than 90° right before the magnetic obstacle (MO1) starts (first dark blue vertical line on November 30 at 03:21 UT). MO1 is characterized by a period of coherent change in the magnetic field magnitude for ∼13 hr and with a maximum of ${B}_{\max }=14.0$ nT and an average of 〈B〉 = 10.0 nT, twice the solar wind magnetic field strength upstream of Shock1, B_upstream = 5.5 nT. The magnetic field configuration exhibits a very flat and symmetric magnitude profile with a distortion parameter (DiP) of ∼0.5 (see Nieves-Chinchilla et al. 2018b, for more details), and a smooth and small rotation in the magnetic field direction that indicates the presence of a twisted magnetic flux rope. We identified the end of MO1 (second dark blue line) a few hours before the passage of the second interplanetary (IP) shock wave (Shock2; orange line) on November 30 at 16:26 UT. Shock2 is preceded by a transition period of increase in electron flux intensity and rotation of the magnetic field vectors (>90°). Despite a few rapid changes in the magnetic field direction during this period, the overall magnetic profile follows the trend marked by MO1 (see the gray area in Figure 2). The material measured during this period, identified as Shock2's upstream, may have originally been part of MO1 or its wake, and is being disturbed by the passage of Shock2 at the time of detection at PSP.

ICME2 is also preceded by an interplanetary shock (Shock2; orange line) and followed by a sheath region of magnetic field perturbations with an average magnetic field of ∼11.0 nT. This shock is much more pronounced than Shock1, with strong wave activity in the shock foot and with an initial very steep ramp (18:35:32.3–18:35:33.2) on November 30. After this initial steep ramp, a shallower growth phase begins (until 18:35:43.05) resulting in a prolonged, 1.5 minutes overshoot region. Thus, this shock also appears to be in the process of nonlinear steepening. Magnetic coplanarity gives a shock normal direction of (0.33, 0.21, −0.92) in RTN coordinates and θ_Bn = 243, again a quasi-parallel shock. The magnetic obstacle (MO2) starts on December 1 at 02:24 UT and ends the same day at 11:17 UT (bounded by the red vertical lines). The maximum magnetic field strength is ${B}_{\max }=43.0$ nT, and the average is 〈B〉 = 27.0 nT. Note that this is almost 2.5 times the average value during the front sheath. The MO2 configuration is characterized by a declining magnetic field magnitude, with a compression at the front (DiP ∼ 0.41). The lack of plasma observations prevents us from discerning if this is a signature of distortion or expansion (see Nieves-Chinchilla et al. 2018b). At the front of MO2, within the boundaries marked in Figure 2 with red lines, there is a single rotation in the magnetic field direction of more than 90° again, but in this case there is also a sharp intensity drop for 20 minutes and 29.9 s starting at 02:56:47 UT and ending at 03:17:17 UT on December 1 (period marked by the short pink lines in the ∣B∣ panel) with a change in the magnetic field from 41.8 to 3.8 nT and back to 32.3 nT. This interval is also associated with an increase in the bidirectional electrons flux intensity. The lack of plasma observations prevents us from identifying these short changes and sharp rotations in the magnetic field as magnetic reconnection exhaust processes eroding the MO2 front (see Gosling et al. 2005; Feng & Wang 2013).

This study is focused on the analysis of the ICMEs that impacted the PSP; however the full characterization requires constraining the forward modeling as well as the propagation models. One relevant constraint is the observations of the ICME2 by STEREO-A instruments. Later in this paper, in Figure 7(b), we will use the one-minute-averaged magnetic field observations from the In situ Measurements of Particles And CME Transients instrument suite (IMPACT) Magnetic Field Experiment (Acuña et al. 2008; Luhmann et al. 2008), and the solar wind 10 minute averaged plasma data (only available for STEREO-A) are from the Plasma and Suprathermal Ion Composition (PLASTIC; Galvin et al. 2008) investigation, to constrain the CME propagation modeling by reconciling with the remote-sensing analysis. The ICME2 at STEREO-A is identified by the Shock2 arrival at 07:30 UT on December 1, followed by an increase in the magnetic field, solar wind bulk speed, temperature, and density. However, the observations do not display any signatures of a magnetic obstacle, which may indicate that the spacecraft only crossed the flank of ICME2.

To understand the origins of the ICMEs observed by the PSP, we studied the source regions in extreme ultraviolet (EUV) observations and tracked the subsequent CMEs in white light (WL) coronagraph observations. We reviewed data from the STEREO/SECCHI suite of instruments, GOES-16/SUVI, SDO/AIA, MLSO/KCor, and SOHO/LASCO C2. The locations of the spacecraft during the 2020 November 26–29 time period were such that the respective source regions were visible on-disk in the Extreme Ultraviolet Imager (EUVI) on board STEREO-A and at the limb (originating just behind the limb) in AIA and SUVI (see Figure 1). Together with careful processing using advanced techniques (e.g., Morgan et al. 2006, 2012; Morgan & Druckmüller 2014; Alzate et al. 2021), these observations enable a continuous view of the corona, which helps establish direct correspondence of features in the EUV with those in WL. Here, we present an overview of the source regions and corresponding activity responsible for CME1 and CME2. However, an in-depth analysis will be presented in a subsequent study.

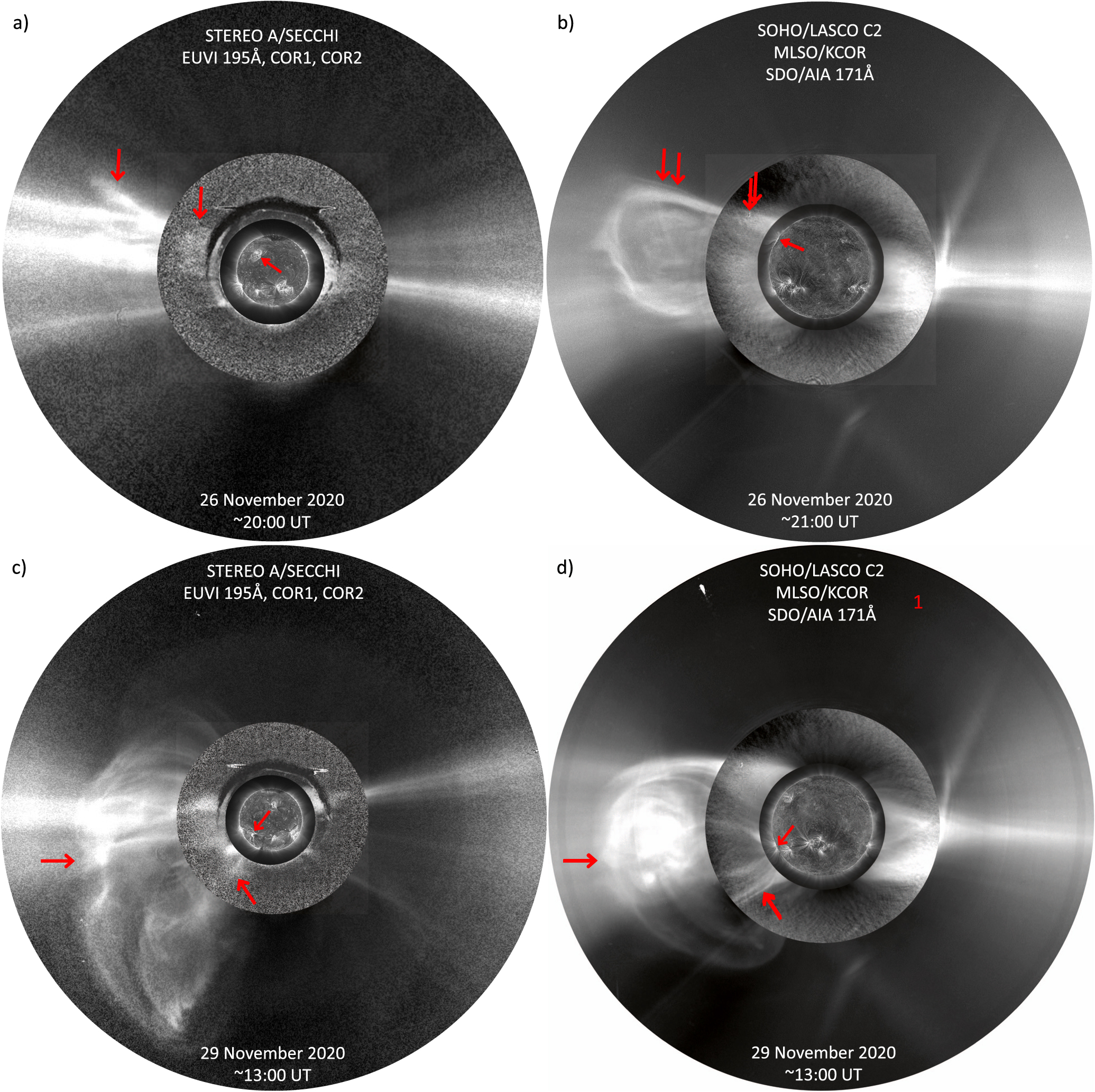

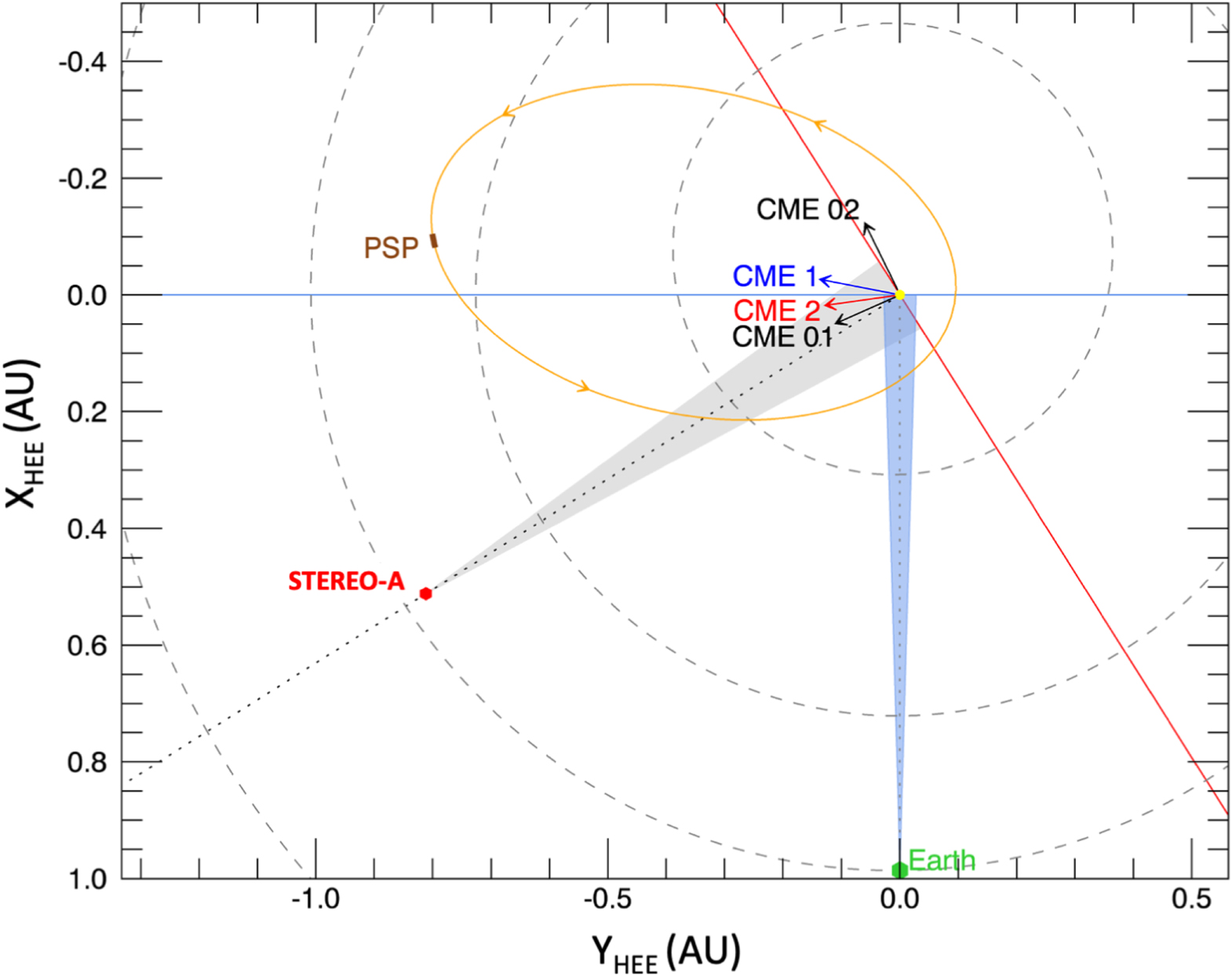

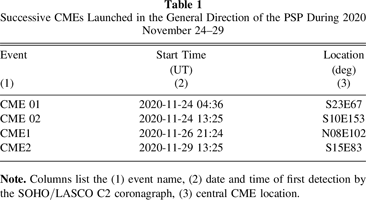

Figure 3 shows the source location and evolution of CME1 (a)–(b) and CME2 (c)–(d). Panels (a) and (c) are composed of observations from the STEREO/SECCHI suite. The EUVI camera observes the corona up to ∼1.7 R_S . Observations with a cadence of ∼5 minutes in the 171, 195, and 284 Å channels were used. The SECCHI/COR1 inner coronagraph (Thompson et al. 2003) observes at a ∼5 minute cadence and has a field of view (FOV) that extends from ∼1.4 out to 4.0 R_S . The SECCHI/COR2 outer coronagraph observes the corona between ∼2.5 and 15 R_S at a ∼60 minute cadence of polarized brightness sequences. Panels (b) and (d) are composed of observations along the Sun–Earth line. The LASCO/C2 instrument on board SOHO acquires WL coronagraph observations and has a FOV spanning from 2.2 to 6.0 R_S , and a cadence of ∼12 minutes during the time period of interest. The AIA instrument on board the SDO images the solar atmosphere in seven EUV channels and three UV channels out to ∼1.3 R_S . For this study, images in the 131, 171, and 193 Å channels were used with a reduced cadence of ∼24 s, which was enough for our purposes in this study. The KCor instrument has a FOV from 1.05 to 3.0 R_S and observes at a time cadence of 15 s. As KCor is a ground-based coronagraph, observations are limited to a few hours per day. Additionally, we made use of observations from the SUVI instrument on the GOES-16 spacecraft of the National Oceanic and Atmospheric Administration (NOAA; see Figure 4). It offers a FOV of up to 1.6 R_S on the horizontal and 2.3 R_S on the diagonal and observes at a regular cadence of four minutes. We used images in the 171 and 195 Å channels.

On 2020 November 26, CME1 erupted from the northeast region (see Table 1 for coordinates) indicated in Figures 3(a) and (b) and was first seen in the LASCO C2 FOV at 21:12 UT. Prior to entering the FOV, CME1 was preceded by a series of very faint outflows as the streamer slowly began to expand around 20:36 UT. CME1 overtook the FOV by 22:36 UT and was followed by post-CME outflows. At 1:25 UT, a small and faint structure appeared tethered to CME1 and was followed by more outflows until the end of the 2020 November 27. CME1 itself exhibits a bright leading front, followed by a cavity and a bright central core (thus featuring a classic "three-part" morphology; Illing & Hundhausen 1985; Chen 2011; Vourlidas et al. 2013). No signs of a preceding shock can be discerned in the WL images of CME1. The apparent radial velocity of CME1 in LASCO C2 is ∼524 km s⁻¹. In ancillary observations by the ground-based coronagraph KCor, the streamer in the northeast region undergoes subtle reshaping and expansion between 22:02 and 22:36 UT on 2020 November 26. Entrained within the streamer is a "triangle-like" shape protruding from the inner FOV up to ∼1.5 R_S . This structure matches the shape and location of the erupting loop system in the EUV that formed the core of CME1 before it propagated outward in the extended LASCO C2 images.

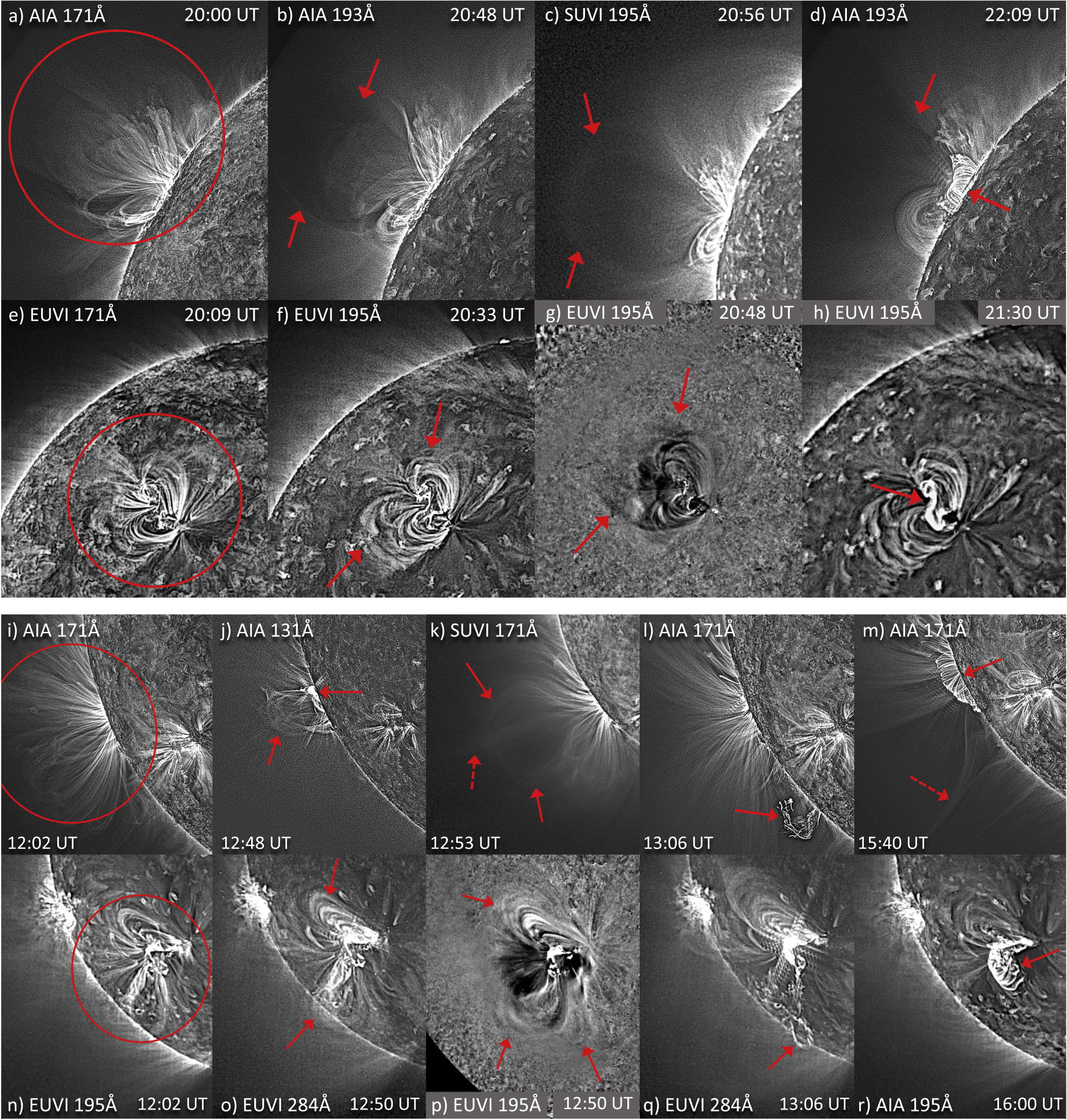

Figure 4 shows observations by AIA and SUVI of the CME1's source region at the limb at approximately 30° counterclockwise from the north (panels (a)–(d) in Figure 4). It exhibits a complex system of loops that develop into the shell of CME1 (panel (a)). In AIA, loops begin to expand at 20:25 UT and continue to expand until an eruption begins at around 20:48 UT (panel (b)) and leaves the AIA FOV (1.3 R_S ) at 21:25 UT. Also at this time, the remaining loops appear to twist and form the "triangle-like" shape observed in KCor. A post-eruption set of bright loops begins to form at 21:30 UT at the onset of a flare, followed by flare loops (panel (d)). The extended FOV of SUVI provides a better view of the loop system, outflows, and surrounding structure. A series of faint pre-eruption outflows begin at 13:00 UT and continue after the main eruption until the bright post-flare loops are formed.

CME1 first enters the COR1 FOV at 21:25 UT and can be tracked for a few frames until 22:15 UT. Because of instrument noise and deterioration, it is difficult to characterize small-scale structures within CME1. Only streamer brightness enhancements are obvious. In COR2, CME1 is first visible at 22:08 UT. CME1 exits the COR2 FOV beginning at 02:08 UT on the 2020 November 27. The source region in EUVI is on the disk near the East limb (panels (e)–(h) in Figure 4; see Table 1 for coordinates). Because of the on-disk location, we can study the evolution of the region. In the 195 Å channel, the system of loops open and erupt beginning at 20:33 UT (panel (f)). The pre- and post-eruption loops are visible, but what is most distinguishable is the bright "S-shape" loop structure, or sigmoid (e.g., Green et al. 2007), best seen at 21:30 UT (panel (h)). In a time series (not shown) of bandpass-filtered images (Alzate et al. 2021), the loops open and the eruption begins at 20:48 UT (panel (g)), with the sigmoid best seen at 21:48 UT. The associated wave is distinctly seen on the solar disk beginning at 20:55 UT and overtakes a large region at approximately 21:30 UT. The wave appears to trigger the first of many outflows originating from the active region that can be seen at the limb below the equator (115° counterclockwise from the north). This is the source region of CME2 described below.

On 2020 November 29, CME2 erupted from the southeast region indicated in Figures 3(c) and (d). The CME is first visible in the LASCO C2 FOV at 13:25 UT, though there is a preceding data gap of 36 minutes, equivalent to three LASCO C2 frames. The presence of a shock in the WL images of LASCO C2, COR1, and COR2 is straightforward. Observations from KCor on November 29 began at 17:49 UT, after CME2 had left the LASCO C2 FOV. However, because this CME appears large in LASCO C2, its following imprint is visible in KCor (Figure 3(d)). A similar imprint is left behind after CME2 exits the FOV of COR1 and COR2. Similar to CME1, the source region from which CME2 originated (panels (i)–(m) in Figure 4) is characterized by a complex system of loops that begin expanding at 12:40 UT. The flare is best seen in the 131 Å channel (panel (j)). The eruption then follows at 12:50 UT, and plasma material outflows southward from the active region (panel (l)). After the main eruption, material continues to be expelled toward the south, and bright post-flare loops form (panel (m)). In the extended FOV of SUVI, the full extent of the loop system is visible out to ∼1.9 R_S (panel (k)). The outer set of loops begin to open at 12:53 UT. Inside the loops is a radial structure that protrudes from the source region and cuts through the center of the loops as indicated in panel (k).

In COR1, restructuring of the streamer occurs over a period of a few hours leading up to CME2, which is first seen at 13:00 UT. CME2 overtakes the FOV by 13:30 UT before the bubble is fully evacuated by 13:50 UT. In COR2, CME2 is first seen at 13:24 UT. It expands quickly with an apparent radial velocity of ∼1275 km s⁻¹ and overtakes the FOV by 14:24 UT. Post-CME outflows are visible until the end of the 29th. In EUVI 195 Å images, the region of interest is highly active (panels (n)–(r) in Figure 4). The wave associated with the main eruption of November 26 in the northern region (CME1) reached the source region of CME2 and triggered a series of outflows up until the flare event that triggered the CME. Pre-eruption events begin with a large outflow seen at 08:10 UT and directed southward. The main eruption begins slowly at 12:50 UT (panel (o)), but quickly picks up speed and erupts at 13:05 UT with a post-eruption, loop-like twisting outflow (panel (q)). Bright post-eruption loops begin to form (panel (r)). In bandpass-filtered images (Alzate et al. 2021), outflows and inflows are visible starting at 08:20 UT and appear to trigger the large main eruption event, which begins at 12:25 UT. Panel (p) shows an example of a later frame where the outer post-eruption loops are indicated with arrows. The associated wave expands and overtakes most of the east around 13:00 UT while triggering small eruptions nearby.

CMEs and solar flares are associated with intense radio signals in a wide range of frequencies, in particular with type II and III bursts. They are generated via the plasma emission mechanism, when electron beams interact with the ambient plasma triggering radiation at the plasma frequency f_p (the fundamental emission), or at its second harmonic 2f_p (the harmonic emission). As the electron beams propagate outward from the Sun, radio emissions are generated at progressively lower frequencies corresponding to a decreasing local plasma density (Wild 1950; Ginzburg & Zhelezniakov 1958; Ergun et al. 1998). Type II bursts are triggered by electron beams accelerated at the shock fronts driven by fast moving CMEs, while type III bursts are a consequence of impulsively accelerated electrons associated with solar flares (Reiner et al. 1998; Gopalswamy et al. 2000; Krupar et al. 2016). Type II bursts are intermittent with short periods of radio enhancements, which are usually related to CME–CME and/or CME–streamer interactions (e.g., Magdalenić et al. 2014).

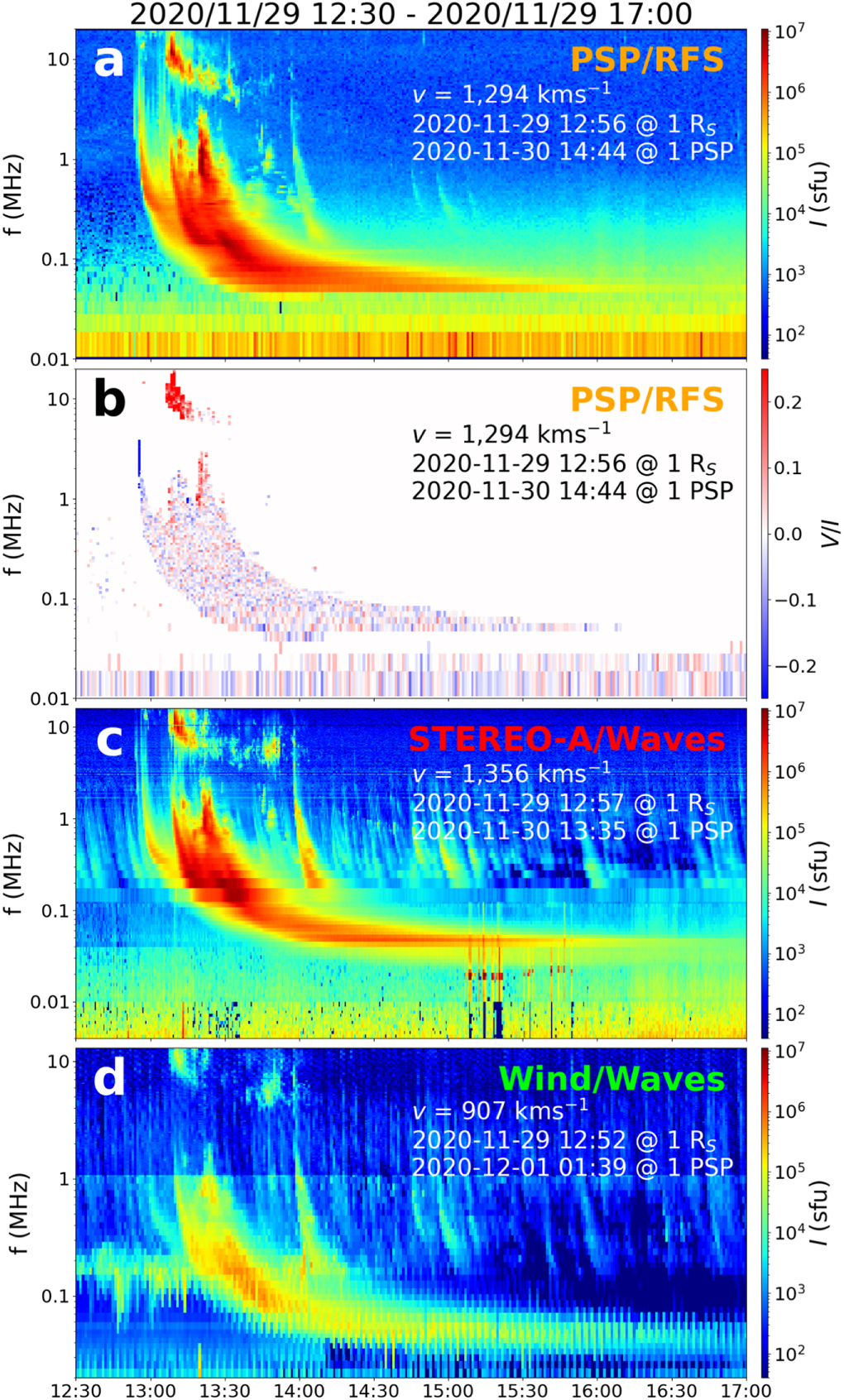

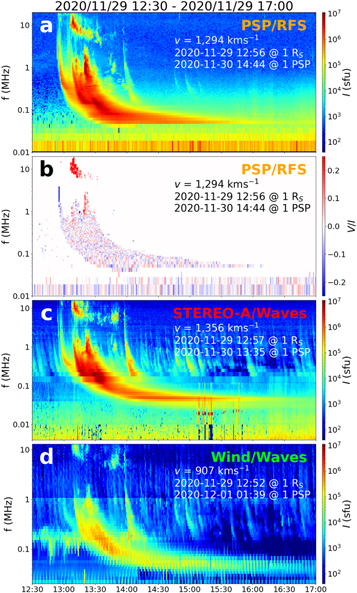

CME2 was accompanied by type II and III bursts detected by PSP/RFS, STEREO-A/Waves, and Wind/Waves (Bougeret et al. 1995, 2008; Bale et al. 2016; Wilson et al. 2021) in the period of November 29 12:30–17:00 UT (Figure 5). A complex type III occurred around 12:55 UT, and it lasted until ∼16:00 UT. Langmuir waves were observed by STEREO-A between 15:10 UT and 15:50 UT, indicating that a flare-associated electron beam intersects the STEREO-A spacecraft (Figure 5(c)). The complex type III was followed by an intermittent type II burst between 13:05 UT and 13:50 UT in a frequency range from 20 MHz down to 4 MHz (Figure 5). It corresponds to radial distances of the CME2-driven shock wave between ∼1.8 R_S and ∼3.7 R_S assuming the fundamental emission and the electron density model of Sittler & Guhathakurta (1999). The type II burst could have been generated either by interaction of the CME2-driven shock wave with the base of CME1 legs, or a nearby streamer. This event is the first well observed type II burst by three spacecraft located at different longitudes and latitudes.

Zoom In Zoom Out Reset image size

We analyzed the frequency drift of the type II burst around 13:10 UT to estimate the kinematics of the CME2-driven shock wave in the corona. Specifically, we identified peak fluxes ranging between 7 and 13 MHz for each spacecraft separately. Next, we converted frequencies of the type II burst f to radial distances r using the density model of Sittler & Guhathakurta (1999). Using a linear fit we derived the speed of the CME2-driven shock to be 1294 km s⁻¹, 1356 km s⁻¹, and 907 km s⁻¹ for the PSP, STEREO-A, and Wind, respectively. While the frequency drift results from the PSP and STEREO-A observations are comparable, the obtained speed for Wind is significantly different. It can be explained by different radio propagation effects as the signal suffers by refraction in the density gradients and scattering by density inhomogeneities. Krupar et al. (2019) showed that type II bursts are more likely to have a source region situated closer to CME flanks than CME leading edge regions. In the case of the PSP and STEREO-A, CME2 propagates roughly between the two spacecraft, while Wind is located nearly perpendicular. As the type II burst is more likely to be generated near CME2 flanks, Wind observed the radio emission with smaller propagation effects, when compared to the other two spacecraft.

Assuming a constant speed for the CME2-driven shock, we calculated the onset (r = 1 R_S ) and PSP arrival (r = 174 R_S ) times (Figure 5). The obtained onset time for Wind (2020 November 29 12:52 UT) is consistent with observed ground-based radio measurements. The same type II burst was detected at 80 MHz (∼1.17 R_S ) around 2020 November 29 12:54 UT (Figure 4 of Kollhoff et al. 2021). Finally, the PSP arrival time based on the Wind frequency drift (2020 December 1 at 01:39 UT) is close to the actual time of the CME1–CME2 interaction analyzed in this study (2020 December 1 at 02:20 UT; see Figure 8 below).

Moreover, the type II burst exhibited significant left-hand circular (LHC) polarization, which has never been detected before in this frequency range (Figure 5(b)). The PSP/RFS is the first space-based radio receiver that allows us to investigate polarization properties of incident radio waves up to 20 MHz. STEREO/Waves and Wind/Waves provide direction-finding measurements only up to 2 and 1 MHz, respectively. Pulupa et al. (2020) analyzed several type III bursts with significant LHC polarization observed by PSP/RFS in 2019. This strong polarization is surprising, as solar radio emissions at frequencies below 20 MHz rarely show signatures of circular polarization (Cecconi 2019). When it is present, strong circular polarization is often interpreted as evidence that the emission occurs at the fundamental of the plasma frequency, and not the harmonic. In the presence of a magnetic field, electromagnetic waves can be generated in the O-mode and X-mode, which have opposite senses of circular polarization. At the fundamental, only O-mode emission can escape the source region and reach the observer, while at the harmonic, both O-mode and X-mode waves can escape. This implies that fundamental emission should be more strongly polarized than harmonic. In the case of type IIIs, this is well established with observational results (Dulk & Suzuki 1980).

The handedness of radio burst emission can also be used to probe the magnetic field conditions in the source region, and, in this specific case, help determine the radio emission source location. Later in this paper, Figure 10(c) will illustrate the geometry of the ICME interaction, which will be described in detail in Sections 3 and 4. This shows the two legs of ICME1, a "north" leg extending toward the positive z and negative x directions, and a "south" leg, which is close to the y-axis. From the information in Table 3, we can determine that the polarity of the central magnetic field is positive (outward from the Sun) in the south leg of the ICME, and negative (toward the Sun) in the north leg.

In this geometry, PSP measurements of radio emission from the south leg correspond to radio waves that propagate parallel to the central field, while waves from the north leg propagate antiparallel to the field. This alignment determines the sense of circular polarization (Thejappa et al. 2003), with LHC polarization in the parallel (south leg) case, and right-hand circular polarization in the antiparallel (north leg) case. The LHC-dominated emission in Figure 5 therefore indicates that the observed type II emission is predominantly generated in the south leg of ICME1, as ICME2 passes through and interacts with ICME1.

To determine the 3D kinematic and morphological properties of the CMEs under study, we make use of the Graduated Cylindrical Shell (GCS; Thernisien et al. 2009) forward model. The model relies on the manual fitting of an ad hoc 3D geometrical figure (the GCS) to the outline of the projected white-light CME, as simultaneously viewed from coronagraphs from different vantage points. For the case of the CMEs under analysis, we used images from STEREO-A SECCHI/COR1 and COR2 together with those from SOHO/LASCO C2 and C3. These pairs of nearly simultaneous images were fit to the GCS figure at various points in time, so as to characterize the evolution of their key 3D parameters. The fitting involves careful iterative adjustment of the GCS shape, by setting different values to the six parameters that define the 3D CME morphology. This is performed until the best visual match is simultaneously achieved in every pair of images exhibiting the projected CME. The outcome of the process is a set of parameters that describe the dimensions and location of the CME at a specific time: latitude θ, longitude ϕ, tilt γ, height h, aspect ratio κ, and half angle α (see Thernisien et al. 2006, for further description of the model parameters).

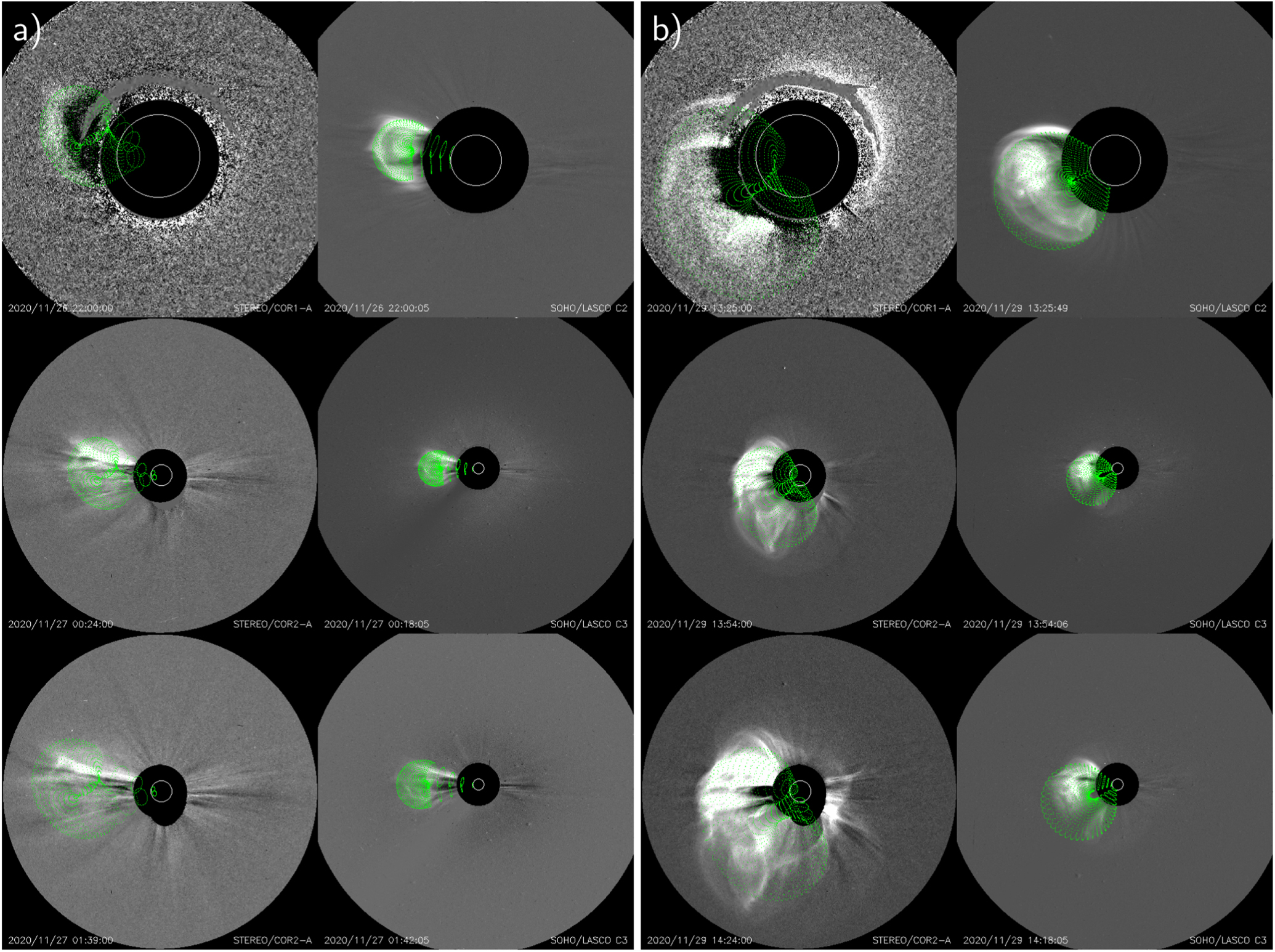

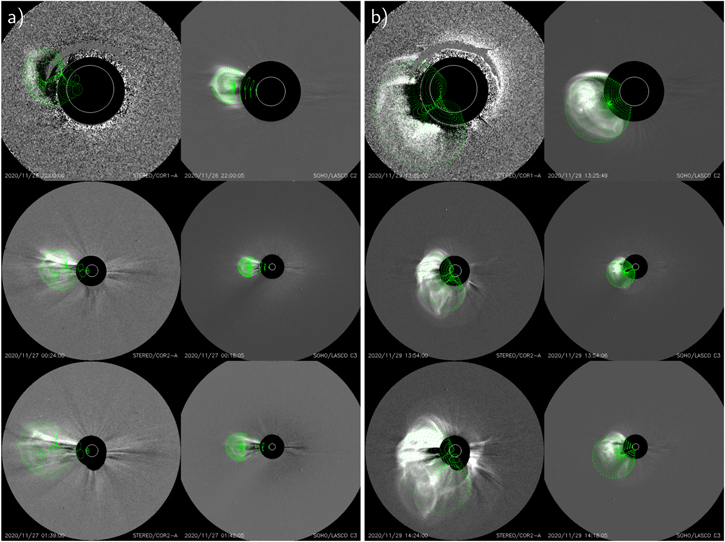

The GCS fits at three different times are shown as green meshes superimposed on white-light images of CME1 (a) and CME2 (b) in Figure 6. Time increases from top to bottom. The left column in (a) and (b) shows the view from STEREO-A, and the right column in (a) and (b) shows the view from SOHO. The final parameters that define the 3D shape of the CMEs, used as input for the ENLIL model runs, are summarized in Table 2. Column (1) lists the CME number, columns (2) through (6) list the GCS parameters, and columns (7) through (11) list other parameters arising from the GCS parameters, which are required as inputs for the ENLIL model runs (see Section 3.2). Note that Table 2, besides listing parameters corresponding to CME1 and CME2, also displays those parameters deduced for CME 01 and CME 02. These occurred prior to CME1 and CME2; thus they are important for setting the prevailing solar wind conditions during the propagation of the CMEs in this study (see next subsection). The leading edge (LE) radial propagation speed (column 10) of the CMEs has been estimated from the GCS fits at various times, while the time when the LE is at 21.5 R_S (column 11) is deduced from it. Note that, although Figure 6 displays GCS fits at three times, we have performed the fitting process for all available nearly simultaneous image pairs showing the CMEs.

Zoom In Zoom Out Reset image size

When comparing parameters obtained from the first analyzed time with those a couple of hours later, a slight equatorward and eastward deflection was evident for CME1. No changes in tilt, aspect ratio, or half angle were noticeable. The resulting height–time profile for CME1 was approximately linear, yielding a speed of ∼580 km s⁻¹.

For CME2, there was a slight equatorward and westward deflection, with no apparent changes in tilt or aspect ratio, though the half angle had to be increased to better match the expanding CME. In fact, CME2 exhibited a behavior that departed from a typical CME, with its southern portion expanding to a greater extent and a leading edge flatter than that modeled by the GCS shape. The latter is particularly noticeable in SOHO/LASCO images within which the CME propagates close to the sky plane. 3D reconstruction of CME2, on the basis of the available white-light views, was nontrivial. A process of reconciliation between GCS fits, ENLIL simulations, and in situ reconstructions had to be pursued to minimize uncertainties in the 3D parameters. Three different GCS fits were tried, with varying results when used as input for the ENLIL runs. The first and second options led to nearly linear height–time profiles, with speeds surpassing 1900 km s⁻¹, yielding wrong arrival times in ENLIL with respect to the in situ observations. The third option led to the best agreement between ENLIL simulations and in situ reconstructions as well as observations, and is therefore the one used for CME2 and shown in the last row of Table 2. According to the third set of GCS parameters, the CME2 LE initially exhibits a speed of ∼2000 km s⁻¹, but quickly decelerates to ∼1780 km s⁻¹ by the time it reaches the outer edge of the FOV. The three GCS options slightly differ in the values of all parameters: the first option is similar to the third one, but with a larger κ (0.47 versus 0.45) and a smaller α (32° versus 37°). The second option involved a smaller κ of 0.40, a tilt γ = −80° to be in accordance with the inclination of the post-eruptive loops, and a more eastward ϕ of 270°. Under the conditions of the second option, the value of ϕ implied that CME2 did not reach STEREO-A. This exercise of trying different GCS fit parameters is another example of how relatively small variations in the parameters may have a great impact on the simulations at large distances (e.g., Mays et al. 2015). Note the upper and lower limits of the GCS parameters considered by these three options: −19° < θ < −15°, 270° < ϕ < 277°, −70° < γ < 80° (i.e., 30° difference), 0.40 < κ < 0.47, and 32° < α < 37°.

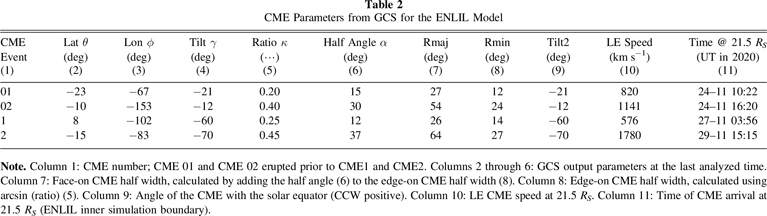

In this section, we modeled the propagation of the CMEs during the period from November 24 to December 6 to estimate the evolution of CME1 and CME2 at the location of the PSP using two complementary models, the ENLIL model and the drag-based model (DBM; Vršnak et al. 2013).

The WSA-ENLIL+Cone model (Odstrcil et al. 2004) is a global 3D magnetohydrodynamic (MHD) model ¹⁷ that characterizes the heliosphere outside 21.5 R_S . ENLIL uses a time-dependent sequence of daily updated magnetograms as a background into which high-pressure structures without any internal magnetic field are added to resemble CME-related solar-wind disturbances. Thus, the ENLIL-modeled CME has an artificially higher pressure to compensate for the lack of a strong magnetic field. At the CME nose, the dynamic pressure dominates, and the compression is strongest, so the ENLIL+Cone model can often simulate the CME nose well, despite the lack of an internal magnetic field for the CME driver. In contrast, at the flank or edge of a CME, or in the case of interacting CMEs, where the interaction of the CME magnetic field with the background solar wind or with a third CME cannot be ignored anymore, the lack of an internal magnetic field would influence the simulation of the CME magnetic field. In addition, the reliability of ensemble CME-arrival predictions is strongly conditioned by the initial CME input parameters, such as the width, direction, and speed (Mays et al. 2015; Kay et al. 2020), but also by the errors that can appear in the ambient-model parameters, and by the uncertainty of the solar-wind background derived from coronal maps. To improve the characterization of the heliosphere, multipoint coronagraph observations are used to infer CME parameters, using the GCS model, as described in Section 3.1. The inner boundary condition is given by the WSA V5.2 model, using inputs from the standard quick-reduce zero-point corrected magnetograms from the Global Oscillations Network Group (GONG; Harvey et al. 1996), available from the National Solar Observatory website. ¹⁸

The ENLIL simulation interval encompasses about two days before the onset of CME1, to consider the preconditioning of the heliosphere and the prior IP structures that might be present in the heliosphere, and about 10 days after the CME1 onset to follow the evolution of ICME1 and ICME2 in the IP medium. Table 2 summarizes the CME parameters obtained from the GCS reconstruction (columns 2–6 and 10) and the translation to ENLIL input (remaining columns). Values resulting from the GCS reconstruction for CME 01 and CME 02 (L. Balmaceda 2022, private communication) are also listed in Table 2, as they are taken into account for the ENLIL simulations to set, as mentioned above, more realistic solar wind conditions for CME1 and CME2. We note that the CME LE speed is chosen instead of the bulk speed (bright core, if present), as it often better captures the global and strong impact of the high-pressure structures. Regarding CME2, the final GCS reconstruction parameters were chosen based on a better reconciliation with in situ data (see Section 3.1), as observed by the PSP and STEREO-A (see Figure 7 described below). The ENLIL simulation input parameters and results are available on the Community Coordinated Modeling Center (CCMC) website. ¹⁹

Zoom In Zoom Out Reset image size

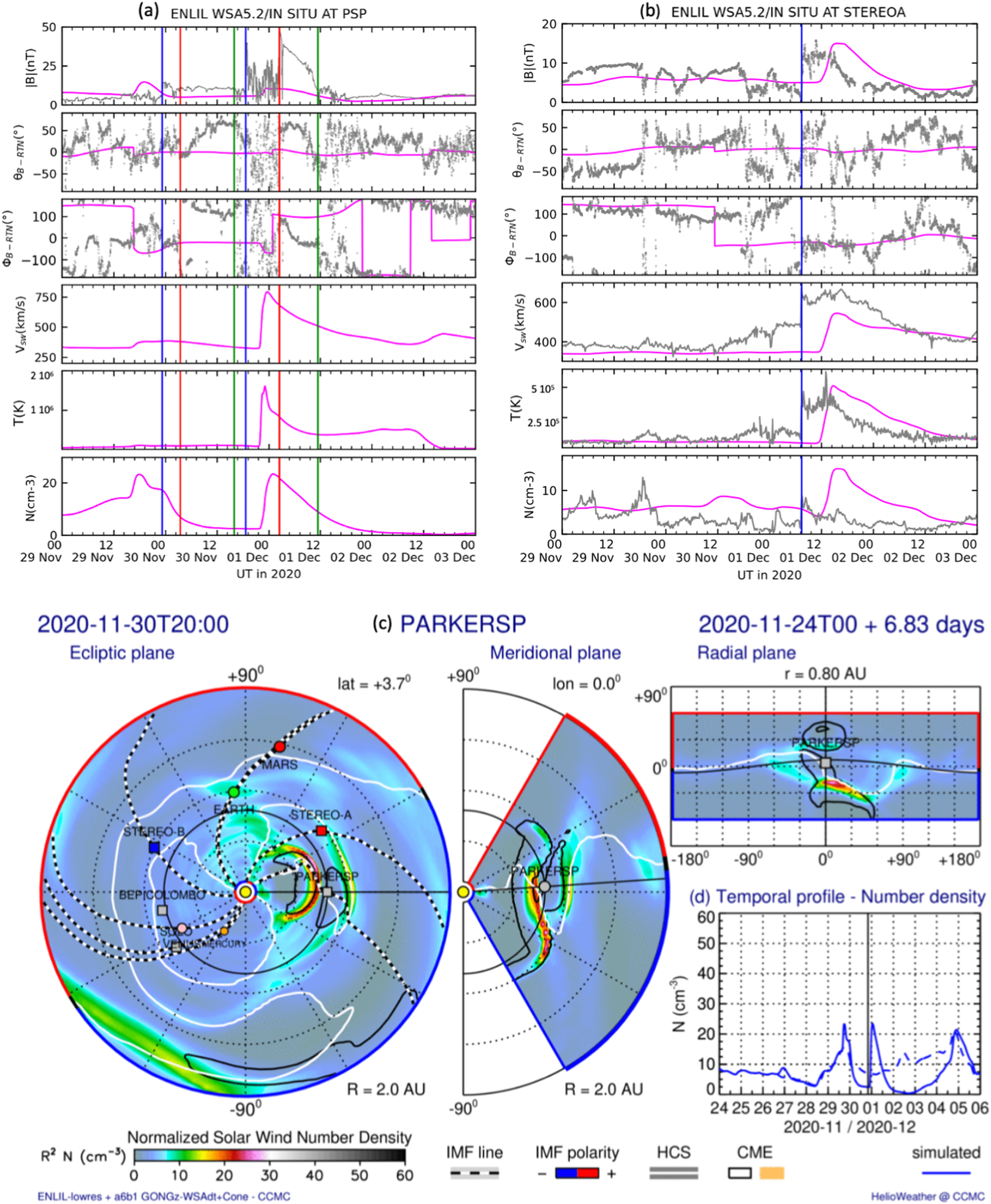

Figures 7(a), (b) show the comparison between the in situ magnetic field data and overplotted (pink line) is the result of the ENLIL simulation at the locations of the PSP (Figure 7(a)) and STEREO-A (Figure 7(b)). From the top, both plots include the magnetic field strength, magnetic field latitudinal and azimuthal angles, θ_B-RTN and ϕ_B-RTN, solar wind proton speed, temperature and density. The one-minute-averaged magnetic field observations are from the FIELDS instrument on board the PSP (left) and from the Magnetic Field Experiment and plasma experiment on board STEREO-A (right). At the location of STEREO-A, Figure 7(b) shows that ENLIL follows the general trend and mean magnitude of the observed magnetic field strength (first panel), solar wind speed (fourth panel), and temperature (fifth panel). The IP ICME2-driven shock arrival, indicated by the vertical blue line, is simulated to be a few hours late, but within the uncertainty of the model, as the mean absolute arrival time prediction error is 10.4 ± 0.9 hr (Wold et al. 2018). The changes in magnetic field polarity are reasonably well simulated (third panel). In the case of the PSP, Figure 7(a) shows that the ICME1-driven shock arrival is simulated a few hours earlier, but again within the mean uncertainty, and the simulated magnetic field strength is similar in magnitude to the in situ observations. This is not the case for the second structure observed by PSP, ICME2. ENLIL is simulating the shock arrival within the given accuracy, but the simulated magnetic field strength is much lower. The interaction between ICME1 and ICME2 at the location of the PSP could be behind this behavior and the lack of internal magnetic field for the CME driver, as discussed above. Figure 7(c) shows a selected time frame from the ENLIL simulation, at the time of the ICME2-driven shock arrival at the location of the PSP. The ecliptic plane view shows how the shock driven by ICME2 might interact with the trailing edge of ICME1 at the location of the PSP. The meridional plane view presents the ICME1 and ICME2 interaction near the location of the PSP. Under this simulation, the interaction is happening in a period ranged between November 30 ∼ 12 UT, as seen on the southern plane (based on the visual inspection of the simulation), and November 30 ∼ 23 UT, as seen from the ecliptic plane.

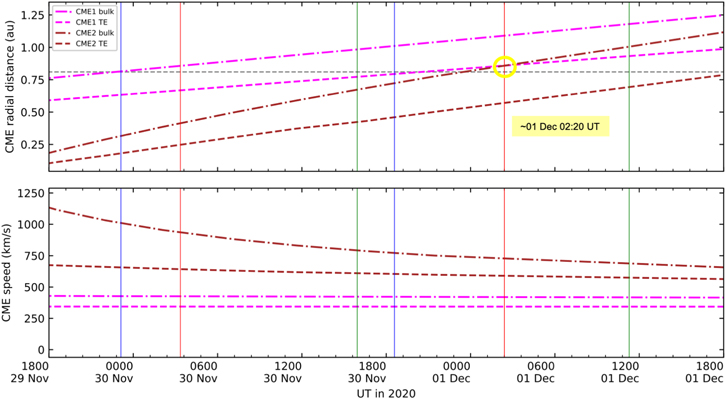

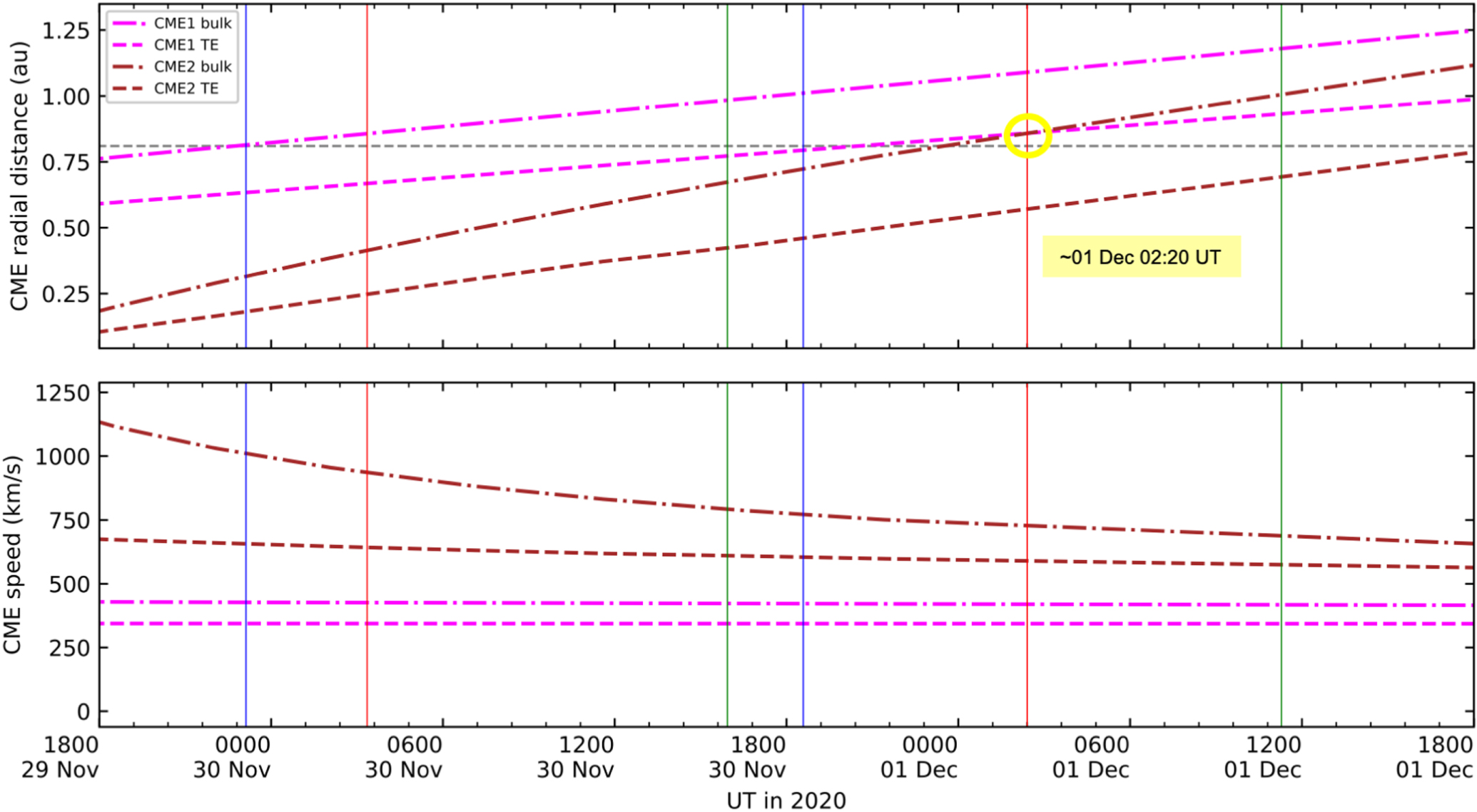

The second model used for the prediction of the IP CME travel and its arrival at an arbitrary ecliptic-plane location is the DBM (Vršnak et al. 2013). A tool for this model is available online. ²⁰ The DBM provides prediction of the IP CME travel and its arrival at an arbitrary ecliptic-plane location. The model describes the propagation of a magnetic structure based on the CME initial properties and on the ambient solar wind, predicting the arrival time of the MO and not of the CME-driven shock. The DBM assumes that the magnetohydrodynamical drag is the dominant force governing the ICME propagation that typically occurs after 20 R_S , so the CME speed shown in Table 1 can be used as an initial parameter for the model. However, the bulk speed has been considered as the true speed of the CME to infer the ICME arrival to the different spacecraft instead of the LE speed. The bulk speed represents the variation in the OC₁ distance in time (Figure 1 in Thernisien 2011), so that it corresponds to the true speed of the flux-rope structure. Then, the bulk CME speed is derived from the CME speed at the LE (column 10 in Table 1) using the geometry of the reconstructed CME: CME_bulk_speed = CME_LE_speed/(1+k), where k represents the CME aspect ratio (Thernisien et al. 2006; Thernisien 2011). The DBM also uses two user-defined parameters, the solar wind speed and the drag parameter (Γ), which defines the velocity change rate. The average solar wind speed was taken from the ENLIL simulation and the Γ parameter is 0.1 and 0.15 for CME1 and CME2, respectively (see more details for the Γ tuning in Dumbović et al. 2019). Figure 8 shows the CME radial distance and speed of CME1 (pink) and CME2 (brown) based on DBM equations (Dumbović et al. 2021). We note that, as the CME bulk distance and speed (dashed—dotted lines) are calculated using the initial CME bulk speed in the DBM equations, the CME trailing edge distance and speed (dashed lines) are calculated using the initial CME trailing edge speed. This speed is also derived from the geometry of the CME: CME_trailing_edge_speed=CME_LE_speed∗(1-k)/(1+k). From Figure 8 we see that the trailing edge of ICME1, indicated with the pink dashed line, is crossing the bulk of ICME2 represented by the brown dashed—dotted line. This means that the trailing edge of ICME1 is colliding with ICME2 at ∼02:20 UT near the PSP location (0.81 au), indicated by the horizontal gray dashed line. The time of the interaction is highlighted on the figure and coincides with the arrival of the ICME2 (second red vertical line). The bottom panel in Figure 8 shows that the average speeds of ICME1 and ICME2 are 400 km s⁻¹ and 800 km s⁻¹, respectively. These values will be the input speed for the in situ reconstruction in the next section. The standard deviation for the CME arrival time and speed near the PSP can be estimated if the probabilistic model for heliospheric propagation drag-based ensemble model is used (Dumbović et al. 2018), which tool is also available online, ²¹ under version 3.15 at the time of writing. After running 30,000 DBM runs and using uncertainties of 0.05 and 50 km s⁻¹ for Γ and V_sw, respectively, along with the calculated uncertainties of initial speeds and times based on the sensitivity analysis of the GCS model (Table 2 in Thernisien et al. 2009), the standard deviations for the CME arrival times and impact speeds are 1.7 (1.1) hr and 11.7 (33.0) km s⁻¹ for CME1 (CME2), respectively.

Zoom In Zoom Out Reset image size

For the reconstruction of the events based on in situ observations, we have selected two versions of the same model and reconstruction techniques. The goal is to compare which model may reproduce better the magnetic field profile. The elliptical–cylindrical (EC) model (Nieves-Chinchilla et al. 2018a) is an upgraded version of the circular–cylindrical (CC) model (Nieves-Chinchilla et al. 2016) that assumes axial symmetry, but allows distortion in the flux-rope cross section that is consistent with kinematic analysis of the CME evolution (Owens 2006; Owens et al. 2006). The distortion or deformation of the CMEs in the heliosphere is an open question that is not solved yet; we have therefore performed a comparison of the two models. The impact of the distortion assumption on the increase in the number of parameters is also a topic of debate. This is, in part, something addressed here: is the asymmetric magnetic field profile in the ICME2 due to distortion, expansion, or both?

The model equations are,

$$\begin{eqnarray}\begin{array}{rcl}{B}_{r} & = & 0\\ {B}_{y} & = & \delta {B}_{y}^{0}\left[\tau -{\left(\displaystyle \frac{r}{R}\right)}^{2}\right]\\ {B}_{\varphi } & = & -H\displaystyle \frac{2\delta h}{{\delta }^{2}\,+\,1}\displaystyle \frac{{B}_{y}^{0}}{| {C}_{10}| }\displaystyle \frac{r}{R},\end{array}\end{eqnarray} \tag{ 1 }$$

where R is the cross-sectional radius obtained from the reconstruction. δ is the distortion, $\delta {B}_{y}^{0}\tau$ is the central magnetic field, C₁₀ is the in situ ratio between the poloidal and axial current density, $h={[{\delta }^{2}{\sin }^{2}\varphi +{\cos }^{2}\varphi ]}^{1/2},$ and H is the chirality.

This model does not enforce any force-free condition for the internal dynamics of the structure, but it provides information about the internal Lorentz force distribution (C₁₀) and the central magnetic field can be evaluated (B_y ⁰). H is the flux-rope chirality. The cross-section distortion is described with the δ parameter, and the τ parameter provides information about the internal twist distribution. This last parameter together with C₁₀ determine the stability of the structure (see Florido-Llinas et al. 2020). According to the results of this analysis, we have fixed τ = 1.1.

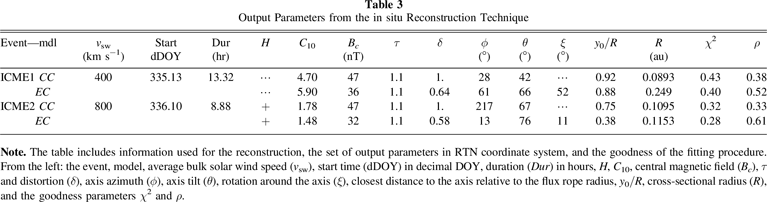

This reconstruction was first introduced by Hidalgo et al. (2000), and more details can be found in Nieves-Chinchilla et al. (2016, 2018a). The reconstruction technique enables inference of the trajectory of the spacecraft while crossing the structure. From this procedure, we can obtain the axis azimuth, tilt, and rotation around the axis (ϕ, θ, ξ), as well as the closest approach to the axis (y₀). For the reconstruction of the magnetic obstacle of ICME2, we have considered the solar wind bulk speed obtained from the DBM model in Section 3.2.

The reconstruction is initialized following the steps indicated in Nieves-Chinchilla et al. (2016) for the CC model and using the output parameters as the input parameters for the EC model. Figure 9(a) compares the magnetic field magnitude and components observed by the PSP and obtained from the output fitting parameters included in Table 3 to visually evaluate the goodness of fit. The top panel in the top figure is the magnetic field strength, followed by the three RTN magnetic components in separated layers, for the CC model in blue and for the EC model in pink. Despite the fact that the first event does not display significant signatures of distortion, the EC model captures the trend of the magnetic field components, as expected. In the case of ICME2, the obvious asymmetry in the magnetic field strength cannot be captured by the CC model, but the EC model follows better the magnetic field strength as well as its components. Table 3 lists the output parameters obtained from the reconstruction. From column H to column y₀/R, the table includes the direct parameters obtained from the reconstruction technique using the CC and EC model in both events. The angles are in the RTN coordinate system. It is followed by the size of the cross section, R. The cross-section radius is obtained from the reconstruction. Once the trajectory of the spacecraft is inferred, knowing the duration and assuming constant bulk velocity, this value can be obtained. The last two columns include the goodness parameters, χ² and ρ (see Nieves-Chinchilla et al. 2018b, for details), which are consistent with our visual inspection analysis. In general, the EC model fits better the magnetic field profile for both ICMEs.

Zoom In Zoom Out Reset image size

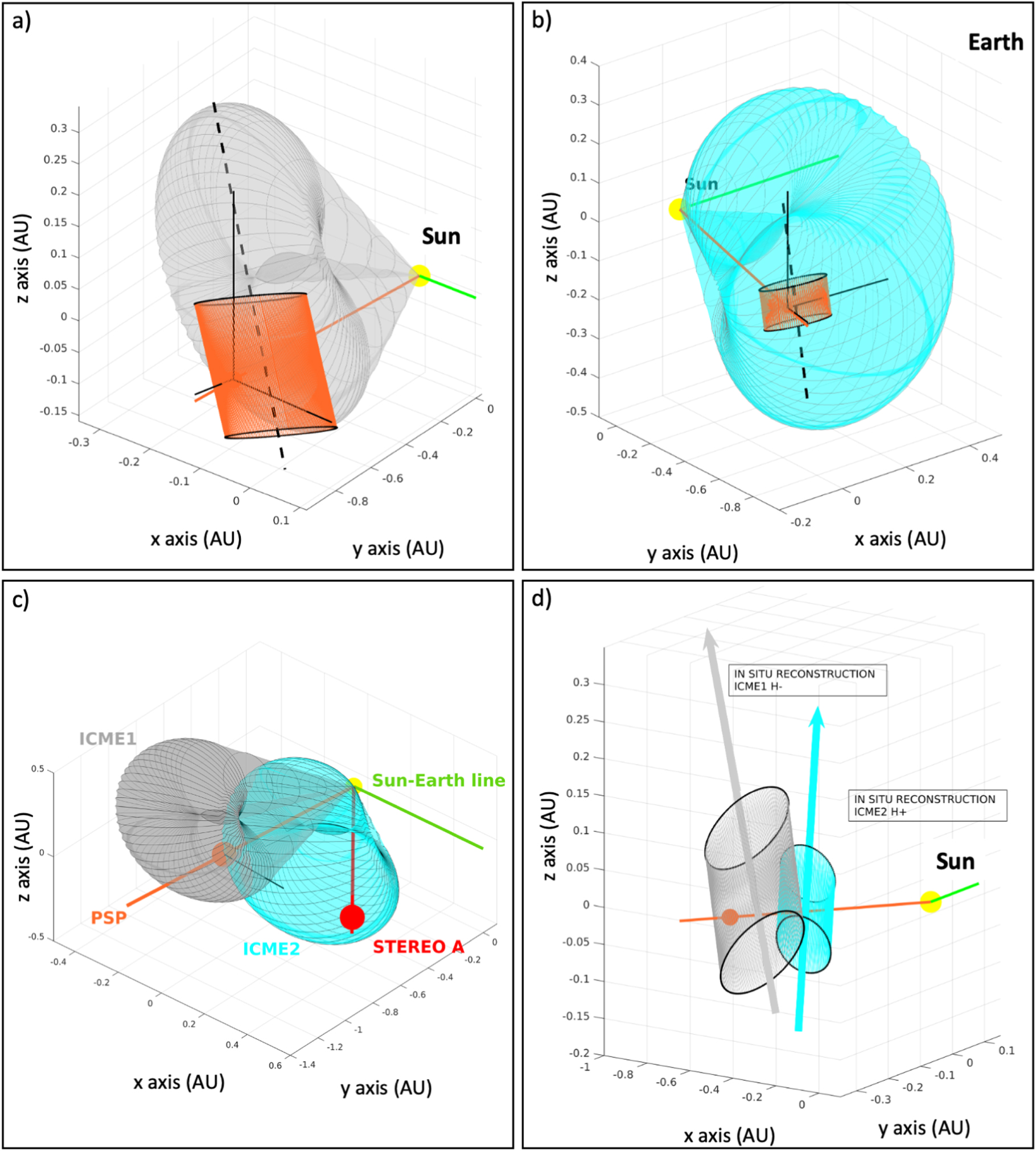

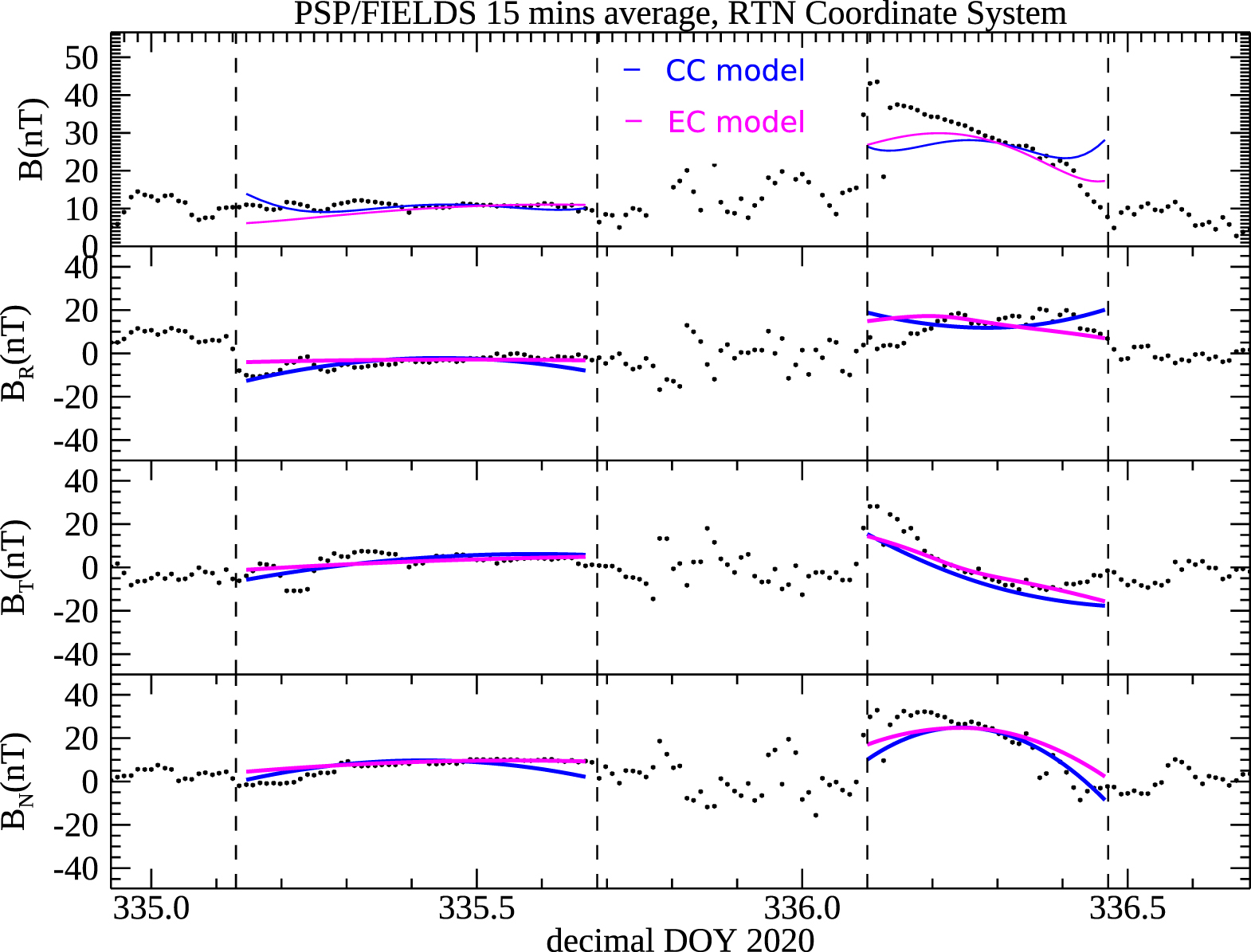

In terms of the orientation and geometry of the reconstruction, we have plotted the 3D reconstruction based on in situ and remote-sensing observations in Figure 10 to facilitate the interpretation by comparing GCS with the EC model. The figure displays the two reconstructions merged in the same graphic with the remote-sensing reconstruction self-similarly propagated to the PSP height. Figure 10(a) shows the combined in situ reconstruction and the gray torus for the remote-sensing reconstruction of CME1/ICME1 and shows good agreement between the reconstructions. Figure 10(b) encloses the in situ 3D reconstruction in orange, and the 3D remote-sensing reconstruction in cyan for ICME2. In contrast to the reconstruction of ICME1, the ICME2 reconstruction does not agree so well. Among possible causes of this discrepancy may be underestimation of the bulk velocity, the fact that the model is static, but mainly that the remote-sensing 3D reconstruction does not reflect the actual 3D shape of the CME. Finally, Figure 10 shows the remote-sensing (panel (c)) and in situ (panel (d)) reconstructions for both ICME1 and ICME2 at the time when ICME2 reaches the PSP location. We have expanded the CMEs to this height based on the latest GCS reconstruction and the speed listed from Table 3. It is possible to see that, due to the interactions of both ICMEs at the PSP location, in situ and remote-sensing observations are impacted. This interaction leaves a more complex structure in the measurements, which requires more complex modeling tools.

Zoom In Zoom Out Reset image size

Finally, we evaluated the flux-rope kink stability that may cause rotation of the flux ropes at the PSP heliocentric distance. Based on Equation (12) in Florido-Llinas et al. (2020), and the model Equations (1), the threshold to assume a stable structure kink follows,

$$\begin{eqnarray}&&{C}_{10}=\displaystyle \frac{5.6382\ast 0.84}{5.7}\left(\displaystyle \frac{\tau -1}{5.7}\right){e}^{-{\left(\tfrac{\tau -1}{5.7}\right)}^{0.84}},\end{eqnarray} \tag{ 2 }$$

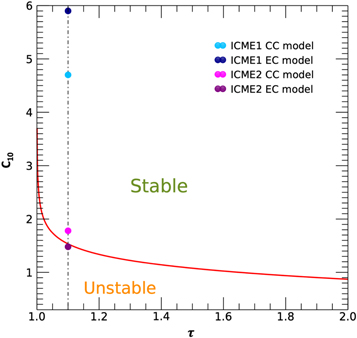

where τ = 1.1 in our reconstructions. Figure 11 displays the threshold between the stable and unstable regimes for the pair of C₁₀ and τ values for the CC model (see Florido-Llinas et al. 2020 for more details). For C₁₀–τ values above the red line, the structure remains kink-stable. For values below the red line, the structure is kink-unstable and therefore carries out deviations from the radial propagation, specifically rotations. The colored dots over the dashed line are the obtained C₁₀ values of the reconstructions of both ICMEs, based on both CC and EC models and included in Table 3. All C₁₀ values fall within the kink-stable range except the value for the ICME2 reconstruction using the EC model. This is a marginal value of C₁₀ = 1.48, where the threshold for τ = 1.1 is C₁₀ = 1.53. This result suggests that the CME1–CME2 interaction may be driving a rotation in ICME2 and, therefore, a deviation from a radial propagation.

Zoom In Zoom Out Reset image size

As of yet, there is not a significant amount of research related to the interaction or collision of ICMEs in the inner heliosphere based on remote-sensing observations (e.g., Lugaz et al. 2012; Liu et al. 2014; Colaninno & Vourlidas 2015; Kilpua et al. 2019; Palmerio et al. 2019). Most of them are based on numerical simulations (see Lugaz et al. 2017, for a review). Again, this is in part due to the lack of observations of the events that limit the investigations. Gopalswamy et al. (2001) was one of the first studies that reported type II radio observations of the interaction between CMEs and, simultaneously to the radio enhancement, a fast CME overtaking a slow CME when viewed in coronagraph images. Since then, type II radio observations have been regarded as one of the first signatures of CME–CME interaction (see, e.g., Shanmugaraju et al. 2014; Temmer et al. 2014; Mäkelä et al. 2016; Al-Hamadani et al. 2017; Morosan et al. 2020) and have been used as a tool to explore the relationship with solar energetic particle acceleration and transport in the context of large-scale interactions (e.g., Gopalswamy et al. 2002; Li et al. 2012; Zhuang et al. 2020).

While there are many physical processes associated with the interaction, such as particle acceleration or plasma heating, the collision among the magnetic obstacles is the peak of such encounter. In a simplistic view of two magnetized plasmoids colliding, the dynamic of such a hit is basically determined by the kinematic aspects and the internal magnetic structure (e.g., Schmidt & Cargill 2004; Lugaz et al. 2005; Xiong et al. 2006; Shen et al. 2011, 2017; Niembro et al. 2019). Thus, the amount of momentum in each structure (Δm v ) plus the orientation and chirality of the structures in the solar wind would determine the consequences of the collision. Both CMEs will therefore coexist and move together as they travel away from the Sun if there is a low momentum transfer and magnetic configuration such that magnetic reconnection is not allowed (elastic collision). They will slowly merge together when such magnetic configuration is in opposite direction and enabling reconnection. A more dramatic scenario is when a fast and energetic CME overtakes a slow CME (cannibalism; Gopalswamy et al. 2001). The trailing part of the front CME would be completely absorbed by the rear CME. Based on the following evidence, we believe the scenario for the 2020 November event is that of an elastic collision. This case could be described as a perfect elastic collision where the result of the momentum exchange may separate the two magnetized structures (Shen et al. 2012).

The results of our analysis indicate that the PSP observed the immediate instants around the collision of the two CMEs. In our case, CME1 and CME2 are not a perfect magnetized ball, but two 3D structures with the second CME driving a shock wave. Here, CME2 is almost twice as fast as CME1 and, even though the size is not well characterized by our in situ and remote-sensing reconstructions, the chirality and orientation is such that the magnetic field direction of the contact interface is the same (i.e., west in RTN coordinates) and therefore is not conducive to reconnection (see Figure 10). We conjecture that the transfer of momentum started before the CME–CME interaction, during the CME1–Shock2 interaction.

In terms of the changes in the magnetic structures, we have identified two different features that would demonstrate the kind of physical processes acting on ICME1 and ICME2. ICME1 is overtaken by Shock2 that may have reached the structure faster than ICME2 because the lower density in the solar wind facilitates wave propagation (see Lario et al. 2021, and references within). This interaction may accelerate the leading structure and momentarily increase the distance from ICME2. Thus, this may explain the depleted magnetic field strength in the sheath region between Shock2 and MO2. This scenario would confirm that the PSP observed the instants immediately preceding the collision between the magnetic structures. The magnetic field component profile suggests that Shock2 had already initiated the penetration inside ICME1 and would eventually reach Shock1. This is one of the scenarios described by Shen et al. (2011) of the 3D time-dependent, numerical MHD simulations of the interactions of two ICMEs. Plasma measurements taken by the PSP, albeit sporadic and almost entirely missing after the passage of Shock2 (see Figure 2), can help shed additional light on the complex processes at interplay. First, the speed profile of MO1 (bottom-most panel in Figure 2) does not show signatures of expansion with the exception of a weakly decreasing trend during the first third of the structure. This suggests that the approaching Shock2 may have halted the expansion of ICME1 as it started its penetration. Second, the region immediately following the trailing edge of MO1 (i.e., the Shock2 upstream) sees an increase in temperature with respect to the preceding period. Although this may simply indicate that the PSP has left the core of ICME1, plasma heating is a known effect of shock–CME interactions in the solar wind (e.g., Vandas et al. 1997; Farrugia & Berdichevsky 2004). Given the overall magnetic field profile following the trend of MO1 mentioned in Section 2.1, it is possible that the Shock2 upstream marks an interaction region that is in the process of being disturbed by the passage of the following ICME.

In the case of ICME2, there are two significant features, i.e., the drop at the front of the magnetic structure for ∼15 minutes and the asymmetric profile in the magnetic field strength. According to Feng & Wang (2013), the first of these signatures can be associated with magnetic reconnection exhausts within the interior of ICMEs (see, e.g., Xu et al. 2011). The ongoing magnetic reconnection may cause heating in the internal plasma of ICME2 and drive CME overexpansion (Odstrcil 2003; Schmidt & Cargill 2004; Chatterjee & Fan 2013; Lugaz et al. 2013).

As stated in Lario et al. (2021), this event features significant similarities with the Bastille Day event at Earth (see, e.g., Lepping et al. 2001; Smith et al. 2001) in both magnetic field and energetic particle signatures. Thus, we have inspected the available data and compared both cases. Magnetic field strength and density depletion with an increase in the proton temperature in the sheath region of the rear, faster ICME supports the scenario described above. The solar wind bulk velocity within the second magnetic structure indicates significant expansion, with a value of ΔV ∼ 180 km s⁻¹. The speed profile within the first ejecta, on the other hand, shows weak signatures of expansion, suggesting that the following shock had not yet started to profoundly affect its propagation.

Visual inspection of both structures indicates that, while the magnetic field strength configuration of ICME1 does not display signatures of distortion with a very flat and symmetric magnetic field strength, ICME2 displays a very asymmetric profile. As stated in Nieves-Chinchilla et al. (2018b), there are three main causes for asymmetric profiles in ICMEs: distortion, erosion, or expansion. In the case of distortion, the spacecraft could enter the structure by the squeezed region but exit by the elongated region. In the case of erosion, part of the magnetic structure has been peeled away via magnetic reconnection with the ambient solar wind (Dasso et al. 2005; Ruffenach et al. 2012). Finally, in the case of significant expansion, the aging (decrease in the magnetic field strength during the spacecraft transit; see Farrugia et al. 1993; Osherovich et al. 1993; Démoulin et al. 2020, among others) should be taken into account in the modeling but also the effect of expansion on the spacecraft measurements and therefore on the reconstruction. Here, one may think of an analogy with the Doppler effect, as the expansion velocity positively contributes to the ICME bulk velocity, it has an artificial effect of magnetic field strength compression in the in situ observations. Conversely, when the expansion velocity component is opposite to the structure bulk velocity, the effect is of dilatation and decrease in the measurements. As previously stated, the lack of plasma observations prevents us from concluding which, among the three causes, may be responsible and subsequently reconstruct the structure. The implications for the reconstruction of the structure will be discussed here.

In general, ICME expansion can be defined using the difference in velocity between the ICME front and the rear. The cases with overexpansion have expansion velocities above an average of 25 km s⁻¹ at 1 au (e.g., Owens et al. 2005; Gopalswamy et al. 2015; Nieves-Chinchilla et al. 2018b). Overexpansion, first observed by Gosling et al. (1994, 1998), has been identified as one of the secondary effects on the CME–CME collision (Schmidt & Cargill 2004; Lugaz et al. 2013). The cause of the increase in the internal plasma pressure could be related to the energy released by magnetic reconnection processes (Murphy et al. 2011).

The in situ reconstruction based on a cylindrical geometry with a circular and elliptical cross section seemed to be insufficient to fully describe the magnetic configuration. Thus, the experiment we describe here aims to evaluate, qualitatively and quantitatively, the impact of expansion on the CME magnetic configuration. Thus, assuming magnetic flux and helicity conservation, the aging of the magnetic configuration can be quantified as:

$$\begin{eqnarray}\begin{array}{rcl}{B}_{y}^{\prime} & = & {\left(\displaystyle \frac{R}{R^{\prime} }\right)}^{2}{B}_{y},\\ {B}_{\varphi }^{\prime} & = & \displaystyle \frac{R}{R^{\prime} }\displaystyle \frac{L}{L^{\prime} }{B}_{\varphi }.\end{array}\end{eqnarray} \tag{ 3 }$$

Florido-Llinas et al. (2020) also demonstrated the effect of the aging on model parameters as,

$$\begin{eqnarray}\begin{array}{rcl}{B}_{y}^{0}{\prime} & = & \displaystyle \frac{R}{R^{\prime} }{B}_{y}^{0},\\ \tau ^{\prime} & = & \tau ,\\ C{{\prime} }_{10} & = & \displaystyle \frac{L^{\prime} }{L}\displaystyle \frac{R}{R^{\prime} }{C}_{10}.\end{array}\end{eqnarray} \tag{ 4 }$$

Here L and ${L}^{{\prime} }$ are the nonexpanded and expanded lengths of the flux rope axis. R and ${R}^{{\prime} }$ are nonexpanded and expanded cross-section radii. For both quantities, the rates of change are ${R}^{{\prime} }=R+{V}_{\exp }^{R}{t}_{s}$ and ${L}^{{\prime} }=L+{V}_{\exp }^{L}{t}_{s}$, where t_s is the spacecraft transit time through the structure. The velocities of expansion of the radius (${V}_{\exp }^{R}$) and flux-rope length (${V}_{\exp }^{L}$) are generally assumed to be equal and constant when it is assumed that there is a radial propagation and self-similar expansion of the structure in the solar wind.

Assuming self-similar expansion ($L/{L}^{{\prime} }=R/{R}^{{\prime} }$), the above set of Equations (3) and (4) reduce to,

$$\begin{eqnarray}\begin{array}{rcl}{B}_{y}^{\prime} & = & {\left(\displaystyle \frac{R}{R^{\prime} }\right)}^{2}{B}_{y},\\ {B}_{\varphi }^{\prime} & = & {\left(\displaystyle \frac{R}{R^{\prime} }\right)}^{2}{B}_{\varphi },\ \mathrm{and}\ \\ {B}_{y}^{0}{\prime} & = & \displaystyle \frac{R}{R^{\prime} }{B}_{y}^{0},\\ \tau ^{\prime} & = & \tau ,\\ C{{\prime} }_{10} & = & {C}_{10}.\end{array}\end{eqnarray} \tag{ 5 }$$

Note that the model parameter C₁₀ remains constant if the self-similar condition is assumed.

To evaluate the impact of the expansion on the magnetic field configuration, we have simulated the trajectory of the spacecraft and reproduced the change in the magnetic field configuration under different V_exp values. The reconstruction technique also requires taking into account the effect of the expansion on the spacecraft observations. The change in size of the cross section (${R}^{{\prime} }=R+{v}_{\mathrm{sw}}t$) at each instant the spacecraft is within the flux rope is affected by the position of the spacecraft at the entrance of the flux rope, which, in turn, is affected by the expansion. Thus,

$$\begin{eqnarray}&&\begin{array}{l}{x}_{0}=\displaystyle \frac{({v}_{\mathrm{sw}}-{V}_{\exp })}{2}t\\ -\,\displaystyle \frac{[a\sin \phi \sin \theta \cos \theta ]+({\delta }^{2}-1)\cos \phi \cos \theta \sin \xi \cos \xi ]}{(a{\sin }^{2}\phi {\sin }^{2}\theta +b{\cos }^{2}\phi )+2({\delta }^{2}-1)\sin \phi \cos \phi \sin \theta \sin \xi \cos \xi }{z}_{0},\end{array}\end{eqnarray} \tag{ 6 }$$

where t is the time at which the spacecraft is within the structure and

$$\begin{eqnarray}\begin{array}{rcl}a & = & [{\delta }^{2}{\cos }^{2}\xi +{\sin }^{2}\xi ]\\ b & = & [{\delta }^{2}{\sin }^{2}\xi +{\cos }^{2}\xi ].\end{array}\end{eqnarray} \tag{ 7 }$$

Note that, as the V_exp value increases, the effect of aging of the structure is also more significant and therefore a scale factor (f_B ) on B_c should also be quantified. Figure 12 illustrates the analysis in the case of the EC model. For each V_exp, we identified a f_B that minimizes the equation,

$$\begin{eqnarray}&&{\chi }^{2}=\displaystyle \frac{\sum (\sqrt{{B}_{\mathrm{obs}}^{2}-{B}_{\mathrm{sim}}^{2}})}{N},\end{eqnarray} \tag{ 8 }$$

where ${B}_{\mathrm{obs}}^{2}$ denotes the magnetic field strength observations, ${B}_{\mathrm{sim}}^{2}$ denotes the simulated observations, and N is the number of points included in the analysis. For each (${V}_{\exp },{f}_{B}$) pair, we identified the pair that minimizes Equation (8). Figure 12 illustrates this. Each colored line overplotted on the magnetic field observations represents the pair ${V}_{\exp },{f}_{B}$, which minimizes Equation (8) for such V_exp. The red color line is the one that better reproduces the magnetic field strength profile (χ² = 0.201). Therefore, the results demonstrate that, for the EC model, the velocity of expansion required to fully reproduce the magnetic field strength is ${V}_{\exp }=125$ km s⁻¹. Additionally, the central magnetic field strength (B_c ) included in Table 3 should be multiplied by the factor f_B = 1.35. The resulting value is ${B}_{C}^{\exp }=43.2$ nT.

Zoom In Zoom Out Reset image size

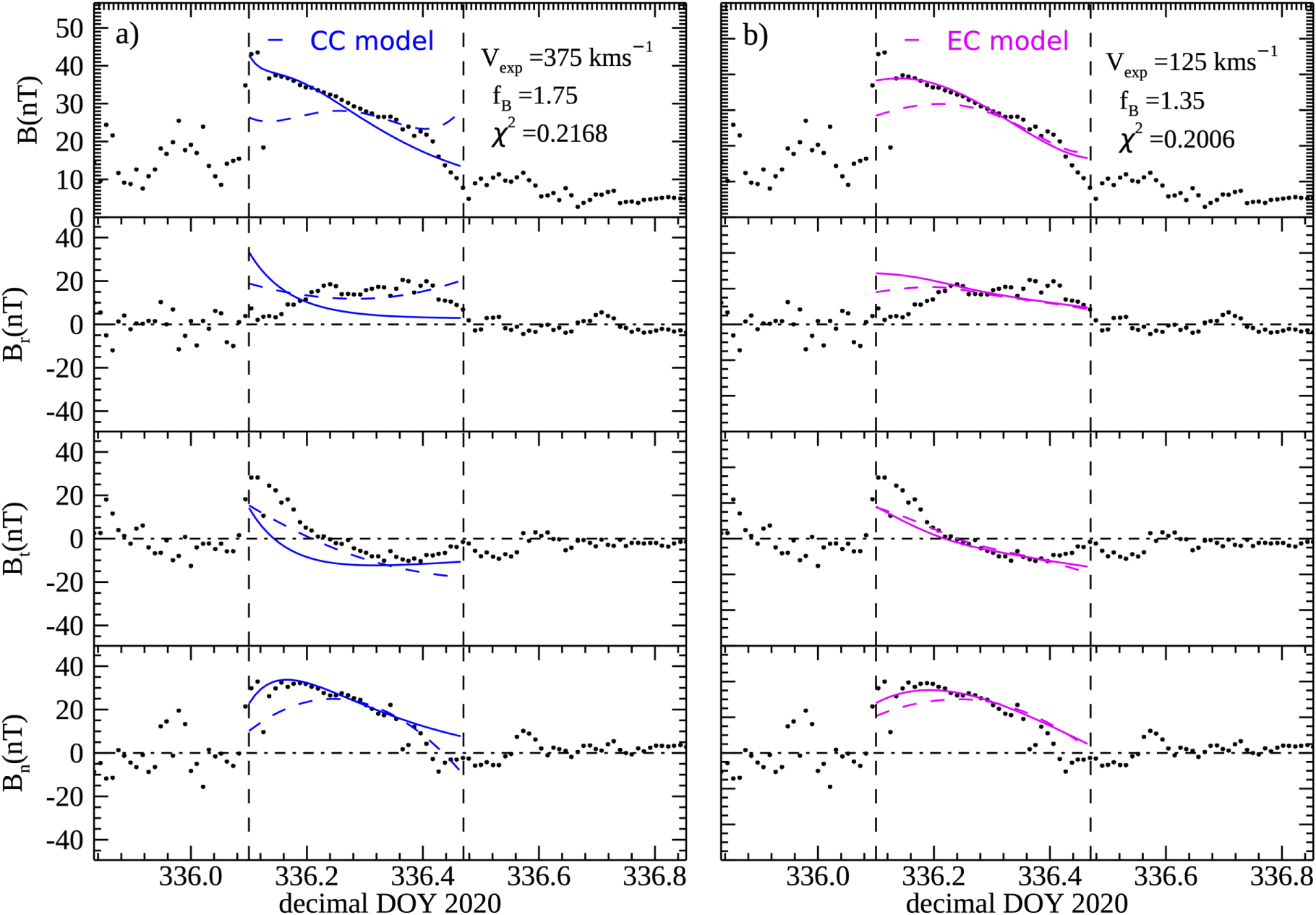

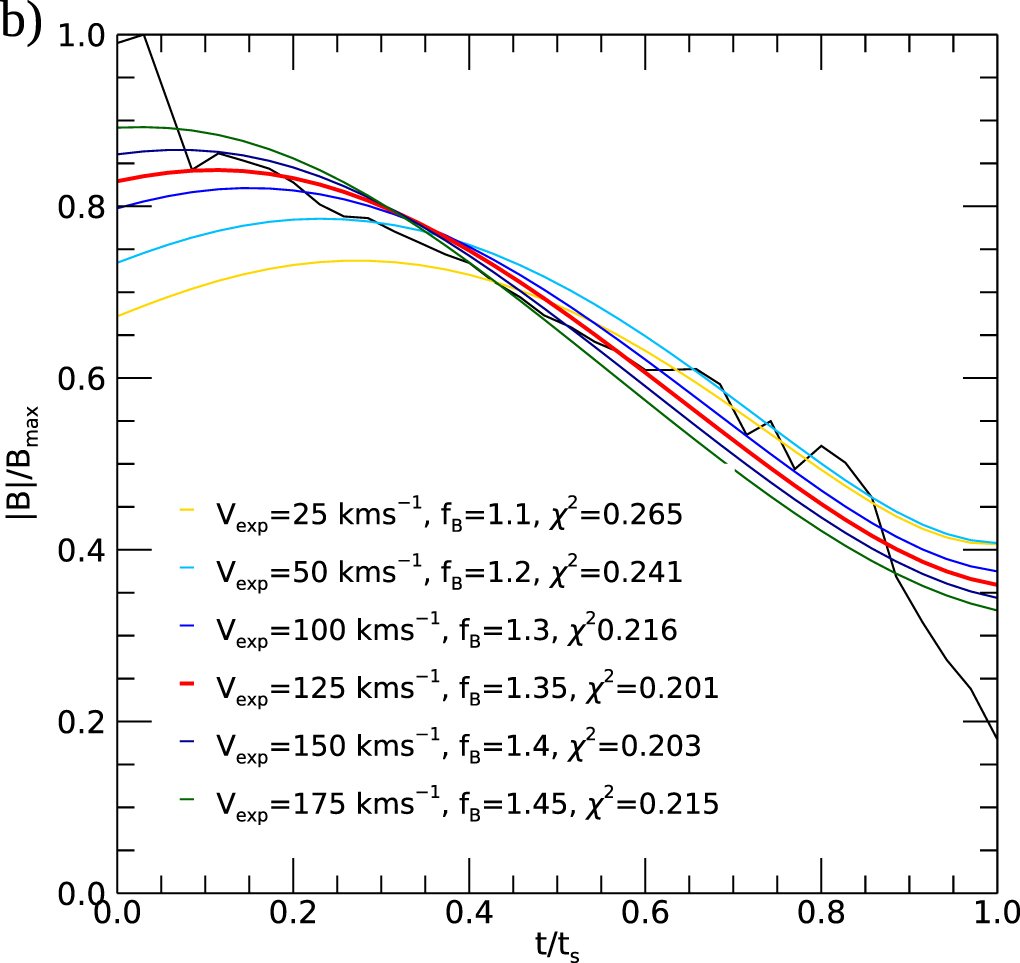

Similar exercises have been done with the CC model. Figure 13 shows a comparative analysis of the effect of the expansion on the magnetic field magnitude and components for the CC model (Figure 13(a)) and EC model (Figure 13(b)). The colored lines display the CC model (blue) and the EC model (pink) with expansion, and the dashed lines represent the models without expansion. In the CC model case, the expansion velocity needed to reproduce the magnetic field strength profile is ${V}_{\exp }=375$ km s⁻¹ with f_B = 1.75. The maximum expansion velocity found by Nieves-Chinchilla et al. (2018b) in the ICMEs observed by the Wind spacecraft during 1994–2015 was 270 km s⁻¹. Thus, this value is significantly higher than the expected values for an expanding flux rope at 1 au. The expansion itself is not sufficient to describe the ICME2 internal structure, and we can conclude that the addition of expansion to a distorted geometry is needed.

Zoom In Zoom Out Reset image size
