A Wide Planetary Mass Companion Discovered through the Citizen Science Project Backyard Worlds: Planet 9

Young stars near the Sun are the targeting ground for direct imaging campaigns in search of hot massive planets. Over the past two decades projects such as the Gemini NICI planet finding campaign, The Gemini Planet Imager Exoplanet Survey, the VLT/SPHERE survey for exoplanets, and the Lyot Project Direct Imaging Survey of Substellar Companions, among others, have examined the space around hundreds of young hot stars (Macintosh et al. 2008; Leconte et al. 2010; Biller et al. 2013; Chauvin et al. 2015; Vigan et al.2021). Interestingly the number of giant exoplanets—and even brown dwarfs—at 10–100 au separations from their host stars has been far fewer than hoped or predicted (Nielsen et al.2019).

Even still there are now 37 systems listed on the NASA Exoplanet Archive ²¹ site as direct imaging discoveries of a planetary mass companion (using the 13M_Jup definition) where the total mass of the system is larger than 0.1 M_⊙. Among those 37 systems are the first multiple imaged exoplanet system (HR8799bcde; Marois et al. 2008, 2010), systems with brown dwarf or extremely low-mass star hosts (e.g., 2M1207b; Chauvin et al. 2004 and 2M0219b; Artigau et al. 2015), and companions still accreting material (e.g., PDS70bc; Müller et al. 2018). There is a large gray area in our understanding of how these systems formed given their largely model-dependent masses and wide range of separations. Competing pathways for the formation of these systems include the more traditional mechanisms of core accretion and disk instability for planets and cloud fragmentation for brown dwarfs. The ability to differentiate between formation mechanisms would aid in creating well-defined classes of brown dwarfs versus exoplanets. While this is a well-trodden exercise (e.g., Metchev et al. 2008; Brandt et al. 2014; Raghavan et al. 2010; Schlaufman 2018; Bowler et al. 2020a), only tentative conclusions have been drawn on how to differentiate between a disk-formed object and a cloud-fragmented object.

Meanwhile, numerous isolated low surface gravity brown dwarfs have been detected and confirmed to be members of 10–200 Myr moving groups like Tucana Horologium, β Pictoris, and AB Doradus (e.g., Gagné et al. 2018b, 2015; Best et al. 2017; Faherty et al. 2013, 2016; Liu et al. 2013; Schneider et al. 2018; Zhang et al. 2021a). These sources are distinctly different from field brown dwarfs in their spectral morphology, colors, and absolute magnitudes (Faherty et al. 2016; Liu et al. 2016). Studies of their photometric and spectral variability allude to complex atmospheres with strong weather-related phenomena (e.g Metchev et al. 2015; Vos et al. 2020). Given their young ages and low temperatures, many have masses that overlap with those of directly imaged planetary mass companions at just above and below 13 M_Jup (see for example Gagné et al. 2017).

In many ways the populations of giant exoplanets and isolated young brown dwarfs are identical. There are, at present, no defined spectral characteristics imprinted on a source that indicate which formation mechanism was responsible for its creation. Studies have shown that planetary mass companions and isolated planetary mass sources share spectral morphology as well as positions on color–magnitude diagrams (e.g., Gagné et al. 2015; Faherty et al. 2016; Liu et al. 2016). They have identical weather -related phenomena (e.g., Zhou et al. 2016; Biller et al. 2018; Vos et al. 2019), temperatures, and gravities; therefore, it benefits both populations if they are studied in tandem.

In this paper we report the discovery of a new system containing a planetary mass companion. Using the Backyard Worlds: Planet 9 citizen science project, we found that the young K0 star BD+60 1417 was co-moving with a late-type L dwarf with hallmark signatures of youth. In Section 2 we discuss the discovery of the system, in Section 3 we detail new data taken on both the primary and the secondary, and in Section 4 we provide a detailed discussion of each component. Section 5 discusses the spectrum of W1243 and Section 6 evaluates the probability of a chance alignment for the system. Section 7 evaluates W1243 on color–magnitude diagrams, and Section 8 re-evaluates the age of the primary BD+60 1417. Section 9 details how fundamental parameters were calculated for each component and Section 10 places the BD+60 1417 system in context with other planetary mass companion systems. Section 11 is a discussion on potential formation mechanisms for this system. Conclusions are presented in Section 12.

The Backyard Worlds: Planet 9 citizen science project (Backyard Worlds for short) has been operational since 2017 February. The scientific goal of the project is to complete the census of the solar neighborhood (including the solar system, e.g., Planet 9) with objects that are detectable primarily at mid-infrared wavelengths and that were missed by previous searches (see Kuchner et al. 2017; Debes et al. 2019; Bardalez Gagliuffi et al. 2020; Faherty et al. 2020; Meisner et al. 2020; Schneider et al. 2020; Jalowiczor et al. 2021; Kirkpatrick et al. 2021; Rothermich et al. 2021). Backyard Worlds utilizes multiple epochs of NASA's Wide-field Infrared Survey Explorer (WISE) mission at both W1 (∼3.4 μm) and W2 (∼4.6 μm) wavelengths. Project participants are asked to blink between four unWISE images (see Meisner et al. 2017) where the time span between the first and last image is ∼4.5 yr. Given this time baseline, objects with significant motion (e.g., >200 mas yr⁻¹) are relatively easy to visually identify.

The BackyardWorlds.org ²² website hosted by Zooniverse provides multiple avenues for reporting a proper-motion candidate of scientific interest to the research team (see Kuchner et al. 2017 for details). Since the program began, a significant number of Backyard Worlds users have become heavily involved with the research aspect of the project and have earned the title "super users." These participants attend weekly calls with the science team, have increased contact via email and are much more engaged than a casual online subscriber to the project. With the increased mentorship from the research team, the super users tend to take on more complex searches outside of the website itself and as such have well-tuned eyes to detect more obscure targets. In fact one citizen scientist, Dan Caselden—also co-author on this work—has developed a tool called WiseView (Caselden et al. 2018) that allows users to flip through available WISE images without the image subtraction used on the Zooniverse site. WiseView has an array of functionality (changing the image stretch, zooming in and out, overlaying Gaia astrometry, etc.) that compliments the Zooniverse site but also greatly aids in complex searches.

For this discovery, citizen scientist Jörg Schümann was searching through subsets of images in WiseView and identified a faint co-moving system. In this case, the secondary was both in the halo of the primary and along one of its diffraction spikes; therefore it was easily missed by sophisticated catalog searches. Visual inspection was critical to the discovery of the secondary and it is an exemplary case of the power of the Backyard Worlds project.

Schümann used the Google form as well as the Backyard Worlds email distribution list to alert researchers to the discovery. On 2018 April 10, the motion of W1243 was vetted by the research team and added to the high-priority follow-up target list with a note that it was potentially co-moving with BD+60 1417. Figure 1 shows a screenshot from the WiseView website (Caselden et al. 2018), which was used to identify and confirm the system.

Zoom In Zoom Out Reset image size

To characterize this potential co-moving system, we followed up on both the primary and secondary with optical and infrared spectrographs.

3.1. Optical Spectroscopy

3.2. SpeX Prism Spectroscopy

4.1. Primary

4.2. Secondary

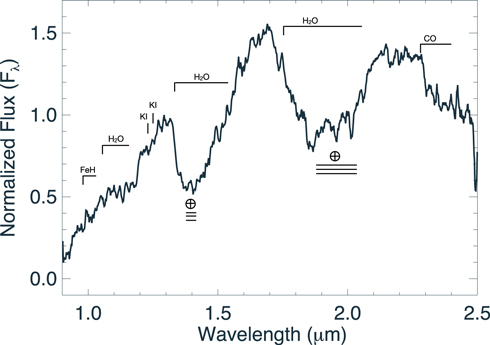

The SpeX prism spectrum of W1243 is shown in Figure 2 normalized over the peak of the J band with pertinent atomic and molecular features labeled. The source shows strong H₂O and CO absorption as well as FeH, and KI features. The distribution of flux across the normalized spectrum visually indicates a very red late-type L dwarf. We used the 2MASS filter profiles overlaid on the SpeX spectrum to compute synthetic magnitudes for this source in J and H. We calibrated using the synthetic (J–H) and (J–K_s ) colors along with the 2MASS K_s detection and list the photometry in Table 1. We find the (J–K_s ) color of 2.72 makes W1243 one of the reddest known brown dwarfs characterized to date (see, e.g., Marocco et al. 2014 and Liu et al. 2013 for details on ULAS J222711-004547 and PSO 318, the two record holders for the reddest isolated brown dwarfs).

Zoom In Zoom Out Reset image size

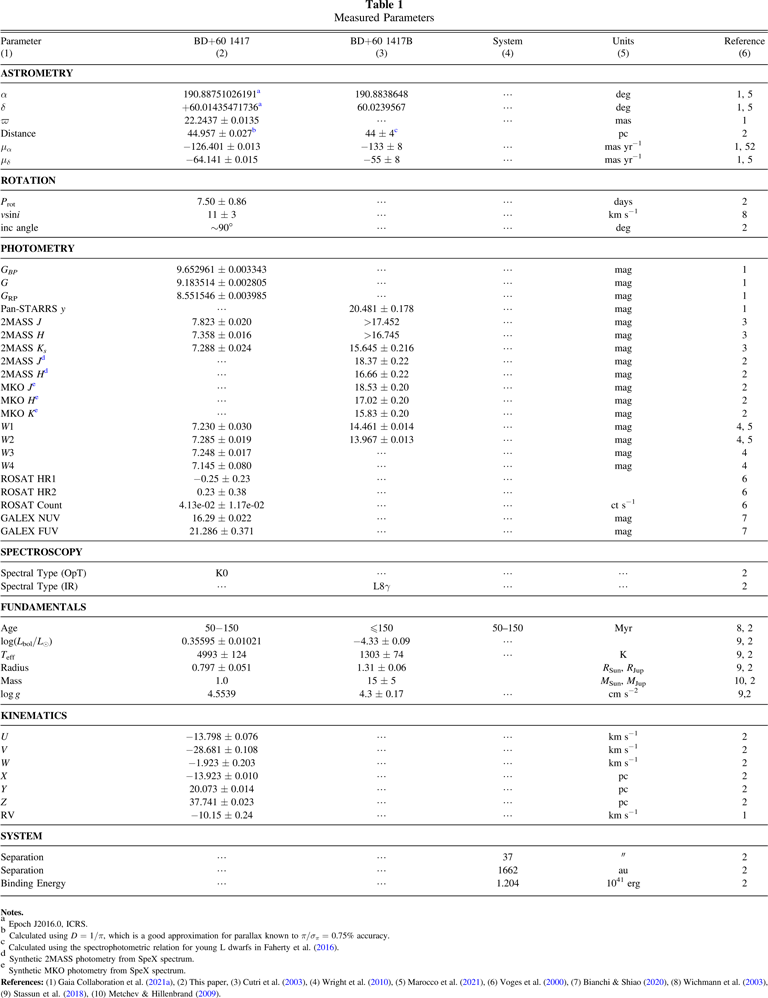

Table 1. Measured Parameters

Parameter	BD+60 1417	BD+60 1417B	System	Units	Reference
(1)	(2)	(3)	(4)	(5)	(6)
ASTROMETRY
α	190.88751026191 a	190.8838648	⋯	deg	1, 5
δ	+60.01435471736 a	60.0239567	⋯	deg	1, 5
ϖ	22.2437 ± 0.0135	⋯	⋯	mas	1
Distance	44.957 ± 0.027 b	44 ± 4 c		pc	2
μα	−126.401 ± 0.013	−133 ± 8	⋯	mas yr−1	1, 52
μδ	−64.141 ± 0.015	−55 ± 8	⋯	mas yr−1	1, 5
ROTATION
Prot	7.50 ± 0.86	⋯	⋯	days	2
vsini	11 ± 3	⋯	⋯	km s−1	8
inc angle	∼90°	⋯	⋯	deg	2
PHOTOMETRY
GBP	9.652961 ± 0.003343	⋯	⋯	mag	1
G	9.183514 ± 0.002805	⋯	⋯	mag	1
GRP	8.551546 ± 0.003985	⋯	⋯	mag	1
Pan-STARRS y	⋯	20.481 ± 0.178	⋯	mag	1
2MASS J	7.823 ± 0.020	>17.452	⋯	mag	3
2MASS H	7.358 ± 0.016	>16.745	⋯	mag	3
2MASS Ks	7.288 ± 0.024	15.645 ± 0.216	⋯	mag	3
2MASS J d	⋯	18.37 ± 0.22	⋯	mag	2
2MASS H d	⋯	16.66 ± 0.22	⋯	mag	2
MKO J e	⋯	18.53 ± 0.20	⋯	mag	2
MKO H e	⋯	17.02 ± 0.20	⋯	mag	2
MKO K e	⋯	15.83 ± 0.20	⋯	mag	2
W1	7.230 ± 0.030	14.461 ± 0.014	⋯	mag	4, 5
W2	7.285 ± 0.019	13.967 ± 0.013	⋯	mag	4, 5
W3	7.248 ± 0.017	⋯	⋯	mag	4
W4	7.145 ± 0.080	⋯	⋯	mag	4
ROSAT HR1	−0.25 ± 0.23	⋯	⋯		6
ROSAT HR2	0.23 ± 0.38	⋯	⋯		6
ROSAT Count	4.13e-02 ± 1.17e-02	⋯	⋯	ct s−1	6
GALEX NUV	16.29 ± 0.022	⋯	⋯	mag	7
GALEX FUV	21.286 ± 0.371	⋯	⋯	mag	7
SPECTROSCOPY
Spectral Type (OpT)	K0	⋯	⋯	⋯	2
Spectral Type (IR)	⋯	L8γ	⋯	⋯	2
FUNDAMENTALS
Age	50−150	≤150	50–150	Myr	8, 2
log(Lbol/L⊙)	0.35595 ± 0.01021	−4.33 ± 0.09	⋯		9, 2
Teff	4993 ± 124	1303 ± 74	⋯	K	9, 2
Radius	0.797 ± 0.051	1.31 ± 0.06		RSun, RJup	9, 2
Mass	1.0	15 ± 5		MSun, MJup	10, 2
$\mathrm{log}g$	4.5539	4.3 ± 0.17	⋯	cm s−2	9,2
KINEMATICS
U	−13.798 ± 0.076	⋯	⋯	km s−1	2
V	−28.681 ± 0.108	⋯	⋯	km s−1	2
W	−1.923 ± 0.203	⋯	⋯	km s−1	2
X	−13.923 ± 0.010	⋯	⋯	pc	2
Y	20.073 ± 0.014	⋯	⋯	pc	2
Z	37.741 ± 0.023	⋯	⋯	pc	2
RV	−10.15 ± 0.24	⋯	⋯	km s−1	1
SYSTEM
Separation	⋯	⋯	37	''	2
Separation	⋯	⋯	1662	au	2
Binding Energy	⋯	⋯	1.204	1041 erg	2

Notes.

^a Epoch J2016.0, ICRS. ^b Calculated using D = 1/π, which is a good approximation for parallax known to π/σ_π = 0.75% accuracy. ^c Calculated using the spectrophotometric relation for young L dwarfs in Faherty et al. (2016). ^d Synthetic 2MASS photometry from SpeX spectrum. ^e Synthetic MKO photometry from SpeX spectrum.

References: (1) Gaia Collaboration et al. (2021a), (2) This paper, (3) Cutri et al. (2003), (4) Wright et al. (2010), (5) Marocco et al. (2021), (6) Voges et al. (2000), (7) Bianchi & Shiao (2020), (8) Wichmann et al. (2003), (9) Stassun et al. (2018), (10) Metchev & Hillenbrand (2009).

Download table as:  ASCIITypeset image

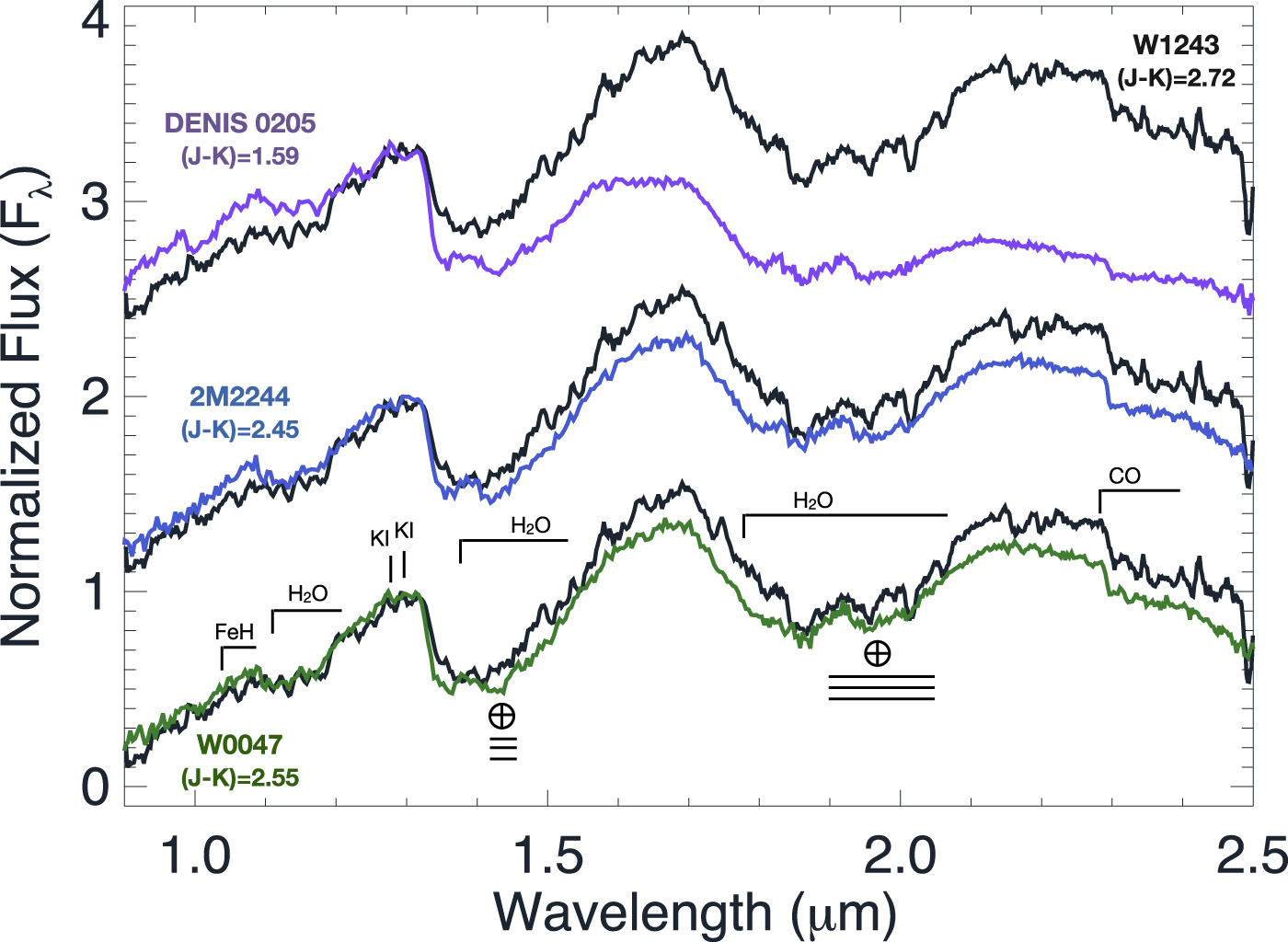

Figure 3 shows W1243 compared to three late-type L dwarfs normalized over the peak of the J band. We compare W1243 to the ∼150 Myr AB Doradus moving group objects WISEP J004701.06+680352.1 (W0047, Gizis et al. 2015) and 2MASS J22443167+2043433 (2M2244, Faherty et al. 2016; Vos et al. 2018), as well as the field source and optical L7 standard DENIS-P J0205.4-1159 (DENIS 0205, Kirkpatrick et al. 1999). Under each object name we also denote the 2MASS (J−K_s ) color. The spectrum of W1243 is substantially redder than that of DENIS 0205. It most closely resembles W0047 in its spectral morphology, although it also appears slightly redder than this source.

Zoom In Zoom Out Reset image size

W0047 was evaluated by Gizis et al. (2015) to be an infrared L7 with signatures of a low surface gravity. Faherty et al. (2016) evaluated a sample of over 150 low surface gravity M and L dwarfs and determined that both W0047 and 2M2244 should be considered L6–L8γ prototypes where the γ designation indicates a very low surface gravity (see Kirkpatrick 2005; Cruz et al. 2009; Gagné et al. 2015).

Evaluating the exact spectral subtype of a red L dwarf against the array of known objects can be difficult given the significant color difference across the spectrum. As recommended by Cruz et al. (2018) we also performed a band by band normalization across J, H, and K_s so we could compare to other field, young, and planetary mass objects—the latter of which only have spectra taken band by band.

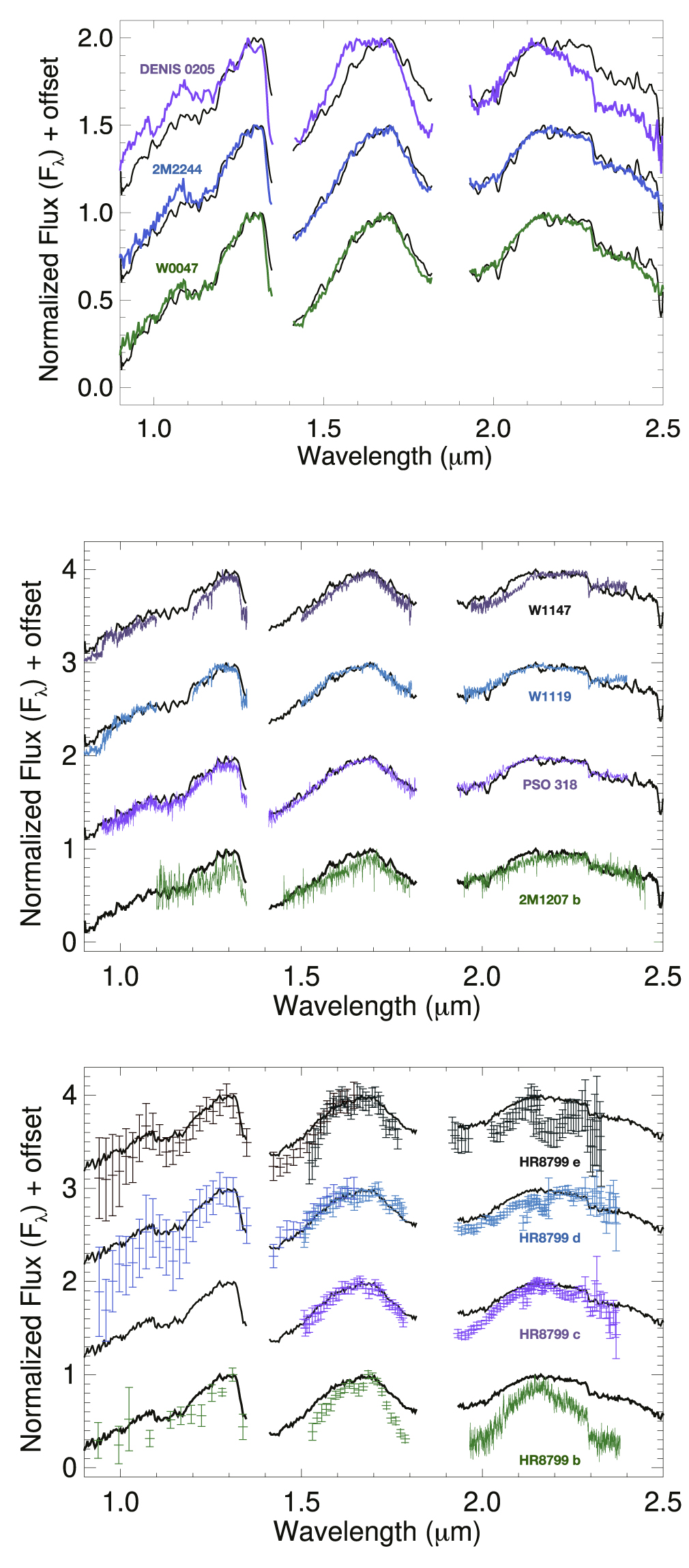

The top panel of Figure 4 shows the band by band normalization of W1243 as compared to DENIS 0205, 2M2244, and W0047. With the color term minimized, it is far easier to compare the spectral morphology. Most notably, compared to the field source DENIS 0205, W1243 has a much sharper H-band peak, which is a hallmark signature of low surface gravity L dwarfs (e.g., Allers & Liu 2013). The K band of W1243 is also enhanced compared to that of DENIS 0205, a feature seen in other low-gravity L dwarfs and attributed to a change in collision-induced H₂ absorption (e.g., Saumon et al. 2012). The depth of the Na i and K i alkali lines in the J band is also a low surface gravity diagnostic. Allers & Liu (2013) and Martin et al. (2017) evaluated the equivalent width values from medium resolution SpeX or NIRSPEC (respectively) data to determine trends between gravity and alkali depths. In general, younger sources show narrow, shallow lines compared to older field objects. The low-resolution SpeX prism data hint that the KI lines are shallower for W1243 than for DENIS 0205 and are far more similar to those of W0047 or 2M2244.

Zoom In Zoom Out Reset image size

We also investigated the recommended indices from Allers & Liu (2013) to evaluate the gravity class for W1243. That work was calibrated on sources warmer than W1243 (L5 or earlier); therefore, only the H-band continuum index can be reliably used. Using that we find this source would be classified as an L6γ, consistent with our analysis.

Based on these spectral comparisons we determine that W1243 should be considered a very low surface gravity late-type L dwarf and we assign a spectral type of L6–L8γ, mimicking the conclusions for both W0047 and 2M2244, which are members of the ∼150 Myr AB Doradus moving group.

We expanded our analysis to include other L6–L8γ objects that are in younger moving groups. In the middle panel of Figure 4 we do a band by band comparison of W1243 to the candidate ∼10 Myr TW Hya association L dwarfs WISEA J114724.10-204021.3 (W1147; Schneider et al. 2016) and WISEA J111932.43-113747.7 (Kellogg et al. 2016), as well as the ∼24 Myr β Pictoris moving group member PSO J318.5338-22.8603 (PSO 318; Liu et al. 2013). The spectra for W1147 and W1119 were obtained from FIRE Echelle (from Faherty et al. 2016) and are higher resolution than the prism data (R ∼ 3000–5000 compared to R ∼ 100–500 for prism). Moreover, they are stitched together order by order, which might introduce shape anomalies across a band (e.g., W1147 K band). In this comparison we find that W1243 shows similarities to all three of the young sources, with W1147 showing more of a triangular H band and W1119 and PSO 318 showing sharper J-band peaks. However, it is well known that even low surface gravity L dwarfs in the same association with the same estimated temperatures can show a range in their spectral features (e.g., 2M0355, CD35-2722B from AB Doradus moving group; Allers & Liu 2013). Consequently, we cannot conclude whether W1243 is better matched by an AB Doradus moving group age of ${149}_{-19}^{+51}$ Myr or a TW Hya or β Pictoris younger age of 10 ± 3 or <24 ± 3 Myr, respectively (Bell et al. 2015). Based on these comparisons we can confirm that W1243 rivals the low surface gravity features of even the youngest late-type L dwarfs confirmed in moving groups, and we estimate an age of ≲150 Myr for our source.

Given the discovery that W1243 was co-moving with a young K0 star, we also wanted to compare this source to known planetary mass companions. The bottom spectrum in the middle panel of Figure 4 shows the planetary mass companion 2MASSWJ 1207334-393254b (2M1207b; Chauvin et al. 2004) using the Sinfoni spectrum from Patience et al. (2010). Object 2M1207b is classified as an L7 and is co-moving with an M8 dwarf in the ∼10 Myr TW Hya association. Compared to W1243, we find that 2M1207b has a sharper shape to the H band but similar CO absorption in K band.

In the bottom panel of Figure 4 we show a band by band comparison to the HR8799 planets (HR8799bcde; Marois et al.2008, 2010). We have pieced together the spectra of each source from Keck, Sphere, and/or GPI data, much of which was taken over multiple observing runs and extracted using different methods (Barman et al. 2011, 2015; Greenbaum et al. 2018; Zurlo et al. 2016). The HR8799 planets do not have confident spectral subtypes assigned but are classified as L-type objects co-moving with an A5 star thought to be 40 ± 5 Myr old. Comparing to the HR8799 planets, we find similarities and differences to each object depending on the band we examine. The J-band data for both HR8799d and e match within uncertainties, showing similar depths in H₂O absorption. The shape of the H band for HR8799c matches that of W1243 as well. HR8799b appears to have a much sharper triangular H-band shape than W1243 (also much sharper than any of its planetary siblings), and the data for HR8799e in both GPI and SPHERE hint at a similar sharp shape in that object. The morphology of the K band for each planet shows differing structure, and we find the strongest similarities to HR8799c, which appears to match most closely.

From this comparison we can conclude that W1243 resembles both the isolated young L dwarfs as well as the young planetary mass companions with no obvious spectral differences that would differentiate it as having formed through one mechanism or another.

BD+60 1417 has a well-measured parallax (22.2437 ± 0.0135 mas) and proper motion ([μ_α , μ_δ ] = [−126.401 ± 0.013, −64.141 ± 0.015] mas yr⁻¹) in Gaia's eDR3 catalog (Gaia Collaboration et al. 2021a). W1243 has proper-motion components reported in the CatWISE2020 catalog ([μ_α ,μ_δ ] = [−133 ± 8, −55 ± 8] mas yr⁻¹; Marocco et al. 2021). We estimate a photometric distance to W1243 using the K_s -band young L dwarf relation and a conservative ten percent uncertainty based on the parallax sample of late-type L dwarfs (44 ± 4 pc; Faherty et al. 2016). We find that the μ_α proper-motion component and distance match well within 1σ and the μ_δ component matches just beyond 1σ. We evaluated the probability of chance alignment in two ways.

We examined the Gaia Catalog of Nearby Stars (GCNS; Gaia Collaboration et al. 2021b)—which contains 331,312 stars within 100 pc—and found there were 1602 objects with proper -motion components that matched W1243 within 2σ, or 0.48% of the catalog. We then restricted that match to only sources that matched the photometric distance of W1243 within 20% and were left with 159 objects or 0.05% of the catalog. Looking at the distribution of matches we found only one of those 159 objects—BD+60 1417 at a 37'' physical separation—was within 1° of W1243. The next closest object was 15 from our target, making a co-moving kinematic match unreasonable. Gaia Collaboration et al. (2021b) states that they are complete down to M9 dwarfs at 92% confidence; therefore, this should be a robust examination of the spatial and kinematic distribution of nearby stars that might have matched W1243.

For a fully quantitative approach, we used a modified version of the BANYAN Σ code (Gagné et al. 2018b) called common_pm_banyan to evaluate co-evality. This code—described in Gagné et al. (2021)—uses the sky position, proper motion, parallax, and heliocentric radial velocity of a host star (with their respective measurement errors), and compares them to the observables of a potential companion (with their respective measurement errors) in order to determine a probability that the two stars are co-moving and thus gravitationally bound. When all kinematic observables are provided, a single spatial-kinematic model is built, consisting of a single six-dimensional multivariate Gaussian in Galactic coordinates (XYZ) and space velocities (UVW). The observables of the potential companion are then compared to this model and the field-stars model of Gagné et al. (2018b)—a 10 component multivariate Gaussian model appropriate only within a few hundreds of parsecs of the Sun—with Bayes' theorem by marginalizing over any missing kinematic observables of the companion star with the analytical integral solutions also detailed in Gagné et al. (2018b). After inputting all values for both BD+60 1417 and W1243, the common_pm_banyan code yielded a 0% probability of a chance alignment for the system, confirming all other approaches to determine its co-moving nature. Given our high level of confidence in the co-moving nature of this system, we refer to the secondary as BD+60 1417B from here on.

Using the parallax of the primary we can evaluate the position of BD+60 1417B on color–magnitude diagrams (CMDs) and compare/contrast it to that of other young L dwarfs and planetary mass companions. The near- and mid-infrared CMDs have proven powerful diagnostic tools for deciphering the physical characteristics of young brown dwarfs (e.g., Faherty et al. 2016 and Liu et al. 2016). Recent studies have shown that low surface gravity brown dwarfs have redder near- to mid-infrared colors and fainter absolute magnitudes when compared to the sequence of field sources. Young, warm, planetary mass companions share this observed feature, affirming that the two populations should be studied in tandem.

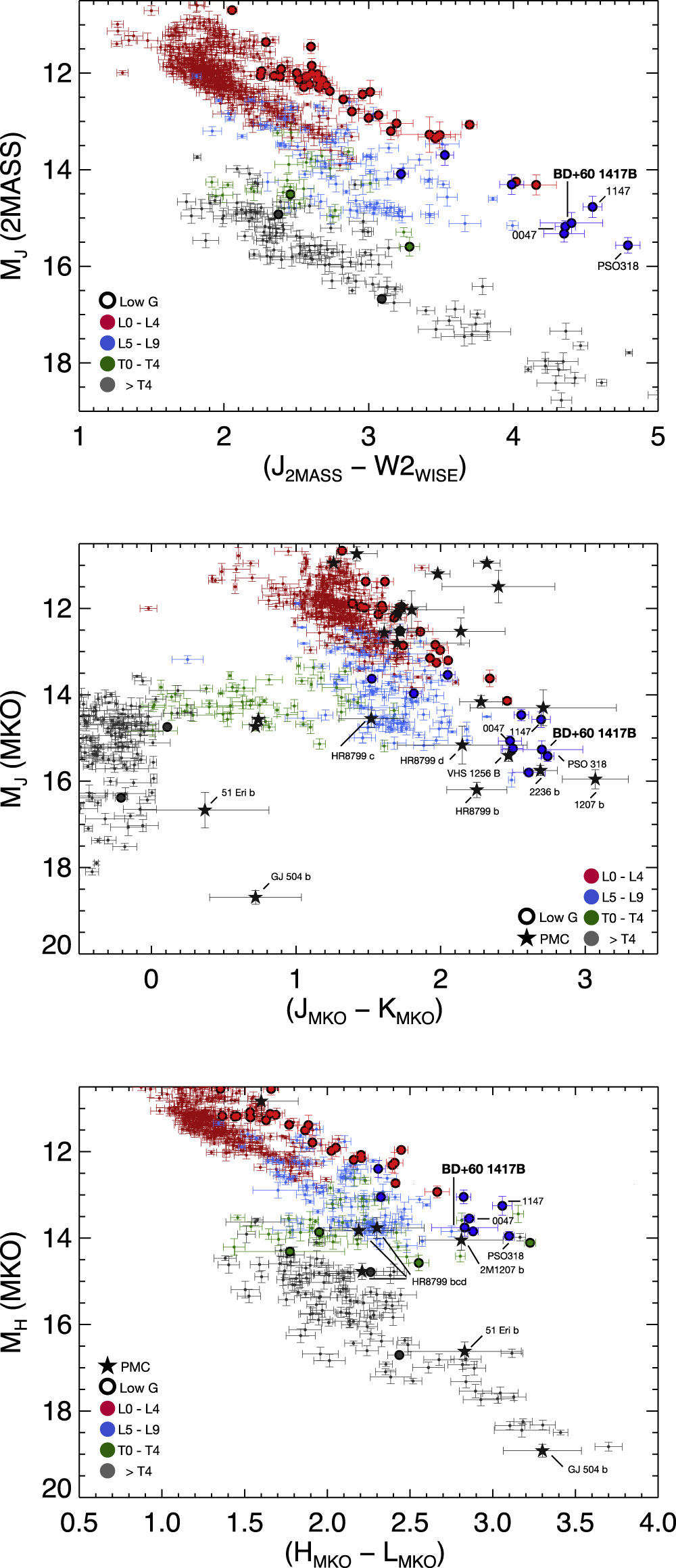

Figure 5 shows three relevant panels of CMDs across near- to mid-infrared bands that are inclusive of the majority of planetary mass companions and isolated brown dwarfs with a parallax and relevant photometric measurements. The (J−W2) CMD is inclusive of brown dwarfs only but allows us to put BD+60 1417B in the context of all field and low-gravity brown dwarfs. Direct imaging studies of companions primarily observe with MKO JHKL bands, so we also show the MKO (J–K) and MKO (H–L) CMDs. The majority of field and low-gravity brown dwarfs have near-infrared MKO band magnitudes but lack L-band photometry. As such, in the (H–L) plot, we converted the W1 magnitude for field and low-gravity brown dwarfs into L-band magnitudes using the polynomial relation from Faherty et al. (2016). Moreover, for BD+60 1417B we obtained synthetic MKO J and K photometry from the SpeX spectrum. The parallax sample was drawn from recent compilations by Best et al. (2020), Kirkpatrick et al. (2021), and Smart et al. (2019). In each panel objects are color coded by their spectral subtype, low surface gravity dwarfs (designated as γ or VL-G only—see Faherty et al. 2016) are plotted as filled squares and planetary mass companions are plotted as filled five-point stars. We collected planetary mass companion photometry from the compilation of Best et al. (2020), as well as the NASA Exoplanet Archive. ²⁴

Zoom In Zoom Out Reset image size

As can be seen in each plot, the low-gravity brown dwarfs differentiate themselves as redder and simultaneously fainter than field objects of the same subclass. As spectral subtypes increase across the L dwarfs, the low-gravity objects deviate significantly from the field sample. BD+60 1417B shares a similar position on the (J-W2) and (J–K) (MKO) CMDs as W0047 and PSO 318. As stated above, both sources are confirmed members of nearby moving groups with ages of ∼150 Myr and ∼24 Myr, respectively. Both sources have been noted as having particularly cloudy atmospheres with weather-related variability (e.g., Lew et al. 2016; Vos et al. 2018, 2019). BD+60 1417B also shares a spatial locus on the MKO (J–K) and (H–L) diagrams with planetary mass companions such as VHS1256B and 2M1207b. VHS1256B was a recent target in a spectral monitoring campaign and was found to have strong near-infrared variability in Hubble Space Telescope WFC3/G141 light curves (Bowler et al. 2020b). Zhou et al. (2020) found the spectral variability of VHS1256B was consistent with predictions from partly cloudy models, suggesting that heterogeneous clouds are the dominant source of the observed modulations. The extreme positions of young, late-type objects on color–magnitude diagrams may be a strong signature of a particularly cloudy, active atmosphere (e.g., Barman et al. 2011; Faherty et al. 2012, 2016; Bowler et al. 2013). From the position of BD+60 1417B on each color–magnitude diagram we can conclude it is an excellent candidate for spectral and photometric variability studies.

As stated above, BD+60 1417 was categorized as a young star by Wichmann et al. (2003) and given an age range of 50−150 Myr. In this section we revisit the parameters of the primary and re-evaluate the age using new indicators of youth from recent observations.

8.1. Age Indications from Li i Absorption

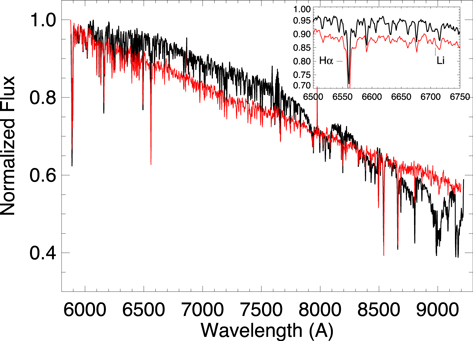

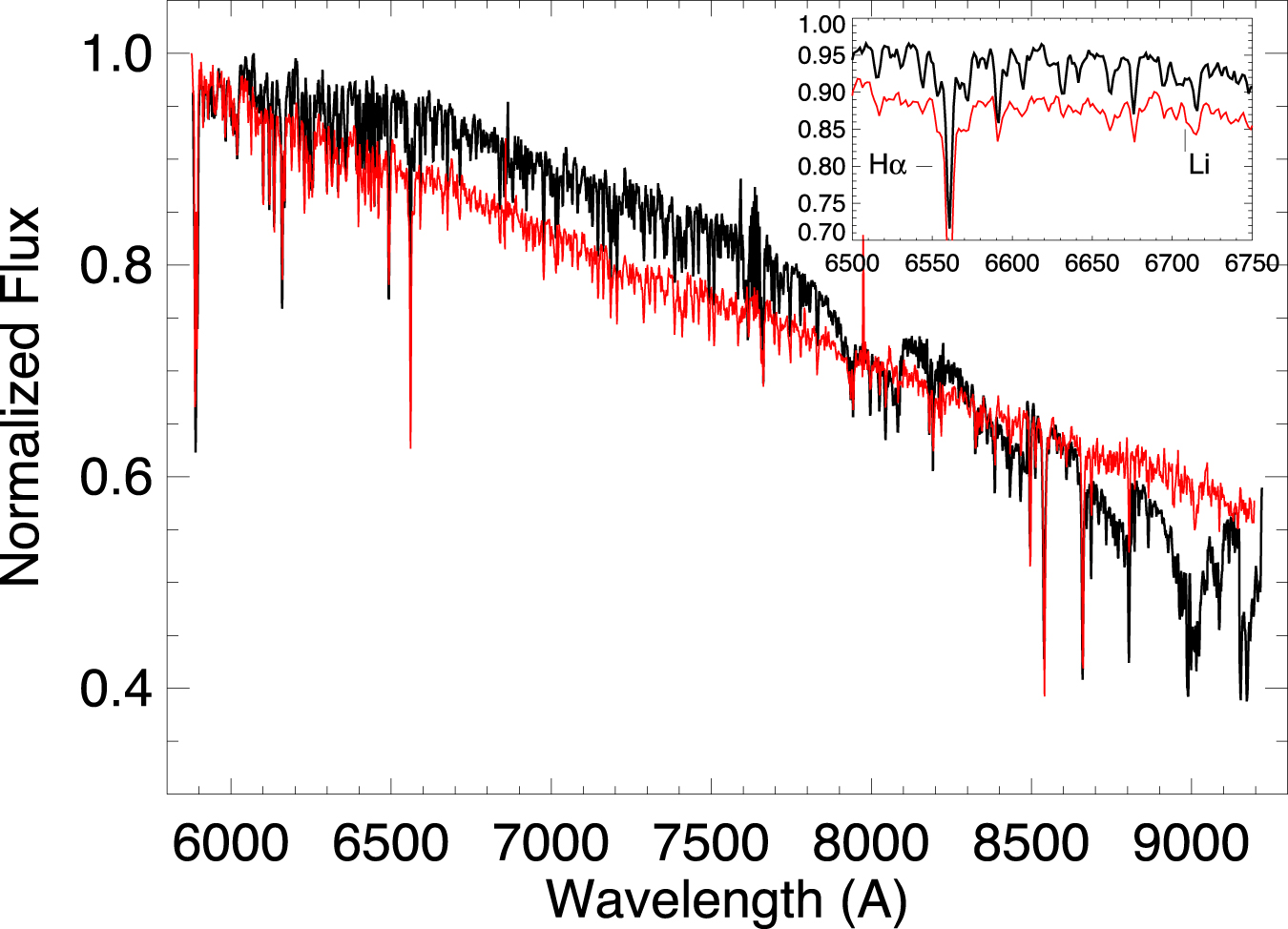

We obtained optical spectral data on the primary BD+60 1417 to investigate relevant molecular features. Figure 6 shows the 6000−9000 Å spectrum with an inset of the wavelength regime for Hα and Li i. For comparison, we have overplotted the K0 star SDSS J012703.04+383611.1 that was spectroscopically characterized with the Sloan Digital Sky Survey. There looks to be a slight slope in our Kast spectrum compared to the SDSS data, potentially due to imperfections in the reduction. However we find comparable features confirming the K0 spectral subtype. In Wichmann et al. (2003), the authors reported a Li i measurement corrected for Fe i of 96 mÅ. We cannot confirm that value with our data given our resolution of ∼6000 Å means the feature is too contaminated by Fe i. Using the measured value of Li i absorption from Wichmann et al. (2003) we can compare to values for other young stars near the Sun. Similar to the conclusions of Wichmann et al. (2003) we find that the value for BD+60 1417 is consistent with values for the Pleiades, indicating that this source is likely of a similar age range (∼110–125 Myr).

Zoom In Zoom Out Reset image size

8.2. Age Indications from Gyrochronology

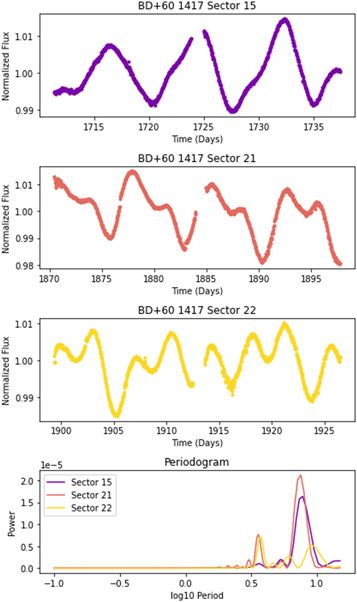

BD+60 1417 was observed by NASA's Transiting Exoplanet Survey Satellite (TESS; Ricker et al. 2015) telescope in sectors 15, 21, and 22 in both 30 minute and 2 minute cadences. From the full frame images we generated light curves for each sector using simple aperture photometry and background subtraction. We present these light curves in Figure 7, along with the results of running each through a Lomb−Scargle periodogram (Lomb 1976; Scargle 1982). The periodogram shows a strong peak at around 7.5 days in both sector 15 and 21, and at the half harmonic of 3.7 days in sector 21 and 22. The morphology of the light curve changes between sectors; in sector 15 the shape is a simple sinuosoid, while in sectors 21 and 22 it is a double dip pattern. Between sectors 21 and 22 the shape of the double dip changes between cycles. Likely we are seeing the evolution of sunspots across the surface of the star. Averaging across sectors we report a rotation period of 7.50 ± 0.86 days.

Zoom In Zoom Out Reset image size

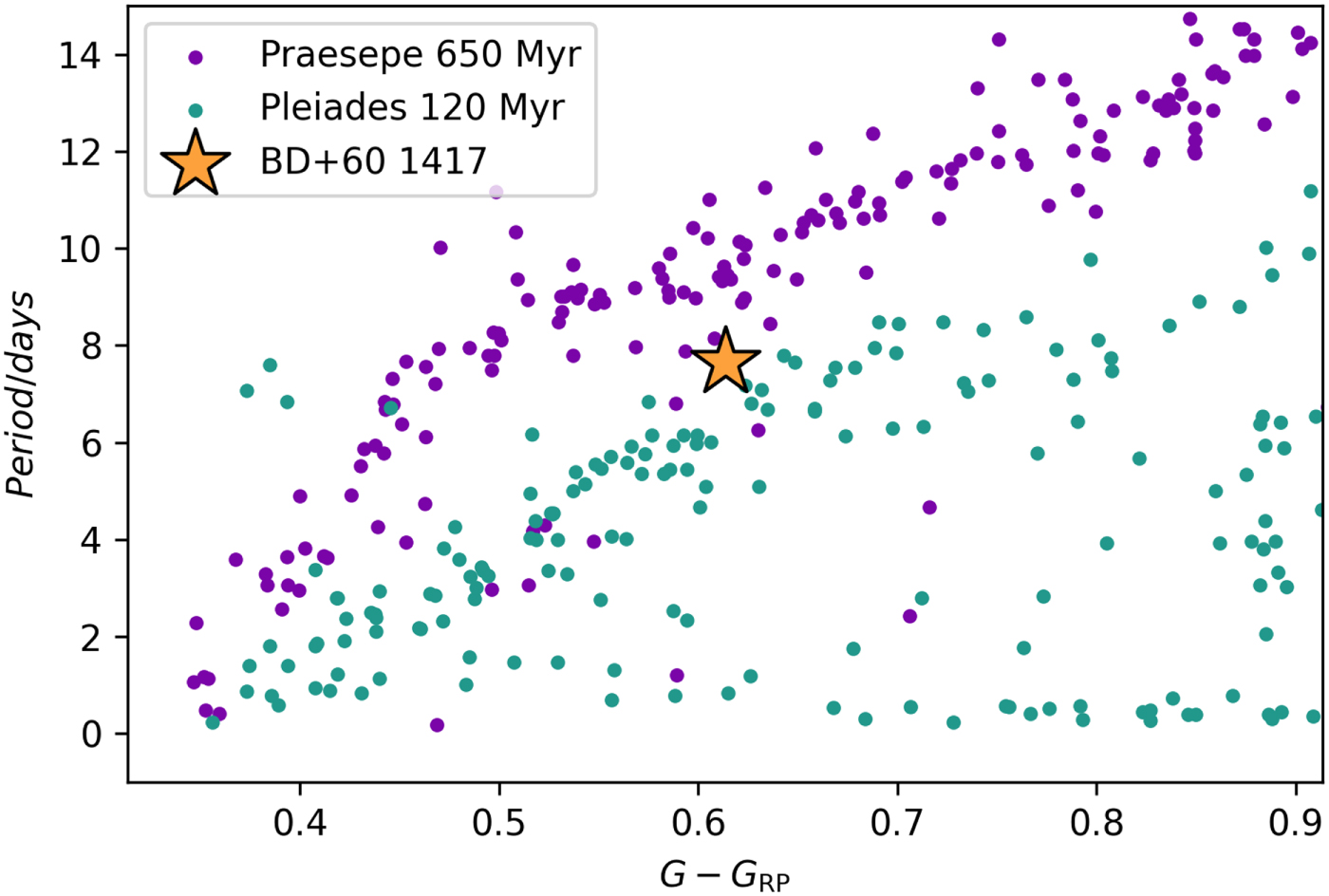

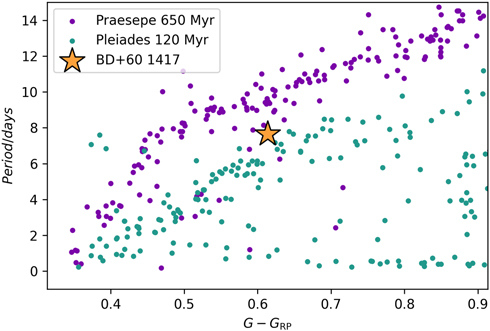

We put BD+60 1417 on a color−period plot in Figure 8. To provide context we include rotation periods from the gyrochronology benchmark clusters the Pleiades (Rebull et al. 2016) and Praesepe (Douglas et al. 2017) at ∼120 Myr and 650 Myr, respectively. For its color BD+60 1417 is rotating faster than the majority of Praesepe objects and slightly slower than the majority of Pleiades objects. We also report an average amplitude variation across the three sectors of 2.23%. While variation for a single star can depend on various factors such as inclination and activity cycle, this is consistent with the amplitude variation of a ∼100 Myr object (e.g., Morris 2020). Conservatively, we find that a rotation period analysis indicates an age range of 100–650 Myr for BD+60 1417.

Zoom In Zoom Out Reset image size

8.3. Age Indications from Color–Color and Color−Magnitude Diagrams

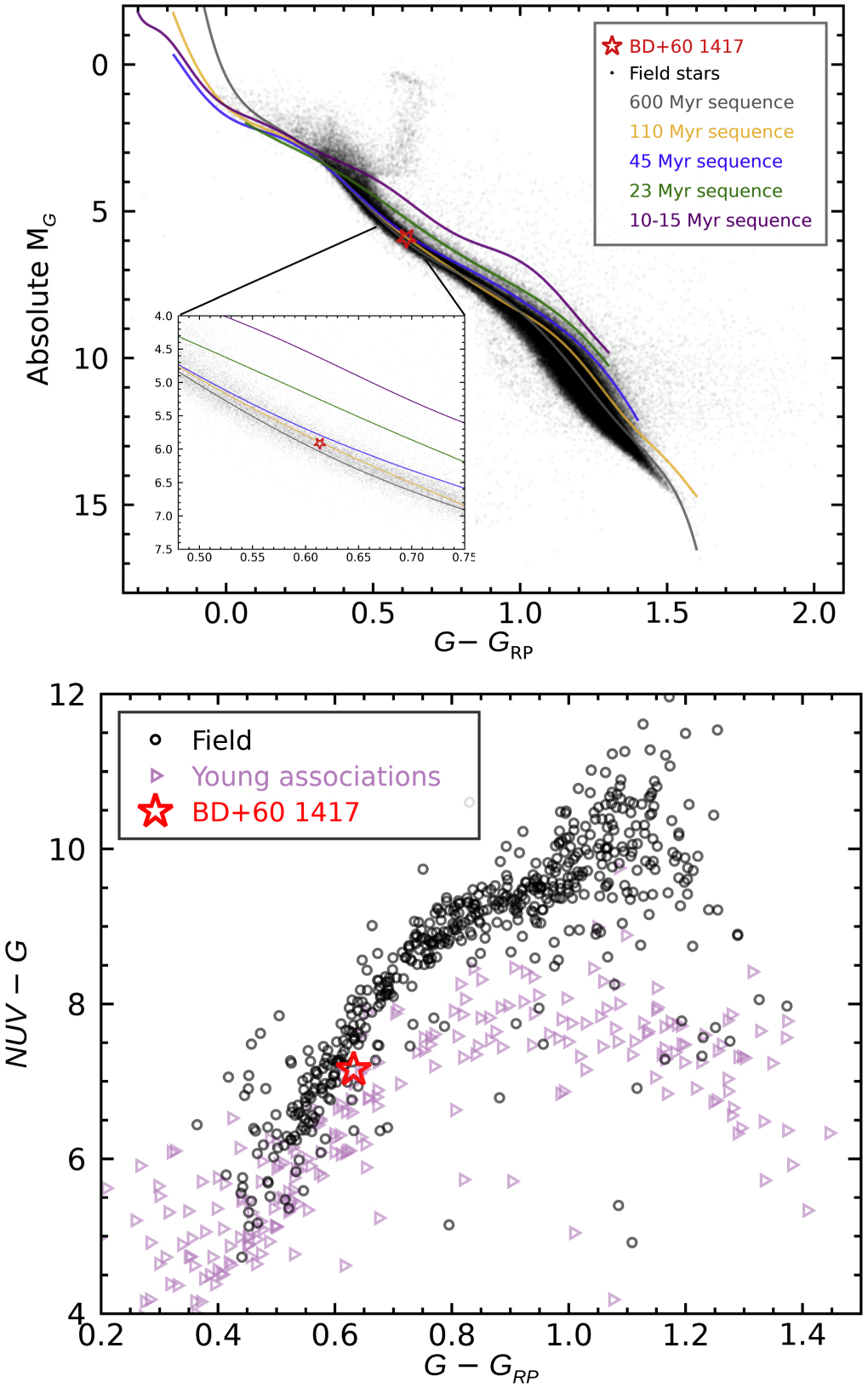

Pulling together all of the catalog detections of BD+60 1417 we can look at where it stands on color–color and color–magnitude diagrams in order to re-assess the extent of its youth. Using the Gaia parallax and photometry we can compare BD+60 1417 to the 150 pc sample of young stars from Gagné & Faherty (2018). The top panel of Figure 9 shows the empirical isochrones from Gagné & Faherty (2018) for objects across the color–magnitude diagram at ages of 10–15 Myr, 23 Myr, 45 Myr, 110 Myr, and 600 Myr with a zoom-in on the position of BD+60 1417 as an inset. As one goes from younger to older ages for the main sequence, the isochrones shift to fainter absolute magnitudes. BD+60 1417 is situated at a CMD position where the 45 Myr, 110 Myr, and 600 Myr isochrones are difficult to distinguish. We can conclude that it does not share properties with 23 Myr sources and the inset shows that it is most consistent with the 110 Myr sequence.

Zoom In Zoom Out Reset image size

Combining the ultraviolet flux detected from BD+60 1417 from the Galaxy Evolution Explorer (GALEX) survey we can use the (NUV−G) color as a proxy for enhanced magnetic activity, which has also been shown to scale with younger ages (e.g., Gagné et al. 2020, 2018a). The bottom panel of Figure 9 shows the field sequence as black unfilled circles and the young sample (10–150 Myr group members) as purple upward facing triangles. BD+60 1417 falls just outside the tighter field sequence. At this temperature (or (G–G_RP ) color), the NUV is not a good diagnostic of youth; however, it is safe to say that the position of BD+60 1417 is consistent with a 10–150 Myr source.

Similarly, we can compare the X-ray luminosity for our source as calculated using the ROSAT detection (Voges et al. 2000) to the sample of young stars near the Sun. With log(L_x ) ∼ 29 erg s⁻¹ BD+60 1417 is consistent with a star of age ∼150 Myr or younger (see, for example, Kastner et al. 2003; Malo & Artigau 2014; Gagné et al. 2020).

Putting all of these primary star diagnostics together with our assessment of the secondary, we decide to maintain the 50–150 Myr age range given by Wichmann et al. (2003), as our re-analysis is consistent with this value.

In order to evaluate the physical characteristics of the BD+60 1417 system, we needed to obtain fundamental parameters of each component, such as mass, luminosity, radius, etc.

For the primary, we examined the range of values cited for BD+60 1417 in the literature (T_eff, for instance, is listed as 5142 K in Queiroz et al. 2018, 4981 K in Lindegren et al. 2018, 5198 K in Miller et al. 2015, and 4993 ± 124 K in Stassun et al.2018). There is clear variety in values listed. For the analysis that follows, we chose to use the fundamental parameters listed in the TESS Input Catalog (TIC; Stassun et al. 2018) because they present mass, radius, log(g), and L_bol uniformly with uncertainties, while other catalogs are limited to just a few parameters. We note that the TIC does not necessarily take into account the youth of this source and therefore the uncertainties and the values such as the radius may be underestimated. Given that we wanted to understand the mass ratio of the system in context with other wide co-movers, we chose to use the mass published in Metchev & Hillenbrand (2009), which did take into account the youth of the source. All parameters for BD+60 1417 can be found in Table 1.

We used the $v\sin (i)$, radius, and rotation rate for BD+60 1417 to infer its viewing inclination. Assuming rigid body rotation, the $\sin (i)$ distribution can be calculated by:

$$\begin{eqnarray}&&\sin (i)=\displaystyle \frac{{Pv}\sin (i)}{2\pi R}\end{eqnarray} \tag{ 1 }$$

where P is the rotation period, and R is the stellar radius. We use a Monte Carlo analysis to determine the $\sin (i)$ and inclination distributions, using Gaussian distributions for $v\sin (i)$, period, and radius. A Monte Carlo analysis is especially well suited to this computation, as it can take into account a variety of distributions for $v\sin (i)$, P, and R (e.g., Vos et al. 2017, 2020), although we assume Gaussian distributions in our case. Wichmann et al. (2003) report the $v\sin (i)$ of BD+60 1417 as 11 km s⁻¹, citing an approximate error for their entire sample of 10%. However, measuring low $v\sin (i)$ values is particularly difficult due to the weak rotational broadening of the spectral lines for slow rotators. When values for $\sin (i)$ fell above 1, we set these values to 1, as discarding them would bias our results toward lower inclinations (Vos et al. 2017). Since 11 km s⁻¹ is one of the lowest $v\sin (i)$ values reported in the Wichmann study, we assume larger error bars of 3 km s⁻¹. Using the parameters listed in Table 1, we find that the majority of the $\sin (i)$ distribution (∼96%) falls above 1, with a median $\sin (i)=2$. This results in an inclination distribution with a sharp peak at 90°, or equator-on. A doubling of the radius or a halving of the rotation period would bring the median value to 1. Although we observe a period harmonic at half our reported rotation period, we consider it unlikely to be the true period due to the repeating double-peaked pattern observed in Figure 7. We consider it more likely that the radius is inflated due to its youth (e.g., Somers & Pinsonneault 2015; Somers & Stassun 2017). Either way, the measured rotation rate and $v\sin (i)$ values and estimated radius suggest that BD+60 1417 is inclined close to equator-on.

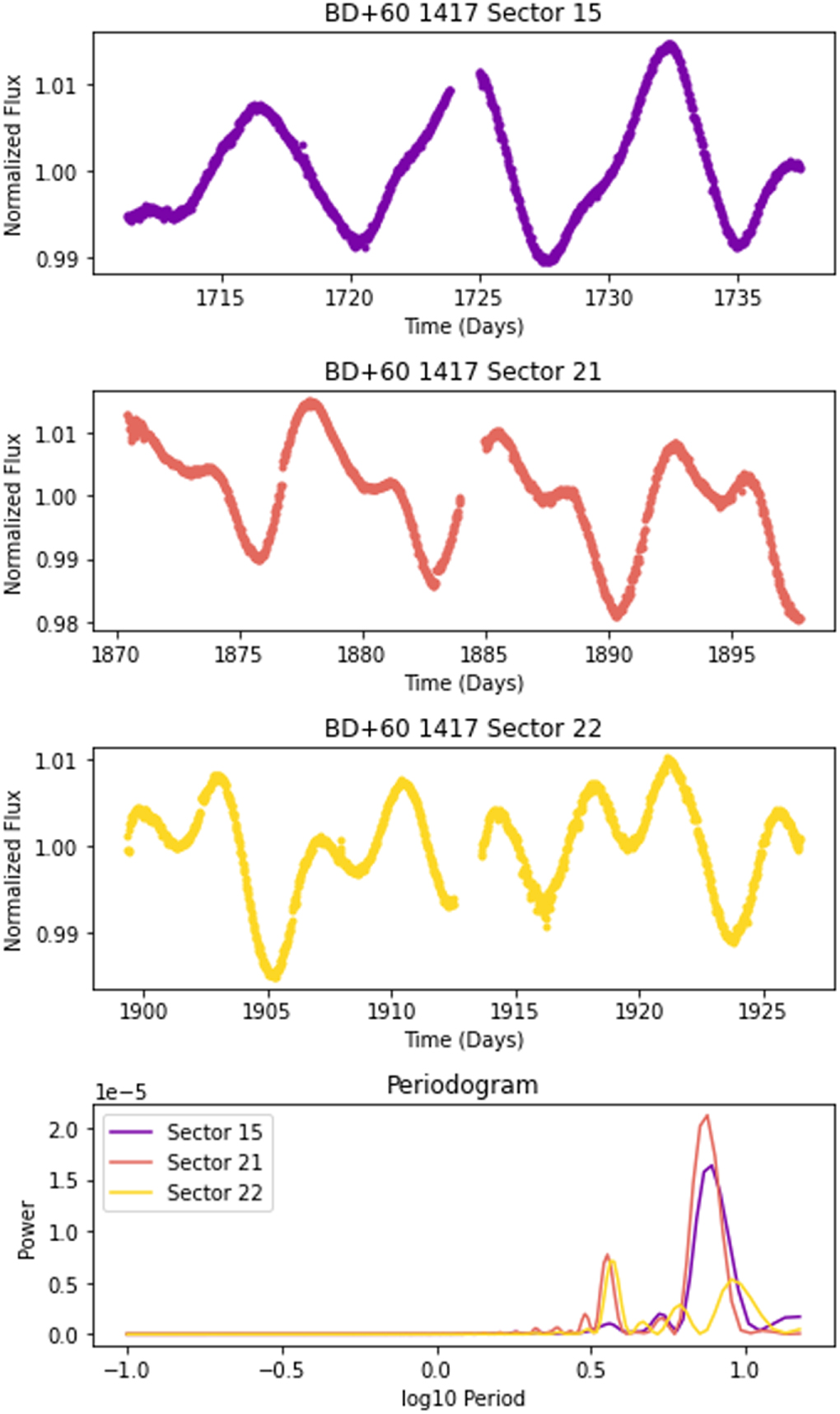

As shown in Figure 7, the light curve of BD+60 1417 shows some starspot evolution but is otherwise a clean rotation curve. We find no signature of a transiting world over the TESS cadences even though we are staring at the star across the equator.

For the secondary, to determine all fundamental parameters we followed the prescription of Filippazzo et al. (2015). We used the Gaia eDR3 parallax of BD+60 1417 combined with all available photometric and spectroscopic information on BD+60 1417B to produce a distance-calibrated spectral energy distribution (SED). By integrating over the SED, we directly calculated the bolometric luminosity. Using the evolutionary models of Saumon & Marley (2008) paired with the 50−150 Myr age range cited above, we obtained a radius range and semi-empirically obtained estimates for the T_eff, mass, and log(g). All fundamental parameters are listed in Table 1.

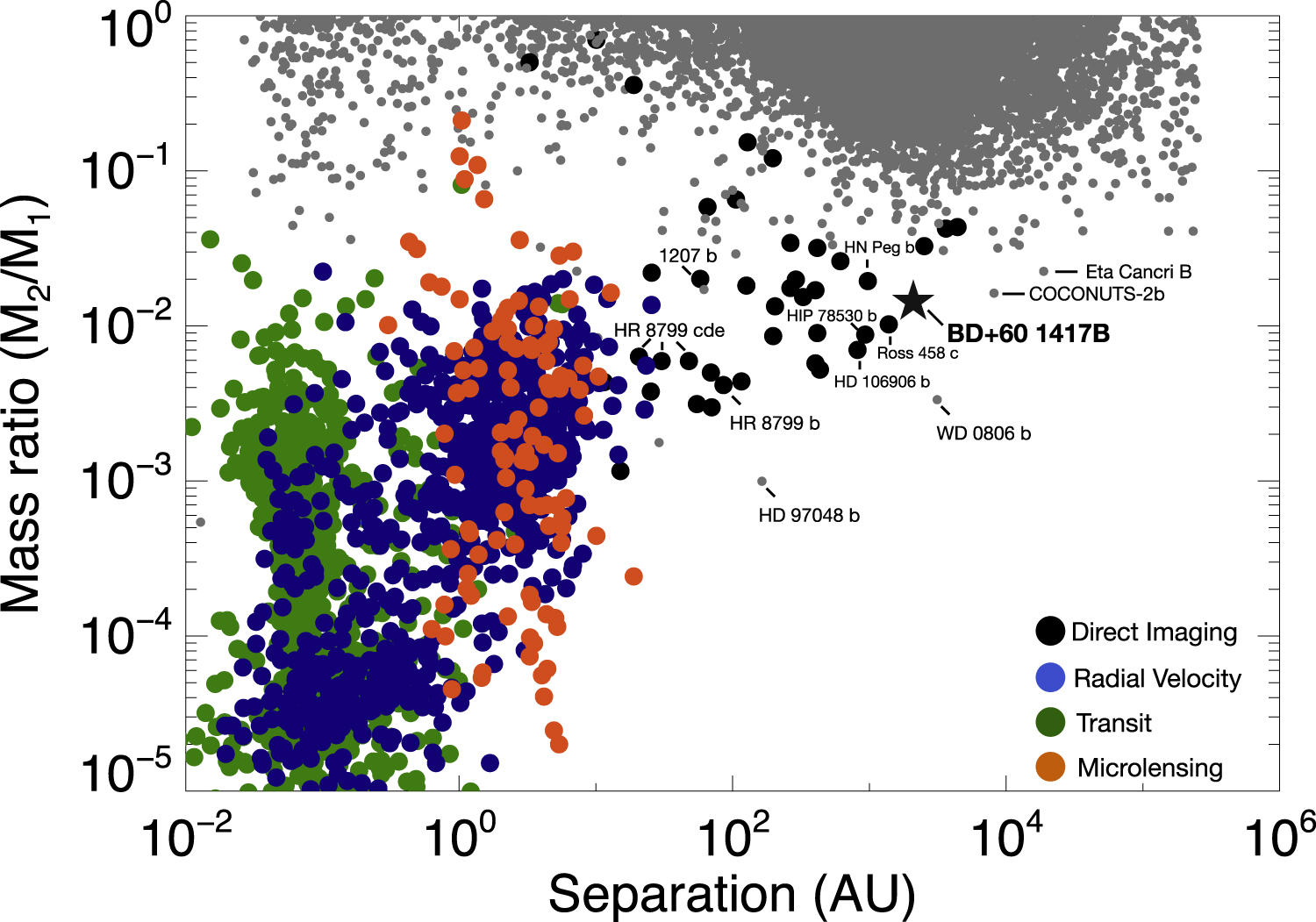

Figure 10 shows the separation versus mass ratio of a wide variety of companion systems. For stellar binaries, we drew from the literature compilations in Faherty et al. (2010) appended with recent discoveries of 50 pc co-moving companions in El-Badry et al. (2021). For brown dwarf companions we used the recent compilation by Faherty et al. (2020) appended with a thorough literature search performed for this work of MLT companions in systems with a total mass >100 M_Jup (for example, adding recent discoveries by Zhang et al. 2021b and Schneider et al. 2021) and for planetary companions we used the NASA Exoplanet Archive database.

Zoom In Zoom Out Reset image size

From the bottom left corner of Figure 10 to the top right corner we are sampling objects that form via traditional planetary processes (e.g., core accretion) to objects that form via traditional stellar processes (e.g., cloud fragmentation). As we pass from the lower left to the upper right, we may sample a mix of those formation processes or a clear delineation between differing populations (e.g., Kratter et al. 2010). We also must note that there are observing biases on this plot given that transiting planets and radial velocity planets have limitations to the maximum separation at which they can be detected given the long baseline required to find more distant planets.

We have color coded Figure 10 by exoplanet detection method, as the question at hand is whether BD+60 1417B should be considered a young companion formed via binary star processes or a young planet formed via accretion or similar processes. Directly imaged companions occupy a sparsely sampled region of Figure 10, which is detached from the locus of stellar binaries (gray overdensity at upper right) and exoplanet companions (lower left). The BD+60 1417 system sits squarely between the two loci in a very similar position to the Ross 458, HIP 78530, HN Peg, and HD 106906 systems. It has the largest separation known for its mass ratio, ²⁵ making it a boundary setting object in Figure 10.

Assuming the mass of the primary is ∼1.0 M_⊙ (from Metchev & Hillenbrand 2009), the secondary is 15 M_Jup, and the physical separation is 1662 au × 1.26 (for an orbital inclination angle correction; see Fischer & Marcy 1992), we find a binding energy of ∼1.204 × 10⁴¹ erg. In our analysis of main-sequence star co-moving systems, and brown dwarf and exoplanet companions, we find this source in the lowest 4% in terms of binding energy. We also find it joins just a handful of companion objects (GU Pscb, USco 1621b, USco 1556b, Ross 458 c, FU Taub, COCONUTS-2b, 2MASSJ21265040-8140293b, WD0806b, and Ross 19B) with estimated masses <20 M_Jup and separations >1000 au. ²⁶ Among those systems and with the exception of WD0806, which has evolved off the main sequence, BD+60 1417 has nearly twice the primary mass of any other.

Determining the formation mechanism for planetary mass objects (companion or isolated) remains difficult. It is very likely that as we move down in mass, there are contributions to the mass function from competing mechanisms that can create identical looking objects. BD+60 1417B is an object with photometric and spectral characteristics perfectly in line with isolated and companion <20 M_Jup objects. It does not differentiate itself from closer planets in any of its fundamental parameters. In fact, it resembles those sources so well it should be considered an important laboratory for investigating weather-related atmospheric phenomenon relevant to giant planet analyses.

Kirkpatrick et al. (2021) recently analyzed the mass function of the 20 pc sample of brown dwarfs into the Y dwarf regime and discovered that the current sample implies that the cutoff of star formation is lower than 10 M_Jup with some hint from moving group members that it might be lower than 5 M_Jup. Based on these cutoff values, even the lower mass limit for BD+60 1417B would argue that its formation mechanism is still aligned with that of higher mass isolated brown dwarfs. However, the BD+60 1417 system occupies a unique and sparsely populated region in Figure 10, and BD+60 1417B has a mass above the 5 M_Jup cutoff. The dearth of brown dwarf companions close-in to their host stars is a well-known phenomenon and has been dubbed "the brown dwarf desert." Studies such as Raghavan et al. (2010), Metchev & Hillenbrand (2009), and Brandt et al. (2014) conducted detailed investigations of the companion frequency for low-mass secondaries. Metchev et al. (2008) concluded that the companion mass function follows the same universal form over the entire range between 0 and 1590 au in orbital semimajor axis and ∼0.01–20 M_⊙ in companion mass; therefore, the brown dwarf desert is a logical extension of the field mass function. Brandt et al. (2014) concluded that many of the directly imaged exoplanets known formed by fragmentation in a cloud or disk, and represent the low-mass tail of the brown dwarfs. It is completely logical that BD+60 1417B formed as a binary system with BD+60 1417 and is simply a rare, planetary mass product at the lowest mass limit of star formation.

Even still, there remains the possibility that BD+60 1417B formed closer in through core accretion or disk instability and was dynamically disturbed to its current position. Recent investigations of the planetary mass companion HD 106906b (estimated mass ∼11 ± 2 M_Jup at 738 au) suggested that a stellar flyby may have disturbed the companion to its current position and orbit given that the planet is not co-planar with the surrounding disk (De Rosa & Kalas 2019). Other works have shown the significant influence that stellar flybys may have on young forming planetary systems (e.g., Malmberg et al. 2011; Picogna & Marzari 2014) and the potential for disturbing or even ejecting a companion. While there is currently no evidence for a dynamic disturbance to this system, the possibility cannot be ruled out.

Bowler et al. (2020a) used eccentricity values for low-mass companions to determine that when subdivided by companion mass and mass ratio, the underlying distributions for giant planets and brown dwarfs show significant differences. The large separation of this system and consequent significant period to complete an orbit precludes any eccentricity measurement to place it in context. However, another avenue of investigation could be using the inclination angle for BD+60 1417B and compare that to that of BD+60 1417. As stated in Section 9, BD+60 1417 appears to be viewed equator-on. A measurement of the rotation rate and vsini for BD+60 1417B would allow us to calculate the viewing angle (e.g., Vos et al. 2017) and compare it to that of the primary.

Yet another avenue that might help disentangle the formation mechanism for this companion is a comparison of the bulk composition of the secondary with the primary. The spectral inversion technique can successfully recover gas abundances and atmosphere properties of brown dwarfs (e.g., Burningham et al. 2017, 2021; Line et al. 2017) including C/O, Mg/Si, etc. Previous studies of giant planetary mass companions (e.g., Konopacky et al. 2013) have used the C/O ratio comparison between components to speculate on a formation route. Recent work by Gonzales et al. (2020) used the spectral inversion technique to confirm two brown dwarfs have a common origin based on similar composition measurements including a measurement of C/O for both components. The BD+60 1417 system is an excellent candidate for a spectral inversion approach to determine if chemical composition could help differentiate the formation mechanism. While that is outside of the scope of this work, the data collected herein can and should be used by retrieval codes such as BREWSTER (Burningham et al. 2017, 2021), which uses complex cloud approaches to examine the detailed atmospheric chemistry of a given source.

In this work we have discussed the discovery of a young L dwarf companion to a nearby young K0 primary through the Backyard Worlds: Planet 9 citizen science project. Using SpeX prism follow-up spectroscopy, we classify BD+60 1417B as an L6–L8γ and find it to be one of the reddest known L dwarfs in the near-infrared. We find its spectral morphology is similar to that of other 10–150 Myr L dwarfs such as W0047, PSO 318, and W2244, and—similar to those sources—its shape suggests that it is a cloudy object with the potential to demonstrate cloud-driven variability. The position on near- and mid-infrared color–magnitude diagrams—using the parallax of the primary—places BD+60 1417B redder and fainter than the field sample, another hallmark characteristic of <150 Myr L dwarfs. BD+60 1417B shares spectral and photometric properties with both isolated low-gravity objects and young giant planets orbiting higher mass stars (e.g., HR8799bcde). Using the parallax and spectral data we compute a spectral energy distribution and find log(L_bol/L_⊙) = −4.33 ± 0.09, T_eff = 1303 ± 74 K, and mass = 15 ± 5 M_Jup for BD+60 1417B.

The angular and physical separation of this system are 37'' and 1662 au, respectively. We investigated the mass ratio versus separation for the BD+60 1417 system and found it occupied a unique and sparsely populated region of the diagram between two loci of binary stars and planet companions. It belongs to a subpopulation of only nine objects with an estimated mass <20 M_Jup that orbit their host star at more than 1000 au. Among that small list, it has a primary mass almost twice that of any other main-sequence system (the exception being WD0806, which has a white dwarf host star with a progenitor mass of ∼2 M_Sun). We cannot conclude a formation mechanism from any of the parameters presented in this paper (core accretion, disk instability, cloud fragmentation), but we are optimistic that future retrieval or viewing angle comparisons with the primary will shed light on how this system formed. BD+60 1417B is an exciting target for future missions such as the James Webb Space Telescope, which will open the mid-infrared spectral window on studying the clouds and composition of the source.

The Backyard Worlds: Planet 9 team would like to thank the many Zooniverse volunteers who have participated in this project, from providing feedback during the beta review stage, to classifying flipbooks, to contributing to the discussions on TALK. We would also like to thank the Zooniverse web development team for their work creating and maintaining the Zooniverse platform and the Project Builder tools. This research was supported by NASA Astrophysics Data Analysis Program grant NNH17AE75I as well as NASA grant 2017-ADAP17-0067, and National Science Foundation grant Nos. 2007068, 2009136, and 2009177. F.M. also acknowledges support from grant 80NSSC20K0452 under the NASA Astrophysics Data Analysis Program. E.G. and J.F. acknowledge support from the Heising-Simons Foundation. This research has made use of: the Washington Double Star Catalog maintained at the U.S. Naval Observatory; the SIMBAD database and VizieR catalog access tool, operated at the Centre de Donnees astronomiques de Strasbourg, France (Ochsenbein et al. 2000); data products from the Two Micron All Sky Survey (2MASS; Skrutskie et al. 2006), which is a joint project of the University of Massachusetts and the Infrared Processing and Analysis Center (IPAC)/California Institute of Technology (Caltech), funded by the National Aeronautics and Space Administration (NASA) and the National Science Foundation; data products from the Wide-field Infrared Survey Explorer (WISE; and Wright et al. 2010), which is a joint project of the University of California, Los Angeles, and the Jet Propulsion Laboratory (JPL)/Caltech, funded by NASA. This work has made use of data from the European Space Agency(ESA) mission Gaia, processed by the Gaia Data Processing and Analysis Consortium. Funding for the DPAC has been provided by national institutions, in particular the institutions participating in the Gaia Multilateral Agreement. This research has made use of the NASA Exoplanet Archive, which is operated by the California Institute of Technology, under contract with the National Aeronautics and Space Administration under the Exoplanet Exploration Program.

Facilities: Gaia - , NASA IRTF - , LICK Shane - , WISE - , 2MASS. -

Software: Aladin, BANYAN Σ (Gagné et al. 2018b), Lightkurve, SEDkit, WISEview.
