Multi-scale Dust Polarization and Spiral-like Stokes-I Residual in the Class I Protostellar System TMC-1A

We observed TMC-1A using the SMA for one track on 2018 January 3 with the full polarization mode. The total observing time is ∼525 minutes (8.75 hr) for TMC-1A including overhead. Seven antennas were used in the compact configuration. The minimum projected baseline length is 16 m. Any emission beyond 9'' (1300 au) was resolved out by ≳63% with the antenna configuration (Wilner & Welch 1994). Our SMA observations used two orthogonally polarized receivers, tuned to the same frequency range in the full polarization mode, and the SMA Wideband Astronomical ROACH2 Machine (SWARM, where ROACH2 is the second generation Reconfigurable Open Architecture Computing Hardware) correlator. The upper sideband (USB) and lower sideband (LSB) covered 213–221 and 229–237 GHz, respectively. Each sideband was divided into four chunks with a bandwidth of 2 GHz, and each chunk has a fixed channel width of 140 kHz.

The SMA data were calibrated with the with the Millimeter Interferometer Reduction (MIR) software package. ¹² Instrumental polarization leakage was calibrated independently for USB and LSB using the Multi-channel Image Reconstruction, Image Analysis, and Display (MIRIAD) task gpcal and removed from the data. The calibrated visibility data in Stokes I, Q, and U were Fourier transformed and CLEANed with the natural weighting, using the MIRIAD package (Sault et al. 1995), by integrating channels without line emission. The polarized intensity, position angle, and polarization percentage were derived from the Stokes I, Q, and U maps using the MIRIAD task impol. The parameters of our SMA observations mentioned above and others are summarized in Table 1.

We also observed TMC-1A using ALMA in Cycle 6 on 2018 November 18 with the full polarization mode. The total observing time is ∼202 minutes (3.37 hr), while the on-source observing time for TMC-1A is ∼43 minutes. The number of antennas was 49. The array configuration was C43-5, whose minimum projected baseline length is 12 m. Any emission beyond 12'' (1700 au) was resolved out by ≳63% with the antenna configuration (Wilner & Welch 1994). Spectral windows for the ¹²CO, ¹³CO, and C¹⁸O (J = 2−1) lines have 1920, 960, and 960 channels covering 117, 59, and 59 MHz bandwidths at frequency resolutions of 61.0, 61.0, and 61.0 kHz, respectively. In making maps, channels are binned to produce the velocity resolution of 0.1 km s⁻¹ for all three lines. Another spectral window covers 232–234 GHz, which was assigned to the continuum emission.

All of the imaging procedure was carried out with Common Astronomical Software Applications (CASA), version 5.6.2. The visibilities in Stokes I, Q, U, and V were Fourier transformed and CLEANed with Briggs weighting, a robust parameter of 0.5, and a threshold of 3σ. Emission of the three lines were detected only in Stokes I. The CLEAN process using the CASA task tclean adopted the auto-masking (auto-multithresh) with the parameters of sidelobethreshold = 3.0, noisethreshold = 3.0, lownoisethreshold = 1.5, and negativethreshold = 3.0. The polarized intensity and position angle were derived from the Stokes I, Q, and U maps using the CASA task immath.

We also performed self-calibration for Stokes I of the continuum data using tasks in CASA (clean, gaincal, and applycal). Only the phase was calibrated by decreasing the time bin from "inf", 90 s, and then 18 s. The self-calibration improved the rms noise level of the continuum maps by a factor of ∼120. The obtained calibration tables for the Stokes I continuum data were also applied to the other Stokes continuum data and the line data for consistency. The noise level of the line maps were measured in emission-free channels. The parameters of our ALMA observations mentioned above and others are summarized in Table 2.

Figure 1 shows the polarized continuum emission at 1.3 mm observed with the SMA. The Stokes I map shows a compact component associated with TMC-1A and an extension to the east at the 3σ level, and slightly expands into the southwest. Gaussian fitting to the Stokes I emission provides a peak position of $\alpha ({\rm{J}}2000)={04}^{{\rm{h}}}{39}^{{\rm{m}}}35\mathop{.}\limits^{}{20}^{{\rm{s}}},\delta ({\rm{J}}2000)=25^\circ 41^{\prime} 44\mathop{.}\limits^{}14^{\prime\prime}$ and a deconvolved size of 0.66'' ± 0.09'' × 0.50'' ± 0.11'' with a position angle of 66° ± 28°. This size corresponds to 92 × 70 au at the distance of TMC-1A, 140 au. The results of the Gaussian fitting is summarized in Table 3. The major axis of the emission is consistent with the major axis of the disk around TMC-1A and perpendicular to the associated outflow (Aso et al. 2015). The peak intensity and total flux density measured in our SMA observation are 0.171 Jy beam⁻¹ and 0.182 Jy, respectively.

Zoom In Zoom Out Reset image size

Table 3. Results of Gaussian Fitting to the SMA and ALMA 1.3 mm Continuum Images

Observations	Flux (mJy)	Center	Deconvolved FWHM	P.A.
SMA	169.8 ± 0.9	04h39m35.202ˢ4ˢ ± 0.0005s	0.66'' ± 0.09''	66° ± 28°
		$25^\circ 41^{\prime} 44\mathop{.}\limits^{}145^{\prime\prime} \pm 0.006^{\prime\prime}$	0.50'' ± 0.10''
ALMA compact	111.66 ± 0.03	04h39m35.199945ˢ ± 0.000003s	0.2502'' ± 0.0002''	75.8° ± 0.1°
		$25^\circ 41^{\prime} 44\mathop{.}\limits^{}22931^{\prime\prime} \pm 0.00005^{\prime\prime}$	0.1542'' ± 0.004''
ALMA extended	66.8 ± 0.2	04h39m35.2017ˢ ± 0.0001s	1.085'' ± 0.004''	73.4° ± 0.3°
		$25^\circ 41^{\prime} 44\mathop{.}\limits^{}235^{\prime\prime} \pm 0.001^{\prime\prime}$	0.632'' ± 0.03''

Note. The fitting to the ALMA image adopts a double-Gaussian function.

Download table as:  ASCIITypeset image

The polarized fraction $\sqrt{{Q}^{2}+{U}^{2}}/I$, where I, Q, and U are the Stokes parameters, is shown in the region where Stokes I is detected above the 2σ level. The orange segments have a uniform length and show the polarization angles in panel (a) and those rotated by 90° in panel (b) that are de-biased with the 2σ level. The polarization fraction is typically ∼10% in the north and east of TMC-1A, where the de-biased polarization is detected. In contrast, the fraction is ≲0.5%, i.e., depolarized in the northeast, center, and southwest. The polarization angle is ∼ −45° from the disk minor axis (Section 4.2) on the northern side of the depolarized layer, while being distributed around ∼+30° from the disk minor axis on the southern side of the depolarized layer. The angle is around the disk minor axis in the eastern extension.

The 90°-rotated segments (Figure 1(b)) are supposed to trace the direction of magnetic fields in the protostar on the 1000 au scale observed with the SMA. The 90° rotated segments have relative angles to the disk minor axis (P.A. ∼−15°; see Section 4.2), ranging from ∼20° to ∼50° in the northwest, while the relative angles range from ∼−80° to ∼−60° in the southeast. The inferred magnetic field morphology shows symmetry with respect to the depolarized layer. The inferred field appears to be drawn from the northeast to the southwest turning the direction at the depolarized layer. When the variation of the field is smaller than an observational beam size, the region appears to be depolarized. Hence, the drawn morphology of the magnetic fields may explain the observed depolarized layer. The depolarization due to such field variation is numerically simulated (Kataoka et al. 2012) and observed in other protostellar systems (e.g., Kwon et al. 2019).

Figure 2 shows the polarization continuum emission at 1.3 mm observed with ALMA. The spatial scale is five times smaller than the SMA figure, Figure 1. The Stokes I emission consists of a compact, strong component (≲50 au in radius or a signal-to-noise ratio of S/N ≳150σ) and an extended component having sizes in radius of ∼200 au in the direction of P.A. = 75° (the disk major axis in Section 4.2) and ∼120 au in the direction of P.A. = 165° (the disk minor axis in Section 4.2) at the 3σ level. The peak intensity and total flux density measured in our ALMA observation are 0.120 Jy beam⁻¹ and 0.236 Jy, respectively. The direction of the major elongation is consistent with previous 1.3 mm observations at a spatial resolution of ∼8 au (Bjerkeli et al. 2016; Harsono et al. 2018). Because the Stokes I emission shows the compact and extended components, double-Gaussian fitting is more appropriate for this Stokes I emission than single-Gaussian fitting is. Double-Gaussian fitting provides a peak position of $\alpha ({\rm{J}}2000)={04}^{{\rm{h}}}{39}^{{\rm{m}}}35.{200}^{{\rm{s}}},\delta ({\rm{J}}2000)=25^\circ 41^{\prime} 44.229^{\prime\prime}$ for the compact component, while $\alpha ({\rm{J}}2000)={04}^{{\rm{h}}}{39}^{{\rm{m}}}35.{202}^{{\rm{s}}},\delta ({\rm{J}}2000)=25^\circ 41^{\prime} 44.235^{\prime\prime}$ for the extended component. We adopt the peak position of the compact component as the protostellar position of TMC-1A in this paper. The deconvolved sizes of the compact and extended components are 0.25'' × 0.15'' (P.A. = 76°) and 1.09'' × 0.63'' (P.A. = 73°), corresponding to 35 × 21 and 153 × 88 au, respectively.

Zoom In Zoom Out Reset image size

The polarized fraction is shown in the region where Stokes I is detected above the 3σ level. The polarization angles are de-biased with the 3σ level. The polarization fraction is typically ∼0.7% at the center, where the de-biased polarization is detected. This central polarized region is surrounded by a depolarized ring with a radius of ∼40–60 au showing a polarization fraction of ≲0.3%. The polarization angle in the central region is overall in the disk minor axis (Section 4.2), whereas it also has the azimuthal component particularly in the outer part of this region. The results of the Gaussian fitting is summarized in Table 3.

A similar depolarized ring is also reported in the disk around a massive protostar, GGD27 MM1 (Girart et al. 2018). In addition to the ring, the disk around GGD27 MM1 shows spatial distribution of polarization fraction similar to that of TMC-1A: the fraction is ∼1% in an inner part of the disk and >6% in an outer part of the disk. On the other hand, the inner polarization fraction in GGD27 MM1 is higher on the nearside of the disk, from which Girart et al. (2018) suggests that dust settling has not occurred yet in GGD27 MM1. In comparison, the inner polarization in TMC-1A shows symmetric distribution of the polarization fraction and thus could be interpreted as dust settling stronger than in GGD27 MM1. The outer polarization in GGD27 MM1 shows azimuthal directions, which the authors ascribe to self-scattering with optically thin continuum emission. In comparison, the outer polarization direction in TMC-1A is roughly radial, and thus the polarization mechanism in the outer part is unlikely the self-scattering.

In addition to the central polarized component, the de-biased polarization is also detected at ∼100 au north and south of the central protostar, where the polarization fraction is typically ∼10%. The segments in the northern and southern regions have relative angles to the disk minor axis (P.A. = −15°; see Section 4.2) ranging from ∼0° to ∼45° in the northern region, while the relative angles range from ∼0° to ∼35° in the southern region. In other words, the 90°-rotated segments are roughly in the azimuthal direction in the northern and southern regions, as shown in Figure 2(b). The polarization direction in the southern region is more consistent with the SMA result than that in the northern region, although it is difficult to directly compare the SMA and ALMA results because of the spatial scale difference by one order of magnitude. Unlike on the SMA scale, several mechanisms can cause polarization on the 100 au scale around protostars. Potential mechanisms will be discussed in Sections 5.1 and 5.2.

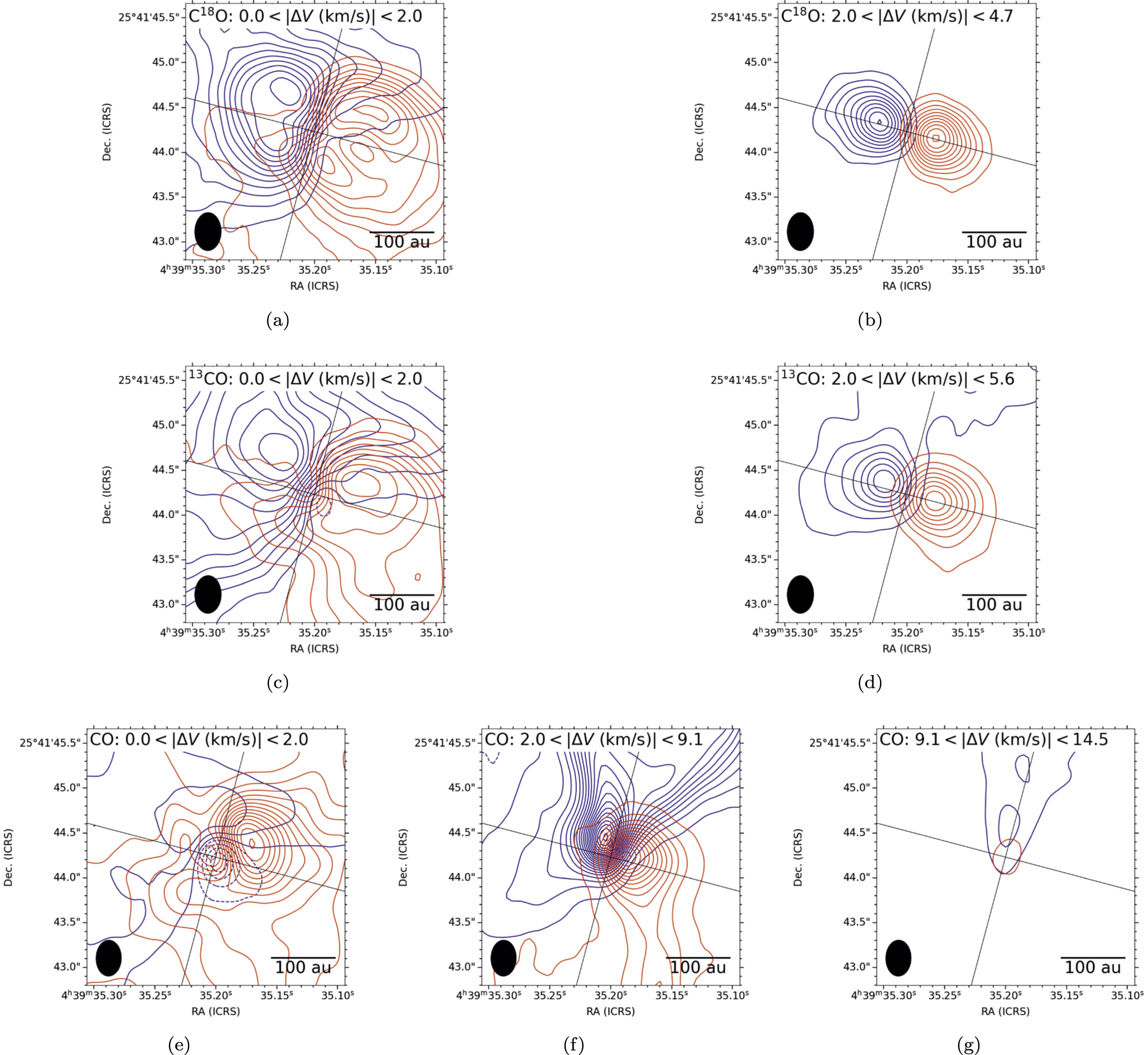

Figure 3 shows results of the CO, ¹³CO, and C¹⁸O J = 2−1 lines observed with ALMA. The spatial scale is the same as that of Figure 2. The blue- and redshifted emissions are integrated over the same velocity width, from the systemic velocity, and thus has the same noise level in each panel. The integrated range is divided at 2 km s⁻¹, which roughly corresponds to the Keplerian velocity at the disk radius of TMC-1A, ∼100 au, with the central protostellar mass, ∼0.7 M_☉, (Aso et al. 2015) and an inclination angle of 50°–60°. The high-velocity components of the C¹⁸O and ¹³CO emissions (Figure 3(b), (d)) are integrated until the highest velocity at which the emission is detected at the S/N = 3σ. The boundary of the high-velocity (Figure 3(f)) and very-high-velocity (Figure 3(g)) components of the CO emission is the highest velocity at which the blueshifted emission is detected at S/N = 3σ. In these integrated channel maps on the same scale as the continuum image, the entire emission is shown in Appendix A using the integrated intensity (moment 0) and mean velocity (moment 1) maps.

Zoom In Zoom Out Reset image size

The C¹⁸O emission shows a velocity gradient mainly along the disk major axis (Section 4.2) in both the low- (Figure 3(a)) and high-velocity (Figure 3(b)) components. In addition to this main velocity gradient, the low-velocity component also shows blueshifted emission in the northwest and redshifted emission in the southeast at S/N ≲ 50σ, causing a different, diagonal velocity gradient. This diagonal velocity gradient is reported in Aso et al. (2015) in the low-velocity range <2 km s⁻¹. The low-velocity component of the C¹⁸O emission shows double-peaked morphology on both the blue- and redshifted sides, whereas the high-velocity component shows compact, single-peaked morphology on both the blue- and redshifted sides. The double-peaked morphology in the low-velocity range is newly revealed with the higher angular resolution than in Aso et al. (2015).

The ¹³CO emission shows the same features as the C¹⁸O emission: the main velocity gradient along the disk major axis, another diagonal velocity gradient in the low-velocity component at S/N ≲ 120σ, and compact, single-peaked morphology in the high-velocity component. The emission peaks make the main velocity gradient along the disk major axis in both high- and low-velocity components, although the emission peaks are shifted to the north from the disk major axis in the low-velocity component. Emission at low S/N makes the diagonal velocity gradient shown in the low-velocity C¹⁸O emission above and that in Aso et al. (2015). The low-velocity emission decreases in the central ∼40 au, i.e., within one beam. This is consistent with the absorption in the ¹³CO J = 2−1 line due to strong continuum emission at the protostellar position, reported with the observation at an ∼8 au resolution (Harsono et al. 2018).

The CO emission shows more complicated structures than the C¹⁸O and ¹³CO emissions. The fainter, or absorbed, part in the low-velocity component is clearer in the CO line than in the ¹³CO line. The high-velocity component (Figure 3(f)) clearly traces the associated outflow going along the disk minor axis. Strong emission (S/N > 150σ) shows the main velocity gradient along the disk major axis, the same as the C¹⁸O and ¹³CO emissions. A part of the strong emission is also extended to the north tracing the outflow, as is also seen in the ¹³CO emission. Weak emission, S/N < 150σ, is extended to the southern side along the disk minor axis in both blue- and redshifted components in the high-velocity range (Figure 3(f)); these structures are not seen in the C¹⁸O or ¹³CO lines. The very-high-velocity component (Figure 3(g)) traces a part of the blueshifted outflow lobe, being more collimated than the high-velocity component (Figure 3(f)). This is consistent with the previous observation showing that emission in the blueshifted lobe is more collimated at higher velocities (Aso et al. 2015).

TMC-1A has an infalling rotating envelope around the Keplerian disk. Aso et al. (2015) reported a radial infall velocity of ∼0.3 times the freefall velocity and suggested that a magnetic field of ∼2 mG in strength is required to reduce the infall velocity to the observed value. Our SMA observations enable us to test this suggestion by estimating the field strength. The DCF method (Davis 1951; Chandrasekhar & Fermi 1953) is the most widely used technique for inferring the magnetic field strength from polarization observations (e.g., Kwon et al. 2019). The method assumes that Alfvénic fluctuation dominates the magnetic and velocity fields, with the magnetic field strength B_pos in the plane-of-sky estimated from:

$$\begin{eqnarray}&&{B}_{\mathrm{pos}}=\xi \sqrt{4\pi \langle \rho \rangle }\displaystyle \frac{\delta {v}_{\mathrm{los}}}{\delta \phi },\end{eqnarray} \tag{ 1 }$$

where 〈ρ〉, δ v_los, and δϕ are the mean density, dispersion of the line-of-sight velocity, and dispersion of the polarization angle, respectively. The correction factor ξ is usually taken to be ∼0.5 based on numerical simulations (Heitsch et al. 2001; Ostriker et al. 2001; Padoan et al. 2001).

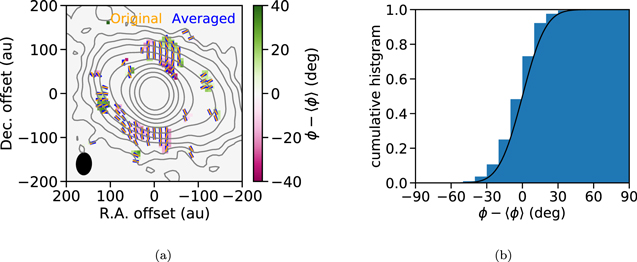

Measuring the angle dispersion δϕ requires an average angle at each position. We define the average angle 〈ϕ〉 by averaging the Stokes Q and U emissions over a 2D Gaussian function with an FWHM of 6''. This Gaussian function is larger than the SMA synthesized beam by a factor of ∼2. This size is selected because the polarized emission is detected over ∼4 beam area. Figure 4(a) shows the average angles as blue segments and the relative angle (ϕ − 〈ϕ〉) as a color map. The dispersion δϕ in Equation (1) is derived as the standard deviation of the relative angle, 21°. Figure 4(b) shows the cumulative histogram of the relative angle overlaid with the error function with a standard deviation of 21°. This histogram indicates that the standard deviation represents the distribution of the relative angle well.

Zoom In Zoom Out Reset image size

The mean density 〈ρ〉 is derived from the total flux density and the size of the SMA continuum emission. The total flux density 0.182 Jy corresponds to ∼0.024 M_☉ for a dust opacity coefficient, index, dust temperature, and gas-to-dust mass ratio of 0.035 cm² g⁻¹ at 850 μm (Andrews & Williams 2005), 1.46, 28 K (Chandler et al. 1998), and 100, respectively. The SMA continuum emission is detected over ∼500 au in radius at the 3σ level. Averaging the mass of 0.024 M_☉ over a sphere of 500 au in radius, we obtain a mean density of ∼3 × 10⁻¹⁷ g cm⁻³, which is adopted as the mean density 〈ρ〉 in Equation (1).

The velocity dispersion is difficult to measure directly from the observations toward TMC-1A because this protostar is known to have ordered motions, such as rotation and/or radial infall, which are not included in the original DCF method. For this reason, the observed velocity dispersion provides an upper limit of δv in Equation (1). For example, the C¹⁸O emission observed in our ALMA observations has a velocity dispersion (standard deviation) of ∼1.0 km s⁻¹ when the emission over the entire spatial area is included.

With the three quantities derived above, as well as the correction factor 0.5, Equation (1) yields B_pol ∼ 3 mG. This estimate is consistent with the prediction in Aso et al. (2015) for explaining the radial infall velocity of ∼0.3 times the freefall velocity in the TMC-1A envelope. We caution the reader that the estimate is very rough because each quantity has a large uncertainty. For example, if the average area for δϕ is changed from 1.5 to 4 beams, δ ϕ⁻¹ would vary by ± 50%. If dust grains grow to such a large size that the dust opacity index is close to zero, $\sqrt{\langle \rho \rangle }$ would decrease by ∼40%. If the velocity dispersion due to Alfvénic motions is similar to the sound speed at 28 K (Chandler et al. 1998), ∼0.3 km s⁻¹, δv would decrease by a factor of ∼3. When these uncertainties are taken into account, B_los is estimated to be within a range of 1–5 mG.

The morphology of continuum emission helps us reveal the physical origin of the dust polarization. For this purpose, we investigate the morphology of the 1.3 mm continuum emission in our ALMA observations in this subsection. Specifically, we decompose the continuum emission into an axisymmetric component and a residual through model fitting.

Our axisymmetric model has a radial intensity profile, f(r), centered at (x₀, y₀). The central coordinates are free parameters, defined as offsets from the protostellar position derived from the double-Gaussian fitting in Section 3.2. This model is scaled along the minor axis direction at θ₀ − 90° by a factor of $\cos i$ and then convolved with the Gaussian beam with the same FWHM as the ALMA synthesized beam. The P.A. θ₀ and the inclination angle i are free parameters. To produce an arbitrary radial profile, f(0 au), f(20 au), f(40 au), ..., f(300 au) are free parameters in this model fitting. The grid spacing of f(r), 20 au, is the half beam of the ALMA observations. Intensities at locations with 300 au but not on the grid radii are interpolated from the grid points, and those beyond 300 au are set to zero. The best-fit parameters are derived by minimizing ${\chi }^{2}=\sum {({f}_{\mathrm{obs}}-{f}_{\mathrm{mod}})}^{2}/{\sigma }^{2}$ in the image domain, where f_obs, f_mod, and σ are the observed intensity, model intensity, and rms noise level of the continuum observations, respectively. For this fitting, we adopt the Markov Chain Monte Carlo method using the open code ptemcee (Foreman-Mackey et al. 2013; Vousden et al. 2016), where the log-likelihood function is −χ²/2. The numbers of temperatures, walkers, and the number of steps are 2, 190, and 10,000, respectively. The first 5000 steps are burnt out. The uncertainties of the parameters are defined as the 10th and 90th percentiles of the parameter chain. The best-fit coordinates and angles, including their uncertainties, are $({x}_{0},{y}_{0},{\theta }_{0},i)\,=({0.08}_{-0.02}^{+0.02}\,\mathrm{au},{0.02}_{-0.02}^{+0.02}\,\mathrm{au}$, ${75}_{-0.2}^{+0.3}\,\deg ,{53}_{-0.3}^{+0.2}\,\deg )$.

Figure 5 shows the best-fit model with the observation and the residual, and the observation minus the best-fit model. Although the best-fit model reproduces the overall shape of the observation, the residual interestingly shows positive and negative spiral-like patterns. Note that this residual is a relative structure from the axisymmetric component; in other words, a single one-armed spiral plus an axisymmetric component can provide such positive and negative patterns. The orientation angle θ₀ = 75° is close to the disk major axis reported in previous works (Harsono et al. 2014; Aso et al. 2015; Bjerkeli et al. 2016), and thus we define this orientation angle as the disk major axis and the orthogonal direction as the disk minor axis of TMC-1A in this paper.

Zoom In Zoom Out Reset image size

To investigate the spiral-like residual in more detail, we determine the relation between the radius and azimuthal angle along the positive and negative patterns. The intensity-weighted mean position (radius) is derived along the radial direction at every 5°. This mean radius uses intensities above +3σ for the positive pattern and below −3σ for the negative pattern. The derived mean radii are plotted in Figure 6 on the residual map de-projected using the orientation and inclination angles, θ₀ = 75° and i = 53°. The red and green points are the mean radii for the positive and negative patterns, respectively. Figure 6 shows that the derived points represent the spiral-like patterns well. The mean radii for the positive pattern (red points) are fitted with a simple logarithmic spiral, $r={r}_{0}\,\exp (\alpha \theta )$, on the de-projected plane, where r and θ are the polar coordinates, while r₀ and α are free parameters. The best-fit model is obtained by minimizing $\sum {({r}_{\mathrm{obs}}-{r}_{\mathrm{mod}})}^{2}$ on the angle grid, where r_obs and ${r}_{\mathrm{mod}}$ are the observed mean radii (red points in Figure 6) and the model fit, respectively. The best-fit parameters are r₀ = 128 au and α = −0.195. This logarithmic spiral is consistent with the positive pattern as shown in Figure 6 (see the orange curve).

Zoom In Zoom Out Reset image size

The continuum residual also shows a correlation with the C¹⁸O emission. Figure 7 shows the residual map together with the C¹⁸O channel maps at a velocity resolution of 0.4 km s⁻¹. One clear correlation can be seen at 4.35–5.15 km s⁻¹ and 7.15–7.95 km s⁻¹. From 2.35–4.35 km s⁻¹, the emission peak moves outward from the protostellar position along the disk major axis. The emission peak arrives at the eastern edge of the positive residual at 4.35 km s⁻¹ and is divided into two peaks in the disk minor axis direction from 4.75 km s⁻¹, not going beyond the eastern edge of the positive residual. Similarly, from 10.35–8.35 km s⁻¹, the emission peak moves outward from the protostellar position along the disk major axis. The emission peak arrives at the western edge of the positive residual at 7.95 km s⁻¹ and is divided into two peaks in the disk minor axis direction from 7.55 km s⁻¹. These results on the eastern and western sides suggest that the C¹⁸O emission is also concentrated inside the continuum residual, making the same asymmetry as the continuum residual. The high velocities V < 4.35 km s⁻¹ and V > 8.35 km s⁻¹ correspond to ∣V − V_sys∣ ≳ 2 km s⁻¹. The fact that the emission peak is located along the disk major axis suggests that the C¹⁸O emission traces the Keplerian disk around TMC-1A at this velocity range. Furthermore, the emission peak is divided at the lower velocities. This change at ∣V − V_sys∣ ∼ 2 km s⁻¹ suggests that the velocity channels at ∣V − V_sys∣ ∼ 2 km s⁻¹ trace the C¹⁸O emission arising from the outer edge of the TMC-1A disk. In other words, the lowest rotational velocity in the TMC-1A disk (at the outer edge) is ∼2 km s⁻¹. This is consistent with the disk radius, ∼100 au, and the central protostellar mass, ∼0.7 M_☉, of TMC-1A previously reported by Aso et al. (2015).

Zoom In Zoom Out Reset image size

The C¹⁸O intensity also implies another correlation with the continuum residual. Figure 8 shows the mean intensity of the C¹⁸O line on the positive (red in Figure 6) and negative (green in Figure 6) patterns at each velocity channel. The mean intensity on the positive pattern is significantly stronger than the negative one within ∣V − V_sys∣ < 2 km s⁻¹. This suggests intensity enhancement in the C¹⁸O line at the same spiral as the intensity enhancement in the continuum emission, in this velocity range. On the other hand, the intensity on the positive pattern is stronger at blueshifted higher velocities (V − V_sys < − 2 km s⁻¹), while the intensity on the negative pattern is stronger at redshifted higher velocities (V − V_sys > 2 km s⁻¹). These differences at higher velocities are consistent with the Keplerian rotation as discussed in more detail in Section 4.3 using a Keplerian disk model; the solid lines without points in Figure 8 are from the model in Section 4.3.

Zoom In Zoom Out Reset image size

The analysis in the previous subsection revealed correlations between the spatial distributions of the C¹⁸O emission and the continuum residual. In this subsection, the velocity structure of the C¹⁸O emission is modeled to help interpret the correlations. TMC-1A is known to have a Keplerian disk (Harsono et al. 2014; Aso et al. 2015; Bjerkeli et al. 2016). Hence, we model the Keplerian disk by fitting with a toy model. The main purpose of this fitting is not to constrain physical conditions of the disk but to derive the distribution of intensity arising from the disk in the position-position–velocity space. The velocity field in the toy model is the Keplerian rotation determined by the central protostellar mass M_* and has a uniform line profile described as a Gaussian function with a standard deviation of c_s . The systemic velocity is V_sys. The intensity in the model disk is a power-law function of radius up to an outer radius R_out, I₁₀₀(r/100 au)^−p , where r, I₁₀₀, and p are the radius on the disk plane, a coefficient, and a power-law index, respectively. This intensity field is located on two parallel planes at ± H from the midplane, to mimic the scale height of the disk. The model disk is oriented by θ₀ and inclined by i: the angles derived from the fitting to the continuum emission (Section 4.2). This model intensity is convolved with the Gaussian beam having the same FWHM as the C¹⁸O observation. In summary, the toy model has seven free parameters, M_*, c_s , V_sys, I₁₀₀, p, R_out, and H. The best-fit parameters are derived by minimizing ${\chi }^{2}=\sum {({f}_{\mathrm{obs}}-{f}_{\mathrm{mod}})}^{2}/{\sigma }^{2}$ over the velocity range of 1.4–4.4 and 8.4–11.4 km s⁻¹ in the image domain, where f_obs. f_mod, and σ are the observed C¹⁸O intensity, model intensity, and rms noise level of the C¹⁸O observation. The best-fit model has the parameters of (M_*, c_s , V_sys, I₁₀₀, p, R_out, H) = (0.72 M_☉, 0.38 km s⁻¹, 6.34 km s⁻¹, 1.5 mJy pixel⁻¹, 0.48, 150 au, 14 au). The central protostellar mass is consistent with previous work (0.68 M_☉; Aso et al. 2015). The best-fit model well reproduces the observed C¹⁸O channel maps in the fitted velocity range, as shown in Appendix B. This model also reproduces the mean intensities along the positive and negative residuals in the fitted velocity range, ∣V − V_sys∣ > 2.0 km s⁻¹, as shown in Figure 8.

The Keplerian disk model can be used to inspect non-Keplerian components in the C¹⁸O data cube. In particular, it is worth comparing the velocity structure along the positive and negative residuals in the continuum emission with the Keplerian velocity field. For this purpose, Figures 9(a) and (b) show the PV diagrams of the observed C¹⁸O emission and the Keplerian disk model along the positive (red in Figure 6) and negative (green in Figure 6) residuals, where the abscissa coordinate is the position angle measured from the north to the east. These diagrams show that the overall velocity structure in the C¹⁸O line is the Keplerian rotation. A possible offset of the emission peak can be found in the positive-residual diagram around the minor axis (P.A. = 165°) as highlighted with an arrow in Figure 9(a): the observed velocity structure appears slightly redshifted with respect to the Keplerian disk model by 0.5–0.6 km s⁻¹. This angle corresponds to a radius of 70–80 au on the de-projected plane (Figure 6). The Keplerian velocity at this radius is 2.8–3.0 km s⁻¹ with M_* = 0.72 km s⁻¹. The ratio between the offset ∼0.5 km s⁻¹ and the Keplerian velocity 2.8–3.0 km s⁻¹ is consistent with the logarithmic spiral with α ∼ 0.2 derived in Section 4.2, suggesting a flowing motion along the positive residual with a radial infall velocity of ∼0.2 times the rotational velocity. The presence of the infalling component is consistent with the velocity gradient in the minor axis direction mentioned in Section 3.3.

Zoom In Zoom Out Reset image size

Figure 9(c) shows comparison between the observed C¹⁸O emission (same as in Figure 9(a)) and an infalling rotating model that has the Keplerian rotation and a radial infall velocity of 0.2 times the Keplerian rotation. The emission peak of this Keplerian+infall model traces the observed peak better around the minor axis than that of the Keplerian disk model, while other parts are similar to each other. In contrast, the emission peak of the Keplerian disk model is more consistent with the observed peak in the negative-residual diagram than that of the Keplerian+infall model (Figure 9(b), (d)), in particular, around the minor axis (P.A. = −15°). This difference implies that only the positive residual has an inflow motion, supporting the possibility that a single one-armed spiral provides both positive and negative patterns as a relative structure with respect to the axisymmetric average component as mentioned in Section 4.2.

The radial infall velocity at r = 70–80 au revealed in this subsection corresponds to ∼14% of the freefall velocity, since the freefall velocity is $\sqrt{2}$ times the Keplerian velocity. Although the radial infall velocity at outer radii cannot be evaluated from our results, a larger ratio of ∼30% is reported in Aso et al. (2015) at r = 100–200 au. This difference may suggest soft landing of the collapsing envelope material, through the one-armed spiral, onto the outer part of the disk.

The ALMA polarization shows two components clearly divided by a depolarized ring: central (r ≲ 50 au) and a northern/southern component (Figure 2). The central component shows polarization E vectors along the disk minor axis near the axis and include an azimuthal component near the outer edge. These two morphological features suggest dust self-scattering occurring on the disk surface as the origin of the central polarization. Polarization due to self-scattering is detected in other Class 0 and I protostars (e.g., Lee et al. 2018). Theoretical simulations of self-scattering predict such polarization directions and polarization fractions ∼0.8% to ∼1.0% with inclination angles of 50°–60° (Yang et al. 2017), which is also consistent with the observed polarization fraction. Figure 10 shows the observed polarization fraction as a function of Stokes I. At the radii of the central component r ≲ 50 au, the polarization fraction is independent from Stokes I. This tendency prefers self-scattering to the magnetic alignment. The theoretical simulations suggest that self-scattering requires a high optical depth (τ ≳ 1) to produce a polarization fraction high enough (≳0.5%) to be observed. Previous observations toward TMC-1A indeed reported that the 1.3 mm dust continuum emission is optically thick in a central region with r ≲ 20–30 au (Harsono et al. 2018).

Zoom In Zoom Out Reset image size

The high optical depth in the TMC-1A disk was interpreted as a result of a high opacity due to dust grains with millimeter size (Harsono et al. 2018). Although a massive disk can also produce a high optical depth, such a disk should be gravitationally unstable and thus show some sign of instability on the disk (e.g., spiral arm or fragmentation). Previous observational studies did not show such a sign in the TMC-1A disk at the mm wavelength, preferring the millimeter grain scenario to the massive disk scenario. Millimeter grains are, however, not consistent with the self-scattering origin of polarization because self-scattering requires a maximum grain size of ∼80–300 μm to produce a polarization fraction of ≳1%, while millimeter-sized grains decrease the predicted polarization fraction to ∼0.01% (Kataoka et al. 2016). In addition to the self-scattering-induced polarization, we have revealed a spiral-like residual in the 1.3 mm continuum emission. This structure may hint at the gravitational instability; hence, the high optical depth in the TMC-1A disk could be due to a massive disk. For these reasons, we suggest that dust grains mainly have a size up to a few hundred microns in the TMC-1A disk.

The northern and southern components of the ALMA polarization are unlikely produced by scattering because of their high polarization fraction, location in the outer part of the disk along the minor axis, and relatively low optical depth. We consider three alternative possibilities. The first possibility is magnetic alignment by toroidal magnetic fields in the disk or outflow associated with TMC-1A. A toroidal field is described by an ellipse elongated along the disk major axis, which is broadly consistent with the 90°-rotated vectors detected with ALMA except for the central component. The polarization fraction in the north/south component is ∼10% and shows an anticorrelation with Stokes I (Figure 10). Such a high polarization fraction is possible with elongated dust particles aligned in a magnetic field, although boundary areas of a structure in interferometric observations can show a relatively high polarization fraction due to a larger filtering effect in Stokes I (Kwon et al. 2019). Kwon et al. (2019) also reported a negative power-law index, −0.4 to −1.0, between the two quantities on a few thousand astronomical unit scale in the protostellar system L1448 IRS 2, where polarization originates in the magnetic alignment. Because the TMC-1A system is inclined from the line of sight, the polarization near the minor axis is expected to be stronger than near the major axis because nonspherical grains rapidly spinning along their magnetically aligned short axis are effectively oblate spheres and such aligned oblate spheres are seen more edge-on near the minor axis and more face-on (and thus more circular with lower polarization) near the major axis (see the top panels of Figure 10 of Cho & Lazarian (2007) or the middle panels of Figure 3 of Yang et al. 2016). In addition, because of the disk inclination, the toroidal fields show a low (high) curvature near (far from) the outflow axis on the projected plane. When magnetic fields have a high curvature, observed polarization can have a low polarization fraction because signals with different polarization directions are summed in an observational beam and canceled out. These two effects could explain the fact that the polarized emission is detected with ALMA mainly in the north and south of the central protostar.

The second possibility is the mechanical alignment called the Gold mechanism by the associated outflow (Gold 1952). Dust grains in the outflow lobe are aligned in the outflow direction by the gas motion, as if each grain is a boat in a river. The aligned grains, then, produce the polarization direction parallel to the outflow direction as observed in our ALMA observations. The TMC-1A outflow shows a projected velocity faster than ∼10 km s⁻¹, indicating that the velocity in this outflow is sufficiently high to provide supersonic gas flow that makes the Gold mechanism efficient (Lazarian 1994). However, because the disk material is expected to be much denser than the outflow material, most of dust emission must be coming from the disk. If the disk emission is not polarized, the intrinsic polarization from the outflow emission must be much higher than the observed 10%, which is unlikely. Furthermore, while the blueshifted outflow spatially coincides with the northern polarization component, there is no clearly detected redshifted outflow that spatially coincides with the southern polarization component. For these reasons, we regard the Gold mechanism as less likely. We should mention that another version of mechanical alignment was studied by Hoang et al. (2018), where the grains are expected to align their long axes perpendicular to the gas flow. It would predict polarization E vectors perpendicular to the minor axis, which are not observed in this component.

The third possibility is magnetic alignment by a magnetic field along the accretion flow suggested in Section 4.3. This possibility is motivated by the fact that the northern polarization is overlapped on the spiral-like residual and the 90° rotated vectors are also along the residual, as shown in Figure 11. This peculiar structure could explain the limited location of the detected polarization. This possibility cannot be applied to the southern polarization because the southern polarization is overlapped on the negative spiral outside the one-armed spiral.

Zoom In Zoom Out Reset image size

The northern and southern components in the ALMA polarized 1.3 mm emission are likely to originate in toroidal magnetic fields in TMC-1A, as discussed in the previous subsection. Then, the DCF method allows us to roughly estimate the field strength, as it does for our SMA data (Section 4.1). The dispersion of the polarization angle is measured from the 2 beam averaged angles using a 2D Gaussian function with an FWHM of ∼0.6''. Note that the central polarization is masked by a threshold of polarization fraction <1% and not used for the average-angle calculation. Figure 12(a) shows the comparison of the original and average angles. The dispersion is calculated to be δϕ = 16° in this case. Figure 12(b) shows the cumulative histogram of the relative angle with the error function with a standard deviation of 16°. The northern and southern components have Stokes I ∼ 0.6 mJy beam⁻¹. This corresponds to a mass column density of 0.12–0.33 g cm⁻² on the same dust opacity, temperature, and gas-to-dust mass ratio as in Section 4.1. If this column density is distributed over the scale height of 14 au (Section 4.3), the mean density is 〈ρ〉 = 0.6–1.6 × 10⁻¹⁵ g cm⁻³. The velocity dispersion is also in the same range of 0.3–1.0 km s⁻¹ as in Section 4.1. Consequently, from Equation (1), the field strength is calculated to be 5–25 mG.

Zoom In Zoom Out Reset image size

The spiral-like residual suggests a one-armed accretion flow in the TMC-1A disk. A simple interpretation of this flow is occasional mass accretion from the associated envelope. The C¹⁸O emission also supports flowing motion along the spiral. Similar morphology is also identified in multiple protostellar systems. Tobin et al. (2016) show a one-armed spiral with a radius of ∼200 au in the triple protostellar system L1448 IRS3B observed in the 1.3 mm continuum emission. Their line observations in C¹⁸O J = 2−1 indicate a rotational motion perpendicular to an associated outflow. Takakuwa et al. (2014) show a one-armed spiral with a radius of ∼200 au in the protostellar binary L1551 NE observed in the 0.9 mm continuum emission. The authors reproduced the spiral structure and kinematics observed in the C¹⁸O J = 3−2 line using a hydrodynamic simulation. The similarity of the TMC-1A spiral with these multiple systems may hint at gravitational instability in the TMC-1A disk, although the instability may be weaker here so that the spiral can only be seen as the residual from the axisymmetric component.

An inner part of the spiral-like residual also appears to delineate a part of a ring with a radius of ∼50 au. Such a ring may result from the growth front (or the pebble production line; Lambrechts & Johansen 2014), where dust grains drastically grow from micron size to millimeter size. The growth front is estimated to be 50–60 au in radius with the typical age of Class I protostars, 0.1 Myr (Ohashi et al. 2021), which is consistent with the inner part of the spiral-like residual.
