The Submillimeter Active Region Excess Brightness Temperature during Solar Cycles 23 and 24

Solar active regions (ARs) are "The totality of all observable phenomena preceding, accompanying and following the birth of sunspots including radio-, X-, EUV- and particle emission" (extracted from van Driel-Gesztelyi & Green 2015). In particular, at radio frequencies they are areas of enhanced brightness on the solar disk observed near sunspots. At microwaves Selhorst et al. (2014) have shown the correlation between the monthly average of the maximum and mean excess brightness temperatures at 17 GHz of ARs and the solar cycle; this work is based on images obtained by the Nobeyama Radioheliograph (NoRH; Nakajima et al. 1994) with synthesized beam sizes of the order of 10''. Kundu (1970) conducted the first millimeter observations using the 11 m (36 foot) single-dish antenna installed at Kitt Peak (USA). Around 40 solar maps were obtained at 33.3, 85.6, and 249.8 GHz (although only three at the last frequency) with spatial resolutions between 35 and 12 from which he derived typical brightness temperatures of 1000, 700, and 150 K for the three frequencies, respectively. Using the Caltech Submillimeter Observatory Bastian et al. (1993) were able to analyze brightness observed at 352 GHz, associated with Hα filaments and determined temperatures close to or below that of the quiet Sun. Moreover, they observed a prominence at 352 and 240 GHz; in both cases they arrived at the conclusion that the millimeter/submillimeter emission of filaments and prominences is optically thin. At higher frequencies Lindsey & Kopp (1995) used the James Clerck Maxwell Telescope to make maps of the Sun at 250, 350, and 855 GHz with beam sizes between 16'' and 5''. They showed for the first time that sunspots, when observed at submillimeter wavelengths, have an umbra cooler than the quiet Sun, while their penumbrae could have temperatures similar to that of the quiet Sun; furthermore, in some ARs, sunspots could be as hot as the surrounding plages. Indeed, Iwai & Shimojo (2015) used the 45 m Nobeyama telescope to determine the temperature of the umbra and penumbra at 85 and 115 GHz and also reported finding an umbra cooler than the quiet Sun. These findings were recently confirmed by Loukitcheva et al. (2017) and Iwai et al. (2017), using the images obtained with the Atacama Large Millimeter/submillimeter Array (ALMA) with a synthesized beam of 05 at frequencies of 100 (λ = 3.0 mm) and 239 GHz (λ = 1.2 mm). With lower spatial resolution, Silva et al. (2005) analyzed ARs during 23 days at 212 (λ = 1.4 mm) and 405 GHz (λ = 0.7 mm) with the Solar Submillimeter Telescope (SST), adding complementary data from NoRH at 17 and 34 GHz (λ = 8.8 mm). They concluded that an overall AR behaves as an optically thick thermal source, because of the average flux density spectral index α ≃ 2. This result was confirmed by Valle Silva et al. (2020), who, besides SST and NoRH, included single-dish ALMA maps at 107 (λ = 2.8 mm) and 239 GHz (λ = 1.2 mm). Moreover, they showed that an AR without associated sunspots has a harder flux density spectral index.

However, a study comprising a whole solar cycle at submillimeter wavelengths, analyzing possible changes in the AR characteristics, was never before attempted. Garcia Pereira et al. (2020) used SST and NoRH observations obtained between 2001 and 2017, and an artificial intelligence (AI) algorithm, based on neural networks and computer vision, to identify, extract, classify, and obtain physical properties of ARs observed in more than 16,000 maps. They showed that the number of ARs per year follows the solar cycle, and confirmed, at a solar cycle timescale, Silva et al. (2005) and Valle Silva et al. (2020) conclusions. In the present work, we use the statistical results from Garcia Pereira et al. (2020) and focus in the temporal evolution of the physical properties of ARs at submillimeter wavelengths.

The SST (Kaufmann et al. 2008) is a multibeam radio telescope, installed at the Complejo Astronómico El Leoncito (CASLEO, Argentina), composed of six independent radiometers arranged in the focus of a Cassegrain 1.5 m antenna that observe simultaneously. Daily and continuous observations started on 2001 March and, with few stops for maintenance work, SST already gathered almost 20 yr of data. The SST main objective is to spectrally and spatially characterize flares at the frequencies of 212 and 405 GHz. SST nominal half-power beam widths (HPBWs) are 4' and 2' for 212 and 405 GHz, respectively. However, structural problems of the antenna produce deformations to the beam shapes, more pronounced at 405 GHz. Indeed, the high-frequency beams are elongated with sizes ∼4' and ∼2' at the −3 dB (50%) level along the major and minor axes, respectively. By making radial solar maps and applying a tomographic reconstruction method, we determine the SST beams up to the level of −13 dB (5%; Costa et al. 2002). The reconstructed beams have similar characteristics among receivers of equal frequency. In order to assess the effect of the beam shapes on the observed sources, we have simulated observations convolving high-resolution EUV images with the SST reconstructed beams. Simulations, instead of observations, are free from other aspects that affect differently observations at the two frequencies, such as atmospheric attenuation, receivers temperatures, and gains. On the other hand, we choose a Solar Dynamics Observatory (SDO)/Atmospheric Imaging Assembly (AIA) 304 Å image (Lemen et al. 2012) because it is representative of thermal emission from the chromosphere/transition region, has a high contrast with respect to the quiet Sun, and presents features of different sizes. Figure 1 shows the convolution of an SDO/AIA 304 Å image taken on 2011 March 26 at 15:02 UT with a pixel size of 06 × 06 with a 212 GHz (top left) and 405 GHz beam (top right). Despite the sources having different sizes, all of them present similar characteristics after the convolution with the beams at both wavelengths. This can be verified in the profiles also shown in the same figure (top middle): (a) a profile in the X direction and (b) in the Y direction, their positions are represented with blue straight lines in the simulated maps. Blue and red curves are the profiles across the disk in function of position for the 212 and 405 GHz synthesized maps, respectively. Black curves are the difference between profiles. The real observed maps are shown in the bottom panels: the 212 GHz map on the left and the 405 GHz map on the right. In the middle panel we include the SDO/AIA image used to synthesize the SST maps, with the antenna beams depicted in the insets.

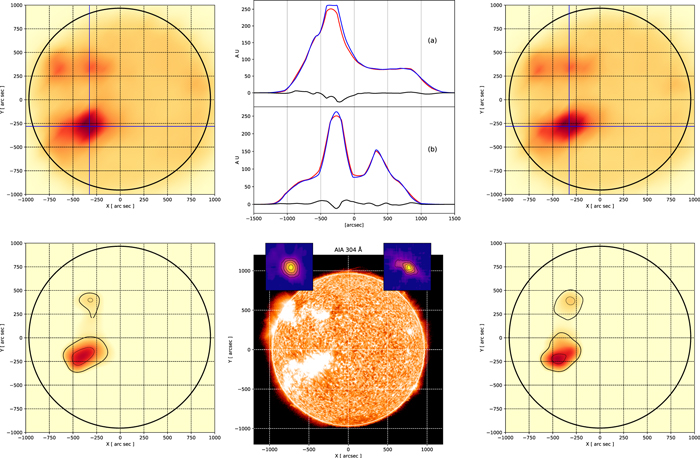

Zoom In Zoom Out Reset image size

The uncooled receivers have typical temperatures T_R ≈ 2500–3500 K, similar bandwidths Δν = 4 GHz, and integration times δt = 40 ms. During a solar observation the maximum expected antenna temperature is T_a ≈ 6000 K (i.e., no atmospheric attenuation and beam efficiency ≈1), yielding an rms system temperature

$$\begin{eqnarray*}&&{\rm{\Delta }}{T}_{\mathrm{noise}}=\displaystyle \frac{{T}_{R}+{T}_{a}}{\sqrt{\delta t\ {\rm{\Delta }}\nu }}\lessapprox 1\ {\rm{K}}.\end{eqnarray*}$$

More important than the noise temperature is the atmospheric opacity at El Leoncito that can mildly attenuate the radiation at 212 GHz but can severely reduce the emission at 405 GHz (Melo et al. 2005; Cassiano et al. 2018).

SST provides several solar maps per day as a calibration procedure. These maps are the basic data of our work. SST solar maps are typically made out of azimuth raster scans (on-the-fly maps) of 60' length. The elevation changes at every scan to make a square that covers the entire solar disk. A typical map has a separation between scans equal to 2'. The scan speed is between 0.1 and 0.2 deg s⁻¹. Since we use 40 ms integrated data, these speeds produce a separation between successive points in azimuth between 024 and 048. Therefore, observations are oversampled in azimuth creating a rectanglular pixel of (0.24–0.48) × 2 arcmin²; maps have either 375 × 31 pixels or 187 × 31 pixels. We interpolate the raw data to create a square map with a field of view of 31' and 288 × 288 pixels. Then, the map is rotated with north up, and the collected intensity units are converted to temperature, using the Sun brightness temperature as a reference (see Silva et al. 2005). We note that there is no need to equalize the beam sizes by convolving 405 GHz observations with the 212 GHz beam and vice versa, since, from the results presented above, both beams have similar spatial response.

The AI procedure implemented to detect ARs in SST maps is based on an artificial convolutional neural network (ConvNet; Cireşan et al. 2011; O'Shea & Nash 2015) composed of four convolutional layers and two fully connected layers. Every convolutional layer has one max pooling and one flattening layer. Including the input layer, the neural network has a total of 13 layers used to classify every map in 11 different categories. There is only one category representing a map with one or more ARs. To train the ConvNet we use data augmentation techniques (Bishop 2006; Goodfellow et al. 2016; Aloysius & Geetha 2017) to increase the size of the test data. We achieve ≈97% and ≈98% accuracy for testing and validation, respectively. The method reliability is increased by comparing SST maps with 17 GHz images from the NoRH, which should confirm the presence of the AR. Maps with detected ARs are binarized: a black (1) or white (0) pixel means it does or does not belong to an AR. The AR is extracted from the map using the Canny algorithm (Canny 1986), and its physical properties: position, size and maximum excess brightness temperature are automatically included in a database for later analysis. More than 16,000 maps between 2001 March and 2017 December are analyzed. Observing times are restricted to the Sun meridian transit (14:00–16:00 UTC) to reduce the atmospheric interference. Details of the methodology can be found in Garcia Pereira et al. (2020), along with preliminary statistical analysis.

In this work we concentrate in the AR excess brightness temperature ΔT_b with respect to the quiet Sun, i.e., the maximum temperature of the AR with respect to the quiet Sun. Since SST has beams with sizes of the order of a typical AR size, we do not have spatial resolution to discriminate different zones of the AR, and ΔT_b represents the average over the whole region weighted by the telescope beams. Table 1 summarizes the observations. For every year and month, a mark x and/or o indicates that ARs are detected at 212 or 405 GHz; at the end of each line we show the total number of detected ARs during the year and the yearly median of ΔT_b, the superscript and subscript are the differences to the third and first quartiles of the sample, respectively. The absence of marks means either there are no observations or that no AR is detected. During some years (2003, 2004, and 2008) technical problems temporarily stopped or reduced observations. On the other hand, it can be seen that there are more ARs detected at 212 GHz than at 405 GHz, an expected result since the opacity is much higher at 405 GHz. Another remark from the table is that from mid-May to mid-October (winter time) when the atmospheric humidity is lower we detect more ARs.

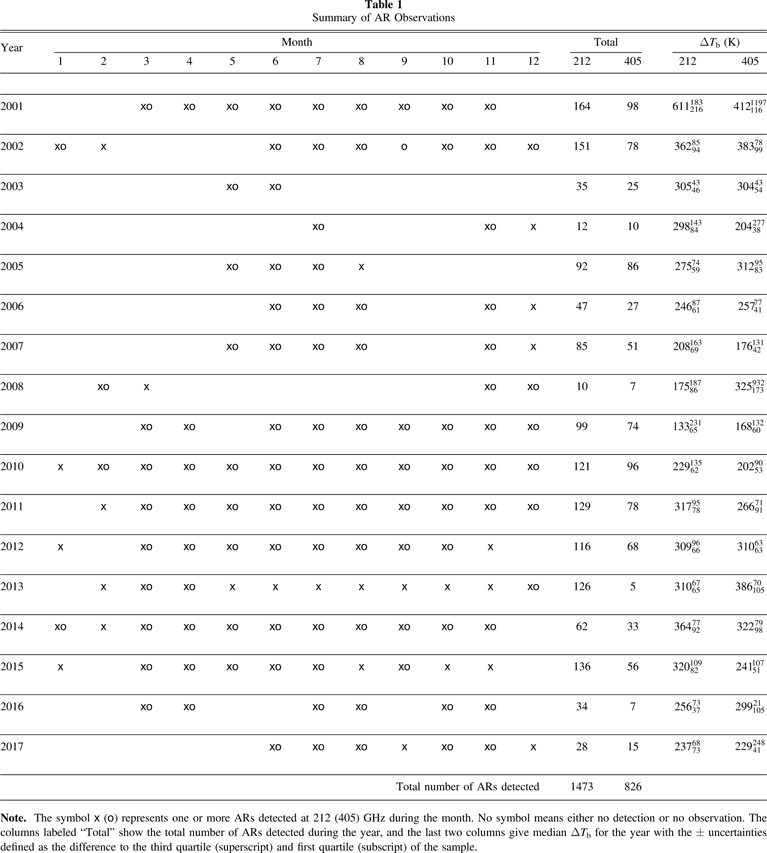

Table 1.  Summary of AR Observations

Year	Month												Total		ΔTb (K)
	1	2	3	4	5	6	7	8	9	10	11	12	212	405	212	405
2001			xo	xo	xo	xo	xo	xo	xo	xo	xo		164	98	611183216	${412}_{116}^{1197}$
2002	xo	x				xo	xo	xo	o	xo	xo	xo	151	78	${362}_{94}^{85}$	${383}_{99}^{78}$
2003					xo	xo							35	25	${305}_{46}^{43}$	${304}_{54}^{43}$
2004							xo				xo	x	12	10	${298}_{84}^{143}$	${204}_{38}^{277}$
2005					xo	xo	xo	x					92	86	${275}_{59}^{74}$	${312}_{83}^{95}$
2006						xo	xo	xo			xo	x	47	27	${246}_{61}^{87}$	${257}_{41}^{77}$
2007					xo	xo	xo	xo			xo	x	85	51	${208}_{69}^{163}$	${176}_{42}^{131}$
2008		xo	x								xo	xo	10	7	${175}_{86}^{187}$	${325}_{173}^{932}$
2009			xo	xo		xo	xo	xo	xo	xo	xo	xo	99	74	${133}_{65}^{231}$	${168}_{60}^{132}$
2010	x	xo	xo	xo	xo	xo	xo	xo	xo	xo	xo	xo	121	96	${229}_{62}^{135}$	${202}_{53}^{90}$
2011		x	xo	xo	xo	xo	xo	xo	xo	xo	xo	xo	129	78	${317}_{78}^{95}$	${266}_{91}^{71}$
2012	x		xo	xo	xo	xo	xo	xo	xo	xo	x		116	68	${309}_{66}^{96}$	${310}_{63}^{63}$
2013		x	xo	xo	x	x	x	x	x	x	x	xo	126	5	${310}_{65}^{67}$	${386}_{105}^{70}$
2014	xo	x	xo	xo	xo	xo	xo	xo	xo	xo	xo		62	33	${364}_{92}^{77}$	${322}_{98}^{79}$
2015	x		xo	xo	xo	xo	xo	x	xo	x	x		136	56	${320}_{82}^{109}$	${241}_{51}^{107}$
2016			xo	xo			xo	xo		xo	xo		34	7	${256}_{37}^{73}$	${299}_{105}^{21}$
2017						xo	xo	xo	x	xo	xo	x	28	15	${237}_{73}^{68}$	${229}_{41}^{248}$
Total number of ARs detected													1473	826

Note.  The symbol x (o) represents one or more ARs detected at 212 (405) GHz during the month. No symbol means either no detection or no observation. The columns labeled "Total" show the total number of ARs detected during the year, and the last two columns give median ΔT_b for the year with the ± uncertainties defined as the difference to the third quartile (superscript) and first quartile (subscript) of the sample.

Download table as:  ASCIITypeset image

3.1. Excess Brightness Temperature Time Evolution

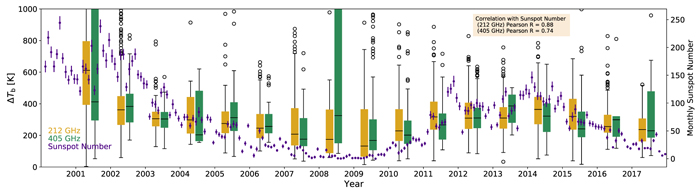

Figure 2 shows the evolution of the AR excess brightness temperature ΔT_b for the two SST observing frequencies in the form of boxplots. Every box represents one year of observations, the central, horizontal black line is the median; the lower (upper) limit of the box is the first (third) quartile, and the vertical line extends from the minimum to the maximum; the open circles represent the outliers of the distribution. Golden boxes represent results for 212 GHz, while green boxes are for 405 GHz. The purple dots are the monthly mean values of the sunspot number (SSN) obtained from the sunspot Index and Long-term Solar Observations which is an activity of the Solar Influences Data Analysis Center (SDIC) of the Royal Observatory of Belgium. The error bars correspond to 1σ for the month. We can see that ΔT_b at the two frequencies follow the solar cycle represented by the SSN. The overall cross-correlation coefficients between the annual median ΔT_b and the annual mean SSN are R = 0.88 for 212 GHz and R = 0.74 for 405 GHz; but if we restrict to the years 2009 and 2017, R = 0.93 and 0.81 for 212 and 405 GHz, respectively. One reason why R increases after 2009 is that the antenna was in commission during almost the first decade after installation in 1999. During 2008, in particular, we detected ARs during three months only, resulting in a small sample that produces a significant increase in the uncertainty (see the boxplot for 405 GHz in Figure 2). On the contrary, after 2009, we observe that boxplots are smaller, an indication of a narrow data dispersion.

Zoom In Zoom Out Reset image size

3.2. Spectral Index

From ΔT_b we can derive the spectral index α defined as

$$\begin{eqnarray}&&\alpha =\displaystyle \frac{\mathrm{log}({\rm{\Delta }}{T}_{{{\rm{b}}}_{405}})-\mathrm{log}({\rm{\Delta }}{T}_{{{\rm{b}}}_{212}})}{\mathrm{log}(405)-\mathrm{log}(212)},\end{eqnarray} \tag{ 1 }$$

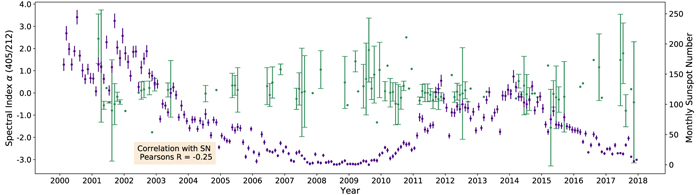

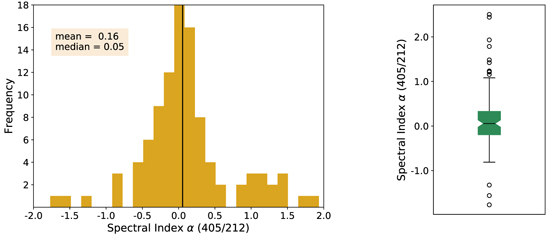

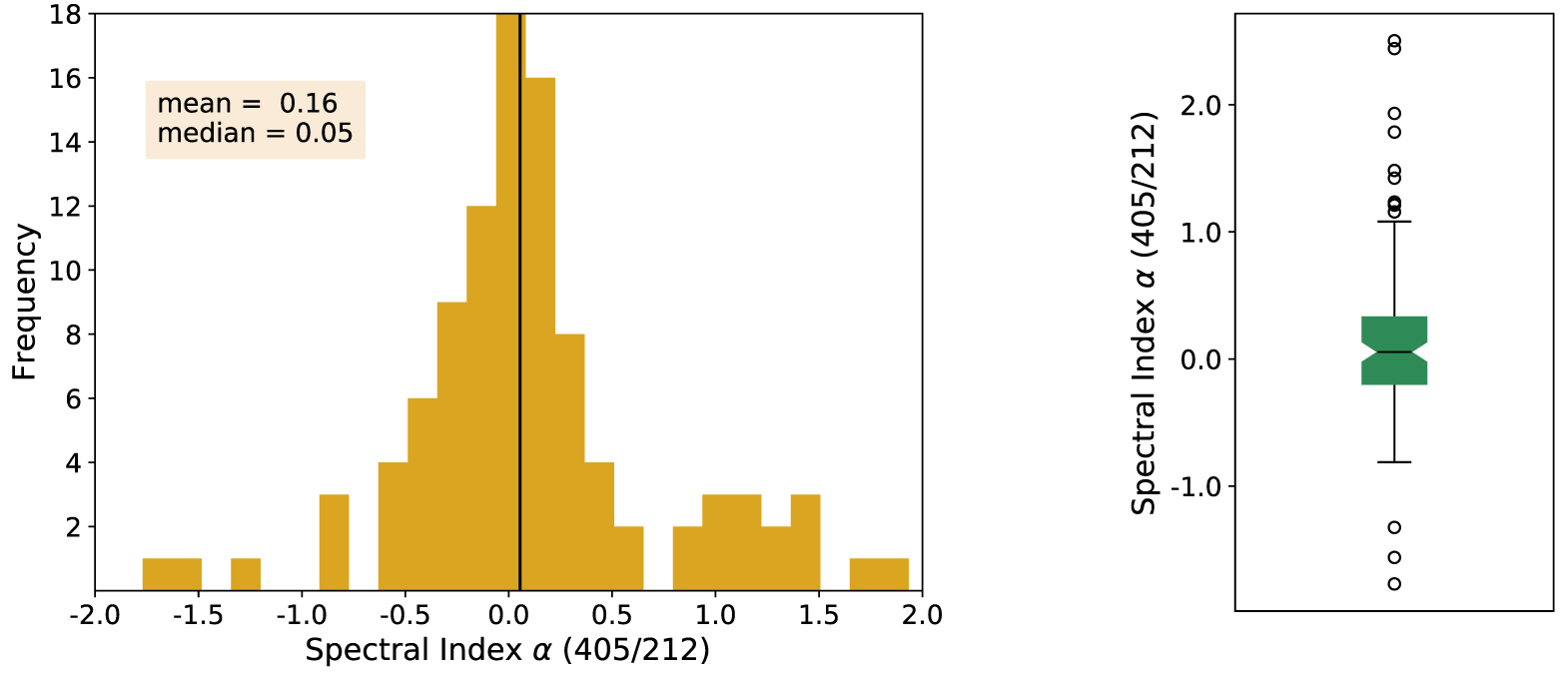

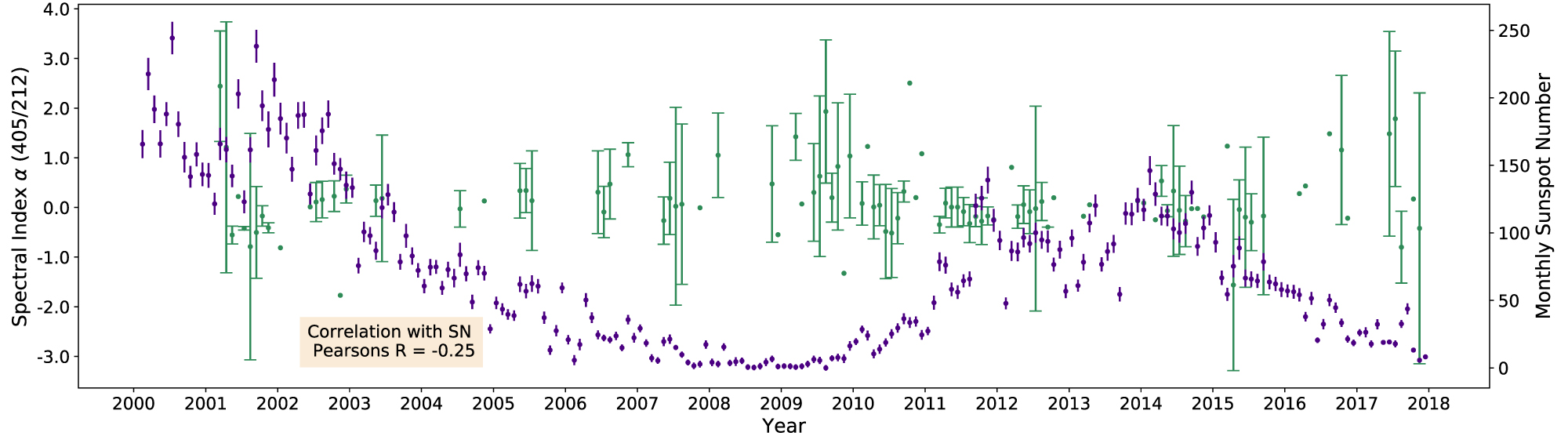

where ${\rm{\Delta }}{T}_{{{\rm{b}}}_{405}}$ and ${\rm{\Delta }}{T}_{{{\rm{b}}}_{212}}$ are the excess brightness temperatures at 405 and 212 GHz, respectively. The temporal evolution of α is shown in Figure 3; green dots are the monthly mean, while the uncertainty bars correspond to 1σ; purple dots are the SSN as in Figure 2. In Figure 4 we see the frequency distribution of α, and a boxplot of the sample; both ways graphically show the rather symmetric distribution with a mean value $\langle \alpha \rangle =0.16$ and median α_med = 0.05, implying that the sample dispersion is related to random noise. On the other hand, the overall cross-correlation coefficient R = −0.25 is consistent with an apparent slight anticorrelation observed in Figure 3.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Previous works with better spatial resolution have shown that at submillimeter wavelengths the sunspot umbra is cooler than the quiet Sun, while the penumbra has a similar temperature and the surrounding plage is much hotter (Lindsey & Kopp 1995; Iwai et al. 2017; Loukitcheva et al. 2017). However, SST beam sizes, which are of the same order of the AR, cannot resolve these spatial variations and ΔT_b is an average over the whole region, with the penumbra and surrounding plages dominating the emission, i.e., what we are determining is the variation of the umbra + penumbra + plage temperature averaged by the beam size along the solar cycle. Valle Silva et al. (2020) have shown that there are many ARs observed at submillimeter wavelengths without a spot, as it was previously seen by Selhorst et al. (2014) at centimeter wavelengths. We also note that, since we use the quiet Sun as a calibrator, and we assume that the quiet Sun brightness temperature does not change with the cycle, the absolute ΔT_b may be different at different phases of the cycle if this hypothesis is not correct. However, even if the quiet Sun temperature changes during the cycle, ΔT_b variations are real.

Cycles 23 and 24 were double peaked with an evident gap in between them (see Gnevyshev 1967); Figure 2 shows this behavior for the SSN. SST started observations in 2001, during the recovery from the Gnevyshev gap that was relatively fast and took less than a year for the SSN. Therefore, it is not possible to identify the gap in the ΔT_b time-series. In Cycle 24, the gap between peaks occurred between 2012 and 2013, which is not apparent in the ΔT_b time-series. We cannot, however, draw any firm conclusion about this point, since SST data are limited by the atmospheric attenuation and beam sizes that reduce the detected AR peak temperature, which may create false negatives. For this reason we present only one year average values. We are working now in an enhanced AI method to increase the AR detectability in the SST data.

As was already pointed out, Selhorst et al. (2014) have shown the correlation between the AR brightness temperature and the solar cycle at 17 GHz. This is an expected result at this frequency due to the emergence of ARs with strong magnetic fields ($| B| \geqslant 2200$ G at the photosphere; Vourlidas et al. 2006). These ARs may present a gyroresonance contribution that is able to increase their brightness temperatures from (2–3) × 10⁴ K to values as high as T_B > 10⁵ K, if the 17 GHz gyroresonance third harmonic (2000 G) occurs above the transition region (Shibasaki et al. 1994; Vourlidas et al. 2006). However, within solar conditions, the same mechanism does not apply at submillimeter wavelengths. The millimeter-to-submillimeter emission is mostly a thermal continuum produced at chromospheric height in local thermodynamic equilibrium (LTE; e.g., Loukitcheva et al. 2017). Instead of the flux density, as it was used in previous works and that depends on the brightness temperature and the source solid angle, here we only use the brightness temperature to characterize the spectrum, reducing the uncertainty of the spectral index. Indeed, after the propagation of temperature uncertainties in Equation (1), the α uncertainty is

$$\begin{eqnarray}\begin{array}{rcl}{{\rm{\Delta }}}^{2}\alpha & = & {\left(\displaystyle \frac{\partial \alpha }{\partial {\rm{\Delta }}{T}_{{{\rm{b}}}_{405}}}\right)}^{2}{{\rm{\Delta }}}^{2}({\rm{\Delta }}{T}_{{{\rm{b}}}_{405}})+{\left(\displaystyle \frac{\partial \alpha }{\partial {\rm{\Delta }}{T}_{{{\rm{b}}}_{212}}}\right)}^{2}{{\rm{\Delta }}}^{2}({\rm{\Delta }}{T}_{{{\rm{b}}}_{405}})\\ & = & {\left({ \mathcal Q }\displaystyle \frac{{\rm{\Delta }}({\rm{\Delta }}{T}_{{{\rm{b}}}_{405}})}{{\rm{\Delta }}{T}_{{{\rm{b}}}_{405}}}\right)}^{2}+{\left({ \mathcal Q }\displaystyle \frac{{\rm{\Delta }}({\rm{\Delta }}{T}_{{{\rm{b}}}_{212}})}{{\rm{\Delta }}{T}_{{{\rm{b}}}_{212}}}\right)}^{2}\\ & = & { \mathcal Q }({\varepsilon }_{{r}_{405}}^{2}+{\varepsilon }_{{r}_{212}}^{2}),\end{array}\end{eqnarray} \tag{ 2 }$$

where Δ(${\rm{\Delta }}{T}_{{{\rm{b}}}_{405}}$) and Δ(${\rm{\Delta }}{T}_{{{\rm{b}}}_{212}}$) are the total uncertainties in excess brightness temperatures for 405 and 212 GHz, respectively, while ${\varepsilon }_{{r}_{405}}$ and ${\varepsilon }_{{r}_{212}}$ are their relative uncertainties and ${ \mathcal Q }=1/\mathrm{log}(405/212)$. Substituting ${\varepsilon }_{{r}_{405}}={\varepsilon }_{{r}_{212}}\approx 0.1$ in Equation (2) we get Δα ≈ 0.22, a value which agrees with Figure 4 and reinforces our conclusion that the dispersion is produced by random noise. Therefore, we are very cautious to draw any conclusions about the anticorrelation between α and the SSN given by the coefficient R = −0.25. The spectral index α obtained here represents the average source properties, encompassing plages, penumbra, and umbra from one or more sunspots; however, we note that the spectrum of an AR can be well represented by a unique spectral index from 34 GHz to 405 GHz when the spatial resolution is of order 1' (Silva et al. 2005; Valle Silva et al. 2020) lending support to the optically thick emission of a thermal source.

The temporal variation of ΔT_b has to be also interpreted in terms of an average value. The evolution of an AR is modulated by the magnetic field whose dissipated energy should heat the plasma. As a solar cycle progresses the dissipated magnetic energy should increase or decrease following it, and therefore the AR average temperature should follow the cycle. However, to confirm this hypothesis, a statistical study relating the photospheric magnetic field and ΔT_b should be completed.

This work is based on data acquired at Complejo Astronómico El Leoncito, operated under agreement between the Consejo Nacional de Investigaciones Científicas y Técnicas de la República Argentina and the National Universities of La Plata, Córdoba, and San Juan. The research leading to these results has received funding from CAPES grant 88881.310386/2018-01, FAPESP grant 2013/24155-3, and the US Air Force Office for Scientific Research (AFOSR) grant FA9550-16-1-0072 and by Mackenzie Research Funding Mackpesquisa. The Brazilian Federal Agency CAPES and São Paulo State Research Agency FAPESP have supported A.G.P. and J.F.V.S. with student and PD fellowships. C.G.G.C., C.L.S., and J.P.R. are grateful to CNPq for support with the Productivity Research Fellowships. C.H.M. and G.D.C. acknowledge financial support from Argentine grants PICT 2016-0221 (ANPCyT) and UBACyT 20020170100611BA. C.H.M., G.D.C., and C.G.G.C. are members of the Carrera del Investigador Científico of the Consejo Nacional de Investigaciones Científicas y Técnicas (CONICET). This research used version 1.1.3 of the SunPy open source software package (The SunPy Community et al. 2020).
