Temporal Evolution of the Inverse Evershed Flow

We inverted the polarimetric spectra of the Si i line at 1082.7 nm with the Stokes Inversion based on Response functions code (SIR; Ruiz Cobo & del Toro Iniesta 1992). We used a single magnetic component with the magnetic field properties field strength B, inclination γ, and azimuth ϕ constant with optical depth for all pixels with a significant polarization signal above about 1% of I_c. The LOS velocity was fitted using gradients with optical depth. Temperature was allowed to vary on two nodes and an additional contribution of unpolarized stray light was used. The stray-light contribution is a free fit parameter and varied across the FOV from up to 90% in the quiet Sun to less than 1% in the penumbra and umbra in some cases. In the SIR code, the stray light is handled as a fractional contribution of an average profile, usually calculated in a quiet Sun region (see, e.g., Beck & Rezaei 2009, their Equation (1)). Its value in the one-component inversion setup used here represents a mixture of local stray light from the spatial point-spread function (PSF), global stray light from the far wings of the PSF (Beck et al. 2011) and the magnetic fill factor inside the pixel in the case of unresolved magnetic fields in the quiet Sun (Beck & Rezaei 2009). For all pixels without significant polarization signal, a single non-magnetic component was used instead. The SIR code uses the assumption of local thermodynamic equilibrium (LTE). Non-LTE effects near the line core in the intensity spectrum of the Si i line at 1082.7 nm are discussed in Bard & Carlsson (2008) and Shchukina et al. (2017), but Kuckein et al. (2012) and Joshi et al. (2016) found a negligible impact on the inferred magnetic field and LOS velocities. The NLTE effects affect primarily the temperature stratification obtained.

For the direct comparison of the FIRS and IBIS data, we created a pseudo-scan map from the IBIS time series (e.g., Beck et al. 2007, Appendix B.2). A simulated slit with a width of 03 and a length of 72'' was stepped across the IBIS FOV in steps of 03. At each scan step of FIRS, the data below the location of the simulated slit at that moment was cut out from the IBIS spectral scan closest in time to the FIRS scan step. The creation of the pseudo-scan map then only depends on providing the initial position of the simulated slit inside the IBIS FOV in x and y at the first step. Figure 2 shows the resulting spatially and temporally aligned FIRS and IBIS pseudo-scan maps for the line-core intensities and line-core velocities of He i at 1083 nm, Hα and Ca ii IR.

We ran a bisector analysis over all Hα and Ca ii IR spectra from IBIS. The bisector analysis (see Figure 3) determined the bisector velocity (central position), bisector intensity (intensity value), and bisector width (length of the bisector) for 30 (10) bisector levels in steps of 3 (10)% of the relative line depth $\mathrm{LD}=({I}_{c}-{I}_{\mathrm{core}})/{I}_{c}$ for Hα (Ca ii IR). The observed spectrum of each spectral scan averaged over the area of the white squares in the last column of Figure 1 was first matched to the reference spectrum from the Fourier Transform Spectrometer atlas (Kurucz et al. 1984) with a correction for the transmission of the IBIS prefilter as described for instance in Beck et al. (2019). The spectra were also re-sampled to a denser wavelength grid prior to the bisector analysis. As the range of the spectral scanning did not reach continuum levels, the first wavelength point of each spectral line (656.12 and 853.93 nm; see Figure 3) was substituted for I_c. The line depth and the corresponding relative intensity values at fractional line depth were calculated separately for each and every spectrum (i.e., LD = LD(x, y)) and thus vary across the FOV and with time. We used the bisector velocities at 85 (70)% line depth for Hα (Ca ii IR) in the following as "line-core" velocities. They are more reliable and robust than levels closer to the line core because of the flatness of the profile of Hα around the line core and the occurrence of emission peaks in Ca ii IR, especially in the umbra. We still have set the umbral velocities of Ca ii IR to zero in some plots, as they are often spurious even at 70% line depth. In each spectral scan, the average umbral line-core velocity (black region in the fourth row of the rightmost column of Figure 1) was set to zero for Hα, while for Ca ii IR the average velocity outside the sunspot (blue region) was used as the reference velocity.

Zoom In Zoom Out Reset image size

The left four panels of the animation anim_combined_small.mp4 show the line-core intensity and velocity of Hα and Ca ii IR over all 400 spectral scans, while the rightmost column shows the temporal and azimuthal derivative of the Hα velocity. In addition to the IEF channels in and near the penumbra, various other features such as umbral oscillations, RPWs, large-scale filaments, and a potential reconnection event can be seen.

For the analysis of the results, we extracted all relevant quantities such as spectral line parameters, bisector values, and inversion results on radial cuts. These cuts were set to start at the center of the sunspot and then sample the azimuthal variation on an angular step width of 1°. The zero-point for the angle is to the right, and the angle increases counterclockwise. The symmetry line of the sunspot with about zero LOS velocities (i.e., the direction perpendicular to the connection between sunspot and disk center) goes from about 60° to 240° in azimuth. Each cut extended over a length of 38'' on 600 points with a spatial radial sampling of ≈006 per point. A subset of the cuts is indicated in the middle panel of Figure 1 and the left column of Figure 2. The same cuts were extracted from all spectral scans of IBIS, the FIRS data, and the IBIS pseudo-scan maps.

We determined the radial distance of the umbral and penumbral boundary for each azimuth angle by thresholds in the continuum intensity (blue and red lines in the top panel of Figure 4). The average umbral and penumbral radius were 8'' and 19'', respectively. For the automatic detection of the location of IEF channels in all spectral scans we also defined a minimal and maximal radial distance inside which the majority of the IEF channels are visible (black lines in top panel of Figure 4 and black lines in Figure 12 below). Local LOS velocity extrema outside of these boundaries were not counted and are considered to correspond to events other than IEF channels. The IEF channels on the limb side are seen further away from the sunspot center because of the projection effects.

Zoom In Zoom Out Reset image size

4.1.1. Lifetime

To estimate the lifetime of individual IEF channels, we used the temporal evolution for each azimuth angle as shown in the lower panel of Figure 4 for an azimuth of 0°. We determined the maximum value of the unsigned LOS velocity within the radial range for each azimuth angle given by the black lines in the upper panel of Figure 4.

The bottom-left panel of Figure 5 shows these maximal LOS velocities as a function of the azimuth angle and time. Continuous vertical white streaks of increased velocities indicate the extended presence of an IEF channel. Their length varies from about 10 to over 60 minutes. Some IEF channels exist at about the same place for the whole duration of the time series. The majority of the channels seems to exist for significantly more than 10 minutes. There are several occasions where an existing IEF channel is replaced by a new one rather than completely disappearing, which can be better seen in the animation anim_combined_small.mp4. The IEF channels show only little radial motion during their existence (top-left panel of Figure 5).

Zoom In Zoom Out Reset image size

To better quantify the lifetimes of individual IEF channels, we first applied a slight smoothing to the azimuth-time velocity image of Figure 5 to eliminate some small-scale spurious velocity values. As many of the IEF channels are so close to each other in azimuth that their velocity signatures overlap, we manually added separation lines between the most clearly defined IEF channels (vertical black lines in the right column of Figure 5). Running a contour plot with a velocity threshold of 1.25 km s⁻¹ over the image then provided a binary mask of all temporally and/or azimuthally continuous velocity patches with a speed above the threshold (top-right panel of Figure 5) that should correspond to individual IEF channels. The lifetime can then be derived from the first to last point of time that each patch is present. Figure 6 shows the histogram of the resulting lifetimes of the about 60 IEF channels in the binary mask. The lifetime shows a flat distribution ranging again from about 10 to 60 minutes.

Zoom In Zoom Out Reset image size

Figure 7 shows the temporal evolution of the maximal unsigned velocity within the radial boundaries given by the black lines in Figure 4 at nine azimuth angles as another independent determination of the lifetime. The LOS velocities of Hα and Ca ii IR closely match each other. Again, increased velocities indicating an IEF channel persist over usually at least 10 minutes with some continuing over up to 60 minutes. We note that lateral motions of the IEF channels can lead to the disappearance of the velocity signature at a fixed azimuth angle in that case.

Zoom In Zoom Out Reset image size

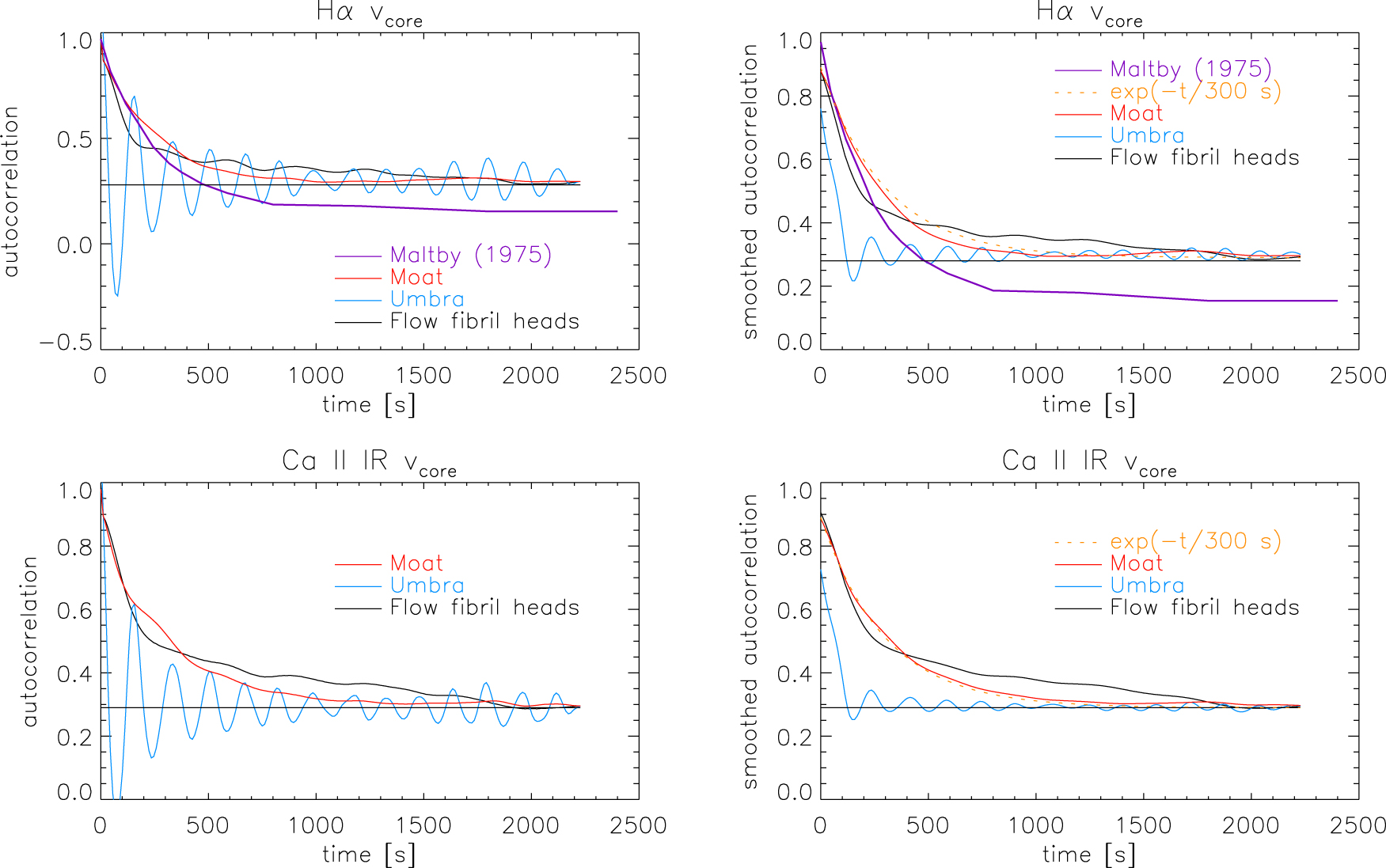

As final estimate of the lifetime of IEF channels we calculated the temporal auto-correlation of velocities across the time series. We restricted the range in azimuth to 0°–90° and 270°–360° for this calculation to avoid the presence of the long-lived filament structure on the limb side at an azimuth of about 200°. We calculated the auto-correlation for three radial ranges covering the umbra, the locations of the IEF channels, and the sunspot moat beyond the upper radial boundary of the IEF locations. The temporal auto-correlation for the umbra shows a clear oscillatory pattern opposite to the IEF channels and the moat (left column of Figure 8). We thus averaged the auto-correlation over about one period of the umbral oscillations for a clearer picture (right column of Figure 8). In that form, it is obvious that the umbral auto-correlation drops fastest to about zero over less than 300 s. The auto-correlation for the moat region decays slower and closely follows a purely exponential decay with a decay constant of 300 s (e.g., the orange dotted line in the lower panel of Figure 8). The temporal auto-correlation for the region of the IEF channels decays faster than that of the moat region below 200 s, but maintains an extended tail of higher correlation values from about 500 to 1800 s, indicating again the persistence of some structures in the IEF channel region over timescales of 10 minutes or more. Maltby (1975) determined a similar quantity as the auto-correlation that he defined as the number of IEF channels with unchanged velocity after a given time delay. We read off the corresponding values from his Figure 7, scaled them to be about unity at zero time delay, and over-plotted his results on the auto-correlation. The slope of his curve for t < 400 s matches well with our result. Equalizing the values for long time delays t > 1500 s would make the match of the curves even closer.

Zoom In Zoom Out Reset image size

4.1.2. Start and End of IEF Channels

With the constant evolution of the velocity pattern including the merging and splitting of IEF channels, it is rather difficult to unambiguously identify the start or end of a specific IEF channel. We manually identified four cases of the termination of halfway isolated IEF channels that did not get replaced instantly and two cases of the start of a flow.

Figure 9 shows the temporal evolution of one event of the start of an IEF channel that began at about UT 15:21 at an azimuth angle of 327°. The LOS velocity is not zero in the beginning from a previous IEF channel. The flow speed at the location marked with the vertical lines approximately doubles from about 6 to 12 km s⁻¹ and the increased velocity then persists for several minutes. There is almost no radial motion of the location of maximal velocity, with potentially a really small displacement toward the umbra. Figure 10 shows the opposite case of a termination of an IEF channel at about UT 14:44 at an azimuth angle of 351°. The flow speed reduces from about 12 to 0 km s⁻¹ in Ca ii IR, while in Hα a residual peak with a speed of about 3 km s⁻¹ remains that moves away from the umbra by a few arcseconds along with the decrease of the flow speed.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Figure 11 and Table 1 summarize the temporal evolution of the six cases of start and end of an IEF channel that we manually identified. The deceleration at the end seems to be about twice as fast as the acceleration at the start of an IEF channel. The corresponding velocity would change from about sound speed to zero in less than 3 minutes (bottom row of Table 1), while in the opposite direction it takes about 8–10 minutes to reach sound speed when starting from zero. The deceleration derived from the change in the LOS velocity at a fixed spatial location (Figure 11) is likely to be somewhat overestimated because of the additional outwards radial motion of the IEF downflow point, but in general the deceleration of an IEF channels seems to be faster than its acceleration. The acceleration falls short of the one corresponding to free fall by an order of magnitude. For comparison, we derived the corresponding acceleration for the steady-state solution of a critical siphon flow of Montesinos & Thomas (1993) from the middle panel of their Figure 3. The flow in their case accelerates from about 3 to 6 km s⁻¹ over a distance of 300 km with a linear velocity increase. Using the average velocity of 4.5 km s⁻¹ for covering the distance yields an acceleration of about 45 m s⁻², which matches our deceleration values.

Zoom In Zoom Out Reset image size

Table 1.  Acceleration and Deceleration of IEF Speed

Angle (deg)	351	290	325	8	327	326	⋯
a (m s−2)	−80	−45	−45	−36	18	14	45a
0–8 km s−1 (s)	100	179	179	224	448	560	179a

Note.

^aDerived from Montesinos & Thomas (1993).

Download table as:  ASCIITypeset image

In Paper I and Beck & Choudhary (2019) we were only able to track 100 manually identified IEF channels in observations at a low cadence of about 20 minutes. The current IBIS time series allows us to increase the statistics on the locations of IEF channels and downflow points to more than 10,000. Given the lifetime of the IEF channels of several minutes and the temporal cadence of the observations of about 10 s, this does, however, not correspond to a sample of 10,000 different IEF channels, since many of them will be counted multiple times.

4.2.1. Azimuth Angles

To determine the preferred azimuth locations of the IEF channels, we first averaged the radial cuts over the time series (see Figure 12). While the umbral oscillations average out completely both in the LOS velocity and the line-core intensity, several of the IEF channels that persist for a large fraction of the time still clearly stand out. There are no pronounced differences between Hα and Ca ii IR apart from the somewhat higher contrast in the Ca ii IR line-core intensity. The same is valid for the comparison of the FIRS He i data with the IBIS pseudo-scan maps in Figure 2.

Zoom In Zoom Out Reset image size

We then averaged the velocities between the black horizontal lines in Figure 12 in the radial direction and determined the locations of IEF channels in azimuth by identifying local extrema—either minima or maxima—in the azimuthal direction (bottom panel of Figure 13). The same approach was applied to the radial cuts of each individual spectral scan (top panel of Figure 13). On average, about 35 IEF channels were found in the azimuthal direction in each spectral scan, while there were 32 IEF channels in the temporally averaged velocity map. Both spectral lines show similar LOS velocities and yielded about the same number of detected downflow points (Figure 13).

Zoom In Zoom Out Reset image size

The locations of the IEF channels found in each spectral scan in Figure 14 confirm again the presence of IEF channels at the same place over several 10 minutes up to the full duration of the time series. It can also be seen that the lateral motion in azimuth is small and usually does not exceed 2°–3°. The absence of IEF channels around 60° and 240° results from the lack of LOS velocities at those angles because of the projection effects.

Zoom In Zoom Out Reset image size

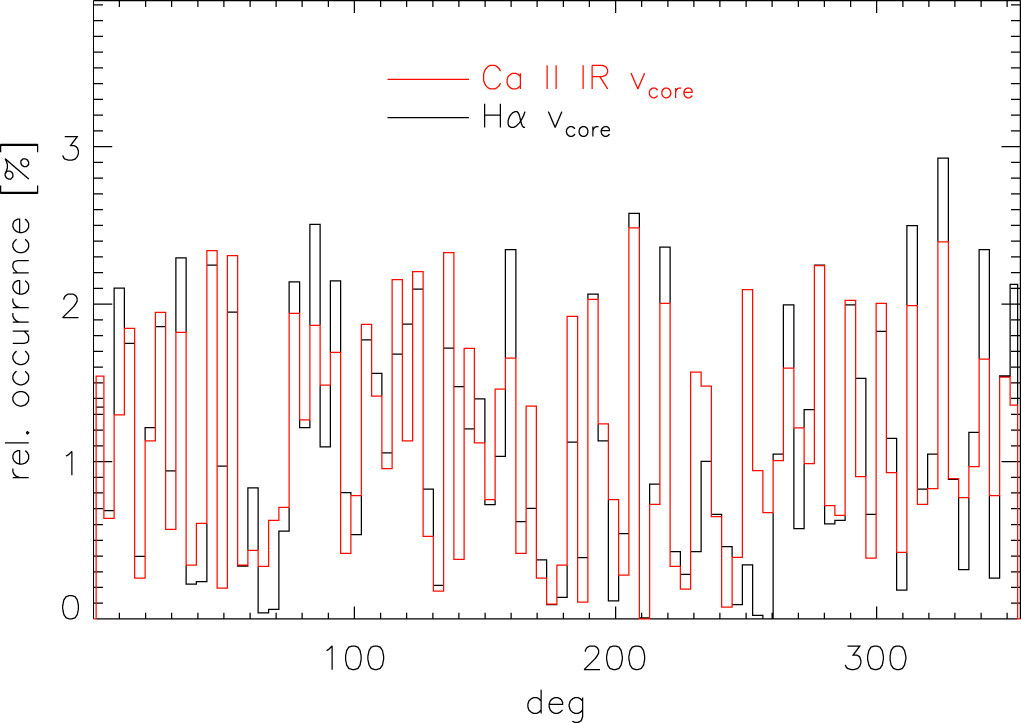

Figure 15 shows the histogram of the azimuth angles at which IEF channels were found in the full time series. There are several angles with an increased probability of hosting IEF channels that naturally coincide with the locations of high velocities in the average azimuthal velocity variation (Figure 13) or the time-dependent determination (Figure 14) that exhibit the existence of the long-lasting IEF channels. The spacing between such preferred azimuthal locations is about 10° in the histogram, which is fully compatible with the average number of about 35 IEF channels found in each spectral scan under the assumption of equidistant spacing.

Zoom In Zoom Out Reset image size

4.2.2. Relation to MMFs

4.2.3. Relation to Penumbral Magnetic Field

To determine a possible relation between the preferred azimuthal locations of IEF channels and the penumbral magnetic field, we averaged the HMI magnetic field results first over the duration of our observations and then over some radial range inside the penumbra. We applied the same identification of local extrema in B, γ, and Φ as used on the LOS velocities for the identification of IEF channels. The upper left panels of Figure 16 show the resulting azimuthal variation of B, γ, and Φ from HMI and the corresponding LOS velocity of Hα with the identified locations of local extrema in the magnetic field properties overlaid on the Hα velocities. Even if there seems to be some overlap of locations with higher field strength or magnetic flux with the locations of IEF channels in the azimuthal curves, the connection is not convincing. The scatter plot of photospheric field strength against the chromospheric Hα velocity shows no trend at all (lower left panel of Figure 16), while the correlation between LOS magnetic flux Φ and the LOS velocity of Hα (top panel in second column) just results from the common property of passing through zero and becoming maximal at the same azimuthal angles.

Zoom In Zoom Out Reset image size

We repeated the same procedure with the FIRS Si i inversion results and the IBIS pseudo-scan maps to check if the lack of correlation might be related to the spatial resolution or polarimetric sensitivity. We obtained, however, the same result with no obvious relation between photospheric magnetic field properties and the preferred locations of the IEF channels (top-right panels of Figure 16), or in this case, even more clearly the actual absence of significant magnetic field variation at the preferred azimuthal locations of IEF channels. The characteristic azimuthal scale of variations in the photospheric penumbral field is also about 10° (e.g., the green line in the top-right panel of Figure 16), so any apparent cospatiality of IEF channels and local magnetic field strength maxima in azimuth could well be fully coincidental. The majority of the IEF downflow points are located inside the penumbra (see the next section).

4.2.4. Radial Distance from the Spot Center

For the determination of the radial distance of the IEF channels from the sunspot center, we located the maximal velocity within the radial boundaries given in Figure 12. The maximal velocity within that radial range is usually found at the end of an IEF channel (Figures 9 and 10). The bottom panel of Figure 17 shows the histogram of the radial distances and the top panel the average value with azimuth angle. The limb and center side were treated separately to take the difference between them due to the projection effects into account. The IEF downflow points are found to lie from 0.6 to 1.4 spot radii on the center side, with a maximum probability of occurrence within the penumbra at around 0.9 ± 0.14 spot radii. For the limb side, the locations shift beyond the outer penumbral boundary and the probability monotonically increases with increasing radial distance. These values are, however, strongly biased by the location of the symmetry line of the sunspot that reduces the LOS velocities at the expected true location of the IEF downflow points to zero, and by the presence of the large-scale, curved, and permanently present filaments on the limb side of the sunspot (see Figure 1).

Zoom In Zoom Out Reset image size

As an independent determination of the radial location of the downflow points, we also directly averaged the LOS velocities and line-core intensities over time. Figure 18 shows the radial variation of the Hα and Ca ii IR velocities and intensities separately for the limb and center side. The same difference between limb and center side as before is found with the maximal flow velocity further out on the limb side. The line-core intensities are less affected by the projection effects, as there is no symmetry line for intensity. The downflow points with increased intensity are therefore found closer to the penumbra on the limb side as well. We note that the Hα intensity also shows a radial intensity maximum at about the sunspot boundary and thus must be sensitive to temperature effects to some extent.

Zoom In Zoom Out Reset image size

In Paper I, we found that the IEF channels do only show up as a strongly Doppler-shifted line satellite close to the downflow points. Tests with synthetic data suggested that this results even for an assumed flow channel with 100% fill factor in the upper atmosphere, which would indicate a vertical structuring along the LOS. To cross-check whether it still possibly could be caused by the limited spatial resolution of >07 of the SPINOR data used in Paper I, we extracted a similar set of individual spectra along an IEF channel from the current data sets. Figure 19 shows Hα, Ca ii IR, and He i spectra on a cut along a flow fibril that intersected the downflow point. For the IBIS data in Hα and Ca ii IR, we obtain the same general picture as before with a strong component at rest and a weak line satellite in the red line wing with large LOS velocities. The spectra of the He i line at 1083 nm differ to some extent, but upstream of the downflow point. For He i the unshifted component is missing or weaker than the Doppler-shifted one there. Beyond the downflow point the pattern changes to the same as in the other lines, with the Doppler-shifted component getting weaker the larger the Doppler shift and the closer to the umbra the spectrum was recorded. The pattern in all lines therefore still would comply with a vertical structuring, where for He i there is no absorbing matter of high opacity apart from the IEF channel radially outwards from the downflow point.

Zoom In Zoom Out Reset image size

We find no significant difference between the appearance of the IEF channels in the three chromospheric lines of He i at 1083 nm, Ca ii IR at 854 nm, and Hα at 656 nm. All spectra and the derived quantities comply with a picture of IEF channels as flow fibrils at chromospheric levels that turn down to the photosphere at the inner end point in the penumbra, where a shock forms because of the supersonic flow speed. Even at the improved spatial resolution as compared with Paper I, the IEF channels show up as a Doppler-shifted line satellite close to the downflow points. This suggest a vertical structuring along the LOS instead of lateral spatial resolution effects.

Averaged flow speeds of about 4 km s⁻¹ (Figure 18) match the results of 4–6 km s⁻¹ in, for instance, Dialetis et al. (1985) or Georgakilas et al. (2003). Thanks to the higher spatial and spectral resolution of our data, we can demonstrate that the true LOS velocities of individual IEF channels are two to four times as high, which makes them supersonic at photospheric heights already without additionally taking the projection effects onto the LOS into account. The radial locations of the downflow points inside the penumbra or close to the outer penumbral boundary also match previous findings (Dialetis et al. 1985; Alissandrakis et al. 1988; Dere et al. 1990; Georgakilas et al. 2003). We were not able to find any clear connection of the IEF channels in general or downflow points in specific to the local photospheric magnetic field properties or its temporal evolution neither in the penumbra nor in the moat, even if the IEF channels seem to occur repeatedly at preferred azimuthal angles around the sunspot center. Joshi et al. (2016) found a similar lack of a strong correlation between chromospheric flows and in their case the chromospheric magnetic field vector.

The pronounced difference between LOS velocities on the center and limb side of the sunspot will be primarily due to the projection effects (left half of Figure 20) at the heliocentric angle of the observations of 43°. Assuming field-aligned flows, the LOS is about perpendicular to the flow direction just where the IEF downflow points on the limb side would be. This is confirmed by the presence of an enhanced line-core intensity on the limb side at about the same radial distance as on the center side because the intensity is barely impacted by the LOS effects.

Zoom In Zoom Out Reset image size

Our findings on the temporal evolution of the IEF channels closely follow those of Maltby (1975) and Georgakilas & Christopoulou (2003). The lifetime of individual IEF channels is of a few to upward of 10 minutes, while some last for the full duration of the observations of more than 1 hour. Similar to the description of Maltby (1975), we see occurrences of IEF channels getting replaced by new ones at about the same location. An established IEF channel persists with about the same properties for several minutes with little radial or lateral motion and without any clear impact of the transient events discussed in the next section. The IEF channels are clearly not oscillatory phenomena. In the few cases, where we could track the start and stop of individual isolated IEF channels, we find that the initial acceleration over up to about 10 minutes takes about twice as long as the deceleration at the end. Accelerations are on the order of a few ten m s⁻² and fall short of gravitational acceleration in free fall.

Our observations had a higher spatial, spectral, and temporal resolution than most previous data used for similar studies on the IEF. This allowed us a much clearer distinction between the IEF channels and other more transient phenomena that can clearly be seen to be present in the animation of the observation and multiple plots, but were not investigated in detail in the current study.

6.3.1. IEF Channels and RPWs

6.3.2. IEF Channels and Velocity Packets

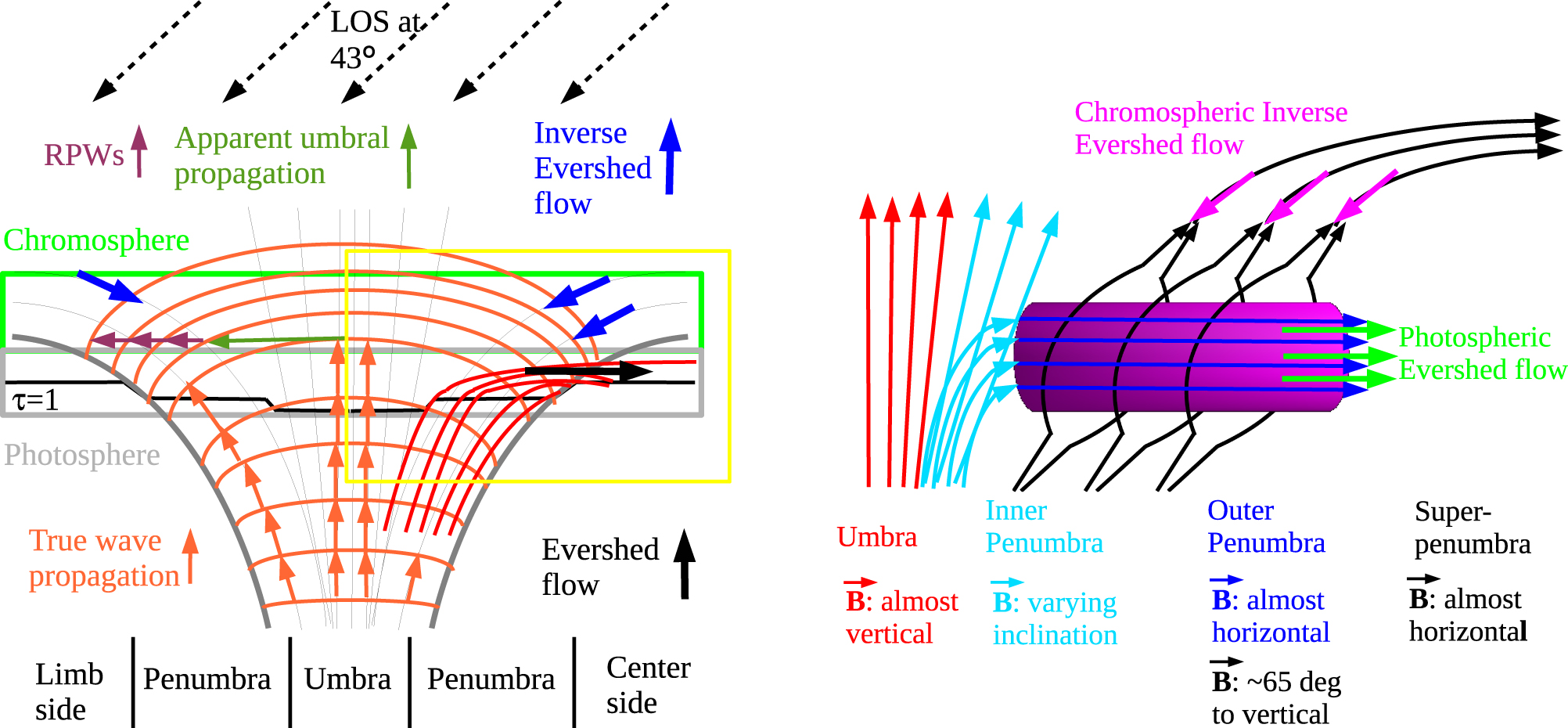

Figure 20 attempts to put our results on the IEF structure and evolution from Choudhary & Beck (2018), Beck & Choudhary (2019), and the current study into the larger picture of sunspot topology and dynamics.

The results on the inclined flow angle (Haugen 1969; Dialetis et al. 1985; Georgakilas et al. 2003; Beck & Choudhary 2019) and the direction opposite to the photospheric EF require that the IEF connects to a different set of magnetic field lines than those that harbor the nearly horizontal EF (right panel of Figure 20). Those field lines would have to reach chromospheric heights in or close to the penumbra, continue throughout the super-penumbra in or close to the chromosphere—because the IEF channels can be identified over several Mms in the radial direction outside of the penumbra—and then connect to places presumably at the end of the moat cell. MMFs would correspond to photospheric structures below the IEF channels that would connect to the horizontal magnetic field lines of the EF instead (Cabrera Solana et al. 2006). Umbral field lines would only reach the photosphere again at much larger distances from the sunspot and with much larger apex heights, which could render it impossible to drive a siphon flow along them. This topology would imply that EF and IEF are two distinct, unrelated phenomena with eventually different physical drivers.

As far as the radial propagation of umbral waves (UWs) and RPWs is concerned, our data suggest that they most likely result from coherent oscillations across the whole sunspot cross-section below the photosphere. Each RPW in Figure 4 has an associated UW (see also Tziotziou et al. 2006). The apparent radial propagation speed of the UWs is 100 km s⁻¹ or more, with in some case zero slope of the UW phase ridges in the r–t-diagram, which would imply infinite speed. A wave source below the surface across the whole sunspot cross-section would be able to consistently explain both the UW and RPW speeds, where the latter show an only apparent radial propagation caused by an increased time delay when reaching the chromosphere because of the longer distance to be traveled along the inclined penumbral magnetic field lines (orange arrows in the left panel of Figure 20; Bloomfield et al. 2007).

As noted in our previous publications (Choudhary & Beck 2018; Beck & Choudhary 2019), the observed properties of the IEF are compatible with a siphon flow mechanism (see, e.g., Thomas 1988, and references therein). Here, we give a brief updated account of the properties of the IEF adding the results from the current study. We observed the persistent existence of IEF channels in the line core of the Ca ii IR line at 854.2 nm that has a formation height of about 1 ± 0.2 Mm. The IEF is found only along the elevated chromospheric fibrils and absent outside. The flow angle is inclined 30°–90° to the local surface normal near the downflow points. The chromospheric fibrils join the outer penumbra with the surrounding super-penumbral boundary that hosts more diffuse photospheric magnetic elements. The flows terminate at the penumbral end of the fibrils, where the downflowing material creates a stationary shock front with enhanced temperatures of up to 2000 K above quiet Sun conditions. There are no indications of significant downflows at the presumed outer end of the flow fibrils. The photospheric magnetic fields strength at the downflow points that are located mostly at the outer penumbral boundary is greater than 1 kG. In the current study, we find that the flows are stationary over about ten minutes to more than 1 hour. There are no indications of significant changes of the magnetic field topology like magnetic flux emergence in the moat in the photospheric magnetic field measurements or permanently rising loops in the chromospheric diagnostics.

Let us consider several mechanisms proposed to explain the downward flow of material toward the surface of the Sun. One of the mechanisms is due to rising loops in which the material at the loop top is condensing and subsequently drains due to gravitational forces (Beckers 1962). In this situation, downflows should be observed at both ends of the loop which would last for a comparably short period because of the limited mass reservoir in the loop. This is contrary to our findings: the lifetime of the flows reported here is several 10s of minutes, which cannot be maintained by rising loops with chromospheric densities, and we do not detect systematic downflows at the outer end of the fibrils. Furthermore, the temporal evolution of the HMI magnetograms and the chromospheric intensity and velocity maps do not indicate any rise of existing magnetic flux or new magnetic flux emergence, especially not in the shape of the radial thin elongated structures of several Mm length that would be required. Given the limited formation height of the Ca ii IR line core, rising loops would have to be constantly replenished from below to maintain the persistent existence of the fibrils in that line.

Another mechanism to drive flows is the so-called moving tube model (Montesinos & Thomas 1997; Schlichenmaier et al. 1998b), in which the flow is driven by the gas pressure difference between a hot upflow point and the colder outer end. The flow direction is radially outward from a point with higher to lower magnetic field strength. This mechanism was suggested to be responsible for the photospheric Evershed flow. Its properties are, however, again at odds with our results for the IEF channels. We found that the temperature at the inner end is up to 2000 K above QS conditions. If the temperature at the outer end would not be even significantly higher than that, a flow driven by the thermal gas pressure difference would go in the opposite direction to the observed IEF.

Observations of coronal rain (Vissers & Rouppe van der Voort 2012; Ahn et al. 2014) show a much more both spatially and temporally intermittent behavior than the long-lived IEF channels along the elongated thin flow and intensity fibrils. Oscillations from inside the sunspot were found to have almost zero velocity amplitude at the locations of the IEF downflow points in the current study.

We thus do not think that any proposed option apart from a siphon flow mechanism is valid to explain the IEF. A definite proof requires the explicit measurement of the field strength at the outer end points. The biggest limitation here is that the IBIS FOV is 90'' in diameter. For a sunspot as large as the one in the current study, the magnetic network elements at the outer end of the moat cell are not covered (see, e.g., the HMI magnetogram in Figure 1), apart from the question how well one can really uniquely determine the more diffuse outer end of the IEF channels. To fully understand the formation of IEF channels and their intermittent nature would require a combination of chromospheric and photospheric diagnostics with high spatial and temporal resolution over an even larger FOV to track both the flow fibrils and the photospheric magnetic field up to the end of the moat cell.

For the interpretation of the IEF in the current study, we would argue that none of the other proposed drivers matches all of the observed IEF properties, while none of the observed properties is at odds with a siphon flow mechanism.

Apart from the topics on the transient phenomena that merit further investigation, we would like to point out some more avenues that could be pursued on the IEF itself.

The detailed relation between the EF and IEF, or its absence, requires simultaneous information on photospheric and chromospheric layers. The different bisector levels in our analysis, which we did not actually make use of in the current study, would allow one to trace EF, IEF, and wave phenomena with height in the atmosphere, but only within limits. A combination of quasi-simultaneous photospheric and chromospheric observations would be better suited. Of especial interest would be the search for any possible relation between the IEF downflow points and photospheric downflows in the penumbra (Katsukawa & Jurčák 2009, 2010). The IEF downflow points are well localized and the flow speed is not zero after the deceleration by the stationary shock (Paper I), so there is mass that should reach the photosphere, but only at a few well-defined places. An in-depth analysis of the height variation of thermal and dynamic properties would also benefit from more sophisticated approaches in the analysis of the spectra by means of an inversion of the Ca ii IR and Hα spectra (Beck et al. 2019; Schwartz et al. 2019).

Another topic of interest would be to track the evolution at the outer end of IEF channels in or at the end of the moat cell. We were unable to identify trigger events that control the start or end of the IEF channels at the inner end point within the limits of the spatial resolution of our polarimetric data. Such data would require an FOV that covers both ends of the IEF channels in one go at a spatial resolution similar to that of the IBIS data used here, but including spectropolarimetry.
