Searching for Quasiperiodic Modulations in γ-Ray Active Galactic Nuclei

The Large Area Telescope (LAT) on board the Fermi satellite is sensitive to γ-rays from ∼20 MeV to 500 GeV (Atwood et al. 2009). Before the launch of the Fermi satellite, two classes of active galactic nuclei (AGNs) were known to emit γ-ray photons: blazars and radio galaxies, both possessing relativistic jets. Their host galaxies are giant elliptical galaxies. Fermi-LAT discovered the third class of γ-ray AGNs: radio-loud, narrow-line Seyfert 1 galaxies (NLSy1s; Abdo et al. 2009; Liao et al. 2015).

Blazars, with their relativistic jets pointing to the Earth (Urry 2011), are the most numerous extragalactic γ-ray sources in Fermi-LAT sources (Acero et al. 2015). Radiations from blazars cover from radio frequency, optical band, to γ-ray energies (Maraschi et al. 1992; Tavecchio et al. 1998; Finke et al. 2008; Yan et al. 2014), and are variable in entire electromagnetic bands on a variety of timescales and amplitudes. According to the features of their optical emission lines, blazars are usually divided into two classes: BL Lac objects (BL Lacs) with weak or even no emission lines and flat spectrum radio quasars (FSRQs) with strong emission lines.

Radio galaxies are these AGNs with their jets pointing away from our line of sight. A few radio galaxies were detected by Fermi-LAT (Acero et al. 2015). They are lower luminous than blazars. Fermi-LAT revealed the Mpc jet structure of the radio galaxy Centaurus A (Abdo et al. 2010).

Radio-loud NLSy1s are not typical Seyfert galaxies because they possess relativistic jets, which are a relatively rare class of AGNs. γ-ray NLSy1s may be some FSRQ-like objects, but with lower black hole masses (as well as jet powers) and higher accretion rates (e.g., D'Ammando et al. 2015; Foschini et al. 2015; Sun et al. 2015). Differing from the host galaxies of blazars and radio galaxies, the host galaxies of radio-loud NLSy1s are spiral galaxies.

Fermi-LAT has been collecting γ-rays more than eight years, which enables us to construct long-term γ-ray light curves. Long-term γ-ray light curves provide abundant information on jet physics and central supermassive black holes (SMBH). Here, we focus on searching for quasiperiodic variabilities in γ-ray AGNs.

Quasiperiodic oscillations (QPOs) are important tools for studies of BH-jet systems. X-ray QPOs are well observed in X-ray binaries, and are widely believed to be related to the accretion in the innermost stable circular orbit around BHs (Remillard & McClintock 2006). Up to now, QPOs have been tried to search for in multiwavelength light curves of AGNs. Many authors claimed the findings of quasiperiodic signals in AGNs with a wide range of periods from minutes to years (Bai et al. 1998, 1999; Rani et al. 2010; Zhang et al. 2012; Lin et al. 2013; Zhang et al. 2014; Bhatta et al. 2016; Li et al. 2019; Hong et al. 2018; Zhang et al. 2017). Among them, the most compelling case is the BL Lac OJ 287, which has been monitored in optical band more than a century, and a periodic signal with the period of ∼12 yr was found in its optical light curve (Kidger et al. 1992; Valtonen et al. 2006). In the X-ray band, possible QPOs have been reported in NLSy1s (e.g., RE J1034+396, 1H 0707-495 and Mrk 766) by Gierliński et al. (2008), Pan et al. (2016), Zhang et al. (2017a, 2018), and the periods of X-ray QPOs are usually several hours. Very recently, γ-ray QPOs in blazars have been studied by Ackermann et al. (2015), Sandrinelli et al. (2014, 2016b, 2016a, 2017), and Zhang et al. (2017c, 2017b, 2017d). Those authors claimed possible γ-ray QPOs in several blazars (e.g., PG 1553+113, PKS 2155−304, PKS 0537−441, PKS 0301−243, and PKS 0426−380) with the periods of ∼1–3 yr.

In this work, a systematic searching for γ-ray QPOs in Fermi-LAT AGNs is performed. New γ-ray QPO candidates are found.

2.1. Results of γ-Ray Data

In our analyses, we find that there are five blazars presenting possible QPOs in their γ-ray data. In the following, we give the details on the analyses of the five sources.

We build the maximum likelihood light curves with the time bin of 30 day and calculate the Lomb–Scargle Periodogram (LSP) and weighted wavelet Z-transform (WWZ) power spectra for the five objects. In the constructions of the gamma-ray light curves, only the time bins having TS > 5 are considered.

To obtain suitable significance of the periodic signal, we model the red noise with a function of power law plus constant (their best-fit parameters are listed in Table 1) by employing a maximum likelihood method (Barret & Vaughan 2012), and then we construct 10⁵ artificial light curves (for each target) with the simulation program provided by Emmanoulopoulos et al. (2013). We construct the WWZ spectra using a Morlet mother function (Foster 1996) for each artificial light curve. Then we calculate the probability density distribution of the maxima values of power spectra for LSP and WWZ. The significances for the QPOs in the simulated light curves are calculated. For each target, we also calculate the false-alarm probability (FAP) and the significances corrected by the number of independent frequencies (multiple trials) with the formula

$$\begin{eqnarray}&&\mathrm{FAP}=1-{(1-{p}_{\mathrm{prob}})}^{N},\end{eqnarray} \tag{ 1 }$$

where N is the number of sampled independent frequencies (Zechmeister & Kürster 2009), which is calculated with $\tfrac{{f}_{\max }-{f}_{\min }}{\delta f}$, where f_max, f_min and δf are respectively its maximum, minimum frequencies, and frequency width. We find FSRQ PKS 0601-70 presenting quasiperiodic signals with the global significance of >3σ in both LSP and WWZ power spectra. Its power spectra are shown in Figure 1. The details on the QPOs for the five sources are given in Table 2.

Table 1.  Best-fitting results of Power Spectra for Five AGNs

Source Name	Class	Parameters of Power Spectraa			Δχ2b	Simulationc
		$\mathrm{log}(A)$	α	$\mathrm{log}(C)$		(times)
PKS 0601−70	FSRQ	−1.81 ± 0.57	0.61 ± 0.22	−2.95 ± 1.60	0.3	∼105
PKS 0250−225	FSRQ	−1.68 ± 0.49	0.62 ± 0.21	−2.99 ± 1.88	0.3	∼105
TXS 0518+211	BL Lac	−3.98 ± 1.52	1.33 ± 0.53	−0.72 ± 0.18	0.3	∼105
S5 0716+714	BL Lac	−2.47 ± 0.64	0.90 ± 0.25	−2.69 ± 2.32	0.2	∼105
B2 2234+28 A	BL Lac	−2.24 ± 0.50	0.82 ± 0.21	−3.01 ± 2.18	0.4	∼105

Notes.

^aThe best-fitting results of power spectra of gamma-ray light curves. ^bReduced χ²/dof with dof ∼130. ^cThe times for simulation.

Download table as:  ASCIITypeset image

Table 2.  Results for γ-Ray Quasiperiodic Signals of Five AGNs

Source Name	Period Cyclea	Corrected Periodb	Significancesc	Massd[ref.]e
	(year)	(year)		$\mathrm{Log}({M}_{\mathrm{BH}}/{M}_{\odot })$
PKS 0601−70	1.22 ± 0.06	0.35 ± 0.02	3.9σ	7.4[S12]
PKS 0250−225	1.25 ± 0.05	0.52 ± 0.02	2.6σ	9.4[S12]
TXS 0518+211	3.1 ± 0.4	2.8 ± 0.4	2.1σ	8.8[S13]
S5 0716+714	2.6 ± 0.4	2.0 ± 0.3	2.3σ	7.9[F11,Z12,C12]
B2 2234+28 A	1.31 ± 0.05	0.73 ± 0.03	2.6σ	8.4[S12]

Notes.

^aThe observed period cycle (with error) derived from gamma-ray light curves. ^bThe intrinsic orbital time (the observed period corrected by redshift). ^cThe multiple trail significances calculated by formulae (1). ^dBH mass for each target. ^eReferences for BH mass. F11: Fan et al. (2011); Z12: Zhang et al. (2012); C12: Chai et al. (2012); S12: Shaw et al. (2012); S13: Shaw et al. (2013); W05: Wilman et al. (2005).

Download table as:  ASCIITypeset image

Zoom In Zoom Out Reset image size

PKS 0601-70 is classified as a FSRQ with the redshift of 2.409 (Shaw et al. 2012). The monthly likelihood light curves and the corresponding LSP and WWZ power spectra are shown in the Figure 1. Obviously, its GeV flux variability is violent. A strong QPO signal with the global significance of ∼3.9 σ (99.99%) appears near the period of ∼1.22 ± 0.06 yr (∼450 ± 20 days). The uncertainty of the period is evaluated based on the half width at half maximum of the Gaussian fitting. The significances are shown in Figure 1, with the green dashed-dotted, blue dashed, and red dotted lines representing the 2σ, 3σ and 4σ confidence levels, respectively.

By performing a maximum likelihood fit, we fold the γ-rays in the ROI centered at its position with the period cycle of 445.6 days to obtain the phase-resolved results of the light curve and the variability of spectral index (shown in Figure 2). We fit the phase-resolved flux and photon indices with constants. The results (see Table 3) indicate that the flux varies with the phase, and the spectral parameters have no significant correlation with the phase (Figure 2).

Table 3.  Phase-resolved Fitting Results for the Five AGNs

Source Name	Mean Valuesa						${\chi }_{\min }^{2}$/dof; (dof = 14)b
	Flux (×10−8)		α		β		Flux		α		β
PKS 0601−70	5.714		2.445		0.177		104.170		16.041		15.089
PKS 0250−225	8.254		2.241		0.111		359.516		14.672		23.946
TXS 0518+211	9.902		1.930				249.414		21.878
S5 0716+714	23.144	23.449	2.012	2.017	0.033	0.035	572.510	1061.967	50.877	86.406	9.165	20.839
B2 2234+28 A	6.308		2.138		0.110		105.484		11.524		8.019

Notes.

^aMean values of flux and indices for the phase-resolved maximum likelihood results (flux with units of photons cm⁻² s⁻²). ^bReduced χ²/dof (dof = 14) for the fitting with a constant.

Download table as:  ASCIITypeset image

Zoom In Zoom Out Reset image size

For the other four investigated sources (TXS 0518+211, S5 0716+714, B2 2234+28 A, and PKS 0250-225) we found global statistical significances of periodicity ∼2σ, too low to single out possible quasiperiodic behaviors. Information is reported in Tables 1–4.

Table 4.  Results for the Five AGNs Information

Source Namea	Center of ROIb				Modelc	Redshift	3FGLd	Indexe		Fluxg	TSh	Energy Bandi
	R.A.	decl.	l	b	(in 3FGL)	(z)				(×10−8)		(GeV)
PKS 0601−70	90.313	−70.609	281.042	−29.624	LogParabola	2.409	3FGL J0601.2−7036	2.354 ± 0.034	0.405 ± 0.033	5.72 ± 0.25	2715.1	0.1−500
PKS 0250−225	43.201	−22.311	209.723	−62.091	LogParabola	1.419	3FGL J0252.8−2218	2.217 ± 0.022	0.085 ± 0.012	8.44 ± 0.19	9677.7	0.1−500
TXS 0518+211	80.443	21.222	183.599	−8.702	PowerLaw	0.108	3FGL J0521.7 + 2113	1.922 ± 0.018f		9.90 ± 0.42	13851.7	0.1−500
S5 0716+714	110.490	71.345	143.980	28.023	LogParabola	0.300	3FGL J0721.9 + 7120	1.999 ± 0.008	0.031 ± 0.003	22.85 ± 0.20	95738.6	0.1−500
B2 2234+28 A	339.077	28.489	90.108	−25.635	LogParabola	0.790	3FGL J2236.3 + 2829	2.115 ± 0.029	0.108 ± 0.015	6.06 ± 0.20	5870.0	0.1−500

Notes.

^aIdentifier for targets. ^bCoordinates of ROI center in data analysis derived from 3FGL in J2000 and their Galactic coordinates. ^cThe energy spectral shape in model file. ^dThe γ-ray source designations in 3FGL. ^eThe best-fitting of photon spectral index derived from maximum likelihood analysis for 0.1−500 GeV. ^fOnly for TXS 0518+211 having energy spectrum type of PowerLaw. ^gThe integrated photon flux above 0.1 GeV and its 1σ uncertainty with units of photons cm⁻² s⁻¹. ^hThe likelihood test statistic value. ⁱEnergy band in events selection.

Download table as:  ASCIITypeset image

Note that we analyzed the Fermi-LAT data of the five targets spanning from 2008 August to 2018 February. The 10 yr long light curves cover only several period cycles. The caveat again reminds us the complexity of the QPO analysis in AGNs, and a similar concern is also proposed in Covino et al. (2019).

2.2. Relation between γ-Ray Quasiperiodic Frequency and BH Mass

An inverse correlation between X-ray QPO frequency (corrected by redshift) and BH mass spanning from stellar-mass to supermassive black holes has been reported in Kluźniak & Abramowicz (2002), Remillard & McClintock (2006), Zhou et al. (2010, 2015), and Pan et al. (2016). We also investigate the relation between γ-ray QPO frequency and BH mass of AGNs⁶ (see the Figure 3), however no significant correlation is found.

Zoom In Zoom Out Reset image size

We have carefully analyzed Fermi-LAT observations from 2008 to 2018 for 105 AGNs. Among them, there are 90 blazars, 10 radio galaxies, and 5 NLSy1s. Besides the objects reported in previous works, a FSRQ PKS 0601-70 is found having possible quasiperiodic variabilities in its γ-ray light curves. Three BL Lacs (TXS 0518+211, S5 0716+714 and B2 2234+28 A), and a FSRQs (PKS 0250-225) present signals with significance of ∼2σ.

It is interesting that the observed period of PKS 0601-70 is ∼1.22 yr, and the corrected period in the host galaxy frame is ∼0.35 yr (see Table 2). It is also shorter than that reported in the previous works (e.g., Sandrinelli et al. 2014, 2016b; Ackermann et al. 2015; Zhang et al. 2017c, 2017b, 2017d).

Prokhorov & Moraghan (2017) performed a systematic search for QPOs in Fermi-LAT γ-ray sources. They reported seven blazars having possible QPOs. Among them, the signals in two blazars (PKS 2155-304 and PG 1553+113) have been reported. The signals in the other five blazars are newly discovered. Among the five blazars, we find no signal in three blazars (PKS 2052-47, BL Lacertae, and PKS 0805-07). For 4C +01.28, Prokhorov & Moraghan (2017) reported a QPO with the period of 445 days. We also find this signal in the data from 2008 August to 2016 December, however this signal disappears in the data from 2008 August to 2018 February. For S5 0716 + 714, Prokhorov & Moraghan (2017) reported a QPO with the period of 346 days. Again, we also find this signal in the data from 2008 August to 2016 December, however this signal disappears in the data from 2008 August to 2018 February. We find another signal with the period of ∼1000 days in S5 0716 + 714, but its global statistical significances is only 2.3σ.

One can see that the result is tentative, and longer/multifrequencies data are needed to confirm these signals. Besides, we apply a ARIMA model (e.g., Kelly et al. 2009) to describe the light curves of PKS 0601-70 and its results are shown in the Appendix. The ARIMA results mean that the light curve can also be described by a stochastic process. It could indicate that it is not necessary to invoke astrophysical mechanism to describe the QPOs (e.g., Kelly et al. 2009). Covino et al. (2019) showed that the power spectral densities computed from the gamma-ray light curves of ten blazars which were claimed having possible QPO are all essentially consistent with a red noise only. This caveat should be kept in our mind.

Origins of γ-ray QPOs in AGNs are quite uncertain (Caproni et al. 2017; Covino et al. 2017; Sobacchi et al. 2017; Sandrinelli et al. 2018; Tavani et al. 2018). New results found here could be helpful for us to determine the origins of γ-ray QPOs. Their QPOs could be accounted for by (1) quasiperiodic injection of plasma into the jet caused by some kinds of instabilities (e.g., Tavani et al. 2018); or (2) periodic change of Doppler factor caused by jet precession (e.g., Sobacchi et al. 2017). The latter origin cannot result in a spectral index oscillation. In our analysis, the flux and spectral index oscillations are correlated in S5 0716 + 714. If it is true, the correlated flux and spectral index oscillations likely hint that its QPO is intrinsic. The MHD-kinetic tearing instabilities in a binary system of SMBHs could produce such intrinsic QPO (e.g., Tavani et al. 2018). Such injection could have impacts both on the power and acceleration rate of high energy electrons, which then could impact the non-thermal fluxes and spectral indexes.

Yan et al. (2018) proposed a method to test whether the relativistic boost is the cause of gamma-ray QPO in blazar. Their results support the scenario of the relativistic boost producing the gamma-ray QPO for PG 1553 + 113. This method can be applied for these sources to obtain some clues on the origins of the γ-ray QPOs.

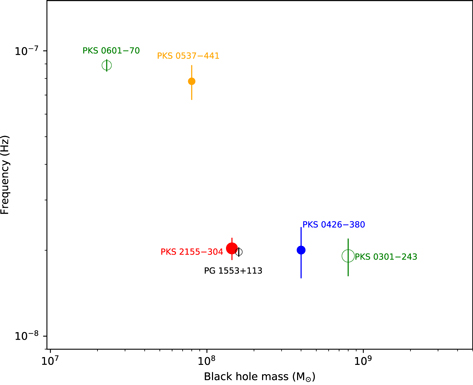

Moreover, two possible reasons accounting for the (non-)correlation between γ-ray QPO frequency and BH mass (Figure 3) are: (1) the origins of all QPOs are independent of BH mass; and (2) the QPOs have quite different origins. One can see that origins for γ-ray QPOs in AGNs may be very complex. More multiwavelength QPO analysis are needed to resolve the problem of the origins for QPOs in AGNs.

We thank the referees for helpful and valuable comments. We acknowledge financial support from the National Key R&D Program of China under grant No. 2018YFA0404204, the National Natural Science Foundation of China (NSFC-U1738124, NSFC-11803081 and NSFC-11661161010), and the joint foundation of Department of Science and Technology of Yunnan Province and Yunnan University [2018FY001(-003)]. The work of D.H.Y. is supported by the CAS "Light of West China" Program and Youth Innovation Promotion Association.

In addition to the methods based on Fourier analysis (e.g., LSP and WWZ), an autocorrelation analysis also has been used in light-curve analysis to search for quasiperiodic behavior or variations with a characteristic timescale (Kelly et al. 2009).

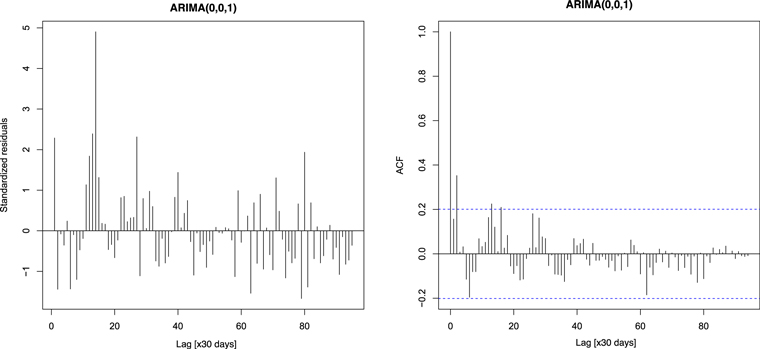

We use the ARIMA(0, 0, 1) model to fit the light curves of the five blazars. The light curves of the five blazars can be fitted well by the ARIMA(0, 0, 1) model, which is a stochastic process model. For example, the results of PKS 0601-70 are shown in Figure 4. This means that the light curves can be described by a stochastic process. It could indicate that it is not necessary to invoke astrophysical mechanism to describe the QPOs (e.g., Kelly et al. 2009).
