Calibrating the Cosmic Distance Ladder Using Gravitational-wave Observations

The geometry and dynamics of the universe can be inferred by two key ingredients obtained for a population of cosmological sources: precise measurement of their redshift and accurate estimation of their luminosity distance. The luminosity distance D_L to a source at a redshift z depends on a number of parameters such as the Hubble–Lemaître parameter H₀, dimensionless dark matter and dark energy densities Ω_M and Ω_Λ, dark energy equation of state parameter w (which may itself depend on redshift), and the curvature of space Ω_k. One can fit a cosmological model ${D}_{L}(z;{\boldsymbol{p}})$ to a set of, say, n measurements $\{{D}_{L}^{{\ell }},{z}_{{\ell }}\},$ ${\ell }=1,\,\ldots ,\,n$ and hence determine the parameters ${\boldsymbol{p}}=({H}_{0},{{\rm{\Omega }}}_{M},{{\rm{\Omega }}}_{{\rm{\Lambda }}},{{\rm{\Omega }}}_{k},w).$ It is apparent that to do so one must obtain an unbiased measurement of the distances and redshifts at cosmological scales.

1.1. Standard Candles

1.2. Gravitational-wave Standard Sirens

1.3. Standard Sirens for Measuring H₀

1.4. Current Status of the H₀ Estimate

1.5. Calibrating SNe Ia in Nearby Clusters with Standard Sirens

In this section, we discuss various sources of systematic bias that can affect the distance measurement of GW sources.

Distance–Inclination Degeneracy. The measurement of the luminosity distance D_L is strongly correlated with that of the inclination angle ι of the binary with respect to the line of sight (Ajith & Bose 2009; Usman et al. 2019). This is because both distance and inclination, along with the sky position angles, appear together in the amplitude of the GW polarization states (see, e.g., Equation (2) in Apostolatos et al. 1994). Due to this degeneracy, a face-on (ι = 0°) or a face-off (ι = 180°) binary far away has a similar GW amplitude to a closer edge-on (ι = 90°) binary. This degeneracy can be broken to some extent by using a network having as many detectors as possible, as far away from each other on Earth as possible (Cavalier et al. 2006; Blair et al. 2008; Wen & Chen 2010; Fairhurst 2011). Employing accurate waveform models that incorporate higher harmonics and spin-precession also help break this degeneracy (Arun et al. 2009; Tagoshi et al. 2014; Vitale & Chen 2018). Measuring the event electromagnetically, if the binary coalescence has an electromagnetic counterpart, partially breaks the ${D}_{L}-\iota$ degeneracy (Nissanke et al. 2010). Moreover, if one can constrain the orbital inclination from the electromagnetic observations (Evans et al. 2017), the uncertainty in the distance measurement is greatly reduced as we will see below.

Effect of Weak Lensing. Graviational waves, just like electromagnetic waves, become lensed when they propagate through intervening matter (Ohanian 1974; Bliokh & Minakov 1975; Bontz & Haugan 1981; Deguchi & Watson 1986; Nakamura 1998). The dark matter distribution along the line of sight as a GW propagates from its source to the detector can increase or decrease the signal's amplitude without affecting its frequency profile (Wang et al. 1996; Dai et al. 2017; Hannuksela et al. 2019). This "weak lensing" results in an additional random error in the distance measurement using GWs (Van Den Broeck et al. 2010). Kocsis et al. (2006) showed that, in the case of supermassive black hole binaries, the distance measurement error due to weak lensing dominates over other uncertainties, leading to a ∼6% error for sources at z = 2. This translates to a ∼0.1% error for sources in the local universe (≲300 Mpc) considered in this paper. We shall see below that this is less than the average error measured by a network of 3G GW detectors. Though there are proposals to remove the weak lensing effects substantially by mapping the mass distribution along the line of sight (Gunnarsson et al. 2006; Shapiro et al. 2010), degradation of parameter estimation accuracy due to weak lensing will remain an issue for some time.

Detector Calibration Errors. It is important to note that the distance measurement is also affected by the detector calibration errors (Abbott et al. 2017d). The uncertainty in the detector calibration implies an error in the measured amplitude and phase of the signal as a function of frequency. At present, the calibration error is between 5% and 10% in amplitude and 3°–10° in phase over a frequency range of 20–2048 Hz (Abbott et al. 2016a, 2016b, 2017b, 2017f, 2017g, 2017h). As we will see in Section 4, the median uncertainty in the measurement of distance to neutron star binary coalescences located at distances ∼10–300 Mpc is ∼0.1%–3%, significantly smaller than the current calibration uncertainty in the amplitude. In addition to statistical errors, detector calibration may suffer from small systematic errors. While these errors are expected to be small, there is currently no estimate of how large they might be. There is ongoing effort to improve the calibration of the LIGO and Virgo detectors using alternative methods and it is expected that calibration errors will be sufficiently small to not significantly affect distance measurements (Karki et al. 2016; Abbott et al. 2017d; Tuyenbayev et al. 2017; Acernese et al. 2018; Viets et al. 2018). These alternative methods should also help in understanding the systematic errors.

In summary, GWs are "one-step" standard sirens (i.e., they do not require a calibrator at any distance), and hence can provide unambiguous measurement of distance to host galaxies and galaxy clusters in the local universe. This implies that GWs can be used as a distance indicator to calibrate nearby SNe Ia occurring in the same galaxy or galaxy cluster as the binary merger.

In the next section we investigate how probable is it to have binary mergers and SN Ia events in the same galaxy or galaxy cluster.

GWs from a binary neutron star merger in the same galaxy as an SN Ia could help calibrate the light curve of the latter and hence allow us to infer the luminosity function of SNe Ia. How likely is it to observe a binary coalescence in the same galaxy or galaxy cluster as an SN Ia event?

Current estimates of the local (z = 0) SN Ia rate are in the range [2.38, 3.62] × 10⁴ ${\mathrm{Gpc}}^{-3}\,{\mathrm{yr}}^{-1}$ with a median of 3.0 × 10⁴ ${\mathrm{Gpc}}^{-3}\,{\mathrm{yr}}^{-1}$ (Li et al. 2011), while those of binary neutron star mergers are [110, 3840] ${\mathrm{Gpc}}^{-3}\,{\mathrm{yr}}^{-1}$ with a median of ∼1000 ${\mathrm{Gpc}}^{-3}\,{\mathrm{yr}}^{-1}$ (Abbott et al. 2019a). Using the SDSS $r^{\prime}$-band luminosity function of Blanton et al. (2003), the number density of galaxies in the local universe is ≈10⁷ Gpc⁻³, when integrated down to Large Magellanic Cloud-type (0.1L*) galaxies. Hence, SNe Ia occur at roughly once every 300 yr per galaxy and binary neutron star coalescences occur at a rate ∼30 times smaller. Therefore, the chance of observing both of these events in a single galaxy, over a 10 year period, is roughly 1 in 10³ per galaxy.

However, for every binary neutron star merger in a galaxy cluster one expects to find a number of recent SNe Ia. Although the binary neutron star merger rate in rich galaxy clusters is yet to be measured, we assume it will track the SN Ia rate, as both populations originate in compact object mergers. Hence, we anticipate the ratio of SN Ia and binary neutron star merger volumetric rates ${R}_{\mathrm{SNIa}}:{R}_{\mathrm{BNS}}\sim 30:1$ (estimated 90%-confidence range of 8:1 to 300:1) will carry over to rich clusters directly. Given an SN Ia rate in z < 0.04 rich galaxy clusters of ${R}_{\mathrm{SNIa}}\sim [0.9,1.4]\times {10}^{-12}\,{L}_{B,\odot }^{-1}$ yr⁻¹, with a median of $1.2\,\times {10}^{-12}\,{L}_{B,\odot }^{-1}$ yr⁻¹ (Dilday et al. 2010), this implies that there will be ≈6 SNe Ia and ∼0.2 binary neutron star mergers per year in a Coma-like cluster of total luminosity ${L}_{B}\approx 5.0\times {10}^{12}\,{L}_{B,\odot }$ (Girardi et al. 2002).⁸

In order to explore the implications of binary distance measurements for calibration of SN Ia luminosities, we consider a catalog of the 34 nearest (z < 0.072; ${D}_{L}\,\leqslant 300{(h/0.72)}^{-1}$ Mpc) galaxy clusters having luminosities ${L}_{B}\gtrsim 8\times {10}^{11}\,{L}_{B,\odot }$, sufficiently rich that each is expected to host one or more SNe Ia per year. Drawing cluster identifications and luminosities from Girardi et al. (2002), with redshifts from the NASA/IPAC Extragalactic Database,⁹ we carry out numerical simulations of the number of binary neutron star mergers observed in each cluster for active GW observing campaigns of duration one to five years. Each simulation assumes a ratio of SN Ia to binary merger rates of either 30:1 (median), 300:1 (pessimistic), or 8:1 (optimistic), spanning the current 90% confidence range in binary neutron star merger rates. Uncertainties in this ratio dominate over the present uncertainty in the SN Ia rate for rich clusters.

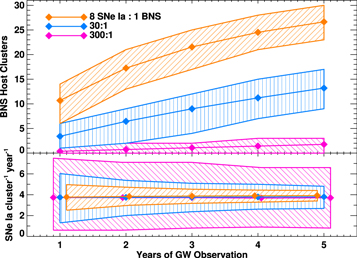

These simulations seek to answer two questions: (1) how many cluster distances can be calibrated by GW observation of binary neutron star mergers, and (2) how many SN Ia luminosities can be calibrated, in turn, via these cluster distances? The results are presented in Figure 1: the mean number of clusters with binary neutron star merger-based (GW-derived) distance measurements after five years of GW observation is 1.8, 13.2, and 26.6 clusters (of 34 in the sample) for the pessimistic, median, and optimistic cases, respectively. The 90% confidence ranges on these estimates are roughly ±4 in the median and optimistic cases, and ±1 in the pessimistic case. In the pessimistic case, it is possible (with ≈1.6% probability) that we do not observe any cluster that hosts any binary neutron star event even after five years of GW observation.

Zoom In Zoom Out Reset image size

The number of SNe Ia that can be calibrated via these binary merger host clusters depends on the total duration and efficiency of any associated optical observing campaign(s) capable of discovering and characterizing SNe in these clusters. We therefore estimate the rate of calibrated SNe Ia per cluster per year of optical observation, a metric that is relatively robust both to the ratio of SNe Ia to binary neutron star merger rates (whether optimistic, median, or pessimistic), and to the duration of the GW observing campaign. To estimate the total number of calibrated SNe Ia, one multiplies the per cluster per year rate (lower panel) by the number of merger host clusters for the given GW year scenario (upper panel), and by the duration of optical observations in years. As an important caveat, we note that only SNe Ia with high signal-to-noise detections and either spectroscopy or high-quality multiband photometry (or both) will likely be useful for precise absolute calibration and Hubble constant measurement.

The main survey of the Large Synoptic Survey Telescope (LSST Science Collaboration et al. 2017) is planned to extend for 10 years, and this facility will be capable of discovering and characterizing the majority of SNe Ia in most of these clusters; as a caveat, we note that not all considered clusters lie within the LSST survey area, and clusters within the survey area will still be subject to seasonal observability constraints. Similar considerations will apply when estimating the useful yield from other optical surveys seeking to characterize SNe Ia in these galaxy clusters. Overall, we consider a 10 year period of observation to be reasonable for the 2030s time frame of the GW campaigns. As seen in Figure 1, such a 10 year baseline of optical observations potentially enables calibration of ≈38 SNe Ia per binary neutron star merger host cluster. In the upper panel, the number of unique binary neutron star host clusters does not increase linearly with time since we have a finite number of clusters and mergers repeatedly occur in some of them; we note that multiple binary neutron star mergers in the same cluster would further improve the statistical uncertainty in the calibration of that cluster's SNe.

We note that the 90% confidence ranges on these numbers are larger than the Poisson error on the number of SNe Ia would suggest, because fluctuations in the number of binary neutron star host clusters with GW distance measurements typically dominate the overall uncertainty. Overall, as a robust lower bound, Figure 1 shows that the binary merger approach can anticipate successful calibration of more than one SN Ia per cluster per year of high-quality optical survey coverage, or more than 10 SNe Ia per cluster for 10 years of optical observation.

In the next section, we compute the error in the measurement of distance to the nearby galaxy clusters hosting binary neutron star mergers and see how accurately we can estimate distances using various future networks of GW detectors.

Let us consider a population of binary neutron stars is uniformly distributed in the co-moving volume between luminosity distance D_L of 10 and 300 Mpc. As we shall see below, for binary neutron star mergers closer than about 300 Mpc the statistical error in the distance measurement is well below systematic errors. Moreover, at such distances we can approximate the luminosity distance–redshift relation to be given by the Hubble–Lemaître law ${D}_{L}={cz}/{H}_{0}$ and we do not need to worry about cosmological effects. Also, since we will be using GWs to calibrate the distance to SNe Ia in the local universe, this distance range is more relevant.

We assume neutron stars in the binaries to be non-spinning, have fixed masses m₁ = 1.45 M_⊙ and m₂ = 1.35 M_⊙, and be located randomly on the sky; that is, their declination θ and right ascension ϕ are uniform in [−1, 1] in sin θ and uniform in [0°, 360°] in ϕ, respectively. Further, we assume that the cosine of the inclination angle ι (the angle between binary's orbital angular momentum L and the line of sight N) is uniform in [−1, 1]. The antenna pattern functions of GW detector also depend on the polarization angle ψ, which sets the inclination of the component of L orthogonal to N (see Section 4.2.1 in Sathyaprakash & Schutz 2009). We choose ψ to be uniform in [0°, 360°]. This constitutes the parameter space, {m₁, m₂, D_L, ι, θ, ϕ, ψ, t_c, ϕ_c }, for our target binary neutron stars, where t_c and ϕ_c are the time and phase at the coalescence of the binary and we set them to be zero in our calculations. As binary neutron stars have long inspirals, we use 3.5PN accurate TaylorF2 waveforms (Buonanno et al. 2009) to model their GWs.

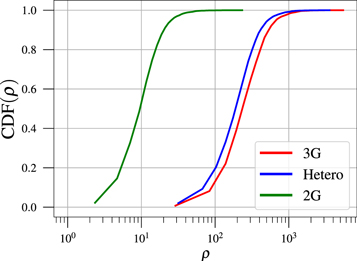

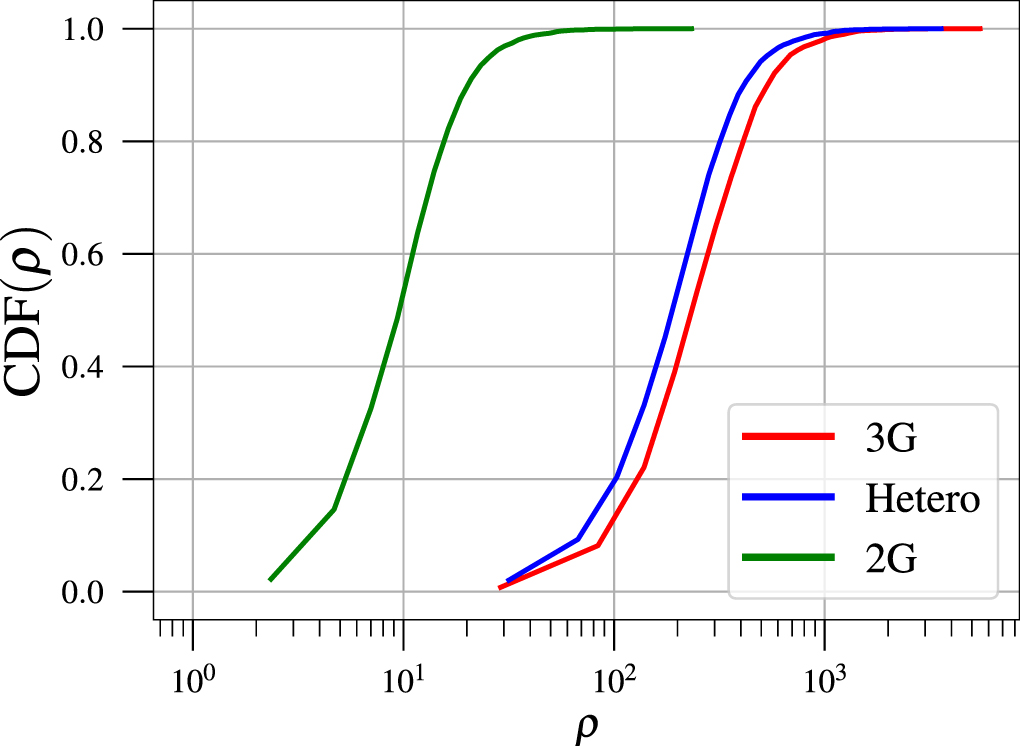

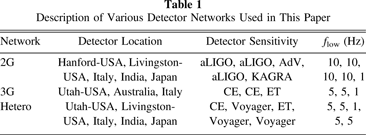

Currently we have three second-generation (2G) GW detectors that are operational: advanced LIGO (aLIGO) in Hanford, USA, aLIGO in Livingston, USA, and advanced Virgo (AdV) in Italy (Aasi et al. 2015; Acernese et al. 2015). The Japanese detector KAGRA (Somiya 2012; Aso et al. 2013) is expected to join the network in the third observing run, and the detector in the Indian subcontinent, LIGO-India, is expected to be online by 2025 (Iyer et al. 2011). Therefore, in a few years we will have a network of 2G detectors fully operational, observing the GW sky. We call this network of second generation detectors the "2G network." At present, significant efforts are ongoing to put forward the science case for the third generation (3G) GW detectors such as the Cosmic Explorer (CE; Abbott et al. 2017e) and Einstein Telescope (ET; Punturo et al. 2010). These 3G detectors will not only let us "hear" deeper in the universe, allowing more and more detections, but will also help us study each source in great detail. These 3G detectors are expected to be online sometime in the 2030s. Therefore, by that time we will have a network of 3G detectors, say, the ET in Italy, one CE in Utah, USA and another CE in Australia. It has been found that by placing 3G detectors on the globe in this manner, we will be able to achieve maximum science goals (Hall & Evans 2019). We term this network of detectors as the "3G network." Furthermore, there are also plans to improve the sensitivity of existing detectors at LIGO sites by a factor of two by using high-power lasers and better and bigger test masses; these are called "LIGO Voyager."¹⁰ So we will have LIGO Voyager, as well, by the time the 3G detectors come online. Therefore, we assume a hypothetical network of detectors constituting 3G and Voyager detectors: the CE in Utah, USA, one Voyager in Livingston, USA, the ET in Italy, one Voyager in India and one Voyager in Japan, and we call this the "heterogeneous network (Hetero network)." Table 1 lists the detector networks used in this paper to measure binary distances, along with their location on Earth and the associated noise sensitivity curves.¹¹ Figure 2 presents the cumulative distribution of network signal-to-noise ratios (S/Ns) for the binary neutron star population we considered in this paper while using 2G, 3G, and Hetero networks.

Zoom In Zoom Out Reset image size

To measure the errors in the distance we use the Fisher information matrix technique (Rao 1945; Cramer 1946). This is a useful semi-analytic method that employs a quadratic fit to the log-likelihood function and derives 1 − σ error bars on the binary parameters from its GW signal (Cutler & Flanagan 1994; Arun et al. 2005). Given a frequency-domain GW signal $\tilde{h}(f;{\boldsymbol{\theta }})$, described by the set of parameters  θ, the Fisher information matrix is given as

$$\begin{eqnarray}&&{{\rm{\Gamma }}}_{{ij}}=\langle {\tilde{h}}_{i},{\tilde{h}}_{j}\rangle ,\end{eqnarray} \tag{ 1 }$$

where ${\tilde{h}}_{i}=\partial \tilde{h}(f;{\boldsymbol{\theta }})/\partial {\theta }_{i}$, and the angular bracket, $\langle ...,\ldots \rangle$, denotes the noise-weighted inner product defined by

$$\begin{eqnarray}&&\langle a,b\rangle =2{\int }_{{f}_{\mathrm{low}}}^{{{\rm{f}}}_{\mathrm{high}}}\displaystyle \frac{a(f){b}^{* }(f)+{a}^{* }(f)b(f)}{{S}_{h}(f)}\,{df}.\end{eqnarray} \tag{ 2 }$$

Here S_h(f) is the one-sided noise power spectral density (PSD) of the detector and $[{f}_{\mathrm{low}},{f}_{\mathrm{high}}]$ are the limits of integration. The variance–covariance matrix is defined by the inverse of the Fisher matrix, ${C}^{{ij}}={({{\rm{\Gamma }}}^{-1})}^{{ij}},$ where the diagonal components, Cⁱⁱ, are the variances of θ_i. The 1 − σ errors on θ_i are, therefore, given as

$$\begin{eqnarray}&&{\rm{\Delta }}{\theta }_{i}=\sqrt{{C}^{{ii}}}.\end{eqnarray} \tag{ 3 }$$

In the case of a network of detectors, one computes Fisher matrices Γ^A corresponding to each detector A and adds them up:

$$\begin{eqnarray}&&{{\rm{\Gamma }}}^{\mathrm{net}}=\displaystyle \sum _{A}{{\rm{\Gamma }}}^{A}.\end{eqnarray} \tag{ 4 }$$

The error in the parameters is then given as ${\rm{\Delta }}{\theta }_{i}=\sqrt{{C}^{{ii}}}$ where C is now the inverse of Γ^net.

As the chirp mass, ${ \mathcal M }={({m}_{1}{m}_{2})}^{3/5}/{({m}_{1}+{m}_{2})}^{1/5}$, and symmetric mass ratio, $\eta ={m}_{1}{m}_{2}/{({m}_{1}+{m}_{2})}^{2}$, are the best-measured mass parameters by GW observations during the inspiral phase of a binary, we assume our parameter space to be ${\boldsymbol{\theta }}=\{\mathrm{ln}{ \mathcal M },\mathrm{ln}\eta ,\mathrm{ln}{D}_{L},\cos (\iota ),\cos (\theta ),\phi ,\psi ,{t}_{c},{\phi }_{c}\}$. Fisher matrix-based parameter estimation in the context of 3G detectors has been done in the past (Chan et al. 2018; Zhao & Wen 2018). In this paper, we compute the fractional error in the distance measurement, ${\rm{\Delta }}{D}_{L}/{D}_{L}$, using the detector networks listed in Table 1, and the results in various observational scenarios are as follows.

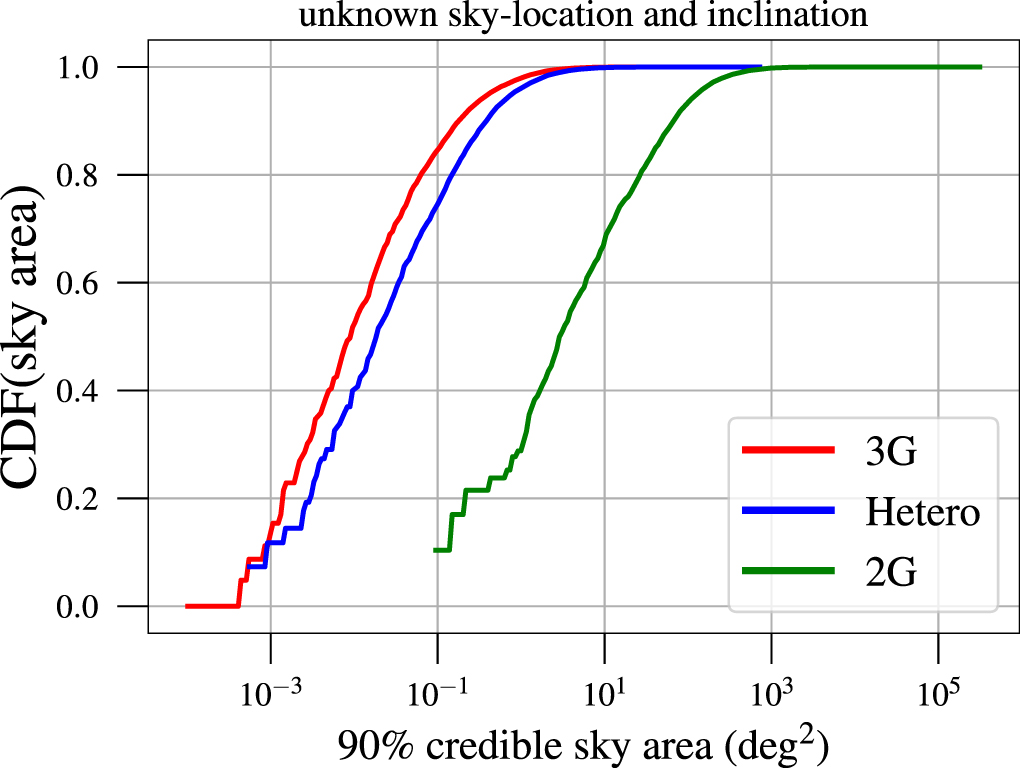

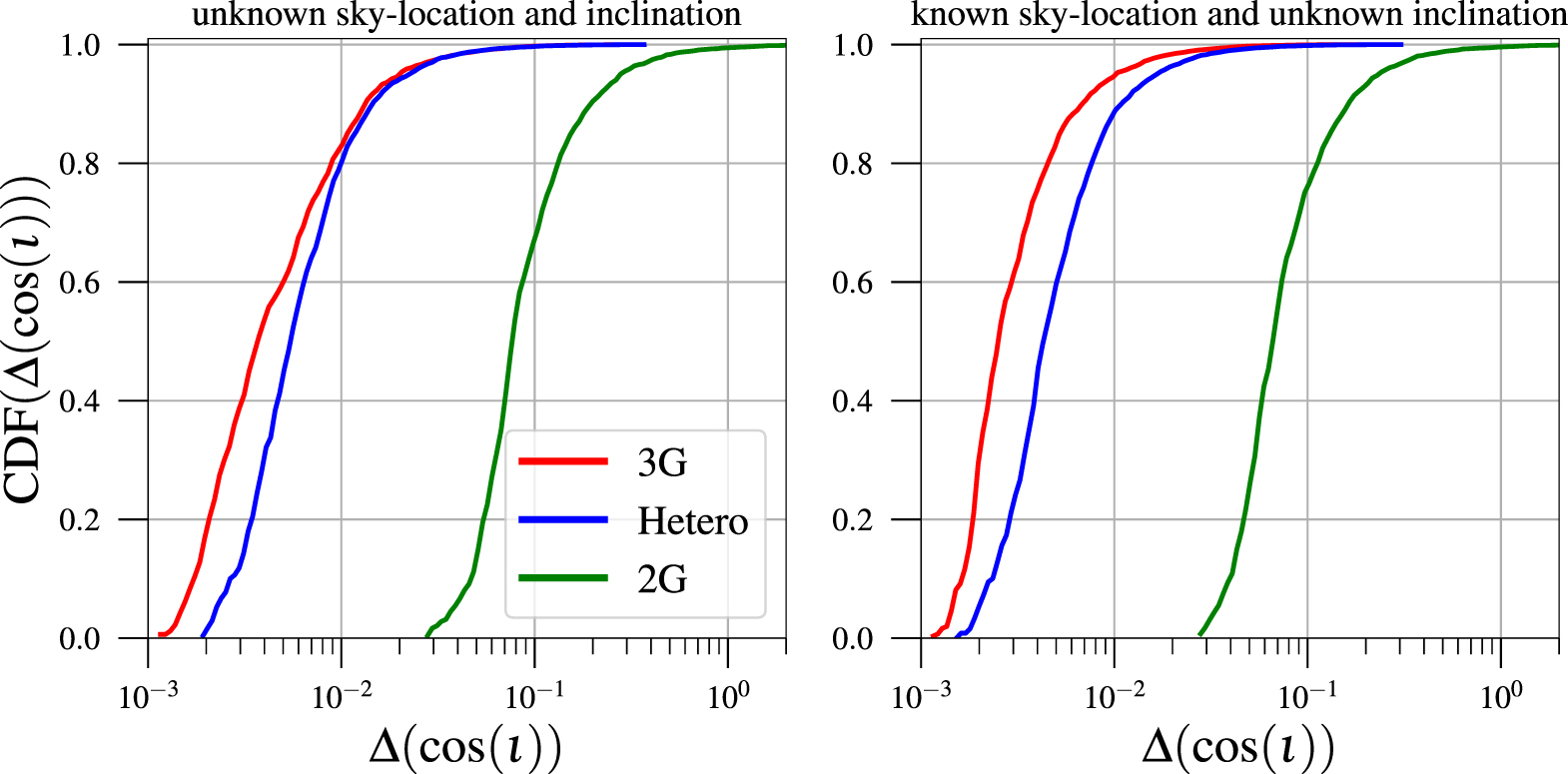

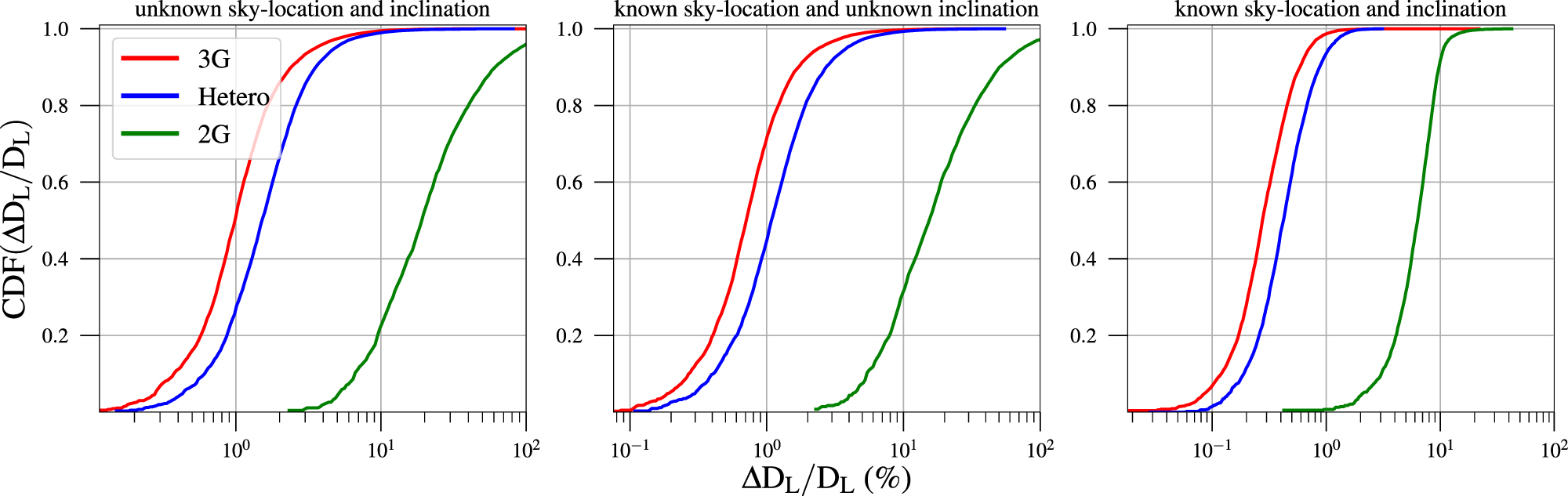

Unknown sky position and inclination. In this scenario, we assume that nothing is known about the binaries and compute errors in all the parameters using a nine-dimensional Fisher matrix. This scenario is relevant when we cannot identify the electromagnetic counterpart of the binary neutron stars and all the information about the source is coming from GW observation alone. We compute the 1 − σ error in the parameters $\{\mathrm{ln}{ \mathcal M },\mathrm{ln}\eta ,\mathrm{ln}{D}_{L},\cos (\iota ),\cos (\theta ),\phi ,\psi ,{t}_{c},{\phi }_{c}\}$ and the cumulative distribution of fractional error in the distance measurement, ${\rm{\Delta }}{D}_{L}/{D}_{L}$, is shown on the rightmost panel of Figure 3. We observe that the 3G network performs slightly better than the Hetero network, constraining distances with a median of ∼1.6% accuracy (90% sources have error ≲3%). The reason for the 3G network performing better than Hetero is because the former has three 3G detectors whereas the latter contains only two such detectors. The network of 2G detectors, on the other hand, performs very poorly, providing distance estimates with ∼50% error (90% sources have error ≲60%). On the left panel of Figure 4, we present the distribution of 1 − σ error in the measurement of cosine of the inclination angle ι. Again, the 3G and Hetero networks achieve similar accuracies with a median error of ∼0.01 whereas the 2G network performs an order of magnitude worse, constraining cos ι with median error of 0.4. Figure 5 presents the cumulative distribution of 90% credible area of binaries on the sky. The 3G network gives the best estimate for the sky location followed by the Hetero network. For instance, the 3G network will be able to locate a binary neutron star merger (on average) within ∼1 deg² whereas the Hetero network can have 90% credible sky area ∼1.4 deg², and the 2G network can only pinpoint binary neutron stars with ∼180 deg² sky area.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

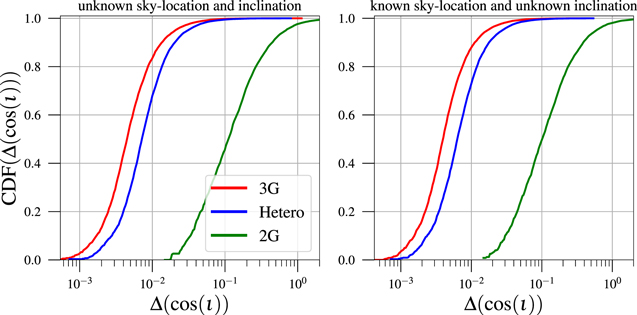

Known sky position but unknown inclination. In this scenario, we assume that the sky position of the binary neutron stars is known through their electromagnetic observations. We, therefore, use the information of θ and ϕ of the sources and compute only a seven-dimensional Fisher matrix for parameters $\{\mathrm{ln}{ \mathcal M },\mathrm{ln}\eta ,\mathrm{ln}{D}_{L},\cos (\iota ),\psi ,{t}_{c},{\phi }_{c}\}$. The cumulative distribution of error in the distance measurement is shown in the middle panel of Figure 3 and we notice that the accuracy has now slightly improved for all the networks. This is because knowledge of source's sky position breaks down the degeneracy between the sky location angles (θ, ϕ) and distance D_L and allows us to measure the source distance better. The 3G and Hetero networks are still performing far better than the 2G network. The right panel of Figure 5 shows the distribution of error in $\cos (\iota )$, which has slightly improved compared to the case when the sky position of the source is not known.

Known sky position and inclination. This scenario assumes that the sky position and the inclination angles of the binary neutron stars are known purely from their electromagnetic counterparts. This scenario is possible, as we already have seen in the case of GW170817. The sky position of GW170817 was constrained by finding the host galaxy NGC 4993 through numerous optical and infrared observations (Abbott et al. 2017i) whereas the inclination angle or the so-called "opening angle" was constrained from X-ray and ultraviolet observations (Evans et al. 2017). This scenario has an advantage as the error in the distance measurement can be significantly reduced as shown in the rightmost panel of Figure 3. In this scenario, we use the information of θ, ϕ and ι and compute six-dimensional Fisher matrices for parameters $\{\mathrm{ln}{ \mathcal M },\mathrm{ln}\eta ,\mathrm{ln}{D}_{L},\psi ,{t}_{c},{\phi }_{c}\}$. All the degeneracies between the distance D_L and θ, ϕ, and ι are now broken, which gives us highly accurate distance measurements with median error of ∼0.5% for the 3G and Hetero networks (90% sources have error <0.8%).

Given the measurement capabilities of the different detector networks we can now assess whether it will be possible to localize a merger event uniquely to a galaxy cluster. As we shall argue, unique identification of a galaxy cluster associated with a binary neutron star merger will be possible in a 3G or Hetero network for 80% of the sources. From Figure 3, left panel, we see that in the 3G (Hetero) network, for 80% of binary mergers the 90% credible interval in the measurement of the luminosity distance is 2% (respectively, 3%) at distances up to 300 Mpc. The corresponding 90% uncertainty in the sky position of the source is ∼0.1 square degrees for both the 3G and Hetero networks (see Figure 5), with the 3G network performing slightly better. These numbers correspond to a maximum error in distance of ΔD_L ∼ 9 Mpc and an angular uncertainty of ΔΩ ∼ 3 × 10⁻⁵ str, which correspond to an error box in the sky of

$$\begin{eqnarray*}&&{\rm{\Delta }}V\simeq {D}_{L}^{2}{\rm{\Delta }}{D}_{L}{\rm{\Delta }}{\rm{\Omega }}\simeq 25\,{\mathrm{Mpc}}^{3}{\left(\displaystyle \frac{{D}_{L}}{300\mathrm{Mpc}}\right)}^{2}.\end{eqnarray*}$$

Given that the number density of galaxies is 3 × 10⁶ Gpc⁻³, the error box ΔV will contain no more than one field galaxy; if the merger occurs in a cluster, it will be localized to a unique cluster as the number density of clusters is far smaller than those of field galaxies. However, without an electromagnetic counterpart it will not be possible to associate a merger to a unique galaxy within a cluster, as the number density of galaxies in a cluster will be far greater than the number density of field galaxies.

In summary, given that we have restricted our analysis to rich clusters that are a sixth of Coma or larger, GW observations alone will associate most mergers in clusters to a unique galaxy cluster; an electromagnetic counterpart will be needed to further associate the event to a specific galaxy within a cluster.

When a binary neutron star merger event occurs in a galaxy cluster we may have tens of SNe Ia in the same cluster. How do we calibrate SNe Ia in one of these galaxies given the distance to the host galaxy of the binary merger? The problem is that we would not know the relative positions of the SNe Ia and binary merger host galaxy. In this section we derive the distribution of the error one would make if one assumed that both transients occurred in the same galaxy. In other words, we investigate how the dispersion of galaxies throughout the cluster might affect the distance estimation of SNe Ia calibrated through GW events in the same cluster. An additional source of error arises from the peculiar velocity of host galaxies of the transient events. In the second part of this section we provide a rough estimate of how large this effect might be.

Error due to position uncertainty of SNe Ia hosts. To this end, we take the example of the Coma cluster. This cluster is roughly 100 Mpc away from Earth and contains more than 3000 galaxies. Following several studies (Lokas & Mamon 2003; Brilenkov et al. 2017) we assume that the matter density in Coma can be well approximated by the Navarro–Frenk–White profile (Navarro et al. 1996). To simulate the positions of galaxies within this cluster we use the publicly available python package halotools (Hearin et al. 2017) which requires the number of galaxies in a cluster, their concentration, and the mass of the cluster as input parameters. We simulate 1000 galaxies and assume the concentration and mass of the cluster to be 4 and 1.29 × 10¹⁵ M_⊙ h⁻¹, respectively, as reported in Brilenkov et al. (2017). We consider h to be 0.701.

In Section 3, we learned that 10 years of optical observation would allow us to calibrate roughly 38 SNe Ia per binary neutron star merger host galaxy cluster. Furthermore, we expect to observe between 1.8 and 26.6 such clusters within 300 Mpc in five years of the GW observation period. For simplicity in our calculations, we assume that all these clusters are Coma-like, i.e., they all have same matter density profile and each contains 1000 galaxies. Let us consider that one detects a binary neutron star merger in a particular galaxy cluster; it will then be accompanied by 38 SNe Ia within 10 years of optical observation. We distribute one binary neutron star and 38 SNe Ia randomly among the cluster's 1000 simulated galaxies, and calculate the fractional difference in the luminosity distances of binary neutron star mergers and SNe Ia as

$$\begin{eqnarray}&&\epsilon =\displaystyle \frac{| {D}_{\mathrm{BNS}}-{D}_{\mathrm{SNeIa}}| }{{D}_{\mathrm{BNS}}},\end{eqnarray} \tag{ 5 }$$

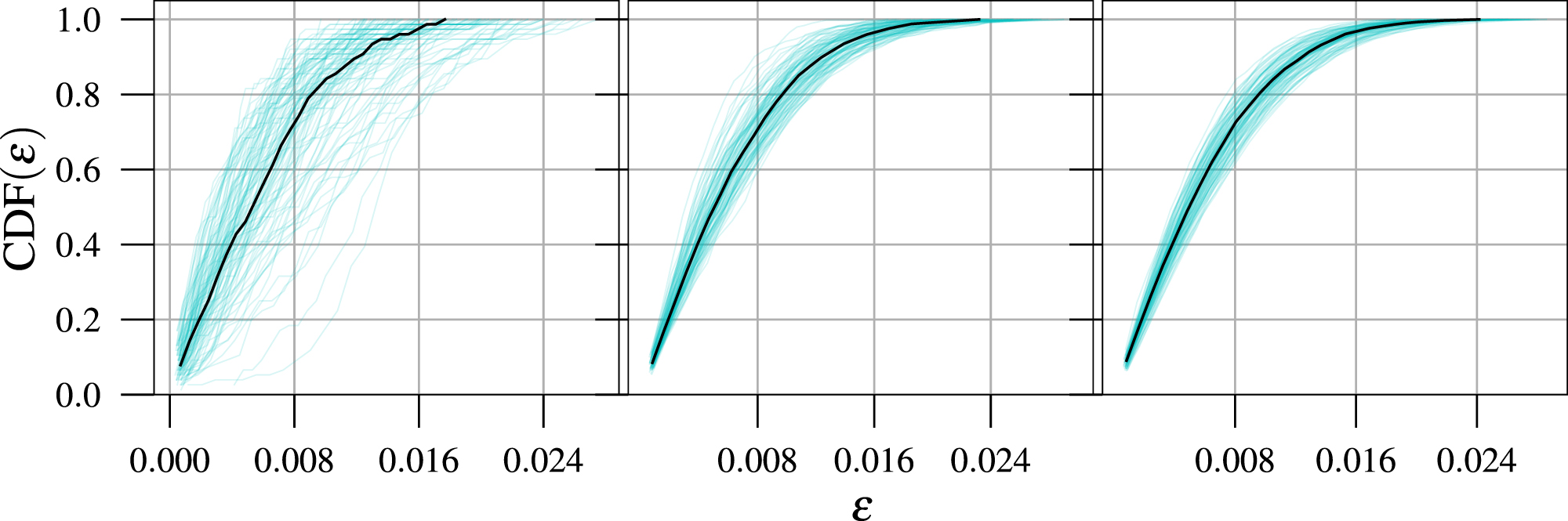

where ${D}_{\mathrm{BNS}}$ and D_SNeIa are the true distances of binary neutron star mergers and SNe Ia, respectively, in our simulation. With one galaxy cluster we obtain 38 samples of , and since all the clusters are the same it is easy to scale this number with the number of clusters. More explicitly, having two clusters with each containing one binary neutron star merger and 38 SNe Ia is equivalent to have one cluster containing two binary neutron star mergers and 76 SNe Ia. Following this argument, in Figure 6 we plot the cumulative distribution of for 2, 13 and 27 binary neutron star mergers in a cluster (we round the number of clusters to the nearest integer). The cyan colors show 100 realization of sampling radial positions of galaxies in Coma using halotools and the black curve represents the median. From Figure 6 we note that 90% (99%) of the times  < 0.9% (<1.5%), which implies that there will be ${ \mathcal O }(1 \% )$ error in the distance estimation of SNe Ia if calibrated through binary neutron star mergers in the same galaxy cluster.

Zoom In Zoom Out Reset image size

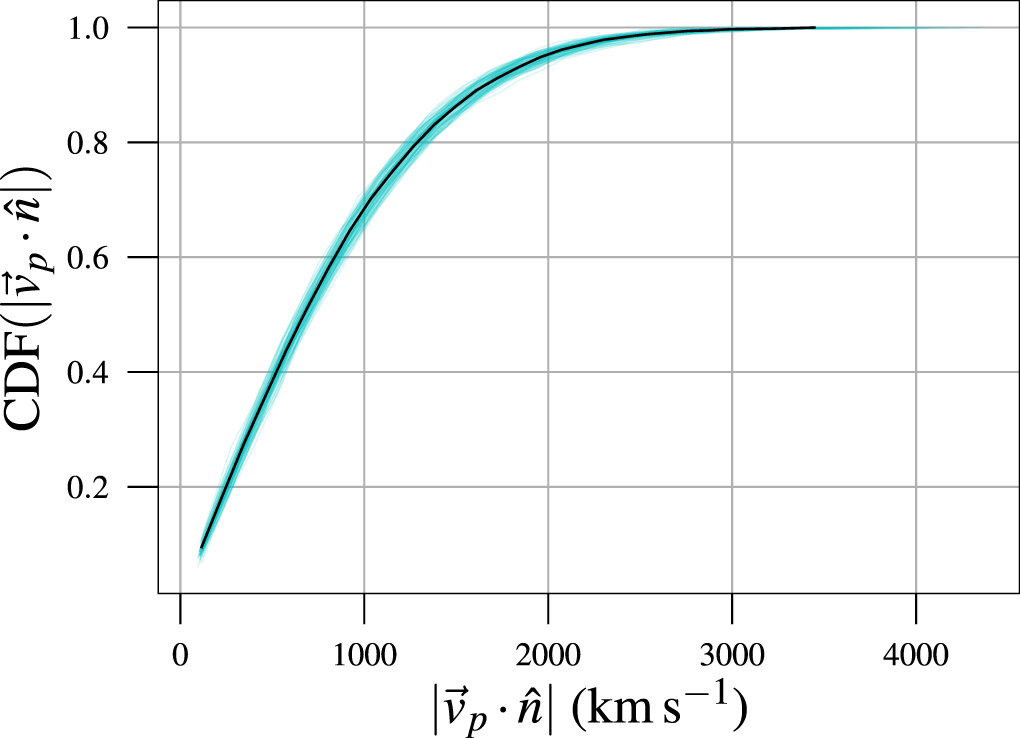

Error due to peculiar velocities of host galaxies. In a rich cluster, galaxies can have quite a large peculiar velocity. For example, Lokas & Mamon (2003) quote that the peculiar velocity ${{\boldsymbol{v}}}_{p}$ in the Coma cluster can be as large as ∼10⁴ km s⁻¹, while typical rich clusters are known to have $| {v}_{p}| \sim 750\,\mathrm{km}\,{{\rm{s}}}^{-1}$ (Bahcall 1996). What is relevant is the peculiar velocity projected along the line of sight $\hat{n},$ namely ${{\boldsymbol{v}}}_{p}\cdot \hat{n}$, because it is this velocity that affects the apparent luminosity of SNe Ia and binary neutron star mergers due to the Doppler effect. For ${{\boldsymbol{v}}}_{p}$ of a constant magnitude but distributed isotropically in space we would expect the line-of-sight rms velocity to be ${{\boldsymbol{v}}}_{p}/\sqrt{3}.$ However, ${{\boldsymbol{v}}}_{p}$ varies throughout the cluster, and for Coma using halotools we find $\overline{v}\equiv \langle {({{\boldsymbol{v}}}_{p}\cdot \hat{n})}^{2}{\rangle }^{1/2}\sim {10}^{3}\,\mathrm{km}\,{{\rm{s}}}^{-1}$, as shown in Figure 7, where $\langle ...\rangle$ stands for the average over all directions.

Zoom In Zoom Out Reset image size

The luminosity distance inferred to a binary system is affected by the local peculiar velocity. The error induced in the luminosity distance due to the rms line-of-sight velocity $\overline{v}$ is $\delta {D}_{L}=\overline{v}/{H}_{0}.$ Hence, for ${H}_{0}=70\,\mathrm{km}\,{{\rm{s}}}^{-1}\,{\mathrm{Mpc}}^{-1},$ the error in the binary's distance is δ D_L ≃ 14 Mpc. This is the typical error we make in the estimation of distance due to peculiar velocity and it remains the same for a cluster of given concentration. Thus, at the distance of the Coma cluster, this error is ∼14% while it reduces to ∼5% for clusters at 300 Mpc. As seen in Figure 3, the error in luminosity distance of binaries due to GW measurements alone (assuming that the host's sky position is known) is ∼1.2%, which is far less than the error due to peculiar motion. However, it is comparable to the error due to the position uncertainty, relative to the binary neutron star merger, of SNe Ia that we discussed above. Thus, the calibration uncertainty of SNe Ia up to 300 Mpc is largely due to the peculiar motion of galaxies.

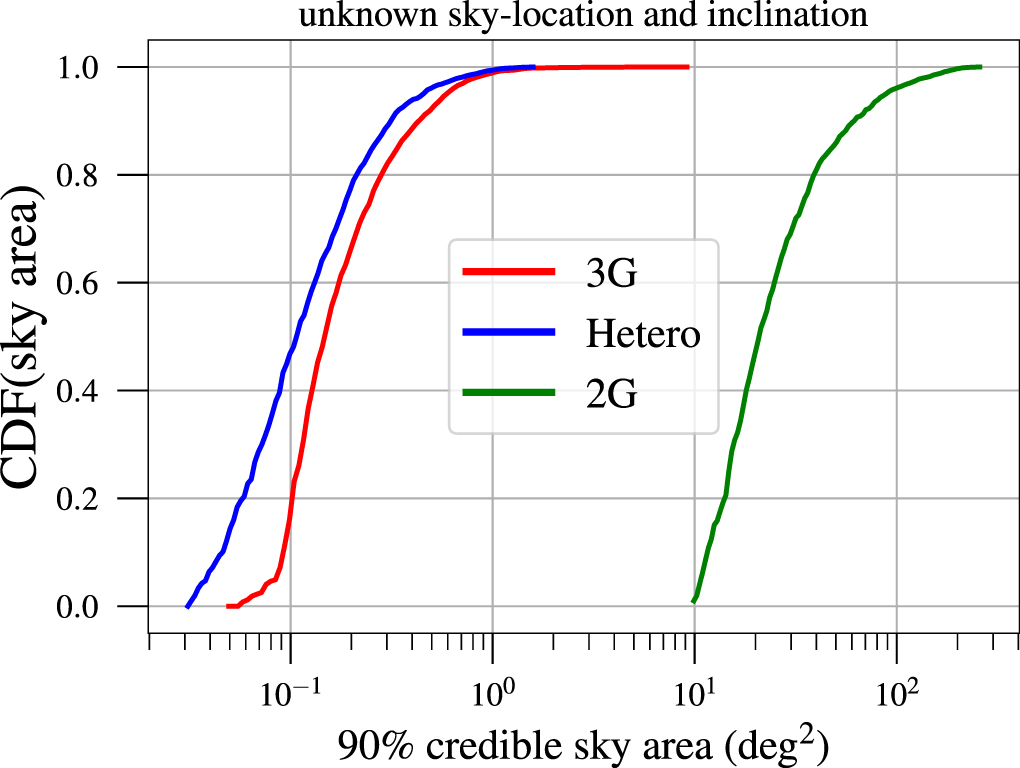

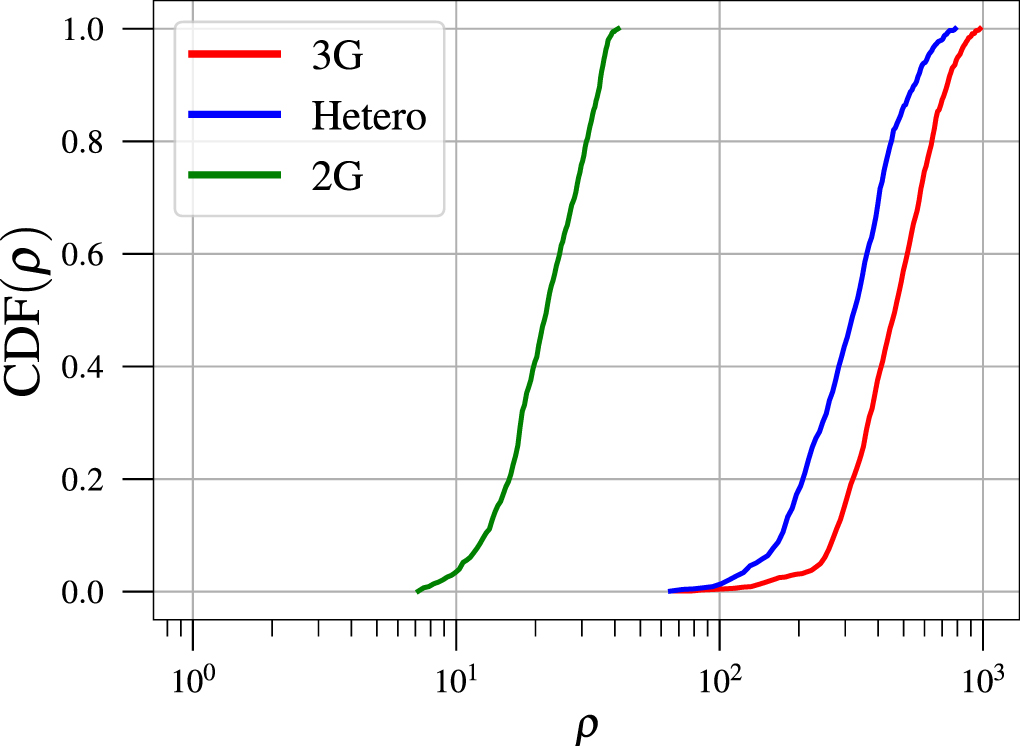

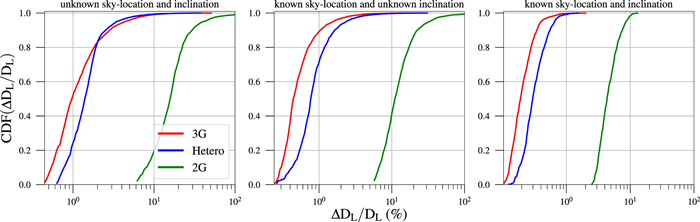

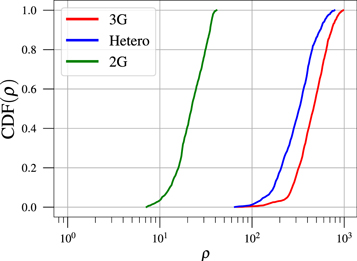

However, what is the typical error in the distance measurement of the binary merger itself in these Coma-like clusters? We compute this error using different networks of detectors.¹² Figure 8 shows the cumulative distribution of network S/N for this population of binary neutron stars in Coma for 2G, 3G, and Hetero detector networks. We compute the error in the binary's distance measurement in all three observational scenarios we discussed in the previous section and the results are shown in Figure 9. The 3G network performs best in constraining distances with a median of ∼2% error (90% sources have error <3%) when the electromagnetic counterpart of the binary neutron star merger cannot be identified. The error reduces to ∼0.3% (90% sources have error <0.4%) when both the sky position and inclination angle are known from the electromagnetic observations. Figures 10 and 11 depict the cumulative distribution of errors in the measurement of cos(ι) and 90% credible sky area, respectively.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

This shows that the error in the estimation of SNe Ia distance due to GW calibration is comparable to the statistical error in the measurement of the calibrator's distance itself for the galaxies in the Coma cluster.

In this paper we explored the possibility of calibrating SNe Ia using GWs from coalescing binary neutron stars as standard sirens. According to the current best estimates, the volumetric rate of SNe Ia is 30 times larger than that of binary neutron star mergers. Even so, there is very little chance that an SN Ia would occur in the same galaxy as a binary neutron star merger. However, when a neutron star merger occurs in a galaxy cluster it is guaranteed that more than one SN Ia would have occurred in the same cluster within a year. As shown in Figure 1 in a typical rich cluster within 300 Mpc, such as Coma, a binary neutron star merger will be accompanied by a few SNe Ia each year, providing ample opportunity to calibrate SNe using standard sirens.

To accomplish this task it is necessary to control the error in the measurement of distance to merging binary neutron stars to well below the other sources of error, such as the unknown relative positions of SNe Ia and the peculiar velocity of galaxies within a cluster. One obtains an error of ∼0.9% in distance of SNe Ia, for 90% of them, when one does not know the host galaxies of either the SNe Ia or binary merger in a Coma-like cluster and assumes both of them to occur in the same galaxy. On the other hand, one obtains an error of ∼14% due to the peculiar velocities of galaxies in the Coma-like cluster. Note that Coma is 100 Mpc away from Earth and both these errors translate to ∼0.3% and ∼5%, respectively, for galaxies at 300 Mpc. In contrast, we find that the next generation of GW detector networks (one ET and two CEs) will be able to obtain the distance error for the standard sirens to be less than 1% for 90% of the binary neutron star mergers whose sky position and inclination are known from electromagnetic observations within 300 Mpc. Thus, the prospect of calibrating SNe Ia using a completely independent method and establishing a new cosmic distance ladder looks bright.

SNe Ia are expected to remain a key tool for distance estimation and cosmology through the next decade and beyond. A particularly exciting near-term prospect is the 10 year LSST survey (LSST Science Collaboration et al. 2017), due to begin by the end of 2022. LSST will discover and characterize ∼50,000 SNe Ia per year out to redshift z ≈ 0.7 in its main survey fields, and an additional ∼1500 per year out to redshift z ≈ 1.1 in its "deep drilling" fields; of these SNe Ia, ≈200 per year are anticipated to have LSST data of sufficient quality to support cosmological analyses. Although spectroscopic characterization of all but a fraction of LSST SNe Ia will not be feasible, photometric analyses of the SNe Ia and their host galaxies, in the context of the sheer number of events, are expected to enable high-quality constraints on cosmology, particularly the matter density Ω_m and dark energy equation of state w. (For LSST's ultimate cosmological studies, the SNe Ia analysis will be combined with weak lensing measurements of mass clustering and the growth of structure, and a cosmic scale factor analysis from the baryon acoustic oscillations feature of large scale structure, to yield joint constraints on all cosmological parameters.)

A GW-based calibration of the LSST sample of SNe Ia can be achieved at low redshift via binary neutron star detections from the jointly observed redshift range 0.02 ≤ z ≤ 0.07 (85 Mpc ≲ D_L ≲ 300 Mpc). Over this range, binary neutron star mergers will be detectable by next-generation GW facilities, while at the same time the effects of galaxy peculiar velocities will be minimal (<5% per object for field galaxies). LSST simulations (LSST Science Collaboration et al. 2017) project high-quality characterization of ≈200 SNe Ia per year in this redshift range, and the estimated binary neutron star merger rates are 12–420 (median 110) per year for this 0.11 Gpc³ volume. This suggests that a high-quality GW-based calibration of SNe  Ia luminosities in the field should also be possible in the LSST era.

In conclusion, the fundamental advance considered in this paper is provided by the application of precision GW-based distance measurements (Schutz 1986) to the calibration of SNe Ia distances—specifically, in cases where events of both types are hosted by a single galaxy cluster. Considering the broader picture, the impending realization of a longstanding astronomical dream of precise distance estimates on near-cosmological scales can be expected to yield many additional applications; for example, precision studies of galaxy and galaxy cluster peculiar velocities, three-dimensional mapping of galaxies in the context of their host clusters and groups, and the fully tomographic use of galaxies and active galactic nuclei to characterize the gas, stellar, and dark matter contents of their host groups and clusters. Given the implications of precise distance measurements for nearly every branch of astronomy and astrophysics, a mere refinement of our current understanding would be in some sense a disappointment. We choose to hope, instead, for at least a few genuine surprises.
