ALMA Observations of Fragmentation, Substructure, and Protostars in High-mass Starless Clump Candidates

We have identified SCCs through the combined catalogs and images of primarily two dust continuum Galactic plane surveys: (1) an evolutionary analysis of BGPS $1.1\,\mathrm{mm}$ (Svoboda et al. 2016, hereafter S16), and (2) comparison of the Peretto & Fuller (2009) infrared dark cloud (IRDC) catalog with Hi-GAL images (Traficante et al. 2015). The BGPS observed between $-10^\circ \lt {\ell }\lt 90^\circ$ with $| b| \lt 0\buildrel{\circ}\over{.} 5$ (expanding to $| b| \lt 1\buildrel{\circ}\over{.} 5$ for selected ℓ) at ${\lambda }_{{\rm{c}}}=1.12\,\mathrm{mm}$ with a ${\theta }_{\mathrm{hpbw}}=33^{\prime\prime}$ synthesized angular resolution. In the region $10^\circ \lt {\ell }\lt 65^\circ$, the BGPS has been compared to a diverse set of a observational indicators for star formation activity (S16). These indicators include compact $70\,\mu {\rm{m}}$ sources, mid-IR color-selected YSOs, ${{\rm{H}}}_{2}{\rm{O}}$ masers, Class II ${\mathrm{CH}}_{3}\mathrm{OH}$ masers, extended $4.5\,\mu {\rm{m}}$ outflows, and UCHii regions. From the sample of more than 2500 SCCs in the combined samples of S16 and Traficante et al. (2015), we target the 12 highest-mass SCCs within ${d}_{\odot }\lt 5\,\mathrm{kpc}$. Point sources at $70\,\mu {\rm{m}}$ were identified by visual inspection in S16 and by an automated extraction in Traficante et al. (2015). Three clumps (G28565, G29601, and G309120), which were initially determined from the automated extraction to be dark at $70\,\mu {\rm{m}}$, show association with weak sources upon closer scrutiny by visual inspection. Among the 12 ALMA targets, nine have no detectable point-source emission from Hi-GAL $70\,\mu {\rm{m}}$ (flag 0 in S16), two have low-confidence or marginal detections (flag 4, G28565 and G29601), and one has bright, compact detection (flag 1, source G30912). We emphasize that starless clump candidates are designated based on the observational data sets and identification techniques used, and that these factors are reflected in the completeness and purity of the resulting catalogs of SCCs. Table 1 details the target positions and velocities. Table 2 details the physical properties of the sample, and Figure 1 shows images of the clumps at wavelengths from $8\,\mu {\rm{m}}$ to $350\,\mu {\rm{m}}$.

Zoom In Zoom Out Reset image size

Table 1.  Target Positions

Name	ℓ	b	α (ICRS)	δ (ICRS)	${v}_{\mathrm{lsr}}$	bgps ida
	(deg)	(deg)	(h:m:s)	(d:m:s)	(km s−1)
G22695	22.695381	−0.454657	18:34:14.58	−09:18:35.84	77.80	3686
G23297	23.297388	0.055330	18:33:32.06	−08:32:26.27	55.00	3822
G23481	23.479544	−0.534764	18:35:59.56	−08:39:02.53	63.80	3892
G23605	23.605390	0.181325	18:33:39.40	−08:12:33.24	87.00	3929
G24051	24.051381	−0.214655	18:35:54.40	−07:59:44.60	81.10	4029
G28539	28.538652	−0.270358	18:44:22.60	−04:01:57.70	88.60	4732
G28565	28.527846	−0.252172	18:44:17.52	−04:02:02.40	87.46	4729
G29558	29.557855	0.185321	18:44:37.07	−02:55:04.40	79.72	5021
G29601	29.604891	−0.576768	18:47:25.20	−03:13:26.04	75.78	5030
G30120	30.119855	−1.146674	18:50:23.54	−03:01:31.58	65.31	5114
G30660	30.657875	0.044680	18:47:07.76	−02:00:12.17	80.20	5265
G30912	30.913113	0.720803	18:45:11.28	−01:28:03.72	50.74	5360

Note.

^aCatalog ID number in the BGPS v2.1.0 (Ginsburg et al. 2013).

Download table as:  ASCIITypeset image

Table 2.  Clump Physical Properties

Name	${d}_{\odot }$	${{\rm{\Sigma }}}_{\mathrm{pk}}$	Mcl	TK
	(kpc)	(g cm−2)	(${M}_{\odot }$)	(K)
G22695	4450 (190)	0.0580 (0.013)	930 (110)	14.70 (0.42)
G23297	3480 (281)	0.0760 (0.019)	420 (85)	11.73 (0.41)
G23481	3780 (220)	0.1100 (0.024)	760 (120)	11.29 (0.14)
G23605	4800 (240)	0.0370 (0.015)	880 (260)	⋯ (⋯)
G24051	4490 (210)	0.0790 (0.015)	760 (110)	11.87 (0.37)
G28539	4780 (220)	0.1280 (0.011)	3610 (360)	12.38 (0.14)
G28565	4680 (200)	0.0830 (0.019)	910 (220)	⋯ (⋯)
G29558	4370 (240)	0.0690 (0.014)	590 (86)	12.11 (0.17)
G29601	4270 (280)	0.0900 (0.018)	660 (130)	15.98 (0.27)
G30120	3680 (260)	0.0750 (0.031)	820 (160)	14.12 (0.15)
G30660	4410 (240)	0.0770 (0.019)	1380 (360)	⋯ (⋯)
G30912	2980 (250)	0.0990 (0.019)	450 (88)	11.67 (0.12)

Note. Uncertainties are reported as the MAD in parentheses. Properties are taken from Svoboda et al. (2016), except for mass measurements of G29601 and G30912, which are taken from Traficante et al. (2015).

Download table as:  ASCIITypeset image

The clump average physical properties in S16 are shown in Figure 2, plotting peak mass surface density ${{\rm{\Sigma }}}_{\mathrm{cl},\mathrm{pk}}$ (at ${\theta }_{\mathrm{hpbw}}=33^{\prime\prime}$) and total mass ${M}_{\mathrm{cl}}$, for sources with well-constrained distances less than ${d}_{\odot }\lt 5\,\mathrm{kpc}$ and $10^\circ \lt {\ell }\lt 65^\circ$. Protostellar clumps and SCCs are plotted, where SCCs have quiescent background emission and no detected compact sources from the Hi-GAL $70\,\mu {\rm{m}}$ images (flag 0; see Section 3.2.4 of S16). Protostellar clumps are typically higher in both mass and mass surface density compared to SCCs. The ALMA targets are shown, occupying the highest ${{\rm{\Sigma }}}_{\mathrm{cl},\mathrm{pk}}$ and ${M}_{\mathrm{cl}}$ portions of the SCC distribution where typical values for the sample are ${M}_{\mathrm{cl}}\sim 800\,{M}_{\odot }$ and ${{\rm{\Sigma }}}_{\mathrm{cl},\mathrm{pk}}\sim 0.1\,{\rm{g}}\,{\mathrm{cm}}^{-2}$ (measured over $\sim 0.6\,\mathrm{pc}$ scales). In particular, G28539 stands out as the most massive clump in the sample at ${M}_{\mathrm{cl}}\,\sim 3\times {10}^{3}\,{M}_{\odot }$, and also as having the highest peak mass surface density.

Zoom In Zoom Out Reset image size

Assuming a star formation efficiency of ${\epsilon }_{\mathrm{sf}}=0.3$ and a standard stellar initial mass function (IMF; Kroupa 2001), a 320 ${M}_{\odot }$ clump meets the criteria to form a 8 ${M}_{\odot }$ star (see Section 6.1 of S16). All of the clumps that comprise this sample are above this mass threshold, and are similarly above the mass–radius relationship for high-mass star formation proposed by Kauffmann & Pillai (2010).¹⁶ In practice, however, it is difficult to assess the high-mass star formation potential of clumps beyond these simple heuristics. It should be kept in mind that, if the star formation efficiency of the targets is substantially lower than the typical assumed value of _sf = 0.3, then they are unlikely to form high-mass stars.

As part of Atacama Large Millimeter/submillimeter Array (ALMA) Cycle 3 program 2015.1.00959.S, we observed 12 clumps in Band 6 in a compact configuration (C36-2; joint $12+7\,{\rm{m}}$ array baselines range from $\sim 9\ \mathrm{to}\ 450\,{\rm{m}}$). Data were taken between 2016 March 3 and 20 for the $12\,{\rm{m}}$ array, and between 2016 April 30 and August 19 for the $7\,{\rm{m}}$ array. Including time for calibration and overheads, the $12\,{\rm{m}}$ array observations lasted for approximately $12\,\mathrm{hr}$, with typical precipitable water vapor of $1.5\,\mathrm{mm}$. Titan and J1733–1304 were used as flux calibrators, J1751+0939 to calibrate the bandpass, and J1743–0350 and J1830+0619 to calibrate the time-dependent gains. Identical $1\,\mathrm{hr}$ scheduling blocks were configured to interleave and observe all 12 targets within the same block, and because sources are within a 5° radius on the sky (227 < ℓ < 309), the same calibrators can be used. Thus, due to their nearly identical observing conditions, the individual maps have similar uv-coverage, atmospheric noise, and beam size.

Positions for the sample were chosen from the BGPS $1.1\,\mathrm{mm}$ continuum peak flux density position and compared for consistency with the ATLASGAL $870\,\mu {\rm{m}}$ peak emission and Hi-GAL $70\,\mu {\rm{m}}$ peak absorption (when present) positions. The Band 6 receiver was configured in dual-polarization mode, with lower and upper sidebands centered near 215 and $230\,\mathrm{GHz}$, respectively. The observations targeted each clump peak with a single pointing with half-power beamwidth (HPBW) of the measured primary beam 266 ($\sim 0.5\,\mathrm{pc}$ at ${d}_{\odot }=4\,\mathrm{kpc}$) and 20%-power beamwidth of 40'' ($\sim 0.8\,\mathrm{pc}$), the effective limit of the $12\,{\rm{m}}$ array field of view.

2.2.1. ALMA 1.3 mm Continuum Reduction

Data reduction was performed using CASA (version 4.7.134-DEV, r38011, for consistency with QA2 delivered products). Line-free continuum visibilities were created by flagging channels contaminated by spectral lines, where the input spectral windows (SPWs) were further visually inspected to check for emission at unexpected velocity ranges, partitioned out into a new measurement set with the split task, and channel averaged to $25\,\mathrm{MHz}$ in order to avoid bandwidth smearing. Together, this yields $\approx 3.5\,\mathrm{GHz}$ of dual-polarization continuum bandwidth. The continuum image root mean square (rms; ${\sigma }_{\mathrm{rms}}=\sqrt{{\sum }_{n}{I}_{n}^{2}/n}$) is measured for each cleaned image within a region that excludes identified emission using the casaviewer tool. None of the images are limited in dynamic range, with peak image intensity divided by the rms less than 200. We estimate the fiducial mass sensitivity given ${T}_{{\rm{K}}}({\mathrm{NH}}_{3})\approx 12\,{\rm{K}}$, thermally coupled gas and dust (${T}_{{\rm{d}}}={T}_{{\rm{K}}}$), and OH5 dust opacity $\kappa (\lambda =1.3\,\mathrm{mm})=0.899\,{\mathrm{cm}}^{2}\,{{\rm{g}}}^{-1}$). The methods for deriving dust mass values from the continuum emission are discussed in more detail in Section 4. The joint $12+7\,{\rm{m}}$ continuum was then iteratively cleaned with manual masking via the tclean task, using the multiscale deconvolver and a robust weighting of 1, down to a brightness threshold of $2\mbox{--}3{\sigma }_{\mathrm{rms}}$. An image cell size of 01 was used for all continuum and spectral line maps. Self-calibration was not applied, because the brightest sources in the image are only a few mJy and not bright enough for a conservative self-cal to produce a noticeable improvement without also increasing the image noise. The resultant images have a synthesized beam size of θ_maj ≈ 085 by θ_min ≈ 075 (08 angular diameter yields $2800\mbox{--}3800\,\mathrm{au}$ at ${d}_{\odot }=3.5\mbox{--}4.8\,\mathrm{kpc}$). The continuum images are shown in Figure 3.

Zoom In Zoom Out Reset image size

2.2.2. ALMA Spectral Line Reduction

The flexibility of the ALMA correlator enabled simultaneous observation of several molecular line transitions. Table 3 reports the details of the correlator configuration. We observed nine SPWs with one wide-band, low-spectral resolution window centered at $233.8\,\mathrm{GHz}$ and eight high-spectral resolution windows centered on lines of interest. Table 4 reports the transition quantum numbers, rest frequencies, and upper energy levels (E_u/k). The SPWs containing the ${{\rm{H}}}_{2}\mathrm{CO}$ and ${\mathrm{CH}}_{3}\mathrm{OH}$ transitions have a spectral resolution of $0.34\,\mathrm{km}\,{{\rm{s}}}^{-1}$, and the other line SPWs have $0.68\,\mathrm{km}\,{{\rm{s}}}^{-1}$ resolution. Line rest frequencies were taken from a combination of the SLAIM¹⁷ (Remijan et al. 2007; F. J. Lovas 2019, private communication) and the CDMS (Müller et al. 2005) online spectroscopic databases. The line SPWs from the $12+7\,{\rm{m}}$ arrays were jointly imaged using the CASA task tclean, with a Briggs robust parameter of 1.0 and a cell size of 01, and regridded to common spectral resolutions listed in Table 4. We find typical rms noise levels in the image cubes of $1.8\,\mathrm{mJy}/(\mathrm{km}\,{{\rm{s}}}^{-1})$ (i.e., $2.2\,\mathrm{mJy}$ per $0.68\,\mathrm{km}\,{{\rm{s}}}^{-1}$ channel or $3.0\,\mathrm{mJy}$ per $0.34\,\mathrm{km}\,{{\rm{s}}}^{-1}$ channel) or $71\,\mathrm{mK}/(\mathrm{km}\,{{\rm{s}}}^{-1})$ when converted to brightness temperature units (HPBW beam size of 085 × 075).

Table 3.  ALMA Correlator Configuration

spw	Cen. Freq.	N	Bandwidth	Bandwidth	Δ f	Δ v
	(GHz)		(kHz)	(km s−1)	(kHz)	(km s−1)
1	216.112580	960	468750.0	650.252	488.28	0.677
2	217.104980	960	468750.0	647.280	488.28	0.674
3	218.222192	480	117187.2	160.991	244.14	0.335
4	218.475632	480	117187.2	160.804	244.14	0.335
5	218.760066	480	117187.2	160.595	244.14	0.335
6	219.560358	240	117187.2	160.010	488.28	0.667
7	230.538000	960	468750.0	609.564	488.28	0.635
8	231.321828	960	468750.0	607.499	488.28	0.632
9	233.820000	128	2000000.0	2564.301	15625.00	20.033

Note. Column descriptions: (1) Spectral window (SPW) ID number, (2) Center frequency of SPW in the rest frame, (3) Number of channels, (4), (5) SPW total bandwidth, (6), (7) SPW channel resolution. Uncertainties are given in parentheses.

Download table as:  ASCIITypeset image

Table 4.  Spectral Line Transition Properties

Specie	Transition	Rest Freq.	${E}_{{\rm{u}}}/k$	Ref.	spw	${\rm{\Delta }}v$
		(GHz)	(K)			($\mathrm{km}\,{{\rm{s}}}^{-1}$)
${\mathrm{DCO}}^{+}$	$3\to 2$	216.1125800	20.74	(1)	1	0.68
c-${\mathrm{HC}}_{3}{\rm{H}}$	${3}_{\mathrm{3,0}}\to {2}_{\mathrm{2,1}}$	216.2787560	19.47	(1)	1	0.68
$\mathrm{SiO}$	$5\to 4$	217.1049800	31.26	(1)	2	0.68
$\mathrm{DCN}$	$3\to 2$	217.2385378	20.85	(2)	2	0.68
p-${{\rm{H}}}_{2}\mathrm{CO}$	${3}_{\mathrm{0,3}}\to {2}_{\mathrm{0,2}}$	218.2221920	20.96	(1)	3	0.34
p-${{\rm{H}}}_{2}\mathrm{CO}$	${3}_{\mathrm{2,2}}\to {2}_{\mathrm{2,1}}$	218.4756320	68.09	(1)	4	0.34
${\mathrm{CH}}_{3}\mathrm{OH}$	${4}_{\mathrm{2,2}}\to {3}_{\mathrm{1,2}}$	218.4400500	45.46	(1)	4	0.34
p-${{\rm{H}}}_{2}\mathrm{CO}$	${3}_{\mathrm{2,1}}\to {2}_{\mathrm{2,0}}$	218.7600660	68.11	(1)	5	0.34
${{\rm{C}}}^{18}{\rm{O}}$	$2\to 1$	219.5603580	15.81	(1)	6	0.68
$\mathrm{CO}$	$2\to 1$	230.5380000	16.60	(1)	7	0.68
${{\rm{N}}}_{2}{{\rm{D}}}^{+}$	$3\to 2$	231.3218283	22.20	(2)	8	0.68

Note. Transition property reference key: (1) SLAIM, (2) CDMS.

Download table as:  ASCIITypeset image

In this work, we inspect the line image cubes for detection of emission, as well as for the presence of outflows traced by $\mathrm{CO}$ and $\mathrm{SiO}$, but we do not clean the data cubes. Due to the lack of full uv-coverage, the CO maps in particular show strong effects of spatial filtering near the systematic velocities that make the deconvolution process complex and error-prone. Detailed analysis of the spectral line data is left to a future work. Table 6 lists the detection flags per target for the continuum, molecular lines, and outflows. Features are considered detections if they have peak intensities $\geqslant 7{\sigma }_{\mathrm{rms}}$ ("D"), weak detections if between $5\ \mathrm{and}\ 7{\sigma }_{\mathrm{rms}}$ ("W"), and nondetections if $\leqslant 5{\sigma }_{\mathrm{rms}}$. Targets that exhibit bipolar outflows in CO or SiO are flagged "B" (discussed below in Section 3.2).

The dense gas features revealed in the continuum maps clearly show hierarchical structure, with bright ridges, filaments, and cores contained within larger features with lower surface brightness. Given the complexity within the maps and the systematic uncertainties of imaging, we compare the continuum images to an additional measure of gas column density at comparable resolution, MIR extinction. For appropriate configurations of distance and the MIR radiation field, clumps can appear associated with $8\,\mu {\rm{m}}$ absorption features (EMAFs), where high column densities at close distances typically yield the strong MIR shadows that identify infrared dark clouds (IRDCs). MIR extinction mapping has the advantages of comparatively high resolution, insensitivity to dust temperature, and lack of spatial filtering. We use the Spitzer GLIMPSE (Benjamin et al. 2003; Churchwell et al. 2009) IRAC Band 4 (${\lambda }_{{\rm{c}}}=7.9\,\mu {\rm{m}}$, 2'' FWHM) mosaic to show the EMAF contrast. Figure 4 presents a map of the flux density S₈ with the ALMA $230\,\mathrm{GHz}$ continuum for source G24051 overlaid. The dense gas structures observed in the millimeter continuum show a remarkable consistency when compared with the column density features inferred from the MIR contrast. This holds similarly true for the other clumps in the sample, as all show at least some MIR extinction. Qualitatively this good correspondence supports the fidelity of the emission structure detected in the ALMA maps.

Zoom In Zoom Out Reset image size

In order to analyze the fragmentation scale, we first identify dense gas substructures using a segmentation algorithm. The nature of the tree data structure in the dendrogram algorithm makes it well-suited to identifying and categorizing structure in images with hierarchical structure (see Rosolowsky et al. 2008), as opposed to a simpler segmentation algorithms, such as that done with a seeded watershed algorithm (e.g., clumpfind; Williams et al. 1994). We use the open source Python software library astrodendro to create the dendrogram and catalog of cores. The dendrogram has three principal tunable parameters: a minimum threshold value, v_min, that sets the floor or outer boundary of each tree; the minimum contrast or step size, ${\delta }_{\mathrm{step}}$, between nodes; and the minimum area, ${{\rm{\Omega }}}_{\min }$. Because the noise varies considerably across the primary beam of each image, we apply the dendrogram to maps that have not been corrected for the weight of the primary beam. This effectively works to identify features with outer contours of constant statistical significance across the field of view, rather than outer contours of constant flux. Sources are extracted out to the limit of the maps, set to the 20% power point of the primary beam. We choose conservative values for each parameter, using ${v}_{\min }=3{\sigma }_{\mathrm{rms}}$, ${\delta }_{\mathrm{step}}=3{\sigma }_{\mathrm{rms}}$, and ${{\rm{\Omega }}}_{\min }={{\rm{\Omega }}}_{\mathrm{bm}}$, applied to the unmasked images. Sources (i.e., leaves, or nodes without children) are then subselected to meet the criterion that the peak flux is $\gt 5{\sigma }_{\mathrm{rms}}$. In total, we identify 67 substructures for the sample of 12 clumps. Figure 5 shows the dendrogram-extracted dense gas substructures in each clump. Table 5 catalogs the measured positions, sizes, and flux densities of the substructures. We find an average number of substructures per clump of ${N}_{\mathrm{src}}=5.6$ (median 6), with the maximum (${N}_{\mathrm{src}}=11$) in G24051 and minimum (${N}_{\mathrm{src}}=1$) in G23605. G23605 is the only clump with ${N}_{\mathrm{src}}\lt 3$, and thus is not included in the source nearest neighbor distance analysis. Figure 6 presents N_src per clump versus ${{\rm{\Sigma }}}_{\mathrm{cl},\mathrm{pk}}$. A tentative increasing trend can be observed, in that clumps with high ${{\rm{\Sigma }}}_{\mathrm{cl},\mathrm{pk}}$ are more fragmented than lower ${{\rm{\Sigma }}}_{\mathrm{cl},\mathrm{pk}}$.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Table 5.  Core Observed Properties

Name	ID	α (ICRS)	δ (ICRS)	${{\rm{\Omega }}}_{{\rm{c}}}$	a	b	PA	Sν	$\delta {S}_{\nu }$	${S}_{\nu ,\mathrm{pk}}$	CO	SiO
		(h:m:s)	(d:m:s)	(as2)	(as)	(as)	(deg)	(mJy)	(mJy)	(mJy/bm)
G22695	1	18:34:13.7336	−09:18:36.6910	9.30	2.597	1.213	146.0	17.284	0.109	6.414	1
G22695	2	18:34:14.6345	−09:18:44.6915	16.54	3.022	1.976	126.1	9.083	0.196	1.518
G22695	3	18:34:14.0405	−09:18:33.7904	7.17	2.256	1.444	135.6	5.348	0.133	0.737
G23297	1	18:33:32.1419	−08:32:25.9306	22.70	7.853	1.461	85.5	16.431	0.309	0.727
G23297	2	18:33:31.6164	−08:32:29.2777	2.79	1.055	0.870	72.4	11.515	0.088	6.381	2
G23297	3	18:33:32.1439	−08:32:34.3684	6.86	3.124	1.180	61.9	5.699	0.130	0.925
G23297	4	18:33:32.3527	−08:32:38.5247	3.77	1.880	0.911	94.0	4.139	0.066	1.906	1
G23297	5	18:33:31.5694	−08:32:30.9485	0.86	0.692	0.488	148.8	2.542	0.045	3.026
G23297	6	18:33:31.9659	−08:32:27.1673	2.29	1.161	0.784	107.4	1.740	0.097	0.893
G23297	7	18:33:31.6280	−08:32:22.9146	3.53	1.982	0.798	88.6	1.645	0.099	0.472
G23481	1	18:35:59.8961	−08:39:08.0500	2.68	0.998	0.853	−164.0	3.514	0.085	2.311
G23481	2	18:35:59.7404	−08:39:07.8724	3.04	1.464	0.758	−137.0	2.647	0.098	1.282	1
G23481	3	18:35:59.9838	−08:38:48.7847	3.02	1.513	0.806	176.9	2.529	0.046	1.263
G23481	4	18:35:59.4861	−08:39:01.0450	2.56	0.962	0.702	176.2	2.265	0.103	2.030
G23481	5	18:35:59.3916	−08:39:05.8982	5.46	4.296	0.681	−153.8	1.920	0.142	0.385
G23605	1	18:33:39.9726	−08:12:39.4169	1.88	0.938	0.651	177.4	1.371	0.058	1.197
G24051	1	18:35:54.1219	−07:59:53.4130	13.49	2.213	1.980	−168.1	12.535	0.164	5.085
G24051	2	18:35:55.0045	−07:59:35.7741	8.14	3.347	0.969	112.6	6.905	0.100	1.108
G24051	3	18:35:53.9805	−07:59:58.0198	7.95	2.563	1.491	155.0	6.397	0.077	0.924
G24051	4	18:35:54.4771	−07:59:41.2910	11.24	3.038	1.379	−176.6	5.844	0.207	1.192	1
G24051	5	18:35:54.5839	−07:59:52.2422	4.87	1.920	1.103	−148.3	5.500	0.111	1.810	1	1
G24051	6	18:35:54.9096	−07:59:40.4092	4.36	1.417	1.011	150.3	3.820	0.100	2.154		1
G24051	7	18:35:54.4693	−07:59:49.2862	4.14	1.641	0.987	62.3	3.810	0.120	1.044
G24051	8	18:35:54.8945	−07:59:42.6850	3.87	1.813	0.959	154.2	1.911	0.102	0.612
G24051	9	18:35:54.3071	−07:59:43.7882	1.42	1.354	0.487	68.1	1.057	0.076	0.643
G24051	10	18:35:54.3750	−07:59:45.8972	1.44	1.396	0.454	55.4	1.045	0.077	0.645
G24051	11	18:35:54.8697	−07:59:51.3991	1.47	1.060	0.555	135.5	0.659	0.054	0.506
G28539	1	18:44:22.2420	−04:01:44.7142	16.35	6.175	1.334	45.3	19.114	0.121	1.842
G28539	2	18:44:22.7348	−04:01:56.1668	8.58	2.585	1.671	73.6	5.411	0.183	0.711
G28539	3	18:44:22.8536	−04:02:03.2640	12.63	4.346	2.086	46.9	4.587	0.191	0.439
G28539	4	18:44:22.3397	−04:01:54.0246	7.39	2.372	1.682	130.3	4.055	0.156	0.603
G28539	5	18:44:22.8195	−04:02:07.5292	2.36	1.403	0.682	80.2	1.249	0.064	0.526
G28539	6	18:44:22.7434	−04:01:53.8880	1.41	0.930	0.656	169.0	0.842	0.070	0.551
G28565	1	18:44:17.2674	−04:02:03.5257	14.00	3.641	2.023	79.3	17.943	0.226	2.499	1	1
G28565	2	18:44:16.9912	−04:02:01.1285	3.52	2.395	0.776	89.0	3.894	0.093	0.946
G28565	3	18:44:17.2241	−04:02:08.5328	2.60	1.532	0.830	78.1	3.604	0.083	1.443
G28565	4	18:44:17.1101	−04:02:09.7546	3.33	1.914	0.810	62.9	3.087	0.082	0.827
G28565	5	18:44:17.0529	−04:01:58.7236	1.87	1.082	0.690	143.2	2.401	0.069	1.347
G28565	6	18:44:17.3596	−04:02:06.5025	1.47	0.935	0.670	109.7	1.561	0.071	0.903
G29558	1	18:44:37.5015	−02:55:12.4812	20.09	2.432	2.174	−146.5	20.697	0.184	6.613
G29558	2	18:44:37.3029	−02:55:01.9117	4.83	1.372	1.029	161.9	10.569	0.130	4.941	1
G29558	3	18:44:37.5338	−02:55:00.8673	3.41	1.524	0.742	171.2	6.624	0.093	3.588	1
G29558	4	18:44:36.6483	−02:55:02.6587	4.40	1.548	1.109	134.4	4.624	0.114	1.666
G29558	5	18:44:37.0267	−02:55:08.7202	6.09	2.893	1.085	125.8	1.881	0.146	0.332
G29558	6	18:44:37.8020	−02:55:10.4118	3.46	1.516	1.090	125.5	1.810	0.065	0.681
G29558	7	18:44:36.6640	−02:55:00.1446	1.87	0.937	0.766	176.3	1.688	0.070	1.116
G29558	8	18:44:36.6775	−02:54:57.2062	3.91	1.871	1.128	171.4	1.626	0.090	0.472
G29558	9	18:44:37.1252	−02:55:04.1785	2.00	1.141	0.739	45.8	1.357	0.090	0.584
G29601	1	18:47:25.3865	−03:13:29.3698	16.05	2.547	1.728	79.6	15.771	0.240	6.686	2	1
G29601	2	18:47:25.3644	−03:13:20.3497	4.94	1.908	1.077	−140.3	2.192	0.123	0.567
G29601	3	18:47:25.3951	−03:13:23.8223	4.15	2.104	0.976	78.6	1.751	0.124	0.501
G29601	4	18:47:25.5623	−03:13:24.6212	1.69	0.999	0.716	151.3	0.541	0.074	0.341
G30120	1	18:50:24.7282	−03:01:27.2884	1.38	0.820	0.683	147.5	3.924	0.020	2.709	1
G30120	2	18:50:24.7785	−03:01:26.1411	0.93	0.737	0.548	53.8	2.868	0.014	2.807
G30120	3	18:50:22.9654	−03:01:43.6061	1.61	0.912	0.680	−137.5	1.232	0.034	0.854
G30660	1	18:47:07.7985	−02:00:24.1287	27.58	5.270	2.513	66.2	15.430	0.191	0.902
G30660	2	18:47:08.0553	−02:00:09.6124	14.88	2.912	2.347	178.5	8.489	0.224	2.140
G30660	3	18:47:07.8433	−02:00:04.5482	18.40	4.397	2.139	142.3	8.257	0.219	1.318
G30660	4	18:47:07.4677	−01:59:58.7398	11.09	3.618	1.832	52.6	7.588	0.095	0.984
G30660	5	18:47:07.6647	−02:00:11.1585	11.19	2.859	1.779	53.0	5.183	0.210	0.812
G30660	6	18:47:07.3910	−02:00:09.7055	8.59	2.296	1.622	119.3	4.896	0.162	1.128
G30912	1	18:45:11.4745	−01:28:04.9508	44.25	4.523	3.651	51.0	27.344	0.403	2.728	1
G30912	2	18:45:11.1447	−01:28:02.2048	12.95	2.595	1.372	124.9	9.536	0.224	4.324	2
G30912	3	18:45:11.9211	−01:27:55.2127	4.29	2.778	0.976	151.1	2.249	0.069	0.682
G30912	4	18:45:11.4095	−01:27:58.6881	4.05	2.365	1.096	−161.7	1.498	0.114	0.430
G30912	5	18:45:10.5824	−01:28:11.8467	1.53	0.820	0.629	179.5	1.399	0.039	1.353
G30912	6	18:45:10.9468	−01:28:09.9788	0.83	0.600	0.516	168.0	0.360	0.045	0.518

Note. Column descriptions: (1) Target clump name, (2) substructure ID number, (3) centroid R.A. coordinate, (4) centroid decl. coordinate, (5) total dendrogram area, (6) Gaussian major FWHM, (7) Gaussian minor FWHM, (8) Gaussian position angle, (9) source integrated $1.3\,\mathrm{mm}$ flux density, (10) uncertainty in source integrated flux density, (11) source peak flux density, (12) number of bipolar CO outflows, (13) number of bipolar SiO outflows.

Download table as:  ASCIITypeset images: 1 2

In principle, the distribution of integrated flux densities can be analyzed to measure a CMF, but in practice, there are large observational uncertainties that complicate its interpretation. The principal contributor arises from at least a factor of three uncertainty in ${T}_{{\rm{d}}}\sim 6\mbox{--}35\,{\rm{K}}$ (∼10× uncertainty in M), due to uncertainty in the ISRF, local extinction, and uncertainty in the protostellar activity of each source. Single-wavelength observations do not give us enough information to construct spectral energy distributions (SEDs) and measure average line-of-sight dust temperatures. Other significant systematics also arise from uncertainty in the missing flux density due to spatial filtering by the interferometer, dust opacity (δκ/κ ≈ 50%), kinematic-derived heliocentric distance ($\delta {d}_{\odot }/{d}_{\odot }\approx 15 \%$), and the aperture or source boundary used to extract S_ν. For these reasons, we shall leave the study of the characteristic fragmentation mass and the CMF in SCCs to a future work utilizing complementary NSF's Karl G. Jansky Very Large Array (JVLA) ${\mathrm{NH}}_{3}$ observations that will provide both gas kinetic temperature and kinematic information (B. E. Svoboda et al. 2019, in preparation). The characteristic fragmentation length scale, on the other hand, can be inferred directly from the distribution of angular separations between sources, with assumptions on how to correct for geometric projection.

Numerous high signal-to-noise ratio (S/N, ${S}_{\nu }/{\sigma }_{\mathrm{rms}}$), point-like sources are observed in the continuum images (Figure 3). We speculate that such sources originate from the dense, centrally heated, inner envelopes of embedded protostars. In Section 4, we investigate whether the compact continuum sources are inconsistent with radiative transfer models of dense, starless cores.

We designate continuum sources as "compact" if they are unresolved or are marginally resolved on the scale of the ALMA synthesized beam θ_syn ≈ 08. Continuum sources are determined to be unresolved if a Gaussian fit to the image plane data using the CASA task imfit reports an deconvolved angular sizes θ_dec ≲ θ_syn. The deconvolved Gaussian FWHM are determined by subtracting the synthesized HPBW in quadrature from the fitted width, i.e., ${\theta }_{\mathrm{dec}}=\sqrt{{\theta }_{\mathrm{fit}}^{2}-{\theta }_{\mathrm{syn}}^{2}}$. These angular widths correspond to physical sizes of $\lesssim 1500\,\mathrm{au}$ at heliocentric distances of ${d}_{\odot }\approx 4\,\mathrm{kpc}$. The brightest compact sources have typical peak flux densities between ${S}_{1.3,\mathrm{pk}}\,\,\approx 1\mbox{--}7\,\,\mathrm{mJy}\,{\mathrm{beam}}^{-1}$. All clumps aside from G28539 host a compact source with ${S}_{1.3,\mathrm{pk}}\gt 1\,\,\mathrm{mJy}\,{\mathrm{beam}}^{-1}$. Indeed, sources G23605 and G30120 host compact sources, even though they show limited fragmentation otherwise. While lacking extended continuum emission, the compact source G23605 S1 has clear association with emission from multiple molecular species (${{\rm{C}}}^{18}{\rm{O}}$, ${{\rm{H}}}_{2}\mathrm{CO}$, ${\mathrm{CH}}_{3}\mathrm{OH}$) at the LSR velocity of the clump, determined from the ${\mathrm{NH}}_{3}$ emission (32'', $0.7\,\mathrm{pc}$ resolution; S16). G30120 S1 is a compact source near the eastern edge of the field with a strong $\mathrm{CO}$ outflow and other molecular detections.

For comparison to nearby low-mass star-forming regions, Enoch et al. (2011) carried out a survey of Class 0 YSOs in Serpens at $230\,\mathrm{GHz}$ with CARMA. The envelope masses range between ${M}_{\mathrm{env}}=0.5\mbox{--}20\,{M}_{\odot }$ (median ${M}_{\mathrm{env}}=3.7\,{M}_{\odot }$) and with integrated flux densities between ${S}_{1.3}=1.4\times {10}^{1}\mbox{--}4.0\,\times {10}^{3}\,\mathrm{mJy}$ (median ${S}_{1.3}=120\,\mathrm{mJy}$) and deconvolved size scales between $D=400\mbox{--}3000\,\mathrm{au}$ (median $D\approx 700\,\mathrm{au}$). With a heliocentric distance of ${d}_{\odot }=415\pm 25\,\mathrm{pc}$ to Serpens (Dzib et al. 2010), the $120\,\mathrm{mJy}$ median source flux density and $700\,\mathrm{au}$ size measured by Enoch et al. (2011) correspond to $1.2\,\mathrm{mJy}$ and 018 when scaled to a fiducial distance of $4\,\mathrm{kpc}$. If there are low- to intermediate-mass Class 0 YSOs with physical properties in these SCCs similar to those in Serpens, then they would be consistent with the observed bright ($\gtrsim 20{\sigma }_{\mathrm{rms}}$) unresolved point continuum sources. This is further supported by the frequent coincidence of outflows toward such sources, as discussed in Section 3.2. To determine whether the observed compact continuum sources are consistent with starless cores ($\sim 0.1\,\mathrm{pc}$) embedded within the mapped clumps ($\sim 1\,\mathrm{pc}$), in Section 4 we compare a subset of the observations to radiative transfer models of starless cores.

Some continuum sources without molecular line detections may be background galaxies. Deep surveys performed with ALMA (Hatsukade et al. 2013; Carniani et al. 2015) have determined source counts of background galaxies at $1.3\,\mathrm{mm}$. The number of sources expected in the images with flux densities greater than $N({S}_{1.3}\gt 0.3\,\mathrm{mJy})\lesssim 3$ over the 12 fields, measured as the HPBW area for each pointing, outside of which the degraded sensitivity yields negligible background sources. This represents approximately ≲5% of the detected sources, and thus does not have a significant effect on the calculation of the nearest neighbor separations or other estimated distributions of core properties.

Ordered, bipolar molecular outflows driven by protostellar accretion provide a sensitive and unambiguous detection of embedded protostellar activity; see reviews by Arce et al. (2007) and Frank et al. (2014). In this section, we describe the properties of outflows detected with ALMA in $\mathrm{CO}$ $J=2\to 1$ and $\mathrm{SiO}$ $J=5\to 4$.

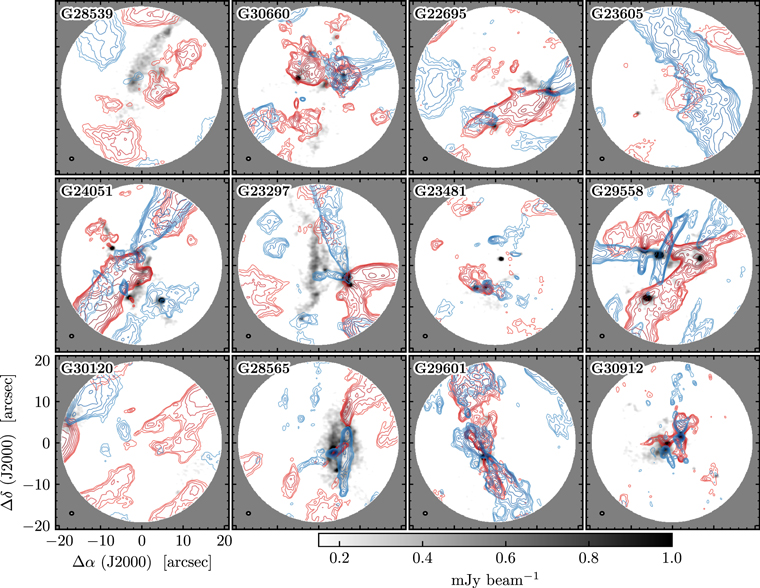

Outflows are identified through visual inspection of the $\mathrm{CO}$ data cubes in conjunction with the $1.3\,\mathrm{mm}$ maps overplotted. While the emission structures in the $\mathrm{CO}$ cubes are complex, bipolar outflows are clearly apparent as paired linear emission structures. These features are identified as linear features radiating from the same location, with highly ordered red and blue velocity components that are detected over many velocity channels ($\gtrsim 10\,\mathrm{km}\,{{\rm{s}}}^{-1}$, ≳15 channels). Outflow candidate features with only a single red or blue component are also observed, but due to the greater ambiguity in identification, these are not regarded as clear signatures of star formation activity. The $\mathrm{CO}$ outflows are generally highly ordered in position and velocity, but spatial filtering of bright, extended emission and self-absorption near the source systemic velocity complicate the identification of low-velocity ($| v| \lesssim 1.5\,\mathrm{km}\,{{\rm{s}}}^{-1}$) outflow components. Higher-velocity components of the spectra also suffer both self-absorption from foreground $\mathrm{CO}$ clouds and confusion with bright Galactic emission, which can bias measurements of the maximum outflow velocity to lower values. Analysis of an example outflow in G24051 is presented in Appendix A.

We find that 9 out of 12 clumps are associated with bipolar $\mathrm{CO}$ outflows, and 16 outflows in total are observed. We also find that three out of 12 clumps are associated with bipolar $\mathrm{SiO}$ outflows, and four outflows in total are observed. The clumps with outflows are reported in Table 6. Pairs of $\mathrm{CO}$ outflows originating from the same continuum source are also observed, as seen in G23297 S2 and G29601 S1, which point to unresolved protostellar multiple systems. Figure 7 presents the ALMA joint $12+7\,{\rm{m}}$ array $\mathrm{CO}$ $J=2\to 1$ integrated intensity maps for blue- and redshifted velocity components.

Zoom In Zoom Out Reset image size

Table 6.  Band 6 Detections^a

Name	Cont.	Deuteration			Kinematic		High-excitation				Outflow
	1.3 mm	${\mathrm{DCO}}^{+}$	$\mathrm{DCN}$	${{\rm{N}}}_{2}{{\rm{D}}}^{+}$	${{\rm{C}}}^{18}{\rm{O}}$	${{\rm{H}}}_{2}\mathrm{CO}$ b	${{\rm{H}}}_{2}\mathrm{CO}$	${{\rm{H}}}_{2}\mathrm{CO}$	c-${{\rm{C}}}_{3}{{\rm{H}}}_{2}$	${\mathrm{CH}}_{3}\mathrm{OH}$	$\mathrm{CO}$	$\mathrm{SiO}$
G28539	D	W	W	N	D	D	N	W	N	W	D	D
G30660	D	D	N	N	D	D	W	W	D	D	D	D
G22695	D	W	W	N	D	D	D	D	N	D	B	D
G23605	D	N	N	N	D	D	N	W	N	W	D	N
G24051	D	D	D	D	D	D	D	W	D	D	B	B
G23297	D	D	D	W	D	D	D	D	W	D	B	D
G23481	D	N	N	N	D	D	D	D	N	D	B	W
G29558	D	D	W	D	D	D	D	D	D	D	B	D
G30120	W	N	N	N	D	W	N	N	N	W	B	D
G28565	D	D	W	D	D	D	D	D	D	D	B	B
G29601	D	D	W	N	D	D	D	D	W	D	B	B
G30912	D	D	D	W	D	D	D	D	W	D	B	D

Notes.

^aDetection flags: D represents detection with ${\rm{S}}/{\rm{N}}\geqslant 7\sigma$, W weak detection with $5\sigma \leqslant {\rm{S}}/{\rm{N}}\lt 7\sigma$, N nondetection with ${\rm{S}}/{\rm{N}}\lt 5\sigma$, and B detection of bipolar outflow. ^b ${{\rm{H}}}_{2}\mathrm{CO}$ transitions listed in order of ${3}_{\mathrm{0,3}}-{2}_{\mathrm{0,2}}$, ${3}_{\mathrm{2,1}}-{2}_{\mathrm{2,0}}$, and ${3}_{\mathrm{2,2}}-{2}_{\mathrm{2,1}}$.

Download table as:  ASCIITypeset image

We also detect $\mathrm{SiO}$ emission toward several more continuum sources and positions without clear signs of ordered bipolar outflows. $\mathrm{SiO}$ emission detection is a strong indicator of protostellar activity, because of its origin in high-velocity shocks driven by protostellar outflows (Schilke et al. 1997). However, recent work has shown that low-velocity shocks ($\lesssim 10\,\mathrm{km}\,{{\rm{s}}}^{-1}$) created by colliding flows may produce substantial distributed $\mathrm{SiO}$ emission (Jiménez-Serra et al. 2010; Nguyen-Lu'o'ng et al. 2013; Louvet et al. 2016). Thus, considered by itself, a detection of relatively narrow linewidth (${\rm{\Delta }}v\lesssim 10\,\mathrm{km}\,{{\rm{s}}}^{-1}$) $\mathrm{SiO}$ $J=5\to 4$ emission is not an unambiguous indicator of star formation activity. Maps of $\mathrm{SiO}$ integrated intensities are presented in Appendix B.

The $70\,\mu {\rm{m}}$ dark clump G28539 (upper left corner of Figures 3 and 7) shows no clear sign of $\mathrm{CO}$ or $\mathrm{SiO}$ outflows, and thus remains a starless clump candidate at the improved sensitivity of ALMA. Several indirect tracers of star formation are observed toward G28539, however, and we discuss these in turn.

Moderately high-excitation molecular lines (${E}_{{\rm{u}}}/K\gtrsim 50\,{\rm{K}}$) are unlikely to be excited in the cold $10\,{\rm{K}}$ gas expected to be found in starless cores and quiescent clump gas. Detection of such lines in our observations are thus indirect evidence of embedded protostars—although, as discussed in Section 3.2, it is possible that some of these lines are excited from low-velocity shocks originating from colliding flows. In G28539, a compact source of weak emission ${\mathrm{CH}}_{3}\mathrm{OH}$ and ${{\rm{H}}}_{2}\mathrm{CO}$ ${3}_{\mathrm{2,2}}\to {2}_{\mathrm{2,1}}$ is detected. These features are not coincident with continuum emission and may originate from non-protostellar shocks, shocks of undetected protostellar outflows, or of embedded protostellar cores that are below our detection limit. Similarly, a compact source of $\mathrm{SiO}$ is also detected and does not coincide with any continuum emission feature (it may be seen on the west side of the field in Figure 15).

There exist weak $24\,\mu {\rm{m}}$ sources in the vicinity of the clump boundaries as defined by the $350\,\mu {\rm{m}}$ and $500\,\mu {\rm{m}}$ emission, notably including a faint source within the extinction feature $\sim 1^{\prime}$ east of the ALMA field (see $24\,\mu {\rm{m}}$ panel in Figure 1), a brighter source on the southeastern outskirt of the clump, and a marginal feature coincident with the continuum source in the NW edge of the ALMA field of view. Because of the substantial contamination from evolved stars, $24\,\mu {\rm{m}}$ emission alone is not a robust indicator of protostellar activity. If these sources are indeed protostars associated with the clump, then they would be evidence that star formation has begun in G28539.

Deep radio continuum observations, when available, also provide a diagnostic of star formation activity, because they are sensitive to the ionized gas in ultra- and hypercompact H ii regions, ionized winds, and jets from low- to intermediate-mass protostars. Rosero et al. (2016) carried out deep JVLA C and K band observations toward a sample of high-mass clumps that contains source G28539 in the field "G28.53–00.25." The HPBW of the primary beam for the JVLA at C band is 92 at $4.2\,\mathrm{GHz}$ (LSB) and 42 at $7.4\,\mathrm{GHz}$ (USB), with synthesized HPBW resolution of approximately ∼04 in the A configuration. Using the radio continuum to bolometric luminosity scaling relations for protostars as given in Equation (3) of Shirley et al. (2007), the measured ${\sigma }_{\mathrm{rms}}=3\,\,\mu \mathrm{Jy}\,{\mathrm{beam}}^{-1}$ sensitivity at ${d}_{\odot }\,=4.7\,\mathrm{kpc}$ can be converted to a 1σ bolometric luminosity sensitivity of $\sim 30\,{L}_{\odot }$, which is reasonably comparable to the PACS $70\,\mu {\rm{m}}$ sensitivity from Hi-GAL. Here, a faint point source is detected near the center of the ALMA pointing, detected in both sidebands at moderate significance (8 and 5σ in LSB and USB, respectively). The measured in-band spectral index ($S\,\propto {\nu }^{+}\alpha$) α = −0.65 ± 0.46 favors a nonthermal synchrotron-dominated source, but the weak constraint is consistent with thermal free–free emission α = −0.1 at $1.2{\sigma }_{\mathrm{rms}}$. The location 18°44'22621−4^h02^m00380 (J2000) is not coincident with millimeter continuum or spectral line emission in the ALMA data. Given the lack of a clear association, we conclude that this radio continuum source is likely an extragalactic contaminant and not an indicator of protostellar activity.

In summary, indirect evidence for star formation exists from two different tracers: (1) $24\,\mu {\rm{m}}$ sources at the edge or outside of the ALMA field of view, and (2) ALMA detections of ${\mathrm{CH}}_{3}\mathrm{OH}$ and $\mathrm{SiO}$ that are not clearly associated with continuum sources. G28539 is the most massive clump in the sample (${M}_{\mathrm{cl}}\,\approx 3600\,{M}_{\odot }$) and shows fairly limited signs of fragmentation. After the ALMA observations, G28539 is the only starless clump candidate remaining in our sample. It is thus a target of great interest for studying the initial conditions of high-mass star formation.

A diverse range of continuum substructures are found to be present in SCCs, including unresolved compact sources, filaments, and extended emission with lower surface brightness. In this section, we analyze whether cores with bright, unresolved continuum emission on scales $\lt 1500\,\mathrm{au}$ ($\sim {\theta }_{\mathrm{syn}}/2$) are necessarily protostellar even without detections of outflows or strong high-excitation molecular lines. We also model whether low- to intermediate-mass starless cores are accurately recovered in the observations, and we perform detailed modeling of high-mass starless core candidates in clump G28539.

To characterize the continuum features in our images, we apply the radiative transfer code RADMC-3D (Dullemond et al. 2012) to self-consistently calculate the equilibrium dust temperature distributions of externally heated starless cores and to produce synthetic images. We follow an approach to modeling starless cores similar to that found in Shirley et al. (2005) and Lippok et al. (2016). We apply conventional assumptions for the dust properties (Ossenkopf & Henning 1994; Weingartner & Draine 2001; Young & Evans 2005) and interstellar radiation field (ISRF, Draine 1978; Black 1994). A detailed description of the computed models may be found in Appendix C.

We apply a spherically symmetric Plummer-like function to parameterize the model radial density profile (Plummer 1911; Whitworth & Ward-Thompson 2001; Lippok et al. 2016). The gas density profile n_H can be expressed as:

$$\begin{eqnarray}&&{n}_{{\rm{H}}}(r)=\left({n}_{\mathrm{in}}-{n}_{\mathrm{out}}\right){\left[1+{\left(\displaystyle \frac{r}{{R}_{\mathrm{flat}}}\right)}^{2}\right]}^{-\eta /2}+{n}_{\mathrm{out}}\end{eqnarray} \tag{ 1 }$$

for radius r, inner gas density n_in, outer gas density n_out, flat radius R_flat, and power law exponent η (n.b., an isothermal Bonnor–Ebert sphere may be approximate with η = 2; see Ebert (1955) and Bonnor (1956)). The strength of the interstellar radiation field (ISRF) is varied from the local value by a multiplicative scale factor ${s}_{\mathrm{isrf}}$. We compute ${10}^{4}$ models, randomly sampling the parameter space by drawing values from a uniform distribution in log-space within the ranges for the parameters ${n}_{\mathrm{in}}=1\times {10}^{4}\mbox{--}1\times {10}^{7}\,{\mathrm{cm}}^{-3}$, ${n}_{\mathrm{out}}=1\,\times {10}^{1}\mbox{--}1\times {10}^{3}\,{\mathrm{cm}}^{-3}$, ${R}_{\mathrm{flat}}=1\times {10}^{3}\mbox{--}2\times {10}^{4}\,\mathrm{au}$, and ${s}_{\mathrm{isrf}}\,=1\mbox{--}100$, while η = 2.5–5.5 is drawn uniformly in linear space. Models are evaluated on a logarithmic radial grid from $2.5\times {10}^{2}\,\mathrm{au}$ to $6.0\times {10}^{4}\,\mathrm{au}$. These values are chosen to cover the range of values from the sample of low- and intermediate-mass cores in Lippok et al. (2016), but extended to higher n_in and smaller R_flat. After computing the radiative transfer, the models are ray-traced by RADMC-3D and projected to a fiducial distance of ${d}_{\odot }=4\,\mathrm{kpc}$.

We find that 53% of the computed models ($5268/{10}^{4}$) meet the detection threshold of ${S}_{1.3\mathrm{mm},\mathrm{pk}}\gt 5{\sigma }_{\mathrm{rms}}$ when convolved with a θ = 08 Gaussian beam. The cut in peak flux density has no effect on the recovered distributions of η and n_out, and minimal effects on R_flat and ${s}_{\mathrm{isrf}}$, with an increase in the median values by a factor of 1.5 and 1.2, respectively, over the distribution of model cores.

It is important to keep in mind that the suite of model cores is constructed to span the parameter space of relevant values, not to represent an observed or predicted core mass function. We do not use the fractions of detectable cores to infer completeness, but rather to show the expected range of physical parameters for which cores can be recovered. To estimate this, we sort the models by M and ${s}_{\mathrm{isrf}}$, counting both the fraction of detectable cores and the regions of parameter space with at least one detectable model (Figure 8). Computing the detection fraction in this way has the effect of marginalizing over our uncertainty in R_flat, η, n_in, and n_out, which are poorly constrained with our single-wavelength maps. Figure 8 (left) shows that, at 50% completeness, the cores at ${s}_{\mathrm{isrf}}$ ∼ 3 are recovered for $M\gtrsim 4\,{M}_{\odot }$, and this extends down to $M\sim 1\,{M}_{\odot }$ for the extreme value ${s}_{\mathrm{isrf}}=100$. However, Figure 8 (right) shows that it is possible to recover lower-mass cores if the ranges of models is restricted to those that are the most compact (where ${R}_{\mathrm{flat}}\lt 3\times {10}^{3}\,\mathrm{au}$, η > 4.5) and have high central densities (${n}_{\mathrm{in}}\gt 1\times {10}^{5}\,{\mathrm{cm}}^{-3}$). For these compact sources, $M\sim 1\,{M}_{\odot }$ models may be recovered at ${s}_{\mathrm{isrf}}\sim 3$, and down to $M\sim 0.2\,{M}_{\odot }$ for ${s}_{\mathrm{isrf}}=100$.

Zoom In Zoom Out Reset image size

From these models, we can infer that the completeness expected from our point-source sensitivity, $\sim 0.3\,{M}_{\odot }$ at $6{\sigma }_{\mathrm{rms}}$, is an underestimate if the majority of cores are resolved; see also Appendix A in Beuther et al. (2018). Low-mass cores with extended profiles will thus go undetected with a criterion based on peak intensity, leading to our seemingly shallow limit of $\sim 1\mbox{--}4\,{M}_{\odot }$. Observationally, we must approach extended emission at low S/N with caution because there is extended structure in the maps on scales larger than the $12\,{\rm{m}}$ primary beam that cannot be adequately cleaned. For this reason, we do not attempt to identify or catalog sources down to the limits of statistical significance for extended and spatially integrated flux densities; instead, we maintain a conservative detection limit based on source peak flux density. The typical integrated flux density of a source is ${S}_{1.1}\sim 1\mbox{--}10\,\mathrm{mJy}$ ($M\sim 1\mbox{--}10\,{M}_{\odot }$, assuming ${T}_{{\rm{d}}}=12\,{\rm{K}}$ and ${d}_{\odot }=4\,\mathrm{kpc}$), and generally consistent with the thermal Jeans mass ${M}_{{\rm{j}},\mathrm{th}}$ for a uniform medium at the density of the clump, ${M}_{{\rm{j}},\mathrm{th}}\sim 2\,{M}_{\odot }$, where ${M}_{{\rm{j}},\mathrm{th}}\,\equiv {(4\pi /3)({\lambda }_{{\rm{j}},\mathrm{th}}/2)}^{3}{\rho }_{0}$ for thermal Jeans length ${\lambda }_{{\rm{j}},\mathrm{th}}$ and average density ρ₀ (McKee & Ostriker 2007); see Section 5 for an analysis of the Jeans length ${\lambda }_{{\rm{j}},\mathrm{th}}$.

We now investigate whether the models of starless cores provide adequate fits to the brightness profiles present in the SCCs of this survey. We find that compact sources of continuum emission that are unresolved (i.e., deconvolved sizes $\lesssim 1500\,\mathrm{au}$, $\approx {\theta }_{\mathrm{syn}}/2$) are poorly fit by models of starless cores. Without multiple wavelength observations or gas kinetic temperature information, the radial dust temperature profiles of the cores are poorly constrained. Because of the substantial systematic uncertainties presented in single-wavelength observations and potentially undetected embedded protostars, we do not perform a fit to every continuum source, but instead select a few characteristic examples for quantitative comparison. We create synthetic observations from the models using the CASA sm module by predicting onto the observed visibilities (gridded beforehand for computational efficiency) and imaged without noise using the same tclean configuration as the observations. This does not introduce a significant effect on the models, however, because nearly all the flux is concentrated on radii $r\lt 2\times {10}^{4}\,\mathrm{au}$ or angular diameters of ≲8'', appreciably less than half of the $12\,{\rm{m}}$ array 27'' HPBW and substantially less than the maximum recoverable scale of 33'' from the $7\,{\rm{m}}$ array. A subset of models were further tested for consistency. Because the aim of this comparison is to achieve an understanding of a few representative sources, rather than to construct a detailed parameter estimation, we do not image the full suite of models. Instead, we convolve the models with the angular size of the synthesized beam (θ_syn = 08) and convert to radial brightness profiles.

We compare the observations and models using a method based on the χ² statistic, where the reduced ${\chi }_{{\rm{r}}}^{2}$ may be expressed as

$$\begin{eqnarray}&&{\chi }_{{\rm{r}}}^{2}=\displaystyle \frac{1}{\nu }\displaystyle \sum _{i}\displaystyle \frac{{\left({o}_{i}-{m}_{i}\right)}^{2}}{{\sigma }^{2}}\end{eqnarray} \tag{ 2 }$$

for degrees of freedom ν, independent measurements i, measurements o_i, model values m_i, and variances σ². We discriminate between models based on the goodness-of-fit metric ${\rm{\Delta }}{\chi }_{{\rm{r}}}^{2}\equiv {\chi }_{{\rm{r}}}^{2}-{\chi }_{{\rm{r}},\mathrm{best}}^{2}$ from Robitaille et al. (2007) and Robitaille (2017). Robitaille et al. apply the heuristic that models with ${\rm{\Delta }}{\chi }_{{\rm{r}}}^{2}\lt 3$ are considered good fits and all others are rejected as poor fits. Robitaille et al. further note that the Bayesian likelihood under the assumption of normal errors (i.e., $P(D| {\theta }_{j},M)\propto \exp \left[-{\chi }^{2}/2\right]$ for data D, parameters θ_j, and model M) yields too stringent a definition of probability, given the systematic sources of error in the measurements and the poor physical correspondence of the model to nature. This ultimately provides a more conservative criteria for rejecting poor fits, as the ${\rm{\Delta }}{\chi }_{{\rm{r}}}^{2}$ heuristic likely overestimates uncertainties.

We consider two example starless core candidates, G28539 S2 and S4 (see Figure 5 and Table 5), because they: (1) lack unresolved continuum emission at their center, (2) host no outflows or other indicators of star formation activity, and (3) are relatively isolated such that radial brightness profiles can be adequately extracted. G28539 S2 and S4 are also of interest because they are among the brightest such sources, and thus are good high-mass starless core candidates.

We extract radial brightness profiles for the cores by extracting the integrated flux density within 02 diameter annuli about the central position. Uncertainties in the integrated flux densities are calculated as the $\delta {S}_{\nu }={\sigma }_{\mathrm{rms}}\sqrt{{{\rm{\Omega }}}_{\mathrm{ann}}/{{\rm{\Omega }}}_{\mathrm{bm}}}$ for the solid angle of the annulus Ω_ann and the synthesized beam solid angle Ω_bm. The radial brightness profiles of the models are then compared by Equation (2) for degrees of freedom ν = r_max/02–5 ≈ 15 (maximum radius r_max = 35–40). Well-fit models are then selected where ${\rm{\Delta }}{\chi }_{{\rm{r}}}^{2}\lt 3$. Figure 9 shows the best-fit models compared to the observations, and Figure 10 shows the radial brightness profiles with the range of fits. We find that the extended brightness profiles are fit well by the starless core models (${\chi }_{{\rm{r}},\mathrm{best}}^{2}=1.1$ and 0.12 for S2 and S4 respectively). If the range of models are limited to those that resulted in ${T}_{{\rm{d}}}(r=1\times {10}^{3}\,\mathrm{au})=7\mbox{--}13\,{\rm{K}}$, in order to be broadly consistent with the clump average temperature derived from the Hi-GAL SED and GBT ${\mathrm{NH}}_{3}$ fits (see also the detailed considerations in Tan et al. (2013)), then ${M}_{{\rm{S}}2}={29}_{15}^{52}\,{M}_{\odot }$ and ${M}_{{\rm{S}}4}={14}_{6.0}^{34}\,{M}_{\odot }$, for the median, maximum, and minimum model mass. With a core star formation efficiency of 30%, it is possible that these cores may form high-mass stars (${M}_{* }\gt 8\,{M}_{\odot }$). Assuming a 50% formation efficiency from models regulated by outflows (Zhang et al. 2014), the maximum expected stellar mass for S2 could be ${M}_{* }\,\approx 26\,{M}_{\odot }$. Given the fact that these cores are not associated with outflows in the ALMA data or other high-excitation molecular lines, they are excellent candidates for high-mass starless cores.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

G29558 S1 represents the class of compact continuum sources in our data set. Analysis of this source is then a test of whether the compact sources are described well by starless core models—or alternatively, likely to host embedded protostars. This continuum source has some surrounding extended continuum emission and does not show clear outflows traced by $\mathrm{CO}$ or $\mathrm{SiO}$, but it is associated with weak ${\mathrm{CH}}_{3}\mathrm{OH}$ and p-${{\rm{H}}}_{2}\mathrm{CO}$ emission. It is bright with peak flux density $6.6\,\mathrm{mJy}$ and is similar to other continuum sources with associated outflows. We find that the models fit the observations poorly, with ${\chi }_{{\rm{r}},\mathrm{best}}^{2}=23.9$ and no models for ${\rm{\Delta }}{\chi }_{{\rm{r}}}^{2}\lt 9$. The properties are pushed to the extremes of parameter space: ${s}_{\mathrm{isrf}}\,\sim 100$, η ∼ 5.5, and ${n}_{\mathrm{in}}\gtrsim 1\times {10}^{7}\,{\mathrm{cm}}^{-3}$. The moderate ${R}_{\mathrm{flat}}\,\sim 5\,\times {10}^{3}\,\mathrm{au}$ is a compromise between the compact and extended components of the brightness profile. The poor model fits to G29558 S1 do not strictly require that it or any other individual source is protostellar (models with ${n}_{\mathrm{in}}\,\gtrsim {10}^{8}\,{\mathrm{cm}}^{-3}$ and ${R}_{\mathrm{flat}}\lt {10}^{3}\,\mathrm{au}$ would likely fit the observations). However, such extreme starless cores are unlikely to be observed in significant numbers in our sample, where ∼40% of fragments are compact continuum sources. The freefall timescale of a core with ${n}_{\mathrm{in}}={10}^{8}\,{\mathrm{cm}}^{-3}$ would be ${t}_{\mathrm{ff}}\approx 3\times {10}^{3}\,\mathrm{yr}$, and for ${n}_{\mathrm{in}}={10}^{7}\,{\mathrm{cm}}^{-3}$ would be ${t}_{\mathrm{ff}}\approx 1\times {10}^{4}\,\mathrm{yr}$. These are shorter than the inferred ages from the extent and velocity of the observed outflows, although these have substantial uncertainties. Together, the observed properties of these compact continuum sources are more favorably explained as embedded low- to intermediate-mass YSOs, which at $\sim 4\,\mathrm{kpc}$ would be both of comparable brightness and unresolved (see Section 3.1). A detailed analysis of the starless and protostellar core properties and dynamics will follow in a future work incorporating ${\mathrm{NH}}_{3}$ data from the VLA observations.

We characterize the linear fragmentation scale in terms of the nearest neighbor separation ${\delta }_{\mathrm{nns}}^{{\prime} }$ between dendrogram leaves in each clump. Geometric projection of sources in the plane of the sky will systematically decrease ${\delta }_{\mathrm{nns}}^{{\prime} }$ from the true value, ${\delta }_{\mathrm{nns}}$. In this work, we employ Monte Carlo random sampling to deproject ${\delta }_{\mathrm{nns}}^{{\prime} }$ statistically. Thus, while the uncertainty in ${\delta }_{\mathrm{nns}}$ may make constraints for any individual pair of sources quite weak, with prior assumptions on the relative positions of sources, the posterior distribution from the ensemble of all ${\delta }_{\mathrm{nns}}$ measurements in our sample of SCCs can be readily constrained.

Monte Carlo sampling is used to draw realizations of relative line-of-sight distances z, computing ${\delta }_{\mathrm{nns}}$ for each source from the Cartesian coordinates (x, y, z). We use the hierarchical classification of sources in the dendrogram to discriminate between two methods of drawing z values: (i) isolated sources, and (ii) sources with common surrounding emission. If sources are isolated (Case i), forming a tree with a single branch, then for each trial, we draw line-of-sight distances from a Gaussian distribution with standard deviation ${\sigma }_{{\rm{z}}}=0.15\,\mathrm{pc}$ (FWHM $0.35\,\mathrm{pc}$), chosen such that the double-sided $2{\sigma }_{{\rm{z}}}$ interval is $0.6\,\mathrm{pc}$, which is the approximate diameter inferred from the $8\,\mu {\rm{m}}$ maps (see Figures 1 and 4). If sources are associated within the same branch of the dendrogram (Case ii; i.e., they are within a common base isocontour of emission), then we assume that those sources are connected in a filamentary gas structure with unknown inclination with respect to the observer. For each trial, we draw a common inclination ϕ for the group, pivoting along the major axis, with the pivot axis fixed to z = 0 at the projected geometric center. Inclinations are drawn such that the length between the two components with the maximum separation δ_max is less than $D\,=0.6\,\mathrm{pc}$, and thus ϕ is drawn uniformly within the interval $(-\arccos ({\delta }_{\max }/D),+\arccos ({\delta }_{\max }/D))$. If δ_max > D, then ϕ is drawn uniformly within $(-65^\circ ,+65^\circ )$, such that ${\delta }_{\mathrm{nns}}\lesssim 1.4\,\mathrm{pc}$ to extend out to a typical clump effective radius of $R\approx 0.7\,\mathrm{pc}$. In total, there are 17 (26%) isolated sources and 49 (74%) grouped sources. Without more detailed knowledge available, informed from either additional observational data or theoretical simulations, we consider this scheme a conservative way to correct the data for geometric projection. While the assumptions in the correction are simple and imperfect, for brevity, we refer to the distributions of MC trials as "projection-corrected" below in order to distinguish them from the projected data. Extensions of this method may opt to use more sophisticated schemes to group sources beyond common millimeter continuum emission, such as grouping sources through a lower-density kinematic tracer or a source-density-based clustering algorithm.

With no correction applied, the distribution of projected separations has a median value of ${\mu }_{1/2}({\delta }_{\mathrm{nns}}^{{\prime} })=0.083\,\mathrm{pc}$, with a (16, 84) percentile interval of (0.051, 0.140) pc. To calculate the projection-corrected separations, we compute $1\times {10}^{4}\,{\rm{r}}$ealizations for each clump, and find ${\mu }_{1/2}({\delta }_{\mathrm{nns}})\,=0.118\,\mathrm{pc}$ with ${\mu }_{1/2}({\delta }_{\mathrm{nns}})/{\mu }_{1/2}({\delta }_{\mathrm{nns}}^{{\prime} })=1.42$ and a (16, 84) percentile interval of (0.065, 0.232) pc. For comparison, if we assume that all sources are uniformly distributed within a spherical volume of radius R_s, the following projection correction may be applied:

$$\begin{eqnarray}&&{\delta }_{\mathrm{nns}}={\delta }_{\mathrm{nns}}^{{\prime} }{\left(\displaystyle \frac{4{R}_{{\rm{s}}}}{3{\delta }_{\mathrm{nns}}^{{\prime} }}\right)}^{1/3},\end{eqnarray} \tag{ 3 }$$

as is done in Myers (2017). If we assume ${R}_{{\rm{s}}}=0.38\,\mathrm{pc}$ from the radius of the 20% power point of the ALMA primary beam at $4\,\mathrm{kpc}$, then this correction factor would be ${\delta }_{\mathrm{nns}}/{\delta }_{\mathrm{nns}}^{{\prime} }\approx 1.84$ and ${\delta }_{\mathrm{nns}}=0.153\,\mathrm{pc}$, which is larger than the median value computed above from the MC trials by 29%.

To consistently compare ${\delta }_{\mathrm{nns}}$ values between clumps with different physical conditions, we scale the values by the clump average thermal Jeans length, the minimum wavelength for gravitational fragmentation in an isothermal, uniform medium. The thermal Jeans length ${\lambda }_{{\rm{j}},\mathrm{th}}$ can be expressed as (McKee & Ostriker 2007):

$$\begin{eqnarray}&&{\lambda }_{{\rm{j}},\mathrm{th}}={\left(\displaystyle \frac{\pi {c}_{{\rm{s}}}^{2}}{G{\rho }_{0}}\right)}^{1/2},\end{eqnarray} \tag{ 4 }$$

where ${c}_{{\rm{s}}}=\sqrt{{kT}/\mu {m}_{{\rm{p}}}}$ is the isothermal sound speed ($0.21\,\mathrm{km}\,{{\rm{s}}}^{-1}$ for ${T}_{{\rm{d}}}=12\,{\rm{K}}$), G is the gravitational constant, and ${\rho }_{0}$ is the average volume density. For the accurate propagation of uncertainties in the calculation of ${\lambda }_{{\rm{j}},\mathrm{th}}$, we perform MC random sampling of the relevant observational uncertainties in ρ₀ from the dust mass surface density (${\rho }_{0}=3{\rm{\Sigma }}/4R$) and heliocentric distance. The total (i.e., gas) mass surface density is calculated with

$$\begin{eqnarray}&&{\rm{\Sigma }}=\displaystyle \frac{{S}_{\nu ,\mathrm{int}}}{{B}_{\nu }({T}_{{\rm{d}}}){f}_{{\rm{d}}}\kappa \mu {m}_{{\rm{p}}}{\rm{\Omega }}},\end{eqnarray} \tag{ 5 }$$

for source integrated flux density ${S}_{\nu ,\mathrm{int}}$, source solid angle Ω, Planck function ${B}_{\nu }({T}_{{\rm{d}}})$ evaluated at dust temperature ${T}_{{\rm{d}}}$, opacity per mass of dust $\kappa \left(\lambda =1.3\,\mathrm{mm}\right)=0.90\,{\mathrm{cm}}^{2}\,{{\rm{g}}}^{-1}$ (Ossenkopf & Henning 1994), mean molecular weight μ = 2.33, and dust-to-gas mass ratio ${f}_{{\rm{d}}}\equiv \left({m}_{{\rm{d}}}/{m}_{{\rm{g}}}\right)=1/110$ (values are further described in Appendix C).

The fragmentation measured within the ALMA maps is most sensitive within the HPBW (27'') of the primary beam, so we consider an estimate of ρ₀ within this volume to be the most representative density for the computation of ${\lambda }_{{\rm{j}},\mathrm{th}}$. Clump average densities on angular scales (∼1'–2') larger than the HPBW likely underestimate ρ₀. Likewise, image-integrated flux densities from the $12+7\,{\rm{m}}$ array data may underestimate the Σ from spatial filtering. Due to the unfavorable match in resolution compared to the Hi-GAL $500\,\mu {\rm{m}}$ (θ_hpbw ≈ 35'') or BGPS $1.1\,\mathrm{mm}$ (θ_hpbw ≈ 33''), we extract flux densities from the ATLASGAL $870\,\mu {\rm{m}}$ maps (θ_hpbw ≈ 19'') at the position of the ALMA pointing for each clump within a beam-sized 27'' diameter circular aperture to measure ${{\rm{\Sigma }}}_{\mathrm{cl}}$. Use of the single-millimeter flux mitigates one systematic uncertainty in choosing between Hi-GAL SED fits with or without the $160\,\mu {\rm{m}}$ band included, or using Hi-GAL SED fits that are over the emission for the full clump rather than the peak at consistent angular resolution. The clump average dust temperatures from SED fits to the Hi-GAL data range from ${T}_{{\rm{d}}}=10\mbox{--}14\,{\rm{K}}$, but some systematic uncertainty exists with averaging over larger volumes than the ALMA field of view and choices in including the $160\,\mu {\rm{m}}$ band. We choose a conservative dust temperature distribution by assuming a Gaussian dust temperature distribution $\langle {T}_{{\rm{d}}}\rangle =12\pm 2\,{\rm{K}}$ (1σ interval). For consistency, this temperature is also used for the gas kinetic temperature in c_s. We propagate the uncertainty in heliocentric distance based on the distance probability density function (DPDF) from Ellsworth-Bowers et al. (2015) for each clump. All sources are well-resolved to the near kinematic distance, and have a $\delta {d}_{\odot }/{d}_{\odot }\approx 0.15$ fractional uncertainty. We sample the distributions for S₈₇₀, ${T}_{{\rm{d}}}$, and d_⊙ for each MC trial of ρ₀ in the calculation of ${\lambda }_{{\rm{j}},\mathrm{th}}$, to combine with a trial of ${\delta }_{\mathrm{nns}}$ in order to compute the quotient ${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle$ for each clump. The computed median volume densities for the clumps in the sample range between $n({{\rm{H}}}_{2})=(2\mbox{--}6)\times {10}^{4}\,{\mathrm{cm}}^{-3}$, with associated values of the thermal Jeans length between ${\lambda }_{{\rm{j}},\mathrm{th}}\,=0.10\mbox{--}0.17\,\mathrm{pc}$ ($2.1\mbox{--}3.5\times {10}^{4}\,\mathrm{au}$). The median of samples from all clumps is ${\lambda }_{{\rm{j}},\mathrm{th}}=0.135\,\mathrm{pc}$ ($2.77\times {10}^{4}\,\mathrm{au}$). No correlation is observed between ${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle$ and the number of cores/leaves in each clump (Figure 11).

Zoom In Zoom Out Reset image size

Probability density functions (PDFs) of ${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle$ are computed for each clump by performing Monte Carlo random sampling of the observational uncertainties in ${\lambda }_{{\rm{j}},\mathrm{th}}$ as described above and sampling the deprojected source separations (see Section 5.1). Figure 12 (left) shows the distributions of ${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle$ for each clump, sorted in descending order by the number of continuum sources. The separation distributions show a bimodal tendency with peaks at ${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle \sim 0.3$ and ${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle \sim 1$, and with long tails extending to high values ≳1.5. The distinct peaks at small values of ${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle$ (all well-resolved) likely result from closely spaced, connected sources where ${\delta }_{\mathrm{nns}}$ is not strongly affected from sampling the inclination distribution. Median values of the distributions range between ${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle =0.4\mbox{--}1.5$. The values are generally consistent with the thermal Jeans length, but the high frequency of sources with sub-Jeans separations may indicate hierarchical fragmentation at multiple scales. With the initial fragmentation on the clump scale, a further fragmentation on the "core scale" would proceed on sizes $\lesssim 2\times {10}^{4}\,\mathrm{au}$ and densities $\gtrsim 3\,\times {10}^{5}\,{\mathrm{cm}}^{-3}$. If such hierarchical fragmentation proceeds principally with two resultant fragments on the core scale, then the second-nearest neighbor distance would measure the above level in the hierarchy and recover the spacing of the clump scale. This is supported by a plot of the second-nearest neighbor distance ${\delta }_{\mathrm{nns}}^{(2)}$ distributions, shown in Figure 12 (right), that shows clumps with more unimodal distributions, with modes and median values at or slightly above the thermal Jeans length. Median values of the ${\delta }_{\mathrm{nns}}^{(2)}$ distributions are greater than those for ${\delta }_{\mathrm{nns}}$ but generally fall within a similar range between ${\delta }_{\mathrm{nns}}^{(2)}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle =0.75\mbox{--}1.7$.

Zoom In Zoom Out Reset image size

We compute PDFs for each clump (see above) and the ensemble distribution composed of all separation measurements from each clump aggregated together (Figure 13). The ensemble separation distribution is used to define a representative fragmentation scale from the SCCs in this survey. As these clumps are at similar distances and blindly selected from Galactic plane dust continuum surveys, the measured ensemble sample properties may be used to cautiously infer the properties of the Galactic high-mass SCC population (${M}_{\mathrm{cl}}\gtrsim {10}^{3}\,{M}_{\odot }$). Additional observations are required to directly constrain the properties of SCCs with ${M}_{\mathrm{cl}}\gtrsim {10}^{4}\,{M}_{\odot }$ (if they exist outside of the Central Molecular Zone) or SCCs below the mass range of this sample, ${M}_{\mathrm{cl}}\lesssim 400\,{M}_{\odot }$. Figure 13 shows the cumulative distribution function (CDF) for the ensemble of ${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle$ measurements as drawn from the MC sampling for the projected separations, projection-corrected separations, and relevant scales such as the resolution and primary beam HPBW. The projection-corrected ensemble distribution has a median value of ${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle =0.82$, with a (25, 75) percentile interval of 0.52–1.25. The percentiles for ${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle =0.5$, 1, 2, and 3 are 23.6, 63.3, 90.3, and 97.4, respectively. Overall, the sample of SCCs show a fragmentation scale that is well-characterized by the thermal Jeans length.

Zoom In Zoom Out Reset image size

A relatively small fraction of the separation distribution is inconsistent with the thermal Jeans length: <10% for $\gt 2\times {\lambda }_{{\rm{j}},\mathrm{th}}$. The large separations do not result from a single or a small number of clumps with consistently large separations, but rather from isolated individual sources within clumps that show fragmentation near the thermal Jeans length. G30660 and G30912, for example, have a significant proportion of the distribution at large separations (see Figure 12, left), but do not have peculiar dust temperatures (between ${T}_{{\rm{d}}}=11\mbox{--}12\,{\rm{K}}$ from Hi-GAL SED fits). This portion of the separation distribution may indicate an additional scale for hierarchical fragmentation where a source of nonthermal support prevents fragmentation at the thermal Jeans scale.

The Jeans length can further take into account sources of nonthermal support, such as turbulence or magnetic fields, by using an effective sound speed

$$\begin{eqnarray}&&{c}_{{\rm{s}},\mathrm{eff}}={\left({c}_{{\rm{s}}}^{2}+{\sigma }_{\mathrm{nt}}^{2}\right)}^{1/2}\end{eqnarray} \tag{ 6 }$$

through the contribution of a nonthermal velocity dispersion ${\sigma }_{\mathrm{nt}}$. From S16, 9 out of 12 clumps have T_K measured from ${\mathrm{NH}}_{3}$ (at 32'' resolution). The measured velocity dispersions (i.e., ${c}_{{\rm{s}},\mathrm{eff}}$) determined from the spectral line model fit range between $\sigma ({\mathrm{NH}}_{3})=0.50\mbox{--}0.95\,\mathrm{km}\,{{\rm{s}}}^{-1}$, with a median value of $0.65\,\mathrm{km}\,{{\rm{s}}}^{-1}$, corresponding to ${\sigma }_{\mathrm{nt}}\approx 0.62\,\mathrm{km}\,{{\rm{s}}}^{-1}$ for ${c}_{{\rm{s}}}\,=0.21\,\mathrm{km}\,{{\rm{s}}}^{-1}$ at ${T}_{{\rm{K}}}=12\,{\rm{K}}$ (where ${T}_{{\rm{K}}}=11\mbox{--}14\,{\rm{K}}$). Replacing c_s with ${c}_{{\rm{s}},\mathrm{eff}}$ in Equation (4) yields the effective Jeans length, or when turbulence is the dominant source of nonthermal support, the turbulent Jeans length ${\lambda }_{{\rm{j}},\mathrm{tu}}$. Because ${\lambda }_{{\rm{j}}}\propto {c}_{{\rm{s}}}$, the increase of ${c}_{{\rm{s}},\mathrm{eff}}/{c}_{{\rm{s}}}\sim 2.4\mbox{--}4.5$ (median 3.1) yields a similar scaling for ${\lambda }_{{\rm{j}},\mathrm{tu}}/{\lambda }_{{\rm{j}},\mathrm{th}}$. In comparison, ${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle =3$ (${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{tu}}\rangle \approx 0.32$) occurs at the 97.4 percentile, and thus while such separations are not absent from the data, they are also not representative of the fragmentation measured within the ALMA maps. The length scale distribution is incomplete beyond ${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle \gt 3.1$, where 10% of the MC trials would have 3D separations greater than or equal to the FOV ($40^{\prime\prime}$).

As shown in Section 5, we find that clumps fragment at scales consistent with the thermal Jeans length in SCCs. It is known, however, that geometry and nonthermal support affect the predicted fragmentation scale, producing deviations from that expected for an isothermal, uniform medium. In this section, we discuss how the fragmentation scale observed with ALMA compares to different characteristic length scales.

Filaments are ubiquitous in both observed molecular clouds and simulations (e.g., Barnard 1907; André et al. 2014; Smith et al. 2016), and thus cylindrical geometry is of special significance to dense molecular regions. On larger spatial scales observable in MIR extinction, it is clear that the clump peaks are embedded in filamentary gas structures (see Figure 1 and G23297, for a good example). An infinite, self-gravitating cylinder is unstable to axisymmetric perturbations or "sausage" instability, where the cylinder fragments at the scale of the fastest-growing mode of the fluid instability (Chandrasekhar & Fermi 1953; Ostriker 1964; Larson 1985; Nagasawa 1987; Inutsuka & Miyama 1992). For a pressure-confined isothermal gas cylinder of radius R and scale height $H={c}_{{\rm{s}}}{\left(4\pi G{\rho }_{{\rm{c}}}\right)}^{-1/2}$ (where ${\rho }_{{\rm{c}}}$ is the central density of the cylinder), the fastest-growing mode depends on the ratio of R and H (Nagasawa 1987). In the case where R ≪ H, then λ_cyl ≈ 10.8R; alternatively, where $R\gg H$, then λ_cyl ≈ 22.4H (Nagasawa 1987; Jackson et al. 2010).

Is the isothermal, cylindrical fragmentation scale representative in SCCs? The approximation of SCCs as isothermal is imperfect due to shielding that decreases the temperatures of inner regions, but the assumption is generally more valid than clumps with active HMSF and substantial internal protostellar heating and feedback. Observed aspect ratios of ≳5 over the full clump extent support the approximation of an infinite cylindrical geometry. The typical radial extent of the SCCs as observed in the MIR extinction maps suggests $R\sim 0.4\,\mathrm{pc}$. Assuming that the cylinder central density is equal to the observed clump peak density (i.e., ${\rho }_{{\rm{c}}}={\rho }_{0}\approx 3\times {10}^{4}\,{\mathrm{cm}}^{-3}$), then $H\sim 0.02\,\mathrm{pc}$, and thus $R/H\sim 20$ roughly satisfies the condition R ≫ H. Note that, for ${\rho }_{{\rm{c}}}$ equal to the clump peak density, this simplifies to ${\lambda }_{\mathrm{cyl}}/{\lambda }_{{\rm{j}},\mathrm{th}}\approx 3.50$, or for the median ${\lambda }_{{\rm{j}},\mathrm{th}}=0.137\,\mathrm{pc}$, ${\lambda }_{\mathrm{cyl}}=0.480\,\mathrm{pc}$. We find that ${\lambda }_{\mathrm{cyl}}$ is not representative of the ${\delta }_{\mathrm{nns}}$ distribution in SCCs, with the observed ${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle \sim 1$.

Observational studies carried out on larger spatial scales than this work support ${\lambda }_{\mathrm{cyl}}$ as a characteristic scale in filaments (Beuther et al. 2015b; Friesen et al. 2016). While these studies did not have sufficient spatial resolution to adequately resolve the thermal Jeans length, they probe separations on the clump scale and larger than $\sim 1\,\mathrm{pc}$, as observed with ALMA. This work complements the larger-scale studies by identifying fragmentation on the clump Jeans length at an early evolutionary phase. This is supported by the results of Kainulainen et al. (2013), who use Spitzer MIR extinction mapping to find that the molecular filament G11.11–0.12 is described well by filament fragmentation and turbulent λ_cyl on $\delta \gtrsim 0.5\,\mathrm{pc}$ and ${\lambda }_{{\rm{j}},\mathrm{th}}$ on smaller scales. Beuther et al. (2015b), in an analysis of the fragmentation in the star-forming filament IRDC 18223, find a mean fragment separation of $\delta =0.40\,\pm 0.18\,\mathrm{pc}$, consistent with a thermal ${\lambda }_{\mathrm{cyl}}=0.44\,\mathrm{pc}$ of the filament, approximately twice that of ${\lambda }_{{\rm{j}},\mathrm{th}}=0.07\mbox{--}0.23\,\mathrm{pc}$. However, the authors note that measures of δ should be considered an upper limit, due to the sensitivity and resolution of the data. Friesen et al. (2016), in a survey of the entire Serpens South molecular cloud (as part of the GBT Ammonia Survey, GAS; Friesen et al. 2017), find that the nearest neighbor separations of dense gas structures within the same filament are significantly larger than ${\lambda }_{{\rm{j}},\mathrm{th}}$ and are well-represented by λ_cyl. The spatial resolution is limited to approximately ${\lambda }_{{\rm{j}},\mathrm{th}}\sim 0.07\,\mathrm{pc}$, however, and thus does not properly resolve ${\lambda }_{{\rm{j}},\mathrm{th}}$ in sources with $\langle n\rangle \gtrsim 2\times {10}^{3}\,{\mathrm{cm}}^{-3}$. The above surveys support the view of hierarchical fragmentation by gravitationally unstable filaments, but lack the resolution to test what fragmentation process dominates on the scales of individual cores embedded within the clumps. The measurements of the fragmentation scale presented in Section 5 complement the above studies at resolutions down to $\sim 3000\,\mathrm{au}$ and provide further support for the view that filaments initially fragment at ${\lambda }_{\mathrm{cyl}}$ and then fragment further at ${\lambda }_{{\rm{j}},\mathrm{th}}$.

Direct observations of star-forming IRDCs and embedded protoclusters have found fragmentation consistent with the thermal Jeans length (Beuther et al. 2015a, 2018; Palau et al. 2015; Busquet et al. 2016; Teixeira et al. 2016), but it is unknown if these systems represent the initial state of fragmentation. Because high-mass SCCs may represent an initial stage of protocluster evolution before the formation of a high-mass star, they offer unique insight into the physical processes regulating fragmentation when compared to more evolved systems. From a survey of dense, star-forming cores, Palau et al. (2015) find that the fragmentation on $\sim 0.1\,\mathrm{pc}$ scales is explained best through thermal fragmentation. These results are similar to those found at subcore spatial scales of $\lesssim 1000\,\mathrm{au}$ toward the Orion Molecular Cloud 1S (OMC-1S; Palau et al. 2018), and also consistent with the fragmentation measured in OMC-1N (Teixeira et al. 2016). While the measured median nearest neighbor separation in SCCs is consistent with the thermal Jeans length of the clump gas, the distribution also shows a distinct peak at approximately an order of magnitude higher gas density near ${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle \approx 0.3$ (see Figures 12 and 13). These results may indicate continued thermal Jeans fragmentation, such as observed in OMC-1S and OMC-1N. Beuther et al. (2015a) find results that are approximately consistent with thermal Jeans fragmentation toward the $\sim 800\,{M}_{\odot }$ IRDC 18310–4, and while showing faint $70\,\mu {\rm{m}}$ emission, exhibit physical properties similar to those of the SCCs in this sample. Similarly, an analysis of the star-forming IRDC G14.225–0.506 favors thermal Jeans fragmentation (Busquet et al. 2016). Beuther et al. (2018) present a minimal spanning tree analysis of the separations in the CORE survey of 20 luminous (${L}_{\mathrm{bol}}\gt {10}^{4}\,{L}_{\odot }$) high-mass star-forming regions, and find fragmentation at scales on the order of the thermal Jeans length or smaller. As a possible explanation for the sub-Jeans length scales, Beuther et al. (2018) suggest that bulk motions from ongoing global collapse may have brought the fragments within closer proximity after having initially fragmented on the thermal Jeans scale. All of the sources in the CORE survey are high-mass protostellar objects (HMPOs) and more evolved than this sample. Thus, our finding of fragmentation on the thermal Jeans length at an earlier evolutionary stage supports both the interpretation of the COREs results and the conclusion that the measured fragmentation scale may be impacted by the dynamical evolution of the protocluster.

The agreement between the nearest neighbor separations and the thermal Jeans length appears to favor a Jeans fragmentation process for stellar cluster formation. Indeed, the thermal Jeans mass in typical star-forming clumps is approximately 1 ${M}_{\odot }$, which corresponds well with the stellar mass at the peak of the IMF. Therefore, Larson (2005) argued that the thermal Jeans process is responsible for the formation of lower-mass stars in a cluster. Zhang et al. (2009) found that cores forming massive stars often have $\gtrsim 10\,{M}_{\odot }$, an order of magnitude greater than the thermal Jeans mass of its parental clump. These cores require additional support from turbulence to account for their formation. Furthermore, the observed measurements imply that thermal physics provide the dominant form of support, but additional models exist to describe the thermal fragmentation process that differ in geometry and density profile. For example, Myers (2017) present 2D axisymmetric models of filamentary structure that fragment through the thermal instability of Bonnor–Ebert spheres above a threshold minimum density. Because the Bonnor–Ebert radius and Jeans length have the same dependence on temperature and density, with only slight differences in numerical coefficients, this leads to a fragmentation approximately equal to ${\lambda }_{{\rm{j}},\mathrm{th}}$. When compared to the observed median ${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle =0.91$ from Section 5, the spacings between cores predicted by Myers (2017), ${\delta }_{\mathrm{nns}}/\langle {\lambda }_{{\rm{j}},\mathrm{th}}\rangle =0.71$ (for a concentration factor ${q}_{{\rm{Z}}}\,\equiv \langle n\rangle /{n}_{\min }=2$), are broadly consistent.

It is not clear if SCCs are the progenitor environments of high-mass star formation. Their high total masses (${M}_{\mathrm{cl}}\sim 1000\,{M}_{\odot }$), high central densities ($\langle n\rangle \sim 5\times {10}^{4}\,{\mathrm{cm}}^{-3}$), cold gas kinetic temperatures ($\langle {T}_{{\rm{K}}}({\mathrm{NH}}_{3})\rangle \sim 11\,{\rm{K}}$), and low virial parameters (${\alpha }_{\mathrm{vir}}\sim 0.1\mbox{--}1$) (Wienen et al. 2012; Svoboda et al. 2016) all point to persistent, bound clumps with the likely necessary physical conditions for high-mass star formation (McKee & Ostriker 2007). However, no high-mass protostars are observed. These observational facts are consistent with a scenario where high-mass stars form in SCCs through thermal fragmentation, and then accrete clump gas as initially low-mass protostars. Thus, SCCs may represent a very early and unique stage in protocluster evolution preceding the formation of high-mass protostars. This view is supported by cluster-scale theoretical simulations that incorporate protostellar and stellar feedback (Smith et al. 2009; Peters et al. 2010a, 2010b, 2011; Wang et al. 2010). Smith et al. (2009) find that no high-mass starless cores are formed in their models, and that massive stars originate from low- to intermediate-mass cores that become high-mass protostars via accretion. The mass accreted comes primarily from the surrounding clump at scales $\gt 0.1\,\mathrm{pc}$ (Smith et al. 2009; Wang et al. 2010).

Cyganowski et al. (2017), in a study toward the deeply embedded protocluster G11.92–0.61, discover low-mass cores in the accretion reservoir of the accreting HMPO "MM1" with mass ${M}_{* }\sim 30\mbox{--}60\,{M}_{\odot }$ (Ilee et al. 2016). The detection of coeval low- and high-mass protostars is consistent with competitive accretion-type models of star formation (see Section 1). At a comparable distance of ${d}_{\odot }={3.37}_{-0.32}^{+0.39}$ kpc (derived from maser parallax by Sato et al. (2014)) and total mass to the SCCs in this study, G11.92–0.61 is more evolved, coincident with several indicators of high-mass star formation, such as Class I and II ${\mathrm{CH}}_{3}\mathrm{OH}$ masers, ${{\rm{H}}}_{2}{\rm{O}}$ masers, a GLIMPSE Extended Green Object (Cyganowski et al. 2008), numerous "hot core" molecular lines, and high-velocity collimated outflows. The sample of SCCs in this study complements the study of G11.92–0.61 in Cyganowski et al. (2017) through ALMA observations at similar resolution and sensitivity for clumps in a less active evolutionary state. In contrast, we find no clear high-mass protostellar cores or high-mass protostars in our sample of SCCs, while numerous accreting low-mass protostars are observed, as evidenced by bipolar outflows in $\mathrm{CO}$/$\mathrm{SiO}$. If a few of the protostars in SCCs will accrete up to high-mass stars, for which the accretion reservoir of the clump is sufficient, then these observations support a coeval mode of protocluster formation at earlier phases. When initially only low- to intermediate-mass protostars are present, this coeval formation may also be termed "low-mass first," in contrast to the monolithic collapse of turbulently supported high-mass cores. The competitive accretion-type simulations performed by Smith et al. (2009) find that high-mass stars form initially from intermediate-mass prestellar cores near the center of the gravitational potential, which accrete principally from collapsing clump gas up to high-mass condensations. An important feature of the Smith et al. (2009) model is that low-mass protostars form within the accretion reservoir of the central protostar, at separations $\lt 0.15\,\mathrm{pc}$. This is matched well to the distribution of nearest neighbor separations found in this work: ${\mu }_{1/2}({\delta }_{\mathrm{nns}})=0.118\,\mathrm{pc}$ (see Section 5). As Smith et al. (2009) point out, this signature is likely the most detectable at the early evolutionary phases of the clump, where sources are less centrally concentrated in the potential and bright sources of emission are not present.

In contrast to the results of Cyganowski et al. (2017), Zhang et al. (2015) studied the protocluster G28.24+0.06 P1 and failed to detect a distributed population of low-mass cores with Cycle 0 ALMA observations. Based on this, Zhang et al. (2015) draw the conclusion that the distributed population of low-mass cores forms at a later evolutionary stage and that they are not, at least for the initial generation of protostars, coeval. Because G11.91–0.61 is at a later evolutionary stage, the distributed population of low-mass protostars observed in it may have developed after the massive cores formed. The SCCs in this study are in an early evolutionary phase similar to that of G28.24+0.06, and they also similarly lack high-mass protostars (the maximum core mass in G28.4+0.06 is ${M}_{\mathrm{core}}\,\sim 16\,{M}_{\odot }$). Accurate core masses are required for a quantitative analysis of the mass segregation and related length scales, but the diversity in morphologies shown within the sample, from distributed (e.g., G30660, G29558) to weakly fragmented (e.g., G28539, G29601), supports the presence of a distributed low-mass core population at the initial evolutionary phase for some systems. It is possible that, depending on the initial level of support provided against fragmentation, individual systems develop with varying degrees of hierarchy and segregation, and that the conclusions of Zhang et al. (2015) and Cyganowski et al. (2017) may both be correct for sources of different initial physical conditions.

The short evolutionary timescales of high-mass starless clumps, ${\tau }_{\mathrm{SCC}}\sim 0.5\mbox{--}0.1\,\mathrm{Myr}$ for ${M}_{\mathrm{cl}}=1\mbox{--}3\times {10}^{3}\,{M}_{\odot }$ S16, is also consistent with the simulations of Smith et al. (2009), which show that the central, resultant high-mass protostar accretes in $0.25\times {t}_{\mathrm{dyn}}\sim 0.12\,\mathrm{Myr}$ the clump dynamical time, over a diameter of $\sim 0.4\,\mathrm{pc}$ (equivalent to the ALMA HPBW) (see also Wang et al. 2010). Similarly, Battersby et al. (2017) perform a lifetime analysis of dense, molecular gas ($N({{\rm{H}}}_{2})\gtrsim {10}^{22}\ {\mathrm{cm}}^{-2}$) analyzed on a per-pixel basis from a Hi-GAL 2 deg × 2 deg field near ℓ = 30 deg. They find a timescale that is consistent for starless regions of $0.2\mbox{--}1.7\,\mathrm{Myr}$, although with substantial uncertainty. The similarity in timescales is reasonable, as once a high-mass protostar forms, it would be accompanied by observational star formation indicators that identify it as a protostellar clump and remove it from the SCC category, as determined in S16. Further, we also observe hierarchical fragmentation as evidenced by the multimodal distribution of nearest neighbor separations (see Figure 13), as seen in G11.92–0.61. The ubiquity of filamentary structures observed (see Figure 3) may also point to accretion mediated by subsonically gravitationally contracting filaments (Smith et al. 2016). This may suggest that, while self-gravitating, turbulent clumps are not globally collapsing, and therefore accretion may yet be mediated through locally collapsing filaments. This latter point will be the topic of further research investigated with ALMA observations of ${{\rm{N}}}_{2}{{\rm{H}}}^{+}$ $J=1\to 0$ to study the kinematics of the filaments observed in this sample SCCs.
