Fast Inversion of Solar Ca ii Spectra in Non-local Thermodynamic Equilibrium

The NLTE spectral archive was generated by synthesizing spectra from a series of model atmospheres created by perturbing the temperature stratification of the Harvard-Smithsonian Reference Atmosphere (HSRA; Gingerich et al. 1971). The main advantage of using NICOLE over the Stokes Inversion Based on Response functions (SIR; Ruiz Cobo & del Toro Iniesta 1992) LTE code for generating the spectral archive is that with NICOLE the basic chromospheric temperature rise above log $\tau \approx -4$ does not need to be removed or mitigated before the spectral synthesis because it does not lead to excessive emission as in the LTE case.

For the creation of the NLTE archive, we added the following temperature perturbations to the HSRA model in a similar way as for the LTE case:

• 1.
  A global temperature offset ${\rm{\Delta }}T$ at all optical depths, from −1000 to +200 K in steps of 20–40 K.
• 2.
  Localized Gaussian perturbations with the free parameters: amplitude A (10–100 K in 10 K steps), width σ ($0.2\mbox{--}3.1$ in units of log τ in steps of 0.1), and location in log τ (−8 to $+1.4$ in steps of 0.1).

The amplitude A of the Gaussian perturbation was defined as 10–100 K at log $\tau =0$, but then was scaled up with the location of the Gaussian in optical depth to be larger in the upper atmosphere (see Figure 2 of Beck et al. 2013a). The scaling factor was ≈30 at log $\tau =-8$, i.e., an initial value of A = 100 K at log $\tau =0$ converts to A = 3000 K at log $\tau =-8$.

Unlike the LTE case, we ran the spectral synthesis with both the addition and subtraction of the Gaussian perturbations to the HSRA. In the LTE case, the modified HSRA atmosphere, especially for negative temperature offsets, already corresponds to sort of the lowermost temperature to ever be expected. For the NLTE case, the chromospheric temperature rise in the HSRA of more than 4000 K cannot be removed in a similar way by the global offsets ${\rm{\Delta }}T$ alone. Temperatures are usually limited to above 2000 K in LTE or NLTE inversion codes because otherwise the determination of the equation of state fails when trying to impose hydrostatic equilibrium. At such low temperatures, almost all atoms turn to a neutral state, which implies that the electron density approaches zero. This introduces large errors in the electron pressure to the extreme case of a full degeneracy for a completely neutral gas. The lowest temperature in the HSRA model of about 4000 K thus precludes using global offsets ${\rm{\Delta }}T$ below $-2000$ K. To reduce the chromospheric temperature rise by larger amounts could thus only be done using negative Gaussian temperature perturbations. We iterated the generation and application of the archive to a single randomly picked spectral scan a few times to fine-tune the exact settings of the archive generation until the current result was achieved.

The resulting ~2,000,000 temperature stratifications were then put into hydrostatic equilibrium in NICOLE using the electron pressure of the HSRA of 0.0482 dyn cm⁻² at $\mathrm{log}\tau =-8$ as a boundary condition. The corresponding spectra of the Ca ii IR line at 854.2 nm were then synthesized with a spectral sampling of 2 pm with 500 spectral points over a spectral range from 853.7 to 854.7 nm. The element abundance of Ca was set to 6.3304. Table 1 lists all other transition parameters used. The synthesis takes about 17 ms per profile on a 32-core desktop machine and thus about 9 hr for the full archive. We note that any spectral line that NICOLE can deal with can be synthesized from the archive of temperature stratifications for applications to other lines or combinations of lines, which we plan to explore in future work.

Table 1.  Transition Parameters of Ca ii IR Used

Element	Ionization	${\lambda }_{0}$	Excitation Potential
	Stage	(nm)	(ev)
Ca	II	854.209	1.70
log(gf)	Transition	Collisions	Damping enhancement
−0.463	2D2.5–2P1.5	Unsölda	2.01

Note.

^aFollowing Unsöld (1955).

Download table as:  ASCIITypeset image

The spectral synthesis of the archive spectra is done with a fine spectral sampling so that it can be degraded to match different observations with varying spectral resolution. No macro- or microturbulence is used in the synthesis, leading to very narrow absorption profiles (top panel of Figure 1). Both factors imply that the initial spectral archive has to be matched to the actual properties of the observational data, i.e., the spectral sampling and spectral resolution of the instrument used, and any additional broadening of solar origin has to be still accounted for.

To match the archive spectra to the generic properties of the observations, the average observed quiet-Sun profile as described above and the synthetic spectrum corresponding to the unperturbed HSRA model were used. The best implementation for this process is unfortunately to some extent variable and not necessarily fully physically motivated, depending on the characteristics of the observational data. The sort of generic list of steps employs a spectral convolution of the initial HRSA archive spectrum with a Gaussian of some width σ to match the observed line width. Depending on the difference of the line depth in the convolved HSRA archive spectrum and the average observed profile, an additional correction by a constant straylight offset α is usually needed. While the presence of parasitic straylight (Cabrera Solana et al. 2007; Beck et al. 2011) in the real world can only reduce the line depth, matching the convolved HSRA spectrum to the observations may require one to increase the line depth instead, i.e., one has assume a negative straylight contribution if the required broadening σ is large and has reduced the line depth too much.

For the IBIS data used, we were not able to obtain a good match of the degraded HSRA profile to the average observed profile in the line wing and the line core at the same time using only σ and α. We thus used these two parameters to primarily match the line core and added an independent correction by two straight lines to match the line wings. With that approach, the degraded and corrected HSRA archive profile matches the observed average QS profile very closely apart from the first and last two wavelength points (bottom panel of Figure 1). The match implies that the average QS profile would yield the HSRA temperature stratification when inverted, and that averaging the inversion results over a large QS area to first order also has to yield the HSRA stratification again.

To avoid the somewhat arbitrary step of spectrally degrading the archive spectra requires a realistic line width and line depth in the archive spectra already in the spectral synthesis, for which a priori knowledge of solar macro- and especially height-dependent microturbulence would be needed. Treating the collisional broadening with the more advanced approach of Anstee, Barklem & O'Hara (ABO; Anstee and O'Mara 1991, 1995; Barklem et al. 2000) is expected to reduce the mismatch in line width between observed and synthetic spectra, but Barklem and O'Mara (1998) could still not achieve a full match for Ca ii IR spectra. With more realistic line widths in the synthetic spectra, the match to the spectral resolution of the observational data should then also be constrained using measurements or theoretical values for the spectral resolution and the amount of parasitic straylight in the instrument.

When the needed spectral degradation was identified through testing it on the synthetic HSRA spectrum, the same degradation steps were applied to all archive profiles.

For our IBIS data, the spectral re-sampling of the archive from 500 to 30 wavelength points reduced the size of the spectral archive by more than one order of magnitude. The same degraded and re-sampled archive spectra could then be applied to the full time series because the spectral characteristics of the observations did not change significantly during the data acquisition. Application to observational data with fairly different spectral properties or just a different spectral sampling requires generating a new degraded archive version, which is a rather fast process of a few minutes, while the initial archive at full resolution is only synthesized once.

Prior to the actual inversion, both the observed spectra and the degraded archive are multiplied with the weights in the spectral dimension. We set the weights to the inverse of the average observed profile. This choice increases the contribution of the line core to the ${\chi }^{2}$ value, which is defined in the standard way as the squared difference between the observed and the archive profiles. The inversion procedure then reduces to comparing each observed spectrum to the whole archive, calculating the ${\chi }^{2}$ value, and selecting the archive profile that yields the minimal ${\chi }^{2}$. The index of the best-fit spectrum in the archive is used to retrieve the corresponding temperature stratification and all other atmospheric thermodynamic parameters. Instead of looking up the best-fit temperature, one can also only store the best-fit index value to reduce memory usage during the inversion process. There is no specific search algorithm that is used inside the archive, as it is to some extent created in a random order. The best-fit solution automatically corresponds to the global minimum of ${\chi }^{2}$ throughout all of the archive. The search for the best match is the primary constraint for the timing that depends most strongly on the size of the spectral archive and the number of wavelength points.

The majority of the inversions were done on a quad-core desktop computer with 32 GB of RAM and 3.5 MHz CPU speed running IDL under Linux. The IBIS data used have a size of 125 MB per spectral scan, the spectral archive at full resolution and the corresponding atmospheric parameters have about 7.4 GB, while the degraded archive spectra are about 900 MB. A single inversion job thus requires about 10 GB of RAM when the atmospheric model is kept in memory to instantly retrieve the best-fit temperature. The IDL implementation of the inversion routine uses matrix operations where possible to make full use of the capabilities of IDL that parallelizes automatically when its external matrix operation routines are called. As long as no other jobs compete for the CPU power, a speed of about 0.3 s per profile resulted for the NLTE archive of 2,000,000 spectra and 30 wavelength points. Tests on a 32-core machine gave about the same speed of 0.3 s per profile for the NLTE archive, with the only advantage being that multiple jobs can be run at the same time at this speed before the CPU power is fully used up. The time per profile when using the much smaller LTE archive of 240,000 spectra scaled almost linearly down with the archive size to 0.03 s. The LTE inversion of all 396 spectral scans was already available prior to the current study and is used for cross-comparisons in the following. Running the LTE version over full-disk Ca ii IR spectra with 100 wavelength points from the Synoptic Optical Long-term Investigations of the Sun (SOLIS; Keller et al. 2003) gave 0.1 s per profile (Beck et al. 2018). All steps after the spectral synthesis are conceptually simple and straightforward. They could be implemented in any other programming language as well. The only step that requires optimization for speed is the search for the minimal ${\chi }^{2}$ across the archive.

The archives are created without a priori knowledge of the observations. They contain an as large as possible variety of different spectra and thermal stratifications, but the full range is not necessarily needed to reproduce the observations. This is especially true for observations in the quiet Sun, where to first order all granules are "similar" to some degree, with a hot center surrounded by cool downflows. It turned out that the archive used in the inversion is rather sparse (Figure 2, see also Beck et al. 2014). For the same IBIS spectral scan, the LTE (NLTE) inversion only picked ≈10,000 (24,000) different profiles. For the NLTE case, the majority of the profiles corresponded to temperature stratifications with positive Gaussian temperature perturbations in the first half of the NLTE archive (lower panel of Figure 2).

Zoom In Zoom Out Reset image size

To confirm the sparse archive used, we ran the NLTE inversion over the first 60 IBIS scans of the time series with an average of 20,000 ± 4000 profiles used. Combining the inversion results of those scans gave a total of about 70,000 unique profiles that were used in one or the other spectral scan. Thus, only a small fraction of the archive profiles is used, which implies that further optimization is easily possible (see Section 4.4 below).

The archive spectra are matched to the average observed QS profile, which also sets the wavelength scale and the zero position of the Ca ii IR line core to be used. Additional spectral displacements by Doppler shifts due to motions relative to the solar surface are not explicitly taken into account. It is not possible to include Doppler shifts into the archive because that would increase its size multiple times. Fortunately, line-of-sight (LOS) Doppler velocities have only a small impact on the fit for two main reasons. The typical LOS velocities of a few km s⁻¹, with their maximal value limited by the sound speed of about 6 km s⁻¹, lead to spectral displacements of a few pm, which correspond to about two wavelength points at the finest spectral sampling around the line core used in the observations. In addition, the observed and synthetic spectra are to first order symmetric. This forces the best-fit solution to ignore the Doppler displacement to first order because the mismatches in the blue and red line wings go into opposite directions. If the observed profile is displaced from the location in the archive, the intensity in one wing will be too high, while it will be too low in the opposite wing. Thus, the best match to first order is the same as it is in the absence of Doppler shifts, with minimal deviations in both line wings.

Figure 3 shows 16 randomly picked spectra including their LOS Doppler shifts and their NLTE best-fit solutions. For comparison, we also constructed a set of observed spectra where the line-core velocities were removed. The presence of the Doppler shifts is only clearly visible for a few of the spectra, while the best-fit solution from the archive—without any velocity—matches both the original spectra and those without velocities satisfactorily. Neglecting the LOS Doppler shifts thus has no strong impact on the thermal stratifications retrieved because the inversion matches the line shape, i.e., the intensities in the line wing and line core.

Zoom In Zoom Out Reset image size

In principle the LOS velocity can be determined and removed from the observations prior to the inversion, but for the coarse spectral sampling in the line wing in our IBIS data that approach can decrease the quality of the observed spectra. A determination of the LOS velocity from the location of the line core and a derivation using a spectral displacement of the best-fit spectra corresponding to known velocities gave about the same result for the LOS velocities. Such a step could be added to the inversion approach either prior to the inversion or as an intermediate step after one initial inversion, but it is not expected to lead to a significant improvement of the fit. We thus ran the inversion without removing the LOS velocities, but for a few of the figures below we will use the observed data without LOS velocities because at the wavelengths with the steepest spectral intensity gradient in the profile to the blue and red of the line core, the presence of the LOS velocities changes the intensity at a fixed wavelength significantly.

4.3.1.  ${\chi }^{2}$ Values

For the investigation of the fit quality, we recalculated the ${\chi }^{2}$ difference between the observed and best-fit profiles with equal weight for each wavelength as a better estimate of the general fit quality to the full line profile. Figure 4 shows a two-dimensional (2D) image of the ${\chi }^{2}$ values in the LTE and NLTE inversion for one spectral scan together with the corresponding line-core image. Both the LTE and NLTE inversion have a similar range and spatial structure in ${\chi }^{2}$ with seemingly no direct dependence on the intensity pattern in the line-core image. Most of the locations with high values of ${\chi }^{2}$ are located at places with an intermediate line-core intensity avoiding both the lowest and highest values of the line-core intensity, as indicated by the red and blue contour lines in Figure 4.

Zoom In Zoom Out Reset image size

The histograms of ${\chi }^{2}$ and the scatter plot of ${\chi }^{2}$ in the NLTE versus the LTE inversion in Figure 5 confirm a similar performance of the LTE and NLTE inversion with slightly lower ${\chi }^{2}$ values for the NLTE fit. The shape of the distributions matches the expectations for a least-squares fit, given the number of degrees of freedom and the number of wavelength points (see Grant et al. 2018).

Zoom In Zoom Out Reset image size

4.3.2. Intensity at Fixed Wavelengths

Figure 6 shows 2D images of the observed spectra without Doppler shifts and the LTE and NLTE best-fit spectra at three wavelengths in the outer (854.13 nm) and mid (854.19 nm) line wing and the line core (854.21 nm). The line core (top row of Figure 6) is well reproduced by both the LTE and NLTE inversion with no discernible difference between the two inversions. The same holds for the middle line wing in the middle row. The largest differences are seen for the outer line wing, where the LTE inversion especially becomes somewhat coarser in its spatial resolution. This is a consequence of a lack of suited profiles for some spatial locations in the archive, so the fit is forced to use the same profile multiple times over neighboring spatial locations. The NLTE inversion result varies on about the same spatial scale as the observations in the outer line-wing image, but also is off from the observations to some extent. This presumably results from both the Doppler shifts and the general problems of the observed spectra in the outer line wings caused by the coarse spectral sampling and the prefilter transmission curve.

Zoom In Zoom Out Reset image size

All inversion results show a slightly higher spatial contrast than the observations themselves, which is best seen in the line-core images, e.g., at the bright grain at $x,y\approx {60}^{{\prime\prime} },{25}^{{\prime\prime} }$ in the top row of Figure 6.

The scatter plots of the best fit versus the observed intensity at the same three wavelengths in Figure 7 confirm the picture from the 2D images. The scatter around a one-to-one relation is smallest for the line core and increases toward the outer wing. The global offset of the points for the middle line wing in the middle row from the line of perfect correlation is due to the removal of the Doppler velocities by shifting the line-core location to a fixed reference position, which also shifts the whole spectral profile.

Zoom In Zoom Out Reset image size

The lack of suitable archive profiles for some locations is easily seen for the outer line wing in the top row of Figure 7. The horizontal "stripes" of identical intensity in the LTE and NLTE inversion for a range of observed intensities show that the same archive profile was used several times. For the LTE inversion it seems that this was due to a lower threshold in the intensity in the archive with no intensities below about 0.51, which implies that most likely the lowermost value of the temperature offset ${\rm{\Delta }}T$ in its generation was not large enough.

Figure 8 shows the standard deviation of the difference between the observed spectra with and without Doppler velocities and the LTE and NLTE best-fit spectra. The average value of the standard deviation is about 0.02 of I_c at all wavelengths. The largest values are found where the absorption profile is steepest and the difference between observed and best-fit spectra is most sensitive to the Doppler shifts. Using the observed spectra without the line-core LOS velocities for the calculation reduces the deviation at the wavelengths in the mid-line wing, by a factor of about 2, to a value similar to those at all other wavelengths. This implies that executing the fit with the Doppler shifts previously removed will not lead to a significantly different or better result.

Zoom In Zoom Out Reset image size

4.3.3. Individual Spectra

Figures 9 and 10 show the individual observed and best-fit spectra and the resulting temperature stratifications in LTE and NLTE for another set of 16 randomly selected locations. In the spectra, the difference between the LTE and NLTE solutions is usually negligible, implying that both archives have a comparable set of spectra suited for the inversion of the specific observation. The main difference between the LTE and NLTE solutions shows up in the temperature stratifications in Figure 10. While the LTE and NLTE solutions are nearly identical up to log $\tau =-4$, only the NLTE inversion is able to reproduce the chromospheric temperature rise for higher atmospheric layers, which would lead to extreme emission profiles in the line core if treated in LTE. For cases with temperature enhancements in the low atmosphere, e.g., in the lowermost rightmost panel, the LTE and NLTE results are very similar up to log $\tau =-4$. We note that for the LTE inversion some of the corrections to the spectra were applied to the archive instead of the observations. This can lead to slightly different LTE and NLTE best-fit spectra even though the thermal stratifications are nearly identical up to log $\tau =-4$.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Figure 11 shows the spectra and temperature stratifications for three explicitly selected locations in an intergranular lane, the center of a granule, and a magnetic element. Both the spectra and the stratifications comply with the expected behavior of an increase in the intensity, especially in the very line core, and a corresponding increase in the temperature, with a variation also seen in the slope of the temperature stratification. The LTE inversion can again only provide the corresponding relative difference in temperature without a realistic chromospheric temperature rise.

Zoom In Zoom Out Reset image size

The large archive size of 2,000,000 profiles is the major limitation on the speed of the NLTE inversion. However, most of those profiles are not even needed. To maximize the archive usage, we ran the inversion with the full NLTE archive over the first 60 spectral scans and retained only about 70,000 unique archive profiles that were used at any time. This "small" archive was then used to invert spectral scans No. 200–290 that were not used in its creation. We also inverted spectral scans No. 200–210 with the full NLTE archive for comparison.

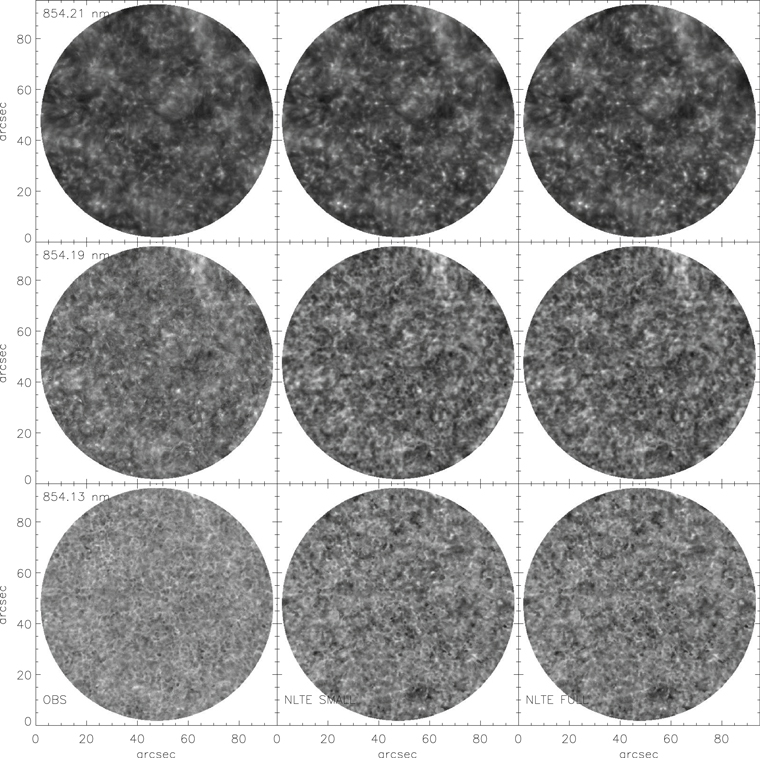

Figure 12 shows images at a fixed wavelength for the inversion of spectral scan No. 200 with the full and small NLTE archive, respectively, in the same format as in Figure 6. The match of the inversion with the small archive to the observations compares well with that for the full-sized archive. The rms values of the deviations at each wavelength for the small NLTE archive stayed at a few percent similar to those in Figure 8. The inversion with the small archive for this specific spectral scan used 26,320 out of its 70,000 available profiles. The inversion speed improved to about 0.02 s per profile. The full NLTE inversion used 26,523 profiles out of its 2,000,000 profiles, i.e., only about 200 more, implying that the small archive is rather complete. The comparison of the small and full NLTE inversion for scans No. 201–210 gave similar results. Table 2 lists the speeds of the different inversion modes. Tests on a 32-core machine instead of the quad-core desktop computer gave about 10% faster speeds even when running up to six inversion jobs in parallel.

Zoom In Zoom Out Reset image size

Figure 13 shows a still from an animation of both the LTE and NLTE inversion results in a 25 Mm × 25 Mm region at the center of the IBIS FOV for spectral scans No. 200–290 that cover about 15 minutes of observations. The 1D display at the top shows the temperature $T(x,\mathrm{log}\tau )$ on a cut through the middle of the region. The 3D displays were generated with the same approach used in Beck et al. (2014) by a ray-tracing through the temperature cube $T(x,y,z;{t}_{i})$ obtained from the inversion for each spectral scan taken at the time t_i. The value to display for each ray was set to the largest temperature encountered along the ray. The conversion from $\mathrm{log}\tau$ to z was done as in the latter publication, assuming the relation between τ and z given in the HSRA model as a first-order estimate. Because of the chromospheric temperature rise in the NLTE inversion results, the relative temperature ${\rm{\Delta }}T(x,y,z)\,=T(x,y,z)$ $-\langle T(z){\rangle }_{| x,y}$ was used for the NLTE 3D display, otherwise only the top layers of the atmosphere with the highest absolute temperature are seen.

When playing the animation, upward propagating acoustic waves can be identified in the 1D display, but at the 10 s cadence of the observations they often are captured only on a few subsequent steps. The small-scale ($\lt 5$ Mm) locations of increased chromospheric temperatures at $\mathrm{log}\tau \approx -5$ in the 1D display are usually mapped in the same way in the LTE and NLTE inversion, similar to the locations with reduced chromospheric temperatures in between that extend over larger areas (see, e.g., Rezaei et al. 2008).

The easiest way to identify structures in the LTE 3D display is to compare them to the line-core intensity image on the right side. The structures corresponding to the strongest local brightenings in the latter can then be found in the LTE 3D display, where they reveal their shape throughout the atmosphere, and specifically below the chromospheric layers where the Ca ii IR line core forms. A few of them will correspond to magnetic elements instead of acoustic shocks, but the target region at disk center was magnetically very quiet on the observing day.

It is more difficult to then identify exactly the same structures in the NLTE 3D display because there usually are several more locations with high chromospheric temperatures that stand out. For scan No. 203 shown in Figure 13, the three most prominent bright features in the LTE 3D display at $x,y=(20,3),(20,10),(2,24)$ Mm can be located in the NLTE 3D display as well. The majority of the other high-temperature structures in the NLTE 3D display can, conversely, be usually identified in the line-core intensity image as smaller and less bright intensity enhancements that presumably result from acoustic shocks ("bright grains;" see, e.g., Rutten & Uitenbroek 1991; Beck et al. 2008) instead of magnetic elements. Those do not show up as prominently in the LTE 3D display because their temperature in LTE is not so strongly enhanced that they dominate the ray-tracing in the absolute temperature in the same way. For the LTE 3D display, in some cases the photospheric temperatures are the largest values along a given ray. We note that this is not a flaw of the LTE or NLTE inversion results, but a generic problem in how to visualize the corresponding temperature cubes.

In summary, the animation demonstrates that with either the LTE or NLTE inversion results chromospheric structures can be identified and traced in three dimensions throughout the atmosphere, while the application of the inversion to a time series of observations allows one to also trace the temporal evolution in an atmosphere cube.

One major limitation of the archive inversion approach is the match of the HSRA spectral synthesis to the average observed quiet-Sun (QS) profile. This prevents a fully independent determination of absolute temperatures. All temperatures are derived in some sense as differences to the HSRA model that is forced to correspond to the average QS spectrum, and hence to first order to the average QS temperature stratification. For the scientific interpretation of the inversion results this presents, however, only a minor drawback. First, the HSRA is assumed to be a valid QS temperature stratification with a small error at least for the optical depth range from $\mathrm{log}\tau =0$ up to $\mathrm{log}\tau \approx -6$. Second, for most science targets, no absolute reference temperature values are known from other sources, i.e., potential temperature errors of even a few 100 K are often rather irrelevant as there is nothing to compare the inversion results to. Third, relative temperature differences across the FOV are maintained in the correct way. Finally, the problem of the intensity normalization is common to all inversion codes. Given that the observations are commonly acquired in an arbitrary intensity scale in counts, almost all inversion codes use an internal normalization of synthesized spectra in absolute energy units to some reference value.

The second major limitation of the approach still is its speed, even with all attempts at optimization. At 20 ms per profile, an inversion of the full 1 hr time series of IBIS data used in the current study takes about two months with a single job. As long as enough memory and CPU cores are available, the duration scales linearly with the number of jobs run in parallel. That puts the approach still at the limit of practical application for data from current instruments.

The apparent increase in spatial contrast in the inversion results presumably indicates a problem common to all inversion codes that work on a single-pixel base. The spectrum from a single spatial location is reproduced with a single thermal stratification, ignoring the 3D radiative transfer in the solar atmosphere and the spatial degradation by the Earth's atmosphere and the telescope optics with lateral contributions from adjacent locations. For photospheric spectral lines in LTE with a strong coupling of radiation field and local gas temperature, the single-pixel approximation in the solar atmosphere is valid, but the importance of the lateral radiation increases higher in the atmosphere (Leenaarts et al. 2009). This problem can be overcome by using a spatially coupled inversion approach (van Noort 2012) or applying a deconvolution to the observations before the inversion (Beck et al. 2011), but in general it affects chromospheric spectral lines more than photospheric ones. To accurately model the 3D radiative effects in the solar atmosphere would require using a height- or wavelength-dependent spatial point-spread function (PSF) in addition to the regular PSF for the spatial degradation outside the solar atmosphere.

Finally, the neglect of the LOS Doppler velocities in the inversion is a minor limitation, but they could be taken into account with little additional effort.

We currently foresee a few different avenues for future improvements of the inversion approach.

The current full or small archive is optimized to deal with QS observations at the disk center. It will only be partially suited to inversions of strongly differing solar targets such as active regions with pores and sunspots or any type of observations at large heliocentric angles. Particularly, for a potential application of the NLTE inversion to the full-disk spectra in Ca ii IR provided by SOLIS, a set of a few archives at different heliocentric angles will be needed. Even if in the automatic generation of the archive many different temperature stratifications are created, they do not necessarily resemble stratifications for inclined lines of sight through the solar atmosphere. In regular operations, SOLIS Ca ii IR full-disk data come in at a daily rate of one or two times about 2.7 million spectra for either Stokes I and V or Stokes $I,Q,U,$ and V measurements. With moderate computing power, such an amount of data can be handled with the current archives overnight.

An improvement of the inversion speed might be possible by application of a Principal Component Analysis (PCA; e.g., Rees et al. 2000; Eydenberg et al. 2005; Casini et al. 2013) to either the observed or the degraded archive spectra. Keeping only the first few principal components will reduce the dimensionality of the observed and archive spectra, which will speed up the inversion process. SOLIS spectra have about 100 wavelength points, which the PCA could reduce to less than 10 relevant parameters. The inversion process would work in a very similar way, but instead of calculating ${\chi }^{2}$ from the squared difference of observed and archive spectra it would minimize the squared difference of the PCA components.

Finally, neural networks (see, e.g., Carroll & Staude 2001; Socas-Navarro 2005; Carroll & Kopf 2008, and references therein) are able to reach a much faster speed than the one-by-one comparison of each observed profile with each archive spectrum. They also have the capability of additional interpolation between the thermal stratifications contained in the archive (Osborne et al. 2019). Preliminary tests training a neural network on the "small" archive (courtesy of I. Milic) showed a tremendous increase in the inversion speed, but a more detailed discussion of this topic is outside the scope of the current study.
