Collisional Quenching of Highly Excited H₂ due to H₂ Collisions

H₂ is the most abundant molecular species in the interstellar medium. However, detecting H₂ emission can be problematic. H₂ lacks a net dipole moment, so electric dipole transitions within the ground electronic state (X) are forbidden and electric quadrupole transitions are very weak. Direct collisional excitation is an inefficient mechanism for the population of highly excited rotational levels, because of the large excitation energies and typical low gas kinetic temperatures. The highly excited rotational levels are mainly populated by UV pumping and subsequent radiative decay. In photon-dominated regions (PDRs), far-UV photons absorbed by H₂ can pump the molecules to excited electronic states. Once electronically excited, most of the H₂ molecules would immediately decay to X through radiative cascade or collisions (Field et al. 1966). For example, Herczeg et al. (2002, 2006) reported the detection of H₂ Lyman-band lines from UV-pumped levels to highly excited X rotational levels j = 17, 18, and 19 in the spectra of TW Hya.

Collisions involving two hydrogen molecules are of great importance in modeling of astrophysical environments. However, relevant physical conditions may not always be accessible in terrestrial laboratories. Measurements of state-to-state-resolved rate coefficients are difficult and rare for highly rotational excited molecules. In the absence of experiments, the requirement for quenching rates for H₂–H₂ collisions can only be met by detailed and accurate calculations. The literature on this topic is extensive. The accuracy of computed collision cross sections depends on knowledge of the intermolecular potential, as well as on the accuracy of the scattering approximation used. The rigid rotor approximation is often employed to reduce the computation complexity. Green (1975) reported one of the earliest calculations, applying the analytic interaction potential developed by Zarur & Rabitz (1974). The succession of theoretical studies done by Flower (1998, 2000) and Flower & Roueff (1998, 1999) using the potential from Schwenke (1988) presented the rate coefficients for rotational levels j ≤ 8 and kinetic temperatures T ≤ 1000 K. Lee et al. (2008) also calculated the same transitions using a more accurate four-dimensional PES (Diep & Johnson 2000), referred to as the DJ PES.

The full quantum calculation of rovibrational transitions is more challenging. Applying the coupled-states (CS) approximation, Pogrebnya & Clary (2002) studied full-dimensional quantum dynamical calculations of rotationally inelastic H₂–H₂ collisions. They found that the six-dimensional potential energy surface (PES; Boothroyd et al. 2002), referred to as the BMKP PES, led to large values of rate coefficients compared to the experimental results, but a restricted version of this PES, referred to as BMKPE, can give better results. Lee et al. (2006) carried out quantum close-coupling (CC) calculations of elastic and inelastic rotational transitions for H₂–H₂ collisions with both the DJ PES and the BKMP PES. They found good agreement with measurements of the (0, 0) → (0, 2) rate coefficient (Maté et al. 2005) only when the DJ PES is used. The work of Quéméner & Balakrishnan (2009) led to similar conclusions. Panda et al. (2007) and Otto et al. (2007) reported rotational transition cross sections in ortho-H₂+para-H₂ and para-H₂+para-H₂ collisions by propagating wave packets with the multiconfiguration time-dependent Hartree algorithm. The validity of the rigid rotor approximation was also demonstrated by Otto et al. (2007). Recent work (Balakrishnan et al. 2011; Fonseca dos Santos et al. 2011) showed that the six-dimensional H₂–H₂ PES given by Hinde (2008) provides a more accurate description of rotational and vibrational transitions in H₂–H₂ collisions. Another highly accurate rigid rotor PES was published by Patkowski et al. (2008) at around the same time as the Hinde PES but it has not been used in any detailed dynamics calculations. The computations of Patkowski et al. (2008) employed a larger basis set than the Hinde PES and reported interaction energies with an uncertainty of only about 0.15 K, ∼0.3% of the minimum of the potential well, making it the most accurate rigid rotor PES for the H₂–H₂ system.

Currently, most collision data on H₂–H₂ are limited to initial levels j ≤ 8 or ν ≤ 3. The major difficulty for accurate calculations comes from the large number of degenerate levels that must be included for each rotational level, so that the problem rapidly becomes intractable, especially for highly excited H₂. Insufficient/missing collision data introduce errors in the determination of the level populations and errors in heating or cooling effects from highly excited levels within the ground electronic state. In many astrophysical models, the "g-bar" approximation (van Regemorter 1962) is applied to estimate the missing data. However, it tends to overestimate the true rate coefficients. Thus, there is a continuing demand for accurate data for H₂–H₂ collisions.

In this work, we report new quantum scattering calculations for rotational quenchings of H₂ induced by H₂ using the four-dimensional interaction PES of Patkowski et al. (2008). This ab initio PES applied the supermolecular coupled-cluster method with single, double, and noniterative triple excitations [CCSD(T)] and very large orbital basis sets. The basis set used was larger than that employed by Hinde (2008) and the angular dependence of the interaction potential includes higher-order anisotropic terms than the Hinde PES. We present state-to-state cross sections of H₂ de-excitations from initial states j₁ = 2–31 to lower ${j}_{1}^{{\prime} }$ levels with collision energies ranging from 10⁻⁶ to 20,000 cm⁻¹. Quantum CC scattering calculations with the rigid rotor approximation were performed for j₁ = 2–14, 18, 19, 24, 25 considering both ortho-H₂ and para-H₂ colliders for collision energies smaller than 2000 cm⁻¹, while the CS approximation is applied for higher collision energies. A scaling method is used to estimate the rate coefficients for the remaining rotational transitions. Rate coefficients for temperatures ranging from 1 to 10,000 K are evaluated and compared with previous scattering results. We also present H₂ critical densities obtained from the new collision data for both para-H₂ and ortho-H₂ collisions.

We investigate transfer of rotational energy in the scattering of two hydrogen molecules in this study. The transition H₂(ν₁ = 0, j₁) + H₂(ν₂ = 0, j₂) → H₂(${\nu }_{1}^{{\prime} }$ = 0, ${j}_{1}^{{\prime} }$) + H₂(${\nu }_{2}^{{\prime} }$ = 0, ${j}_{2}^{{\prime} }$) is denoted as (j₁, j₂) → (${j}_{1}^{{\prime} }$, ${j}_{2}^{{\prime} }$). For convenience, (j₁, j₂) → (j₁ + Δj₁, j₂) is referred to as a Δj₁ transition.

Computations were carried out using the mixed-mode OpenMP/MPI version of the nonreactive scattering code MOLSCAT (Hutson & Green 1994) modified by McBane (2011) and Walker et al. (2013) based on the CC and CS formulations presented by Green (1975) and Heil et al. (1978). For the case in which the target and projectile are identical, like para-H₂ + para-H₂ and ortho-H₂ + ortho-H₂, the two molecules involved in the calculations are considered to be indistinguishable. However, there exists in the literature at least two distinct definitions of the cross section for rotational transitions involving identical particles (Green 1975; Monchick & Schaefer 1980). The definition of Green (1975), which multiplied the "usual" cross section by an extra degeneracy factor $(1+{\delta }_{{j}_{1}{j}_{2}})(1+{\delta }_{{j}_{1}^{{\prime} }{j}_{2}^{{\prime} }})$, was adopted by MOLSCAT and vrrmm. Also according to Green (1975), the index pair (j₁, j₂) must now be restricted such that j₁ ≥ j₂ for the symmetry of the wavefunction under exchange.

The two hydrogen molecules involved in the collision are treated as rigid rotors with a fixed bond length of 1.448 736 a₀(a₀ = 0.529 Å is Bohr radius), corresponding to the ν = 0 vibrationally averaged value, and the energy levels were calculated with rotational constant B₀ = 60.853 cm⁻¹. The coupled channel equations were integrated using the modified log-derivative Airy propagator of Alexander & Manolopoulos (1987). The log-derivative matrix is propagated to large intermolecular separations. Several tests show that the interval from R = 1 a₀ to the asymptotic matching radius R = 50 a₀ with a step size of 0.05 a₀ is sufficient.

In the scattering calculations, the angular dependence of the interaction potential is expanded as

$$\begin{eqnarray}&&V(R,{\theta }_{1},{\theta }_{2},\phi )=\displaystyle \sum _{{\lambda }_{1}{\lambda }_{2}\lambda }{A}_{{\lambda }_{1}{\lambda }_{2}\lambda }(R){Y}_{{\lambda }_{1}{\lambda }_{2}\lambda }({\theta }_{1},{\theta }_{2},\phi ),\end{eqnarray} \tag{ 1 }$$

where A_λ1λ2λ(R) are the radial expansion coefficients and Y_λ1λ2λ(θ₁, θ₂, ϕ) are the bispherical harmonics as defined in the appendix of Green (1975). The angles θ₁, θ₂, ϕ denote the two planar angles and relative torsional angle, respectively. We used 10 quadrature points each for integration along the angular coordinates (θ₁, θ₂, ϕ). Multiple convergence checks have been performed to verify the reliability of the computed collision data. First, we have checked that the results are converged with respect to the number of terms included in the angular expansion of the interaction potential. In Table 1, we show the cross sections calculated for different choices of the potential expansion. It is noted that more potential terms are needed as the transition energy increases (or as $| {\rm{\Delta }}{j}_{1}|$ increases). However, the largest numerical loss is only 3% for the Δj₁ = −8 transition when we cut off the potential expansion at term (4, 4, 8). Thus, we excluded any terms beyond (4, 4, 8) in the calculation because they do not make significant contributions.

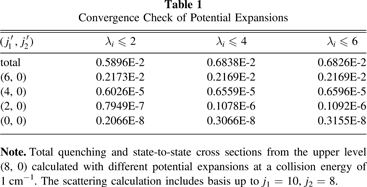

Table 1.  Convergence Check of Potential Expansions

$({j}_{1}^{{\prime} },{j}_{2}^{{\prime} })$	λi ≤ 2	λi ≤ 4	λi ≤ 6
total	0.5896E-2	0.6838E-2	0.6826E-2
(6, 0)	0.2173E-2	0.2169E-2	0.2169E-2
(4, 0)	0.6026E-5	0.6559E-5	0.6596E-5
(2, 0)	0.7949E-7	0.1078E-6	0.1092E-6
(0, 0)	0.2066E-8	0.3066E-8	0.3155E-8

Note. Total quenching and state-to-state cross sections from the upper level (8, 0) calculated with different potential expansions at a collision energy of 1 cm⁻¹. The scattering calculation includes basis up to j₁ = 10, j₂ = 8.

Download table as:  ASCIITypeset image

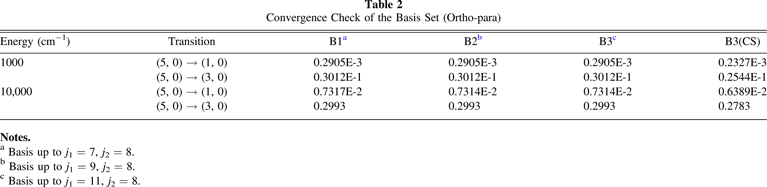

Second, ideally, the expansion of the total wavefunction should include a complete set of target and projectile rotational levels, as well as all contributing partial waves, which is, however, not a practical approach. A sufficient number of total angular momentum (J) partial waves was included at each energy based on convergence tests during the computations. The maximum value of J is 180 for some transitions. The number of states included in the basis sets is determined by considering both the accuracy and computational cost. That the energetically higher closed channels of rigid rotors contribute decreasingly to the S matrix was proved by Miller (1971). The first truncation of the basis set is decided by examining the changes of the cross sections upon increasing the rotor basis. We control the loss of numerical accuracy ≤1% in the calculations. Table 2 shows an example of varying the basis set truncation. Also, we allow the changes in j₂ to be as large as 6. Converged results are obtained with a basis set with j₂ up to 8 for para-H₂ and 9 for ortho-H₂. Another truncation is to remove some low-lying rotational levels in the basis for high rotational quenching because of the huge computing cost and the very small expected cross section magnitudes. We carefully checked the effects of removing open channels from the calculation. It turns out that the dominant Δj₁ = −2 and Δj₁ = −4 transitions are almost not influenced. For example, changes in cross sections of (18, 0) → (16, 0) and (18, 0) → (14, 0) at 1000 cm⁻¹ are smaller than 0.01%, while the cross sections of (18, 0) → (10, 0) increase by 20% when rotational levels smaller than 10 are removed from the basis. However, cross sections corresponding to high $| {\rm{\Delta }}j|$ are very small and not significant.

Finally, since the full CC calculation is prohibitively expensive at high collision energy, the CS approximation is adopted for collision energy ≥2000 cm⁻¹. The CS approximation reduces the computation expense by neglecting the Coriolis coupling between different values of Ω (the projection of the angular momentum quantum number of the diatom along the body-fixed axis). The last two columns of Table 2 show the discrepancy between the two methods. For the Δj₁ = −2 transition, the percent difference decreases from 15% with collision energy 1000 cm⁻¹, to 7% with collision energy 10,000 cm⁻¹. For the Δj₁ = −4 transition, the percent differences are 20% at 1000 cm⁻¹ and 13% at 10,000 cm⁻¹. The CS approximation is a reliable and practical method for studying diatom–diatom collisions with high collision energies.

De-excitation rate coefficients raging from 1 to 3000 K were obtained by thermally averaging the cross sections over a Boltzmann distribution of collision energies. As discussed by Danby et al. (1987), the rate coefficient of rotational excitation or de-excitation calculated with the cross section defined in Green (1975) must be divided by two if j₁ = j₂, ${j}_{1}^{{\prime} }\ne {j}_{2}^{{\prime} }$ or ${j}_{1}\ne {j}_{2},{j}_{1}^{{\prime} }={j}_{2}^{{\prime} }$, in order to avoid double-counting of the distinct interacting pairs of molecules. We adopt the adjusted rate coefficient formula used in Lee et al. (2008),

$$\begin{eqnarray}&&\qquad {k}_{{j}_{1}{j}_{2}\to {j}_{1}^{{\prime} }{j}_{2}^{{\prime} }}(T)=\displaystyle \frac{A}{(1+{\delta }_{{j}_{1}{j}_{2}})(1+{\delta }_{{j}_{1}^{{\prime} }{j}_{2}^{{\prime} }})}\\ &&\times \,{\displaystyle \int }_{0}^{\infty }{\sigma }_{{j}_{1}{j}_{2}\to {j}_{1}^{{\prime} }{j}_{2}^{{\prime} }}({E}_{k})\exp (-{E}_{k}/{k}_{B}T){E}_{k}\,{{dE}}_{k},\end{eqnarray} \tag{ 2 }$$

where $A=\tfrac{1}{{({k}_{B}T)}^{2}}{\left(\tfrac{8{k}_{B}T}{\pi \mu }\right)}^{1/2}$, E_k is the kinetic energy, k_B is the Boltzmann constant, μ is the reduced mass of the collision system, and ${\sigma }_{{j}_{1}{j}_{2}\to {j}_{1}^{{\prime} }{j}_{2}^{{\prime} }}({E}_{k})$ is the state-to-state rotational cross section defined by Green (1975).

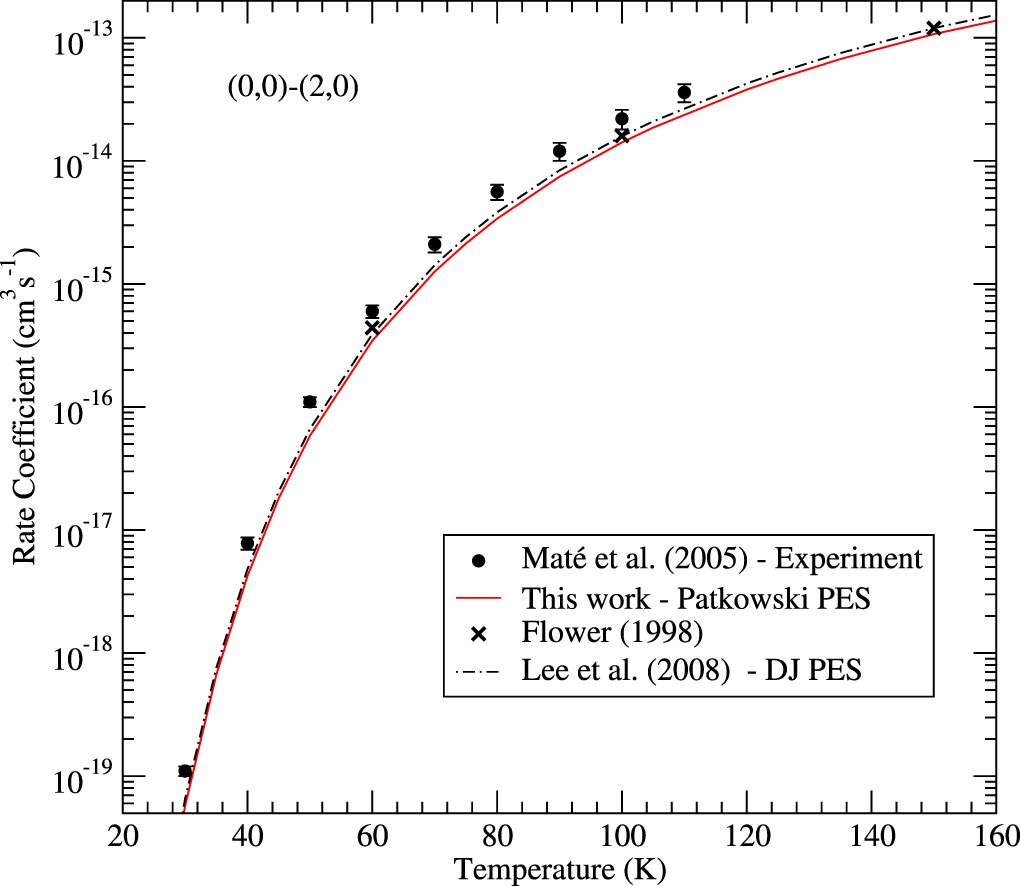

Figure 1 shows a comparison between the present theoretical results and the experimental rate coefficients of Maté et al. (2005) for the $(0,0)\to (2,0)$ excitation transition between 50 and 300 K. Since only de-excitation transitions are calculated here, the $(0,0)\to (2,0)$ transition is obtained by applying detailed balance. The theoretical results obtained by Flower (1998), which used the older PES of Schwenke (1988), and the work of Lee et al. (2008) with the PES of Diep & Johnson (2000), are generally in good agreement with the rate coefficients of this work. On average, the rate coefficients of Maté et al. (2005) are slightly higher than all the theoretical results.

Zoom In Zoom Out Reset image size

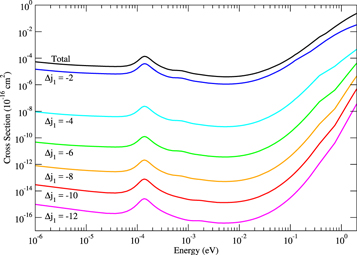

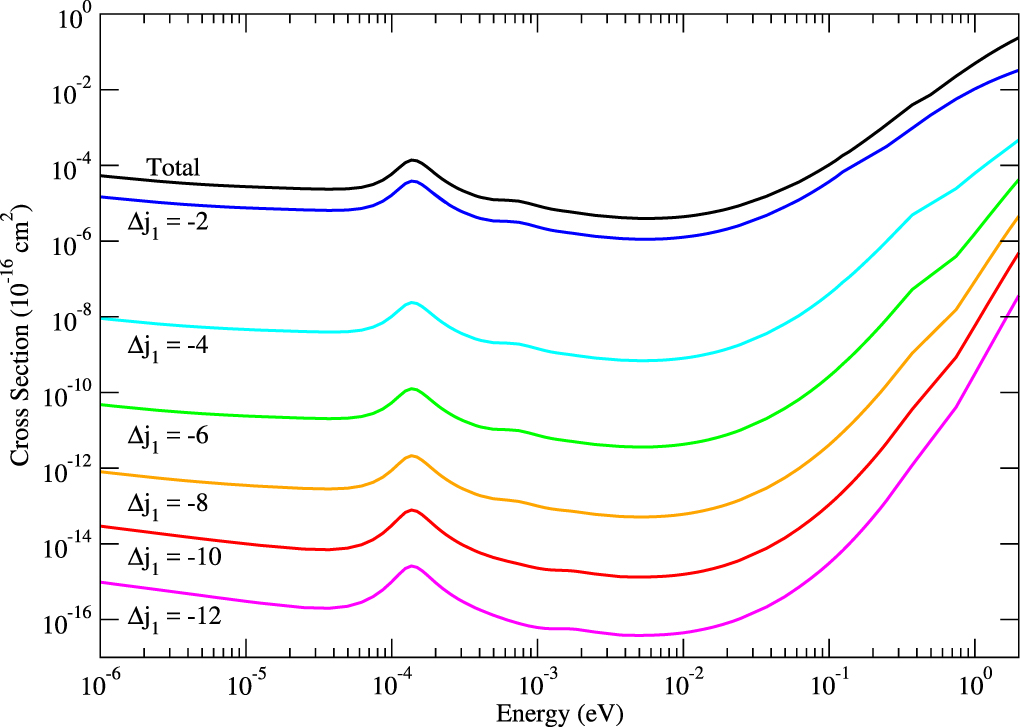

Because H₂ is homonuclear, the transitions follow an even-Δj selection rule. Figure 2 shows state-to-state pure rotational quenching cross sections from the initial state (12, 0), in para-H₂ + para-H₂ collisions to all allowed lower rotational levels. In general, the cross sections of the Δj₁ = −2 transition contribute the most to the total quenching cross sections and decrease as $| {\rm{\Delta }}{j}_{1}|$ increases. Figure 3 presents results from our computations of cross sections from the initial state (j₁, j₂) to the final state (j₁–2, j₂), i.e., elastic in j₂. We can clearly see that the Δj₁ = −2 transition from the first excited rotational state is the largest and decreases with increasing j₁.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

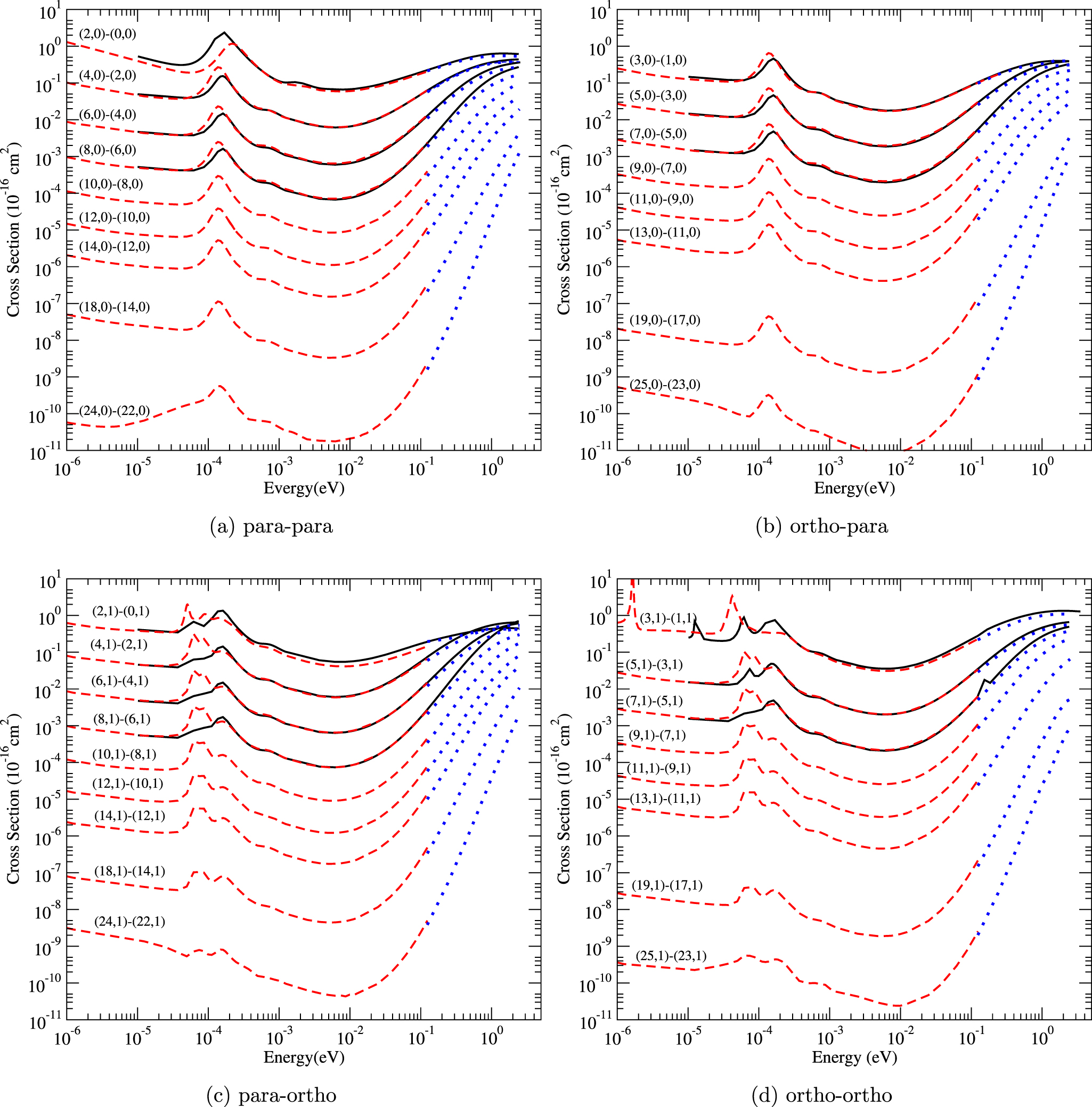

Figure 3(a) shows the Δj₁ = −2 and Δj₂ = 0 cross sections for para-H₂ + para-H₂ collisions. The current rate coefficients for most transitions are found to be similar to those obtained by Lee et al. (2008), but except for the important $(2,0)\to (0,0)$ transition, the resonance peak of this work is shifted to higher energies than what were found by Lee et al. (2008) and at slightly higher collision energy compared to other transitions presented in this figure. The highly excited transition $(24,0)\to (22,0)$ has a low energy shoulder. Likewise, in Figure 3(b), the cross sections for ortho-H₂ + para-H₂ collisions are similar to the work of Lee et al. (2008) and the highly excited rotational transition $(25,0)\to (23,0)$ has a different resonance shape.

Figures 3(c) and (d) present results for para-H₂ + ortho-H₂ and ortho-H₂ + ortho-H₂ collisions, respectively. Reasonable agreement was observed with the results of Lee et al. (2008), except for the collision energy around 10⁻⁴ eV, where we again obtain different resonance profiles. A narrow resonance peak is observed at around 1.6 × 10⁻⁶ eV. To identify the partial wave contribution to the oscillatory behavior, we show in Figure 4 the J-resolved contributions to the total inelastic cross section. The sharp peak at 1.6 × 10⁻⁶ eV originates solely from J = 2. This partial wave also contributes to the next resonance peak at 4.5 × 10⁻⁵ eV and a much broader peak at 2 × 10⁻⁴ eV.

Zoom In Zoom Out Reset image size

Explicit computations of quenching rate coefficients from a range of initial rotational levels (j₁ = 2–14, 18, 19, 24, 25) are presented here over a wide range of temperatures, extending from the ultra-cold limit to the superthermal region. Additionally, we carried out limited calculations for quenching rate coefficients in the ultra-cold regime for other rotational states and applied a zero-energy scaling method to estimate their temperature dependent rate coefficients. We adopted the formula used in the work of Walker et al. (2015) and implemented it for H₂–H₂ collisions. The rate coefficients of the Δj₁ transition from a given (j₁, j₂) state are estimated by two other Δj₁ transitions from an upper state (j^A₁, j₂) and a lower state (j^B₁, j₂). The exceptions are quenching transitions from initial states (30, 0), (31, 0), (30, 1), and (31, 1), which are estimated by two other transitions from lower states. The zero-energy scaling method is written as

$$\begin{eqnarray}\displaystyle \frac{\mathrm{log}{k}_{{j}_{1}{j}_{2}\to {j}_{1}+{\rm{\Delta }}j,{j}_{2}}(T)}{\mathrm{log}{k}_{{j}_{1}{j}_{2}\to {j}_{1}+{\rm{\Delta }}j,{j}_{2}}(0)} & = & {w}_{A}\displaystyle \frac{\mathrm{log}{k}_{{j}_{1}^{A}{j}_{2}\to {j}_{1}^{A}+{\rm{\Delta }}j,{j}_{2}}(T)}{\mathrm{log}{k}_{{j}_{1}^{A}{j}_{2}\to {j}_{1}^{A}+{\rm{\Delta }}j,{j}_{2}}(0)}\\ & & +{w}_{B}\displaystyle \frac{\mathrm{log}{k}_{{j}_{1}^{B}{j}_{2}\to {j}_{1}^{B}+{\rm{\Delta }}j,{j}_{2}}(T)}{\mathrm{log}{k}_{{j}_{1}^{B}{j}_{2}\to {j}_{1}^{B}+{\rm{\Delta }}j,{j}_{2}}(0)}\end{eqnarray} \tag{ 3 }$$

where ${w}_{A}=\tfrac{{j}_{1}-{j}_{1}^{B}}{{j}_{1}^{A}-{j}_{1}^{B}}$, ${w}_{B}=\tfrac{{j}_{1}^{A}-{j}_{1}}{{j}_{1}^{A}-{j}_{1}^{B}}$.

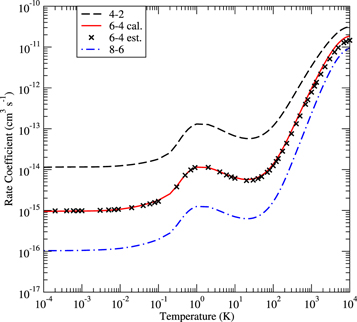

A comparison of this zero-energy scaling method with explicit calculations is given in Figure 5. The (6, 0) → (4, 0) transition is estimated from the (4, 0) → (2, 0) and (8, 0) → (6, 0) transitions. In this case, the two weight parameters (w_A and w_B) are both 0.5. The estimated (6, 0)–(4, 0) rate coefficients agree well with the calculated values, although in this case there are small discrepancies observed at the highest temperatures.

Zoom In Zoom Out Reset image size

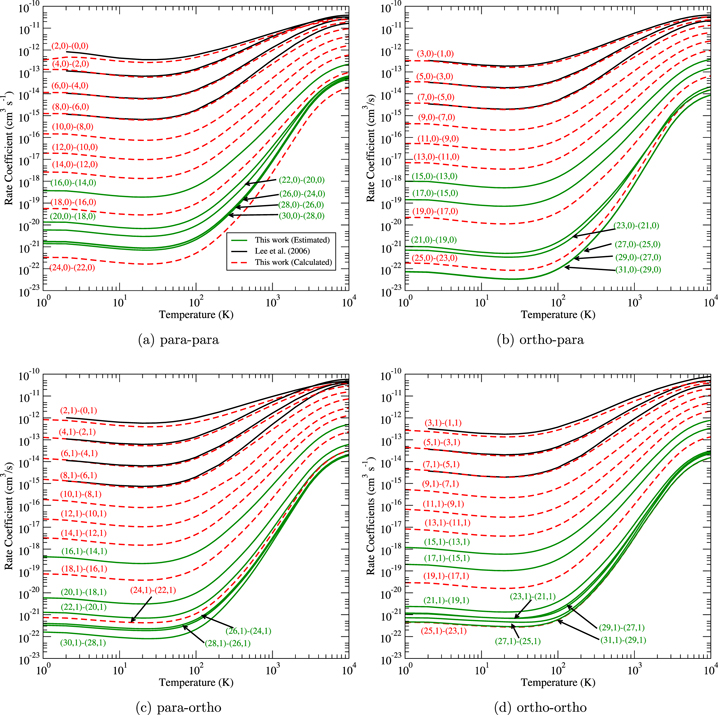

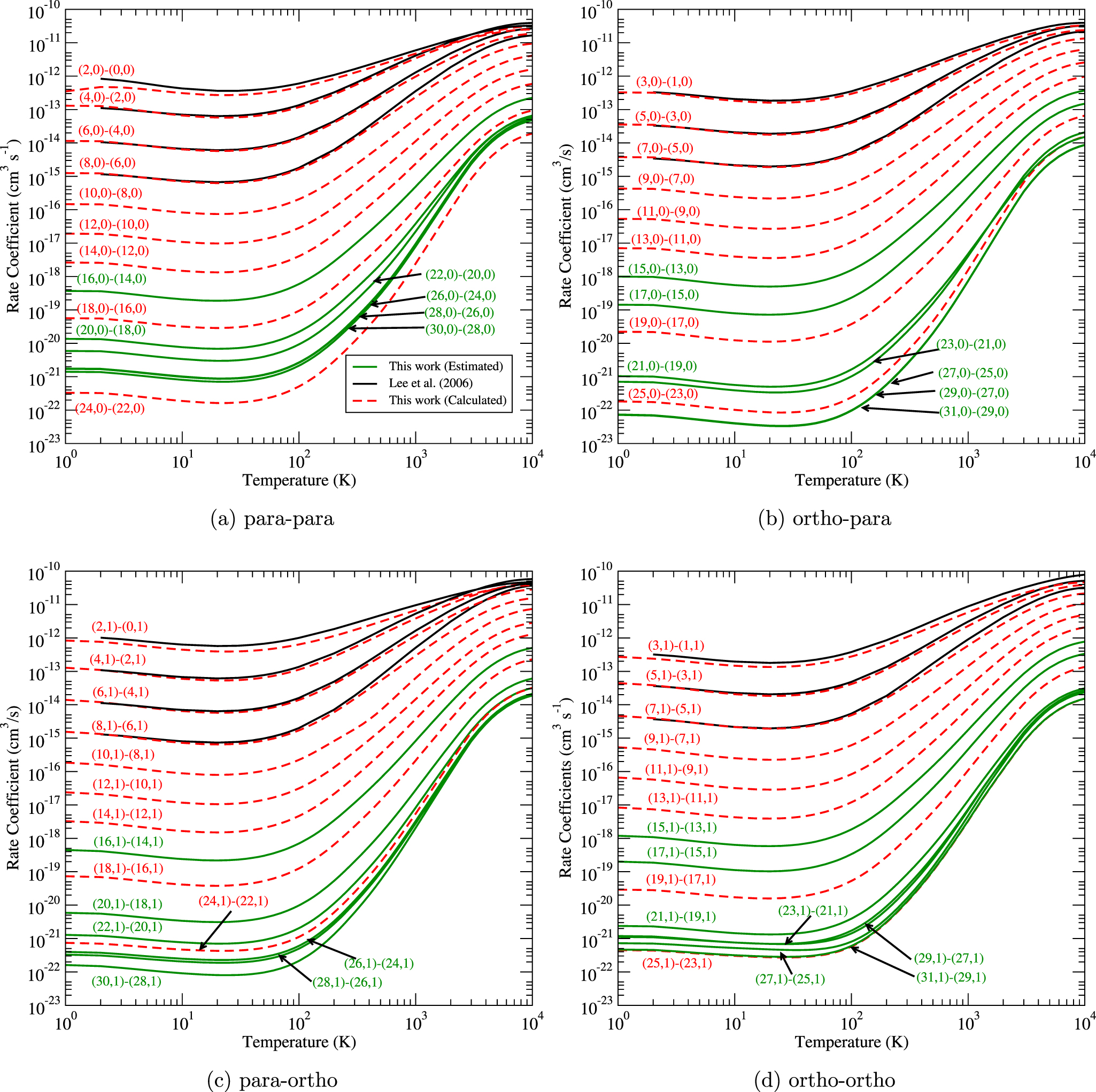

Figures 6(a)–(d) show the rotational de-excitation rate coefficients Δj₁ = −2, Δj₂ = 0. The rate coefficients of this work are found to be similar to the work of Lee et al. (2008). The adoption of CS approximation may explain some of the discrepancies in high temperature regions. An interesting result is that the magnitude of the rate coefficients of each de-excitation is inverse log-proportional to its initial rotational level when j₁ ≤ 22, which is a manifestation of an exponential energy gap law. This "well-ordered" feature is not valid for quenching from extremely high rotational levels (j₁ ≥ 22).

Zoom In Zoom Out Reset image size

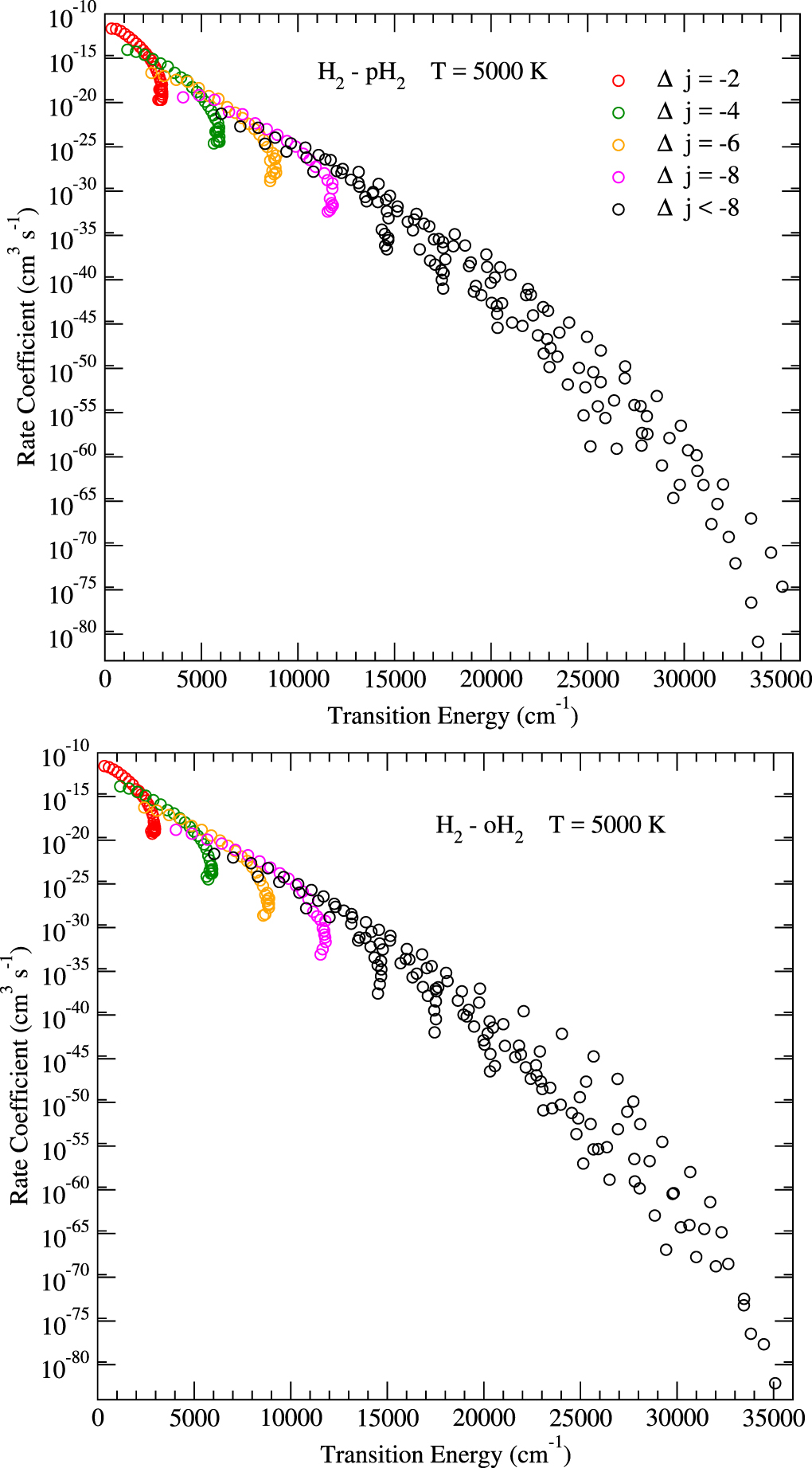

Because of the truncation that removes low-lying rotational levels from the basis, some high $| {\rm{\Delta }}{j}_{1}|$ transitions from highly excited initial levels are "missing." Thus, another simple scaling method is adopted to estimate those "missing" rate coefficients. The uncalculated Δj₁ transition from upper state (j₁, j₂) are estimated by two calculated transitions from the same upper state (j₁, j₂), of which the changes in j₁ are Δj^A and Δj^B, respectively.

$$\begin{eqnarray}&&{k}_{{j}_{1}{j}_{2}\to {j}_{1}+{\rm{\Delta }}j,{j}_{2}}(T)={k}_{{j}_{1}{j}_{2}\to {j}_{1}+{\rm{\Delta }}{j}^{A},{j}_{2}}(T)\\ &&\qquad \quad \times \,{\left(\displaystyle \frac{{k}_{{j}_{1}{j}_{2}\to {j}_{1}+{\rm{\Delta }}{j}^{B},{j}_{2}}(T)}{{k}_{{j}_{1}{j}_{2}\to {j}_{1}+{\rm{\Delta }}{j}^{A},{j}_{2}}(T)}\right)}^{w},\end{eqnarray} \tag{ 4 }$$

where $w=\left|\tfrac{{\rm{\Delta }}j-{\rm{\Delta }}{j}^{A}}{{\rm{\Delta }}{j}^{B}-{\rm{\Delta }}{j}^{A}}\right|$ was adopted.

The cross sections and/or rate coefficients calculated in this work are available online.⁵ As discussed previously, the abundance of H₂ determines its important role in a variety of astrophysical environments. Herczeg et al. (2002, 2006) reported the detection of H₂ Lyman-band lines from UV-pumped levels to highly excited X rotational levels j = 17, 18, and 19 in the spectra of TW Hya. Recently, Kaplan et al. (2017) studied the excitation of H₂ in the Orion Bar PDR from a deep near-infrared observation using the default rates in Cloudy (Ferland et al. 2013) for H₂–H₂ collisions. However, the quenching rates for highly excited rotational levels of H₂ are missing from the current database. Because the missing data would introduce errors in the populations and heating or cooling effects of highly excited levels within the ground electronic state X, the "g-bar" approximation is commonly used to fit for those missing transitions. Shaw et al. (2005) described a log-linear version of the "g-bar" approximation and studied the influence on ν = 0 level populations with or without g-bar collision data in the model, which led to the conclusion that the population of low rotational levels has very little dependence on the g-bar collision data, while the high rotational levels are significantly influenced. Figure 7 plots the rate coefficients at 5000 K of all the pure rotational quenching calculated in this work. The rate coefficients with the same Δj₁ value group as a branch. Along each branch, the rate coefficient decreases faster than log-linear as the transition energy increases. Of the dominant Δj₁ = −2 transitions, the difference between the highest and the smallest rate coefficients is about a factor of 10⁸. Adopting the "g-bar" approximation tends to overestimate the rate coefficients.

Zoom In Zoom Out Reset image size

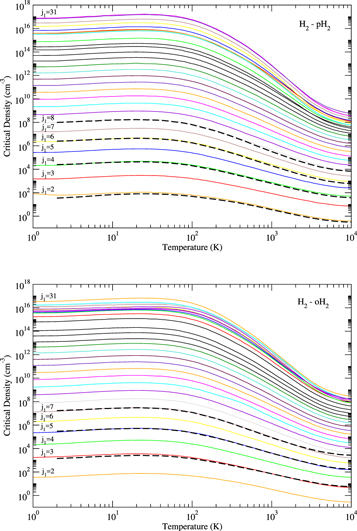

The critical density for each rotational level j₁ can be computed by the relation

$$\begin{eqnarray}&&{n}_{c}({j}_{1})=\displaystyle \frac{{\displaystyle \sum }_{{j}_{1}^{{\prime} }\lt {j}_{1}}{A}_{{j}_{1}\to {j}_{1}^{{\prime} }}}{{\displaystyle \sum }_{{j}_{1}^{{\prime} }\ne {j}_{1}}{k}_{{j}_{1}\to {j}_{1}^{{\prime} }}},\end{eqnarray} \tag{ 5 }$$

where ${A}_{{j}_{1}\to {j}_{1}^{{\prime} }}$ is the spontaneous transition probability (Osterbrock & Ferland 2006). If the environment density is above the critical density of a certain level j₁, the level population approaches a thermal distribution. For smaller densities the level will be out of equilibrium and requires a non-LTE analysis with reliable collisional data. Collisions dominate the excitation of H₂ into states with low energies above the ground, bringing these states into thermal equilibrium with the gas, while UV excitation of H₂ is likely to be a non-thermal process. In Figure 8 the critical densities for H₂ due to para-H₂ or ortho-H₂ collisions are plotted and demonstrate that for a typical gas density of 10⁶ cm⁻³, levels with j₁ > 6 will be in non-LTE. Similar work can be found in Yang et al. (2010) for CO-H₂ and Walker et al. (2015) for CO-H collisions. The high rotational rate coefficients presented in this work are important supplements for codes developed to simulate the spectra of astrophysical environments.

Zoom In Zoom Out Reset image size

We have performed extensive quantum mechanical coupled channel calculations, based on an accurate four-dimensional H₂–H₂ PES by Patkowski et al. (2008), to obtain rotational quenching rates for temperatures ranging from 10⁻⁵ to 3000 K. Initial rotational levels j₁ of up to 30 for para-H₂ and 31 for ortho-H₂ are considered. The improvement made in the new PES and large basis set in the calculation should lead to more accurate rate coefficients. The complete pure rotational collision data can be used to aid astrophysical modeling. Given the high accuracy of the PES, any uncertainty remaining in this work is likely due to the following factors. First, the adoption of CS approximation for collision energies ≥2000 cm⁻¹ tends to introduce small errors in rate coefficients at high temperatures. Second, because of the huge computing cost, some low-lying rotational levels are removed from the basis for the collisional quenching calculations from high rotational levels. This has only a small effect on rate coefficients for Δj₁ ≤ −6 transitions, while the dominant transitions with Δj₁ ≥ −4 are unaffected. Finally, errors are introduced when the simple scaling method is used to estimate the rate coefficients of those "missing" transitions.

We thank K. Walker for help with vrrmm. The transition probability for the LAMDA file was adopted by S. Cummings. This research used resources of the Oak Ridge Leadership Computing Facility at the Oak Ridge National Laboratory, which is supported by the Office of Science of the U.S. Department of Energy under Contract No. DE-AC05-00OR22725. Other computing resources were provided by the Georgia Advanced Computing Resource Center, UNLV National Supercomputing Institute, and the Center for Simulational Physics of The University of Georgia. This work was funded by NASA HST Grant HST-AR-13899.

Software: VRRMM (Walker et al. 2013), MOLSCAT (Hutson & Green 1994).
