Black Hole Hyperaccretion Inflow–Outflow Model. I. Long and Ultra-long Gamma-Ray Bursts

Mounting evidence suggests that long-duration gamma-ray bursts (LGRBs) originate from collapses of massive stars in star-forming and low-metallicity regions of star-forming galaxies (see reviews by Woosley & Bloom 2006; Kumar & Zhang 2015). Observationally, they are unambiguously associated with core-collapse supernovae (SNe) and linked to the deaths of massive stars. Now the collapsar model (see, e.g., Woosley 1993; MacFadyen & Woosley 1999; Woosley et al. 2002; Zhang et al. 2004; Woosley & Heger 2012) is generally acknowledged to explain the origin of LGRBs.

A black hole (BH) or a neutron star (NS) will be born in the center of a massive star right after it begins to collapse. For the BH case, the fall-back matter triggers the BH hyperaccretion processes to power a relativistic jet breaking out from the envelope via a neutrino–antineutrino annihilation mechanism, liberating the gravitational energy of the BH (e.g., Ruffert et al. 1997; Rosswog et al. 2003), which corresponds to neutrino-dominated accretion flows (Popham et al. 1999; Di Matteo et al. 2002; Gu et al. 2006; Kawanaka & Mineshige 2007; Liu et al. 2007, 2016; Zalamea & Beloborodov 2011; Xue et al. 2013; Song et al. 2016), or the Blandford–Znajek (BZ) mechanism tapping the rotational energy of the BH (e.g., Blandford & Znajek 1977; Lee et al. 2000a, 2000b; Lei et al. 2013, 2017; Wu et al. 2013; Liu et al. 2015). For a recent review on GRB NDAFs, see Liu et al. (2017). For the NS case, the spin down of an NS with a millisecond rotation period and a strong magnetic field (millisecond magnetar) extracting the rotational energy by electromagnetic torques can produce LGRBs, even super-luminous SNe (e.g., Duncan & Thompson 1992; Usov 1992; Dai & Lu 1998a, 1998b; Kluźniak & Ruderman 1998; Zhang & Mészáros 2001; Dai et al. 2006; Metzger et al. 2011, 2015; Lü & Zhang 2014; Lü et al. 2015). Actually, hyperaccreting BHs and millisecond magnetars are the main plausible candidates for the central engine of gamma-ray bursts (GRBs).

The progenitor and central engine of ultra-LGRBs (ULGRBs) remain a mystery. The major challenge for theoretical models comes from the durations of ULGRBs. The most well-acknowledged example of ULGRBs is GRB 111209A (e.g., Gendre et al. 2013; Levan et al. 2014; Zhang et al. 2014). The discovery of super-luminous SN 2011kl following GRB 111209A (Greiner et al. 2015) further enhanced the difficulty of the interpretation. Some believe that they are different from other LGRBs. Proposed models range from a blue supergiant or Population III (Pop III) progenitor star to a magnetar central engine to tidal disruption (Gendre et al. 2013; Levan et al. 2014; Zhang et al. 2014; Greiner et al. 2015; Ioka et al. 2016).

In this paper, we consider that both LGRBs and ULGRBs likely originate from BH hyperaccretion processes in the massive collapsars to investigate what types of progenitor stars can power them. This paper is organized as follows. In Section 2, we propose our central engine model. In Section 3, the total jet energies and timescales of different LGRBs and ULGRBs are presented. The main results on progenitor star constraints are shown in Section 4. Conclusions and a discussion are included in Section 5.

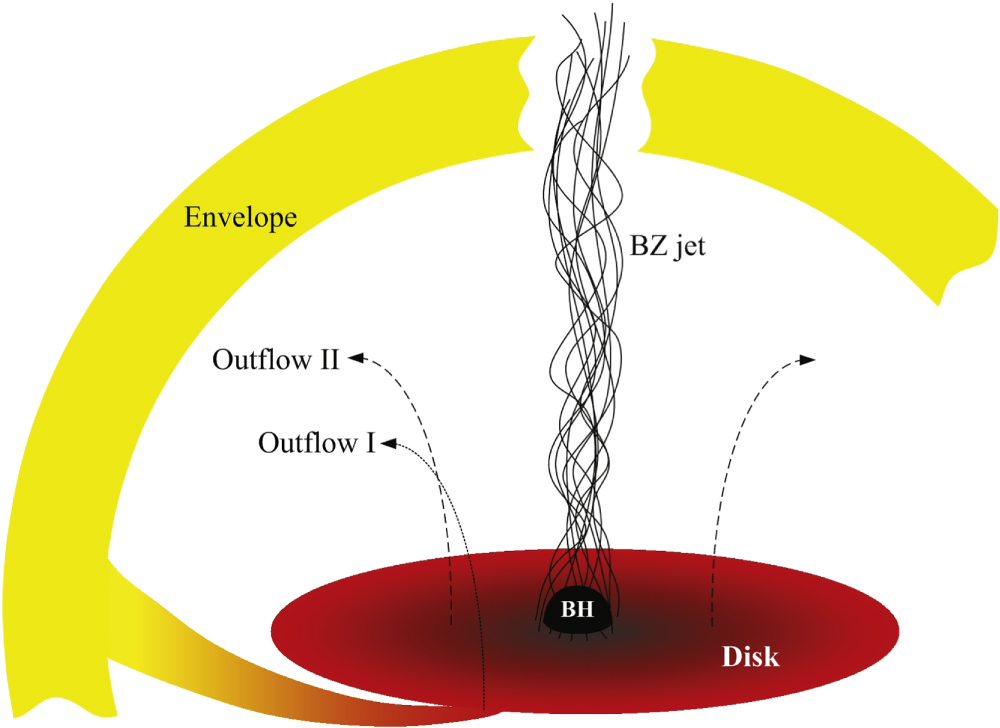

One widely discussed picture of the central engine of LGRBs and ULGRBs is shown in Figure 1. After a massive progenitor star collapses, a stellar-mass BH is born in the center (e.g., Heger et al. 2003). The materials from the envelope fall back toward the BH and an accretion disk forms. A jet produced by the BZ mechanism (Blandford & Znajek 1977) or the neutrino–antineutrino annihilation process is launched and breaks out from the envelope. If it lasts long enough, an observable LGRB or ULGRB is triggered.

Zoom In Zoom Out Reset image size

Due to angular momentum redistribution, an outflow, termed Outflow I, is launched when the matter of the envelope falls onto the outer boundary of the disk. Additionally, a strong outflow from the disk, which we shall refer to as Outflow II, has been found in theoretical models (e.g., Liu et al. 2008; Gu 2015), numerical simulations (e.g., Jiang et al. 2014; Yuan & Narayan 2014; Sa̧dowski & Narayan 2015), and observations (e.g., Wang et al. 2013; Cheung et al. 2016; Parker et al. 2017). As a result, only a few percent of the supplied mass is eventually accreted into the BH. Here we define the dimensionless factor λ, the ratio of the accretion rate at the outer boundary (${\dot{M}}_{\mathrm{outer}}$) of the disk to the mass supply rate from the envelope (${\dot{M}}_{\mathrm{pro}}$), to parameterize the effect of Outflow I, i.e.,

$$\begin{eqnarray}&&{\dot{M}}_{\mathrm{outer}}=\lambda {\dot{M}}_{\mathrm{pro}},\end{eqnarray} \tag{ 1 }$$

and use a power-law model to relate the accretion rate at the inner radius of the BH disk (${\dot{M}}_{\mathrm{inner}}$) and ${\dot{M}}_{\mathrm{outer}}$ as an effort of delineating the effect of Outflow II (e.g., Blandford & Begelman 1999; Yuan et al. 2012; Yuan & Narayan 2014; Sa̧dowski & Narayan 2015), which can be described by

$$\begin{eqnarray}&&{\dot{M}}_{\mathrm{inner}}={\dot{M}}_{\mathrm{outer}}{\left(\displaystyle \frac{{r}_{\mathrm{inner}}}{{r}_{\mathrm{outer}}}\right)}^{p}.\end{eqnarray} \tag{ 2 }$$

where ${r}_{\mathrm{inner}}$ and ${r}_{\mathrm{outer}}$ are the inner and outer boundaries of the disk, respectively, and p is the index parameter. We take ${r}_{\mathrm{inner}}\,\simeq {r}_{\mathrm{ms}}=(3+{Z}_{2}-\sqrt{(3-{Z}_{1})(3+{Z}_{1}+2{Z}_{2})}){r}_{{\rm{g}}}$, and ${r}_{\mathrm{outer}}\,=100{r}_{{\rm{g}}}$. Here ${r}_{{\rm{g}}}={{GM}}_{\mathrm{BH}}/{c}^{2}$ is the Schwarzschild radius, ${M}_{\mathrm{BH}}$ is the mass of the BH, ${r}_{\mathrm{ms}}$ is the dimensionless marginally stable orbit radius of the disk (e.g., Bardeen et al. 1972; Kato et al. 2008), ${Z}_{1}=1+{(1-{a}_{* }^{2})}^{1/3}$ $[{(1+{a}_{* })}^{1/3}+{(1-{a}_{* })}^{1/3}]$, and ${Z}_{2}=\sqrt{3{a}_{* }^{2}+{Z}_{1}^{2}}$ for $0\lt {a}_{* }\lt 1$, where a_* is the dimensionless spin parameter of the BH.

One can see that the effect of Outflow I is parameterized with the parameter $0\lt \lambda \lt 1$, and the effect of Outflow II is delineated through the index parameter p. Outflow I appears near the outer boundary of the disk, which results from the difference between the angular momentum of the progenitor star and that of the outer boundary of the disk. The parameter λ reflects how much matter from the progenitor stars turns into the matter of the disks. Once the disk forms, Outflow II will naturally emerge. The parameter p represents the strength and the radial distribution of the disk outflows. In our calculation, p = 0.8 is adopted (e.g., Yuan et al. 2012; Yuan & Narayan 2014; Sa̧dowski & Narayan 2015), which indicates that very strong disk outflows are produced.

Moreover, for the same BH spin parameter and accretion rate, the BZ luminosity is larger by about two orders of magnitude than neutrino annihilation luminosity (e.g., Kawanaka et al. 2013; Liu et al. 2015; Lei et al. 2017). Once considering that two mechanisms have the same conversion efficiency to power a certain GRB, the values of the BH spin parameter or the accretion rate for the BZ mechanism can be lower than those for the neutrino annihilation mechanism. This suggests that the BZ mechanism is favored to power GRBs with long activity durations. Moreover, considering the strong outflow from the disk, the inner accretion rate is essentially always lower than the ignition accretion rate of NDAFs (for ${a}_{* }=0.95$ and the viscosity parameter $\alpha =0.1$, the ignition accretion rate is about 0.021 ${M}_{\odot }\,{{\rm{s}}}^{-1}$, where ${M}_{\odot }$ is the mass of Sun, see, e.g., Chen & Beloborodov 2007; Zalamea & Beloborodov 2011; Liu et al. 2017).

Since it has been shown that the BZ mechanism is more effective than the neutrino annihilation processes to power a relativistic jets, we assume that the jet is driven by the BZ mechanism, which is connected with ${\dot{M}}_{\mathrm{inner}}$ (Blandford & Znajek 1977; Lee et al. 2000a, 2000b):

$$\begin{eqnarray}&&{\dot{E}}_{\mathrm{BZ}}=1.7\times {10}^{20}{a}_{* }^{2}{m}^{2}{B}_{\mathrm{inner},\ {\rm{G}}}^{2}F({a}_{* })\,\mathrm{erg}\,{{\rm{s}}}^{-1},\end{eqnarray} \tag{ 3 }$$

where ${B}_{\mathrm{inner},{\rm{G}}}={B}_{\mathrm{inner}}/1\,{\rm{G}}$ is the dimensionless magnetic strength at the inner boundary of the disk, $m={M}_{\mathrm{BH}}/{M}_{\odot }$, and

$$\begin{eqnarray}&&F({a}_{* })=[(1+{q}^{2})/{q}^{2}][(q+1/q)\arctan (q)-1]\end{eqnarray} \tag{ 4 }$$

is a spin-dependent dimensionless parameter, and $q={a}_{* }/(1+\sqrt{1-{a}_{* }^{2}})$. According to the balance between the ram pressure of the innermost part of the disk ${P}_{\mathrm{inner}}$ and the magnetic pressure on the BH horizon, we derive

$$\begin{eqnarray}&&\displaystyle \frac{{B}_{\mathrm{inner}}^{2}}{8\pi }={P}_{\mathrm{inner}}\sim {\rho }_{\mathrm{inner}}{c}^{2}\sim \displaystyle \frac{{\dot{M}}_{\mathrm{inner}}c}{4\pi {r}_{{\rm{H}}}^{2}},\end{eqnarray} \tag{ 5 }$$

where ${r}_{{\rm{H}}}=(1+\sqrt{1-{a}_{* }^{2}}){r}_{{\rm{g}}}$ denotes the radius of the BH horizon, and ${\dot{M}}_{\mathrm{inner}}$ and ${\rho }_{\mathrm{inner}}$ denote the net accretion rate and density at the inner boundary of the disk.

The magnetic field strength threading the BH horizon can then be estimated by

$$\begin{eqnarray}&&{B}_{\mathrm{inner}}\simeq 7.4\times {10}^{16}{\dot{m}}_{\mathrm{inner}}^{1/2}{m}^{-1}{(1+\sqrt{1-{a}_{* }^{2}})}^{-1}\,{\rm{G}}.\end{eqnarray} \tag{ 6 }$$

where ${\dot{m}}_{\mathrm{inner}}={\dot{M}}_{\mathrm{inner}}/({M}_{\odot }\,{{\rm{s}}}^{-1})$. Inserting this equation into Equation (3), the BZ jet power can be rewritten as

$$\begin{eqnarray}&&{\dot{E}}_{\mathrm{BZ}}=9.3\times {10}^{53}{a}_{* }^{2}{\dot{m}}_{\mathrm{inner}}F{({a}_{* })(1+\sqrt{1-{a}_{* }^{2}})}^{-2}\,\mathrm{erg}\,{{\rm{s}}}^{-1}.\end{eqnarray} \tag{ 7 }$$

Since it takes a relatively long timescale (at least ∼10 s) for the jet to break out from the progenitor star, we take ${a}_{* }\approx 0.86$ in our calculations because this value of a_* is the asymptotic value of the spin evolution of a BH surrounded by a Keplerian accretion disk (e.g., Song et al. 2015; Lei et al. 2017).

On the other hand, the BZ power equals the total mean jet luminosity ${L}_{{\rm{j}}}$ of the GRB, which includes the radiated γ-ray power in the prompt emission phase and the kinetic energy power of the outflow in the afterglow phase, i.e.,

$$\begin{eqnarray}&&{\dot{E}}_{\mathrm{BZ}}={L}_{{\rm{j}}}.\end{eqnarray} \tag{ 8 }$$

Additionally, we can estimate ${\dot{M}}_{\mathrm{pro}}$ with the data of pre-SN models (e.g., Suwa & Ioka 2011; Woosley & Heger 2012; Matsumoto et al. 2015), i.e.,

$$\begin{eqnarray}&&{\dot{M}}_{\mathrm{pro}}=\displaystyle \frac{{{dM}}_{{\rm{r}}}}{{{dt}}_{\mathrm{ff}}}=\displaystyle \frac{{{dM}}_{{\rm{r}}}/{dr}}{{{dt}}_{\mathrm{ff}}/{dr}}=\displaystyle \frac{2{M}_{{\rm{r}}}}{{t}_{\mathrm{ff}}(r)}\left(\displaystyle \frac{\rho }{\bar{\rho }-\rho }\right),\end{eqnarray} \tag{ 9 }$$

where ρ is the mass density of the progenitor star, $\bar{\rho }=3{M}_{r}/(4\pi {r}^{3})$ is the mean density within radius r, and ${M}_{{\rm{r}}}$ is the mass coordinate. The free-fall timescale ${t}_{\mathrm{ff}}$ can be calculated from

$$\begin{eqnarray}&&{t}_{\mathrm{ff}}(r)=\sqrt{\displaystyle \frac{3\pi }{32G\bar{\rho }}}=\displaystyle \frac{\pi }{2}\sqrt{\displaystyle \frac{{r}^{3}}{2{{GM}}_{{\rm{r}}}}}.\end{eqnarray} \tag{ 10 }$$

Considering the pressure balance at the progenitor envelope and the interface of the jet, we acquire the velocity of the jet head (e.g., Matzner 2003)

$$\begin{eqnarray}&&{\beta }_{{\rm{h}}}=\displaystyle \frac{1}{1+{\widetilde{L}}^{-1/2}},\end{eqnarray} \tag{ 11 }$$

where

$$\begin{eqnarray}&&\widetilde{L}\equiv \displaystyle \frac{{L}_{{\rm{j}}}(t-{r}_{{\rm{h}}}/c)}{\pi {\theta }_{{\rm{j}}}^{2}{r}_{{\rm{h}}}^{2}\rho ({r}_{{\rm{h}}}){c}^{3}},\end{eqnarray} \tag{ 12 }$$

and ${\theta }_{{\rm{j}}}$ is the jet half-opening angle. The radius of the jet head can be obtained from

$$\begin{eqnarray}&&{r}_{{\rm{h}}}(t)={\int }_{0}^{t}c{\beta }_{{\rm{h}}}{dt}.\end{eqnarray} \tag{ 13 }$$

The jet breakout time ${t}_{\mathrm{bo}}$ is defined by ${r}_{{\rm{h}}}({t}_{\mathrm{bo}})={r}_{* }$, where r_* is the boundary of the progenitor star. We assume that the jet is launched when the BH mass reaches $3\,{M}_{\odot }$ and set t = 0 at this time. In other words, the enclosed mass within radius r₀ is $3\,{M}_{\odot }$, i.e., ${M}_{{r}_{0}}=3\,{M}_{\odot }$ and $t={t}_{\mathrm{ff}}(r)-{t}_{\mathrm{ff}}({r}_{0})$. Of course the BH mass just keeps growing in the accretion processes. We assume that the value of the BH mass is a constant after the jet breaks out because the mass supply rate becomes much lower than that in the start of the accretion phase.

Once a jet breaks out from the star, an observable LGRB finally emerges, which can trigger the observation instruments to record this event. It starts from ${t}_{\mathrm{bo}}$ and lasts for about ${T}_{90,\mathrm{rest}}$ (e.g., Bromberg et al. 2012 the rest-frame duration can be expressed by ${T}_{90,\mathrm{rest}}={T}_{90}/(1+z)$, where z is the redshift). Using the beaming-corrected mean luminosity (defined as beaming-corrected prompt γ-ray energy and afterglow kinetic energy divided by ${T}_{90,\mathrm{rest}}$ (e.g., Yi et al. 2017), one can derive the mean accretion rate at the inner boundary of the disk through the BZ power formula (Equation (7)). Then the characteristics of the progenitor star can be inversely constrained by using Equations (1) and (2).

In our analysis, the observational data are collected to derive the beaming-corrected jet luminosity ${L}_{{\rm{j}}}$ and timescale ${T}_{90,\mathrm{rest}}$ of LGRBs and ULGRBs.

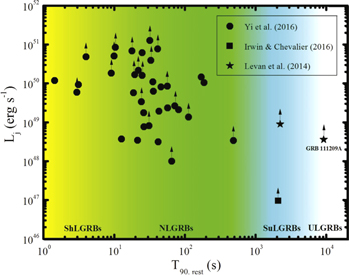

In Figure 2, the majority of the data are taken from Yi et al. (2017), who have carefully analyzed the beaming-corrected jet luminosity by properly treating the prompt emission data, afterglow data, and the jet break data. These dots are denoted by black filled circles. Squares and stars denote the data collected by Irwin & Chevalier (2016) and Levan et al. (2014), respectively. The arrows denote the GRBs with the lower limit of jet luminosity (due to the lack of detection of a jet break).

Zoom In Zoom Out Reset image size

As shown in the figure, the typical jet luminosities ${L}_{{\rm{j}}}$ of LGRBs lasting less than 10 seconds, about several hundred seconds, and about several thousand seconds are about ${10}^{50}\,\mathrm{erg}\,{{\rm{s}}}^{-1}$, ${10}^{49}\,\mathrm{erg}\,{{\rm{s}}}^{-1}$, and $5\times {10}^{48}\,\mathrm{erg}\,{{\rm{s}}}^{-1}$, respectively. For the convenience of the following discussion, one can roughly divide LGRBs into four regimes, which are denoted by different colors in the figure. We define these regimes of LGRBs based on the rest-frame durations: short-LGRBs (ShLGRBs, less than about 10 seconds), normal-LGRBs (NLGRBs, about 10 to 1000 seconds), and super-LGRBs (SuLGRBs, between 1000 and 10,000 seconds). In addition, GRBs lasting longer than 10,000 seconds are usually defined as ULGRBs. Notice that the definition of these regimes is phenomenological and arbitrary, which is convenient for us to discuss their typical ${L}_{{\rm{j}}}$ to constrain the characteristics of the progenitor stars as shown in Figure 5.

As a typical ULGRB, GRB 111209A at z = 0.677 was detected by Swift (Hoversten et al. 2011) and continuously observed by Konus-WIND (Golenetskii et al. 2011). Its total isotropic energy output (Nakauchi et al. 2013) and duration are ${E}_{\mathrm{iso}}\approx 1.54\times {10}^{54}$ erg and ${T}_{90}\approx 15000\,{\rm{s}}$. A super-luminous SN 2011kl was detected to be associated with it (Greiner et al. 2015). It is possible to place a lower limit on the jet opening angle (Levan et al. 2014) of ${\theta }_{{\rm{j}}}\gt 0.21$. These values are used to estimate the jet luminosity of the burst. Moreover, we set ${\theta }_{{\rm{j}}}$ as 0.1 for ShLGRBs and NLGRBs, and 0.2 for SuLGRBs in Equation (12), if a jet angle is not directly measured from the data.

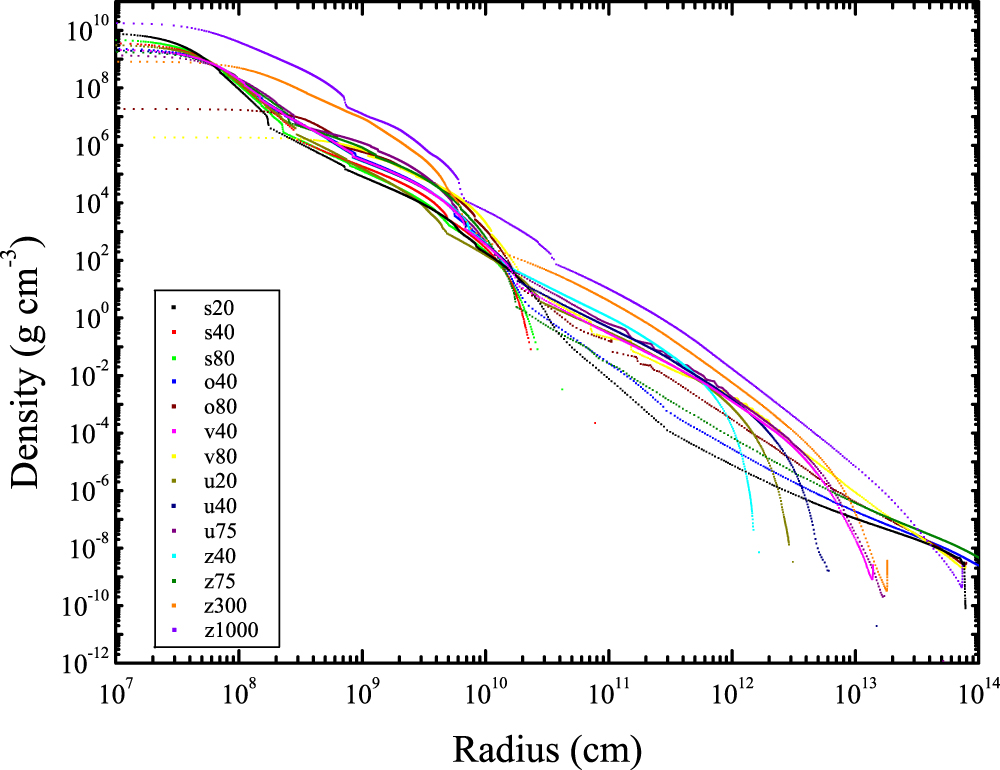

In order to constrain the characteristics of the progenitor stars of LGRBs and ULGRBs, the density profiles of stars with different masses and metallicities should be given first, which are provided by coauthor A.H. and displayed in Figure 3. The signs s, o, v, u, and z represent the metallicity values $Z={10}^{-1}\,{Z}_{\odot }$, ${10}^{-2}\,{Z}_{\odot }$, ${10}^{-4}\,{Z}_{\odot }$, and 0, respectively (Woosley et al. 2002), where Z and ${Z}_{\odot }$ are the metallicities of progenitor stars and the Sun. According to Equations (9) and (10), we can calculate the mass supply rates ${\dot{M}}_{\mathrm{pro}}$ of different progenitor stars with different masses and metallicities, as shown in Figure 4. The significant differences of ${\dot{M}}_{\mathrm{pro}}$ for different stars mainly come from the different density of the stars. The symbol on each curve represents the jet breakout time of that particular star estimated by Equations (11)–(13).

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

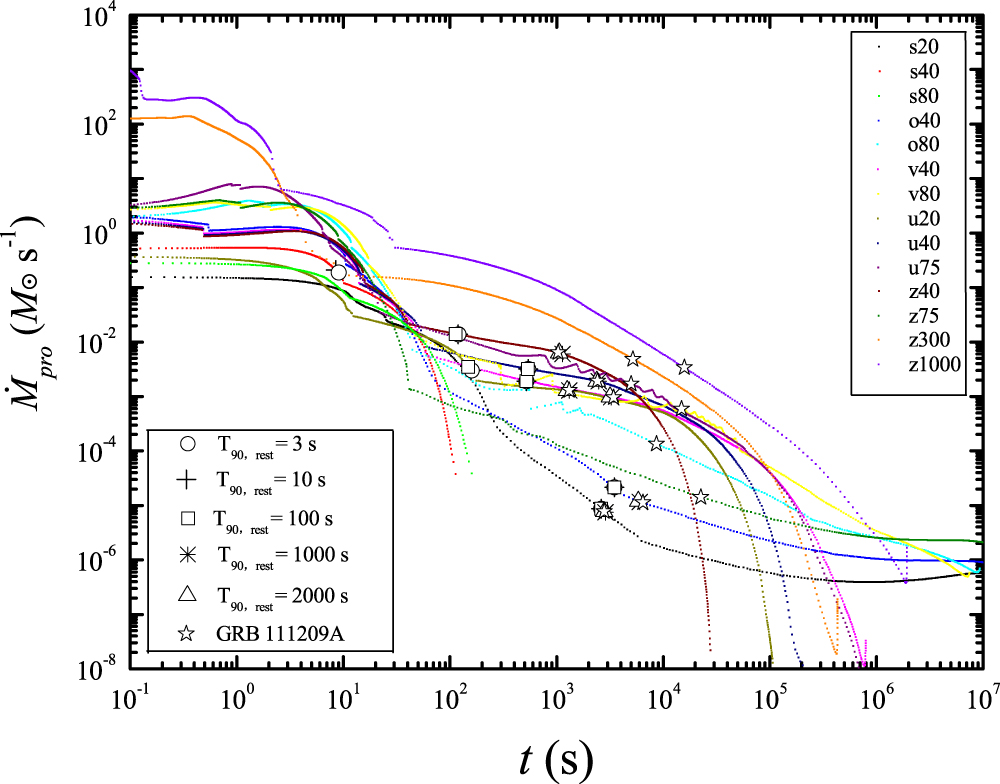

In the above scenario, by using the observational data of LGRBs and ULGRBs to define the BZ power, one can then place a constraint on the properties of GRB progenitor stars, including their masses and metallicities. If the required parameter λ exceeds unity for a certain type of star, this star is ruled out as the progenitor star of that particular GRB. GRBs with different durations require different amounts of masses to be accreted into the BH, and therefore pose different constraints on the properties of progenitor stars.

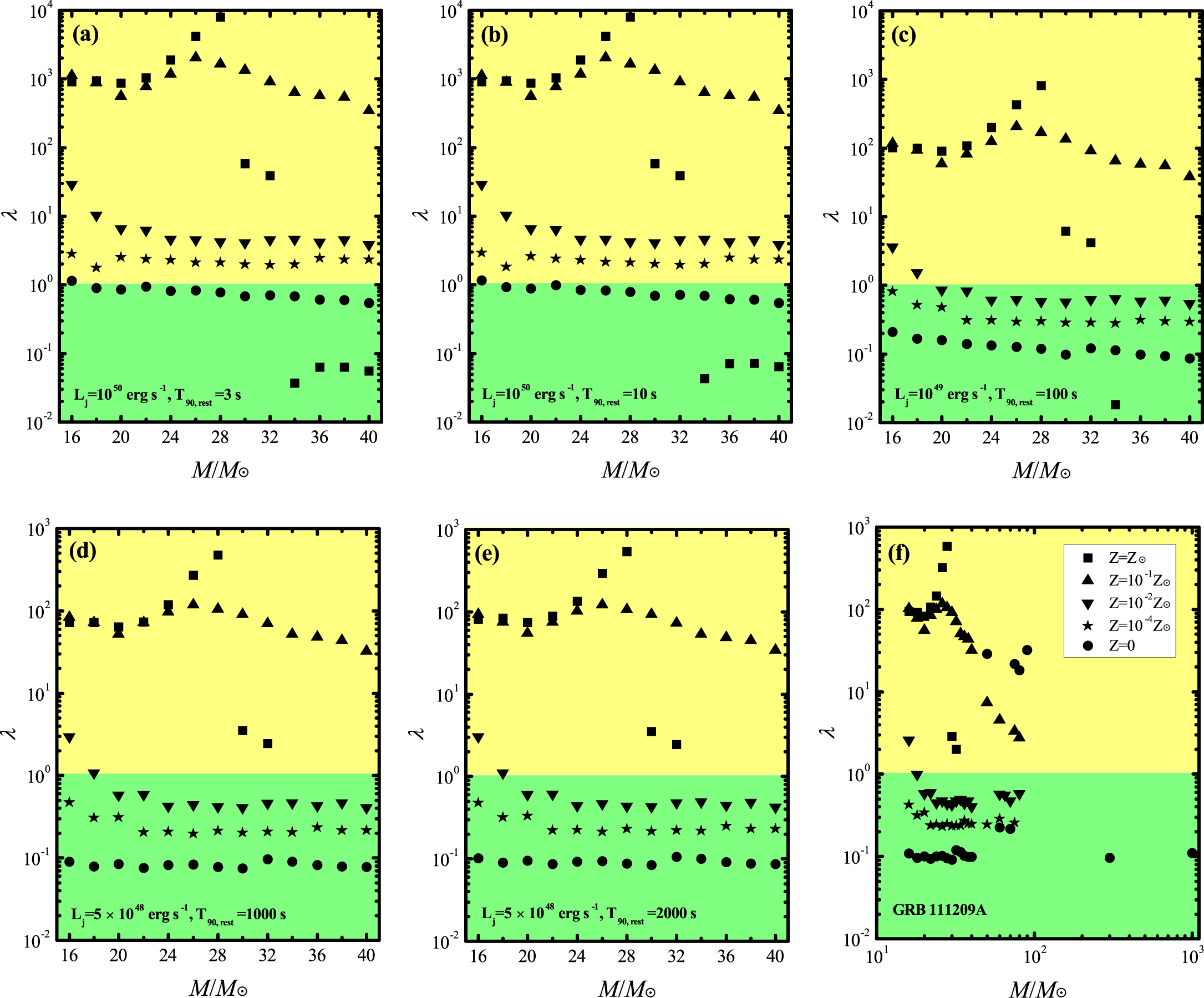

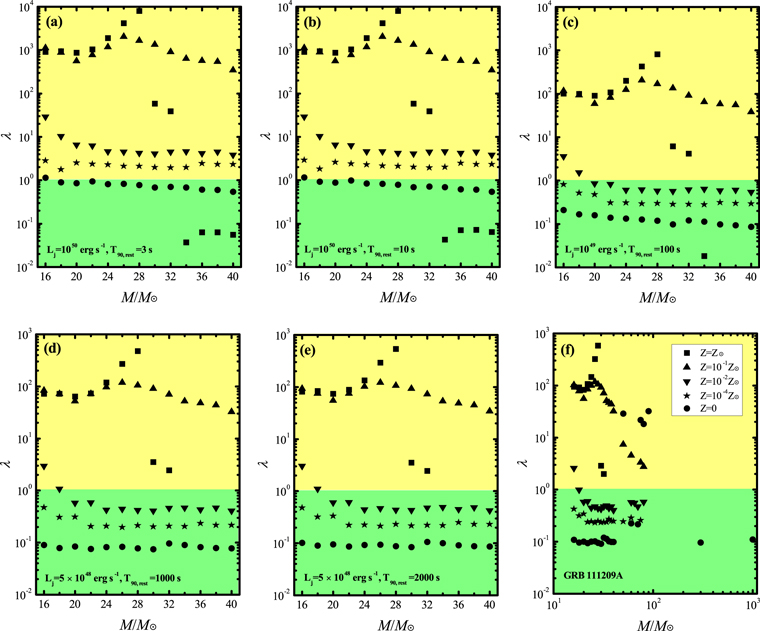

Figure 5 presents the required λ values for progenitor stars with different masses and different metallicities. The $\lambda =1$ line separates the allowed (green) and disallowed (yellow) regions. For each sub-type of LGRBs, the masses of the potential progenitor stars are denoted in symbols with a mass interval $\sim 2\,{M}_{\odot }$. The mass range spans from 16 to 40 ${M}_{\odot }$ in Figures 5(a)–(e), but some symbols are clearly missing, which means that no corresponding LGRB can be produced by the star with the relevant mass and metallicity for any value of λ. One can draw the following conclusions from Figure 5: ShLGRBs can be produced by solar-metallicity ($Z\sim 1\,{Z}_{\odot }$), massive ($M\gtrsim 34\,{M}_{\odot }$, where M is the masses of the progenitor star) stars or some zero-metallicity ($Z\sim 0$) stars.

Zoom In Zoom Out Reset image size

For NLGRBs and SuLGRBs, most low-metallicity ($Z\lesssim {10}^{-2}\,{Z}_{\odot }$) stars are favorable, and the solar-metallicity massive stars with $M\sim 34\,{M}_{\odot }$ are not ruled out only for LGRBs lasting 100 s.

For ULGRBs, we use the isotropic energy and timescale of GRB 111209A to constrain the progenitor as shown in Figure 5(f). One can see that only low-metallicity ($Z\lesssim {10}^{-2}\,{Z}_{\odot }$) stars with $M\gtrsim 20\,{M}_{\odot }$, including population III (Pop III) stars, can produce ULGRBs. Contrary to intuition, some zero-metallicity stars with tens of solar mass cannot trigger ULGRBs, since their density profiles cannot bear accretion lasting for more than 10,000 seconds after the jet breaks out their envelopes. In our calculations, most of the progenitor stars of NLGRBs and SuLGRBs can also produce ULGRBs. The reasons include the following: (a) the high efficiency of the BZ mechanism requires a low accretion rate and (b) the low density ($\lesssim {10}^{-7}\,{\rm{g}}\,{\mathrm{cm}}^{-3}$) at the outer envelope of the progenitor star is considered, so the accretion timescale is satisfied for ULGRBs. This result is quite different from the previous conclusions that ULGRBs demand a metal-poor blue supergiant with mass greater than $\sim 70\,{M}_{\odot }$ (e.g., Kashiyama et al. 2013; Nakauchi et al. 2013). In these works, the detailed descriptions on the progenitors of ULGRBs are modeled. They also discussed the jet-cocoon formation and evolution before and after the jet breaking out. Since the low efficiency of the jet power, $\sim {10}^{-4}$, is adopted, and the effective stellar surface is defined at the radius with the density, $\sim {10}^{-7}\,{\rm{g}}\,{\mathrm{cm}}^{-3}$, the requirement on the star mass is more stringent than that in our results.

The rest-frame duration of LGRBs, defined as ${T}_{90,\mathrm{rest}}$, has a distribution peaking at about 10 seconds (e.g., Zhang et al. 2013, 2014). The number ratio of ShLGRBs to LGRBs is more than 40%. However, based on the demanded progenitor properties, ShLGRBs should be much rarer than NLGRBs. We consider that most of the ShLGRBs have an intrinsic duration much longer than a few seconds, due to the so-called "tip-of-iceberg" effect (Lü et al. 2014; Li et al. 2016). This is consistent with the observations of early X-ray afterglows that show extended central engine activities that define an effective burst duration peaking at a few hundred seconds (e.g., Burrows et al. 2005; Liang et al. 2006; Zhang et al. 2006, 2014; Luo et al. 2013; Mu et al. 2016).

Furthermore, we have tested how sensitive our results depend on BH mass, the disk outer boundary radius, and outflow index p. For the reasonable values of these parameters obtained from numerical simulations, our results are insensitive to these parameters.

In the framework of the BH hyperaccretion inflow–outflow with a BZ jet, the characteristics of the progenitor stars of LGRBs and ULGRBs are tightly constrained. First, ShLGRBs may originate from solar-metallicity ($Z\sim {Z}_{\odot }$), massive ($M\gtrsim 34\,{M}_{\odot }$) stars or some zero-metallicity ($Z\sim 0$) stars. It provides an apparent contradiction between the observational facts and the model predicted progenitor types, suggesting that the true duration of the burst is actually longer than T₉₀. This is consistent with the X-ray afterglow observations (e.g., Burrows et al. 2005; Liang et al. 2006; Zhang et al. 2006, 2014; Luo et al. 2013; Mu et al. 2016). Alternatively, the magnetar central engine may be at play. For ULGRBs, our model suggests that only a small fraction of low-metallicity ($Z\lesssim {10}^{-2}\,{Z}_{\odot }$) stars, including Pop III stars, are able to produce ULGRBs like GRB 111209A. This is quite different from the previous theoretical results on ULGRBs.

In our model, the angular momentum distributions (e.g., Fryer & Heger 2005; Woosley & Heger 2006) of the progenitor stars is not considered. This may partially affect our results. Nonetheless, our results are approximately valid for slowly rotating stars. Another effect of rotation is that it would change the mechanical and thermal equilibrium of the star, making the star hotter at the poles and cooler at the equator. Since the mass supply for the accretion disk is provided from the equatorial direction of the star, the anisotropic temperature distribution inside the star would result in a series of consequences on mass-loss rate (e.g., may stripe the hydrogen envelope), circulation current, evolution and lifetime of the chemical abundance, magnetic flux, and mass density (e.g., Heger et al. 2005; Yoon & Langer 2005; Barkov & Komissarov 2010; Maeder & Meynet 2012). Furthermore, internal differential rotation may generate instabilities and mixing (e.g., Meynet & Maeder 2005; Maeder & Meynet 2012). These effects should be studied in detail in the future to place better constraints on the progenitor stars. In any case, Outflow I would be significantly enhanced with the rotation effect included, resulting in an even smaller λ, especially for rapidly rotating stars. As a result, the constraints on the progenitor stars become more demanding.

Furthermore, it is noteworthy that the central engine of at least some LGRBs might be a millisecond magnetar (e.g., Duncan & Thompson 1992; Usov 1992; Dai & Lu 1998a, 1998b; Kluźniak & Ruderman 1998; Zhang & Mészáros 2001; Dai et al. 2006; Metzger et al. 2011, 2015; Lü & Zhang 2014). The emission power of these GRBs is defined by the spin-down luminosity of the magnetar, which does not depend on the accretion rate, and hence, does not directly depend on the progenitor star properties. For binary LGRB progenitors, once the stars lose their partial envelopes caused by the binary interactions, the final pre-SN core structure is dramatically changed and even for massive progenitors ($\gtrsim 60\,{M}_{\odot }$), an NS rather than a BH might be born (Podsiadlowski et al. 2003). In this case, BH hyperaccretion systems might not be suitable for LGRBs. The constraints discussed above would not apply for these systems.
