A METHOD TO CONSTRAIN MASS AND SPIN OF GRB BLACK HOLES WITHIN THE NDAF MODEL

Black holes (BHs) are mysterious and fascinating compact objects that are sources of multi-band electromagnetic radiation, gravitational waves, neutrino emission, and cosmic rays. Two essential properties of BHs, i.e., mass and spin, are, however, not easy to measure. Some dynamical or statistical methods have been introduced to constrain these parameters for super-massive BHs (e.g., Natarajan & Pringle 1998; Brenneman & Reynolds 2006; Volonteri et al. 2007; Tchekhovskoy et al. 2010; Lei & Zhang 2011; Kormendy & Ho 2013; Wang et al. 2013) and stellar mass BHs (e.g., Bahcall 1978; Zhang et al. 1997; McClintock et al. 2014).

A hyper-accreting stellar mass BH is usually invoked as the central engine of gamma-ray bursts (GRBs).⁶ Unlike other systems where an accretion disk or a companion is observable, the BH central engine of GRBs is completely masked by the intense emission so that the characteristics of the BH are not easy to constrain. Nonetheless, the physics of of a neutrino-dominated accretion flow (NDAF) around the central BH has been extensively studied (e.g., Popham et al. 1999; Di Matteo et al. 2002; Kohri & Mineshige 2002; Kohri et al. 2005; Gu et al. 2006; Janiuk et al. 2007, 2013b; Kawanaka & Mineshige 2007; Liu et al. 2007, 2008, 2012a, 2012b, 2013, 2014; Zalamea & Beloborodov 2011; Luo et al. 2013; Xue et al. 2013; Globus & Levinson 2014). The BH properties may be inferred through confronting the model predictions with observational data.

There are two possible mechanisms to launch a relativistic jet in a hyper-accreting BH system. The first is through neutrino–anti-neutrino ($\nu \bar{\nu }$) annihilation from an NDAF (e.g., Popham et al. 1999). Another is the Blandford–Znajek (BZ) mechanism (e.g., Blandford & Znajek 1977; Lee et al. 2000; Luo et al. 2013). The comparisons between the emission powers of the two mechanisms have been carried out (Lei et al. 2013; Liu et al. 2015b). It is likely that the two mechanisms may play dominant roles in different parameter regimes. Observationally, some GRBs are observed to have a bright thermal spectral component that is consistent with a fireball (e.g., Ryde et al. 2010; Pe'er et al. 2012, 2015; Larsson et al. 2015), even though most GRBs have no or a very weak thermal component, suggesting that the outflow may contain significant Poynting flux from the central engine (Zhang & Pe'er 2009; Gao & Zhang 2015).

An NDAF is very dense and hot, and is cooled via neutrino emission. Neutrinos can tap the thermal energy gathered by the viscous dissipation and liberate a tremendous amount of binding energy, and $\nu \bar{\nu }$ annihilation above the disk would launch a hot fireball. A GRB powered by this mechanism is therefore thermally dominated. Within such a central engine model, the GRB luminosity depends on the mass and the spin of the BH as well as the accretion rate. The launch site of the fireball, r₀, should be above the typical $\nu \bar{\nu }$ annihilation radius. Observationally, r₀ may be constrained by the observed thermal spectral component (Pe'er et al. 2007).

In this paper, we propose a method to constrain BH mass and spin of GRBs within the framework of the NDAF $\nu \bar{\nu }$-annihilation model. The model and the method of constraining BH parameters is presented in Section 2 and the method is applied to a thermally dominated burst GRB 101219B in Section 3. Conclusions are presented in Section 4 with some discussion.

Within the NDAF $\nu \bar{\nu }$-annihilation model of GRBs, both jet luminosity (${L}_{\nu \bar{\nu }}$) and launch radius (r₀) depend on the BH mass (M_BH), spin (a_*), and also the mass accretion rate.

In our previous work (Xue et al. 2013), we investigated the relativistic one-dimensional global solutions of NDAFs by taking into account neutrino physics, balance of chemical potentials, and nucleosynthesis more precisely and in more detail than previous works. According to the 16 solutions with different characterized mass accretion rates and BH spin, we exhibited the radial distributions of various physical properties in NDAFs. We reconfirmed that electron degeneracy has an important effect, and for the first time we found that the electron fraction Y_e is about 0.46 in the outer region of the NDAF for all solutions. Furthermore, free nucleons, ⁴He, and ⁵⁶Fe are found to dominate in the inner, middle, and outer regions, respectively. We found that the neutrino trapping process can affect the value of the $\nu \bar{\nu }$ annihilation luminosity, especially for a high accretion rate and a rapid BH rotation. Finally, we approximated the neutrino luminosity, annihilation luminosity, and neutrino trapping radius with three fitting formulae as functions of BH spin and accretion rate. For general purposes, we derived the fitting formula for a very wide range of accretion rate, i.e., 0.01–10 M_⊙ s⁻¹ (Xue et al. 2013; Liu et al. 2015b).

To take into account the influence of M_BH, we extend our numerical solutions to explore the M_BH dependence. Meanwhile, we noticed that neutrino trapping can gradually diminish the increase of ${L}_{\nu \bar{\nu }}$ with the accretion rate $\dot{M}$, especially at high $\dot{M}$. GRB observations and theoretical considerations suggest that a relatively low accretion rate is relevant for GRBs, especially for LGRBs (Liu et al. 2015b). In the following, we only consider an accretion rate in the range of $0.01\;{M}_{\odot }\;{{\rm{s}}}^{-1}\lesssim \dot{M}\;\lesssim \;0.5\;{M}_{\odot }\;{{\rm{s}}}^{-1}$ but explore the M_BH dependence.

Based on the numerical model, we derive the fitting formulae for the neutrino annihilation luminosity ${L}_{\nu \bar{\nu }}$ and dimensionless annihilation height h as follows:

$$\begin{eqnarray}&&\mathrm{log}{L}_{\nu \bar{\nu }}\;=\;52.98+3.88{a}_{*}-1.55\mathrm{log}{m}_{{\rm{BH}}}+5.0\mathrm{log}\dot{m},\end{eqnarray} \tag{ 1 }$$

$$\begin{eqnarray}&&\mathrm{log}h\;=\;2.15-0.30{a}_{*}-0.53\mathrm{log}{m}_{{\rm{BH}}}+0.35\mathrm{log}\dot{m},\end{eqnarray} \tag{ 2 }$$

where ${L}_{\nu \bar{\nu }}$ is in units of erg s⁻¹, a_* is the dimensionless spin parameter of the BH, m_BH = M_BH/M_⊙, and $\dot{m}\;=\;\dot{M}/{M}_{\odot }\;{{\rm{s}}}^{-1}$ are the dimensionless BH mass and accretion rate, h = H/r_g, H is the physical annihilation height (as shown in Figure 1), and ${r}_{{\rm{g}}}\;=\;2{{GM}}_{{\rm{BH}}}/{c}^{2}$ is the Schwarzschild radius.

Zoom In Zoom Out Reset image size

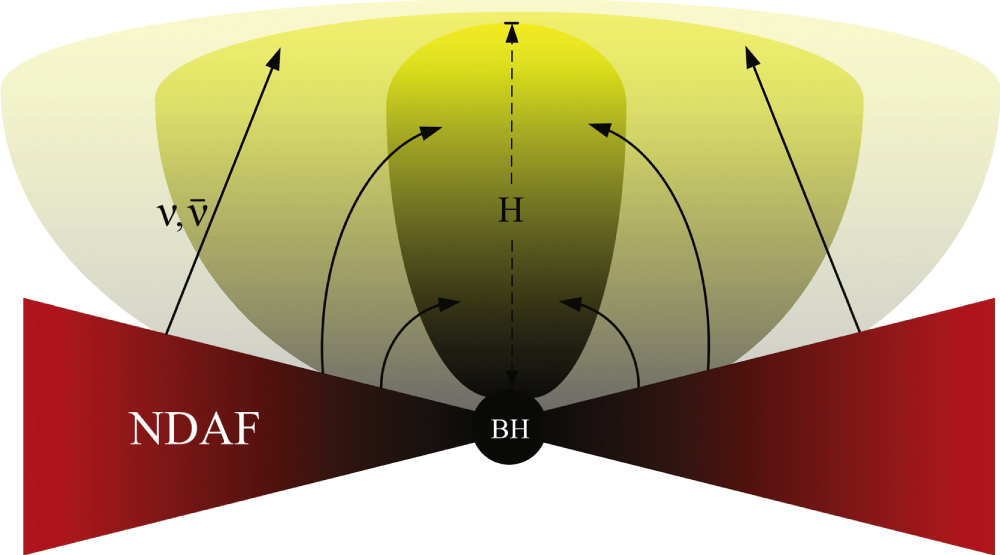

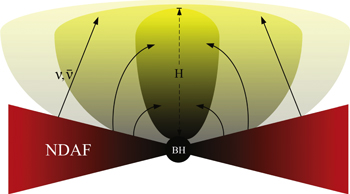

Figure 1 is a cartoon picture of the BH-NDAF system. The red from dark to light stands for the disk temperature from high to low, respectively, and the yellow color from dark to light stands for the $\nu \bar{\nu }$ annihilation rate from high to low, respectively. Most of annihilation luminosity is ejected from the narrow region above the BH and it varies much more rapidly along the vertical direction than along the radial direction of the disk according to the numerical calculations (e.g., Popham et al. 1999; Liu et al. 2007, 2008). Xue et al. (2013) calculated the annihilation luminosity by integrating in the entire space above the disk. Based on these results, we define the annihilation height as the region where 99.9% of the annihilation luminosity is included. The height is related to the characteristics of the BH-NDAF system as shown in Equation (2).

Zoom In Zoom Out Reset image size

The analytic formula of neutrino annihilation luminosity is somewhat different from the forms in Fryer et al. (1999)⁷ and Zalamea & Beloborodov (2011). The main reasons include that (1) more detailed neutrino physics than that in Popham et al. (1999) has been considered, which can slightly affect the annihilation luminosity; (2) a narrower range of $\dot{M}$ than that in Zalamea & Beloborodov (2011) has been adopted; and (3) we have fitted the numerical results directly instead of introducing some analytical results as did in Zalamea & Beloborodov (2011). We notice that similar fitting indices on a_* and $\dot{m}$ have been also obtained by Fryer et al. (1999), who also fitted the numerical results in the range of 0.01–0.1 ${M}_{\odot }\;{{\rm{s}}}^{-1}$. In a wider range of accretion rate, the neutrino annihilation luminosity increases much slower with a_* and $\dot{m}$ for the accretion rates higher than, e.g., 1–10 M_⊙ s⁻¹, so that the fitting indices are much shallower than Equation (1) when high accretion rates are included (e.g., Zalamea & Beloborodov 2011; Xue et al. 2013). In order to clarify the fitting index of a_* and $\dot{m}$ and contrast with the fitting formulae of Fryer et al. 1999 and Xue et al. 2013, we plot Figure 2 with M_BH=3 M_⊙.

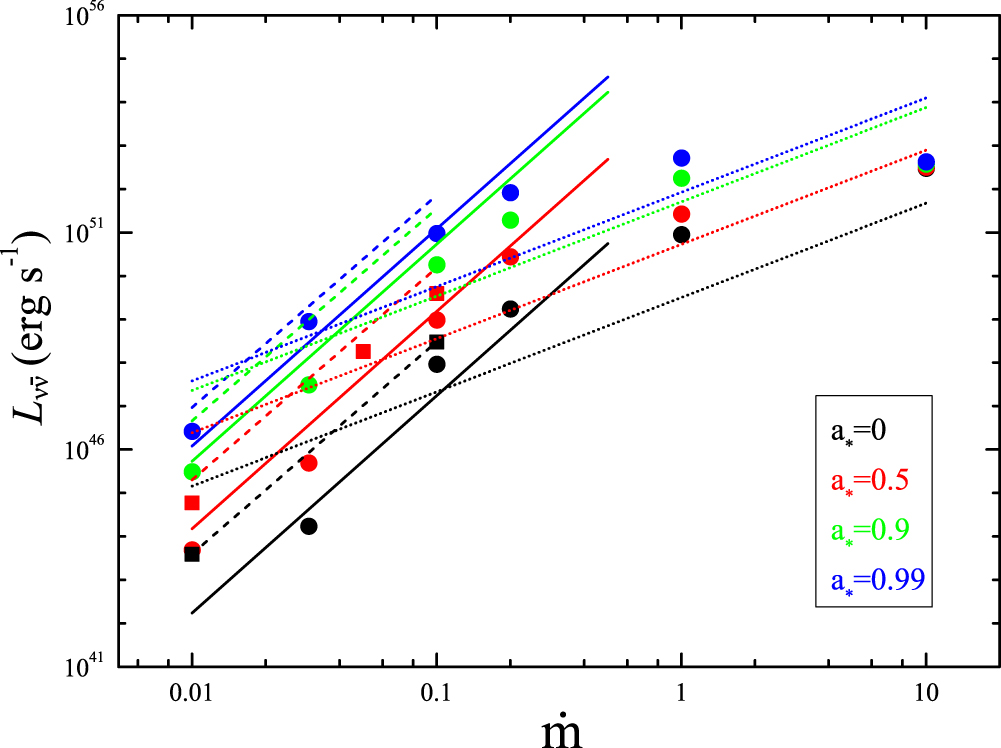

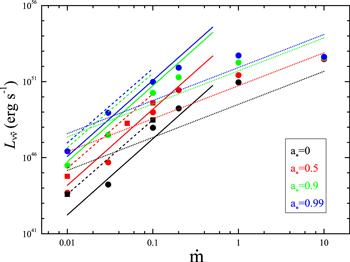

For clarification, we show ${L}_{\nu \bar{\nu }}$ dependence on $\dot{m}$ and a_* for M_BH = 3 M_⊙. The points are our numerical results and the lines are various fitting lines. One can see that in the low $\dot{m}$ range as assumed in this paper, the fitting line slopes are steep (dashed lines) (the solid lines correspond to Equation (1)), which are consistent with those derived by Fryer et al. (1999). The dotted lines are the best fits in a much wider range of $\dot{m}$, so that a much shallower slope is derived (Xue et al. 2013).

From the observational viewpoint, ${L}_{\nu \bar{\nu }}$ may be approximated as the total jet-corrected prompt emission energy and afterglow kinetic energy divided by the duration of the burst, which can be written as (e.g., Liu et al. 2015c; Song et al. 2016)

$$\begin{eqnarray}&&{L}_{\nu \bar{\nu }}\approx (1+z)({E}_{\gamma ,\mathrm{iso}}+{E}_{{\rm{k,iso}}})(1-\mathrm{cos}{\theta }_{{\rm{j}}})/{T}_{90},\end{eqnarray} \tag{ 3 }$$

where ${E}_{\gamma ,\mathrm{iso}}$ and ${E}_{{\rm{k,iso}}}$ are the isotropic prompt γ-ray energy and kinetic energy, respectively, z is the redshift, T₉₀ is the duration of the burst, and θ_j is the half jet opening angle. These parameters can be derived from the observational data. It should be emphasized that we assume that the jet energy is mainly due to the neutrino annihilation process rather than BH rotation energy extraction, which may not be the case for all GRBs.

The jet launching radius r₀ may be derived from the thermal component of a GRB, assuming that the thermal component is the emission from the fireball photosphere (Mészáros & Rees 2000; Pe'er et al. 2007). Within the NDAF neutrino annihilation model, the annihilation height should satisfy H ≲ r₀.

Finally, an accretion rate is needed in Equations (1) and (2) to derive m_BH and a_*. We introduce a mean dimensionless accretion rate

$$\begin{eqnarray}&&\dot{m}\approx {m}_{{\rm{disk}}}(1+z)/{T}_{90,{\rm{s}}},\end{eqnarray} \tag{ 4 }$$

where m_disk = M_disk/M_⊙, M_disk is the disk mass, and ${T}_{90,{\rm{s}}}\;=\;{T}_{90}/(1\;{\rm{s}})$. Besides the constraints from Equations (1) and (2) this condition may be considered the third condition to constrain BH mass and spin, given that the disk mass should be less than about 5 M_⊙ as shown from numerical simulations of collapsars (e.g., Woosley 1993; Popham et al. 1999; Zhang et al. 2003). Our steady-state NDAF model in any case involves uncertainties in the accretion rate and the disk mass, which is not easy to avoid.

There is yet a fourth condition that the mass of a newborn BH from a collapsar should be larger than about 3 ${M}_{\odot }$ (e.g., MacFadyen & Woosley 1999; Popham et al. 1999).

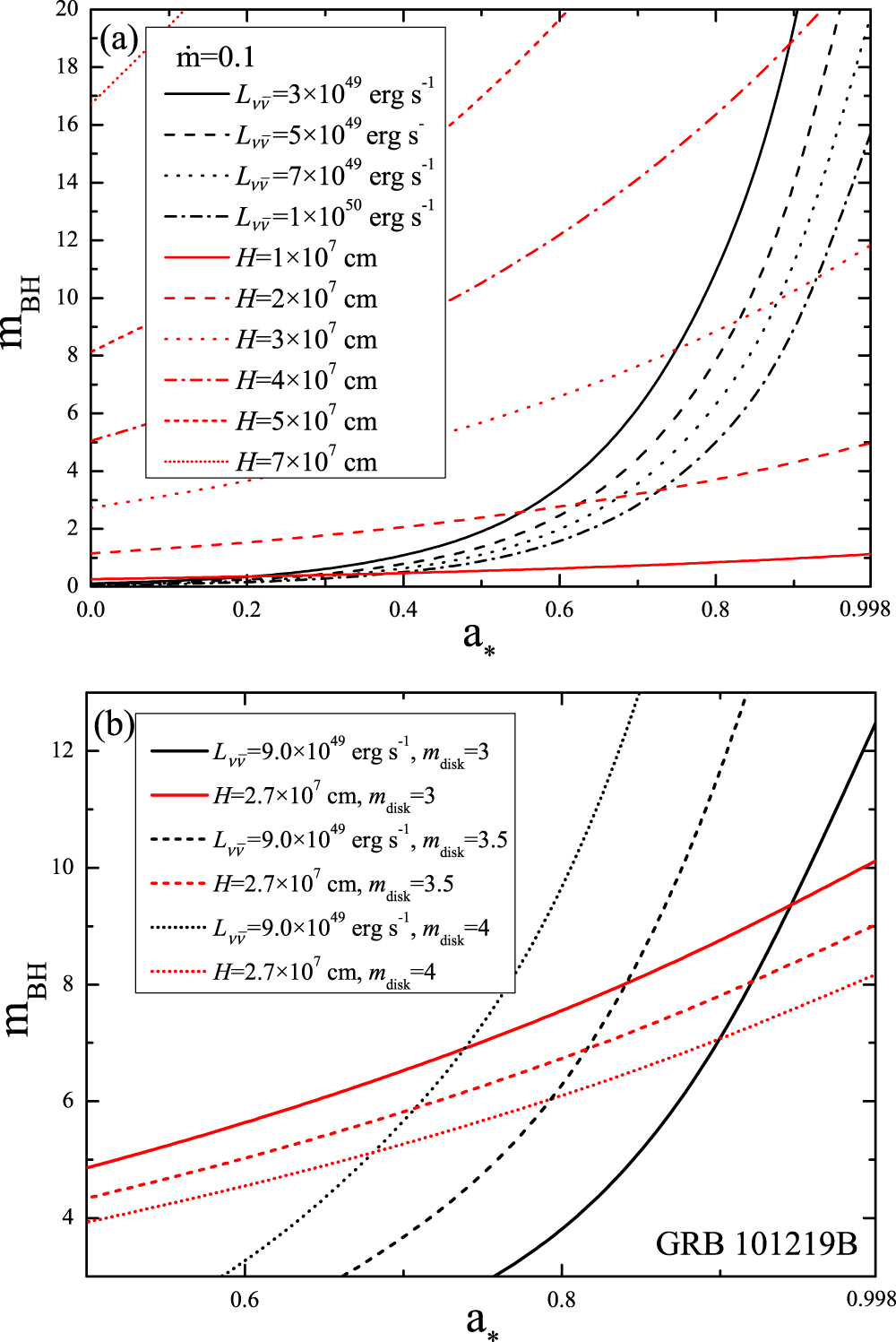

For a given $\dot{m}\;=\;0.1$, contours ${L}_{\nu \bar{\nu }}$ and H are presented in the m_BH − a_* two-dimensional plane in Figure 3(a). The mass and spin of a BH can be constrained if ${L}_{\nu \bar{\nu }}$ and H are constrained from the data based on Equations (1) and (2) given that $\dot{m}$ is constrained in a reasonable range based on the third and fourth conditions.

Zoom In Zoom Out Reset image size

GRB 101219B, located at R.A.(J2000) = 00^h49^m02^s, and decl.(J2000) = −34°31'53'', triggered both the Swift/BAT at 16:27:53 UT (Gelbord et al. 2010) and Fermi/GBM (van der Horst 2010). The duration T₉₀ is about 51.0 s in the 10–1000 keV energy band and the redshift z is about 0.55 (von Kienlin et al. 2014; Golkhou et al. 2015; Larsson et al. 2015). Sparre et al. (2011) reported on the spectroscopic detection of an associated supernova, SN 2010ma, suggesting that it has a massive star core collapse origin. A significant blackbody component with temperature kT = 0.2 keV and luminosity ∼10⁴⁷ erg s⁻¹ was discovered (Starling et al. 2012). Recently, Larsson et al. (2015) analyzed the properties of its prompt emission and afterglow. Following Pe'er et al. (2007), they obtained its initial Lorentz factor Γ = 138 ± 8 and the jet launching radius r₀ = 2.7 ± 1.6 × 10⁷ cm, which is close to the central BH horizon radius. They also derived the isotropic energy emitted in the gamma-ray band ${E}_{\gamma ,\mathrm{iso}}\;=\;3.4\pm 0.2\times {10}^{51}\;\mathrm{erg}$, and the kinetic energy of the afterglow ${E}_{{\rm{k,iso}}}\;=\;6.4\pm 3.5\times {10}^{52}\;\mathrm{erg}$. No jet break was detected and a lower limit on the jet opening angle, i.e., θ_j > 171, can be inferred based on the last data point in the optical light curve. We derive the mean jet luminosity ${L}_{\nu \bar{\nu }}\gtrsim 9.0\times {10}^{49}\;\mathrm{erg}\;{{\rm{s}}}^{-1}$.

Golkhou et al. (2015) reported that the minimum variability of GRB 101219B is about δt_min = 5.386 ± 0.868 s. The corresponding distance scale cδt is much larger than r₀ derived by the photosphere method (Larsson et al. 2015). We therefore take r₀ to estimate the annihilation height H.

If the disk mass is set to a reasonable value (so that $\dot{m}$ is given), we can obtain the BH mass and spin of GRB 101219B based on the observational data. Figure 3(b) shows the constraints by ${L}_{\nu \bar{\nu }}$ and H in the m_BH–a_* plane. The solid, dashed, and dotted lines correspond to m_disk = 3, 3.5, and 4, respectively (which corresponds to $\dot{m}\;\approx$ 0.09, 0.12, and 0.15, respectively). We obtain (m_BH, a_*) ≈ (9.37, 0.95), (6.91, 0.82), and (5.11, 0.68), respectively for m_disk = 3, 3.5, and 4, respectively. Notice that the calculated BH masses and spins are the average values during the burst, neither are the initial nor the final values. This is because the mean jet luminosity and annihilation height of the entire burst have been used in our calculation and because the BH properties violently evolve with time due to the high accretion rate (e.g., Song et al. 2015).

In principle, m_disk is a free parameter. However, in the following, we show that it is constrained in the narrow range between 3 and 4. First, if m_disk is less than three, a_* would approach 0.998, which means that the lower limit of m_disk should be about 4 (more precisely, ∼2.8). Next, we notice that the mean BH mass is about 5.11 when m_disk is set to be 4. Considering the accretion process during the prompt emission phase, this may correspond to an initial mass of about 3, the possible lower limit of a nascent BH. This suggests that the m_disk cannot be much greater than 4. These values are consistent with the theoretically preferred values for a GRB central engine (Woosley 1993; Popham et al. 1999; Zhang et al. 2003). In addition, because a_* ≳ 0.9 is preferred in the collapsar model (Popham et al. 1999), the preferred m_disk may be close to 3.

Based on the above results, we suggest that a Kerr BH with a mean mass M_BH ∼ 5–9 M_⊙ and mean spin a_* ≳ 0.6 surrounded by a disk with 3 M_⊙ ≲ M_disk ≲ 4 M_⊙ may be the central engine of GRB 101219B.

Within the framework of NDAF $\nu \bar{\nu }$-annihilation GRB central engine model, we proposed a method to constrain the mean mass and spin of the BH central engine in GRBs. This method is found to be applicable to the thermally dominated GRB 101219B, and the derived parameters of the BH central engine fall into the reasonable range of theoretical models.

There are several limitations of this model. First, it does not apply to those GRBs whose central engine is a magnetar. Second, within the BH central engine model, it only applies to the case that the jet is launched through the $\nu \bar{\nu }$-annihilation mechanism rather than magnetically launched mechanisms such as the BZ mechanism. The method is therefore only relevant for GRBs that have a prominent thermal component, as predicted by the standard fireball model (Mészáros & Rees 2000). Next, even though ${L}_{\nu \bar{\nu }}$ can be readily estimated from the prompt emission and afterglow observations, the measurement of H is not straightforward. One method is to relate H to r₀ inferred from the analysis of the thermal component of GRBs (Pe'er et al. 2007), as has been done for GRB 101219B in this paper. However, it is possible that in some GRBs the inferred r₀ is affected by the variability introduced as the jet propagates through the stellar envelope (Morsony et al. 2010; Pe'er et al. 2015). A possible hybrid jet composition from the central engine would also complicate the situation (Gao & Zhang 2015). Another method to infer H may be through the observed minimum variability time scale. However, it may be limited by the count rate of the burst, and therefore may not always be a good measure of H. It is worth analyzing all the thermally dominated GRBs (Pe'er et al. 2015) using this method to check what fraction of the bursts this method is applicable, which would shed light into how dominant NDAF $\nu \bar{\nu }$-annihilation is in the GRB central engines. Finally, our fitting formulae (Equations (1) and (2)) are based on a linear fit to the numerical results. The uncertainties associated with such a fit would introduce an error to the constrained ranges of the parameters, which is of the same order of the ranges derived in this paper.

Besides this method, there might be other methods to constrain BH mass and spin in GRBs. First, if some GRB jets are precessing (e.g., Liu et al. 2010), the BH may capture the inner region of the NDAF to conform with the direction of the angular momentum, whereas the outer region of the disk causes the BH and inner part to precess. In this framework, the precession period or its time-evolution are related to the characteristics of the BH and disk. Combining with the observations or Equation (1), constraints on the BH mass and spin may be obtained. For example, there may exist Kerr BHs with mass ∼10 M_⊙ in the center of GRBs 121027A and 130925A (Hou et al. 2014a, 2014b). Finally, the BH-NDAF precession or neutrino emission from the disk may produce violent gravitational radiation (e.g., Suwa & Murase 2009; Romero et al. 2010; Sun et al. 2012). Similarly, the gravitational wave amplitudes are also connected with the characteristics of the BH accretion system, which may be used to constrain BH mass and spin.

Recently, a gravitational wave signal was observed from a binary BH system, GW 150914 (Abbott et al. 2016). This signal may be accompanied with a short GRB (Connaughton et al. 2016) and several models have been proposed to explain the observation (e.g., Li et al. 2016; Liu et al. 2016; Loeb 2016; Perna et al. 2016; Woosley 2016; Zhang 2016). The two BH masses are determined by the signal, and this may be an independent method to measure the mass of GRB central BHs (see, e.g., an earlier investigation by Janiuk et al. 2013a).
