IS THE PALE BLUE DOT UNIQUE? OPTIMIZED PHOTOMETRIC BANDS FOR IDENTIFYING EARTH-LIKE EXOPLANETS

The visible reflectance spectra used in this study were obtained from a variety of sources and are summarized in Table 1. Here, we describe in detail how model reflectance spectra were generated and where observed spectra were sourced.

Table 1.  This Table Lists All the Planet Spectra Used in this Study

Planet/Moon	Notes	Symbol	Source for Spectrum
Earth quadrature phase	This Earth spectrum was used in all optimization calculations	Blue circle	Validated 3D Earth model and SMART
Earth full phase		Blue diamond	Validated 3D Earth model and SMART
Earth gibbous phase		Blue star	Validated 3D Earth model and SMART
Earth crescent phase		Blue downward triangle	Validated 3D Earth model and SMART
The Moon		Black circle	Validated 1D model and SMART
Mars		Red circle	Validated 1D model and SMART
Venus		Black circle	Validated 1D model and SMART
Jupiter	Full phase	Black circle	Karkoschka (1998)
Saturn	Full phase	Black circle	Karkoschka (1998)
Uranus	Full phase	Black circle	Karkoschka (1998)
Neptune	Full phase	Black circle	Karkoschka (1998)
Titan	Full phase	Black circle	Karkoschka (1998)
Io	Full phase	White circle	Karkoschka (1994)
Callisto	Full phase	Cyan circle	Karkoschka (1994)
Ganymede	Full phase	Purple circle	Karkoschka (1994)
Europa	Full phase	Green circle	Karkoschka (1994)
Giant planet class I	Full phase	Black circle	Sudarsky et al. (2000)
Giant planet class II	Full phase	Black circle	Sudarsky et al. (2000)
Giant type I with haze	Full phase	Black circle	Sudarsky et al. (2000)
Sub-Neptune thick ${{\bf{H}}}_{{\bf{2}}}$ atmosphere	6.6$\;{m}_{\oplus }$ and $\;{\bf{2.4}}{R}_{\oplus }$ with 2000 W m−2 insolation and solar metallicity	Black circle	SMART
Sub-Neptune thick ${{\bf{H}}}_{{\bf{2}}}$ atmosphere high metallicity	6.6$\;{m}_{\oplus }$ and$\;{\bf{2.4}}{R}_{\oplus }$ with 2000 W m−2 insolation 100× and solar metallicity	Black circle	SMART
Sub-Neptune thick ${{\bf{H}}}_{{\bf{2}}}{\bf{O}}$ atmosphere	6.6$\;{m}_{\oplus }$ and$\;{\bf{2.4}}{R}_{\oplus }$ with 2000 W m−2 insolation	Black circle	SMART
Snow	100% snow-covered planet with clear sky Earth-like atmosphere	Black circle	SMART, surface spectrum from Shields et al. (2013)
Blue ice	100% blue ice-covered planet with clear sky Earth-like atmosphere	Black circle	SMART, surface spectrum from Shields et al. (2013)
Kaolinite	100% kaolinite covered planet with clear sky Earth-like atmosphere	Black circle	SMART, surface spectrum from Clark et al. (2007)
Callisto 0.5 bar ${{\boldsymbol{N}}}_{{\bf{2}}}$	250 K isothermal atmosphere	Cyan upward triangle	SMART, surface spectrum from Karkoschka (1994)
Callisto 0.75 bar ${{\boldsymbol{N}}}_{{\bf{2}}}$	"	Cyan star	SMART, surface spectrum from Karkoschka (1994)
Callisto 1 bar ${{\boldsymbol{N}}}_{{\bf{2}}}$	"	Cyan square	SMART, surface spectrum from Karkoschka (1994)
Callisto 2 bar ${{\boldsymbol{N}}}_{{\bf{2}}}$	"	Cyan downward triangle	SMART, surface spectrum from Karkoschka (1994)
Europa 0.5 bar ${{\boldsymbol{N}}}_{{\bf{2}}}$	"	Green upward triangle	SMART, surface spectrum from Karkoschka (1994)
Europa 1 bar ${{\boldsymbol{N}}}_{{\bf{2}}}$	"	Green square	SMART, surface spectrum from Karkoschka (1994)
Europa 2 bar ${{\boldsymbol{N}}}_{{\bf{2}}}$	"	Green downward triangle	SMART, surface spectrum from Karkoschka (1994)
Ganymede 0.5 bar ${{\boldsymbol{N}}}_{{\bf{2}}}$	"	Purple downward triangle	SMART, surface spectrum from Karkoschka (1994)
Ganymede 2 bar ${{\boldsymbol{N}}}_{{\bf{2}}}$	"	Purple square	SMART, surface spectrum from Karkoschka (1994)
Io 0.5 bar ${{\boldsymbol{N}}}_{{\bf{2}}}$	"	White square	SMART, surface spectrum from Karkoschka (1994)
Gray 0.2 bar ${{\boldsymbol{N}}}_{{\bf{2}}}$	Gray surface has albedo of 0.27. 250 K isothermal atmosphere	Gray square	SMART
Gray 1.2 bar ${{\boldsymbol{N}}}_{{\bf{2}}}$	"	Gray downward triangle	SMART
Gray 2 bar ${{\boldsymbol{N}}}_{{\bf{2}}}$	"	Gray diamond	SMART
Mars 0.5 bar ${{\boldsymbol{N}}}_{{\bf{2}}}$	250 K isothermal atmosphere	Red pentagon	SMART
Mars 2 bar ${{\boldsymbol{N}}}_{{\bf{2}}}$	"	Red leftward triangle	SMART
Mars 5 bar ${{\boldsymbol{N}}}_{{\bf{2}}}$	"	Red rightward triangle	SMART
Mars 0.5 bar CO2	"	Red upward triangle	SMART
Mars 1 bar CO2	"	Red square	SMART
Mars 1.5 bar  CO2	"	Red star	SMART
Mars 5 bar CO2	"	Red downward triangle	SMART
Kaolinite 1 bar CO2	"	Lime downward triangle	SMART, surface spectra from Clark et al. (2007)
CO${}_{2}\;$ice 1 bar ${{\boldsymbol{N}}}_{{\bf{2}}}$	180 K isothermal atmosphere for consistency	Lime upward triangle	SMART, surface spectra from Tinetti et al. (2005)
Archean Earth no haze, high (1E-2) CH${}_{4}$	50% clear skies, 25% med cloud, 25% low cloud	Yellow circle	SMART
Archean Earth no haze, low (2E-3) CH${}_{4}$	"	Yellow star	SMART
Archean Earth with thick haze (1E-2 CH${}_{4}$)	"	Yellow upward triangle	SMART
Archean Earth with thin haze (2E-3 CH${}_{4}$)	"	Yellow leftward triangle	SMART
Earth with clear skies	Surface chosen to be linear mix of Ocean (65.6%), Kaolinite (5.5%), Grass (13.6%), Conifers (4%) and snow (11.3%) to match 24-hr averaged 3D model.	Blue pentagon	SMART
Earth 100% clear skies over ocean		Blue upward triangle	SMART
Earth with 100% low cloud		Blue rightward triangle	SMART
Earth with 100% mid cloud		Blue leftward triangle	SMART
Earth with 100% high cloud		Blue square	SMART
Jovian phase = 0	3× solar metallicity with atmosphere in chemical equilibrium at 0.8 AU	Green star	Cahoy et al. (2010)
Jovian phase = 70	"	Green star	Cahoy et al. (2010)
Jovian phase = 90	"	Green star	Cahoy et al. (2010)
Jovian phase = 120	"	Green star	Cahoy et al. (2010)
Jovian phase = 140	"	Green star	Cahoy et al. (2010)
Jovian phase = 150	"	Green star	Cahoy et al. (2010)

Note. The bolded rows represent the set of uninhabitable false positives, and the italicized rows are the subset of icy false positives referred to in the main text. The color–color plot symbols for each planet are specified. Note that these are consistent across all figures in this study. The source of each spectrum—either a citation or SMART model output—is also listed. All spectra are observed at quadrature unless otherwise stated.

Download table as:  ASCIITypeset images: 1 2

For most Solar System objects, we used spectral observations from space- and ground-based telescopes. Reflectance spectra for Jupiter, Saturn, Uranus, Neptune, and Titan were obtained from Karkoschka (1998), and reflectance spectra for Callisto, Io, Europa, and Ganymede were obtained from Karkoschka (1994). All of these spectra are full phase or very close to full phase (<7°).

The model reflectance spectra used in this study were generated using the Spectral Mapping Atmospheric Radiative Transfer Model (SMART). SMART is a one-dimensional, plane-parallel, line-by-line, multiple-scattering radiative transfer model developed by D. Crisp (Meadows & Crisp 1996; Crisp 1997). SMART takes as input vertical profiles of temperature, pressure, gas mixing ratios, and aerosol optical depths. With these inputs SMART calculates the monochromatic optical properties of each layer. Line absorption cross-sections are calculated with a program called Line-by-Line Absorption Coefficients (LBLABC), which determines the absorption coefficients of spectrally active given a line list database (Meadows & Crisp 1996; Crisp 1997). Because we leverage many existing spectra from the literature, the older HITRAN 2008 (Rothman et al. 2009) line lists were used to calculate the absorption coefficients for the spectrally absorbing gases in our model atmospheres except where stated otherwise. Throughout this work, when calculating gaseous absorption coefficients with LBLABC, a line cutoff of 1000 cm${}^{-1}$ is used. The gas absorption cross-sections determined by LBLABC are read in by SMART and multiplied by the gas mixing ratios and layer thicknesses to determine the normal-incidence gas extinction optical depths. The total extinction at each layer and each hyperfine spectral grid point is calculated by combining the gas extinction optical depths with those calculated for Rayleigh scattering and aerosols. We used a single solar zenith angle of 60° for all runs, which approximates the illumination observed in a planetary disk average during an observation at quadrature phase (Segura et al. 2005). We assume the surfaces in this model are Lambertian reflectors, which is an approximately true assumption for the Earth at non-crescent phase angles (Robinson et al. 2010).

Earth spectra were obtained from Robinson et al. (2011, 2014). We used a validated 3D Earth model since this enabled us to explore how Earth's reflectance spectrum changes with phase. Validated (1D) model spectra were also used for Mars, Venus, and the Moon (Robinson et al. 2011). The disk-averaged Mars surface albedo spectrum was the same as that used in Crisp (1990) and was constructed from data obtained from McCord et al. (1982) and Blaney et al. (1988).

A coupled 1D photochemical-climate model was used to generate self-consistent ancient Earth atmospheres, both with and without haze, that are best estimates of those that existed in the Archean Eon (4.0–2.5 Ga). The radiative-convective climate portion of the model is based on the code developed originally by Kasting & Ackerman (1986) and updated most recently to study habitable zone boundaries (Kopparapu et al. 2013).

The photochemical portion of the coupled code originated in Kasting et al. (1979) and has since been modified extensively, including in a study that examined the potential for hazes to exist in the atmosphere of early Earth (Zerkle et al. 2012) using the mean field approximation for fractal particle scattering (Botet et al. 1997). The photochemical model includes 200 plane-parallel layers with a layer spacing of 0.5 km up to an altitude of 100 km. The abundances of chemically active species in each layer are calculated by solving mass and flux continuity equations using a reverse-Euler method. Outputs from this coupled model (haze particle density, the temperature profile, gas mixing ratios) are input into SMART to generate spectra. Haze refractive indices are taken from Khare et al. (1984).

The Archean Earth may have had a hydrocarbon haze in its atmosphere during some intervals (Pavlov et al. 2001; Domagal-Goldman et al. 2008; Zerkle et al. 2012). This fractal hydrocarbon haze thickness scales with increasing CH${}_{4}$ relative to CO${}_{2}$ (Haqq-Misra et al. 2008). Our hazy Archean simulations have 1% CO${}_{2}$, below a recent paleosol upper limit (Driese et al. 2011) for 2.7 Ga. A CH${}_{4}$/CO${}_{2}$ ratio of 0.2 generates a substantial haze in the coupled photochemical-climate model. A thicker haze, with larger particles, may be possible at a higher CH${}_{4}$/CO${}_{2}$ ratio or a hotter atmosphere because the particle coagulation timescale depends on temperature (Tolfo 1977). For this thicker haze scenario, we use a spectrum with CH${}_{4}$/CO${}_{2}$ = 1. For the purposes of this study, the CH${}_{4}$/CO${}_{2}$ = 0.2 spectrum is considered a "thin" haze compared to the "thick" haze of large particles generated by CH${}_{4}$/CO${}_{2}$ = 1. The solar constant in these simulations is scaled to 2.7 Ga and includes a wavelength-dependent scaling that corrects for solar evolution (Claire et al. 2012). The haze-free Archean Earth atmosphere was assumed to have 50% clear skies, 25% high cloud (8.5 km), and 25% low cloud (1.5 km), which is a cloud parameterization used for the modern Earth (Robinson et al. 2011). Hazy spectra include the same cloud parameterization along with global coverage by hydrocarbons. A full description of the methodology used to generate Archean Earth atmospheres can be found in Arney et al. (2015). Note that HITRAN 2012 (Rothman et al. 2013) was used to generate Archean Earth absorption coefficients.

To investigate the diversity of colors of giant planets, we included a number of model spectra of giant exoplanets and sub-Neptunes. Giant planet reflectance spectra were obtained from Sudarsky et al. (2000). Sudarsky et al. (2000, 2005) define five classes of giant planets based on temperature. Class 1 giant planets are cool (<150 K) and highly reflective due to ammonia clouds, class 2 planets are warmer (250 K) and reflective due to water clouds, class 3 and 4 planets are warmer still (≥350 K and 900–1500 K, respectively) and strongly absorbing due to alkali absorption bands and the absence of condensable species in the upper atmosphere, and class 5 planets are the hottest (>1500 K) and highly reflective due to silica and iron clouds. The bulk compositions of all five classes are assumed to be the same; what determines any giant planet's class is its planet–star separation (i.e., temperature). The effects of metallicity on reflectance spectra are relatively minor compared to the effects of temperature (Cahoy et al. 2010). We only consider class 1 and 2 giant planets in this study since higher temperature gas giants would necessarily be well interior to the inner edge of the habitable zone and thus easily distinguishable from habitable worlds on the basis of orbital distance.

NASA's Kepler mission has revealed that Super-Earths and sub-Neptunes are common (Howard et al. 2010; Fressin et al. 2013; Marcy et al. 2014). To better sample the diversity of exoplanet colors we generated a number of plausible sub-Neptune reflectance spectra based on a planet with the same mass (6.6 ${m}_{\oplus }$) and radius (2.4 ${R}_{\oplus }$) as GJ1214b, but with a stellar insolation of 2000 ${\rm{W}}\;{{\rm{m}}}^{-2}$. Reflectance spectra were generated for a cloud free ${{\rm{H}}}_{2}$ dominated atmosphere with solar elemental abundances and a ${{\rm{H}}}_{2}$ dominated atmosphere with 100× solar metallicity (solar nebula atomic abundances from Lodders 2003). Each atmosphere was assumed to be in chemical equilibrium, and the temperature pressure profiles were obtained using the 1D version of the Generic LMDZ GCM (Wordsworth et al. 2011; Charnay et al. 2015). We also computed the reflectance spectra for a sub-Neptune with a pure steam atmosphere (water clouds were neglected). Note that HITRAN 2012 (Rothman et al. 2013) was used to generate sub-Neptune absorption coefficients.

The model spectra for the giant planets and sub-Neptunes described above are unrealistic because they assume that each atmosphere is in chemical equilibrium and so they do not include the effects of photochemical hazes. In our Solar System, both Jupiter and Saturn possess photochemical hazes that affect their color by suppressing Rayleigh scattering (Crow et al. 2011). Sudarsky et al. (2000) and Spiegel et al. (2010) considered the effects of adding photochemical hazes to their giant planet models, and we used the hazy class 1 giant planet reflectance spectra from Sudarsky et al. (2000) in this study. The model spectra for giant planets and sub-Neptunes used in this study are speculative because currently few observational constraints exist for the reflectance spectra of exoplanets.

To simulate the color of a snowball Earth, we used reflectance spectra for snow and blue ice surfaces from Warren et al. (2002) and Grenfell et al. (1994), as cited in Shields et al. (2013). We assumed an Earth-like atmosphere above these surfaces, and computed the resultant reflectance spectra for both a 100% snow and 100% blue ice planet. We also computed the reflectance spectra for an Earth-like atmosphere above a 100% kaolinite surface. These three spectra can be considered as end-member cases for a dusty snowball Earth. In our color–color plots we assume that a triangle region bounded by these three spectra encompasses the possible colors of a snowball Earth (see results section).

For the purposes of this paper, we define a habitable planet as a terrestrial planet within its star's habitable zone (Kasting et al. 1993; Kopparapu et al. 2013). First, we consider the color of Earth and all uninhabitable planets, where the latter set includes gas and ice giants, hydrogen dominated and thick steam atmosphere sub-Neptunes, permanent snowballs, and all Solar System bodies excluding Earth. Table 1 indicates which planets are assumed to be uninhabitable. We refer to this set of uninhabitable planets as potential false positives, and we seek the photometric bins that optimally separate Earth from this set of false positives in color–color space such that probable exo-Earths can be easily identified by photometric observations.

The reflectivity of a planet, ${R}_{[a,b]}$, is defined as the mean reflectivity in the wavelength range a to b (in nm). In the simplest case, we seek three photometric bins $\{[{a}_{1},{b}_{1}],[{a}_{2},{b}_{2}],[{a}_{3},{b}_{3}]\}$ which maximally separate Earth from false positives in color–color space, where $[{a}_{i},{b}_{i}]$ denotes the wavelength range (in nm) of the ith photometric bin. Given these three bins, the reflectance spectra of every planet is calculated for each bin, and the planet can be plotted in color–color space, where color axes are defined as the reflectivity ratios ${R}_{[{a}_{3},{b}_{3}]}{/R}_{[{a}_{2},{b}_{2}]}={R}_{\mathrm{red}}{/R}_{\mathrm{green}}$ and ${R}_{[{a}_{1},{b}_{1}]}{/R}_{[{a}_{2},{b}_{2}]}={R}_{\mathrm{blue}}{/R}_{\mathrm{green}}$. Note that whenever reporting optimizations involving three bins, we typically use "red" to label the color of the longest wavelength bin, "blue" for the shortest wavelength bin, and "green" for the intermediate bin. These "red," "green," and "blue" labels may not correspond to the true colors of the bin. We use reflectivity ratios rather than absolute reflectivity because radius-albedo degeneracy will typically preclude the accurate measurement of absolute reflectivity from direct imaging alone.

We applied the optimization algorithm Constrained Optimization by Linear Approximation (COBYA) in Python to determine the set of photometric bins that maximizes Earth's separation from false positive planets, subject to constraints ensuring non-overlapping bins that fit within the visible spectrum and are at least 100 nm wide (unless stated otherwise). The quantity that was maximized was the Pythagorean distance between Earth and the nearest false positive neighbor in color–color space. The optimization problem can be formally posed as follows:

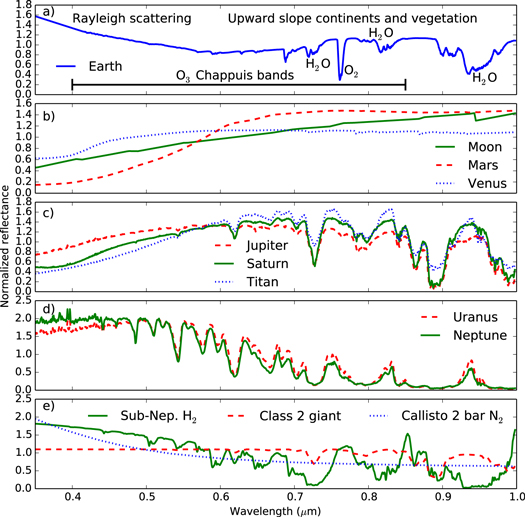

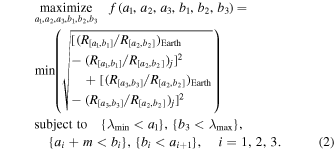

$$\begin{eqnarray}&&\underset{{a}_{1},{a}_{2},{a}_{3},{b}_{1},{b}_{2},{b}_{3}}{\mathrm{maximize}}\quad f({a}_{1},{a}_{2},{a}_{3},{b}_{1},{b}_{2},{b}_{3})\;=\\ &&\mathrm{min}\left(\sqrt{\begin{array}{l}[{({R}_{[{a}_{1},{b}_{1}]}/{R}_{[{a}_{2},{b}_{2}]})}_{\mathrm{Earth}}\\ -\;{{({R}_{[{a}_{1},{b}_{1}]}/{R}_{[{a}_{2},{b}_{2}]})}_{j}]}^{2}\\ \quad +\;[{({R}_{[{a}_{3},{b}_{3}]}/{R}_{[{a}_{2},{b}_{2}]})}_{\mathrm{Earth}}\\ -\;{{({R}_{[{a}_{3},{b}_{3}]}/{R}_{[{a}_{2},{b}_{2}]})}_{j}]}^{2}\end{array}}\right)\\ &&\mathrm{subject}\ \mathrm{to}\quad \{{\lambda }_{\mathrm{min}}\lt {a}_{1}\},\{{b}_{3}\lt {\lambda }_{\mathrm{max}}\},\\ &&\quad \{{a}_{i}+m\lt {b}_{i}\},\{{b}_{i}\lt {a}_{i+1}\},\quad i=1,2,3.\end{eqnarray} \tag{ 2 }$$

Here, j is a member of the set of false-positive (uninhabitable) planets (see Table 1). The smallest wavelength used to form photometric bins, ${\lambda }_{\mathrm{min}}$, is typically 350 nm in our analysis. Similarly, ${\lambda }_{\mathrm{max}}=1000\;{\rm{nm}}$ is the maximum allowable wavelength used to construct photometric bins. The minimal photometric bin width, m, is typically taken to be 100 nm unless stated otherwise. The first and second inequality constraints ensure that all three photometric bins fit into the desired spectral range (350–1000 nm). The third inequality constraint enforces the minimum bin size, and the fourth inequality constraint ensures that bins do not overlap.

The function to be maximized in (2) is not convex, and so local maxima are not guaranteed to be the global maximum. Consequently, we implemented a brute force global optimization search by iterating the COBYA algorithm over 2000 randomized initial conditions and selecting the best solution as the global maximum. Repeat calculations consistently produced the same answer, thereby establishing that this optimization algorithm with 2000 iterations successfully computes the global maximum.

This methodology assumes three photometric bins with "red"/"green" and "blue"/"green" axes, but extension to three or four bins with generalized axes was also done for comparison. Rather than force the horizontal axis to be "red"/"green" and the vertical axis to be "blue"/"green" reflectivity ratios, the optimization algorithm can be modified to allow for any combination of bins on each axis (e.g., ${R}_{[{a}_{i},{b}_{i}]}{/R}_{[{a}_{k},{b}_{k}]}$ and ${R}_{[{a}_{l},{b}_{l}]}{/R}_{[{a}_{n},{b}_{n}]}$). In other words, calculations with generalized axes do not force the numerator (denominator) on the vertical axis to be the shortest (middle) wavelength bin, and do not force the numerator (denominator) on the horizontal axis to be the longest (middle) wavelength bin.

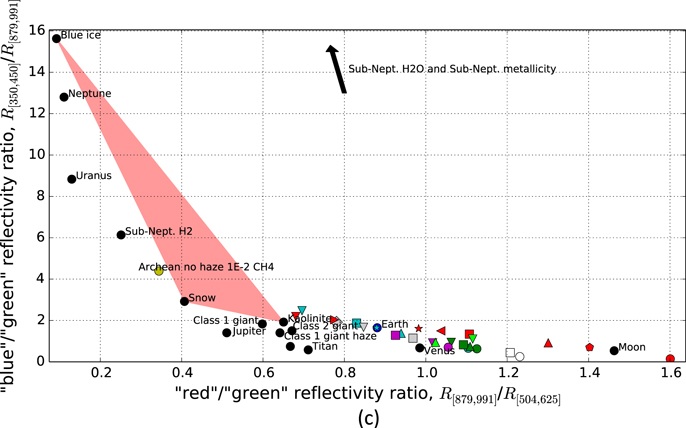

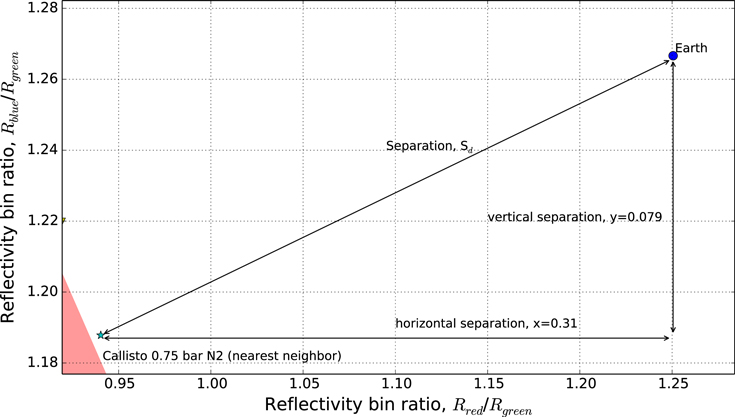

The color–color plot with optimized bins for separating Earth from false positives is shown in Figure 2. The blue circle shows the Earth's position in color–color space (at quadrature), and the remaining symbols are the set of uninhabitable false positives. Some false positives are directly labeled and some are labeled in the legend, depending on available space. Earth is the only planet in the set we considered where both the "blue"/"green" and "red"/"green" ratios are appreciably bigger than 1. The wavelength ranges for the three optimal bins that define the reflectivity axes are 431–531 nm, 569–693 nm, 770–894 nm, and Earth is separated from its nearest neighbor (Callisto with a 0.75 bar ${{\rm{N}}}_{2}$ atmosphere) by a distance of 0.32 in color–color space. The implications of the dimensionless separation are discussed below. A complete list of all the false positives in Figure 2 is available in Table 1.

Zoom In Zoom Out Reset image size

The red shaded region in Figure 2 denotes the possible range of colors for a snowball Earth planet. This region encloses linear combinations of blue ice, snow, and kaolinite (dust) to represent spectra for a dirty snowball, as described in the methods section. The snowball false positive is assumed to possess an Earth-like atmosphere with clear skies. If clouds are added to the snowball then it moves slightly closer to Earth in color–color space. No false positives from our sample of planets occupy the exact same region of color–color space as the Earth (Figure 2).

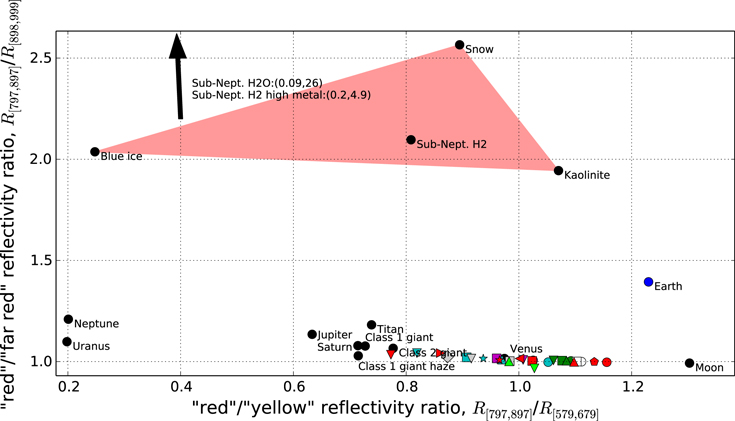

Many of the false positives we considered are models of icy worlds with relatively thick atmospheres. For instance, we computed the reflectance spectra for hypothetical exoplanets with surface spectra from Callisto, Europa, Ganymede, and Io, overlain by thick nitrogen atmospheres with surface pressures ranging 0.5–2 bar. Additionally, we computed the reflectance spectra for a hypothetical exoplanet with a Mars-like surface spectrum and a thick atmosphere of either ${{\rm{N}}}_{2}$ or CO${}_{2}$. Finally, we modeled thick atmospheres overlying kaolinite, CO${}_{2}$ ice, and a gray surface to represent the possible diversity of icy worlds. Unless stated otherwise we assumed a 250 K isothermal atmosphere for all icy planet models because this temperature is consistent with a frozen, uninhabitable surface, but is not so different from habitable conditions that it would be easily distinguishable on the basis of semimajor axis. Note, however, that the temperature does not affect the spectrum, only the implied atmospheric mass. These planets represent uninhabitable false positives that could plausibly be found beyond the outer edge of the habitable zone (semimajor axis may initially be unknown for planets discovered by direct imaging surveys). They were included in this study because the strong Rayleigh scattering from their thick, clear atmospheres, in combination with relatively flat or upward sloping surface spectra makes them similar in color to Earth. Some of these false positive spectra are shown in Figures 3(b) and (c).

Zoom In Zoom Out Reset image size

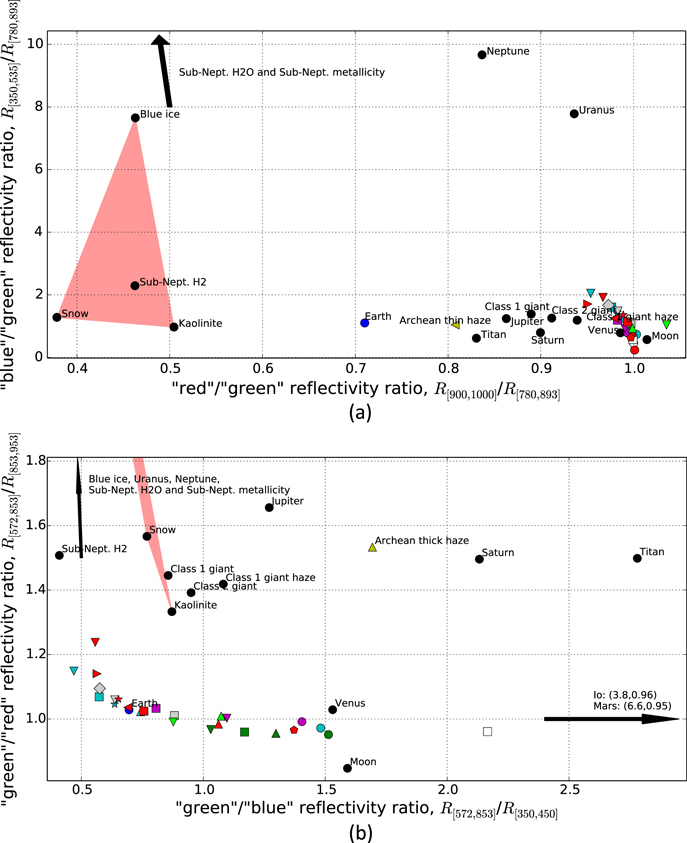

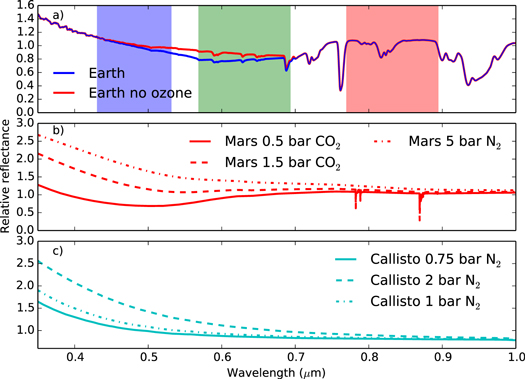

Earth is separated from all the false positives due to the unique U-shape of its spectrum. Figure 3(a) shows the Earth's reflectance spectrum superimposed on the optimal photometric bins that define the axes in Figure 2. Here, it can be seen that the optimization algorithm picked bins that capture the U-shape of the Earth's spectrum. As described in the introduction, the high reflectivity in the blue is largely attributable to Rayleigh scattering, whereas the upward sloping shape of the spectrum between 600 and 900 nm is attributable to the reflectivity of continents, which includes some vegetation (red edge) component (Tinetti et al. 2006). Reduced reflectivity around 600 nm due to ozone absorption in the Chappuis bands also contributes to the U-shape. This can be seen in Figure 3(a) where we plot Earth's spectrum without ozone alongside Earth's spectrum with ozone. Ozone absorption is responsible for the bottom of the U-shape, and without ozone Earth would occupy a somewhat different position in color–color space.

If the optimization calculation is repeated—but the icy false positives are excluded—then the separation between Earth and its closest (non-icy false positive) neighbor increases. This is shown in Figure 4 where the separation between Earth and its nearest neighbor (a Class 1 giant, i.e., cool with ammonia clouds) in color–color space is 0.53. Here, the wavelength ranges for the three optimal bins that define the reflectivity axes are 350–450 nm, 593–693 nm, and 879–992 nm. This set of photometric bins does a better job of separating Earth from the non-icy bodies than the photometric bins in Figure 2. However, if these revised photometric bins were used to identify potential exo-Earths, then any exo-Earth would be indistinguishable from uninhabitable icy worlds. Figure 4 shows that with these photometric bins Earth occupies the same region in color–color space as a planet with a 2 bar CO${}_{2}$ atmosphere overlying Mars' surface or a planet with a 0.75 bar ${{\rm{N}}}_{2}$ atmosphere overlying Callisto's surface. Even a planet with a gray (flat) surface spectrum and a 1–2 bar clear ${{\rm{N}}}_{2}$ atmosphere is very similar in color to Earth. In short there are many ways to make a quasi pale blue dot that is not habitable.

Zoom In Zoom Out Reset image size

For the purposes of characterizing exo-Earths, it is beneficial to allow gaps between photometric bins. For example, if the optimization algorithm is modified to disallow gaps between bins by enforcing the additional constraint, $\{{b}_{i}={a}_{i+1}\}$, then the optimal separation between Earth and its nearest neighbor is reduced to 0.27 (not shown).

In addition to considering the forced "red"/"green" and "blue"/"green" axes in Figures 2 and 4, we also optimized the separation between Earth and false-positive neighbors in color–color space with generalized axes. In other words, we allowed the optimization algorithm to consider all possible combinations of reflectivity ratios for use on the horizontal axis and vertical axis of color–color space. Figure 5 shows the optimal separation between Earth and its nearest neighbor using generalized axes and three photometric bins. In this case the three bins that define the axes are 579–679 nm ("yellow"), 797–897 nm ("red"), and 898–999 nm ("far red"), and the color–color space axes for this optimal separation are ${R}_{[\mathrm{797,897}]}/{R}_{[\mathrm{579,679}]}$ and ${R}_{[\mathrm{797,897}]}/{R}_{[\mathrm{898,999}]}$. Here, Earth is separated from its nearest neighbor (Mars) by 0.40 in color–color space; this is a marginal improvement over the separation using "red"/"green" and "blue"/"green" axes. The vast majority of planets have a ${R}_{[\mathrm{797,897}]}/{R}_{[\mathrm{898,999}]}$ ratio of approximately 1, but Earth is closer to 1.5 due to strong water absorption around 940 nm. Thus, although generalized axes do a slightly better job of separating the Earth from uninhabitable planets than the forced "red"/"green" and "blue"/"green" axes, Earth is separated due to the presence of water (a habitability feature) and not specifically biogenic features of its spectrum. If the calculation is repeated using four photometric bins rather than three, then the optimal separation is 0.38 (not shown). This demonstrates there are no added benefits to using four photometric bins rather than three photometric bins to identify exo-Earths.

Zoom In Zoom Out Reset image size

We also investigated optimizing Earth's separation from false-positive planets in a three-dimensional color space, and by modifying the separation criteria to be optimized. Examples of the latter included maximizing the mean or median separation between Earth and all its neighbors, maximizing the separation to the nearest neighbor scaled by the mean difference between all pairs of planets, and fitting a linear regression to all planets and maximizing Earth's residual. None of these approaches were improvements over the simple criteria applied in Figures 2, 4 and 5.

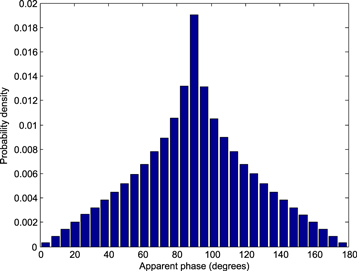

All the model spectra so far in this study represent observations during quadrature, which is the most probable viewing geometry for directly imaged exoplanets. Figure 6 shows the probability distribution of apparent phase for the direct imaging of an exoplanet with a random inclination and position in its orbit. This was calculated by repeatedly sampling uniform distributions of inclination and position in orbit, and calculating the resultant phase as viewed by a distant observer. Disk-averaged quadrature observations do not exist for many Solar System objects, and so we were forced to use full phase observations in these cases. It is beyond the scope of this study to model the 3D phase-dependent photometry for every planet we considered. However, it is possible to explore the effects of phase for some planets to see how this affects our conclusions.

Zoom In Zoom Out Reset image size

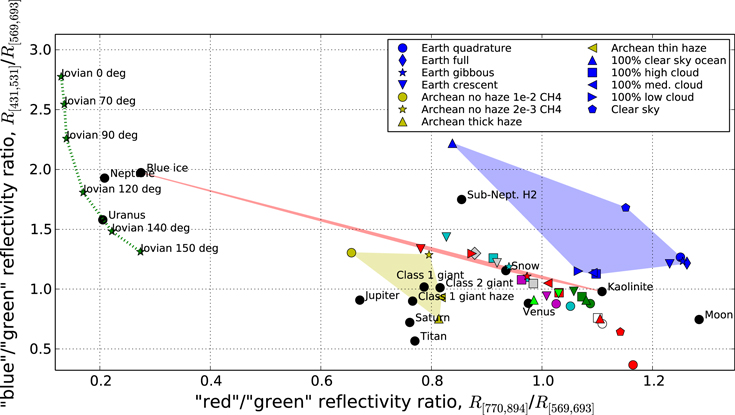

A validated 3D Earth model was used to generate Earth's reflectance spectrum (see methods), and so the effect of phase on Earth's position in color–color space can be explored. Figure 7 is identical to Figure 2 (Earth optimally separated from all false positives), except that we have plotted four blue symbols for the Earth representing full, quadrature, gibbous, and crescent phases. Evidently, viewing phase does not have a large effect on Earth's color—all four phases are clearly separated from the uninhabitable false positives in color–color space. This is a general result that is not dependent on the specific photometric bins used.

Zoom In Zoom Out Reset image size

Cahoy et al. (2010) used an albedo spectral model with detailed scattering calculations to compute the reflectance spectra of Jupiter and Neptune analogs as a function of orbital phase. In this model the emergent flux is integrated over the planet's surface to capture spatially dependent scattering behavior. It is found that the Jupiter analog—a 3× solar metallicity Jovian at 0.8 AU with an atmosphere in chemical equilibrium—has the most phase variability in its reflectance spectrum. The Jovian model spectra from Figure 12 of Cahoy et al. (2010) are plotted in color–color space in our Figure 7 to show an extreme example of phase-dependent color. Here, the "blue"/"green" ratio decreases dramatically as phase angle increases. This is analogous to the sunset effect: at large phase angles (crescent phase), the mean path length through the atmosphere is large, and so blue light is preferentially scattered out of the observer's beam.

The clouds for the Earth spectra used in our analyses are parametrized based on the comparison of EPOXI Earth observations to the 3D Earth model (Robinson et al. 2011). Exo-Earths could have different levels of cloudiness to the modern Earth, and so the effects of cloudiness on color need to be evaluated. We investigated the dependence of Earth's color on cloud fraction and height by computing a 1D Earth spectrum for five different cases: 100% low level stratocumulus cloud (1.5 km, optical depth 10), 100% medium-level alto-stratus clouds (3.9 km, optical depth 10), 100% high level cirrus clouds (8.5 km, optical depth 10), clear skies, and clear skies with a 100% ocean surface. These end-member cases are plotted in color–color space in Figure 7. The blue shaded region spans the range of colors possible for different levels of cloudiness. We find that 100% cloud cover at any height moves the Earth closer to the icy false positives in color–color space. This is unsurprising because 100% cloud cover eliminates all contributions from the surface reflectance spectrum, which is responsible for the upward sloping shape in the red portion of Earth's spectrum. Additionally, 100% cloud cover reduces the average path length in the atmosphere, which diminishes the blueness due to Rayleigh scattering. This explains why the "clear skies with a 100% ocean surface" end-member is bluer than all the other Earth spectra, although the ocean surface itself also contributes to the blueness (Crow et al. 2011). The position of the clear sky Earth shows the redness of the vegetated continental surface compared to the ocean.

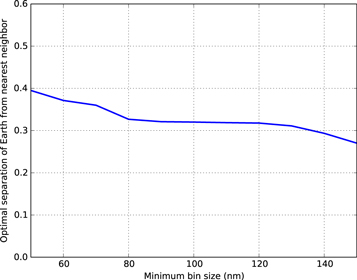

There is a trade-off between optimal color–color separation and photometric bin sizes. Reducing the minimal bin size (m) will result in larger optimal separations between Earth and its nearest neighbor because narrower, more diagnostic regions of the spectra can be targeted. However, reducing the minimal bin size will reduce the photon flux in each bin, thereby increasing the integration time required to separate the Earth from its nearest neighbor to any desired level of precision. To investigate the effect of minimum bin size, we repeated the Earth-separating optimization and varied the minimum bin size from 50 to 150 nm. This is shown in Figure 8 where the optimal separation between Earth and its nearest neighbor is plotted as a function of minimum bin size. Reducing the minimum bin size does not improve the optimal separation much. For a minimum bin size of 50 nm, the optimal separation between Earth and its nearest neighbor is 0.39. This is only 20% larger than the optimal separation for 100 nm minimum bins (0.32). The minimum bin size must be decreased to 30 nm before the nearest neighbor separation increases markedly to 1.10 (not shown).

Zoom In Zoom Out Reset image size

If the Archean Earth is plotted in color–color space using the three photometric bins that optimally separate the modern Earth, then it is clear that the Archean Earth is difficult to identify (Figure 7). For example, the hazy Archean Earth could be mistaken for a gas giant or Titan-like exoplanet, whereas the non-hazy Archean Earth could be mistaken for a Mars-like exoplanet with a thick atmosphere. This demonstrates the potential for false negatives: planets that appear to be uninhabitable based on photometry, but could in fact be revealed as habitable using high-resolution spectroscopy.

To try to distinguish Archean Earths, we repeated the optimal separation calculations described above with the Archean Earth as the subject. Specifically, we repeated the calculations four times to represent four plausible Archean Earth scenarios: thick-haze with high methane (1% mixing ratio), thin-haze with low methane (0.2% mixing ratio), non-hazy with high methane (1% mixing ratio), and non-hazy with low methane (0.2% mixing ratio). Note that although the modern Earth is included in the figures that follow, we only attempted to separate the Archean Earth from the set of false positives: the modern Earth is merely plotted as a reference.

It is extremely difficult to uniquely identify the hazy Archean Earth using photometry alone. Figure 9(a) shows the thin-haze Archean Earth optimally separated from all potential false-positives using the "red"/"green" and "blue"/"green" axes. Here, the optimal photometric bins are 350–535 nm ("blue"), 780–893 nm ("green"), and 900–1000 nm ("red"), and the Archean Earth is separated from its nearest neighbor, Jupiter, by only 0.20 in color–color space (note that the scaling of the horizontal axis is bigger than the vertical axis). Modifying the optimization algorithm to allow for generalized axes improves the optimal separation slightly, but tends to place the Archean Earth in a non-unique region of color–color space. For example Figure 9(b) shows the thick haze Archean Earth optimally separated from all false-positives using generalized three-bin axes. In this case, the optimal photometric bins are 350–450 nm ("blue"), 572–853 nm ("green"), and 853–953 nm ("red") with corresponding axes ${R}_{[\mathrm{572,853}]}/{R}_{[\mathrm{350,450}]}$ and ${R}_{[\mathrm{572,853}]}/{R}_{[\mathrm{853,953}]}$. The separation between the Archean Earth and its nearest neighbor is 0.44, but Figure 9(b) shows that it is positioned between Jupiter and Saturn; it is easy to imagine an intermediate gas giant that could be conflated with the thick-hazed Archean Earth using these photometric bins.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

It is also difficult to identify the non-hazy Archean Earth using photometry. For example Figure 9(c) shows the high methane non-hazy Archean Earth optimally separated from all false positives using generalized reflectivity axes with three photometric bins. The optimal photometric bins are 350–450 nm ("blue"), 504–625 nm ("green"), and 879–991 nm ("red") with corresponding axes ${R}_{[\mathrm{879,991}]}/{R}_{[\mathrm{504,625}]}$ and ${R}_{[\mathrm{350,450}]}/{R}_{[\mathrm{879,991}]}$. The separation between the Archean Earth and its nearest neighbor (100% snow) is 1.47. Although this separation is comparatively large, the extent to which the non-hazy Archean Earth occupies a unique position in color–color space is once again unclear; for example, an intermediate between Jupiter and Uranus (or the sub-Neptune model) could potentially occupy the same region in color–color space. If the calculations are repeated for four photometric bins, or for the low methane (2000 ppmv) non-hazy Archean Earth case then similar results are obtained (not shown). In short, the non-hazy Archean Earth can be separated from false positives, but it does not occupy a unique region in color–color space. We did not consider the oxygenated Proterozoic Earth because previous work shows that its spectrum is similar to the modern Earth (Meadows 2006; Kaltenegger et al. 2007). However, the Chappuis bands—and therefore their contribution to Earth's unique U-shape—are not visible in both Proterozoic and Archean Earth spectra. This suggests that for most of Earth's history, it was more difficult to photometrically distinguish from uninhabitable planets than the modern Earth.

Using optimized photometric bins, we have shown that (modern) Earth can be separated from false positives in color–color space by around 0.3–0.4 in a particular dimensionless color–color space. Furthermore, there is reason to believe that Earth occupies a unique region in color–color space due to the U-shape of its spectrum from far-UV to near-IR. Whether or not this unique color has any utility depends on how difficult it is to constrain color through photometric observations. Rather than calculate the necessary telescope integration time required to identify an exo-Earth, we calculate a dimensionless ratio of the integration time required to identify an exo-Earth using photometry relative to the integration time required to obtain a spectrum of the same exo-Earth. This ratiometric approach does not require any explicit assumptions about telescope parameters or a detailed noise model, and so the results will apply to any future telescope.

Specifically, we wish to compare the telescope integration time required to separate Earth from its nearest false positive with 5σ precision to the integration time required to obtain a spectrum with signal to noise of 5. Figure 10 shows a zoomed-in version of Figure 2, which highlights the important parameters for this calculation. We seek the integration time that ensures the separation distance, S_d, between exo-Earth and the nearest neighbor is five times larger than the uncertainty in this separation, ${\sigma }_{S}$. The separation distance is given by ${S}_{d}=\sqrt{{x}^{2}+{y}^{2}}$, where $x={({R}_{\mathrm{red}}/{R}_{\mathrm{green}})}_{\mathrm{Earth}}$ $-\;{({R}_{\mathrm{red}}/{R}_{\mathrm{green}})}_{\mathrm{Neighbor}}$ is the distance between Earth and its nearest neighbor along the horizontal axis, and $y={({R}_{\mathrm{blue}}/{R}_{\mathrm{green}})}_{\mathrm{Earth}}$ $-\;{({R}_{\mathrm{blue}}/{R}_{\mathrm{green}})}_{\mathrm{Neighbor}}$ is the distance between Earth and its nearest neighbor along the vertical axis. The uncertainty in the total separation is given by

$$\begin{eqnarray}&&{\sigma }_{S}=\sqrt{{\left(\displaystyle \frac{\partial {S}_{d}}{\partial x}{\sigma }_{x}\right)}^{2}+{\left(\displaystyle \frac{\partial {S}_{d}}{\partial y}{\sigma }_{y}\right)}^{2}}=\sqrt{\displaystyle \frac{{x}^{2}{\sigma }_{x}^{2}+{y}^{2}{\sigma }_{y}^{2}}{{x}^{2}+{y}^{2}}},\end{eqnarray} \tag{ 3 }$$

where ${\sigma }_{x}$ and ${\sigma }_{y}$ are the uncertainties in x and y, respectively.

Zoom In Zoom Out Reset image size

The reflectivity measurements R_blue, R_green, and R_red will each have an associated observational uncertainty, ${\sigma }_{\mathrm{blue}}$, ${\sigma }_{\mathrm{green}},$ and ${\sigma }_{\mathrm{red}}$, respectively (for an exo-Earth). These can be recast in terms of ${\rm{S}}/{\rm{N}}$ reciprocal for each photometric bin (${\sigma }_{\mathrm{blue}}/{R}_{\mathrm{blue}}={({\rm{N}}/{\rm{S}})}_{\mathrm{blue}},$ etc.). Assuming there is no uncertainty in the position of the nearest neighbor, the rules of error propagation then allow us to express ${S}_{d}/{\sigma }_{S}$ as follows, using Equation (3):

$$\begin{eqnarray}&&\displaystyle \frac{{S}_{d}}{{\sigma }_{S}}=\displaystyle \frac{{x}^{2}+{y}^{2}}{{({x}^{2}{\sigma }_{x}^{2}+{y}^{2}{\sigma }_{y}^{2})}^{1/2}}=\displaystyle \frac{{x}^{2}+{y}^{2}}{\sqrt{{x}^{2}{({({R}_{\mathrm{red}}{/R}_{\mathrm{green}})}_{\mathrm{Earth}}\sqrt{{({\rm{N}}/{\rm{S}})}_{\mathrm{red}}^{2}+{({\rm{N}}/{\rm{S}})}_{\mathrm{green}}^{2}})}^{2}+{y}^{2}{({({R}_{\mathrm{blue}}{/R}_{\mathrm{green}})}_{\mathrm{Earth}}\sqrt{{({\rm{N}}/{\rm{S}})}_{\mathrm{blue}}^{2}+{({\rm{N}}/{\rm{S}})}_{\mathrm{green}}^{2}})}^{2}}}.\end{eqnarray} \tag{ 4 }$$

The noise-to-signal $({\rm{N}}/{\rm{S}})$ for each photometric bin will be a monotonically decreasing function of the telescope integration time, which is in turn dependent on the stellar spectrum, Earth's wavelength dependent reflectivity, external noise sources such as exozodiacal dust, and various telescope parameters. For simplicity, we will assume that ${\rm{N}}/{\rm{S}}$ for all three bins is the same for any given integration time i.e., ${\rm{N}}/{\rm{S}}={({\rm{N}}/{\rm{S}})}_{\mathrm{red}}={({\rm{N}}/{\rm{S}})}_{\mathrm{green}}={({\rm{N}}/{\rm{S}})}_{\mathrm{blue}}$. This is approximately true since neither stellar flux nor Earth's albedo varies greatly across the visible spectrum. By making this assumption and substituting in the values from Figure 10 we have

$$\begin{eqnarray}\displaystyle \frac{S}{{\sigma }_{S}} & = & \displaystyle \frac{({0.31}^{2}+{0.079}^{2})}{\sqrt{{0.31}^{2}{(1.25\sqrt{2{({\rm{N}}/{\rm{S}})}^{2}})}^{2}+{0.79}^{2}{(1.27\sqrt{2{({\rm{N}}/{\rm{S}})}^{2}})}^{2}}}\\ & = & 0.181\left(\displaystyle \frac{{\rm{S}}}{{\rm{N}}}\right).\end{eqnarray} \tag{ 5 }$$

Since we wish to separate Earth to 5σ the signal to noise in each individual photometric bin must be ${\rm{S}}/{\rm{N}}=5/0.181=27.6$. Incidentally, this implies that photometric observations must be accurate to within 1/27.6 ≈ 4% to separate Earth from uninhabitable planets to 5σ.

We consider two endmember cases for the noise source in direct imaging telescope observations. First, we assume the signal to noise is dominated by astrophysical noise such as zodiacal light, imperfectly suppressed starlight, or is photon limited. The signal to noise for any such observation is given by

$$\begin{eqnarray}{\rm{S}}/{\rm{N}} & = & \displaystyle \frac{{F}_{\mathrm{Planet}}t}{\sqrt{{F}_{\mathrm{Planet}}t+{F}_{\mathrm{Zodiacal}}t+{F}_{\mathrm{null}}t}}\\ & = & \displaystyle \frac{{F}_{\mathrm{Planet}}}{\sqrt{{F}_{\mathrm{Planet}}+{F}_{\mathrm{Zodiacal}}+{F}_{\mathrm{null}}}}\sqrt{t}.\end{eqnarray} \tag{ 6 }$$

Here F_Planet is the photon flux from the planet in the wavelength range being observed, F_Zodiacal is the exo-zodiacal and zodiacal photon flux in the wavelength range being observed, F_null is the unsuppressed starlight in the wavelength range being observed, and t is the integration time.

The integration time required, t_color, to obtain a S/N of 27.6 in each 100 nm reflectivity bin (and therefore separate Earth from its nearest neighbor by 5σ) will be given as follows, using Equation (6):

$$\begin{eqnarray}&&27.6={\rm{S}}/{\rm{N}}=\displaystyle \frac{{F}_{\mathrm{Planet}}}{\sqrt{{F}_{\mathrm{Planet}}+{F}_{\mathrm{Zodiacal}}+{F}_{\mathrm{null}}}}\sqrt{{t}_{\mathrm{color}}}.\end{eqnarray} \tag{ 7 }$$

This photometry integration time should be compared to the integration time required to obtain a S/N = 5 spectrum with 10 nm bins. In effect, we are comparing the time required to photometrically separate the Earth to 5σ precision to the time required to constrain the reflectivity at every point in a spectrum with the same level of precision. We chose 10 nm bins to achieve a moderate spectral resolution of 70 at 700 nm (λ/Δλ = 700/10 = 70). The integration time required to obtain such a spectrum, t_spectrum, is given by

$$\begin{eqnarray}&&5={\rm{S}}/{\rm{N}}=\displaystyle \frac{{{F}_{\mathrm{Planet}}}^{\prime }}{\sqrt{{{F}_{\mathrm{Planet}}}^{\prime }+{{F}_{\mathrm{Zodiacal}}}^{\prime }+{{F}_{\mathrm{null}}}^{\prime }}}\sqrt{{t}_{\mathrm{spectrum}}}.\end{eqnarray} \tag{ 8 }$$

Since the spectral bins (10 nm wide) are 10 times smaller than the photometric bins (>100 nm wide), then it will be approximately true that all fluxes decrease by a factor of 10. In other words $10{{F}_{x}}^{\prime }={F}_{x}$ for all the fluxes in Equation (8). By combining Equations (7) and (8) we arrive at the following result:

$$\begin{eqnarray}&&{t}_{\mathrm{spectrum}}\approx 0.33{t}_{\mathrm{color}}.\end{eqnarray} \tag{ 9 }$$

This demonstrates that if observational noise is dominated by astrophysical sources then the integration time required to separate Earth from the nearest false positive to 5σ is comparable to, or even greater than, the integration time required to obtain a 10 nm spectrum with a signal to noise of 5.

This is a counter-intuitive result. We would normally expect photometric characterization to take less telescope time than obtaining a spectrum. However, differences in color between Earth and the nearby false-positives are subtle, and so relatively long integration times are required to resolve this difference. Additionally, because the color–color space is defined by reflectivity ratios, with an observational uncertainty in both the numerator and denominator, error propagation dictates that individual photometric observations need to be quite precise to accurately place Earth in color–color space. This is reflected in the fact that the S/N in each photometric bin needs to be 27.6 to ensure the color–color space separation signal to noise of 5.

If we repeat the detectability calculation but assume a separation of 0.5 between Earth and its nearest neighbor then we find ${t}_{\mathrm{spectrum}}\approx 0.8{t}_{\mathrm{color}}$. This shows that even if we ignore all the possible icy false positives (i.e., Figure 4), separating Earth from other false positives using optimal photometric bins still takes about the same amount of telescope time as obtaining a spectrum. It should also be noted that changing the minimum bin size does not affect this conclusion since, as demonstrated above in Figure 8, optimal separation is only weakly dependent on minimum bin size. Additionally, if we consider the integration time required to separate Earth from all false positives to only 3σ, compared to the integration time required to obtain a 10 nm spectrum with S/N of 5, then we find ${t}_{\mathrm{spectrum}}\approx 0.9{t}_{\mathrm{color}}$. For a separation of 2σ we find ${t}_{\mathrm{spectrum}}\approx 2{t}_{\mathrm{color}}$.

For the first generation of coronagraph-equipped space telescopes capable of imaging habitable exoplanets (e.g., WFIRST-AFTA or Exo-C) the dominant noise source will be dark current in the detector (Robinson et al. 2015). For this second scenario, we replace Equation (6) with the following signal-to-noise expression:

$$\begin{eqnarray}&&{\rm{S}}/{\rm{N}}=\displaystyle \frac{{F}_{\mathrm{Planet}}}{\sqrt{{F}_{\mathrm{Dark}}}}\sqrt{t}.\end{eqnarray} \tag{ 10 }$$

Here, F_Dark is the dark current count rate. Robinson et al. (2015) estimates that for an integral field spectrometer, the dark current flux in spectroscopic observations will be six times that for photometric observations. This is because the critical sampling of each spectral element over two pixels in the dispersion direction on the CCD is multiplied by the perpendicular spread of the spectrum across roughly three pixels in width. We therefore have

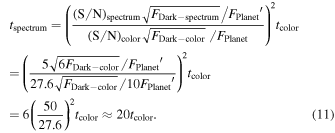

$$\begin{eqnarray}&&{t}_{\mathrm{spectrum}}={\left(\displaystyle \frac{{({\rm{S}}/{\rm{N}})}_{\mathrm{spectrum}}\sqrt{{F}_{\mathrm{Dark}-\mathrm{spectrum}}}/{{F}_{\mathrm{Planet}}}^{\prime }}{{({\rm{S}}/{\rm{N}})}_{\mathrm{color}}\sqrt{{F}_{\mathrm{Dark}-\mathrm{color}}}{/F}_{\mathrm{Planet}}}\right)}^{2}{t}_{\mathrm{color}}\\ &&={\left(\displaystyle \frac{5\sqrt{6{F}_{\mathrm{Dark}-\mathrm{color}}}/{{F}_{\mathrm{Planet}}}^{\prime }}{27.6\sqrt{{F}_{\mathrm{Dark}-\mathrm{color}}}/10{{F}_{\mathrm{Planet}}}^{\prime }}\right)}^{2}{t}_{\mathrm{color}}\\ &&=6{\left(\displaystyle \frac{50}{27.6}\right)}^{2}{t}_{\mathrm{color}}\approx 20{t}_{\mathrm{color}}.\end{eqnarray} \tag{ 11 }$$

Thus, if observational noise is dominated by dark current then the integration time required to separate Earth from the nearest false positive to 5σ is 20 times less than the integration time required to obtain a 10 nm spectrum with a signal to noise of 5. This indicates that photometry could be practically applied to identify probable Earth-like planets for spectroscopic follow-up if observational noise is dominated by dark current. Note that the calculations above assume all three photometric bins can be applied simultaneously. If three bins must be applied sequentially, then t_color will be larger by a factor of three.

There are numerous scenarios whereby uninhabitable exoplanets could appear very similar in color to Earth. Even with optimized photometric bins the distinction between Earth and these uninhabitable exoplanets is subtle. For 2-m class direct imaging space telescopes such as WFIRST-AFTA, Exo-C, or Exo-S, exoplanet observations will mostly be dominated by dark noise (Robinson et al. 2015). In this scenario, photometric identification of exo-Earths will require much shorter integration times than spectroscopic characterization. However, for these 2-m class telescopes it will only be possible to image potentially habitable terrestrial planets around a small number of nearby stars, and so doing a photometric survey of habitable planets will not be possible.

For the next generation of large-aperture (∼10 m) space telescope such as ATLAST/LUVOIR, the utility of photometric surveys will depend strongly on dark current. If dark current dominates the observational noise, then photometric characterization could be readily incorporated into an observing strategy, such as that for ATLAST/LUVOIR described by Domagal-Goldman et al. (2015). For example, after preliminary observations have characterized the system architecture and determined if any planets are in the habitable zone, the next step would be to obtain broadband photometry (100 nm bins) of any potentially habitable planets. The optimal bins from Figures 2, 3 and 7 (431–531 nm, 569–693 nm, 770–894) could be used to identify probable exo-Earths for spectroscopic follow-up. In this scenario optimized photometry would be a valuable tool for preliminary characterization.

Alternatively, if astrophysical noise dominates ATLAST/LUVOIR observations, then the integration times required to separate Earth from uninhabitable positives using optimal photometric bins are comparable to the integration times required to obtain a spectrum. Thus there is little advantage in using visible wavelength photometry first, before spectroscopy, to identify potential Earth-like planets for spectroscopic follow-up. Instead, color could be calculated from a low-resolution spectrum and used as an additional piece of information to evaluate whether higher-resolution spectral observations are justified. For example, after preliminary observations have characterized the system the next step would be to obtain low-resolution spectra (e.g., 50 nm bins, S/N = 5) of any potentially habitable planets. These observations would be insufficient to photometrically separate Earth from false positives unambiguously—in fact, they would separate Earth from its nearest neighbor by only 1.3σ in color–color space. However, this crude color information still constrains the region in color–color space the exoplanet occupies, and hence it could be used in combination with suggestive absorption features in the spectrum (such as water absorption) to evaluate whether a high-resolution spectrum should be obtained, or whether the telescope should move on to its next target. It may be preferable to use the optimal photometric bins in Figure 4 for this purpose (350–450 nm, 593–693 nm, and 879–992 nm). This is because the purpose of these photometric observations is not to definitively identify exo-Earths, but rather identify potentially Earth-like planets for higher-resolution spectroscopic follow-up. The Figure 4 bins have the advantage of better-separating Earth from all false positives except the icy bodies with thick atmospheres, which is appropriate given the coarseness of the spectrum (there will be large uncertainties in color–color position). Additionally, it may be possible to distinguish icy bodies from Earth-like planets with a low-resolution spectrum from the presence or absence of water vapor absorption.

In the original Earth-separating optimization with all false positives included (Figure 2) we found that despite allowing the optimization to consider all photometric bins between 350 and 1000 nm, the solution only uses bins between 431 and 894 nm. This suggests that extending the wavelength capabilities of a direct imaging telescope beyond this range is not necessary to uniquely identify potential Earth-like planets with photometry (note however that extending wavelength to 1000 nm is highly desirable for spectroscopy because it provides access to the 940 nm water vapor band, which is critical for assessing habitability).

This conclusion does not hold if we accept the possibility of icy false positives (Figure 4). In this case, if the wavelength range available for photometric bins is made smaller, then the optimal bins do not separate Earth as clearly as the 350–1000 nm case (${\lambda }_{\mathrm{min}}=350,\ {\lambda }_{\mathrm{max}}=1000$). For instance, if the photometric bins are restricted to 450–1000 nm range then the Earth is only separated from its neighbor by a distance of 0.34 in color–color space (not shown), compared to 0.53 for the full wavelength range in Figure 4. The separation is poor because the restricted wavelength range does not fully capture Earth's exceptional shortwave reflectivity due to Rayleigh scattering. In the absence of icy false positives, shortwave reflectivity is the most diagnostic feature of Earth's spectrum. If an intermediate wavelength range is applied (${\lambda }_{\mathrm{min}}=400,{\lambda }_{\mathrm{max}}=1000$) then the separation between Earth and its nearest neighbor is 0.47. This suggests that telescopes with a minimum wavelength of 400 nm receive most of the benefits of short wavelength photometric characterization. Currently, the direct imaging mission proposals Exo-C and Exo-S are planned to operate from 450 to 1000 nm and 400 to 1000 nm, respectively (Seager et al. 2015; Stapelfeldt et al. 2015), while the WFIRST-AFTA coronograph will operate between 430 and 970 nm with spectrometry restricted to 600–970 nm (Spergel et al. 2015). The HDST concept has a minimum wavelength range of 100–2000 nm (Dalcanton et al. 2015), whereas the similar ATLAST concept has a 110–2500 nm wavelength range (Postman et al. 2009).

We have not explored the utility of photometry shortward of 350 nm. This is because the model spectra we generated are unreliable in the UV due to incomplete line lists and absorption cross sections. However, UV photometry could be useful for identifying exo-Earths due to strong ozone absorption at λ < 320 nm. This has been previously noted by Heap et al. (2008), who argued that Hartley band (ozone absorption) is a promising biosignature in the UV. However, it should be noted that recent photochemical modeling has shown that ${{\rm{O}}}_{3}$ is much easier to produce abiotically in a terrestrial planet atmosphere than ${{\rm{O}}}_{2}$ (Domagal-Goldman et al. 2014; Harman et al. 2015), thus complicating the interpretation of an ${{\rm{O}}}_{3}$ signature. An upper wavelength limit of 1000 nm was used in this study because this is the upper wavelength limit for near-term direct imaging missions, and because the spectra available in the literature are typically truncated at around 1000 nm. However, the utility of photometry longward of 1000 nm could also be explored in future work.
