Nanodiamond quantum thermometry assisted with machine learning

A diamond nitrogen-vacancy (NV) center is a point defect consisting of a nitrogen atom and an adjacent vacancy, with an electron spin S = 1. An NV center is an atom-sized sensor that can measure local physical quantities such as temperature,^1–11) magnetic field,^12–16) electric field,¹⁷⁾ and pressure.^18–20) In particular, thermometry using NV centers is expected to be valuable in various fields, from life sciences to condensed matter physics. For example, temperature change was observed inside cells or microorganisms using nanodiamonds (NDs) injected into them,^3,7–9) and the thermal diffusion from heat sources was detected with NDs spread over the target materials.^4,10,11) Thus, local thermometry by NV centers provides a unique opportunity in nanoscience and nanotechnology.

Electron spin resonance in NV centers can be detected by measuring photoluminescence (PL) intensity while irradiating lasers and microwaves, so-called optically detected magnetic resonance (ODMR).¹³⁾ We can measure temperature by estimating the temperature-dependent zero-field splitting (ZFS)²¹⁾ of the NV center from the ODMR spectra. It is necessary to be careful when measuring temperatures using NV centers. Bulk diamond is invasive when measuring temperature distribution because of its high thermal conductivity.²²⁾ In contrast, the ensemble of NDs, 5 – 200 nm-sized diamond crystals,²³⁾ have less thermal conductivity than bulk diamonds.²²⁾ Therefore, NDs are more suitable for local thermometry.

The accuracy of the analysis for ND quantum thermometry needs to be clarified. It is difficult to accurately analyze the ODMR spectra of NDs since the crystal orientation of NDs is distributed in various directions.²⁴⁾ The four-point method,^3,6) which measures only four frequencies in the ODMR spectrum, is successfully applied for fast thermometry. However, the accuracy in this case must be carefully considered. Also, the fitting method, which fits the ODMR spectra by a double Lorentzian function, has been widely used, but the fits need to be more consistent.^6,25) In addition, in a magnetic field, the spectra spread in a complex manner, making the analysis even more challenging with these methods.²⁴⁾

In this work, we investigate the applicability of Gaussian process regression (GPR),^26,27) a machine learning method, for ND quantum thermometry. We apply the conventional four-point and fitting methods and the GPR method to analyze the spectra. To examine the robustness of the data analysis, we investigate each method's dependence on the number and selection of analysis data points in the ODMR spectrum. We show that the GPR method provides more robustly accurate thermometry than the existing methods.

We first acquire a complete dataset of ODMR spectra in a precisely temperature-controlled setup, and then the results are analyzed using three methods, namely the four-point, fitting, and GPR methods. Figure 1(a) shows our setup. The NDs are of 100 nm particle size. NDs are spread thinly on a 100 μm thick copper plate.¹¹⁾ The copper plate is placed on a sample stage in a cryostat with temperature stability better than 10 mK [Fig. 1(b)]. The copper plate with NDs and the sample stage are in sufficient thermal contact using thermal grease. We assume that the temperatures of NDs are the same as the value of the calibrated thermometer embedded in the sample stage. We define this value as the "true" temperature T_true. An optical window is mounted on the top surface of the cryostat directly above the sample stage, and emissions from the NDs are measured through this window. A resonator microwave antenna²⁸⁾ is placed directly above the optical window, and magnetic resonance of the NDs is performed.²⁹⁾

Zoom In Zoom Out Reset image size

We obtain ODMR spectra of NDs at 11 different temperatures from 280 K to 285 K in 0.5 K increments (i.e., temperature points N = 11). When acquiring the ODMR spectra, the microwave frequency is swept at 321 equally spaced points from 2830 MHz to 2910 MHz. We randomly select the frequency points for each sweep to suppress frequency-dependent heating due to microwave antenna characteristics.²⁹⁾ We adopt the result of integrating the PL intensity for 100 sweeps as a single ODMR spectrum data. A typical result of a single ODMR spectrum is shown in Fig. 1(c). Two of the ODMR spectrum data are acquired at each temperature. In the following, the first data will be referred to as Data #1 and the second as Data #2. These datasets will be used later in the accuracy evaluation.

Figure 1(d) shows the ODMR spectra at all temperature conditions, and Fig. 1(e) is a magnified view of the data at 280 K, 282.5 K, and 285 K. The center of the ODMR spectrum shifts to lower frequencies with increasing temperature.

The shift corresponds to a change in ZFS with temperature.^1,2) The four-point and fitting methods use a linear relationship between ZFS and temperature. For example, near room temperature, the ZFS value D depends linearly on temperature T with a proportionality coefficient α ≡ dD/dT ∼ − 74 kHz/K.¹⁾ Once the ZFS at a single reference temperature T₀ and a coefficient α are calibrated, the ZFS at a specific temperature T can be shown as the following:

$$\begin{eqnarray}&&D(T)=\alpha (T-{T}_{0})+D({T}_{0}).\end{eqnarray} \tag{ 1 }$$

The temperature can be obtained directly from the ZFS based on Eq. (1). Note that the coefficient α varies depending on the temperature region.²⁾ Hence, to circumvent the disadvantages of the conventional methods assuming linearity, experiments are performed over a narrow temperature range, from 280 K to 285 K.

On the other hand, the GPR method estimates temperature from ODMR spectra by learning the relationship between ODMR spectra and temperature, including ZFS information [see "Gaussian process regression (GPR)" in "Supplementary material" for details]. In the previous study, we used the GPR method to estimate the magnetic field accurately from ODMR spectra showing complex shapes in a magnetic field.²⁵⁾ The present study aims to verify how helpful the idea of magnetic field estimation using GPR is for temperature estimation.

We rely on Data #1 taken at a given T_true and estimate the temperature T_est from Data #2 at each temperature. We adopt the three methods mentioned above to obtain the T_est and compare their estimation accuracy. We use the following root-mean-square error (RMSE) calculated over 11 measured temperature points (N = 11) as a measure of the appropriateness of the estimation:

$$\begin{eqnarray}&&{\rm{RMSE}}=\sqrt{\frac{1}{N}{\sum }_{i=1}^{N}{({T}_{{\rm{est}}}^{i}-{T}_{{\rm{true}}}^{i})}^{2}},\end{eqnarray} \tag{ 2 }$$

where ${T}_{{\rm{est}}}^{i}$ and ${T}_{{\rm{true}}}^{i}$ are estimated and true temperatures at the ith set temperature (i ∈ {1, 2, ⋯  , 11}), respectively. We use Data #1 as calibration data for the four-point and fitting methods and training data for the GPR method. Data #2 is used as test data to obtain RMSE (see "Evaluation of estimation accuracy" in "Supplementary material" for details).

The ZFS estimated by fitting a double Lorentzian to all the ODMR spectra in Fig. 1(d) is shown in Fig. 2(a). The linearity of ZFS is well maintained over the temperature range tested in this study. A linear fit provides the coefficient of α = − 80.8 ± 1.8 kHz/K (the error is a fitting error, and the error range is set to 1σ). It is consistent with the literature values.^1,6,24)

Zoom In Zoom Out Reset image size

Achieving accuracy with a few experimental data points is essential for a practical purpose. To pursue this, the accuracy of each method is also examined by varying the number of analysis data points N_p. When changing N_p, we adopt equally separated frequency points from the entire measurement frequency range except for N_p = 4. For N_p = 4 only, the same four points used in the four-point method are adopted, and their frequencies are 2854 MHz, 2856 MHz, 2884 MHz, and 2886 MHz unless otherwise stated.

Figure 2(b) shows the discrepancy between T_est and T_true. The reference temperature to deduce T_est using Data #2 in the four-point method is 279.89 K. The results of the four-point method show sharp bumps when the temperature is varied. The GPR (N_p = 4) result also shows bumps but to a smaller extent than the four-point method. On the other hand, the temperature estimations by the fitting (N_p = 321) and GPR (N_p = 321) methods provide consistent results with T_true. Regarding robustness, the fitting (N_p = 321) and GPR (N_p = 321) methods outperform the four-point method, which is unsurprising as N_p is large. Nevertheless, the present result implies that GPR has the advantage even for N_p = 4. We will show later that this is not a coincidence.

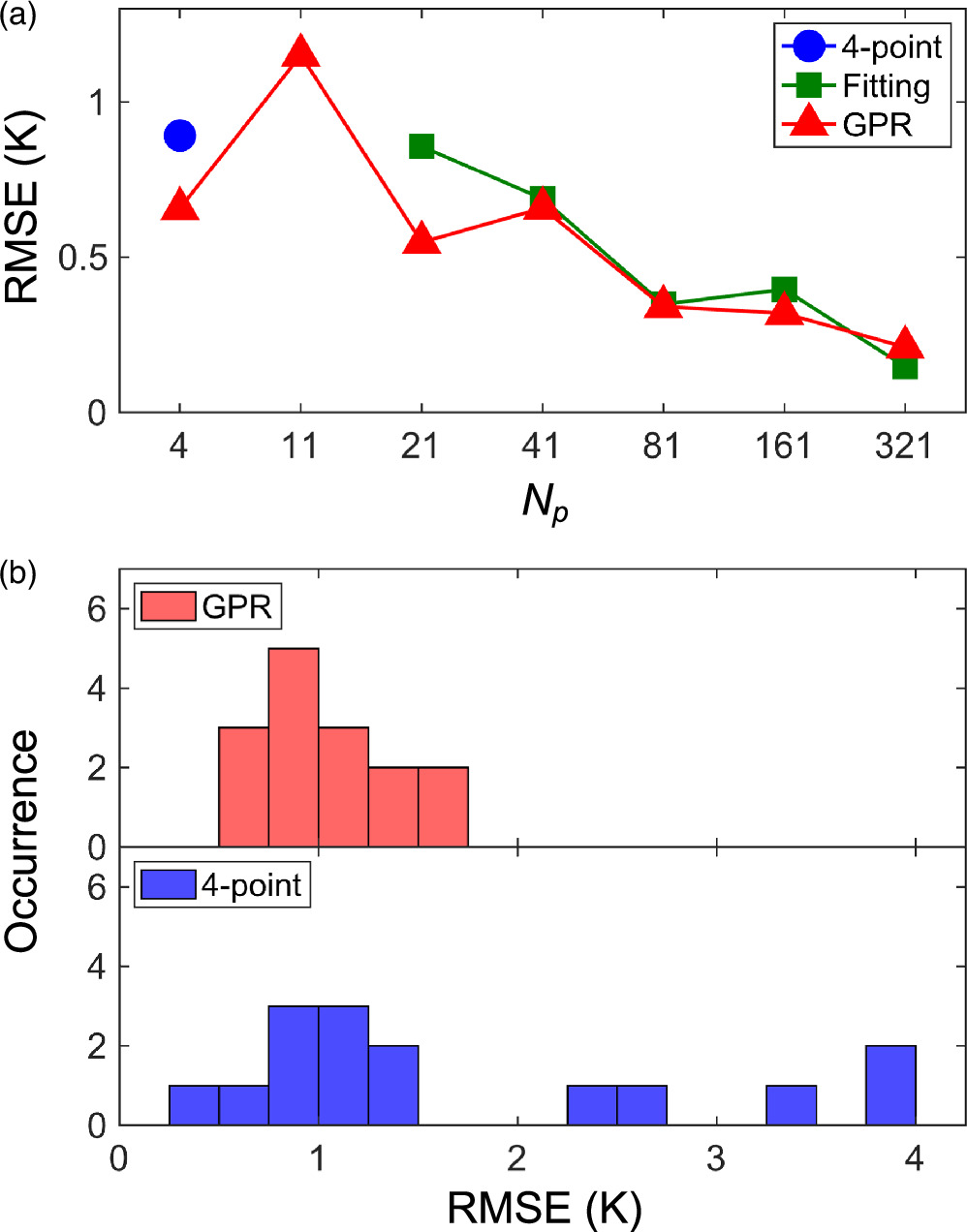

More quantitatively, Fig. 3(a) compares the RMSEs of each method when N_p is varied. The fitting method does not work appropriately for N_p = 4 and N_p = 11, so they are not shown here. The result indicates that the GPR method can robustly estimate temperatures from small N_p to large N_p. The larger the N_p, the smaller the RMSE. The GPR method allows analysis even with a small N_p and uses the data efficiently to improve accuracy when a large N_p is available. This fact meets our naive demand for a robust analysis method. On the other hand, the fitting method requires a sufficient N_p for estimation. Moreover, it has become apparent during the analysis that the RMSE of the fitting method sensitively depends on the initial value of the fitting parameters.

Zoom In Zoom Out Reset image size

It is interesting to compare the four-point and GPR methods in more detail. The analysis method with fewer data points is more advantageous experimentally. However, the four-point method is arbitrary in how the four points are taken, and the accuracy may depend on the way. Four particular points in the slope regions of the spectrum are required for the four-point method, and there are many options for their selection. Thus, we select four points (two points each on the high-frequency and low-frequency side) in the region with slopes 10 MHz to 20 MHz away from 2870 MHz. Setting the frequency resolution at 2 MHz, selectable four points are restricted to 15 patterns, as listed in Table I. RMSEs are calculated for the 15 patterns (see Table I). In the 4-point method, the proportionality coefficient α in Eq. (1) is calculated from Data #1 and used for each of the 15 different four points when determining the RMSE.

Histograms of the 15 calculated RMSEs for the four-point and GPR methods are shown in Fig. 3(b). The RMSE values are distributed over a narrow range for the GPR method, while they are spread over a wide range for the four-point method. It suggests that the accuracy of the four-point method is sensitive to the selection of the four points. In contrast, the GPR method is robust and less dependent on the data point selection. Therefore, even when N_p = 4, the GPR method is more accurate and robust overall than the four-point method.

The RMSE of the four-point method in Index 7 of Table I is minimal. Notably, the worth of the four-point method can be increased if we clarify how to choose the four points improving its accuracy. However, such a method has yet to be found.

Note that Data #1 and #2 were acquired under the same conditions. The previous study²⁵⁾ on magnetic field measurements has shown the effectiveness of GPR, even for data acquired under different conditions. However, further study is needed to determine the effectiveness of GPR-based ND quantum thermometry under different conditions.

To conclude, we have established an ND quantum thermometry using GPR and shown that the present GPR method is an excellent analytical method with superior accuracy and robustness compared to the existing methods.

Developing a multi-output GPR method²⁷⁾ that combines the accurate magnetic field estimation shown in the previous study²⁵⁾ with the accurate thermometry in the present study enables simultaneous accurate measurement of local temperature and magnetic field. For example, such a method is promising in investigating the various phase transitions, including current-induced ones.³⁰⁾ Incorporating ND quantum thermometry and magnetometry will expand the range of measurements of nanoscale physical properties.
