Electronic structures and molecular dynamics of gadolinium-doped FAPbI₃ perovskite crystals

Fabrication and characterization of lanthanide-doped methyl ammonium lead iodide CH₃NH₃PbI₃ (MAPbI₃) perovskite solar cells have been performed to improve photovoltaic performance with long-term stabilities of conversion efficiency based on the quality of perovskite film. ^1–3) Crystal engineering ⁴⁾ and material design have been performed by the composition control of chemical elements such as alkali metal ions ⁵⁾ and organic cations ^6–9) as the A-site, transition metals, ^10–13) lanthanides ^14–16) as the B-site, and halogen ions ¹⁷⁾ as the X-site in the ABX₃ type of perovskite crystal. The addition of doping material into the perovskite layer optimized the electronic structure of band dispersion with effective mass related to the carrier mobility, morphology, and crystal orientation, improving short-circuit current density and open circuit voltage and therefore the photovoltaic performance as a result. ^18,19) The morphological modification and interface passivation are supported to expand the distance and life of the carrier diffusion in the perovskite layer with the monodispersed crystal grain and suppression of defect and pinhole, improving the photovoltaic performance. ^20–22)

The lanthanide-doped perovskite crystal has the advantage for application in commercial products of photovoltaic devices by overcoming various challenges such as photovoltaic performance, wavelength conversion, ^23,24) ultra-visible-near-infrared absorption and emission, ²⁵⁾ electron transition between energy levels of f-orbital in lanthanide ion, ²⁶⁾ and morphological modification based on interface passivation with reducing defect and pinhole in perovskite film. ²⁷⁾ For example, the partial substitutions of europium, ^28,29) cerium, ³⁰⁾ and neodymium compound ³¹⁾ promoted carrier diffusion on the uniform internal structure with a reformation of perovskite crystal, yielding long-term stability by a redox reaction. The photovoltaic performance depended on the band structure associated with delocalized 5d and 4f orbitals of the lanthanide ion, and the electron correlation of the lanthanide ion and ligands in the coordination structure. The band dispersion with a charge transfer between the 5d and 4f orbitals of the lanthanide ion and the 5p orbital of iodine ion near the valence and conduction band states cause a decrease of effective mass related to an increase of the carrier mobility, improving the short-circuit current density and conversion efficiency. Car-Parromello molecular dynamics (CPMD) simulations have been used for investing crystal stabilization, the kinetics of crystal formation, ^32,33) and interface passivation near grain boundaries, and charge recombination dynamics in perovskite crystal. ^34,35)

The purpose of this research is to investigate the additive effect of lanthanides such as europium (Eu) and gadolinium (Gd) introduced into the formamidinium lead iodide (CH(NH₂)₂PbI₃: FAPbI₃) perovskite crystal for improving carrier diffusion related to mobility and short-circuit current density as well as photovoltaic performance and stability. The electronic structures and molecular dynamics of lanthanide-doped perovskite crystals were calculated by first-principles calculation. The correlation of band dispersion, the partial density of state (PDOS), the total DOS (TDOS), the electron density distribution, enthalpy, kinetic energy, and structure distortion were considered for clarifying the photovoltaic mechanism and the crystal stability. The diffusion coefficients of lead, iodine, and hydrogen ions at formamidinium (FA) in the FAPbI₃ crystal were estimated for determining the crystal stability while suppressing the decomposition by desorption of ions from the crystal. The theoretical analysis predicated the photovoltaic characteristics and stability.

The Gd²⁺-doped FAPbI₃ perovskite crystals were formed in a cubic crystal phase using experimental lattice constants (FAPbI₃: a = 6.3621 Å) ^36–38) measured by X-ray diffraction data. The FAPbI₃ perovskite crystals (cubic $P\mathop{m3m}\limits^{\unicode{x00304}}$) were constructed with supercells (2 × 2 × 2). The mole ratio of the Gd²⁺ ions to Pb²⁺ cation ion was adjusted to 1:8, which was equivalent to a replacement of 12.5%. The ab initio quantum calculations were performed using the Vanderbilt ultrasoft pseudopotentials, scalar relativistic generalized gradient approximations, and density functional theory (DFT) without consideration of the spin–orbital coupling effect (Quantum Espresso, v.5.2.1, Quantum Espresso Foundation, UK), and pbe and pz pseudopotentials. Plane-wave basis set cutoffs for the wave functions and charge densities were set at 30 and 320 Rydberg (Ry). The perovskite crystals were composed of the experimental lattice constants. A uniform k-point grid (8 × 8 × 8) in the Brillouin zone was used to calculate the electronic structure and PDOS.

With the Gd²⁺-doped perovskite crystal as supercells (2 × 2 × 2), parts of the Pb²⁺ atom at the B-sites were substituted with Gd²⁺ ion for one-atom substitution at the center of the cubic structure. For the DFT calculation, a total charge in the Gd²⁺-doped perovskite crystal was set to 0.0 as a neutral state. The electron density distribution was optimized by a self-consistent field calculation. The atomic populations in the perovskite crystal were calculated by Löwdin population analysis. The number of charges in gadolinium ion was estimated by subtracting the total electron density from the number of electrons. The charge balance of gadolinium, lead, iodine ions, and FA cations were optimized to be at a neutral state in the perovskite crystal. The band structures and effective mass ratios of electrons and hole to free electrons (m_e*/m_e and m_h*/m_e) and band gaps (E_g) were analyzed for the Brillouin zone of the perovskite crystal along the direction of the wave vector. The path for the Gd²⁺-doped FAPbI₃ perovskite crystals was set as follows, Γ (0, 0, 0) $\to$ X (0, ½, 0) $\to$ M (1/2, 1/2, 0) $\to$ Γ $\to$ R (1/2, 1/2, 1/2) $\to$ X, M $\to$ R. The Pb²⁺ cation was set at the position of Γ (0, 0, 0). The energy levels were standardized with the Fermi energy at zero. The PDOS and TDOS were calculated to make the energy level clear for each orbital near the valence (VB) and conduction (CB) band states.

Car–Parrinello molecular dynamics (CPMD) simulations have been carried out with Quantum Espresso using the PBE exchange-correlation functional with pbe-mt.fhi.upf and pz-sp-high.upf pseudopotentials. Plane-wave basis set cutoffs for the smooth part of the wave functions and the augmented densities were 30 and 120 Ry, respectively. The CPMD simulations were performed using an integration time step of 150 for a total simulation time of 0.018 psec. Thermodynamic behavior based on enthalpy, kinetic energy, and molecular dynamics of Gd²⁺, Ce⁴⁺, Sm²⁺, and Eu²⁺-doped FAPbI₃ perovskite crystals and V_Pb, V_I, and V_FA-FAPbI₃ crystals with defect at each position (V_Pb, V_I and V_FA defects at the positions of Pb²⁺ and I⁻ ions, and FA⁺ cations) were calculated by CPMD. Diffusion coefficient (D) of Pb²⁺, I⁻ and H⁺ ions in the FAPbI₃ crystal with defect at the positions of Pb²⁺ and I⁻ ions, and FA⁺ cations were calculated by Born–Oppenheimer molecular dynamics (BOMD) simulations under a temperature control of around 300 K.

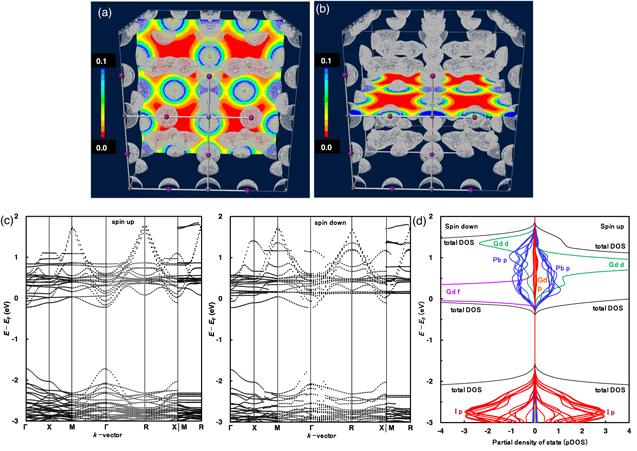

The electron density distribution at the profile plane, cross-section, band structure, and PDOS of the Gd²⁺-doped FAPbI₃ perovskite crystal are shown in Fig. 1. The electron density distributions of the d, 4f orbital of Gd²⁺ ion and the 5p orbital of iodine ion were delocalized, determining the charge transfer and the carrier generation in the perovskite crystal. The atomic population of 5d and 4f orbitals in gadolinium ion were calculated as follows, 5d (spin up: 5d = 0.73, dz² = 0.22, dxz = 0.09, dyz = 0.09, dx²–y² = 0.23, dxy = 0.10, spin down: 5d = 0.63, dz² = 0.19, dxz = 0.08, dyz = 0.08, dx²–y² = 0.20, dxy = 0.08), and 4f = 7.10. The number of charges in the gadolinium ion was estimated to be about 1.42 while maintaining the neutral state in the crystal. Recently, the chemical states in the perovskite crystals were investigated by near-edge X-ray absorption of fine structure, high-resolution X-ray photoelectron spectroscopy and Auger electron spectroscopy measurements, electron, and charge density, and ab initio MD simulations. ^39–42)

Zoom In Zoom Out Reset image size

The band structure had the narrow band distribution of 5p orbital of iodine ion near VB state, and 6p orbital of the lead ion, degenerated 4f orbital, and split 5d orbitals of Gd²⁺ ion near the CB state as shown in Fig. 1(c). The band gap of E_g was decreased to 1.52 eV, as compared to that of 1.62 eV in the Eu²⁺-doped FAPbI₃ crystal. ^28,29) The narrow band distribution near VB and CB states had an effective mass ratio (m_e*/m_e = 0.02 and m_h*/m_e = 0.02) along the direction of the wave vector of Γ $\to$ R. These behaviors indicate the semi-conductive characteristics as similar behavior in the Eu²⁺-doped FAPbI₃ crystal with effective mass ratio (m_e ^*/m_e = 0.03 and m_h ^*/m_e = 0.01). These results expect an increase in the carrier mobility related to short-circuit current density as the photovoltaic performance. The total energies of the Gd²⁺-doped FAPbI₃ crystal were decreased to −4662 eV cell⁻¹, as compared with those of Eu²⁺-doped FAPbI₃ crystal and FAPbI₃ crystals to −4582 eV cell⁻¹ and −3745 eV cell⁻¹. ^28,29) These results expect that the Gd²⁺-doped FAPbI₃ crystal has great potential to apply the photovoltaic devices with the improved performance and the stability.

Enthalpy and kinetic energy of ions and cells in (a) Gd²⁺, Ce⁴⁺, Sm²⁺-doped FAPbI₃, V_Pb-, V_I- and V_FA-FAPbI₃ perovskite crystal (V_Pb, V_I and V_FA: defect at Pb and I ions, and FA cation position) were calculated as shown in Figs. 2(a)–2(b). As shown in Fig. 2(a), the addition of lanthanide ions and defects in the perovskite crystal increased the enthalpy, suggesting instability as compared with that of the FAPbI₃ crystal. The kinetic energies of ions and cells were slightly increased in the Gd²⁺- and Sm²⁺-doped perovskite crystal at the final stage. The molecular dynamics of the FAPbI₃ perovskite crystal were performed. As shown in Fig. 2(c), the separation between nitrogen and hydrogen atoms in FA was caused at a time of 0.0169 ps. In contrast, the molecular dynamics of the Gd²⁺-doped perovskite crystal were also performed. A slight distortion of the coordination structure with the Gd-I band was caused at a time of 0.0169 ps. Addition of Gd²⁺ ions into the crystal supported stabilization of the perovskite crystal while suppressing decomposition based on the desorption of ions from the crystal, as shown in Fig. 2(c). The enthalpy and kinetic energy of the Eu²⁺-doped FAPbI₃ perovskite crystal and the FAPbI₃ perovskite crystal were calculated as shown in Fig. 2(b). The CPMD molecular dynamics was performed by using pz pseudopotential. The enthalpies for both crystals were gradually decreased as structure relaxation in the same way. The kinetic energy of ions and cells in the Eu²⁺-doped FAPbI₃ perovskite crystal was slightly increased at the final stage. The kinetic energy was similar to molecular dynamic behavior, as compared with those of the Gd³⁺-FAPbI₃ perovskite crystal. The molecular dynamic behavior exhibited the slight distortion of the chemical band between the Eu²⁺ ion and iodine ion as ligands in the perovskite crystal, as shown in Fig. 2(c).

Zoom In Zoom Out Reset image size

The molecular dynamics of the Gd²⁺- and Eu²⁺-doped perovskite crystals as compared to those of the FAPbI₃ crystal are shown in Figs. 3(a)–3(c). As shown in Fig. 3(a), the atomic position of the Pb²⁺ ion in the FAPbI₃ perovskite crystal was drastically decreased, shrinking the crystal field in the perovskite crystal. The distance of N-H in FA was increased, as the separation between N-H bands in FA at the final stage. These behaviors indicate the instability and decomposition with the desorption of hydrogen atoms. In the case of Gd²⁺-doped perovskite crystal, the addition of Gd²⁺ ion into the perovskite crystal promoted a gradual increase of the atomic position of the Gd²⁺ ion at x-direction, and a slight decrease of the position at y and z-position, as shown in Fig. 3(b). These behaviors indicate slight distortion of coordination structure based on band interaction between Gd²⁺ ion and iodine ion as ligands. The distance between N and H atoms in FA was decreased, yielding stability of FA. In the case of Eu²⁺-doped perovskite crystal, the position of the Eu²⁺ ion was increased in the y-direction, and decreased in the x and z directions. These behaviors indicate distortion in coordination structure, expecting 5d orbital splitting of Eu²⁺ ion in the band structure. The distance between N and H atoms in FA was influenced at the final stage in the range of 0.012–0.020 ps. The slight behavior of molecular dynamics of Eu²⁺ and FA ions was obtained. These results indicate that the perovskite crystal remains a stable structure with suppression of desorption of hydrogen atoms from FA in the perovskite crystal.

Zoom In Zoom Out Reset image size

The D of ions in the FAPbI₃ crystal was calculated as listed in Table I. In the case of FAPbI₃ crystal at a temperature of 309 K, D of the I⁻, Pb²⁺ ions, and H⁺ ions in FA were calculated to be 8.64 × 10⁻⁶, 8.60 × 10⁻⁷ and 4.02 × 10⁻⁴ (cm² s⁻¹), respectively. These results indicate that desorption of hydrogen ions and I⁻ ions caused decomposition. In the case with defect near atomic position at Pb²⁺ and I⁻ ions, D of I⁻ and Pb²⁺ ions in V_Pb-FAPbI₃ and V_I-FAPbI₃ crystal was increased, as compared with those values of the FAPbI₃ crystals. These behaviors indicate the promotion of diffusion for I⁻ and Pb²⁺ ions through defects. The diffusion coefficient for H⁺ ion in FA was slightly decreased by trap near the defect. In the presence of a defect, the decomposition was caused by desorption and diffusion of hydrogen and iodine ions in the perovskite crystal. The addition of Gd²⁺ and Eu²⁺ ions into the crystal caused a slight distortion in the crystal field, stabilizing the crystal while suppressing of the decomposition with desorption and diffusion of the ions in the crystal. The stability of the performance would be explained by the thermodynamic characteristics based on molecular dynamics. The addition of lanthanide ions into the perovskite crystal supported the stability of the photovoltaic performance. The calculation prediction expects that the Gd²⁺-doped perovskite crystals have a high potential to apply for the commercial products of photovoltaic devices with photovoltaic performance and stability.

The additive effect of Gd²⁺ ion into the perovskite crystal on electronic structure and thermodynamic behavior based on molecular dynamics were investigated. The electronic structures such as the band distribution, PDOS, electron density distribution, enthalpy, kinetic energy, and molecular dynamics were expected by first-principles calculation. Incorporation of Gd²⁺ ions into the perovskite crystal caused the delocalization of 5d, 4 f-orbital of Gd²⁺ ion, 6p orbital of Pb²⁺ ion, and 5p orbital of I⁻ ion as ligand, promoting the charge transfer between 5d orbital of Gd²⁺ ion and 6p orbital of Pb²⁺ ion with narrow band dispersion related to carrier mobility, expecting an increase of short-circuit current density as the photovoltaic performance. The enthalpy and kinetic energy based on the molecular dynamics indicate stabilization of the Gd²⁺-doped perovskite crystal with slight desorption of coordination structure, as compared with the decomposition of the MAPbI₃ perovskite crystal. Diffusion coefficients of iodine and lead ions in the crystal with defect were increased, causing the decomposition. The calculation prediction expects that the Gd²⁺-doped perovskite crystals have great potential for application in the industrial products of photovoltaic devices with photovoltaic performance related to short-circuit current density and stability.
