A surface-supporting method for an anode material of Li₄Ti₅O₁₂ via an epitaxial thin film approach

High-speed rechargeable Li-ion batteries (LIBs) have gathered much attention for their contribution toward a sustainable society. LIBs show high working voltage and large specific capacity ^1–5) as secondary batteries, but their low cycle life and poor high-speed chargeability must be overcome. Two approaches have been reported to improve the high-speed rechargeability of electrode materials: particle size reduction and surface support. The former approach shortens the Li-ion inter-diffusion length in active materials, thereby increasing the electrochemical active area even in a high C-rate condition. ^6,7) The latter approach produces a surface-supporting material to reduce the interfacial resistance of Li-ion migration between an electrode material and an electrolyte, thereby improving high-speed chargeability. In the cathode case, either Al₂O₃ or BaTiO₃ has been reported as the most promising surface-supporting material. ^8–13) The surface-supporting material also acts as a protective layer to suppress undesirable reactions such as electrolyte decomposition, and it improves cycle life. ^14,15)

We have studied the effects of introducing surface-supporting materials by preparing epitaxial thin films that enable us to examine an interface between an active material and an electrolyte. With the use of LiCoO₂ cathode epitaxial thin films, Li-ion migrations are assisted by the electric field concentration at the interface between a surface-supporting material, an electrode, and an electrolyte (triple-phase interface, TPI). ^16–20) To reinforce the electric field concentration, high-permittivity materials are a preferable surface-supporting material. ^18,19) In addition, only a few solid-electrolyte interfaces (SEI) were observed at TPIs because of the suppression of electrolyte decomposition. ^16,20) Although we previously revealed the effects of a surface-supporting method on cathode materials, the effect of introducing a surface-supporting onto an anode material is still unclear.

Bulk studies to improve high-speed rechargeability in an anode material by introducing surface-supporting materials have also been reported. ^21–26) In this study, we focused on Li₄Ti₅O₁₂ (LTO), a famous oxide anode material; epitaxially grown on SrTiO₃ substrate ²⁷⁾ enabled us to discuss the TPI effects on an anode material compared with that in a cathode material. In addition, we chose CeO₂ and BaTiO₃ as supporting materials to investigate the relative permittivity effect which is a key factor to enhance Li-ion motion in cathode case. First, we prepared Li₄Ti₅O₁₂ epitaxial thin films on SrTiO₃(111) substrate and deposited CeO₂ or BaTiO₃ micropads on those films using a metal mask with 100 × 100 μm square voids. We then assessed the relative permittivity effect of the surface-supporting material.

First, we sintered a Li₄Ti₅O₁₂ ceramic target with a Li excess amount of 1.6 to compensate for Li evaporation during thin film deposition. Li₄Ti₅O₁₂/SrRuO₃/(111)SrTiO₃ thin films were prepared via a pulsed laser deposition using a fourth harmonic wave of a Nd:YAG laser (266 nm). SrRuO₃ is a bottom current collector. LTO film was deposited under a substrate temperature of 580 °C and an oxygen partial pressure of 50 mTorr. A metal mask with 100 × 100 μm throughput holes was introduced onto Li₄Ti₅O₁₂/SrRuO₃/(111)SrTiO₃ films, and CeO₂ or BaTiO₃ as a surface-supporting material was deposited under the following conditions: oxygen partial pressure of 20 mTorr, substrate temperature of 580 °C, and deposition time of 1 h. The sample names of the LTO films with deposited CeO₂ and BaTiO₃ micropads are Pad-CeO₂/LTO and Pad-BTO/LTO, respectively. XRD measurements were carried out with Smartlab (Rigaku). The 2032-type coin cell was assembled in an Ar-filled glove box using a prepared thin film as an anode, Li metal as a counter electrode, and 1 mol l⁻¹ LiPF₆ in ethylene carbonate (EC):diethyl carbonate (DEC) = 3:7 as an electrolyte. Charge−discharge measurements were carried out with a voltage window of 1.0–2.0 V versus Li⁺/Li using the 580 Battery Test System (TOYO Corporation). The C-rate definition was utilized by calculating the theoretical discharge capacity of Li₄Ti₅O₁₂ (175 mAh g⁻¹) and the active material amount (the Li₄Ti₅O₁₂ deposited area x the film thickness). The finite element calculations were carried out using ANSYS-HFSS with dielectric constant of electrode, electrolyte and SEI as 25, 30 and 10, respectively. The value of SEI was assumed as that of LiF which is one of the main components of SEI. That of supporting material was set as 10 or 100 for low relative permittivity material (CeO₂ case) or high relative permittivity (BaTiO₃ case), respectively. The electrode and electrolyte were conductive material with σ = 1 S m⁻¹ and the SEI and supporting material were insulator with tanδ = 0.01.

Figure 1 shows the out-of-plane XRD results of the prepared thin films. The results for the noncoated Li₄Ti₅O₁₂ epitaxial thin film (Bare-LTO) indicated that Li₄Ti₅O₁₂ (111) and pseudo-cubic SrRuO₃ (111)_c were epitaxially grown on SrTiO₃ (111). Li₄Ti₅O₁₂ has 3D Li-ion paths, ^28,29) indicating that Li₄Ti₅O₁₂ (111) is an active surface for electrochemical reactions. The results for Pad-BTO/LTO showed BaTiO₃ 111-related diffraction peaks besides that of Bare. The results for Pad-CeO₂/LTO showed fluorite 111 (28.36°) and weak fluorite 200 (33.01°) diffraction peaks.

Zoom In Zoom Out Reset image size

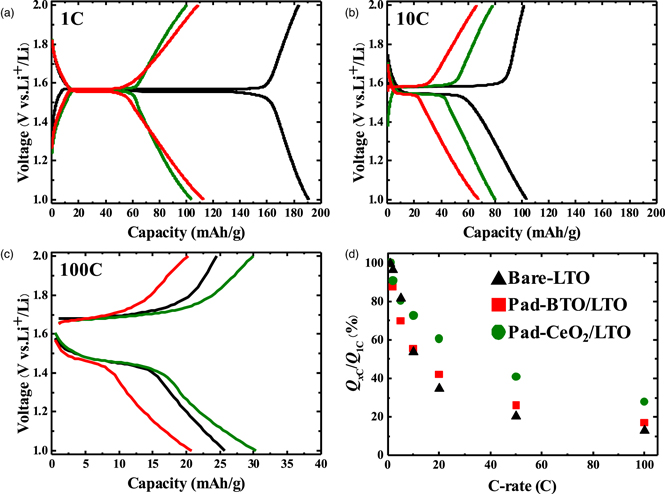

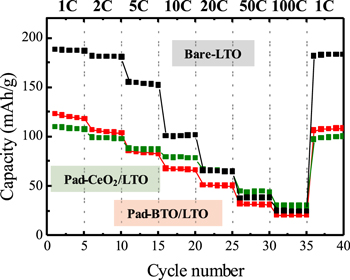

After Au-sputtering onto the backsides of the substrates, the prepared samples were introduced into an Ar-filled glove box to assemble coin cells. The electrochemical charge/discharge tests were carried out by increasing the C-rate stepwise. The charging capacities of the prepared thin films are shown in Fig. 2. That of Bare-LTO decreased with increasing C-rate. The micropad-deposited thin films showed less capacity than the Bare-LTO at low C-rates because a part of the thin film surface was completely covered by the CeO₂ or BaTiO₃ micropads, which does not conduct Li-ion. ¹⁵⁾ The charge/discharge curves at 1C, 10C, and 100C are shown in Figs. 3(a)–3(c), respectively. The charge/discharge curves at 1C implied that there were few voltage polarizations at each film and that a voltage plateau was obvious, suggesting that electrochemical reactions in an active area of LTO should be completely finished at 1C. As the C-rate increased, the capacities decreased, although a voltage plateau was observed even at 100C. This result indicates that the rate-determining step of the prepared thin films was not interfacial diffusion but rather inner diffusion, because the capacity decreased at the plateau voltage, implying an insufficient Li-ion supply at the electrode−electrolyte interface. The capacity retention at XC in relation to that at 1C plotted as a function of the C-rate is shown in Fig. 3(d). The results for Pad-CeO₂/LTO showed an increase in capacity retention at high C-rate, whereas those for Pad-BaTiO₃/LTO showed little increase. This result indicates that a low-permittivity material is suitable as a supporting material on LTO, unlike the case with LiCoO₂ cathode material. ^18,19) Although the polarization values of the plateau voltages were almost the same from film to film, the capacity retention varied depending on the supporting material, suggesting that the surface-supporting material affects the inner diffusion of Li-ion.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

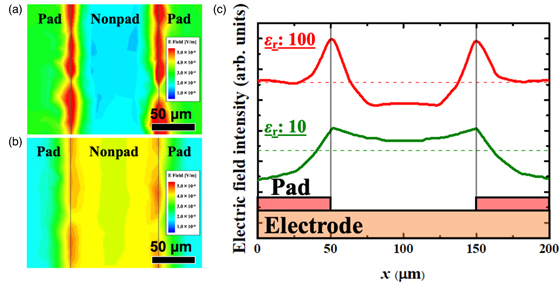

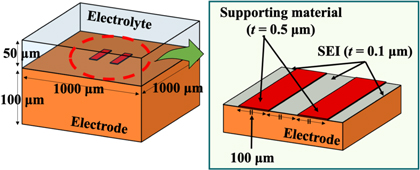

To discuss the effect of the supporting material on electrochemical performance, we carried out finite element method calculations using ANSYS-HFSS. First, we built a model structure (shown in Fig. 4) that possesses two microscale bars of a supporting material deposited on an electrode. A 0.1 μm thick SEI layer was introduced into the area where the electrode directly contacted an electrolyte. The permittivity values of the supporting material were 10 and 100 for low and high relative permittivities, respectively. Figures 5(a) and 5(b) show the calculated surface electric field maps with high and low relative permittivity-supporting materials, respectively. Both results suggest that the electric field concentration could be observed at the TPIs, whereas the intensity differed. In Fig. 5(c), we replotted the intensities of the electric field concentration, averaging through the vertical direction of Figs. 5(a) and 5(b). In addition, the average intensity across the whole range is shown by dashed lines. The result in the case of ε_r = 100 suggests that the electric field concentration occurs in the ∼15 μm range from the TPI, while that in the active area (far from the micropad and not covered by it) is weaker than the average value. On the other hand, the result in the case of ε_r = 10 indicates that the electric field concentration also occurs at the TPI; however, the electric field intensity in the active area far from the micropad showed a higher value than the average. The difference may originate from the valance of relative permittivity between that of the supporting material and that of the electrolyte. The electric field intensity at the electrode surface of nonpad area with low relative permittivity-supporting material is enhanced because of weakening that of under-pad area.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Finally, we discuss the difference between suitable supporting materials for LTO and those for LiCoO₂. Although lattice distortion in LiCoO₂ is generated during Li⁺ de-insertion, ³⁰⁾ Li₄Ti₅O₁₂ is known as an electrode material without strain during Li⁺ insertion. ³¹⁾ Local strain or electric field could induce the phase transition of film, ^32,33) however, Li₄Ti₅O₁₂ epitaxial thin film eliminates strain contributions. In this study, we revealed that the rate-determining step of LTO was different from that of LiCoO₂. In the case of active materials whose rate-determining step is interfacial diffusion, even if the electric field concentration appeared in a narrow range from the TPIs, it could be superior for retaining capacity at a high C-rate because of the acceleration of Li-ion motion by the electric field. However, in the case of active materials with an inner diffusion limiting step, the Li-ion inner diffusion could be accelerated by the electric field. The calculation results suggested that the electric field intensity under the nonpad area is higher than the average when a supporting material with low relative permittivity is used, indicating that the amount of reactive Li-ion during the charge/discharge process should increase, resulting in good high C-rate performance. Therefore, in the process of introducing a supporting material onto an electrode surface to improve high-speed rechargeability, we should consider the rate-determining steps in an active material and choose suitable supporting materials.

In this study, we evaluated the effect of introducing a surface-supporting method onto anode materials via an epitaxial thin film approach. By preparing CeO₂ or BTO micropads deposited on LTO epitaxial thin film, the relative permittivity effect of a surface-supporting material was also examined. The high C-rate performance of CeO₂- or BTO-deposited film improved, whereas Pad-CeO₂/LTO showed better performance at 100 C than Pad-BTO/LTO. The charge−discharge curves of the prepared thin films indicated that the film's rate-determining step was inner diffusion. Finite element calculation revealed that low-permittivity material is a good surface-supporting material in an electrode material whose rate-determining step is inner diffusion.

This study was partially supported by JSPS KAKENHI Grants-in-Aid for Scientific Research (A) (M.I., 20H00314) and (B) (Sh.Y., 19H02426, T.T., 18H01707, 21H01625), for Challenging Research (Exploratory) (Sh.Y., 18K19126), and for Research Activity Start-up (So.Y., 20K22549), and by the MEXT Elements Strategy Initiative to Form a Core Research Center, and by Collaborative Research Project of Laboratory for Materials and Structures, Tokyo Tech., Murata Science Foundation and by Project of Creation of Life Innovation Materials for Interdisciplinary and International Researcher Development MEXT.
