Rational Combination of Promiscuous Enzymes Yields a Versatile Enzymatic Fuel Cell with Improved Coulombic Efficiency

D-glucose, D-galactose, D-gluconolactone, D-fructose, D-mannose, D-ribose, tetrabutylammonium bromide (TBAB), ferrocenium hexafluorophosphate (Fc⁺PF₆⁻), hydrochloric acid (HCl, 37%), Nafion perfluorinated resin, dimethylferrocene (FcMe₂), 3-bromopropanoyl chloride, aluminum chloride, sodium bicarbonate, sodium chloride, sodium hydroxide, magnesium sulfate, borane-tertbutylamine, poly(2-ethyloxazoline), and paraffin wax were purchased from Sigma-Aldrich (St. Louis, MO) and used as-received, unless specified otherwise. Sucrose, D-xylose, D-maltose monohydrate, D-cellobiose, β-D-lactose, and 2-deoxy-D-glucose were purchased from Alfa Aesar (U. S. A.) and used as received. Citric acid monohydrate and sodium phosphate dibasic (anhydrous) were obtained from Fisher-Scientific (U. S. A) and used as received. Sodium phosphate monobasic (monohydrate) was purchased from Macron and used as received. Untreated Toray carbon paper was purchased from Fuel Cell Earth (TPG-H-060) and used as received. Ethylene glycol diglycidyle ether (EGDGE) was purchased from Polysciences, Inc. and used as received. Water used was from a Millipore Type 1 (Ultrapure) Milli-Q system (18.2 MΩ cm at 25°C). Anthracene-modified multi-walled carbon nanotubes (Ac-MWCNTs) were prepared as previously reported.³⁸ Glucose oxidase (bGOx, broader substrate glucose oxidase, Lot N0151331R) and bilirubin oxidase (BOx, E.C.: 1.3.3.5, Myrothecium sp., Lot B0L0852601) were obtained from Amano Enzyme Inc. (Japan) and used as received. Pyranose dehydrogenase (PDH, E.C.: 1.1.99.29) from Agaricus meleagris was obtained from Huvepharma (Sofia, Bulgaria), recombinantly expressed in Pichia pastoris and purified as reported elsewhere.³⁹ Dimethylferrocene-functionalized linear poly(ethylenimine) (FcMe₂-C₃-LPEI) and tetrabutylammonium bromide-modified Nafion (TBAB-Nafion) were synthesized as previously reported.^38,40

The specific enzymatic activity of PDH (21.5 ± 0.3 U mg⁻¹) was determined at pH 7.5 using a modified procedure^41,42 by following spectrophotometrically the D-glucose dependent reduction of the ferricenium ion (Fc⁺) to ferrocene at 300 nm (e₃₀₀ = 4.3 mM⁻¹ cm⁻¹) for 3 min in a standard reaction mixture containing 200 μL Fc⁺PF₆⁻ (1 mM), 50 μL glucose (50 mM, pH 7.5), 1 mL potassium phosphate buffer (pH 7.5, 100 mM) and 2 μL of the appropriately diluted PDH sample (Figure S1). The solution of Fc⁺PF₆⁻ was freshly prepared by dissolving the salt (3.3 mg) in 10 mL of 5 mM HCl. Prior to the UV-Vis assay, all the stock solutions are incubated at 30°C and one unit of PDH activity is defined as the amount of enzyme necessary for the reduction of 2 μmol ferrocenium ion per min under the conditions described above. The specific enzymatic activity of bGOx (30.0 ± 2.0 U mg⁻¹) was determined at pH 6.5 as previously reported.³⁷ A Thermo Scientific Evolution 260 Bio UV-visible spectrophotometer was used for enzymatic activity assays.

Bioelectrode preparation

For all bi-enzymatic bioelectrodes, the optimized conditions for the preparation of the bioanodes containing both enzymes consist on the vortex mixing of bGOx (4 mg mL⁻¹, 4.5 μL) and PDH (20 mg mL⁻¹, 4.5 μL) with FcMe₂-C₃-LPEI (10 mg mL⁻¹, 21 μL) and EGDGE (10% vol.%, 1.125 μL). For figures using only a single enzyme (such as Figure 1), a doubled quantity of the enzyme was used (i.e., 9 μL of the above enzyme solution). Denatured enzyme controls were performed throughout, whereby denatured enzymes (dPDH or dbGOx) are obtained by heating at 100°C for 20 min; in the case of bi-enzymatic bioelectrodes employing denatured enzymes, the denatured enzyme served as a direct replacement for its active counterpart. Figure S1a (red spectrum) shows that this initiated denatured method is efficient to suppress the biocatalytic activity of the enzyme. Then, a suitable volume (30 μL) of this mixture is coated on an L-shape Toray carbon electrode surface. The modified bioelectrodes were left to dry overnight at room temperature and were rinsed with ultrapure water before use. BOx biocathodes were prepared (as previously reported) by adding Ac-MWCNTs (7.5 mg) to BOx (20 mg mL⁻¹, 75 μL) in citrate/phosphate buffer (0.2 M, pH 6.5). The covalent modification of graphite electrodes and MWCNTs with hydrophobic anthracene was previously demonstrated to improve the efficiency of DET with BOx.^43,44 The mixture was exposed to a series of successive vortex mixing/sonication steps, followed by the addition of 25 μL of TBAB-Nafion and an additional vortex mixing/sonication step.^8,38 In all experiments, 33 μL of the resulting biocathode mixture was deposited on a Toray carbon paper electrode, which was cut into L-shape and coated with paraffin wax at the connecting ends to have 1 cm² exposed electrode area.

Zoom In Zoom Out Reset image size

Cyclic voltammetry (CV)

Enzymatic fuel cell (EFC) tests

Electrolysis was performed in a non-compartmentalized cell in conventional three-electrode configuration using a Pt mesh and a SCE as the auxiliary electrode and reference electrode, respectively. The working electrode consists of a Toray carbon paper piece that was cut into an L-shape and coated with paraffin wax at the connecting ends resulting in a 1 cm² square plate as the exposed electrode area. The long-term electrolysis was performed at fixed electrode potential of 0.3 V vs. SCE for 4 h. The cell was filled with 10 mL of solution. To avoid the presence of citrate (carbon source) in the final product distribution, the electrolytic solution for electrolysis was a simple sodium phosphate buffer (0.2 M, pH 6.5). Finally, the electrolyses were carried out using a CHI 611 C potentiostat (CH Instruments, Inc., U.S.A.).

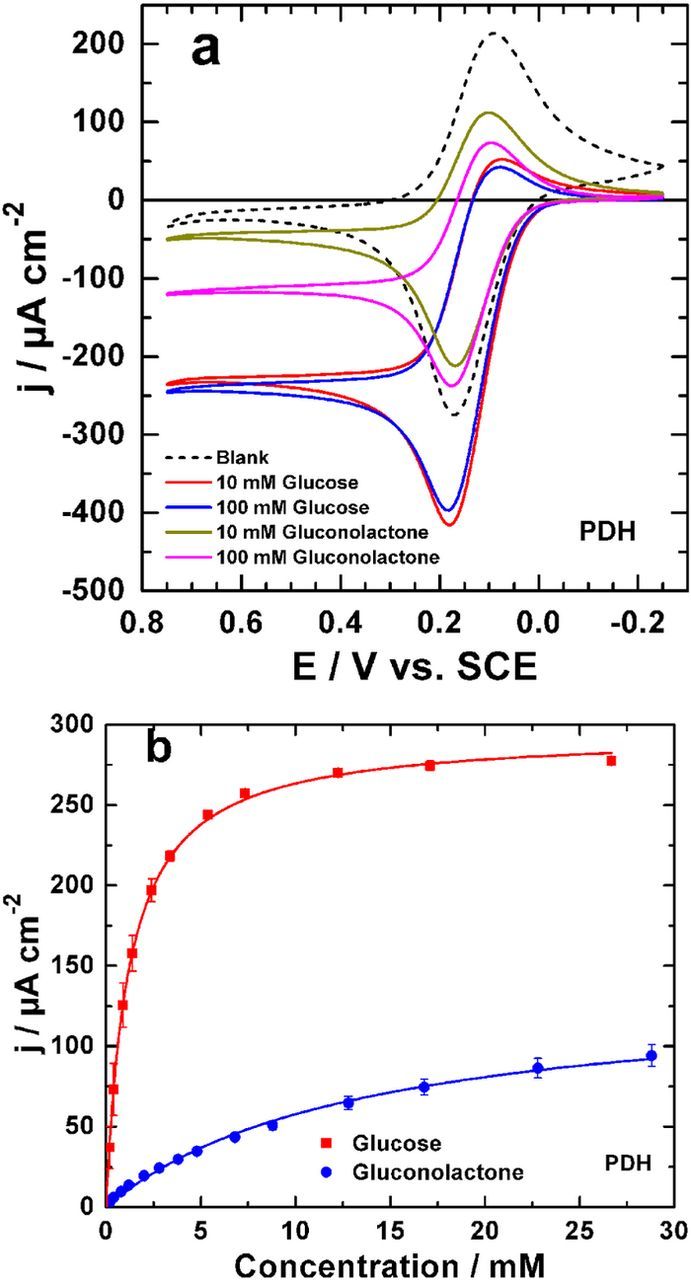

Before coupling bGOx to PDH, we initially evaluated the ability of the fabricated PDH bioelectrodes to oxidize glucose and gluconolactone (the inevitable intermediate formed during glucose oxidation at the anomeric carbon, by GOx), both employed as models fuels. Figure 1a presents typical CVs obtained for PDH bioelectrodes operating in the presence of glucose or gluconolactone. The blank electrode (in the absence of substrates) shows a pair of redox peaks, with an approximate E⁰ of +0.195 V vs. SCE, which is attributed to the Fc/Fc⁺ redox couple of the FcMe₂-C₃-LPEI redox polymer.³⁷ Following the addition of each substrate, an oxidative catalytic wave is observed with an approximate onset potential of 0 V vs. SCE, which was attributed to the mediated bioelectrocatalytic oxidation of glucose or gluconolactone, as supported by the control experiments (Figure S1). For gluconolactone, the increase of the concentration is accompanied by a significant current increase in the limited region (E ≥ 0.4 V vs. SCE). The current density for glucose oxidation does not significantly change when increasing glucose concentration from 10 to 100 mM, implying that 10 mM glucose is enough to saturate the bioelectrode. Saturation of glucose bioelectrodes at low glucose concentrations is desirable (when coupled to large current densities), since minimal fuel is required for EFC operation and the EFC could effectively operate under physiological glucose concentrations (ca. 5 mM).⁴⁰ These findings suggest that the apparent affinity (K_M^app) is relatively small for glucose compared to gluconolactone. To probe the hypothesis of fast glucose saturation at a PDH bioelectrode, we determined the apparent Michaelis-Menten kinetics for the PDH bioelectrodes for glucose and gluconolactone by performing amperometric i-t evaluation at a fixed applied potential of 0.23 V vs. SCE. The resulting kinetic plots and associated non-linear regressions (to the Michaelis-Menten model) are reported in Figure 1b. The K_M^app for glucose was determined to be 1.2 ± 0.0 mM (j_max = 298 ± 2 μA cm⁻²) compared to gluconolactone with a K_M^app = 13.4 ± 0.6 mM (j_max = 145 ± 2 μA cm⁻²). Under our experimental conditions, i.e. pH = 6.5, the reduced performance of gluconolactone is likely a function of its expected hydrolysis into a non-pyranosic structure (gluconate), since the pKa of the gluconic acid is 3.76.⁴⁵ It is possible, however, that substrate recognition of gluconolactone by PDH is diminished in its non-pyranosic form. Overall, these results clearly demonstrate that the FcMe₂-C₃-LPEI redox polymer can be used to facilitate mediated electron transfer (MET) from PDH.

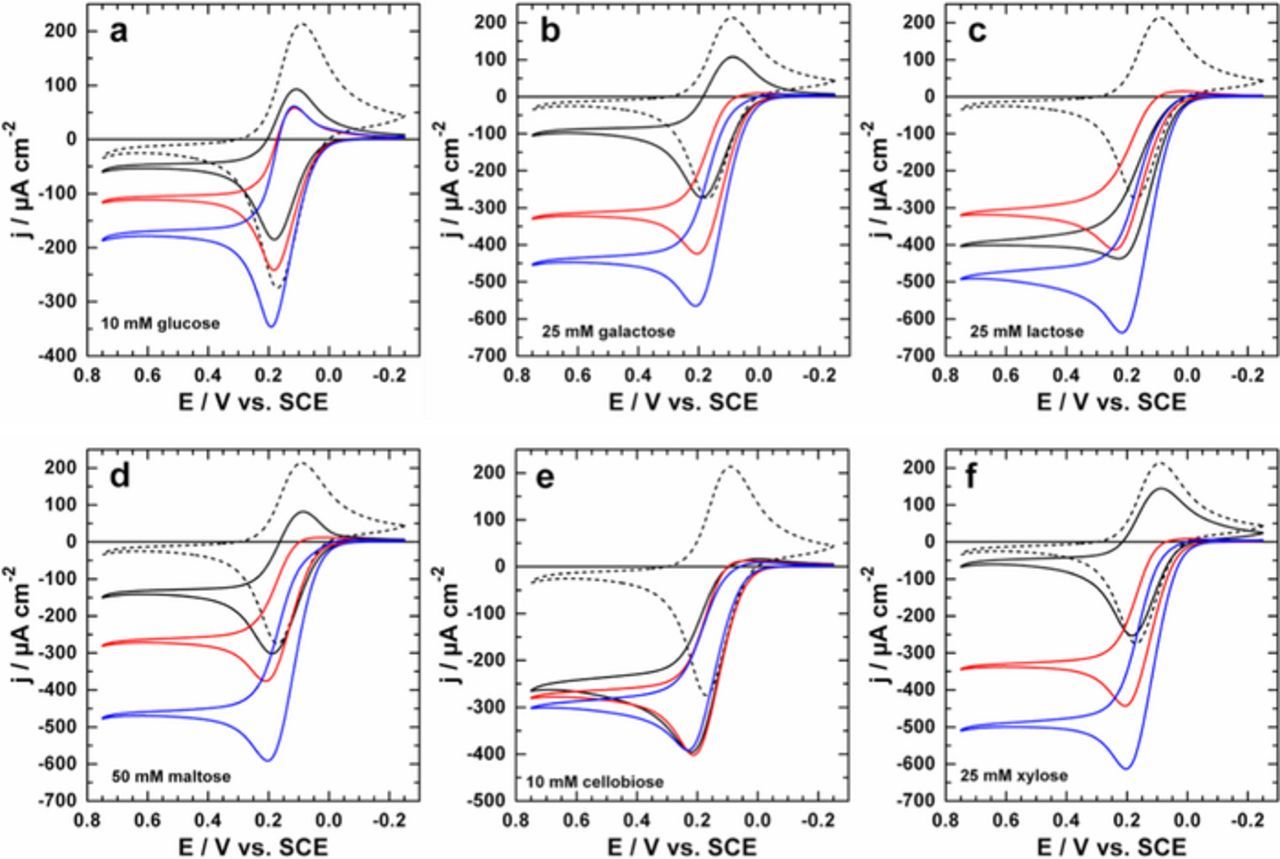

We then proceeded by analyzing the compatibility of bGOx and PDH within the same bioelectrode architecture. As previously demonstrated, bGOx is able to oxidize a wide range carbohydrates at their anomeric position (when the C1 is not involved in a glycosidic linkage).³⁷ Due to the ability of PDH to facilitate oxidations at alternative C positions to bGOx for many substrates (with multiple oxidations possible for many substrates, i.e. C2 + C3), the combination of bGOx and PDH within the same electrode architecture could yield a bioelectrode that is able to extract up to 6e⁻ from a single molecule of glucose. We envisaged that the oxidative product of bGOx could still undergo oxidation of PDH, or vice versa. The real suitability of this approach, however, could be experimentally hampered by the inability of the product of either bGOx or PDH to undergo further oxidation by its counterpart. To evaluate the activity of the individual enzymes (where control bioelectrodes were prepared using denatured counterpart enzymes, PDH-dbGOx and dPDH-bGOx) as well as the final complete PDH-bGOx bi-enzymatic bioelectrodes, differing saccharides were used to perform a series of CV experiments in citrate/phosphate buffer (0.2 M, pH 6.5). Figure 2 presents the bioelectrocatalytic oxidation of glucose, galactose, lactose, maltose, cellobiose and xylose by the individual enzymes and the bi-enzymatic bioelectrode. Additional CVs for the oxidation of ribose, sucrose, mannose, 2-deoxy-D-glucose, fructose and gluconolactone (all of which were previously demonstrated to be silent for oxidation by bGOx) are reported within the Supporting Information (Figure S2).³⁷ For blank electrodes (in the absence of substrates), the same pair of redox peaks was observed with an approximate E⁰ of +0.195 V vs. SCE, assigned to the Fc/Fc⁺ redox couple of the FcMe₂-C₃-LPEI redox polymer.^37,46 Following the addition of each substrate, an oxidative catalytic wave is observed with an approximate onset potential of 0 V vs. SCE. The chosen concentration of each substrate in these CV experiments was based on the K_M^app values (see below) and based on several preliminary experiments. With the exception of cellobiose, the bi-enzymatic bioelectrode consisting of PDH and bGOx exhibits larger current densities in the limited region (E ≥ 0.2 V vs. SCE) of each CV, indicating that the products of either bGOx or PDH are still active on the electrode (for all substrates). It is also likely that the response observed for cellobiose is simply a function of the experimental conditions (i.e., hydrostatic, fast scan rate), so steady-state experiments were performed and are detailed below and within the Supporting Information. Herein, PDH and bGOx are randomly distributed within the electrode architecture. However, the promiscuous nature of each enzyme eliminates the necessity of the reaction intermediates to diffuse between enzymes in a specific reaction sequence. These cyclic voltammograms suggest that both enzymes are compatible within the same bioelectrode architecture, although these experiments were only compared at a single substrate concentration that may or may not be a saturating concentration for either/both enzyme(s).

Zoom In Zoom Out Reset image size

We next evaluated the apparent Michaelis-Menten kinetics of each substrate under quasi-steady state conditions, to compare the K_M^app and j_max of each substrate at the bioelectrodes by continuously increasing the concentration of each individual substrate. The solution was slightly stirred during the entire experiment with an applied potential of 50 mV more positive than the oxidative peak potential, typically E_applied = +0.23 V vs. SCE. The obtained amperometric response resulting from the addition of each saccharide is reported within the Supporting Information (Figures S3-4). The Michaelis-Menten model was applied by non-linear regression and used to evaluate the apparent kinetics of the bioelectrodes for each substrate. The determined K_M^app and j_max values are reported in Table I. Kinetic data for PDH and bGOx in homogeneous solutions (not immobilized at an electrode surface) have been previously reported.^47–49 Among the investigated substrates and with the exception of lactose, PDH exhibits lower K_M^app values than bGOx (and thus, improved affinity). Subsequently, when both enzymes are active within the bi-enzymatic bioelectrode, the value of K_M^app is situated between those of the individual enzymes. For the bi-enzymatic PDH-bGOx bioelectrodes, the lowest value of K_M^app is observed for xylose (1.7 ± 0.1 mM), galactose (2.1 ± 0.1 mM) and glucose (2.6 ± 0.4 mM). However, j_max increases in the following order: galactose (306 ± 4 μA cm⁻²) > glucose (265 ± 7 μA cm⁻²) > xylose (236 ± 3 μA cm⁻²). Cellobiose yields the largest maximum current density (j_max = 353 ± 2 μA cm⁻²) but has a relatively higher K_M^app (3.0 ± 0.1 mM) that is ca. 2-fold larger than that of xylose. By taking into account the values of K_M^app and j_max, EFCs operating on glucose, xylose, galactose and cellobiose are expected to deliver improved performances over other substrates.

While CV and amperometric/Michaelis-Menten data suggest some substrates may be good candidates to undergo multiple/sequential oxidations at these bi-enzymatic bioelectrodes, further evidence is required to confirm such a mechanism; Determination of the depth of saccharide oxidation section below details substrate analysis and charge quantification experiments.

Based on the aforementioned CV results, we used the bi-enzymatic PDH-bGOx bioelectrode for optimization of the EFC tests. Among the multitude of methods for EFC testing available and based on our previous preliminary tests, we chose a quasi-steady-state galvanostatic method, where the rate depends on the nature of the fuel cell. The EFC performances were compared in terms of open circuit voltage (OCV), maximum power density (P_max) and maximum current density that can be drawn also known as the short circuit current (j_sc). We first examined whether the rate of the current ramp influences the performance of the EFCs. Figure S5 depicts the obtained fuel cell polarization curves where the current ramp rate varies between 0.1 to 1.2 μA s⁻¹, employing 40 mM glucose as the fuel. By increasing the rate, the P_max increases from 144 μW cm⁻² (0.1 μA s⁻¹) and reaches a maximum around 159 μW cm⁻² (1.2 μA s⁻¹). It should be pointed out that a rapid current ramp rate does not enable the EFC to reach equilibrium. This could consequently lead to the overestimation of EFC performances. As a compromise between EFC under/over estimation and practicality, a current ramp rate of 0.2 μA s⁻¹ (P_max = 125 μW cm⁻², j_sc = 627 μA cm⁻²) was selected and used for all remaining EFC characterization throughout this study.

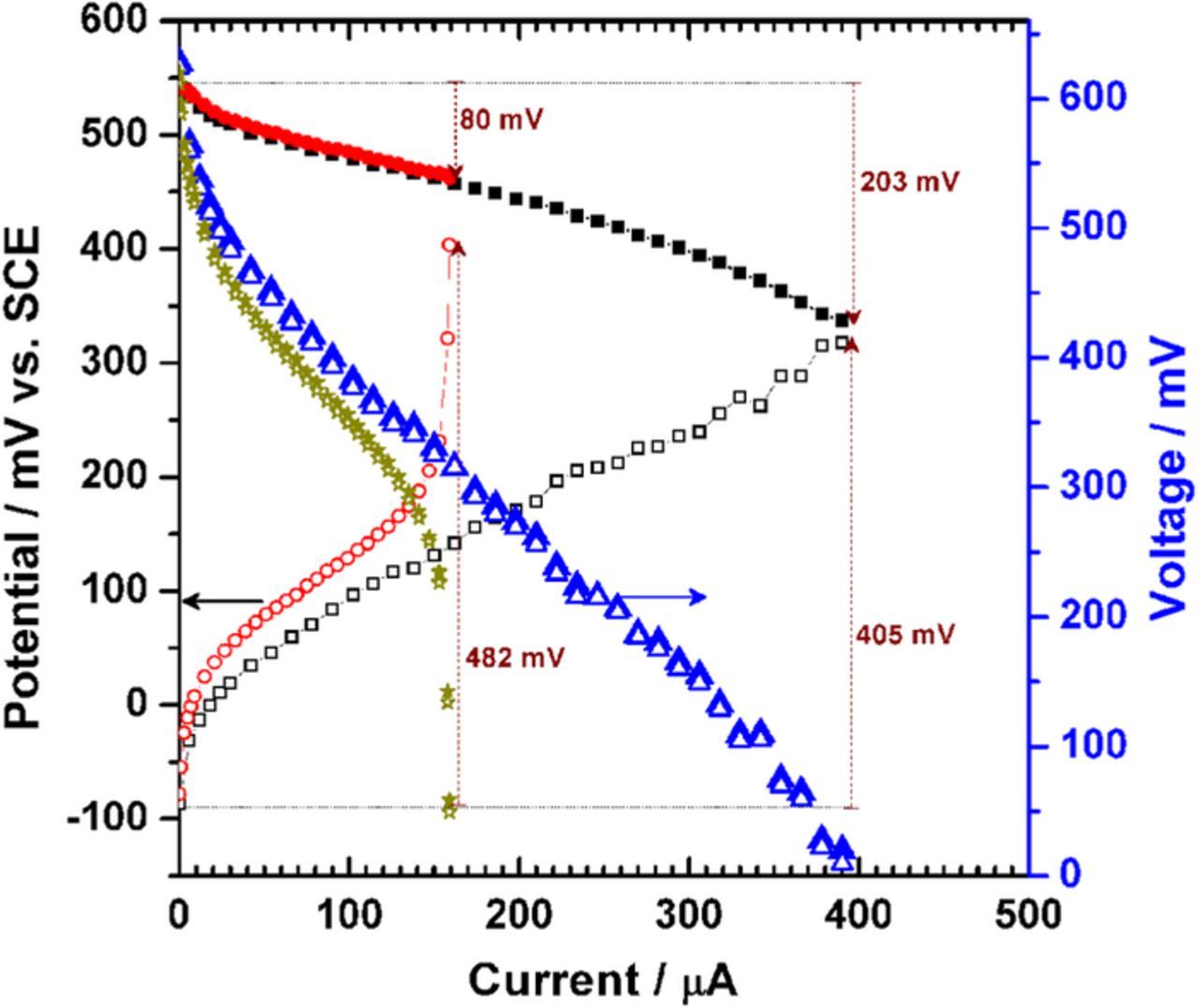

Furthermore, the changes in the anodic (E_A) and cathodic (E_C) electrode potentials when the fuel cell delivers current were evaluated using 40 mM glucose as the model fuel. As reported in Figure 3, when the anode electrode size is 0.25 cm², E_A undergoes a prominent increase with a ΔE_A of 0.48 V from the E_cell of 0.62 V (OCV) to 0.09 V while the ΔE_C remains at a small value of 0.08 V. If the size of both electrodes is 1 cm², the ΔE_A is 0.40 V and the ΔE_C is 0.20 V. In other words, the anode is the limiting-electrode. Such results clearly demonstrate that the EFC performances are limited by the anodic reaction, which is desired in order to compare the performances of each EFC as a function of the ability of the bi-enzymatic bioanode to oxidize multiple substrates. Consequently, we chose the electrode sizes of 0.25 cm² for the bioanode and 1 cm² for the biocathode, so that the EFC performances will be accurately compared on the only basis of each (oligo)saccharide.

Zoom In Zoom Out Reset image size

As evaluated above, CVs of the bi-enzymatic bioelectrodes suggest that both enzymes are compatible. Additionally, amperometric i-t analysis and its application to the Michaelis-Menten model suggest that multiple oxidative reactions are possible (especially in cases where the j_max for the bi-enzymatic bio-electrodes exceeds the total j_max for the combined individual bioelectrodes). To demonstrate the versatility of this EFC configuration based on the bi-enzymatic PDH-bGOx bioanode, we examined a range of substrates as fuels (50 mM). The EFCs were operated in a single compartment (membrane-less) using a BOx direct electron transfer-type (DET) biocathode and operated at pH 6.5 and room temperature; O₂ or additional air purging was not performed and the bioanodes were the limiting components as demonstrated previously. Figure S6 depicts the recorded OCV as a function of time, where a steady-state was typically reached after a few minutes. Table II reports the recorded OCV in the presence of different substrates varying between 0.56 V (fructose) to 0.64 V (cellobiose). The low value of OCV for fructose is undoubtedly due to the fact that fructose shows the poorest catalytic activity (see Figure S2e).

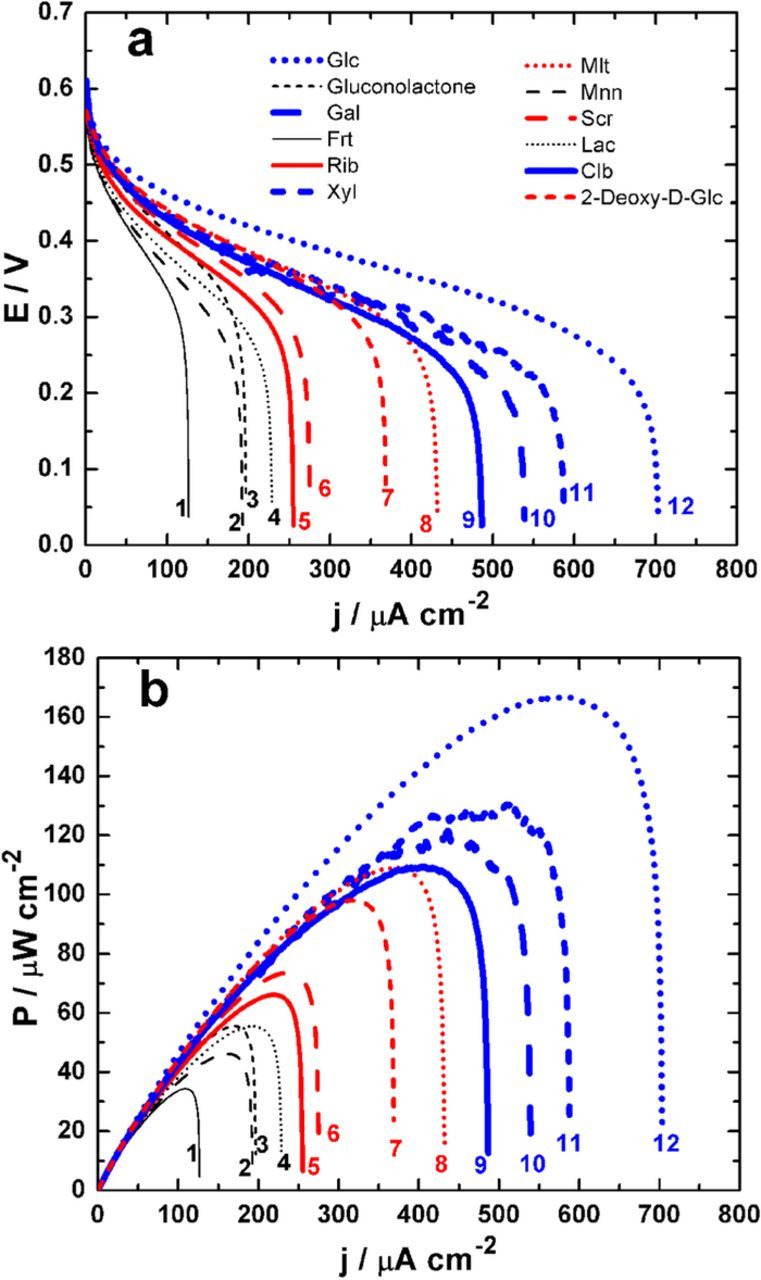

Figure 4 presents the polarization and resulting power cures for different fuels. The extracted parameters of interest, i.e., P_max and j_sc are reported within Table II. The best performances are obtained when glucose is used as the fuel (P_max = 167 ± 1 μW cm⁻², j_sc = 705 ± 5 μA cm⁻²). Using 50 mM glucose, the obtained OCV of 0.6 V and P_max of 167 μW cm⁻² surpass the only reported hybrid EFC (using PDH-CDH bioanode and Pt cathode), that yielded an OCV of 0.5 V and P_max of 135 μW cm⁻² operating in 100 mM glucose.³³ The origin of this enhanced performance is attributed to different reasons including: (i) the performance of the engineered glucose oxidase compared to CDH, (ii) the FcMe₂-C₃-LPEI redox polymer used to facilitate MET from PDH compared to the Os redox polymer hydrogel employed in the reference and (iii) the use of bilirubin oxidase at the biocathode that enables the a 4e⁻ reduction of O₂ to H₂O at a high potential compared to a Pt abiotic cathode.

Zoom In Zoom Out Reset image size

Even though xylose is expected to offer improved performance over glucose at PDH bioelectrodes,³² the kinetics of bGOx toward xylose oxidation is very low (K_M^app = 44 ± 3 μA cm⁻² vs. K_M^app = 1.8 ± 0.1 μA cm⁻² for PDH) which leads to lower performances (P_max = 130 ± 1 μW cm⁻², j_sc = 586 ± 3 μA cm⁻²). Furthermore, the EFC tests show that deeper glucose oxidation can effectively be facilitated by the EFC since gluconolactone leads to an OCV of 0.58 ± 0.01 V, a P_max of 54 ± 1 μW cm⁻² and a j_sc of 95 ± 5 μA cm⁻². To further demonstrate the suitability of this PDH-bGOx bioanode in EFCs fueled by alternative substrates to glucose, EFC tests were performed with other sugars such as galactose, lactose, cellobiose, maltose, mannose, sucrose, ribose and 2-deoxy-D-glucose. Figure 4 and Table II demonstrate that galactose, cellobiose and maltose can be potential substrates for this EFC configuration. Since the performances of disaccharides are lower than that of glucose, we hypothesize that hydrolysis does not occur and that oxidation takes place at complete disaccharides.

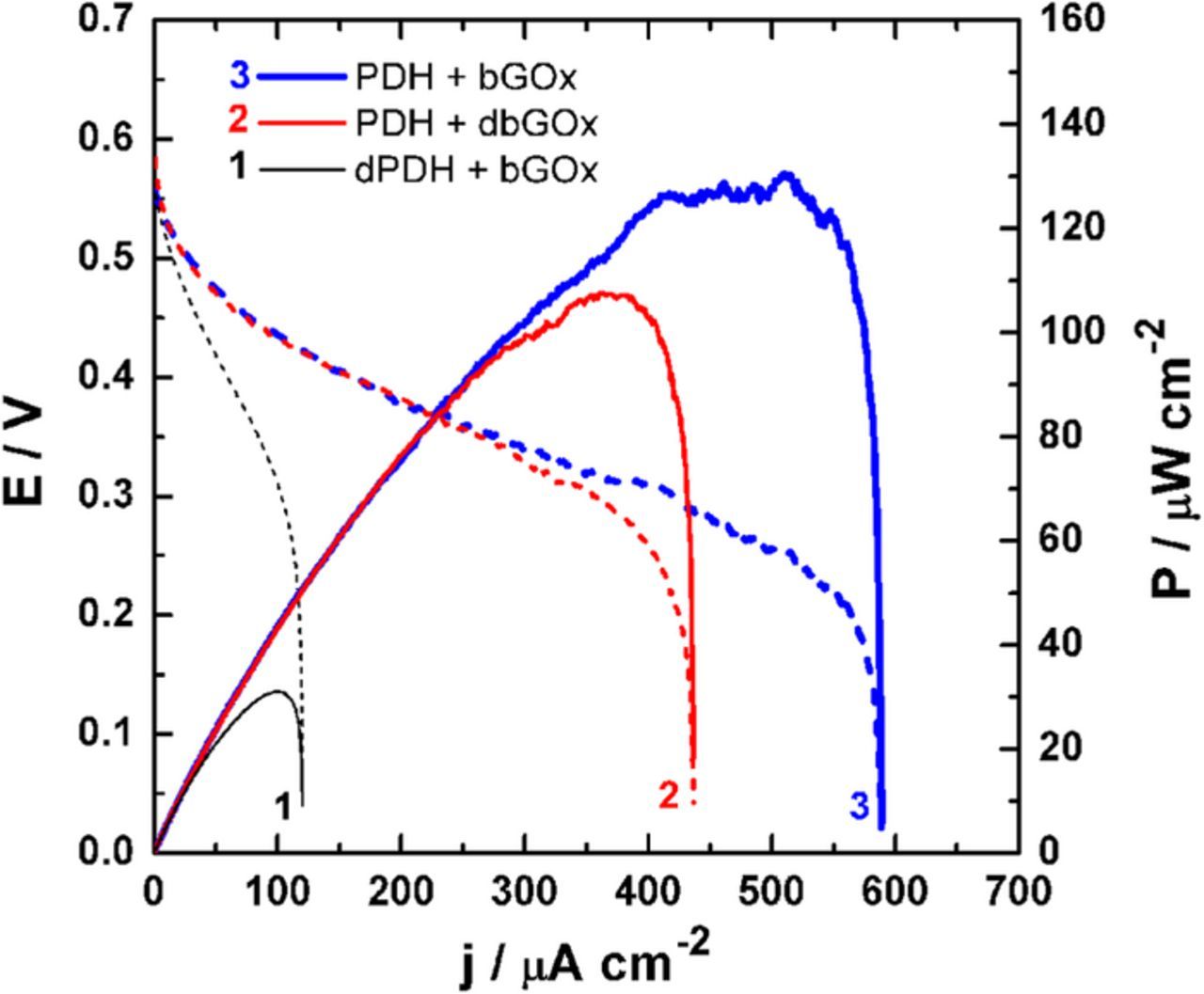

With the aim to determine exactly the role of each enzyme during the EFC operation, we performed three series of tests using mono- or bi-enzymatic bioanodes: PDH + bGOx, PDH + dbGOx and dPDH + bGOx, where 50 mM xylose was used as the model fuel. As displayed in Figure S7, the recorded OCV strongly depends on the nature of the bioanode. When only PDH is active, the OCV is 0.61 ± 0.00 V (PDH + bGOx). This value decreases to 0.56 ± 0.01 V (dPDH + bGOx) in the case of bGOx. Interestingly, the presence of both enzymes leads to an intermediate OCV of 0.59 ± 0.01 V (PDH + bGOx). Consequently, we postulated that the first step on the multiple oxidations might take place at the active site of bGOx and the kinetics of the "hybrid biocatalyst" is limited by the diffusion of the intermediate (resulting from the carbon C1-position oxidation) toward the PDH active site where it is further oxidized at the C2 and/or C3 position. The recorded fuel cell polarization curves (as shown in Figure 5) substantiate the above hypothesis. PDH + bGOx facilitates a P_max = 130 ± 1 μW cm⁻² and a j_sc of 586 ± 3 μA cm⁻². For PDH + dbGOx the P_max and j_sc decrease to 107 ± 1 μW cm⁻² and 440 ± 4 μA cm⁻². Because of the high K_M^app of bGOx, the performance of dPDH + bGOx is limited to a P_max of 31 ± 1 μW cm⁻² and a j_sc of 120 ± 1 μA cm⁻². It is important to note that these sets of measurements were also performed using 10 mM glucose (plots not shown herein), resulting in the same conclusions. Overall, the ability for the bGOx to be coupled to an additional enzyme such as PDH provides wider practical applicability using various (oligo)saccharides, with additional deeper fuel oxidation in multiple oxidative steps. We are highly confident that upcoming improvements in cell design, namely the size and flow conditions in a suitable operating temperature, will lead to current and power increases for a wide range of applications.

Zoom In Zoom Out Reset image size

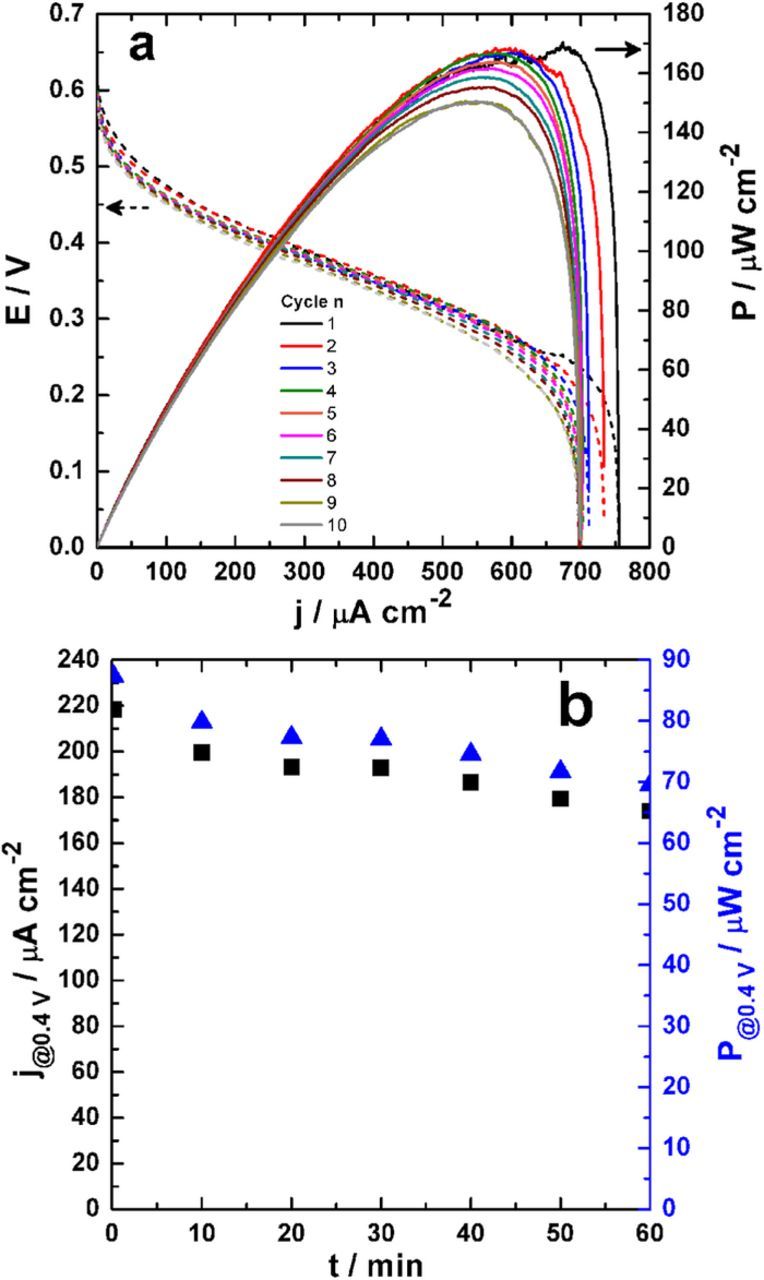

Although EFCs are able to produce high power densities from a range of fuels under mild conditions, unsatisfactory long-term stability EFCs is commonly a significant drawback. To this end, we initially investigated the durability of the final EFC configuration by recording several successive polarization curves without refreshing the bioelectrodes. The obtained results are presented in Figure 6a and the corresponding parameters of interest, i.e., the P_max and j_sc are reported in Figure S8a. After 10 rounds of discharge, the remaining P_max and j_sc values are 89% and 92% of their initial values. To further demonstrate the industrial applicability of our system, we performed a continuous 12-hour durability measurement by recording the current that can be produced at a cell voltage of 0.4 V. This long-term evolution of the current density (left y-axis) and output power density (right y-axis) is displayed in Figure S8b. The first hour of the EFC operation (Figure 6b) does not show any significant performance losses. However, the progressive decrease of the current and power after 2 hours may be attributed reasonably to glucose consumption since there is no continuous renewal of the substrate. Furthermore, even if the solution is slightly stirred during the 12 hours, the performances will be limited by the mass-transport phenomenon at the anodic reaction as expected, as the designed EFC operates under batch conditions without fuel renewal and the prompt removal of reaction products from electrodes.

Zoom In Zoom Out Reset image size

As investigated in Electrochemical characterization by cyclic voltammetry and amperometric i-t analysis sections and Evidence of multiple oxidative steps in EFCs above, current responses in the presence of differing substrates can be used to provide preliminary evaluation of the depth of substrate oxidation; however, this remains only a preliminary evaluation in the absence of chemical analysis due to potential kinetic/enzymatic complications (such as substrate/product inhibition, hydrolysis, etc.). Thus, we next sought to determine the depth of substrate oxidation by performing electrolysis experiments and measuring the concentration of remaining (unreacted) substrate within the electrochemical cell. Following an extended period of potentiostatic electrolysis, the amperometric trace was integrated to determine the charge passed (coulometry) during the experiment, which was combined with chemical analysis to determine the concentration of unreacted substrate within the electrochemical cell. This enables the determination of the number of electrons that were obtained from the oxidation of the substrate (i.e., the depth of substrate oxidation).

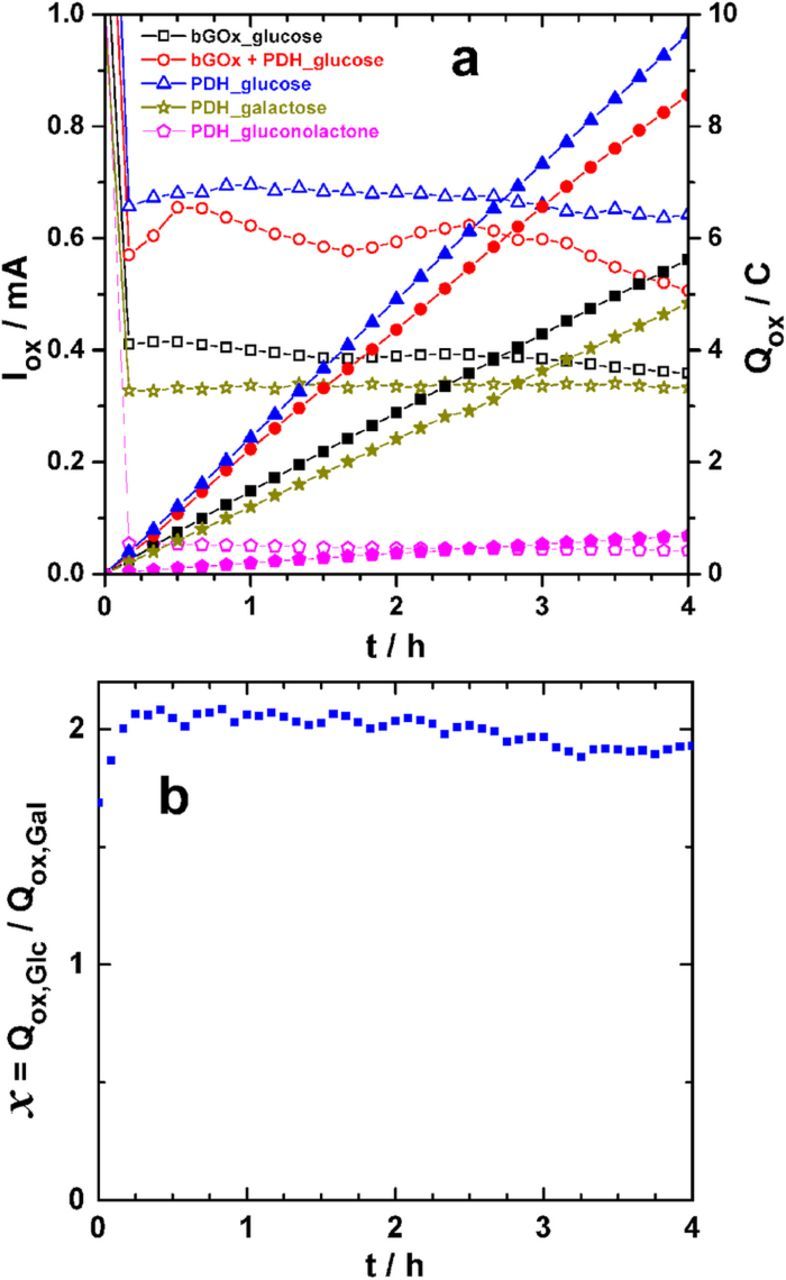

To confirm the extent of glucose oxidation by bGOx and PDH, we performed long-term electrolysis followed by substrate analysis. We hypothesize that the biocatalytic oxidation of glucose using bGOx bioelectrode concerns only the carbon at C1 position, thus involving an exchanged number of electrons (n_ex) of 2. According to Peterbauer and Volc,³² PDH has the ability to oxidize galactose exclusively at the C2 position (n_ex = 2), while the oxidation may happen at carbons C2 and C3 separately (n_ex = 2) as well as simultaneously (n_ex = 2 + 2 = 4) in the case of glucose or gluconolactone. Electrolyses were performed for glucose, galactose and gluconolactone independently at a concentration of 50 mM using PDH bioelectrodes. Following this, bGOx and PDH + bGOx were used for glucose electrolysis. Figure 7a compares the oxidation current I_ox (left y-axis) to the quantity of electricity (Q_ox, right y-axis) resulting from the oxidation of each substrate. The fast current decrease during the first 5 min is attributed to the leaching of partially unbound enzyme or redox mediator into solution. However, after a relatively long time of electrolysis, the I_ox is expected to decrease because of substrate consumption and/or catalyst deactivation. It should be pointed out that the overall I_ox vs. time behavior during such experiments strongly depends on the diffusion coefficient of each involved reactant and its reaction intermediate(s) and/or product(s). After 4 h of glucose electrolysis, Q_ox was determined to be 5.6, 8.5 and 9.5 C for bGOx, PDH + bGOx and PDH, respectively. For the electrolysis of galactose and gluconolactone by PDH, Q_ox was found to be 4.8 C and 1.9 C, respectively. For a theoretical n_ex = 2, the theoretical quantity of electricity (Q_th) is 2 × 0.05 × 0.01 × 96485 = 96.5 C for full conversion of 50 mM substrate in 10 mL of buffer, where the substrate concentration was 50 mM, the volume of the electrolyte was 10 mL and Faraday's constant is 96,485 C mol⁻¹. Subsequently, a Q_th of 192.9 and 289.5 C for n_ex = 4 and n_ex = 6 was calculated, respectively. After 4 h, the conversion of galactose at the PDH bioelectrode is estimated to be ca. 5%, Figure S9 reports the different scenarios depending on the value of n_ex. The electrolysis of gluconolactone on the PDH bioelectrode gives the lowest oxidation and Q_ox. This is in agreement with the previous results obtained by CV and EFC. This very poor performance compared to glucose can be explained by the pH (6.5) of the medium, in which the gluconolactone (cyclic) is swiftly hydrolyzed into gluconate (linear). This hydrolyzed "opened structure" exhibits decreased activity at PDH than its corresponding pyranosic (cyclic) counterpart. Gluconate is expected at pH = 6.5, since the pKa for gluconic acid is 3.76.

Zoom In Zoom Out Reset image size

For the simultaneous glucose oxidation at carbons C2 and C3, n_ex = 4 is expected for PDH bioelectrodes. In the case of galactose, we expect a total of 2e⁻ (exclusive oxidation at the C2 position). Then, by assuming the same conversion of glucose and galactose when the PDH bioelectrode is employed (same enzyme loading and electrode size), the ratio between the quantity of electricity from glucose and galactose electrolyses is expected to be x = Q_ox,Glc/Q_ox,Gal = 4/2 = 2. Figure 7b shows the evolution of this ratio during the entire electrolytic experiment. Our finding is in perfect agreement with the theory, thus underpinning the conclusion that galactose and glucose are oxidized in 2-electron and 4-electron processes at the PDH bioelectrode, respectively. The goal of this exploratory work is not to perform complete substrate conversion, but rather to provide an overview of the degree of substrate oxidation that can be obtained by PDH, and later, the PDH/bGOx bi-enzymatic bioelectrode. In the case of glucose electrolysis by PDH, we determined the glucose concentration remaining following the electrolytic experiment using a TRUE-2-Go commercial Blood Glucose Meter (MeterTRUE2go, NIPRO Diagnostics; U.S.A) that employs a pyrroloquinoline quinone-dependent GDH. Following electrolysis, the remaining glucose was determined to be 8.53 mg mL⁻¹ (ca. 47.4 mM). For a Q_ox of 9.5 C, the mean experimental exchanged number of electrons (n_exp) was evaluated by Eq. 1 to be 3.8, supporting the ability of PDH to be able to facilitate multi glucose oxidative reactions when mediated by FcMe₂-C₃-LPEI and immobilized at an electrode surface. Based on Eq. 2 and n_ex = 4, a faradaic yield of 95% is reached for the oxidation of glucose at the C2 and C3 positions when assuming a 4e⁻ process. Furthermore, the conversion rate can be readily manipulated by increasing the electrode area and enzyme loading on the electrode.

where Q_ox[C] is the charge, Δc[mol L⁻¹] = c₀-c_f, which are the initial and final concentrations of glucose, V[L] is the volume of the electrolysis solution (V = 0.01 L; τ_F is the faradaic yield).

To validate the ability to perform multiple oxidation reactions of a single saccharide molecule using a bi-enzymatic bioelectrode architecture, extended electrolysis (7 hours in potassium phosphate buffer (0.2 M, pH 6.5)) of glucose and xylose was performed for electroanalytical investigation. Figure S10 shows the obtained data, highlighting the excellent stability of the bioelectrode. The results in terms of I_ox and Q_ox are in agreement with the previous kinetic studies where K_M^app values of 43.8 ± 2.9, 1.7 ± 0.1 and 1.7 ± 0.1 mM for bGOx, PDH and PDH + bGOx bioelectrodes were obtained (in the case of xylose), respectively. These results suggest that the kinetics at the bi-enzymatic bioelectrode PDH + bGOx could be limited by the first oxidative step that presumably takes place at bGOx. Initially, we employed the previous TRUE-2-Go Blood Glucose test, to estimate the remaining glucose concentration and then evaluated n_exp (from Eq. 1) for bGOx, PDH and PDH + bGOx bioelectrodes separately. It should be noted that the amount of the enzyme is kept constant in the bi-enzymatic electrode (for better comparison). A custom electroanalytical method was employed to determine the remaining concentration of xylose that will enable the assessment of n_exp, since the commercial glucose sensor is not able to detect xylose; we turned to our previously-reported FAD-GDH bioelectrode for xylose detection.⁴⁰ Figure 8a presents the typical amperometric response of the FAD-GDH bioelectrode upon the addition of xylose, with an applied potential of 0.25 V vs. SCE (MET of FAD-GDH is facilitated by the FcMe₂-C₃-LPEI redox polymer). The Michaelis-Menten kinetic model (Figure S11) was applied by nonlinear regression, demonstrating a linear range at low substrate concentrations (c ≪ K_M^app, inset within Figure 8a). Figure 8b presents the ability of the FAD-GDH bioelectrode to quantify the remaining xylose concentration in an electrolytically-treated sample, whereby small aliquots of electrolyte (containing remaining xylose) obtained following electrolysis by mono- and bi-enzymatic PDH/bGOx bioelectrodes is injected into an electrolyte absent of xylose (in which the FAD-GDH bioelectrode is operating).

Zoom In Zoom Out Reset image size

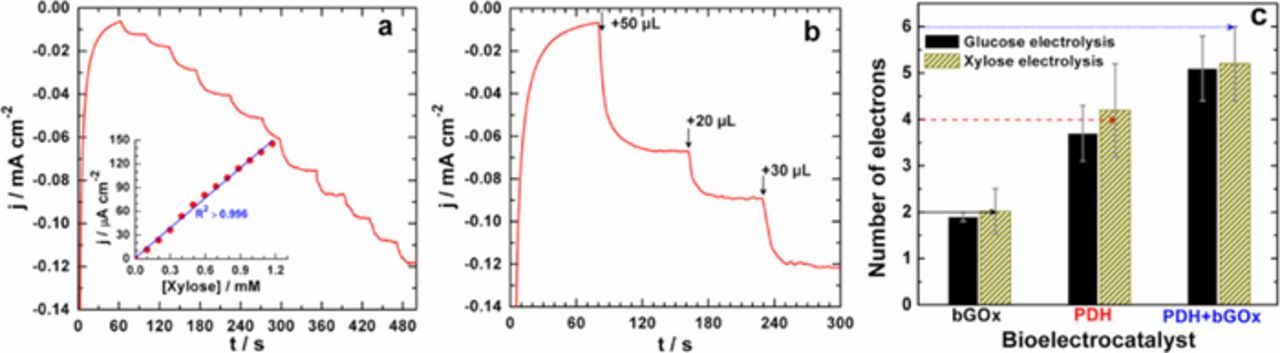

The experimentally determined n_exp following the electrolytic experiments is displayed in Figure 8c, for both glucose and xylose oxidations for mono- and bi-enzymatic PDH/bGOx bioelectrodes. For bGOx-only bioelectrodes, the obtained n_exp is 1.9 ± 0.1 (glucose) and n_exp = 2.0 ± 0.5 (xylose), which are close to the expected theoretical value (n_ex = 2), providing experimental evidence that glucose and xylose are oxidized in a single 2e⁻ process. Thus, the estimated faradaic efficiency (Eq. 2) on the basis of n_ex = 2 is nearly τ_F = 100%. For PDH-only bioelectrodes, n_exp was determined to be 3.7 ± 0.6 (glucose) and 4.2 ± 1.0 (xylose), certifying their multiple oxidations at the C2 and C3 positions, in agreement with the literature;³² the oxidation at one carbon (C2 or C3) yields n_ex = 2 and a twin oxidation (C2 + C3) yields n_ex = 4. It is important to note that the relatively-large deviation in error may come from the possible interference of the reaction products (C2/C3 oxidized products) with FAD-GDH during the assay. Interestingly, n_exp values of 5.1 ± 0.7 (glucose) and 5.2 ± 0.8 (xylose) confirm that the bi-enzymatic bioelectrodes are able to facilitate multiple substrate oxidative reactions (up to 6e⁻) with an associated faradaic efficiency of ca. 90% toward a 6e⁻ process for both substrates. Since n_exp is lower than the theoretical prediction "n_ex = 2 + 4 = 6", we assume that the reaction may lead to a mixture of C1 + C2/C3 (first step: 2 + 2 = 4 electrons) and C1 + C2 + C3 (second step: 2 + 2 + 2 = 6 electrons) oxidation. In this way, the value of n_exp will be between 4 and 6, as obtained experimentally. Future work will focus on the optimization of the experimental conditions for alternative analytical techniques.

In summary of these bulk electrolytic experiments, a commercial selective (by definition) glucose biosensor was used to determine the concentration of glucose remaining in solution following a period of electrolysis (bioelectrocatalytic glucose oxidation at the bioelectrode). By determining the remaining concentration of glucose after electrolysis, we demonstrated that a bioelectrode prepared with bGOx only returned approximately 2 electrons per molecule of oxidized glucose (expected for a single 2 electron oxidation at the C1 position). Using the same approach, PDH-only electrodes returned approximately 3.7 electrons per molecule of oxidized glucose (up to 4 electrons expected for oxidation at the C2 and C3 positions). Remarkably, this value increased to approximately 5.1 electrons per molecule of oxidized glucose (where 6 is the theoretical maximum if operating at 100% efficiency), providing strong evidence for instances of 3 × 2 electron oxidations of single glucose molecules. To provide additional support for this claim, these experiments were repeated using xylose as the substrate (synonymous to glucose for these experiments) and xylose concentrations were determined using a novel xylose biosensor. In summary, the findings presented for glucose are mirrored for xylose oxidation, further confirming the ability to perform multiple substrate oxidations using this bienzymatic approach.

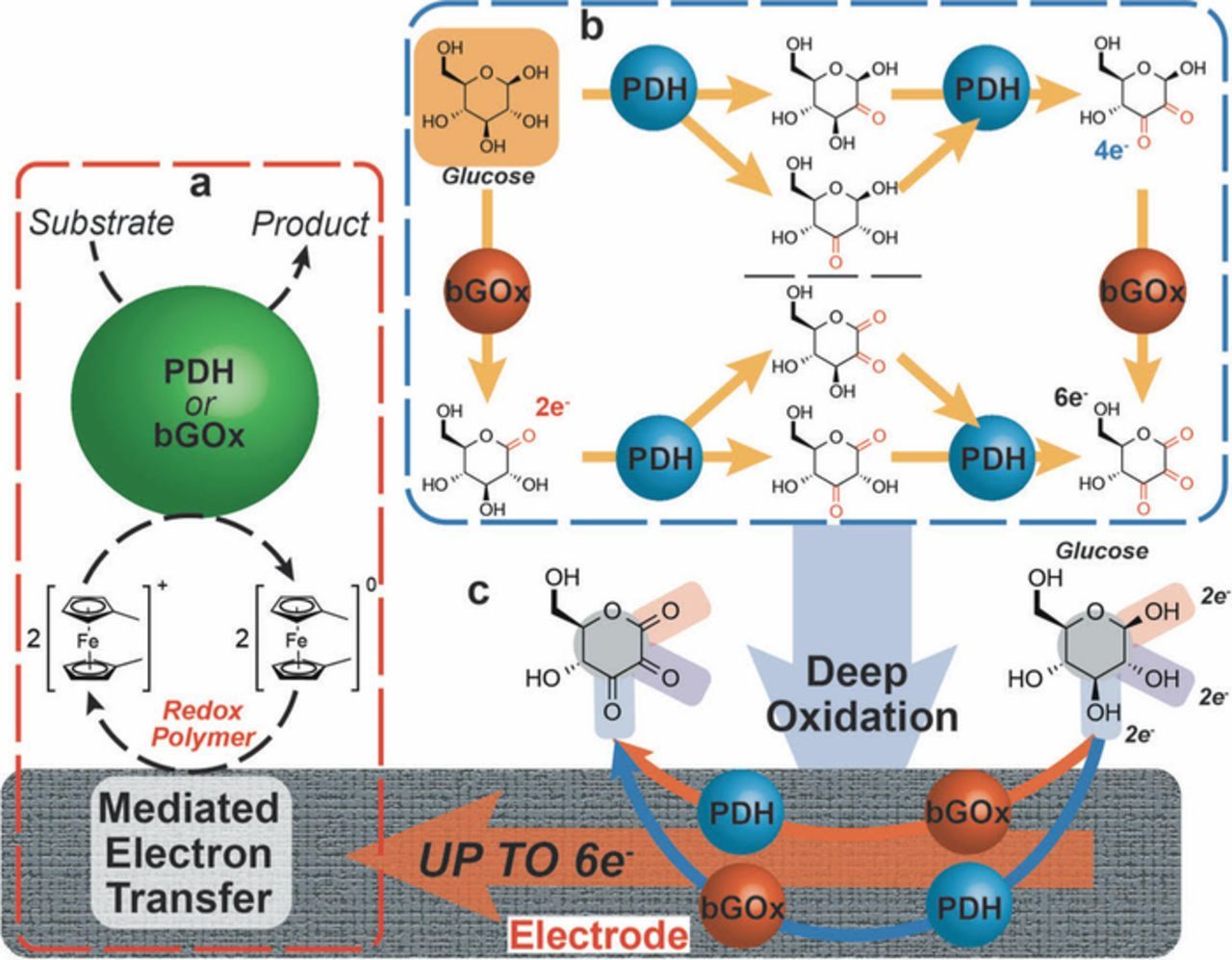

Scheme 1 represents the general approach for the ferrocene redox polymer mediated electron transfer (MET) of bGOx and/or PDH, using glucose as a model substrate. Panel (a) displays the MET of the mediated bioelectrocatalytic oxidation by either PDH or bGOx. Panel (b), shows the single enzyme mechanism where bGOx only performs a single 2e⁻ oxidation at the anomeric (C1) position whereas PDH has the capability to perform single or twin oxidations of glucose (at the C2 and/or C3 position) yielding up to 4e⁻. Then, an intelligent combination of these two enzymes (PDH and bGOx) that have different substrate specificities within the same bi-enzymatic electrode architecture enables performing deep oxidation of a single molecule. Herein, the product of glucose oxidation by bGOx is able to undergo a further round of oxidation PDH (red arrow) or vice versa (blue arrow), yielding to a theoretically-possible 6e⁻ from a single molecule of glucose, that has been used here as model fuel.

Scheme 1. The rational design of a bi-enzymatic bioelectrode by combining two enzymes that possess diverse substrate specificities; pyranose dehydrogenase (PDH) and an engineered glucose oxidase (bGOx). (a) Ferrocene redox polymer facilitates the mediated bioelectrocatalytic oxidation by either PDH or bGOx. (b) Single enzyme mechanism where bGOx only performs a single 2e⁻ oxidation at the anomeric (C1) position whereas PDH has the capability to perform single or twin oxidations of glucose (at the C2 and/or C3 position) yielding up to 4e⁻. (c) Deep oxidation of a single molecule of glucose by a bi-enzymatic electrode architecture achieved by combining PDH and bGOx: The product of glucose oxidation by bGOx is able to undergo a further round of oxidation by PDH (red arrow) or vice versa (blue arrow), yielding up to theoretically-possible 6e⁻ from a single molecule of glucose.
