Platinum Nanoarrays Directly Grown onto a 3D-Carbon Felt Electrode as a Bifunctional Material for Garden Compost Microbial Fuel Cell

Three-dimensional carbon felt electrode (6.35 mm thick, 99%) was obtained from Alfa Aesar. Sulfuric acid (H₂SO₄, 97%), ethanol (VWR, 96%), hexahydrate hexachloroplatinic (IV) acid (H₂PtCl₆·6H₂O, 99%), and potassium chloride (KCl, 99%) were purchased from Sigma-Aldrich. Sodium acetate (99%, Carlo Erba Reagents), and garden compost (Neuhaus) were used as received. A Milli-Q Millipore source was used to produce ultrapure water (18.2 MΩ cm at 20 °C).

The carbon felt electrode (CF) is hydrophobic so that tentative tests to deposit a significant amount of Pt particles failed. ²¹ So, CF was electrochemical activated prior to use. Basically, a sample was cut into a L-shape of 4 cm height, 1 cm width, and 0.635 cm thickness. Enough space was left on the upper side for electrical connection with a gold wire. By not taking into account the internal area, the estimated geometric area is 13.7 cm². The sample underwent an ultrasonic cleaning step (water bath) with ethanol (2 h). It was then thoroughly washed with ultrapure water, and dried in an oven at 70 °C for 12 h. Then, the electrode was connected to as working electrode for activating in 1 M H₂SO₄ by the method of CV. The counter electrode was a stainless steel plate. The reference electrode was a saturated silver/silver chloride (Ag/AgCl). The used potentiostat was SP-50 from Biologic Science Instruments and the utilized program was 30 cycles at 20 mV s⁻¹ between 0 and 1.5 V vs Ag/AgCl. Finally, the electrode was copiously rinsed with ultrapure water until neutral pH before drying at 70 °C overnight.

The preparation of Pt-modified CF followed the optimized conditions of our previous work. ²¹ Typically, the above three-electrode configuration was used. Electrodeposition was performed at −0.60 V vs Ag/AgCl (i.e., 0.14 V vs reversible hydrogen electrode (RHE) at pH 9) for 1 h under N₂ atmosphere. The potential was fixed higher than 0 V vs RHE in order to suppress immediately any formed H₂ during the process. The as-fabricated material was referred to as CF@Pt.

The materials that were not modified by the biofilm were directly analyzed by SEM on a Hitachi S-4800 microscope to gain textural and morphological insights. For the materials with biofilm, i.e., the bioanode samples, they were firstly pretreated to strengthen biofilm attachment and to remove water. Typically, a small piece of bioanode (0.5 × 0.5 × 0.635 cm) was immersed in 4 wt.% of a glutaraldehyde solution for 4 h. Then, the sample was carefully rinsed with ultrapure water. Dehydration process was carried out by the maceration of the sample in a series of graded concentration of ethanol solution (20, 40, 60, 80, and 98 wt.%) for 10 min in each concentration. Finally, the sample was dried in a desiccator at room temperature for 24 h before analysis by SEM.

Half-cell polarization of the anode at the different stages of biofilm growth was recorded in either a double-chamber MFC system or a single-chamber MFC one. Both operated under a switchable configuration of three or two electrodes thanks to the ON/OFF mode of the reference electrode (RE). A Nafion 115 was used as the proton exchange membrane (PEM) and was activated overnight in water prior to use. For both configurations, the inoculum source was the garden compost leachate obtained by lixiviation. Garden compost and 60 mM potassium chloride solution (equivalent volume ratio of 1:1) were mixed and stirred for 24 h. ^21,30 After the filtration on a sieve, a garden compost leachate was recovered followed by the addition of sodium acetate (final concentration = 20 mM). Double-chamber configuration utilizes a large surface area stainless steel plate as the counter electrode (in contact with 20 mM potassium ferricyanide solution), Ag/AgCl reference electrode, and scrutinizes 3 working electrodes (CF (20 cm²), CF@Pt (14 cm²), and bare graphite (GB, 13 cm²)). The current density was based on the estimated geometric surface area of each electrode. Single-chamber utilizes a CF@Pt anode connected to as working electrode, an Ag/AgCl reference electrode, and CF@Pt air-breathing cathode connected to as counter electrode. To prepare the latter, Nafion 115 PEM and CF@Pt electrode were pressed together to leave 3.14 cm² as exposed surface area. PEM orientated towards the anodic solution and CF@Pt is directly exposed to the surrounding air in the room. The methods of CV, LSV, and EIS were used for the electrochemical characterization.

For the half-cell polarizations of the air-breathing, the above conditions using single-chamber microbial fuel cell system were utilized to probe different materials (CF, and CF@Pt) connected to as working electrode. This air-breathing cathode was prepared by the above procedure to fix Nafion 115 PEM to CF or CF@Pt. The characterization methods were CV, LSV, and EIS. The current was normalized by the exposed surface area, which is 3.14 cm².

The content of each compartment is identical to the previous descriptions. To grow the biofilm, a resistance of R = 1 kΩ was connected to the MFC. The electrical characteristics of the MFC were recorded by utilizing the technique of "constant resistance discharge." Variable external resistances from 2 MΩ to 10 Ω were applied to the MFC; it is important to start by the high resistance where the cell voltage is roughly that of the open circuit voltage (OCV). After a few minutes of stabilization, the current and power were derived from the applied resistance and the measured cell voltage. Then, the current density (j, A m⁻²) and power density (P, W m⁻²) are obtained after normalizing by the area of the current-limiting process, i.e., the cathode. The MFC was also characterized by EIS at OCV's conditions (see text).

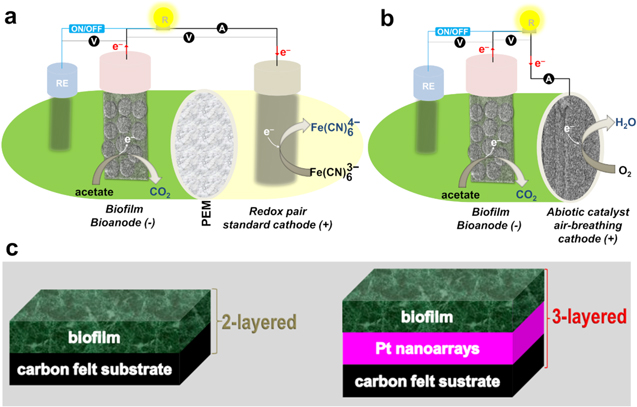

Different cell and electrode configurations were designed to provide relevant information about the operation of each bio-electrocatalytic process. Figures 1a–1b sketch the designed setup including a reference electrode (RE) to probe the potential of each electrode during the fuel cell operation, and a connected resistance R = 1 kΩ to grow the biofilm. To have a better baseline performance, we run control experiments with other materials, as recommended by Logan et al. ¹¹ The cathodic reaction occurring in a conventional double-chamber MFC (Fig. 1a) is the redox process Fe(CN)₄ ³⁻ + 1e⁻ → Fe(CN)₄ ⁴⁻. This means that the ferricyanide should be either continuously supplied or regenerated. The first scenario in practically unrealistic because it will require an excessively high amount of this harmful compound. The second option of regeneration could, in principle, work given that the redox couple Fe(CN)₄ ³⁻/Fe(CN)₄ ⁴⁻ has fast kinetics on a large number of electrodes. However, this would mean that one has to stop the operation of the MFC for a certain time in order to make the regeneration. The other major issue about this regeneration option is that when the concentration of the ferricyanide falls below a certain limit, it will negatively impact the performance of the MFC. Then, the alternative is to use the unlimited amount of O₂ from the air as the electron acceptor. However, running that by a direct bubbling into a solution leads to low efficiency and a heavy system so that air-breathing cathode strategy (Fig. 1b) is the best option. Hence, we examined the 2-layered and 3-layered strategy for the biofilm fabricating (Fig. 1c), hypothesizing that the interacted platinum particles will provide positive effect by accelerating the electrons transfer between the bare electrode (CF) and the formed biofilm.

Zoom In Zoom Out Reset image size

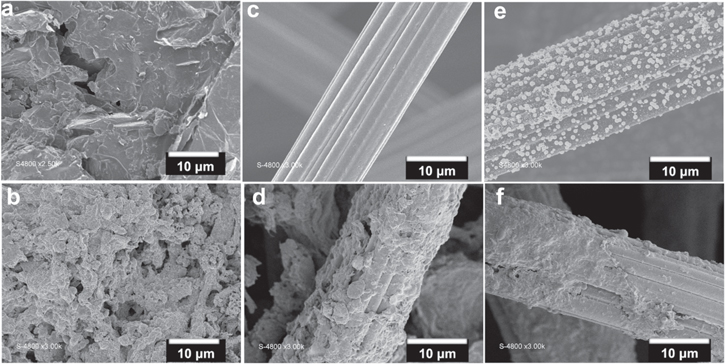

The SEM images of such materials (GB, CF, and CF@Pt) before and after the biofilm formation are shown on Figs. 2a–2f. Additional SEM images of CF@Pt are reported in Fig. S1 (available online at stacks.iop.org/JES/168/025501/mmedia). The used CF is made of fibers with a size of 15–20 μm. Furthermore, it can be observed that platinum particles with nanoscale domains (Fig. 2e) are well-dispersed on the carbon felt electrode. The particles size is, however, heterogeneous, from small nanoparticles of 10–50 nm to microparticles of 0.1–1 μm with a rough surface. Such heterogeneity could contribute to the formation and the anchoring/tethering of high amount of electrocatalytic biofilm. Figures 2b, 2d and 2f show that the bacteria colonized the entire surface of the electrodes. Owing to its 3D structure and the presence of Pt particles, the biofilm modification of CF@Pt is expected to bring significant enhancement in terms of the bio-electrocatalytic activity.

Zoom In Zoom Out Reset image size

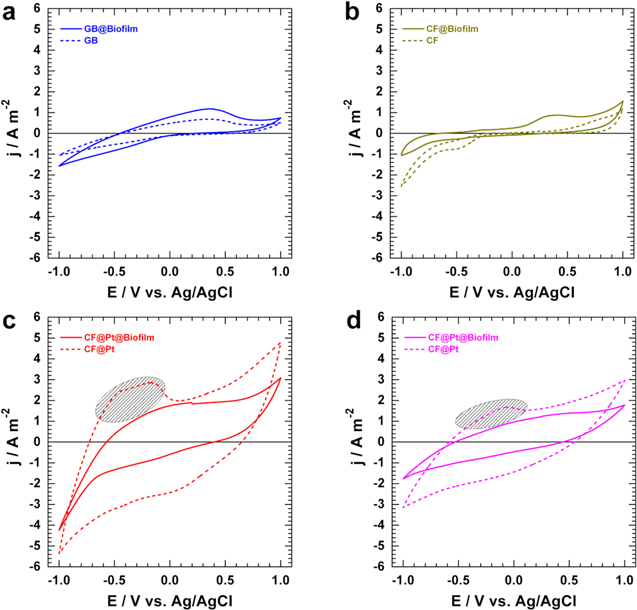

Having revealed the microscopic structure of these potential electrodes, we next sought to examine carefully and electrochemically their half-cell performance by using CV, and LSV as powerful tools. To mimic the real fuel cell operation, we designed an in situ garden compost MFC system in which CV and LSV are performed. Figures 3a–3c display the CVs recorded at 10 mV s⁻¹ for the anode at the different stages of the biofilm formation using a double-chamber MFC. For the single-chamber, the results for CF@Pt and CF@Pt@biofilm are shown in Fig. 3d. The analysis demonstrates an increase in the oxidation current density upon the formation of the biofilm, when the starting material is either GB or CF (Figs. 3a, and 3b). Unlike this observation, the CV profiles in Fig. 3c before and after the biofilm formation substantiate the coverage of CF@Pt by the biofilm because the signals related to protons adsorption and desorption disappear completely. The same observation can be made for the air-breathing cathode configuration in Fig. 3d. This suggests that a potential direct interaction of platinum particles with garden compost solution is inhibited. Given the absence of the characteristic proton adsorption-desorption signal that distinguishes platinum, it can consequently be deduced that the electrocatalytic activity of the CF@Pt@biofilm electrode will be uniquely characteristic of the bacterial culture.

Zoom In Zoom Out Reset image size

To gain more insights on the MFC operation, the polarization curves of the anode before and after the biofilm formation were recorded by LSV at the low scan rate of 0.005 V s⁻¹. The data are shown in Fig. 4a for the double-chamber configuration and those of single-chamber are displayed in Fig. 4b (upper). For the first configuration, we firstly examined the metric of the open circuit potential (OCP) also termed to as E_I=0 that theoretically indicates, under thermodynamic regime, the point at which the reaction should start for a rapid system. For all bare anode materials, OCP is +405, +285 and −15 mV vs Ag/AgCl for CF@Pt, GB, and CF respectively. These relatively high values are related to the dissolved O₂ in the beginning of the MFC operation, which is particularly true for any solution that is in contact with atmospheric air. ^31,32 The high value of OCP = 0.4 V vs Ag/AgCl for CF@Pt confirms that the as-deposited platinum particles are electrocatalytically active to catalyze ORR. The standard redox potential of the couple Fe(CN)₄ ³⁻/Fe(CN)₄ ⁴⁻ being ∼0.2 V vs Ag/AgCl, it means that without biofilm no significant cell voltage (E_cell = E_cathode − E_anode) can be extracted. After the biofilm formation (roughly three weeks later), anode's OCP shifts toward lower potentials to be −400, −175 and −390 mV vs Ag/AgCl for CF@Pt@biofilm, GB@biofilm, and CF@biofilm respectively. The results highlight an improvement of the OCP for 3D carbon felt electrode in comparison to the bare graphite plate with a downshift of 200 mV. While the GB@biofilm's OCP does not change significantly, it is worth of noting that the OCP of CF-based materials are remarkably approaching the theoretical value of sodium acetate oxidation, i.e. −496 mV vs Ag/AgCl. ³¹ The negative values of OCP suggest the electroactivity of the bioanode as well as the anaerobic condition. ^31,33 OCP by itself is not sufficient to judge the ability of an electrode to drive proficiently an electrochemical reaction and deliver high currents under realistic conditions. So, by examining the current densities at an electrode potential E > OCP in Fig. 4a, the composite electrode referred to as CF@Pt@biofilm has fast a bio-electrocatalytic kinetic to achieve high current densities a low overpotential. For instance, 1 A·m⁻² can be achieved for CF@Pt@biofilm at ca. 0.2 V vs Ag/AgCl whereas no other tested electrode allows that so far.

Zoom In Zoom Out Reset image size

We subsequently turned out our switchable configuration of three/two electrodes design to examine the single-chamber MFC. The LSV profiles of the anode in Fig. 4b (upper side) clearly point out that CF@Pt@biofilm (OCP = −0.41 V vs Ag/AgCl) as bioanode outperforms CF@Pt (OCP = 0.14 V vs Ag/AgCl). It comes up that not only the biofilm formation is more facilitated at the surface of CF@Pt but also leads to an electrode with high current densities compared to its counterpart. For the cathode reaction of oxygen reduction (Fig. 4b, down side), the achieved OCP of 0.3 and 0.6 V vs Ag/AgCl for CF, and CF@Pt, respectively, demonstrates that Pt nanoarrays are still electrocatalytically active even if the anode compartment (garden compost + acetate + potassium chloride) contains highly poisoning species that could interferences. Kinetically, the LSV shows a significantly higher ORR's performance for CF@Pt air-breathing cathode due to the contribution of Pt active sites. From those set of results, it can be lastly concluded that CF@Pt could act as an excellent multifunctional material for use as both air-cathode for abiotic O₂ reduction into 4e⁻ (previously verified ²¹ ) and interfacial substrate for efficient bacterial colonization for the bioelectrocatalytic organic matters oxidation. The Pt loading was determined to be lower than 0.2 mg cm⁻², which should justify the integration into practical air-breathing MCF as electrode material.

We next performed the fuel cell tests to verify whether the observed trends in half-cell hold in real situation or not. For that, based on the previous findings, the electrical performance was firstly recorded for the double-chamber configuration for the three types of bioanode, i.e., GB@biofilm, CF@biofilm, and CF@Pt@biofilm. Figure 5a shows the obtained results. The OCV values are 0.49, 0.69, and 0.68 V for GB@biofilm, CF@biofilm, and CF@Pt@biofilm, respectively. These data confirm the previous evolution of the OCP. For the electrical metrics, the performance decreases in the order CF@Pt@biofilm (P_max = 121.6 mW m⁻², j_sc = 0.66 A m⁻²) > CF@biofilm (P_max = 51.4 mW m⁻², j_sc = 0.41 A m⁻²) > GB@biofilm (P_max = 31.1 mW m⁻², j_sc = 0.19 A m⁻²). In other words, P_max was dramatically increased by 2.4 times after inserting Pt particles between CF and biofilm. Both CF@biofilm, and CF@Pt@biofilm outperform the GB@biofilm bioanode. Such findings in real fuel cell application are fully consistent with our hypotheses of increased performance upon the growth of platinum particles before the biofilm formation.

Zoom In Zoom Out Reset image size

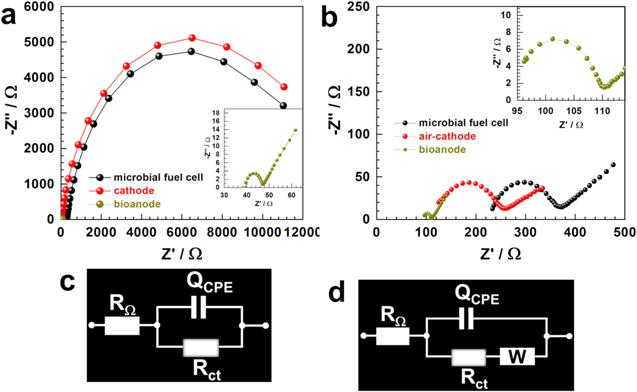

To extend the scope and get deeper insights, the best performing CF@Pt@biofilm bioanode was selected to be combined with CF@Pt air-cathode for single-chamber MFC testing. Of course, CF@biofilm was tested as the control bioanode to evidence any key contribution of the 3-layered structure. The results are presented in Fig. 5b. The recorded OCV is ca. 0.6 V for CF@Pt-based bioanode, which is substantially larger than the value achieved by the control material, CF. The fuel cell metrics of j_sc and P_max are 1.9 A m⁻² and 0.3 W m⁻², respectively for CF@Pt-based bioanode. The recorded values of j_sc = 1.1 A m⁻² and P_max = 0.14 W m⁻² for CF-based bioanode highlight an enhanced electrical performance in the presence of Pt nanoarrays. A sizeable increase in the performance of MFC due to metallic nano-species (Pt, Au, Mn, Fe, etc) has been widely reported. ^{11,15,17,21,27} It should be noted that the present electrical performance is still lower than the dreamed P_max = 1–2 W m⁻² when operating with double-chamber and/or continuous flow conditions but higher than most reported systems. ^{11,14,15,17,21,24,27,34–36} To explain the high performance of the three-layer material of CF@Pt@biofilm, we hypothesize that the sandwiched Pt particles facilitate the electrons transfer more effectively between biofilm and electrode by stimulating the secretion of mediators. Some bacteria secrete mediating compounds such as phenazine and quinone, which are used to shuttle electron from the bacteria outer cell to the surface through mediated electron transfer mechanism. Hence, we further used electrochemical impedance spectroscopy to examine separately, the anode, the cathode, and the fuel cell. Figures 6a, and 6b depict the complex-plane Nyquist plots. The profile of slightly depressed semicircles is characteristic of a charge transfer process with contribution of diffusion. This corresponds to an equivalent electrical circuit of R_Ω + Q_CPE//R_ct (Fig. 6c) for the double-chamber MFC, and R_Ω + Q_CPE//(R_ct + W) (Fig. 6d) for other processes in double-chamber and air-breathing MFC. R_Ω is the uncompensated ohmic resistance, R_ct is the charge transfer resistance, Q_CPE is the constant phase element, and W is the Warburg element. ^37,38 The determined ohmic resistance is R_Ω = 92 ± 4, 107 ± 3, and 221 ± 2 Ω for CF@Pt@biofilm, CF@Pt air-cathode, and fuel cell, respectively. Taking into account the exposed areas, R_Ω = 1288, and 336 Ω cm² for CF@Pt@biofilm (exposed: 14 cm²), and CF@Pt air-cathode (exposed: 3.14 cm²), respectively. The high value of R_Ω for the bioanode in comparison to the air-cathode results mainly from the formed biofilm (Figs. 2e vs 2f). R_ct was evaluated to be 19 ± 2, 146 ± 1, and 153 ± 2 Ω for CF@Pt@biofilm, CF@Pt air-cathode, and fuel cell, respectively. The trend reveals that the kinetics is limited by the air-cathode. Note that with the surface area, R_ct is 266, and 458 Ω cm² for CF@Pt@biofilm (exposed: 14 cm²), and CF@Pt air-cathode (exposed: 3.14 cm²), respectively. So the conclusion stands after the normalization. Basically, R_ct is inversely proportional to the rate constant (k°), which means a lower kinetics for the air-cathode in comparison to the bioanode. This fully supports quantitatively and kinetically the previous choice to normalize the current density and power density by the area of the cathode. Comparatively, in double-chamber MFC system, R_ct ∼10, 12000, and 12000 Ω for CF@Pt@biofilm, cathode, and cell, respectively. Thus, it indicates that the air-breathing MFC is more efficient, where the reaction at the cathode is nearly two order of magnitude faster than the double-chamber. We also observed a decrease of the ohmic resistance of the CF@Pt@biofilm bioanode for double-chamber configuration, which was expected given the low current, i.e., low amount of biofilm (Figs. 4 and 5).
