Sequential Electrochemical Flow Cell for Complex Multicomponent Electrocatalysis

Wide range cyclic voltammetry (CV) measurements (Fig. 4) of the NbPt HER working electrode at various HOR current densities demonstrate the utility of shifting the HER data by the appropriate potential values. The water oxidation peaks (onset at 1.6 V vs SHE, not shown) of the CV curves align as expected when the applied potential data are shifted to account for HOR current density flowing across the solution resistance, confirming that the applied potential shifts were appropriate and allowed for detailed study of the catalytic properties of the HER working electrode.

Zoom In Zoom Out Reset image size

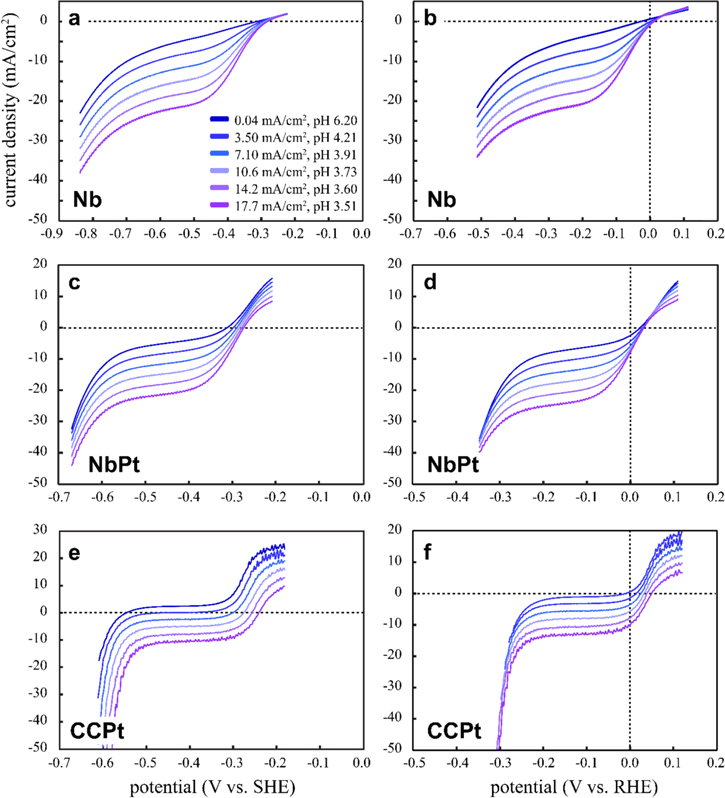

Linear sweep voltammetry (LSV) measurements were made at the HER working electrode at different fixed HOR current densities to produce differing fluxes of protons from the HOR electrode (Fig. 5). The data show that each HER working electrode converted the protons created upstream back to hydrogen at significant efficiencies in the potential regime associated with HER, because the reductive current clearly scaled with the HOR current density. Analysis of the data on the absolute SHE reference scale (left column in Fig. 5) is often employed for fundamental HER/HOR studies where the local reactant (H⁺) and product (H₂) concentrations are constant, especially as the SHE scale is simply a constant offset from the reference electrode potential. In our case, however, the central volume between the HER and HOR electrodes is filled with protons generated at the HOR electrode, and thus has a different pH from the rest of the system. For this reason, the most common form of the Nernst equation in acids, where the H₂ pressure is constant, cannot be used. To assess the HER electrode performance as a function of overpotential, it is better to use a pseudo RHE reference scale (hereafter referred to as the RHE scale). To align the LSV curves on the RHE scale, we used the facts that Pt is known to deviate from typical potential/pH behavior in neutral electrolytes^9,11,19,20 and that the water concentration is fixed and large compared to any H⁺ or H₂ concentration. It follows that we appropriately shift the SHE data to put the LSV data on the RHE scale by aligning the potential for H₂O reduction at the CCPt electrode. This gives the correct offset for each HOR current density, and we shift the NbPt data and shifted the Nb data by these amounts (right column of Fig. 5).

Zoom In Zoom Out Reset image size

The baseline LSV curve was subtracted from each of the other LSV curves at larger HOR current densities to yield the excess current density due to proton reduction as a function of potential at the HER electrode and then allow calculation of the HER conversion efficiency. Figure 6 shows the proton conversion efficiency as calculated as a function of potential by dividing the excess HER current density data by the appropriate excess HOR current density. The Nb electrode exhibits broadly peaked behavior at the onset of diffusion limited proton reduction, with the peak values ranging from just above 100% for the lowest upstream HOR current density to 98% for the largest upstream HOR current density. The conversion efficiencies then decrease linearly with increasing overpotential to a minimum of ∼70% efficiency just prior to the onset of H₂O reduction. Conversion efficiency on NbPt curves was nearly constant over the diffusion limited potential range before decaying at the onset of H₂O reduction, with a maximum of 94% conversion efficiency. The CCPt electrode exhibits lower peak efficiencies in the diffusion limited region between 64% and 73% with the efficiency increasing slightly with increasing HOR current density. These single pass conversion efficiencies compare well with state-of-the-art gas diffusion electrode systems for CO reduction, which have been demonstrated in the range of greater than 70%.²¹

Zoom In Zoom Out Reset image size

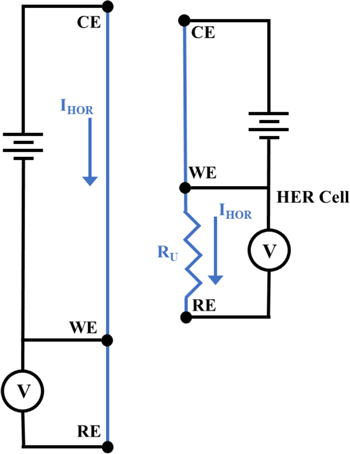

The data presented in Fig. 2 provide substantial evidence in support of the proposed model based on passing HOR generated current through the solution resistance between the HER reference and working electrodes. The shifts followed a strictly linear, highly repeatable trend, where different electrochemical reactions were occurring upstream at the HOR working electrode. The oxidative current densities used during the HOR pulses ranged from current densities where only H₂ was directly oxidized to H⁺ to potentials where water was oxidized. The reductive HOR pulses reduced water to H₂ and OH–. The measured solution resistance was also similar among the varying HER and HOR working electrodes, as well as with the reference electrodes, further indicating that the electrolyte caused the instantaneous potential shifts, rather than the electrodes. The model and experimental results matched previous studies of a multiple working electrode microfluidic fuel cell where potential shifts at working electrodes within externally imposed electric fields scaled linearly with current density flowing between the external electrodes.²²

Three primary electrochemical reactions govern the form of measured HER voltammetry curves: reduction of protons (Eq. 1, E⁰ = 0.0 V), reduction of water to (Eq. 2, E⁰ = −0.829 V), and reduction of Nb₂O₅ oxide to a hydride (Eq. 3, E⁰ ≅ 0.0 V²³):

$$\begin{eqnarray}&&2{{\rm{H}}}^{+}+2{e}^{-}\,\to \,{{\rm{H}}}_{2}\end{eqnarray} \tag{ 1 }$$

$$\begin{eqnarray}&&2{{\rm{H}}}_{2}{\rm{O}}+2{e}^{-}\,\to \,{{\rm{H}}}_{2}+2{{\rm{OH}}}^{-}\end{eqnarray} \tag{ 2 }$$

$$\begin{eqnarray}&&{{\rm{Nb}}}_{2}{{\rm{O}}}_{5}+{{\rm{H}}}^{+}+{e}^{-}\,\to \,{{\rm{HNb}}}_{2}{{\rm{O}}}_{5}\end{eqnarray} \tag{ 3 }$$

In further discussion below, we primarily focus on reduction of protons, and the potential ranges where this occurs on each electrode are −260 to −650 mV vs SHE for Nb, −235 to −500 mV for NbPt and −190 to −450 mV for CCPt, except when noted. Functionalization of the Nb electrode with Pt dramatically affected the HER behavior of the porous Nb. The diffusion limited H⁺ reduction plateau was 150 mV shorter compared to bare Nb, and the CCPt electrode exhibited a slightly lower overpotential for H⁺ reduction relative to the NbPt electrode with similar potential range for diffusion limited H⁺ reduction. The Pt functionalized electrodes exhibited significant HOR current density with the magnitude of HOR current density inversely scaling with the upstream HOR current densities due to the upstream oxidation of H₂ limiting its availability. On pure Pt electrocatalysts, the combined effects of Eqs. 1 and 2 have been successfully modeled to match the experimental HER voltammetry curves over a wide range of pH values.^11,19,20 The behavior of the porous electrodes containing Pt used in this study follow those trends observed in previous studies for Pt electrodes under neutral pH conditions demonstrating that observed differences in voltammetry were effects of local pH changes.

The additional complexity of HER conversion on Nb based catalysts is attributed to the concurrent reduction of the Nb oxide according to Eq. 3 at HER active potentials. The reduction of Nb₂O₅ to a hydride is reversible and mass transport limited by diffusion of protons through the transforming oxide layer (as observed in previous studies of cathodically polarized Nb oxide films²³) and observed repeatedly in the LSV data. The reversibility was further evidenced by the repeatability of individual LSV curves at a given HOR current density (Fig. S3 in Supplemental Information). The onset potential of the Nb₂O₅ reduction reaction is pH dependent as required by Eq. 3, but does not exhibit the same pH/potential dependence as Pt. That is, different potential offsets are required to align the CCPt- and Nb-based LSV data with their baselines on pseudo RHE scales. The HER conversion curves of the Nb based catalysts also exhibit aligned onset waves on the SHE scale, rather than the RHE as observed for CCPt, further evidencing subtle differences in pH/potential behavior of Pt and Nb.

Protons reaching the surface of the polarized Nb based electrodes have two competing pathways towards eventual reduction: direct reduction to hydrogen or diffusion through the growing hydride to the Nb₂O₅ interface for reduction. The latter process requires a finite concentration of protons in the hydride and consequently changes the resistivity of the barrier layer. This adds complexity to the HER curve due to applied potential effects on the migration of protons and electrons through the outer layer of the Nb.^23,24 The slope of the HER potential region for the Nb catalysts varied subtly, but remained relatively similar as a function of potential with varying HOR current density (Fig. 5). This suggests that a portion of the reductive current associated with Nb₂O₅ might not have scaled directly with the proton activity for HER and caused the observed decrease in conversion efficiencies on the RHE scale for the Nb electrode. The presence of the sloped diffusion limited plateau in the NbPt LSV data indicated that the exposed Nb₂O₅ surfaces were also electrochemically active on the NbPt catalyst during HER and caused the small decreases from 100% HER conversion. However, the significant HER conversion efficiencies on both scales still demonstrated that the Nb based materials were extremely efficient as flow-through catalysts. Furthermore, the increased efficiency of the NbPt catalyst relative to Nb as well as the ideal shape of the HER conversion curve demonstrated that the Pt particles were the primary active catalytic sites for proton reduction.

A useful figure of Merit (FOM) assessing the effectiveness of porous electrocatalysts has been proposed by Ateya and co-workers,²⁵ with the FOM calculated as the ratio of the time a reactant species requires to diffuse radially to the electrode surface (which scales with the square of the pore size) to the time for the species to flow entirely through the pore based on its linear velocity (which scales linearly with the thickness of the catalyst layer). We estimated the figure of merit as 0.019 for the Nb based electrodes, where experimental values less than 0.5 predict complete conversion of reactant species passing through a sufficiently polarized porous electrode. Dimensional measurements, however, which are used to calculate the FOM don't accurately account for the non-uniform distribution of flow through the pores, leading to an overestimate of the FOM. That is, more electrolyte would be expected to flow through larger pores, and in these regions there would be poorer conversion for reactants passing through the catalyst. This effect is taken to the extreme for the carbon cloth. Considering just the micron scale porosity within the weave of the fibers, we calculate an FOM of 0.025 for the CCPt material. However, this does not account for the weave pattern of the carbon cloth, which had a broad pore size distribution with regularly spaced pores up to 100 μm × 100 μm.²⁶ Not only did the carbon not reach high Faradaic efficiency for HER, but the catalyst membrane could not sustain a pressure drop, which would reflect good retention of the electrolyte in the pores. In contrast, based on the catalyst geometry, we calculated the pressure drop across Nb-based catalysts during operation of the cell based on Darcy's Law to be 5.8 kPa (0.84 psi).²⁴

The agreement between the figure of Merit and trends in conversion efficiency confirms that the geometry of the electrode was the primary factor determining its ability to utilize reactants flowing through the catalyst. The small pore size of the Nb catalysts compared to the CCPt led to increased conversion efficiency in the Nb catalyst despite the CCPt having nearly eight times greater Pt surface area than the NbPt catalyst and two times more Pt surface area than the combined Nb and Pt surface area. The substantial tortuosity of the Nb pores compared to the CCPt pores also contributes to the increased efficiency of the Nb catalyst, as increasing tortuosity of a flow through electrode has been predicted to increase conversion efficiency for a given porosity,²⁵ and the associated convection due to forced flow through a curved pore may aid in mass transport at the electrode surface.²⁷

The sequential flow cell introduced here provides controlled fluxes of intermediate species or reactants to an electrocatalyst that can efficiently utilize them in order to decouple critical reaction steps in complex and challenging reactions such CO₂RR and NH₃ synthesis reactions through the use of multiple optimized catalysts joined by reactant flow, and by which concentrations of chemical intermediates can be controlled on-the-fly.^28–30 This is a different electrocatalysis design strategy than the more common approach of using bimetallic and alloy catalysts that attempt to utilize effects of different atomic species at the catalyst surface to alter binding energies of intermediate species for improved performance over elemental catalysts.^31–34 Our concept should be useful, for instance, in CO₂RR, where, under favorable conditions, Cu catalysts can more efficiently catalyze formation of high value products when supplied with the critical reaction intermediate CO rather than CO₂; indeed, in the course of preparing this manuscript, we became aware of work by Ager and co-workers doing this by controlling the flux of CO from one electrode to another in an analogous manner.¹⁶ Similarly, electrochemical NH₃ synthesis is notably challenging due to the stability of the triple bonded N₂ molecule and scaling of the binding energies of key intermediates, which means large overpotentials are required to drive the reaction.³⁵ In aqueous electrolytes, hydrogen evolution tends to dominate at large cathodic overpotentials leading to low Faradaic efficiencies. Because active hydrogen is necessary for NH₃ formation, we propose that well controlled and periodic (i.e., time-modulated) delivery of an activated hydrogen species from one electrode to another, one that is optimized for N₂ adsorption, could be a possible route to more efficient electrochemical NH₃ synthesis.

A novel electrochemical flow cell employing porous electrodes and two complete but intermixed electrochemical cells for highly efficient sequential electrolysis is introduced. We demonstrate that this cell can be well-controlled through operation of the upstream cell in galvanostatic modes, accounting for the potential shifts observed at the second electrode due to the HOR current flowing through the solution resistance between the second working electrode and its reference electrode. The flow cell exhibits highly efficient hydrogen oxidation and subsequent hydrogen reduction with the use of porous Nb, Pt-decorated porous Nb, and Pt-decorated carbon cloth as the downstream working electrode. HER conversion efficiency results show that the Nb and carbon cloth-based electrodes have geometric morphologies well-suited to efficient electrolysis in the flowing electrolyte. The large toruosity and small pore size of porous Nb lead to nearly perfect conversion efficiency, especially when functionalized with Pt. Our approach opens the door for to a new approach to tackling important electrochemical reactions with complex reaction pathways and multiple reactants, as well as studies of fundamental aspects of important electrochemical reactions over a range of pH without the need to alter the composition of the supporting electrolyte.

This research was supported by the U.S. Department of Energy, Office of Basic Energy Sciences under grant number DE-SC000868.
