Endowing low fatigue for elastocaloric effect by refined hierarchical microcomposite in additive manufactured NiTiCuCo alloy

Pre-alloyed powders with an atomic ratio of Ni_30.6Ti_54.4Cu_12.2Co_2.8 were obtained by gas atomization method from an as-casting bar. The particle size of pre-alloy powders used for LPBF is ranging from 18 μm to 66 μm, as shown in figure S1(a). The NiTiCuCo samples were fabricated by Eplus M100-T LPBF machine. The oxygen concentration of processing chamber was maintained below 100 ppm by an argon atmosphere. A stripe rotation strategy of laser scanning with hatch rotation of 67° and stripe width of 4 mm was implemented, as illustrated in figure S1(b).

To explore the forming qualities and optimal process parameters of LPBF-fabricated NiTiCuCo alloys, as shown in figure S1(c), cuboid-shaped samples with 4 mm (length) × 4 mm (width) × 6 mm (height) in dimension were fabricated under orthogonal parameter combinations, in which each sample had three replications to ensure the repeatability and reliability of the process. The forming qualities were characterized by inside cracks, lack of fusion, gas pores, keyhole pores, or microcracks, respectively. The corresponding forming quality morphology of optical micrographs (OLYMPUS DSX510) are shown in figure S1(d). Then the optimized formability map for NiTiCuCo alloys (figure S2(a)) was tailored by process parameter of scanning speed (m s⁻¹) and laser power (W) under fixed layer thickness (30 μm) and hatch spacing (70 μm).

The volumetric energy density (E_V ) of each parameter combination was calculated and summarized in table S1. The optimal formability window is ranging from 111 J mm⁻³ – 125 J mm⁻³ for E_V , which is a narrow window compared to the binary NiTi groups [37–39]. Figure S2(b) shows the statistics of sphericities and diameters of all the pores inside one of the x-ray 3D CT (Yxlon FF85) samples with good formability (E_V = 119 J mm⁻³, blue circle in figure S2(a)). The relative density is up to 99.98% according to the CT in inset of figure S2(b). It is found that the diameters of all the pores are less than 40 μm and the sphericities are higher than 0.5. These pore defects are dominated by tiny near-spherical gas-pores [38], while the large-sized keyholes or unfused pores are eliminated. The gas-pores are considered to have a negligible effect on the mechanical performance. Figure S2(c) shows a picture of LPBF NiTiCuCo parts with different heat transfer channel sizes fabricated by optimized process parameters, which can be used in solid-state refrigeration prototypes.

The as-fabricated cuboid NiTiCuCo samples with good forming quality were cut into cylinders with Φ3 mm (diameter) × 6 (height) mm in dimension by wire electric discharge for compression and elastocalorie tests. The compression tests were conducted by universal testing machine (Instron-5966) with strain rate of 10⁻³ s⁻¹ at room temperature, in which a non-contacting video extensometer was performed to record the accurate strain. The elastocaloric associated temperature variation of the sample during compressive loading and unloading was monitored by the contact-type thermocouple and OM-DAQ-USB-2401 data acquisition module.

The transformation temperature was estimated by a TA Q20-2503 differential scanning calorimeter (DSC) with a cooling-heating rate of 10 K min⁻¹. As shown in figure S2(d), based on the Ti-rich attribute, the LPBF-NiTiCuCo alloy under various E_V has identical transformation temperatures, which is different from the extreme parameter sensitivity of that Ni-rich NiTi alloy reported [38, 40]. Therefore, for the parameter tuning of the AM NiTiCu-based alloys, there is no need to consider its influence on the transformation temperature and thus on the functional performances. The transformation type should be B2 ↔ B19 orthorhombic martensite transformation due to the doping of excess Cu, which will be further verified later. The reverse transformation finish temperature (A_f ) is 282 K in DSC curves, indicating that the LPBF-NiTiCuCo alloy is superelasticity at room temperature. Based on the aforementioned narrow optimal forming window and identical transformation temperatures for the LPBF-NiTiCuCo, their microstructure and performance should be stable within the window. Therefore, the samples for performance tests and characterization were fabricated with the fixed energy density of 119 J mm⁻³.

The samples for microstructure observation were performed on scanning electron microscope (SEM, Zeiss G310), and transmission electron microscopy (TEM, Tecnai G² F20) at 200 kV equipped with a dispersive x-ray spectroscopy (EDS) detector and Gatan double-tilt holder. The TEM samples were prepared by mechanical polishing followed by twin-jet electro-polishing in an electrolyte of 25 vol% HNO₃ and 75 vol % CH₄O at 243 K and 30 V.

HE-XRD measurements were in-situ performed during compression deformation and cooling/heating on the 11-ID-C beam line of the Advanced Photon Source at the Argonne National Laboratory, USA. X-rays have an energy of 115 KeV, beam size of 0.5 mm × 0.5 mm and wavelength of 0.117 3 Å. Figure S3 depicts the schematic experiment for the in-situ HE-XRD measurement, where azimuth angle 90° represents the compressive loading direction, which is also the building direction of the LPBF-sample. For phase analysis, two-dimensional (2D) HE-XRD patterns were fully integrated (azimuth angle 0°–360°) to get 1D HE-XRD spectra using software Fit 2D, where a CeO₂ powder reference sample was used for calibration. Thereinto, 1D HE-XRD spectra along the loading direction were integrated at the azimuth angle within 90° ± 5°. The 1D diffraction peaks were fitted using Guass distribution function to determine the peak area (diffraction intensity) and peak position (d-spacing values). The relative peak intensity rate is defined as I_hkl /I⁰ _hkl × 100, where I_hkl and I⁰ _hkl are the integrated peak area under a given load or temperature and in the stress-free or original state, respectively. The d-spacing strain was calculated as |d_hkl —d⁰ _hkl |/d⁰ _hkl × 100, where d_hkl is the d-spacing under a given load or temperature and d⁰ _hkl is the d-spacing in the stress-free state or original state.

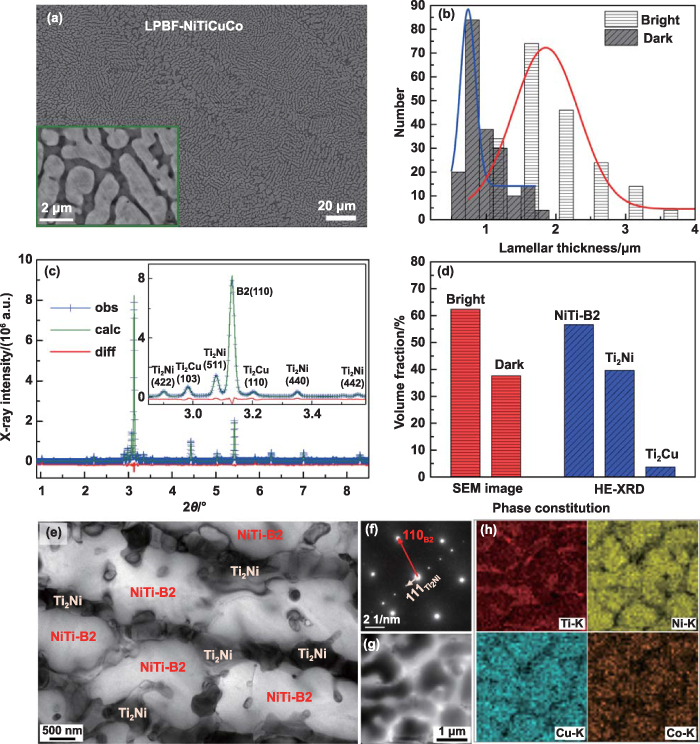

Figure 1(a) shows the SEM images of as-printed NiTiCuCo by LPBF. According to the backscattered electron contrast, the sample demonstrates separable two-phase dendrites. The statistical dendritic lamellar thickness (from three random SEM images) in figure 1(b) shows that the bright phase (∼2 μm) is twice as large as that of the dark phase (∼1 μm), implying that the volume fraction of the former is approximately twice as large as that of the latter. The phase constitutions of LPBF-NiTiCuCo was determined by Rietveld refinement method from its HE-XRD pattern at room temperature, as shown in figure 1(c). The sample is composed of three visible phases for B2, Ti₂Ni and Ti₂Cu with the volume fractions of 56.64%, 39.67% and 3.69% in figure 1(d), respectively. Thus, here phase transformable B2 matrix and hard Ti₂Ni phase are the main phase components. It is inferred that the bright contrast in SEM image is the B2 phase with a dominant volume fraction and the dark contrast is the Ti₂Ni phase, while Ti₂Cu phase is difficult to distinguish due to faint volume fraction and size.

Zoom In Zoom Out Reset image size

In contrast, the as-cast NiTiCuCo alloy with the same element composition shows 10 times (10 μm–20 μm) lamellar thickness of the LPBF counterpart, despite their almost identical phase constitutions (figure S4). The significantly refined micro-architecture by LPBF is consistent with the expected one due to the rapid solidification processing environment [33]. The greatly refinement in LPBF sample arises significant interfacial density boosting, which presumably leads to the more pronounced composite coupling effect during deformation and confers remarkable enhancement in performances [34, 35]. In addition, under the nonequilibrium conditions of LPBF, the composite architecture exhibits short aspect ratios compared to the as-cast counterpart, endowing the integral microstructure and performance isotropized.

Figure 1(e) shows the microstructure of LPBF-NiTiCuCo in TEM, and the selected area electron diffraction (SAED) along the zone axis of [111]_B2 in figure 1(f) confirms the co-existence of NiTi-based B2 phase (BCC) and Ti₂Ni phase (FCC). According to EDS mapping in figures 1(g) and (h), the inter-dendritic belts tend to be segregated with Ti and exclusion with Ni, Cu and Co, confirming that the thinner is Ti-rich Ti₂Ni phase while Cu and Co are contained within B2 phases.

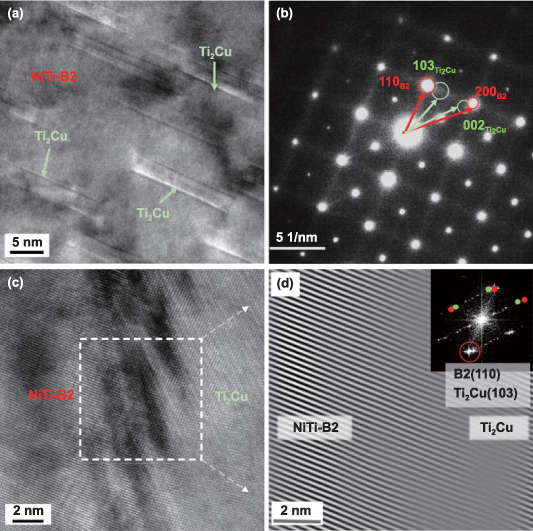

Inside the B2 grains, as shown in high-magnification bright-field image in figure 2(a), nano disk-like Ti₂Cu phase is dispersed with sizes varied from 10 nm to 20 nm in length and 2 nm to 5 nm in width along the zone axis of [001]_B2. Generally, the Ti₂Cu nano-disks strongly oriented within the B2 matrix and aligned perpendicular along the direction of [100]_B2 and [010]_B2 [25]. This is confirmed by the streaks along the {100}_B2 spots in SAED pattern of figure 2(b). The Ti₂Cu phase is precipitated under Ti-rich compositions condition (Ti > 52.0 at.%) and grown from the disk-like Ti segregated G.P. zones [25], maintaining a high lattice compatibility with the matrix both B2 and B19 states [16]. The nano Ti₂Cu disks here are more dispersed than the conventionally precipitations [21].

Zoom In Zoom Out Reset image size

Figure 2(c) shows a high-resolution TEM image of the representative NiTi (B2)–Ti₂Cu interface. Figure 2(d) shows the inverse fast Fourier transform (IFFT) image corresponding white dashed box in (c) by using the red circled spot in FFT pattern of its inset. In addition to the strain field contrast, the B2 and Ti₂Cu possessed good interface bonding and fully-coherent interface without mismatch; while the large-sized Ti₂Ni phase possessed semi-coherent interface and strained boundaries with B2 phases, and the interfacial dislocation and lattice distortion are shown in figure S5.

These results indicate that the LPBF-NiTiCuCo alloy has refined three-phase hierarchical microcomposite structures, that is, the NiTi (B2) and Ti₂Ni phase dendritic interlaced intricately at a submicrometer scale; the nano Ti₂Cu phase with disk-like shape is dispersed inside the B2 matrix and maintains a high degree of lattice coherence. This hierarchical microcomposite gives rise to phase interfaces under two scales, allowing homogenized interphases coupling with the transforming matrix.

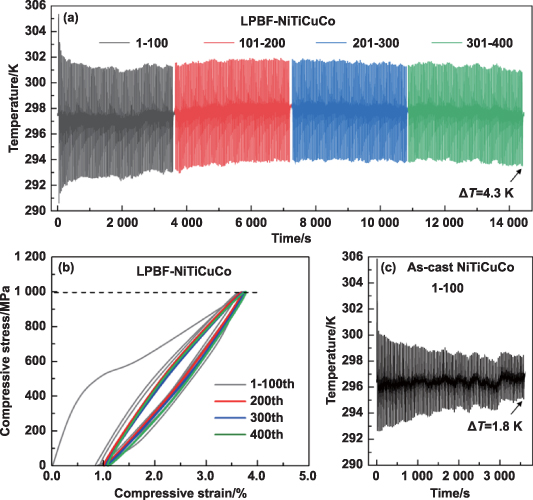

The cyclic elastocalorie of the LPBF-NiTiCuCo was tested by monitoring the temperature variation during compressive cycling. Figure 3(a) shows that the ΔT_ad of the sample is almost constant during the 400 cycling except for the first few decays. The heat-absorbing ΔT_ad of unloading is stabilized at 4.3 K after 400 cycles. Figure 3(b) shows corresponding stress-strain curves for 400 compressive cycles at room temperature. Here each cycle was compressed to a stress of 1000 MPa that exhibits optimal ΔT_ad values. Based on the insensitivity of the microcomposite structure to the strain rate [6, 10], the selection of the strain rate is also almost unlimited. The superelastic behavior changed and stabilized in the subsequent cycles after the first significant deterioration. For instance, the residual strain is maximum at the first cycle (about 0.86%) and then its increment decreases rapidly to zero, while the hysteresis loop area also decreases rapidly. Therefore, in practical applications, especially to ensure fatigue resistance, preliminary mechanical cyclic training is necessary to stabilize the reversability of phase transformation [6]. As a contrast, in figure 3(c), the ΔT_ad of the as-cast sample decayed to 1.8 K after only 100 cycles under the same experimental conditions, and could not be further cyclically deformed due to the large accumulation of residual strain. The specific micro-mechanical mechanisms of improved cycling stability for LPBF-sample will be elaborated later.

Zoom In Zoom Out Reset image size

Generally, for efficient elastocaloric cooling applications, in addition to the cycling stability, the SMAs are required to have superior comprehensive properties: (i) a large ΔT_ad (large output energy); (ii) a low critical superelastic stress (low input energy); (iii) as small a stress hysteresis as possible (low energy dissipation); (iv) large surface area or porosity (substantial heat exchange capability). Except that the fourth is achievable through additive manufacturing methods, the first three are responsible for the high elastocaloric efficiency (coefficient of performance, COP values) [6, 9]. The COP is defined as the ratio of cooling power (ΔQ) to input work (ΔW), which is a parameter quantifying the refrigerating efficiency of material. The maximum COP value for the LPBF-NiTiCuCo in this study was calculated to be up to 19.6, which is a competitive value according to the results that have been summarized [21, 22].

To reveal the interphase coupling effect associated with stress-induced martensite transformation and elastocaloric effect for LPBF-NiTiCuCo alloy, the in-situ synchrotron HE-XRD measurement had been conducted during the compressive cycling. Figure 4 shows their cyclic micro-mechanical and coupling behavior upon three cycles compress to 1000 MPa. The evolution of 1D HE-XRD patterns integrated along the full Debye diffraction rings (azimuth angle 0°–360°) during compressive cycling is shown in figure S6. Figure 4(a) shows the evolution of 0°–360° integrated relative intensity rate of B2(100), demonstrating the process of stress-induced B2 ↔ B19 martensite transformation. The incomplete reverse of the B2 phase reflects that almost half of B19 martensite remains after the first cycle, corresponding to the residual applied strain in the stress-strain curve (figure 3(b)). Upon the subsequent cycling, homogeneous stress-induced transformation mode starts as soon as the loading is applied and the leftover B2 phase is transformed completely and fully reversible.

Zoom In Zoom Out Reset image size

Figure 4(b) shows 1D HE-XRD patterns of lattice planes of each phase integrated at (90° ± 5)° (loading direction) during three compressive cycling. It is found that the diffraction peaks exhibit elastic shifts upon cycling, demonstrating the elastic deformation of each phase accompanied by stress-induced martensite transformation of NiTi-based matrix. Figure 4(c) shows evolution of B19(110) d-spacing strain during cycling. Since the B19 martensite is applied external stress as soon as it occurs, the corresponding original d-spacing in stress-free state (d⁰ ₁₁₀) was obtained by the azimuth wave-crossing method. It is seen that the B19(110) lattice plane is compressed once it appears, then instead in a tensile state (tensile d-spacing strain about 0.5%) after the first unloading, indicating that the residual martensite is subjected to an internal tensile stress along the loading direction [41, 42]. This internal stress field is fully reversible in subsequent cycling.

Figures 4(d) and (e) show the evolutions of d-spacing strains for untransformed Ti₂Ni(111) and Ti₂Cu(002) during cycling, respectively. In the first loading, both the d-spacing strains increase nonlinearly and display slightly sharp growth with the appearance of B19 martensite, which may correspond to the load transfer when the locally heterogeneous transformation frontier passing the x-ray beam detection point [43]. There is about 0.3% residual d-spacing strain for Ti₂Ni(111) after first unloading, implying that a compressive stress field is left to Ti₂Ni phase along the loading direction. This compressive stress may be conjugate to the tensile stress field for B19 martensite in figure 4(c), which requires further confirmation, while the residual d-spacing strain of Ti₂Cu(002) is negligible. In the subsequent cycling, the d-spacing strain of both phases is linear elastic reversible with applied strain.

Figure 4(f) shows the evolutions of full width at half maximum (FWHM) rate of untransformed Ti₂Cu(002) and Ti₂Ni(111) diffraction peaks upon three loadings. In the first loading, with the initiation of transformation in matrix (applied strain about 1.30%), the rates both phases increase sharply, and subsequently stabilize due to the completion of the transformation at the x-ray detection point, where the magnitude of the FWHM rate of Ti₂Cu(002) is approximately twice that of Ti₂Ni(111). The FWHM values of both phases only recover to about half of the maximum value after the first loading, while fully reversible in the subsequent loading. These evolutions are corresponding to the cyclic evolution of stress-induced B2 ↔ B19 martensite transformation in figure 4(a), reflecting the strong coupling heterogeneous effect caused by transformation [44]. For example, in the Ti₂Ni phase, as the stress-induced martensite transformation occurred, the outermost Ti₂Ni lattice near interfaces is first deformed by the adjacent shear of the transforming NiTi-based matrix, and then chain the inner Ti₂Ni lattice to move. In this case, the gradient of shear loading lead to strong strain heterogeneity along the loading direction of Ti₂Ni phase.

To study the overall stress coupling and strengthening effect of untransformed hard phases on the LPBF-NiTiCuCo composite, the loading partition between phases was analyzed. The component stresses of Ti₂Cu and Ti₂Ni phases are determined by

$$\begin{align}{\sigma _{{\text{Ti2Ni}}}} = {\varepsilon _{{\text{Ti2Ni(111)}}}}\cdot{ }{E_{{\text{Ti2Ni(111)}}}}\end{align} \tag{ 1 }$$

and

$$\begin{align}{\sigma _{{\text{Ti2Cu}}}} = {\varepsilon _{{\text{Ti2Cu(002)}}}}{{\cdot }}{E_{{\text{Ti2Cu(002)}}}},\end{align} \tag{ 2 }$$

respectively, where _Ti2Ni(111) and _Ti2Cu(002) are d-spacing strains from figures 4(d) and (e) that represent the elastic strains, E_Ti2Ni(111) (101.35 GPa) and E_Ti2Cu(002) (73.53 GPa) are elastic modulus in the normal direction of corresponding lattice plane calculated from compliance constants of a single crystal [45]. In the composite system of present study, the respective part stress (phase component load, σ_appl) borne by each phase under the total applied stress can be calculated by

$$\begin{align}{\sigma _{{\text{appl}}}}\left( x \right) = {\sigma _x}\cdot{\nu _x}\end{align} \tag{ 3 }$$

where σ_x is the component stress of x phase from equation (1) or (2), ν_x is the volume fraction of x phase from figure 1(d) (ν_Ti2Ni+ ν_Ti2Cu+ ν_trans-matrix = 1). Since the matrix is transformable upon loading, the modulus difference between B2 and B19 phases results in component load that cannot be determined by equation (3), so the σ_appl(trans-matrix) of the matrix is obtained by:

$$\begin{align}{\sigma _{{\text{appl}}}}{\text{(trans - matrix)}} = { }{\sigma _{{\text{appl}}}} - { }{\sigma _{{\text{appl}}}}{\text{(T}}{{\text{i}}_{\text{2}}}{\text{Ni)}} - { }{\sigma _{{\text{appl}}}}{\text{(T}}{{\text{i}}_{\text{2}}}{\text{Cu)}}\end{align} \tag{ 4 }$$

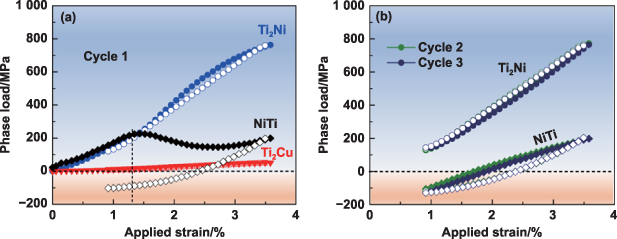

where σ_appl is the global applied stress. The evolutions of component load for three phases upon the first cycle are shown in figure 5(a). In the initial stage (applied strain < 1.30%), each phase is purely elastic deformation mode, both Ti₂Ni and transformed matrix increase almost linearly. The Ti₂Cu phase bears much lower load than the former two due to its faint volume fraction. As the stress-induced transformation initiated (applied strain > 1.30%), the bearing load of matrix starts to decrease from 200 MPa, and bearing load for Ti₂Ni and Ti₂Cu continues to increase with a slightly higher growth rate, indicating that the load transfer occurs from the matrix to untransformed phase. Subsequently, the bearing load of matrix rises slightly while the growth rate of Ti₂Ni and Ti₂Cu slows down at the applied strain of about 2.50%, that is, the transform-finished matrix starts to deform elastically again but still much lower than the Ti₂Ni phase. Overall, under an applied load of 1000 MPa, the bearing load of Ti₂Ni phase is close to 800 MPa, while that of transformed matrix never exceeds 200 MPa. After unloading, there is a residual compressive stress about 100 MPa for Ti₂Ni phase, on the contrary, the matrix exhibits reverse tensile stress about 100 MPa, verifying that the unrecovered martensite remains at the interface and mainly coupling with Ti₂Ni phase to form reciprocal stress field. In addition, the Ti₂Cu phase also remains very weak residual compressive stress relative to a small amount of martensite.

Zoom In Zoom Out Reset image size

As shown in figure 5(b), in the subsequent cycles, the bearing load of matrix is always much lower than that of the Ti₂Ni phase, remaining about 1/4 of the latter and almost fully reversible during cycling. This demonstrates that the Ti₂Ni phase, accounts for 39.67% in volume fraction, can bear about 80% of the applied overall loading due to its intrinsic high strength, which exerts a significant enhancement on the overall mechanical properties.

Figure 6(a) shows the diffraction intensity distributions along the Debye ring of untransformed Ti₂Cu(114) upon loading cycles. It exhibits obvious preferred reorientation during cycling, notably, the intensities along the loading direction (at 90°/270°) weaken while the intensities at 0°/180° and (0/180 ± 40)° intensify. In addition, this reorientation is fully reversible during the second and third cycling except for the partial reversibility of the first cycling, corresponding to the evolution of B2 ↔ B19 martensite transformation in figure 4(a). This indicates that, in addition to the intrinsic elasticity of the Ti₂Cu phase, it is accompanied by reorientation process [46]. As a comparison, in figure S7, the diffraction intensity of Ti₂Ni(111) is almost stable during cycling at the same longitudinal coordinate scale, as well as for the other lattice planes of Ti₂Ni not shown here.

Zoom In Zoom Out Reset image size

The overall elastic limit of Ti₂Ni along the compressive direction is about 2% (figure 4(d)), while it is known that the lattice shear strain exerted by martensitic transformation is up to 6% locally [42, 47]. This strain mismatch leads to the generation of coupled internal stress at the phase interface. In the coupling system of compressive loading, the transformed martensite with large shear strain is constrained by the Ti₂Ni phase with small elastic strain and subjected to inverted tensile stress, while the Ti₂Ni phase is subject to the corresponding compressive stress by martensite [42, 48]. After unloading, part of this coupling stress field is preserved due to the remain of nearly half of martensite that without reverse transformed back to the B2 phase, shown as the residual d-spacing strain in figures 4(c) and (d). On the other hand, there is no significant interphase coupling stress for Ti₂Cu due to its reoriented deformation that matches the strain difference with the lattice shear of martensite.

In thin NiTiCu film materials, it is considered that the Ti₂Cu nano-precipitates serve as sentinels to complete the reversible transformation in each memory cycle under the guidance of dual-epitaxies relationship with transforming matrix [16]. The lattice cell of dual-epitaxies relationship is illustrated in figure 6(b), that is, B2(100)//B19(011)//Ti₂Cu(002), and B2(110)//B19(010)//Ti₂Cu(103). Figures 6(c) and (d) show the azimuth orientation distribution of two lattice correspondences for three phases by external stress. It is seen that the spatial orientation distribution of Ti₂Cu before and after loading bears a resemblance to that of B2 and B19 phases, respectively. The little differentiation arises from the reorientation of B19 martensite and Ti₂Cu phase under external axial stress. The lattice mismatch strains of Ti₂Cu with the B2 and B19 phases after stress-induced transformation are 2.33% and −2.36%, respectively, indicating that the NiTi–Ti₂Cu phase interface is still fully coherent under external stress of 1000 MPa.

The LPBF-NiTiCuCo sample exhibits excellent cycling stability for elastocaloric effect (figure 2) compared to the as-cast sample despite their identical element and phase compositions. Thus the improvement originates from a tenfold difference in grain size (figures 1 and S4). It is known that the LPBF technique involves rapid solidification rate from ultrahigh temperature with transient heat cycling, resulting in microstructures different from conventional casting at multiscale [30, 49, 50]. On the one hand, the size scale of the microstructure is inversely correlated with the solidification rate, in which at least four orders of magnitude higher in LPBF than that of casting [6, 37]. Unless single-phase alloys grow into coarse columnar grains by multi-pass remelting [33, 51], some polyphase composites (e.g. eutectics) are significantly inhibited from migrating of the boundaries at high supercooling by additive manufacturing, leading to ultra-fine microcomposite at a submicro- or nanometer scale [36, 37, 52, 53]. On the other hand, the instantaneous high energy input and sharp temperature gradient (10⁶ K m⁻¹) bring in the perturbation and contraction of the solid–liquid interface at high surface tension driven by the Marangoni effect inside the melt pool [6, 37], resulting in intricate interfaces and small aspect ratio compared to the as-cast sample (figures 1 and S4).

Following the generalized Hall–Petch relationship, grain refinement is considered to be one of the most effective thoughts for strengthen metallic materials [54, 55]. Minishing the average grain size boosts a higher density of grain boundaries, which serve as strong pinning points to hinder the dislocation slip and improve the yield strength [48, 56]. For SMAs, the improvement of yield strength also avoids the stabilization of martensite by dislocation accumulation, thus enhancing the overall cycling stability for transformation. This is verified by the low strength of as-cast sample with much coarse grain size, which is continuously introduced to plastic deformation during cycling, deteriorating the transformation reversibility until the disappearance of the elastocaloric effect in figure 3(c). It is noted that the plastic deformation here is not only the transformed matrix, but the coarse secondary phase that also inhibits the transformation due to the release of the elastic strain energy [42].

In the NiTi-based composites that matrix is lattice-shear deformed by transformation, the load-bearing phase not only brings in strong back stress field at the interface to resist dislocation movement [47, 57], but also exerts elastic interaction with matrix that may promote the martensitic transformation [10, 43]. Furthermore, as the phase sizes are reduced and interfacial densities are boosted, the elastic coupling between the phases would be improved significantly, acquiring a synergistic enhancement on elastocaloric effect. Hou et al considered that the coupling effect in additive manufactured microcomposite receded the stress hysteresis of transformation greatly, and then endowed ultra fatigue-resistance for elastocaloric effect [6, 8]. The refined hierarchical microcomposite structures in LPBF-NiTiCuCo similarly induced highly matched interfaces as well as significant micro-coupling with the transformation, contributing to their excellent elastocaloric stability. This is detailed in the following section.

The interdendritic Ti₂Ni phase with high elastic modulus (up to 141 GPa) and intrinsic high strength is the main load-bearing component of the microcomposite during deformation. As shown in figure 5, the Ti₂Ni phase with 39.67% of the volume fraction can bear 80% of the overall external load, protecting the transforming matrix with major volume fraction from overloading and irreversible plastic deformation. In addition, the high-density curved interfaces rise remarkable back stress as a major obstacle to resist dislocation motion. Therefore, first of all, Ti₂Ni phase is the dominant reinforcing component to enhance the overall strength of the material in present composite system.

In another sense, according to the HE-XRD results in figure 4, almost half of the martensite remains at the Ti₂Ni interface after the first cycle, forming strong coupling stress field. This coupling effect after the first deformation alters the martensite transformation mode from a critical local launch-type to a homogeneous type, in which the latter exhibits a far lower transformation barrier and stress hysteresis [6, 8]. To further verify this mechanism, the microstructure after three compressive cycles was observed by TEM, as shown in figure 7(a), residual B19 martensite laths and some deformation dislocations do exist at the NiTi–Ti₂Ni interface. The tips of the martensite laths point to the interior of the transformable matrix, implying that martensite propagation initiated from the interface motivated by coupling stress. Figure 7(b) shows the corresponding SAED of NiTi-based matrix near interface along the zone axis of [001]_B2 ([010]_B19). It is seen that the mutation of the spots indicates the superposition of the B2 and B19 phases, confirming the coexistence of the highly lattice-compatible B19 martensite and the B2 parent phase [16]. Inside the transformable matrix, as shown in figure 7(c), the reverted B2 phase exhibits clear track lines left by stress-induced B19 martensite transformation process. During each cycling, the residual martensite is propagating along these tracks strictly, ensuring the reversibility and integrity of the transformation.

Zoom In Zoom Out Reset image size

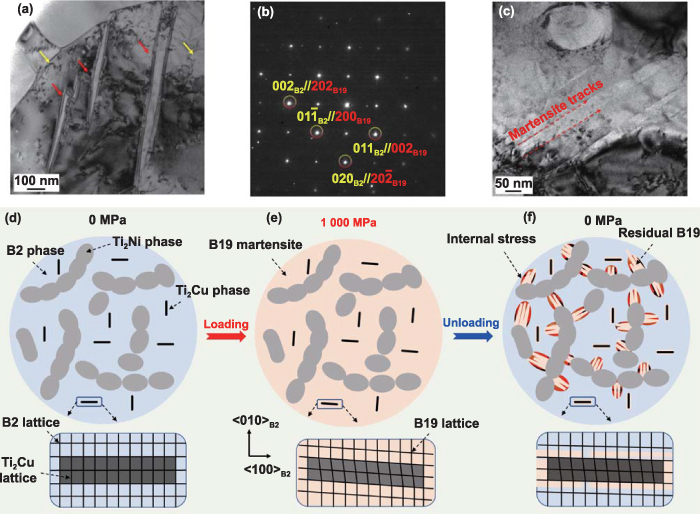

The schematic diagram of the microcomposite during first compressive loading is shown in figures 7(d)–(f). After the first compression to 1000 MPa and unloading, a high density of B19 martensitic laths and coupling stress fields is remained at the Ti₂Ni-matrix interface. The intricate network formed via LPBF enlists the deformed sample with uniformly dispersed interfacial martensite and coupling stress fields, which can serve as nucleation points and driving forces for stress-induced martensitic transformation during subsequent cycling, respectively. For one, this micro-configuration divides the B2 ↔ B19 transformation frontier infinitely, reducing the fronts meet and frictional work [6]. Moreover, the nucleation barrier for transformation is eliminated, allowing the transformation to initiate at very low applied loads, as shown in figure 4(a), where the transformation starts as soon as stress is applied. Under the guidance of elastic coupling of Ti₂Ni at interface (evolution of the FWHM rate in figure 4(f)), the transformation process propagates as homogeneous and stable as possible along the interface, reducing the irreversible energy dissipation by transformation. The above factors promote small hysteresis and high transformation completeness effectively, which enhance the fatigue resistance for elastocaloric effect. In addition, compared to other NiTi-based hard nonequiatomic phases (e.g. Ni₃Ti or Ni₄Ti₃), the Ti₂Ni phase has an ultrahigh heat capacity (for the output energy), which helps to exhibit a much higher COP values of elastocaloric effect [10].

In the stress-induced transformation, as discussed in section 4.2, the dominant initiation of transformation upon cycles originates from the residual martensite at the Ti₂Ni interface, while the Ti₂Cu phase with faint volume fraction exhibits the transformation epitaxy shown in figures 6(c) and (d). The issue here is the inability to embody the individual promotion of Ti₂Cu to cyclic stability of reversible transformation upon external loading. Thus, considering there is no interaction for larger and harder Ti₂Ni phase under loading-free, the in-situ HE-XRD measurement has been conducted during the heating and cooling process, as shown in figure 8(a).

Zoom In Zoom Out Reset image size

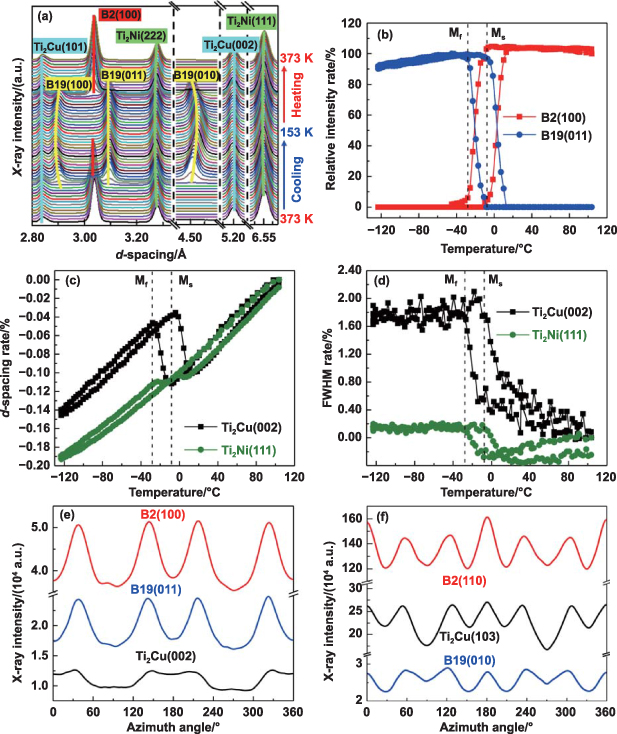

During the thermal-induced B2 ↔ B19 martensite transformation process (figure 8(b)), it is primarily the Ti₂Cu phase interact elastically with the transforming matrix, while it is difficult to drive the Ti₂Ni phase without external stress (figures 8(c) and (d)). In this case, the martensite transformation peaks also exhibit perfectly overlapping after 20 thermal cycles of using DSC measurement, as shown in figure S8. This thermal fatigue resistance is rare to achieve for classic binary NiTi alloys that generally show a gradual shift to lower temperatures as the defects accumulate during thermal cycling [58].

It is known that the Ti₂Cu phase exhibits extreme low lattice mismatch strain and specific orientation with both B2 and B19 phases [16], which are also shown in the figures 8(e) and (f). This superior compatibility endows the dual-epitaxial growth for both the forward and reverse martensite transformation along the Ti₂Cu interface, which is verified by the highly crystallographic inheritance relationship between the Ti₂Cu and corresponding B2/ B19 phase. In other words, the B19 martensite and B2 parent phase initial and grow from the Ti₂Cu lattice epitaxy, respectively. The combination of dual epitaxy of Ti₂Cu and small hysteresis of B19 transformation is the essential mechanism of excellent cycling stability for thermal-induced transformation in figure S8. Therefore, during the stress cycling, in addition to the dominant Ti₂Ni phase, part of the transforming matrix is also epitaxially grown from the Ti₂Cu phase interface. This epitaxial growth not only ensures the reproducibility and completeness of the transformation, but also further promotes the heterogeneity of transformation as discussed in 4.2, contributing to the cycling of the elastocaloric effect.

For the deformation mode of Ti₂Cu phase during stress-induced phase transformation, as shown in figure 6(a), it is not purely elastic-plastic deformation path as the typical precipitations, but accompanied by reorientation-like deformation. The schematic illustration of the micro-deformation process of Ti₂Cu is shown in the lower part of figure 7. The Ti₂Cu lattice keeps fully coherent with the B2 lattice before deformation due to their nano size and strict orientation figure 7(a). After loading (b), in addition to intrinsic elasticity, the Ti₂Cu disk reorients following the lattice shear of martensite growth rather than hinder martensite shear like in typical precipitations, maintaining the overall interphase lattice match. After first unloading (c), the reorientated lattice of the Ti₂Cu is partly reversed by the reverse transformation, but it cannot be fully reversed to the initial state due to the coupling of the faint residual martensite at the interface (partially reversible of the orientation in figure 6(a)). During the subsequent cycling, the deformation strain magnitude of Ti₂Cu phase matches the large local lattice strain (∼7%) of B19 martensite transformation and always keeps the fully lattice-coherence, ensuring epitaxial growth of the stress-induced transformation.

At present study, in addition to the secondary phase, due to the excess solution of Cu atoms in the matrix, the B19 martensite shows an intrinsic small transformation hysteresis based on its high lattice compatibility with the B2 phase. The middle eigenvalue (λ) in this study is 0.9895 evaluated by using the lattice parameters extracted HE-XRD data, which is very close to the ideal value (λ = 1), suggesting the good geometric compatibility between B2 and B19 lattice [9, 15, 16]. The high lattice compatibility can alleviate the misfit strains and dislocations at the martensite transformation frontier, and thus reduce the dissipated frictional energy, accounting for low hysteresis and good reversibility of the elastocaloric effect.
