Femtosecond laser direct writing of functional stimulus-responsive structures and applications

Because the pulse width of femtosecond laser is exceedingly brief, it can reach incredibly high peak power and energy density (>10¹⁴ W cm⁻²) at lower pulse energy after focusing. The processing mechanism of FsLDW differs from that of conventional long pulse lasers and continuous lasers. It possesses the benefits of a small heat-affected region, high processing accuracy beyond the optical diffraction limit, true 3D processing ability and the ability to process almost any material. When a femtosecond laser interacts with various materials, there will be complicated nonlinear physical effects such as multiphoton absorption, non-equilibrium thermal relaxation, Coulomb explosion, avalanche ionization, and multiphoton ionization [58–60]. The interaction process of femtosecond laser with metallic and nonmetallic materials will be classified and described below.

2.1.1. Interaction between the femtosecond laser and metallic materials.

2.1.2. Interaction between the femtosecond laser and nonmetallic materials.

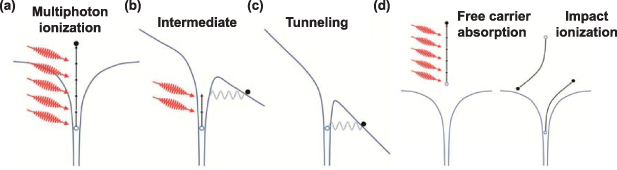

Nonmetallic materials have significantly fewer free electrons compared to metal materials. The electron density and conductivity of nonmetallic materials in the conduction band are usually low, and the majority of electrons are confined to the valence band. When matter is exposed to a femtosecond laser, the initial event involves the electrons absorbing photon energy. For metals, the primary absorption mechanism is linear absorption, while for nonmetallic materials such as dielectrics and semiconductors, non-linear absorption plays a more predominant role [78]. The first stage of the interaction between nonmetallic materials and femtosecond lasers can be broadly conceptualized as initiating with the generation of a sufficient number of free electrons through photo-excitation. For a semiconductor with a narrow bandgap smaller than the photon energy, a single photon absorption is sufficient to directly excite valence band electrons to the conduction band [79]. However, for the wide-bandgap semiconductors and dielectrics, the energy of the bandgap exceeds the photon energy (figure 2). In this case, the generation of free electrons is mainly attributed to the combined mechanisms of multiphoton ionization, tunnel ionization, and avalanche ionization. Multiphoton ionization is the phenomenon wherein valence band electrons absorb the collective energy of multiple photons, facilitating the valence band electrons to be excited into the conduction band and become free electrons [71, 80, 81]. Tunnel ionization is a quantum mechanical process and plays a key role in femtosecond laser–matter interaction. The strong electric field generated by the ultrashort femtosecond laser pulses allows electrons to tunnel through the energy barrier around the nucleus, leading to their escape from the atom or molecule and resulting in ionization and turning into free electrons [59, 82]. Tunnel ionization and multiphoton ionization engage in a competitive relationship, and which one is dominant can be determined by Keldysh parameter [59]. Upon absorption of photon energy, low-energy free electrons undergo a transformation into high-energy counterparts within the conduction band, assuming the role of seed electrons. Seed electrons possess considerable kinetic energy and can interact with electrons in the valence band. Hence, two low-energy free electrons will be produced after the collision between a seed electron and a valence electron, which can also absorb the energy of photons, and then impact and ionize again. This process can undergo repeated iterations, giving rise to a cascade effect akin to an avalanche, known as avalanche ionization [58, 80]. Multiphoton ionization and tunnel ionization can provide the initial seed electrons for avalanche ionization (figure 3). As for the most solid nonmetallic materials, the following stage after the femtosecond laser photo-excitation is phase transition. After the first stage, there is a gradual accumulation of free electrons within the material, leading to energy transfer to the lattice. The interaction between these free electrons and the lattice can potentially induce a phase transition and material removal through melting, gasification, Coulomb explosion, and electrostatic ablation [60, 83].

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The mechanism of the femtosecond laser-nonmetallic material interaction can undergo variations when utilizing photopolymer materials for micro/nanostructure fabrication. This process primarily relies on the photopolymerization, involving the bonding reaction of monomers and oligomers. The comprehensive process primarily encompasses the generation of free radicals and subsequent cross-linking of monomers/oligomers initiated by the free radicals [38, 84–86]. Photo-initiators are commonly employed to initiate the photopolymerization reactions, which exhibit sensitivity to UV/visible light and can experience a transformation that generates reactive species such as free radicals and photo-acids upon light absorption [87–89]. The excitation of an electron in a valence band from the ground state to higher energy levels can occur through multiple photon absorption. When photo-initiator molecules simultaneously absorb the energy of two or more photons, they experience electronic transitions, leading to their excitation from the ground state to the excited singlet state. Subsequently, via intersystem crossing, they transition to the triplet state, resulting in the formation of free radicals. Apart from the multiple photon absorption, the electron can acquire sufficient energy through multiphoton ionization to surpass the ionization threshold, leading to its separation from the valence shell of photo-initiator or monomer molecules, following the phenomenon of avalanche ionization and free-radicals generation [38, 85]. It is worth noting that multiphoton ionization and multiple photon absorption can occur concurrently, representing parallel processes that compete with each other. The manner in which photo-excitation occurs is contingent upon the band gap of the photopolymer, which can be modulated through the utilization of photo-initiators. Additionally, the selection of laser parameters, encompassing pulse duration, laser central wavelength, pulse repetition rate, and photon beam density, further governs the process of photo-excitation [85, 90, 91]. Following the generation of free radicals, the polymerization reaction is initiated, leading to the formation of a cross-linked network of monomers or oligomers, ultimately yielding the creation of polymerized voxels, which serve as the primary microstructure building units [92, 93]. Interestingly, the polymerization reaction process is usually accompanied by a quenching effect, which hinders the progress of polymerization. It is crucial to employ an appropriate laser exposure dose, determined by laser power and exposure time, to ensure that the production of free radicals surpasses the quenching effect, providing an adequate supply for polymerization reactions to take place. Furthermore, it is noteworthy that photopolymer materials possess not only a polymerization threshold but also a distinct damage threshold. Excessive exposure dose during processing can result in local overheating, leading to micro-explosions and material damage. Therefore, it is essential to select laser parameters within the range of the polymerization threshold and the damage threshold [94–98]. Commonly employed photopolymers can be formulated by utilizing readily available materials such as epoxies, acrylates, and hydrogels. To impart additional stimuli-responsiveness and multifunctionalities, these photopolymer materials are often supplemented with appropriate dopants, including magnetic nanoparticles, organic dyes, and carbon nanomaterials, thereby facilitating the production of tailored composite materials [99–102].

In addition to the development of femtosecond laser-matter interaction mechanisms, many feasible manufacturing strategies at diverse scales based on FsLDW have been proposed.

2.2.1. Femtosecond laser two-photon polymerization.

Since Kawata et al made a significant breakthrough by reporting the fabrication of microbull sculptures with an impressive spatial resolution of 120 nm in 2001, two-photon polymerization possessing good material penetration and spatial selectivity has become one of the most widely used technologies to fabricate 3D micro/nanoscale devices in polymers (figures 4(a) and (b)) [103]. Generally, the typical two-photon polymerization process involves the requirement for the target transparent photosensitive materials to synchronously absorb two or more photons to obtain enough photon energy, which is regulated by a transient virtual transition state characterized by an exceedingly brief duration within the femtosecond range. Following the occurrence of two-photon absorption, which is a third-order nonlinear optical process arising from the interaction between the material and the femtosecond laser's light, the molecules of the target material can present high energy states. Two-photon polymerization only occurs near the focus of the laser with high laser intensity, which can localize a large number of photons in a tiny focusing area. Furthermore, lasers with longer wavelengths and lower energy are generally selected for two-photon polymerization processing. In this case, single-photon polymerization cannot occur at the unfocused position of the femtosecond laser. Thus, the photopolymerization reactions of monomers and photo-initiator molecules can only be induced at the laser focus without impact on other positions. Through precise control of either the laser focus or the sample's relative movement, the target materials can gradually polymerize along the focus scanning path, which can realize the fabrication of intricate micro/nanoscale structures with arbitrary morphology and resolution less than the applied diffraction limit in a maskless and facile process [86, 104–109]. Micro/nanostructure fabrication through the principle of two-photon or multiphoton polymerization using a femtosecond laser represents an advanced processing technology for photosensitive polymers, which synergistically integrates the versatility of 3D printing with exceptional resolution of photolithography technology and holds great potential for the precision manufacturing of micro/nano-architectures with customized and complicated constructs [103, 110, 111]. The desired micro/nano-structures are typically fabricated using photoresists whose ingredients include photo-initiators for generating free radicals after excitation, monomers or oligomers acting as the fundamental structural framework, and cross-linkers responsible for guaranteeing insolubility in developing solvents. For instance, Seet et al demonstrated the preparation of photonic crystals with square and circular 3D spiral architectures using SU-8 photoresist and femtosecond laser two-photon polymerization strategy (figure 4(c)), showing characteristics of photonic stop-gaps at infrared wavelengths [112]. Tian and collaborators fabricated the microlens array with different curvature unit lenses using the commercial negative photoresist SU-8, which possessed unique imaging and focus capabilities and can be applied to improve the optical system performance of field curvature correction and real-time 3D imaging [113]. In addition to photopolymers, microstructured metals, metal oxides, carbon materials, proteins, and composite materials have been easily prepared through two-photon or multiphoton polymerization processes [114–117]. For instance, Dadras et al manufactured various 3D organic semiconductor composite microstructures and microelectronic devices by using newly developed photosensitive resin doped with organic semiconductor materials (figure 4(d)) [114]. Moreover, many smart and responsive materials have been developed for the fabrication of stimulus-responsive structures based on femtosecond laser two-photon polymerization. Functional groups in monomers, nanoparticle dopants, or appropriate surface modifications can make the prepared structures respond to various external stimuli [118–121].

Zoom In Zoom Out Reset image size

2.2.2. Femtosecond laser processing on the surface of solid material.

When the used laser energy density is slightly higher than the solid material energy threshold, the laser-induced periodic structures (LIPSS) can be generated on the material surface (figure 5). Since the pioneering work of Birnbaum et al in 1965, the formation of LIPSS has been observed on various materials, such as semiconductors, metals, and dielectric materials, when exposed to laser irradiation [126–130]. It is believed that the generation mechanisms of the LIPSS of different materials using ultrashort pulse lasers are different, which mainly include scattered light interference theory, surface plasmon polariton theory, self-organization theory, and evanescent wave theory [131–134]. Diverse laser parameters, including laser power, pulse number, pulse width, repetition frequency, laser polarization direction, incident laser wavelength, incident angle, and focusing position, can affect the generation of periodic structures on the surface of solid materials [135–137]. Moreover, the morphologies of LIPSS can also be influenced by the material properties and environments. Albu et al used femtosecond lasers with different wavelengths to process titanium/chromium/tungsten (Ti/Cr/W) in air and liquid environments (figure 5(b)), and found that structures periods formed in liquids were much smaller than those formed in air [123]. The generation of micro/nano periodic surface structures through femtosecond laser irradiation has a profound impact on the surface properties of materials. These structures can significantly alter characteristics such as friction, wettability, and optical behavior, which hold immense promise for a wide range of applications across various fields such as national defense, biochemistry, and high-end manufacturing [138–140]. For example, Jiang et al used a copper foil template with LIPSS and a template-directed chemical vapor deposition method to fabricate hierarchically structured few-layer graphene films with superhydrophobicity and beautiful structural color [141]. When the laser energy surpasses the damage threshold of the solid material, direct ablation of the material surface occurs. In this circumstance, the target material can be converted into vapor and plasma near the focal point and be removed. Moreover, some nanoparticles and micro/nano debris can be generated, which can increase the surface roughness. Various microscale structures, such as microholes, micropillars, and microgrooves, can be manufactured by using this technology [51, 122, 125, 142–144]. For example, Zhang et al designed a Janus oil barrel with controllable microhole arrays fabricated by femtosecond laser drilling (figure 5(c)), which exhibited the capability for spontaneous absorption and storage of spilled oil with high flux [124]. Sohn et al fabricated periodic microgratings and micropillars on the surface of fused silica glass through irradiating with a femtosecond laser beam, and then obtained different microlens arrays by several laser polishing cycles [145]. Wu et al prepared the slant microwall arrays using one-step femtosecond laser oblique ablation (figure 5(d)), which can be used for high-performance droplet manipulation [125].

Zoom In Zoom Out Reset image size

2.2.3. Femtosecond laser modification processing inside solid material.

One significant benefit of employing ultrashort pulses is the ability to regulate the thermal impact of light–matter interactions. Furthermore, the interaction between the femtosecond laser and materials can exhibit nonlinearity, which indicates that materials transparent to the incident wavelength, such as glass and related transparent dielectrics, can be processed for creating intricate and arbitrary free-form 3D micro/nanoscale structures [146]. Usually, the femtosecond laser beam is precisely focused into the bulk of solid material samples using a microscopic objective to realize on-demand localized modifications and precise fabrications (figure 6(a)). The processing results are greatly affected by the energy density at the laser focus and the damage threshold of the material. Under conditions where the laser energy density at the focal point remains below the material's damage threshold, a color center can be generated [147]. When the pulse energy at the laser focus approaches or slightly exceeds the material damage threshold, modifications of the refractive index can be induced in the material, which can be categorized into refractive index increase modification and refractive index decrease modification depending on used laser irradiation parameters and material characteristics. The femtosecond laser-induced internal refractive index change can be used to construct 3D optical microcomponents including optical waveguides and optical couplers [148–154]. In cases where the energy at the laser focus significantly exceeds the material's damage threshold, microcavities or microcracks can be generated at the focus, which is generally accompanied by relatively violent phase and structural changes [42, 155, 156]. Since the energy density at the focus point of the tightly focused ultrashort pulse laser is extremely high and the nonlinear interaction with the material only occurs on a very small scale, the processing resolution is great, which is suitable for manufacturing 3D complex micro/nanostructures in transparent solid materials including glass and crystals [42, 157, 158]. For example, Wolf et al introduced a novel fabrication approach for the point-by-point femtosecond inscription of fiber Bragg grating arrays with diverse configurations within seven-core spun optical fibers [159]. Zhang et al manufactured a photonic chip composed of three straight waveguides and a curved waveguide in boroaluminosilicate glass through FsLDW (figure 6(b)), which could be used for two-mode photonic braiding [160]. Wei et al fabricated a 3D nonlinear photonic crystal in lithium niobate using a selective femtosecond laser erasing technique (figures 6(c) and (d)), which shows great potential in nonlinear imaging, nonlinear beam shaping, and 3D nonlinear holography [161].

Zoom In Zoom Out Reset image size

2.2.4. Hybrid FsLDW fabrication technology.

Apart from the FsLDW technologies mentioned above, hybrid processing techniques integrating FsLDW with other manufacturing strategies have also attracted wide attention, such as etching-assisted femtosecond laser micromachining, femtosecond laser-induced plasma-assisted ablation (LIPAA), and FsLDW-based soft transfer [43, 44, 162, 163]. By combining FsLDW technology and wet/dry etching technology, well-designed structures with high accuracy and great surface roughness can be obtained. The femtosecond-laser-induced phase and structural modifications can enhance the etch rate inside the transparent hard materials, which can facilitate the matter removal from the modified region during subsequent etching processes [164–166]. The etching-assisted femtosecond laser processing strategy integrates the advantages of subwavelength resolution beyond the diffraction limit based on FsLDW and surface quality improvement based on polishing effect of the etching process, which can realize preparation of high-quality complex micro/nano-structures with superior resolution on the surface or inside transparent hard materials through a relatively facile and cost-effective process. For instance, Liu et al manufactured artificial compound eyes using curved sapphire substrates based on a dry-etching-assisted FsLDW strategy, with a root-mean-square value of the surface roughness of only 1.1 nm (figures 7(a) and (b)), which presented brilliant wide field-of-view imaging and focusing characteristics [167]. Ródenas et al found that the chemical etching rate of nanopores in yttrium aluminum garnet and sapphire crystals could experience a remarkable amplification of over five orders of magnitude through combining direct laser writing with wet etching. And they fabricated sub-wavelength diffraction gratings and nanostructured optical waveguides in yttrium aluminum garnet, as well as millimeter-long nanopores in sapphire (figures 7(c)–(e)), proving the value of this hybrid technology in the realms of crystalline nonlinear optics and 3D nanophotonics [168]. The femtosecond LIPAA utilizes the strong high-energy plasma produced by the interaction between a femtosecond laser and the target material to strengthen the laser ablation at the rear surface of the transparent substrate material, thereby enabling the fabrication of microstructures characterized by superior quality and reduced surface roughness [44]. For instance, Liu et al manufactured microstructures with high aspect ratio on the sapphire substrates through using femtosecond LIPAA and subsequent optimized laser ablation (figures 7(f) and (g)), which could avoid laser heating and internal crack formation [169]. In addition, FsLDW-based soft transfer hybrid technology has also aroused great interest from researchers due to its flexibility and high efficiency for fabricating soft functional structures [51, 170]. Li et al facilely prepared slanted shape memory microcones through oblique FsLDW and a subsequent replica-molding method (figures 7(h) and (i)), which enabled the reversible morphology switching-based regulation of wettability and droplet adhesion [171].

Zoom In Zoom Out Reset image size

Magnetic fields have attracted great attention and become the preferred stimulation strategy to actuate stimulus-responsive structures because of their attractive advantages of being remotely controllable, safe, instantly responsive, and biocompatible [17, 50, 121, 172]. At present, to render the fabricated structures based on FsLDW technology with the required magnetic responsiveness, magnetic elements such as Fe₃O₄ nanoparticles, NdFeB particles, and iron powder can be incorporated with the raw materials to obtain magnetic composites for fabrication, or magnetic materials can be coated on the surface of prefabricated unresponsive structures [173–177]. When subjected to external magnetic fields and spatial gradients, these structures can undergo complex predesigned behaviors including deformation and locomotion under actuating magnetic torques and forces, showing expansive application prospects in microfluidics [50, 51], robotics [178], cell/drug delivery [179, 180], etc.

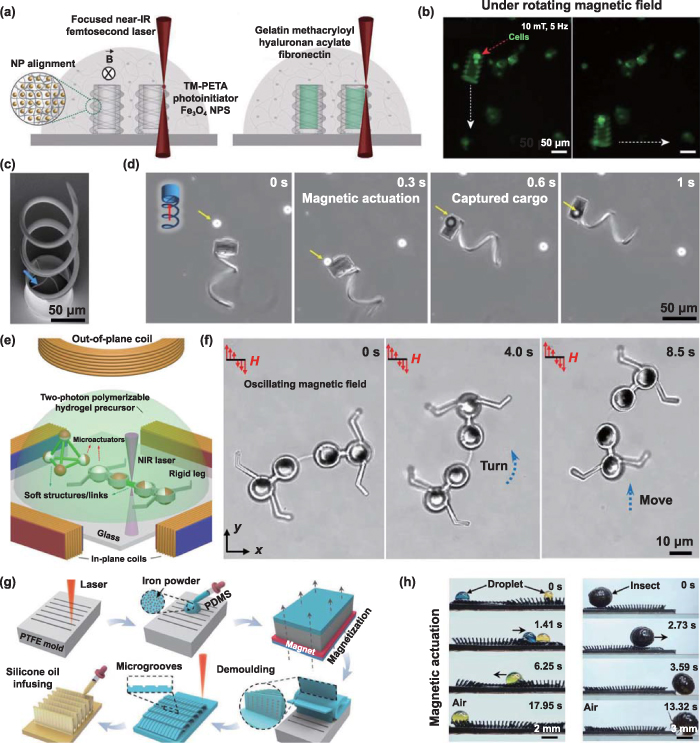

For example, Yasa et al developed a magnetically steerable cell microtransporter for active and precisely localized stem cell delivery by using a trimethylolpropane ethoxylate triacrylate (TMPETA)-based hydrogel containing superparamagnetic iron oxide nanoparticles through FsLDW technology (figures 8(a) and (b)) [179]. Similarly, a magnetically powered biodegradable microswimmer based on the magnetic hydrogel composite, which was synthesized by using poly(ethyleneglycol) diacrylate (PEG-DA), pentaerythritol triacrylate (PE-TA), and superparamagnetic Fe₃O₄ nanoparticles, was manufactured utilizing the femtosecond laser two-photon polymerization strategy. The prepared magnetically responsive microswimmer with multi-segment architecture and good degradability could realize undulatory locomotion and move forward under the driving of an external oscillating magnetic field, which presented great prospect in real-time and in vivo medical applications [181]. In addition to directly preparing magneto-responsive structures using magnetic composites, magnetically responsive structures can also be fabricated by modifying the surfaces of prefabricated nonresponsive structures with magnetic materials [120, 121, 182]. For example, Xu et al first fabricated microcarriers using the negative-tone photoresist and two-photon polymerization-based FsLDW strategy and then coated the nonmagnetic structures with 50 nm Fe by electron beam evaporation to prepare magnetic micromotors (figures 8(c) and (d)) [183]. Besides the fabrication of a single simple structure, complicated magnetic structures can also be manufactured by integrating multimaterial components through assembly strategies [184]. In a very fascinating example, Hu et al fabricated Janus microparticle-based magnetic micromachines with diverse programmed shape transformations and functions using two-photon polymerization-based FsLDW technology and a hierarchical assembly strategy (figures 8(e) and (f)). The inherent magnetic shape anisotropy of Janus microparticles brought excellent magnetic programmability to these deformable magneto-responsive soft structures [185].

Zoom In Zoom Out Reset image size

By combining FsLDW technology with other advanced manufacturing technologies, a variety of flexible magnetic-responsive structures can be fabricated. For example, a multifunctional lubricated slippery magnetic-responsive microplate array was developed through a hybrid process of FsLDW and soft-transfer-based fabrication technology. A polytetrafluoroethylene (PTFE) mold with high-aspect-ratio microgroove array was first obtained through femtosecond laser ablation. Then, the composite material consisting of carbonyl iron powder and liquid polydimethylsiloxane (PDMS) and the PTFE mold were utilized to prepare the magnetic-responsive microplate array. Furthermore, the surfaces of the microplates were ablated again using a femtosecond laser to form microstructured surfaces, which could ensure the better storage of lubricating oil for the multifunctional lubricated slippery magnetic-responsive microplate array to realize high-performance multi-substance transport (figures 8(g) and (h)) [163]. Likewise, Li et al developed shape memory magnetic microcones using iron-particle-doped epoxy resin through an FsLDW-based microdrilling and replica-molding strategy, which can be applied for versatile droplet manipulation and information encryption [142].

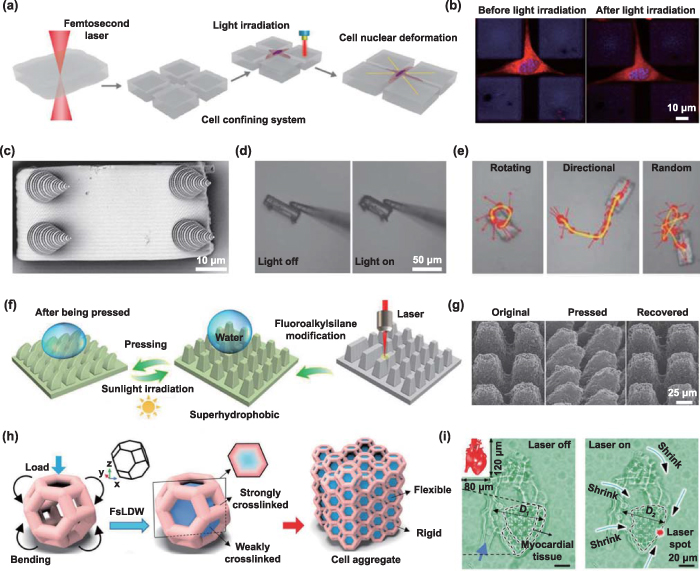

Intelligent light-responsive structures hold significant appeal due to their ability to be remotely and precisely controlled and multidimensionally (e.g. wavelength, intensity, and irradiation time) modulated rapidly in a noninvasive manner [186], which are generally actuated based on photochemical mechanisms (e.g. photoisomerization) or photothermal effects [187–195]. These smart structures possess the capability to undergo reversible changes in their physical and chemical characteristics, including alterations in morphology and surface wettability, under light of an appropriate wavelength [188–190, 194, 196]. For example, Pennacchio et al designed a photoactuable cell confining system using an advanced azobenzene-containing gelatin-based hydrogel with great biocompatibility and biodegradability by means of two-photon-polymerization-based FsLDW technology. The molecules of used azobenzene-based cross-linkers could realize isomerization between more stable trans isomers and less stable cis isomers under sufficient light irradiation, which endowed the fabricated microstructures with on-demand deformation for confinement and mechanical stimulation of living cells (figures 9(a) and (b)) [57]. Similarly, light-responsive microactuators were fabricated using liquid crystalline networks based on the azobenzene-doped mesogen mixtures. Trans-cis photoisomerization in azobenzene induced the shape morphing and nonreciprocal movement of the light-activated actuators manufactured by femtosecond laser two-photon polymerization [197]. Zeng et al proposed microscale light-fueled walkers based on azobenzene-containing liquid crystalline elastomers, which possessed dynamic behaviors, demonstrating capabilities such as directional or random walking, rotating, and jumping (figures 9(c)–(e)) [196]. Furthermore, Ulrich et al fabricated visible light-responsive photochromic 3D micro-objects by using the formulated modular thiol-ene resin and femtosecond laser two-photon polymerization strategy, which could dynamically realize photo-isomerization-based reversible color tuning [198].

Zoom In Zoom Out Reset image size

In addition to photo-isomerizable functional groups, photothermal-conversion-based elements, such as gold nanorods (AuNRs), reduced graphene oxide (RGO), carbon nanotubes, and Fe₃O₄ nanoparticles, can also be utilized in light-responsive structures [193, 199–201]. For example, Bai et al designed a sunlight-driven recoverable superhydrophobic surface using FsLDW technology and a photo-responsive SMP composite, which was developed through mixing a thermal-responsive SMP matrix and RGO. Since RGO presented excellent photothermal conversion properties, it could heat the prepared RGO-SMP composite above the glass transition temperature under enough light irradiation. The micropillar structures on the RGO-SMP composite surface were constructed by orthogonally crossed line-by-line femtosecond laser ablation, which were covered by rich micro/nanostructures and endowed the surface with ultralow-adhesive superhydrophobicity through the modification with fluoroalkylsilane. The superhydrophobicity of the surface would be lost when the micropillar structures underwent deformation through pressing or stretching. Interestingly, after sufficient sunlight irradiation, original morphology and superhydrophobicity of the surface could be completely restored (figures 9(f) and (g)) [200]. In another interesting example, flexible light-responsive intelligent microstructures possessing superior shape-morphing properties were fabricated by using a carbon-nanotube-doped hydrogel composite and two-photon-polymerization-based FsLDW technology (figure 9(h)). The used single-walled carbon nanotubes greatly augmented thermal conductivity, light absorption, and mechanical modulus of the temperature-responsive N-isopropylacrylamide (NIPAM)-based hydrogel composite, thus greatly improving response speed and light sensitivity of these smart micromachines. Impressively, a 3D beating microscale artificial heart (dimension of merely 80 × 120 × 60 µm³) with excellent spatiotemporal light-induced controllability was manufactured by assembling different cell structures (figure 9(i)), showing great potential in tissue engineering [201].

The temperature stimulus response of intelligent structures has been widely used to achieve user-defined functionalities because of the advantages of wide material applicability and simple control [202, 203]. The response processes of most temperature-sensitive materials, including hydrogels, shape-memory materials, and LC polymers, are caused by changes of molecular structure, anisotropic properties, or different swelling behaviors. For thermo-responsive hydrogels, their response principles mainly rely on the change in wettability and solubility with temperature [204, 205]. For example, Hippler et al manufactured functional hetero-microstructures by utilizing poly(N-isopropylacrylamide) (PNIPAM)-based hydrogels and two-photon polymerization strategy. When external temperature exceeded lower hydrogel critical solution temperature, the hydrogel shrank and stiffened due to the wettability transition from hydrophilicity to hydrophobicity. After being cooled down, the hydrogel reversibly returned to its original state (figure 10(a)). On the other hand, the thermal response of the polymerized hydrogel depended largely on the crosslinking density. Hydrogel with lower crosslinking density exhibited significantly greater shrinkage compared to that with higher crosslinking density, which could be utilized to realize structural deformation. Thus, they flexibly varied the employed exposure dose in fabrication procedure to realize precise and localized control on the crosslinking density and temperature response, enabling complex and controllable actuation of the 3D hetero-microstructures (figure 10(b)) [18]. In a similar fashion, thermomechanical-metamaterial-based 3D soft microrobotics were developed by Ji et al, which consisted of thermo-elastic-bilayer-plate-based rotational and translational elements. These two-component elements were prepared through two-photon polymerization with localized control of variable laser exposure using a negative tone photoresist, which enabled expansion and bending upon heating because of the different thermal expansion characteristics (figures 10(c) and (d)) [206].

Zoom In Zoom Out Reset image size

Temperature-responsive LC elastomers (LCEs) have attracted burgeoning interest because of their large strain and programmable 3D shape morphing capabilities, which are attributed to their anisotropic physical properties caused by their long-range orientational order. Temperature can trigger the order-disorder transition of mesogens to change their molecular alignment [22, 208]. The fascinating anisotropic characteristics of LCEs can be utilized to fabricate temperature-responsive structures. For example, microstructured and hybridized temperature-responsive actuators based on epoxide-based LCEs were manufactured by McCracken et al through femtosecond laser two-photon polymerization (figure 10(e)), which had great locally and spatially controlled actuation performance [207]. Likewise, Guo et al designed LCE pixels with programmable colors in the visible range from precisely controlled thicknesses of LCE through two-photon polymerization technology [209]. The refractive indexes of LCEs with different molecular alignments were different, which could lead to polarization colors [209–211]. Based on the fact that temperature causes a reduction in order, a decrease in birefringence, and color shifting of the LCE, they fabricated and demonstrated the temperature-responsive two-dimensional and 3D LCE-based microstructures with great reversible color-changing capabilities [209]. In another interesting example, Zhang et al designed and demonstrated microscale temperature-responsive reconfigurable Kirigami metastructures. They used stimuli-responsive LCEs to fabricate the backing substrate, which could act as an artificial muscle to programmably reconfigure the overhanging Kirigami microstructures prepared by femtosecond laser two-photon polymerization under proper external thermal stimulation. The stretching and contracting of the Kirigami microstructure could be remotely controlled by thermal deformation of the backing LCE substrate (figures 10(f)–(h)). Moreover, they realized temperature-responsive switching and information encryption through the proposed LCE-driven Kirigami metastructures [208].

In addition to the stimulus-responsive structures mentioned above, pH-responsive intelligent structures have also attracted wide attention. Materials capable of responding to pH stimulation include organic polymers [212], hydrogels [213], proteins [116, 214, 215], and SMPs [216], among others. The main reason for the pH-sensitive behaviors of these materials is the ionization/deionization transition of pH-responsive functional groups such as carboxyl and pyridine in certain pH range [17, 24, 217]. By combining FsLDW technology with pH-responsive materials, a lot of interesting smart structures can be manufactured [19, 218–220]. For example, Wang et al developed an intelligent micro-actuator based on a flytrap-inspired bionic asymmetric structure, which was fabricated by using FsLDW technology and a 2-(dimethylamino)ethyl methacrylate (DMAEMA)-based hydrogel. The protonatable aliphatic tertiary amine groups in the DMAEMA-based hydrogel would be positively charged because of protonation of the hydrogen ions in acidic solution, enabling electrostatic repulsion between molecular chains and thus inducing the swelling of the hydrogel. While the alkaline solution would cause the deprotonation of tertiary ammonium cations and the subsequent shrinkage of the hydrogel (figure 11(a)). These fabricated microstructures could achieve highly controllable capturing and releasing behaviors of target microparticles under proper pH stimulation (figure 11(b)) [221]. Similarly, Hu et al proposed biomimetic 3D microstructures with versatile shape transformation capabilities, such as expansion/contraction, torsion, and intricate wrinkling and curling distortion, by using FsLDW and a pH-responsive hydrogel. Moreover, they manufactured functional microcages to realize selective microparticle trapping and release [222].

Zoom In Zoom Out Reset image size

Bovine serum albumin (BSA) natural proteins have emerged as versatile materials for the fabrication of microstructures with programmable and anisotropic shape-morphing capabilities because of their low cost, stimulation responsiveness, as well as comparable properties to human serum albumin. Wei et al proposed BSA-protein-based microscale structures possessing adjustable surface morphology and pH-responsive characteristics through FsLDW. The proteins possessed many carboxylic acid groups and amino groups, and the ionization of these charged groups could induce strong electrostatic repulsion and swelling of the microstructures by controlling pH values. The precursor solutions with different concentrations of BSA-based native proteins were used to get varying cross-linking densities within the manufactured structures, enabling various shape morphing and swelling behaviors under external pH stimulation. Intriguingly, they fabricated a panda-face microrelief with unique 'facial expression' variations and 3D microsieves with adjustable pore sizes (figures 11(c) and (d)) [116]. Similarly, Ma et al manufactured micro/nanoscale artificial musculoskeletal systems by programmably integrating the relatively rigid photopolymer SU-8 as framework and pH-sensitive BSA-based protein as responsive muscle component. They developed the successive on-chip femtosecond laser two-photon polymerization strategy for realizing multimaterial integration of complicated micro/nanoscale structures (figure 11(e)). Impressively, they demonstrated a pH-responsive spider microrobot and an intelligent microgripper that could realize on-demand microtarget grasping and release (figures 11(f) and (g)) [215].

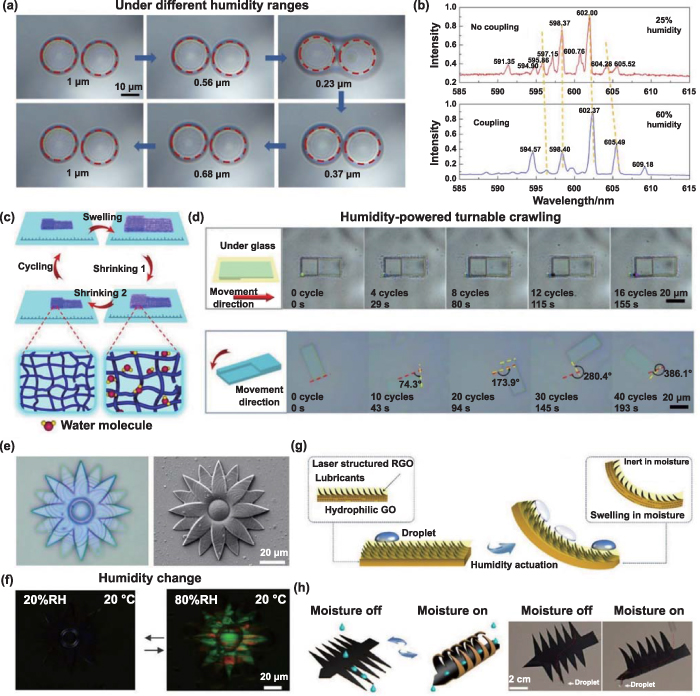

Structures with humidity-responsiveness are prevalent in nature, where they play crucial roles in various biological systems. An illustrative example is the spontaneous opening of pinecone flakes under low humidity, facilitating efficient seed dispersion [3, 223]. Researchers have taken much inspiration from nature and developed diverse humidity-sensitive intelligent structures [17, 224, 225]. Hydrogels are commonly used materials for preparing intelligent structures with humidity response [226, 227]. For example, Li et al fabricated a hydrogel whispering gallery mode microcavity resonator that exhibited exceptional sensitivity to environmental humidity through FsLDW technology. The hydrogel-based microcavities demonstrated expansion or contraction behaviors in direct correlation to changes in ambient humidity levels, which enabled modulation of spacing between two microcavities and the subsequent controllable coupling of photonic molecular microcavities (figures 12(a) and (b)) [228]. In another interesting example, Sun et al developed an ingenious humidity-driven microscopic worm robot with asymmetric structures (thin forefoot and thick hindfoot) by using PEG-DA-based hydrogel and femtosecond laser two-photon polymerization. The microworm robot could swell isotropically with increasing humidity and shrink inhomogeneously with decreasing humidity. Specifically, during the shrinkage process, the thin forefoot exhibited the initial contraction, followed by the subsequent contraction of the thick hindfoot, thus allowing the worm robot to move forward (figure 12(c)). Besides straight crawling movement, the microworm robot could also accomplish more complicated turnable motions when properly designed. The exceptional microcargo-carrying capabilities of the humidity-actuated hydrogel microworm robot were also demonstrated (figure 12(d)) [229]. In addition to hydrogels, LC polymeric materials can also be used for fabricating artificial humidity-responsive structures [230]. For instance, four-dimensional microactuators with humidity-sensitive structural color and shape changes were fabricated based on supramolecular cholesteric liquid crystalline photonic photoresist by Del et al. Networks of the used cholesteric liquid crystals presented a self-organized helical photonic architecture capable of selective light reflection. When the humidity increased or decreased, the microactuators would expand or contract respectively, inducing corresponding alterations in the pitch of ordered cholesteric liquid crystals and leading to a red shift or a blue shift respectively. Interestingly, micron-sized flowers and butterflies were manufactured to demonstrate the structural responsiveness and controllable structural color (figures 12(e) and (f)) [231].

Zoom In Zoom Out Reset image size

Special structural design can also be utilized to achieve the humidity response of intelligent structures. Han et al developed bilayer-actuator-based shape-morphing slippery surfaces inspired by carnivorous plants. They used FsLDW technology to process the surface of a graphene oxide (GO) membrane and obtained the Nepenthes-inspired microstructures. Most oxygen-containing groups would be removed in the process because of the photoreduction effect. Due to restricted light penetration and inhibited thermal relaxation of FsLDW, photoreduction only occurred on one surface of the GO membrane, while the other surface was unaffected. Soybean oil was infused into laser-structured reduced GO (LRGO) substrate to fabricate the LRGO/GO-bilayer-based slippery surface with great droplet sliding ability. Upon exposure to moisture, the GO layer preferentially adsorbed water molecules, resulting in strain mismatch at the LRGO/GO bilayer interface and subsequent bending toward the LRGO side (figure 12(g)). Interestingly, several humidity-responsive actuators with active droplet manipulation capabilities, such as a Dionaea muscipula actuator and intelligent frog tongue, were demonstrated (figure 12(h)) [232].

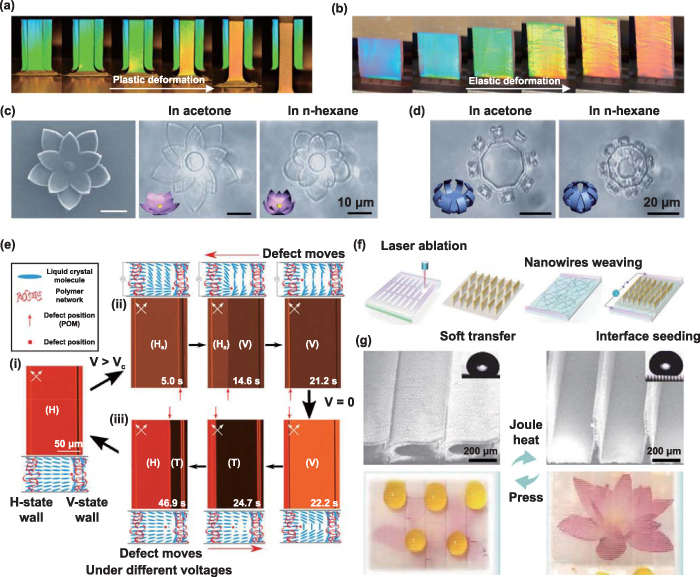

Apart from the aforementioned stimuli, other external stimuli, including stress [233, 234], solvent [235, 236], and electric field [237–239], can also be used to trigger the dynamic behaviors of intelligent stimulus-responsive structures manufactured by FsLDW technology. For instance, Gräf et al demonstrated the mechanically sensitive surface structural color of LIPSS-based diffraction gratings on ductile austenitic stainless steel through FsLDW. The plastic deformation with increasing total strain could cause an increase of the LIPSS period, leading to a subsequent shift of structural coloration from green to yellow and red gradually (figure 13(a)). Furthermore, they fabricated LIPSS on elastomers by using replica casting from metal masters (figure 13(b)), realizing the reversible stress-responsive structure color [240]. Zhang et al designed smart 3D micro/nanostructures using acrylate-based photopolymers and two-photon-polymerization-based FsLDW technology. These intelligent structures could expand in acetone and shrink in n-hexane with rapid response capabilities. Impressively, they fabricated and demonstrated diverse solvent-responsive microactuators, such as a microscale flower and eight-finger microclaw, with highly tunable and reversible dynamic behaviors (figures 13(c) and (d)) [241].

Zoom In Zoom Out Reset image size

In addition, the electricity-based actuation strategy has attracted wide attention from researchers because it is easy to modulate the electrical amplitude and waveform. Sandford O'neill et al realized electrically adjustable defects in LC devices and tunable disclination line control using femtosecond laser two-photon polymerization (figure 13(e)). Moreover, they proved that the disclination lines could be utilized for dynamic microparticle manipulation by tuning the external electric field [242]. In another interesting example, Chen et al developed electric-actuated reconfigurable shape-memory shutters by using FsLDW-based laser ablation and soft transfer technology (figure 13(f)). Taking advantage of the electrothermal effect of underlying silver nanowires, the intelligent shutters could be dynamically controlled in situ through an electric field (figure 13(g)), thus enabling thermal management and intelligent display [243].

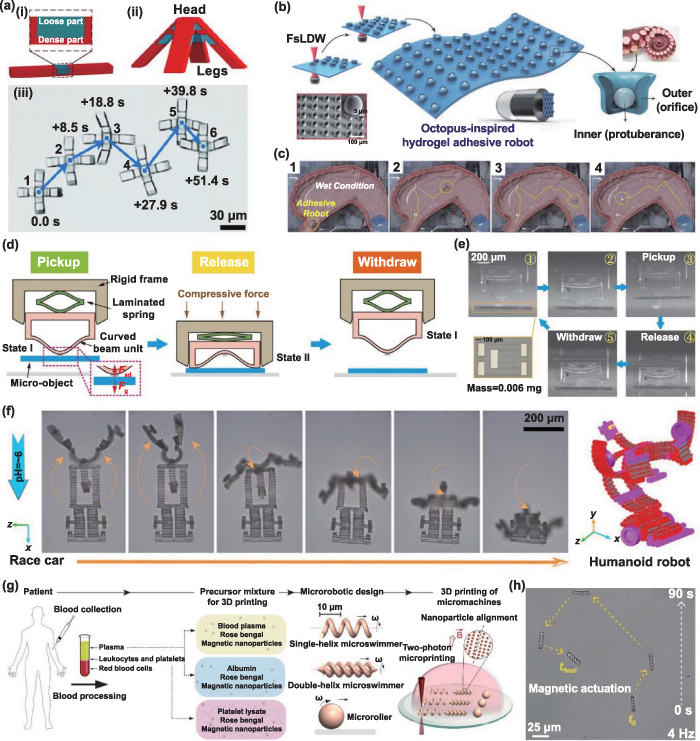

Different from conventional robots, which depend comprehensively on direct-current or alternating-current motor drive systems and complex assembly components, microrobots are usually in the size of micrometers and are generally made based on relatively simple materials but ingenious structural designs [27, 244–246]. FsLDW technology can process and integrate various intelligent materials in an effective and flexible manner, enabling preparation of microrobots with more complex geometric shapes and advanced functionalities, which has aroused widespread interest in the scientific community [99, 174, 178, 247]. Recently, Chen et al fabricated microcrawlers with stimuli-responsive bilayer-based microjoints by using femtosecond laser two-photon polymerization. The two layers of microjoints were prepared with different crosslinking densities, which would induce interface mismatch during the response process because of the differences in shrinkage capabilities and mechanical properties between the two layers, thus enabling nonmonotonic bending deformations. They demonstrated different kinds of micro crawlers with multifunctional and highly controllable locomotion through diverse programmable structural designs and spatial arrangements of microjoints (figure 14(a)) [218]. Microrobots that can realize robust adhesion to wet and soft biological tissues are very important for effectively completing various biomedical tasks. Lee et al designed a small-scale octopus-inspired robot with robust and biocompatible wet suction-based tissue adhesion capability by using hydrogel heterostructures with varying Young's moduli and two-photon polymerization-based FsLDW technology. The use of a low-modulus PNIPAM-based hydrogel for fabricating an internal dome-like protuberance structure could not only provide strong and controllable tissue adhesion under water, but also simultaneously enable easy detachment through temperature modulation thanks to its temperature-sensitive volume change characteristics. While the use of a high-modulus PEG-DA-based hydrogel to manufacture the outer sucker wall could avoid the collapse of octopus-inspired hydrogel structures during suction. Furthermore, they demonstrated controllable adhesion and detachment of the proposed octopus-inspired robot on wet biological tissues (figures 14(b) and (c)) [205].

Zoom In Zoom Out Reset image size

At the microscale, there is a substantial increase in the ratio of surface area to volume, resulting in diminished significance of volume-related forces including gravity, inertia, and buoyancy. In this case, surface-related forces including friction, fluid drag and adhesion become more predominant. Therefore, achieving controllable adhesion and release of micro-objects at the microscale presents a challenge. Zhang et al developed a bioinspired snap-through metastructure for gripping and releasing micro-objects, which consisted of three parts, including a rigid frame, a laminated spring, and a curved beam unit. The core of this technique was to adjust the boundary conditions for the snap-through instability, enabling the reversible transition from monostable to bistable. During the handling process, the rigid frame could realize the compliant-stiff boundary condition transitions of the curved beam unit assisted by an external compression force. Intriguingly, the snap-through of the curved beam could separate the contact area between the curved beam and pre-adhered micro-object, which enabled the successful release operation. Moreover, the compressed laminated spring could push the curved beam out of the rigid frame after the external force was withdrawn to prepare for the next operation cycle (figure 14(d)). They fabricated and demonstrated a miniaturized snap-through device with two-way switchable adhesive capability through FsLDW, which could realize the picking and placing of micro-objects with smooth and rough surfaces in universal scenes including dry and underwater conditions (figure 14(e)) [248].

In addition to the simple and single structure design, reconfigurable robots based on modular designs have attracted wide attention because they enable the enrichment of morphologies, functionalities, and degrees of motion within a single robot. For an interesting example, diverse 3D reconfigurable microstructures with sophisticated shape-transforming capabilities were proposed based on a programmable modular design and stimulus-responsive micro building blocks assembly strategy by Huang et al. They utilized stimulus-sensitive hydrogel materials and femtosecond laser two-photon polymerization to prepare these multifunctional microscale building blocks. Impressively, they fabricated and demonstrated a micro-transformer based on 3D assembly and movement planning of modular building blocks, which could achieve complex shape transformation between the racing car and humanoid robot (figure 14(f)) [19]. In recent years, the design and manufacturing of biocompatible stimulus-responsive structures have aroused great interest from researchers [121, 250, 251]. Significantly, Ceylan et al fabricated the multi-responsive microrobots with exceptional biocompatibility based on patient-blood-derived biomaterials (magnetic composites composed of serum albumin protein, plasma, and platelet lysate) through two-photon polymerization-based FsLDW technology. These autologous-biomaterial-based micromachines could avoid cytotoxicity and the immune response to the maximum extent, and they possessed excellent enzymatic degradability, which could minimize the risk of chronic inflammation and long-term toxicity (figures 14(g) and (h)) [249].

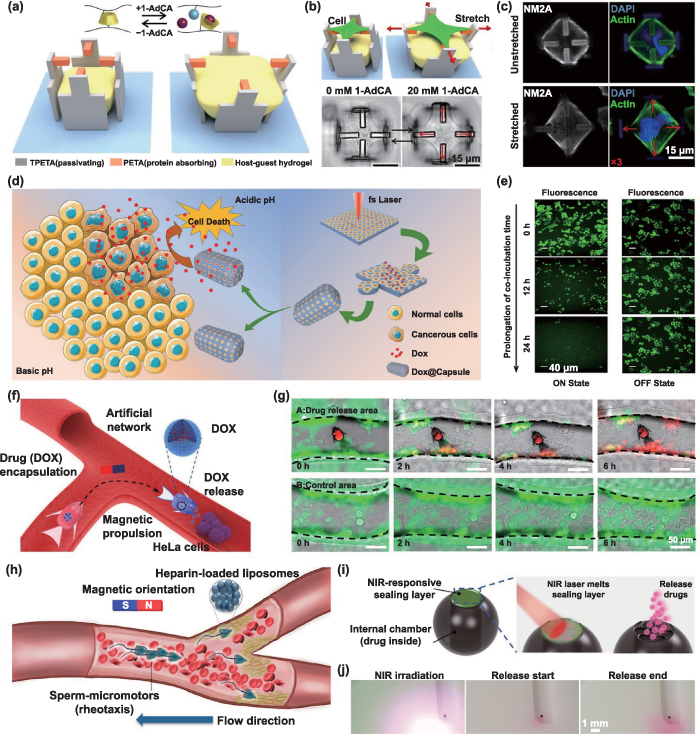

Stimulus-responsive structures prepared by FsLDW technology are being increasingly utilized in biomedical fields including cell delivery and precisely localized therapy because of their controllable dynamic behaviors of manipulating micro-objects and potential capabilities for loading, delivery, and release of drugs [252–258]. Cells are capable of recognizing and transmitting mechanical strain and stress pattern through mechanically sensitive modules, including cell adhesion sites, ion channels, and cytoskeleton. Exploring the cellular response behaviors to external mechanical stimuli holds significant importance [259–261]. Hippler et al manufactured stimuli-responsive composite micro scaffolds for cell manipulation by using a β-cyclodextrin acrylamide and adamantane acrylamide-based host-guest hydrogel and two-photon polymerization. The fabricated microstructures through the specially developed host-guest hydrogel could present reversible large volume changes through the application of soluble competitive low-molecular-weight guests (1-adamantanecarboxylic acid, i.e. 1-AdCA) under physiological conditions. They used traditional photoresists and this newly developed host-guest hydrogel to fabricate the microscale composite cell scaffolds composed of protein-repellent base components, protein-adhesive beam components, and central stimuli-sensitive hydrogel host-guest parts, which could be utilized for simultaneously stretching individual cells and studying subsequent dynamic cell behaviors with precise spatial and temporal control under customized microenvironments (figures 15(a)–(c)) [262].

Zoom In Zoom Out Reset image size

Sustained release of drugs can increase the compliance of patients and reduce the side effects of drugs, which is a very important medical research field. Zhang et al fabricated a biomimetic hydrogel-based porous gating system through FsLDW-based microdrilling and subsequent ultraviolet exposure, which consisted of a pH-sensitive hydrogel-based valve and a frame made of PDMS. The proposed gating systems, including membrane and microcapsule systems inspired by plant stomata, could realize a reversible transition between 'OFF' and 'ON' states based on pH-triggered valve expansion or contraction, which could be applied to realize sustained drug release and on-demand tumor cells treatment (figures 15(d) and (e)) [56]. Achieving precise drug delivery is a paramount objective in targeted therapy, but it poses significant challenges. Xin et al successfully engineered shape-morphing microrobots capable of adapting to the surrounding environment by programmatically encoding the heterogeneous architectures in a pH-responsive hydrogel through femtosecond laser two-photon polymerization. These intelligent microscale robots were endowed with magnetic driving capabilities after being immersed in a Fe₃O₄ nanoparticle suspension. They manufactured a magnetic shape-morphing microfish capable of encapsulating and controllably releasing the drug (doxorubicin, DOX) through opening and closing the microfish mouth, which was used to demonstrate localized HeLa cancer cell treatment in the artificial vascular network by stimulation of the magnetic field and pH (figures 15(f) and (g)) [10]. In a similar fashion, Xu et al developed a hybrid streamlined–horned sperm micromotor by using two-photon polymerization. The sperm flagellum of the hybrid micromotor could enable high propulsion, while the synthetic microstructure coated with Fe could be utilized for magnetic guidance and cargo transportation. Medical treatments in blood are accompanied by complex working circumstances, such as diverse cells and substances, complicated hemorheological characteristics, and high fluid velocities, so it is difficult to complete these extremely challenging tasks. However, they demonstrated that the prepared sperm micromotor could efficiently swim against the flow of blood, accomplishing the task of delivering heparin cargo under precise guidance of an external magnetic field for localized anticoagulation therapy (figure 15(h)) [263].

Currently, most stimulus-responsive microstructures used for targeted drug delivery in vivo are largely restricted by inadequate drug loading capacity, inevitable drug leakage or inactivation, as well as stringent drug modification standards. Song et al proposed a puffball-inspired microrobotic system based on FsLDW technology, which was composed of a spatially segregated inner chamber for high drug payloads, a near-infrared-sensitive sealing layer offering strong drug protection and noninvasive desired drug release, and nickel/titanium composite layers for magnetic propulsion capability. The prepared microrobotic system could flexibly load small-molecule drug payloads and polymeric drug payloads without other complex modification steps (figure 15(i)). Interestingly, they controlled the microrobotic system to move to different designated target positions precisely by a rotating magnetic field and used a near-infrared laser to induce the selective melting of the top sealing layer and following encapsulated drug release (figure 15(j)), thus realizing targeted and on-demand drug delivery [176].

The unparalleled advantages of FsLDW-based surface and volume processing strategies, including extremely high precision, true 3D manufacturing capability, and wide materials applicability, are particularly helpful for fabricating optical devices with multiple functions [86, 264, 265]. Based on FsLDW technology, a variety of intelligent stimulus-responsive optical devices, such as gratings [189, 233], optical waveguides [53], microlenses [54, 214, 266], and photonic crystals [267, 268], can be manufactured by appropriately integrating smart materials and optimized designs. Optical storage technology has garnered significant attention due to its notable benefits of low energy consumption, cost-effectiveness, and remarkable storage capacity. It is of great significance to explore new optical information storage devices with fast response, 3D storage capacity, and nondestructive rewritability. Xiao et al developed 3D glass-based optical information storage devices with excellent rewritability and erasability by utilizing FsLDW technology and transparent photochromic glasses doped with rare earth ions. Reversible modifications of transmittance and upconversion luminescence of photochromic glasses, resulting from the hopping of polarons (W⁶⁺/W⁵⁺ and Sb³⁺/ Sb⁵⁺), could be achieved through femtosecond laser irradiation and heat treatment (figure 16(a)). Impressively, they wrote rectangles with different sizes and Chinese characters within inner layers of transparent photochromic glass by internal modifications of solid materials based on FsLDW, thus enabling 3D information storage (figure 16(b)) [269].

Zoom In Zoom Out Reset image size

Inspired by natural compound eyes found in insects, manufacturing artificial compound eyes that offer expansive field of view, infinite field depth, and dynamic imaging characteristics have aroused widespread interest from researchers because of their potential cutting-edge applications in national defense, industry, and clinical medicine [270–273]. Ma et al designed intelligent stimulus-responsive BSA-protein-based compound eyes through FsLDW, which were inspired by both the compound eyes found in insects and tunable crystalline lens present in human eyes. The adjustable field of view and variable focal length could be realized by flexibly modulating the pH-induced controllable and reversible expansion and contraction of the compound eyes with sophisticated 3D shapes and ultrafine ommatidia (figures 16(c) and (d)) [52].

Diffraction gratings are periodic-structure-based optical components that can be used to manipulate spatial light distribution and play vital roles across diverse applications, such as spectrometers, monochromators, augmented/virtual reality displays, and structured light [233, 277]. Xiong et al fabricated tunable volume diffractive gratings by using FsLDW strategy and a partially crosslinked phenylboronic acid hydrogel, which mainly resulted from femtosecond laser densification-induced variations of local refractive index in pH-responsive hydrogel. When exposed to different surrounding pH values, the prepared hydrogel-based subsurface line gratings would swell, inducing grating period changes and subsequently distance changes between the first order maxima of projected diffraction patterns (figure 16(e)) [274].

Structural colors are different from the colors generated from traditional dyes and pigments, and they can be created by light interactions with the specific physical micro/nanostructures within or on the surface of a material, which are eco-friendly and fade-resistant, and are favorable alternatives for future color applications [278–280]. Liu et al achieved stimuli-responsive structure colors under solution conditions by using two-photon polymerization-based FsLDW technology and a modified pH-responsive hydrogel. The fabricated 3D orthogonal grating-stack-based woodpile structures with different designed lateral and axial structural parameters could present a fairly wide range of different colors, resulting from the diffraction of transmitted light beams by different woodpile layers (figure 16(f)). Interestingly, they demonstrated the reversible color-switching behaviors of the prepared woodpile amphichromatic fish and pixelated artwork images with blue butterflies by modulating the pH value of the solution (figure 16(g)) [275]. Similarly, Zhang et al realized high-resolution reconfigurable structural colors based on the programmable high-aspect-ratio nanopillars (figure 16(h)), which were fabricated by using a newly developed stiff SMP resin and femtosecond laser two-photon polymerization. The slender and narrow nanopillars exhibited the ability to undergo deformations into the collapsed and curled state, and could also be restored to initial upright state upon sufficient heating (figure 16(i)), which could be utilized to reversibly display different structural colors caused by the interaction between the nanopillars and the visible light (figure 16(j)) [276].

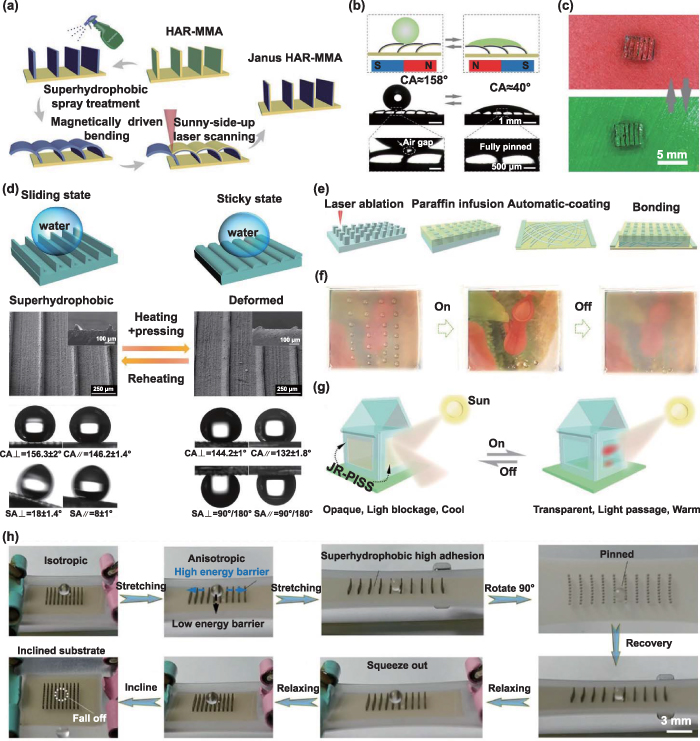

With the rapid development of society, surfaces designed with single functionality can no longer fulfill the diverse requirements in practical applications. Imparting intelligent response characteristics to the surface, such as switchable wettability, adjustable adhesion, and light transmittance, has attracted wide interest among researchers [281–285]. Jiang et al fabricated a smart dynamic regulation structured surface composed of a high-aspect-ratio magnetic-responsive microplate array by integrating FsLDW strategy, SMP-based soft transfer, as well as surface modification. Through the overall superhydrophobic treatment and subsequently magnetic-field-assisted selective sunny-side-up laser scanning, a Janus microplate array could be obtained, which had one superhydrophobic side and the other hydrophilic side (figure 17(a)). The application of a magnetic field enables the reversible switching of surface wettability between a superhydrophobic state and a hydrophilic state, thus enabling the function of a magnetic-responsive water droplet switch (figure 17(b)). Similarly, magnetic-sensitive color conversion could be accomplished through painting distinct colors on different sides of the Janus microplates (figure 17(c)) [50]. Bai et al designed a thermo-actuated SMP-based surface possessing adhesion-switchable capabilities. They used FsLDW to directly prepare a microgroove array on the SMP surface, endowing the micro/nanostructured surface further modified by fluoroalkylsilane with great superhydrophobicity and anisotropic wettability. After being deformed under external force pressing, the microgroove array would undergo a transition from a state of low water adhesion to a state of high water adhesion, and its original morphology and wettability would be completely restored after an adequate heating process (figure 17(d)) [21].

Zoom In Zoom Out Reset image size

In addition to controllable wettability switching, multifunctional surfaces with synergistically switchable optical transparency are also of great significance for practical applications. Chen et al developed a Joule-heat-responsive intelligent slippery surface with a sandwich structure, which consisted of impregnated paraffin, elastomer membrane with superhydrophobic micropillars fabricated through FsLDW, and a silver-nanowire-embedded film heater (figure 17(e)). By heating through loading a low voltage, the solid paraffin wax on the microstructured surface would melt, thus forming a slippery surface with augmented transparency and suppressed contact angle hysteresis. Once the electrical heating was removed, the undulating non-slippery surface would be restored due to the coagulated paraffin, which would exhibit low optical transparency and high contact angle hysteresis (figure 17(f)). More intriguingly, they manufactured and demonstrated a homemade smart window with adjustable optical transparency for thermal management in situ and controllable optical visibility (figure 17(g)) [237]. To date, smart surfaces with tunable wettability are mostly limited to switching between two different wetting characteristics. It is of great value to explore the realization of reversible switching of multiple wetting characteristics for intelligent surfaces. Song et al fabricated a smart biomimetic tensile-dependent surface with flexible tri-switchable wettability, which was composed of a stretchable silicone-based substrate and a PDMS-based microcolumn array obtained through using FsLDW and soft transfer technology. In the absence of external stretching, the cauliflower-like micro/nanostructures uniformly distributed on the femtosecond-laser-ablated top layer of microcolumns could endow the surface with lotus-leaf-like superhydrophobicity, low adhesion, and isotropy. After being stretched uniaxially, the surface exhibited rice-leaf-like anisotropy. Once the increasing tensile force made the microcolumn spacing larger than the droplet diameter, the droplet would completely contact the substrate, thus making the surface present rose-petal-like high adhesion. Therefore, by controlling the uniaxial tensile stress, the reversible switching of triple controllable wettability characteristics could be realized flexibly (figure 17(h)) [234].

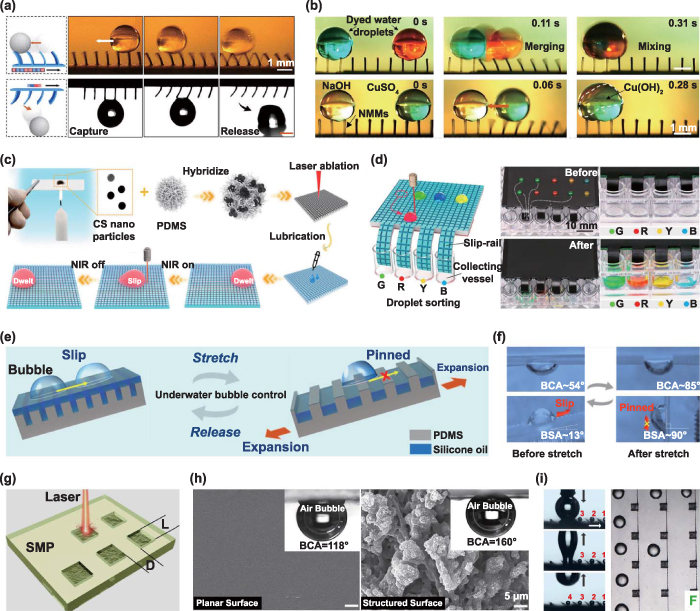

Controllable manipulation of droplet and bubble, including capture, transport, and merging, is essential for advancing academic research and industrial explorations owing to its vast potential across diverse fields in microfluidics, chemical and biological analysis, sensors, and medicine [286, 287]. Moreover, many researchers have realized multifunctional droplet/bubble manipulation by using stimulus-responsive structures prepared through FsLDW technology [171, 288]. For example, Jiang et al developed a multifunctional magnetic-responsive liquid manipulator by integrating FsLDW technology and the soft transfer technique, which could be utilized for 3D droplet transportation. The controllable droplet manipulation of the proposed manipulator was based on the dynamic behaviors of the magnetic-actuated microplate array subjected to periodic magnetic fields varying spatially. Due to sequential abrupt reversal of the microplates resulting from the particular magnetic field configuration, a droplet could be transported at an unprecedented speed of 58.6 mm s⁻¹ (figure 18(a)). Furthermore, they demonstrated the applications of the manipulator in droplet-based chemical reactions and anti-gravity droplet climbing (figure 18(b)) [51].

Zoom In Zoom Out Reset image size

Recently, microscale drug screening with high throughput has garnered significant attention thanks to its merits in terms of cost-effectiveness and high efficiency. Zhou et al achieved highly effective and flexible drug toxicity screening through the on-demand manipulation of various prodrug droplets. They proposed a light-sensitive slippery platform, which was fabricated through FsLDW-based ablation of the prepared PDMS film doped with candle-soot nanoparticles and further infused with silicone oil lubricant. The near-infrared-light-induced programmable manipulation of droplets exhibiting varying surface tensions could be realized on the slippery platform, resulting from excellent photothermal conversion capability of candle-soot nanoparticles and temperature-difference-induced wetting gradient force (figure 18(c)). Importantly, they demonstrated the nondestructive droplet merging and sorting of different prodrug droplets under remote control of near-infrared light (figure 18(d)) [289].

In addition, bubble manipulation can also be realized by using FsLDW-based stimulus-dependent intelligent structures. For instance, inspired by pitcher plants and rice leaves, Jiao et al developed a strain-responsive slippery lubricant-infused anisotropic surface for facile bubble manipulation. Initially, a PDMS-based microgrooved surface was fabricated using femtosecond laser ablation. Subsequently, a uniform slippery surface was achieved by spin-coating silicone oil onto the fabricated surface. The microgroove structures played a crucial role in creating a superhydrophobic substrate that effectively trapped the silicone oil, forming a stable lubricant film. When the surface was not subjected to stretching, the lubricant film covered the microgrooves entirely, facilitating easy bubble sliding in a direction perpendicular to the microgrooves. However, when the surface was stretched, the hydrophobic PDMS microgrooves were exposed, resulting in increased contact angle hysteresis and hindering the potential bubble movement. Consequently, the designed surface demonstrated in situ wettability switching, allowing reversible transition between underwater bubble sliding and pinning simply by controlling the mechanical strains (figures 18(e) and (f)) [290].

Besides the conventional adhesion regulation between ultralow and ultrahigh states, tuning the adhesion force between the solid surface and bubble can enable more flexible and accurate bubble manipulation, which is challenging because of the high demand for solid surface topography control. Huo et al realized controllable bubble manipulation by adjusting the underwater bubble adhesion on a solid surface using FsLDW-based patterned SMP surfaces. They obtained inspiration from fish scales and rose petals. The hierarchically structured SMP surface with microscale protrusions and nanoscale swellings was fabricated through line-by-line femtosecond laser scanning, which endowed the surface with great fish-scale-like underwater superaerophobicity and ultralow bubble adhesion. While the untreated surface exhibited rose-petal-like underwater aerophobicity and high bubble adhesion. Thus, by controlling the proportion of the FsLDW-induced hierarchically structured square pattern array and untreated planar domain, the underwater bubble/solid adhesion could be flexibly modulated (figures 18(g) and (h)). More importantly, they achieved underwater bubble picking/site-specific release and subsequently programmable tiny-bubble array generation and erasing by using different prepared samples with customized bubble/solid adhesion (figure 18(i)) [291].
