PCM-net: a refractive index database of chalcogenide phase change materials for tunable nanophotonic device modelling

Experiments are naturally the intuitive method to generate data and spectroscopic ellipsometry (SE) is a well-established technique used to study the dispersive refractive index (n) and extinction coefficient (k) optical constants of thin-film materials [23–25]. Ellipsometry measures a change in polarization as light reflects or transmits from a material structure. The polarization change is represented as an amplitude ratio (Ψ) and the phase difference (Δ), the raw measurement from an ellipsometry. The measured Ψ and Δ values are analyzed to determine material properties of interest including the optical constants. Since SE is based on the ratio of two measured values, it is accurate and reproducible. Commercially available ellipsometry software such as 'WVASE^®' can be modelled using predetermined equations based on the opaqueness, surface roughness, number of layers, etc of the sample and it can easily fit to the data to determine the results. The model implements a mean square error (MSE) that measures how accurate the model is with respect to fitting the data. Therefore, a model with lower MSE values for fitting the data is considered to be more accurate. Since the optical properties can be represented as the complex dielectric function, the experimentalist needs to control the types of data to be generated with the choices of dielectric functions '₁(λ), ₂(λ)', optical constants 'n(λ), k(λ)', and so on.

For the PCM-net database, both in situ and ex situ ellipsometry measurements were performed. The in situ measurements were taken while the PCM GST is placed in a customized vacuum chamber at elevated temperature. These measurements are, in detail:

• (a)
  In situ real-time SE measurements by collaborator Professor Stefan Zollner (and research group) at New Mexico State University [26]. The complex refractive indices and extinction coefficients of carbon-doped Ge₂Sb₂Te₅ (C:GST) layers (750 nm) that are deposited on single-side polished Si wafers with 400 nm SiO₂ capping layer were characterized using variable angle spectroscopic ellipsometry (VASE) over a broad spectral (190 nm–40 μm). For the broad wavelength test, two different instruments, J.A. Woollam VASE (190 nm–2.5 μm) and Fourier-transform infrared (FTIR) VASE (FTIR-VASE for 1.5–40 μm) are applied. Utilizing temperature-dependent SE, the research group investigates the optical constants of C:GST before and after crystallization occurs. The temperature range is set from 80 K (−193 °C) to 750 K (477 °C) and the incidence angle is set to 70° in an ultra-high vacuum cryostat. For the data collected from the two different instruments, custom window correction was applied to avoid merging discontinuities. The ellipsometric angles ψ and Δ were fitted using various analytical models (Tauc–Lorentz, Cody–Lorentz, and Gaussian oscillators) and interpolation schemes (point-by-point or B-spline) to determine the optical constants as a function of wavelength and temperature of the combined dataset.
• (b)
  Ex situ SE measurement with post-annealed PCMs [7, 8]. The complex refractive indices and extinction coefficients of Ge₂Sb₂Te₅ (GST) films (100 nm thick) deposited on CaF₂ substrate were measured over wavelength range of 1–10 μm using the J.A. Woollam ellipsometry system. The GST film was annealed at 145 °C (418 K) and 172 °C (445 K) inside the vacuum chamber for crystallization (phase change) prior to ellipsometry characterization after the as-deposited amorphous GST film test. Both the J.A. Woollam RC2^® ellipsometry system and IR-VASE with the range from 55° to 75° angles of incidence and 10° step were used to measure the optical properties. The WVASE Version 3.908 software was used for the data analysis and the model was constructed with Kramers–Kronig consistent GenOsc layer.

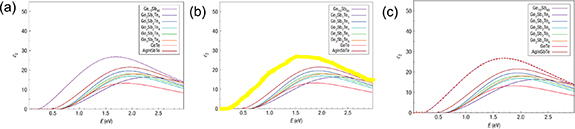

Material data can be readily obtained from published research articles. Research articles provide the data in the form of graphical plots (visualizations) or alternatively through supplementary datasets (less widely available). Since the former does not directly provide the numerical dataset, it requires a conversion process from visual graph plot images back to the original dataset. While a range of chart recognition tools are available for converting graphical images to numerical datasets, it should be noted that the conversion process is hard to automatize and requires manual work. For example, WebPlotDigitizer [27] can generate the original dataset from a given plot image file by extracting the plot line. WebPlotDigitizer automatizes the process of detecting the color difference between the line and the background, and extracts the plot line. But users still need to manually specify the details of the plot with a mouse or a pen input device, such as the plot line area, x–y axes, and the scale of the axes. Figure 1 describes how users extract a characteristic dataset for a PCM from a plot image using WebPlotDigitizer.

Zoom In Zoom Out Reset image size

Later approaches such as ReVision [29] and ChartSense [30] employ computer vision techniques to further automatize chart identification process but its performance is in need of further improvements to be utilized reliably for data extraction with low error rates. Davila et al [31] point out that chart data extraction is a challenging process where both text legends and graphics need to be interpreted correctly. Development of a style-independent chart recognition system is another challenge where diverse styles for graphic chart plots exist. Ray Choudhury and Giles [32] approach the data extraction problem from the perspective of a digital library where they intend to construct research article repositories with the availability of metadata and metadata will include data automatically extracted from the charts. While their ideas provide a systematic approach for retrieving datasets from published research articles, its incorporation into current research article repositories (such as a form of adding metadata) will be investigated and likely incorporated in future iterations.

Data extraction from research articles has the potential of collecting high-quality data that already went through validation processes (post-experiment) and has benefited from peer review. However, due to the involvement of time-consuming manual work for chart recognition tools, the advantage of visual graph plot availability can hardly be translated to the recovered original dataset. For this reason, we currently intend to continue using WebPlotDigitizer for data extraction due to its maturity as a reliable software application, even though WebPlotDigitizer requires a time-consuming manual plot area marking process. While current solutions for data extraction from research articles listed above are not sufficient for our purpose, it should be noted that they have the potential to generate reliable, high-quality data once the techniques mature or a large-sized research article repository with metadata becomes available.

While the definition of crowdsourcing [33] can vary, we want to narrow it to the collection of material characteristics data for PCMs from contributing researchers and the storage of the submitted data onto our database system. Crowdsourcing is expected to be effective in building a large-scale database, since the influx of experimental data submissions will increase as more number of contributors become available. MetaNet (http://metanet.stanford.edu) [19] is an online database of design algorithms and device layouts for photonic technologies. Currently they provide metasurface device layout and accept submission of data from contributors via e-mail. Similarly to MetaNet, we hope to eventually provide a large-scale database service for PCM data analysis for the research community with our PCM-net system.

To accept experimental data submissions from outside contributors, template-like standardization of the data submission is important to streamline the submission process and manage the data validity and integrity for the database. Esnayra et al [34] list error prevention and correction as important factors for data integrity when collecting crowdsourced bioinformatic genome sequence data. While the data domain is different, it is expected that the PCM-net database system will require similar error prevention during the data submission process and error correction afterwards to maintain the high data quality. However, this quality assurance and integrity checking of crowdsourced data can be a challenge since contributors have low incentive to double-check their data. Complexity of error detection and correction of existing data is expected to increase as the amount and the scale of the submitted data increases.

The primary function of the WVASE^® software is to determine the complex refractive index and thickness of thin-film layers by finding the best match model to experimental data. However, the software contains many other features and functions which we envisage as ideal complements to the PCM database, a few examples are introduced in this section.

• (a)
  Simulation of reflectance and transmittance: with the optical constants of interested materials collected in the database, we can simulate intensity-based quantities such as reflectance and transmittance for unpolarized light or user defined polarization states using WVASE^®. For optically anisotropic devices which may convert the p-polarization to the s-polarization and vice versa, the software enables the user to calculate both the polarizing and cross-polarizing intensities. The wavelength range, angles of incidence, and ambient index can be specified as needed. For transparent substrates, the software can account for backside effects associated with the incoherent backside reflections [35] or reverse-side effects where the beam enters from the substrate side. Intensity simulations may be used to predict and engineer device performance, especially when the sample fabrication is challenging or time-consuming.
• (b)
  Alloy and temperature files: for compound materials, the database may only have discrete data points with each datum representing a certain composition. Once a set of various composition material files are prepared through measurements, we can create an alloy file in WVASE^®. The alloy file is a parameterized material file where the optical constants of a material are described by a function of alloy fraction. Therefore, this material file is used to identify the composition information of unknown samples. For a sample whose alloy fraction is known but exists between two previously measured compositions, the alloy file predicts the optical constants of the material using an interpolation method. WVASE^® adopts the energy shift method [36] for the interpolation procedure. This method is useful for compound semiconductors where the critical points associated with electronic transitions and the bandgap energy shift systematically according to alloy fraction. Similarly, we can create temperature files where the control parameter is the measurement temperature, or alloy-temperature files for any materials that show a systematic shift in optical properties according to composition and temperature. Figure 2 shows an example of a temperature file created for C-doped Ge₂Sb₂Te₅ (C:GST) at elevated temperatures from 425 K (152 °C) to 625 K (352 °C) [26], added to the database. The complex dielectric constants measured at five different temperatures vary systematically and the generated curves for 550 K (277 °C), using the energy shift interpolation method, are well placed between the two adjacent data points. To verify the correctness of the generated curves by using the software, both generated and the measured curves for 550 K (277 °C) are added as figures 2(c) and (d). Both complex dielectric constants, both (figure 2(c)) real (₁) and (figure 2(d)) imaginary (₂) parts, from generated and measured are well matched.
• (c)
  Effective medium approximations: in future work, we will expand the database to create a new set of optical constants by mixing two or more materials. This is of particular interest for partial crystallinities of GST/otherwise, whereby intermediary states between fully amorphous and fully crystalline states are achievable [7, 8]. The average optical property of a mixture may be described by effective medium approximations (EMAs) [37, 38]. They work most successfully at the mesoscopic or macroscopic scale where the macroscopic optical properties of a mixture are described as a homogeneous medium while the properties of the constituents may vary inhomogeneously at the microscopic level. To predict the average or effective dielectric function, we can apply EMAs based on the known dielectric function of each constituent and the mixing ratio. WVASE^® is capable of mixing two or three materials to predict the effective dielectric constants using the well-known Maxwell–Garnet formula or Bruggeman approximation.

Zoom In Zoom Out Reset image size

The Maxwell–Garnett EMA formula is given in equation (1) for isotopically mixed materials with spherical inclusions [39].

$$\begin{equation}\frac{{\varepsilon - {\varepsilon _0}}}{{\varepsilon + 2{\varepsilon _0}}}{\mkern 1mu} = {\mkern 1mu} \sum i \left( {{f_{\text{i}}}\left( {\frac{{{\varepsilon _{\text{i}}}{\mkern 1mu} - {\mkern 1mu} {\varepsilon _0}}}{{{\varepsilon _{\text{i}}}{\mkern 1mu} + {\mkern 1mu} 2{\varepsilon _0}}}} \right)} \right).\end{equation} \tag{ 1 }$$

The effective dielectric constants is calculated by the dielectric constant of a host material ε₀ with inclusions of dielectric constants _i. The volume fraction of each inclusion is denoted by f_i. The main shortcoming of the Maxwell–Garnet formula is that the effective dielectric constants are not identical depending on the choice of the host material. Despite the asymmetry, this theory is well-suited for certain types of composites where the host material takes up most of the volume. The Bruggeman EMA theory overcomes the difficulty of the Maxwell–Garnett theory by treating the two constituents in a symmetrical fashion as given in equation (2) for spherical inclusions [37].

$$\begin{equation}\sum i \left( {{f_{\text{i}}}\left( {\frac{{{\varepsilon _{\text{i}}}{\mkern 1mu} - {\mkern 1mu} \varepsilon }}{{{\varepsilon _{\text{i}}}{\mkern 1mu} + {\mkern 1mu} 2{\varepsilon _0}}}} \right)} \right){\mkern 1mu} = {\mkern 1mu} 0.\end{equation} \tag{ 2 }$$

The two EMA theories agree well when the host medium is filled with a small volume of inclusions. The Bruggeman EMA is preferred when the concentrations of the mixed materials are comparable or the dielectric constants of them are largely different for its symmetric form.

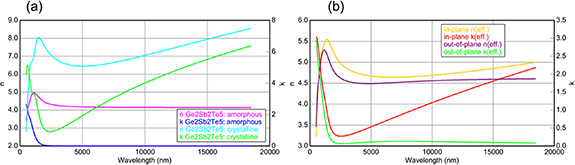

We can further expand the database by including anisotropic mixing. When the inclusions are non-spherical or the interfaces show preferred directions, the effective dielectric function may reveal optical anisotropy [40]. For anisotropic EMA modeling, we use the depolarization factor to account for electric field screening. For instance, when the light penetrates a mixed material at normal incidence, the depolarization factor is the minimum for vertical interfaces and the maximum for horizontal interfaces. Therefore, anisotropic EMA works for shape induced anisotropy by allowing direction dependent depolarization factor. Some typical examples are stacked bilayer metamaterials [41], nanorods, nanocolumns, spiral films, and slanted needles [42]. A demonstration of anisotropic Bruggeman EMA is shown in figure 3. We simulated the effective refractive index of a repeated bilayer stack made of Ge₂Sb₂Te₅ thin films with two different phases, amorphous and crystalline. The individual layers show isotropic optical constants as shown in figure 3(a). The amorphous phase is highly absorbing while the crystalline phase is transparent in the long wavelength range. Interestingly, when these two films are stacked repeatedly along the vertical direction and the mixing ratio is 4:1, the effective optical constants are dielectric-like along the z-direction and metal-like in the x–y plane. As long as individual film thicknesses are thinner than the wavelength of interest and the mixing ratio is held fixed, the EMA model predicts indifferent results no matter how thick or thin the films are. This simulation is given to prove the usefulness of EMA modeling in expanding the database and creating novel optical devices. To determine the accuracy of the anisotropic Bruggeman EMA model simulation for a stacked bilayer of the two materials, experimental validation is required.

Zoom In Zoom Out Reset image size

Our PCM-net database will be designed to operate as an independent, separate layer replaceable with other data solutions. While MySQL relational database is selected as the database solution for our first-pass prototyping purpose, we think that other databases can be plugged-in instead of MySQL in case MySQL should show any limitations. One disadvantage of relational database systems is that it must have a fixed data schema design from the outset. In relational databases, it is usually difficult to change the data schema once its design is fixed. It might lead to redesign of the entire database in case the current data schema fails to incorporate new input data types. This inflexibility is being addressed [43] in other non-relational databases such as NoSQL databases, where JavaScript Object Notation format provides an alternative for document-oriented data storage without predetermined database schema. We plan to adopt NoSQL database if MySQL relational database meets short of our expectations in the PCM-net system.

The relational database design starts from a simple table structure where combinations of wavelength, refractive index, extinction coefficient, material state (amorphous, partial crystallization, full crystallization), and the PCM. Using the normalization technique of typical relational database design, the Material table is separated out to accommodate new additional PCMs without duplicates and model one-to-many relation between the material and the rest of the data. (i.e. one material can have many combinations of wavelength, refractive index, extinction coefficient, and material state). Figure 4 shows the entity-relationship diagram with the attribute definitions for Material and Data table. Refractive index and extinction coefficients are represented, respectively, as n and k attributes. AmorphousToCrystalline attribute denotes the material state, where 0 is for amorphous state, 1 is for crystalline, and any value between 0 and 1 is for the intermediate state as partial crystallization. Figure 4(d) shows an example of table data entries for Ge₂Sb₂Te₅ [12]. It can be seen that the Data table stores all the particular wavelength, n, k, and AmorphousToCrystalline data pairs, with the materialID points to the PCM referenced back in the Material table.

Zoom In Zoom Out Reset image size

While this is a simplistic relational database design bounded by the requirement of predefined data schema, note that the table design has extensibility for new data types. For example, attributes such as operating temperature can be added to the Material table in future work. To implement submissions from crowdsourcing, Data table may need to have additional attributes such as UserID and SubmissionDate. DataGenerationMethod attribute can also be added that specifies whether the data are obtained from direct experiments, extracted from graphical plots (images) in published articles, or generated from simulations (theory). For the time being, we do not consider incorporations of User table and its attributes for multi-user crowdsourcing to keep the database design simple and manageable.

With the initial prototype data being available in the database, users can retrieve the desired dataset with SQL statements that describe the data retrieval conditions. Currently, our prototype database has a total of 29 664 entries in Data table, with 24 types of PCMs (Ge₂Sb₂Te₅, C-doped Ge₂Sb₂Te₅, Ge₁₅Sb₈₅, Sb₂S₃, Ge₂Sb₂Se_x Te_5−x (x = 0–5), Ge₂Sb₂Se₄Te₁, Ge₂Sb₂Se₅, and so on) listed in Material table. All the refractive index, extraction coefficient, and amorphous/crystalline state data are extracted from graph plot images in peer-reviewed research articles (also referenced on the database, http://nekocloud.com/pnet/) using WebPlotDigitizer. Once the database is ready, users can retrieve the desired dataset with the filtering commands (such as SQL). Several examples are listed below and the interactive line plots in the next section are based on these examples:

• (a)
  Characteristics of a selected PCM:

  • Retrieve (wavelength, n, k, AmorphousToCrystalline) values for a selected PCM
• (b)
  Comparison across PCMs:

  • Find (wavelength, n, k) values grouped by its amorphous/crystalline state across all the PCMs
• (c)
  Further data processing:

  • Find the differences between n and k values in amorphous or crystalline state for a selected material

Data visualization, especially the relationship between refractive index and extinction coefficient with wavelength, is a useful tool for understanding the characteristics and performance of PCMs. For our work, Plotly Dash [44] is chosen as the graphical visualization tool. Plotly Dash is a graphical plotting tool written in Python and generates web-based data visualization plots. Interactivity in graphical plots, and the availability of adding user interface components (such as a drop-down box for selecting phase-change material), are useful features in which Plotly Dash shows its strength. One downside of Plotly Dash is that it does not provide any integrated database access features and the component for data retrieval needs to be manually implemented. On the other hand, while other database front-end applications such as Microsoft Access or LibreOffice Base provide integrated database access and user interfaces for managing data stored in the database, their graph plotting feature is not sufficient to meet our needs. DBFace (http://dbface.com) was considered once since it provides front-end user interfaces and multi-user design that will be useful for future data crowdsourcing implementation from the start. But it was dropped for the same reasons as the front-end applications since its graph plotting features are not sufficient for our needs.

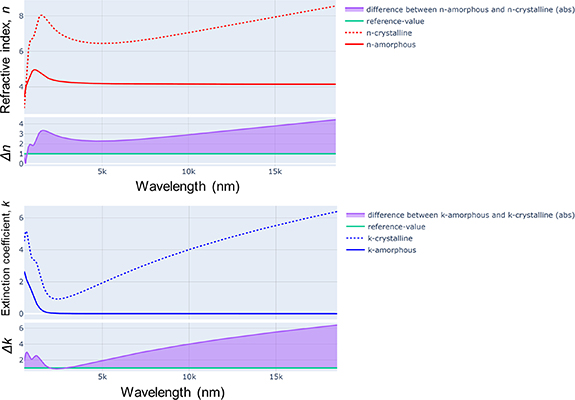

Figure 5 shows the graphical line plots for the dataset retrieved in the previous section. Note that the plot provides user control on material selections or amorphous/crystalline states by providing graphical user interface components and visual plotting of the n or k values vs wavelength. We plan to add similar plot pages that further meet users' needs and build the collections as an application. Currently the prototype data plot pages can be accessed from the URL (http://nekocloud.com/pnet). Users can choose options such as phase state, material, and additional preferences via user interface components. The line plots show the differences between amorphous and crystalline phases of n and k values (Δn and Δk), respectively. The overlapped purple region in figure 6 shows high n and negligible k. The spectral characteristics of the PCM database can be utilized in order to determine optimal operating wavebands (windows) for each PCM, which is useful for spectroscopic applications where low loss material selection is critical for efficient tunable optical filters. In addition to visualization, the charts have features such as exporting the index data (for external usage in simulation packages/otherwise) and downloading the plots in different image file formats.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Our database is in its infancy, however its utility and appeal to the wider community should be apparent. In order to implement crowdsourced data from contributors, the database schema of the PCM-net database system has to be extended to add contributor's profile information (such as sign-in account, encrypted password, and contact information) and metadata (data generation method, experiment name, date, and other information). In our current MySQL-based relational database schema, metadata attributes will be added to the Material table. A separate User table will be needed to store contributor's sign-in account, profile information, and details on data contributions. When the data schema is prepared, the PCM-net database system can evolve into a web-based, multi-user database application. Implementation of user authentication features, data view, and data submission pages will be needed. As an interim step before full implementations, a contribution data submission template in spreadsheet format, such as popular Microsoft Excel, is to be trialed.

Spreadsheet-based data submission templates are expected to have the following advantages: first, spreadsheet applications have user-friendly interfaces and naturally become the application of choice for researchers to store any number data. Second, the table-based format, while it does not provide top-level data organization schema, can be easily parsed with scripting languages such as Python and converted to MySQL-based relational database table entries. Third, basic input data validation and unit checking can be implemented in the spreadsheet template file by embedding scripting code in the spreadsheet applications. This will make first-pass input data validation possible before the contributor actually submits the data to our system and is expected to simplify second-pass data quality check steps on the submitted data. Once the spreadsheet-based submission template design is complete, a new user interface for the data submission can be designed based on the template. Finally, the graphical plot (visualization) scripting code for Plotly Dash pages will need a full-featured database access component layer for the backend PCM-net database stored in MySQL. Note that Plotly Dash is a plotting tool and does not include any database-related solutions in itself. This gap has to be filled by implementation of the database access component and use it for data retrieval from the PCM-net database.

Tunable infrared (near to mid-wave) filters provide a core technology for health monitoring of aerial vehicles, probing molecular vibrations in chemical species to detect radiant thermal signatures [46, 47]. The potential SWaP-C advantages of PCM-based tunable filters over traditional approaches, such as bulky filter wheels or expensive acousto-optical tunable filters, along with filtering capability of ultrafast tuning across wide wavebands, makes PCM-based optical filter technologies highly attractive for current and future applications at NASA.

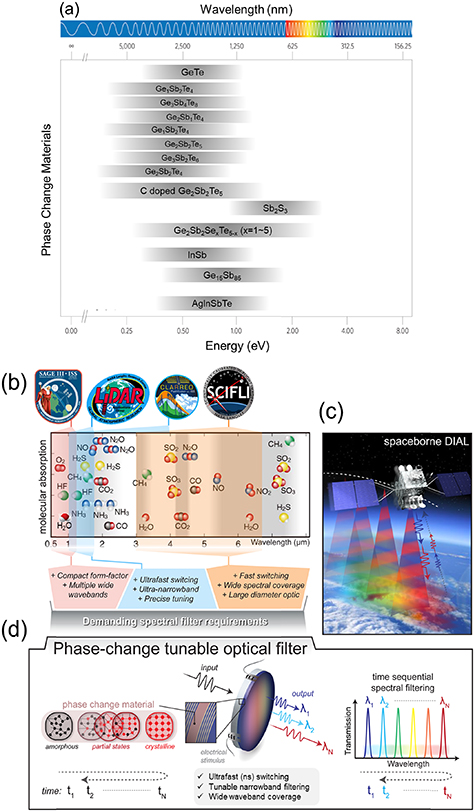

PCMs are largely transparent across various spectral wavebands and exhibit significantly large, reversible refractive index modulation upon crystallization, making them ideal candidates for use in optical spectrally robust filter designs [14, 15]. PCM-net collates and provides dataset plots of this information and figure 8(a) shows the waveband-appropriate PCMs based on a minimal extinction coefficient consideration and the large figure of merit, from figure 6. A large figure of merit (Δn/Δk) and low extinction coefficient (Δk ≈ 0) between amorphous and crystalline phases are critical for identifying the most appropriate PCM for the waveband, and application, of interest. One or multiple PCMs can be selected for tunable filter modelling depending on the targeted wavelength (or waveband). PCM-net is leveraged in the design and simulation of several tunable devices utilized in multiple NASA program scenarios, which all have varying, but stringent, performance requirements. At present, these missions, which are utilizing PCM-net, are differential absorption Lidar (DIAL) science missions, the Stratospheric Aerosol and Gas Experiment mission, and Scientifically Calibrated In-Flight Imagery (SCIFLI) program; highlighted in figure 8(b) and discussed in further detail below:

Zoom In Zoom Out Reset image size

DIAL is a strategically important measurement technique within NASA, mapping range-resolved concentrations of trace/greenhouse gases such as, H₂O (∼890 nm wavelength) and CH₄ (1.6 μm wavelength) in the atmosphere which are important to many processes that underpin weather and climate systems [46]. Spaceborne DIAL would provide for the direct and unbiased profiles of gases throughout the atmosphere with high vertical resolution and global coverage beyond the existing airborne systems (figure 8(c)). The benefit of developing a PCM-based tunable filter is that only one filter and one detector are required regardless of the number of wavelengths needed to transmit for sampling the gases at various spectral locations. This is in direct contrast to the established approach of using a combination of bulky optical components (beamsplitters, filters, etalons etc) which as a system has a large footprint, power consumption and has demanding alignment tolerances. A single element tunable filter (PCM-based) allows SmallSat-based spaceborne DIAL to decrease SWaP-C, risk, and reduce systematic bias that could result from non-linear time dependent degradation of the different detectors. PCM-net offers the ability to quickly, easily and accurately identify the optimal PCM for DIAL sub-system filter design.

From figure 8(a), Sb₂S₃, and Ge₂Sb₂Se_x Te_5−x (GSST) can be selected as a material candidate for the tunable filter design for DIAL missions. The stoichiometry of the chalcogenide PCM materials is chosen for the targeted spectral ranges: DIAL for 800 nm–1.6 μm to discern specific chemical species in the atmosphere. In detail, Sb₂S₃ is a low-loss PCM that can switch from a low-index (n= 3), amorphous state to a high-index (n= 4.5), crystalline state with low loss (k< 0.005) over a wavelength range of 600 nm–2 μm or more [48]. Ge₂Sb₂Se₁Te₄ (GSST), has recently been reported broadband transparency (1–18.5 μm) and large optical contrast (Δn = 2.0) and proposed as an entirely new range of infrared and thermal photonic devices [12]. Ge₂Sb₂Te₅ (GST) has a refractive index of ∼3 and ∼5.5 in its amorphous and crystalline states (Δn>2), respectively, across the 2–10 μm spectral range with negligible extinction coefficient in crystalline phase (Δk ≈ 0) but high loss in its crystalline phase when compared to Sb₂S₃ and GSST, which has utility in transmissive mid-wave infrared applications only, not for DIAL applications [49, 50]. Sb₂S₃ and GSST can be switched thermally, optically with visible light, or electrically via joule heating at speeds from MHz to GHz. Through the integration of these PCMs as the active material in thin-film optical filter designs, all-solid-state spectrally tunable optical filters are achievable. Each PCM state (i.e. amorphous, partial crystallinities, or fully crystalline) has an associated varying refractive index [51–53], and through PCM-net influenced design, can be utilised as the tuning medium which controls the passband center wavelength upon energy stimulus (figure 8(d)).
