'Magic' of twisted multi-layered graphene and 2D nano-heterostructures

One of the most fascinating materials with superior nano-scale properties, graphene has always been an interest to researchers all over the globe since its discovery by micro-mechanical exfoliation of bulk graphite crystals using a scotch tape [1–5]. Its one atomic thick two dimensional (2D) nature gives rise to some exceptional phenomena such as ultra-high electron mobility [6, 7], superior thermal conductivity [8], unconventional quantum Hall effect [9], generation of massless Dirac fermions [10, 11] etc along with extraordinary mechanical properties in terms of strength and Young's modulus [12–14]. Graphene and its different derivatives along with the effect of defects and doping have been at the centre of attraction over the last decade for exploring various multifunctional properties [15–24]. The physical properties vary significantly when two or more layers come into play (referred to as nano-heterostructure [25–27]) due to interlayer coupling, stacking sequences, and twisting. The current paper focuses on achieving exciting and unprecedented multi-physical properties through stacking and twisting graphene layers along with the evolving trends of expanding the functional design scope through introducing other 2D materials [28–30] to form twisted nano-heterostructures (refer to figure 1).

Zoom In Zoom Out Reset image size

There has been a quest for superconductivity in the field of material science over the years. While a single-layered sheet of graphene is non-superconductive due to the absence of flat electronic bands as shown in figure 1(a), two sheets created by moiré pattern when placed vertically on top of each other and twisted just 1.1^∘, often referred to as 'magic angle', is proved to have exciting promises in this regard. The arrangement of carbon atoms in a twisted magic angle graphene generates a moiré pattern as shown in figure 1(b), resulting in a periodic superlattice structure. This altered super-lattice structure impacts the electronic band structure of graphene, leading to the emergence of flat electronic bands and the occurrence of correlated electron behaviour. This behaviour resembles the observed characteristics found in high-temperature superconductors. Due to the presence of inter-layer coupling between two graphene sheets, at a twist of about 1.1^∘, flat bands achieved at nearly zero Fermi energy results in either insulation at half-filling or zero-resistance state at up to 1.7 K critical temperature [35]. There has been experimental evidence supporting the presence of ferromagnetic behavior in magic-angle twisted BLG as well which is lacking in mono-layer graphene sheets [36, 37]. Such a ground-breaking discovery has further brought a tremendous impetus in the materials community over the last few years to explore different twist angles along with various stacking sequences of a range of 2D materials.

Unconventional superconductivity has often been an intriguing aspect of strongly correlated quantum materials where the interactions between electrons are so strong that they exhibit strange and exotic physical phenomena. Heavy-fermions [42], Quantum-spin liquids [43], High-T_c Superconductors [44] are one of few classes of the same. Though there have always been efforts to characterize these materials, the frameworks of proper solutions for analysing them theoretically is still limited. One novel approach to studying correlated quantum materials is using ultra-cold atoms by loading each atom at potential minima in optical lattices, resulting in the phase transition from Mott insulator to a superfluid [45] by varying interactions [46]. Bridging the length and energy scales between quantum materials and ultra-cold atom lattices, the twisted magic angle bilayer graphene (BLG) superlattice provides a new perspective to study strongly correlated materials (refer to figure 2(a)). The energy band structure of twisted BLG, with decreasing twist angle, formed by interacting Dirac cones is shown in figures 2(c)–(e) leading to flat bands as shown in figure 2(e) while band energy at magic angle is shown in figure 2(b) [39]. The twisting of layers has led to tuning the van Hove singularities in twisted BLG [47–52].

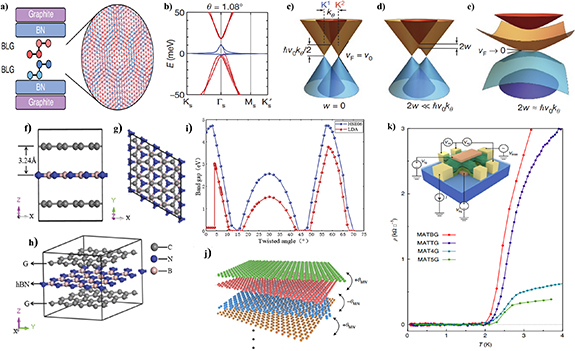

Zoom In Zoom Out Reset image size

There exists a tremendous possibility of vertically combining different 2D materials along with their twisted configurations. The stacking of multiple layers in 2D materials has provided a space to engineer the properties even more than that of a single type of 2D materials [34]. Recent studies have been reported to capture the effects of twist angle between mono-layer graphene on a hexagonal boron nitride (hBN), but they have been found to showcase comparatively weak interlayer interaction due to large bandgap in hBN [53, 54]. A few groups [40, 55] have carried out first-principle studies on graphene-hBN based heterostructure to enhance and modify the electronic properties. Chen et al [40] studied graphene/hBN/graphene heterostructure (refer to figures 2(f)–(h)) by rotating upper layers of graphene and observed the Mulliken population, band gap, and charge density along with specific evolution regulars exhibiting novel electronic properties. Figure 2(i) shows the curve of band gap with respect to the rotation of upper layer graphene calculated by two different functionals. The twisting of layers has also led to the showcase of the Hofstadter butterfly in graphene-hBN heterostructure [56, 57]. Further, the rotating angle has paved the way of modulating the optical responses of MoS₂ and MoSe₂/WSe₂ heterostructures [58]. Recently, Superconductivity has been found in tri-layer twisted magic angle graphene [59, 60]. Though they share similarities with magic angle twisted BLG, the response to external magnetic and electric fields is different. Park et al [32, 61] extended these studies to four and five layers (refer to figure 2(j)) to see whether they can classify these superconductivity phenomena into some sort of moiré superlattice superconductors and found superconductivity through same flat bands. But they observed variations as well, predominantly between two and more than two layered systems. Figure 2(k) shows resistivity ρ versus temperature T for two, three, four, five-layered magic angle graphene sheets.

The brief discussions on twisted bi-layer graphene and other multi-layer heterostructures, as presented above, clearly show that there has been an increasing interest in such engineered nanostructures over the last few years due to their unprecedented multi-physical properties. The research is so fascinating and rapidly evolving that it has led to a new field, called Twistronics. Thus there is a strong rationale to abridge outcomes of the relevant literature concerning twist-dependent properties of BLG and other multi-layered 2D heterostructures. In this review paper, we would analyse the recent developments on twisted bilayer and multi-layer nanostructures formed out of single or multiple 2D materials, and subsequently highlight their broad-spectrum potential to meet the functional demands of modern engineering applications.

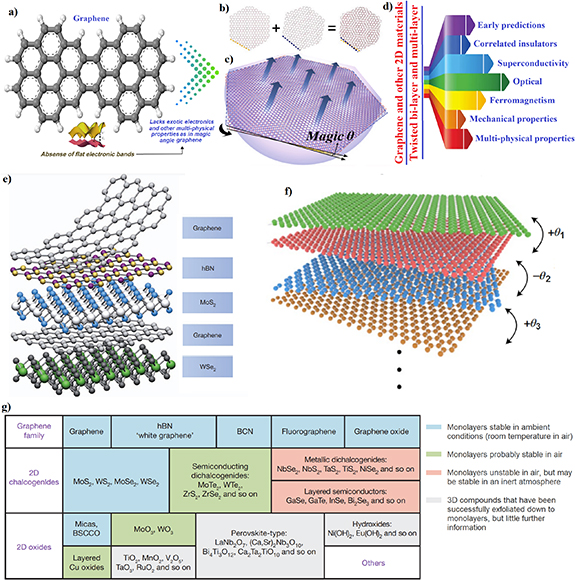

The broad scope of this paper is highlighted in figure 1 including a list for potential 2D materials that can constitute the twisted nano-heterostructure. After providing an introductory overview in section 1, we have discussed the twisted architectures of bi-layer and multi-layer graphene along with other 2D materials in section 3. The fabrication techniques of such complex nanostructures are also briefly discussed in this section. In the following three sections, we have discussed different twist-dependent physical properties systematically, such as (1) electronic properties and superconductivity, (2) optical, magnetic and other multi-physical properties, (3) mechanical properties and their correlations with different physical properties. The next section deals with evolving trends and future research directions, such as the exploration of the multi-objective design space of stacking sequence and interlayer twisting (including exploitation of the recent advances in artificial intelligence and machine learning), possibilities of expanding the design space through nano-scale architectures like layer-wise multi-directional translation, defect engineering and strain engineering, critical issues of interfacial effects and stability, integration with other materials and formation of nanocomposites, manufacturing complexity, scalability and service-life effects. Finally, a summary of the review and concluding remarks are presented.

The tuning of physical properties by varying the relative angle about a perpendicular axis to the plane of different layers of 2D materials leads to a novel research field of Twistronics. Owning to relative interlayer twisting, a moiré superlattice is formed as shown in figure 3(c). The electronic band structure of perfect mono-layered graphene has conical forms, also referred to as Dirac cones which touch at K and $K^{\prime}$ points (the specific region of reciprocal-space which is closest to the origin) at the Fermi level in the hexagonal Brillouin zone as shown in figures 3(a) and (b) [62]. When two separate Brillouin zones of twisted bi-layer graphene come together, there happens a shift of Dirac cones by $\Delta K$, reconstructing the electronic band structure as shown in figure 3(e). The mini Brillouin zone formed from the difference in two K (or $K^{\prime}$) wave vectors of the two graphene layers is shown in figure 3(d). With twisting of bi-layer graphene, their Brillouin zones too rotate, ending with a certain angle between them. The energy bands at overlapping region bend resulting in van Hove singularity [63, 64], enhancing the optical absorption [65, 66] of twisted BLG. Using local density of states (LDOS), the presence of van Hove singularity is also confirmed by varying the twisting angle from 1^∘ to 10^∘ [67].

Zoom In Zoom Out Reset image size

When the twist angle is higher, then with the reduction of it, the Fermi velocity starts behaving sensitively and periodicity keeps changing [68]. Particularly at lower twisting angles, it shows high-periodicity and uniformity of electrons system showcasing vivid electronic properties [69]. When this twisting angle is around 1^∘, the van Hove singularities in the two electronic bands are close enough, forming a nearly flat band in 'magic angle' twisted BLG [70] that leads to superconductivity. When two graphene sheets align in this way, it results in a restructuring of the atoms into domains where electrons get trapped in a localized space. But as natural electrons tend to repel each other, so to limit this strong interaction, electrons align their spins resulting in magnetic properties or result in insulators/superconductors. Researchers have shown the presence of phonons (atomic particles responsible for vibrations in solid materials) in the vicinity as well [71]. It's quite interesting for the same material to have superconductivity and magnetism, providing exciting new possibilities for engineering applications.

Physical realization and experimental validation of the computationally identified properties are crucial along with further experimental innovations. Twisted BLG is fabricated by stacking a layer of graphene on top of the other forming a Lego-like structure. Separation of a single layer of graphene from it is bulk graphite crystalline form is quite a cumbersome process, hampering its many potential applications. Though various synthesis methods are there such as chemical vapour deposition (CVD) [72, 73], thermal-deposition of silicon carbide [74, 75], chemical reduction of exfoliated graphene oxide [76, 77], each method has its pros and cons. Twisted bi-layer graphene has been folded from single-layered graphene [65, 78–81] and conventionally prepared using chemical vapour deposition to stack two single-layered graphenes [82–84]. Similar is the case of transfer alignment in which a monolayer graphene is first grown on a metal catalyst using CVD and the monolayer graphene is then transferred onto a substrate. A second monolayer graphene is grown on a separate substrate and then by aligning and stacking the two graphene layers with the desired twist angle, twisted BLG is obtained [85]. Another method is the process of electrochemical intercalation which involves the insertion of foreign atoms or molecules between the layers of graphene to create a twisted BLG structure. This method relies on the intercalation of small molecules or ions into a graphene lattice, followed by thermal or chemical treatments to induce a twist [86]. In alignment with the earlier method of fabricating twisted BLG, chemical functionalization involves modifying one or both layers of graphene with functional groups or molecules, leading to a change in the interlayer coupling and resulting in a twisted structure [87]. Some other methods include Joule heating and then rapid cooling of polyaromatic hydrocarbons on Nickel [88], controlled folding of single-layered graphene [89], chemical vapour deposition by decaborane-coated Cu foil [90], and successive transfer of single-layered graphene [91]. A group of researchers [35] made their twisted bi-layer graphene magic angle device by stacking vertically single-layered graphene using the mechanical transfer method to study superconductivity. Another common method to fabricate twisting-based electronic devices is the tear-and-stack technique [91, 92]. For fabrication of other twisted nano-heterostructures, one of the reasonable paths is to fabricate high-quality 2D layers using suitable fabrication techniques, and later on, stack the layers by repeat transferring and stacking.

Post the remarkable findings on the properties of magic-angle twisted BLG and its successful fabrication, keen explorations have been made to apply this twist science to other 2D van der Waals superlattice heterostructures [93–97] for the quest of achieving exciting properties [98–101]. Multi-Layered 2D superlattices may possess more fascinating properties due presence of multiple layers [59, 102] and stacking sequences viz., AA or AB stacking of layers [103]. In AA stacking, the carbon atoms in two layers have same lateral coordinates while in AB stacking, one layer of graphene is relatively shifted with respect to other one by the edge length of the hexagon lattice [104]. To leverage the advantage of unusual properties, a large number of moiré 2D materials is being created using hBN, graphene, transition metal dichalcogenides, or magnetic semiconductor crystals [105]. These 2D materials can be classified as Homo-bilayers (which are produced when two layers of the same 2D materials are placed vertically with some relative twisting), Hetero-bilayers (which are produced when two layers of different 2D materials are stacked vertically with some relative twisting) and Multi-layers (when multiple layers of 2D materials are stacked vertically with some relative twisting) [106]. As a result, The methodologies for designing and fabricating moiré 2D heterostructures also vary, and needless to say the research in this domain is still at the nascent stage.

While the field of Twistronics started with a focus on the electronic properties of twisted BLG, other multi-physical aspects have subsequently been investigated including the possibility of creating different twisted 2D structures using a large number of available 2D materials. In the subsequent sections, we would concentrate on twisted bi-layer and multi-layer nano-structures (with 2D layers of same and different materials) focusing on a range of critical properties such as electronic, optical, mechanical and other multi-physical aspects.

The twisting of angle between the two layers of graphene and the inter-coupling interaction between them defines the shape of the electronic band structure. Talking of pristine monolayer graphene, researchers long speculated it to have correlated states (CSs), marked by collective instead of individual charge carriers. Superconductivity and Mott insulation are likely to take place in materials with collective electrons sharing the same energy. Such states exist in flat bands in the premise of a saddle point [107] i.e. in momentum space, saddle points are locations where the energy band experiences energy maxima and minima along orthogonal lines. In 2D materials, van Hove singularities are amplified density of state peaks produced by saddle points that can be easily recognizable by scanning tunneling spectroscopy [63]. In Pristine monolayer graphene, this saddle point lies at some electron volts higher than that of Fermi level, and with just an applied voltage, it is not feasible to raise the Fermi level to the saddle point.

The twisting in BLG by moiré pattern tends to bring down the saddle points. At large twist angles the Dirac cones of the two graphene layers are far and tunnel coupling to the adjacent layer has no effect on the low energy states in that layer. The gap between the valance and conduction band van Hove singularities is equal to double the isolated layer energies at the Dirac cone intersecting points [108] (more like behaving as two weakly coupled layers). When the angle of twist is reduced, the hybridization between the layers grows significantly, and the van Hove singularities of the two layers come closer. At around 1.1^∘ firstly insulating behaviour below 4K is observed, and with further decreasing temperature and with varying charge carriers leads to superconducting states (SC) [35]. A typical schematic of a twisted bi-layer graphene device is shown in figure 4(a)(i). The longitudinal resistance against temperature and charge density showing phases as band insulator (BI), SC state, metal and band CS are shown in figure 4(b) [109]. The resistance measured in two devices $M1$ and $M2$, with twist angles of 1.16^∘ and 1.05^∘ respectively is shown in figure 4(d) indicating nearly zero resistance in $M2$ at very low temperatures [110].

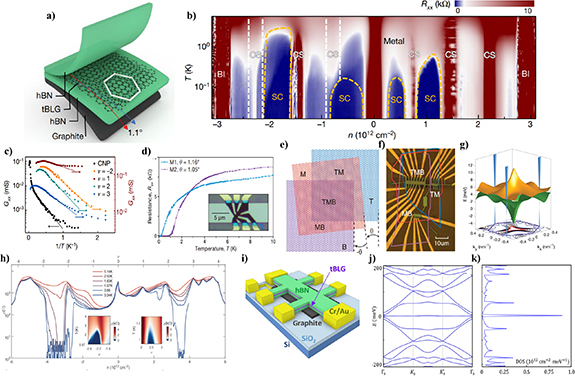

Zoom In Zoom Out Reset image size

These findings have opened a new way of looking at correlated physics for high-temperature superconductors. Their similarity with the magic angle phenomena has led to an understanding of the physics of high-temperature superconductors [111, 112]. In fact, twisted bi-layer graphene has the advantage of doping it by electrostatic gating to improve the carrier density in an electronic device while doping high-temperature superconductors requires chemical synthesis. Lu et al [109] fabricated a more refined magic angle twisted graphene-based device by employing a mechanical cleaning process to get rid of air bubbles, strains, or impurities, and at around −2 moiré band filling factor, observed superconductivity below the critical temperature of 3K, a higher temperature compared to [35]. They also observed insulating states at moiré band filling factors of 0 and ±1, as shown in figure 4(c).

The formation of bandgap in twisted graphene-based superlattice due to the creation of Brillouin zone folding which in fact is the result of variations present in the two wave vectors of the two graphene sheets has potential properties still to be fully leveraged for incorporation into new electronic devices. Codecido et al [113] have shown in their work, both insulating and SC states at about 0.93^∘ which is kind of less compared to earlier findings at about $1.1 \pm 0.1^{\circ}$, revealing the 'magic angle' range of twisted graphene to be broader than previously expected (refer to figure 4(i)). This finding is indicated by the calculated moiré band and density of states of 0.93^∘ in twisted bi-layer graphene (refer to figures 4(j)–(k)).

Moiré patterns can largely alter electronic properties [63]. The occurrence of localized flat bands nearby Fermi level at the magic angle gives rise to many-body effects [71, 116, 117] resulting in charge carriers lacking enough kinetic energy to escape the strong interactions among themselves. This leads to strongly CSs, and when there are strong interactions among particles, exotic properties are all over at display. The gap of the rotated Brillouin zone separates the layers in twisted graphene and so a significant change in momentum is necessary for an electron to tunnel between them. But at small twist angles, interlayer tunneling immensely hybridizes the layers leading to modification of band structure and at 1.1^∘ twist angle the Fermi velocity goes fading and a low-energy band appears [118, 119].

Yu et al discussed interlayer contact conductance in twisted graphene layers synthesized by chemical vapour deposition method [114] and found the interlayer contact conductance at a small twist angle to be higher in AB stacked configuration. Figure 5(a) shows SEM (scanning electron microscopy) images of as-grown graphene/copper samples. The normalized current distribution of certain regions of AB stacked configuration with varying twist angles is shown in figure 5(b) and the interlayer conductance is shown in figure 5(c). Polshyn et al [115] reported electrical transport measurements of twisted BLG devices having twist angles varying from 0.75^∘ to 2^∘ up to room temperature and observed resistivity, ρ, to vary linearly with the temperature over large temperature ranges as shown in figure 5(d). Choi et al [71] studied the electron-phonon interaction in twisted BLG using a tight binding approach in the case of electrons and atomic force constants for phonons and found the coupling strength to be nearly comparable to the electron density of states and it became greater than 1 near half-filling energies of the flat bands. They showed the effects of lattice relaxation on the electronic structure of magic-angle twisted graphenes, as shown in figures 5(e) and (f). Total phonon-electron coupling strength λ in twisted bi-layer graphene with respect to Fermi energy is shown in figure 5(g).

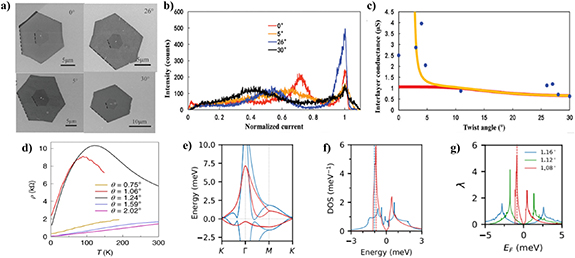

Zoom In Zoom Out Reset image size

In addition to twisted BLG, researchers have explored multilayer twisted graphene. Hao et al [59] studied electric-field tuned superconductivity in alternating-twist tri-layer graphene, as shown in figures 4(e) and (f) the band structure of which is further shown in figure 4(g). The resistivity as a function of moiré band-filling factor, ν, at different temperature values for twisted tri-layer graphene, revealing SC regions at $\nu\lt-2$ and ν > 2 is shown in figure 4(h). Klein et al [120] recently created a device by layering magic angle bernal BLG between two offset layers of insulating hBN, one layer of hBN was placed above the entire structure, aligned with the top layer of graphene while the second layer of hBN was stacked offset by 30^∘ with respect to the top layer. A wide potential of tunable and switch-able SC electronics is possible owning to the sandwich structure's special alignment, which allows bi-stable switching between correlated insulating, SC, and metallic states using an electric field or gate voltage. Lee et al [121] studied a system of twisted two bernal stacked double bi-layer graphenes, twisted relative to one another and observed a lower symmetry as compared to twisted bi-layer graphene. Absence of C₂ rotation symmetry leads to removal of band touching at the Dirac points and further directing to a low energy effective description requiring one instead of two narrow bands per spin and valley. Due to voluntary symmetry breaking and strong electronic correlations, the 2D moiré heterostructures i.e. $1\mathrm{T}-\mathrm{MoS}_{2}$, $\mathrm{GeSe}$, $\mathrm{In}_{2}\mathrm{Se}_{3}$ and $1\mathrm{T}-\mathrm{MoTe}_{2}$ have shown unconventional ferroelectric responses as observed in some theoretical as well as experimental findings [122, 123]. With an edge of multiple stacking options and more number of layers leading to more tunable possibilities [124–126], some of them are recently synthesized and an enhanced focus has been placed on physical realization of these complex nanostructural configurations [60, 127].

The properties of twisted BLG are largely dependent on the twist angle between the two stacked bilayers [115, 128–131]. As discussed in the preceding sections, at around magic angle 1.1^∘, the emergence of flat band leads to strong correlation occurrences viz., superconductivity [110], Mott insulator, ferromagnetism [37] topological Chern insulator [132] and quantized anomalous Hall effects [133]. The energy difference between the two van Hove singularities in the two bands must match with that of the excitation photon energy that leads to the resonant absorption [134, 135] and the exotic spectral features [136] at this specific twist angle. The optical-based studies have emerged as an important tool in studying structures in graphene [137, 138]. Raman Spectroscopy (a spectroscopic technique typically used to find the vibrational and the rotational modes of molecules) is used widely in the case of graphene to study optical and electronic phenomena employing non-destructive testing of the structure [139, 140]. Barbosa et al [141] studied the Raman spectra of twisted BLG corresponding to their twisting angles ranging from 0.03^∘ to 3.40^∘, where the twist angles between the bi-layers are determined by analysing the associated moiré lattices, imaged by scanning impedance microscopy. They used three different wavelengths of excitation laser lines considering the main Raman active graphene bands namely 2D and G. The study revealed that electron-photon interaction influences the G band's linewidth near the magic angle. 2D and G band Raman spectra of a Bernal bilayered graphene is shown in figure 6(a).

Zoom In Zoom Out Reset image size

The 2D band shape having twist angle less than 1^∘ is governed by crystal lattice depending upon stacking sequence (AB and AA) of bi-layers and strain soliton regions [142]. The Schematics of neighbouring BA and AB stacked domains, topological points (AA), and strain solitons (SP) are shown in figure 6(b). The difference between the nano-Raman and micro-Raman spectra is shown in figure 6(c). Twisted double bi-layer graphene was found to host a topological gapped phase when half of the flat bands are filled, having Chern number equal to 2 at charge neutrality [145, 146]. Wang et al [147] studied the edge and bulk phenomena of double bi-layer twisted graphene using transport and chemical potential measurements combined with theoretical calculations and showed the twisted double bi-layer graphene to have metallic edge transport while being insulated in bulk at the same time.

Optical spectrum can reveal a lot about electronic band structure, quasiparticles [148], and many-body interactions [149] in graphene-based systems. For studying optical absorption properties Moon et al [150] showed the importance of spectroscopic characteristics in identifying the rotation angle between two layers. Wen et al [143] studied the optical conductivity of twisted BLG near magic angle taking into consideration the effects of lattice relaxation (lattice relaxation tends to modify flat bands leading to shifts of peaks in optical conductivity). They showed the optical conductivity spectrum is distinguished by a series of characteristics peaks linked to van Hove singularities in the electronic band structure and the peak energies develop systematically with the twisting angle. The conductivity spectrum of unrelaxed (red) and relaxed (black) twisted graphene structures at 1.05^∘, 1.10^∘ and 1.16^∘ is shown in figure 6(d)

Transition metal dichalcogenides such as $\mathrm{MoS}_{2}$, $\mathrm{WSe}_{2}$, $\mathrm{MoSe}_{2}$ and $\mathrm{WS}_{2}$ are excellent for strong light-matter interactions in optoelectronic devices because of the van Hove singularity-induced significant optical absorption and exciton production in the visible region of the electromagnetic spectrum. Like most of van der Waals heterostructures they posses weak van der Waals interaction and strong covalent interactions [151–153].

Recently by inducing spin–orbit coupling, magic angle twisted BLG is shown to behave as ferromagnets [36, 144]. The strong correlation among electrons within the flat bands stabilizes the correlated insulating states at the half and quarter fillings and with spin-orbital coupling transforms Mott insulators into ferromagnets. The effect of spin–orbit coupling is investigated by using transport measurement to study the properties of moiré band and its related quantum phases of twisted bi-layer graphene/$\mathrm{WSe}_{2}$ heterostructure figure 6(e). The twisting of a layer by a small angle, θ, makes the twisted BLG to have conducting edges, with electrically insulated and magnetic, as shown in figure 6(f) [36]. Xu et al [157] studied a Hubbard model for superconductivity in twisted multi-layered graphene and showed that in contrast to twisted bi-layer graphene which invokes ferromagnetism [158] the twisted multi-layer graphene relied on effective anti-ferromagnetic interaction.

Besides investigating the electronic, optical and magnetic properties of twisted graphene and other 2D materials, the mechanical properties have also been explored for twist-dependent programming, characterization and correlation with other physical properties. Researchers have shown the dependence of heterostrain (an unequal strain on the two monolayers of graphene sheet) and uni-axial strain on the moiré pattern and flat band based optical and electronic properties [159–163]. Using Scanning Tunnelling Microscope Mesple et al [160] showed the dependence of flat band formation on the relative deformation among the layers. The weak van der Walls interlayer interaction often allows the stacking sequence and a way of straining the heterostructures and in the case of twisted graphene layers the divergence in the superlattice. Huder et al strained the two layers of graphene and showed the suppression of Dirac cones leading to flat bands [154] and that the energy spectrum of twisted bi-layer graphene is more severely varied in the case of heterostrain than when layers are homostrained, altering the band structure and providing more programmability [164]. The effect of uniaxial strain on moiré structure of twisted graphene is shown in figures 7(a)–(c). The local density of states in AB and AA regions with effects of heterostrain and homostrain are shown in figures 7(d)–(f). Using scanning tunnelling spectroscopy and scanning tunnelling microscopy researchers [165] studied the effects of heterostrain on a number of twisted graphene bilayer configurations near the first magic angle and found the heterostrain to largely manipulate the atomic alignment leading to change in geometric structure and overall physics of BLG and $\alpha-\mathrm{Mo}_{2}C$ heterostructure.

Zoom In Zoom Out Reset image size

Carr et al [155] reported compression dependence studies on twisted graphene nanostructures using ab initio, a first-principle approach combining density function theory along with maximally localized Wannier functions [166] and showed the role of relaxation on low energy states of twisted bi-layer graphene. Compression leads to producing correlated behaviour marked by the presence of flat bands at twist angles which increase with increasing compression. At $5\%$ compression for twisting of 1.47^∘ and at $10\%$ compression for twisting of 2^∘, the flat band regime is achieved figure 7(g). The shift in momentum space in the two Dirac cones results from the twisting of layers and by interlayer coupling strength between them, as shown in figure 7(h). Nguyen et al [167] reported a comprehensive study on the electronic properties of twisted multilayer graphene using atomistic calculations and presented the possibilities for tuning the electronic properties using external fields and by applying strains/vertical pressure.

From a different perspective, for successful utilization of the unprecedented properties of twisted bilayer and multilayer 2D superlattices in nano-scale devices, it is of utmost importance to study the mechanical properties. A significant number of recent studies have investigated multilayer 2D materials for their mechanical characterization [168–171]. Few research groups have started exploring similar directions for their twisted configurations recently. Mukhopadhyay et al [156] studied elastic moduli of multi-layered twisted heterostructures based on an effective mechanics-based analytical approach. They presented a generic framework, applicable from magic angle twisted bi-layer graphene to some random twist angles and further to any multi-layered heterostructure with any possibilities of rotation angles between layers (a typical three-layered heterostructure is shown in figure 7(i), where each of the layers can have an arbitrary twist). Young's moduli (E₁ and E₂) of two-layers configurations by rotation of one layer are shown in figures 7(j) and (k). Chandra et al studied the buckling behaviour of twisted 2D materials and heterostructures with moire patterns [172]. Mechanical properties (including strength, stiffness and elastic modulus) of twisted BLG along with grain boundaries are reported by Zhang and Zhao [173]. Though there has been studies on mechanical properties of 2D single-layer materials, bilayer twisted graphene configurations and 2D multilayer heterostructures by stacking without taking into account the considerations of twisting between layers [168, 174–179], the exploration of elastic properties and mechanical strength of twisted multi-layer 2D materials and heterostructures are still limited in the literature. Most importantly, the possibility of simultaneously achieving multiple mechanical behaviour (such as multi-directional strength and stiffness, direction-dependent vibration and wave propagation modulation, controlling buckling under complex multi-directional and multi-modal loading conditions, simultaneous programming of mechanical and other multi-physical properties) is yet to be investigated through nano-engineered twisting of multi-layered 2D materials.

With immense multi-physical properties under the hood, stacked 2D heterostructures particularly magic-angle graphene and other twisted configurations of multi-layer 2D materials are being continuously explored for further new findings. Considering the current momentum of research in this direction, it would be compelling to explore a range of new possibilities for unveiling exciting physical properties. In this section, we provide an overview of the prospective future research trajectory and evolving trends concerning twisted 2D nanostructures along with some of the critical areas that need immediate attention from the scientific community.

7.1. Coupled multi-objective design space of stacking sequence and interlayer twisting

7.2. Layer-wise defect and strain engineering coupled with twist

7.3. Translation with twist

7.4. Interfacial effects and stability

7.5. Integration with other materials and formation of nanocomposites

7.6. Exploitation of machine learning and artificial intelligence

7.7. Exploring prospective applications in critical technologically demanding sectors

7.8. Complexity in fabrication techniques and scalability

7.9. Service-life effects: environmental and operational conditions

Post the remarkable findings of unconventional superconductivity in twisted bi-layer graphene, wide attention is drawn to 2D van der Waals twisted multi-layered heterostructures. The coupled design space of stacking and rotating of layers, gives the hybrid and engineered superlattices entirely different properties than those of 2D monolayer structures. The rotation of a layer with respect to another layer in a 2D van der Waals heterostructure leads to various periodic moiré superlattices and combining it with the interlayer couplings between the layers results in exotic electronic, optical, magnetic and mechanical properties. In this article, we have started with the formation of electronic band structure in twisted BLG exhibiting flat bands around the 'magic angle'. The findings of superconductivity and other exotic properties in twisted graphene layers have opened a new way of looking at correlated physics in a range of other twisted 2D material configurations, the progress of which are subsequently discussed here. Along with twists, heterostrain is shown to largely influence the electronic band structure and the flat band regime, and so eventually the optical and electronic properties.

Enlightened by the uniqueness in the physics and unprecedented properties of magic angle twisted BLG, there exists an extensive opportunity to explore multi-layer graphene and other 2D heterostructures with interlayer twisting to enhance and tune the electronic properties along with other simultaneous multi-objective goals. We have noted that it will be compelling to explore the addition of other prospective design parameters such as layer-wise stretching and heterostrain, interlayer shifting and translation, pressing, different forms of programmed defects and a combination of them with interlayer twisting on the tunable multiphysical properties of engineered 2D materials. The prospective role of artificial intelligence and machine learning therein is discussed for exploring the vast scope of combining different variants of 2D materials with numerous possibilities of stacking sequences along with the aforementioned expanded design space for identifying target combinations of the parameters that would have been impossible to explore solely using conventional methods of simulations and experiments. In this context, the aspect of physical realization of computationally invented configurations is duly emphasized. Due to the engineering at a nano-length scale and being atomically thin, it is quite complicated to fabricate single and multi-layer 2D materials and their heterostructures. Moreover, providing the accurate amount of layer-wise twists along with other proposed design-level parameters like programmed defects, direction-dependent strain, and translation would demand a high level of precision in the fabrication process.

In summary, through a concise review of the existing literature and current trends, we highlight that the field of twisted graphene and heterostructures is poised for significant growth and development in the foreseeable future, and there are numerous exciting opportunities to explore the rich and coupled design space for achieving unprecedented physical properties including a multi-objective target output space with application-specific assignment of weights by infusing the notion of engineering judgment.

KS would like to acknowledge the doctoral scholarship received from Ministry of Education (MoE), India. T M acknowledges the initiation grant received from the University of Southampton.

All data that support the findings of this study are included within the article (and any supplementary files).
