High-resolution spectroscopy of a single nitrogen-vacancy defect at zero magnetic field

Nitrogen-vacancy (NV) center, a paramagnetic defect in diamond [1], is a highly versatile sensor with excellent sensitivity to magnetic, electric, and stress fields at room temperature [2–4]. Owing to the well-established optical initialization and readout methods [5, 6], the ground state spin of the NV center is amenable to sensing applications [7]. The quantum sensing [8] properties of the NV centers are being exploited for applications in biology [9, 10], geology [11], material science [12, 13], condensed matter physics [14], quantum computation, and information processing [15, 16]. Typically, most of the sensing experiments involving NV centers require simultaneous application of an external bias magnetic field. This requirement is detrimental to applications including nano-nuclear magnetic resonance (NMR) in weak magnetic fields [17], structural investigation of molecules [18] and in the experiments performed in magnetically shielded environments [19]. However, at zero magnetic field, the interaction of the NV center with the intrinsic effective field [7] comprising the local static electric field and the local deformation-induced strain field can dominate, resulting in the inaccurate estimation of the external magnetic field of interest. Therefore, it is crucial to thoroughly understand and characterize the local charge and stress environment of the NV center in diamonds, as these studies may pave the way for efficient engineering of the intrinsic properties of the NV defects in diamonds for zero-field sensing applications. Furthermore, careful understanding of the ground state Hamiltonian in the presence of spin-electric and spin-strain interactions [4, 7] was instrumental for key advances, including the single NV-based electrometry [3], zero-field magnetometry [20–22], nanospin-mechanical sensors [4], optically enhanced electric field sensing [23] and the experimental demonstration of holonomic quantum gates [24].

In this work, we have studied the effects of the intrinsic effective field on the NV hyperfine level structure by performing high-resolution microwave spectroscopy on single NV centers in a polycrystalline diamond (PCD) sample. Previous studies involving the NV centers in PCD samples have demonstrated long ground state electron spin coherence times [25], thereby showing great promise for applications in wide-field quantum sensing [26] and quantum information processing [27]. By leveraging long-lived ground state spin coherence, we perform pulsed-optically detected magnetic resonance (p-ODMR) [28] measurements to record the hyperfine resolved spin transitions of an NV center experiencing a large intrinsic effective field. The presence of effective field inside a diamond lattice perturbs the NV hyperfine level structure by mixing and splitting the $\vert m_s = \pm1\rangle$ states, which can be observed as a shifting and splitting of the hyperfine transitions involved. The shifting of the NV's overall spectrum from the central transition frequency of ∼2.87 GHz is attributed to the axial component of the effective field, whereas the splitting of the inner and/or outer transitions is attributed to the transverse component of the effective field. Recent studies to precisely characterize the effective fields surrounding NV spins [29–31] revealed the mixing of the central hyperfine resonances in the zero-field spectrum for a single NV center. In contrast, the mixing of the outer hyperfine resonances was not observable because of the presence of low effective fields in their diamond crystals under study. In this work, our studies show that the presence of large intrinsic effective fields in PCD samples leads to the mixing of the NV's outer hyperfine transitions at zero magnetic field which, to the best of our knowledge, has not been observed experimentally until now. We also perform NV-based spectroscopic characterization of the local effective field environment in the PCD sample. Our studies conclude that the zero-field spectral features of the single NV centers in PCD sample are dominated by the effect of local strain fields rather than by the effect of local charges. Finally, we introduce a theoretical model of the magnetic dipole transitions that provides an improved understanding of the polarization response [30] of the hyperfine spin transitions at zero magnetic field.

NV centers in diamond can exist in three charge states: neutral NV⁰, positively charged NV⁺, and negatively charged NV⁻ states with different optical and spin properties [7, 32]. NV⁻, hereafter referred to as NV for brevity, is a paramagnetic S = 1 defect with two unpaired electrons in its ground and excited state. In the ground state, the $m_s = 0$ and degenerate $m_s = \pm{1}$ spin sublevels are split by D = 2.87 GHz, which is the fine structure splitting originating from the dipolar spin–spin interaction [33]. A bias (or an external) magnetic field further splits the degenerate m_s = $\pm{1}$ states due to the Zeeman interaction. The magnitude of the separation between the two states is proportional to the component of the applied magnetic field along the NV direction, and hence can be used for sensing small dc magnetic fields. However, when no external bias magnetic field is applied, the electric field originating from charge impurities and the strain field arising from local lattice deformations couples the otherwise degenerate m_s = $\pm{1}$ states, leading to the mixing and splitting of the $m_s = \pm1$ states. These two local intrinsic fields are collectively named as the effective field ($\boldsymbol{\Pi}$) because they both arise from electronic interactions [29] that contribute to the variation of the spatial distribution of the electron density around the NV center. Moreover, the NV ground state spin is also coupled via the hyperfine interaction to the nuclear spin bath composed of the native nitrogen nuclear $^{14}\mathrm{N}$ spin and naturally occurring nuclear $^{13}{\mathrm{C}}$ spin impurities. In this study, we use an NV center coupled to its intrinsic $^{14}\mathrm{N}$ spin to probe its local environment and demonstrate that the high-resolution, low-power optically detected electron spin resonance (ESR) spectroscopy can extract information about the spatial dependence of the axial and the transverse components of the effective field.

The ground state spin Hamiltonian $\mathcal{\hat{H}}$ of the NV center in the presence of the intrinsic effective field and the axial hyperfine field can be expressed as [34]:

$$\begin{equation} \mathcal{\hat{H}} =D\hat S_z^2 + A_{\mathrm{HF}} \hat S_z \hat I_z+\Pi_\parallel \hat S_z^2+\Pi_x \left(\hat S_x^2-\hat S_y^2\right)+\Pi_y\left(\hat S_x \hat S_y+\hat S_y\hat S_x\right) \end{equation} \tag{ 1 }$$

where D = 2.87 GHz is the zero-field splitting parameter, $A_{\mathrm{HF}} = -2.14$ MHz is the axial hyperfine coupling parameter, $\boldsymbol{\hat{I}} = (\hat{I}_x,\hat{I}_y,\hat{I}_z)$ is the dimensionless nuclear spin-1 vector operator of the host ¹⁴N spin, $\boldsymbol{\hat{S}} = (\hat{S}_x,\hat{S}_y,\hat{S}_z)$ is the dimensionless NV electronic spin-1 vector operator and $\boldsymbol{\Pi} = (\Pi_x,\Pi_y,\Pi_\parallel)$ is the effective field vector expressed in the NV coordinate frame (xyz) where z denotes the NV axis and x lies in one of the symmetry planes as shown in figure 1(a). The axial and non-axial components of the effective field are represented as $\Pi_\parallel = d_{\|}E_z+M_z$ and $\Pi_{x,y} = d_{\perp} E_{x,y}+M_{x,y}$ where $\boldsymbol{E} = (E_x,E_y,E_z)$ is the electric field vector and $d_\parallel = 0.35$ Hz cmV⁻¹ and $d_\perp = 17$ Hz cmV⁻¹ are the axial and transverse electric field susceptibilities, respectively [3]. Here, M_z and $M_{x,y}$ are the spin-strain interaction parameters that further depend on the spin-strain susceptibilities and, unlike electric field susceptibilities, are of comparable magnitude (refer to [4] for more details).

Zoom In Zoom Out Reset image size

Since the effective field introduces a coupling between the $m_s = \pm1$ spin states with the same hyperfine projection, the Hamiltonian in the equation (1) can also be rewritten as:

$$\begin{equation} \mathcal{\hat H}^{m_I} = (D +\Pi_\parallel)\hat{\mathbb{I}}+\Pi_x \hat{\sigma}_x^{m_I}+\Pi_y \hat{\sigma}_y^{m_I}+m_IA_{\mathrm{HF}}\hat{\sigma}_z^{m_I} \end{equation} \tag{ 2 }$$

where $\hat{\mathbb{I}}$ denotes the identity operator and $\hat{\sigma}_x^{m_I}$, $\hat{\sigma}_y^{m_I}$ and $\hat{\sigma}_z^{m_I}$ denote the Pauli operators in the subspace $\{\vert m_s, m_I\rangle\} = \{\vert +1, m_I\rangle;\vert -1, m_I\rangle\}$ [34]. Here, $m_s = 0,\pm1$ and $m_I = 0,\pm1$ are the eigenvalues of the $\hat{S}_z$ and $\hat{I}_z$ operators, respectively. Solving Hamiltonian (2) gives the eigenenergies of the hyperfine states in the presence of the intrinsic effective field as:

$$\begin{align} {E}_{-,0}&= D + \Pi_{\parallel}-\Pi_{\perp}, \end{align} \tag{ 3a }$$

$$\begin{align} {E}_{+,0}&= D + \Pi_{\parallel}+\Pi_{\perp}, \end{align} \tag{ 3b }$$

$$\begin{align} {E}_{-,+1}&= D + \Pi_{\parallel}-\sqrt{\Pi_{\perp}^2+\left|A_{\mathrm{HF}}\right|^2}, \end{align} \tag{ 3c }$$

$$\begin{align} {E}_{+,+1}&= D + \Pi_{\parallel}+\sqrt{\Pi_{\perp}^2+\left|A_{\mathrm{HF}}\right|^2}, \end{align} \tag{ 3d }$$

$$\begin{align} {E}_{-,-1}&= D + \Pi_{\parallel}-\sqrt{\Pi_{\perp}^2+\left|A_{\mathrm{HF}}\right|^2}, \end{align} \tag{ 3e }$$

$$\begin{align} {E}_{+,-1}&= D + \Pi_{\parallel}+\sqrt{\Pi_{\perp}^2+\left|A_{\mathrm{HF}}\right|^2}, \end{align} \tag{ 3f }$$

where $\Pi_{\perp} = \sqrt{\Pi_x^2+\Pi_y^2}$ and $\Pi_{\parallel} = \Pi_\parallel$ are the transverse and parallel effective field amplitudes, respectively. The associated hyperfine eigenstates can be written in the uncoupled basis $\vert m_s,m_I\rangle = \vert m_s\rangle\otimes\vert m_I\rangle$ as follows:

$$\begin{align} \vert -,0\rangle&=\vert -\rangle_0\otimes\vert 0\rangle=\frac{1}{\sqrt{2}}\left(\vert +1\rangle-e^{i\phi_\Pi}\vert -1\rangle\right)\otimes\vert 0\rangle, \end{align} \tag{ 4a }$$

$$\begin{align} \vert +,0\rangle&=\vert +\rangle_0\otimes\vert 0\rangle=\frac{1}{\sqrt{2}}\left(\vert +1\rangle+e^{i\phi_\Pi}\vert -1\rangle\right)\otimes\vert 0\rangle, \end{align} \tag{ 4b }$$

$$\begin{align} \vert -,+1\rangle&=\vert -\rangle_{+1}\otimes\vert +1\rangle=\left(\sin{\frac{\theta_\Pi}{2}}\vert +1\rangle-e^{i\phi_\Pi} \cos{\frac{\theta_\Pi}{2}}\vert -1\rangle\right)\otimes\vert +1\rangle, \end{align} \tag{ 4c }$$

$$\begin{align} \vert +,+1\rangle&=\vert +\rangle_{+1}\otimes\vert +1\rangle=\left(\cos{\frac{\theta_\Pi}{2}}\vert +1\rangle+e^{i\phi_\Pi} \sin{\frac{\theta_\Pi}{2}}\vert -1\rangle\right)\otimes\vert +1\rangle, \end{align} \tag{ 4d }$$

$$\begin{align} \vert -,-1\rangle&=\vert -\rangle_{-1}\otimes\vert -1\rangle=\left(\cos{\frac{\theta_\Pi}{2}}\vert +1\rangle-e^{i\phi_\Pi} \sin{\frac{\theta_\Pi}{2}}\vert -1\rangle\right)\otimes\vert -1\rangle, \end{align} \tag{ 4e }$$

$$\begin{align} \vert +,-1\rangle&=\vert +\rangle_{-1}\otimes\vert -1\rangle=\left(\sin{\frac{\theta_\Pi}{2}}\vert +1\rangle+e^{i\phi_\Pi} \cos{\frac{\theta_\Pi}{2}}\vert -1\rangle\right)\otimes\vert -1\rangle, \end{align} \tag{ 4f }$$

where $\theta_\Pi$ and $\phi_\Pi$ are the angles which satisfy the relations:

$$\begin{align} \cos{\theta_\Pi}&=\frac{-|A_{\mathrm{HF}}|}{\sqrt{\Pi_{\perp}^2+\left|A_{\mathrm{HF}}\right|^2}}, \end{align} \tag{ 5a }$$

$$\begin{align} \cos{\phi_\Pi} &= \frac{\Pi_x}{\Pi_{\perp}}. \end{align} \tag{ 5b }$$

We note that the hyperfine eigenstates labeled with $\vert 0\rangle_{m_I} = \vert 0,m_I\rangle$ remain three-fold degenerate as their eigenenergies are not altered by the presence of the intrinsic effective fields. We can make the following conclusions regarding the nature of the mixed states and the theoretically expected ODMR spectra for samples experiencing different magnitudes of transverse effective field:

• Case 1: $\Pi_\perp \ll |A_{\mathrm{HF}}|$ When the hyperfine coupling between the NV spin and the $^{14}\mathrm{N}$ nucleus is much larger than the transverse component of the effective field, the states $\vert m_s = \pm 1,m_I = 0\rangle$ couple to form two new eigenstates with a splitting of $2\Pi_\perp$. In contrast, the mixing of the states $\vert -1,+1\rangle$ & $\vert +1,+1\rangle$ and $\vert -1,-1\rangle$ & $\vert +1,-1\rangle$ due to the effective field is suppressed by the hyperfine coupling parameter A_HF. Hence, the outer transition frequencies are not affected by the effective field, i.e. the hyperfine projections with the same m_I are simply split by $2|A_{\mathrm{HF}}|$ as it is for the case of the Hamiltonian without the effective field (refer figure 1(b)).
• Case 2: $\Pi_\perp \gtrsim |A_{\mathrm{HF}}|$ If the transverse component of the effective field is comparable to the hyperfine splitting, the states $\vert -1,+1\rangle$ & $\vert +1,+1\rangle$ and $\vert -1,-1\rangle$ & $\vert +1,-1\rangle$ also couple to form two new eigenstates with a splitting of $2\sqrt{\Pi_\perp^2+|A_{\mathrm{HF}}|^2}$. Relations defined in equations (4c )–(4f ) show that the mixing between the states depends not only on the azimuthal angle $\phi_\Pi$ of the transverse effective field, but also on the angle $\theta_\Pi$ which quantifies the relative strengths of hyperfine interaction and transverse effective field.

3.1. Description of the experimental setup

3.2. High-resolution spectroscopy

We investigated single NV spins in a type-IIa PCD sample and type-Ib single crystal diamond sample to compare our experimental measurements with theoretical calculations. The discussed features regarding the coupling of the hyperfine states due to the effective field are present in the magnetic spectra of the single NV spins in these samples. We used the ODMR technique to study the ground-state electron spin transitions and to resolve the anti-crossings between the hyperfine levels, which arise from the interaction of the electron spin with the effective fields that are intrinsic to the diamond lattice. High resolution ODMR spectra [28] were obtained by sweeping the linearly polarized microwave frequency across the hyperfine spin sublevel transitions of the NV center (refer to appendix H for more detail). We performed a systematic study of several single NV defects coupled to the effective field and measured coupling strengths as small as 500 kHz. For resolving such a weak effective field interaction, the power broadening of the ESR linewidth was suppressed by the application of a long resonant microwave π-pulse to the NV defect in the dark conditions. When the π-pulse duration is on the order of the inhomogeneous dephasing time $T_2^*$, the ESR linewidth ($\Gamma_2^* \propto T_2^{*-1}$) is on the order of a few hundreds of kHz. ODMR spectra were fitted with an appropriate number of Gaussian functions to obtain the ESR transition frequencies. Subsequently, we used the extracted frequency values to determine the Hamiltonian parameters $\Pi_\perp$ and $\Pi_\parallel$ from the eigenvalue equations (3c ) by applying the least square method.

3.2.1. Zero-field spectroscopy

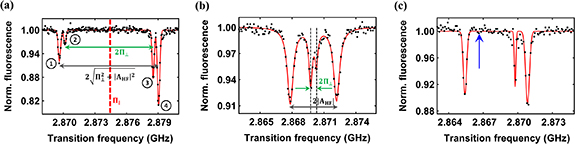

Figure 2(a) shows our high-resolution spectroscopy study of the effective field for a single NV center at zero magnetic field in a PCD sample, in which the spectrum is expected to be dominated by the effect of local strain [26]. Four distinct features are seen in the ODMR spectrum, corresponding to two two-fold degenerate outer hyperfine transitions and two inner non-degenerate hyperfine transitions. As discussed in section 2, the two central resonances correspond to $m_I = 0$ states with a separation of 2$\Pi_\perp$ and the outer resonances correspond to $m_I = \pm1$ states with a separation 2$\sqrt{\Pi_\perp^2+|A_{\mathrm{HF}}|^2}$ owing to the presence of a large transverse effective field in the diamond sample. Moreover, the splittings of the hyperfine states are accompanied by a common-mode shift of all nuclear spin projections due to the presence of an axial effective field $\Pi_\parallel$. The spectra obtained are in very good agreement with our theoretical calculations, where the outer transitions are also mixed due to the presence of a large effective field (i.e. $\Pi_ \perp\gt|A_{\mathrm{HF}}|$). The transverse effective field and the axial effective field extracted from the data shown in figure 2(a) are $\Pi_\perp = 4.20$ MHz and $\Pi_\parallel = 4.32$ MHz, respectively.

Zoom In Zoom Out Reset image size

We also performed similar measurements on a single NV defect in an untreated type-Ib diamond, and the recorded ODMR spectra are shown in figure 2(b). By analyzing the experimental data, we find $\Pi_\perp = 500$ kHz and $\Pi_\parallel = 50$ kHz. Hence, we note that that only the pair of inner transitions is significantly affected by the interaction of the NV spin with the effective field, as they are more susceptible to transverse effective fields than the outer transitions. Unlike the case of a strained type-IIa PCD sample, the observed zero-field spectral features of a single NV center in a type Ib sample are attributed to the local electric field [29] generated by the charge environment of the diamond lattice.

The transition strengths observed in the high-resolution ODMR spectra depend on the overlap between the polarization of the applied microwave magnetic field and the magnetic dipole moment of the hyperfine spin transitions (see appendix C). The normalized transition strengths of the inner and outer transitions for a linearly polarized microwave field are given by:

$$\begin{align} W_{\pm,0}&= \frac{1}{2} \left[1\pm \cos{(2\phi_{mw}-\phi_\Pi})\right], \end{align} \tag{ 6a }$$

$$\begin{align} W_{-,\pm 1}&= \frac{1}{2} \left[1- \sin{\theta_{\Pi}}\;\cos{(2\phi_{mw}-\phi_\Pi})\right], \end{align} \tag{ 6b }$$

$$\begin{align} W_{+,\pm 1}&= \frac{1}{2} \left[1+ \sin{\theta_{\Pi}}\;\cos{(2\phi_{mw}-\phi_\Pi})\right], \end{align} \tag{ 6c }$$

where $W_{-,0}$ and $W_{+,0}$ are the normalized transition strengths corresponding to the transitions $\vert 0,0\rangle\rightarrow \vert -,0\rangle$ and, $\vert 0,0\rangle\rightarrow \vert +,0\rangle$ respectively. Similarly, $W_{-,+1}$, $W_{+,+1}$, $W_{-,-1}$ and $W_{+,-1}$ are the normalized transition strengths corresponding to the transitions $\vert 0,+1\rangle\rightarrow \vert -,+1\rangle$, $\vert 0,+1\rangle\rightarrow \vert +,+1\rangle$, $\vert 0,-1\rangle\rightarrow \vert -,-1\rangle$ and $\vert 0,-1\rangle\rightarrow \vert +,-1\rangle$ respectively. Here, φ_mw and $\phi_{\Pi}$ are the azimuthal angles in the xy-plane (see figure 1(a)), and $\theta_\Pi$ satisfies the relation (5a ). Since the outer transitions are degenerate, the normalized transition strengths for the outer transitions add together, resulting in twice the ODMR fluorescence contrast compared to a single transition. The transition imbalances [29, 30] of the inner and the outer hyperfine resonances are given by:

$$\begin{align} \mathcal{I}_{\mathrm{inner}} &= \cos(2\phi_{mw}-\phi_\Pi), \end{align} \tag{ 7a }$$

$$\begin{align} \mathcal{I}_{\mathrm{outer}} &=\sin\theta_{\Pi} \;\cos(2\phi_{mw}-\phi_\Pi). \end{align} \tag{ 7b }$$

This explains the measured difference in the relative strength of the two inner transitions and the two outer transitions, which is clearly seen in the data shown in the figure 2(a), where all the four resolvable transitions show different transition strengths. In contrast, for the data presented in figure 2(b), the transition imbalance is observed only for the central transitions and not for the two outer transitions.

According to the equations (6), the transition strengths of the inner and outer hyperfine spin transitions under driving by a linearly polarized MW magnetic field oscillate as a function of the relative azimuthal angles $\phi_{\Pi}$ and φ_mw . Hence, by characterizing the effective fields of several single NV centers, we found an NV center for which the normalized coupling strength between the $\vert 0,0\rangle$ and $\vert -,0\rangle$ states is ∼1 resulting in the formation of a perfectly bright state and a perfectly dark state. The ODMR spectroscopy data shown in the figure 2(c) [37] corresponds to one such NV center for which the linearly polarized microwave field does not interact with the transition magnetic dipole moment between the states $\vert 0,0\rangle$ and $\vert +,0\rangle$. Hence, the effective field mixes the original $\vert \pm1,0\rangle$ states into perfectly bright and dark states $\vert B\rangle = \vert -,0\rangle$ and $\vert D\rangle = \vert +,0\rangle$ states respectively and the transitions $\vert 0,0\rangle\rightarrow \vert B\rangle$ and $\vert 0,0\rangle\rightarrow \vert D\rangle$ show the familiar linearly polarized response. In contrast, for the outer transitions under the same experimental conditions, the transition strengths are observed to be non-zero, which is ultimately linked to the elliptically polarized response [30] of the transitions $\vert 0,\pm1\rangle\rightarrow \vert \pm,\pm1\rangle$. We note that the fully bright and dark states can still be observed for the outer transitions via excitation with an elliptically polarized microwave field of suitably chosen ellipticity (see figure C1 of appendix C).

3.3. Relation between Rabi frequencies and transition strengths

We performed Rabi oscillation experiments at zero magnetic field to determine the transition dipole moment for each of the four hyperfine transitions under the same experimental conditions, i.e. with the same MW and laser power, to compare the driving strengths of the involved ODMR transitions. By selectively driving each of the hyperfine resolved transitions with low microwave power, we measured the Rabi oscillations of all the four resonances of the ODMR spectrum shown in the inset of the figure 3. We observed long-living coherent Rabi oscillations for the NV spins hosted in a highly strained PCD sample. The presence of large strain decouples the transitions from magnetic field fluctuations, thereby decreasing the rate of the Rabi oscillations decay time [38, 39]. The relation between the Rabi frequencies of the four different hyperfine transitions is given by the equation (refer to appendix C for more information):

$$\begin{equation} \Omega_1^2+\Omega_4^2=\Omega_2^2+\Omega_3^2 \end{equation} \tag{ 8 }$$

where Ω₁, Ω₂, Ω₃, and Ω₄ are the respective Rabi frequencies of the hyperfine resonances 1, 2, 3 and 4 as marked in the inset of the figure 3. The experimental values for Ω₁, Ω₂, Ω₃, and Ω₄ satisfy the theoretical relation (8) within 4$\%$ error. Note that although the degeneracy of the outer transitions results in a summation of the transition strengths for $m_I = \pm1$ hyperfine projections as observed in the p-ODMR spectra, the measured Rabi frequencies Ω₁ and Ω₄ of the hyperfine spin transitions should not be affected by the degeneracy.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

3.4. Spectroscopy around zero magnetic field

The Hamiltonian in equation (2) gets modified in the presence of an axial magnetic field and its matrix representation becomes:

$$\begin{equation} \mathcal{{H}}^{m_I} = \begin{bmatrix} (D +\Pi_\parallel)+m_I A_{\mathrm{HF}}+\gamma B_z & \Pi_\perp e^{-i\phi_{\Pi}}\\ \Pi_\perp e^{i\phi_{\Pi}} &(D +\Pi_\parallel) -m_I A_{\mathrm{HF}}-\gamma B_z \end{bmatrix}. \end{equation} \tag{ 9 }$$

When there is no perturbation (i.e. $\Pi_\perp = 0$), the off-diagonal matrix elements of the above Hamiltonian vanish and the eigenvalues of the resulting Hamiltonian will be $E_{\pm,m_I} = (D +\Pi_\parallel)\pm (m_I A_{\mathrm{HF}}+\gamma B_z)$, where $m_I\in\{-1,0,+1\}$. This results in a linear Zeeman splitting between the states $\vert + 1, m_I\rangle$ and $\vert -1, m_I\rangle$. The simulated transition frequencies for this case are shown by gray dashed lines in figure 4(a), where the levels cross at axial magnetic fields given by $B_z = m_I|A_{\mathrm{HF}}|/\gamma$ in the absence of perturbation. However, when the Hamiltonian possesses non-diagonal matrix elements, i.e. for the case $\Pi_\perp \neq 0$, the energies of the two perturbed levels are given by $E_{\pm,m_I} = (D +\Pi_\parallel)\pm \sqrt{(m_I A_{\mathrm{HF}}+\gamma B_z)^2 + \Pi_\perp^2}$. In other words, the perturbation mixes and splits the states $\vert \pm1,m_I\rangle$, and the level repulsion or anti-crossing is observed with the minimum separation between the perturbed energy levels being $2\Pi_{\perp}$. Colored plots in figure 4(a) shows the simulated transition frequencies in the presence of the coupling $2\Pi_{\perp}$. The colored arrows illustrate the values of the axial magnetic field $B_z = m_I|A_{\mathrm{HF}}|/\gamma$ at which the level anti-crossings (LACs) are observed between the states $\vert \pm1,m_I\rangle$.

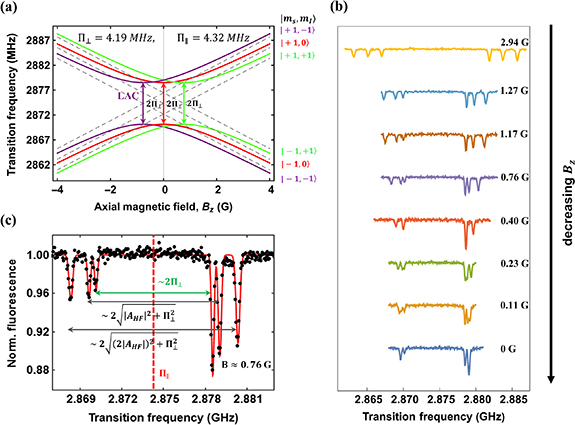

In the following, we discuss the spectroscopy experiments performed around zero magnetic field. The p-ODMR spectra were recorded as a function of the decreasing axial magnetic field on the same NV center, whose zero field spectra was presented in figure 2(a). This procedure not only served the purpose of zeroing the axial component of the magnetic field, but also enabled us to perform high-resolution ODMR measurements in the vicinity of the transition crossings and anti-crossings. Figure 4(b) shows the experimental p-ODMR spectra acquired for various values of the axial magnetic field B_z . The anti-crossings at $B_z = 0$ and $B_z = |A_{\mathrm{HF}}|/\gamma$ can be visualized in the spectra shown in blue (first from bottom, which is the same data shown in figure 2(a)) and purple (fifth from bottom) respectively. The p-ODMR spectrum acquired at $B_z \approx |A_{\mathrm{HF}}|/\gamma$ is presented in more detail in figure 4(c) and the spectrum shows a clear mixing and splitting of the states $\vert \pm1,+1\rangle$.

3.5. Characterization of the PCD

Having established our high-resolution spectroscopy technique to measure both the parallel and perpendicular components of the effective field of a single NV spin, we now apply this method to characterize the effective field environment surrounding NV spins in different regions of the diamond sample. The observations are as follows:

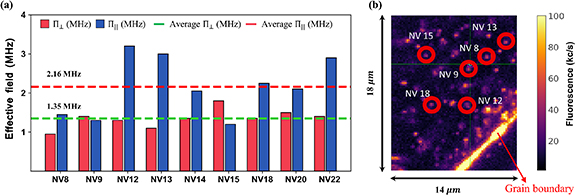

• The data of figure (5) shows the effective field environment experienced by a selection of single NV centers over a distance of 10 µm from the grain boundary, which is the highly fluorescent region (marked in figures 5(b) and 6(b)) formed at the interface of two crystal grains in the PCD sample. The splitting $2\Pi_\perp$ and the shifting $\Pi_\parallel$ for the individual NV centers are of comparable magnitude. Hence, we conclude that the effective field in a PCD sample is dominated by the strain field rather than by the electric field [29].
• The stark variation in the effective field values $\Pi_\perp$ and $\Pi_\parallel$ experienced by different NVs located near the grain boundary suggest that there is a strong gradient of the strain field in this region. Strain gradients in a PCD sample was first shown by Trusheim and Englund [26] using wide-field microscopy technique.
• We also performed high-resolution spectroscopy on single NVs located far away from the grain boundary (${\gt}20~\mu$m). In this region, we found that there is a negligible spatial variation of the effective field parameters (data not shown).
• We also performed continuous wave (CW) ODMR measurements on NV centers located near the grain boundary. Figure 6(a) displays the CW ODMR spectrum of two NVs with same orientation, showing positive and negative shift of the overall spectrum.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

We have presented a study of the ground-state hyperfine spin level structure of NV defects in diamond in the presence of intrinsic effective fields and external magnetic fields. Apart from resolving hyperfine splitting using pulsed ESR spectroscopy, we have experimentally verified the previously unreported ESR features of mixing and splitting of the outer hyperfine transitions resulting from the interactions with the strain component of the effective field. We have observed good agreement between magnetic field-dependent ODMR fluorescence measurements and a simple theoretical model. These studies also enabled us to experimentally measure previously unobserved transition imbalances for the $m_I = \pm1$ hyperfine projections of the NV center. Finally, we have also developed a theoretical model that explores the interplay between the elliptical polarization of the microwave drive and the polarization response of the hyperfine spin transitions. Thus, we have investigated an unexplored regime $\Pi_{\perp}\geqslant |A_{\mathrm{HF}}|$ in which the effects due to the intrinsic effective field and the hyperfine interaction are of comparable order.

Our studies open the door to a number of interesting research directions. First, our studies provide an in-depth understanding of the polarization selectivity of the hyperfine resonances depending on the ellipticity of the microwave excitation. This is of particular relevance for polarization-selective microwave excitation of NV centers in diamond samples for zero-field sensing applications. Second, single NV ODMR spectra of untreated type-Ib diamond we report on here provide clear signatures of the split-peak imbalance of the central transition with improved signal-to-noise ratio. Laser excitation wavelength dependent ODMR studies of single NV centers in these samples could provide valuable insight into the properties of the NV⁻–N⁺ pairs in diamond [40]. Third, our studies demonstrate the viability of hyperfine resolved microwave spectroscopy of a single NV center for atomic-scale resolution strain imaging in diamond with high sensitivity, which represents an advance over the earlier work on wide-field strain imaging [26].

P P gratefully acknowledges financial support from SERB ECRA Grant Number ECR/2018/002276 and STARS MoE Grant Number MoE-STARS/STARS1/662. S K acknowledges the CSIR funding agency Award Number 09/1020(0202)/2020-EMR-I for providing SRF fellowship. J N acknowledges funding support for Chanakya - undergraduate fellowship I-HUB/UGF/2021-22/004 from the National Mission on Interdisciplinary Cyber Physical Systems, of the Department of Science and Technology, Govt. of India through the I-HUB Quantum Technology Foundation. We also acknowledge Qudi Software Suite [41] for experiment control.

The data that support the findings of this study are available upon reasonable request from the authors.

All the authors declare no conflict of interest.

In order to achieve full microwave polarization control of the coupling strength between the $\vert 0\rangle_{m_I}$ and $\vert \pm\rangle_{m_I}$ states, we theoretically investigate the magnetic resonance spectrum obtained by driving the electron spin transitions from the $\vert 0\rangle_{m_I}$ to the $\vert \pm\rangle_{m_I}$ states using an arbitrarily (elliptically) polarized microwave field $\boldsymbol{B}^{mw}(t)$ (see figure A2). Here, we note that the z component of the microwave field $B_{\parallel}^{mw}$ does not induce magnetic dipole transitions between the states $\vert 0\rangle_{m_I}$ and $\vert \pm\rangle_{m_I}$. The most general expression for the microwave field vector $\boldsymbol{B}^{mw}_{\perp}(t)$ perpendicular to the NV symmetry axis can be written using the parameters φ_mw and ε_mw as [42]:

$$\begin{align} \boldsymbol{B}^{mw}_{\perp}(t)&=B^{mw}_{\perp}[\cos{\epsilon_{mw}}(\cos{\phi_{mw}}\boldsymbol{e}_x+\sin{\phi_{mw}}\boldsymbol{e}_y)\cos{\omega t} \nonumber\\ &\quad +\sin{\epsilon_{mw}}(-\sin{\phi_{mw}}\boldsymbol{e}_x+\cos{\phi_{mw}}\boldsymbol{e}_y)\sin{\omega t}] \end{align} \tag{ A.1 }$$

where the parameter $\epsilon_{mw} = \pm\arctan{\left(\frac{b}{a}\right)}$ is known as the ellipticity angle as shown in figure A1. The time evolution of the magnetic field vector traces out an ellipse in the xy plane with a and b being the length of the semi-major and semi-minor axes of the ellipse, and the parameter φ_mw is the angle the major axis of the ellipse makes with the x-axis. By introducing the parameter λ_mw , we can also parametrize the microwave magnetic field $\boldsymbol{B}^{mw}_{\perp}(t)$ in terms of the ratio of the amplitudes of the left-circularly polarized microwaves ($\sigma^{+}$) and the right-circularly polarized microwaves (σ⁻) as:

$$\begin{align} \boldsymbol{B}^{mw}_{\perp}(t) &= \boldsymbol{B}_{\perp,\sigma^{+}}^{mw}(t)+\boldsymbol{B}_{\perp,\sigma^{-}}^{mw}(t) \nonumber\\ &=\cos\left(\frac{\pi}{4}-\epsilon_{mw}\right) \bigg(\frac{B^{mw}_{\perp}}{\sqrt{2}}[\cos(\omega t+\phi_{mw})\boldsymbol{e}_x+\sin(\omega t+\phi_{mw})\boldsymbol{e}_y]\nonumber\\ & \quad +\lambda_{mw}\frac{B^{mw}_{\perp}}{\sqrt{2}}[\cos(\omega t-\phi_{mw})\boldsymbol{e}_x-\sin(\omega t-\phi_{mw})\boldsymbol{e}_y] \bigg) \end{align} \tag{ A.2 }$$

where the parameter λ_mw is related to ε_mw by $\lambda_{mw} = \tan{(\frac{\pi}{4}}-\epsilon_{mw})$.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Three special cases are of particular significance according to the equations (A.1) and (A.2):

• (a)
  Linearly polarized microwaves corresponding to $\epsilon_{mw} = 0$ or $\lambda_{mw} = 1$ gives:

  $$\begin{align} \boldsymbol{B}^{mw}_{\perp}(t) &=B^{mw}_{\perp}(\cos{\phi_{mw}}\boldsymbol{e}_x+\sin{\phi_{mw}}\boldsymbol{e}_y)\cos{\omega t}. \end{align} \tag{ A.3a }$$
• (b)
  Left-circularly polarized microwaves ($\sigma^{+}$) corresponding to $\lambda_{mw} = 0$ or $\epsilon_{mw} = \frac{\pi}{4}$ gives:

  $$\begin{align} \boldsymbol{B}^{mw}_{\perp}(t) &= \frac{B^{mw}_{\perp}}{\sqrt{2}}[\cos(\omega t+\phi_{mw})\boldsymbol{e}_x+\sin(\omega t+\phi_{mw})\boldsymbol{e}_y]. \end{align} \tag{ A.3b }$$
• (c)
  Right-circularly polarized microwaves (σ⁻) corresponding to $\epsilon_{mw} = -\frac{\pi}{4}$ give:

  $$\begin{align} \boldsymbol{B}^{mw}_{\perp}(t) &= \frac{B^{mw}_{\perp}}{\sqrt{2}}[\cos(\omega t-\phi_{mw})\boldsymbol{e}_x-\sin(\omega t-\phi_{mw})\boldsymbol{e}_y]. \end{align} \tag{ A.3c }$$

The general Hamiltonian of the magnetic dipole moment $\boldsymbol{\hat{\mu}} = -\gamma\boldsymbol{\hat{S}}$ interacting with the elliptically polarized microwave control field is described as follows:

$$\begin{align} \mathcal{\hat{H}}^{mw}(t) &= \gamma(\boldsymbol{B}_{\perp,\sigma^{+}}^{mw}(t)+\boldsymbol{B}_{\perp,\sigma^{-}}^{mw}(t))\cdot\boldsymbol{\hat{S}}\nonumber\\ &= \cos{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}\bigg(\frac{\Omega}{\sqrt{2}}[\cos(\omega t+\phi_{mw})\hat{S}_x+\sin(\omega t+\phi_{mw})\hat{S}_y]\nonumber\\ &\quad +\lambda_{mw}\;\frac{\Omega}{\sqrt{2}}[\cos(\omega t-\phi_{mw})\hat{S}_x-\sin(\omega t-\phi_{mw})\hat{S}_y]\bigg) \end{align} \tag{ B.1 }$$

where $\Omega = \gamma B^{mw}_{\perp}$ is the Rabi frequency and ω is the frequency of the microwave. In the $\hat{S}_z$ basis $\{\vert +1\rangle,\vert 0\rangle,\vert -1\rangle\}$, $\hat{S}_x$ and $\hat{S}_y$ being the x and y components of the spin-1 vector operator $\boldsymbol{\hat{S}}$ are described as [35]:

$$\begin{align} \hat{S}_x = \frac{1}{\sqrt{2}} \begin{bmatrix} 0 & 1 & 0\\ 1 & 0 & 1\\ 0 & 1 & 0 \end{bmatrix},\,\, \hat{S}_y = \frac{1}{\sqrt{2}}\begin{bmatrix} 0 & -i & 0\\ i & 0 & -i\\ 0 & i & 0 \end{bmatrix}. \end{align} \tag{ B.2 }$$

The matrix representation for the Hamiltonian in the basis $\{\vert +1\rangle,\vert 0\rangle,\vert -1\rangle\}$ is given by:

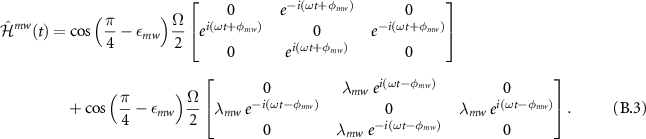

$$\begin{align} \mathcal{\hat{H}}^{mw}(t) &=\cos{\left(\frac{\pi}{4}-\epsilon_{mw}\right)} \frac{\Omega}{{2}} \begin{bmatrix} 0& e^{-i(\omega t+\phi_{mw} )} & 0\\ e^{i(\omega t+\phi_{mw} )}& 0 & e^{-i(\omega t+\phi_{mw} )}\\ 0& e^{i(\omega t+\phi_{mw} )} & 0 \end{bmatrix} \nonumber\\ \nonumber \\[-12pt] &\quad +\cos{\left(\frac{\pi}{4}-\epsilon_{mw}\right)} \frac{\Omega}{{2}} \begin{bmatrix} 0& \lambda_{mw}\;e^{i(\omega t-\phi_{mw} )}& 0\\ \lambda_{mw}\;e^{-i(\omega t-\phi_{mw} )}& 0 & \lambda_{mw}\;e^{i(\omega t-\phi_{mw} )}\\ 0& \lambda_{mw}\;e^{-i(\omega t-\phi_{mw} )} & 0 \end{bmatrix}. \end{align} \tag{ B.3 }$$

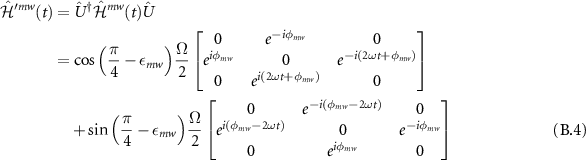

By making a transformation to the rotating frame $\hat{U} = e^{-i\omega t\hat{S}_z^2}$, the transformed Hamiltonian has the form:

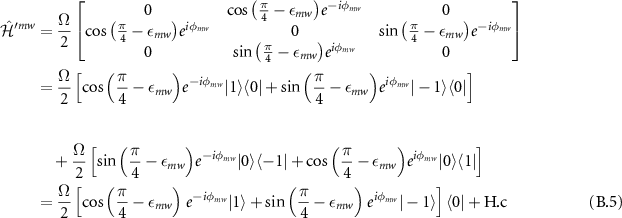

$$\begin{align} \mathcal{\hat{H}}^{{^{\prime}}mw}(t) &= \hat{U}^{\dagger} \mathcal{\hat{H}}^{mw}(t) \hat{U} \nonumber\\ &= \cos{\left(\frac{\pi}{4}-\epsilon_{mw}\right)} \frac{\Omega}{{2}}\begin{bmatrix} 0& e^{-i\phi_{mw}} & 0\\ e^{i\phi_{mw}}& 0 & e^{-i(2\omega t+\phi_{mw})}\\ 0 & e^{i(2\omega t+\phi_{mw})} & 0 \end{bmatrix} \nonumber\\ &\quad +\sin{\left(\frac{\pi}{4}-\epsilon_{mw}\right)} \frac{\Omega}{{2}} \begin{bmatrix} 0& e^{-i(\phi_{mw}-2\omega t)} & 0\\ e^{i(\phi_{mw}-2\omega t)}& 0 & e^{-i\phi_{mw}}\\ 0 & e^{i\phi_{mw}}& 0 \end{bmatrix} \end{align} \tag{ B.4 }$$

where we used the relation $\lambda_{mw} = \tan{(\frac{\pi}{4}}-\epsilon_{mw})$. Neglecting all the time dependent terms rotating at 2ω (rotating wave approximation), the final MW Hamiltonian [43] takes the form:

$$\begin{align} \mathcal{\hat{H}}^{{^{\prime}}mw} &= \frac{\Omega}{{2}}\begin{bmatrix} 0 & \cos{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}e^{-i\phi_{mw}}& 0 \\ \cos{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}e^{i\phi_{mw}}& 0 & \sin{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}e^{-i\phi_{mw}}\\ 0& \sin{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}e^{i\phi_{mw}}& 0 \end{bmatrix} \nonumber\\ &= \frac{\Omega}{{2}}\left[\cos{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}e^{-i\phi_{mw}}|1\rangle\langle 0\vert+\sin{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}e^{i\phi_{mw}}|-1\rangle\langle 0\vert\right] \nonumber\\[20pt] &\quad + \frac{\Omega}{{2}}\left[\sin{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}e^{-i\phi_{mw}}\vert 0\rangle\langle-1|+\cos{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}e^{i\phi_{mw}}\vert 0\rangle\langle1|\right] \nonumber\\ &=\frac{\Omega}{2}\left[\cos{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}\;e^{-i \phi_{mw}}|1\rangle+\sin{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}\;e^{i\phi_{mw}}|-1\rangle\right] \langle 0\vert + \text{H.c} \end{align} \tag{ B.5 }$$

where H.c. is the Hermitian conjugate.

At zero field, the Rabi frequencies corresponding to the magnetic dipole transitions $\vert 0\rangle_{m_I}\rightarrow \vert \pm\rangle_{m_I}$ are:

$$\begin{equation} \Omega_{\pm,m_I}=2\pi|{\langle \pm,m_I\vert\mathcal{\hat{H}}^{{^{\prime}}mw}\vert 0,m_I\rangle}|.\nonumber \end{equation}$$

So, the six hyperfine spin transition strengths under driving by an arbitrarily polarized microwave field are given by:

$$\begin{align} \mathcal{A}_{-,0}&= \Omega_{-,0}^2= (2 \pi)^2 \left(\frac{\Omega}{2}\right)^2 \left| \frac{1}{\sqrt{2}}\cos{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}- \frac{1}{\sqrt{2}}\sin{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}\,e^{i(2\phi_{mw}-\phi_\Pi)}\right|^2 \nonumber\\ &=(2 \pi)^2 \left(\frac{\Omega}{2}\right)^2W_{-,0}, \end{align} \tag{ C.1a }$$

$$\begin{align} \mathcal{A}_{+,0}&= \Omega_{+,0}^2= (2 \pi)^2 \left(\frac{\Omega}{2}\right)^2 \left| \frac{1}{\sqrt{2}}\cos{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}+ \frac{1}{\sqrt{2}}\sin{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}\,e^{i(2\phi_{mw}-\phi_\Pi)}\right|^2\nonumber\\ &=(2 \pi)^2 \left(\frac{\Omega}{2}\right)^2W_{+,0}, \end{align} \tag{ C.1b }$$

$$\begin{align} \nonumber\\ \mathcal{A}_{-,+1}&= \Omega_{-,+1}^2= (2 \pi)^2 \left(\frac{\Omega}{2}\right)^2 \left|\sin{\left(\frac{\theta_{\Pi}}{2}\right)} \cos{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}- \cos{\left(\frac{\theta_{\Pi}}{2}\right)} \sin{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}\,e^{i(2\phi_{mw}-\phi_\Pi)}\right|^2 \nonumber\\ &=\left(2 \pi\right)^2 \left(\frac{\Omega}{2}\right)^2W_{-,+1}, \end{align} \tag{ C.1c }$$

$$\begin{align} \mathcal{A}_{+,+1}&= \Omega_{+,+1}^2= (2 \pi)^2 \left(\frac{\Omega}{2}\right)^2 \left|\cos{\left(\frac{\theta_{\Pi}}{2}\right)} \cos{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}+ \sin{\left(\frac{\theta_{\Pi}}{2}\right)} \sin{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}\,e^{i(2\phi_{mw}-\phi_\Pi)}\right|^2 \nonumber\\ &=(2 \pi)^2 \left(\frac{\Omega}{2}\right)^2W_{+,+1}, \end{align} \tag{ C.1d }$$

$$\begin{align} \nonumber\\ \mathcal{A}_{-,-1}&= \Omega_{-,-1}^2= (2 \pi)^2 \left(\frac{\Omega}{2}\right)^2 \left|\cos{\left(\frac{\theta_{\Pi}}{2}\right)} \cos{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}- \sin{\left(\frac{\theta_{\Pi}}{2}\right)} \sin{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}\,e^{i(2\phi_{mw}-\phi_\Pi)}\right|^2 \nonumber\\ &=\left(2 \pi\right)^2 \left(\frac{\Omega}{2}\right)^2W_{-,-1}, \end{align} \tag{ C.1e }$$

$$\begin{align} \mathcal{A}_{+,-1}&= \Omega_{+,-1}^2= (2 \pi)^2 \left(\frac{\Omega}{2}\right)^2 \left|\sin{\left(\frac{\theta_{\Pi}}{2}\right)} \cos{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}+ \cos{\left(\frac{\theta_{\Pi}}{2}\right)} \sin{\left(\frac{\pi}{4}-\epsilon_{mw}\right)}\,e^{i(2\phi_{mw}-\phi_\Pi)}\right|^2\nonumber\\ &=(2 \pi)^2 \left(\frac{\Omega}{2}\right)^2W_{+,-1}, \end{align} \tag{ C.1f }$$

where:

$$\begin{align} \cos{\theta_{\Pi}}&= \frac{-|A_{\mathrm{HF}}|}{\sqrt{\Pi_{\perp}^2+\left|A_{\mathrm{HF}}\right|^2}}\nonumber \end{align}$$

and $W_{\pm,m_I}$ are the normalized transition strengths. Therefore, the transition imbalance of the inner $m_I = 0$ transitions is given by:

$$\begin{align} \mathcal{I}_{\mathrm{inner}}&=\frac{\mathcal{A}_{0,+}- \mathcal{A}_{0,-}}{\mathcal{A}_{0,+}+ \mathcal{A}_{0,-}} \nonumber\\ &= \sin{\left[2\left(\frac{\pi}{4}-\epsilon_{mw}\right)\right]} \cos{(2\phi_{mw}-\phi_\Pi)}, \end{align} \tag{ C.2a }$$

and the transition imbalance of the outer $m_I = \pm1$ transitions is given by:

$$\begin{align} \mathcal{I}_{\mathrm{outer}}&=\frac{\mathcal{A}_{+,\pm 1}- \mathcal{A}_{-,\pm 1}}{\mathcal{A}_{+,\pm 1}+ \mathcal{A}_{-,\pm 1}}\nonumber\\ &= \pm\cos{\theta_{\Pi}} \cos{\left[2\left(\frac{\pi}{4}-\epsilon_{mw}\right)\right]}+ \sin{\theta_{\Pi}} \sin{\left[2\left(\frac{\pi}{4}-\epsilon_{mw}\right)\right]} \cos{(2\phi_{mw}-\phi_\Pi)}. \end{align} \tag{ C.2b }$$

Table C1. Hyperfine transition strengths at zero magnetic field as a function of the polarization of the microwaves.

	Linear polarization	$\sigma^{+}$ polarization	σ− polarization
$\vert 0,0\rangle \rightarrow \vert -,0\rangle$	$\frac{1}{2}(1-\cos (2\phi_{mw}-\phi_{\Pi}))$	0.500	0.500
$\vert 0,0\rangle \rightarrow \vert +,0\rangle$	$\frac{1}{2}(1+\cos (2\phi_{mw}-\phi_{\Pi}))$	0.500	0.500
$\vert 0,+1\rangle \rightarrow \vert -,+1\rangle$	$\frac{1}{2}(1-\sin{\theta_{\Pi}}\,\cos (2\phi_{mw}-\phi_{\Pi}))$	$\sin^2{\frac{\theta_{\Pi}}{2}}$	$\cos^2{\frac{\theta_{\Pi}}{2}}$
$\vert 0,+1\rangle \rightarrow \vert +,+1\rangle$	$\frac{1}{2}(1+\sin{\theta_{\Pi}}\,\cos (2\phi_{mw}-\phi_{\Pi}))$	$\cos^2{\frac{\theta_{\Pi}}{2}}$	$\sin^{2}{\frac{\theta_{\Pi}}{2}}$
$\vert 0,-1\rangle \rightarrow \vert -,-1\rangle$	$\frac{1}{2}(1-\sin{\theta_{\Pi}}\,\cos (2\phi_{mw}-\phi_{\Pi}))$	$\cos^2{\frac{\theta_{\Pi}}{2}}$	$\sin^{2}{\frac{\theta_{\Pi}}{2}}$
$\vert 0,-1\rangle \rightarrow \vert +,-1\rangle$	$\frac{1}{2}(1+\sin{\theta_{\Pi}}\,\cos (2\phi_{mw}-\phi_{\Pi}))$	$\sin^2{\frac{\theta_{\Pi}}{2}}$	$\cos^2{\frac{\theta_{\Pi}}{2}}$

Table C2. Hyperfine transition strengths at zero magnetic field for two different ellipticity values of the microwave polarization. For these two ellipticity values, the individual $m_I=\pm1$ outer transitions can be selectively excited by tuning the azimuthal angle of the elliptically polarized MW drive relative to the azimuthal angle of the effective field.

	$\epsilon = \frac{\pi}{4}-\frac{\theta_{\Pi}}{2}$	$\epsilon =-(\frac{\pi}{4}-\frac{\theta_{\Pi}}{2})$
$\vert 0,0\rangle \rightarrow \vert -,0\rangle$	$\frac{1}{2}(1-\sin{\theta_\Pi}\cos (2\phi_{mw}-\phi_{\Pi}))$	$\frac{1}{2}(1-\sin{\theta_\Pi}\cos (2\phi_{mw}-\phi_{\Pi}))$
$\vert 0,0\rangle \rightarrow \vert +,0\rangle$	$\frac{1}{2}(1+\sin{\theta_\Pi}\cos (2\phi_{mw}-\phi_{\Pi}))$	$\frac{1}{2}(1+\sin{\theta_\Pi}\cos (2\phi_{mw}-\phi_{\Pi}))$
$\vert 0,+1\rangle \rightarrow \vert -,+1\rangle$	$\frac{1}{2}\sin^2{\theta_\Pi}(1-\cos (2\phi_{mw}-\phi_{\Pi}))$	$1-\frac{1}{2}\sin^2{\theta_\Pi}(1+\cos (2\phi_{mw}-\phi_{\Pi}))$
$\vert 0,+1\rangle \rightarrow \vert +,+1\rangle$	$1-\frac{1}{2}\sin^2{\theta_\Pi}(1-\cos (2\phi_{mw}-\phi_{\Pi}))$	$\frac{1}{2}\sin^2{\theta_\Pi}(1+\cos (2\phi_{mw}-\phi_{\Pi}))$
$\vert 0,-1\rangle \rightarrow \vert -,-1\rangle$	$1-\frac{1}{2}\sin^2{\theta_\Pi}(1+\cos (2\phi_{mw}-\phi_{\Pi}))$	$\frac{1}{2}\sin^2{\theta_\Pi}(1-\cos (2\phi_{mw}-\phi_{\Pi}))$
$\vert 0,-1\rangle \rightarrow \vert +,-1\rangle$	$\frac{1}{2}\sin^2{\theta_\Pi}(1+\cos (2\phi_{mw}-\phi_{\Pi}))$	$1-\frac{1}{2}\sin^2{\theta_\Pi}(1-\cos (2\phi_{mw}-\phi_{\Pi}))$

Since the transition strengths of the $m_I = +1$ and $m_I = -1$ substates sum together, the transition strengths observed for the outer transitions will be:

$$\begin{align} \mathcal{A}_- & = \mathcal{A}_{-,+ 1} + \mathcal{A}_{-,- 1} \nonumber\\ & = (2 \pi)^2 \left(\frac{\Omega}{2}\right)^2\left(1- \sin{\left[2\left(\frac{\pi}{4} -\epsilon\right)\right]} \sin{\theta_\Pi}\cos{(2\phi_{mw}-\phi_\Pi)}\right), \end{align} \tag{ C.3a }$$

and

$$\begin{align} \mathcal{A}_+ & = \mathcal{A}_{+,- 1} + \mathcal{A}_{+,+ 1} \nonumber\\ & = (2 \pi)^2 \left(\frac{\Omega}{2}\right)^2 \left(1+ \sin{\left[2\left(\frac{\pi}{4} -\epsilon\right)\right]} \sin{\theta_\Pi}\cos{(2\phi_{mw}-\phi_\Pi)}\right). \end{align} \tag{ C.3b }$$

So the imbalance observed for the outer states will be:

$$\begin{align} \mathcal{I}_{\mathrm{outer}} &= (\mathcal{A}_+ -\mathcal{A}_-)/(\mathcal{A}_+ + \mathcal{A}_-)\nonumber\\ & = \sin{\theta_\Pi}\sin{\left[2\left(\frac{\pi}{4}-\epsilon\right)\right] \cos{(2\phi_{mw}-\phi_\Pi)}}. \end{align} \tag{ C.3c }$$

The relation between the Rabi frequencies at zero magnetic field can be obtained directly from the equation (C.1) and is given as:

$$\begin{align} \Omega_1^2+\Omega_4^2 = \Omega_2^2+\Omega_3^2 \end{align} \tag{ C.4 }$$

where the subscripts 1, 2, 3 and 4 correspond to the transitions marked in the figure D1(b).

Zoom In Zoom Out Reset image size

We also performed high-resolution spectroscopy of a single NV center for two different MW polarization angles φ_mw to study the influence of the relative orientation of the externally applied microwave field to the transition magnetic dipole moment. This was done by transmitting the microwaves through only one of the two crossed wires at a time, as shown in the figure 1(c). The two wires placed perpendicular to each other allowed us to probe the response of the NV spin transitions for two different polarizations of the MW drive. Since the transition imbalances for $m_I = 0,\pm1$ depends on the MW angle, as is evident from the equations (7), the observed ODMR response is different for each MW polarization under study. Figure D1(a) show the experimental data on the same NV center, where the application of MWs with two different azimuthal angles reversed the sign of the transition imbalances for all the nuclear spin projections $m_I = 0,\pm1$. However, the polarization angle of the MW magnetic field has no effect on the NV's ODMR transition frequencies as expected. Figure C1 of appendix C depicts the transition strengths of the inner and outer transitions as a function of the MW angle.

Zoom In Zoom Out Reset image size

E.1. Eigenenergies and eigenvectors

The ground state spin Hamiltonian $\hat{\mathcal{H}}$ of the $^{15}\mathrm{N}V$ center in the presence of the intrinsic effective field and the axial hyperfine field can be expressed as:

$$\begin{equation} \mathcal{\hat{H}} =D\hat S_z^2 + A_{\mathrm{HF}} \hat S_z \hat I_z+\Pi_\parallel \hat S_z^2+\Pi_x \left(\hat S_x^2-\hat S_y^2\right)+\Pi_y\left(\hat S_x \hat S_y+\hat S_y\hat S_x\right) \end{equation} \tag{ E.1 }$$

where, $A_{\mathrm{HF}} = 3.03$ MHz [44] is the axial hyperfine coupling parameter, $\boldsymbol{\hat{I}} = (\hat{I}_x,\hat{I}_y, \hat{I}_z)$ is the dimensionless nuclear spin-$\frac{1}{2}$ vector operator of the host ¹⁵N spin. Solving Hamiltonian (E.1) gives the eigenenergies of the hyperfine states in the presence of the intrinsic effective field as

$$\begin{align} {E}_{-,+1/2}&= D + \Pi_{\parallel}-\frac{1}{2}\sqrt{4\Pi_{\perp}^2+\left(A_{\mathrm{HF}}\right)^2}, \end{align} \tag{ E.2a }$$

$$\begin{align} {E}_{+,+1/2}&= D + \Pi_{\parallel}+\frac{1}{2}\sqrt{4\Pi_{\perp}^2+\left(A_{\mathrm{HF}}\right)^2}, \end{align} \tag{ E.2b }$$

$$\begin{align} {E}_{-,-1/2}&= D + \Pi_{\parallel}-\frac{1}{2}\sqrt{4\Pi_{\perp}^2+\left(A_{\mathrm{HF}}\right)^2}, \end{align} \tag{ E.2c }$$

$$\begin{align} {E}_{+,-1/2}&= D + \Pi_{\parallel}+\frac{1}{2}\sqrt{4\Pi_{\perp}^2+\left(A_{\mathrm{HF}}\right)^2}. \end{align} \tag{ E.2d }$$

The associated hyperfine eigenstates can be written in the uncoupled basis $\vert m_s,m_I\rangle = \vert m_s\rangle\otimes\vert m_I\rangle$ as follows:

$$\begin{align} \vert -,+1/2\rangle&=\left(\sin{\frac{\theta_\Pi}{2}}\vert +1\rangle-e^{i\phi_\Pi} \cos{\frac{\theta_\Pi}{2}}\vert -1\rangle\right)\otimes\vert +1/2\rangle, \end{align} \tag{ E.3a }$$

$$\begin{align} \vert +,+1/2\rangle&=\left(\cos{\frac{\theta_\Pi}{2}}\vert +1\rangle+e^{i\phi_\Pi} \sin{\frac{\theta_\Pi}{2}}\vert -1\rangle\right)\otimes\vert +1/2\rangle, \end{align} \tag{ E.3b }$$

$$\begin{align} \vert -,-1/2\rangle&=\left(\cos{\frac{\theta_\Pi}{2}}\vert +1\rangle-e^{i\phi_\Pi} \sin{\frac{\theta_\Pi}{2}}\vert -1\rangle\right)\otimes\vert -1/2\rangle, \end{align} \tag{ E.3c }$$

$$\begin{align} \vert +,-1/2\rangle&=\left(\sin{\frac{\theta_\Pi}{2}}\vert +1\rangle+e^{i\phi_\Pi} \cos{\frac{\theta_\Pi}{2}}\vert -1\rangle\right)\otimes\vert -1/2\rangle, \end{align} \tag{ E.3d }$$

where $\theta_\Pi$ and $\phi_\Pi$ are the angles which satisfy the relations:

$$\begin{align} \cos{\theta_\Pi}&=\frac{A_{\mathrm{HF}}}{\sqrt{4\Pi_{\perp}^2+\left(A_{\mathrm{HF}}\right)^2}}, \end{align} \tag{ E.4a }$$

$$\begin{align} \cos{\phi_\Pi} &= \frac{\Pi_x}{\Pi_{\perp}}. \end{align} \tag{ E.4b }$$

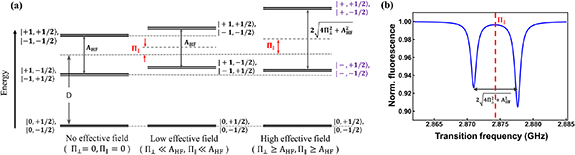

The energy levels plotted for three different parameter regimes, (i) $\Pi_{\perp} = \Pi_{\parallel} = 0$, (ii) $A_{\mathrm{HF}}\gg\Pi_{\perp},\Pi_{\parallel}$ and (iii) $A_{\mathrm{HF}}\leqslant\Pi_{\perp},\Pi_{\parallel}$ are shown in the figure E1(a).

Zoom In Zoom Out Reset image size

E.2. Transition strength and transition imbalance

The transition strengths can be calculated using the same procedure described in appendix C. The normalized transition strengths for the four hyperfine spin transitions under driving by a linearly polarized ($\epsilon_{mw} = 0$) microwave field are given by:

$$\begin{align} W_{-,\pm 1/2}&= \frac{1}{2} \left[1- \sin{\theta_{\Pi}}\;\cos{(2\phi_{mw}-\phi_\Pi})\right], \end{align} \tag{ E.5a }$$

$$\begin{align} W_{+,\pm 1/2}&= \frac{1}{2} \left[1+ \sin{\theta_{\Pi}}\;\cos{(2\phi_{mw}-\phi_\Pi})\right]. \end{align} \tag{ E.5b }$$

This will result in the transition imbalance given by:

$$\begin{equation} \mathcal{I}_{\pm1/2} =\sin\theta_{\Pi} \;\cos(2\phi_{mw}-\phi_\Pi). \end{equation} \tag{ E.6 }$$

The simulated ODMR spectrum for a $^{15}\mathrm{N}V$ showing the hyperfine resolved transitions in the presence of an effective field is displayed in the figure E1(b).

The transition frequencies for the spin transitions $\vert 0\rangle\to \vert \pm1\rangle$ in the presence of a magnetic field can be written in the form [36]:

$$\begin{equation} f_\pm = D+\frac{3\gamma^2 B^2}{2D} \sin^2{\theta_B} \pm \gamma B \cos{\theta_B}\sqrt{1+\frac{\gamma^2B^2}{4D}\tan^2{\theta_B}\sin^2{\theta_B}} \end{equation} \tag{ F.1 }$$

where $B = \sqrt{B_\perp^2+B_z^2}$ and $\tan{\theta_B} = B_\perp/B_z$. For $\theta_B = \frac{\pi}{2}$, we obtain the susceptibility of the spin resonance frequencies to the transverse magnetic field $\left| \frac{\partial f}{\partial B_\perp}\right|$ as [22]:

$$\begin{equation} \left| \frac{\partial f}{\partial B_\perp}\right| = \frac{3\gamma^2 B_\perp}{D}. \end{equation} \tag{ F.2 }$$

Similarly, for $\theta_B = 0$, the susceptibility to the parallel magnetic field $\left|\frac{\partial f}{\partial B_z}\right|$ will be:

$$\begin{equation} \left|\frac{\partial f}{\partial B_z}\right| = \gamma. \end{equation} \tag{ F.3 }$$

It is evident from equations (F.2) and (F.3) that $\left|\frac{\partial f}{\partial B_z}\right|\gt\gt \left|\frac{\partial f}{\partial B_\perp}\right|$ for weak magnetic fields ($\gamma B\lt\lt D$).

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

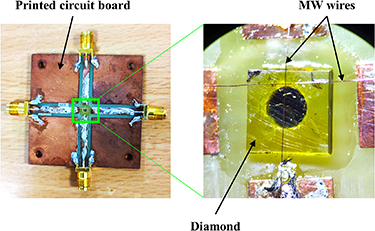

The MW antenna in a cross-wire configuration is used to drive the NV centers. Two 25 µm thick wires were soldered and bridged across the diamond as shown in figure G1. To arrange the two wires in the cross-wire configuration, we used a custom-made printed circuit board with a cross design. To deliver the microwaves, we used only one MW wire at a time and the other is kept open to ensure that the two wires are not shorted.

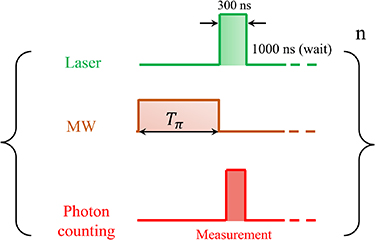

To perform the pulsed ODMR measurements on a single NV center, we used the pulse sequence described in [28] and is shown in the figure H1. We first apply a MW π-pulse, which is followed by a 300 ns laser pulse used for both spin-state readout and initialization of spin in the $m_s = 0$ state. The laser pulse combined with a wait time of 1000 ns before the application of the next MW pulse allows the spin to relax to the $m_s = 0$ ground state. To obtain the high-resolution spectrum, the pulse sequence was continuously repeated while the frequency of the MW π-pulse was swept and the NV fluorescence count was recorded. The dwell time, i.e, the duration for which the microwaves were applied at each frequency (before switching to the next frequency in the frequency sweep) was 10 ms during each sweep. This sequence was repeated n times to improve the SNR.
