Effect of increasing the Al₂O₃ content on the phase formation and mechanical properties of lithium disilicate glass-ceramics

The properties exhibited by glass-ceramics are an integration of the properties of ceramics and glasses that are generated via the controlled crystallization of glasses [1]. Glass-ceramics are applied in dental restoration materials owing to their high mechanical strength, low density, biocompatibility and high aesthetic properties [2, 3]. These properties rely on the heat treatment process, changing composition, and manufacturing techniques of glass [4, 5]. The commercial glass-ceramics used for dental restoration materials include mica-based, leucite-based, and lithium disilicate glass-ceramics [6]. Among these materials, lithium disilicate glass-ceramics have been commonly used for dental inlays, onlays, crowns, splints, connectors, and bridges because of their excellent mechanical strength and translucency [7, 8].

The lithium disilicate glass-ceramics (LS; Li₂Si₂O₅) based on the Li₂O-SiO₂ glass system, which entails oxides, are produced by mixing, melting, and heat treatment processes [9–11]. Initially, the LS is crystallized in the glass to form the lithium metasilicate (Li₂SiO₃) at low temperatures, which then reacts with SiO₂ to form LS at high temperatures [12]. Since Stookey studied the stoichiometric LS, several factors that affect the properties of LS have been reported [13]. The properties of LS were varied by varying the glass composition and heat treatment process [14–16]. Moreover, various additives have been employed to control microstructures such that the appropriate optical and mechanical properties are obtained. For example, P₂O₅, TiO₂, Nb₂O₅, and ZrO₂ were used as nucleating agents to promote phase separation and reduce the crystallization temperature [17–19]. K₂O and MgO can reduce the softening point and viscosity [20, 21]. Furthermore, Al₂O₃ can improve chemical stability, optical translucency, and mechanical strength [22–24]. Nevertheless, the cause for the improvement of these properties owing to Al₂O₃ was not completely clear. Therefore, we intend to study the impact of Al₂O₃ on the properties of LS; the results obtained can help develop the properties of dental glass-ceramics.

This study investigates the effects of Al₂O₃ on the phase formation and mechanical properties of LS glass-ceramics based on the SiO₂-Li₂O-K₂O-P₂O₅-CeO₂-Al₂O₃ glass system prepared via the conventional melt quenching method. The phase formation, microstructure, density, as well as the optical and mechanical properties were investigated.

2.1. Glass and glass-ceramic preparation

2.2. Differential thermal analysis (DTA)

2.3. X-ray diffraction analysis (XRD)

2.4. Scanning electron microscopy (SEM)

2.5. Mechanical properties

The mechanical properties were investigated by microhardness and three-point bending tests. The microhardness tests, including Knoop and Vickers hardness tests (Buehler, Karl Frank GMBH Type-38505, USA), with applying loads of 1 kg for 15 s were used to analyze the mechanical properties of the glass-ceramic samples [25]. The Vickers hardness (HV) can be calculated using the following equation (2):

$$\begin{eqnarray}&&HV=\displaystyle \frac{1.8544P}{{d}^{2}}({\rm{kg}}\cdot {{\rm{mm}}}^{-2})\end{eqnarray} \tag{ 1 }$$

where, 1.8544 is a constant geometrical factor for diamond pyramid, P is the applied load in the unit of kilograms, and d is the diagonal length of the indenter impression in the unit of micrometers.

The fracture strength ($\sigma$) in the unit of MPa can be used for the three-point bending test according to ISO 6872 [26] by a universal strength machine (Hounsfield, H10Ks, USA) with a crosshead speed of 0.5 mm min⁻¹ and the test span (the center-to-center distance between support rollers) of 30 mm. The three-point flexure is calculated using the following equation (2):

$$\begin{eqnarray}&&\sigma =\displaystyle \frac{3Pl}{2w{b}^{2}}\end{eqnarray} \tag{ 2 }$$

where, P is the breaking load in the unit of N, while the width, the thickness of the samples, and the test span are represented by w, b, and l in the unit of millimeter, respectively.

2.6. Translucency characteristics evaluation

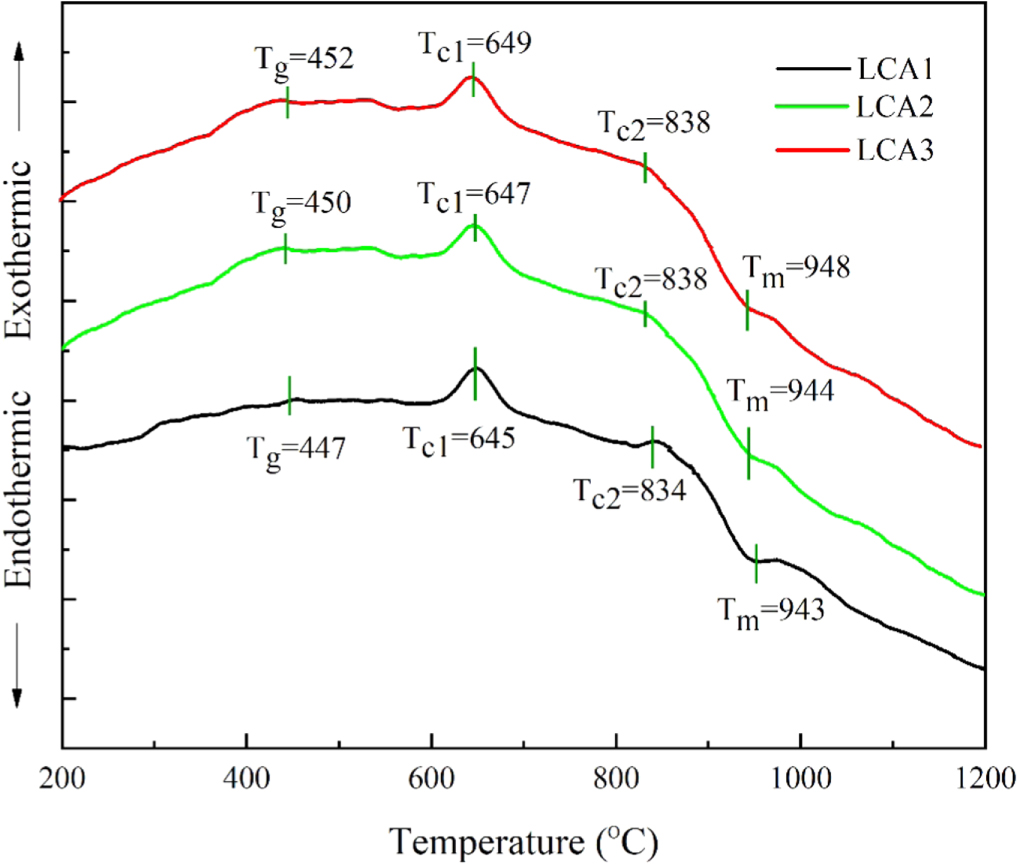

Figure 1 shows the DTA curves of the LCA powder at a heating rate of 5 °C min⁻¹. The results show two exothermic peaks in the ranges of 645 °C–649 °C and 834 °C–838 °C for each glass sample. These results could be associated with the formation of the crystalline phases Li₂SiO₃ and Li₂Si₂O₅, respectively. Generally, Li₂SiO₃ was found at low temperatures in the range of 590 °C–750 °C, while Li₂Si₂O₅ appeared at high temperatures in the range of 780 °C–820 °C, which agrees with the results obtained by Holand et al [27] and Wen et al [28], as shown below.

$$\begin{eqnarray}&&L{i}_{2}O(glass)+Si{O}_{2}(glass)\to L{i}_{2}Si{O}_{3}(crystal)\end{eqnarray} \tag{ Reactionn 1 }$$

$$\begin{eqnarray}&&L{i}_{2}Si{O}_{3}\left(crystal\right)+Si{O}_{2}\left(crystal\right)\to L{i}_{2}S{i}_{2}{O}_{5}\left(crystal\right)\end{eqnarray} \tag{ Reactionn 2 }$$

Zoom In Zoom Out Reset image size

It can be noted that the values of all thermal parameters namely the glass transition temperature (T_g), the crystallisation temperature (T_c), and the melting temperature (T_m) slightly increased with the increase in Al₂O₃ content. This may be because Al₂O₃ behaves as a network modifier, resulting in a high viscosity. This result is consistent with those by Fluegel [29] and Fernandes [22], who reported that Al₂O₃ usually increases the viscosity of glass, caused by the elimination of non-bridging oxygen sites.

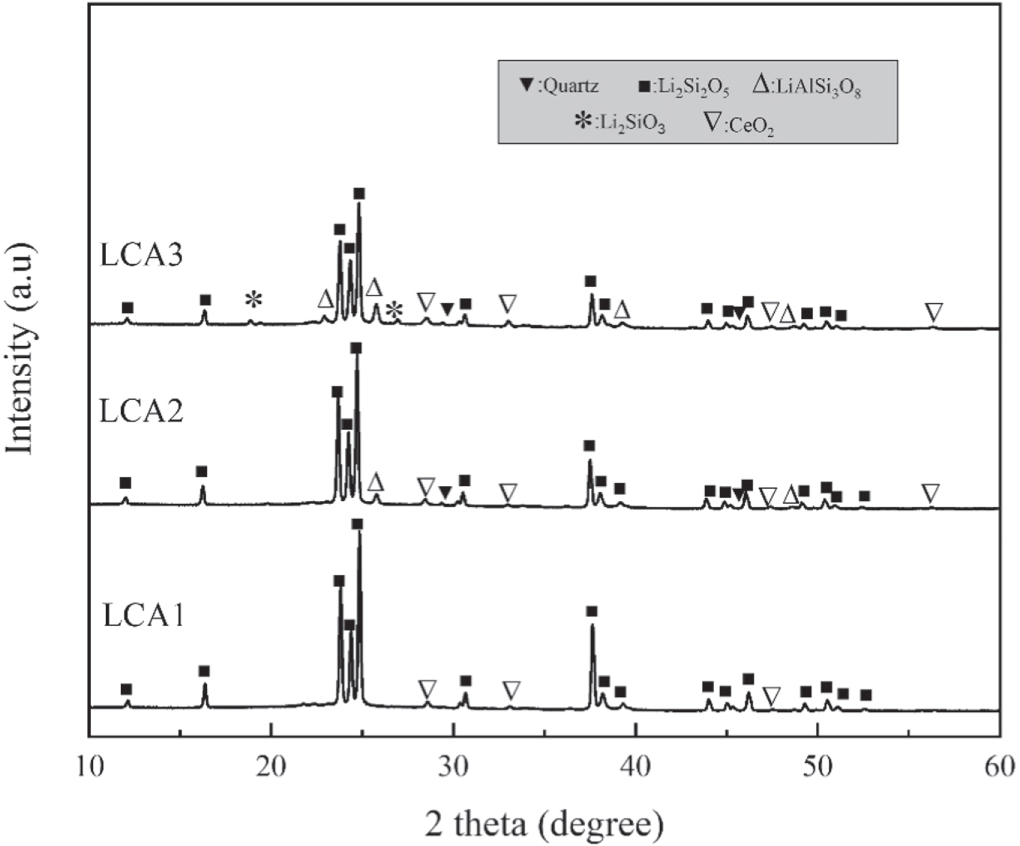

To interpret these DTA peaks, all the glass samples were heated in two stages—at 600 °C for 1 h and 800 °C for 1 h (600/800 °C). Bai et al [24] found that when the glass samples are only heated at the crystallization temperature of Li₂Si₂O₅, the number of nuclei is low, and unstable phases such as Li₃PO₄ and Li₂SiO₃ crystals are obtained [18]. By contrast, when the glass is treated via a two-stage heat treatment, the number of nuclei is greater, and the Li₂Si₂O₅ crystal can grow sufficiently and transforms into a stable rod-shaped phase that has high strength. The occurrence and amount of the various phases formed in the prepared thermally treated glasses were dependent on the Al₂O₃ content. The XRD results of all samples after heat treatment are shown in figure 2. These results indicate that the major phase of the glass-ceramic samples correlate with the phase of Li₂Si₂O₅ as expected from Reactions (1) and (2) with small amount of CeO₂ which is one of the precursors in all samples. The intensity of Li₂Si₂O₅ decreased with increasing concentration of Al₂O₃. In addition, there are additional phase such as, LiAlSi₃O₈, quartz, and Li₂SiO₃ presented in LCA2 and LCA3. Li₂SiO₃ is only observed in the LCA3 which is the sample with the highest concentration of Al₂O₃. LiAlSi₃O₈ and quartz are present in LCA2 and LCA3 which are the samples with higher concentration of Al₂O₃. No additional phases observed in LCA1 where the concentration of Al₂O₃ is the lowest. It can be noted that these additional phases are either the precursor of Reaction (2) (Li₂SiO₃ or SiO₂ as quartz) or the unexpected product of Reaction (2) (LiAlSi₃O₈). In summary, the XRD results imply that the increase of the Al₂O₃ concentration reduces the efficiency of the Reaction (2). The reduction of the Reaction (2) efficiency is likely related to the increase of thermal parameters of LCA samples because of the increasing Al₂O₃ concentration as discussed earlier. Although Al₂O₃ additive can improve the overall properties of the LS glass-ceramic, the appropriate concentration needs to be carefully considered to maximize the overall properties of LS glass-ceramic. When the concentration of Al₂O₃ is too high, the desired phase of Li₂Si₂O₅ decreased while many unwanted phases such as LiAlSi₃O₈, quartz, and Li₂SiO₃ increase, giving rise to the overall reduction of the desired properties of the LS glass-ceramics.

Zoom In Zoom Out Reset image size

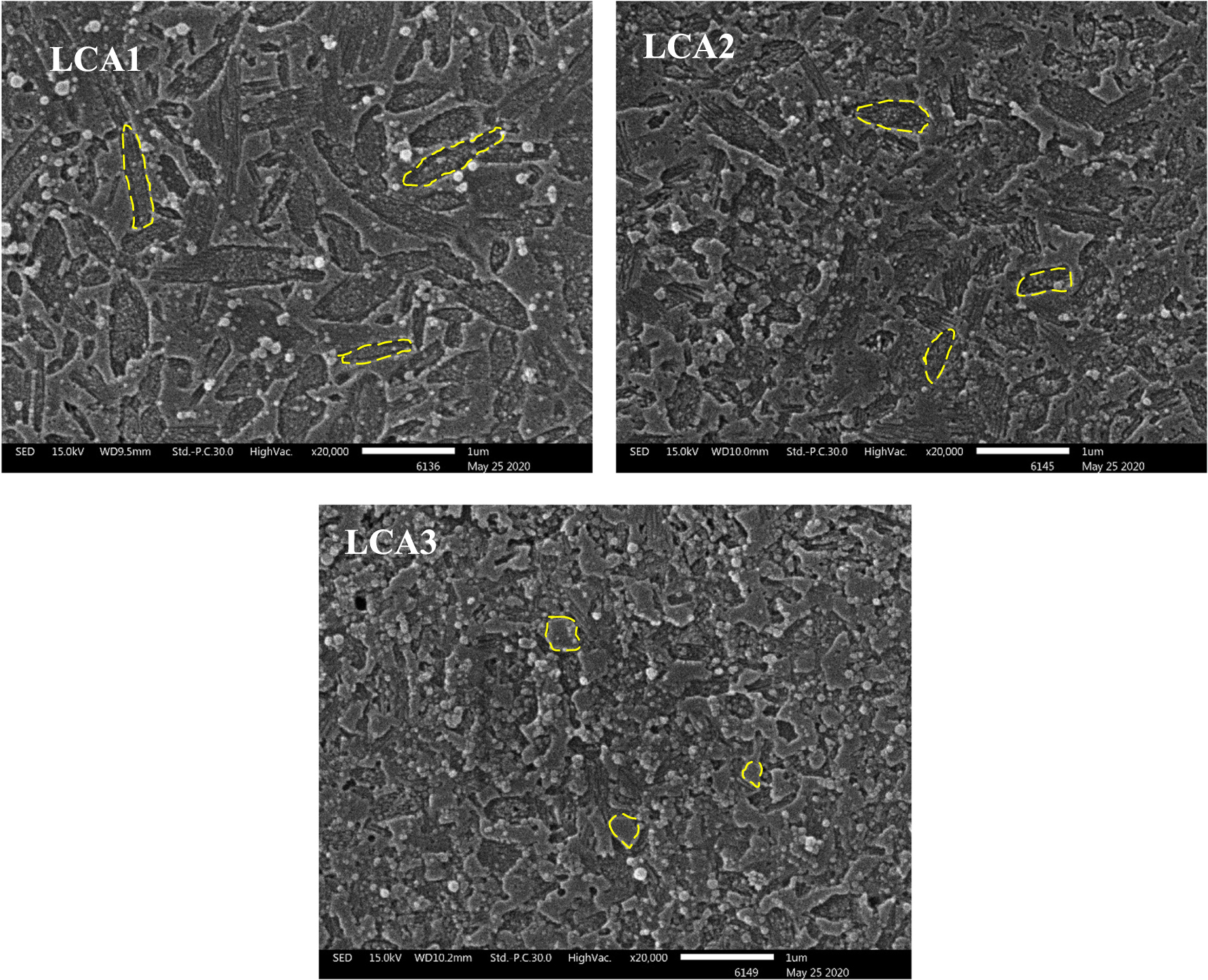

The morphology and grain size of the Li₂Si₂O₅ and Li₂SiO₃ crystals were also approximately related to the Al₂O₃ content, as shown in figure 3. The surfaces of the LCA1 samples had closely packed and multi-directional interlocking microstructures of Li₂Si₂O₅ crystals with a rod-like morphology distributed on the glass-ceramic surface. This may be due to the nucleation density of Li₂Si₂O₅ from the reaction between Li₂SiO₃ and SiO₂, both of which were completely consumed. For LCA1, the length of the Li₂Si₂O₅ crystals was in the range 1–1.5 μm with aspect ratios approximately in the range 3–5 (figure 3(LCA1). While LCA2, the crystallization density of the microstructure decreased and the grain size of Li₂Si₂O₅ crystals with a rod-like morphology further decreased to the range 0.6–0.8. μm. Nevertheless, when the amount of Al₂O₃ increased (in LCA3), the morphology of the crystals was spherical, indicating that the Li₂SiO₃ crystals had grown sufficiently. The average diameter of the crystals decreased along with their aspect ratio (approximately 1–2). Moreover, this result can be explained by the fact that in the case of LCA1, the crystallization of Li₂Si₂O₅ from Reaction (2) reached saturation when Li₂SiO₃ was completely consumed at 600/800 °C. However, when the amount of Al₂O₃ increased the reaction between Li₂SiO₃ and SiO₂ was inadequate because Al₂O₃ took part in the reaction to form LiAlSi₃O₈, quartz, and Li₂SiO₃, thus decreasing the amount of Li₂Si₂O₅ crystals.

Zoom In Zoom Out Reset image size

Moreover, it can be noted that the surface of LCA3 presented higher porosity than those of LCA1 and LCA2, which would hinder the grain growth and inhibit the continuity between the grains, resulting in a lower mechanical strength [14, 30].

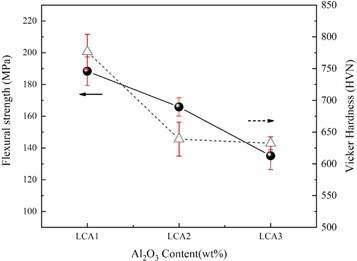

Figure 4 illustrates the flexural strength and Vickers hardness of the LCA samples. The data shows that the highest flexural strength and Vickers hardness (∼188.34 MPa and 776 HV, respectively) were obtained with the LCA1 sample. Moreover, the flexural strength and Vickers hardness decreased as the concentration of Al₂O₃ increased. Generally, the mechanical strength of the samples was strongly influenced by their crystallinity, porosity, and morphology [31]. In this study, it can be noted that LCA1 demonstrated the highest crystallinity of Li₂Si₂O₅ with a rod-like morphology and a high aspect ratio of 3–5. According to Cramer's study [32], a microstructure with elongated grains and an aspect ratio of 2–6 displays excellent mechanical strength. Moreover, the detected minor phases of LiAlSi₃O₈ and quartz, which behave as weak phases in the LCA2 and LCA3 samples, limit the binding effect of the glass phase and thus inhibit densification.

Zoom In Zoom Out Reset image size

When considering the crystal morphology of LCA1, the rod-shaped Li₂Si₂O₅ crystals that are distributed on the surface samples from an interlocking microstructure and hinder crack propagation, thus enhancing flexural strength. Apel et al [33] explained that the interlocking microstructure of lithium disilicate crystals can delay and even prevent crack propagation and consequently hinder the usual crack development observed at the weaker interfaces between the crystals. However, for LCA2 and LCA3, the increase in the amount of Al₂O₃ affected the flexural strength of the glass samples. This is because the increase in Al₂O₃ content hindered the attainment of the appropriate morphology of the obtained crystals owing to the corresponding increase in the viscosities or network strengths of the glass samples. The mobility of the resulting ions was impeded by the high viscosity, thus decreasing the rate of the solid-state reactions that resulted in the crystalline precipitate [31]. The Comparative chart showing flexural strength and vicker hardness values of glass-ceramic for dental applications are shown in table 2. In this study, lithium disilicate glass has the highest value of Vickers hardness. The better mechanical properties could be attributed to the development of Li₂Si₂O₅ phase.

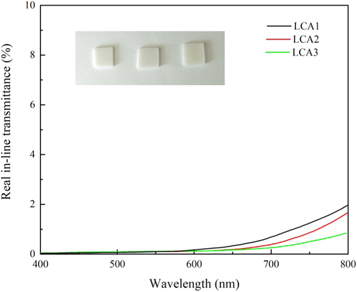

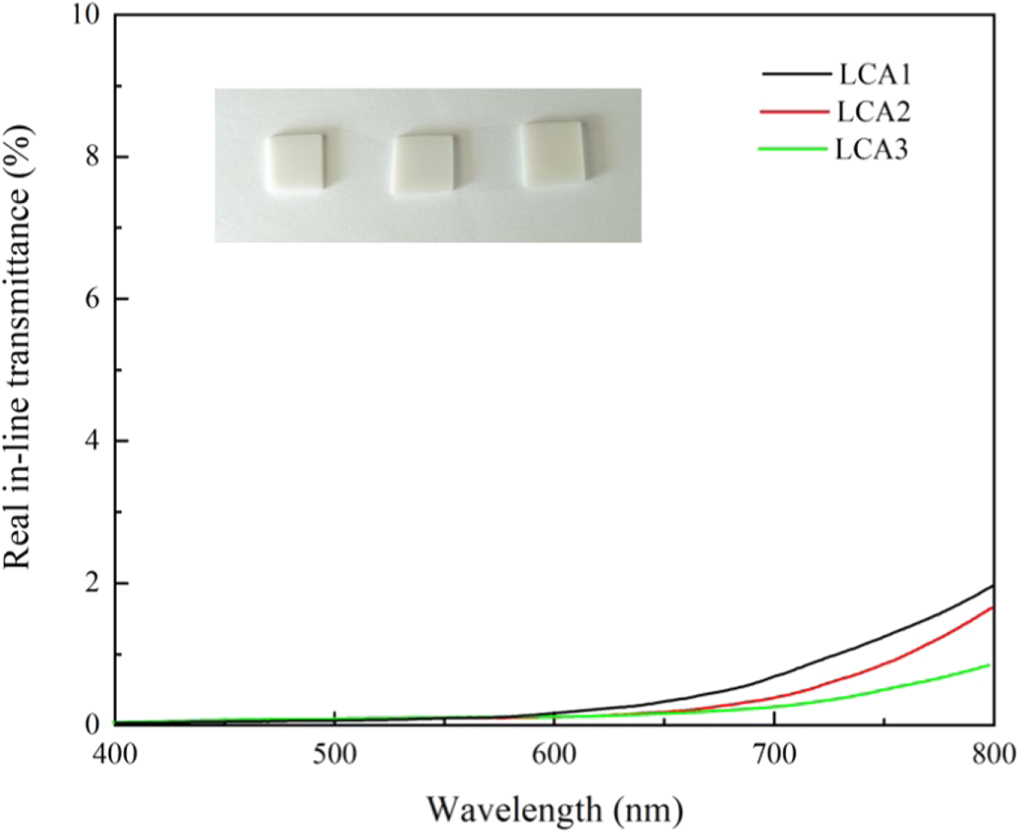

The real in-line transmission in the LCA samples is shown in figure 5. The LCA1 sample had the highest real in-line transmission (2.05%), while it was slightly lower in the LCA2 and LCA3 samples. This result was dependent on light scattering owing to the crystallinity and crystal size of the precipitate crystal, particularly, Li₂Si₂O₅ [14].

Zoom In Zoom Out Reset image size

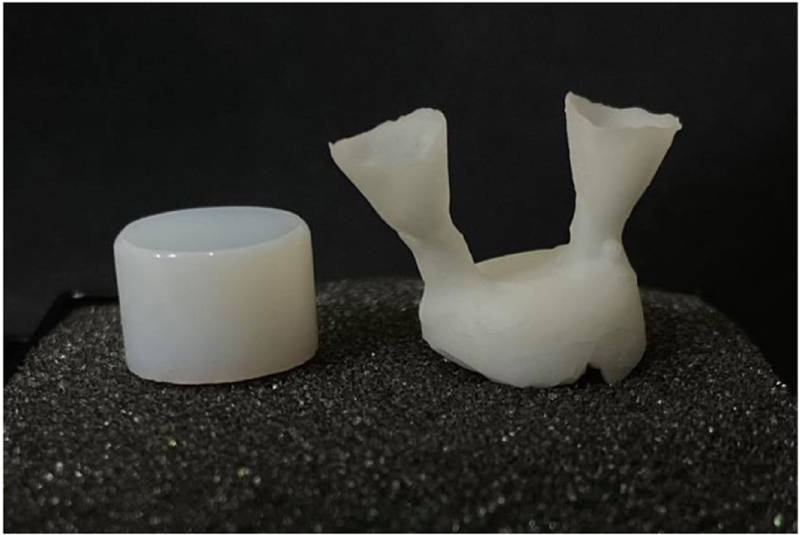

IPS e. max Press is a lithium disilicate glass-ceramic ingot that is generally used for pressing. The production process creates homogeneous ingots at different levels of translucency. The samples are pressed in a furnace to produce dental restoration products with excellent accuracy of fit. Figure 6 shows the LCA1 samples heated at 600/800 °C after being pressed into the shape of a dental crown.

Zoom In Zoom Out Reset image size

This study determined the effect of Al₂O₃ on the phase formation and mechanical properties of a lithium disilicate glass-ceramic system via the conventional melting technique. Increasing the Al₂O₃ content had a considerable effect on the crystallization temperature and phase formation of the samples. The results demonstrate that the LCA1 samples consist of Li₂Si₂O₅ as a major phase and CeO₂ as a minor phase. When increasing the content of Al₂O_3, the second phase was formed owing to the incompletely reaction between the Li₂SiO₃ and impurity of Al₂O₃. The highest mechanical strength correlated with the interlocking structure of the rod-like crystals of Li₂Si₂O₅. For application in dental restoration, further studies should be conducted on optimizing the content of Al₂O₃ and obtaining appropriate processing conditions.

The authors would like to thank the National Research University Project under Thailand's Office of the Higher Education Commission, Thailand, Department of Physics and Materials Science, Faculty of Science, Chiang Mai University, Rajamangala University of Technology Phra Nakorn and Faculty of Science and Technology, Thailand for financial support.
