Transparent hydrophobic thermal insulation Cs_xWO₃-ZnO-SiO₂ coatings:Energy saving, anti-dust and anti-fogging performance

N-butanol, absolute ethanol (EtOH) and zinc oxide dispersed in EtOH (30%, 30–40 nm) are all purchased from Aladdin Chemical Reagent Co., Ltd. (Shanghai, China). Hydrochloric acid (HCl) is provided by Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). SiO₂ sol dispersed in isopropanol (30%, 10–15 nm) is purchased from Nissan Chemical Industries, Ltd. Dispersion of Cs_xWO₃ NPs in EtOH, the solid content is 30% is obtained from Nanomaterials Technology Pte. Ltd. (Xianmen, China). MTES is purchased from Qufu Chenguang Chemical Co., Ltd. (Qufu, China) and distillated before use.

Typically, 35.6 g of MTES, 35.6 g of n-butanol and 66.7 g of SiO₂ sol were added into a four-neck flask equipped with a mechanical stirrer, thermometer and reflux condenser. Then, the mixed system was heated to 70 °C and stirred for 30 min. Then, 10.8 g of HCl aqueous solution (pH 3) was added dropwise into the flask at 70 °C for 5 h. Subsequently, the system temperature was raised to 110 °C, and major solvent (about 100 g) in the bottle was removed by atmospheric distillation. After cooling down to 60 °C, the unreacted MTES was removed through vacuum distillation at the pressure of −0.095 MPa. Finally, a nano-SiO₂ resin with solid content of about 50% was obtained from the bottom.

The preparation process of the Cs_xWO₃-ZnO-SiO₂ coatings were presented in figure 1. A mixture was formed by directly mixing Cs_xWO₃ dispersion, ZnO dispersion, n-butanol and nano-SiO₂ resin. Then, the mixture was sonicated for 30 min to form a uniform colloidal suspension coating. The main components of the coatings are listed in table 1. The solid content of the coating was about 30%. Afterwards, the Cs_xWO₃-ZnO-SiO₂ coatings were brushed onto a glass and cured at room temperature for 1 h. And then moved to an oven at 120 °C baked for 2 h to get the cured coatings. The average thickness of the coating was about 7 μm. Herein, they were designated as CXZY (X, Y represents the content of Cs_xWO₃ and ZnO in the solid coating, respectively).

Zoom In Zoom Out Reset image size

The transmittance of the coatings was measured by UV–vis-NIR spectrophotometer (Hitachi, Japan). The near infrared (NIR) shielding performance was accurately analyzed by the Solar Energy Transmittance Selectivity (SETS). And the SETS was calculated by the following equation:

$$\begin{eqnarray}&&SETS=\displaystyle \frac{1}{2}\left(1+\displaystyle \frac{{\int }_{UV}^{Vis}E\left(\lambda \right)T\left(\lambda \right)d\lambda }{{\int }_{UV}^{Vis}E\left(\lambda \right)d\lambda }-\displaystyle \frac{{\int }_{Vis}^{NIR}E\left(\lambda \right)T\left(\lambda \right)d\lambda }{{\int }_{Vis}^{NIR}E\left(\lambda \right)d\lambda }\right)\end{eqnarray} \tag{ 1 }$$

where T(λ) represents the transmittance spectrum, and E(λ) represents the solar radiation spectrum of 1.5 air mass corresponding to the Sun at 37° above the horizon. The chemical structure of the coating samples was characterized by using a Nexus-670 Fourier transform infrared (FTIR) spectrometer. X-ray diffraction (XRD) patterns were obtained through a 3 kW x-ray diffractometer (Smart Lab, Rigaku, Japan), using Cu Kα radiation (λ = 0.154 nm) from 10 to 80° at a constant scanning rate of 10° min⁻¹. The water contact angle (WCA) was performed on a DSA 100 contact angle goniometer tester (KRUSS, Germany) by using a 2 μl deionized water droplet each time. Every coating sample was measured at least five times to minimize the random errors during the WCA test. The micromorphology of the coating was studied by field emission scanning electron microscopy (FESEM) method (Zeiss, LEO-1530VP, Germany). The film thickness was measured by SEM test on the cross section of the coating. Energy dispersive x-ray spectroscopy (EDS) (H-7650, Hitachi, Japan) provided mapping images regarding the cross-sectional surface of the coatings. The thermal performance of the coatings was evaluated by TG-DTA method on a thermo-gravimetric analyzer (NETZSCH STA449C, USA). The hardness test was carried out on Cs_xWO₃-ZnO-SiO₂ coating by using Zhonghua^® pencils (China) ranging from 6B to 6H.

In a typical anti-dust test, as shown in figure 2(a), the fly ash was used as the model to simulate the dust in natural surroundings. Before the test, all samples, including the fly ash, should be treated in an oven at 100 °C for 30 min to remove the moisture. Cool to room temperature and spray about 100 mg ash uniformly on each sample using a 100-mesh sieve (d = 0.15 mm). Slowly tilt the dust-treated sample until the angle between it and the horizontal plane reached 90°, then stopped and kept for 3 s. The mass percentage reduced by the ash during the process is obtained by the following formula: (1-M₁/M₀) ×100%, where M₀ and M₁ represent the weight of the primary and the remaining ash, respectively. The anti-dust performance of the coating under gravity is evaluated by calculating the weight loss of the ash. And each measurement is taken out for three times.

Zoom In Zoom Out Reset image size

Typically, in an anti-fog test [18–20], as shown in figure 2(b), the sample was placed on the opening of a round-bottom flask filled with boiling water to simulate the foggy conditions. The sample was kept in the opening of the flask for 1 min, and the anti-fog performance was comprehensively evaluated by observing the image clarity under the steam.

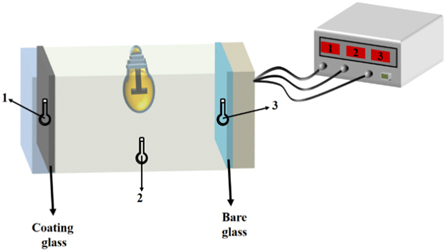

The thermal insulation test was conducted in a designed device as illustrated in figure 3. The device is composed of a xenon lamp, a test chamber and a temperature recording system. The test chamber is divided into three parts by two pieces of installed glass samples. One is coated glass, and the other is bare glass. A xenon lamp with power of 1000 W is located at the middle chamber, which serves as a heat source to simulate sunlight. Upon light irradiation, the temperatures at both ends gradually increased, and the data of temperatures was automatically recorded every 30 s.

Zoom In Zoom Out Reset image size

The chemical structures of nano-SiO₂ resin, the original SiO₂ sol and MTES were identified by FTIR spectra in figure 4. In the FTIR spectra of nano-SiO₂ resin [21, 22], the band around 3428 cm⁻¹ is assigned to the O-H stretching vibration of hydrogen-bonded water. Correspondingly, the deformation vibration of absorbed water is indicated by band around 1634 cm⁻¹. All samples exhibit two absorption bands at 1107 and 780 cm⁻¹, corresponding to antisymmetric stretching and symmetric stretching vibrations of Si–O–Si bond, respectively. The band at 475 cm⁻¹ corresponds to the deformation vibration of Si–O–Si. The bands around 2972, 2927 and 1272 cm⁻¹ correspond to the C-H symmetric stretching vibration of –CH₃, antisymmetric stretching vibration of –CH₂ and symmetric deformation vibration of Si–CH₃, respectively. The absorption band at 955 cm⁻¹ is ascribed to the hydroxyl group of Si–OH, the intensity of which weakens after reactions. In addition, the area of Si–O–Si peak increased after reaction. The FTIR results demonstrate that the hydroxyl groups on the SiO₂ sol particles were replaced and the condensation between MTES and SiO₂ sol particles occurred effectively.

Zoom In Zoom Out Reset image size

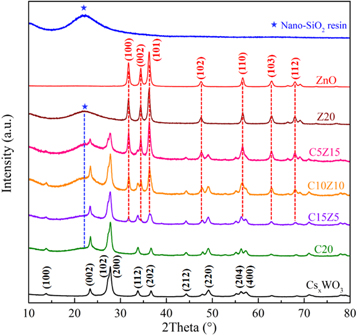

As shown in figure 5, XRD analysis was further used to investigate compositions in the solid coatings. The first diffraction peak around 10° in nano-SiO₂ resin can be explained with incomplete hydrolysis of the precursor, while the second diffraction peak around 22° is attributed to the SiO₂ network [23]. All diffraction peaks of the Cs_xWO₃ and the ZnO samples could be well indexed to the hexagonal phase of cesium tungsten bronze (JCPSD No. 831334) and the hexagonal phase of zinc oxide (JCPSD No. 890510), respectively [10]. With increasing amounts of ZnO in the composites, the diffraction peaks corresponding to ZnO increased, as expected. These results suggest that the as-prepared Cs_xWO₃-ZnO-SiO₂ coatings are composed of nano-SiO₂ resin, Cs_xWO₃ and ZnO definitely.

Zoom In Zoom Out Reset image size

Since the formation of special surface structure is essential for anti-dust properties of coatings, morphology and microstructure of the C10Z10 coating were examined by FESEM and the results are shown in figure 6. The image showed that the surface of C10Z10 coating was covered with nanoparticles with a diameter less than 50 nm on average. These nanoparticles have created the roughness on the surface of coating. Besides, the surface of the coating is continuous and dense, owing to the product after the MTES hydrolysis reaction enhances the attraction force between the polymer and the nanoparticles through generating hydrogen bonds or other long-range forces [24]. Elemental mapping under EDS mode was also employed to further investigate the microstructure and compositional distribution of the composite coating, which is shown from the inset picture in figure 6(a). The elemental analysis result shows that the C10Z10 coating contained O, Cs, W, Si and Zn elements, indicating the as-prepared coating has a high purity, which is in agreement with the results from the XRD analysis. The uniform distribution of Cs_xWO₃ and ZnO in the composites is also observed in elemental mapping from figures 6(b)–(e). The uniform distribution of elements in elemental mapping reflects the nanoparticles dispersed homogeneously.

Zoom In Zoom Out Reset image size

The TG and DSC curves of the nano-SiO₂ resin and Cs_xWO₃-ZnO-SiO₂ coatings in air atmosphere are shown in figure 7. There are two main degradation stages in TG curves in nano-SiO₂ resin. The first step showing a weight loss of 6.25% from 180 to 320 °C corresponds to the loss of water molecules caused by the condensation reaction between Si-OH groups in nano-SiO₂ resin. The second step takes place within the temperature range 420 °C–600 °C, accompanied by weight loss of 2.25%, it is assigned to the degradation of Si–O–Si and oxidation removal of the organic species, such as –CH₃ and –OH from the Si–O–Si side chains [25, 26]. Similarly, there also two main stages in TG curves for Cs_xWO₃-ZnO-SiO₂ coatings. However, with the temperature higher than 450 °C, the thermal stability for Cs_xWO₃-ZnO-SiO₂ coatings is much better than that of nano-SiO₂ resin. Comparing with nano-SiO₂ resin, the decomposition temperature of the Cs_xWO₃-ZnO-SiO₂ coatings ascend to around 620 °C after the addition of Cs_xWO₃ and ZnO nanoparticles. A possible explanation is that when nanocomposites are heated, nanoparticles migrate to the surface of the material due to their relatively low surface potential energy, blocking the huge heat transfer to silicon resin to a certain extent [27]. This indicates that the incorporation of the nanoparticles can improve the thermal stability of the Cs_xWO₃-ZnO-SiO₂ coatings significantly.

Zoom In Zoom Out Reset image size

The optical transparency of the Cs_xWO₃-ZnO-SiO₂ coatings are presented in figure 8. The UV–vis-NIR spectra of the nano-SiO₂ resin and the bare glass are presented in figure S1 (available online at stacks.iop.org/MRX/8/025004/mmedia). From the figure, ultraviolet light with a wavelength of less than 300 nm is shielded due to the unique optical properties of the bare glass. At the same time, the nano-SiO₂ coating will not reduce the light transmittance of the bare glass. Figure 8(a) exhibits the appearance of the Cs_xWO₃-ZnO-SiO₂ coatings at various mass ratio of Cs_xWO₃ to ZnO in macroscopic scale, showing the tendency to be more transparent with an increase in the ZnO content.

Zoom In Zoom Out Reset image size

Figure 8(b) illustrates the UV–vis-NIR transmittance spectra of the Cs_xWO₃-ZnO-SiO₂ coatings. It can be observed that the C20 coating shows excellent shielding effect of NIR light ranging from 780 to 2500 nm and good visible light transmittance. While the Z20 coating exhibits almost transparency for NIR light, along with good UV light absorption. The UV shielding ability of Cs_xWO₃-ZnO-SiO₂ coatings were improved with an increase of ZnO content while the NIR blocking ability decreased. All the compound coatings of C5Z15, C10Z10 and C15Z5 were prepared by the simple co-blending method and they all exhibit good NIR light shielding ability and excellent Vis light transmittance as well as good blocking of UV light. The excellent NIR shielding performance of these coatings are caused by the absorption of Cs_xWO₃ to near-infrared light, which is derived from the localized surface plasmon resonance (LSPR) and a small-polaron absorption [28, 29]. To compare the NIR shielding performances of these Cs_xWO₃-ZnO-SiO₂ coatings quantitatively, some optical indices are listed in table 2. The second column in table 2 presents the transmittance at a wavelength of 370 nm which is an important judge basis of UV blocking capability. It can be seen that Z20 coating exhibits much lower transmittance at a wavelength of 370 nm than that of C20 coating, since Cs_xWO₃ contributes to UV shielding much less than ZnO. In addition, the values in fourth column reflect the effect of Cs_xWO₃ content on the NIR shielding performance of these coatings, solar energy transmittance of NIR lights of C15Z5, C10Z10 and C5Z15 are 0.159, 0.243 and 0.411 respectively, which are significantly enhanced comparing with control sample Z20 (0.829). In conclusion, the C10Z10 coating owes a SETS value of 0.665 and offers excellent resistance to both near-infrared and ultraviolet light, making it the most suitable composition for the Cs_xWO₃-ZnO-SiO₂ coating.

Cs_xWO₃ nanoparticles are relatively stable in the natural environment, but when they are dispersed in organic resins to prepare coatings, significant photochromism appears in the weathering evaluation [6, 12, 15]. A large amount of hydrogen atoms on alkyl groups are existed in the resin. The typical reactions of RH → R·+H· and H → H⁺ + e⁻ in organic resin are initiated under ultraviolet light. In general, hydrogen atoms on alkyl groups in organic resin tend to generate H⁺ and e⁻ under ultraviolet light, and the generated H⁺ and e⁻ can further be inserted into the crystal lattice of Cs_xWO₃ and make the coating darken [14]. A 45-day outdoor exposure experiment to be verified the sustainability of Cs_xWO₃-ZnO-SiO₂ coatings. The optical properties of the as-prepared coatings did not change significantly after a 45-day outdoor exposure experiment, which was shown in figure S2, indicating that the coating has excellent sustainability.

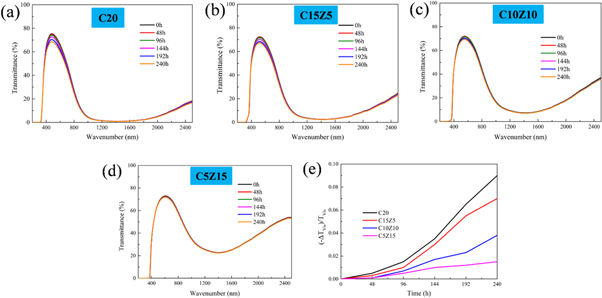

The ultraviolet aging test was performed to evaluate the optical stability of the prepared Cs_xWO₃-ZnO-SiO₂ coatings. Changes in the transmittance spectra of different coatings before and after UV illumination are shown in figures 9(a)–(d). The T_Vis of C20 coating dropped obviously under UV illumination. After 240 h of UV light illumination, T_Vis for C20 coating decreased by 9.0% compared to the initial value, while for C15Z5 and C10Z10, that decreasing values are 7.1% and 3.8%, respectively. Figure 9(e) shows the curves of the net change of T_Vis of the coatings over time, it can be clearly seen that with the addition of ZnO, this value tends to decrease under an equal intensity of UV illumination. Since ZnO can effectively absorb ultraviolet light [30], leading to the less production of H⁺ and e⁻ in resin, the photochromic effect can be suppressed to a certain extent.

Zoom In Zoom Out Reset image size

The self-made device shown in figure 2 was used to characterize the thermal insulation performance of the coatings. Two side chambers were designed to imitate enclosed rooms with the coated window and the blank glass window, respectively. For better comparison of thermal insulation performance between different coatings, the variation of temperatures as a function of radiation time in two chambers were recorded simultaneously. As shown in figure 10(a), under the luminous xenon light, the chamber temperature gradually increases with the lapse of time, and reaches peak value within 1200 s. Apparently, all the temperatures of the chamber with Cs_xWO₃-ZnO-SiO₂ coated glass after 1200 s light irradiation are lower than with nano-SiO₂ resin coated glass. The highest temperature difference between chambers with C20 coated glass and with nano-SiO₂ resin coated glass is 9.4 °C. While C10Z10 coating, with well overall optical performance, also obtains a good temperature difference of 7.0 °C. As indicated in figure 10(b), it is observed that temperature difference increases with the concentration of the Cs_xWO₃ in the coating. Considering that NIR light accounts for as high as about 45% of total solar energy, Cs_xWO₃ obviously plays a dominant role in achieving well thermal insulation effect owing to its proved excellent NIR shielding performance. Consequently, this observation is in good accordance with optical measurement results.

Zoom In Zoom Out Reset image size

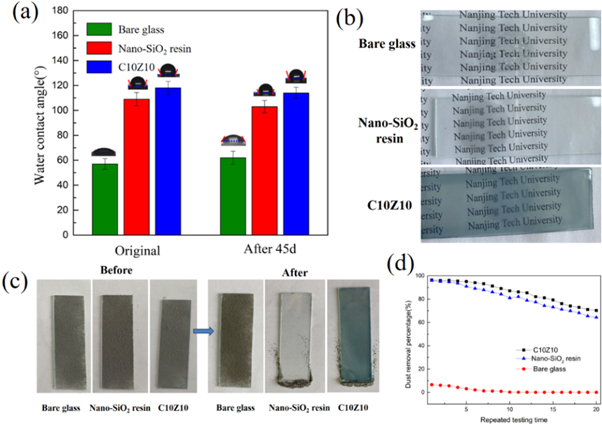

The wettability of the bare glass, nano-SiO₂ resin coating, C10Z10 coating were measured by static WCA measurement. All the error bars represent the standard deviation of at least five replicate measurements. Studies have shown that low surface energy and surface roughness are the key factors that determine the hydrophobicity of the coating [31, 32]. Concerning nano-SiO₂ resin was obtained by the hydrolytic condensation reaction of MTES and silica sol in this study, it is supposed that the hydrophobic group (–CH₃) reduces the surface energy of the coating, and the addition of SiO₂ nanoparticles improves the surface roughness. As shown in figure 11(a), the WCA of the nano-SiO₂ resin coating is 109°, much higher than 57° of bare glass. Besides, with the incorporation of the Cs_xWO₃ and ZnO nanoparticles, the WCA of the coating increases to 118°. Since both the Cs_xWO₃ and ZnO nanoparticles are irrelevant to low surface energy, their participation probably benefited the construction of enhanced surface roughness in this case. Meanwhile, after a 45-day outdoor exposure experiment, the WCA of nano-SiO₂ resin and C10Z10 coating slightly descended to 103° and 112° respectively, indicating the excellent sustainability of the as-prepared coatings.

Zoom In Zoom Out Reset image size

To investigate the anti-fogging ability of the nano-SiO₂ resin coating and C10Z10 coating, the corresponding samples were placed on the opening of a round-bottom flask filled with boiling water to simulate the foggy conditions. Figure 11(b) showed the simulation diagram of the anti-fogging test. From the Video 1, it only takes 4 s for the water droplets to completely cover the surface of the bare glass, the words under the bottle cannot recognized through the bare glass apparently. With respect to nano-SiO₂ resin coating and C10Z10 coating, as can be seen in Video 2 and Video 3, the words under the bottle were still seen after a 1-minute hot water vapor experiment. Figure 11(b) shows the photos of three kinds of coated glass after a 1-minute hot water vapor experiment. Many large mist droplets attached to the surface of the bare glass, while only tiny droplets attached to the surface of the nano-SiO₂ resin coating and C10Z10 coating. The tiny mist droplets entirely evaporated on the nano-SiO₂ resin coated glass and C10Z10 coated glass after about 3 min while it took about 10 min on the bare glass.

The anti-dust performance of the two above mentioned coatings under gravity were investigated, along with the bare glass served as the comparison sample. Figure 11(c) shows the photos of the anti-dust effect of different samples. Evidently, most of fly ashes slipped from the coated glass slides while only a little fly ash fell off from the bare glass. The anti-dust percentage of the coating was calculated and presented in table 3 with the corresponding WCA. The results show that the dust-reducing performance is associated with the WCA values, as exemplifying by C10Z10 coating that a large WCA couples with a better anti-dust performance. In repeated anti-dust tests, as can be seen in figure 11(d), the anti-dust efficiency of all three samples decreases as the repeated times increases, other researchers have also reported the similar phenomenon [32]. Nevertheless, 70.1% of anti-dust efficiency was kept even after twenty repeated tests, indicating that the C10Z10 coating has a durable anti-dust performance. In comparison, the nano-SiO₂ resin coating could maintain 64.3% of anti-dust efficiency after multiple cycles, while the bare glass almost lost its anti-dust performance.

The hardness test was carried out on Cs_xWO₃-ZnO-SiO₂ coating by using Zhonghua^® pencils (China) ranging from 6B to 6H, from the softest to the hardest, correspondingly. The grade of the hardest pencil that did not cause surface lacerations was taken as the pencil hardness. The test results show that all the Cs_xWO₃-ZnO-SiO₂ coatings are rather hard with pencil hardness as high as 4H, due to their dense structure, which is similar with and even a little superior to the previous published works [9, 32, 33].
