Low-cost synthesis of AuNPs through ultrasonic spray pyrolysis

Gold (III) chloride tetrahydrate (trace metals basis ≥99.9%, Acros Organics, Geel, Belgium), polyvinylpyrrolidone (PVP40 Sigma Aldrich, Merck, Germany), Gold pellets (99.99%, ∼250 mg, Zlatarna Celje d.o.o, Celje), hydrochloric acid (36% concentrated, Honeywell Fluka GmbH, Germany), potassium permanganate (Carlo Erba Reagents, France), and sodium thiosulfate pentahydrate (Carlo Erba Reagents, France) were all used as received. Milli-Q water and deionized water were used as the reaction solvent.

H-HAuCl₄ was prepared by using simple laboratory apparatus [47]. The thermodynamics and process involved in the preparation of H-HAuCl₄ are presented in the supplementary file S1 is available online at stacks.iop.org/MRX/7/055017/mmedia.

The as-received Gold (III) chloride tetrahydrate powder was orange in colour containing micron-sized particles. Deionised water was added to the Au (III) chloride tetrahydrate powder, to obtain C- HAuCl₄ precursor with concentration of [Au] = 1 g l⁻¹.

Inductively Coupled Plasma-Mass Spectrometry (ICP-MS), while using a spectrometer (HP, Agilent 7500 CE, equipped with a collision cell, Santa Clara, CA, USA), was performed on C- and H-HAuCl₄ precursors, in order to measure the concentration of Au (chemical composition). ICP-MS analysis was carried out under the operating conditions: Power = 1.5 kW, Nebulizer-Meinhard, plasma gas flow (l min⁻¹) = 15, Nebulizer gas flow (l min⁻¹) = 0.85, Make up gas flow (l min⁻¹) = 0.28, and Reaction gas flow (ml min⁻¹) = 4.0. Matrix matched calibration solutions were prepared and analysed for calibration. Prior to the analysis, the samples of C- and H-HAuCl₄ precursors were dissolved in 10% (v/v) aqua regia. The relative measurement uncertainty was established to be ±3%.

Surface tension was measured with a KRU SS K12 tensiometer for H-HAuCl₄ and C-HAuCl₄ solutions. Three repetitions were made, and ten measurements were performed on each set.

pH was measured with a pH meter (Mettler Toledo, USA) for both precursors.

A horizontal type of USP device (Zlatarna Celje d.o.o, Celje) was used for synthesis of AuNPs. The USP device consisted of:

• Ultrasound generator (model PrizNANO Prizma d.o.o. Kragujevac, Serbia, with a frequency 2.4 MHz and aerosol capacity of 500 ml h⁻¹),
• Carrier gas supply unit (N₂),
• Heating part (1. Evaporation zone T = 100 °C and 2. Reaction zone divided into 3 parts for better controlling of T in the transport tube with T = 400 °C),
• Reaction gas supply unit (H₂),
• System for AuNP collection by using ethanol as a medium and PVP polymer as a binder.

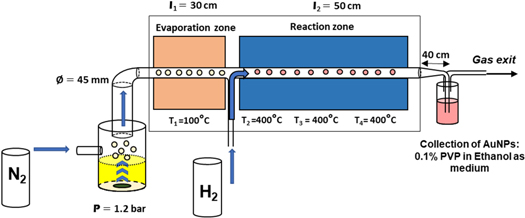

The schematic presentation of the USP device, with dimensions and some important technological parameters for AuNPs synthesis in this research, is shown in figure 1.

Zoom In Zoom Out Reset image size

Aerosol formation occurred in the ultrasound generator from H- or C-HAuCl₄ separately, with the initial concentration of [Au]=1 g l⁻¹. Due to the vibrations of the ultrasound below the precursor surface, the kinetic energy of the precursor molecules increases rapidly. This causes small droplets to overcome surface tension and break away from it. This effect, known as nebulisation, produced micron sized aerosol droplets, which act as individual chemical reactors when subjected to thermal treatment in the heating part of the USP. Droplets in a size distribution from 1 to 15 micrometers were created with a high-frequency ultrasound (0,5–3 MHz), [48]. In our case, the frequency was 2,4 MHz, so it could be assumed that the droplets' sizes were in the same range. With the help of N₂, droplets were passed through the heating part, where H₂ entered into the reaction zone for the reduction of Au⁺³ into AuNPs. The detailed parameters used for synthesising of H- AuNPs and C- HAuCl₄ precursors are shown in table 1.The steps and chemical reactions involved in formations of AuNPs in USP synthesis were the following [48]:

• 1.
  Droplet evaporation at $T=\,100\,^\circ {\rm{C}}$
• 2.
  Thermal decomposition ${H}^{+}\,+\,{\left[AuC{l}_{4}\right]}^{-}\to \,A{u}_{2}C{l}_{6}\,+\,HCl$
• 3.
  Hydrogen reduction $A{u}_{2}C{l}_{6}+\,3{H}_{2}\to \,2A{u}^{o}+\,3HCl$
• 4.
  Densification of AuNPs

Attenuated Total Reflectance - Fourier Transform Infrared (ATR-FTIR) spectroscopy analysis of the H- and C-AuNPs was performed by using a Perkin–Elmer IR spectrophotometer with a Golden Gate Attenuated Total Reflection (ATR) attachment with a diamante crystal. The spectra were accumulated within 16 scans at a resolution of 4 cm⁻¹ within a range of 4000 cm⁻¹ to 650 cm⁻¹.

The spectra of the solution of H- and C-AuNPs were prepared by using quartz cells with a Varian Cary 100 Scan UV/Vis spectrophotometer for the analysis.

A Scanning Electron Microscope (SEM), Sirion 400NC (FEI, USA) with an Energy-Dispersive x-ray spectroscope INCA 350 (Oxford Instruments, UK), was used for identification of AuNPs size and morphology. For this purpose, the rotavapor technique was used for drying the H- and C-AuNPs, in order to achieve the necessary conditions for AuNPs' observation. The AuNPs were put dropwise on SEM holders with conductive carbon adhesive tape and left to dry under vacuum. Energy-Dispersive x-ray spectroscopy (EDX) was used for the determination of the chemical analysis.

TEM (JEOL 2100 JEOL ARM CF), STEM (JEOL ARM CF), Electron Diffraction (ED/TEM; JEOL 2100, JEOL ARM CF), and EDX spectroscopy/TEM (JED 2300), operating at 80 kV electron beam under high vacuum, were used to investigate the deeper morphology of the AuNPs. The collected dried AuNPs were first dispersed in deionised water. A drop of this suspension was put on a carbon coated TEM grid of 200 mesh. The grids were then dried before they were used for TEM investigations.

AuNPs size measurements were performed from the SEM and TEM micrographs with the microscope software, along with manual measurements with the image processing and analysis software ImageJ. The manual measurements from the ImageJ software were used for nanoparticle size distribution representations.

The ICP‐MS technique was used to determine the chemical composition of the H-HAuCl₄ and C-HAuCl₄. In the preparation process (see supplementary information S1), the use of KMnO₄ may influence the precursor solution's purity. From the results of ICP analysis, it was found out that there were no traces of Mn in the H-HAuCl₄. The concentration of the H-HAuCl₄ and C-HAuCl₄ precursors was, in both cases, 1 g l⁻¹ Au.

Surface tension measurements were performed by using of the platinum plate, which was suspended vertically and immersed into the H-HAuCl₄ and C-HAuCl₄. The surface tension was calculated from the Contact Angle and the force, which correlate with the surface tension and the length of wetting. The surface tension values for both the precursors and pH values, are shown in table 2.

From previous research, the precursor solution with an Au concentration of 1 g l⁻¹ had a density (1002 g l⁻¹), surface tension (≈74 mN m⁻¹) and viscosity (≈1 mPa s) similar to that of water, as it is not a highly concentrated solution. This, in turn, ensured that H-HAuCl₄ was suitable for aerosol production.

For the synthesis of AuNPs, optimal parameters with a gas flow of nitrogen at 4 l min⁻¹ and hydrogen at 2 l min⁻¹ were used in the USP process [48]. The synthesised AuNPs were collected in ethanol as a medium [49]. PVP was used as the stabilising agent and to minimise the aggregation of AuNPs. PVP was also used as a shape-controlling agent, and for preventing the agglomeration of AuNPs during the synthesis [50].

The droplet sizes depend on the ultrasonic frequency of the generator and on density, surface tension and concentration of the dissolved Au in the precursor solution, as seen in the distributions measured by laser diffraction [51]. The separate evaporation zone ensured the formation of spherical dried particles of gold chloride before the reaction zone with H₂—this was accomplished by using low temperature, T = 100 °C required for slow evaporation of the solvent- deionised water. Theoretically, this enabled more stable conditions for evaporation. When the solvent evaporation was slow enough, the solute (gold chloride) diffused into the centre of the droplet, forming spherical dried AuNPs, and without the reaction gas present at this stage, the particles cannot form on the surfaces of the droplets from gold chloride.

3.3.1. FTIR studies of H- and C-AuNPs in collecting media

Figure 2 shows FTIR spectra for PVP functionalised AuNPs. The absorption band at 3400–3300 cm⁻¹ for Hydroxy group was 1290 cm⁻¹, which exposed the symmetric stretching of the C–N or C–O bond [52]. In the case of PVP capped AuNPs, a shift of C–O stretching from 1650 cm⁻¹ to 1630 cm⁻¹ confirms the functionalisation of AuNPs with PVP via intermolecular hydrogen bonding [53].

Zoom In Zoom Out Reset image size

3.3.2. UV–vis measurements of H- and C-AuNPs in collecting media

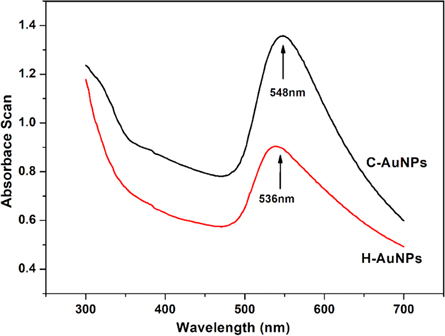

Figure 3 shows the UV–vis spectra of AuNPs in collecting media from (i) C- HAuCl₄ and (ii) H- HAuCl₄. The spectrum of PVP functionalised AuNPs in collecting media from both precursors show absorption peaks at ∼548 and ∼536 nm, which are characteristic peak of AuNPs arising due to SPR [54].

Zoom In Zoom Out Reset image size

3.3.3. SEM/EDX analysis

Figure 4 shows the SEM analysis of dried C-AuNPs and H-AuNPs. In both cases, the formed AuNPs were a combination of irregular shapes and round nanoparticles, and their chemical composition confirmed the presence of Au with a percentage of 99.7%; chlorides and oxides were in very low quantities, which could be attributed as a residue of the USP process. The formed AuNPs have a typical size of C-AuNPs and H-AuNPs, as are shown in figures 4(A) and (B). The shapes of AuNPs are mostly spherical, and no agglomeration was observed, due to the presence of PVP polymer as a stabilizer [55]. There were no visible surface defects on the surfaces of the AuNPs.

Zoom In Zoom Out Reset image size

3.3.4. TEM analysis

Figure 5 shows typical TEM images for the smallest group of dried C-AuNPs and H-AuNPs.

Zoom In Zoom Out Reset image size

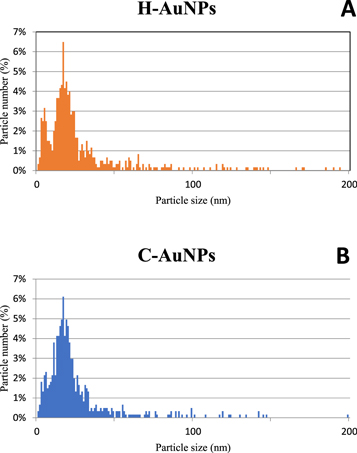

AuNPs' size measurements were performed, giving the nanoparticle size distribution in figure 6. 607 nanoparticles were measured for C-AuNPs, and 610 nanoparticles were measured for H-AuNPs. The binning for the distribution was 1 nm. It is evident that a larger number of very small nanoparticles from 2 to 8 nm are present in both samples, while, for the sample of AuNPs from H-HAuCl₄, the smaller nanoparticles are even more numerous, as seen in the distribution. The calculated mean nanoparticle size for C-AuNPs is 25.5 nm, while for H-AuNPs it is 32.6 nm. The maximum measured nanoparticle size for C-AuNPs is 199 nm, and 405 nm for H-AuNPs, indicating that H-AuNPs have a broader distribution, with a higher number of very small nanoparticles (2–8 nm) and a higher number of larger sub-micron particles (above 200 nm). These larger particles are also more irregular in shape. It seems the rheological properties of the H- HAuCl₄ used in USP favour smaller AuNPs' formation, along with larger irregular nanoparticles, which is probably due to the lower value of pH in comparison with C-HAuCl₄. Further investigations into different precursor Au concentrations and USP parameters need to be performed for optimising the formation of more uniformly sized and shaped AuNPs.

Zoom In Zoom Out Reset image size

From the FTIR studies, the presence of PVP and the shifting of C=O stretching confirms the functionalisation of AuNPs. It confirms that molecular interactions occurred between the PVP and PVP functionalised AuNPs. UV–vis studies show the successful preparation of AuNPs from both precursors. From figure 3, there is a shift in the absorbance wavelengths from 536 nm to 548 nm. The shift indicates the greater size of the AuNPs [56]. From this, H-AuNPs have a larger number of smaller sized nanoparticles when compared to C-AuNPs. From figure 4, there are smaller spherical size nanoparticles observed in the H-AuNPs when compared to C-AuNPs. This could be attributed to the lower surface tension value for the H- HAuCl₄ (table 2); also, these results are in good agreement with the UV–vis measurements. The lower surface tension affects the droplet formation by ultrasound, resulting in smaller droplets and consequently smaller AuNPs.

Previously, we have shown comparisons between different precursor acids, such as the chlorides, acetates and nitrides used with USP [57, 58]. However, the comparisons between different acidity levels of the same acid (chloride) have not yet been shown, nor are they readily available in literature. The possibilities to determine the usability of the H- HAuCl₄ with USP were investigated and confirmed with this work.
