Towards engineering heart tissues from bioprinted cardiac spheroids

Cardiovascular disease (CVD) is the leading cause of morbidity and death in the modern world [1–4]. More physiological models to study the human heart microenvironment may advance how to identify, prevent and treat CVD in the future [5]. In this context, in vitro testing represents an essential part of developing treatment as well as understanding underlying mechanisms of CVD [5, 6]. Advanced tools include in vitro cardiac models utilizing human cells to test their molecular, cellular and extracellular response when they are exposed to pathophysiological conditions, currently limited by their ability to replicate the complex cardiac tissue environment [1, 5, 7]. Advanced bioengineered cardiac in vitro models can assist in improving current treatments by better replicating the cardiac tissue microenvironment under physiological and pathological conditions [5]. Current in vitro models which utilize monolayer cell cultures are limited by cells growing as a monolayer on a flat surface contrary to the three-dimensional (3D) nature of tissue. 3D cultures, on the other hand, better mimic the cell structure and microenvironment found in vivo and provide advanced tools to improve accuracy of in vitro testing [5]. These cultures also improve the viability and function of cardiac cells expanding the potential for diagnostic and therapeutic applications [8]. Among several 3D cultures of cardiac cells, cardiac cell aggregates (known as 'cardiac spheroids' or CSs) are used in multiple applications, including in vitro testing [5, 7, 9]. More recently, spheroid cultures have been employed together with 3D bioprinting technology to create in vitro 3D models of tissue and organs [10]. In this approach, a bioprinter deposits the biological ink (or 'bioink') layer-by-layer to create a 3D structure. In this manuscript, the bioink is composed of CS cultures embedded within tissue-specific permissive hydrogels for optimal cardiac cell viability and function. Bioprinting technology has been explored as a method to generate and use spheroids to allow for scalable, uniform and automated biofabrication of tissues [11, 12]. The potential use of bioinks composed of spheroids and hydrogels as building blocks for tissue engineering purposes have been previously explored [13, 14]. Spheroid extrusion through a micropipette nozzle occurs after spheroid generation, either by extruding spheroids alone or by embedding them within supporting hydrogels. Spheroid fusion can occur in hanging drop cultures by reducing surface tension and by promoting cell–cell adhesion [13]. During this process, the application of vascular endothelial growth factor (VEGF) plays a major role in promoting spheroid fusion within hydrogels [13]. Similarly, fusion of spheroids presenting a vascular network within hydrogels with specific viscosity is feasible [13].

One of the most challenging tasks for the optimal bioengineering of viable and functional cardiac tissues is the recreation of its vascularization [1, 15]. As most organs and tissues in our body are fully perfused with blood, a fully vascularized 3D in vitro model could more accurately replicate the biochemical, morphological and physiological behavior of cells compared to existing in vitro models [16–18]. More recently, biofabrication of personalized cardiac tissues by 3D bioprinting of patient-derived stem cells has been explored for in vivo applications, including myocardial regeneration in heart failure patients to replace damaged heart tissues [10, 19, 20]. However, these approaches failed at fully generating functional tissues that completely recapitulate biochemical, morphological and physiological features typical of the in vivo heart, including a proper vascular network formation and contractile function. The objective of this study was the identification of optimal hydrogels using alginate and gelatin with viscoelastic properties that are similar to the ones of native cardiac tissue, while allowing cells to survive and function properly within the biofabricated tissue. This study presents a way forward in the field of cardiac bioengineering by developing an approach that better replicates the human heart microenvironment by bioprinting CSs in hydrogels [16, 21]. The hypothesis is that CSs can be used as building blocks to 3D bioprint in vitro models of the human heart within optimal alginate-based hydrogels. The goal of the present work was to evaluate different hydrogel combinations for bioprinting human CSs and their utility for assessment of functional properties, with the potential use for testing in vitro of cardiac cell viability and function.

2.1. Bioprinting

2.2. Hydrogel formation and crosslinking

2.3. Mechanical testing of hydrogels using unconfined compression test

2.4. Micromechanical testing of hydrogels using Brillouin microspectroscopy

2.5. Pore size measurements in bioprinted hydrogels using scanning electron microscopy (SEM)

2.6. Cell culture and spheroid formation

2.7. Staining and imaging

2.8. Functional testing

2.9. Computational modeling

2.10. Statistical analyses

3.1. Optimal hydrogel composition

An optimal hydrogel formulation was investigated by mixing alginate (Al) and gelatin (Ge) at different concentrations. These resulting hydrogels were tested for both printability and durability using a 300 μm diameter nozzle in either a customized extrusion REGEMAT3D or a commercially available BioX bioprinter (figure S1). CSs were mixed within Al/Ge hydrogels and then printed in rods (figures 1 and S1). Hydrogels were subsequently polymerized by direct addition an ice-cold calcium chloride solution. This allowed optimal alginate crosslinking while preventing the gelatin from liquifying at higher temperatures. As they warmed up to 37 °C in the incubator, 2% Al/6% Ge (w/v) hydrogels became liquid, resulting in spreading and lower accuracy of the print, as indicated by the asterisks in figure 1. This type of hydrogel had low durability showing degradation as quickly as 3 d after printing (figure 1). Increasing alginate and gelatin concentration in the hydrogel improved its durability and printability, with 4% Al/8% Ge (w/v) hydrogels showing optimal stability over 3 d in culture (figure 1).

Zoom In Zoom Out Reset image size

Micromechanical properties of hydrogels with three different compositions of alginate and gelatin were evaluated using unconfined compression test and a Brillouin microspectroscopy technique. Since Brillouin microspectroscopy is label-free, non-contact and non-destructive method, it was used to assess properties of the gels over all stages of fabrication and their stability over time. This method is based on the interaction of light waves with thermally excited acoustic phonons [24]. The Brillouin frequency shift (Ω) is directly related to the longitudinal storage modulus M ∝ Ω^2, which in turn, is inverse of the gel compressibility (β = 1/M). Thus, Ω is indirectly related to the gel stiffness (lower compressibility corresponds to higher longitudinal modulus and higher stiffness). Figure 2 compares the average frequency shift (Ω) across 12 measurements for all gel compositions on the day of their fabrication, with the error bars indicating the standard deviation from the average value. All gels showed significantly higher frequency shift (Ω) compared to cell culture medium controls. However, 4% Al/8% Ge (w/v) hydrogels present the highest frequency shift throughout the two 1st stages of fabrication, i.e. before and after crosslinking. Incubation with culture media resulted in hydrating and softening of the gels. All hydrogel formulations exhibited stiffening after the crosslinking stage and softening after incubation with medium, as expected based on poroelastic theory [25]. The latter, is most likely related to increases in gel hydration and partial gel swelling [26]. Our Brillouin microspectroscopy measurements over 14 d post fabrication of the 4% Al/8% Ge (w/v) hydrogels confirmed that presented optimal long-term stability, besides presenting the highest stiffness among the formulations tested (figure S2). Our SEM analysis of bioprinted 4% Al/8% Ge (w/v) hydrogels confirmed the presence of pores for oxygen supply to cells within the construct (figure S3) [23, 27, 28].

Zoom In Zoom Out Reset image size

Additional measurements of hydrogels following their incubation with culture media using unconfined compression test confirmed that 4% Al/8% Ge (w/v) gel presents the highest stiffness compared to the other compositions (2% Al/6% Ge and 3% Al/6% Ge). In fact, the stiffest hydrogel has a Young's modulus of 42.23 ± 4.34 kPa (figure S4). This value falls within the range of stiffness reported for animal and human cardiac tissues [18, 29–31].

3.2. Viability of bioprinted CSs in Al/Ge hydrogels

3.3. VEGF-mediated vascularization of bioprinted spheroids

While improved vascularization remains one of the main challenges in cardiac tissue engineering, we have previously shown how VEGF, a well-known pro-angiogenic factor, is able to promote neovascularization of spheroids [1, 7, 32]. To promote new blood vessel formation, CSs were treated with VEGF for up to 7 d. The VEGF treatment fostered vascularization as detected by CD31 immuno-staining of ECs (figure 3). Confocal microscopy analysis of bioprinted VCSs showed the growth of ECs from the outer cell layer towards the inner core of the CS (figure 3(A)) and into the surrounding gel, with an increase by ∼2.5 fold in CD31 staining (figure 3(B)).

Zoom In Zoom Out Reset image size

3.4. Fusion of bioprinted vascularized CSs in alginate/gelatin-based hydrogels

In order to evaluate the effects of VEGF on spheroid fusion, we measured the number of bioprinted CSs fusing over time. Figures 4 and S7 show how bioprinted spheroids from both control and VEGF groups undergo complete fusion over 4 d. Bioprinted spheroids appear to shrink as they fuse, with the overall size of the fused spheroids in both groups becoming smaller than the combined size of the original spheroids. This optical observation, however, does not take into account the volume of the spheroids, which was not quantitatively evaluated in this study. It is important to highlight that spheroid fusion occurs spontaneously in bioprinted CSs (figure S8).

Zoom In Zoom Out Reset image size

The number of spheroids which underwent complete fusion (>75% fusion) was compared between control and VEGF-treated groups. Spheroids from both groups presented complete fusion after 1 d as shown in figure 4(A). The application of VEGF increased efficiency of fusion by more than two-fold over 3 d compared to the control group as shown in figure 4(B).

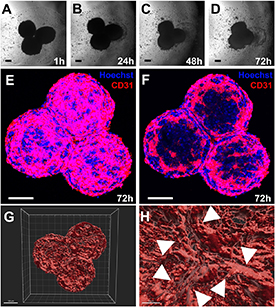

Fusion of three CSs in bioprinted hydrogels generated a tissue construct where the fusion angle (120°) and directionality was maintained, as shown in figure 5. Addition of VEGF to fusing CSs promoted vascular fusion detected by the CD31 staining in figures 5 and S7. The hydrogel-controlled fusion was reconstructed using computer animation as shown in video 2. Confocal images taken in the center of the three fused CSs showed how the CD31 endothelium is organized in between the different CSs at the end of this process (figure 5(C)).

Zoom In Zoom Out Reset image size

3.5. Functional features of bioprinted CS

CSs bioprinted in 4% Al/8% Ge hydrogel contracted spontaneously and upon electrical stimulation. The spheroids demonstrated spontaneous beating frequencies in the physiological range of 0.3 and 1.2 Hz, corresponding to beating rates between 18 and 72 beats per minute (figure 6 and video 6). Contraction of CSs bioprinted in the CardioExcyte plate induced gel movement as can be observed in video 7. Bioprinted CSs also exhibited propagation of the electrical impulses, demonstrating interspheroid functional coupling as seen in video 8. Figure 7 shows the EFP and impedance signals recorded from spontaneously beating CSs bio-printed in the CardioExcyte plate. The EFP reflects their electrical activity and the impedance amplitude represents an indirect measure of contractility [22, 33]. The recording demonstrates that the spheroid constructs exhibited robust synchronous electrical activity and contractile behavior sensitive to the compound treatment. Addition of isoproterenol (1 μM) shown in figure 7 resulted in the increased spontaneous beating rate induced by adrenergic stimulation.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Modeling of physiological cardiac models remains one of the main challenges for optimal drug testing [5, 34]. Novel 3D culture systems, comprising 3D bioprinting of stem cell-derived cardiac cells has provided promising results to move this research forward [5, 34]. Nevertheless, major challenges exist with respect to achieving optimal conditions for cell viability and function [5, 34]. In this study we have shown that bioprinted CSs comprising human cardiac ECs, fibroblasts and iPSC-derived cardiomyocytes represent the optimal microenvironment for cells to grow in for long term studies (figures 1, 2 and S1). This study has demonstrated how alginate/gelatin-based hydrogels with viscoelastic properties comparable to the ones of the native cardiac tissue allow optimal cell growth (figure S5), tissue vascularization (figure 3) and contractile function at physiological levels (figure 6) and under pharmacological stimulation (figure 7). Our study has demonstrated that the addition of gelatin to alginate hydrogels at 8% and 4%, (respectively) generates optimal bioinks for cardiac cells to live and function properly, as previously indicated by others [35]. These soft hydrogels have a stiffness between 18.28 and 42.23 kPa (figure S4), which recapitulate the stiffness of human myocardium (approx 50 kPa) [18, 29–31]. This stiffness is tunable depending upon the concentration of alginate, as well as the concentration of the crosslinking solution. While in our study gelatin was added to promote cell adhesion within the hydrogel, it was not crosslinked (for instance, by addition of genipin), in order to allow cells to spontaneously populate the bioprinted hydrogels. No mass loss was detected in case of the hydrogel containing 4% (w/v) alginate and 8% (w/v) gelatin over 30 d. Our Brillouin microscopy measurements also confirmed that after crosslinking with calcium chloride, 4% Al/8% Ge bioprinted hydrogels maintain their viscoelastic properties even after addition of culture media (figure S2). The printability of the hydrogel was important to achieve accurate and consistent printing (figure 1). Using lower concentrations of alginate was found to reduce viscosity of the non-crosslinked hydrogel, which increased spreading and reduced accuracy of the print. At the same time, the higher concentrations of gelatin partially reduced the viscosity of the hydrogel when heated, however, this also caused the gels to solidify faster by simply lowering the temperature below 26 °C–28 °C. It is important to note that as gelatin solidifies at room temperature, hydrogels containing higher gelatin concentrations tended to cause blockages in the print nozzles as these were not near the heating element of the bioprinter. In our study, 4% Al/8% Ge hydrogels were found to be optimal for their printability, durability and cardiac cell function. This is consistent with other studies showing that the presence of cells within a hydrogel changes its physical properties, such as viscosity [36, 37].

Generation of a vascular tree remains one of the main challenges for the biofabrication of bioengineered heart tissues using stem cell-derived cardiac cells, influencing cell survival and function [1, 18]. While advances in 3D bioprinting of cardiac tissues have been made over the recent years, these have not provided a comprehensive and controlled vascular network for optimal cardiac function [38–41]. Bioprinting of 4% Al/8% Ge hydrogels containing CSs with high cell viability was facilitated thanks to both their pre-vascularization and the presence of pores for oxygen supply (figures S3 and S5) [23, 27, 28]. Cells showed no signs of damage from the printing, crosslinking or incubation process, as which is one of the main concerns with 3D bioprinting, specifically related to shear stress [1]. Pre-vascularized spheroids retained high viability with minimal numbers of dead cells over 30 d, which supports their potential use for long term in vitro studies to model and evaluate complex conditions, such as ischemia/reperfusion injury and/or cardiac fibrosis [17].

VEGF is known for its pro-angiogenic activity in vivo and in vitro, and it has been previously employed to promote vascular network formation in spheroids [32, 42]. VEGF is well known to promote vasculogenesis and angiogenesis via proliferation and sprouting formation from ECs early during development and in adult vessels [43]. Our study shows that VEGF promoted the formation of branch-like endothelial structures within the spheroid (figure 3(A)) and from it into the surrounding hydrogel (figures 3(B) and (C) and video 2). These vascular-like networks may prevent cell death in the inner core of CSs even in absence of blood flow, which would normally become apoptotic for a diameter thicker than 100–200 μm [1, 7].

The use of spheroids as building blocks via their fusion for tissue engineering has been previously explored [13, 14]. However, optimal cell viability and function in 3D bioprinted cardiac tissues using Al/Ge-hydrogels has not been previously demonstrated. Given their unique features, this presents the potential for regenerative medicine purposes to improve cardiac function following its transplantation [19, 44]. Previously, alignment of CSs within hydrogels was established using other approaches [45, 46]. Other studies provided evidence that vascularized spheroids could be used to biofabricate complex tissues [13, 14]. This is the first study to provide a simulation of how 3D bioprinted CSs can fused within Al/Ge hydrogels in order to be as be used as building blocks (video 4). It also shows for the first time that VEGF not only promotes vascular network formation and tissue fusion in bioprinted hydrogels (figure 3 and video 2), but it also promotes CS fusion (figure 4). The fused bioprinted CS following its treatment with VEGF allows the generation of a fully vascularized tissue (figure 4 and video 3). Hydrogel-specific properties, such as viscoelastic properties comparable to the ones found in the native cardiac tissue and the presence of bioactive gelatin for optimal cell viability, provide mechanical cues to promote tissue fusion and induce vascular network formation. This is ideal for the engineering of novel in vitro cardiac models, together with potential applications for regenerative medicine on a larger scale [14]. Spheroid proximity is critical for optimal fusion in hydrogels, as previously demonstrated [45, 46]. In this study we evaluated the spontaneous CS fusion process occurring in presence or absence of VEGF. In this process, VEGF was able to promote fusion of bioprinted CSs at a faster rate compared with control bioprinted cultures. Other studies have focused on the controlled fusion by using other approaches [45, 47]. Further studies should evaluate the exact relationship between the initial distance between spheroids and optimal fusion in hydrogels with different characteristics. Our simulation of spheroid modeling highlighted how partial fusion for diverse geometrical shapes can be achieved based on hydrogel-specific features (figure 5 and videos 4 and 5).

As the use of in vitro bioprinted spheroids for pharmacological testing requires detectable contractile function, we evaluated how to detect it with two different methods developed by us. In our first approach, we used a Ionoptix system to measure spontaneous contractile activity and under field potential (figure 6 and video 6). While we were not able to measure any contractile activity in 3D bioprinted single cells, our physiological testing using cardiac cells determined that 4% Al/8% Ge hydrogels were permissive for intrinsic contractile function (figure 6 and video 6). Bioprinted spheroids displayed spontaneous contraction towards their center. However, these movements were very small and difficult to detect. The edges of the spheroid were largely unaffected by the intrinsic contraction and it was not possible to measure any contraction. However, these CSs responded by synchronous contraction to electrical stimulation. This may be due to the close proximity of the cells in the spheroid allowing for intracellular communication and formation of electroconductive networks [18]. The presence of connexin 43 in bioprinted CS, together with cardiac troponin T (figure S6), both cardiac specific markers and essential for optimal cardiac tissue conductivity and contractility was supporting the ability of the CS to contract as a whole tissue. Spheroids could be paced between 18 and 72 beats per minute (0.3–1.2 Hz) spanning bradycardic and normal heart rate ranges in humans. This suggests that 3D bioprinted CSs have the potential to investigate long- and short-term effects of pharmaceuticals on the human heart, a much needed response to provide novel pathophysiological tools for cardiovascular drug discovery and toxicity [5, 34].

The EFP signal recording from spheroids showed that their electrical activity was sensitive to isoproterenol (figure 7). However, the concomitant decrease in contractile signal indicated that bioprinted CSs still retain a negative force–frequency relationship known for iPSC-derived cardiomyocytes. Electrical stimulation of iPSC-CMs has been shown to improve their maturation status and function [11]. A similar approach could be applied to the CSs bioprinted in the new CardioExcyte plate with built-in electrical stimulation to improve their performance and utility for drug testing.

Future studies aiming at improving the cardiac microenvironment in bioprinted CSs may focus on the recapitulation of pathophysiological conditions, such a heart attack in a Petri dish, in presence or absence of blood flow [5]. While there has been a lot of effort in engineering a more complex system, including the onset of organs-on-a-chip (including microfluidics devices), our study is the 1st one that directly demonstrates the spontaneous behavior of pre-vascularized cardiac tissues in presence of developmentally relevant factors, such as VEGF.

We successfully 3D bioprinted viable and functional CSs in 4% Al/8% Ge hydrogels, which present viscoelastic properties comparable to the ones of the native cardiac tissue. Overall, our study demonstrated that extrusion-based bioprinting of CSs in cardiac-tailored hydrogels represents a promising path forward in the engineering of in vitro models of human heart tissue. This has great potential for re-creating the human heart environment to study normal and pathological conditions in advanced cell-based models. A future direction for this research may include the use of patient-derived cardiomyocytes from iPSCs to create in vitro models for precision medicine.
