Long-term trajectories of the C footprint of N fertilization in Mediterranean agriculture (Spain, 1860–2018)

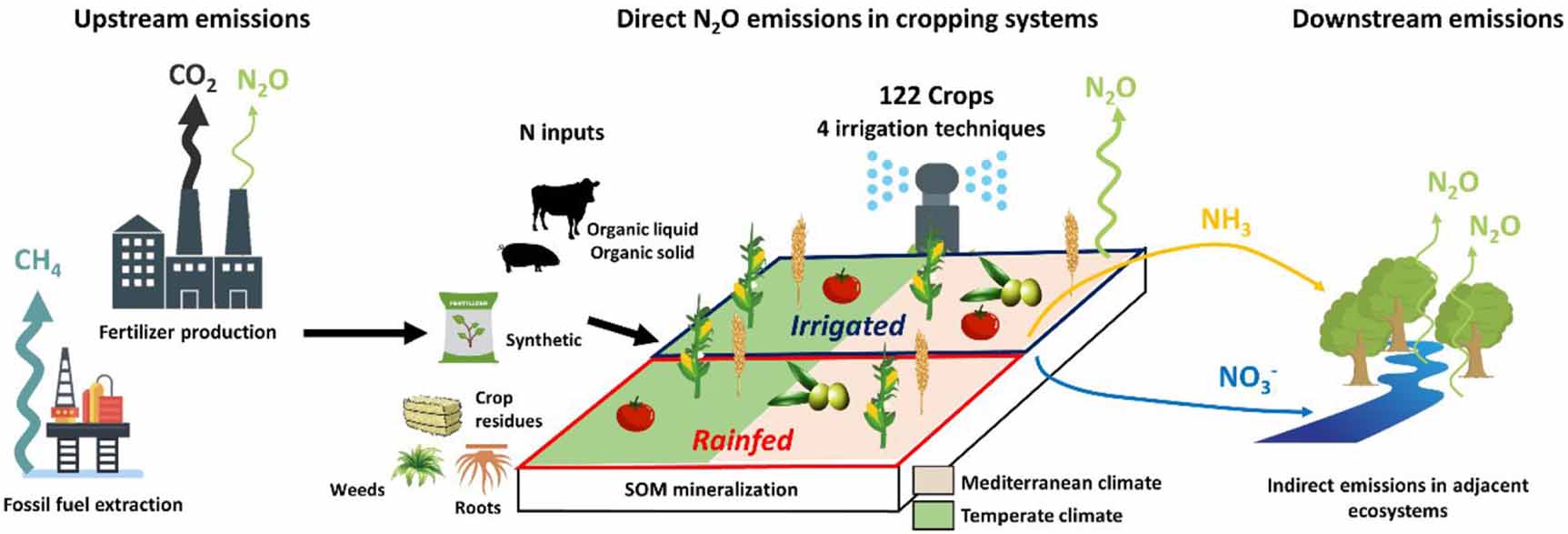

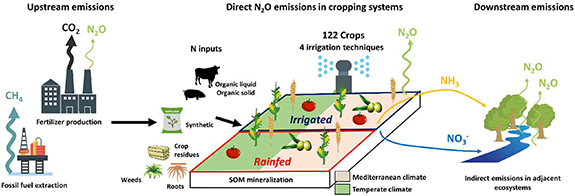

GHG emissions associated with N management in Spanish cropland were investigated for the period 1860–2018 from a life cycle assessment perspective. The analysis was performed at the crop (122 crop types) and province (50 provinces) levels, and it includes changes in agricultural N fluxes, industrial efficiency of N fertilizer production and direct and indirect soil N₂O emissions affected by soil, climate, irrigation and fertilizer type. Spanish provinces approximately correspond to the Eurostat NUTS3 classification (table S1 (available online at stacks.iop.org/ERL/16/085010/mmedia)). The provinces were classified as temperate or Mediterranean (figure S1), following the G200 classification (Olson and Dinerstein 2002) (figure S2). The functional units are 1 ha of cultivated land (including fallow) and 1 Mg N produced, thus covering 'from cradle to farm gate'. The analysis includes (a) direct N₂O emissions from the N sources included in the IPCC guidelines (IPCC 2006, 2019), comprising synthetic fertilizers, manure, urban residues, crop residues and roots, weed residues and roots, and net soil organic matter (SOM) mineralization, (b) upstream GHG emissions from the production of industrial fertilizers and (c) indirect (downstream) N₂O emissions from ammonia and nitrate exported from cropland to other ecosystems (figure 1). In the following sections, we describe the main procedures and assumptions. Further details are provided in the supplementary materials.

Zoom In Zoom Out Reset image size

To calculate N fertilizer-related GHG emissions, activity data regarding all N sources are required. These data include crop residues, which are derived from crop area and production, weed production, fertilizer consumption, manure, which is derived from livestock numbers and intake, and net mineralization of SOM. Crop area and production data at the province level (gathering data for all Spanish provinces), differentiating rainfed and irrigated land, was mainly based on data from the Spanish Yearbook of Agriculture (MAPA 2020) for ca 1890–2018 and from secondary sources and other official records for ca 1860–1890 (table S2). Weed production was estimated in two steps. First, potential weed production was estimated at the province level based on annual water inputs (sum of precipitation and irrigation), using the NCEAS model (Del Grosso et al 2008). Second, the estimated potential weed production was modulated to account for the impact of management practices, including tillage and herbicide application, based on historical data in Soto et al (2016) and Aguilera et al (2018).

We reconstructed the total consumption of industrial N fertilizers in Spain on an annual basis, including synthetic fertilizers, ammonium sulfate from coke-oven gas, saltpeter and guano, mainly based on González de Molina et al (2020). Livestock N excretion, N losses during manure management and manure application rates to cropland were estimated by a balance approach including animal N ingestion and retention, as described in Aguilera et al (2018). The livestock population for nine species was downscaled to the province level based on their provincial distribution in 13 benchmark years from 1865 to 2016, interpolating the provincial shares and scaling to the total livestock population in the years with no data. Nitrogen from urban sources (municipal solid waste and sewage sludge) were gathered from MAPA (2019) in the 1990–2015 period, and estimated based on population in the remaining years. All N inputs in years outside the 1990–2015 period were allocated to each crop-irrigation-province category based on historical sources (table S3). The N applied to soils in the form of crop and weed residues, as well as the harvested N, was based on a full reconstruction of the net primary productivity and residue destinies (Guzmán et al 2014, Soto et al 2016, Aguilera et al 2018), and expressed in terms of N using N content coefficients for products (Lassaletta et al 2014a), roots (IPCC 2019) and residues (table S4). Nitrogen input to the soil from net mineralization of SOM, as well as net N sequestration in SOM, were based on the soil organic carbon (SOC) balance, following IPCC (2019) guidelines, which recommend assuming a C:N ratio in the SOM of 15 for forest and grassland and ten for cropland. The SOC balance was calculated with the HSOC model (Aguilera et al 2018), a dynamic SOC model that considers the effect of soil properties, monthly climate parameters, C inputs and soil cover, and is thus sensitive to changes in climate, land use, crop distribution and crop management.

All estimated GHG emissions were converted to CO₂e using global warming potential (GWP) values with climate feedback reported in the AR5 report of the IPCC (2013), i.e. 34 for CH₄ and 298 for N₂O.

Direct soil N₂O emissions were estimated by multiplying fertilizer inputs F by climate-specific EFs considering the type of water management and the types of fertilizer applied (equation (1)). The combination of both types of categorization (fertilizers, f, and irrigation, i) in each climate type (c) was made by transforming the fertilizer-specific EFs into modifying factors (MFs) (table 1, equation (2))

$$\begin{align}{{\text{N}}_{\text{2}}}{{\text{O}}_{{\text{Direct}}}}-{\text{N}_{c,i,f}} = {F_{c,i,f}} \cdot {\text{E}}{{\text{F}}_{c,i,f}}.\end{align} \tag{ 1 }$$

$$\begin{align}{\text{E}}{{\text{F}}_{c,i,f}} = {\text{E}}{{\text{F}}_{c,i}} \cdot {\text{M}}{{\text{F}}_f}.\end{align} \tag{ 2 }$$

The EF_ci in temperate areas were taken from the 2019 revision of the 2006 IPCC guidelines (IPCC 2019), and in Mediterranean areas they were taken from a global meta-analysis of empirical studies under Mediterranean climate conditions (Cayuela et al 2017). The MFs in temperate areas were derived from IPCC (2019), and in Mediterranean areas from Cayuela et al (2017) and IPCC (2019) (table 1). The calculation of MFs from the data in Cayuela et al (2017) was made by deriving the fertilizer-specific EFs reported in this source by the average EF in all Mediterranean areas (0.5%). The use of fertilizer-specific MFs resulted in lower EFs for organic solid fertilizers and crop residues and higher EFs for organic liquid fertilizers than for synthetic fertilizers, which is in accordance with the results of a global meta-analysis of organic fertilizers (Charles et al 2017).

Emissions associated with the production of industrial fertilizers were estimated accounting for the impacts along the full production chain of the inputs. The emission coefficients were based mainly on the embodied energy data compiled by Aguilera et al (2015c) converted into GHG emissions using typical values of GHG emissions from fuel combustion and primary energy in Aguilera et al (2019a), which include CH₄ emissions in fossil fuel production and transport. We have also included N₂O emissions from nitric acid (HNO₃) production, based on IFA (2009) and Zhang et al (2013). This way, the total GHG emissions of each type of industrial fertilizer s in a given year t is given by multiplying the amount of fertilizer applied F by the CO₂, N₂O and CH₄ EFs (expressed as CO₂e) involved in its production and transport (equation (3)). The disaggregated EFs are shown in tables S5–S8

$$\begin{align}{\text{C}}{{\text{O}}_{\text{2}}}{{\text{e}}_{s,t}^{{\text{Upstream}}}}& ={F_{s,t}} \cdot \left( {\text{EF}}_{s,t}^{{\text{C}}{{\text{O}}_{\text{2}}}} + {\text{EF}}_{s,t}^{{{\text{N}}_{\text{2}}}{\text{O}}} \cdot {\text{GW}}{{\text{P}}_{{{\text{N}}_{\text{2}}}{\text{O}}}}\right.\nonumber\\ &\quad \left.+ {\text{EF}}_{s,t}^{{\text{C}}{{\text{H}}_{\text{4}}}} \cdot {\text{GW}}{{\text{P}}_{{\text{C}}{{\text{H}}_{\text{4}}}}} \right).\end{align} \tag{ 3 }$$

Ammonia volatilization was estimated using the MANNER model (Misselbrook et al 2004, Sanz-Cobena et al 2014), which considers the type of fertilizer, both manures and synthetic, the application method and timing, as well as the soil pH and weather variables highly affecting N volatilization such as rainfall, temperature and wind conditions. NO₃ ⁻ leaching was estimated considering the soil water balance and the N surplus, which was calculated by subtracting N outputs (crop product and residue harvest, and net N sequestration in SOM) from external (synthetic and organic fertilizers and biological N fixation) and intra-cycle N inputs (net N mineralization). The shares of this N surplus that were denitrified or leached were calculated based on soil properties and specific drainage rates, following Meisinger and Randall (1991). The estimated NH₃–N and NO₃ ^––N quantities were multiplied by specific EFs to obtain indirect N₂O emissions (equation (4))

$$\begin{align}{{\text{N}}_{\text{2}}}{{\text{O}}_{{\text{Indirect}}}} - {\text{N}}_{c,i,f} & = \left( {{\text{N}}{{\text{O}}_3}^ - - {{\text{N}}_{c,i,f}} \cdot {\text{E}}{{\text{F}}_{{\text{N}}{{\text{O}}_{\text{3}}}^ - }}} \right)\nonumber\\ &\quad + \left( {{\text{N}}{{\text{H}}_3} - {{\text{N}}_{c,i,f}} \cdot {\text{E}}{{\text{F}}_{c,i}}} \right).\end{align} \tag{ 4 }$$

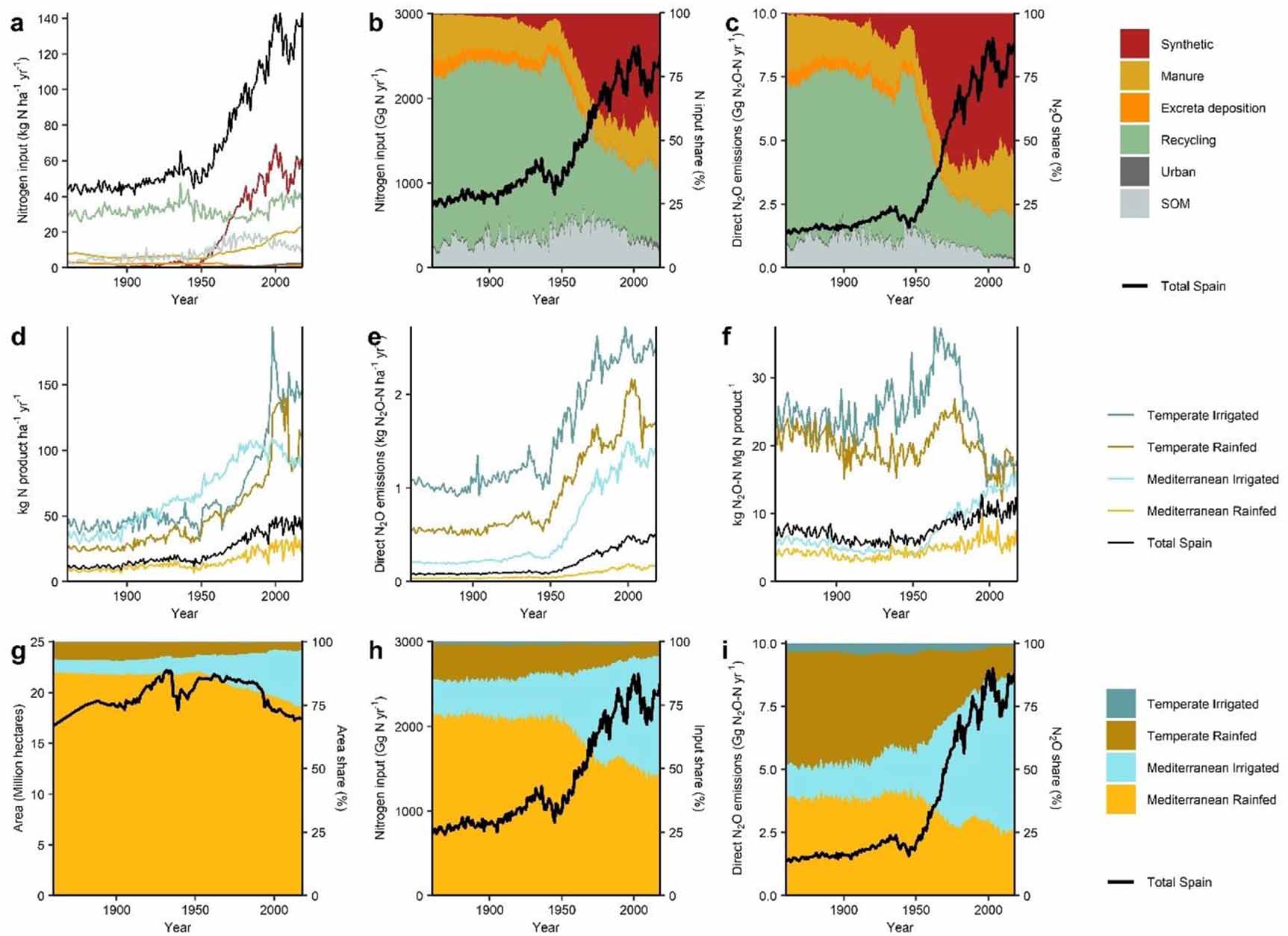

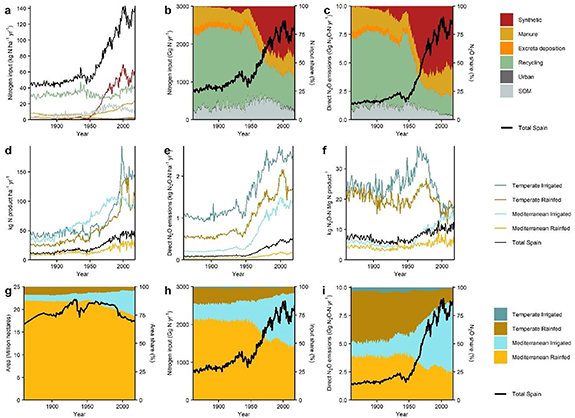

Nitrogen inputs in Spanish cropland were dominated by internal N recycling from crop and weed residues and roots (also including biological N fixation) until the mid-20th century, when synthetic N fertilizers became dominant (figures 2(a) and b)). Direct excreta by grazing animals and manure application accounted for nearly one-quarter of N inputs during most of the period studied, with lower shares during the 2nd half of the 20th century due to the dominance of synthetic fertilizers and net SOM mineralization (figure S3) in that period. Direct soil N₂O emissions increased five- to six-fold from the 19th century to the 21st century, with synthetic fertilizers accounting for more than one-half of total emissions since ca 1960 (figure 2(c)). By contrast, as shown in figure S4, growth was much lower when estimated with the reference Tier 1 EF (IPCC 2006), particularly in Mediterranean areas, due to the higher estimated N₂O emissions in the 19th century with the reference Tier 1 EF. This underlines the importance of using climate and management-specific EFs for the estimation of soil N₂O emissions.

Zoom In Zoom Out Reset image size

This growth in N₂O emissions associated with industrialization is comparable to the values estimated for France by Garnier et al (2019), but larger than the estimations for the Great Plains of the United States of America by Parton et al (2015), probably due to a lower contribution of SOM mineralization during preindustrial periods in Spain, where the relative cropland expansion over grassland or natural areas was lower than in the Great Plains. The growth in crop productivity expressed in terms of N extraction, approximately three- to four-fold (figure 2(d)), was lower than the growth in soil N₂O emissions (figure 2(e)), leading to a 10%–118% increase in yield-scaled emissions between preindustrial periods and the 21st century (figure 2(f)). This increase in yield-scaled emissions was not observed in temperate areas. The analysis of the shares accounted for by each climate-irrigation type shows a minor contribution of temperate and irrigated Mediterranean categories to cropland area (figure 2(g)), but these categories reached more than half of total N inputs (figure 2(h)) as a result of higher N rates, and up to 75% of total N₂O emissions (figure 2(i)) due to the additional contribution of higher EFs (figure 3). The continued growth in yield-scaled N₂O emissions in Mediterranean irrigated systems could be partially explained by the specialization on low-N crops, such as fruit orchards and horticultural crops, which resulted in a decrease in N yield in the 21st century (figure 2(d)).

Zoom In Zoom Out Reset image size

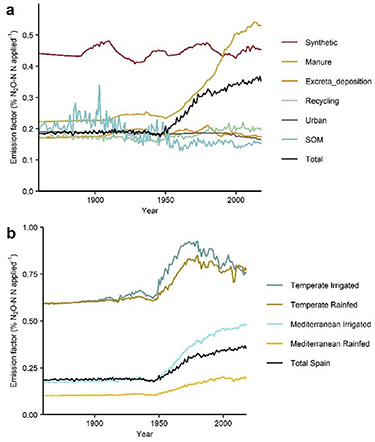

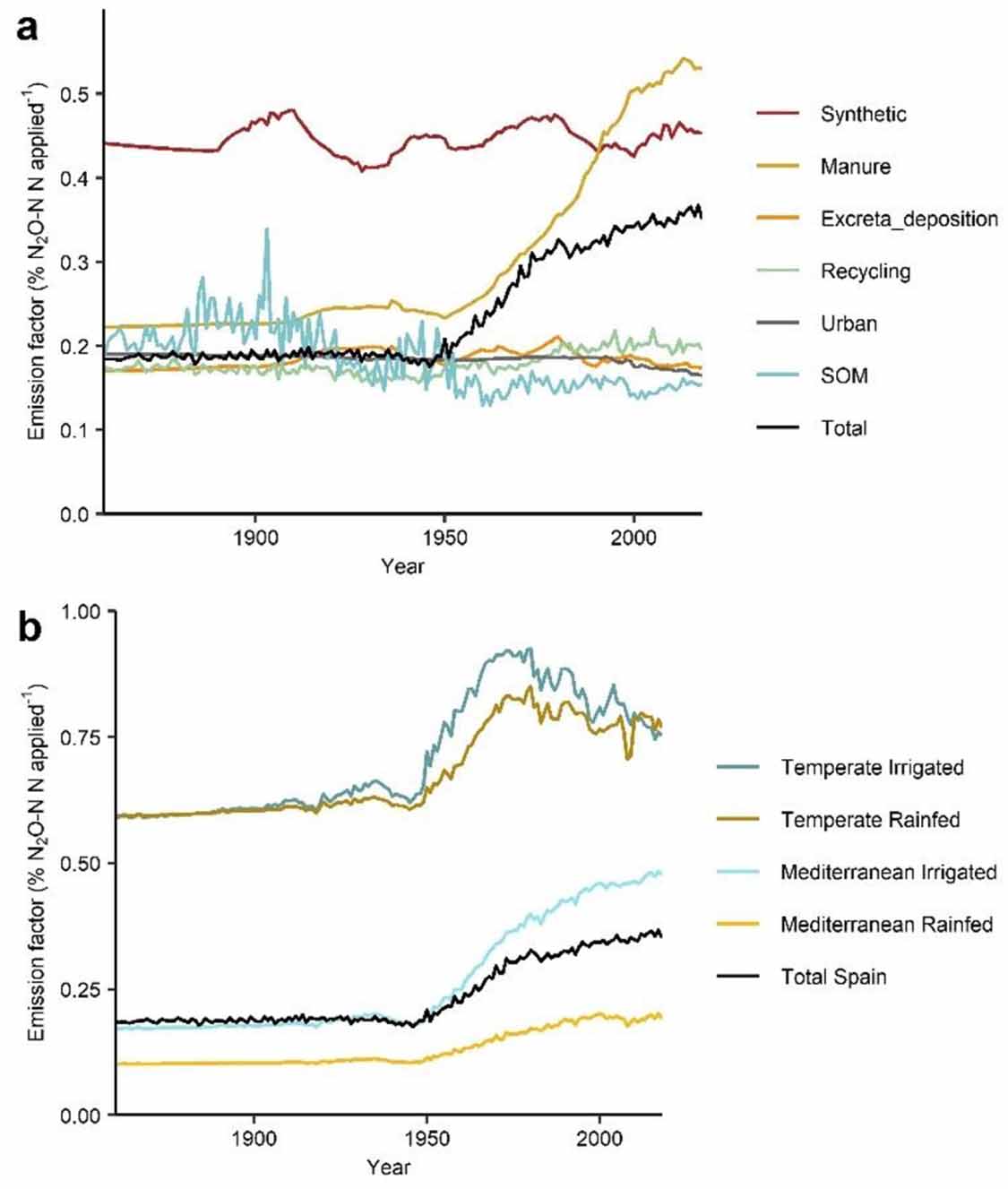

The estimated average direct N₂O EF in Spain doubled during the period studied, from 0.18% to 0.36% N₂O–N N applied⁻¹ (figure 3), which is still lower than the reference IPCC Tier-1 value (1%) (IPCC 2006) and than the revised EF for dry areas (0.5%) (IPCC 2019). By input category, the only input in which significant growth of EF was observed was manure, due to the transition from solid to liquid manure management (data not shown), which resulted in a higher EF for manure as compared to synthetic fertilizers since ca 1990 (figure 3(a)). The changes in the EF were particularly pronounced in irrigated Mediterranean systems (figure 3(b)), in which they increased threefold, because the changes in N inputs were combined with changes in irrigation technologies, which have a large effect on N₂O emissions (Cayuela et al 2017).

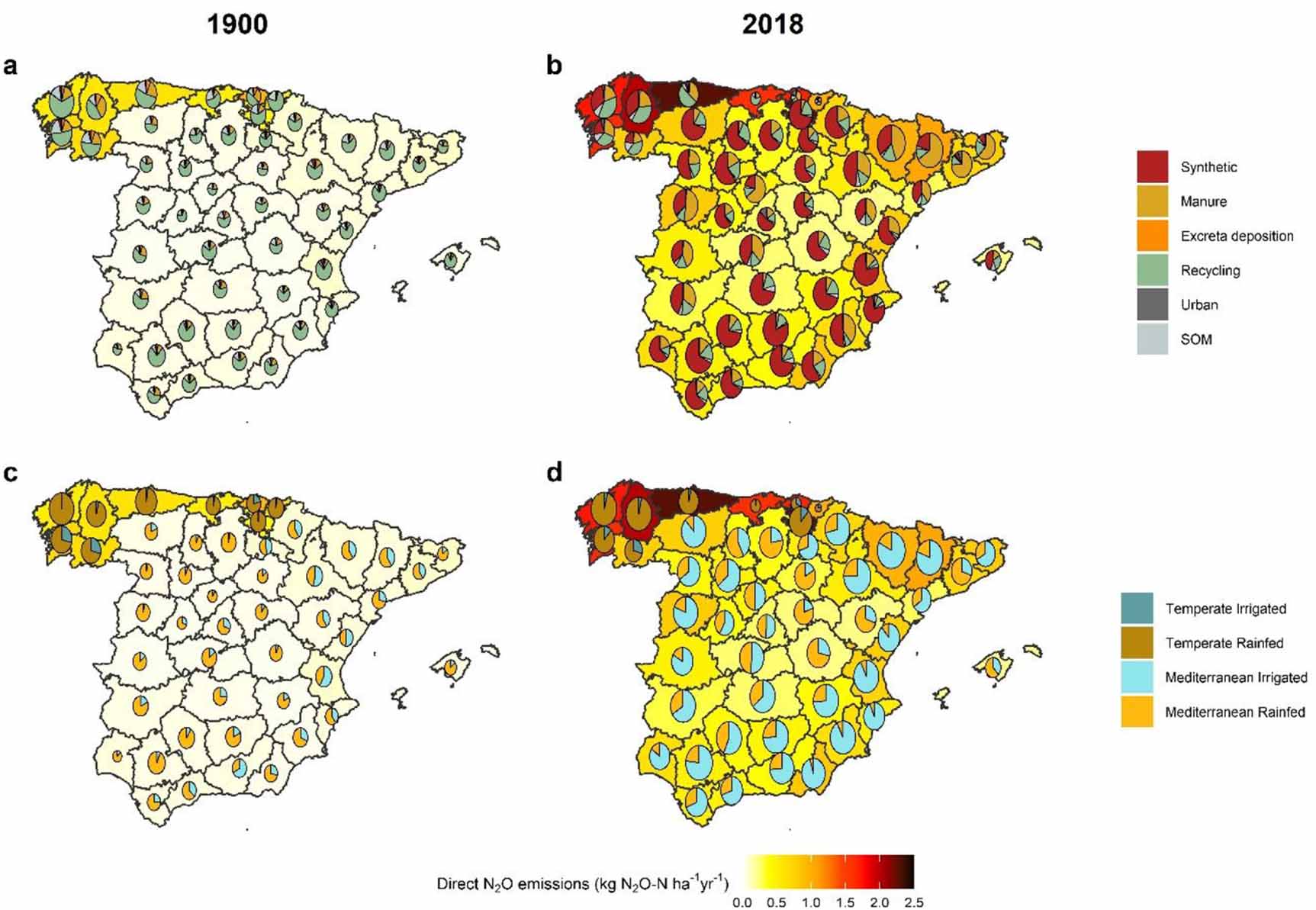

The analysis of the spatial distribution of N₂O emissions (figures 4 and S5–S9) shows major differences in area-scaled emissions between temperate areas (on the northwestern coast) and Mediterranean areas (in the rest of the country) and between preindustrial (1900) and modern (2018) agriculture. In 2018, N₂O emissions per unit area in Mediterranean areas were similar to those in temperate systems in 1900. In 1900, manure was a major component of N₂O emissions in temperate areas, but rarely surpassed one-third of emissions (figure 4(a)). In 2018, the uneven distribution of livestock specialization resulted in some provinces showing more than one-half emissions derived from manure (figure 4(b)). The contribution of irrigated cropping systems was usually minor in 1900 (figure 4(c)), but in some provinces it surpassed one-half of emissions, particularly in the Mediterranean coastal provinces of the east of the country. In 2018, irrigated land was the main source of emissions in most Mediterranean provinces, surpassing 90% of total emissions in 4 out of 41 Mediterranean provinces (figure 4(d)). The Mediterranean provinces showing the largest area-scaled emissions in 2018 were those with a large share of irrigation in combination with a large share of manure (figures 4(b) and (d)).

Zoom In Zoom Out Reset image size

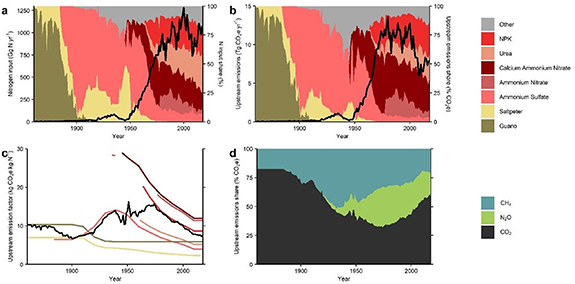

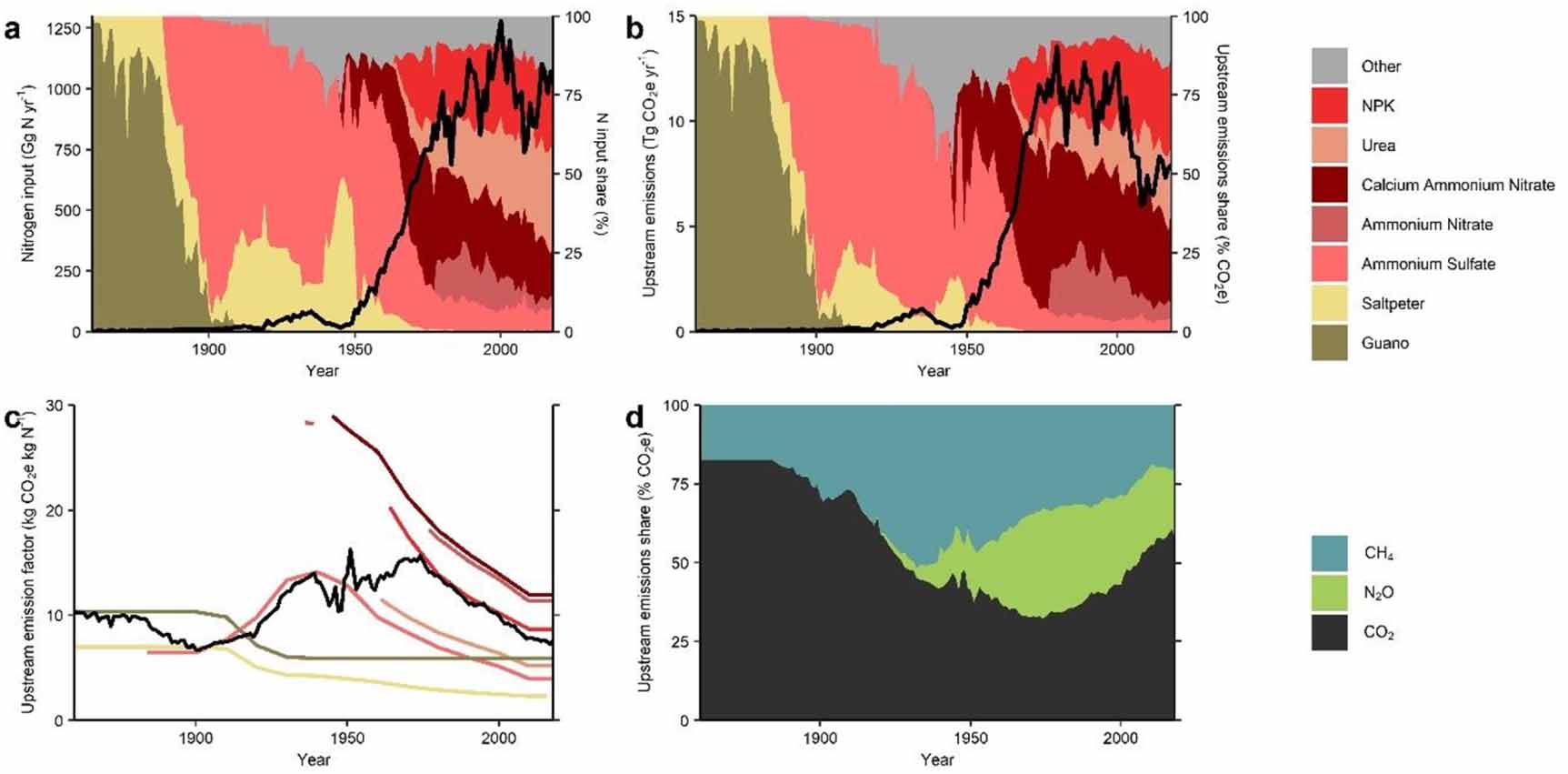

Industrial N fertilizer consumption (including synthetic N and N from mining sources) increased from 1–10 Gg N yr⁻¹ in the 19th century to 1279 Gg N yr⁻¹ in 2000, falling to 740 Gg N yr⁻¹ in 2008 but recovering to ca 1000 Gg N yr⁻¹ in the 2010s (figure 5(a)). Industrial N sources were first dominated by imported mined materials (guano and saltpeter) and ammonium sulfate from coke oven gas. Consumption levels started growing strongly in the 1950s, when the Spanish economy opened to the world in a context of expansion of Haber–Bosch-derived N sources. Fertilizer production GHG emissions plateaued at 9–13 Tg CO₂e yr⁻¹ during the 1969–2004 period, falling to 6–8 Tg CO₂e from 2005 onwards (figure 5(b)). The lack of recovery of GHG emissions in the 21st century was partially due to the decreasing trend in upstream emission intensity (figure 5(c)), with annual rates averaging 0.6%–1.6% for individual fertilizers, which was largely driven by increases in manufacturing energy efficiencies (Smil 2004, Ramírez and Worrell 2006, Aguilera et al 2015c). However, the average emission intensity of industrial fertilizers was similar in the 21st century and in the early 20th century, as 'energy-cheap' fertilizers were replaced by more energy-demanding synthetic fertilizers, which were not limited by mining deposits or coke production. Another process affecting fertilizer production GHG emissions was the contribution of CH₄ and N₂O (figure 5(d)). Fossil fuel production became a globally important source of global CH₄ emissions during the 20th century (Ghosh et al 2015), and these emissions are particularly high for natural gas (Schwietzke et al 2016). Consequently, the role of CH₄ in the C footprint of N fertilizer production grew when the use of natural gas in ammonia synthesis became generalized in the mid-20th century (peaking at 52% in 1932), and decreased afterwards due to the decrease in CH₄ losses from fossil fuel production (Aguilera et al 2019a). Nitrous oxide is emitted in nitric acid production, an intermediate process of the nitrate fertilizer production process (IFA 2009), so the contribution of this gas peaked in 1960–1980 (above 30% of the total GWP), when the use of nitrate-based fertilizers was most generalized.

Zoom In Zoom Out Reset image size

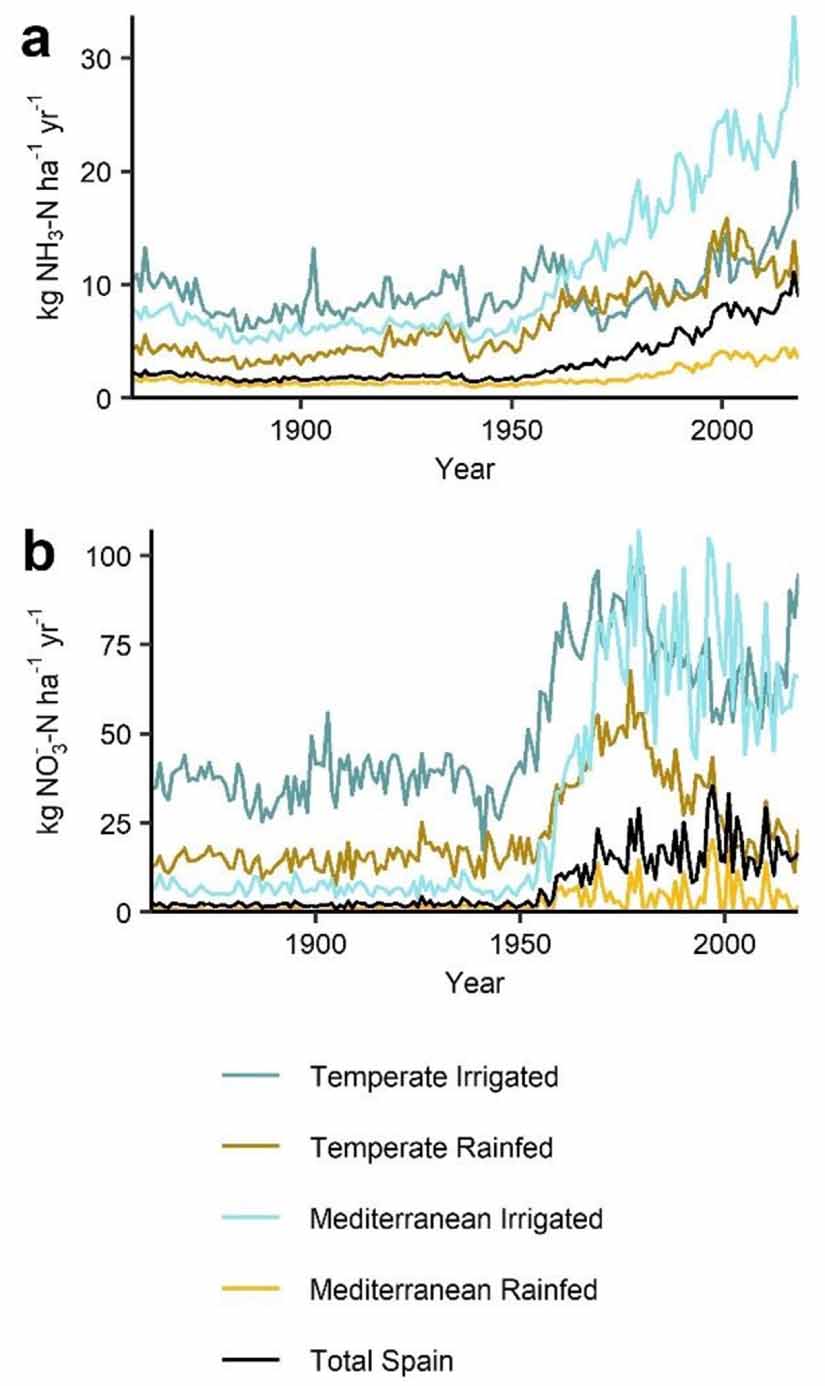

Average area-based NH₃ volatilization in Spanish cropland increased four- to six-fold, from 1.8–2.4 kg NH₃–N ha⁻¹ yr⁻¹ in the 19th century to 7.5–11.1 kg NH₃–N ha⁻¹ yr⁻¹ in the 2010s (figure 6(a)). This increase was mostly a direct consequence of the intensive surface application of ammonium-based fertilizers (figure 5(a)) and livestock slurries, with a high concentration of NH₄ ⁺ (Recio et al 2018, Sanz-Cobena et al 2019), and the increasing share of urea within the synthetic fertilizer mix. Ammonia volatilization in irrigated Mediterranean areas was about one order of magnitude higher than in rainfed areas, while temperate systems showed intermediate values. These results highlight the importance of implementing effective fertilizer application strategies to abate N volatilization such as fertilizer incorporation onto the upper soil. In addition, the estimated greater emission from irrigated Mediterranean cropping systems shows the enormous potential for NH₃ abatement if irrigation and N fertilization are managed in an integrated manner (Sanz-Cobena et al 2011).

Zoom In Zoom Out Reset image size

Regarding area-based NO₃ ⁻ leaching, there was very high variability (mostly related to rainfall variability), particularly in rainfed systems, in which it ranged between zero (absence of drainage water) and 20 kg NO₃ ^––N ha⁻¹ yr⁻¹ in the 21st century (figure 6(b)). In spite of this variability, a strong growth trend was also identified, as leaching increased one order of magnitude from 1–3 to 10–30 kg NO₃ ^––N ha⁻¹ yr⁻¹. This increase was much higher in Mediterranean areas than in temperate areas, suggesting a more pronounced impact of industrialization on water pollution under the Mediterranean climate. These trends are currently contributing to severe NO₃ ^– pollution problems in underground and surface waterbodies in many areas of Spain (Tortosa et al 2011, Arauzo and Valladolid 2013), particularly in those with a high livestock concentration (Penuelas et al 2009), underlining the need to reduce NO₃ ^– leaching and promote NO₃ ^– abatement by reducing N inputs, improving water management and supporting beneficial practices (Quemada et al 2013) such as agroforestry (Blanc et al 2019).

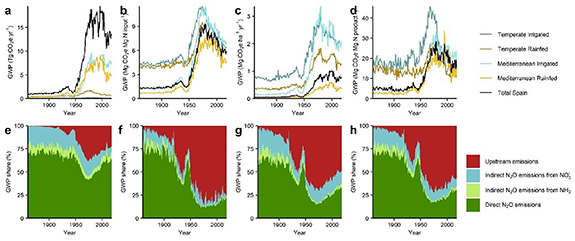

Total fertilization-related GHG emissions in Spain increased about 16-fold with industrialization, from 0.8–1.2 Tg CO₂e yr⁻¹ in the 19th century to 13.1–19.5 Tg CO₂e yr⁻¹ in the 1970–2004 period, decreasing afterwards to 10.5–14.2 Tg CO₂ yr⁻¹ (figure 7(a)). Much lower reductions in area-scaled emissions than in total emissions were observed in the 21st century (figure 7(c)) due to the decrease in rainfed Mediterranean cropland area during this period. The growth in the GWP of temperate systems was much lower than the growth in Mediterranean systems, and large differences among provinces were also observed (figures S10–S15). For example, area-based emissions increased ca 20-fold in Mediterranean areas and ca fourfold in temperate areas. Yield-scaled emissions across Spanish cropland increased ca fourfold, from 4 and 5 Mg CO₂e Mg N⁻¹ to 16–18 Mg CO₂e Mg N⁻¹ (figure 7(d)), which indicates that the increase in yields (figure 2(d)) only partially offset the growth in emissions. Huang et al (2017) found that yield-scaled GHG emissions associated with fertilizer inputs in grain crop cultivation in Chinese agriculture increased from 1978 to 2012, despite the increase in yields. By contrast, yield-scaled emissions in Spain actually decreased by about one-third between 1970 and the 2010s, but this was after huge growth in the mid-20th century (ca sixfold between 1940 and 1970).

Zoom In Zoom Out Reset image size

There were large differences in the contribution of the different emission types to the total GWP between temperate (figure 7(e)) and Mediterranean (figures 7(f) and (g)) systems, with highly pronounced historical changes in the latter. The contribution of upstream emissions was greater in Mediterranean systems due to the low N₂O EFs. In fact, upstream emissions accounted for more than half of all fertilizer-related emissions as early as 1920 in Mediterranean rainfed systems, surpassing 80% in most years after 1970. Specific studies of herbaceous and woody crops in Spain have shown that fertilizer production is associated with generally higher GWP than soil N₂O emissions (Aguilera et al 2015a, 2015b, Guardia et al 2016, Montoya et al 2021); this pattern has also been found in Mediterranean systems in Australia (Biswas et al 2011). This comparative study shows that the role of upstream emissions is much higher in Mediterranean than in temperate systems (figure 7). Today direct and downstream emissions only amount to 42% of fertilization emissions, although this share is increasing.

Nitrate leaching to waterbodies contributes to the increase in their degree of eutrophication, which is a major driver of waterbody CH₄ emissions (Deemer et al 2016, IPCC 2019). Methane emissions from irrigation-related waterbodies in Spain has been estimated to be 2.7 Tg CO₂e yr⁻¹ in 2008 (Aguilera et al 2019b), which is similar to the 2.6 Tg CO₂e yr⁻¹ direct soil N₂O emissions estimated in this study. Therefore, considering these indirect effects of NO₃ ⁻ leaching on waterbody CH₄ emissions could potentially lead to much higher fertilizer-related GHG emissions. Another limitation of the methodology relates to the assumption that no reactive N from the surplus is retained in the soil from year to year, given that all surplus N (excluding NH₃ volatilization and N incorporation to SOM) was assumed to be either denitrified or leached. However, despite there is evidence that some of the NO₃ ⁻ can be adsorbed to soil particles or retained in the microbial biomass, this retention is generally low and short-term (Abdelwaheb et al 2019). Also, the relationship between N fertilization and soil C sequestration was not analyzed in the study. Nitrogen fertilizers have been related to enhanced soil C sequestration (Xu et al 2021), although there is a controversy on this issue (Khan et al 2007). This trend has also been observed in Mediterranean cropping systems, in which soil C was lower in nonfertilized plots than in fertilized plots (Aguilera et al 2013). In the case of indirect N₂O from volatilized NH₃, it should be noted that historical information regarding fertilizer incorporation was not included, although the share of fertilizers being incorporated could be assumed to be low. These processes should be studied in future research.

The current reform of the European Union (EU) Common Agricultural Policy offers the opportunity to adapt actions to regional conditions. The results of this study clearly support the notion that only specific assessments tailored to the regional scale can effectively respond to the current challenges, as recently suggested by Lassaletta et al (2021). Thus, a transition from Tier-1 to Tier-3 approaches to estimate N₂O emissions is strongly recommended in all countries (Thompson et al 2019). The present Tier-2 estimation of N₂O emissions is an important step in this direction. Successful implementation of the recent EU Farm to Fork Strategy (European Commission 2020) aiming to reduce fertilization 20% and N losses 50% by 2030, should also be sustained on crop-specific and regionally adapted assessments. The present study provides a detailed assessment of fertilizer-related emissions in Spain that distinguishes emission hotspots in each province, thus helping design effective mitigation policies.
