Slowdown and reversal of terrestrial near-surface wind speed and its future changes over eastern China

Eastern China (15–55° N, 105–135° E) was selected as the study region due to its spatially dense network of meteorological observation stations and generally flat topography. The wind speed dataset was obtained from the China Meteorological Administration (CMA). The SWSs were measured with an anemometer 10 m above the surface. The setting, installation, and observation of each anemometer conformed to the CMA's technical regulation standard on weather observations (CMA 2003). The correct data, questionable data, and incorrect data were labeled with the quality codes 0, 1, and 2, respectively. This dataset was examined and calibrated by the CMA based on the homogeneity test, extreme test, and temporal consistency test. To obtain the homogeneous SWS at each station, the stations were selected based on the following criteria: (a) each station must be a national meteorological station; (b) total days of missing data accounted for <1% of the length of the total data series; and (c) the SWS must be accompanied by the quality code 0. Ultimately, 587 stations for the period 1979–2017 were selected (figure S1 (available online at stacks.iop.org/ERL/16/034028/mmedia)).

Climate indices (CIs) were selected to assess the influences of LOACs on SWS. These CIs included the Atlantic Meridional Mode (AMM) (Chiang and Vimont 2004), the AO (Higgins et al 2002), the East Asian Summer Monsoon (Li and Zeng 2002), the East Asian Winter Monsoon (EAWM) (Wang 2014), the Niño 3, Niño 3.4, and Niño 4 indices (Trenberth and Stepaniak 2001), the North Atlantic Oscillation (Barnston and Livezey 1987), the PDO (Mantua et al 1997), the solar flux (10.7 cm) (Moen and Brekke 1993), the South China Sea Summer Monsoon (Li and Zeng 2003), the Southern Hemisphere Annular Mode (Nan and Li 2003), the Tropical Northern Atlantic index (Enfield et al 1999), the Western Hemisphere Warm Pool (WHWP) (Wang and Enfield 2001), the Western Pacific Index (WPI) (Barnston and Livezey 1987), the Western Pacific Subtropical High Area (WPSHA), and the Western Pacific Subtropical High Intensity (Huang et al 2018) (table S1). These CIs exert considerable effects on climate changes in China and are informative in terms of the various fluctuations of LOACs. They have been widely used by the climate community.

Multimodel simulations and projections from the Coupled Model Intercomparison Project Phase 6 (CMIP6) were used. Projections from 23 models are analyzed. Meanwhile, Shared Socioeconomic Pathway (SSP) 245 (SS245) (+4.5 W m⁻²; medium forcing middle-of-the-road pathway), SSP370 (+7.0 W m⁻²; medium- to high-end forcing pathway), and SSP585 (+8.5 W m⁻²; high-end forcing pathway) were considered (Cook et al 2020). The scenarios were the combination of SSPs and forcing levels of the Representative Concentration Pathways (RCPs) (Eyring et al 2016, O'Neill et al 2017, Wang et al 2019, Fan et al 2020). The monthly mean wind speed and the parent variant label 'r1i1p1f1' from each model were used. The outputs were interpolated onto the same 1.0° × 1.0° resolution grid using bilinear interpolation.

A piecewise linear regression model (PLRM) was employed to quantify the TP. A PLRM is capable of detecting where the slope of a linear function changes and allows multiple linear models to be fitted to each distinct section of the time series (Toms and Lesperance 2003, Zeng et al 2019). For a time series $y$ (SWS), a continuous PLRM with one TP can be described by equation (1):

$$\begin{equation}y = \left\{ \begin{array}{l} {\beta _1}t + \varepsilon ,\quad t \le {\textrm{TP}}\\ ({\beta _1} + {\beta _2})t - {\beta _2}{\textrm{TP}} + \varepsilon ,\quad t \geqslant {\textrm{TP}} \end{array} \right.\!\!,\end{equation} \tag{ 1 }$$

where $t$ is the year, ${\beta _1}$ and ${\beta _2}$ are regression coefficients, and $\varepsilon$ is the residual. To avoid linear regression in a period with too few years, we confined the TP to be within the period 1981–2016. The trends before and after the TP were ${\beta _1}$ and ${\beta _1} + {\beta _2}$, respectively. We used least-squares error techniques to fit the model to the data and determine a potential TP, ${\beta _1}$, and ${\beta _2}$. ${\beta _2}$ was calculated every year from 1981 to 2016. The necessity of introducing the TP was examined with the significance t-test under the null hypothesis that '${\beta _2}$ is not different from zero' (we assumed that there was one and only one TP). If the maximum of the absolute value for ${\beta _2}$ occurred in a given year, that year was determined to be the TP. Statistical significance for the regression included the goodness-of-fit, the P values for the entire model, and the trends before and after the TP.

The forward stepwise regression algorithm (FSRA) was employed to select the dominant CIs that had the largest explanatory power for the SWS changes. ${X_i}$ (CIs) and $Y$ (SWS) were selected to establish the regression model, as expressed by equation (2):

$$\begin{equation}\left( \begin{gathered} Y = {\alpha _i}{X_i} + \delta ,\quad i = 1,2,\ldots,p \hfill \\ {F^{(1)}} = \max \left\{ {F_1^{(1)},F_2^{(1)},\ldots,F_p^{(1)}} \right\} \hfill \\ I = \left\{ {{X_i}|1 < i < p} \right\} \hfill \\ \end{gathered} \right.,\end{equation} \tag{ 2 }$$

where ${\alpha _i}$ and $\delta$ are the regression coefficients and residual, respectively; p = 17; $F_i^{(1)}$ is the value of the F-test for ${\alpha _i}$; and $F_{}^{(1)}$ denotes the maximum value of $F_i^{(1)}$. Considering the threshold of significance level $\alpha = 0.01$, if $F_{}^{(1)} \geqslant F_\alpha ^{(1)}$, ${X_i}$ is introduced into the model. $I$ denotes the set of introduced ${X_i}$. When ${X_i}$ is selected, the bivariate regression is estimated between $Y$ and the subsets $\left\{ {{X_i},{X_1}} \right\},\ \cdots ,\ \left\{ {{X_i},{X_{i - 1}}} \right\},\left\{ {{X_i},{X_{i + 1}}} \right\},\ \cdots ,\ \left\{ {{X_i},{X_p}} \right\}$ (p − 1 subsets). Similarly, the statistical value of the F-test is $F_{{X_k}}^{(2)}({X_k} \ne I)$, and the maximum $F_{{X_k}}^{(2)}$ is then selected. If $F_{{X_k}}^{(2)} \geqslant F_\alpha ^{(2)}$, ${X_k}$ is input into the model. To avoid overfitting, the above steps are repeated six times, and, therefore, we validated the top six CIs for explaining SWS based on their statistical significance (Zeng et al 2019). Using the FSRA, a reconstructed wind speed (RWS) can be obtained based on the selected six CIs and their regression coefficients, as expressed in equation (3).

$$\begin{equation}{\text{RWS}} = \sum\limits_{i = 1}^6 {{a_i}{X_i}} + {b_0},\end{equation} \tag{ 3 }$$

where ${a_i}$ and ${b_0}$ are the regression coefficients and residual, respectively. To evaluate the importance of the selected CIs and examine the uncertainty of RWS, we randomly selected a 30% subset of the stations and performed the FSRA (repeated 300 times). The contribution of LOACs to the SWS tendency was estimated using equation (4):

$$\begin{equation}Q = \frac{{\left| {{T_R}} \right|}}{{\left| {{T_O}} \right|}} \cdot 100\% ,\end{equation} \tag{ 4 }$$

where ${T_R}$ and ${T_o}$ denote the trends of the RWS and observations, respectively.

To estimate the trends for different wind categories and corresponding frequencies, light, gentle, moderate, and strong winds were defined as wind speeds <25th percentile, >25th percentile but <50th percentile, >50th percentile but <75th percentile, and >75th percentile, respectively. Correspondingly, the days with light, gentle, moderate, and strong winds were defined as the light, gentle, moderate, and strong windy days, respectively (Wang et al 2020). The periods 2021–2040, 2041–2060, and 2081–2100 represented the 'near-term,' 'mid-term,' and 'long-term' projections, respectively (Jiang et al 2020). The four seasons were defined as winter (December, January, and February), spring (March, April, and May), summer (June, July, and August), and autumn (September, October, and November).

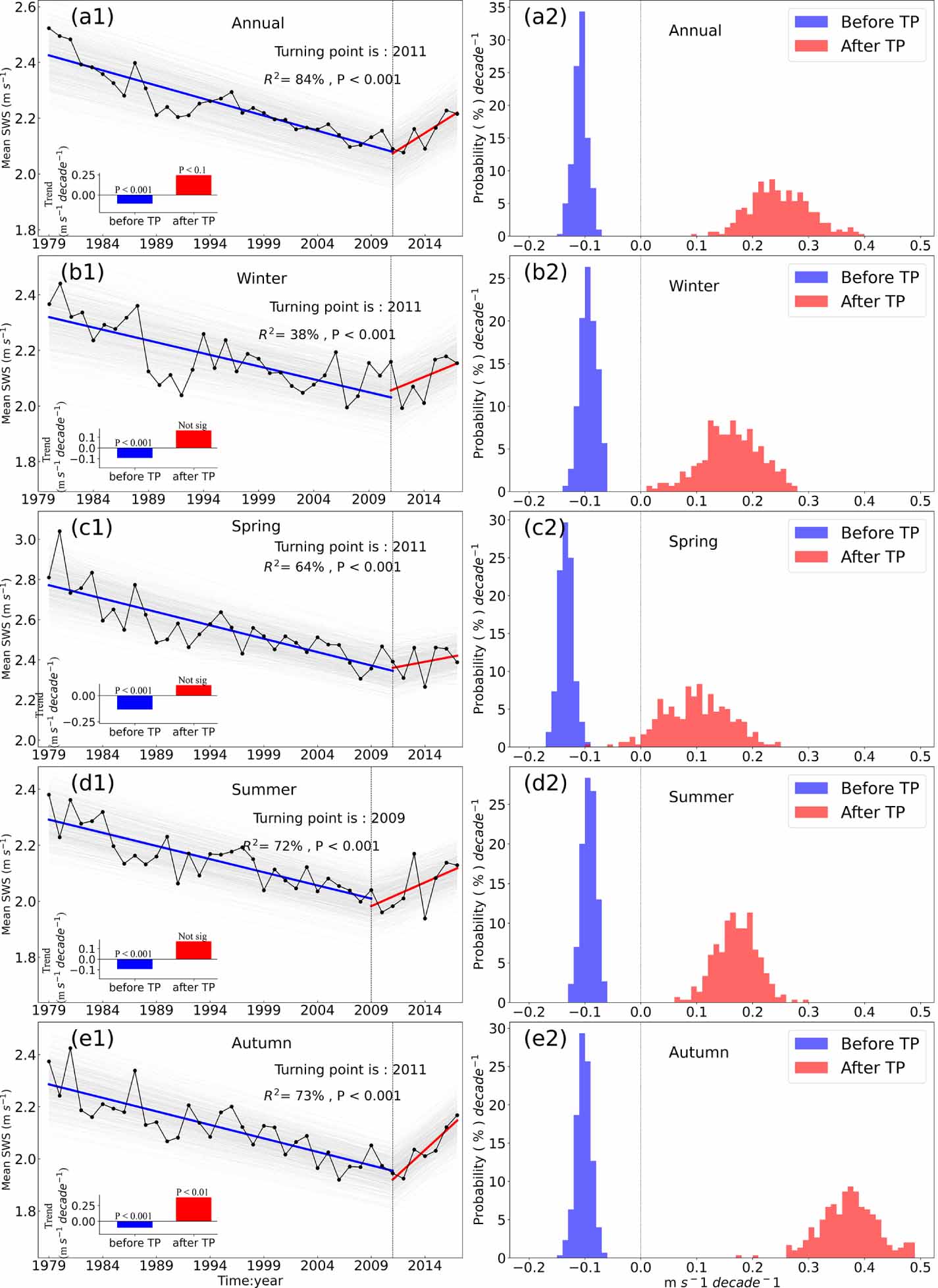

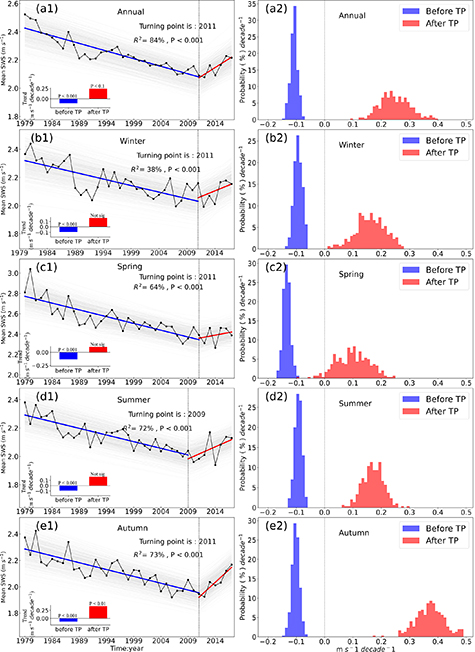

The temporal changes of SWS are shown in figure 1. The mean annual SWS decreased significantly from 1979 to 2011, at a rate of −0.108 m s⁻¹ decade⁻¹ (P< 0.001) (figure 1(a1)). A pronounced reduction was also discovered in seasonal SWSs, and all decreasing trends passed the significance t-test (P< 0.001) (table 1). Although the downward trends have been revealed and confirmed, the mean annual and seasonal SWSs have experienced increases in the recent decade (table 1). Therefore, a reversal of terrestrial stilling was observed in 2011, with the exception of summer (2009), with goodness-of-fit R² values of 82%, 48%, 69%, 71%, and 69% for annual mean, winter, spring, summer, and autumn, respectively. It is important to mention that the piecewise linear regression was determined via t-test significance, which could indicate a reversal of the trend in wind speed change, although the trends after the TP could also be a flattening of the SWS decreasing trend.

Zoom In Zoom Out Reset image size

Table 1. Goodness-of-fit (R² ), TP, trend before and after TP (unit: m s⁻¹ decade⁻¹), and relative frequency of the stations that exhibited negative and positive trends of SWS before and after TP for eastern China, 1979–2017. *, **, and *** denote the results passed the significance t-test at the 0.10, 0.01, and 0.001 levels, respectively.

	R2	TP	Before TP			After TP
			Trend	Negative	Negative significant P < 0.10	Trend	Positive	Positive significant P < 0.10
Annual	82%***	2011	0.108***	71.7%	55.63%	0.244${}^{*}$	53.5%	50.3%
Winter	48%***	2011	0.093***	67.9%	45.49%	0.162	54.0%	35.0%
Spring	69%***	2011	0.133***	74.6%	57.41%	0.101	45.2%	35.1%
Summer	71%***	2009	0.094***	66.9%	47.19%	0.169	61.2%	46.0%
Autumn	69%***	2011	0.104***	68.3%	49.06%	0.378**	65.1%	46.0%

To exclude the possibility that the TPs were caused by large SWS changes at only a few stations, we repeated the analyses 300 times by randomly resampling 30% of all the stations each time (gray lines in figure 1) to validate the TPs. The results revealed that the TPs in each subsample were close to the TPs in the total sample. The SWSs also mainly exhibited decreasing trends before the TP and increasing trends after. According to the estimates from the random resampling, the annual mean SWS changes before and after a specific TP were −0.108 ± 0.013 and 0.275 ± 0.054 m s⁻¹ decade⁻¹, respectively (figure 1(a2)). Seasonally, the SWSs also showed downward trends before the TP during winter (–0.093 ± 0.014 m s⁻¹ decade⁻¹), spring (–0.134 ± 0.014 m s⁻¹ decade⁻¹), summer (–0.093 ± 0.013 m s⁻¹ decade⁻¹), and autumn (–0.104 ± 0.014 m s⁻¹ decade⁻¹), while the seasonal SWSs exhibited upward trends after the TP, at rates of 0.159 ± 0.054, 0.098 ± 0.057, 0.175 ± 0.039, and 0.377 ± 0.053 m s⁻¹ decade⁻¹, respectively (figures 1(b2)–(e2)). A number of previous studies also discovered a reversal of stilling, e.g. all of China after the 1990s (Zhang and Wang 2020), southwestern China after 2000 (0.55 m s⁻¹ decade⁻¹) (Yang et al 2012), and northwestern China from 1993 to 2005 (0.04 m s⁻¹ decade⁻¹) (Li et al 2018b). The magnitudes and TPs of the SWS reversal were inconsistent, however, due to the differences in study regions, periods, datasets, and methods. Although some former studies also found the SWS reversal in recent decades at regional scales, the TPs were not examined.

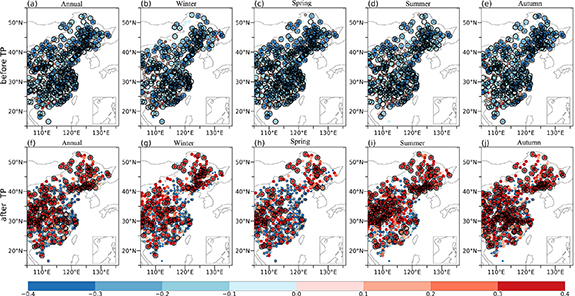

Spatial patterns of the SWS trends before and after the TPs were revealed (figure 2), and the results show that 71.7%, 67.9%, 74.6%, 66.9%, and 68.3% of the total stations exhibited mean annual, winter, spring, summer, and autumn SWSs with decreasing trends before the TP, respectively. Conversely, after the TP, 53.5%, 54.0%, 45.2%, 61.2%, and 65.1% of the total stations exhibited mean annual, winter, spring, summer, and autumn SWSs with increasing trends, respectively (table 1). Hence, SWS reversal did not mean that all stations displayed increasing SWSs. Furthermore, the annual and seasonal distributions of the TPs for all stations showed that most TPs occurred around 2011 (figure S2).

Zoom In Zoom Out Reset image size

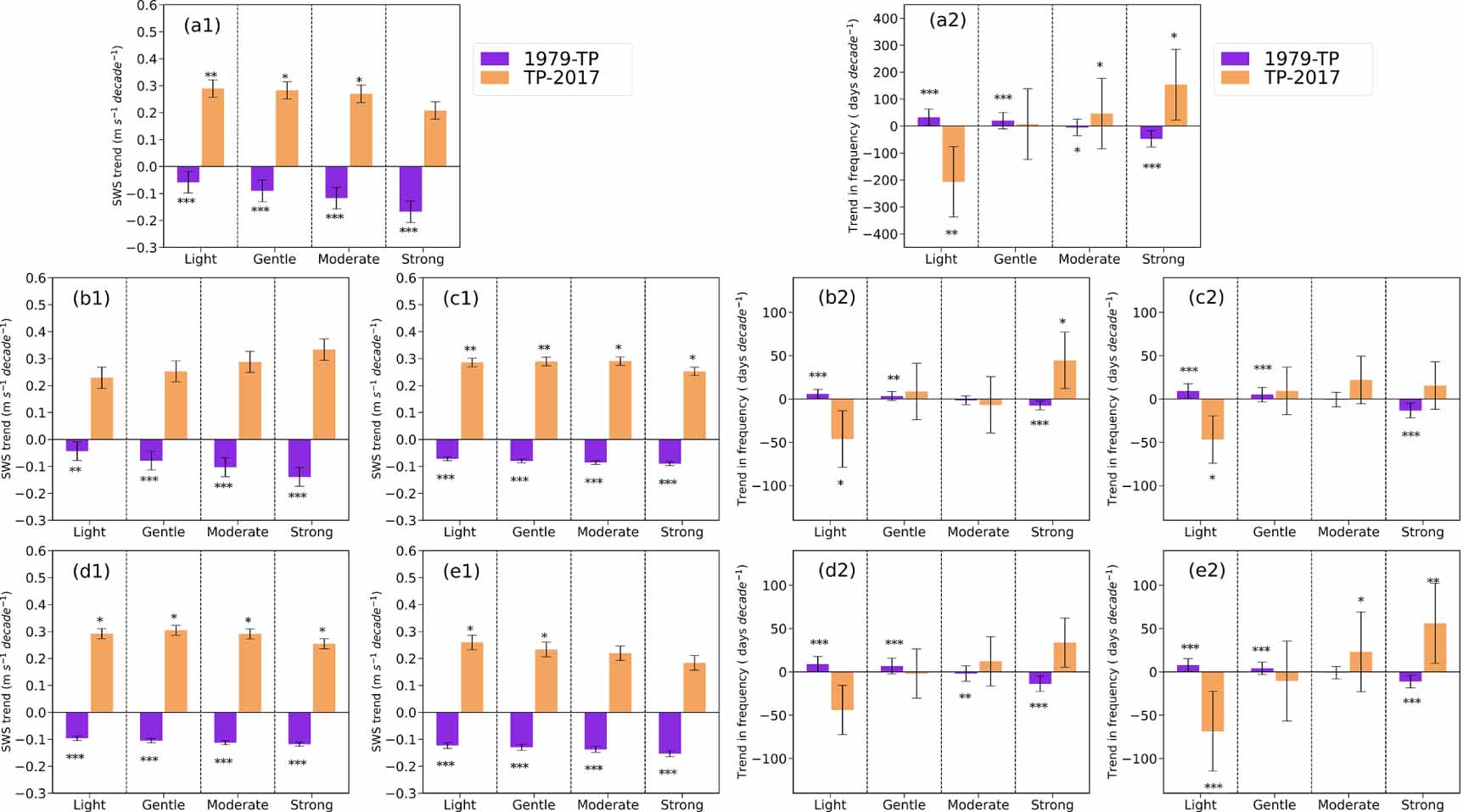

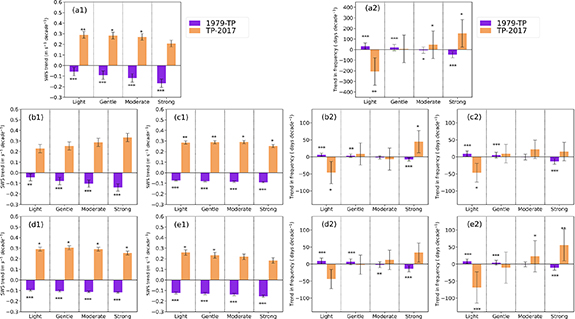

Given that the decrease or increase in SWS could be due to different wind categories, the trends for light, gentle, moderate, and strong winds before and after the TP were investigated. The annual trend for all wind categories was decreasing before the TP and increasing after (figures 3(a1)–(e1)). Before the TP, all trends passed the significance t-test at the 0.001 level; the most significant reduction was found in strong winds, at rates of −0.17, −0.14, −0.09, −0.12, and −0.15 m s⁻¹ decade⁻¹ in mean annual, winter, spring, summer, and autumn, respectively (figures 3(a1)–(e1)). After the TP, all wind categories displayed increasing trends, with the weakest increase observed in strong winds during autumn (0.18 m s⁻¹ decade⁻¹) (figure 3(e1)), and the most significant increase observed in strong winds during winter (0.33 m s⁻¹ decade⁻¹) (figure 3(b1)). The trend differences among different wind categories in the same season were not pronounced either before or after the TP. Before the TP, the maximum and minimum trend differences were observed in annual mean and spring, with standard deviations of 0.10 and 0.025 m s⁻¹ decade⁻¹, respectively, while after TP the maximum and minimum trend differences occurred in winter and spring, with standard deviations of 0.13 and 0.046 m s⁻¹ decade⁻¹, respectively (figure 3(c1)).

Zoom In Zoom Out Reset image size

The frequency trends for different windy days were investigated (figures 3(a2)–(e2)). The decrease in annual mean SWS before the TP was caused by the decrease in the frequency of strong winds (–47.30 d decade⁻¹, P < 0.001), while the increase in annual mean SWS after the TP was due to the increase in the frequency of moderate winds (46.00 d decade⁻¹, P < 0.10) and strong winds (153.71 d decade⁻¹, P < 0.10) (figure 3(a2)). The seasonal decreasing and increasing trends in SWSs before and after the TPs were attributed to the decrease and increase in days with strong winds. During winter, spring, summer, and autumn, the decreasing trends before the TP were −7.49, −13.41, −13.76, and −11.23 d decade⁻¹, respectively, and the increasing trends after the TP were 44.57, 15.43, 33.71, and 56.00 d decade⁻¹, respectively (figures 3(b2)–(e2)). Meanwhile, all downward trends passed the significance t-test at the 0.001 level. The reduction and increase in SWS before and after the TP were also accompanied by corresponding increases and decreases in the frequencies of light and gentle winds. Consequently, SWS changes mainly displayed two features before and after the TP: (a) all wind categories exhibited decreasing trends before the TP, and increasing trends after; and (b) the downward trends in SWSs before the TP mainly manifested as the decrease in the frequency of strong windy days and the increase in the frequency of light windy days, and the upward trends after the TP mainly manifested as the increase in the frequency of strong windy days and the decrease in the frequency of light windy days.

Wind is physically created by pressure gradients, which are due to the uneven heating of the Earth's surface, and the uneven heating is to a large extent described by CIs for LOACs (Zeng et al 2019). Hence, the LOACs are important to SWS changes. In this section, we will investigate whether decadal-scale LOACs can explain the SWS changes over China. We found that no single climate index had large explanatory power, but together the CIs generated a large amount of explanatory power. Nevertheless, the fit improvement also became marginal when the number of CIs retrained in the stepwise regression was larger (e.g. the explanatory power changed by only 6% from 6 CIs to 12 CIs) (figure 4(a)). The PDO exhibited the largest explanatory power in annual terms, followed in decreasing order by the WHWP, WPI, AO, Solar, and Niño 3. The total explanatory power for the selected CIs was 86.0%. Seasonally, the importance levels of CIs for the SWSs were not consistent, with the exception of the PDO. These results imply that the SWS changes during different seasons could be influenced by different LOACs, although the effect of the PDO on SWS was evident in all four seasons. The total explanatory power values of the selected CIs reached 71%, 82%, 74%, and 84% in winter, spring, summer, and autumn, respectively (table 2). To determine if these CIs could be selected in most cases, we carried out the 300-repetition test (30% of the stations were chosen at random for each test). The results revealed that the CIs could be selected in most cases, especially for the CIs ranked 1 and 2. Meanwhile, the selected numbers decreased in the 300-repetition simulations accompanied by the delay of the CIs entering the model.

Zoom In Zoom Out Reset image size

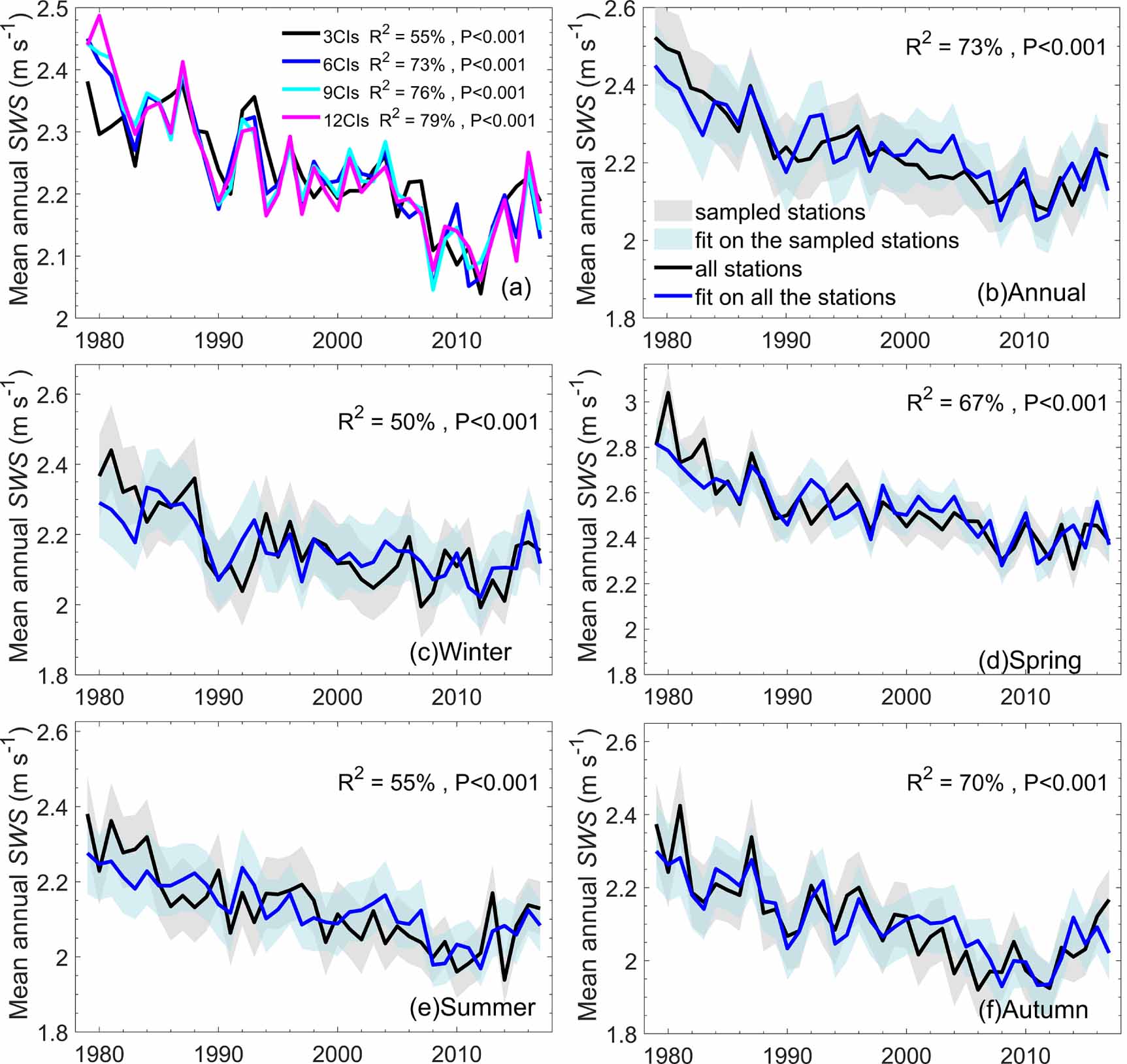

Based on the FSRA, the RWSs matched the observations well from 1979 to 2017, implying that the RWSs were capable of reproducing the observation changes. The correlations between the RWSs and observations were 0.86 (P< 0.001), 0.71 (P< 0.001), 0.80 (P< 0.001), 0.73 (P< 0.001), and 0.84 (P< 0.001) for mean annual, winter, spring, summer, and autumn, respectively (figures 4(b) and (f)). The detrended RWSs and observations were analyzed, and the results also showed that both the RWSs and observations displayed synchronous variability after detrending. The goodness-of-fit between the detrended RWSs and observations reached 0.75 (P< 0.001), 0.69 (P< 0.001), 0.77 (P< 0.001), 0.54 (P< 0.001), and 0.66 (P< 0.001) in annual mean, winter, spring, summer, and autumn, respectively (figure S3). Hence, the effect of LOACs on the SWS variations was significant. We also investigated whether the selected CIs displayed the TPs in 2011, finding that some did, although the fitted equations of most CIs were not significant (table S2). Consequently, we concluded that SWS changes cannot be simply linked with just one ocean-atmosphere oscillation index, but should be determined by the combined effects of variations in multiple LOACs.

Since the RWSs can capture the temporal changes of the observed SWSs, the contributions of LOACs to the tendencies of SWSs can be estimated. Both the RWSs and observations exhibited decreasing trends in all four seasons. The largest trend difference was found in spring (0.040 m s⁻¹ decade⁻¹), and the smallest in autumn (0.019 m s⁻¹ decade⁻¹) (figure 5(a)). The reductions in observed SWSs can be impacted by LOACs (Zeng et al 2019), urbanization (Li et al 2018a), aerosols (Bichet et al 2012), greenhouse gases (GHGs) (Zha et al 2020), and other factors, although the RWSs only include the LOACs effects. Accordingly, the reductions of the RWSs were slower than those of the observations. The contribution of LOACs to the downward trend of SWS was >70.0%; thus, the total contribution of other factors was <30.0%. The largest contribution was found in autumn (82.75%), and the smallest in winter (70.30%). After the TP, both the RWSs and observations exhibited increasing trends in all four seasons, with the RWS trends weaker than those of the observations (figure 5(b)). The contribution of LOACs to the upward trend of SWS was >60.0% in all seasons but autumn. The largest contribution was found in spring (91.02%), and the smallest in autumn (41.01%). These results indicate that the SWS slowdown before the TP and the increase after can mainly be attributed to the variations of LOACs.

Zoom In Zoom Out Reset image size

The above results demonstrate that the SWS reversal in the recent decades is an established phenomenon. In this section, we investigate whether the SWS strengthening will continue in the future. First, the performance of the CMIP6 models in simulating the historical SWS over eastern China was evaluated (table S3). Significant positive correlations were found in six of the 23 models, with the largest correlation in the EC-Earth3 (0.63). The wind speed difference (WSD) between the CMIP6 and observations exhibited positive values in all models, with a mean bias of 1.22 ± 0.58 m s⁻¹. The WSD between the EC-Earth3 and observations was 1.24 m s⁻¹, which was close to the mean bias of all models. Of the 23 models, the strongest weakening was found in the EC-Earth3 (–0.044 m s⁻¹ decade⁻¹). A comparison of the correlation coefficient, WSD, and trends of the EC-Earth3 with those of the other models revealed that the EC-Earth3 simulation of the SWS changes exhibited better performance. Accordingly, the EC-Earth3 was selected to project the SWS changes. The EC-Earth3 has been extensively used in many fields and has been demonstrated to be capable of capturing the correct patterns of LOACs (Doblas-Reyes et al 2017, Han et al 2020, Ringgaard et al 2020, Wyser et al 2020). Most CMIP6 models cannot satisfactorily assimilate significant reductions in SWS (table S3), possibly because changes in surface roughness are not included in the surface boundary conditions of the models, or perhaps due to missing model physics, inappropriate model resolution, or inaccuracy of atmospheric boundary layer processes implemented in the data assimilation systems (Chen et al 2012, Zeng et al 2019). Hence, more efforts are required to improve surface process parameterization schemes and their connections to LOACs in climate models and operational weather data assimilation systems (Zeng et al 2019).

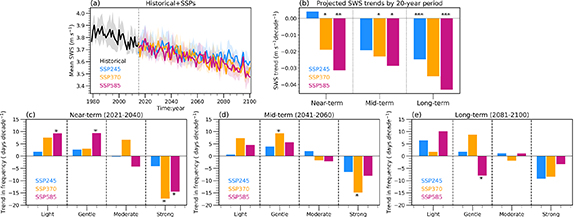

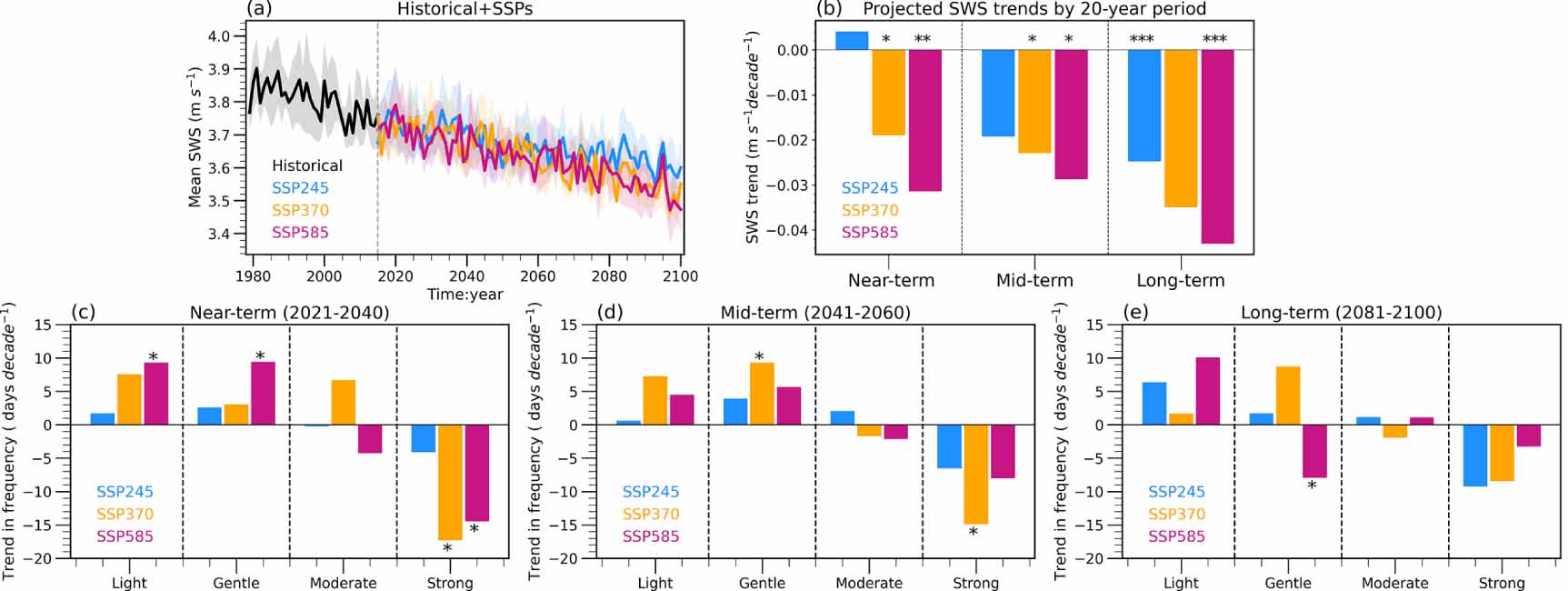

The SWS is predicted to exhibit a decreasing trend in the future (2021–2100), with the downward trend in the SSP585 scenario being stronger than that of either the SSP245 or SSP370 (figure 6(a)). For the near-term, mid-term, and long-term periods, the SWS only showed an increase in the near-term under the SSP245. Comparing the near-term and mid-term predictions with the long-term, a stronger SWS reduction was found in the long-term. Consequently, the reversal is only expected to last for a short period before winds start decreasing again. Moreover, enhanced decreasing trends were associated with stronger emission scenarios, with the most pronounced decreasing trend found in the SSP585 (figure 6(b)). Similar results have also been reported in previous studies. For instance, Li et al (2020) found that the wind speed may decrease over East Asia. Jiang et al (2018) predicted that the wind speeds during the 21st century will decrease slightly in China. Gao et al (2019) discovered that the wind resources in most parts of China exhibited slight decreases under the RCP4.5 and RCP8.5 scenarios. Research estimating the changes of different wind categories in the future remain insufficient, however.

Zoom In Zoom Out Reset image size

Given that the future changes of SWS could be caused by the changes of different wind categories, the frequency trends for different types of windy days were determined. For the near-term projections (figure 6(c)), under the SSP245, SSP370, and SSP585 scenarios, the frequency of light winds increased, at rates of 1.7, 7.5, and 9.3 d decade⁻¹, respectively, and the gentle winds increased at rates of 2.6, 3.1, and 9.4 d decade⁻¹, respectively, although the strong winds decreased, at rates of −4.1, −17.3, and −14.5 d decade⁻¹. Accordingly, as emissions increased, days with light and gentle winds increased while days with strong winds decreased. The decreasing trend of days with strong winds in the SSP245 was weaker than the trends in the SSP370 and SSP585; hence, compared to the SSP370 and SSP585, a weak SWS recovery was found in the SSP245. For the mid-term and long-term projections, the reductions in annual mean SWSs were induced by the decreases of the days with strong winds in all SSPs.
