Vulnerability of European wheat to extreme heat and drought around flowering under future climate

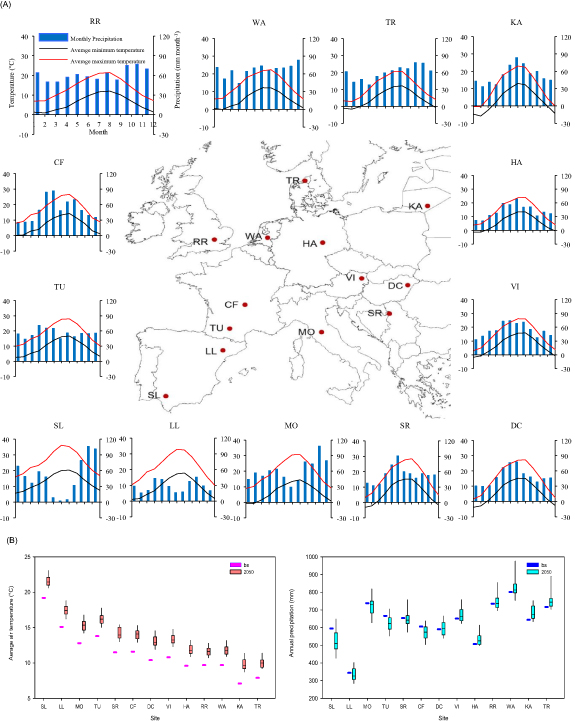

Wheat is the major crop in Europe and a total of 13 sites representing major wheat growing regions were selected for the present study. These study sites cover most of the dominant and contrasting wheat production climatic conditions across Europe (figures 1 and S1, table S1 (available online at stacks.iop.org/ERL/16/024052/mmedia)). Two sites were selected from the north-west (NW) Europe viz. RR: Rothamsted, UK and WA: Wageningen, Netherlands, and another two sites were selected from north-east (NE) Europe viz. TR: Tylstrup, Denmark; KA: Kaunas, Lithuania. Four sites were chosen from central-east (CE) Europe viz. HA: Halle, Germany; VI: Vienna, Austria; DC: Debrecen, Hungary and SR: Sremska, Serbia. Three sites were selected from central-west (CW) Europe viz. CF: Clermont-Ferrand and TU: Toulouse, France and MO: Montagnano, Italy. Two sites were chosen from south-west (SW) Europe viz. LL: Lleida and SL: Seville, Spain.

Zoom In Zoom Out Reset image size

The LARS-WG stochastic generator (LARS-WG 6.0) (available at https://sites.google.com/view/lars-wg/) [45, 47, 48] was used to generate the baseline climate based on the observed daily weather for the period 1981–2010, and the predicted future 2050-climate for the period 2041–2060, based on the climate projections from 19 GCMs from the CMIP5 ensemble for the RCP8.5 emission scenario [49]. Observed daily weather during 1981–2010 were collected from local meteorological stations at 13 study sites through the European MACSUR project. A 100 year baseline climate was generated by using LARS-WG for each site with the same statistical characteristics as the observed data for 1981–2010 and an atmospheric CO₂ concentration ([CO₂]) of 364 ppm. The 100 year, site-specific baseline climates were used to account for variation in wheat yield due to inter-annual variability in climate and climatic extreme events, and to make our study comparable with other climate impact studies [15, 34, 39, 50]. The mean annual air temperature and precipitation of the baseline climate ranged from 7.1 °C to 19.2 °C and 344 to 801 mm yr⁻¹, respectively (figure 1). The north European study areas are generally cooler and moist, whereas southern are relatively warmer and drier. A total of 19 GCMs from the CMIP5 multi-model ensemble [49] used in the IPCC Assessment Report 5 (AR5) [51] were used for climate projections for the 2050-climate (period 2041−2060) assuming a representative concentration pathway RCP8.5 with an atmospheric [CO₂] of 541 ppm (table S2). The RCP8.5, business-as-usual or a worst-case emission scenario, combines assumptions about high population and modest technological improvements, leading to high energy demand, with the highest greenhouse gas concentration and a radiative forcing of +8.5 W m⁻² by 2100 [52]. The period 2050 was used as 'near future', usually used in model-based assessments of climate change impact on crop productivity [11, 50], whereas RCP8.5 was used as the most extreme or worst emission scenario to assess wheat vulnerability in Europe [52]. Using 19 GCMs from the CMIP5 ensemble allowed to estimate uncertainty in simulated wheat yield and vulnerabilities under future climate due to GCMs. LARS-WG was used to downscale GCM projections to a local scale [45]. At each site and for each GCM climate projection for the 2041−2060 period, with RCP8.5, 100 year of daily future weather data were generated using LARS-WG, hereafter defined as the 2050-climate. Averaged over the GCMs, the predicted average annual air temperature under the 2050-climate increased by 2.4 °C compared with the baseline climate, whereas annual precipitation decreased by 1.2% in Europe with wide site and seasonal variations (figures 1 and S1). For example, predicted future 2050 climate in the northern Europe is characterized with warmer (1.6 °C–2.6 °C) and wetter (7%–12%) spring and winter, whereas warmer (2.0 °C–2.4 °C) and drier (4%–7%) summer than the baseline climate. On the other hand, southern and eastern Europe is mostly hotter (2.0 °C–3.4 °C) and drier (3%–19%) in spring and summer under 2050 climate than the baseline.

The Sirius wheat model [38, 40, 41, 53, 54] was used to simulate crop growth and grain yield under baseline and future climatic conditions across Europe. Sirius is a process-based eco-physiological crop model, consisting of different sub-models that describe soil, plant, water and nitrogen uptake, photosynthesis, phenological development, and partitioning of photosynthates into leaf, stem, grain and root. Sirius runs on a daily time-scale and requires daily weather data, soil descriptions, crop management and cultivar information as inputs. Photosynthesis and biomass production are estimated from intercepted, photosynthetically active radiation and radiation use efficiency (RUE), limited by temperature and water stresses. Radiation interception depends on leaf area and the light extinction coefficient. Wheat canopy is simulated as a series of leaf layers associated with individual mainstem leaves. Leaf area development in each layer is simulated by a thermal time sub-model. The final leaf numbers are determined by combined responses to day length and vernalisation. Crop phenological development is linked to the mainstem leaf appearance rate (phyllochron), day length and vernalization responses, and duration of grain filling. Leaf senescence is expressed in thermal time and linked to the rank of the leaf in the canopy. Total canopy senescence synchronizes with the end of grain filling. In Sirius, RUE is proportional to atmospheric CO₂ concentration, which agrees well with different field experiments for a C3 crop such as wheat [55]. Soil is described as a cascade of 5 cm layers up to a user-defined depth. Roots continue to grow until reaching a soil-dependent maximum depth or until anthesis, whichever occurs first. Each soil layer contains root available water (RAW) (water potential <−1.5 MPa) and unavailable water (water potential >−1.5 MPa), depending on its water retention characteristics. Only a proportion of the available soil water can be extracted by plants from each layer of the root zone on any day, depending on the efficiency of water extraction and the rate of root water uptake. Daily evapotranspiration is calculated as the sum of transpiration and soil evaporation. Temperature, water stresses and nitrogen shortage could accelerate leaf senescence and limit photosynthesis and assimilates production, phenological development, grain filling period and crop-duration, as well as translocation of the plant labile photosynthate reserve into the grain, and finally grain yield.

In addition to the effects of temperature and water stresses throughout a crop's lifecycle, the impacts of short-term climatic extreme events, such as heat and drought stresses around flowering, on primary fertile grain setting number and grain size have been incorporated into Sirius, based on current knowledge of crop physiology from field experiments [40, 41]. In the absence of heat and drought stresses around flowering, grain yield will be determined by the source capacity of the crop, and the potential sink capacity of the grains (Y_pot, g m⁻²), which is estimated as the product of dry matter accumulation in ears prior to anthesis (DM_ear, g m⁻²), the potential primary grain setting number per unit of ear dry mass (N_pot, grains g⁻¹) and the potential weight of an individual grain (W_pot, g grain⁻¹) [40, 41]:

$$\begin{equation*}{Y_{{\text{pot}}}} = {\text{D}}{{\text{M}}_{{\text{ear}}}} \times {N_{{\text{pot}}}} \times {W_{{\text{pot}}}}.\end{equation*}$$

The actual number of primary fertile grains set (grains g^{– 1}) is reduced due to heat and drought stresses around flowering, as described below. Table S3 shows important cultivar parameters used in Sirius.

2.3.1. Simulation of the impact of heat stress around flowering in Sirius

To account for the effect of high temperature on meiosis and fertilization, the number of fertile grains produced per unit of ear dry mass is reduced when the maximum canopy temperature T^A _max (°C) during a period from 10 d before to anthesis exceeds a threshold temperature T^N (°C) by using a heat reduction factor of fertile grain number (R_H, dimensionless) [41]:

$$\begin{equation*}{R_{\text{H}}} = {\text{ max (}}0,{\text{ min ( }}1,{\text{ }}1{\text{ }} - {\text{( }}{T^A}_{{\text{max}}} - {T^N}{\text{) }} \times {S^N}{\text{))}}\end{equation*}$$

where S^N (°C^–1) is the slope of the grain number reduction per unit of canopy temperature above T^N. A frost reduction factor of fertile grain number (R_F, dimensionless) decreases linearly from 1 to 0 if the minimum canopy temperature T^A _min (°C) during a period from −3 to +3 d around flowering is below a threshold of 0 °C [41]:

$$\begin{equation*}{R_{\text{F}}} = {\text{ max }}\left( {0,{\text{ min }}\left( {1,{T^A}_{{\text{min}}} + {\text{ }}1} \right)} \right).\end{equation*}$$

The actual number of grains per unit of ear dry mass (N_H, grains g^–1) is the product of the potential number of grains by the heat and frost reduction factors [41]:

$$\begin{equation*}{N_{\text{H}}} = {N_{{\text{pot}}}} \times {R_{\text{H}}} \times {R_{\text{F}}}.\end{equation*}$$

The potential weight of each grain (W_pot) could be limited by heat stress during endosperm development. W_pot is reduced if the maximum canopy temperature T^S _max (°C) exceeds a threshold temperature T^W (°C) around 5–12 d after flowering; i.e. at the beginning of grain filling. The actual weight of a single grain limited by heat stress (W, g grain^–1) is estimated as [41]:

$$\begin{equation*} W = {W_{{\text{pot}}}} \times {\text{ max ( }}0,{\text{ min (}}1,{\text{ }}1{\text{ }} - {\text{( }}{T^S}_{\text{max}} - {T^W}{\text{) }} \times {S^W}{\text{))}}\end{equation*}$$

where S^W (°C^–1) is the slope of the potential weight reduction per unit of canopy temperature above T^W .

2.3.2. Simulation of the impact of drought stress around flowering in Sirius

Under drought stress around flowering, the number of primary fertile grains set is reduced due to abnormal reproductive development and abortion, and male and female sterility [20, 23]. In Sirius, the number of primary fertile grains set per unit of ear dry matter is reduced due to drought stress around flowering by using a drought stress factor (DSF, dimensionless) and drought reduction factor (R, dimensionless) [40]. The DSF is estimated from the ratio of actual transpiration (T_a) to potential transpiration (T_p) during reproductive development. The actual number of grains per unit of ear dry matter (N_D, grains g⁻¹) is estimated as the product of the potential number of grains and R_D [40]:

$$\begin{equation*}{N_{\text{D}}} = {N_{{\text{pot}}}} \times {R_{\text{D}}}\end{equation*}$$

where R_D=1, if DSF>DSGNT; R_D=DSGNR_Max+ S × (DSF−DSGNS), if DSGNS<DSF< DSGNT; R_D=DSGNR_Max, if DSF⩽DSGNS; DSGNT is the drought stress grain number reduction threshold, while DSGNR_Max is the maximum drought stress grain number reduction, DSGNS is the drought stress grain number reduction saturation, and S is the slope of the grain number reduction.

The actual wheat yield limited by drought and heat stresses around flowering, Y, is calculated as [40]:

$$\begin{equation*}Y = {\text{D}}{{\text{M}}_{{\text{ear}}}} \times {\text{ min }}\left( {{N_{\text{H}}},{N_{\text{D}}}} \right){\text{ }} \times W\end{equation*}$$

In the present study, site-specific current local wheat cultivars were used for both baseline and 2050-climates, viz. Avalon, Cartaya, Claire, Creso, Mercia and Thesee (table S1). All cultivars were assumed to be sensitive to heat and drought stress around flowering [40, 41]. The detailed cultivar characteristics can be found in table S3. Sirius version 2018 (available at https://sites. google.com/view/sirius-wheat) was used in the present study. A common medium soil with the AWC of 177 mm was used at all sites to eliminate site-specific soil effects from the analysis. Sirius was run in rainfed conditions with no nutrient limitation. An optimal crop management was assumed under the baseline and future 2050-climates, i.e. no yield losses due to disease, pests or competition with weeds were incorporated. The baseline simulations (bs) were done by running Sirius for local cultivars with the medium soil for 100 years of baseline climate, with an atmospheric [CO₂] of 364 ppm. Future model simulations in 2050 (2050) were done by running the model for local cultivars with the medium soil for 100 years of 2050-climate, with an atmospheric [CO₂] of 541 ppm as defined in RCP8.5. In simulations, the atmospheric CO₂ concentration of 364 ppm was fixed under the baseline climate, whereas CO₂ concentration of 541 ppm was fixed for 2050-climate.

In addition to climate change impacts, the effects of early sowing on wheat yield and yield vulnerability were assessed by sowing wheat 30 d earlier than the corresponding local current sowing dates, both under baseline climate (bs.30) and 2050-climate (2050.30). The impact of soil type was assessed by running Sirius with a soil characterised by low AWC (125 mm) and high AWC (243 mm) at each site both under baseline and 2050-climate. These medium, low and high AWC were selected from Sirius soil dataset to cover the diverse range of soils in the major wheat growing regions of Europe. To estimate the effect of CO₂ concentration on wheat yield under future climate, Sirius was run for 2050-climate with an atmospheric [CO₂] of 364 ppm (2050.CO₂364) and compared with the grain yield with an atmospheric [CO₂] of 541 ppm, as under 2050-climate for RCP8.5 (2050).

Wheat yield vulnerability due to extreme or severe heat and drought stress around flowering was quantified by computing 95-percentile (95p) of two indexes, viz. 95p of Heat Stress Index (HSI95) and 95p of Drought Stress Index (DSI95) [40, 41]. Heat Stress Index (HSI) is defined as [41]:

$$\begin{equation*}{\text{HSI }} = {\text{ }}\left( {1 - {Y_{\text{H}}}/Y} \right)\end{equation*}$$

where Y is the water-limited yield of a cultivar tolerant to heat and drought stress around anthesis, while Y_H is the water-limited yield of a cultivar sensitive to heat stress around flowering only. Drought Stress Index (DSI) is defined as [40]:

$$\begin{equation*}{\text{DSI }} = {\text{ }}\left( {1 - {Y_{\text{D}}}/Y} \right)\end{equation*}$$

where Y_D is the water-limited yield of a cultivar sensitive to drought stress around flowering only. HSI95 and DSI95 represent the relative yield losses due heat stress or drought stress around flowering that could be expected to occur once every 20 years on average. HSI95 and DSI95 were used to compare wheat yield vulnerability under bs and future (2050) climates.

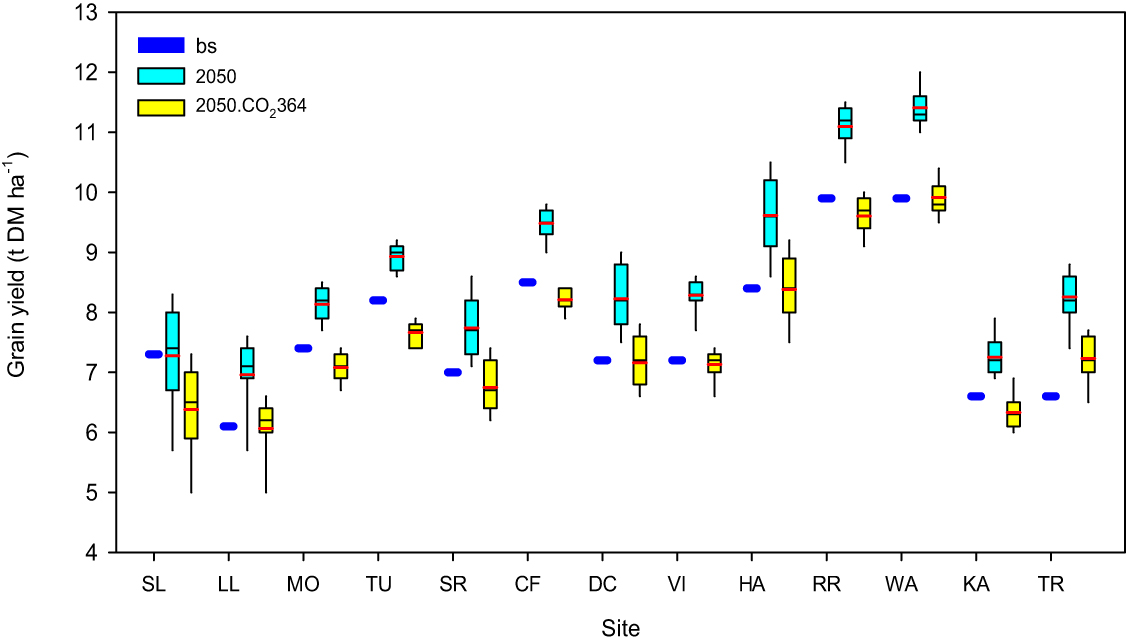

The simulated grain yield of local wheat cultivars under bs varies from 6 t ha⁻¹ in SW-Europe (LI, Lleida, Spain) up to 10 t ha⁻¹ in NW-Europe (RR, Rothamsted, UK and WA, Wageningen, Netherlands), with an average yield of 7.7 t ha⁻¹ over Europe as a whole (figure 2). These simulated grain yields represent the yield of current wheat cultivars under optimal agronomic management in current climatic conditions across Europe. The current simulated wheat yields are close to the actual yields achieved in a good year and the optimal yield potentials under best management (4–12 t ha⁻¹) across Europe [56–60]. Elevated temperature under a future climate would accelerate the rate of phenological development, bringing forward anthesis and maturity [61]. Averaged over GCMs and study sites, simulated anthesis and maturity were 12 d and 15 d earlier, respectively, under the predicted 2050-climate compared with the baseline (figure 3). Thus, mean crop-duration (sowing to maturity) for the currently grown wheat cultivars could be reduced by 5%–8% across Europe under the 2050-climate, resulting in reduced cumulative intercepted radiation, grain filling period and ultimately grain yield. On average, a 2.5% yield reduction was projected under the 2050-climate with a maximum decrease of 13% at the SL site (Seville, Spain) if the atmospheric CO₂ concentration remains at the baseline level of 364 ppm. However, the climate change impact was positive at the TR site due to the avoidance of drought stress because of early flowering and maturity (figures 2–4).

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Rising atmospheric CO₂ concentration was predicted to increase crop productivity and compensate for the yield reduction due to warming in 2050. When the CO₂ effect under the 2050-climate was included (CO₂ rising to 541 ppm), the yield of current wheat cultivars (2050) varied from 5 to 12 t ha⁻¹ across GCMs and study sites, representing an average increase in grain yield of 12% compared with the baseline. A total of 19 GCMs from CMIP5 (table S2) were used in the present study to assess uncertainty in the predicted 2050-climate. The mean coefficient of variation (CV) of yield (2050) due to the different GCMs was 5.6% (figure 2).

The present study revealed that an increase in the atmospheric CO₂ level to 541 ppm (RCP8.5) under the 2050-climate could increase wheat yield by 12%–18% across Europe (figure 2). Although the magnitude of the effect of CO₂ fertilization on crop yield under the future climate is uncertain, different FACE experiments across the world have reported 8%–26% increases in grain yield with an elevated atmospheric [CO₂] of 550 ppm, compared with 360 ppm [62]. Sirius responses to increased temperature and CO₂ concentration were calibrated and validated against the Free-Air CO₂ Enrichment (FACE) experiments [35, 37, 63] and tested in several global AgMIP studies [15, 34, 39]. In Sirius, RUE increases with increasing atmospheric [CO₂], with an increase in RUE of 30% for a doubling in [CO₂] compared with the baseline of 364 ppm, which agrees well with different field-scale CO₂ enrichment experiments for C3 crops, including wheat [55]. A similar response has been used by other wheat models in various studies [35, 64, 65]. Many regional and global studies have projected both positive and negative climate change impacts on wheat yield across the world, but most agreed to a net small positive impact on wheat yield at higher latitudes, such as in Europe [11, 34, 66].

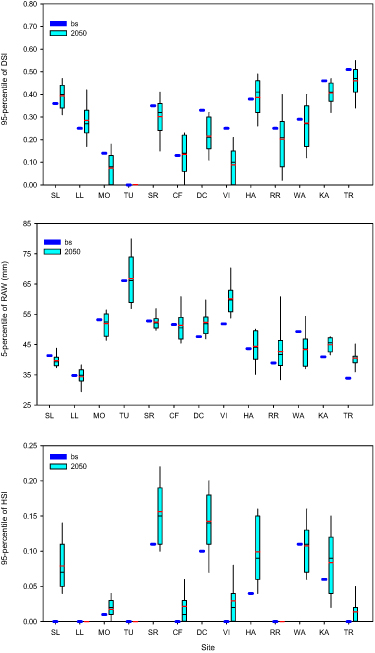

The mean DSI95 due to extreme drought around flowering under the baseline climate was large (DSI95 ∼ 0.28) over Europe, with high site variation. The highest DSI95 was in NE-Europe (0.46–0.51), followed by SW- and CE-Europe (0.25–0.38), NW- and CW-Europe (0–0.29) (figure 4). Early flowering due to elevated temperature under the 2050-climate would help by increasing RAW slightly (∼4%) at flowering compared with the baseline climate, and thus may reduce yield losses to some degree from drought stress around flowering (figures 3 and 4). Hence, mean DSI95 was predicted to reduce by 12% under the 2050-climate compared with the baseline. However, DSI95 could increase under the 2050-climate in some parts of Europe, particularly SW-Europe where a 9%–12% increase was predicted. The mean uncertainty in DSI95 due to the different GCMs 2050 climate projections was moderate (CV = 0.40) with a wider variation across study sites (0 < CV ⩽ 0.90). Nevertheless, overall wheat yield vulnerability due to severe drought around flowering under the 2050-climate in Europe remained high (DSI95 ∼ 0.25). The highest wheat vulnerability was predicted in SW- and NE-Europe (0.15 ⩽ DSI95 ⩽ 0.57), followed by CE- (0 ⩽ DSI95 ⩽ 0.50), NW- (0 ⩽ DSI95 < 0.50) and CW-Europe (0 ⩽ DSI95 ⩽ 0.27). Wheat yield loss due to extreme drought stress around flowering has been reported to range between 10% and more than 50%, depending on the cultivar and the intensity, frequency and duration of exposure to the drought stress [20, 22, 23, 31, 40].

In contrast to the DS195, the HSI95 under the baseline climate was small across Europe (HSI95 ∼ 0–0.11), with an average HSI95 of 0.03 over the study sites (figure 4). However, in spite of early flowering under the 2050-climate, wheat HSI95 was predicted to rise at most of the sites, with an average increase of 79%. The hot spots of wheat yield vulnerability due to severe heat events around flowering under future climate were predicted to be in the CE-Europe (HSI95 up to 0.23 at the SR, DC and HA sites), NW-Europe (HSI95 up to 0.17 at the WA site), SW- and NE-Europe (HSI95 up to 0.16 at the SL and KA sites). The CV of DSI95 due to GCMs varied between 0 < CV ⩽ 0.76 across all the sites, with a mean of 0.24. Grain yield loss due to heat stress varies widely depending on the timing, duration and intensity of heat stress [16]. The observed wheat grain yield reduction from field experiment has been reported to be between 4% and 7% for every 1 °C rise in average maximum temperature above the optimum at anthesis depending on the wheat cultivar [24].

The impact of early sowing of current wheat cultivars on future yield vulnerabilities was estimated by comparing DSI95 and HSI95 for current and earlier sowing dates. The 30 d early sowing under the baseline and future climates increased mean grain yields (bs.30 and 2050.30) overall marginally (1%–4%) compared with the current sowing dates (bs and 2050) (figure S2). However, the 30 d early sowing of current wheat cultivars under the 2050-climate could reduce the DSI95 by up to 53%, for example at SL, while increasing the DSI95 at other sites, for example HA and RR (figure S2). Similarly, 30 d early sowing could reduce the HSI95 under the 2050-climate by up to 77%, for example at the SL and CF sites, but might increase the HSI95 at some other sites (figure S2). Some recent studies have indicated that heat and drought stress impacts on crop yield could be avoided to some degree under the future climate by early sowing, as a result of early flowering before the onset of heat and/or drought stress [46, 67]. However, the benefits of early sowing in this study were highly site-specific due to local climatic conditions and agronomic management practice, including the choice of cultivars. Our study indicates that the average impact of early sowing on wheat yield vulnerability due to extreme drought and heat stress around flowering in the future climate would possibly be relatively small (4%–11%) over Europe.

The simulated grain yield of current wheat cultivars under the baseline climate with a soil characterised by low AWC (125 mm: bs.AWC125) varied from 2.8 to 7.4 t ha⁻¹, with a mean yield of 4.8 t ha⁻¹ (figure S3). Mean yield under the future climate (2050.AWC125) was predicted as 5.4 t ha⁻¹, with DSI95 and HSI95 at 0.69 and 0.07, respectively (figure S3). Thus, future wheat yield vulnerability with a lower AWC (125 mm) could be 1.8 times greater from extreme drought and 15% higher from extreme heat compared with the corresponding DSI95 and HSI95 with a medium AWC of 177 mm. The reduced grain yield, and greater future yield vulnerability of current wheat cultivars grown in a soil with lower AWC result from lower RAW at flowering due to the lower AWC (figure S3) [13].

In contrast, the baseline yield with a soil characterised by high AWC (243 mm: bs.AWC243) varied from 7.6 to 11.0 t ha⁻¹, with a mean yield of 8.8 t ha⁻¹ (figure S4). Average grain yield was predicted as 9.8 t ha⁻¹, with DSI95 and HSI95 under the 2050-climate at 0.04 and 0.05, respectively (figure S4). Thus, DSI95 and HSI95 under the 2050-climate with higher AWC (243 mm) could be 85% and 10% lower, respectively, compared with the corresponding yield vulnerabilities with a medium soil type (AWC = 177 mm). Increased RAW due to larger AWC resulted in higher grain yield, as well as lower yield vulnerability under the future climate (figure S4).

Wheat-growing soils vary considerably across Europe and site-specific soils might not represent the most important wheat-growing soils. It is common practice to use a representative soil type in studies of climate change impacts on crop genotypes in order to eliminate site-specific soil effects from site comparisons of the climate signal [12, 50, 68]. However, the results presented here show that future wheat yield as well as yield vulnerability would vary with soil type. The simulated management optimal wheat grain yields under rainfed baseline climate (bs ∼ 6–10 t ha⁻¹; bs.AWC125 ∼ 3–7 t ha⁻¹; and bs.AWC243 ∼ 8–11 t ha⁻¹) obtained in the present study, and the reported management optimal rainfed wheat yields or yield potentials in Europe (4–12 t ha⁻¹) [56, 58] indicate that a medium soil type (AWC = 177 mm) is a good representation of an average wheat-growing soil for a climate change impact study, such as this one. Our study did not consider irrigation, as the majority of Europe wheat production is rainfed and future irrigation opportunities are likely to be limited by the scarcity of water resources and existing legal requirements [69].

There are few limitations in the present study. All six local cultivars selected in this study have the same set of parameters for heat and drought susceptibility around flowering due to lack of experimental data for individual cultivar calibration. Cultivar parameters for heat stress were calibrated using data sets from the hot serial cereal experiment and a temperature treatment experiment [41, 70, 71], whereas cultivar parameter for sensitivity to drought stress around flowering were based on expert knowledge and previous experience [40].

The impacts of heat and drought stresses around flowering on grain numbers and grain yields were modelled independently, and the combined effect of heat and drought stresses on yield formation was not investigated. In the current Sirius implementation, the potential grain yield will be reduced by the reduction factor R =min (R_H , R_D), where R_H and R_D are reduction factors of the potential grain number N_pot as a result of heat or drought stress around flowering. As an alternative formulation, reduction factors due heat or drought stresses could interact with each other, e.g. R = R_H × R_D. The lack of experimental data did not allow us to differentiate between these two alternative formulations.

Elevated CO₂ generally causes reductions in stomatal density, stomatal conductance and as a result in reduction of leaf transpiration and an increase in water-use efficiency. Yet, the reverse response might occur as well, when elevated CO₂ interacts with other climatic factors [72]. In Sirius, elevated CO₂ increases radiation-use efficiency, but stomatal responses to elevated CO₂ was not modelled. Still, Sirius was able to reproduce well wheat growth and water uptake for different CO₂ and drought treatments in a field environment in FACE experiments in Maricopa, Arizona compared with other wheat models where stomatal responses to elevated CO₂ were incorporated [35]. However, uncertainty still remains if stomatal responses to elevated CO₂ might reduce the effect of drought during reproductive development on yield formation.
