Direct mineralization of atmospheric CO2 using natural rocks in Japan

and

Published 27 November 2020 © 2020 The Author(s). Published by IOP Publishing Ltd
, , Citation Corey Myers and Takao Nakagaki 2020 Environ. Res. Lett. 15 124018 DOI 10.1088/1748-9326/abc217

Download Article PDF
DownloadArticle ePub

You need an eReader or compatible software to experience the benefits of the ePub3 file format.

1748-9326/15/12/124018

Abstract

Gas-solid mineralization of atmospheric CO2 using naturally abundant surface rocks under ambient conditions and without thermochemical treatment was analyzed for application in Japan. Based on an empirically-verified theoretical framework, a tiered greenhouse containing finely ground rocks was designed with low-speed induced airflow to realize CO2 mineralization reactions over 1 year. Negative CO2 emissions were calculated accounting for CO2 emissions from energy generation, materials production, and removal of vegetation and soil. Under practicable operating conditions, negative emissions using crystalline surface rocks in Japan can reach ∼7.6 Gt-CO2/y achieved across 726 sites. The average energy requirement was calculated to be 1.5 GJ t−1-CO2 with an average land requirement of 1.1 km2 per Mt-CO2 annual removal capacity. Carbon debt is paid off after 60 d of operation.

Export citation and abstract BibTeX RIS

Original content from this work may be used under the terms of the Creative Commons Attribution 4.0 license. Any further distribution of this work must maintain attribution to the author(s) and the title of the work, journal citation and DOI.

1. Introduction

The need to deploy negative emission technologies (NETs) at the gigatonne per year scale to meet the Paris Climate Agreement is becoming unavoidable, with discussions moving to equity in deployment (Pozo et al 2020). Many NETs propose stabilizing CO2 using the calcium and magnesium content of the lithosphere (rocks). Such rock-based methods can be subdivided into those where reactions occur in the environment ('dispersive') and those that make use of reactors ('centralized'). Dispersive methods leverage the large scale of the environment, and in some cases biological processes, to more easily reach megatonnes to gigatonnes of negative CO2 emissions (Minx et al 2018, Kelemen et al 2019). When occurring above ground, the Mg/Ca content is generally intermixed with the ecosystem, complicating verification of CO2 removal. Dispersive methods create additional concerns related to alteration of the biosphere and carbon cycles (Keller et al 2018). Carbon dioxide mineralization in geological reservoirs avoids the above issues but requires the capture of CO2, adding cost and complication. By using reactors, centralized methods avoid the issues associated with dispersive methods. However, the reactors often become the process bottleneck, leading centralized methods to typically utilize some combination of grinding, chemical additives, high temperatures, and elevated CO2 concentrations to accelerate reactions (Power et al 2013). Full life cycle assessments reveal centralized methods often become net CO2 emitters (Ncongwane et al 2018).

We propose a middle-ground solution: directly mineralize atmospheric CO2 via gas-solid reaction with finely ground rocks in a tiered greenhouse (direct air mineralization). Operating in a greenhouse prevents dispersion of Mg/Ca and simplifies quantification of net CO2 removal. The tiered structure increases the rock-air surface area for a given footprint, avoiding issues with insufficient air supply that have typically limited mineralization of atmospheric CO2 (Nowamooz et al 2018). High relative humidity, necessary for continuous CO2 mineralization (Mckelvy et al 2001, Smith et al 2014, Longo et al 2015), is passively maintained by trays of water-saturated salt in the greenhouse. As direct air mineralization occurs without additives—and at ambient temperature, pressure, and CO2 concentration—the energy and materials-related CO2 emissions that often hobble centralized methods are minimized. The carbonated powder can then be used in infrastructure and construction as a filler. Approaches utilizing similar principles are found in the literature but lack a detailed engineering design of equipment (e.g. Power et al 2020). Likewise, global-scale potential of rock-based NETs is often reported (Strefler et al 2018), but the lack of country-level detail provides little guidance to the governments and companies who could implement them.

We provide a general equipment design for direct air mineralization and examine its feasibility and applicability in Japan. We calculate the negative CO2 emissions based on rock-dependent empirical CO2 mineralization rates and include CO2 emissions from materials production, energy generation, vegetation loss, and soil removal.

2. Methods

2.1. Gas-solid CO2 mineralization

Gas-solid mineralization of CO2 using minerals as a climate change mitigation strategy was first researched in detail in the mid 1990s (Lackner et al 1995). The work failed to produce CO2 mineralization in industrially relevant time scales due to the lack of humidity and a failure to appreciate the passivating nature of the product layer. Ion diffusion through the product layer, not gas phase diffusion or the mineralization reaction, is typically the rate-limiting step in engineered processes. Product layer passivation is conventionally modeled using the shrinking core model (SCM) per equation (1) (Yagi and Kunii 1955). The time ($t$: s) for a reaction to reach a depth ($\delta $: m) for a particle of radius ($r$: m) is a function of the density of Ca and Mg in the solid (${\rho _{{\text{solid}}}}$; moles/m3-rock), the gas phase concentration of CO2 (${C_{{\text{gas}}}}$; moles/m3-gas), and the ion diffusivity through the product layer ($D$: m2/s).

Equation (1)

Equation (1) indicates the relative effectiveness of different methods to accelerate CO2 mineralization. Increasing the CO2 concentration from atmospheric to pure CO2 at standard temperature and pressure accelerates mineralization by ∼103.4. Grinding from 10 mm to 10 µm accelerates mineralization by 106. In comparison, $D$ varies by a factor of ∼107 for relevant crystalline minerals (Myers et al 2019). Additionally, the $D$ for most amorphous compounds is ∼103–105 times slower than compositionally equivalent crystalline minerals. Thus, rock selection is the critical step in achieving rapid gas-solid CO2 mineralization. Further acceleration of CO2 mineralization can be achieved simply and cheaply by grinding.

An additional consideration for direct air mineralization is the mixed nature of most rock formations. The bulk diffusivity (${D_{{\text{bulk}}}}$) of rock can be calculated from the constituent mineral diffusivities (${D_i}$) and volume concentrations (${\varphi _i}$) by effective medium theory (EMT) as shown in equation (2).

Equation (2)

However, EMT does not account for instances when reactive minerals are completely occluded by neighboring unreactive minerals ('mineral locking'). Since mineral locking emerges from geometric relationships, it can be remedied by extensive grinding. Note that when particles are ground close to the internal crystal grain size, ${D_{{\text{bulk}}}}$ reverts to ${D_i}$. However, as particle diameters approach ∼1 µm, grinding tends to plastically disrupt the crystal structure producing amorphous minerals (Tromans and Meech 2001, Atashin et al 2015). As amorphous compounds exhibit much lower diffusivity, such extensive grinding reduces the CO2 mineralization rate.

2.1.1. Verification of SCR $+$ EMT method

Gas-solid CO2 mineralization is mechanistically equivalent for natural minerals and 'artificial' minerals arising from industrial processes. One such artificial mineral is the solid waste from steelmaking called 'slag'. Slag is typically a mixture of calcium silicates and aluminates, with significant quantities of iron, manganese, and magnesium (Piatak et al 2015). The mineralogy and crystallinity of slag varies based on composition and solidification conditions (Gautier et al 2013). Due to slag's substantial variability, it offers a stringent test of the predictive skill of SCM + EMT. The eight slags shown in table 1 were tested for CO2 mineralization using the methods in Myers et al 2019. Figures 1(a)–(h) demonstrate the accuracy of the SCR + EMT model across the different mineral ensembles, crystallinities, particle sizes, and CO2 concentrations. As the model is based on empirically determined, mineral-specific $D$, it can be applied to any mineral ensemble for which relevant data is available.

Figure 1. Refer to the following caption and surrounding text.

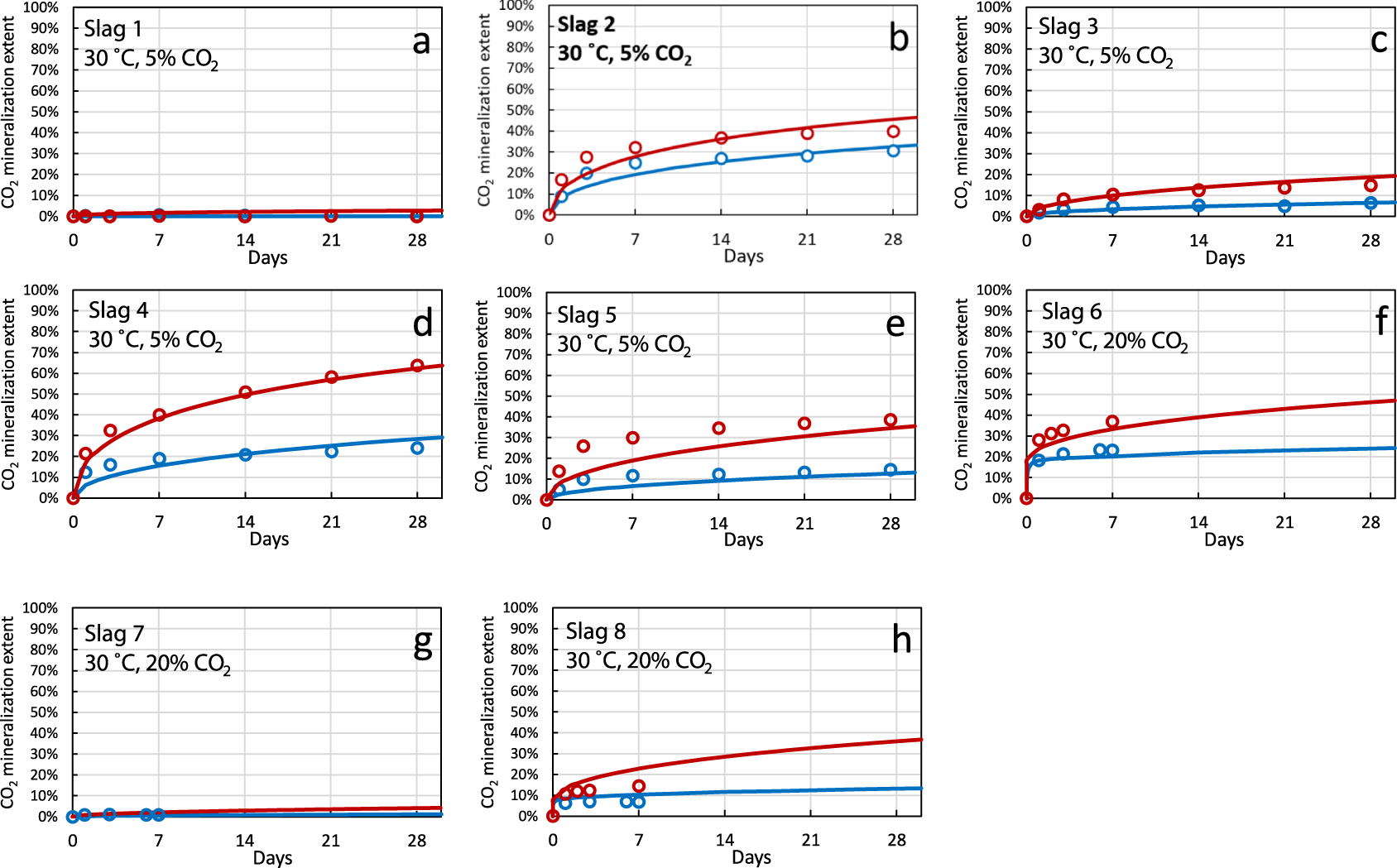

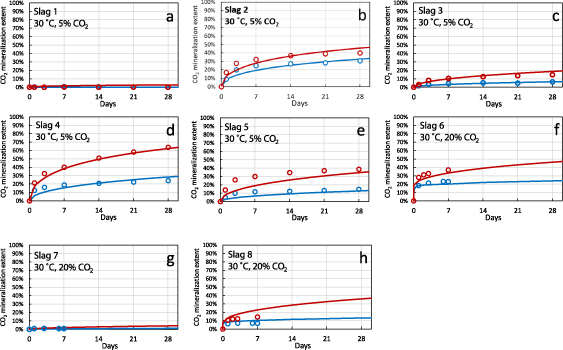

Figure 1. Empirical (dots) and theoretical (lines) CO2 mineralization of slags 1–8 from table 1 (a–h, respectively) as a function of time and particle size (blue: 25–90 µm; red: < 25 µm). CO2 mineralization extent is the molar percentage of Ca and Mg content converted to carbonate form.

Standard image High-resolution image

Table 1. Elemental composition, mineralogical composition, and crystallinity of slags used to test SCM + EMT method.

 Slag #12345678
Elemental composition SiO2 42.1% 13.4% 38.8% 26.6% 32.8% 18.1% 34.1% 35.4%
CaO 22.5% 44.4% 24.7% 29.6% 24.4% 53.8% 38.8% 37.8%
MgO 1.4% 2.6% 1.6% 1.7% 1.6% 4.4% 7.1% 6.6%
FeOa 15.0% 29.0% 15.7% 26.4% 23.4% 15.2% 0.1% 0.3%
MnOb 8.0% 3.6% 7.6% 7.3% 8.8% 2.6% 0.1% 0.2%
Al2O3 5.9% 2.6% 7.2% 4.0% 4.5% 2.1% 17.4% 16.4%
Othersc 5.3% 4.5% 4.6% 4.4% 4.5% 3.7% 2.3% 3.3%
Mineral composition Ca2SiO4 5.7% 23.4% 10.8% 19.4% 5.5% 24.5% 33.2%
Ca3Al2O6 8.4%
CaSiO3 24.9% 3.9% 17.9% 20.0% 17.3%
MgSiO3 4.3% 6.0%
FeSiO3 13.0% 0.7% 3.4% 9.7%
Fe2SiO4 3.3% 0.4% 1.9% 2.0%
Fe3O4 11.7% 20.8% 7.5% 7.8% 1.3% 0.7%
FeO 9.4% 37.0%
SiO2 12.3% 12.8% 7.3% 9.5%
Ca0.82Fe0.18SiO2 20.5%
Fe2O3 0.4% 9.7% 6.2% 7.1%
Ca2Fe2O5 25.8% 6.0% 5.3% 9.1%
(Ca/Fe)SiO3 15.0% 10.3%
CaO 17.5% 2.4% 12.5% 4.9%
Ca(Fe/Mg)Si2O6 24.7% 5.4% 9.5%
Ca3Si2O7 6.2%
CaFeSi2O6 9.7%
Ca3Fe2Si3O12 2.7%
Others 8.1% 8.5% 7.9% 9.9% 7.6% 30.4% 18.2%
Amorphous 34.1% 27.6% 23.3% 17.4% 16.0% 25.2% 100% 25.6%

aall Fe converted to FeO ball Mn converted to MnO cincluding phosphates and sulfates

2.1.2. Direct air mineralization of natural rocks

Using SCM + EMT, the CO2 mineralization rate of several crystalline compounds was modeled to highlight both general trends and the importance of rock selection. Note that these represent a small selection of compounds present in actual rock formations. In figure 2, minerals were assumed to be ground in a vertical roller mill such that small particles (diameter < 3 µm) are elutriated to limit amorphization (CMIC 2016). The particle size number distribution can be approximated by a lognormal distribution characterized by a mean and standard deviation of the ${\text{ln}}$ of particle diameters of 0.35 µm and 0.66 µm, respectively (Kolmogorov 1940). Operating conditions were set to 30 ˚C, a relative humidity of 90%, and 415 ppm CO2 air. Figure 2 provides the predicted CO2 mineralization extent over one year. The logic behind targeting the oxide/hydroxide content of mine tailings as suggested by Zarandi et al 2017 is obvious from their rapid CO2 mineralization rate. However, the scarcity of oxides/hydroxides means they are unable to provide the hundreds of gigatonnes of negative emissions required over the 21st century. Likewise, the rapid CO2 mineralization displayed by calcium silicates supports the targeting of waste cement, ironmaking and steelmaking slag, and similar industrial wastes. However, the low natural abundance of calcium silicates limits their use for NETs. Also apparent from figure 2 is that the CO2 mineralization rate of magnesium silicates and calcium aluminosilicates are significantly slower than that of oxides and calcium silicates. Figure 2 highlights that the specific mineral ensemble of a rock formation can dramatically alter not only its total CO2 mineralization potential but also its CO2 mineralization rate.

Figure 2. Refer to the following caption and surrounding text.

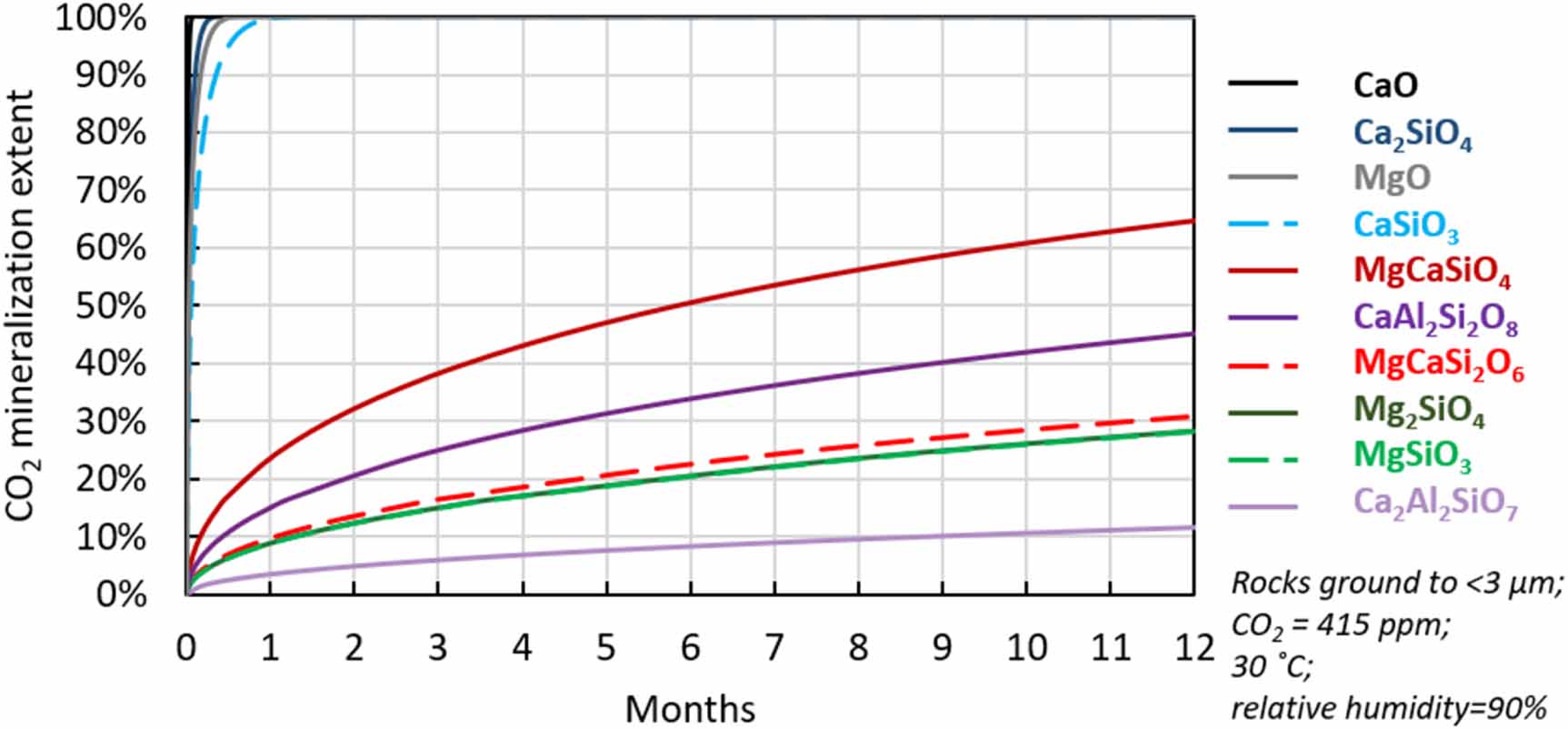

Figure 2. CO2 mineralization extent over one year for various minerals ground to <3 µm at atmospheric CO2 concentrations, 30 ˚C, and relative humidity of 90%.

Standard image High-resolution image

2.2. Equipment design and CO2 emissions

The envisioned direct air mineralization system is shown in figure 3. It consists of a mining site and a 23 m-high, 1 km-long greenhouse whose width varies to accommodate the mine size. After clearing vegetation and removing soil, surface rocks are mined, transported, and finely ground. Field studies of mine tailings (Lechat et al 2016) and slag piles (Pullin et al 2019) show limited CO2 mineralization over the course of years to decades. This relative lack of CO2 mineralization is largely due to the pressure drop through the bulk solids impeding ingress of fresh air. To ensure adequate supply of CO2, the direct air mineralization system uses a tiered geometry within the greenhouse to reduce the pressure drop. Additionally, fans provide a slightly negative pressure in the greenhouse to continuously draw in fresh air. A purpose-built solar photovoltaic system sits atop the greenhouse and is tied to a lithium ion battery storage system (PV + LiB) which provides the power for all activities in the direct air mineralization system. The amount of PV + LiB is based on operational energy consumption calculated in this section. Lifetime CO2 intensity for purpose-built solar PV of 9.8 g-CO2/kWh (Pehl et al 2017) and LiB of 61 Kg-CO2/kWh of battery capacity with a 3,000 cycle lifetime (Emilsson and Dahllöf 2019) were assumed. The negative CO2 emissions for the direct air mineralization system is calculated per the logic in figure 4.

Figure 3. Refer to the following caption and surrounding text.

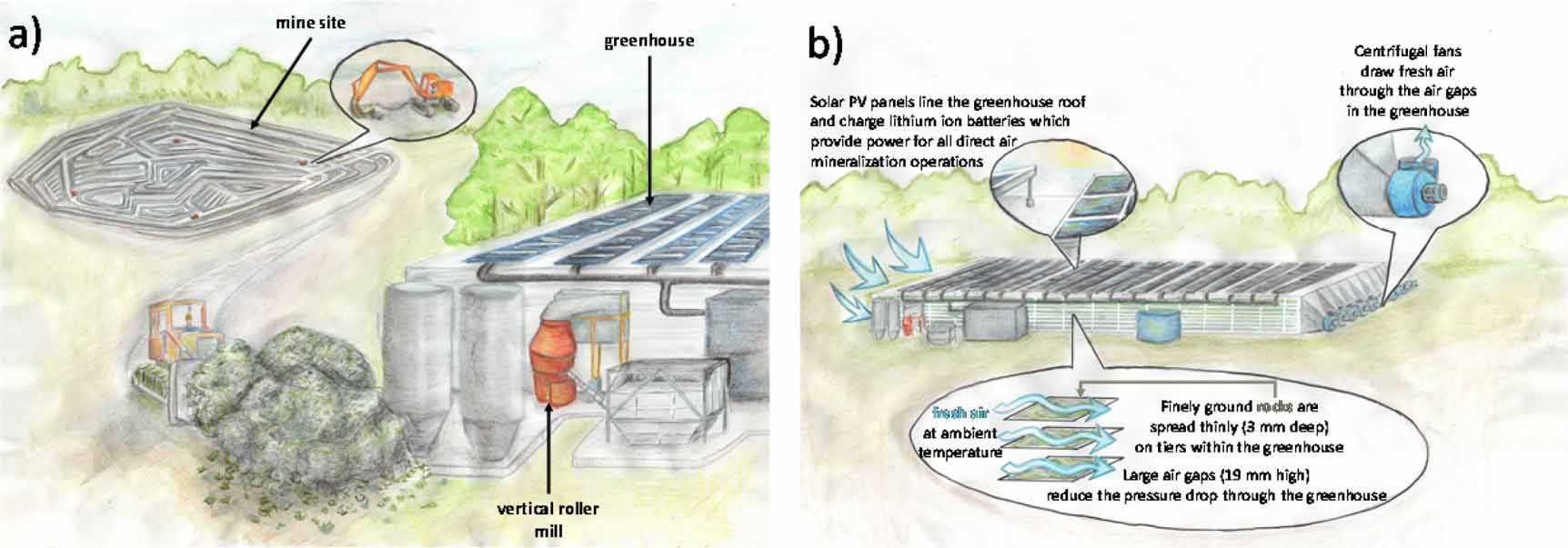

Figure 3. Layout of (a) the direct air mineralization system and (b) the tiered greenhouse (Jackson 2020).

Standard image High-resolution image
Figure 4. Refer to the following caption and surrounding text.

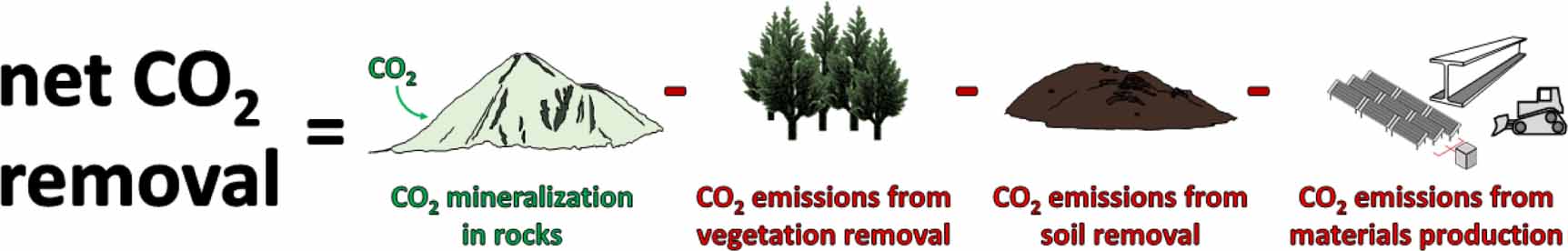

Figure 4. Schematic of CO2 accounting for the direct air mineralization system.

Standard image High-resolution image

2.2.1. Energy for the extraction, handling, and grinding of rocks

The energy required for the extraction and handling of rock was set to 13.1 kWh t−1-rock, based on average industry values for metals and minerals mining (CIPEC 2005, US DOE: Industrial Technologies Program 2007). As the current analysis covers many sites, industry averages were judged to be sufficiently accurate (i.e. site-specific analysis deemed unnecessary). Though extraction and handling equipment is traditionally fossil fuel powered, large scale battery-powered mining equipment is now commercially available. As such, this analysis assumes a fully electrified system. Rock handling after direct air mineralization is dependent on the final use case (e.g. filler in construction, refilling of mined site), and so was simply set equal to the initial handling energy.

The energy to finely grind rocks was calculated based on the quantity of newly generated surface area, the mineral-dependent surface energy, and the grinding efficiency. The particle size distribution from section 2.1.2 and mineral-specific surface roughness were used to calculate the newly generated surface area ($\sim 3.6 \times {10^6}{\text{ }}{{\text{m}}^2}\,{{\text{m}}^ - }^3$). The mineral-dependent surface energy has previously been calculated from the mineral structure (Myers and Nakagaki 2018). Despite higher grinding efficiencies expected from the compression-based grinding used here, we conservatively set grinding efficiency to 1% (Tromans 2008).

2.2.2. Energy for fan operation

Fans were selected based on the necessary flowrate and resultant pressure drop in the greenhouse. The greenhouse consists of tiers of finely ground rock spread 3 mm deep with air gaps of 19 mm. While convective and diffusive mass transport of CO2 applies to the air gap, CO2 transport through the pore spaces between finely-ground rocks is limited to molecular diffusion. Effective molecular diffusion through the finely-ground rock layer, accounting for the details of the macroporous geometry, was calculated to ensure that CO2 mineralization rate was not limited by CO2 diffusion (Gaiselmann et al 2014).

The mineralization of CO2 reduces its gas phase concentration, thereby slowing the mineralization rate. Increasing the flowrate stabilizes the gas phase CO2 concentration and the overall reaction time trends towards the SCM + EMT prediction. However, higher velocities also increase the pressure drop, energetic penalties, and risk of entraining ground rock. The air flowrate was based on optimizing against these competing influences. The tiered geometry and low flow velocity produce a laminar flow. Pressure drop through the greenhouse was calculated based on the Darcy–Weisbach equation with pressure drop from expansion and contraction zones calculated based on ventilation industry standards (ASHRAE 2001).

A radial type fan was selected using the Cordier diagram based on the dimensionless specific speed (${N_{\text{s}}} = 0.9$) and dimensionless specific diameter (${D_{\text{s}}} = 1.8$) (Wright 1999). Even with the tiered design, the greenhouse induces a large pressure drop, meaning a radial-type fan is preferable over the axial-type fans seen in many direct air capture systems. A backward inclined centrifugal fan with a ∼0.56 m diameter impeller, powered by a 14.9 kW motor was selected from commercially available models. The number of fans required depends of the site-specific greenhouse size.

2.2.3. Materials production

The CO2 emissions related to the manufacture of materials used to construct the greenhouse, fans, grinding equipment, and mining equipment was based on recent material-specific data (Bousted 2005, Olivier et al 2017, Zheng and Suh 2019). Material requirements for the greenhouse foundation and structure were based on standard practices (Salazar and Rios 2010). The greenhouse sits atop a concrete pad and is constructed from square steel piping with a 1 cm thick polycarbonate skin to withstand the frequent typhoons in Japan. Internal tiers are made of woven, high density polyethylene (HDPE) sheets pulled taut. The polycarbonate skin and HDPE sheets were assumed to be replaced every 25 years and 10 years, respectively. Though mineralization of CO2 with the clinker content of the concrete pad is expected, it was not included in the analysis to provide a conservative estimate.

The mass of centrifugal fans and motors was provided by vendors. Fans and motors were assumed to be replaced every 10 years. The material requirements for grinding equipment was based on vertical roller mills used in the cement industry with the internals replaced every 10 years. Materials requirements for rock mining and transportation equipment was modeled on commercially available electric excavators and haulers with an assumed service life of 5 years. The size and number of excavation, transport, and grinding equipment was based on the assumption of continuous operation.

2.2.4. Biological emissions and losses

The carbon content of vegetation and soil removed to access rocks was estimated from Japan-specific analyses of organic carbon content and converted completely to CO2 (Morisada et al 2004, Sasaki and Kim 2009, Takahashi et al 2010). The depth of soil was based on site-specific information (Pelletier et al 2016). In addition to the one-time loss of carbon due to excavation, there is an annual loss in CO2 removal capacity from the destroyed vegetation. For the land occupied by the greenhouse, there is the one-time emission from vegetation removal and the annual loss of productive capacity. The effect of re-wilding after the closure of the mine site and greenhouse were not included due to the high uncertainty in the recovery of natural environments (Poorter et al 2016).

2.3. Quantity and geological distribution of CO2 mineralizing rocks in Japan

The CO2 mineralization potential of surface rocks in Japan was determined by reviewing geological maps that segregate Japan into 157 915 discrete regions of 127 surface rock types (Geological Survey of Japan/AIST 2020). Rock types lacking large quantities of Mg or Ca were removed. The original maps and literature were then used to manually set the ensemble of mineral compounds and the formation depth of the remaining locations. Areas containing pyrite were removed to avoid potential sulfuric acid dissolution of innate carbonates (Ross et al 2018). Densely populated areas were excluded to avoid public backlash (MLIT 2015). National parks and other areas protected under Japanese law from the erection of structures were removed from consideration (MOE Ministry of the Environment 2009). Areas less than 1 km2 in footprint were also removed from consideration due the increased potential for mining large quantities of gangue. Topography was not used to exclude sites from analysis.

3. Results

3.1. CO2 mineralization potential in Japan

All sites with potentially suitable rocks are mapped in figure 5 (i.e. prior to exclusion of populated and protected areas) with quantitative data in table 2. As rocks are at the surface, the CO2 mineralization potential is defined as a function of the depth of mining per year over the entire site: Gt-CO2/(m × y). At a mining rate of 1 m y−1, the CO2 mineralization potential by rock type and site footprint are provided in figure 6 (note that the greenhouses designed in this study can accommodate a mining depth of 2 m/y). Very large sites are primarily volcanic and pyroclastic in origin. These rocks are more likely to have considerable amorphous content, and thus, slower gas-solid CO2 mineralization rates. Figure 6(b) removes rocks of volcanic and pyroclastic origin.

Figure 5. Refer to the following caption and surrounding text.

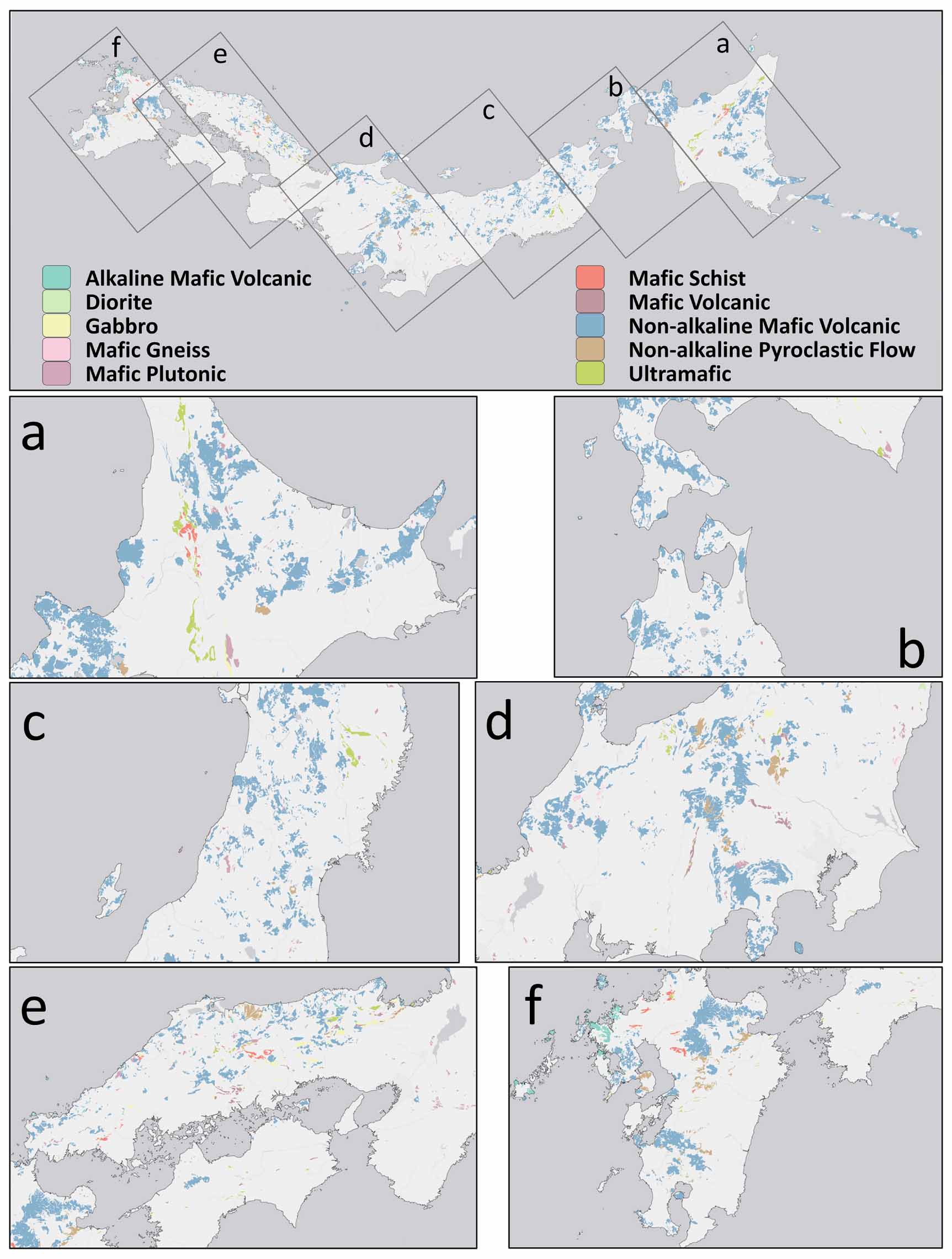

Figure 5. The geographic distribution and composition of surface rocks suitable for direct air mineralization in (a) Hokkaido, (b) northern Tohoku, (c) Tohoku, (d) Kanto, (e) Chugoku and Shikoku, and (f) Kyushu. Many small islands are not shown.

Standard image High-resolution image
Figure 6. Refer to the following caption and surrounding text.

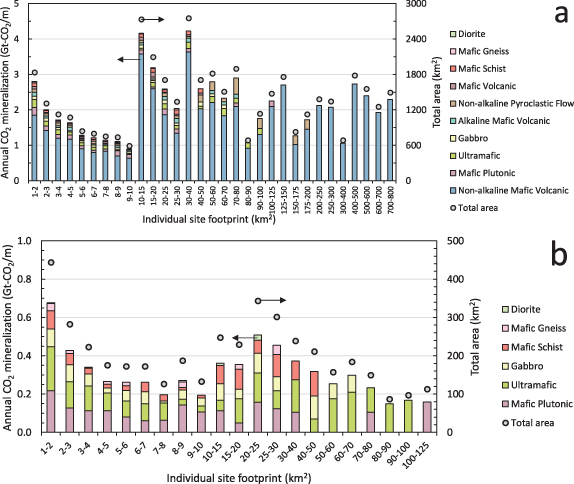

Figure 6. The CO2 mineralization potential of sites in Japan, segregated by rock type and site footprint for (a) all sites and (b) excluding sites of volcanic and pyroclastic origin. Sites <1 km2, densely populated areas, and protected zones are excluded. Colors correspond to figure 5

Standard image High-resolution image

Table 2. CO2 mineralization potential of surface rocks in Japan.

ClassificationTotal area (km2) aNumber of sites aPotential w/ depth (Gt-CO2/m) aTotal potential (Gt-CO2) a,b
AMV 836 124 1.272 64
Diorite 47 5 0.052 26
Gabbro 761 127 1.082 271
Mafic Gneiss 118 29 0.196 98
Mafic Plutonic 1304 253 1.831 458
Mafic Schist 635 102 0.945 189
Mafic Volcanic 610 103 0.787 197
n-AMV 35 626 2547 54.703 13 676
n-APF 1760 127 2.636 132
Ultramafic 1402 210 2.410 482
Total 43 100 (47 191)c 3627 (3827)c 65.914 (72.175) c 15 591 (17 069)c

aexcluding densely populated areas, protected zones, and sites with area <1 km2 bbased on minimum reported thickness cincluding densely populated areas and protected zones. AMV: alkaline mafic volcanic; n-AMV: non-alkaline mafic volcanic; n-APF: non-alkaline pyroclastic flow

Consistent with global analyses, the total potential CO2 mineralization of surface rocks in Japan (17 069 Gt-CO2) vastly exceeds NETs requirements regardless of long-term climate change mitigation goals. Surprisingly, excluding densely populated and legally protected areas only reduces the CO2 mineralization potential by ∼9% (15 609 Gt-CO2). Unsurprisingly for Japan, volcanic and pyroclastic rocks dominate the total CO2 mineralization potential (∼90%). As such, the practical CO2 mineralization potential of surface rocks in Japan hinges on the amorphous content of these rocks. Even so, focusing only on crystalline rocks in non-protected, sparsely populated areas still yields a CO2 mineralization potential for Japanese surface rocks of 1525 Gt-CO2.

3.2. Negative emissions in Japan via direct air mineralization

Direct air mineralization applied to crystalline surface rocks in sparsely populated, un-protected areas in Japan yields an average and median net CO2 removal efficiency of 59.8% and 65.0%, respectively. Figure 7 shows that the low efficiency is due almost entirely to incomplete mineralization of rock after 1 year. Since the CO2 mineralization rate is controlled by the mineral-specific diffusivity, significant improvements are unlikely. After rocks are removed from the greenhouse, CO2 mineralization may continue; however, the lack of a controlled gas-solid geometry and humidity will drastically reduce mineralization rates.

Figure 7. Refer to the following caption and surrounding text.

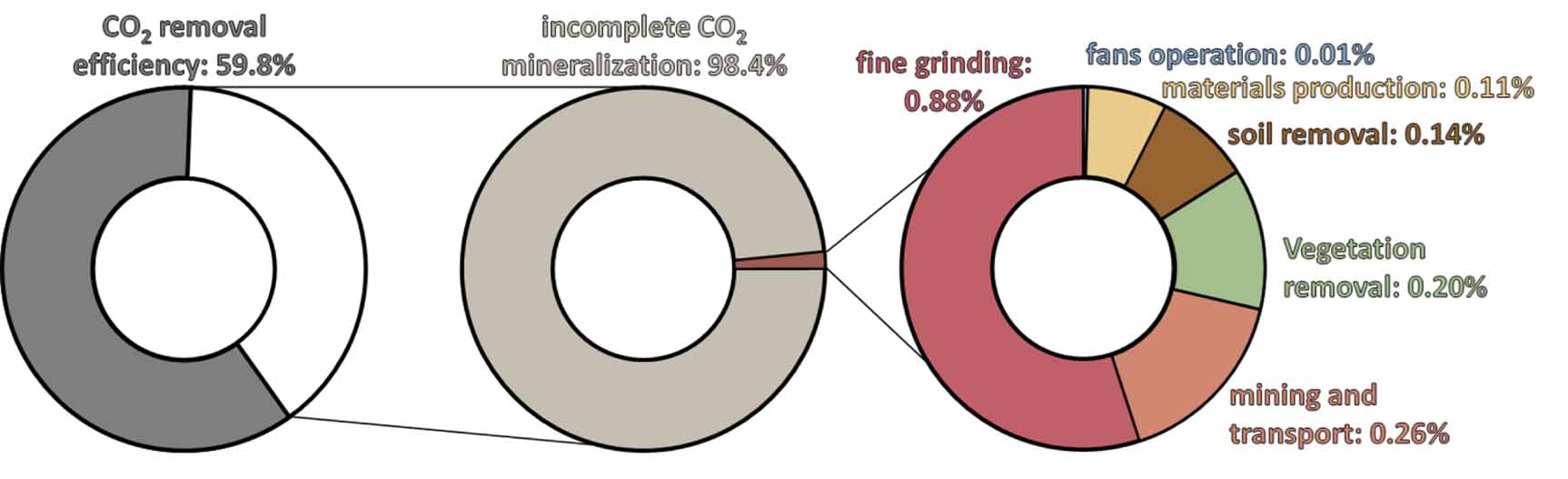

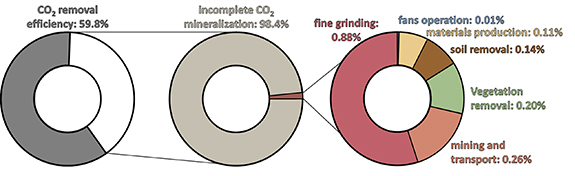

Figure 7. Breakdown of efficiency losses by direct air mineralization applied in Japan.

Standard image High-resolution image

Carbon dioxide emissions from operations and materials manufacture reduces the net CO2 removal by ∼1.6%, the bulk of which is attributable to the energy for extraction, movement, and fine grinding of rock. The average and median energy consumption are 1.51 and 1.45 GJ t−1-CO2, respectively. This is substantially less than the ∼4.7–10 GJ t−1-CO2 of direct air capture and storage methods (Creutzig et al 2019). Based on current PV power output applied in Japan (GSA 2020), PV panels mounted to the greenhouse roof would supply an average of ∼1.7 times more energy than needed for operations. Higher efficiency PV + LiB with lower CO2 footprints are likely in the coming years, only increasing the system performance. More efficient fine grinding systems are theoretically possible, but unlikely given the mature nature of the mining industry.

Emissions from removal of vegetation and soil reduce the net CO2 removal efficiency by only ∼0.34% thanks to the small footprint of the direct air mineralization system. The average and median land requirements are 1.13 km2 and 1.08 km2 per Mt-CO2 removed per year, roughly equivalent to direct air capture and storage methods. This area is equally split between the mining site and greenhouse. The average payback period of the combined carbon debt from all sources is 60 days.

In increasing order of size, with a mining depth of 2 m y−1, yields the net CO2 emissions in Japan as shown in figure 8 (averaged over 50 years of operation). Maximum negative emissions are ∼7.6 Gt-CO2/y. For allocation of negative emissions quotas to Japan, we use the multi-criteria approach of Pozo et al 2020 to set a lower bound of 11.5 Gt-CO2 by 2100. We set the upper bound to 98.9 Gt-CO2 by 2100, equal to all emissions from 1850 to 2100 assuming emissions reductions inline with Japan's mid-century strategy and assuming linear reductions thereafter to a net zero CO2 society (Government of Japan 2019). This upper bound represents an aspiration to return to the pre-industrial revolution climate. Meeting these negative emissions targets by 2100 requires 0.144–1.236 Gt-CO2/y of negative emissions if started in 2021. This would require ∼80–619 km2 spread across 74–393 sites.

Figure 8. Refer to the following caption and surrounding text.

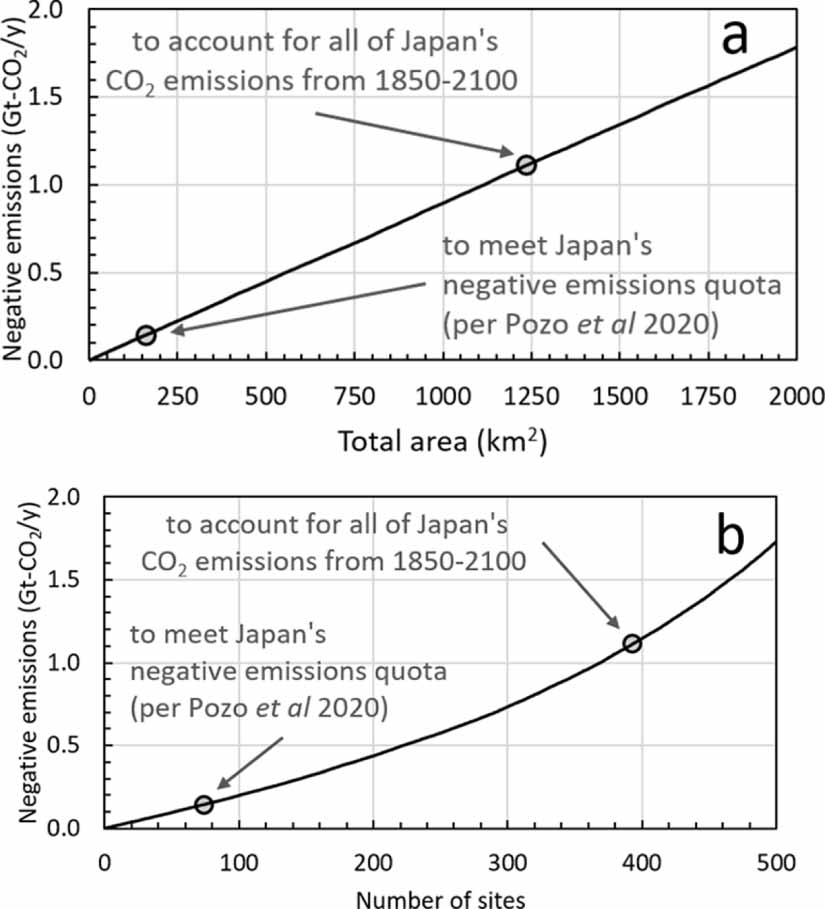

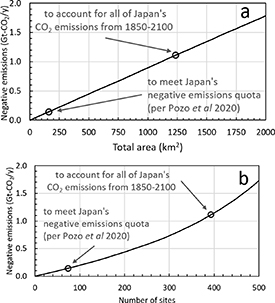

Figure 8. Negative CO2 emissions starting from the smallest sites as a function of (a) the total area and (b) the number of sites. Volcanic rocks, pyroclastic rocks, densely populated areas, protected zones, and sites <1 km2 are excluded.

Standard image High-resolution image

3.3. Utilization of carbonated rock powder

The mass of carbonated rock powder produced by direct air mineralization as a function of negative emissions is shown in figure 9(a). This rock powder is similar in size to clays often used in mechanically stabilized earth construction, backfill, and general infrastructure projects. Recent regulations (ASTM A1115/A1115M-19 2019) support such earth-based construction methods in accordance with the United Nations Sustainable Development Goal 12. Japan has a long history of large-scale land reclamation projects using rocks. For example, the building of artificial islands in Osaka Bay from rocks obtained by nearby mountains utilized ∼263 million m3 of fill material to create 15.59 km2 of land from 1953–1981 (Tanaka et al 1983). Figure 9(b) shows the potential for land reclamation using carbonated rock powder. Other potential usage pathways include breakwaters, seawalls, foundations for buildings and roadways, and filler in concrete.

Figure 9. Refer to the following caption and surrounding text.

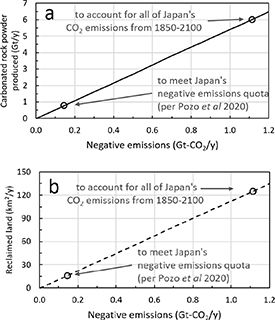

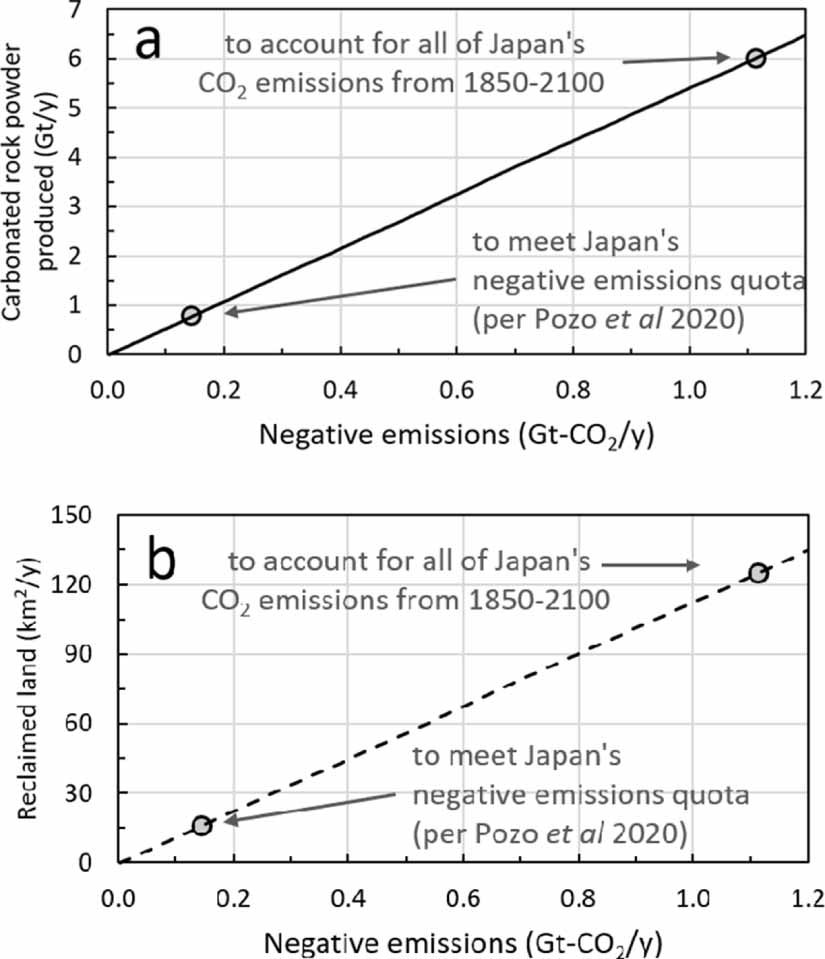

Figure 9. The (a) production of carbonated rock powder and (b) potential land reclamation as a function of negative emissions.

Standard image High-resolution image

4. Discussion

Using direct air mineralization, Japan could unilaterally remove gigatonnes of CO2 annually. This suggests that expert reviews merit upward revision for the potential scale of rock-based NETs (Smith et al 2015, Fuss et al 2018). Such reviews have rightly highlighted the unknown biogeochemical feedbacks and difficulties of verifying rock-based methods deployed at the gigatonne scale. Direct air mineralization overcomes these valid concerns by separating CO2 mineralization from the soil and hydrological systems. Further, we have demonstrated the ability to accurately predict gas-solid CO2 mineralization for heterogeneous mineral ensembles at different particle sizes and CO2 concentrations using SCM + EMT. It is worth highlighting that direct air mineralization is a coupling of TRL 9 technologies. Greenhouses with footprints >1 km2 exist in the produce industry (e.g. Thanet Earth in the UK) and effectively much larger scales are seen by co-located greenhouses (e.g. in the Almeria region of Spain). Extraction, handling, and grinding of rocks at scales ∼10 times larger than assumed in this paper are commonplace (Crowson 2003). Induced draft centrifugal fans are amongst the most ubiquitous technologies in industry. Battery-powered mining equipment is already being sold by major manufacturers. Purpose-built PV + LiB systems of the size necessary for direct air mineralization are not only available, their costs continues to drop (Lazard 2019). As no technological breakthroughs are needed, and direct air mineralization operates equivalently at the kg-CO2 and Gt-CO2 scales, it can be rapidly scaled-out and scaled-up.

While net negative emissions of ∼7.6 Gt-CO2/y do not rise to that required to likely stay below 2 °C, much less 1.5 °C in 2100, Japan accounts for only ∼0.24% of the world's sovereign land. Concurrent adoption of direct air mineralization by countries with suitable surface rocks would likely provide sufficient negative emissions to meet Paris ambitions. Japan can meet its negative emissions quota put forward by Pozo et al 2020 of 11.5 Gt-CO2 using an area 79.6 km2, or about 1.35 Manhattan's. Assuming Japan meets its current emissions reduction pledge, it could compensate for all of its historical emissions to 2100 (∼98.9 Gt-CO2) by applying direct air mineralization to an area of ∼619 km2. For perspective, this is less than 1% of Japan's land area and roughly the size of St. Lucia, Liechtenstein and Andorra combined, or Singapore.

With an abundance of potential sites for direct air mineralization, a key question becomes 'which sites are most promising?' . This question can be interpreted in terms of technical feasibility, social acceptance, and co-benefits. To determine technical feasibility, the most critical aspect is the specific mineral ensemble of a site. While detailed geological maps were used in the current study, the inherent variability in rock formations means that detailed field studies of the mineral composition and formation depth of prospective sites should be performed. Assuming viable rocks are available, technical aspects such as topology, accessibility via extant roads, and availability of a local workforce become important when selecting a site. Many of these technical issues bleed over into social acceptance and co-benefits. The direct air mineralization system requires decades of full-time employment of the mining operations, greenhouse, and transport of carbonated rocks to the usage site. For rural areas with depressed economies, or traditional mining economies undergoing transition (e.g. coal), the direct air mineralization system may offer long-term employment in the 'green economy'. The acute losses to local vegetation means that areas that have already been altered for other purposes (e.g. monoculture forestry, farming) are preferable to mature, biodiverse sites. In terms of co-benefits, sites located near large infrastructure projects (e.g. land reclamation, sea walls) are favored as they provide a re-use pathway for the carbonated rock while also reducing the aggregate mining required for the infrastructure project.

In contrast to other NETs methods, the direct air mineralization produces a stable, concentrated form of CO2, which can be held in the hand. While this makes CO2 accounting simple and assuages many public perception issues, it also raises the question of 'what to do with the material?'. Our initial analysis suggests that the quantity of material is within the realm of experience of Japanese land reclamation projects. Pelletization and aggregation of carbonated powder into larger solids would further expand its usage pathways. Actual adoption will of course require study of the behavior of the carbonated rock in such applications and proper regulatory scrutiny. However, such increased circularity is a desirable and required trait of the global society in the 21st century.

5. Conclusion

Gas-solid CO2 mineralization of mixed-composition rocks was found to be accurately modeled by the SCM supplemented with EMT. It was determined that rock type and crystallinity are the strongest controls over the CO2 mineralization rate. Moreover, acceleration of CO2 mineralization is best achieved by grinding, though grinding to sub micrometer levels reduces CO2 mineralization through amorphization of the crystal structure. Based on an analysis of geological maps, the maximum potential of surface rocks in Japan to mineralize CO2 was found to be 17 069 Gt-CO2. Exclusion of natural parks protected by Japanese law and densely populated areas reduced the potential to 15 591 Gt-CO2. Removal of volcanic and pyroclastic rocks—due to high amorphous content—results in a CO2 mineralization potential of 1525 Gt-CO2 spread across 726 sites.

A direct air mineralization system was designed to realize gas-solid CO2 mineralization at ambient temperatures and CO2 concentrations without the use of chemical additives. Mined surface rocks are finely ground and thinly spread on tiers within a high humidity greenhouse. Fresh air is continually supplied by induced flow centrifugal fans. Rocks are left in the greenhouse for 1 year for CO2 mineralization to proceed. Site-specific net CO2 emissions were calculated, accounting for CO2 mineralization extent, CO2 emissions from energy production, CO2 emissions from materials manufacture, and carbon lost from soils and vegetation removal. Based on reasonable engineering assumptions, the negative CO2 emissions potential for direct air mineralization in Japan is ∼7.6 Gt-CO2/y. The average energy consumption is 1.5 GJ t−1-CO2. The average land requirement is 1.1 km2 per Mt-CO2 annual removal capacity. On average, carbon debt is paid off with 60 d of operation.

Acknowledgments

We would like to thank the Japanese government for continued support of research and development of climate change mitigation and negative emissions technologies.

Data availability statement

The data that support the findings of this study are available upon reasonable request from the authors.
