Evidence for accelerated weathering and sulfate export in high alpine environments

Mountain snow and ice supply approximately one third of global discharge to the ocean (Meybeck et al 2001), and provide freshwater to a large portion of the world's population (Viviroli et al 2007, 2011), especially in arid and semi-arid regions. The importance of mountains as water resources comes from the high-quality nature of water generated in alpine basins and because of the role of mountains as 'water towers' that supply domestic and agricultural use during dry seasons at lower elevations. Physical processes that occur in mountains are also important controls on river chemistry and sediment fluxes. High elevation regions dominate the global processes of sediment erosion and mineral weathering (Bluth and Kump 1994, Kirchner et al 2001). The chemical weathering of mountainous regions is a key control on river chemistry and alkalinity and therefore a vital contemporary control on the baseline water chemistry of downstream river networks (Meybeck 1987, Drever 1997).

Over the past two decades, a number of studies have noted increasing sulfate $\left({{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-}\right)$ and/or base cation (Ca²⁺, Mg²⁺) concentrations in high elevation lakes and streams on several continents (Sommaruga-Wögrath et al 1997, Thies et al 2007, Gislason et al 2009, Todd et al 2012). These studies often include a limited number of measurements made at particular points in time, but taken as a whole, this body of literature indicates that increased base cation and ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-}$ concentrations are relatively common. We identify that such patterns have been observed in the literature in at least 94 different alpine streams and lakes around the globe (figure 1; also see table S1 which is available online at stacks.iop.org/ERL/14/124092/mmedia). Trends in stream/lake concentrations were between 0.87 and 222 μeq l⁻¹ yr⁻¹ for SO₄²⁻, and between 0.90 and 140 μeq l⁻¹ yr⁻¹ for base cations (Ca²⁺ and/or Mg²⁺). Importantly, these records come from multiple continents and mountain ranges, including the Alps, Himalayas, Rockies, and the Icelandic Shield. Measurement locations are all at high elevations and/or high relief, contain metamorphic bedrock (excluding Iceland), have known periglacial or glacial conditions, and have experienced limited human disturbance to catchments.

Zoom In Zoom Out Reset image size

There is some additional evidence of increasing SO₄²⁻ and/or cation increases in other cold regions, a phenomenon that has not been fully explored. For example, increasing cation and SO₄²⁻ flux has been observed for small and very large watersheds with varying levels of permafrost in Alaska's Yukon River Basin (Petrone et al 2006, Toohey et al 2016). These increasing trends have been attributed to changes in hydrology and increases in mineral weathering and sulfide oxidation (Toohey et al 2016). We also found trends of increasing ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-}$ fluxes in a set of glaciated mountain catchments in British Columbia, Canada that are representative of the Canadian Rockies and the Coast Mountains (figures S2–S4). While these larger, soil-mantled catchments do not exclusively represent conditions in alpine environments, the increasing mass flux is clearly in line with the broader global patterns.

The consistency of these patterns suggests the possibility of a broad global scale change in mountain systems. At present, only a few global phenomenon are plausible. They include: increasing atmospheric deposition of ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-}$ and cations (direct mechanisms), or elevated carbon dioxide in the atmosphere, or global temperature increases and or changes in temperature patterns at high elevations (both being potential indirect mechanisms). In most cases, atmospheric deposition of SO₄²⁻ is declining in these systems and base cation deposition shows relatively little directional change in many locations (Tessier et al 2002, Lehmann et al 2005, Tørseth et al 2012); and we revisit this hypothesis later in the text. Elevated carbon dioxide is likely to enhance mineral weathering due to the 'acid attack' of carbonic acid upon minerals. However, carbon dioxide is not involved in the reactions likely responsible for ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-}$ production (equation (1)). Further, the timescale for a weathering response to increasing CO₂ in the atmosphere is on the order of hundreds of years (Colbourn et al 2015). Climate change is left as the most likely global driver that could lead to a synchronous increase in cations and ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-}$ in alpine environments, as has been suggested throughout the literature. The climate effect might work via more rapid weathering rates (kinetics), exposure of highly weatherable materials (thawing of ice and permafrost), or perhaps through both mechanisms

$$\begin{eqnarray}&&{{\rm{15O}}}_{{\rm{2}}}+{{\rm{14H}}}_{{\rm{2}}}{\rm{O}}+{{\rm{15FeS}}}_{{\rm{2}}}={{\rm{8H}}}_{{\rm{2}}}{{\rm{SO}}}_{{\rm{4}}}+{\rm{4Fe}}{\left({\rm{OH}}\right)}_{{\rm{3}}}.\end{eqnarray} \tag{ 1 }$$

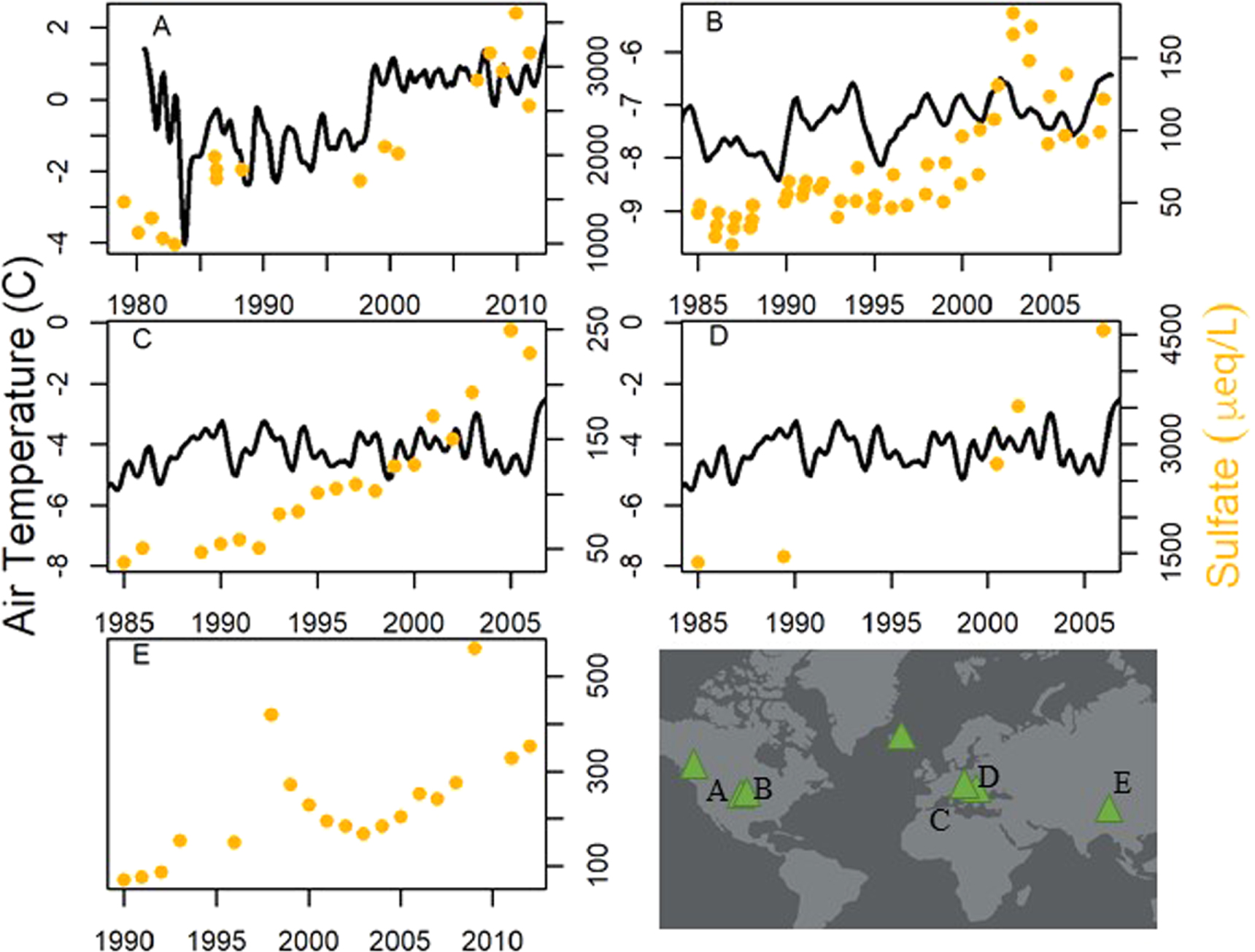

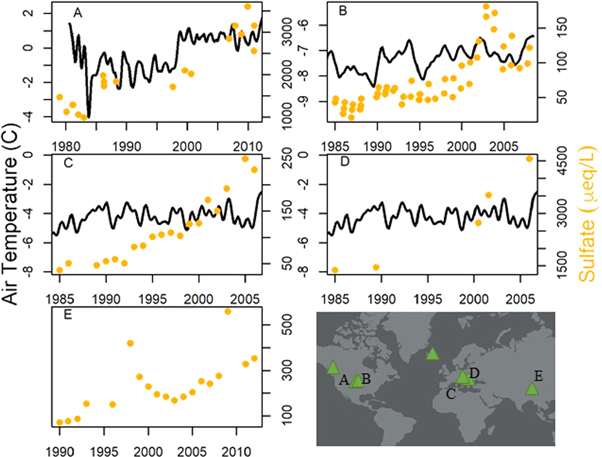

At a global scale, many high altitude regions are warming much faster than adjacent low-lying areas (Wang et al 2014). And there is evidence that climate has changed across these geographically diverse alpine sites; we show sites with a combination of rising SO₄², base cations, and rising air temperature in figure 1 (also see table S1). In the Alps, for example, the mean annual air temperature increased by more than 1 °C since 1980 up to the publication date (Thies et al 2007). Warming trends were also documented in the Rockies where mean annual and mean summer air temperatures have increased by 0.2 °C−1.2 °C per decade beginning in the 1980s (Todd et al 2012). In other regions such as the Himalaya (Salerno et al 2016), and in our study site in Colorado, the loss of glaciers and permafrost (Leopold et al 2015) are indirect evidence of a changing climate. However, alpine air temperatures can also show more complex patterns relative to the steady increases documented in the literature. In the high alpine of the Rocky Mountains for example, dampened diurnal air temperature ranges and teleconnections to atmospheric circulation patterns represented by the North Pacific Index and the El Niño-Southern Oscillation can lead to more complex temperature signals that are non-monotonic (Kittel et al 2009). Although there are well understood geologic time scale feedbacks between climate, mountain uplift, and mineral weathering (Gaillardet et al 1999, West et al 2005, Gislason et al 2009, Maher and Chamberlain 2014), relatively little is known about how climate might alter contemporary weathering or element release. However, it is clear that alpine and other high elevation/high latitude ecosystems are rapidly losing glacial and periglacial features and permafrost is thawing (Haeberli et al 1993, Paul et al 2004, Gruber and Haeberli 2007, Jones et al 2019), which has significant implications for changing both the hydrologic regime and biogeochemical cycling in these systems.

To investigate the emerging global pattern of elevated base cation and ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-}$ concentrations in high elevation freshwater systems, we examined a long-term dataset from the Niwot Ridge Long Term Ecological Research Site located in Colorado, USA. This location was selected because of its high-resolution chemical and hydrologic sampling that extends back to 1984. We used a combination of mass balance and isotopic data, as well as findings from previous investigations, to determine the likely cause of elevated ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-}$ and base cation flux from this alpine ecosystem.

We calculated mass balance budgets for ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-},$ Ca²⁺, Mg²⁺, and other constituents for the Green Lakes Valley catchment in Colorado, USA using long-term records of atmospheric deposition, water chemistry, and stream flow. The outlet of the Green Lakes Valley corresponds to the Albion site described in the supplementary material (watershed area = 7.1 km²). Water chemistry (Caine 2018) and stream flow data (Caine 1993), as well as climatological data were retrieved from the Niwot Ridge Long Term Ecological Research site data page (http://niwot.colorado.edu/data). Climate data are presented from an alpine monitoring location (D1) and a sub-alpine station (C1).

To estimate monthly flux of chemical constituents from the watershed, we used the Weighted Regressions on Time, Discharge, and Season (WRTDS) model (Hirsch et al 2010) contained within the EGRET package for the statistical programming language R (R Core Team 2018). WRTDS was chosen for stream flux modeling specifically because of its capabilities for decadal water quality data, which include: an ability to detect changes in concentration and flux; relationships between concentration, discharge, and season are allowed to change over time; the model produces a time-series of both actual fluxes and fluxes where the effect of inter-annual flow variability has been removed, known as the flow-normalized flux. The flow-normalized flux can be used to infer changes in the watershed that have an impact on stream chemistry that are independent of the variability in stream flow. The flow-normalized flux does not include the random variability driven by the random variability in discharge (see supplementary material 'Flow Normalized Trends in Chemical Flux'). Confidence intervals for the change in flow-normalized flux, as well as likelihood estimates of flux trends were calculated using the block bootstrap procedures (Hirsch et al 2015) built for WRTDS in the R package EGRETci.

Rates of wet atmospheric deposition of ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-},$ Ca²⁺, Mg²⁺, and H⁺ were retrieved from the National Atmospheric Deposition Program (NADP) monitoring site to the north of the stream outlet (NTN Site C002). Dry deposition was not measured at the NADP site, therefore we applied a constant dry deposition rate to all years using recent estimates made near the NADP sample collector (Oldani et al 2017).

We analyzed average daily air temperatures, and calculated degree days (sum of average daily temperatures) at a monthly time step for all months using a long-term climate record from the alpine meteorological station in the watershed (D1 site, 3743 m.a.s.l.). We also present de-trended mean air temperatures for D1 and a nearby sub-alpine climate station (C1, 3018 m.a.s.l.). We assessed the relationship between monthly degree days at D1 and flow-normalized flux from the Green Lakes Valley in seasonal bins (April–June, July–September, October–December, January–March) with linear regression using the statistical programming language R.

A survey of δ³⁴ S of dissolved ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-}$ at Green Lakes Valley was completed during summer 2018. Water samples of δ³⁴ S were taken from seeps, snowmelt and groundwaters flowing below and around the rock glacier adjacent to Green Lake 5 (n = 10). BaCl₂·2H₂O was added to 100 ml solution to induce ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-}$ precipitation from these low-concentration waters. The ³⁴S analyses were done by isotope ratio mass spectrometry at the University of California, Santa Cruz (see supplementary material 'Water Chemistry Sampling').

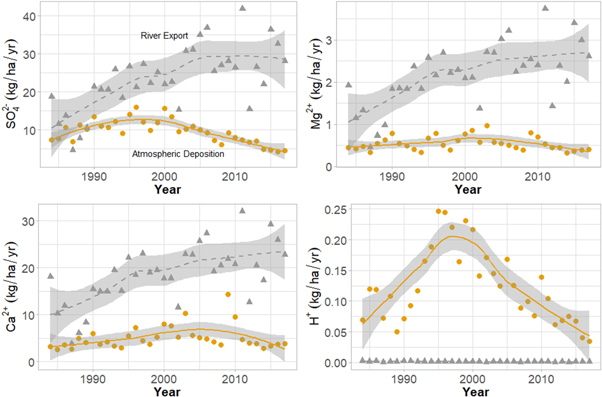

Modeling of ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-}$ and cation flux using water chemistry and stream flow data from the Green Lakes Valley catchment, a remote and undisturbed alpine watershed within the Niwot Ridge study area, revealed robust changes in the mass of elements leaving the watershed over a 33 year period (figure 2). The increases in stream export were the result of increased concentrations at all water flows and over all seasons after controlling for variation in stream flow (figures S7–S9). In this watershed, ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-}$ fluxes increased by over 200% between 1984 and 2015 while Mg²⁺ and Ca²⁺ fluxes approximately doubled over the same time period. These large increases were not simply due to chance, as the likelihood that flow-normalized ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-},$ Ca²⁺, and Mg²⁺ flux was upward trending equaled 0.988 for all constituents. Silica fluxes (figure S10) also showed an upward trend (likelihood = 0.762), but the magnitude of the increase (34%) was lower than other weathering products such as Ca²⁺. The lower silica fluxes are consistent with precipitation of secondary Si minerals as proposed by Williams et al (2006).

Zoom In Zoom Out Reset image size

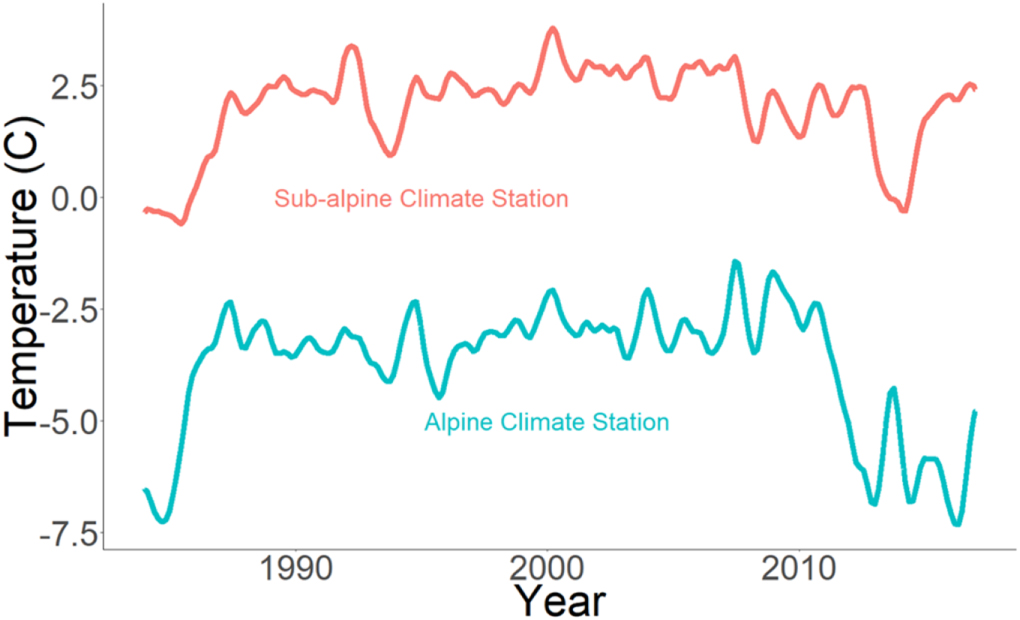

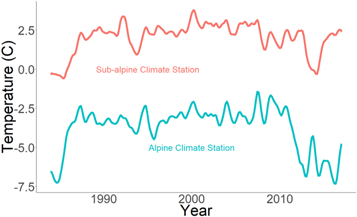

Warm periods were evident at Niwot Ridge for both the alpine climate station (D1) and the sub-alpine climate station (C1) records (figure 3). At the sub-alpine climate station, a warm period began in approximately 1984, increasing nearly 3 °C by 2009, and then slightly decreasing by 2017. Mean annual temperatures at the sub-alpine site have consistently been above the 0 °C threshold for the study period. Mean annual temperatures at the highest elevations were still below 0 °C for the period of record, but warming of nearly 5 °C occurred between 1984 and 2010. Air temperatures at D1 decreased from 2010 onward. When aggregated at a monthly time step, average temperatures have increased over time in specific months. For example, July and September trends at the alpine station were significant as assessed with the Mann-Kendall test (p-values of 0.01 and 0.05, respectively).

Zoom In Zoom Out Reset image size

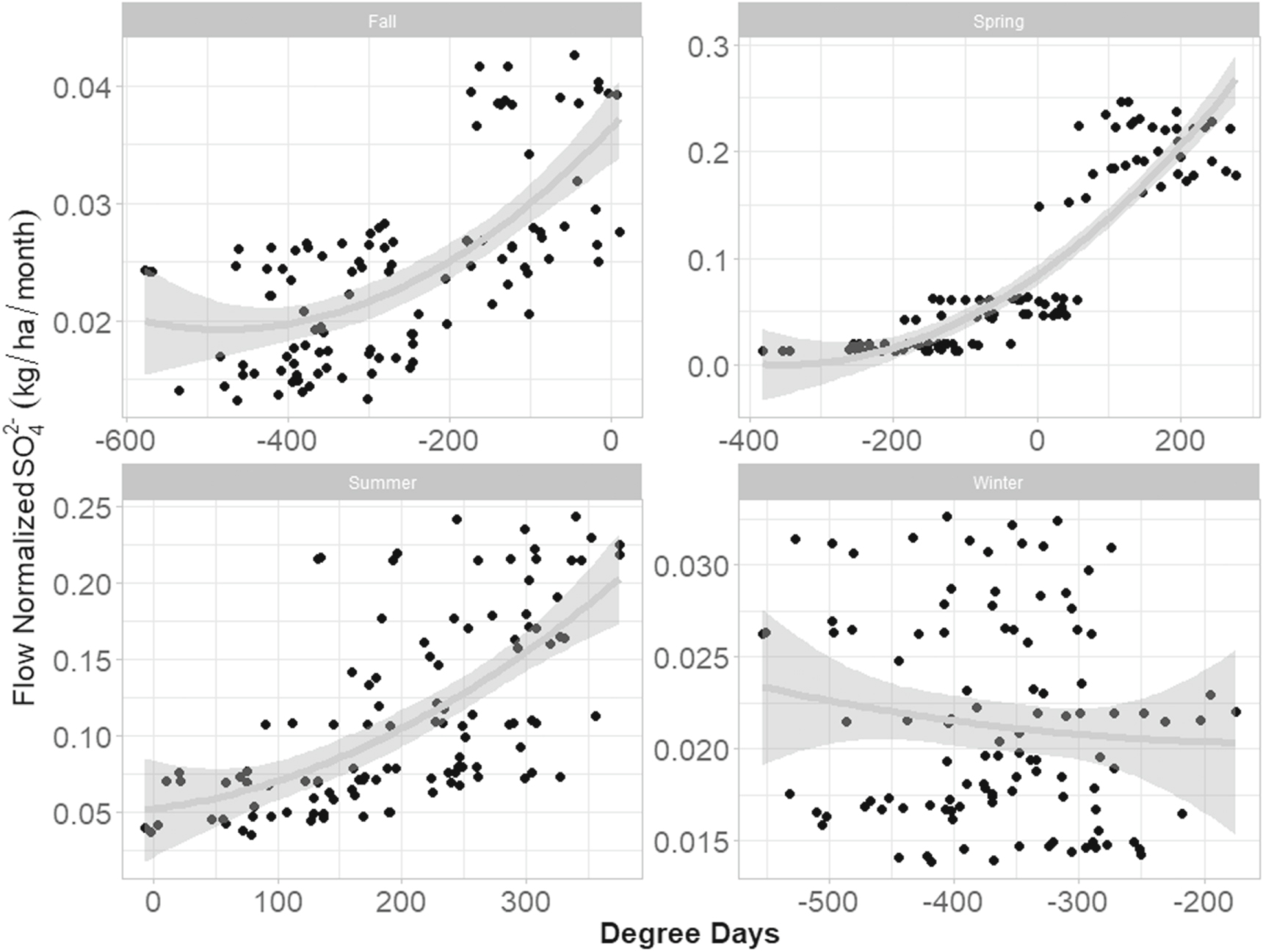

Watershed ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-}$ and cation export increased (figure 2) during a period of increased air temperatures in the Green Lakes Valley (figure 3). The long-term extent of the Green Lakes Valley stream measurements combined with nearby, high-quality meteorological data allow us to further explore the link between air temperature, ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-},$ and base cation fluxes. An analysis of the monthly sum of average daily air temperature (degree days) versus flow-normalized ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-}$ flux shows a very strong relationship for Spring, Summer, and Fall seasons, but not for the winter season (figure 4). This pattern of increased fluxes with increasing air temperatures is also the case for base cation flux (figures S11, S12). Importantly, the flow-normalized flux removes inter-annual variation in discharge. The air temperature and flux trends at Niwot are both non-monotonic (figure 3). For example, during the recent cooling phase after 2010, the ion fluxes also decreased, which suggests that ionic flux may respond to both increasing and decreasing air temperatures. Meanwhile, CO₂ in the atmosphere has risen unabated (see http://scrippsco2.ucsd.edu/).

Zoom In Zoom Out Reset image size

Potential mechanisms for increased ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-}$ and base cation fluxes

Sulfide weathering

The results synthesized for high elevation systems across the globe, including additional lines of evidence from the Green Lakes Valley, and larger permafrost regions of Alaska and the Canadian Rockies, suggest that alpine stream chemistry is changing as a result of recent warming-induced changes to bedrock weathering. These patterns suggest broad scale shifts in the geomorphology and biogeochemistry of high elevation watersheds that will lead to changes in stream chemistry. Preliminary work in British Columbia suggests the trends indicated here may also be present in lower elevation watersheds that supply large urban regions. The release of ${{{\rm{SO}}}_{{\rm{4}}}}^{{\rm{2}}-}$ and acidity from weathering of S-bearing minerals or from other physical reservoirs could have adverse effects on water supplies if the resulting decrease in pH is not countered by increasing alkalinity from other sources (such as rising base cation concentrations). Elevated cation concentrations could increase the potential for infrastructure corrosivity (e.g. Stets et al 2018), and increased water hardness with impacts on water usability. More generally, these changes are unlikely to be limited to just these dissolved constituents. Weathering reactions release a range of dissolved elements including metals. Although these elements are often not measured, increased metal discharge could lead to toxic loading to aquatic systems, as has been found in Colorado and the Alps (Thies et al 2007, Todd et al 2012), with potential negative consequences for biota and downstream water users. Such changes will be increasingly important to understand as the climate of alpine systems continues to change.

Data and support for this research were provided by the Niwot Ridge LTER program (NSF DEB—1637686). We thank Peter Vitousek, and two anonymous reviewers for critical comments on the manuscript.

The data that support the findings of this study are openly available. Data can be found at the Niwot Ridge LTER data catalog and via the Environmental Data Initiative. Also see the references for direct access to the data.
